A3LSGHE356Dual-Band GSM Phone

World Wide Webhttp://www.samsungmobile.com * Depending on the software installed or your service provider or country, some of the description in this guide may not match your phone. * Depending on your country, your phone and accessories may appear different from the illustra tions in this guide. Printed in Korea Code No.: GH68-xxxxxA English. 04/2006. Draft Please read this manual before operating your phone, and keep it for future reference. SGH-E356User’s Guide Important safety precautions Failure to comply with the following precautions may be dangerous or illegal. Drive safely at all timesDo not use a hand-held phone while driving. Park the vehicle first. Switch off the phone when refuellingDo not use the phone at a refuelling point (service station) or near fuels or chemicals.Switch off in an aircraftWireless phones can cause interference. Using them in an aircraft is both illegal and dangerous.Switch off the phone near all medical equipmentHospitals or health care facilities may be using equipment that could be sensitive to external radio frequency energy. Follow any regulations or rules in force.InterferenceAll wireless phones may be subject to interference, which could affect their performance. Important safety precautions 1 Be aware of special regulationsMeet any special regulations in force in any area and always switch off your phone whenever it is forbidden to use it, or when it may cause interference or danger.Water resistanceYour phone is not water-resistant. Keep it dry. Sensible useUse only in the normal position (held to the ear). Avoid unnecessary contact with the antenna when the phone is switched on.Emergency callKey in the emergency number for your present location, then press . Keep your phone away from small children Keep the phone and all its parts, including accessories, out of the reach of small children. Accessories and batteriesUse only Samsung-approved batteries and accessories, such as headse ts and PC data cables. Useof any unauthorised accessories could damage you or your phone and may be dangerous.Qualified serviceOnly qualified service personnel may repair your phone.For more detailed safety information, see "Health and safety information" on page 23. • The phone could explode if the battery is replaced with an incorrect type.• Dispose of used batteries according to the manufacturer’s instructions. At very high volumes, prolonged listening to a headset can damage your hearing. 2 Contents Unpack 4 Make sure you have each itemGet started 5 First steps to operating your phoneInstall and charge the phone ..................................... 5Power on or off........................................................ 6Keys and display ..................................................... 6Menu functions 9 All menu options listedSolve problems 17 Help and personal needsHealth and safety information 19 3 Overview of menu functions To access Menu mode, press < Menu > in Idle mode. 1 SIM AT  p. 10 2 2 Call records  p. 10 1 Missed calls2 Received calls3 Dialled calls4 Delete all5 Call time6 Call costs *  p. 10  p. 10  p. 10  p. 9  p. 11  p. 11 3 Network services  p. 11 1 Call diverting2 Call barring3 Call waiting4 Network selection5 Caller ID6 Closed user group7 Band selection  p. 11  p. 11  p. 11  p. 12  p. 12  p. 12  p. 12 4 Sound settings  p. 13 1 Ring tone2 Ring volume3 Alert type4 Keypad tone5 Message tone6 Folder tone7 Power on/off8 Alert on call9 Extra tones  p. 13  p. 13  p. 13  p. 13  p. 13  p. 13  p. 13  p. 14  p. 14 5 Messages  p. 14 1 Text messages2 Multimedia messages3 Push messages4 Delete all5 Voice mail6 Broadcast messages7 Memory status  p. 14  p. 14  p. 15  p. 9  p. 15  p. 15  p. 9 6 Funbox  p. 16 1 WAP browser2 Games3 Sounds4 Images5 Delete all6 Memory status7 Melody composer  p. 16  p. 16  p. 16  p. 16  p. 9  p. 9  p. 16 7 Organizer  p. 17 1 Alarm2 Calendar3 Time & date4 Calculator5 To do list6 Voice memo7 Currency exchange  p. 17  p. 17  p. 17  p. 17  p. 17  p. 17  p. 17 8 Camera  p. 18 1 Take photos2 My photos3 Memory status  p. 18  p. 18  p. 9 9 Phone settings  p. 19 1 Display settings2 Greeting message3 Own number4 Language5 Security6 Extra settings7 Side key8 Short cut9 Reset settings Press < Ph.Book > in Idle mode.  p. 19  p. 19  p. 19  p. 19  p. 19  p. 20  p. 20  p. 20  p. 20 Phonebook  p. 9 1 Search2 Add entry3 Group search4 Group edit5 Speed dial list6 Delete all7 Memory status  p. 9  p. 9  p. 9  p. 9  p. 9  p. 9  p. 9 * Shows only if supported by your SIM card. 4 Unpack Your package contains the following items.In addition, you can obtain various accessories from your local Samsung dealer.•Standard Battery• Extended Battery• Battery Charger•Headset• PC Data Link Kit• Car Charger/AdaptorHandset Battery Travel Adapter User’s Guide The items supplied with your phone and the accessories at your Samsung dealer may vary, depending on your country or service provider. Yo ur phone 5 Get started First steps to operating your phoneSIM card informationWhen you subscribe to a cellular network, you receive a plug-in SIM (Subscriber Identity Module) card loaded with your subscripti on details, such as your PIN, and available optional services.Install and charge the phone Low battery indicatorWhen the battery is low:• a warning tone sounds,• the battery low message displays, and• the empty battery icon blinks. If the battery level becomes too low, the phone automatically turns off. Recharge your battery. Remove the battery. If the phone is already on, first turn it off by holding [ ]. Insert the SIM card. Make sure that the gold-coloured contacts on the card face down into the phone. Install the battery. Plug the travel adapter into the phone. Plug the adapter into a standard AC wall outlet. When the phone is completely charged (the battery icon becomes still), unplug the adapter from the power outlet.Remove the adapter from the phone. 6 Get started Power on or off Keys and displa…

Text truncated - open the document above for the full version.


















18600 Broadwick Street






May 22, 2006        !"# $%&' ( &) "*   +,-   . / (0+1+//2(34 (5 /5 ///5 /4(0+1+// 2( 34(5555,4  .(5(65(5 / (5 1 # )57/(5)8 )94144 *4    1    1: ;&/ 1&19<;3<4 SAMSUNG ELECTRONICS CO.,LTD. 416 Maetan3-Dong Yeongtong-gu, Suwon city, Gyeonggi-Do, Korea 442-742 Date: May 22, 2006 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road, Columbia, MD 21046 RE: Request of Confidentiality for FCC ID: A3LS GHE356 To Whom It May Concern: Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules (CFR 47), and Section 552 (b) (4) of the Freedom of Information Act, SAMSUNG ELECTRONICS CO.,LTD. hereby requests confidentiality and treatment of certain information accompanying this application. The materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. We are also hereby request Short-Term Confidentiality for 180 days after the grant as outlined in Public Notice DA 04-1705. This provision will give SAMSUNG ELECTRONICS CO.,LTD. temporary confidentiality of commercially sensitive information prior to product release. The requested Confidential and Temporary Confidential exhibits are listed as follows: CONFIDENTIAL AND SHORT-TERM CONFIDENTIAL LIST Exhibit Description 1 Block Diagram 2 Operational Descriptions 3 Parts Lists and Tune-Up Procedure CONFIDENTIAL 4 Schematics 5 External Photos 6 Internal Photos 7 Test-Setup Photos SHORT-TERM CONFIDENTIAL 8 User’s Manual The Applicant understands that pursuant to Rule 0.457, disclosure of this application and all accompanying documentations, where applicable, will not be made public before the date of the Grant for this application. Sincerely, SEOUNG HO PARK SAMSUNG ELECTRONICS CO.,LTD.

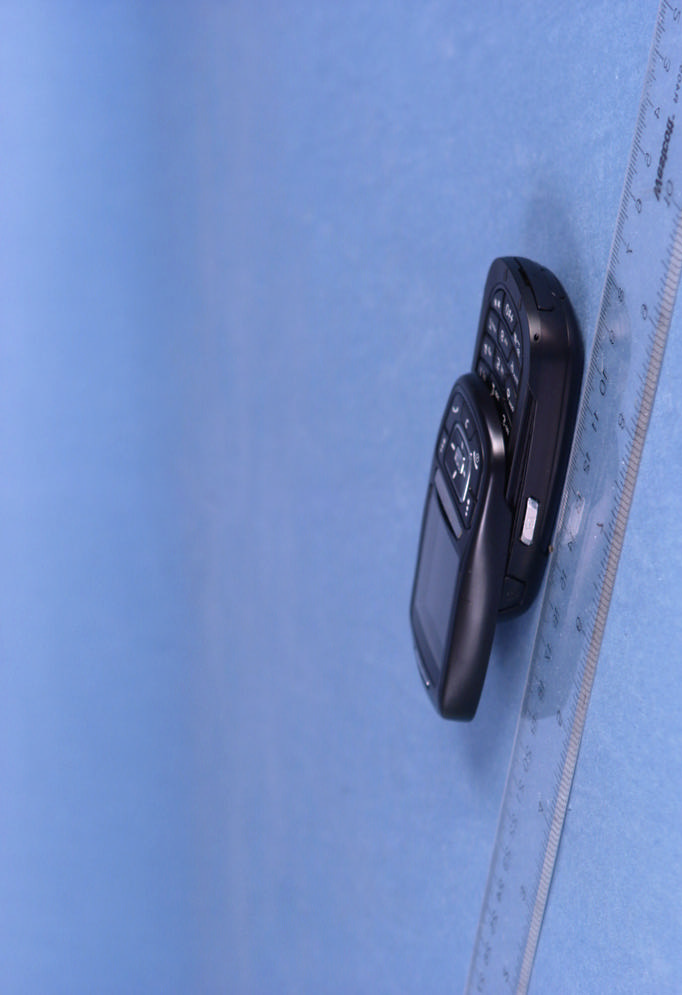

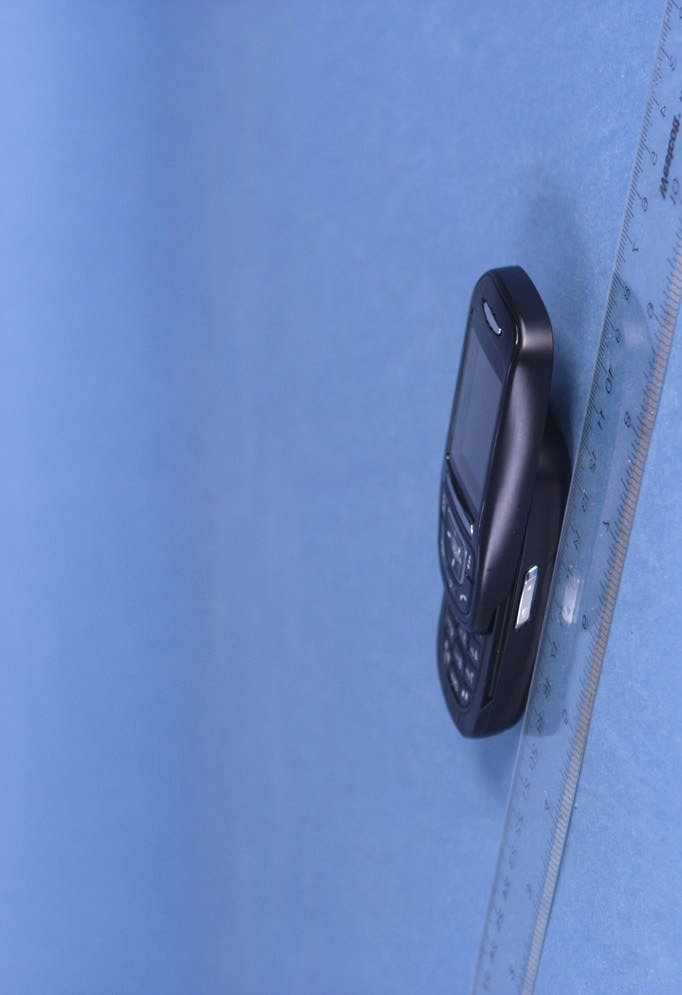

SAMSUNG FCC ID: A3LSGHE356 EUT Photographs © 2006 PCTEST Lab. Dual-Band GSM Phone Model: SGH-E356 SAMSUNG FCC ID: A3LSGHE356 EUT Photographs © 2006 PCTEST Lab. Dual-Band GSM Phone Model: SGH-E356 SAMSUNG FCC ID: A3LSGHE356 EUT Photographs © 2006 PCTEST Lab. Dual-Band GSM Phone Model: SGH-E356 SAMSUNG FCC ID: A3LSGHE356 EUT Photographs © 2006 PCTEST Lab. Dual-Band GSM Phone Model: SGH-E356 SAMSUNG FCC ID: A3LSGHE356 EUT Photographs © 2006 PCTEST Lab. Dual-Band GSM Phone Model: SGH-E356

SAMSUNG FCC ID: A3LSGHE356 EUT Photographs © 2006 PCTEST Lab. Dual-Band GSM Phone Model: SGH-E356 SAMSUNG FCC ID: A3LSGHE356 EUT Photographs © 2006 PCTEST Lab. Dual-Band GSM Phone Model: SGH-E356 SAMSUNG FCC ID: A3LSGHE356 EUT Photographs © 2006 PCTEST Lab. Dual-Band GSM Phone Model: SGH-E356 SAMSUNG FCC ID: A3LSGHE356 EUT Photographs © 2006 PCTEST Lab. Dual-Band GSM Phone Model: SGH-E356 SAMSUNG FCC ID: A3LSGHE356 EUT Photographs © 2006 PCTEST Lab. Dual-Band GSM Phone Model: SGH-E356 SAMSUNG FCC ID: A3LSGHE356 EUT Photographs © 2006 PCTEST Lab. Dual-Band GSM Phone Model: SGH-E356 SAMSUNG FCC ID: A3LSGHE356 EUT Photographs © 2006 PCTEST Lab. Dual-Band GSM Phone Model: SGH-E356

PCTEST ENGINEERING LABORATORY, INC. 6660 – B Dobbin Road • Columbia, MD 21045 • USA Telephone 410.290.6652 / Fax 410.290.6654 http://www.pctestlab.com (email: [email protected]) CERTIFICATE OF COMPLIANCE (SAR EVALUATION) PCTEST SAR REPORT FCC MEASUREMENT REPORT Reviewed by: Quality Manager SAR Filename: 0605090363 Test Dates: May 17-18, 2006 Phone Type: Dual-Band GSM Phone FCC ID: A3LSGHE356 Page 1 of 42 © 2006 PCTEST Engineering Laboratory, Inc APPLICANT NAME & ADDRESS: DATE & LOCATION OF TESTING: SAMSUNG ELECTRONICS CO., LTD. Dates of Tests: May 17-18, 2006 18600 Broadwick Street Test Report S/N: 0605090363 Rancho Dominguez, CA 90220 Test Site: PCTEST Lab, Columbia MD FCC ID: A3LSGHE356 APPLICANT: SAMSUNG ELECTRONICS CO., LTD. EUT Type: Dual-Band GSM Phone Tx Frequency: 824.20 – 848.80MHz (GSM850) / 1850.20MHz – 1909.80MHz (GSM1900) Rx Frequency: 869.20 – 893.80MHz (GSM850) / 1930.20MHz – 1989.80MHz (GSM1900) Max. RF Output Power: 1.663 W ERP GSM850 (32.21dBm) / 1.076 W EIRP PCS GSM1900 (30.32dBm) Max. SAR Measurement: 0.741 W/kg GSM850 Head SAR; 1.350 W/kg GSM850 Body SAR; 1.070 W/kg PCS GSM1900 Head SAR; 0.271 W/kg PCS GSM1900 Body SAR Trade Name/Model(s): SGH-E356 FCC Classification: Licensed Portable Transmitter Held to Ear (PCE) FCC Rule Part(s): §2.1093; FCC/OET Bulletin 65 Supplement C [July 2001] Application Type: Certification Test Device Serial No.: identical prototype [S/N: #FD-071-R1] This wireless portable device has been shown to be capable of compliance for localized specific absorption rate (SAR) for uncontrolled environment/general population exposure limits specified in ANSI/IEEE Std. C95.1-1992 and had been tested in accordance with the measurement procedures specified in FCC/OET Bulletin 65 Supplement C (2001) and IEEE Std. 1528 – 2003. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. Grant Conditions: Power output listed is ERP for Part 22 and EIRP for Part 24. SAR compliance for body- worn operating configuration is based on a separation distance of 1.5 cm between the unit and the body of the user. End-users must be informed of the body-worn operating requirements for satisfying RF exposure compliance. Belt clips or holsters may not contain metallic components. PCTEST certifies that no party to this application has been denied the FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. PCTEST SAR REPORT FCC MEASUREMENT REPORT Reviewed by: Quality Manager SAR Filename: 0605090363 Test Dates: May 17-18, 2006 Phone Type: Dual-Band GSM Phone FCC ID: A3LSGHE356 Page 2 of 42 © 2006 PCTEST Engineering Laboratory, Inc TABLE OF CONTENTS 1. INTRODUCTION / SAR DEFINITION.....................................................................................3 2. SAR MEASUREMENT SETUP.................................................................................................4 3. DASY4 E-FIELD PROBE SYSTEM............................................................................................5 4. PROBE CALIBRATION PROCESS...........................................................................................6 5. PHANTOM & EQUIVALENT TISSUES......................................................................................7 6. TEST SYSTEM SPECIFICATIONS.............................................................................................8 7. DOSIMETRIC ASSESSMENT & PHANTOM SPECS.......................................................................9 8. DEFINITION OF REFERENCE POINTS....................................................................................10 9. TEST CONFIGURATION POSITIONS.................................................................................11-13 10. ANSI/IEEE C95.1 - 1992 RF EXPOSURE LIMITS........................................................................14 11. MEASUREMENT UNCERTAINTIES........................................................................................15 12. SYSTEM VERIFICATION......................................................................................................16 13. SAR TEST DATA SUMMARY.............................................................................................17-39 15. SAR TEST EQUIPMENT..............................................................................................40 16. CONCLUSION..................................................................................................................41 17. REFERENCES....................................................................................................................42 PCTEST SAR REPORT FCC MEASUREMENT REPORT Reviewed by: Quality Manager SAR Filename: 0605090363 Test Dates: May 17-18, 2006 Phone Type: Dual-Band GSM Phone FCC ID: A3LSGHE356 Page 3 of 42 © 2006 PCTEST Engineering Laboratory, Inc 1. INTRODUCTION / SAR DEFINITION The FCC has adopted the guidelines for evaluating the environmental effects of radiofrequency radiation in ET Docket 93-62 on Aug. 6, 1996 to protect the public and workers from the potential hazards of RF emissions due to FCC-regulated portable devices.[1] The safety limits used for the environmental evaluation measurements are based on the criteria published by the American National Standards Institute (ANSI) for localized specific absorption rate (SAR) in IEEE/ANSI C95.1-1992 Standard for Safety Levels with Respect to Human Exposure to Radio Frequency Electromagnetic Fields, 3 kHz to 300 GHz. (c) 1992 by the Institute of Electrical and Electronics Engineers, Inc., New York, New York 10017.[2] The measurement procedure described in IEEE/ANSI C95.3-1992 Recommended Practice for the Measurement of Potentially Hazardous Electromagnetic Fields - RF and Microwave[3] is used f…

Text truncated - open the document above for the full version.

APPENDIX A: SAR TEST DATA PCTEST ENGINEERING LABORATORY, INC. DUT: SGH-E356; Type: Dual Band GSM Phone; Serial: FD-071-B; Conducted Power: 33.0 dBm Communication System: GSM850; Frequency: 836.6 MHz;Duty Cycle: 1:8.3 Medium: 835 Brain ( σ = 0.87 mho/m, ε r = 42.65, ρ = 1000 kg/m 3 ) Phantom section: Right Section Test Date: 05-17-2006; Ambient Temp: 23.6°C; Tissue Temp: 22.4°C Probe: EX3DV4 - SN3550; ConvF(7.71, 7.71, 7.71); Calibrated: 1/18/2006 Sensor-Surface: 3mm (Mechanical Surface Detection) Electronics: DAE4 Sn900; Calibrated: 2/28/2006 Phantom: SAM with CRP; Type: SAM; Serial: TP1375 Measurement SW: DASY4, V4.6 Build 23; Postprocessing SW: SEMCAD, V1.8 Build 160 Mode: GSM850, Right Head, Slide In, Touch, Mid.ch Area Scan (6x9x1): Measurement grid: dx=15mm, dy=15mm Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 22.4 V/m Peak SAR (extrapolated) = 0.770 W/kg SAR(1 g) = 0.549 mW/g; SAR(10 g) = 0.382 mW/g 0 dB = 0.616mW/g PCTEST ENGINEERING LABORATORY, INC. DUT: SGH-E356; Type: Dual Band GSM Phone; Serial: FD-071-B; Conducted Power: 33.0 dBm Communication System: GSM850; Frequency: 836.6 MHz;Duty Cycle: 1:8.3 Medium: 835 Brain ( σ = 0.87 mho/m, ε r = 42.65, ρ = 1000 kg/m 3 ) Phantom section: Right Section Test Date: 05-17-2006; Ambient Temp: 23.6°C; Tissue Temp: 22.4°C Probe: EX3DV4 - SN3550; ConvF(7.71, 7.71, 7.71); Calibrated: 1/18/2006 Sensor-Surface: 3mm (Mechanical Surface Detection) Electronics: DAE4 Sn900; Calibrated: 2/28/2006 Phantom: SAM with CRP; Type: SAM; Serial: TP1375 Measurement SW: DASY4, V4.6 Build 23; Postprocessing SW: SEMCAD, V1.8 Build 160 Mode: GSM850, Right Head, Slide In, Tilt, Mid.ch Area Scan (6x9x1): Measurement grid: dx=15mm, dy=15mm Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 21.8 V/m Peak SAR (extrapolated) = 0.639 W/kg SAR(1 g) = 0.425 mW/g; SAR(10 g) = 0.285 mW/g 0 dB = 0.492mW/g PCTEST ENGINEERING LABORATORY, INC. DUT: SGH-E356; Type: Dual Band GSM Phone; Serial: FD-071-B; Conducted Power: 33.0 dBm Communication System: GSM850; Frequency: 836.6 MHz;Duty Cycle: 1:8.3 Medium: 835 Brain ( σ = 0.87 mho/m, ε r = 42.65, ρ = 1000 kg/m 3 ) Phantom section: Right Section Test Date: 05-17-2006; Ambient Temp: 23.6°C; Tissue Temp: 22.4°C Probe: EX3DV4 - SN3550; ConvF(7.71, 7.71, 7.71); Calibrated: 1/18/2006 Sensor-Surface: 3mm (Mechanical Surface Detection) Electronics: DAE4 Sn900; Calibrated: 2/28/2006 Phantom: SAM with CRP; Type: SAM; Serial: TP1375 Measurement SW: DASY4, V4.6 Build 23; Postprocessing SW: SEMCAD, V1.8 Build 160 Mode: GSM850, Right Head, Slide Out, Touch, Mid.ch Area Scan (6x12x1): Measurement grid: dx=15mm, dy=15mm Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 11.0 V/m Peak SAR (extrapolated) = 1.03 W/kg SAR(1 g) = 0.741 mW/g; SAR(10 g) = 0.504 mW/g 0 dB = 0.856mW/g PCTEST ENGINEERING LABORATORY, INC. DUT: SGH-E356; Type: Dual Band GSM Phone; Serial: FD-071-B; Conducted Power: 33.0 dBm Communication System: GSM850; Frequency: 836.6 MHz;Duty Cycle: 1:8.3 Medium: 835 Brain ( σ = 0.87 mho/m, ε r = 42.65, ρ = 1000 kg/m 3 ) Phantom section: Right Section Test Date: 05-17-2006; Ambient Temp: 23.6°C; Tissue Temp: 22.4°C Probe: EX3DV4 - SN3550; ConvF(7.71, 7.71, 7.71); Calibrated: 1/18/2006 Sensor-Surface: 3mm (Mechanical Surface Detection) Electronics: DAE4 Sn900; Calibrated: 2/28/2006 Phantom: SAM with CRP; Type: SAM; Serial: TP1375 Measurement SW: DASY4, V4.6 Build 23; Postprocessing SW: SEMCAD, V1.8 Build 160 Mode: GSM850, Right Head, Slide Out, Tilt, Mid.ch Area Scan (6x12x1): Measurement grid: dx=15mm, dy=15mm Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 12.1 V/m Peak SAR (extrapolated) = 0.449 W/kg SAR(1 g) = 0.339 mW/g; SAR(10 g) = 0.243 mW/g 0 dB = 0.377mW/g PCTEST ENGINEERING LABORATORY, INC. DUT: SGH-E356; Type: Dual Band GSM Phone; Serial: FD-071-B; Conducted Power: 33.0 dBm Communication System: GSM850; Frequency: 836.6 MHz;Duty Cycle: 1:8.3 Medium: 835 Brain ( σ = 0.87 mho/m, ε r = 42.65, ρ = 1000 kg/m 3 ) Phantom section: Left Section Test Date: 05-18-2006; Ambient Temp: 22.9°C; Tissue Temp: 21.6°C Probe: EX3DV4 - SN3550; ConvF(7.71, 7.71, 7.71); Calibrated: 1/18/2006 Sensor-Surface: 3mm (Mechanical Surface Detection) Electronics: DAE4 Sn900; Calibrated: 2/28/2006 Phantom: SAM with CRP; Type: SAM; Serial: TP1375 Measurement SW: DASY4, V4.6 Build 23; Postprocessing SW: SEMCAD, V1.8 Build 160 Mode: GSM850, Left Head, Slide In, Touch, Mid.ch Area Scan (6x9x1): Measurement grid: dx=15mm, dy=15mm Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 22.3 V/m Peak SAR (extrapolated) = 0.652 W/kg SAR(1 g) = 0.492 mW/g; SAR(10 g) = 0.347 mW/g 0 dB = 0.552mW/g PCTEST ENGINEERING LABORATORY, INC. DUT: SGH-E356; Type: Dual Band GSM Phone; Serial: FD-071-B; Conducted Power: 33.0 dBm Communication System: GSM850; Frequency: 836.6 MHz;Duty Cycle: 1:8.3 Medium: 835 Brain ( σ = 0.87 mho/m, ε r = 42.65, ρ = 1000 kg/m 3 ) Phantom section: Left Section Test Date: 05-18-2006; Ambient Temp: 22.9°C; Tissue Temp: 21.6°C Probe: EX3DV4 - SN3550; ConvF(7.71, 7.71, 7.71); Calibrated: 1/18/2006 Sensor-Surface: 3mm (Mechanical Surface Detection) Electronics: DAE4 Sn900; Calibrated: 2/28/2006 Phantom: SAM with CRP; Type: SAM; Serial: TP1375 Measurement SW: DASY4, V4.6 Build 23; Postprocessing SW: SEMCAD, V1.8 Build 160 Mode: GSM850, Left Head, Slide In, Tilt, Mid.ch Area Scan (6x9x1): Measurement grid: dx=15mm, dy=15mm Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 20.7 V/m Peak SAR (extrapolated) = 0.506 W/kg SAR(1 g) = 0.357 mW/g; SAR(10 g) = 0.247 mW/g 0 dB = 0.404mW/g PCTEST ENGINEERING LABORATORY, INC. DUT: SGH-E356; Type: Dual Band GSM Phone; Serial: FD-071-B; Conducted Power: 33.0 dBm Communication System: GSM850; Frequency: 836.6 MHz;Duty Cycle: 1:8.3 Medium: 835 Brain ( σ = 0.87 mho/m, ε r = 42.65, ρ = 1000 kg/m 3 ) Phantom section: Lef…

Text truncated - open the document above for the full version.

SAMSUNG ELECTRONICS Co., Ltd., Regulatory Compliance Group IT R&D Center 416 Maetan3-Dong, Yeongtong-gu, Suwon city, Gyeonggi-Do, Korea 443-742 FCC CFR47 PART 22 & 24 SUBPART CERTIFICATION REPORT Model Tested : SGH-E356 Additional Model : SGH-E351 FCC ID(Requested) : A3LSGHE356 Report No : FD-071-R1 Job No : FD-071 Date issued : May 09, 2006 - Abstract - All measurement reported herein accordance with FCC Rules, 47CFR Part2, Part22, Part24. Prepared By Date JW LEE – Test Engineer Checked By Date WW JANG – Manager Authorized By Date SH PARK – Senior Manager © Copyright SAMSUNG Electronics 2006 Report Number : FD-071-R1 TABLE OF CONTENT MEASUREMENT REPORT Page 1. FCC CERTIFICATION INFORMATION .....................................................................3 1.1. §2.1033 General Information .........................................................................3 2. INTRODUCTION .......................................................................................................4 2.1. General..........................................................................................................4 3. MEASURING INSTRUMENT CALIBRATION ...........................................................5 4. TEST EQUIPMENT LIST...........................................................................................6 5. DESCRIPTION OF TESTS ........................................................................................7 5.1. Effective Radiated Power / Equivalent Isotropic Radiated Power ..................7 5.2. Radiated Spurious & Harmonic Emission ......................................................8 5.3. Occupied Bandwidth ....................................................................................10 5.4. Spurious and Harmonic Emission at Antenna Terminal................................10 5.4.1. Occupied Bandwidth Emission Limits ..............................................10 5.4.2. Conducted Spurious Emission .........................................................12 5.5. Frequency Stability / Temperature Variation .................................................13 6. TEST DATA .............................................................................................................14 6.1. Effective Radiated Power (E.R.P.)................................................................14 6.2. Equivalent Isotropic Radiated Power (E.I.R.P.) ............................................15 6.3. GSM850 Radiated Spurious & Harmonic measurement ..............................16 6.4. GSM1900 Radiated Spurious & Harmonic measurement ............................17 6.5. GSM850 Radiated Spurious & Harmonic Conversion Table ........................18 6.6. GSM1900 Radiated Spurious & Harmonic Conversion Table ......................19 6.7. Frequency Stability.......................................................................................20 6.7.1. GSM850 Frequency Stability Table ..................................................20 6.7.2. GSM850 Frequency Stability Graph.................................................21 6.7.3. GSM1900 Frequency Stability Table ................................................23 6.7.4. GSM1900 Frequency Stability Graph...............................................24 7. CONCLUSION.........................................................................................................26 8. TEST PLOTS...........................................................................................................27 Report Number : FD-071-R1 MEASUREMENT REPORT 1. FCC Certification Information The following information is in accordance with FCC Rules, 47CFR Part2, Subpart J, Sections 2.1033 – 2.1055. 1.1. §2.1033 General Information • Applicant Name : SAMSUNG ELECRONICS CO., LTD. • Address : 416 Maetan3-Dong, Yeongtong-gu, Suwon City Gyeonggi-Do, Korea 443-742 • Attention : SungJoo KIM, Engineering Manager (QA Lab) • FCC ID : A3LSGHE356 • Additional Model : SGH-E351 • Quantity : Quantity production is planned • Emission Designators : 249KGXW(GSM850) 249KGXW(GSM1900) • Tx Freq. Range : 824.2 - 848.8MHz (GSM850) 1850.2MHz - 1909.8MHz (GSM1900) • Rx Freq. Range : 869.2 - 893.8 MHz (GSM850) 1930.2MHz - 1989.8MHz (GSM1900) • Max. Power Rating : 1.663 W ERP GSM850 (32.21dBm) 1.076 W EIRP GSM1900 (30.32dBm) • FCC Classification(s) : Licensed Portable Tx Held to Ear (PCE) • Equipment (EUT) Type : Dual-Band GSM850/1900 Phone • Frequency Tolerance : ±0.00025% (2.5ppm) • FCC Rule Part(s) : §24(E), §22(H), §2. • Dates of Test : April 27-28, 2006 • Place of Test : SAMSUNG Lab, • Test Report S/N : FD-071-R1 Report Number : FD-071-R1 2. INTRODUCTION 2.1. General These measurement test were conducted at SAMSUNG ELECTRONICS CO., LTD(SUWON). The site address is 416 Maetan3-Dong, Yeongtong-gu, Suwon City, Gyeonggi-Do, Korea 443-742 The site have 1 Fully-anechoic chamber and measurement facility. Measurement Procedure The radiated and spurious measurements were made Fully-anechoic chamber at a 3-meter test range (see Figure2). The equipment under testing was placed on a Non-conducted turntable 3- meters from the receive antenna. The receive antenna height and turntable rotations were adjusted for the highest reading on the receive spectrum analyzer. The substitution antenna will replace the EUT antenna it the same position and in vertical polarization. The frequency of the signal generator shall be set to the frequencies that were measured on the EUT. The test antenna shall be raised and lowered, if necessary, to ensure that the maximum signal is still being received. The signal generator, output level, shall be adjusted until an equal or a known related level to what was measured from the EUT is obtained in the spectrum analyzer. This level was recorded. For readings above 1 GHz, the above procedure is repeated using horn antennas and the difference between the gain of the horn and an isotropic antenna are taken into consideration. Figure1. Map of the Suwon City area. Figur…

Text truncated - open the document above for the full version.

© 2006 SAMSUNG ELECTRONICS Co., Ltd. SAMSUNG FCC ID: A3LSGHE356 Dual-Band GSM 850/1900 Phone © 2006 SAMSUNG ELECTRONICS Co., Ltd. SAMSUNG FCC ID: A3LSGHE356 Dual-Band GSM 850/1900 Phone © 2006 SAMSUNG ELECTRONICS Co., Ltd. SAMSUNG FCC ID: A3LSGHE356 Dual-Band GSM 850/1900 Phone © 2006 SAMSUNG ELECTRONICS Co., Ltd. SAMSUNG FCC ID: A3LSGHE356 Dual-Band GSM 850/1900 Phone © 2006 SAMSUNG ELECTRONICS Co., Ltd. SAMSUNG FCC ID: A3LSGHE356 Dual-Band GSM 850/1900 Phone © 2006 SAMSUNG ELECTRONICS Co., Ltd. SAMSUNG FCC ID: A3LSGHE356 Dual-Band GSM 850/1900 Phone © 2006 SAMSUNG ELECTRONICS Co., Ltd. SAMSUNG FCC ID: A3LSGHE356 Dual-Band GSM 850/1900 Phone © 2006 SAMSUNG ELECTRONICS Co., Ltd. SAMSUNG FCC ID: A3LSGHE356 Dual-Band GSM 850/1900 Phone © 2006 SAMSUNG ELECTRONICS Co., Ltd. SAMSUNG FCC ID: A3LSGHE356 Dual-Band GSM 850/1900 Phone © 2006 SAMSUNG ELECTRONICS Co., Ltd. SAMSUNG FCC ID: A3LSGHE356 Dual-Band GSM 850/1900 Phone © 2006 SAMSUNG ELECTRONICS Co., Ltd. SAMSUNG FCC ID: A3LSGHE356 Dual-Band GSM 850/1900 Phone © 2006 SAMSUNG ELECTRONICS Co., Ltd. SAMSUNG FCC ID: A3LSGHE356 Dual-Band GSM 850/1900 Phone

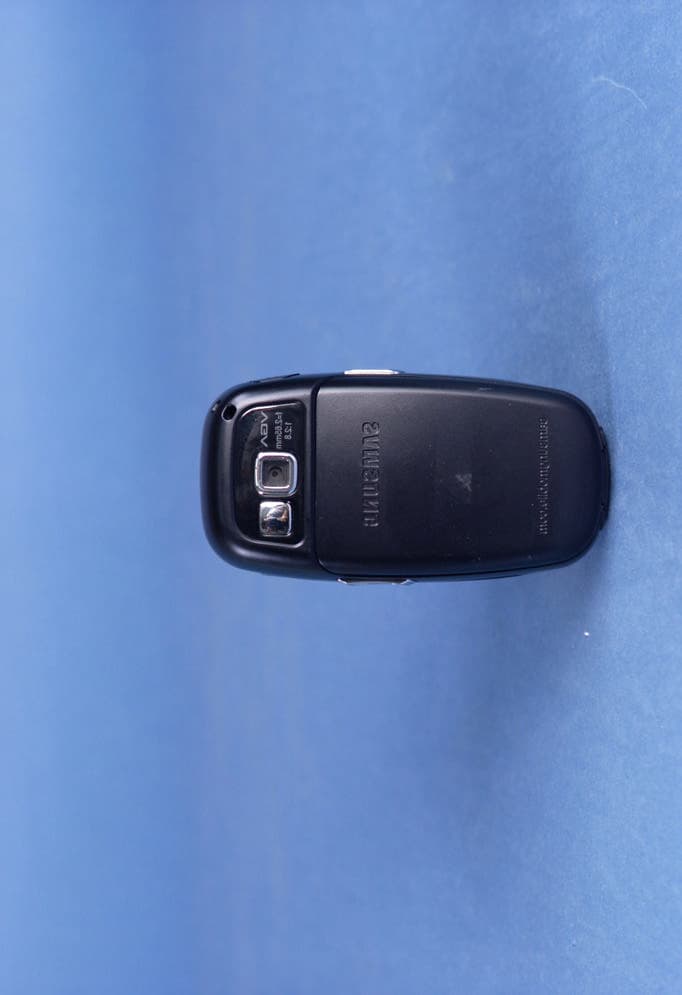

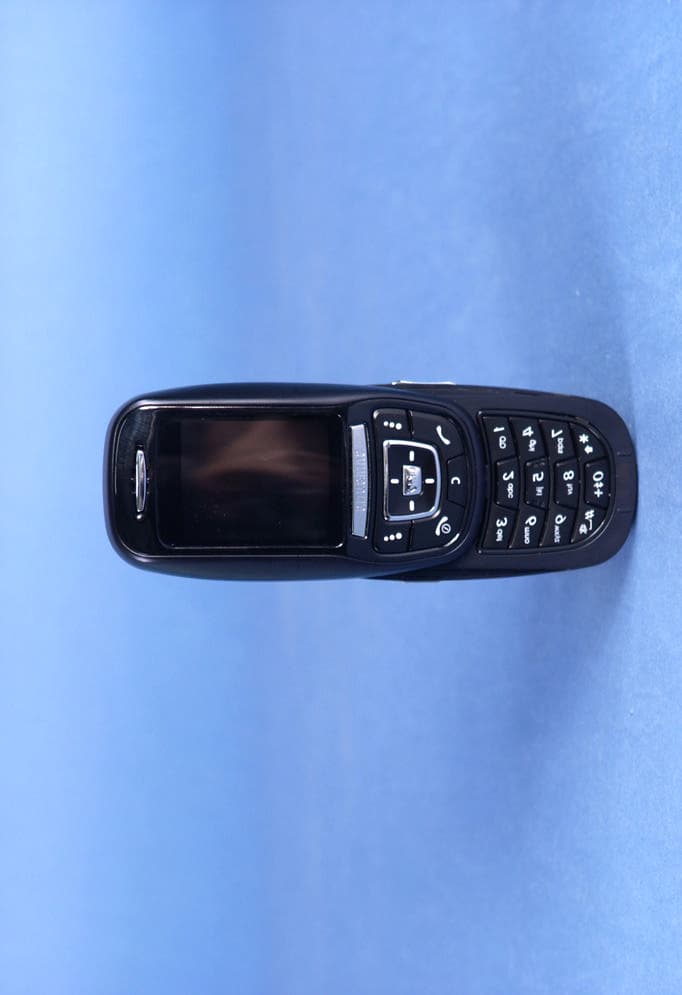

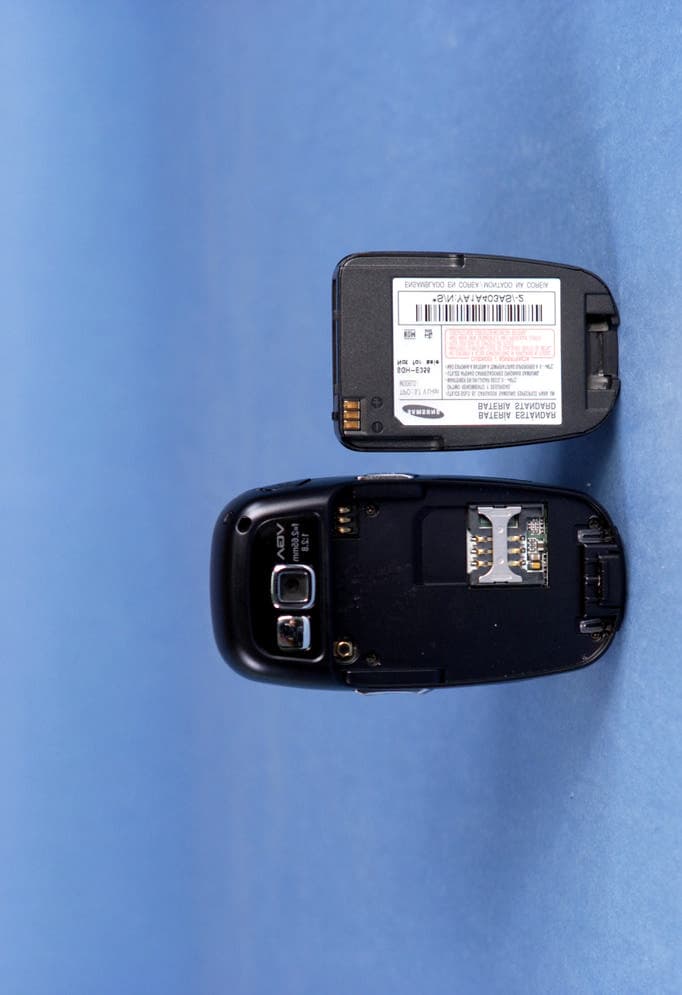

Samsung FCC ID: A3LSGHE356 EUT Photographs © 2006 PCTEST Lab. Dual Band GSM Phone Model: SGH-E356 Samsung FCC ID: A3LSGHE356 EUT Photographs © 2006 PCTEST Lab. Dual Band GSM Phone Model: SGH-E356 Samsung FCC ID: A3LSGHE356 EUT Photographs © 2006 PCTEST Lab. Dual Band GSM Phone Model: SGH-E356 Samsung FCC ID: A3LSGHE356 EUT Photographs © 2006 PCTEST Lab. Dual Band GSM Phone Model: SGH-E356 Samsung FCC ID: A3LSGHE356 EUT Photographs © 2006 PCTEST Lab. Dual Band GSM Phone Model: SGH-E356 Samsung FCC ID: A3LSGHE356 EUT Photographs © 2006 PCTEST Lab. Dual Band GSM Phone Model: SGH-E356 Samsung FCC ID: A3LSGHE356 EUT Photographs © 2006 PCTEST Lab. Dual Band GSM Phone Model: SGH-E356 Samsung FCC ID: A3LSGHE356 EUT Photographs © 2006 PCTEST Lab. Dual Band GSM Phone Model: SGH-E356 Samsung FCC ID: A3LSGHE356 EUT Photographs © 2006 PCTEST Lab. Dual Band GSM Phone Model: SGH-E356 Samsung FCC ID: A3LSGHE356 EUT Photographs © 2006 PCTEST Lab. Dual Band GSM Phone Model: SGH-E356 Samsung FCC ID: A3LSGHE356 EUT Photographs © 2006 PCTEST Lab. Dual …

Text truncated - open the document above for the full version.
