A3LSGHE400Tri Band GPRS Phone

TRI BAND GPRS TELEPHONE SGH-E400 ELECTRONICS * Some of the contents in this manual may differ from your phone, depending on the software installed or your service provider. Printed in Korea Code No.: GH68-xxxxxA English. 01/2003. Rev. 1.0 World Wide Web http://www.samsungmobile.com 2nd version (2003. 01. 16) 2 3 Contents Important Safety Precautions ...................... 7 Unpacking.................................................... 9 Your Phone ................................................ 10 Phone Layout................................................ 10 Display ........................................................ 13 Service Light ................................................ 16 Getting Started .......................................... 17 Installing the SIM Card .................................. 17 Charging the Battery ..................................... 19 Switching the Phone On or Off ........................ 21 Call Functions ............................................ 22 Making a Call................................................ 22 Adjusting the Volume .................................... 24 Answering a Call ........................................... 25 Viewing Missed Calls...................................... 26 Quickly Switching to the Silent Mode................ 28 Selecting Functions and Options ................ 29 Example: Setting the Display Language............ 31 Phonebook................................................. 33 Storing a Number with a Name ....................... 33 Using Phonebook Entry Options....................... 35 Searching for a Number in the Phonebook ........ 37 Editing a Caller Group.................................... 39 Speed-Dialling .............................................. 40 Checking the Memory Status .......................... 41 Entering Text ............................................. 42 Changing the Text Input Mode........................ 43 Using the T9 Mode ........................................ 44 Contents 4 Using the Upper/Lower-Case Character Mode ............................................ 45 Using the Symbol Mode.................................. 46 Using the Number Mode................................. 47 Options During a Call ................................. 48 Putting a Call on Hold .................................... 48 Switching the Microphone Off (Mute) ............... 49 Muting/Sending Key Tones ............................. 50 Searching for a Number in the Phonebook ........ 50 Using the SMS Service................................... 51 Answering a Second Call ................................ 51 Making a Multiparty Call................................. 52 Using the Menus......................................... 54 Accessing Menu Functions by Scrolling............. 54 Accessing Menu Functions by Using Shortcuts ... 55 List of Menu Functions ................................... 55 Messages ................................................... 60 Inbox (Menu 1.1)................................................. 60 Outbox (Menu 1.2) .............................................. 61 Write New (Menu 1.3) ......................................... 62 Templates (Menu 1.4) ......................................... 64 Settings (Menu 1.5)............................................. 65 My Objects (Menu 1.6) ........................................ 66 Memory Status (Menu 1.7).................................. 67 Voice Mail (Menu 1.8).......................................... 68 Broadcast (Menu 1.9).......................................... 69 Call Records ............................................... 71 Missed Calls (Menu 2.1)....................................... 71 Received Calls (Menu 2.2) ................................... 71 Dialled Calls (Menu 2.3) ...................................... 72 Delete All (Menu 2.4)........................................... 72 Call Time (Menu 2.5)........................................... 72 Call Cost (Menu 2.6)............................................ 73 Contents 5 Sound Settings........................................... 74 Ring Tone (Menu 3.1).......................................... 74 Ring Volume (Menu 3.2)...................................... 74 Alert Type (Menu 3.3) ......................................... 75 Keypad Tone (Menu 3.4) ..................................... 75 Message Tone (Menu 3.5) ................................... 76 Folder Tone (Menu 3.6) ....................................... 77 Power On/Off (Menu 3.7) .................................... 77 Extra Tones (Menu 3.8)....................................... 77 Phone Settings........................................... 79 Infrared Activate (Menu 4.1) ............................... 79 My Settings (Menu 4.2) ....................................... 80 Greeting Message (Menu 4.3).............................. 81 Own Number (Menu 4.4)..................................... 81 Language (Menu 4.5) .......................................... 82 Security (Menu 4.6)............................................. 82 Display Settings (Menu 4.7)................................ 85 Extra Settings (Menu 4.8) ................................... 88 Short Cut (Menu 4.9) .......................................... 89 Reset Settings (Menu 4.10) ................................. 89 Organiser................................................... 90 Calendar (Menu 5.1)............................................ 90 To Do List (Menu 5.2).......................................... 92 Time & Date (Menu 5.3)...................................... 95 Alarm (Menu 5.4) ................................................ 96 Calculator (Menu 5.5).......................................... 97 Currency Exchange (Menu 5.6) ........................... 98 Network Services....................................... 99 Call Diverting (Menu 6.1) .................................... 99 Call Barring (Menu 6.2) ...................................... 101…

Text truncated - open the document above for the full version.

TRI BAND GPRS TELEPHONE SGH-E400 ELECTRONICS * Some of the contents in this manual may differ from your phone, depending on the software installed or your service provider. Printed in Korea Code No.: GH68-xxxxxA English. 11/2002. Rev. 1.0 World Wide Web http://www.samsungmobile.com Draft version (2003. 01.10) 2 3 Contents Important Safety Precautions ...................... 7 Unpacking.................................................... 9 Your Phone ................................................ 10 Phone Layout................................................ 10 Display ........................................................ 13 Service Light ................................................ 16 Getting Started .......................................... 17 Installing the SIM Card .................................. 17 Charging the Battery ..................................... 19 Switching the Phone On or Off ........................ 23 Call Functions ............................................ 24 Making a Call................................................ 24 Adjusting the Volume .................................... 26 Answering a Call ........................................... 27 Viewing Missed Calls...................................... 28 Switching Quickly to Silent Mode..................... 30 Selecting Functions and Options ................ 31 Example: Setting the Display Language............ 33 Phonebook................................................. 35 Storing a Number with a Name ....................... 35 Using Phonebook Entry Options....................... 37 Searching for a Number in the Phonebook ........ 39 Editing a Caller Group.................................... 41 Speed-Dialling .............................................. 42 Checking Memory Status................................ 43 Contents 4 Entering Text ............................................. 44 Changing the Text Input Mode........................ 45 Using the T9 Mode ........................................ 46 Using the Upper/Lower-Case Character Mode ............................................ 47 Using the Symbol Mode.................................. 49 Using the Number Mode................................. 49 Options During a Call ................................. 50 Putting a Call on Hold .................................... 50 Switching the Microphone Off (Mute) ............... 51 Muting/Sending Key Tones ............................. 52 Searching for a Number in the Phonebook ........ 52 Using the SMS Service................................... 53 Answering a Second Call ................................ 53 Making a Multiparty Call................................. 54 Using the Menus......................................... 56 Accessing Menu Functions by Scrolling............. 56 Accessing Menu Functions by Using Shortcuts ... 57 List of Menu Functions ................................... 57 Messages ................................................... 62 Inbox (Menu 1.1)................................................. 62 Outbox (Menu 1.2) .............................................. 63 Write New (Menu 1.3) ......................................... 65 Templates (Menu 1.4) ......................................... 67 Settings (Menu 1.5)............................................. 68 My Objects (Menu 1.6) ........................................ 69 Memory Status (Menu 1.7).................................. 70 Voice Mail (Menu 1.8).......................................... 70 Broadcast (Menu 1.9).......................................... 71 Contents 5 Call Records ............................................... 73 Missed Calls (Menu 2.1)....................................... 73 Received Calls (Menu 2.2) ................................... 73 Dialled Calls (Menu 2.3) ...................................... 74 Call Time (Menu 2.4)........................................... 74 Call Cost (Menu 2.5)............................................ 75 Sound Settings........................................... 76 Ring Tone (Menu 3.1).......................................... 76 Ring Volume (Menu 3.2)...................................... 76 Alert Type (Menu 3.3) ......................................... 77 Keypad Tone (Menu 3.4) ..................................... 77 Message Tone (Menu 3.5) ................................... 78 Extra Tones (Menu 3.6)....................................... 79 Phone Settings........................................... 80 Infrared Activate (Menu 4.1) ............................... 80 My Settings (Menu 4.2) ....................................... 81 Greeting Message (Menu 4.3).............................. 82 Own Number (Menu 4.4)..................................... 82 Language (Menu 4.5) .......................................... 83 Security (Menu 4.6)............................................. 83 Display Settings (Menu 4.7)................................ 86 Extra Settings (Menu 4.8) ................................... 88 Short Cut (Menu 4.9) .......................................... 89 Reset Settings (Menu 4.10) ................................. 89 Organiser................................................... 90 Calendar (Menu 5.1)............................................ 90 To Do List (Menu 5.2).......................................... 92 Time & Date (Menu 5.3)...................................... 95 Alarm (Menu 5.4) ................................................ 96 Calculator (Menu 5.5).......................................... 97 Currency Exchange (Menu 5.6) ........................... 98 Contents 6 Network Services....................................... 99 Call Diverting (Menu 6.1) .................................... 99 Call Barring (Menu 6.2) ...................................... 101 Call Waiting (Menu 6.3)...................................... 103 Network Selection (Menu 6.4) ............................ 104 Caller ID (Menu 6.5)...................................…

Text truncated - open the document above for the full version.

Information of transmission type We, Samsung Electronics Co., Ltd., declare on our sole responsibility that the device, SGH- E400 (FCC ID: A3LSGHE400) supports the followings: - GPRS operation mode class B (GSM and GPRS cannot operate simultaneously) - Multislot Class 8 (4 receiving channels, 1 transmitting channel) ! max. 1 time slot can be used at the same time. Samsung Electronics Co., Ltd. #94-1, Imsoo-Dong, Gumi-City Kyung-Buk, Korea 730-350 Date: 26th FEB 2003 Name and title: Dong Ryong Kim / Senior Engineer Signature:

CONFIDENTIALITY REQUEST Federal Communication Commission Equipment Authorization Division, Application Processing Branch 7435 Oakland Mills Road Columbia, MD 21048 February 10 , 2003 TO WHOM IT MAY CONCERN Pursuant to Paragraphs §0.457 and 0.459 of the Commission’s Rules (47 C.F.R.) and Section §552(b)(4) of the Freedom of Information Act, Samsung Electronics Co., Ltd. requests confidentiality for the following products: FCC ID Number Product Title/Model A3LSGHE400 SGH-E400 For the product stated above, we request that the following information be held confidential: 1. Circuit diagrams and PCBs submitted as Equipment Authorization Electronic Filing attachment: "schematics”. 2. Block diagram submitted as Equipment Authorization Electronic Filing attachment: “blockdiagram”. 3. Operational description submitted as Equipment Authorization Electronic Filing attachment: “HW Description” 4. Parts List as Equipment Authorization Electronic Filing attachment: ”Parts List” The above exhibits contain Samsung Electronics Co., Ltd. trade secrets and proprietary information that could be of benefit to our competitors regarding the design of our mobile handset. This material is not customarily available to the general public and we request that it be withheld from public inspection. If you have any questions, please feel free to contact me at the address shown below. Sincerely, (signed) Name: Dong Ryong Kim Company: Samsung Electronics Co., Ltd. Address: #94-1, Imsoo-Dong, Gumi-City Kyung-Buk, Korea 730-350 Phone: +82 54 479 5933 Email: [email protected]

FCC ID: A3LSGHE400 Applicant: Samsung Electronics Co Ltd Correspondence Reference Number: 8819 Dated: 2003-06-30 731 Confirmation Number: TC551414 CETECOM GmbH Im Teelbruch 122 45219 Essen Germany Phone: +49 (0) 2054 9519-0 Fax: +49 (0) 2054 9519-9 Request for additional response time for submitting requested information To whom it may concern, we herewith request additional response time of 30 days for filing the answers to your request for additional information on the application A3LSGHE400 of the company Samsung Electronics Co Ltd. The delivery of the answers to your correspondence 8819 does need additional time due to documentation preparation as you have requested. Thanks in advance for your understanding Best regards, Karin Silberhorn FCC ID: Response to e-mail_8819_20030630.doc Page 2 of 2 CETECOM Certification and Testing in Communications GmbH Im Teelbruch 122 45219 Essen Germany Phone: +49 (0) 2054 9519-0 Fax: +49 (0) 2054 9519-9

ID Label / Location Info

CETECOM Inc. 411 Dixon Landing Road Š Milpitas, CA 95035 Š U.S.A. Phone: + 1 (408) 586 6200 Š Fax: + 1 (408) 586 6299 Š E-mail: [email protected] Š http://www.cetecom.com CETECOM Inc. is a Delaware Corporation with Corporation number: 2113686 Board of Directors: Dr. Harald Ansorge, Dr. Klaus Matkey, Hans Peter May V.2.16M-2002-03-12 f:\emc\projects\samsung\368-2002_sgh-e400\sar\reportfcc\updated2_19\sar368_2002_fcc_1900.doc © Copyright by CETECOM SAR Test Report No. 368_2002_FCC_1900 for the Samsung Electronics Co., Ltd. SGH-E400 Mobile Phone Model Number: SGH-E400 FCC ID: A3LSGHE400 Date of Report: 11/20/2002 Date of issue: 11/20/2002 Report Copy No.: 01 SAR Test Report No. 368_2002_FCC_1900 Date of Report: 11/20/2002 Page 2 of 28 V.2.16M-2002-03-12 This report shall not be reproduced except in full without the written approval of: CETECOM Inc. Š SAR Š 411 Dixon Landing Road Š Milpitas, CA 95035 Š U.S.A. Contents 1. ASSESSMENT ...................................................................................................................4 2. ADMINISTRATIVE DATA...................................................................................................5 2.1. Identification of the Testing Laboratory Issuing the SAR Assessment Report ...............5 2.2. Identification of the Client...........................................................................................5 2.3. Identification of the Manufacturer...............................................................................5 3. EQUIPMENT UNDER INVESTIGATION (EUI)...................................................................6 3.1. Identification of the Equipment under Investigation ...................................................6 3.2. Front View of the Equipment under Investigation ......................................................7 4. SUBJECT OF INVESTIGATION ........................................................................................8 4.1. The IEEE Standard C95.1 and the FCC Exposure Criteria .......................................8 4.2. Distinction Between Exposed Population, Duration of Exposure and Frequencies...8 4.3. Distinction between Maximum Permissible Exposure and SAR Limits......................9 4.4. SAR Limit ...................................................................................................................9 5. THE FCC MEASUREMENT PROCEDURE .....................................................................10 5.1. General Requirements.............................................................................................10 5.2. Device Operating Next to a Person’s Ear ................................................................10 5.3. Test Positions ..........................................................................................................11 5.4. Test positions of device relative to head..................................................................11 5.5. Test to be Performed ...............................................................................................14 5.6. Body-worn and Other Configurations.......................................................................14 5.7. Procedure for assessing the peak spatial-average SAR .........................................15 5.8. Determination of the largest peak spatial-average SAR ..........................................17 6. THE MEASUREMENT SYSTEM ......................................................................................18 6.1. Robot system specification ......................................................................................18 6.2. Probe and amplifier specification .............................................................................19 6.3. Phantoms.................................................................................................................19 6.4. SAR measurement procedure .................................................................................20 6.5. SARA2 Interpolation and Extrapolation schemes ....................................................20 6.6. Interpolation of 2D area scan...................................................................................21 6.7. Extrapolation of 3D scan..........................................................................................21 6.8. Interpolation of 3D scan and volume averaging.......................................................21 SAR Test Report No. 368_2002_FCC_1900 Date of Report: 11/20/2002 Page 3 of 28 V.2.16M-2002-03-12 This report shall not be reproduced except in full without the written approval of: CETECOM Inc. Š SAR Š 411 Dixon Landing Road Š Milpitas, CA 95035 Š U.S.A. 7. UNCERTAINTY ASSESSMENT.......................................................................................23 7.1. Measurement Uncertainty Budget ...........................................................................24 8. TEST RESULTS SUMMARY............................................................................................25 8.1. Conducted Output Power.........................................................................................25 8.2. Head SAR results for GSM 1900MHz band for SGH-E400 .....................................25 8.3. Body SAR results for GSM 1900MHz band for SGH-E400 .....................................25 8.4. Validation Check Results .........................................................................................26 9. REFERENCES..................................................................................................................27 SAR Test Report No. 368_2002_FCC_1900 Date of Report: 11/20/2002 Page 4 of 28 V.2.16M-2002-03-12 This report shall not be reproduced except in full without the written approval of: CETECOM Inc. Š SAR Š 411 Dixon Landing Road Š Milpitas, CA 95035 Š U.S.A. 1. Assessment The Samsung Electronics Co., Ltd. SGH-E400 Mobile Phone is in compliance with the exposure criteria speci…

Text truncated - open the document above for the full version.

SAR Test Report No : SAR_368_2002_FCC_1900 Date of Report: 11/20/2002 Appendix A Page 1 of 9 Appendix A: Measurement Plots 1900 MHz Head SAR Plot 1. Date: 10/31/2002 Temperature Air / Liquid: 22.0°C / 22.2°C Liquid mass density (ρ): 1 DCP 1 8 Simulated tissue dielectric parameters: ε r : 38.97 σ: 1.401 Probe factors (S/N 0106) (ConvF): X=0.574, Y=0.845, Z=0.518 Position: Left touch Channel / Frequency: 661 / 1880 MHz Maximum 1 gram SAR: 0.607W/Kg Maximum 10 gram SAR: 0.380W/Kg Power reference start: 0.267W/Kg Power reference end 0.267W/Kg Power reference change 2 -0.00% 1 DCP: Diode compression potential for different types of modulation is determined during the calibration of the probe. See section 6.2 of this report Probe and Amplifier Specification. Crest factor is not used. 2 The power reference change is calculated by the test system with more digits than indicated in the power reference start and end values. SAR Test Report No : SAR_368_2002_FCC_1900 Date of Report: 11/20/2002 Appendix A Page 2 of 9 Plot 2. Date: 10/31/2002 Temperature Air / Liquid: 22.0°C / 22.2°C Liquid mass density (ρ): 1 DCP 1 8 Simulated tissue dielectric parameters: ε r : 38.97 σ: 1.401 Probe factors (S/N 0106) (ConvF): X=0.574, Y=0.845, Z=0.518 Position: Left tilt Channel / Frequency: 661 / 1880 MHz Maximum 1 gram SAR: 0.091W/Kg Maximum 10 gram SAR: 0.047W/Kg Power reference start: 0.029W/Kg Power reference end 0.028W/Kg Power reference change 2 -2.01% 1 DCP: Diode compression potential for different types of modulation is determined during the calibration of the probe. See section 6.2 of this report Probe and Amplifier Specification. Crest factor is not used. 2 The power reference change is calculated by the test system with more digits than indicated in the power reference start and end values. SAR Test Report No : SAR_368_2002_FCC_1900 Date of Report: 11/20/2002 Appendix A Page 3 of 9 Plot 3. Date: 10/31/2002 Temperature Air / Liquid: 22.0°C / 22.2°C Liquid mass density (ρ): 1 DCP 1 8 Simulated tissue dielectric parameters: ε r : 38.97 σ: 1.401 Probe factors (S/N 0106) (ConvF): X=0.574, Y=0.845, Z=0.518 Position: Right touch Channel / Frequency: 661 / 1880 MHz Maximum 1 gram SAR: 0.449W/Kg Maximum 10 gram SAR: 0.265W/Kg Power reference start: 0.120W/Kg Power reference end 0.120W/Kg Power reference change 2 -0.00% 1 DCP: Diode compression potential for different types of modulation is determined during the calibration of the probe. See section 6.2 of this report Probe and Amplifier Specification. Crest factor is not used. 2 The power reference change is calculated by the test system with more digits than indicated in the power reference start and end values. SAR Test Report No : SAR_368_2002_FCC_1900 Date of Report: 11/20/2002 Appendix A Page 4 of 9 Plot 4. Date: 11/04/2002 Temperature Air / Liquid: 22.2°C / 22.1°C Liquid mass density (ρ): 1 DCP 1 8 Simulated tissue dielectric parameters: ε r : 38.83 σ: 1.436 Probe factors (S/N 0106) (ConvF): X=0.574, Y=0.845, Z=0.518 Position: Right tilt Channel / Frequency: 661 / 1880 MHz Maximum 1 gram SAR: 0.051W/Kg Maximum 10 gram SAR: 0.029W/Kg Power reference start: 0.017W/Kg Power reference end 0.017W/Kg Power reference change 2 -0.00% 1 DCP: Diode compression potential for different types of modulation is determined during the calibration of the probe. See section 6.2 of this report Probe and Amplifier Specification. Crest factor is not used. 2 The power reference change is calculated by the test system with more digits than indicated in the power reference start and end values. SAR Test Report No : SAR_368_2002_FCC_1900 Date of Report: 11/20/2002 Appendix A Page 5 of 9 Plot 5. Date: 11/04/2002 Temperature Air / Liquid: 22.2°C / 22.1°C Liquid mass density (ρ): 1 DCP 1 8 Simulated tissue dielectric parameters: ε r : 38.99 σ: 1.424 Probe factors (S/N 0106) (ConvF): X=0.574, Y=0.845, Z=0.518 Position: Left touch Channel / Frequency: 512 / 1850.2 MHz Maximum 1 gram SAR: 0.573W/Kg Maximum 10 gram SAR: 0.368W/Kg Power reference start: 0.269W/Kg Power reference end 0.269W/Kg Power reference change 2 -0.00% 1 DCP: Diode compression potential for different types of modulation is determined during the calibration of the probe. See section 6.2 of this report Probe and Amplifier Specification. Crest factor is not used. 2 The power reference change is calculated by the test system with more digits than indicated in the power reference start and end values. SAR Test Report No : SAR_368_2002_FCC_1900 Date of Report: 11/20/2002 Appendix A Page 6 of 9 Plot 6. Date: 11/04/2002 Temperature Air / Liquid: 22.2°C / 22.1°C Liquid mass density (ρ): 1 DCP 1 8 Simulated tissue dielectric parameters: ε r : 38.85 σ: 1.463 Probe factors (S/N 0106) (ConvF): X=0.574, Y=0.845, Z=0.518 Position: Left touch Channel / Frequency: 810 / 1908.2 MHz Maximum 1 gram SAR: 0.655W/Kg Maximum 10 gram SAR: 0.433W/Kg Power reference start: 0.348W/Kg Power reference end 0.345W/Kg Power reference change 2 -1.04% 1 DCP: Diode compression potential for different types of modulation is determined during the calibration of the probe. See section 6.2 of this report Probe and Amplifier Specification. Crest factor is not used. 2 The power reference change is calculated by the test system with more digits than indicated in the power reference start and end values. SAR Test Report No : SAR_368_2002_FCC_1900 Date of Report: 11/20/2002 Appendix A Page 7 of 9 1900 MHz Body SAR Plot 7. Date: 11/05/2002 Temperature Air / Liquid: 22.0°C / 21.9°C Liquid mass density (ρ): 1 DCP 1 8 Simulated tissue dielectric parameters: ε r : 53.32 σ: 1.563 Probe factors (S/N 0106) (ConvF): X=0.646, Y=0.950, Z=0.583 Position: Phone against phantom, phone closed with earphone Channel / Frequency: 512 / 1850.2 MHz Peak # / location: #1 / Y=-40, Z=-145 #2 / Y=0, Z=-130 Maximum 1 gram SAR: 0.225W/Kg 0.181W/Kg Maximum 10 gram SAR: 0.140W/Kg 0.101W/Kg Power reference start: 0.076W/Kg 0.065W/Kg Power reference end 0.076/Kg 0.065W/Kg Power reference ch…

Text truncated - open the document above for the full version.

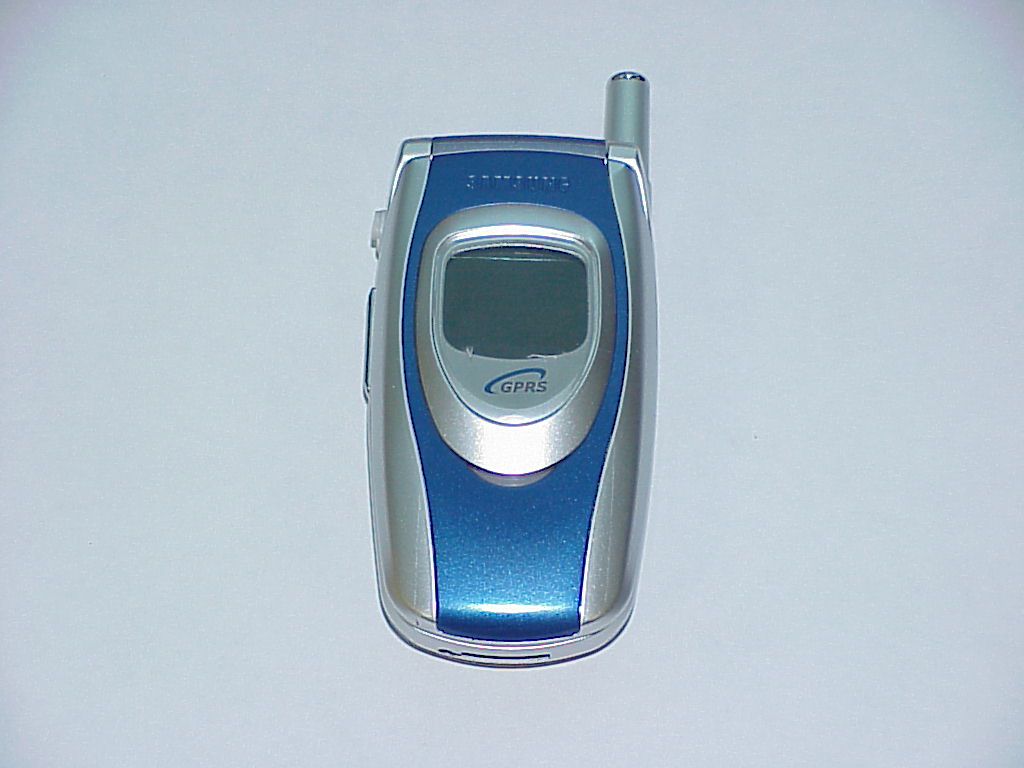

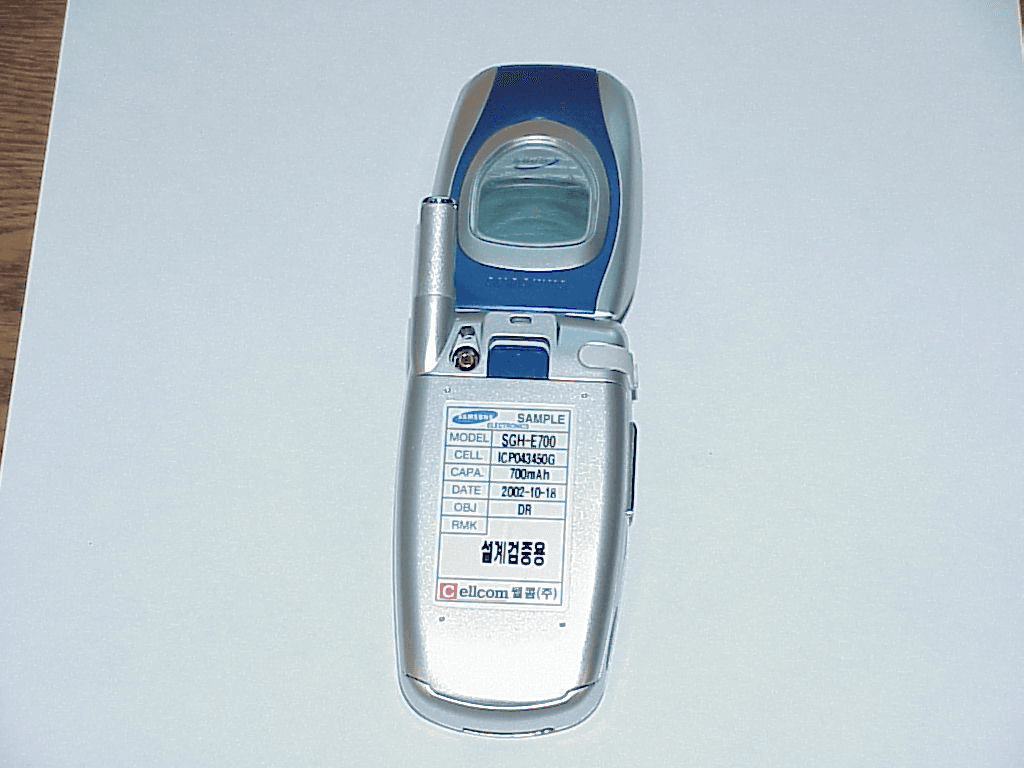

SAR Test Report No.: 368-2002-FCC_1900 Date of Report:11/20/2002 Appendix B Page 1 of 11 Appendix B: Photos EUT Photos Photo 1. EUT front closed SAR Test Report No.: 368-2002-FCC_1900 Date of Report:11/20/2002 Appendix B Page 2 of 11 Photo 2. EUT front open SAR Test Report No.: 368-2002-FCC_1900 Date of Report:11/20/2002 Appendix B Page 3 of 11 Photo 3. EUT back SAR Test Report No.: 368-2002-FCC_1900 Date of Report:11/20/2002 Appendix B Page 4 of 11 Set-up Photos Photo 4. Left touch SAR Test Report No.: 368-2002-FCC_1900 Date of Report:11/20/2002 Appendix B Page 5 of 11 Photo 5. Left tilt SAR Test Report No.: 368-2002-FCC_1900 Date of Report:11/20/2002 Appendix B Page 6 of 11 Photo 6. Right touch SAR Test Report No.: 368-2002-FCC_1900 Date of Report:11/20/2002 Appendix B Page 7 of 11 Photo 7. Right tilt SAR Test Report No.: 368-2002-FCC_1900 Date of Report:11/20/2002 Appendix B Page 8 of 11 Photo 8. Body SAR SAR Test Report No.: 368-2002-FCC_1900 Date of Report:11/20/2002 Appendix B Page 9 of 11 Photo 9. Body SAR distance SAR Test Report No.: 368-2002-FCC_1900 Date of Report:11/20/2002 Appendix B Page 10 of 11 Photo 10. Photo to demonstrate 15 cm Z-axis head phantom SAR Test Report No.: 368-2002-FCC_1900 Date of Report:11/20/2002 Appendix B Page 11 of 11 Photo 11. Photo to demonstrate 15 cm Z-axis flat phantom

SAR Test Report No : SAR_368_2002_FCC_1900 Date of Report:11/20/2002 Appendix C Page 1 of 28 Tissue Parameters 1900MHz Head liquid: Recipe: The following recipe is provided in percentage by weight. 54.9% distilled water 4.92% DGBE 0.18% salt 0.1% bactericide Di-electric constants measured on 10/31/2002. SAR measurements were made within 24 hours of the measurement of liquid parameters. 10/31/2002 21.9°C Freq. Rel. Condy (MHz) Perm. (S/m) 1850.2 38.97 1.401 1880 38.82 1.425 1900 38.80 1.443 1909.8 38.73 1.449 Conductivity 1.32 1.34 1.36 1.38 1.4 1.42 1.44 1.46 1.48 185018751900 frequency (MHz) conductivity (S/m) 1900 MHz head liquid 1528 std Permittivity 37 38 39 40 41 42 43 185018751900 frequency (MHz) relative permittivity 1900 MHz head liquid 1528 std +5% -5% SAR Test Report No : SAR_368_2002_FCC_1900 Date of Report:11/20/2002 Appendix C Page 2 of 28 Di-electric constants measured on 11/04/2002. SAR measurements were made within 24 hours of the measurement of liquid parameters. 11/04/2002 21.9°C Freq. Rel. Condy (MHz) Perm. (S/m) 1850.2 38.99 1.424 1880 38.83 1.436 1900 38.84 1.452 1909.8 38.85 1.463 Conductivity 1.3 1.32 1.34 1.36 1.38 1.4 1.42 1.44 1.46 1.48 1.5 185018751900 frequency (MHz) conductivity (S/m) 1900 MHz head liquid 1528 std Permittivity 35 37 39 41 43 45 185018751900 frequency (MHz) relative permittivity 1900 MHz head liquid 1528 std +5% -5% SAR Test Report No : SAR_368_2002_FCC_1900 Date of Report:11/20/2002 Appendix C Page 3 of 28 1900MHz Body Liquid: Recipe: The following recipe is provided in percentage by weight. 69.17% distilled water 30.29% …

Text truncated - open the document above for the full version.
