A3LSGHI307Wireless Module with Multi-Band WCDMA/LTE

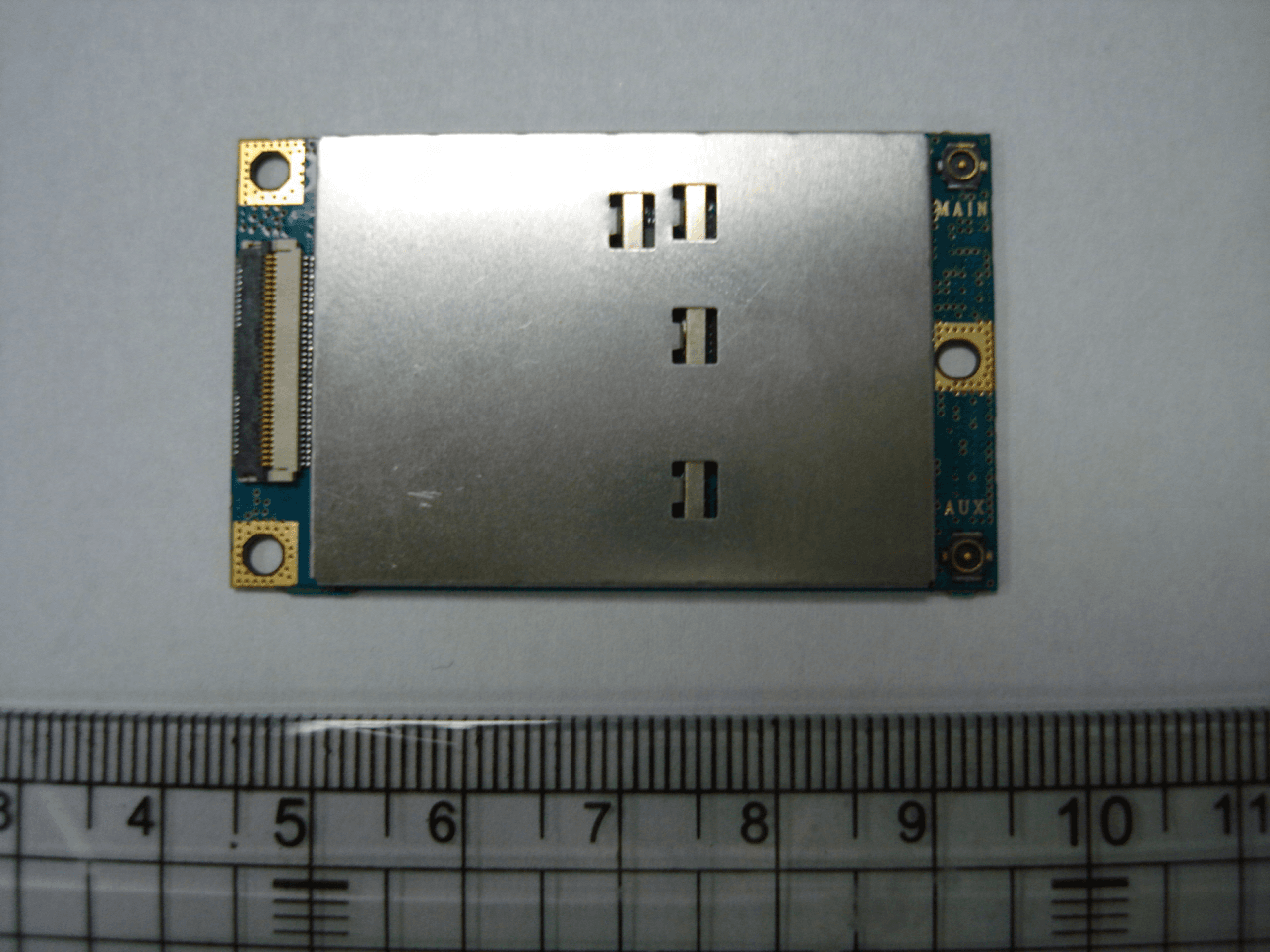

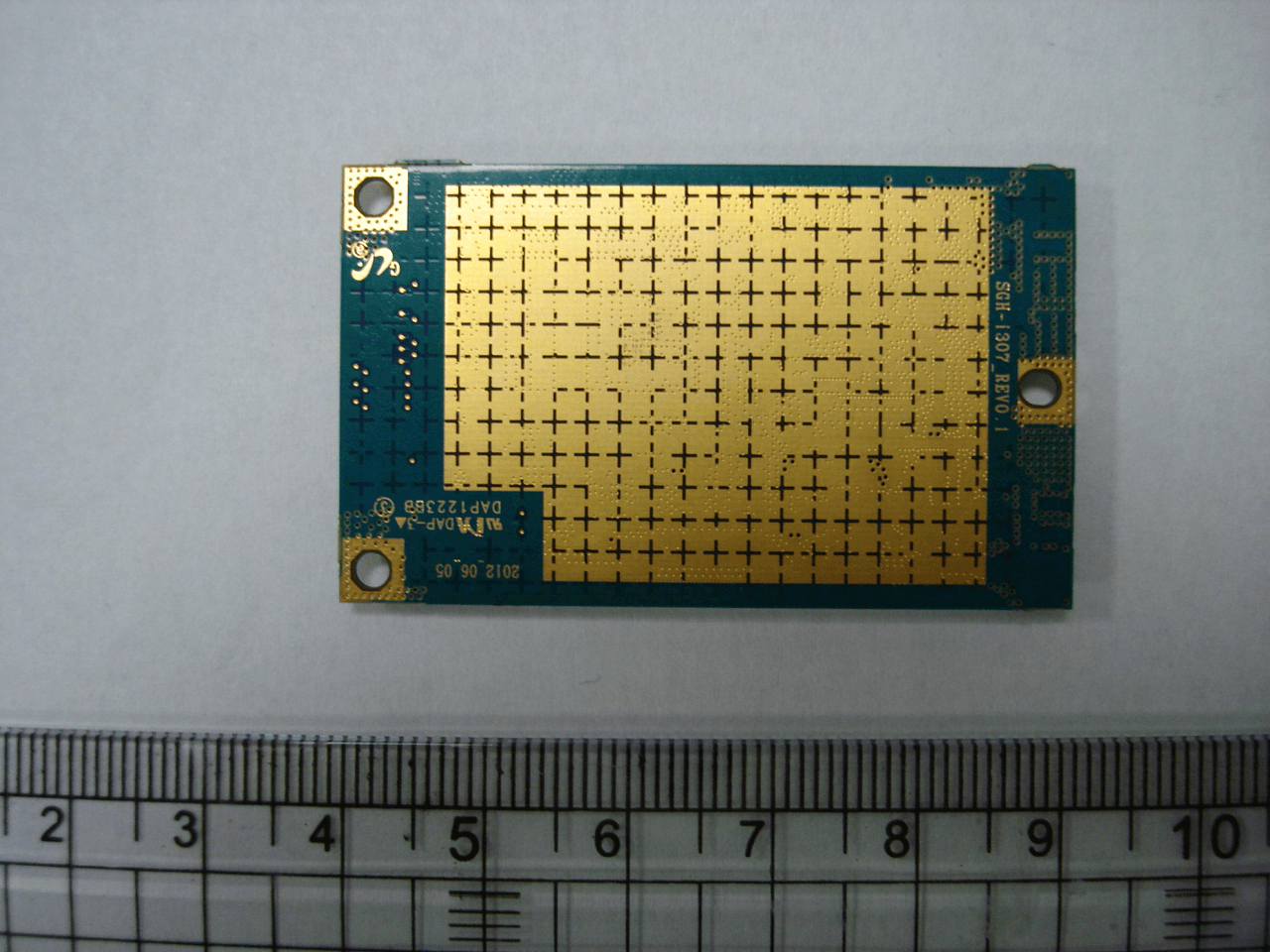

1 SGH-I307 Installation Guide and User manual SGH-I307Installation GuideInstallation Guide And User Manual 1 2 SGH-I307 Installation Guide and User manual 1. Introduction The SGH-I307 Module is a module on board(MOB) that provides LTE and HSPA+ connectivity for devices over several radio frequency bandsfor devices over several radio frequency bands . The SGH-I307 will be AT&T-certified, and Windows 8 Mobile Broad band Interface Model(MBIM) compliant. Supported RF bands The modem, based on Qualcomm’s MDM9200 baseband processor,Supports data operation on LTE and HSPA+ networks. Technology Bands Notes B d 4 (AWS)(1700/2100MH ) Table. Supported RF bands LTE • B an d 4 (AWS)(1700/2100MH z ) • Band 17 (700MHz) MISO support HSPA+ • Band 1 (2100MHz) • Band 2 (1900MHz) • Band 5 (850MHz) Diversity support • Band 5 (850MHz) GNSS • GPS (1575.42MHz) • GLONASS (1602MHz) 2 3 SGH-I307 Installation Guide and User manual Physical features • SGH-I307 : 50mm X 30mm X 2.7mm • Operating temperature range : -20 to 60 Celsius temperature Modem features 3 4 SGH-I307 Installation Guide and User manual 4 5 SGH-I307 Installation Guide and User manual LTE features• Basic cell selection and system acquisition PSS/SSS/MIB d d - PSS/SSS/MIB d eco d e - SIB1-SIB8, SIB10, SIB11 decoding • NAS/AS security procedures - Snow 3G/AES security • CQI/RI/PMI reporting • Paging procedures - Paging in idle and Connected mode • Dedicated bearer - Network-initiated dedicated bearer- UE - initiated dedicated bearer UE initiated dedicated bearer • Connected mode intra-LTE mobility • iRAT between LTE/3G for idle and connection release with redirec tion • Detach procedure - Network-initiated detach with reattach required Network initiated detach followed by connection release - Network - initiated detach followed by connection release 5 6 SGH-I307 Installation Guide and User manual Position location (GNSS) • Concurrent standalone GPS and GLONASS • Assisted GPS ( A-GPS) SUPL1.0 • Assisted GNSS ( A-GPS) SUPL2.0 • gpsOneXTRA2.0 with GPS + GLONASS support Standards Compliance The SGH-I307 Module com p lies with the mandator y re q uirements described in the followin g standards. pyq g The exact set of requirements supported is carrier-dependent. 6 7 SGH-I307 Installation Guide and User manual 2. PCB guide RF Connector Diversity+GPS RF Connector CtC onnec t or to Main PCB Main 7 8 SGH-I307 Installation Guide and User manual RF ConnectorRF Connector ① Housing ① Housing ②Contact③ Ground Contact 8 9 SGH-I307 Installation Guide and User manual 3. Applicable Device SGH-I307 is a just RF module. if ifiddi blibllidihih Sif It i s not f or spec ifi e d d ev i ce. It can b e app li ca bl e to e l ectron i c d ev i ces w hi c h use U S B i nter f ace. But the manufacturer has to make sw for control MDM9200, main mo dem. Technology Bands Notes Technology Bands Notes LTE • Band 4 (AWS)(1700/2100MHz) • Band 17 (700MHz) MISO support • Band 1 (2100MHz) HSPA+ • Band 2 (1900MHz) • Band 5 (850MHz) Diversity support GNSS • GPS (1575.42MHz) • GLONASS (1602MHz) 9 10 SGH-I307 Installation Guide and User manual 4. Block diagram 10 11 SGH-I307 Installation Guide and User manual 5. SGH-I307 Interface 70pin connector to main PCB I307 module Main PCB 11 12 SGH-I307 Installation Guide and User manual Connector pin assignmentConnector pin assignment 12 13 SGH-I307 Installation Guide and User manual 13 14 SGH-I307 Installation Guide and User manual 14 15 SGH-I307 Installation Guide and User manual 15 16 SGH-I307 Installation Guide and User manual USB interface The USB interface is the path for communication between the hos t and module. The interface com p lies with the Universal Bus S p ecification, Rev2.0, and the host device must be pp Designed to the same standard.(When designing the host device, careful PCB layout practices m ust be followed) USB interface 16 17 SGH-I307 Installation Guide and User manual SIM interface The module supports one SIM(Subscriber Identity Module)(1.8V or 3V). The SIM holds account information , allowing users to use their account on multiple devices. The SIM pins provide the connections necessary to interface to a SIM socket located on the host device. Voltage levels over this interface comply with 3GPP standards. SIM interface signalSIM interface signal 17 18 SGH-I307 Installation Guide and User manual Critical Installation Requirements This device is approved for use as a mobile installation meanin g that it will only be used in products That are capable of maintaining a minimum separation distance o f 20cm from the antenna(s) of this Device and end user.When installed in a final configuration the antenna must be ins talled such that a minimum separation Of 20cm(8 inches) between the wireless device and the body of t he user(this does not include extremities) must be maintained during use and while the wireless device is on and transmitting. This distance must be ensured for all operating modes and conditionsThis distance must be ensured for all operating modes and conditions . This transmitter must not be collocated or operate in conjuncti on with any other antenna or transmitter. Installations in which the device is collocated with other tran smitters or the minimum separation distance B t th b d d t ( ) t b i t i d i t FCC th i ti B e t ween th e b o d y an d an t enna ( s ) can no t b e ma i n t a i ne d requ i re a separa t e FCC au th or i za ti on. Such installations may require additional testing for RF Exposu re(i.e. SAR) and a Class II Permissive Change Filling for FCC approval. Please contact Samsung Electronics, L td. Regarding such installations. A label must be affixed to the outside of the end product into which the Module is installed, with a statement similar to the following:· This device contain s FCC ID: A3LSGHI307 Antenna Requirements To comply with FCC regulations limiting both maximum RF output power and human exposure to RF radiation, the maximum antenna gain including cable loss in a m obile-only exposure condit…

Text truncated - open the document above for the full version.

( Contact : Minho Park FCC ID: A3LSGHI307 IC ID: Request for Modular Approval Request for Limited Modular Approval Single Modular Approval Requirements Item Requirements EUT 1 The radio elements must have the radio frequency circuitry shielded. SGH-I307 is perfectly shielded RF part by using PCB wall and shield can 2 The module must have buffered modulation/data inputs SGH-I307 has enough buffered modulation/data inputs in all band by RF part circuit turning 3 The module must contain power supply regulation on the module; SGH-I307 is applied power supply regulation of each power level in all band 4 The module must contain a permanently attached antenna, or contain a unique antenna connector, and be marketed SGH-I307 is a just RF module device. SGH-I307 has two RF connector. One is for main RF band and another is for diversity and GPS. 5 The module must demonstrate compliance in a stand-alone configuration; SGH-I307 is already confirmed with H/W performance, conduction test and RSE test in a stand-alone configuration. 6 The licensed module must have a FCC ID label on the module itself. That FCC ID label must be visible through a window on the final device or it must be visible when an access panel, door or cover is easily removed. If not, a second label must be placed on the outside of the final device that contains the following text: Contains “FCC ID: A3LSGHI307” SGH-I307 is placed on the shield can of I307 module. It is visible when cover is removed. And a second label is replaced by printing type at outside of final device. 7 The module must comply with all specific rules applicable to the transmitter. The grantee must provide comprehensive instructions to explain compliance requirements; SGH-I307 complies with all specific rules applicable to the transmitter. And All IEEE specifications are also satisfied. 8 The module must comply with RF exposure requirements. SGH-I307 Complies with RF exposure; RSE and MPE Point of contact Signature Name : Minho Park Title : Engineer Samsung Electronics

SAMSUNG ELECTRONICS AMERICA, INC. American QA Lab 19 Chapin Rd, Building D. Pine Brook, NJ 07058 Date: June 13, 2012 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road, Columbia, MD 21046 RE: Request of Confidentiality for FCC ID: A3LSGHI307 To Whom It May Concern: Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules (CFR 47), and Section 552 (b) (4) of the Freedom of Information Act, SAMSUNG ELECTRONICS CO.,LTD. hereby requests confidentiality and treatment of certain information accompanying this application. The materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. We are also hereby request Short-Term Confidentiality for 180 days after the grant as outlined in Public Notice DA 04-1705. This provision will give SAMSUNG ELECTRONICS CO.,LTD. temporary confidentiality of commercially sensitive information prior to product release. The requested Permanent and Short-Term Confidential exhibits are listed as follows: PERMANENT AND SHORT-TERM CONFIDENTIAL LIST Exhibit Description 1 Block Diagram 2 Operational Description 3 Schematics PERMANENT 4 Parts List & Tune-Up Procedure 5 External Photos 6 Internal Photos 7 Test-Setup Photos SHORT-TERM 8 Users Manual The Applicant understands that pursuant to Rule 0.457, disclosure of this application and all accompanying documentations, where applicable, will not be made public before the date of the Grant for this application. Sincerely, Peter Ra General Manager American QA Lab SAMSUNG Electronics America INC.

SAMSUNG ELECTRONICS CO., LTD 416,Maetan-3dong,Yeongtong-gu Suwon-si,Gyeonggi-do, 443-742 Korea June 13, 2012 Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 SUBJECT : Label Statement FCC ID : A3LSGHI307 Gentlemen: We hereby provide the label statement letter for the above-mentioned device by a new label statement policy instituted at the September 12, 2006, TCB-FCC Teleconference. The label statement is as follows: The FCC ID shown in the FCC ID label page will be readily visible at the time of purchase, But the device could be installed inside of end product. The label is permanently attached by acrylic glue and not easily removed from the device. This statement could not be included in the label. So we inform you of it through this letter. Should you have any questions or comments concerning the above, please contact the undersigned. Sincerely Yours, Seoung Ho Park Senior Manager SAMSUNG ELECTRONICS CO.,LTD Telecommunication Network Business Mobile Communication Division Regulatory Compliance Group.

Label and Location Samsung Phone Model: SGH-I307 FCC ID: A3LSGHI307 Label: Location: Top Front plate of device Bottom Label is placed on the front side of device Label

Reviewed by: FCC ID: A3LSGHI307 MAXIMUM PERMISSIBLE EXPOSURE (MPE) DATA REPORT Quality Manager Test Report S/N: Test Dates: EUT Type: 0Y1205290741.A3L June 26, 2012 Wireless Module Page 1 of 8 © 2012 PCTEST Engineering Laboratory, Inc. REV 3.1MPE 02/09/09 Applicant Name: Date of Testing: Samsung Electronics, Co. Ltd. June 26, 2012 416 Maetan 3-Dong, Yeongtong-gu Test Site/Location: Suwon-si, Gyeonggi-do PCTEST Lab, Columbia, MD, USA 443-742 , Republic of Korea Test Report Serial No.: 0Y1205290741.A3L FCC ID: A3LSGHI307 APPLICANT: Samsung Electronics, Co. Ltd. EUT Type: Wireless Module FCC Rule Part(s): FCC Part 1 (§1.1310) and Part 2 (§2.1091) FCC Classification: PCS Licensed Transmitter (PCB) Test Procedure: OET Bulletin 65 The device bearing the FCC Identifier specified above has been shown to comply with the applicable technical standards as indicated in the measurement report and has been tested in accordance with the measurement procedures specified in FCC OET Bulletin 65 (See Test Report). These measurements were performed with no deviation from the standards. Test results reported herein relate only to the item(s) tested. I authorize and attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. PCTEST certifies that no party to this application has been subject to a denial of Federal benefits that includes FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. PCTEST ENGINEERING LABORATORY, INC. 6660-B Dobbin Road, Columbia, MD 21045 USA Tel. 410.290.6652 / Fax 410.290.6554 http://www.pctestlab.com RF EXPOSURE EVALUATION (MAXIMUM PERMISSIBLE EXPOSURE) Reviewed by: FCC ID: A3LSGHI307 MAXIMUM PERMISSIBLE EXPOSURE (MPE) DATA REPORT Quality Manager Test Report S/N: Test Dates: EUT Type: 0Y1205290741.A3L June 26, 2012 Wireless Module Page 2 of 8 © 2012 PCTEST Engineering Laboratory, Inc. REV 3.1MPE 02/09/09 TABLE OF CONTENTS 1.0 RF EXPOSURE EVALUATION – MAXIMUM PERMISSIBLE EXPOSURE (MPE) .........................3 1.1 INTRODUCTION ................................................................................................................................... 3 1.2 EUT DESCRIPTION .............................................................................................................................. 3 1.3 MPE REQUIREMENTS OVERVIEW..................................................................................................... 4 1.4 PROCEDURE........................................................................................................................................ 5 1.5 SUMMARY OF RESULTS ..................................................................................................................... 7 2.0 CONCLUSION..................................................................................................................................8 Reviewed by: FCC ID: A3LSGHI307 MAXIMUM PERMISSIBLE EXPOSURE (MPE) DATA REPORT Quality Manager Test Report S/N: Test Dates: EUT Type: 0Y1205290741.A3L June 26, 2012 Wireless Module Page 3 of 8 © 2012 PCTEST Engineering Laboratory, Inc. REV 3.1MPE 02/09/09 1.0 RF EXPOSURE EVALUATION – MAXIMUM PERMISSIBLE EXPOSURE (MPE) 1.1 Introduction This document is prepared on behalf of Samsung Electronics, Co. Ltd. to show compliance with the RF Exposure requirements as required in §1.1310 of the FCC Rules and Regulations and RSS-102 of Industry Canada. The limit for Maximum Permissible Exposure (MPE), specified in FCC §1.1310, is listed in Table 1-1. According to FCC §1.1310 and RSS-102: the criteria listed in the following table shall be used to evaluate the environmental impact of human exposure to radio-frequency (RF) radiation as specified in §1.1307(b). Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (Minutes) (A) Limits For Occupational / Control Exposures (f = frequency) 30-300 61.4 0.163 1.0 6 300-1500 ... ... f/300 6 1500-100,000 ... ... 5.0 6 (B) Limits For General Population / Uncontrolled Exposure (f = frequency) 30-300 27.5 0.073 0.2 30 300-1500 ... ... f/1500 30 1500-100,000 ... ... 1.0 30 Table 1-1. Limits for Maximum Permissible Exposure (MPE) 1.2 EUT Description The Samsung Wireless Module FCC ID: A3LSGHI307 was evaluated for MPE with the device set to transmit at maximum power from the antenna of the transmitter. EUT: Grantee: Samsung Electronics, Co. Ltd. FCC ID: A3LSGHI307 Model: SGH-I307 Reviewed by: FCC ID: A3LSGHI307 MAXIMUM PERMISSIBLE EXPOSURE (MPE) DATA REPORT Quality Manager Test Report S/N: Test Dates: EUT Type: 0Y1205290741.A3L June 26, 2012 Wireless Module Page 4 of 8 © 2012 PCTEST Engineering Laboratory, Inc. REV 3.1MPE 02/09/09 1.3 MPE Requirements Overview Three different categories of transmitters are defined by the FCC in OET Bulletin 65. These categories are fixed installation, mobile, and portable and are defined as follows: o Fixed Installations: fixed location means that the device, including its antenna, is physically secured at a permanent location and is not able to be easily moved to another location. Additionally, distance to humans from the antenna is maintained to at least 2 meters. o Mobile Devices: a mobile device is defined as a transmitting device designed to be used in other than fixed locations and to be generally used in such a way that a separation distance of at least 20 centimeters is normally maintained between the transmitter's radiating structures and the body of the user or nearby persons. Transmitters designed to be used by consumers or workers that can be easily re-located, such as a wireless modem operating in a laptop computer, are considered mobile devices if they meet the 20 centimeter separation requirement. The FC…

Text truncated - open the document above for the full version.

Reviewed by: FCC ID: A3LSGHI307 FCC Pt. 22/24 WCDMA/HSPA MEASUREMENT REPORT (CERTIFICATION) Quality Manager Test Report S/N: Test Dates: EUT Type: 0Y1205290742.A3L June 6 - 22, 2012 Wireless Module Page 1 of 36 © 2012 PCTEST Engineering Laboratory, Inc. REV 1.6GWCFI 05/21/2012 Applicant Name: Date of Testing: Samsung Electronics Co., Ltd. June 6 - 22, 2012 416 Maetan 3-Dong, Yeongtong-gu Test Site/Location: Suwon-si, Gyeonggi-do PCTEST Lab., Columbia, MD, USA 443-742 , Republic of Korea Test Report Serial No.: 0Y1205290742.A3L FCC ID: A3LSGHI307 APPLICANT: SAMSUNG ELECTRONICS CO., LTD. Application Type: Certification Model(s): SGH-I307 EUT Type: Wireless Module FCC Classification: PCS Licensed Transmitter (PCB) FCC Rule Part(s): §2; §22(H), §24(E) IC Specification(s): RSS-132 Issue 2; RSS-133 Issue 5 Test Procedure(s): ANSI/TIA-603-C-2004, KDB 971168 Test Device Serial No.: identical prototype [S/N: FJ-153-A] Max. Power (W) Max. Power (dBm) WCDMA850826.4 - 846.64M14F9W0.23723.74 WCDMA19001852.4 - 1907.64M14F9W0.21623.34 Conducted Mode Tx Frequency (MHz) Emission Designator This equipment has been shown to be capable of compliance with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in §2.947. Test results reported herein relate only to the item(s) tested. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. Grant Conditions: Power output listed is conducted for Part 22 and Part 24. PCTEST certifies that no party to this application has been subject to a denial of Federal benefits that includes FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. PCTEST ENGINEERING LABORATORY, INC. 7185 Oakland Mills Road, Columbia, MD 21046 USA Tel. 410.290.6652 / Fax 410.290.6654 http://www.pctestlab.com MEASUREMENT REPORT FCC Part 22 & 24 / IC RSS-132/RSS-133 Reviewed by: FCC ID: A3LSGHI307 FCC Pt. 22/24 WCDMA/HSPA MEASUREMENT REPORT (CERTIFICATION) Quality Manager Test Report S/N: Test Dates: EUT Type: 0Y1205290742.A3L June 6 - 22, 2012 Wireless Module Page 2 of 36 © 2012 PCTEST Engineering Laboratory, Inc. REV 1.6GWCFI 05/21/2012 TABLE OF CONTENTS FCC PART 22 & 24 MEASUREMENT REPORT............................................................................3 1.0 INTRODUCTION ..............................................................................................................................4 1.1 SCOPE ................................................................................................................................................ 4 1.2 TESTING FACILITY............................................................................................................................. 4 2.0 PRODUCT INFORMATION..............................................................................................................5 2.1 EQUIPMENT DESCRIPTION .............................................................................................................. 5 2.2 DEVICE CAPABILITIES....................................................................................................................... 5 2.3 TEST CONFIGURATION..................................................................................................................... 5 2.4 EMI SUPPRESSION DEVICE(S)/MODIFICATIONS ........................................................................... 5 2.5 LABELING REQUIREMENTS.............................................................................................................. 5 3.0 DESCRIPTION OF TESTS ..............................................................................................................6 3.1 EVALUATION PROCEDURE.............................................................................................................. 6 3.2 CELLULAR - BASE FREQUENCY BLOCKS....................................................................................... 6 3.3 CELLULAR - MOBILE FREQUENCY BLOCKS ................................................................................... 6 3.4 PCS - BASE FREQUENCY BLOCKS .................................................................................................. 6 3.5 PCS - MOBILE FREQUENCY BLOCKS .............................................................................................. 7 3.6 OCCUPIED BANDWIDTH ................................................................................................................... 7 3.7 SPURIOUS AND HARMONIC EMISSIONS AT ANTENNA TERMINAL.............................................. 7 3.8 RADIATED POWER AND RADIATED SPURIOUS EMISSIONS ........................................................ 8 3.9 PEAK-AVERAGE RATIO ..................................................................................................................... 9 3.10 FREQUENCY STABILITY / TEMPERATURE VARIATION ................................................................. 9 4.0 TEST EQUIPMENT CALIBRATION DATA ....................................................................................10 5.0 SAMPLE CALCULATIONS ............................................................................................................11 6.0 TEST RESULTS .............................................................................................................................12 6.1 SUMMARY......................................................................................................................................... 12 6.2 TRANSMITTER CONDUCTED OUTPUT POWER DATA................................................................. 13 6.3 CELLULAR WCDMA RADIATED MEASUREMENTS...........................................…

Text truncated - open the document above for the full version.

Reviewed by: FCC ID: A3LSGHI307 FCC Pt. 27 LTE MEASUREMENT REPORT (CERTIFICATION) Quality Manager Test Report S/N: Test Dates: EUT Type: 0Y1205290743.A3L June 6 - 22, 2012 Wireless Module Page 1 of 68 © 2012 PCTEST Engineering Laboratory, Inc. REV 1.7AWSC 12/10/09 Applicant Name: Date of Testing: Samsung Electronics Co., Ltd. June 6 - 22, 2012 416 Maetan 3-Dong, Yeongtong-gu Test Site/Location: Suwon-si, Gyeonggi-do PCTEST Lab., Columbia, MD, USA 443-742 , Republic of Korea Test Report Serial No.: 0Y1205290743.A3L FCC ID : A3LSGHI307 APPLICANT: SAMSUNG ELECTRONICS CO., LTD. Application Type: Certification FCC Classification: PCS Licensed Transmitter (PCB) FCC Rule Part(s): §2; §27 EUT Type: Wireless Module Model(s): SGH-I307 Test Device Serial No.: identical prototype [S/N: FJ-153-A] Max. Power (W) Max. Power (dBm) LTE Band 17706.5 - 713.54M51G7DQPSK0.20423.10 LTE Band 17706.5 - 713.54M51W7D16QAM0.15822.00 LTE Band 17709 - 7118M91G7DQPSK0.19622.92 LTE Band 17709 - 7118M90W7D16QAM0.16722.22 LTE Band 41712.5 - 1752.54M52G7DQPSK0.23323.68 LTE Band 41712.5 - 1752.54M52W7D16QAM0.18322.63 LTE Band 41715 - 17508M95G7DQPSK0.23123.63 LTE Band 41715 - 17508M93W7D16QAM0.19722.95 LTE Band 41717.5 - 1747.513M4G7DQPSK0.21723.36 LTE Band 41717.5 - 1747.513M5W7D16QAM0.18822.75 LTE Band 41720 - 174517M9G7DQPSK0.22923.60 LTE Band 41720 - 174517M9W7D16QAM0.19622.93 Mode Tx Frequency (MHz) Emission Designator Conducted Modulation This equipment has been shown to be capable of compliance with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in §2.947. Test results reported herein relate only to the item(s) tested. Test results reported herein relate only to the item(s) tested. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. Power output listed is conducted for Part 27. PCTEST certifies that no party to this application has been subject to a denial of Federal benefits that includes FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. PCTEST ENGINEERING LABORATORY, INC. 6660-B Dobbin Road, Columbia, MD 21045 USA Tel. 410.290.6652 / Fax 410.290.6654 http://www.pctestlab.com MEASUREMENT REPORT FCC Part 27 Reviewed by: FCC ID: A3LSGHI307 FCC Pt. 27 LTE MEASUREMENT REPORT (CERTIFICATION) Quality Manager Test Report S/N: Test Dates: EUT Type: 0Y1205290743.A3L June 6 - 22, 2012 Wireless Module Page 2 of 68 © 2012 PCTEST Engineering Laboratory, Inc. REV 1.7AWSC 12/10/09 TABLE OF CONTENTS FCC PART 27 MEASUREMENT REPORT...................................................................................3 1.0 INTRODUCTION ..............................................................................................................................4 1.1 SCOPE ................................................................................................................................................ 4 1.2 TESTING FACILITY............................................................................................................................. 4 2.0 PRODUCT INFORMATION..............................................................................................................5 2.1 EQUIPMENT DESCRIPTION .............................................................................................................. 5 2.2 DEVICE CAPABILITIES....................................................................................................................... 5 2.3 EMI SUPPRESSION DEVICE(S)/MODIFICATIONS ........................................................................... 5 2.4 LABELING REQUIREMENTS.............................................................................................................. 5 3.0 DESCRIPTION OF TESTS ..............................................................................................................6 3.1 MEASUREMENT PROCEDURE......................................................................................................... 6 3.2 OCCUPIED BANDWIDTH ................................................................................................................... 6 3.3 BLOCK A FREQUENCY RANGE ........................................................................................................6 3.4 AWS - BASE FREQUENCY BLOCKS ................................................................................................. 7 3.5 AWS - MOBILE FREQUENCY BLOCKS ............................................................................................. 7 3.6 SPURIOUS AND HARMONIC EMISSIONS AT ANTENNA TERMINAL.............................................. 7 3.7 RADIATED POWER AND RADIATED SPURIOUS EMISSIONS ........................................................ 8 3.8 PEAK-AVERAGE RATIO ..................................................................................................................... 8 3.9 FREQUENCY STABILITY / TEMPERATURE VARIATION ................................................................. 8 4.0 TEST EQUIPMENT CALIBRATION DATA ......................................................................................9 5.0 SAMPLE CALCULATIONS ............................................................................................................10 6.0 TEST RESULTS .............................................................................................................................11 6.1 SUMMARY......................................................................................................................................... 11 6.2 TRANSMITTER CONDUCTED OUTPUT POWER DATA................................................................. 12 6.3 BAND 17 …

Text truncated - open the document above for the full version.

Samsung Electronics Co. Ltd. FCC ID: A3LSGHI307 Model: SGH-I307 Test Set-Up Photos EUT Type: Wireless Module Page 1 of 2 © 2012 PCTEST Engineering Laboratory Inc. TEST SETUP PHOTOGRAPHS Samsung Electronics Co. Ltd. FCC ID: A3LSGHI307 Model: SGH-I307 Test Set-Up Photos EUT Type: Wireless Module Page 2 of 2 © 2012 PCTEST Engineering Laboratory Inc.
