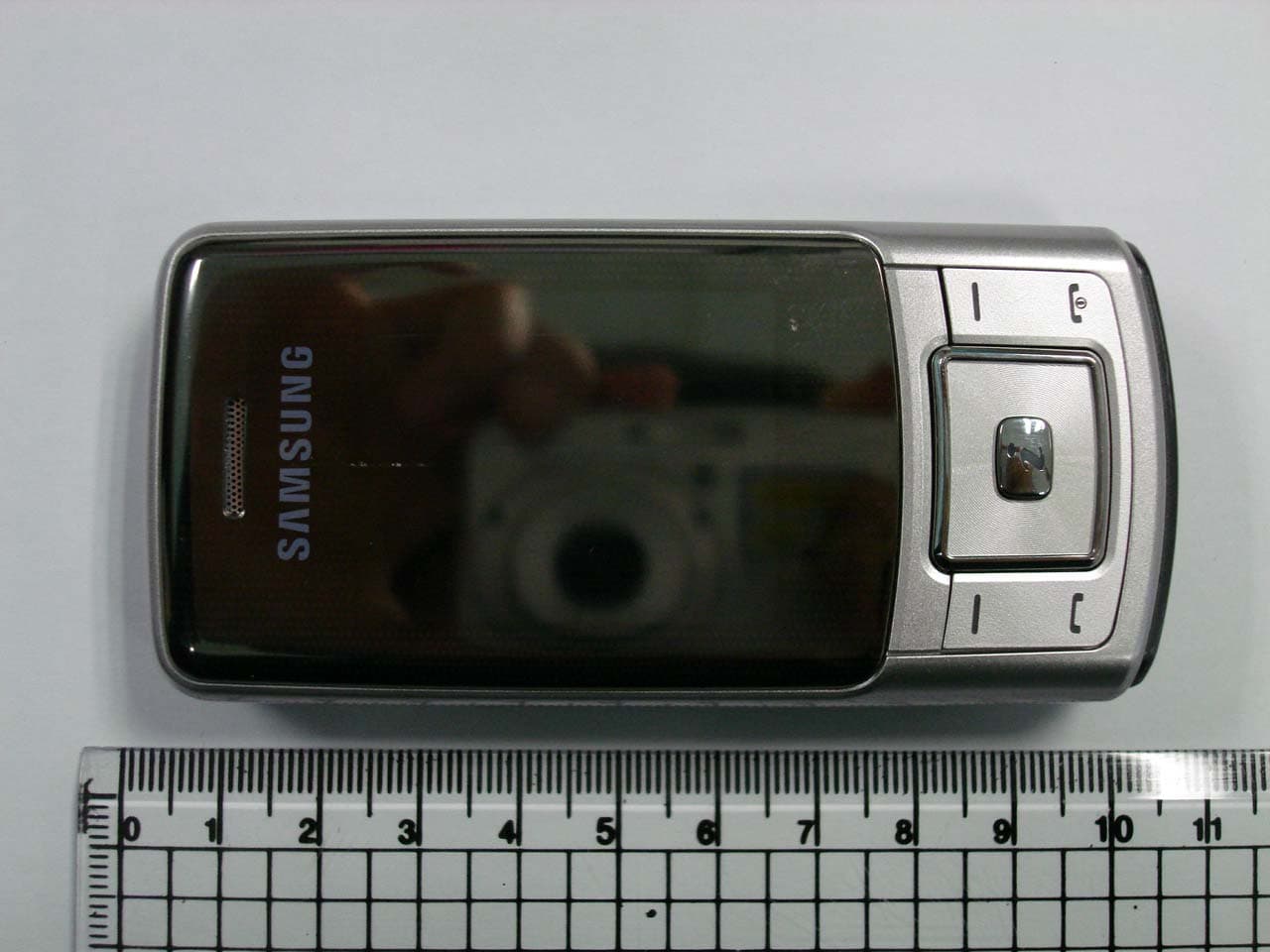

A3LSGHM620PCS GSM Phone with Bluetooth

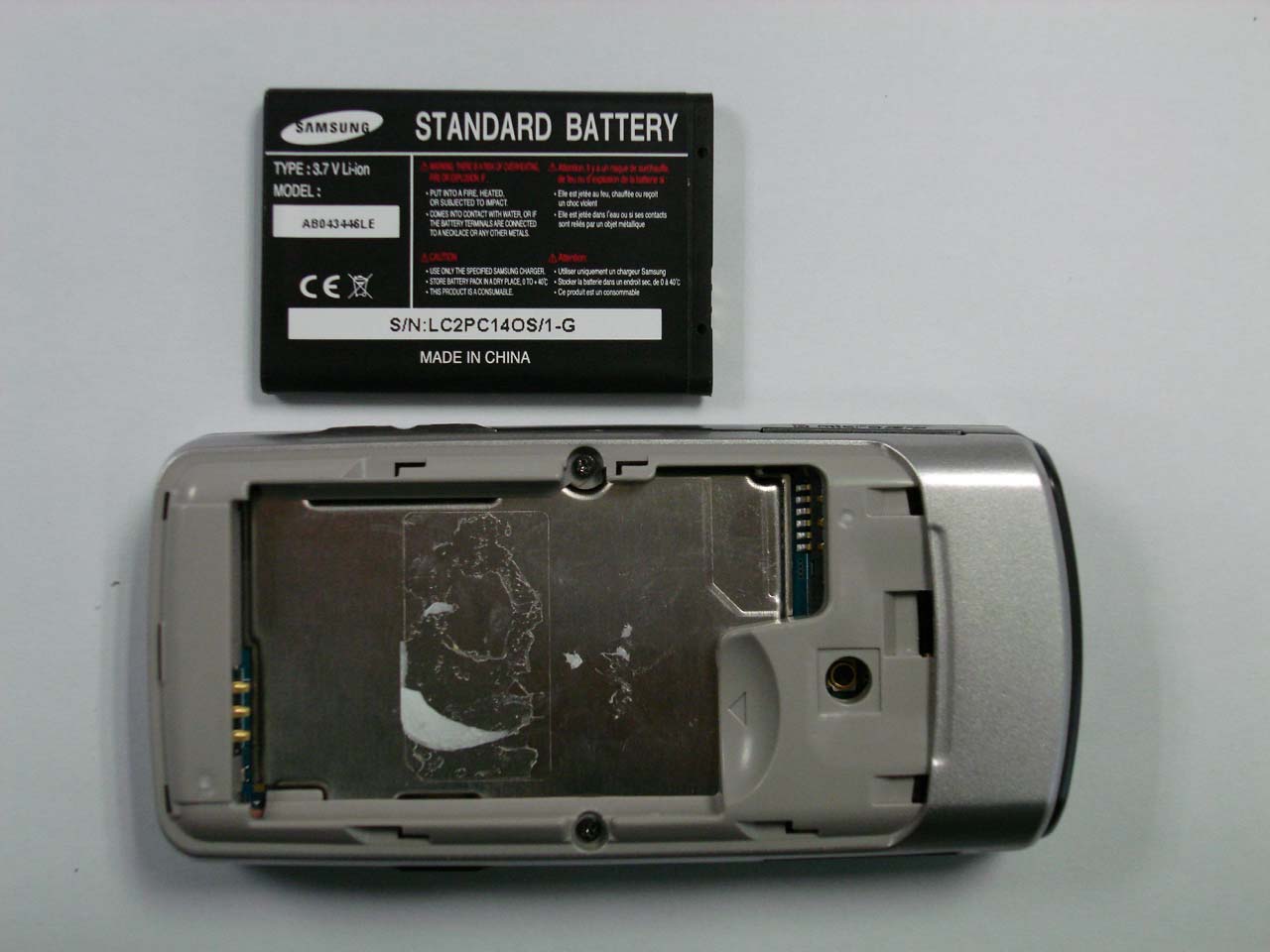

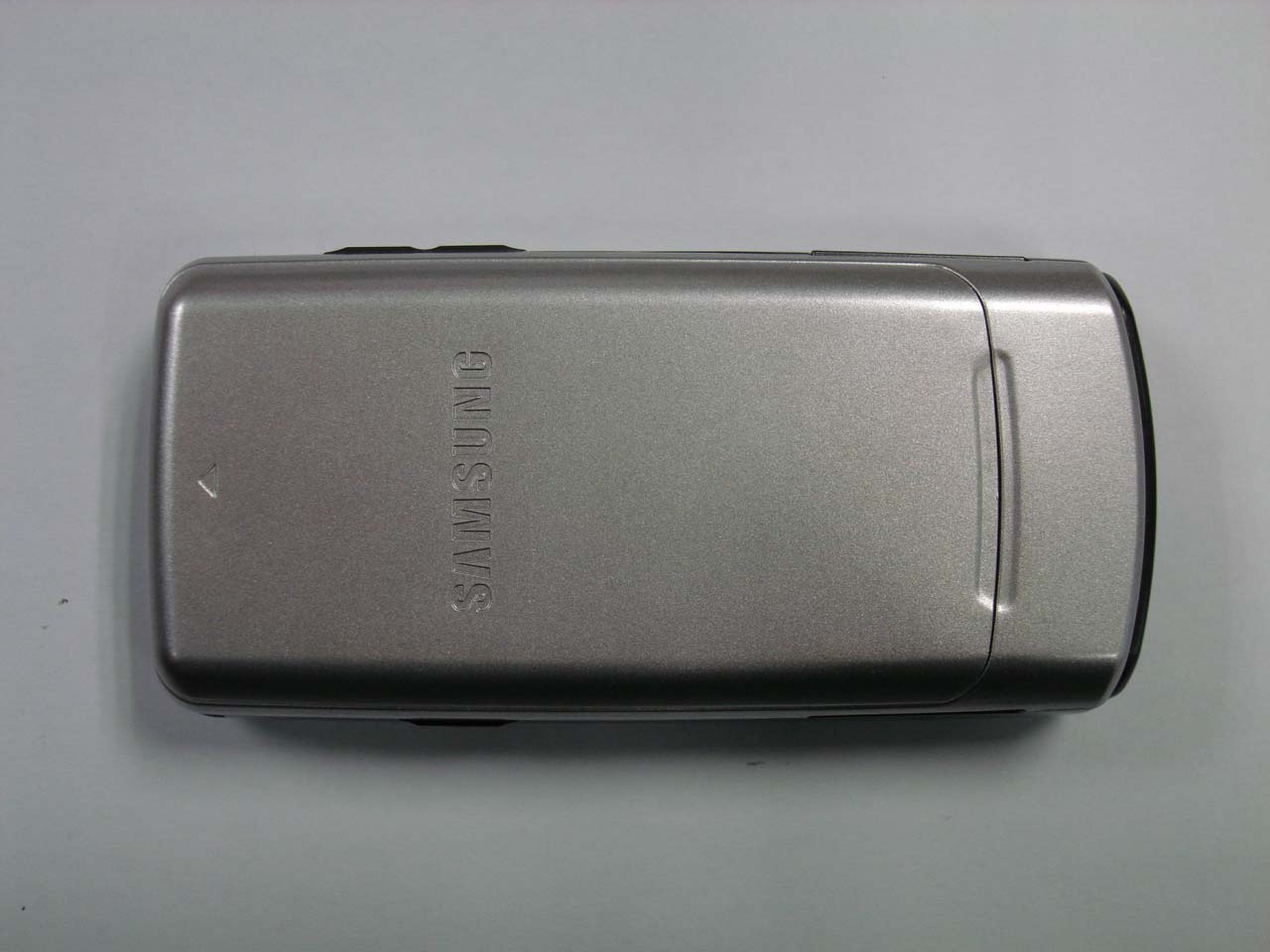

9. Usermanual Printed in Korea Code No.: GH68-XXXXXA English (EU). 02/2008. Rev.1.0 World Wide Webhttp://www.samsungmobile.com SGH-M620User’s Guide Some of the contents in this guide may differ from your phone depending on the software of the phone or your service provider. Draft 01 2008. 02. 01 SW: M620XXHA3 Installing the SIM card and battery 1. Remove the battery cover and insert the SIM card. 2. Install the battery and reattach the cover. Battery cover Battery Charging the battery 1. Plug the supplied travel adapter into the phone and a power outlet. 2. When charging is finished, unplug the adapter. Note : Do not remove the battery from the phone without unplugging the adapter first. Otherwise, the phone may be damaged. With the triangle facing up Phone layout and key functions 4-way navigation keysIn Idle mode, access the following menus or functions directly:• Up : My menu mode • Down / Left / Right : your favourite menus In Menu mode, scroll through menu options. Power/End keyTurns the phone on or off when held down. Also, ends a call.Silent mode keyX Silent mode Delete keyDeletes characters from the display or items in an application. Soft keys Perform functions indicated by the text above the key. Dial key Makes and answers a call. In Idle mode, retrieves the most recent calls. Volume keys In Idle mode, adjust the keypad tone volume. Send an SOS message when pressed 4 times with the phone closed. X SOS mode Alphanumeric keys Web access/ Confirm key In Idle mode, accesses the web browser. In Menu mode, selects the highlighted option or confirms input. Voice mail server key In Idle mode, accesses your voice mail server when held down. Bluetooth keyAccesses the Bluetooth menu. Camera keyIn Idle mode, turns on the camera when held down. Music player key Accesses the Music player menu. Display Your phone is in Idle mode when you are not on a call or using a menu. You must be in Idle mode to dial a phone number. Silentmode Press and hold in Idle mode to disable all sounds on the phone. To exit, press and hold this key again. Keypad lock mode When you close the phone, it locks the exposed keys to ignore accidental key pressing. To unlock, press the Unlock soft key and then the OK soft key. SOS mode With the phone closed, press the Volume keys 4 times to send an SOS message to preset phone numbers. Once the SOS message is sent, the phone will change to SOS mode and will receive calls only from the registered recipients. Upon receiving a call from the SOS message recipients, the phone will automatically answer the call. Press to exit SOS mode. Menu Contacts Text and graphicsSoft key function indicatorsIcons Your phone displays the following status indicators on the top of the screen: Switching on or off the phone 1. Press and hold for more than on e second to switch on the phone. 2. Press and hold for more than two seconds to switch off the phone. Changing the display language 1. In Idle mode, press the Menu soft key. 2. Select Settings → Phone settings → Language . 3. Select a language. Making a call 1. In Idle mode, enter an area code and phone number, and press . 2. Press to end the call. Answering a call 1. When the phone rings, press the Accept soft key or to answer a call.Press the Reject soft key or to reject the call. 2. Press to end the call. Adjusting the volume 1. In Idle mode, press the Menu soft key. 2. Select Settings → Sound settings → Incoming call → Call alert volume . 3. Press Left or Right to adjust the volume level. 4. Press the Save soft key. While a call is in progress, press the Volume keys to adjust the earpiece volume. Changing a ringtone for calls 1. In Idle mode, press the Menu soft key. 2. Select Settings → Sound settings → Incoming call → Ringtone . 3. Select a ringtone and press the Save soft key. Redialling recent numbers 1. In Idle mode, press . 2. Press Left or Right to select a call type. 3. Press Up or Down to scroll to the number you want. 4. Press to dial the number. Using the menus In Idle mode, press the Menu soft key to enter the main menu. To exit the menu without changing the menu settings, press this key. Labels at the bottom corners of the display show the current soft key functions. Press the left soft key ( ) or right soft key ( ) to perform the function indicated. Use the 4-way navigation keys as shortcuts to access your favourite menus. Up is fixed as a shortcut to My menu mode.1. In Idle mode, press the Menu soft key. 2. Select Settings → Phone settings → Shortcuts . 3. Select a key.4. Select a menu to be assigned to the key. To select or modify a menu or feature:1. In Idle mode, press the Menu soft key. 2. Press the Navigation keys to reach a desired menu and then press the Select soft key or . 3. If the menu contains any submenus, locate the one you want by pressing the Navigation keys. Press the Select soft key or to enter the submenu.If the selected menu contains additional submenus, repeat this step. 4. Press the Navigation keys to find the setting of your choice.5. Press the Select soft key or to confirm your chosen setting. Shortcut numbersYou can quickly access the menu you want by using shortcut numbers. The shortcut number displays in front of the menu name in Menu mode. Menu map 1. Call log1.1 Recent contacts1.2 Missed calls1.3 Dialled calls1.4 Received calls1.5 Delete all1.6 Call manager2. Phonebook2.1 Contact list2.2 Create contact2.3 Group2.4 Speed dial2.5 My namecard2.6 Own numbers2.7 Management2.8 Service number*3. Applications3.1 Alarm3.2 Music player3.3 Voice recorder3.4 FM radio3.5 Java world3.6 Memo3.7 World clock3.8 Calculator3.9 Converter 3.10 Timer3.11 Stopwatch3.12 SIM application toolkit* 4. Browser4.1 Home4.2 Enter URL4.3 Bookmarks4.4 Clear cache4.5 Browser settings 5. Messages5.1 Create message5.2 My messages5.3 Templates5.4 Delete all5.5 Settings5.6 SOS messages5.7 Memory status6. My files6.1 Images6.2 Videos6.3 Music6.4 Sounds6.5 Other files6.6 Memory status 7. Calendar8. Camera9. Settings9.1 Time and date9.2 P…

Text truncated - open the document above for the full version.

SAMSUNG ELECTRONICS AMERICA, INC. American QA Lab 18600 Broadwick St. Rancho Dominguez, CA 90220 Date: March 18, 2008 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road, http Columbia, MD 21046 RE: Request of Confidentiality for FCC ID: A3LSGHM620 To Whom It May Concern: Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules (CFR 47), and Section 552 (b) (4) of the Freedom of Information Act, SAMSUNG ELECTRONICS CO.,LTD. hereby requests confidentiality and treatment of certain information accompanying this application. The materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. We are also hereby request Short-Term Confidentiality for 180 days after the grant as outlined in Public Notice DA 04-1705. This provision will give SAMSUNG ELECTRONICS CO.,LTD. temporary confidentiality of commercially sensitive information prior to product release. The requested Permanent and Short-Term Confidential exhibits are listed as follows: PERMANENT AND SHORT-TERM CONFIDENTIAL LIST Exhibit Description 1 Block Diagram 2 Operational Description 3 Schematics PERMANENT 4 Parts List & Tune-Up Procedure 5 External Photos 6 Internal Photos 7 Test-Setup Photos SHORT-TERM 8 Users Manual The Applicant understands that pursuant to Rule 0.457, disclosure of this application and all accompanying documentations, where applicable, will not be made public before the date of the Grant for this application. Sincerely, Steve Kim General Manager American QA Lab SAMSUNG Electronics America INC.

SGH-M620 A3LSGHM620 -M620GSMH 800 IMEI: SGH-M620

66mm Slide up/down시 BT antenna와 Main antenna 의 거리는66mm로 동일합니다. BT antenna Main antenna

APPENDIX G Probe Calibration APPENDIX H Calibration of The Validation Dipole

of 27 SAMSUNG ELECTRONICS Co., Ltd., Regulatory Compliance Group IT R&D Center 416, Maetan-3dong, Yeongtong-gu, Suwon-si, Gyeonggi-do, Korea 443-742 TEST REPORT ON SAR Model Tested: SGH-M620 Additional Model: SGH-M628 FCC ID (Requested): A3LSGHM620 Job No: FF-036 Report No: FF-036-S1 Date issued: Mar.17, 2008 - Abstract – This document reports on SAR Tests carried out in accordance with FCC/OET Bulletin 65, Supplement C(July 2001). Prepared By EH JUNG - Test Engineer Authorized By JH NAM - Technical Manager Report Number: FF-036-S1 2 of 28 Contents 1. GENERAL INFORMATION............................................................................................................. 3 2. DESCRIPTION OF DEVICE ........................................................................................................... 3 3. DESCRIPTION OF TEST EQUIPMENT ......................................................................................... 4 3.1 SAR Measurement Setup ......................................................................................................4 3.2 E-field Probe .......................................................................................................................... 6 3.3 SAM Phantom ........................................................................................................................ 8 3.4 Brain & Muscle Simulating Mixture Characterization ............................................................. 8 3.5 Device Holder for Transmitters ..............................................................................................9 3.6 Validation Dipole .................................................................................................................... 9 3.7 Equipment Calibration.......................................................................................................... 10 4. SAR MEASUREMENT PROCEDURE ......................................................................................... 11 5. DESCRIPTION OF TEST POSITION ........................................................................................... 12 5.1 SAM Phantom Shape...........................................................................................................12 5.2 Cheek/Touch Position .......................................................................................................... 12 5.3 EAR/Tilt 15° Position ............................................................................................................ 14 5.4 Body Holster/Belt Clip Configurations.................................................................................. 15 6. MEASUREMENT UNCERTAINTY................................................................................................ 17 7. SYSTEM VERIFICATION ............................................................................................................. 18 7.1 Tissue Verification ................................................................................................................ 18 7.2 Test System Validation ......................................................................................................... 18 8. SAR MEASUREMENT RESULTS ................................................................................................ 19 8.1 Measurement Results(GSM1900 Right Head SAR - Touch) ............................................... 21 8.2 Measurement Results(GSM1900 Right Head SAR - Tilt) .................................................... 22 8.3 Measurement Results(GSM1900 Left Head SAR - Touch).................................................. 23 8.4 Measurement Results(GSM1900 Left Head SAR - Tilt)....................................................... 24 8.5 Measurement Results(GPRS1900 Body SAR without Holster)........................................... 25 9. CONCLUSION .............................................................................................................................. 26 10. REFERENCES ............................................................................................................................ 27 Report Number: FF-036-S1 3 of 28 1. GENERAL INFORMATION Test Sample : Single-Band PCS GSM Phone with Bluetooth Model Number : SGH-M620 Serial Number : Identical prototype (S/N : # FF-036-B) Manufacturer : SAMSUNG ELECTRONICS Co., Ltd. Contact : JY HEO Phone : +82-54-479-5794 Fax : +82-54-479-7915 Test Standard : §2.1093; FCC/OET Bulletin 65, Supplement C(July 2001) FCC Classification : Licensed Portable Transmitter Held to Ear (PCE) Test Dates : Mar.05, 2008 Tested for : FCC/TCB Certification 2. DESCRIPTION OF DEVICE Tx Freq. Range : 1850.20 ~ 1909.80 MHz (GSM1900) 2402 ~ 2480 MHz (Bluetooth) Rx Freq. Range : 1930.20 ~ 1989.80 MHz (GSM1900) 2402 ~ 2480 MHz (Bluetooth) Antenna Manufacturer : Ethertronics Model No.: KR95007 Antenna Dimensions : None GPRS Class 10 Separation distance between GSM and Bluetooth antenna : 6.6 cm Report Number: FF-036-S1 4 of 28 3. DESCRIPTION OF TEST EQUIPMENT 3.1 SAR Measurement Setup Robotic System Measurements are performed using the DASY4 automated dosimetric assessment system. Which is made by Schmid & Partner Engineering AG (SPEAG) in Zurich, Switzerland and consists of high precision robotics system (Stäubli), robot controller, measurement server, Samsung computer, near- field probe, probe alignment sensor, and the SAM twin phantom containing the brain equivalent material. The robot is a six-axis industrial robot performing precise movements to position the probe to the location (points) of maximum electromagnetic field (EMF) (see Fig. 3.1). Figure 3.1 SAR Measurement System Setup System Hardware A cell controller system contains the power supply, robot controller, teach pendant (Joystick), and a remote control is used to drive the robot motors. The PC consists of the Samsung computer with Windows XP system and SAR Measurement Software DASY4, LCD monitor, mouse and keyboar…

Text truncated - open the document above for the full version.

SAMSUNG ELECTRONICS Co., Ltd., Regulatory Compliance Group IT R&D Center 416 Maetan3-Dong, Yeongtong-gu, Suwon city, Gyeonggi-Do, Korea 443-742 FCC CFR47 PART 24 SUBPART CERTIFICATION REPORT Model Tested : SGH-M620 Additional Model : SGH-M628 FCC ID(Requested) : A3LSGHM620 Report No : FF-036-R1 Job No : FF-036 Date issued : March 10, 2008 - Abstract - All measurement reported herein accordance with FCC Rules, 47CFR Part2, Part24. Prepared By JH WOO - Test Engineer Authorized By WW JANG - Technical Manager © Copyright SAMSUNG Electronics 2005 Report Number : FF-036-R1 TABLE OF CONTENT MEASUREMENT REPORT Page 1. FCC CERTIFICATION INFORMATION .....................................................................3 1.1. §2.1033 General Information .........................................................................3 2. INTRODUCTION .......................................................................................................4 2.1. General..........................................................................................................4 3. MEASURING INSTRUMENT CALIBRATION ...........................................................5 4. TEST EQUIPMENT LIST...........................................................................................6 5. DESCRIPTION OF TESTS ........................................................................................7 5.1. Effective Radiated Power / Equivalent Isotropic Radiated Power ..................7 5.2. Radiated Spurious & Harmonic Emission ......................................................7 5.3. Occupied Bandwidth ......................................................................................7 5.4. Spurious and Harmonic Emission at Antenna Terminal..................................7 5.4.1. Occupied Bandwidth Emission Limits ................................................7 5.4.2. Conducted Spurious Emission ...........................................................7 5.5. Frequency Stability / Temperature Variation ...................................................7 6. TEST DATA ...............................................................................................................7 6.1. Equivalent Isotropic Radiated Power (E.I.R.P.) ..............................................7 6.2. GSM1900 Radiated Spurious & Harmonic measurement ..............................7 6.3. GSM1900 Radiated Spurious & Harmonic Conversion Table ........................7 6.4. Frequency Stability.........................................................................................7 6.4.1. GSM1900 Frequency Stability Table ..................................................7 6.4.2. GSM1900 Frequency Stability Graph.................................................7 7. CONCLUSION...........................................................................................................7 8. TEST PLOTS.............................................................................................................7 Report Number : FF-036-R1 MEASUREMENT REPORT 1. FCC Certification Information The following information is in accordance with FCC Rules, 47CFR Part2, Subpart J, Sections 2.1033 – 2.1055. 1.1. §2.1033 General Information • Applicant Name : SAMSUNG ELECRONICS CO., LTD. • Address : 416 Maetan3-Dong, Yeongtong-gu, Suwon City Gyeonggi-Do, Korea 443-742 • Attention : SungJoo KIM, Engineering Manager (QA Lab) • FCC ID : A3LSGHM620 • Additional Model : SGH-M628 • Quantity : Quantity production is planned • Emission Designators : 252KGXW(GSM1900) • Tx Freq. Range : 1850.2MHz -1909.8MHz (GSM1900) • Rx Freq. Range : 1930.2MHz - 1989.8MHz (GSM1900) • Max. Power Rating : 1.476 W EIRP GSM1900 (31.69dBm) • FCC Classification(s) : Licensed Portable Tx Held to Ear (PCE) • Equipment (EUT) Type : Single-Band PCS GSM Phone with Bluetooth • Frequency Tolerance : ±0.00025% (2.5ppm) • FCC Rule Part(s) : §24(E), §2. • Dates of Test : March 03-04, 2008 • Place of Test : SAMSUNG Lab, • Test Report S/N : FF-036-R1 Report Number : FF-036-R1 2. INTRODUCTION 2.1. General These measurement test were conducted at SAMSUNG ELECTRONICS CO., LTD(SUWON). The site address is 416 Maetan3-Dong, Yeongtong-gu, Suwon City, Gyeonggi-Do, Korea 443-742 The site have 1 Fully-anechoic chamber and measurement facility. Measurement Procedure The radiated and spurious measurements were made Fully-anechoic chamber at a 3-meter test range (see Figure2). The equipment under testing was placed on a Non-conducted turntable 3- meters from the receive antenna. The receive antenna height and turntable rotations were adjusted for the highest reading on the receive spectrum analyzer. The substitution antenna will replace the EUT antenna it the same position and in vertical polarization. The frequency of the signal generator shall be set to the frequencies that were measured on the EUT. The test antenna shall be raised and lowered, if necessary, to ensure that the maximum signal is still being received. The signal generator, output level, shall be adjusted until an equal or a known related level to what was measured from the EUT is obtained in the spectrum analyzer. This level was recorded. For readings above 1 GHz, the above procedure is repeated using horn antennas and the difference between the gain of the horn and an isotropic antenna are taken into consideration. Figure1. Map of the Suwon City area. Figure2. Photograph of 3m Fully-Anechoic Chamber Report Number : FF-036-R1 3. MEASURING INSTRUMENT CALIBRATION The measuring equipment, which was utilized in performing the tests documented herein, has been calibrated in accordance with the manufacturer’s recommendations for utilizing calibration equipment, which is traceable to recognized national standards. Report Number : FF-036-R1 4. TEST EQUIPMENT LIST Name Of Equipment Model Serial No. Due Date Spectrum Analyzer ESI26 836119/010 2008-10-17 E4440A(3Hz~26.5GHz)MY41000236 2008-04-14 E4440A(3Hz~26.5GHz)MY41000233 2008-07-23 Signal Generato…
