A3LSGHN105Single-Band PCS Only Phone

March 07,2001 Federal Communications Commission Authorization and Evaluation Div. Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 2 1046 To whom it may concern: We, the undersigned, hereby authorize PCTEST Engineering Laboratory Inc., to act as agent on behalf of all matters relating to applications for equipment authorization, including the signing of all documents relating to these matters. Any and all acts carried out by PCTEST Engineering Laboratory, Inc. on our behalf shall have the same effect as acts of our own. We also hereby certify that no party to this application is subject to a denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988,21 U.S.C.862. Sincerely, Wallace Oh Engineering Manager Samsung Electronics America March 9, 2001 Federal Communications Commission Authorization and Evaluation Div. Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 Re: Samsung Electronics Co., Ltd. FCC ID: A3LSGHN105 Request for Confidentiality To Whom It May Concern: In accordance with 0.459 of CFR 47, Samsung Electronics Co., Ltd. requests confidentiality for the Block Diagram, Schematics, and Circuit Description of the attached test report. These documents contain detailed system and equipment descriptions and related information about the product which Samsung Electronics Co., Ltd. considers to be proprietary, confidential, and a custom design and otherwise, would not release to the general public. Since this design is a basis from which future technological products will evolve, Samsung feels that this information would be of benefit to its competitors, and that the disclosure of the information in these documents would give our competitors an unfair advantage in the market. April 4, 2001 Federal Communications Commission Equipment Approval Services 7435 Oakland Mills Road Columbia, MD 21046 SUBJECT: Samsung Electronics Co., Ltd. FCC ID: A3LSGHN105 Users Manual RF Exposure Warning Statement Gentlemen: Samsung Electronics Co., Ltd., hereby confirms that the attached RF exposure warning page will be readily visible to the user, and will be placed at a prominent location in the front section of the users manual. If you have any further questions regarding this matter, please do not hesitate to contact me or PCTEST Lab at (410) 290-6652.

April 27, 2001 Federal Communications Commission Equipment Approval Services 7435 Oakland Mills Road Columbia, MD 21046 SUBJECT: SAMSUNG ELECTRONICS CO., LTD. FCC ID: A3LSGHN105 Part 24 Certification Gentlemen: Attached herewith, on behalf of SAMSUNG ELECTRONICS CO., LTD. is an application for Part 24 Certification of the following PCS GSM Phone: FCC ID: A3LSGHN105 TRADE / MODEL(s): SAMSUNG SGH-N105 EUT TYPE: Licensed Portable Transmitter Held to Ear (PCE) Tx Freq. Range: 1850.00 – 1910.00 MHz Rx Freq. Range: 1930.00 – 1990.00 MHz Max. RF Output Power: 1.259 W EIRP (31.001 dBm) Attached is the applicant’s Letter of Authorization, Confidentiality Request, measurement report data and plots, RF Exposure measurement report, FCC ID label and location, test setup photographs, internal and external photographs, block diagrams (confidential), schematic diagrams & circuit description (confidential), operational description, parts list & tune-up procedure, and the user's manual. Should you have any questions or comments concerning the above, please contact the undersigned. cc: Mr. Wallace Oh Engineering Manager SAMSUNG American QA Lab

© 2001 PCTEST Lab SAMSUNG FCC ID: A3LSGHN105 (Model: SGH-N105) NVLAP Lab Code: 100431-0 Single-Band PCS Only Phone (GSM) © 2001 PCTEST Lab SAMSUNG FCC ID: A3LSGHN105 (Model: SGH-N105) NVLAP Lab Code: 100431-0 Single-Band PCS Only Phone (GSM) © 2001 PCTEST Lab SAMSUNG FCC ID: A3LSGHN105 (Model: SGH-N105) NVLAP Lab Code: 100431-0 Single-Band PCS Only Phone (GSM) © 2001 PCTEST Lab SAMSUNG FCC ID: A3LSGHN105 (Model: SGH-N105) NVLAP Lab Code: 100431-0 Single-Band PCS Only Phone (GSM) © 2001 PCTEST Lab SAMSUNG FCC ID: A3LSGHN105 (Model: SGH-N105) NVLAP Lab Code: 100431-0 Single-Band PCS Only Phone (GSM) © 2001 PCTEST Lab SAMSUNG FCC ID: A3LSGHN105 (Model: SGH-N105) NVLAP Lab Code: 100431-0 Single-Band PCS Only Phone (GSM) © 2001 PCTEST Lab SAMSUNG FCC ID: A3LSGHN105 (Model: SGH-N105) NVLAP Lab Code: 100431-0 Single-Band PCS Only Phone (GSM)

© 2001PCTEST Lab FCC ID SAMPLE LABEL & LOCATION LABELLING REQUIREMENTS PER §§ 2.925 The Label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time of purchase. (SEE NEXT PAGE) MODEL NO: SGH-N105 FCC ID: A3LSGHN105 MADE IN KOREA

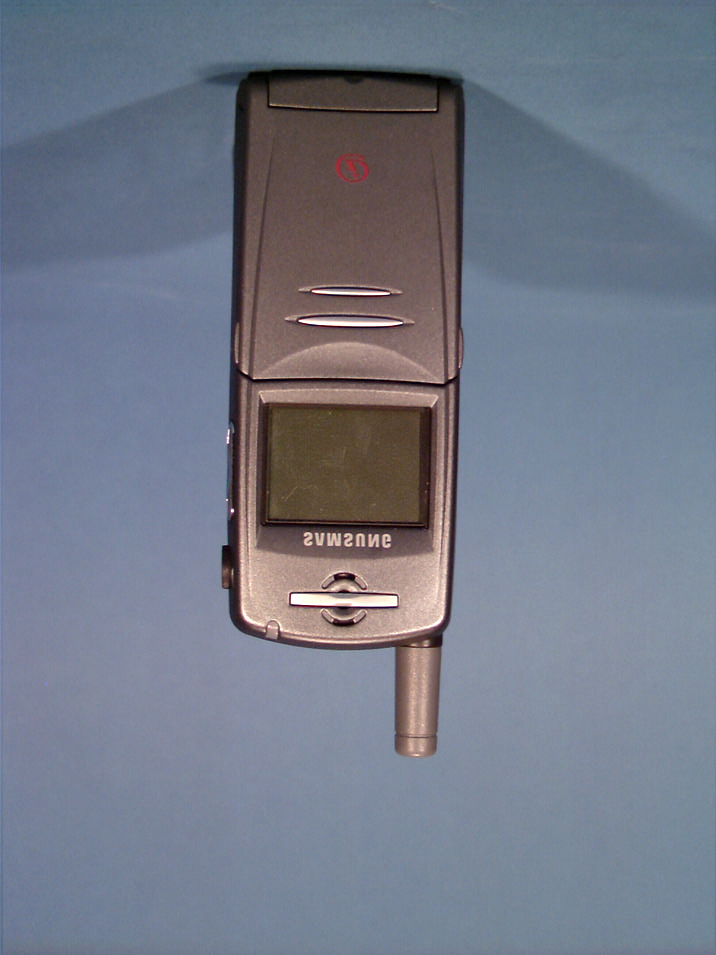

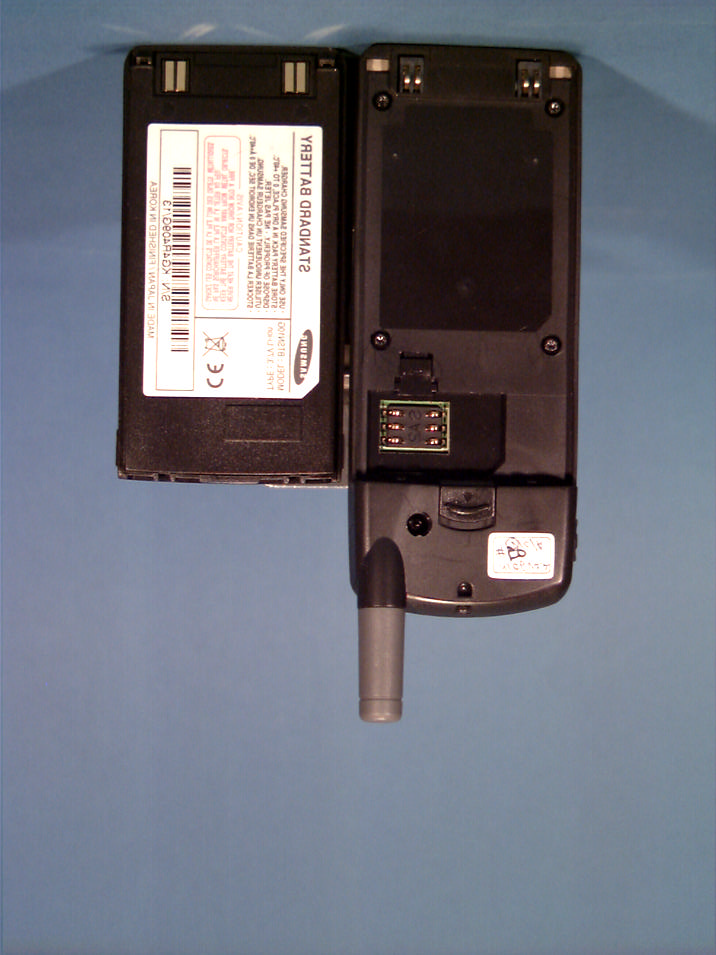

© 2001 PCTEST Lab SAMSUNG FCC ID: A3LSGHN105 (Model: SGH-N105) NVLAP Lab Code: 100431-0 Single-Band PCS Only Phone (GSM) © 2001 PCTEST Lab SAMSUNG FCC ID: A3LSGHN105 (Model: SGH-N105) NVLAP Lab Code: 100431-0 Single-Band PCS Only Phone (GSM) © 2001 PCTEST Lab SAMSUNG FCC ID: A3LSGHN105 (Model: SGH-N105) NVLAP Lab Code: 100431-0 Single-Band PCS Only Phone (GSM) © 2001 PCTEST Lab SAMSUNG FCC ID: A3LSGHN105 (Model: SGH-N105) NVLAP Lab Code: 100431-0 Single-Band PCS Only Phone (GSM) © 2001 PCTEST Lab SAMSUNG FCC ID: A3LSGHN105 (Model: SGH-N105) NVLAP Lab Code: 100431-0 Single-Band PCS Only Phone (GSM) © 2001 PCTEST Lab SAMSUNG FCC ID: A3LSGHN105 (Model: SGH-N105) NVLAP Lab Code: 100431-0 Single-Band PCS Only Phone (GSM) © 2001 PCTEST Lab SAMSUNG FCC ID: A3LSGHN105 (Model: SGH-N105) NVLAP Lab Code: 100431-0 Single-Band PCS Only Phone (GSM)

SAMSUNG FCC ID:A3LSGHN105 -- 1900MHz PCS GSM Head SAR Generic Twin Phantom; Left Hand Section; Probe: ET3DV6 - SN1560 -- Probe Cal Date 20/02/01 Med. Parameters 1900 MHz Brain: σ = 1.82 mho/m ε r = 40.4 ρ = 1.00 g/cm 3 ; Antenna Position -- Out; Crest Factor 8.0 SAR (1g): 0.981 mW/g, SAR (10g): 0.340 mW/g SAMSUNG GSM DualBand Model:SGH-N105 1900MHz PCS GSM Mode, Ch.512 [1850.2MHz] Conducted Power = 29.0dBm Test Date - 04/26/2001 SAR Tot [mW/g] 1.20E-2 3.60E-2 6.00E-2 8.40E-2 1.08E-1 PCTEST Engineering Laboratory, Inc. SAMSUNG FCC ID:A3LSGHN105 -- 1900MHz PCS GSM Head SAR Generic Twin Phantom; Left Hand Section; Probe: ET3DV6 - SN1560 -- Probe Cal Date 20/02/01 Med. Parameters 1900 MHz Brain: σ = 1.82 mho/m ε r = 40.4 ρ = 1.00 g/cm 3 ; Antenna Position -- Out; Crest Factor 8.0 SAR (1g): 0.828 mW/g, SAR (10g): 0.189 mW/g SAMSUNG GSM DualBand Model:SGH-N105 1900MHz PCS GSM Mode, Ch.661 [1880.0MHz] Conducted Power = 29.4dBm Test Date - 04/26/2001 SAR Tot [mW/g] 2.50E-2 7.50E-2 1.25E-1 1.75E-1 2.25E-1 PCTEST Engineering Laboratory, Inc. SAMSUNG FCC ID:A3LSGHN105 -- 1900MHz PCS GSM Head SAR Generic Twin Phantom; Left Hand Section; Probe: ET3DV6 - SN1560 -- Probe Cal Date 20/02/01 Med. Parameters 1900 MHz Brain: σ = 1.82 mho/m ε r = 40.4 ρ = 1.00 g/cm 3 ; Antenna Position -- Out; Crest Factor 8.0 SAR (1g): 1.24 mW/g, SAR (10g): 0.667 mW/g SAMSUNG GSM DualBand Model:SGH-N105 1900MHz PCS GSM Mode, Ch.810 [1909.8MHz] Conducted Power = 29.7dBm Test Date - 04/26/2001 SAR Tot [mW/g] 1.24E-1 3.72E-1 6.21E-1 8.69E-1 1.12E+0 PCTEST Engineering Laboratory, Inc. SAMSUNG FCC ID:A3LSGHN105 -- 1900MHz PCS GSM Body SAR Generic Twin Phantom; Flat Section; Probe: ET3DV6 - SN1560 -- Probe Cal Date 20/02/01 Med. Parameters 1900 MHz Muscle: σ = 1.85 mho/m ε r = 54.2 ρ = 1.00 g/cm 3 ; Antenna Position -- Out; Crest Factor 8.0 SAR (1g): 0.153 mW/g, SAR (10g): 0.0686 mW/g SAMSUNG GSM DualBand Model:SGH-N105 1900MHz PCS GSM Mode, Ch.512 [1850.2MHz] Conducted Power = 29.0dBm; Spacing = 1.0cm from flat phantom to phone, w/o beltclip or holster Test Date - 04/26/2001 SAR Tot [mW/g] 6.60E-3 1.98E-2 3.30E-2 4.62E-2 5.94E-2 PCTEST Engineering Laboratory, Inc. SAMSUNG FCC ID:A3LSGHN105 -- 1900MHz PCS GSM Body SAR Generic Twin Phantom; Flat Section; Probe: ET3DV6 - SN1560 -- Probe Cal Date 20/02/01 Med. Parameters 1900 MHz Muscle: σ = 1.85 mho/m ε r = 54.2 ρ = 1.00 g/cm 3 ; Antenna Position -- Out; Crest Factor 8.0 SAR (1g): 0.158 mW/g, SAR (10g): 0.0804 mW/g SAMSUNG GSM DualBand Model:SGH-N105 1900MHz PCS GSM Mode, Ch.661 [1880.0MHz] Conducted Power = 29.4dBm; Spacing = 1.0cm from flat phantom to phone, w/o beltclip or holster Test Date - 04/26/2001 SAR Tot [mW/g] 2.30E-2 6.90E-2 1.15E-1 1.61E-1 2.07E-1 PCTEST Engineering Laboratory, Inc. SAMSUNG FCC ID:A3LSGHN105 -- 1900MHz PCS GSM Body SAR Generic Twin Phantom; Flat Section; Probe: ET3DV6 - SN1560 -- Probe Cal Date 20/02/01 Med. Parameters 1900 MHz Muscle: σ = 1.85 mho/m ε r = 54.2 ρ = 1.00 g/cm 3 ; Antenna Position -- Out; Crest Factor 8.0 SAR (1g): 0.130 mW/g, SAR (10g): 0.0424 mW/g SAMSUNG GSM DualBand Model:SGH-N105 1900MHz PCS GSM Mode, Ch.810 [1909.8MHz] Conducted Power = 29.7dBm; Spacing = 1.0cm from flat phantom to phone, w/o beltclip or holster Test Date - 04/26/2001 SAR Tot [mW/g] 1.12E-2 3.36E-2 5.60E-2 7.84E-2 1.01E-1 PCTEST Engineering Laboratory, Inc.

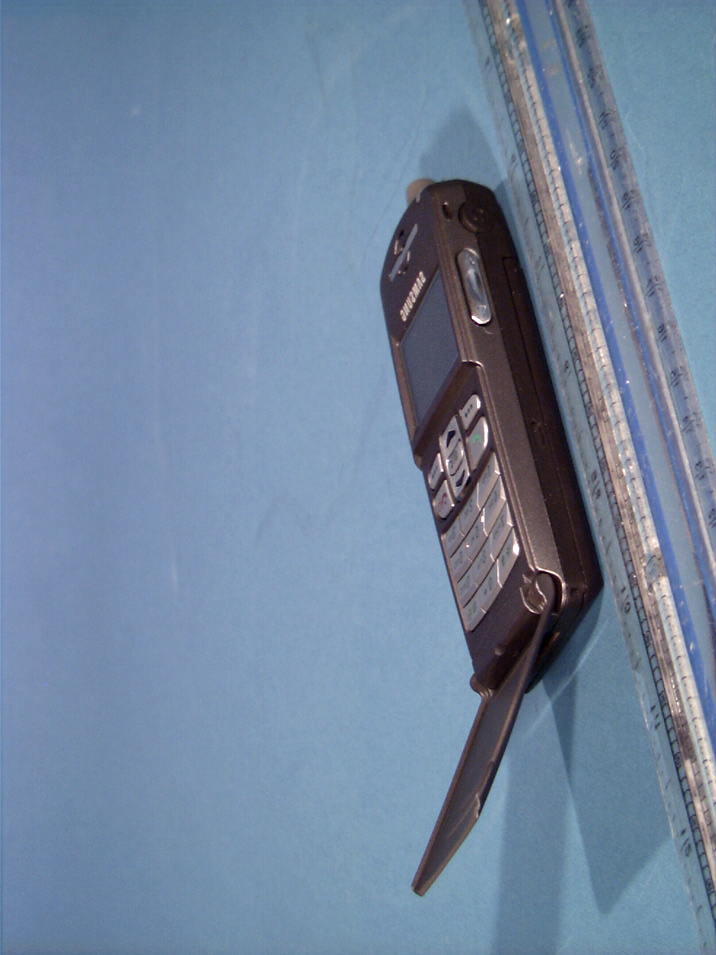

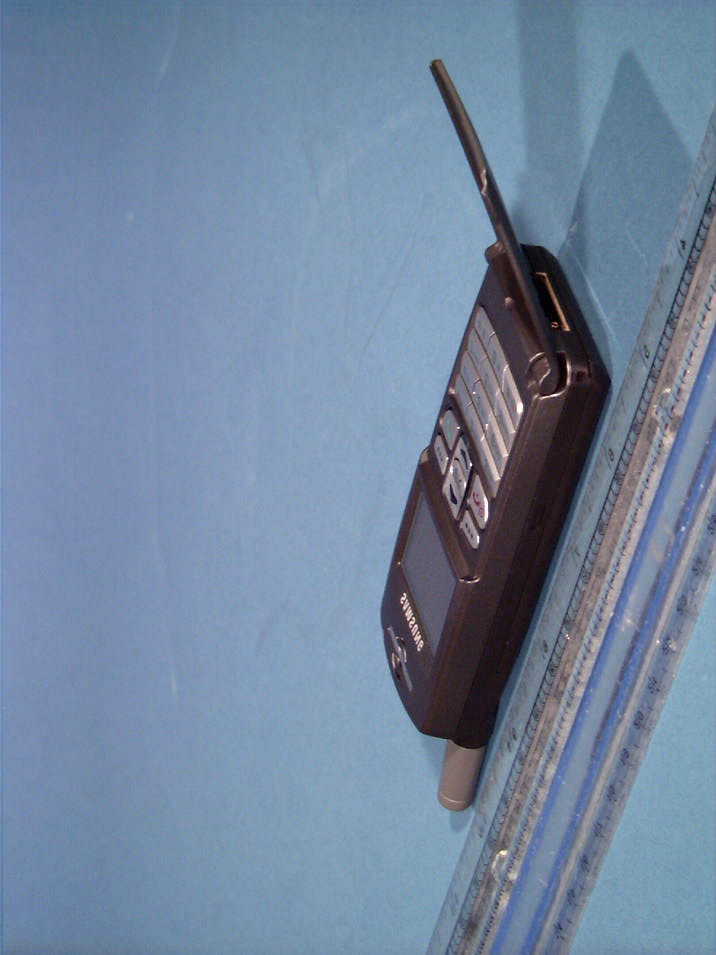

© 2001 PCTEST Lab SAMSUNG FCC ID: A3LSGHN105 (Model: SGH-N105) NVLAP Lab Code: 100431-0 Single-Band PCS Only Phone (GSM) © 2001 PCTEST Lab SAMSUNG FCC ID: A3LSGHN105 (Model: SGH-N105) NVLAP Lab Code: 100431-0 Single-Band PCS Only Phone (GSM) © 2001 PCTEST Lab SAMSUNG FCC ID: A3LSGHN105 (Model: SGH-N105) NVLAP Lab Code: 100431-0 Single-Band PCS Only Phone (GSM) © 2001 PCTEST Lab SAMSUNG FCC ID: A3LSGHN105 (Model: SGH-N105) NVLAP Lab Code: 100431-0 Single-Band PCS Only Phone (GSM) © 2001 PCTEST Lab SAMSUNG FCC ID: A3LSGHN105 (Model: SGH-N105) NVLAP Lab Code: 100431-0 Single-Band PCS Only Phone (GSM) © 2001 PCTEST Lab SAMSUNG FCC ID: A3LSGHN105 (Model: SGH-N105) NVLAP Lab Code: 100431-0 Single-Band PCS Only Phone (GSM)

© 2001 PCTEST Engineering Lab., Inc. PCTEST Engineering Laboratory, Inc. 66606660--B Dobbin Road B Dobbin Road •• Columbia, MD 21045 Columbia, MD 21045 •• U.S.A. U.S.A. TEL (410) 290TEL (410) 290--6652 6652 •• FAX (410) 290 FAX (410) 290--66546654 http://www.pctestlab.comhttp://www.pctestlab.com CERTIFICATE OF COMPLIANCE (SAR EVALUATION) SAMSUNG ELECTRONICS CO., LTD. Dates of Tests: April 26-27, 2001 416 Maetan-3 Dong, Paldal-Ku Test Report S/N: SAR.210425248.A3L Suwon City Kyungki-Do 441-742, KOREA Test Site: PCTEST Lab, Columbia, MD USA Attn: Wallace Oh, Engineering Manager Samsung Electronics America (QA Lab) FCC ID A3LSGHN105 APPLICANT SAMSUNG Electronics Co., Ltd. EUT Type: Single-Band PCS Only Phone Tx Frequency: 1850.00 – 1910.00 MHz (PCS GSM) Rx Frequency: 1930.00 – 1990.00 MHz (PCS GSM) Max. RF Output Power: 1.259 W EIRP PCS GSM (31.001 dBm) Max. SAR Measurement: 1.240 W/kg (1g) PCS GSM Head SAR; 0.158 W/kg (1g) PCS GSM Body SAR; Trade Name/Model(s): SAMSUNG SGH-N105 FCC Classification: Licensed Portable Transmitter Held to Ear (PCE) Application Type: Certification Serial Number: n/a (pre production) FCC Rule Part(s): 2.1093; ET Docket 96.326; 24(E) This wireless portable device has been shown to be capable of compliance for localized specific absorption rate (SAR) for uncontrolled environment/general population exposure limits specified in ANSI/IEEE Std. C95.1-1992 and had been tested in accordance with the measurement procedures specified in ANSI/IEEE Std. C95.3-1992. (See Test Report). I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. NVLAP accreditation does not constitute any product endorsement by NVLAP or any agency of the United States Government. PCTEST certifies that no party to this application has been denied the FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. 210425248.A3L SAR Measurement Report FCC Part 24 Certification © 2001 PCTEST Lab i Table of Contents 1.1 SCOPE 1 2.1 INTRODUCTION / SAR DEFINITION 2 3.1 SAR MEASUREMENT SET-UP 3 4.1 E-FIELD PROBE SYSTEM 4 5.1 E-FIELD PROBE CALIBRATION PROCESS 5-6 6.1 PHANTOM, HOLDER, & EQUIVALENT TISSUE 7 7.1 SYSTEM SPECIFICATIONS 8 8.1 MEASUREMENT PROCESS 9 9.1 TEST POSITION OF THE PHONE 10 10.1 BODY SAR TEST SETUP 11 11.1 ANSI/IEEE C95.1 RF EXPOSURE LIMITS 12 12.1 MEASUREMENT UNCERTAINTIES 13 13.1 TEST DATA SUMMARY 14-15 14.1 SAR TEST EQUIPMENT LIST 16 15.1 CONCLUSION 17 16.1 REFERENCES 18 Test Report S/N: SAR.210425248.A3L SAR Measurement Report Test Date(s): April 26-27, 2001 FCC Part 24 Certification SAMSUNG FCC ID: A3LSGHN105 (Model: SGH-N105) © 2001 PCTEST Lab Single-Band PCS Only Phone (GSM) 1 SAR MEASUREMENT REPORT 1.1 Scope Environmental evaluation measurements of specific absorption rate 1 (SAR) distributions in simulated human head and body tissues exposed to radiofrequency (RF) radiation from wireless portable devices for compliance with the rules and regulations of the U.S. Federal Communications Commission (FCC). 2 Company Name: SAMSUNG ELECTRONICS CO., LTD. Address: 416 Maetan-3 Dong, Paldal-Ku Suwon City, Kyungki-Do, 441-742, KOREA Attention: Mr. Wallace Oh, Engineering Manager Samsung Electronics America (QA Lab) • EUT Type: Single-Band PCS Only Phone • Trade Name: SAMSUNG • Model(s): SGH-N105 • FCC IDENTIFIER: A3LSGHN105 • S/N: Pre-production • Tx Frequency: 1850.00 – 1910.00 MHz (PCS GSM) • Rx Frequency: 1930.00 – 1990.00 MHz (PCS GSM) • Application Type: Certification • FCC Classification: Licensed Portable Transmitter Held to Ear (PCE) • Modulation(s): GSM • FCC Rule Part(s): § 2.1093, Docket 96-326; § 24(E) • Max. SAR Measurement: 1.240 W/kg (1g) PCS GSM Head SAR; 0.158 W/kg (1g) PCS GSM Body SAR • Max. RF Output Power: 1.259 W EIRP PCS GSM (31.001 dBm) • Antenna Type: Helical • Antenna Dimensions: 2.1 cm. (Length) • Dates of Tests: April 26-27, 2001 • Place of Tests: PCTEST Engineering Lab. Columbia, MD, U.S.A. • Report Serial No.: SAR.210425248.A3L 1 Specific Absorption Rate (SAR) is a measure of the rate of energy absorption due to exposure to an RF transmitting source (wireless portable device). 2 IEEE/ANSI Std. C95.1-1992 limits are used to determine compliance with FCC ET Docket 93-62. Fig. 1 SAR Test Setup Test Report S/N: SAR.210425248.A3L SAR Measurement Report Test Date(s): April 26-27, 2001 FCC Part 24 Certification SAMSUNG FCC ID: A3LSGHN105 (Model: SGH-N105) © 2001 PCTEST Lab Single-Band PCS Only Phone (GSM) 2 2.1 INTRODUCTION The FCC has adopted the guidelines for evaluating the environmental effects of radiofrequency radiation in ET Docket 93-62 on Aug. 6, 1996 to protect the public and workers from the potential hazards of RF emissions due to FCC-regulated portable devices.[1] The safety limits used for the environmental evaluation measurements are based on the criteria published by the American National Standards Institute (ANSI) for localized specific absorption rate (SAR) in IEEE/ANSI C95.1-1992 Standard for Safety Levels with Respect to Human Exposure to Radio Frequency Electromagnetic Fields, 3 kHz to 300 GHz. (c) 1992 by the Institute of Electrical and Electronics Engineers, Inc., New York, New York 10017.[2] The measurement procedure described in IEEE/ANSI C95.3-1992 Recommended Practice for the Measurement of Potentially Hazardous Electromagnetic Fields - RF and Microwave[3] is used for guidance in measuring SAR due to the RF radiation exposure from the Equipment Under Test (EUT). These criteria for SAR evaluation are similar to those recommended by the National Council on Radiation Protection and Measurements (NCRP) in Biological Effects and Exposure Criteria for Radiofrequency Electromagnetic Fields,” NCRP Report No. 86 (c) NCRP, 1986, Bethesda, MD 20814.[4] SAR is a measure of the r…

Text truncated - open the document above for the full version.

Probe ET3DV6 SN:1560 Manufactured:December 1, 2000 Calibrated:February 20, 2001 Calibrated for System DASY3 Page 1 of 8 ET3DV6 SN:1560 DASY3 - Parameters of Probe: ET3DV6 SN:1560 Sensitivity in Free SpaceDiode Compression NormX1.48 μV/(V/m) 2 DCP X98mV NormY1.51 μV/(V/m) 2 DCP Y98mV NormZ1.43 μV/(V/m) 2 DCP Z98mV Sensitivity in Tissue Simulating Liquid Head450MHz ε r =43.5 ± 5% σ = 0.87 ± 10% mho/m ConvF X7.17 extrapolatedBoundary effect: ConvF Y7.17 extrapolatedAlpha0.25 ConvF Z7.17 extrapolatedDepth3.21 Head900MHz ε r =42 ± 5% σ = 0.97 ± 10% mho/m ConvF X6.59 ± 7% (k=2)Boundary effect: ConvF Y6.59 ± 7% (k=2)Alpha0.32 ConvF Z6.59 ± 7% (k=2)Depth2.93 Head1500MHz ε r =40.4 ± 5% σ = 1.23 ± 10% mho/m ConvF X5.82 interpolatedBoundary effect: ConvF Y5.82 interpolatedAlpha0.41 ConvF Z5.82 interpolatedDepth2.55 Head1800MHz ε r =40 ± 5% σ = 1.40 ± 10% mho/m ConvF X5.43 ± 7% (k=2)Boundary effect: ConvF Y5.43 ± 7% (k=2)Alpha0.46 ConvF Z5.43 ± 7% (k=2)Depth2.36 Sensor Offset Probe Tip to Sensor Center2.7mm Optical Surface Detection2.0 ± 0.2mm Page 2 of 8 ET3DV6 SN:1560 Receiving Pattern (φ), θ = 0° f = 30 MHz, TEM cell ifi110 0 10 20 30 40 50 60 70 80 90 100 110 120 130 140 150 160 170 180 190 200 210 220 230 240 250 260 270 280 290 300 310 320 330 340 350 XYZTot f = 100 MHz, TEM cell ifi110 0 10 20 30 40 50 60 70 80 90 100 110 120 130 140 150 160 170 180 190 200 210 220 230 240 250 260 270 280 290 300 310 320 330 340 350 XYZTot f = 300 MHz, TEM cell ifi110 0 10 20 30 40 50 60 70 80 90 100 110 120 130 140 150 160 170 180 190 200 210 220 230 240 250 260 270 280 290 300 310 320 330 340 350 XYZTot f = 900 MHz, TEM cell ifi110 0 10 20 30 40 50 60 70 80 90 100 110 120 130 140 150 160 170 180 190 200 210 220 230 240 250 260 270 280 290 300 310 320 330 340 350 XYZTot Page 3 of 8 ET3DV6 SN:1560 Isotropy Error (φ), θ = 0° -1.00 -0.80 -0.60 -0.40 -0.20 0.00 0.20 0.40 0.60 0.80 1.00 060120180240300360 error[dB] 30 MHz 100 MHz 300 MHz 900 MHz 1800 MHz 2500 MHz f = 1800 MHz, WG R22 0 10 20 30 40 50 60 70 80 90 100 110 120 130 140 150 160 170 180 190 200 210 220 230 240 250 260 270 280 290 300 310 320 330 340 350 XYZTot f = 2500 MHz, WG R26 0 10 20 30 40 50 60 70 80 90 100 110 120 130 140 150 160 170 180 190 200 210 220 230 240 250 260 270 280 290 300 310 320 330 340 350 XYZTot Page 4 of 8 ET3DV6 SN:1560 Frequency Response of E-Field ( TEM-Cell:ifi110, Waveguide R22) 0.50 0.60 0.70 0.80 0.90 1.00 1.10 1.20 1.30 1.40 1.50 050010001500200025003000 f [MHz] frequency response TEMR22 Page 5 of 8 ET3DV6 SN:1560 Dynamic Range f(SAR brain ) ( TEM-Cell:ifi110 ) ET3DV6 SN:1560 1.E+0 1.E+1 1.E+2 1.E+3 1.E+4 1.E+5 1.E+6 1.E+7 0.00010.0010.010.11.10.100. mW/cm 3 μ V not compensatedcompensated -2.0 -1.0 0.0 1.0 0.0010.010.1110100 mW/cm 3 errror[dB] Page 6 of 8 Conversion Factor Assessment Head900MHz ε r =42 ± 5% σ = 0.97 ± 10% mho/m ConvF X6.59 ± 7% (k=2)Boundary effect: ConvF Y6.59 ± 7% (k=2)Alpha0.32 ConvF Z6.59 ± 7% (k=2)Depth2.93 Head1800MHz ε r =40 ± 5% σ = 1.40 ± 10% mho/m ConvF X5.43 ± 7% (k=2)Boundary effect: ConvF Y5.43 ± 7% (k=2)Alpha0.46 ConvF Z5.43 ± 7% (k=2)Depth2.36 ET3DV6 SN:1560 f = 900 MHz, WG R9 (head) 0.00 0.10 0.20 0.30 0.40 0.50 0.60 0.70 0.80 0.90 0204060 z[mm] SAR[mW/cm 3 ] / W AnalyticalMeasuremets f = 1800 MHz, WG R22 (head) 0.00 1.00 2.00 3.00 4.00 5.00 6.00 7.00 0204060 z[mm] SAR[mW/cm 3 ] / W AnalyticalMeasuremets Page 7 of 8 Deviation from Isotropy in HSL Error (θ,φ), f = 900 MHz 0 40 80 120 160 200 240 280 320 0 10 20 30 40 50 60 -1.00 -0.80 -0.60 -0.40 -0.20 0.00 0.20 0.40 0.60 0.80 1.00 Error [dB] θ φ -1.00--0.80-0.80--0.60-0.60--0.40-0.40--0.20-0.20-0.00 0.00-0.200.20-0.400.40-0.600.60-0.800.80-1.00 Page 8 of 8

1900MHz Brain Dipole Validation Generic Twin Phantom; Flat Section; Probe: ET3DV5 - SN1370 -- Probe Cal Date 02/00 Med. Parameters 1900 MHz Brain: σ = 1.82 mho/m ε r = 40.4 ρ = 1.00 g/cm 3 ; Antenna Position -- Out; Crest Factor 1.0 SAR (1g): 10.8 mW/g, SAR (10g): 5.56 mW/g 1900MHz Brain Dipole Validation (D1900V2 S/N: 502) Frequency: 1900 MHz; Antenna Input Power: 250 [mW] PCTEST Brain Tissue Simulating Liquid SAR Tot [mW/g] 1.08E+0 3.24E+0 5.45E+0 7.59E+0 9.73E+0 PCTEST Engineering Laboratory, Inc. 1900MHz Muscle Dipole Validation Generic Twin Phantom; Flat Section; Probe: ET3DV5 - SN1370 -- Probe Cal Date 02/00 Med. Parameters 1900 MHz Muscle: σ = 1.85 mho/m ε r = 54.2 ρ = 1.00 g/cm 3 ; Antenna Position -- Out; Crest Factor 1.0 SAR (1g): 10.7 mW/g, SAR (10g): 5.45 mW/g 1900MHz Muscle Dipole Validation (D1900V2 S/N: 502) Frequency: 1900 MHz; Antenna Input Power: 250 [mW] PCTEST Muscle Tissue Simulating Liquid SAR Tot [mW/g] 9.50E-1 2.89E+0 4.75E+0 6.67E+0 8.56E+0 PCTEST Engineering Laboratory, Inc.

© 2001 PCTEST Engineering Lab., Inc. PCTEST Engineering Laboratory, Inc. 66606660--B Dobbin Road B Dobbin Road •• Columbia, MD 21045 Columbia, MD 21045 •• U.S.A. U.S.A. TEL (410) 290TEL (410) 290--6652 6652 •• FAX (410) 290 FAX (410) 290--66546654 http://www.pctestlab.comhttp://www.pctestlab.com CERTIFICATE OF COMPLIANCE FCC Parts 24 Certification SAMSUNG ELECTRONICS CO., LTD. Dates of Tests: April 26-27, 2001 416 Maetan-3 Dong, Paldal-Ku Test Report S/N: 24.210425249.A3L Suwon City Kyungki-Do 441-742, KOREA Test Site: PCTEST Lab, Columbia MD Attn: Wallace Oh, Engineering Manager Samsung Electronics America (QA Lab) FCC ID A3LSGHN105 APPLICANT SAMSUNG Electronics Co., Ltd. Classification: Licensed Portable Transmitter Held to Ear (PCE) FCC Rule Part(s): §24(E), §2 EUT Type: Single-Band PCS Only Phone Trade Name/Model: SAMSUNG SGH-N105 Tx Frequency Range: 1850.00 – 1910.00 MHz (PCS GSM) Rx Frequency Range: 1930.00 – 1990.00 MHz (PCS GSM) Max. RF Output Power: 1.259 W EIRP PCS GSM (31.001 dBm) Max. SAR Measurement: 1.240 W/kg (1g) PCS GSM Head SAR; 0.158 W/kg (1g) PCS GSM Body SAR; Emission Designator(s): 250KGXW This equipment has been shown to be capable of compliance with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in §2.947. (See Test Report) I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. PCTEST certifies that no party to this application has been denied the FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. 210122026.AEZ FCC Part 24 Certification © 2001 PCTEST Engineering Laboratory, Inc. TABLE OF CONTENTS ATTACHMENT A: COVER LETTER(S) ATTACHMENT B: ATTESTATION STATEMENT(S) ATTACHMENT C: TEST REPORT 1.1 SCOPE 1 2.1 INTRODUCTION 2 3.1 INSERTS PER §2.1033(d) 3 4.1 DESCRIPTION OF TESTS 4-6 5.1 EQUIVALENT ISOTROPIC RADIATED POWER 7 6.1 RADIATED MEASUREMENTS 8-10 7.1 FREQUENCY STABILITY 11-12 8.1 PLOTS OF EMISSIONS 13 9.1 LIST OF TEST EQUIPMENT 14 10.1 SAMPLE CALCULATIONS 15 11.1 CONCLUSION 16 ATTACHMENT D: TEST PLOTS ATTACHMENT E: FCC ID LABEL / LOCATION ATTACHMENT F: TEST SETUP PHOTOGRAPHS ATTACHMENT G: EXTERNAL PHOTOGRAPHS ATTACHMENT H: INTERNAL PHOTOGRAPHS ATTACHMENT I: BLOCK DIAGRAM(S) ATTACHMENT J: SCHEMATIC DIAGRAM(S) ATTACHMENT K: OPERATIONAL DESCRIPTION ATTACHMENT L: PARTS LIST ATTACHMENT M: TUNE UP PROCEDURE ATTACHMENT N: ANTENNA SPECS. ATTACHMENT O: USER’S MANUAL ATTACHMENT P: SAR MEASUREMENT REPORT ATTACHMENT Q: SAR TEST DATA ATTACHMENT R: SAR TEST SETUP PHOTOGRAPHS ATTACHMENT S: DIPOLE VALIDATION(S) ATTACHMENT T: PROBE CALIBRATION Test Report S/N: 24.210425249.A3L FCC Part 24 Dates of Tests: April 26-27, 2001 Certification © 2001 PCTEST Lab FCC ID: A3LSGHN105 (Model: SGH-N105) 1 SAMSUNG Single-Band PCS Phone (GSM) MEASUREMENT REPORT 1.1 Scope Measurement and determination of electromagnetic emissions (EME) of radio frequency devices including intentional and/or unintentional radiators for compliance with the technical rules and regulations of the Federal Communications Commission. §2983(a) General Information Applicant Name: SAMSUNG ELECTRONICS CO., LTD. Address: 416 Maetan-3 Dong, Paldal-Ku Suwon City, Kyungki-Do, 441-742, KOREA Attention: Mr. Wallace Oh, Engineering Manager Samsung Electronics America (QA Lab) • FCC ID: A3LSGHN105 • Quantity: Quantity production is planned • Emission Designator: 250KGXW • Tx Freq. Range: 1850.00 – 1910.00 MHz (PCS GSM) • Rx Freq. Range: 1930.00 – 1990.00 MHz (PCS GSM) • Max. RF Power Rating: 1.259 W EIRP PCS GSM (31.001 dBm) • Max. SAR Measurement: 1.240 W/kg (1g) PCS GSM Head SAR; 0.158 W/kg (1g) PCS GSM Body SAR • Battery Pack: 3.6 VDC Li-Ion Battery Pack • FCC Classification(s): Licensed Portable Tx Held to Ear (PCE) • Equipment (EUT) Type: Single-Band PCS Phone (GSM) • Frequency Tolerance: ± 0.00025% (2.5 ppm) • FCC Rule Part(s): § 24(E), §2 • Dates of Tests: April 26-27, 2001 • Place of Tests: PCTEST Lab, Columbia, MD U.S.A. • Test Report S/N: 24.210425249.A3L Test Report S/N: 24.210425249.A3L FCC Part 24 Dates of Tests: April 26-27, 2001 Certification © 2001 PCTEST Lab FCC ID: A3LSGHN105 (Model: SGH-N105) 2 SAMSUNG Single-Band PCS Phone (GSM) 2.1 INTRODUCTION These measurement tests were conducted at PCTEST Engineering Laboratory, Inc. facility in New Concept Business Park, Guilford Industrial Park, Columbia, Maryland. The site address is 6660-B Dobbin Road, Columbia, MD 21045. The test site is one of the highest points in the Columbia area with an elevation of 390 feet above mean sea level. The site coordinates are 39° 11'15" N latitude and 76° 49'38" W longitude. The facility is 1.5 miles North of the FCC laboratory, and the ambient signal and ambient signal strength are approximately equal to those of the FCC laboratory. There are no FM or TV transmitters within 15 miles of the site. The detailed description of the measurement facility was found to be in compliance with the requirements of § 2.948 according to ANSI C63.4 on October 19, 1992. Measurement Procedure The radiated and spurious measurements were made outdoors at a 3-meter test range (see Figure2). The equipment under test is placed on a wooden turntable 3- meters from the receive antenna. The receive antenna height and turntable rotations were adjusted for the highest reading on the receive spectrum analyzer. A half-wave dipole was substituted in place of the EUT. This dipole antenna was driven by a signal generator and the level of the signal generator was adjusted to obtain the same receive spectrum analyzer reading. This level is recorded. For readings above 1GHz, the above procedure is repeated using horn antennas and the difference between the gain of the horn and an isot…

Text truncated - open the document above for the full version.

© 2001 PCTEST Lab SAMSUNG FCC ID: A3LSGHN105 (Model: SGH-N105) NVLAP Lab Code: 100431-0 Single-Band PCS Only Phone (GSM) © 2001 PCTEST Lab SAMSUNG FCC ID: A3LSGHN105 (Model: SGH-N105) NVLAP Lab Code: 100431-0 Single-Band PCS Only Phone (GSM) © 2001 PCTEST Lab SAMSUNG FCC ID: A3LSGHN105 (Model: SGH-N105) NVLAP Lab Code: 100431-0 Single-Band PCS Only Phone (GSM) © 2001 PCTEST Lab SAMSUNG FCC ID: A3LSGHN105 (Model: SGH-N105) NVLAP Lab Code: 100431-0 Single-Band PCS Only Phone (GSM)
