A3LSGHP107Dual-Band GSM Phone

Dual Band SGH-P107 User Manual Please read this manual before operating your phone, and keep it for future reference. Printed in Korea Code No.:????? Intellectual Property All Intellectual Property, as defined below, owned by or which is otherwise the property of Samsung or its respective suppliers relating to the SAMSUNG Phone, including but not limited to, accessories, parts, or software relating thereto (the “Phone System”), is proprietary to Samsung and protected under federal laws, state laws, and international treaty provisions. Intellectual Property includes, but is not limited to, inventions (patentable or unpatentable), patents, trade secrets, copyrights, software, computer programs, and related documentation and other works of authorship. You may not infringe or otherwise violate the rights secured by the Intellectual Property. Moreover, you agree that you will not (and will not attempt to) modify, prepare derivative works of, reverse engineer, decompile, disassemble, or otherwise attempt to create source code from the software. No title to or ownership in the Intellectual Property is transferred to you. All applicable rights of the Intellectual Property shall remain with SAMSUNG and its suppliers. Samsung Telecommunications America (STA), Inc. Headquarters: 1130 E. Arapaho Road Richardson, TX 75081 Tel: 972-761-7000 Fax: 972-761-7001 Customer Care Center: 1601 E. Plano Parkway Suite 150 Plano, TX 75047 Tel: 888-987-HELP (4357) Fax: 972-761-7501 Internet Address: http://www.samsungusa.com/wireless ©2003 Samsung Telecommunications America. All rights reserved. No reproduction in whole or in part allowed without prior written approval. Samsung is a registered trademark of Samsung Electronics America, Inc. and its related entities. 1 Important Safety Precautions ........................................ 7 Road Safety at All Times ............................................................ 7 Switching Off When Refueling .................................................. 7 Switching Off in Aircraft ............................................................ 7 Switching Off in Hospitals ......................................................... 7 Interference ................................................................................... 7 Special Regulations ...................................................................... 7 Radio Frequency Exposure ........................................................ 8 Sensible Use .................................................................................. 8 Emergency Call ............................................................................ 8 Accessories and Batteries ............................................................ 8 Qualified service ........................................................................... 8 Unpacking ...................................................................... 9 Your Phone ................................................................... 11 Phone Layout ............................................................................. 11 Display Layout ............................................................................ 15 Service Light ............................................................................... 18 Getting Started .............................................................. 19 Installing the SIM Card ............................................................. 19 Charging a Battery ..................................................................... 21 Switching the Phone On/Off .................................................. 23 Call Functions ...............................................................25 Making a Call .............................................................................. 25 Adjusting the Volume ............................................................... 27 Answering a Call ........................................................................ 28 Viewing Missed Calls ................................................................. 29 2 Switching Quickly to the Silent Mode .................................... 31 Selecting Functions and Options .................................33 Example: Setting the Display Language ................................. 34 Phonebook ....................................................................37 Storing a Number with a Name ............................................... 37 Using Phonebook Entry Options ........................................... 40 Searching for a Number in the Phonebook ........................... 41 Editing a Caller Group .............................................................. 43 Speed-Dialing ............................................................................. 44 Checking Memory Status .......................................................... 45 Entering Text ................................................................47 Changing the Text Input Mode ............................................... 47 Using the T9 Mode .................................................................... 48 Using the Upper/Lower-Case Character Mode .................... 49 Using the Symbol Mode ........................................................... 50 Using the Number Mode .......................................................... 51 Options During a Call ...................................................53 Putting a Call on Hold .............................................................. 53 Switching the Microphone Off (Mute) ................................... 54 Muting/Sending DTMF ........................................................... 55 Sending DTMF Tones .............................................................. 55 Searching for a Number in the Phonebook ........................... 55 Using the SMS Service .............................................................. 56 Answering a Second Call ......................................…

Text truncated - open the document above for the full version.

September 3, 2003 Federal Communications Commission Authorization and Evaluation Div. Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 In re: Samsung Electronics Co., Ltd. FCC ID.: A3LSGHP107 Request for Confidentiality To Whom It May Concern: In accordance with 0.459 of CFR 47, Samsung Electronics Co., Ltd. requests confidentiality for the Block Diagram, Schematics, Parts list, Tune-up Procedure, Operational and Circuit Description of the attached test report. These documents contain detailed system and equipment descriptions and related information about the product, which Samsung Electronics Co., Ltd. considers to be proprietary, confidential, and a custom design and otherwise, would not release to the general public. Since this design is a basis from which future technological products will evolve, Samsung feels that this information would be of benefit to its competitors, and that the disclosure of the information in these documents would give our competitors an unfair advantage in the market. Sincerely, Wallace Oh Engineering Manager Samsun Samsung Electronics America

January 8, 2004 Federal Communications Commission Equipment Approval Services 7435 Oakland Mills Road Columbia, MD 21046 Attn: Mr. Martin Perrine SUBJECT: Samsung Electronics Co., Ltd. FCC ID: A3LSGHP107 731 Confirmation No.: TC336533 Correspondence Reference No.: 10449 Request for Tech. Info.: 12/09/03 Dear Martin: Per our phone conversation with George Tannahill, there is an error on the 731 form regarding the PCE equipment code. The 731 form will not allow us to enter a radiated power above 2.0 W for the 800 MHz band. The correct radiated power for the 800 MHz band is 2.535 W. Until this issue is corrected, we respectfully request an extension of time in resolving FCC questions for this application. If you have any further questions, please do not hesitate to contact us. cc: Samsung Electronics Co., Ltd.

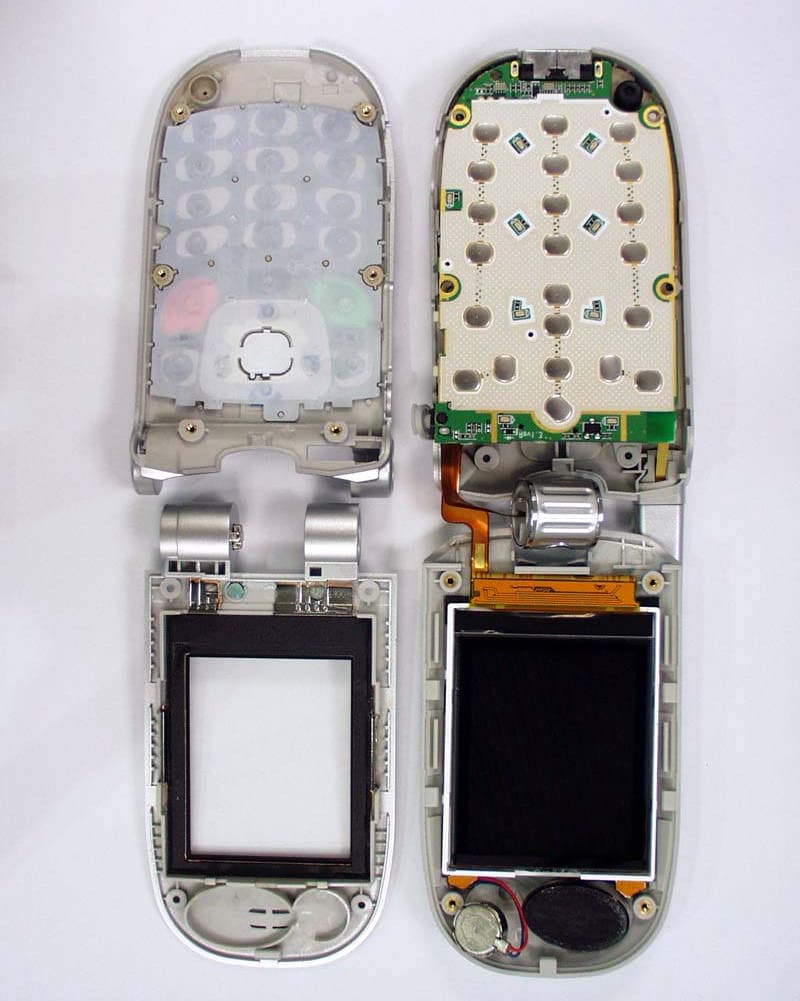

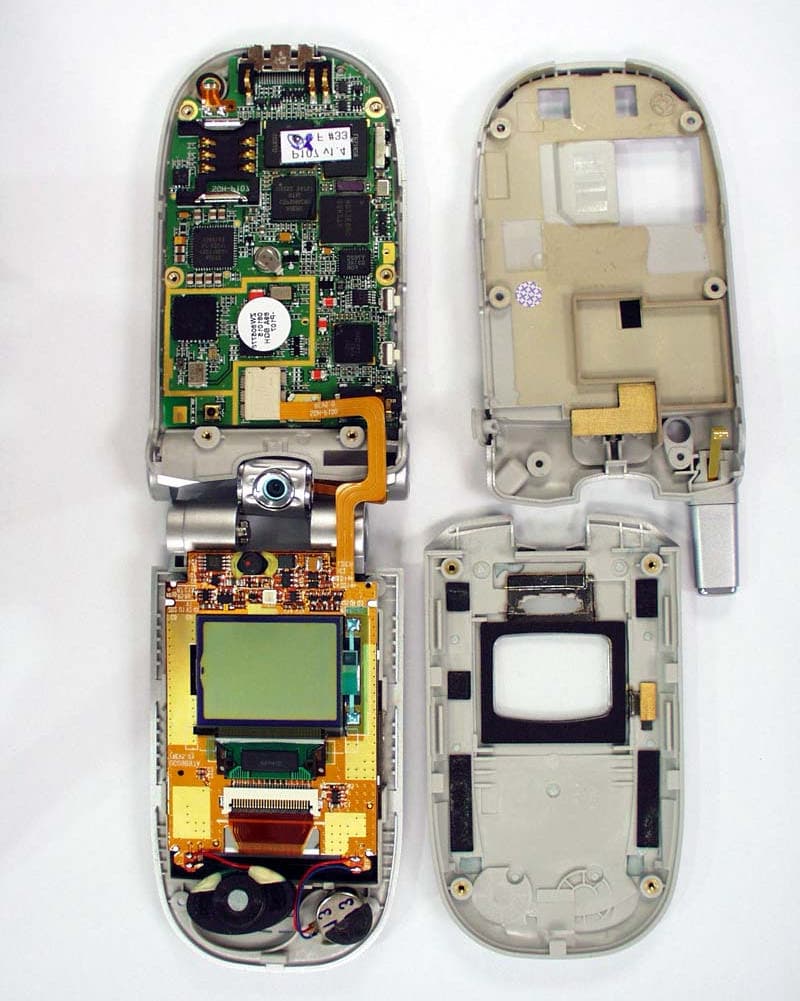

SAMSUNG FCC ID: A3LSGHP107 Dual-Mode Dual-Band Phone

SAMSUNG FCC ID: A3LSGHP107 Dual-Mode Dual-Band Phone SAMSUNG FCC ID: A3LSGHP107 Dual-Mode Dual-Band Phone

APPENDIX I Calibration of The Validation Dipole

SAMSUNG FCC ID: A3LSGHP107 -- 835MHz. GSM850 Head SAR SAM Phantom; Right Cheek(CRP) Section; Probe:ET3DV6 - SN1735; ConvF(7.00,7.00,7.00) Head 835 MHz: σ = 0.88 mho/m ε r = 40.6 ρ = 1.00 g/cm 3 ; Antenna Position - Fixed; Crest Factor 8.0 SAR (1g): 1.08 mW/g SAMSUNG GSM Dual-Band Phone Model: SGH-P107 GSM850 Mode, Ch 128[824.2MHz]; Standard Battery; Meas. Ambient Temp. (°C) -22.7 Conducted Power=33dBm; Right Head Phantom, Cheek/Touch Position; Meas. Tissue Temp. (°C) -21.9 Test Date--09/05/2003[FCC/OET Bulletin 65-Supplement C, July 2001] SAR Tot [mW/g] 1.15E-1 3.44E-1 5.74E-1 8.04E-1 1.03E+0 SAMSUNG FCC ID: A3LSGHP107 -- 835MHz. GSM850 Head SAR SAM Phantom; Right Cheek(CRP) Section; Probe:ET3DV6 - SN1735; ConvF(7.00,7.00,7.00) Head 835 MHz: σ = 0.88 mho/m ε r = 40.6 ρ = 1.00 g/cm 3 ; Antenna Position -Fixed; Crest Factor 8.0 SAR (1g): 0.308 mW/g SAMSUNG GSM Dual-Band Phone Model: SGH-P107 GSM850 Mode, Ch 128[824.2MHz]; Standard Battery; Meas. Ambient Temp. (°C) -22.7 Conducted Power=33dBm; Right Head Phantom, Ear/Tilt 15 deg Position; Meas. Tissue Temp. (°C) -21.9 Test Date--09/05/2003[FCC/OET Bulletin 65-Supplement C, July 2001] SAR Tot [mW/g] 3.24E-2 9.72E-2 1.62E-1 2.27E-1 2.92E-1 SAMSUNG FCC ID: A3LSGHP107 -- 835MHz. GSM850 Head SAR SAM Phantom; Left Cheek(CRP) Section; Probe:ET3DV6 - SN1735; ConvF(7.00,7.00,7.00) Head 835 MHz: σ = 0.88 mho/m ε r = 40.6 ρ = 1.00 g/cm 3 ; Antenna Position -Fixed; Crest Factor 8.0 SAR (1g): 1.13 mW/g SAMSUNG GSM Dual-Band Phone Model: SGH-P107 GSM850 Mode, Ch 128[824.2MHz]; Standard Battery; Meas. Ambient Temp. (°C) -22.7 Conducted Power=33dBm; Left Head Phantom, Cheek/Touch Position; Meas. Tissue Temp. (°C) -21.9 Test Date--09/05/2003[FCC/OET Bulletin 65-Supplement C, July 2001] SAR Tot [mW/g] 9.22E-2 2.77E-1 4.61E-1 6.45E-1 8.30E-1 SAMSUNG FCC ID: A3LSGHP107 -- 835MHz. GSM850 Head SAR SAM Phantom; Left Cheek(CRP) Section; Probe:ET3DV6 - SN1735; ConvF(7.00,7.00,7.00) Head 835 MHz: σ = 0.88 mho/m ε r = 40.6 ρ = 1.00 g/cm 3 ; Antenna Position - Fixed; Crest Factor 8.0 SAR (1g): 0.343 mW/g SAMSUNG GSM Dual-Band Phone Model: SGH-P107 GSM850 Mode, Ch 128[824.2MHz]; Standard Battery; Meas. Ambient Temp. (°C) -22.7 Conducted Power=33dBm; Left Head Phantom, Ear/Tilt 15 deg Position; Meas. Tissue Temp. (°C) -21.9 Test Date--09/05/2003[FCC/OET Bulletin 65-Supplement C, July 2001] SAR Tot [mW/g] 3.34E-2 1.00E-1 1.67E-1 2.34E-1 3.01E-1 SAMSUNG FCC ID: A3LSGHP107 -- 1900MHz. PCS GSM Head SAR SAM Phantom; Right Cheek(CRP) Section; Probe:ET3DV6 - SN1735; ConvF(5.50,5.50,5.50) Head 1900 MHz: σ = 1.35 mho/m ε r = 39.3 ρ = 1.00 g/cm 3 ; Antenna Position - Fixed; Crest Factor 8.0 SAR (1g): 0.589 mW/g SAMSUNG GSM Dual-Band Phone Model: SGH-P107 GSM1900 Mode, Ch 661[1880MHz]; Standard Battery; Meas. Ambient Temp. (°C) -22.5 Conducted Power=30dBm; Right Head Phantom, Cheek/Touch Position; Meas. Tissue Temp. (°C) -21.9 Test Date--09/04/2003[FCC/OET Bulletin 65-Supplement C, July 2001] SAR Tot [mW/g] 6.54E-2 1.96E-1 3.27E-1 4.58E-1 5.89E-1 SAMSUNG FCC ID: A3LSGHP107 -- 1900MHz. PCS GSM Head SAR SAM Phantom; Right Hand Section; Probe:ET3DV6 - SN1735; ConvF(5.50,5.50,5.50) Head 1900 MHz: σ = 1.35 mho/m ε r = 39.3 ρ = 1.00 g/cm 3 ; Antenna Position - Fixed; Crest Factor 8.0 SAR (1g): 0.0823 mW/g SAMSUNG GSM Dual-Band Phone Model: SGH-P107 GSM1900 Mode, Ch 661[1880MHz]; Standard Battery; Meas. Ambient Temp. (°C) -22.5 Conducted Power=30dBm; Right Head Phantom, Ear/Tilt 15 deg Position; Meas. Tissue Temp. (°C) -21.9 Test Date--09/04/2003[FCC/OET Bulletin 65-Supplement C, July 2001] SAR Tot [mW/g] 8.10E-3 2.43E-2 4.05E-2 5.67E-2 7.29E-2 SAMSUNG FCC ID: A3LSGHP107 -- 1900MHz. PCS GSM Head SAR SAM Phantom; Left Cheek(CRP) Section; Probe:ET3DV6 - SN1735; ConvF(5.50,5.50,5.50) Head 1900 MHz: σ = 1.35 mho/m ε r = 39.3 ρ = 1.00 g/cm 3 ; Antenna Position - Fixed; Crest Factor 8.0 SAR (1g): 0.443 mW/g SAMSUNG GSM Dual-Band Phone Model: SGH-P107 GSM1900 Mode, Ch 512[1850.2MHz]; Standard Battery; Meas. Ambient Temp. (°C) -22.5 Conducted Power=30dBm; Left Head Phantom, Cheek/Touch Position; Meas. Tissue Temp. (°C) -21.9 Test Date--09/04/2003[FCC/OET Bulletin 65-Supplement C, July 2001] SAR Tot [mW/g] 4.77E-2 1.43E-1 2.39E-1 3.34E-1 4.29E-1 SAMSUNG FCC ID: A3LSGHP107 -- 1900MHz. PCS GSM Head SAR SAM Phantom; Left Hand Section; Probe:ET3DV6 - SN1735; ConvF(5.50,5.50,5.50) Head 1900 MHz: σ = 1.35 mho/m ε r = 39.3 ρ = 1.00 g/cm 3 ; Antenna Position - Fixed; Crest Factor 8.0 SAR (1g): 0.0709 mW/g SAMSUNG GSM Dual-Band Phone Model: SGH-P107 GSM1900 Mode, Ch 661[1880MHz]; Standard Battery; Meas. Ambient Temp. (°C) -22.5 Conducted Power=30dBm; Left Head Phantom, Ear/Tilt 15 deg Position; Meas. Tissue Temp. (°C) -21.9 Test Date--09/04/2003[FCC/OET Bulletin 65-Supplement C, July 2001] SAR Tot [mW/g] 7.40E-3 2.22E-2 3.70E-2 5.18E-2 6.66E-2 SAMSUNG FCC ID: A3LSGHP107 -- 835MHz. GSM850 Body SAR SAM Phantom; Flat Section; Probe:ET3DV6 - SN1735; ConvF(6.80,6.80,6.80) Body 835 MHz: σ = 0.93 mho/m ε r = 53.7 ρ = 1.00 g/cm 3 ; Antenna Position - Fixed; Crest Factor 8.0 SAR (1g): 0.433 mW/g SAMSUNG GSM Dual-Band Phone Model: SGH-P107 GSM850 Mode, Ch 128[824.2MHz]; Standard Battery; Ambient Temp. (°C) -23.8 Conducted Power=33dBm;Spacing=1.5cm flat phantom to phone, w/o Leather; Tissue Temp. (°C) -22.9 Test Date--09/08/2003[FCC/OET Bulletin 65-Supplement C, July 2001] SAR Tot [mW/g] 5.10E-2 1.53E-1 2.55E-1 3.57E-1 4.59E-1 SAMSUNG FCC ID: A3LSGHP107 -- 1900MHz. PCS GSM Body SAR SAM Phantom; Flat Section; Probe:ET3DV6 - SN1735; ConvF(5.00,5.00,5.00) Body 1900 MHz: σ = 1.53 mho/m ε r = 51.4 ρ = 1.00 g/cm 3 ; Antenna Position - Fixed; Crest Factor 8.0 SAR (1g): 0.218 mW/g SAMSUNG GSM Dual-Band Phone Model: SGH-P107 GSM1900 Mode, Ch 661[1880MHz]; Standard Battery; Ambient Temp. (°C) -22.9 Conducted Power=30dBm;Spacing=1.5cm flat phantom to phone, w/o Leather; Tissue Temp. (°C) -21.9 Test Date--09/05/2003[FCC/OET Bulletin 65-Supplement C, July 2001] SAR Tot [mW/g] 2.24E-2 6.72E-2 1.12E-1 1.57E-1 2.02E-1

835MHz Brain Dipole Validation SAM Phantom; Flat Section; Probe:ET3DV6 - SN1735 -- ConvF(7.00,7.00,7.00) Head 835 MHz : σ = 0.88 mho/m ε r = 40.6 ρ = 1.00 g/cm 3 ; Crest Factor 1.0 SAR (1g): 2.34 mW/g 835MHz Brain Dipole Validation (D835V2 S/N: 451) Frequency: 835 MHz; Antenna Input Power: 250 [mW]; Ambient Temp. (°C) - 22.6; Tissue Temp. (°C) - 21.9 Brain Tissue Simulating Liquid [09/05/2003] SAR Tot [mW/g] 2.48E-1 7.45E-1 1.24E+0 1.74E+0 2.24E+0 1900MHz Brain Dipole Validation SAM Phantom; Flat Section; Probe:ET3DV6 - SN1735 -- ConvF(5.50,5.50,5.50) Head 1900 MHz: σ = 1.35 mho/m ε r = 39.3 ρ = 1.00 g/cm 3 ; Crest Factor 1.0 SAR (1g): 9.45 mW/g 1900MHz Brain Dipole Validation (D1900V2 S/N: 548) Frequency: 1900 MHz; Antenna Input Power: 250 [mW]; Ambient Temp. (°C) - 22.9; Tissue Temp. (°C) - 21.9 Brain Tissue Simulating Liquid [09/04/2003] SAR Tot [mW/g] 1.01E+0 3.04E+0 5.06E+0 7.09E+0 9.12E+0

© 2003 SAMSUNG ELECTRONICS Co., Ltd. SAMSUNG FCC ID: A3LSGHP107 Dual-Mode Dual-Band Phone © 2003 SAMSUNG ELECTRONICS Co., Ltd. SAMSUNG FCC ID: A3LSGHP107 Dual-Mode Dual-Band Phone © 2003 SAMSUNG ELECTRONICS Co., Ltd. SAMSUNG FCC ID: A3LSGHP107 Dual-Mode Dual-Band Phone © 2003 SAMSUNG ELECTRONICS Co., Ltd. SAMSUNG FCC ID: A3LSGHP107 Dual-Mode Dual-Band Phone © 2003 SAMSUNG ELECTRONICS Co., Ltd. SAMSUNG FCC ID: A3LSGHP107 Dual-Mode Dual-Band Phone © 2003 SAMSUNG ELECTRONICS Co., Ltd. SAMSUNG FCC ID: A3LSGHP107 Dual-Mode Dual-Band Phone © 2003 SAMSUNG ELECTRONICS Co., Ltd. SAMSUNG FCC ID: A3LSGHP107 Dual-Mode Dual-Band Phone © 2003 SAMSUNG ELECTRONICS Co., Ltd. SAMSUNG FCC ID: A3LSGHP107 Dual-Mode Dual-Band Phone © 2003 SAMSUNG ELECTRONICS Co., Ltd. SAMSUNG FCC ID: A3LSGHP107 Dual-Mode Dual-Band Phone © 2003 SAMSUNG ELECTRONICS Co., Ltd. SAMSUNG FCC ID: A3LSGHP107 Dual-Mode Dual-Band Phone © 2003 SAMSUNG ELECTRONICS Co., Ltd. SAMSUNG FCC ID: A3LSGHP107 Dual-Mode Dual-Band Phone © 2003 SAMSUNG ELECTRONICS Co., Ltd. SAMSUNG FCC ID: A3LSGHP107 Dual-Mode Dual-Band Phone

SAMSUNG ELECTRONICS Co., Ltd., Regulatory Compliance Team IT R&D Center 416, Maetan-3dong, Paldal-gu, Suwon-si, Gyeonggi-do, Korea 442-742 TEST FCC CFR47 PART 22 & 24 SUBPART CERTIFICATION TEST DATA Model Tested: SGH-P107 FCC ID (Requested): A3LSGHP107 Report No: FA-024-R1 Date issued: September 19, 2003 - Abstract – All measurement reported herein accordance with FCC Rules, 47CFR Part2, Part22, Part24. Prepared By Date SS LEE – Test Engineer Checked By Date CW PARK - Manager Authorized By Date JK CHOI – Senior Manager Radiated Spurious & Harmonic Conversion Table Radiated Spurious & Harmonic Conversion Table amp Radiated Spurious & Harmonic Configuration for Calibration
