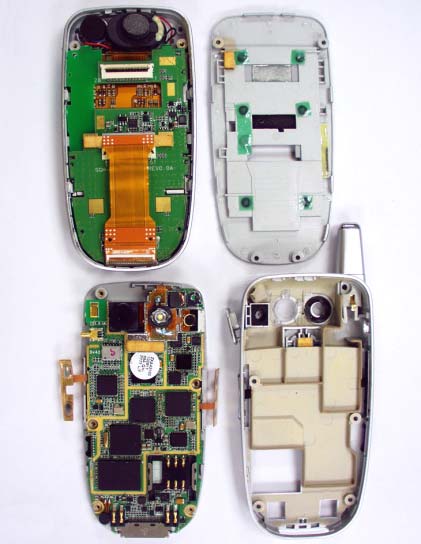

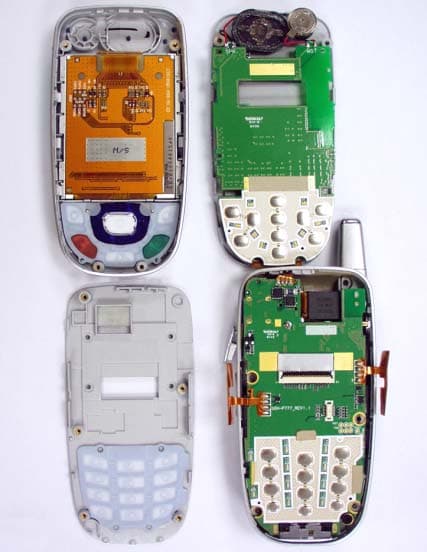

A3LSGHP777Dual-Band GSM Phone

UCDJ6.01_WBp777_110804_D1 Cover Page SGH-p777 Series PORTABLE Dual-Mode TELEPHONE User Guide Please read this manual before operating your phone, and keep it for future reference. Cover Page Intellectual Property All Intellectual Property, as defined below, owned by or which is otherwise the property of Samsung or its respective suppliers relating to the SAMSUNG Phone, including but not limited to, accessories, parts, or software relating there to (the “Phone System”), is proprietary to Samsung and protected under federal laws, state laws, and international treaty provisions. Intellectual Property includes, but is not limited to, inventions (patentable or unpatentable), patents, trade secrets, copyrights, software, computer programs, and related documentation and other works of authorship. You may not infringe or otherwise violate the rights secured by the Intellectual Property. Moreover, you agree that you will not (and will not attempt to) modify, prepare derivative works of, reverse engineer, decompile, disassemble, or otherwise attempt to create source code from the software. No title to or ownership in the Intellectual Property is transferred to you. All applicable rights of the Intellectual Property shall remain with SAMSUNG and its suppliers. Samsung Telecommunications America (STA), Inc. Headquarters:Customer Care Center: 1301 E. Lookout Drive1601 E. Plano Parkway, Suite 150 Richardson, TX 75082Plano, TX 75074 Tel: 972.761.7000Toll Free Tel: 1.888.987.HELP (4357) Fax: 972.761.7001Fax: 972.801.6065 Internet Address: http://www.samsungusa.com © 2004 Samsung Telecommunications America, Inc. is a registered trademark of Samsung Electronics America, Inc. and its related entities. Licensed by Qualcomm Incorporated under one or more of the following patents: U.S. Patent No. 4, 901, 307; 5, 056, 109; 5, 099, 204; 5, 101, 501; 5, 103, 459; 5, 107, 225; 5, 109, 390. Disclaimer of Warranties; Exclusion of Liability Cover Page Printed in South Korea GH Openwave® is a registered Trademark of Openwave, Inc. RSA® is a registered Trademark RSA Security, Inc. Disclaimer of Warranties; Exclusion of Liability EXCEPT AS SET FORTH IN THE EXPRESS WARRANTY CONTAINED ON THE WARRANTY PAGE ENCLOSED WITH THE PRODUCT, THE PURCHASER TAKES THE PRODUCT "AS IS", AND SAMSUNG MAKES NO EXPRESS OR IMPLIED WARRANTY OF ANY KIND WHATSOEVER WITH RESPECT TO THE PRODUCT, INCLUDING BUT NOT LIMITED TO THE MERCHANTABILITY OF THE PRODUCT OR ITS FITNESS FOR ANY PARTICULAR PURPOSE OR USE; THE DESIGN, CONDITION OR QUALITY OF THE PRODUCT; THE PERFORMANCE OF THE PRODUCT; THE WORKMANSHIP OF THE PRODUCT OR THE COMPONENTS CONTAINED THEREIN; OR COMPLIANCE OF THE PRODUCT WITH THE REQUIREMENTS OF ANY LAW, RULE, SPECIFICATION OR CONTRACT PERTAINING THERETO. NOTHING CONTAINED IN THE INSTRUCTION MANUAL SHALL BE CONSTRUED TO CREATE AN EXPRESS OR IMPLIED WARRANTY OF ANY KIND WHATSOEVER WITH RESPECT TO THE PRODUCT. IN ADDITION, SAMSUNG SHALL NOT BE LIABLE FOR ANY DAMAGES OF ANY KIND RESULTING FROM THE PURCHASE OR USE OF THE PRODUCT OR ARISING FROM THE BREACH OF THE EXPRESS WARRANTY, INCLUDING INCIDENTAL, SPECIAL OR CONSEQUENTIAL DAMAGES, OR LOSS OF ANTICIPATED PROFITS OR BENEFITS. Cover Page Ta bl e o f Co n t en ts 1 Table of Contents Table of Contents Intellectual Property ....................................................................... 2 Samsung Telecommunications America (STA), Inc. ........................ 2 Disclaimer of Warranties; Exclusion of Liability ............................... 3 Section 1: Getting Started .............................................5 Activating Your Phone .................................................................... 6 Dialing Your Voice Mail Box .......................................................... 12 Accessing Your Voice Mail ........................................................... 12 Changing the Voice Mail Number ................................................. 13 Section 2: Understanding Your Phone .......................15 Features of Your Phone ................................................................ 16 Front View of Your Phone ............................................................. 17 Rear ............................................................................................. 18 Keys ............................................................................................ 18 Icons ............................................................................................ 20 Section 3: Call Functions ............................................23 Making a Call ............................................................................... 24 Answering a Call .......................................................................... 25 Adjusting the Call Volume ............................................................ 25 Missed Calls ................................................................................ 26 Call Log ....................................................................................... 27 Options During a Call ................................................................... 29 Section 4: Menu Navigation ........................................35 Menu Navigation .......................................................................... 36 Menu Outline ............................................................................... 37 Section 5: Entering Text ..............................................47 Changing the Text Entry Mode ..................................................... 48 Using T9 Mode ............................................................................. 49 Using Alphabet Mode ................................................................... 50 Entering Numbers ........................................................................ 51 Entering Symbols ......................................................................... 52 2Table of Contents Ta bl e o f Con t en t s Section 6: Understanding You…

Text truncated - open the document above for the full version.

November 16, 2004 Federal Communications Commission Authorization and Evaluation Div. Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 In re: Samsung Electronics Co., Ltd. FCC ID.: A3LSGHP777 Request for Confidentiality To Whom It May Concern: In accordance with 0.459 of CFR 47, Samsung Electronics Co., Ltd. requests confidentiality for the Block Diagram, Schematics, Parts list, Tune-up Procedure, Operational and Circuit Description of the attached test report. These documents contain detailed system and equipment descriptions and related information about the product, which Samsung Electronics Co., Ltd. considers to be proprietary, confidential, and a custom design and otherwise, would not release to the general public. Since this design is a basis from which future technological products will evolve, Samsung feels that this information would be of benefit to its competitors, and that the disclosure of the information in these documents would give our competitors an unfair advantage in the market. Sincerely, Wallace Oh Engineering Manager Samsun Samsung Electronics America November 16, 2004 Federal Communications Commission Authorization and Evaluation Div. Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 In re: Samsung Electronics Co., Ltd. FCC ID: A3LSGHP777 Request for Short-Term Confidentiality To Whom It May Concern: In accordance with 0.457 and 0.459 of CFR 47, Samsung Electronics Co., Ltd. requests short-term confidentiality for the test setup photos, external photos, internal photos, and user’s manual of the attached test report. These documents contain detailed system and equipment descriptions and related information about the product, which Samsung Electronics Co., Ltd. considers to be proprietary, confidential, and a custom design and otherwise, would not release to the general public. Since this design is a basis from which future technological products will evolve, Samsung feels that this information would be of benefit to its competitors, and that the disclosure of the information in these documents would give our competitors an unfair advantage in the market. Sincerely, Wallace Oh Engineering Manager Samsun Samsung Electronics America

© 2004 SAMSUNG ELECTRONICS Co., Ltd. SAMSUNG FCC ID: A3LSGHP777 Dual-Band GSM850/ GSM1900 Phone © 2004 SAMSUNG ELECTRONICS Co., Ltd. SAMSUNG FCC ID: A3LSGHP777 Dual-Band GSM850/ GSM1900 Phone

1 of 31 SAMSUNG ELECTRONICS Co., Ltd., Regulatory Compliance Team IT R&D Center 416, Maetan-3dong, Yeongtong-gu, Suwon-si, Gyeonggi-do, Korea 442-742 TEST REPORT ON SAR Model Tested: SGH-P777 FCC ID (Requested): A3LSGHP777 Job No: FB-063 Report No: FB-063-S1 Date issued: Nov. 15, 2004 - Abstract – This document reports on SAR Tests carried out in accordance with FCC/OET Bulletin 65, Supplement C(July 2001). Prepared By Date KS AN – Test Engineer Checked By Date JH CHOI - Manager Authorized By Date JK CHOI – Senior Manager Report Number : FB-063-S1 2 of 31 Contents 1. General Information.............................................................................................3 2. Description of Device...........................................................................................3 3. Description of Test Equipment..............................................................................4 3.1 SAR Measurement Setup.........................................................................................4 3.2 DASY4 E-Field Probe.............................................................................................5 3.3 SAM Phantom.....................................................................................................6 3.4 Brain & Muscle Simulating Mixture Characterization....................................................7 3.5 Device Holder for transmitters.................................................................................8 3.6 Validation Dipole...................................................................................................8 3.7 Equipment Calibration.............................................................................................9 4. SAR Measurement Procedure.............................................................................10 5. Description of test position..............................................................................11 5.1 SAM Phantom Shape............................................................................................11 5.2 Cheek/Touch Position............................................................................................11 5.3 Ear/Tilt 15 Position..............................................................................................13 5.4 Body/Holster/Belt Clip Configuration.......................................................................14 6. Measurement Uncertainty..................................................................................16 7. System Verification.........................................................................................18 7.1 Tissue Verification..............................................................................................18 7.2 Test System Validation...........................................................................................18 8. SAR Measurement Results.................................................................................19 8.1 Measurement Results(GSM 850 Right Head SAR-Touch).............................................20 8.2 Measurement Results(GSM 850 Right Head SAR-Tilt).................................................21 8.3 Measurement Results(GSM 850 Left Head SAR-Touch)...............................................22 8.4 Measurement Results(GSM 850 Left Head SAR-Tilt)...................................................23 8.5 Measurement Results(GSM 1900 Right Head SAR-Touch)............................................24 8.6 Measurement Results(GSM 1900 Right Head SAR-Tilt)................................................25 8.7 Measurement Results(GSM 1900 Left Head SAR-Touch)..............................................26 8.8 Measurement Results(GSM 1900 Left Head SAR-Tilt)...............................................27 8.9 Measurement Results(GPRS 850 Body SAR w/o Holster).............................................28 8.10 Measurement Results(GPRS 1900 Body SAR w/o Holster)..........................................29 9. Conclusion.......................................................................................................30 10. Reference.......................................................................................................31 Report Number : FB-063-S1 3 of 31 1. GENERAL INFORMATION Test Sample : Dual-Band GSM 850/ GSM 1900 Phone Model Number : SGH-P777 Serial Number : Identical prototype (S/N : FB-063-E) Manufacturer : SAMSUNG ELECTRONICS Co., Ltd. Contact : JH KANG, Engineer Phone : +82-54-479-7621 Fax : +82-54-479-5921 Test Standard : §2.1093; FCC/OET Bulletin 65, Supplement C(July 2001) FCC Classification : Licensed Portable Transmitter Held to Ear (PCE) Test Dates : Oct. 12, 2004 ~ Oct. 13, 2004 Tested for : FCC/TCB Certification 2. DESCRIPTION OF DEVICE Tx Freq. Range : 824.2 – 848.8 MHz (GSM 850) 1850.2 – 1909.8 MHz (GSM1900) Rx Freq. Range : 869.2 – 893.8 MHz (GSM 850) 1930.2 – 1989.8 MHz (GSM1900) Max. RF Output Power : 2.729 W ERP GSM 850 ( 34.36 dBm) 1.738 W EIRP GSM 1900 (32.40 dBm) Antenna Manufacturer : Amphenol Model No.: SGH-P777 Antenna Dimensions : 18 mm [Fixed] Report Number : FB-063-S1 4 of 31 3. DESCRIPTION OF TEST EQUIPMENT 3.1 SAR Measurement Setup Robotic System Measurements are performed using the DASY4 automated dosimetric assessment system. Which is made by Schmid & Partner Engineering AG (SPEAG) in Zurich, Switzerland and consists of high precision robotics system (Stäubli), robot controller, measurement server, Samsung computer, near- field probe, probe alignment sensor, and the SAM twin phantom containing the brain equivalent material. The robot is a six-axis industrial robot performing precise movements to position the probe to the location (points) of maximum electromagnetic field (EMF) (see Fig. 3.1). Figure 3.1 SAR Measurement System Setup System Hardware A cell controller system contains the power supply, robot controller, teach pendant (Joystick), and a remote control is used to drive the robot …

Text truncated - open the document above for the full version.

SAMSUNG FCC ID : A3LSGHP777 -- 835MHz GSM850 Head SAR DUT: SGH-P777(Up); Serial: FB-063-E Program Name: SGH-P777 GSM850 Right (Slide Up, Job No.: FB-063) Procedure Name: Cheek/Touch, Ch.128, Ant.Fixed, Bat.Standard Procedure Notes: Meas.Tissue Temp(celsius)-20.7; Test Date-12/Oct/2004 [OET Bulletin 65-Supplement C, July 2001] Communication System: GSM850; Frequency: 824.2 MHz;Duty Cycle: 1:8.3 Medium parameters used: f = 824.2 MHz; σ = 0.89 mho/m; ε r = 41.1; ρ = 1000 kg/m 3 Phantom section: Right Section DASY4 Configuration: - Probe: ET3DV6 - SN1735; ConvF(6.82, 6.82, 6.82); Calibrated: 2004-09-24 - Sensor-Surface: 4mm (Mechanical And Optical Surface Detection) - Electronics: DAE3 Sn468; Calibrated: 2004-09-23 - Phantom: SAM 835/900 MHz; Type: SAM; Serial: TP-1247 - Measurement SW: DASY4, V4.3 Build 22; Postprocessing SW: SEMCAD, V1.8 Build 127 Cheek/Touch, Ch.128, Ant.Fixed, Bat.Standard/Area Scan (51x71x1): Measurement grid: dx=20mm, dy=20mm Maximum value of SAR (interpolated) = 0.870 mW/g Cheek/Touch, Ch.128, Ant.Fixed, Bat.Standard/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 9.49 V/m; Power Drift = 0.0 dB Peak SAR (extrapolated) = 1.18 W/kg SAR(1 g) = 0.794 mW/g Maximum value of SAR (measured) = 0.854 mW/g 0 dB = 0.854mW/g SAMSUNG FCC ID : A3LSGHP777 -- 835MHz GSM850 Head SAR DUT: SGH-P777(Down); Serial: FB-063-E Program Name: SGH-P777 GSM850 Right (Slide Down, Job No.: FB-063) Procedure Name: Ear/Tilt, Ch.190, Ant.Fixed, Bat.Standard Procedure Notes: Meas.Tissue Temp(celsius)-20.7; Test Date-12/Oct/2004 [OET Bulletin 65-Supplement C, July 2001] Communication System: GSM850; Frequency: 836.6 MHz;Duty Cycle: 1:8.3 Medium parameters used: f = 836.6 MHz; σ = 0.89 mho/m; ε r = 41.1; ρ = 1000 kg/m 3 Phantom section: Right Section DASY4 Configuration: - Probe: ET3DV6 - SN1735; ConvF(6.82, 6.82, 6.82); Calibrated: 2004-09-24 - Sensor-Surface: 4mm (Mechanical And Optical Surface Detection) - Electronics: DAE3 Sn468; Calibrated: 2004-09-23 - Phantom: SAM 835/900 MHz; Type: SAM; Serial: TP-1247 - Measurement SW: DASY4, V4.3 Build 22; Postprocessing SW: SEMCAD, V1.8 Build 127 Ear/Tilt, Ch.190, Ant.Fixed, Bat.Standard/Area Scan (51x71x1): Measurement grid: dx=20mm, dy=20mm Maximum value of SAR (interpolated) = 0.520 mW/g Ear/Tilt, Ch.190, Ant.Fixed, Bat.Standard/Zoom Scan (6x6x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 23 V/m; Power Drift = -0.1 dB Peak SAR (extrapolated) = 0.592 W/kg SAR(1 g) = 0.456 mW/g Maximum value of SAR (measured) = 0.480 mW/g 0 dB = 0.480mW/g SAMSUNG FCC ID : A3LSGHP777 -- 835MHz GSM850 Head SAR DUT: SGH-P777(Up); Serial: FB-063-E Program Name: SGH-P777 GSM850 Left (Slide Up, Job No.: FB-063) Procedure Name: Cheek/Touch, Ch.128, Ant.Fixed, Bat.Standard Procedure Notes: Meas.Tissue Temp(celsius)-20.7; Test Date-12/Oct/2004 [OET Bulletin 65-Supplement C, July 2001] Communication System: GSM850; Frequency: 836.6 MHz;Duty Cycle: 1:8.3 Medium parameters used: f = 836.6 MHz; σ = 0.89 mho/m; ε r = 41.1; ρ = 1000 kg/m 3 Phantom section: Left Section DASY4 Configuration: - Probe: ET3DV6 - SN1735; ConvF(6.82, 6.82, 6.82); Calibrated: 2004-09-24 - Sensor-Surface: 4mm (Mechanical And Optical Surface Detection) - Electronics: DAE3 Sn468; Calibrated: 2004-09-23 - Phantom: SAM 835/900 MHz; Type: SAM; Serial: TP-1247 - Measurement SW: DASY4, V4.3 Build 22; Postprocessing SW: SEMCAD, V1.8 Build 127 Cheek/Touch, Ch.128, Ant.Fixed, Bat.Standard/Area Scan (51x71x1): Measurement grid: dx=20mm, dy=20mm Maximum value of SAR (interpolated) = 0.811 mW/g Cheek/Touch, Ch.128, Ant.Fixed, Bat.Standard/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 10.3 V/m; Power Drift = 0.0 dB Peak SAR (extrapolated) = 1.16 W/kg SAR(1 g) = 0.792 mW/g Maximum value of SAR (measured) = 0.835 mW/g 0 dB = 0.835mW/g SAMSUNG FCC ID : A3LSGHP777 -- 835MHz GSM850 Head SAR DUT: SGH-P777(Down); Serial: FB-063-E Program Name: SGH-P777 GSM850 Left (Slide Down, Job No.: FB-063) Procedure Name: Ear/Tilt, Ch.190, Ant.Fixed, Bat.Standard Procedure Notes: Meas.Tissue Temp(celsius)-20.7; Test Date-12/Oct/2004 [OET Bulletin 65-Supplement C, July 2001] Communication System: GSM850; Frequency: 836.6 MHz;Duty Cycle: 1:8.3 Medium parameters used: f = 836.6 MHz; σ = 0.89 mho/m; ε r = 41.1; ρ = 1000 kg/m 3 Phantom section: Left Section DASY4 Configuration: - Probe: ET3DV6 - SN1735; ConvF(6.82, 6.82, 6.82); Calibrated: 2004-09-24 - Sensor-Surface: 4mm (Mechanical And Optical Surface Detection) - Electronics: DAE3 Sn468; Calibrated: 2004-09-23 - Phantom: SAM 835/900 MHz; Type: SAM; Serial: TP-1247 - Measurement SW: DASY4, V4.3 Build 22; Postprocessing SW: SEMCAD, V1.8 Build 127 Ear/Tilt, Ch.190, Ant.Fixed, Bat.Standard/Area Scan (51x71x1): Measurement grid: dx=20mm, dy=20mm Maximum value of SAR (interpolated) = 0.531 mW/g Ear/Tilt, Ch.190, Ant.Fixed, Bat.Standard/Zoom Scan (6x6x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 22.5 V/m; Power Drift = -0.1 dB Peak SAR (extrapolated) = 0.642 W/kg SAR(1 g) = 0.464 mW/g Maximum value of SAR (measured) = 0.491 mW/g 0 dB = 0.491mW/g SAMSUNG FCC ID : A3LSGHP777 -- 1900MHz GSM1900 Head SAR DUT: SGH-P777(Down); Serial: FB-063-E Program Name: SGH-P777 GSM1900 Right (Slide Down, Job No.: FB-063) Procedure Name: Cheek/Touch, Ch.661, Ant.Fixed, Bat.Standard Procedure Notes: Meas.Tissue Temp(celsius)-21.0; Test Date-13/Oct/2004 [OET Bulletin 65-Supplement C, July 2001] Communication System: GSM 1900; Frequency: 1880 MHz;Duty Cycle: 1:8.3 Medium parameters used: f = 1880 MHz; σ = 1.37 mho/m; ε r = 38.5; ρ = 1000 kg/m 3 Phantom section: Right Section DASY4 Configuration: - Probe: ET3DV6 - SN1735; ConvF(5.38, 5.38, 5.38); Calibrated: 2004-09-24 - Sensor-Surface: 4mm (Mechanical And Optical Surface Detection) - Electronics: DAE3 Sn468; Calibrated: 2004-09-23 - Phantom: SAM 1800/1900 MHz; Type: SAM; Serial: TP-1248 - Measurement SW: DASY4, V4.3 Build 22; Postprocessing SW: SEMCAD, V1.8…

Text truncated - open the document above for the full version.

835MHz Brain Dipole Validation DUT: Dipole 835 MHz; Serial: 451 Program Name: 835MHz Diploe Validation Procedure Name: 835MHz @ 250mW Procedure Notes: Meas.Tissue Temp(celsius)-20.7;Test Date-12/Oct/2004 Communication System: CW; Frequency: 835 MHz;Duty Cycle: 1:1 Medium parameters used: f = 835 MHz; σ = 0.89 mho/m; ε r = 41.1; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY4 Configuration: - Probe: ET3DV6 - SN1735; ConvF(6.82, 6.82, 6.82); Calibrated: 2004-09-24 - Sensor-Surface: 4mm (Mechanical And Optical Surface Detection) - Electronics: DAE3 Sn468; Calibrated: 2004-09-23 - Phantom: SAM 835/900 MHz; Type: SAM; Serial: TP-1247 - Measurement SW: DASY4, V4.3 Build 22; Postprocessing SW: SEMCAD, V1.8 Build 127 835MHz @ 250mW/Area Scan (51x51x1): Measurement grid: dx=20mm, dy=20mm Maximum value of SAR (interpolated) = 2.55 mW/g 835MHz @ 250mW/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 56.8 V/m; Power Drift = -0.0 dB Peak SAR (extrapolated) = 3.51 W/kg SAR(1 g) = 2.38 mW/g Maximum value of SAR (measured) = 2.57 mW/g 0 dB = 2.57mW/g 1900MHz Brain Dipole Validation DUT: Dipole 1900 MHz; Serial: 548 Program Name: 1900 Dipole Validation Procedure Name: 1900MHz @250mW Procedure Notes: Meas.Tissue Temp(celsius)-20.9;Test Date-13/Oct/2004 Communication System: CW; Frequency: 1900 MHz;Duty Cycle: 1:1 Medium parameters used: f = 1900 MHz; σ = 1.37 mho/m; ε r = 38.5; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY4 Configuration: - Probe: ET3DV6 - SN1735; ConvF(5.38, 5.38, 5.38); Calibrated: 2004-09-24 - Sensor-Surface: 4mm (Mechanical And Optical Surface Detection) - Electronics: DAE3 Sn468; Calibrated: 2004-09-23 - Phantom: SAM 1800/1900 MHz; Type: SAM; Serial: TP-1248 - Measurement SW: DASY4, V4.3 Build 22; Postprocessing SW: SEMCAD, V1.8 Build 127 1900MHz @250mW/Area Scan (51x51x1): Measurement grid: dx=20mm, dy=20mm Maximum value of SAR (interpolated) = 15 mW/g 1900MHz @250mW/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 94.6 V/m; Power Drift = -0.0 dB Peak SAR (extrapolated) = 16.7 W/kg SAR(1 g) = 9.94 mW/g Maximum value of SAR (measured) = 11.2 mW/g 0 dB = 11.2mW/g

© 2004 SAMSUNG ELECTRONICS Co., Ltd. SAMSUNG FCC ID: A3LSGHP777 Dual-Band GSM850/ GSM1900 Phone © 2004 SAMSUNG ELECTRONICS Co., Ltd. SAMSUNG FCC ID: A3LSGHP777 Dual-Band GSM850/ GSM1900 Phone © 2004 SAMSUNG ELECTRONICS Co., Ltd. SAMSUNG FCC ID: A3LSGHP777 Dual-Band GSM850/ GSM1900 Phone © 2004 SAMSUNG ELECTRONICS Co., Ltd. SAMSUNG FCC ID: A3LSGHP777 Dual-Band GSM850/ GSM1900 Phone © 2004 SAMSUNG ELECTRONICS Co., Ltd. SAMSUNG FCC ID: A3LSGHP777 Dual-Band GSM850/ GSM1900 Phone © 2004 SAMSUNG ELECTRONICS Co., Ltd. SAMSUNG FCC ID: A3LSGHP777 Dual-Band GSM850/ GSM1900 Phone © 2004 SAMSUNG ELECTRONICS Co., Ltd. SAMSUNG FCC ID: A3LSGHP777 Dual-Band GSM850/ GSM1900 Phone © 2004 SAMSUNG ELECTRONICS Co., Ltd. SAMSUNG FCC ID: A3LSGHP777 Dual-Band GSM850/ GSM1900 Phone © 2004 SAMSUNG ELECTRONICS Co., Ltd. SAMSUNG FCC ID: A3LSGHP777 Dual-Band GSM850/ GSM1900 Phone © 2004 SAMSUNG ELECTRONICS Co., Ltd. SAMSUNG FCC ID: A3LSGHP777 Dual-Band GSM850/ GSM1900 Phone © 2004 SAMSUNG ELECTRONICS Co., Ltd. SAMSUNG FCC ID: A3LSGHP777 Dual-Band GSM850/ GSM1900 Phone © 2004 SAMSUNG ELECTRONICS Co., Ltd. SAMSUNG FCC ID: A3LSGHP777 Dual-Band GSM850/ GSM1900 Phone © 2004 SAMSUNG ELECTRONICS Co., Ltd. SAMSUNG FCC ID: A3LSGHP777 Dual-Band GSM850/ GSM1900 Phone © 2004 SAMSUNG ELECTRONICS Co., Ltd. SAMSUNG FCC ID: A3LSGHP777 Dual-Band GSM850/ GSM1900 Phone © 2004 SAMSUNG ELECTRONICS Co., Ltd. SAMSUNG FCC ID: A3LSGHP777 Dual-Band GSM850/ GSM1900 Phone © 2004 SAMSUNG ELECTRONICS Co., Ltd. SAMSUNG FCC ID: A3LSGHP777 Dual-Band GSM850/ GSM1900 Phone © 2004 SAMSUNG ELECTRONICS Co., Ltd. SAMSUNG FCC ID: A3LSGHP777 Dual-Band GSM850/ GSM1900 Phone © 2004 SAMSUNG ELECTRONICS Co., Ltd. SAMSUNG FCC ID: A3LSGHP777 Dual-Band GSM850/ GSM1900 Phone © 2004 SAMSUNG ELECTRONICS Co., Ltd. SAMSUNG FCC ID: A3LSGHP777 Dual-Band GSM850/ GSM1900 Phone © 2004 SAMSUNG ELECTRONICS Co., Ltd. SAMSUNG FCC ID: A3LSGHP777 Dual-Band GSM850/ GSM1900 Phone

SAMSUNG ELECTRONICS Co., Ltd., Regulatory Compliance Group IT R&D Center 416, Maetan-3Dong, Youngtong-Gu, Suwon-city, Gyeonggi-Do, Korea 442-600 FCC CFR47 PART 22 & 24 SUBPART CERTIFICATION REPORT Model Tested: SGH-P777 FCC ID (Requested): A3LSGHP777 Report No: FB-063-R1 Job No: FB-063 Date issued: Nov 15,2004 - Abstract – All measurement reported herein accordance with FCC Rules, 47CFR Part2, Part22, Part24. Prepared By Date WW JANG – Test Engineer Checked By Date JH CHOI - Engineer Authorized By Date JK CHOI – Senior Manager © Copyright SAMSUNG Electronics 2004 2004.11.15 2004.11.15 2004.11.15 Report Number : FB-063-R1 TABLE OF CONTENT MEASUREMENT REPORT Page 1. FCC Certification Information 3 1.1 2.1033 General Information 3 2. INTRODUCTION 4 2.1 General 4 3. MEASURING INSTRUMENT CALIBRATION 5 4. TEST EQUIPMENT LIST 6 5. DESCRIPTION OF TESTS 7 5.1 Effective Radiated Power/Equivalent Isotropic Radiated Power 7 5.2 Radiated Spurious & Harmonic Emission 8 5.3 Occupied Bandwidth 10 5.4 Spurious and Harmonic Emissions at Antenna Terminal 10 5.4.1 Occupied Bandwidth Emission Limits 10 5.4.2 Conducted Spurious Emission 11 5.5 Frequency Stability / Temperature Variation 12 6. TEST DATA 13 6.1 Effective Radiated Power(E.R.P.) 13 6.2 Equivalent Isotropic Radiated Power(E.I.R.P.) 14 6.3 GSM850 Radiated Spurious & Harmonic Measurement 15 6.4 GSM1900 Radiated Spurious & Harmonic Measurement 16 6.5 GSM850 Radiated Spurious & Harmonic Conversion Table 17 6.6 GSM1900 Radiated Spurious & Harmonic Conversion Table 18 6.7 Frequency Stability 19 6.7.1 GSM850 Frequency Stability Table 19 6.7.2 GSM850 Frequency Stability Graph 20 6.7.3 GSM1900 Frequency Stability Table 22 6.7.4 GSM1900 Frequency Stability Graph 23 7.SAMPLE CALCULATION 25 7.1 Emission Designator 8. CONCLUSION 26 9. TEST PLOTS 27 Report Number : FB-063-R1 MEASUREMENT REPORT 1. FCC Certification Information The following information is in accordance with FCC Rules, 47CFR Rart2, Subpart J, Sections 2.1033 – 2.1055. 2.1033 General Information Applicant Name: SAMSUNG ELECRONICS CO., LTD. Address: 416, Maetan-3Dong, Youngtongl-Gu, Suwon City Gyeonggi-Do, KOREA 442-600 Attention: FCC ID: Wallace Oh, Engineering Manager (QA Lab) A3LSGHP777 Quantity: Quantity production is planned Emission Designators: 250KGXW Tx Freq. Range: 824.2 - 848.8 MHz (GSM850) 1850.2 -1909.8 MHz (GSM1900) Rx Freq. Range: 869.2 - 893.8 MHz (GSM850) 1930.2 -1989.8 MHz (GSM1900 ) Max. Power Rating: 2.729 W ERP GSM850 ( 34.36 dBm) 1.738 W EIRP GSM1900 ( 32.40 dBm) FCC Classification(s): Licensed Portable Tx Held to Ear (PCE) Equipment (EUT) Type: Dual-Mode GSM850/GSM1900 Phone Modulation(s): GSM850/ GSM1900 Frequency Tolerance: 0.00025% (2.5ppm) FCC Rule Part(s): 24(E), 22(H), 2. Dates of Test: Nov. 04, 09 -10, 2004 Place of Test: SAMSUNG Lab, Test Report S/N: FB-063-R1 Report Number : FB-063-R1 2. INTRODUCTION General These measurement test were conducted at SAMSUNG ELECTRONICS CO., LTD(SUWON). The site address is 416,Maetan-3Dong, Youngtong-Gu, Suwon City, Gyeonggi-Do, KOREA 442- 600. The site have 1 Fully-anechoic chamber and measurement facility. Measurement Procedure The radiated and spurious measurements were made Fully-anechoic chamber at a 3-meter test range (see Figure2). The equipment under testing was placed on a wooden turntable 3-meters from the receive antenna. The receive antenna height and turntable rotations were adjusted for the highest reading on the receive spectrum analyzer. The substitution antenna will replace the EUT antenna it the same position and in vertical polarization. The frequency of the signal generator shall be set to the frequencies that were measured on the EUT. The test antenna shall be raised and lowered, if necessary, to ensure that the maximum signal is still being received. The signal generator, output level, shall be adjusted until an equal or a known related level to what was measured from the EUT is obtained in the spectrum analyzer. This level was recorded. For readings above 1 GHz, the above procedure is repeated using horn antennas and the difference between the gain of the horn and an isotropic antenna are taken into consideration. Figure1. Map of the Suwon City area. Fi gure2. Photograph of 3m Fully-Anechoic Chamber Report Number : FB-063-R1 3.MEASURING INSTRUMENT CALIBRATION The measuring equipment, which was utilized in performing the tests documented herein, has been calibrated in accordance with the manufacturer’s recommendations for utilizing calibration equipment, which is traceable to recognized national standards. - End of page - Report Number : FB-063-R1 4.TEST EQUIPMENT LIST Name of Equipment Model Serial No. Due Date ESI26 836119/010 2005-09-20 E4440A(3Hz~26.5GHz) MY41000236 2005-10-27 Spectrum Analyzer E4440A(3Hz~26.5GHz) MY41000233 2005-11-04 SMIQ03B 83824/021 2005-01-15 Signal Generator SMR20 835197/030 2005-01-15 Power Meter E4419B GB41293846 2005-09-21 8481B 3318A10325 2005-10-06 Power Sensor 8485A 3318A19924 2005-09-20 Amplifier 5S1G4 304866 2005-10-19 Pre-Amplifier 8449B 3008A00691 2005-01-16 8960 GB42230535 2005-11-04 Communication test set 8960 GB42360886 2005-10-27 Antenna Master MA0001 ANT0967 Not Required Controller HD100 100/756 Not Required PL-4S 13005454 2005-07-31 SH-241 92000548 2004-12-04 Environmental Chamber SH-241 92000549 2004-12-04 HF906 360306/011 2005-03-11 Horn Antenna HF906 100134 2005-05-02 3121C-DB4 9007-587 2004-11-21 Dipole Antenna 3121C-DB4 9007-588 2005-05-28 HL040…

Text truncated - open the document above for the full version.
