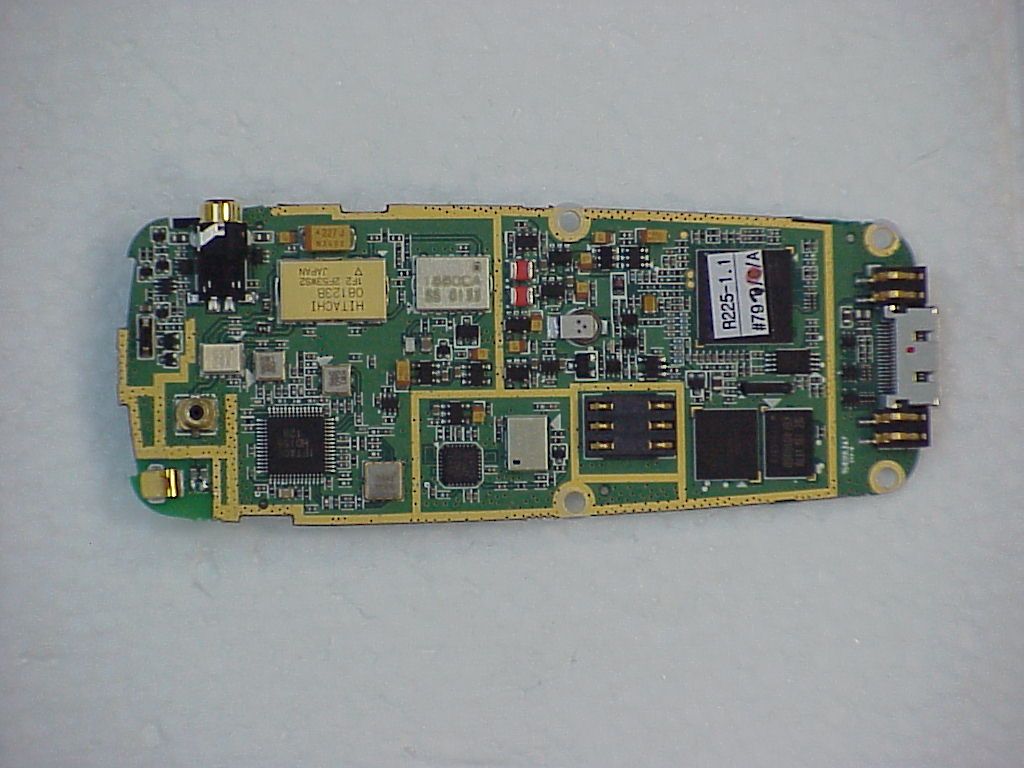

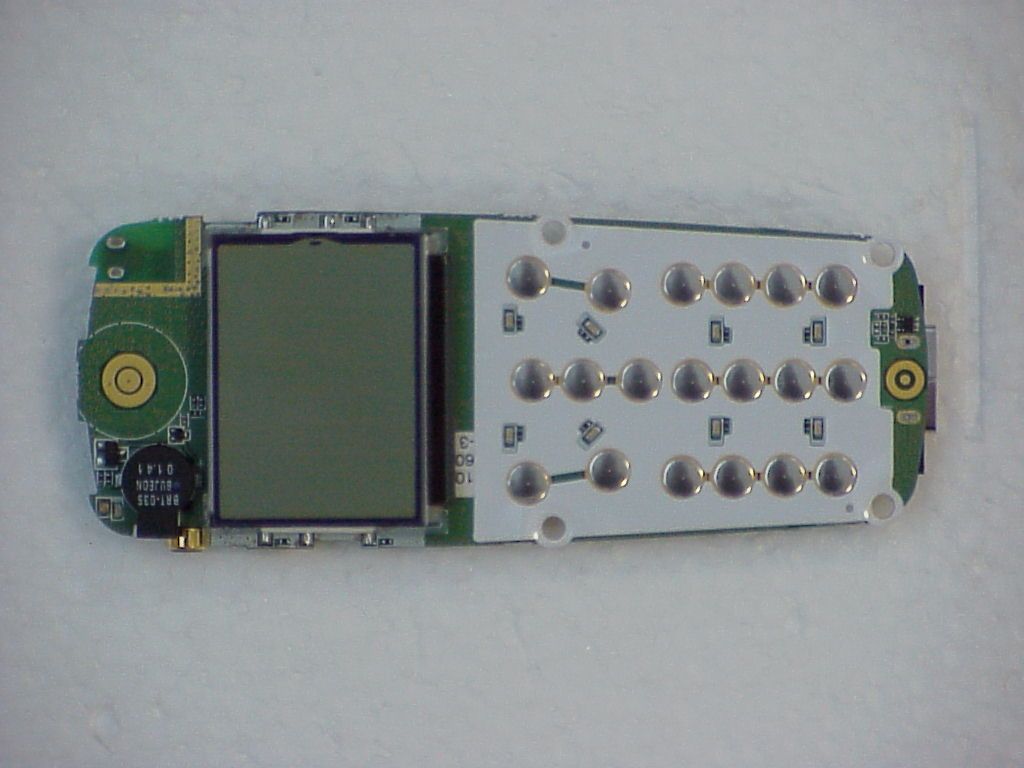

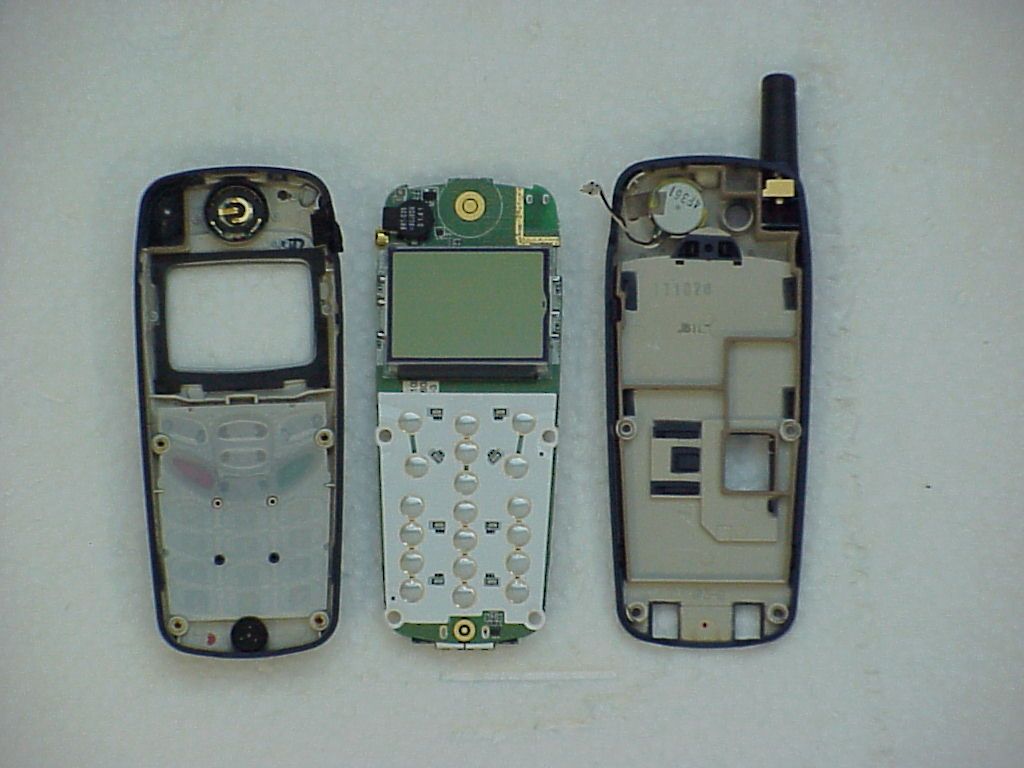

A3LSGHR225PCS-Cellular phone

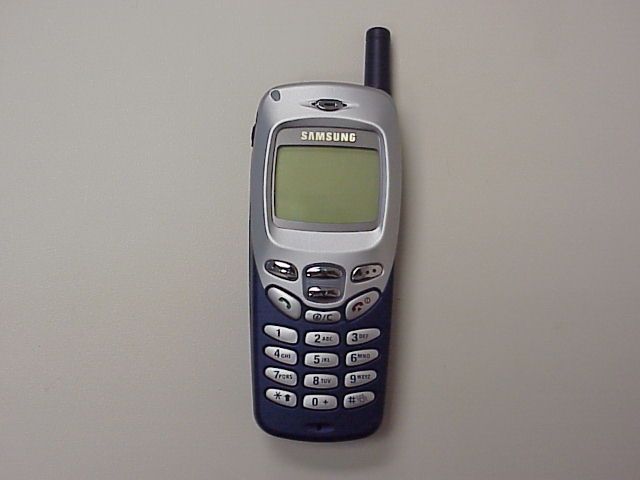

Printed in Korea Code No: GH68-02179A English. 12/2001 Rev.1.0 ELECTRONICS World Wide Web http://www.samsungmobile.com DUAL BAND GSM TELEPHONE SGH-R225 OWNER’S MANUAL GLOBAL SYSTEMS FOR MOBILE COMMUNICATIONS The information in this manual is believed to be correct at the time of printing; Samsung reserves the right, however, to change or modify any of the specifications without notice. Some of the contents in this manual may differ from your phone, depending on the software installed, your SIM card or your service provider. Contents Safety Precautions . . . . . . . . . . . . . . . . 7 Unpacking . . . . . . . . . . . . . . . . . . . . . . 9 Your Phone . . . . . . . . . . . . . . . . . . . . . 10 Phone Layout. . . . . . . . . . . . . . . . . . . . . . . . . . 10 Display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12 Service Light . . . . . . . . . . . . . . . . . . . . . . . . . . 14 Getting Started . . . . . . . . . . . . . . . . . . 15 Installing the SIM Card and the Battery . . . 15 Charging a Battery . . . . . . . . . . . . . . . . . . . . . 18 Switching the Phone On/Off . . . . . . . . . . . . . 20 Locking/Unlocking the Keypad . . . . . . . . . . . 21 Call Functions . . . . . . . . . . . . . . . . . . . 22 Making a Call . . . . . . . . . . . . . . . . . . . . . . . . . 22 Adjusting the Volume . . . . . . . . . . . . . . . . . . . 24 Answering or Rejecting a Call . . . . . . . . . . . 25 Viewing Missed Calls . . . . . . . . . . . . . . . . . . . 26 In-Call Options . . . . . . . . . . . . . . . . . . . . . . . . 28 Entering Text . . . . . . . . . . . . . . . . . . . 35 Changing the Text Input Mode . . . . . . . . . . . 36 Using the T9 Mode . . . . . . . . . . . . . . . . . . . . . 36 Using the ABC Mode . . . . . . . . . . . . . . . . . . . 38 Using the Number Mode . . . . . . . . . . . . . . . . 40 Using the Symbolic Mode . . . . . . . . . . . . . . . 40 3 45 Contents(continued) Phonebook . . . . . . . . . . . . . . . . . . . . . 41 Storing a Phone Number with a Name . . . . 41 Phonebook Options . . . . . . . . . . . . . . . . . . . . 43 Speed-dialling by SIM Memory Location . . 45 Searching for and Dialling a Number in the Phonebook . . . . . . . . . . . . . . . . . . . . . . 46 Dialling a Number using the Service Directory or Information Numbers . . . . . . . 47 Selecting Functions and Options . . . . . . 48 Example: Selecting an Alert Type . . . . . . . . . 50 Using the Menus . . . . . . . . . . . . . . . . . 52 Accessing Menu Functions by Scrolling . . . 52 Accessing Menu Functions by Using Shortcuts . . . . . . . . . . . . . . . . . . . . . . . 53 Menu Map . . . . . . . . . . . . . . . . . . . . . . . . . . . 54 Call Records . . . . . . . . . . . . . . . . . . . . 59 Missed Calls (Menu 1-1). . . . . . . . . . . . . . . . 59 Incoming Calls (Menu 1-2). . . . . . . . . . . . . . . 59 Outgoing Calls (Menu 1-3). . . . . . . . . . . . . . . . . 60 Call Time (Menu 1-4). . . . . . . . . . . . . . . . . . . . 60 Messages . . . . . . . . . . . . . . . . . . . . . . 62 Voice Mail (Menu 2-1). . . . . . . . . . . . . . . . . . 62 Read Messages (Menu 2-2). . . . . . . . . . . . . . 63 Write Messages (Menu 2-3). . . . . . . . . . . . . 65 Preset Message List (Menu 2-4). . . . . . . . . . 66 Setup (Menu 2-5) . . . . . . . . . . . . . . . . . . . . . . 66 Broadcast (Menu 2-6). . . . . . . . . . . . . . . . . . 67 Picture Messages (Menu 2-7). . . . . . . . . . . . 68 Tones . . . . . . . . . . . . . . . . . . . . . . . . . 70 Ring Tone (Menu 3-1). . . . . . . . . . . . . . . . . . . 70 Melody Composer (Menu 3-2). . . . . . . . . . . . 71 Ring Volume (Menu 3-3). . . . . . . . . . . . . . . . . 73 Alert Type (Menu 3-4). . . . . . . . . . . . . . . . . . . 73 Keypad Tone (Menu 3-5). . . . . . . . . . . . . . . . 74 Message Tone (Menu 3-6). . . . . . . . . . . . . . . 74 Error Tone (Menu 3-7). . . . . . . . . . . . . . . . . . . 75 Minute Minder (Menu 3-8). . . . . . . . . . . . . . . 75 Connect Tone (Menu 3-9). . . . . . . . . . . . . . . . 75 Settings . . . . . . . . . . . . . . . . . . . . . . . 76 Phone Settings (Menu 4-1). . . . . . . . . . . . . . 76 Network Services (Menu 4-2). . . . . . . . . . . . 81 Security Settings (Menu 4-3). . . . . . . . . . . . . 90 LCD Settings (Menu 4-4). . . . . . . . . . . . . . . . 93 Service Color (Menu 4-5) . . . . . . . . . . . . . 94 Organizer . . . . . . . . . . . . . . . . . . . . . . 96 Scheduler (Menu 5-1). . . . . . . . . . . . . . . . . . . 96 Alarm (Menu 5-2). . . . . . . . . . . . . . . . . . . . . . 98 Calculator (Menu 5-3). . . . . . . . . . . . . . . . . . . 100 World Time (Menu 5-4). . . . . . . . . . . . . . . . . . 102 Clock (Menu 5-5). . . . . . . . . . . . . . . . . . . . . . . 103 Games . . . . . . . . . . . . . . . . . . . . . . . . 104 7 Safety Quick Guide Read these simple guidelines before using your wireless phone. Failure to comply with these guidelines maybe dangerous.For more detailed safety information, see “Health and Safety Information” on page 118. Road safety comes first Do not use a hand-held phone while driving; park the vehicle first. Remember that in some countries, it is illegal to use a hand-held phone while driving. Switch off when refuelling Do not use the phone at a refuelling point (service station) or near fuels or chemicals. Switch off in aircraft Mobile phones can cause interference. Using them on aircraft is both illegal and dangerous. Respect special regulations Follow any special regulations in force in any area and always switch off your phone whenever it is forbidden to use it, or when it may cause interference or danger (in a hospital for example). Interference All mobile phones may be subject to radio interference, which may affect their performance. 6 Contents(continued) WWW Services . . . . . . . . . . . . . . . . . . 105 Launching the Browser . . . . . . . . . . . . . . . . . 105 Exiting the Browser . . . . . . . . . . . . . . . . . . . . 105 Using Local Bookmarks . . . . . . . . . . . . . . .…

Text truncated - open the document above for the full version.

Federal Communicatio n Co mmission Equipment Authorization Division, Application Processing Branch 7435 Oakland Mills Road Columbia, MD 21048 January 24, 2002 TO WHOM IT MAY CONCERN Pursuant to Paragraphs §0.457 and 0.459 of the Commission’s Rules (47 C.F.R.) and Section §552(b)(4) of the Freedom of Information Act, Samsung Electronics requests confidentiality for the following products: FCC ID A3LSGHR225 For the product stated above, we request that the following information be held confidential: 1) Electrical Schematics of the Circuitry 2) Operational Description 3) Block diagram No other items submitted as part of the equipment authorization filing process are deemed confidential. The above exhibits contain Samsung trade secrets and proprietary information that could be of benefit to our competitors regarding the design of our mobile handset. This material is not customarily available to the general public and we request that it be withheld from public inspection. If you have any questions, please feel free to contact me at the address shown below. Sincerely, Lothar Schmidt Technical Manager EMC/Radio

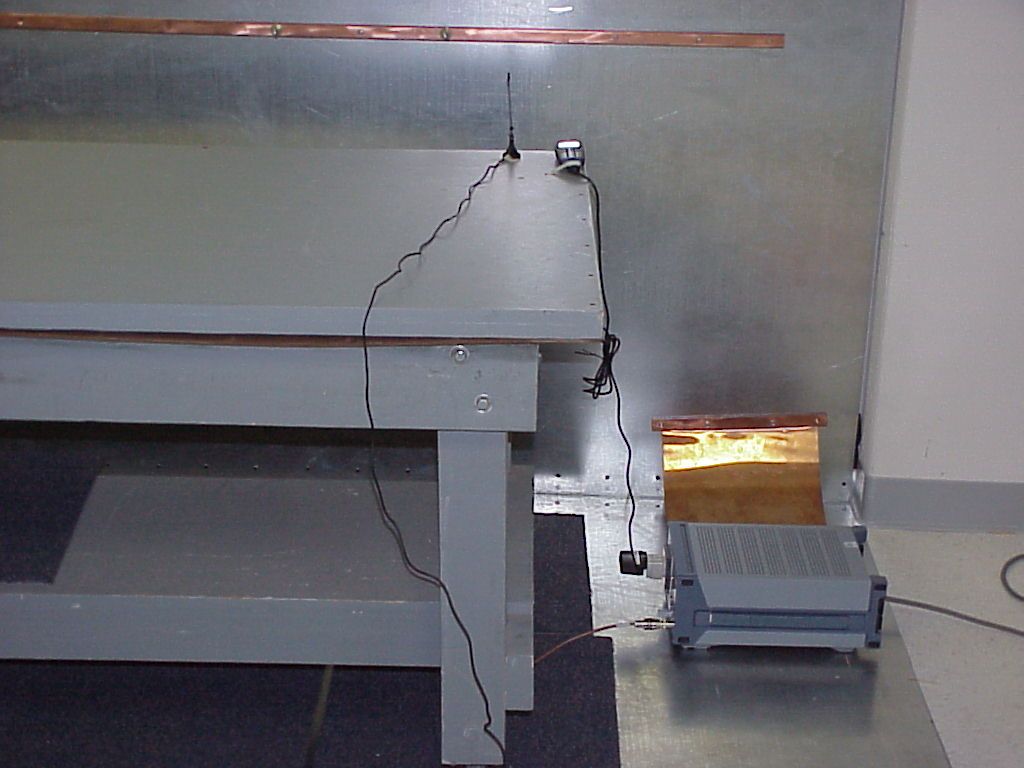

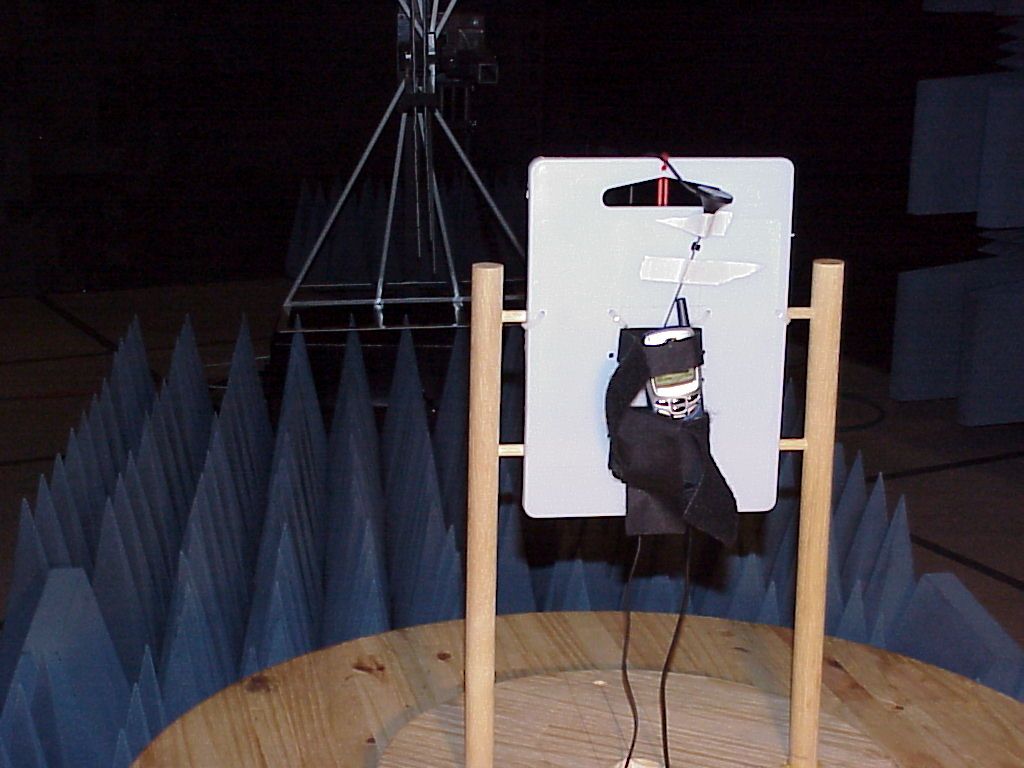

FCC ID A3LSGHR225 Statement Item# 3 The power indicated on page 3 (section 1.5) refers to the maximum power allowed for this services regarding the requirements of PTCRB and doesn’t refer to the FCC regulations will make a statement in future reports. Maximum peak EIRP is 0.588W (radiated). (0.610W is the conducted power output) Item# 4 The power measurements are done in conducted and radiated mode to eliminate the uncertainties coming from the difference of the declared gain vs. the real gain of the antenna. All radiated measurements are done using the substitution method.(see page 8 of the report) The radiated spurious emissions are defined in 24.238 as measurements relative to the max. power level. There is no specification and no need for the use of the substitution method, which will give the absolute power level. Item# 5 The frequency stability was measured up to –30º C Results: -20º C => -25 Hz = -0.0133 ppm -30º C => 23 Hz = 0.0122 ppm Item# 1 SAR The different results from the test report for the FCC testing and the report from the SAR testing is caused by the situation, that two different test systems and two different samples were used. The difference is within the measurement uncertainty and the tolerance of the production. The values for the SAR testing are only used to verify that the power before and after the measurement is the same; it doesn’t affect the SAR results. The conducted values were verified and are within the indicated measurement uncertainty. Lothar Schmidt Technical Manager EMC/Radio Original answers and declarations from the SAR lab Dear Ma'an: Question #1: Answer:The highest Antenna Conducted Output was measured before SAR tests is 30.2dBm. This measurement was made by using CMU 200 ( CETECOM unit ) and the output power was tuned by Samsung engineers during the tests. (remark Lothar Schmidt: to get the maximum output power allowed be PTCRB, which is 1W) Question #2:Answer: Attached please find Serial Number:1577 Probe Calibration report. 1800MHz Conversion Factor was used for this test. 1900MHz conversion was not provided by the Probe manufacturer. However, by looking at the calibration report, conversion factor between 1800 - 2000MHz should be the same. Question #3:Answer: This is the typo in the test report, liquid parameter was measured at 1900MHz. Revised SAR test report is attached. Question #4:Answer: SAR system verification data is included in the page 19 and 20 of test report. Question #5:Answer: Liquid Depth is 15.1cm. Revised SAR report is included this information. Question #6:Answer: In accordance with OET 65 Supplement C, page 40, " If the SAR measured at the middle channel for each test configuration ( left, right, cheek/touch, tile/Ear, extended and retracted) is at least 2.0dB lower than the SAR limit, testing at the high and low channels is optional for such test configuration(s)." The highest measured SAR values at Right Side of Head at Middle channel are :Cheek:0.562mW/g, Tiled:0.958mW/g. These two values are below the SAR limits ( 1.6mW/g) at least 2dB (1.01mW/g). Based upon the measurement results, the Right Head/Cheek @ low channel was not measured. Best Regards Mike Kuo / Compliance Certification Services Lothar Schmidt Technical Manager EMC/Radio

Position of Label in Phone Actual Size of Label. e material of label : Polyester.

This device is fixed output power

in accordance with the requirements of FCC Report and Order: ET Docket 93-62, and OET Bulletin 65 Supplement C for PCS 1900 SINGLE MODULATION CELLULAR PHONE MODEL: R225 FCC ID: A3LSGHR225 November 8, 2001 REPORT NO: 01U1058-1 Prepared for SAMSUNG ELECTRONICS SAN #14, NONGSEO-RI, KIHEUNG-EUP YONGIN-CITY 449-900 Prepared by COMPLIANCE CERTIFICATION SERVICES 561F MONTEREY ROAD, MORGAN HILL, CA 95037, USA TEL: (408) 463-0885 REPORT NO: 01U1058-1 DATE: NOVEMBER 8, 2001 FCC ID: A3LSGHR225 EUT: PCS 1900 SINGLE MODULATION CELLULAR PHONE COMPLIANCE CERTIFICATION SERVICES Page: 2 of 35 TEL:(408) 463-0885 561F MONTEREY ROAD, MORGAN HILL 95037 U.S.A. FAX:(408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. CERTIFICATE OF COMPLIANCE (SAR EVALUATION) Dates of Tests: November 6~7, 2001 Report No: 01U1058-1 Test Sample is a: Pre-production Unit Tx Frequency: 1850 - 1910 MHz (PCS) Rx Frequency: 1930 - 1990 MHz (PCS) Max. RF Output Power: 30.2 dBm (Based on Conducted Output Power Measurements) FCC Classification: Licensed Portable Tx Held to Ear (PCE) RF Exposure environment: General Population/Uncontrolled Application Type: Certification FCC Rule Part(s): § 24 Subpart E & § 2 This wireless portable device has been shown to be capable of compliance for localized specific absorption rate (SAR) for uncontrolled environment/general population exposure limits specified in ANSI/IEEE Std. C95.1-1992 and had been tested in accordance with the measurement procedures specified in FCC OET 65 Supplement C (released on 6/29/2001 see Test Report). I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. Steve Cheng EMC Engineering Manager NVLAP accreditation does not constitute any product endorsement by NVLAP or any agency of the United States Government. CCS certifies that no party to this application has been denied the FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). APPLICANT: SAMSUNG ELECTRONICS CO., LTD. 416 MAETAN-3 DONG, PALDAL-KU SUWON CITY, KYUNGKI-DO, 441-742, KOREA TRADE NAME: SAMSUNG ELECTRONICS ATTENTION: MR. WALLACE OH, ENGINEERING MANAGER SAMSUNG ELECTRONICS AMERICA (QA LAB) MODEL: R225 SERIAL NUMBER: N/A (PRE-PRODUCTION) FCC ID: A3LSGHR225 REPORT NO: 01U1058-1 DATE: NOVEMBER 8, 2001 FCC ID: A3LSGHR225 EUT: PCS 1900 SINGLE MODULATION CELLULAR PHONE COMPLIANCE CERTIFICATION SERVICES Page: 3 of 35 TEL:(408) 463-0885 561F MONTEREY ROAD, MORGAN HILL 95037 U.S.A. FAX:(408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. TABLE OF CONTENT 1. EUT DESCRIPTION.................................................................................................4 2. REQUIREMENTS FOR COMPLIANCE TESTING DEFINED BY THE FCC.........5 3. DOSIMETRIC ASSESSMENT SETUP..................................................................6 3.1. MEASUREMENT SYSTEM DIAGRAM.....................................................................................7 3.2. SYSTEM COMPONENTS........................................................................................................8 3.3. EUT ARRANGEMENT............................................................................................................12 4. EUT TUNE-UP PROCEDURE.............................................................................18 5. EVALUATION PROCEDURE..............................................................................19 5.1. SIMULATED TISSUE LIQUID PARAMETER CONFIRMATION..............................................19 5.2. SYSTEM ACCURACY VERIFICATION...................................................................................19 5.3. SAR EVALUATION PROCEDURE.........................................................................................21 5.4. EXPOSURE LIMIT.................................................................................................................22 6. SAR TEST RESULTS.........................................................................................23 7. REFERENCES....................................................................................................30 8. APPENDIX..........................................................................................................31 8.1. EUT PHOTOS........................................................................................................................31 8.2 EQUIPMENTS LIST & CALIBRATION INFO...........................................................................32 8.3 IEEE SCC-34/SC-2 P1528 RECOMMENDED TISSUE DIELECTRIC PARAMETERS.............33 8.4 EQUIPMENTS CALIBRATION CERTIFICATE........................................................................34 REPORT NO: 01U1058-1 DATE: NOVEMBER 8, 2001 FCC ID: A3LSGHR225 EUT: PCS 1900 SINGLE MODULATION CELLULAR PHONE COMPLIANCE CERTIFICATION SERVICES Page: 4 of 35 TEL:(408) 463-0885 561F MONTEREY ROAD, MORGAN HILL 95037 U.S.A. FAX:(408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. 1. EUT DESCRIPTION Test Sample is a: Pre-production Unit EUT Type: PCS 1900 Single Modulation Cellular Phone Model(s): R225 FCC IDENTIFIER: A3LSGHR225 S/N: N/A (Pre-Production) Tx Frequency: 1850 - 1910 MHz (PCS…

Text truncated - open the document above for the full version.

REPORT NO: 01U1058-1 DATE: Jan. 24, 2002 FCC ID: A3LSGHR225 EUT: PCS 1900 SINGLE MODULATION CELLULAR PHONE Page 1 of 6 COMPLIANCE CERTIFICATION SERVICES TEL:(408) 463-0885 561F MONTEREY ROAD, MORGAN HILL 95037 U.S.A. FAX:(408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. SYSTEM VALIDATION DATA Ambient temperature (°C): 22.9 Relative Humidity (%): 52 Date: January 24, 2002 Liquid depth (cm): 15.2 Measured By: Sunny Shih Liquid Liquid Temp [°C] Parameters Target Value Measured Value Deviation [%] Limit [%] εε 40 39.44 -1.40 ± 5 20.7 σσ 1.4 1.4139 +0.993 ± 5 Head 1800 MHz 20.1 1 g SAR 38.1 37.24 -2.3359 ± 10 REPORT NO: 01U1058-1 DATE: Jan. 24, 2002 FCC ID: A3LSGHR225 EUT: PCS 1900 SINGLE MODULATION CELLULAR PHONE Page 2 of 6 COMPLIANCE CERTIFICATION SERVICES TEL:(408) 463-0885 561F MONTEREY ROAD, MORGAN HILL 95037 U.S.A. FAX:(408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. System Validation – SAR Plot REPORT NO: 01U1058-1 DATE: Jan. 24, 2002 FCC ID: A3LSGHR225 EUT: PCS 1900 SINGLE MODULATION CELLULAR PHONE Page 3 of 6 COMPLIANCE CERTIFICATION SERVICES TEL:(408) 463-0885 561F MONTEREY ROAD, MORGAN HILL 95037 U.S.A. FAX:(408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. System Validation - SAR vs. Z-Axis Plot REPORT NO: 01U1058-1 DATE: Jan. 24, 2002 FCC ID: A3LSGHR225 EUT: PCS 1900 SINGLE MODULATION CELLULAR PHONE Page 4 of 6 COMPLIANCE CERTIFICATION SERVICES TEL:(408) 463-0885 561F MONTEREY ROAD, MORGAN HILL 95037 U.S.A. FAX:(408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. SAR Measurement Data Ambient temperature (°C): 23.3 Date: January 24, 2002 Relative Humidity (%): 52 Measured By: Sunny Shih Liquid Liquid Temp [°C] Parameters Target Value Measured Value Deviation [%] Limit [%] εε 40 39.22 -1.95 ± 5 Head 1900 MHz 20.7 σσ 1.4 1.432 +2.286 ± 5 Right Head Configuration: Liquid Depth:15.1cm Conducted Power [dBm] Worst case SAR, averaged over 1g [mW/g] Set-up condition (applicable checked) Mode Position Ch Frequency [MHz] Before After Antenna Cheek Tilted Measured Limit PCS Head L 1850 30.1 29.9 Fixed X 0.567 1.6 Position Photo REPORT NO: 01U1058-1 DATE: Jan. 24, 2002 FCC ID: A3LSGHR225 EUT: PCS 1900 SINGLE MODULATION CELLULAR PHONE Page 5 of 6 COMPLIANCE CERTIFICATION SERVICES TEL:(408) 463-0885 561F MONTEREY ROAD, MORGAN HILL 95037 U.S.A. FAX:(408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. REPORT NO: 01U1058-1 DATE: Jan. 24, 2002 FCC ID: A3LSGHR225 EUT: PCS 1900 SINGLE MODULATION CELLULAR PHONE Page 6 of 6 COMPLIANCE CERTIFICATION SERVICES TEL:(408) 463-0885 561F MONTEREY ROAD, MORGAN HILL 95037 U.S.A. FAX:(408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document.

CETECOM Inc. CETECOM Inc. 411 Dixon Landing Road, Milpitas, CA-95035, USA Phone: +1 408 586 6200 Fax: +1 408 586 6299 www.cetecom.com Issued test report consists of 50 Pages Page 1 (50) Test report no.: 204FCC24/2001 FCC Part 24 / RSS 133 FCC ID: A3LSGHR225 (SGH-R225) FCC LISTED, REG. NO.: 101450 & RECOGNIZED BY INDUSTRY CANADA IC – 3925 CETECOM Inc. Test report no.: 204FCC24/2001 Issue date: 2001.11.14 Page 2 (50) Table of Contents 1 General information 1.1 Notes 1.2 Testing laboratory 1.3 Details of applicant 1.4 Application details 1.5 Test item 1.6 Test standards 2 Technical test 2.1 Summary of test results 2.2 Test report 1 General information 1.1 Notes The test results of this test report relate exclusively to the test item specified in 1.5. The CETECOM Inc. does not assume responsibility for any conclusions and generalisations drawn from the test results with regard to other specimens or samples of the type of the equipment represented by the test item. The test report may only be reproduced or published in full. Reproduction or publication of extracts from the report requires the prior written approval of the CETECOM Inc. TEST REPORT PREPARED BY: EMC & Radio Engineer: Harpreet Sidhu 1.2 Testing laboratory CETECOM Inc. 411 Dixon Landing Road, Milpitas, CA-95035, USA Phone: +1 408 586 6200 Fax: +1 408 586 6299 E-mail: [email protected] Internet: www.cetecom.com CETECOM Inc. Test report no.: 204FCC24/2001 Issue date: 2001.11.14 Page 3 (50) 1.3 Details of applicant Name : Samsung Electronics Co. Ltd. Street Add.: San 14, Mongseo-ri, Kiheung-emp City/State : Yong in – city, 449-900 Country : KOREA Contact : James Ryn Telephone : +82 31 280 9702 Fax : +82 31 280 9659 e-mail : [email protected] 1.4 Application details Date of receipt of application : 2001-10-15 Date of receipt of test item : 2001-10-29 Date of test : 2001-10-29/30/31 1.5 Test item Manufacturer : Model : Description : Applicant SGH-R225 GSM 900/1900 Mobile Phone HW & SW : FCC ID : 1.1, 0.0 A3LSGHR225 Additional information Frequency : PCS 1900 for USA Type of modulation : GSM Number of channels : 299 (in PCS 1900) Antenna : Power supply : 3.8VDC Output power : 1 Watt EUT Temp. Tolerance : -10°C - +55°C EUT Extreme Vol. Range : 3.5VDC to 4.1VDC 1.6 Test standards FCC Part 24 / RSS133 r1 CETECOM Inc. Test report no.: 204FCC24/2001 Issue date: 2001.11.14 Page 4 (50) 2 Technical test 2.1 Summary of test results No deviations from the technical specification(s) were ascertained in the course of the tests performed. Technical responsibility for area of testing : 2001-11-14 EMC & Radio Lothar Schmidt Date Section Name Signature CETECOM Inc. Test report no.: 204FCC24/2001 Issue date: 2001.11.14 Page 5 (50) 2.2 Test report TEST REPORT Test report no.: 204FCC24/2001 SGH-R225 CETECOM Inc. Test report no.: 204FCC24/2001 Issue date: 2001.11.14 Page 6 (50) TEST REPORT REFERENCE LIST OF MEASUREMENTS PARAMETER TO BE MEASURED Paragraph PAGE POWER OUTPUT SUBCLAUSE § 24.232 7 FREQUENCY STABILITY SUBCLAUSE § 24.235 12 EMISSIONS LIMITS §24.238 14 RECEIVER RADIATED EMISSIONS §15.209 28 CONDUCTED SPURIOUS EMISSIONS 32 OCCUPIED BANDWIDTH §2.989 41 CONDUCTED EMISSIONS § 15.107/207 48 TEST EQUIPMENT AND ANCILLARIES USED FOR TESTS 50 CETECOM Inc. Test report no.: 204FCC24/2001 Issue date: 2001.11.14 Page 7 (50) POWER OUTPUT SUBCLAUSE § 24.232 Summary: This paragraph contains both average , peak output powers and EIRP measurements for the EUT. In all cases, the peak output power is within the required mask (this mask is specified in the JTC standards, TIA PN3389 Vol. 1 Chap 7, and is no FCC requirement). Method of Measurements: The EUT was set up for the max. output power with pseudo random data modulation. The power was measured with R&S Spectrum Analyzer FSEM 30 ( peak and average) This measurements were done at 3 frequencies, 1850.2 MHz, 1880.0 MHz and 1909.8 MHz (bottom, middle and top of operational frequency range) Limits: Power Step Nominal Peak Output Power (dBm) Tolerance (dB) 0 +30 ± 2 Power Measurements: Conducted: Frequency (MHz) Power Step Peak Output Power (dBm) Average Output Power (dBm) 1850.2 0 27.46 18.21 1880.0 0 27.61 18.36 1909.8 0 27.85 18.60 Measurement uncertainty ±0.5 dB ANALYZER SETTINGS: RBW = 3MHz VBW = 3MHz CETECOM Inc. Test report no.: 204FCC24/2001 Issue date: 2001.11.14 Page 8 (50) EIRP Measurements Description: This is the test for the maximum radiated power from the EUT. Rule Part 24.232(b) specifies that "Mobile/portable stations are limited to 2 watts e.i.r.p. peak power..." and 24.232(c) specifies that "Peak transmit power must be measured over any interval of continuous transmission using instrumentation calibrated in terms of an rms-equivalent voltage." Method of Measurement: 1. In an anechoic antenna test chamber, a half-wave dipole antenna for the frequency band of interest is placed at the reference center of the chamber. An RF Signal source for the frequency band of interest is connected to the dipole with a cable that has been constructed to not interfere with the radiation pattern of the antenna. A known (measured) power (Pin) is applied to the input of the dipole, and the power received (Pr) at the chamber's probe antenna is recorded. 2. A "reference path loss" is established as Pin + 2.1 - Pr. 3. The EUT is substituted for the dipole at the reference center of the chamber. The EUT is put into CW test mode and a scan is performed to obtain the radiation pattern. 4. From the radiation pattern, the co-ordinates where the maximum antenna gain occurs is identified. 5. The EUT is then put into pulse mode at its maximum power level (Power Step 0). 6. "Gated mode" power measurements are performed with the receiving antenna placed at the coordinates determined in Step 3 to determine the output power as defined in FCC Rule 24.232 (b) and (c). The "reference path loss" from Step 1 is added to this result. 7. This value is EIRP since the measurement is calibrated using a half-wave dipole antenna o…

Text truncated - open the document above for the full version.

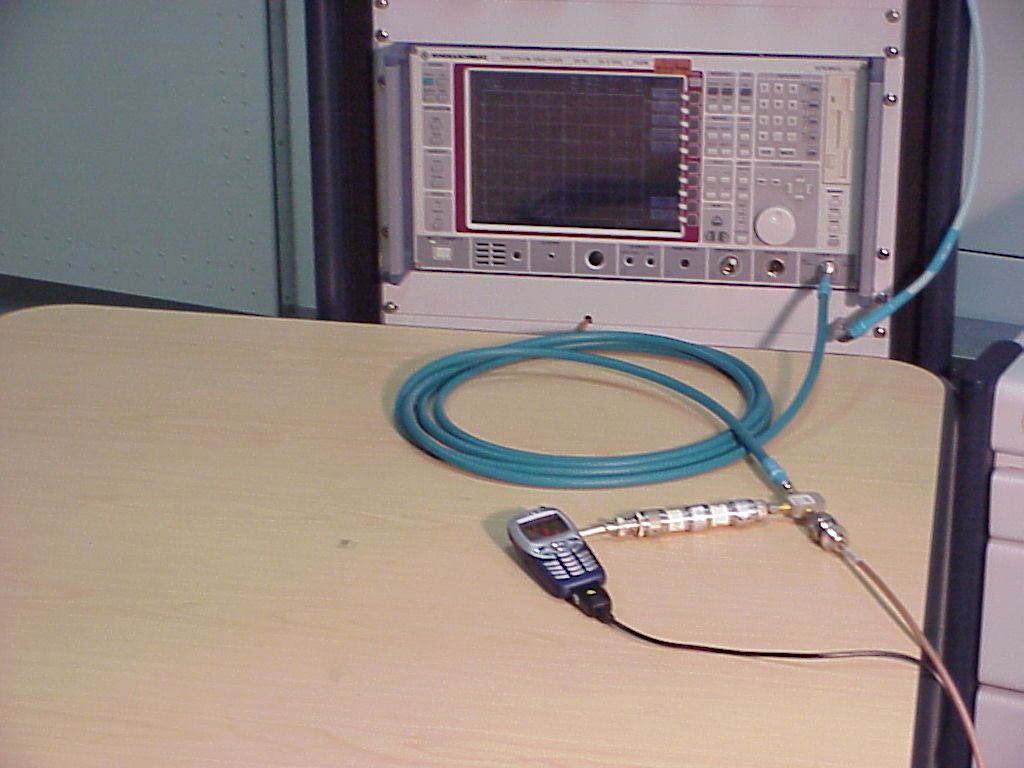

FCC ID A3LSGHR225 The conducted out put power was re-measured using exact calibrated cables, attenuators and adapters. This measurement does not effect the results of the other parameters. The radiated power (EIRP) was measured using the substitution method and not calculated from the conducted power measurements. This table replaces the table in page 7 of the original report. The EUT was set up fo r t he max. o utput power wit h pseudo random data modulatio n. The power was measured with R&S Spectrum Analyzer FSEM 30 ( peak and average) This measurements were done at 3 frequencies, 1850.2 MHz, 1880.0 MHz and 1909.8 MHz (bottom, middle and top of ope rationa l f requency range) Limits: Power StepNominal Peak Output Power (dBm) Tolerance (dB) 0+30 ± ±± ± 2 Power Measurements: Conducted: F requency (MHz) Power Step Peak Out put P ower (dBm) Average Out put P ower (dBm) 1850.2029.9020.65 1880.0029.8020.55 1909.8030.120.85 Measurement uncertainty ± ±± ±0.5 dB
