A3LSGHS100Single-Mode PCS GSM Phone

TRI BAND GPRS TELEPHONE SGH-S100 ELECTRONICS * Some of the contents in this manual may differ from your phone, depending on the software installed or your service provider. Printed in Korea Code No.: GH68-02936A English. 0 6 /2002. Re v. 1. 1 World Wide Webhttp://www.samsungmobile.com 2 3 Contents Important Safety Precautions ...................... 7 Unpacking.................................................... 9 Your Phone ................................................ 10 Phone Layout................................................ 10 Display........................................................ 13 Service Light................................................ 16 Getting Started .......................................... 17 Installing the SIM Card.................................. 17 Charging a Battery........................................ 19 Switching the Phone On/Off............................ 21 Call Functions ............................................ 22 Making a Call................................................ 22 Adjusting the Volume.................................... 24 Answering a Call........................................... 25 Viewing Missed Calls...................................... 26 Switching Quickly to the Silent Mode................ 28 Selecting Functions and Options ................ 29 Example: Setting the Display Language............ 31 Phonebook................................................. 33 Storing a Number with a Name....................... 33 Using Phonebook Entry Options....................... 35 Searching for and Dialling a Number in the Phone- book............................................................ 37 Editing a Caller Group.................................... 39 Speed-Dialling.............................................. 40 Checking Memory Status................................ 41 Contents 4 Entering Text ............................................. 42 Changing the Text Input Mode........................ 43 Using the T9 Mode........................................ 44 Using the Upper/Lower-Case Character Mode............................................ 45 Using the Symbol Mode.................................. 47 Using the Number Mode................................. 47 In-Call Options........................................... 48 Putting a Call on Hold.................................... 48 Switching the Microphone Off (Mute)............... 49 Muting/Sending Key Tones............................. 50 Searching for a Number in the Phonebook........ 50 Using the SMS Service................................... 51 Answering a Second Call................................ 51 Making a Multiparty Call................................. 52 Using the Menus......................................... 54 Accessing Menu Functions by Scrolling............. 54 Accessing Menu Functions by Using Shortcuts... 55 List of Menu Functions................................... 55 Messages ................................................... 60 Read Messages (Menu 1.1).................................. 60 Write Messages (Menu 1.2)................................. 62 Templates (Menu 1.3)......................................... 64 Setup (Menu 1.4)................................................ 64 Broadcast (Menu 1.5).......................................... 66 Voice Mail (Menu 1.6).......................................... 67 My Contents (Menu 1.7)...................................... 68 Memory Status (Menu 1.8).................................. 68 Call Records ............................................... 69 Missed Calls (Menu 2.1)....................................... 69 Received Calls (Menu 2.2)................................... 69 Dialled Calls (Menu 2.3)...................................... 70 Call Time (Menu 2.4)........................................... 70 Call Cost (Menu 2.5)............................................ 71 Contents 5 Sound Settings........................................... 72 Ring Tone (Menu 3.1).......................................... 72 Ring Volume (Menu 3.2)...................................... 72 Alert Type (Menu 3.3)......................................... 73 Keypad Tone (Menu 3.4)..................................... 73 Message Tone (Menu 3.5)................................... 74 Extra Tones (Menu 3.6)....................................... 75 Phone Settings........................................... 76 Infrared Activate (Menu 4.1)............................... 76 My Settings (Menu 4.2)....................................... 77 Greeting Message (Menu 4.3).............................. 78 Own Number (Menu 4.4)..................................... 78 Language (Menu 4.5).......................................... 79 Security (Menu 4.6)............................................. 79 Display Settings (Menu 4.7)................................ 82 Extra Settings (Menu 4.8)................................... 84 ShortCut (Menu 4.9)............................................ 85 Reset Settings (Menu 4.10)................................. 85 Organiser................................................... 86 Calendar (Menu 5.1)............................................ 86 To Do List (Menu 5.2).......................................... 88 Time & Date (Menu 5.3)...................................... 91 Alarm (Menu 5.4)................................................ 92 Calculator (Menu 5.5).......................................... 93 Currency Exchange (Menu 5.6)........................... 94 Network Services....................................... 95 Call Diverting (Menu 6.1).................................... 95 Call Barring (Menu 6.2)....................................... 97 Call Waiting (Menu 6.3)....................................... 99 Network Selection (Menu 6.4)............................ 100 Caller ID (Menu 6.5)........................................... 101 Closed User Group (CUG) (Menu 6.6)................. 101 Band Selecti…

Text truncated - open the document above for the full version.

July 25, 2002 Federal Communications Commission Authorization and Evaluation Div. Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 In re: Samsung Electronics Co., Ltd. FCC ID.: A3LSGHS100 Request for Confidentiality To Whom It May Concern: In accordance with 0.459 of CFR 47, Samsung Electronics Co., Ltd. requests confidentiality for the Block Diagram, Schematics, Parts list, Tune-up Procedure, Operational and Circuit Description of the attached test report. These documents contain detailed system and equipment descriptions and related information about the product, which Samsung Electronics Co., Ltd. considers to be proprietary, confidential, and a custom design and otherwise, would not release to the general public. Since this design is a basis from which future technological products will evolve, Samsung feels that this information would be of benefit to its competitors, and that the disclosure of the information in these documents would give our competitors an unfair advantage in the market.

February 4, 2002 Federal Communications Commission Authorization and Evaluation Div. Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 To whom it may concern: We, the undersigned, hereby authorize PCTEST Engineering Laboratory Inc., to act as agent on behalf of all matters relating to applications for equipment authorization, including the signing of all documents relating to these matters. Any and all acts carried out by PCTEST Engineering Laboratory, Inc. on our behalf shall have the same effect as acts of our own. We also hereby certify that no party to this application is subject to a denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988,21 U.S.C.862. Sincerely, Wallace Oh Engineering Manager Samsun Electronics America July 25, 2002 Federal Communications Commission Equipment Approval Services 7435 Oakland Mills Road Columbia, MD 21046 SUBJECT:Samsung Electronics Co., Ltd. FCC ID: A3LSGHS100 Users Manual RF Exposure Warning Statement Gentlemen: Samsung Electronics Co., Ltd., hereby confirms that the attached RF exposure warning page will be readily visible to the user, and will be placed at a prominent location in the users manual. If you have any further questions regarding this matter, please do not hesitate to contact me or PCTEST Lab at (410) 290-6652.

August 7, 2002 Federal Communications Commission Equipment Approval Services 7435 Oakland Mills Road Columbia, MD 21046 SUBJECT: SAMSUNG Electronics Co., Ltd. FCC ID: A3LSGHS100 Part 24 Certification Gentlemen: Submitted herewith, on behalf of SAMSUNG Electronics Co., Ltd., is an application for Part 24 Certification of the Single-Band PCS GSM Phone. Attached is the applicant’s Letter of Authorization, Confidentiality Request, measurement report test data and plots, RF Exposure measurement report and data, FCC ID label and location, test setup photographs, internal and external photographs, block diagram (confidential), circuit diagrams & description (confidential), operational description (confidential), parts list & tune-up procedure (confidential), and the user's manual. Should you have any questions or comments concerning the above, please contact the undersigned. cc: SAMSUNG Electronics Co., Ltd.

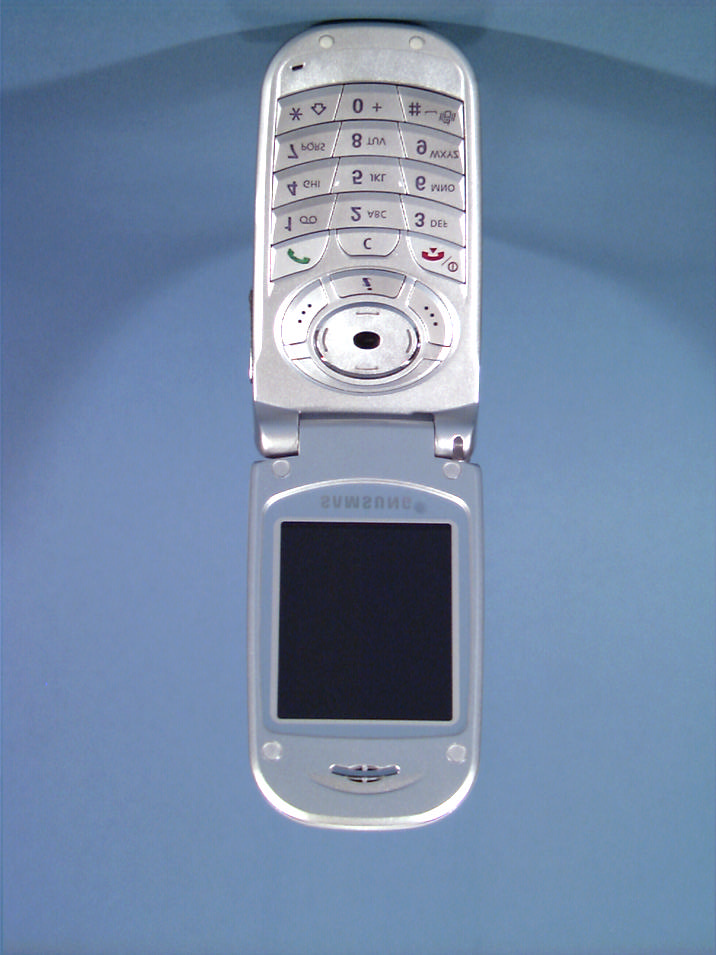

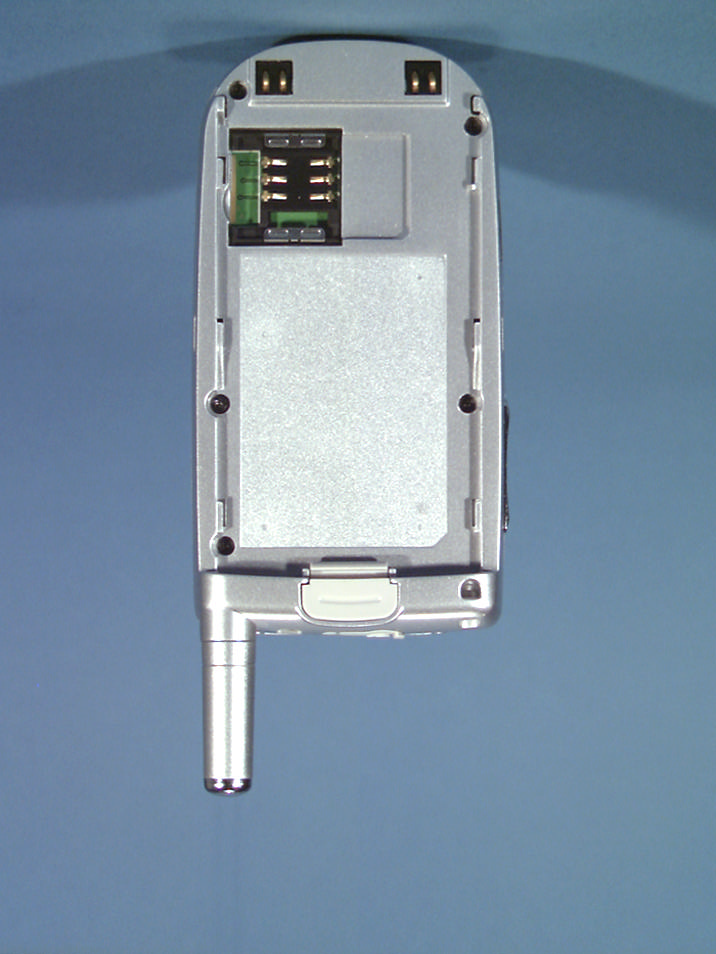

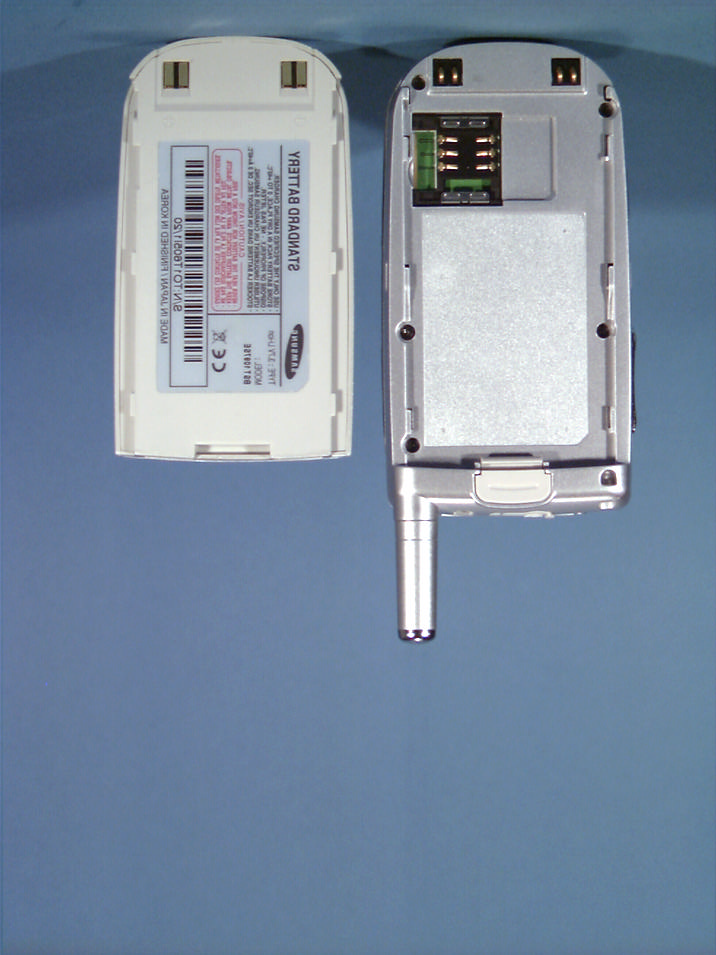

© 2002 PCTEST Lab SAMSUNG FCC ID: A3LSGHS100 Single-Band PCS GSM Phone (Model: SGH-S100) © 2002 PCTEST Lab SAMSUNG FCC ID: A3LSGHS100 Single-Band PCS GSM Phone (Model: SGH-S100) © 2002 PCTEST Lab SAMSUNG FCC ID: A3LSGHS100 Single-Band PCS GSM Phone (Model: SGH-S100) © 2002 PCTEST Lab SAMSUNG FCC ID: A3LSGHS100 Single-Band PCS GSM Phone (Model: SGH-S100) © 2002 PCTEST Lab SAMSUNG FCC ID: A3LSGHS100 Single-Band PCS GSM Phone (Model: SGH-S100) © 2002 PCTEST Lab SAMSUNG FCC ID: A3LSGHS100 Single-Band PCS GSM Phone (Model: SGH-S100) © 2002 PCTEST Lab SAMSUNG FCC ID: A3LSGHS100 Single-Band PCS GSM Phone (Model: SGH-S100)

© 2002PCTEST Lab FCC ID SAMPLE LABEL & LOCATION LABELLING REQUIREMENTS PER §§ 2.925 The Label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time of purchase. (SEE NEXT PAGE) SAMSUNG ELECTRONICS CO., LTD. MODEL NO: SGH-S100 FCC ID: A3LSGHS100 MADE IN KOREA SAMSUNG ELECTRONICS CO., LTD

© 2002 PCTEST Lab SAMSUNG FCC ID: A3LSGHS100 Single-Band PCS GSM Phone (Model: SGH-S100) © 2002 PCTEST Lab SAMSUNG FCC ID: A3LSGHS100 Single-Band PCS GSM Phone (Model: SGH-S100) © 2002 PCTEST Lab SAMSUNG FCC ID: A3LSGHS100 Single-Band PCS GSM Phone (Model: SGH-S100) © 2002 PCTEST Lab SAMSUNG FCC ID: A3LSGHS100 Single-Band PCS GSM Phone (Model: SGH-S100) © 2002 PCTEST Lab SAMSUNG FCC ID: A3LSGHS100 Single-Band PCS GSM Phone (Model: SGH-S100) © 2002 PCTEST Lab SAMSUNG FCC ID: A3LSGHS100 Single-Band PCS GSM Phone (Model: SGH-S100) © 2002 PCTEST Lab SAMSUNG FCC ID: A3LSGHS100 Single-Band PCS GSM Phone (Model: SGH-S100) © 2002 PCTEST Lab SAMSUNG FCC ID: A3LSGHS100 Single-Band PCS GSM Phone (Model: SGH-S100) © 2002 PCTEST Lab SAMSUNG FCC ID: A3LSGHS100 Single-Band PCS GSM Phone (Model: SGH-S100) © 2002 PCTEST Lab SAMSUNG FCC ID: A3LSGHS100 Single-Band PCS GSM Phone (Model: SGH-S100)

2 of 25 Contents 1. General Information.............................................................................................3 2. Description of Device...........................................................................................3 3. Description of Test Equipment..............................................................................4 3.1 SAR Measurement Setup.........................................................................................4 3.2 DASY3 E-Field Probe.............................................................................................5 3.3 SAM Phantom.....................................................................................................6 3.4 Brain & Muscle Simulating Mixture Characterization....................................................7 3.5 Device Holder for transmitters.................................................................................8 3.6 Validation Dipole...................................................................................................8 3.7 Equipment Calibration.............................................................................................9 4. SAR Measurement Procedure.............................................................................10 5. Description of test position..............................................................................11 5.1 SAM Phantom Shape............................................................................................11 5.2 Cheek/Touch Position............................................................................................11 5.3 Ear/Tilt 15° Position..............................................................................................13 5.4 Body/Holster/Belt Clip Configuration.......................................................................14 6. Measurement Uncertainty..................................................................................16 7. System Verification.........................................................................................17 7.1 Tissue Verification..............................................................................................17 7.2 Test System Validation...........................................................................................17 8. SAR Measurement Results.................................................................................18 8.1 Measurement Results(PCS GSM Left Head SAR-Touch)..........................................19 8.2 Measurement Results(PCS GSM Left Head SAR-Tilt)..............................................20 8.3 Measurement Results(PCS GSM Right Head SAR-Touch).........................................21 8.4 Measurement Results(PCS GSM Right Head SAR-Tilt).............................................22 8.5 Measurement Results(PCS GSM Body SAR w/o Holster)..........................................23 9. Conclusion.......................................................................................................24 10. Reference......................................................................................................25 3 of 25 1. GENERAL INFORMATION Test Sample : Single-Band PCS Only Phone Model Number : SGH-S100 Serial Number : Identical prototype (S/N : #1) Manufacturer : SAMSUNG ELECTRONICS Co., Ltd. Contact : JH Son, Technical Manager Phone : +82-54-479-5695 Fax : +82-54-479-5920 Test Standard : §2.1093; FCC/OET Bulletin 65, Supplement C(July 2001) FCC Classification : Licensed Portable Transmitter Held to Ear (PCE) Test Dates : July 08,2002 ~ July 09,2002 Tested for : FCC/TCB Certification 2. DESCRIPTION OF DEVICE Tx Freq. Range : 1850.00 – 1910.00 MHz (PCS GSM) Rx Freq. Range : 1930.00 – 1990.00 MHz (PCS GSM) Max. RF Output Power : 1.585W EIRP PCS (32dBm) Antenna Manufacturer : ACE Technology Model No. : GH42-00193A Antenna Dimensions : Length = 29.9 mm [Fixed] 4 of 25 3. DESCRIPTION OF TEST EQUIPMENT 3.1 SAR Measurement Setup Robotic System Measurements are performed using the DASY3 automated dosimetric assessment system. Which is made by Schmid & Partner Engineering AG (SPEAG) in Zurich, Switzerland and consists of high precision robotics system (Stäubli), robot controller, Pentium III computer, near-field probe, probe alignment sensor, and the SAM twin phantom containing the brain equivalent material. The robot is a six-axis industrial robot performing precise movements to position the probe to the location (points) of maximum electromagnetic field (EMF) (see Fig. 3.1). Figure 3.1 SAR Measurement System Setup System Hardware A cell controller system contains the power supply, robot controller, teach pendant (Joystick), and a remote control is used to drive the robot motors. The PC consists of the Samsung Pentium III 550MHz computer with Windows 2000 system and SAR Measurement Software DASY3, A/D interface card, LCD monitor, mouse and keyboard. The Stäubli Robot is connected to the cell controller to allow software manipulation of the robot. A data acquisition electronic (DAE) circuit that performs the signal amplification, signal multiplexing, AD-conversion, offset measurements, mechanical surface detection, collision detection, etc. is connected to the Electro-optical coupler (EOC). The EOC performs the conversion from the optical into digital electric signal of the DAE and transfers data to the PC plug-in card. 5 of 25 System Electronics The DAE3 consists of a highly sensitive electrometer-grade preamplifier with auto-zeroing, a channel and gain-switching multiplexer, a fast 16-bit AD-converter and a command decoder and control logic unit. Transmission to the PC-card is accomplished through an optical downlink for data and status information and an optical uplink for commands and clock lines. The mechanical probe mounting device includes two different sensor systems for frontal and sidewise probe contacts. They are also used for mechanical surface detection and probe collision…

Text truncated - open the document above for the full version.

SAMSUNG FCC ID: A3LSGHS100 -- 1900MHz PCS GSM Head SAR SAM Phantom; Left Hand Section; Probe:ET3DV6 - SN1660; ConvF(5.20,5.20,5.20) Med. Parameters Head 1900 MHz: σ = 1.45 mho/m ε r = 38.2 ρ = 1.00 g/cm 3 ; Antenna Position -- Fixed; Crest Factor 8.0 SAR (1g): 0.208 mW/g, SAR (10g): 0.111 mW/g SAMSUNG GSM Single-Band Model: SGH-S100 1900 PCS GSM Mode, Ch.0810 [1909.8MHz]; Standard Battery; Meas. Ambient Temp. (C) - 22.3 Conducted Power=30.0dBm; Left Head Phantom, Cheek/Touch Position; Meas. Tissue Temp. (C) - 20.0 Test Date--07/08/2002 [FCC/OET Bulletin 65-Supplement C, July 2001] SAR Tot [mW/g] 2.15E-2 6.45E-2 1.08E-1 1.50E-1 1.94E-1 SAMSUNG ELECTRONICS CO., Ltd. SAMSUNG FCC ID: A3LSGHS100 -- 1900MHz PCS GSM Head SAR SAM Phantom; Left Hand Section; Probe:ET3DV6 - SN1660; ConvF(5.20,5.20,5.20) Med. Parameters Head 1900 MHz: σ = 1.45 mho/m ε r = 38.2 ρ = 1.00 g/cm 3 ; Antenna Position -- Fixed; vCrest Factor 8.0 SAR (1g): 0.0250 mW/g, SAR (10g): 0.0153 mW/g SAMSUNG GSM Single-Band Model: SGH-S100 1900 PCS GSM Mode, Ch.0661 [1880.0MHz]; Standard Battery; Meas. Ambient Temp. (C) - 22.3 Conducted Power=30.0dBm; Left Head Phantom, Ear/Tilt 15 deg Position; Meas. Tissue Temp. (C) - 20.0 Test Date--07/08/2002 [FCC/OET Bulletin 65-Supplement C, July 2001] SAR Tot [mW/g] 2.40E-3 7.20E-3 1.20E-2 1.68E-2 2.16E-2 SAMSUNG ELECTRONICS CO., Ltd. SAMSUNG FCC ID: A3LSGHS100 -- 1900MHz PCS GSM Head SAR SAM Phantom; Right Hand Section; Probe:ET3DV6 - SN1660; ConvF(5.20,5.20,5.20) Med. Parameters Head 1900 MHz: σ = 1.45 mho/m ε r = 38.2 ρ = 1.00 g/cm 3 ; Antenna Position -- Fixed; Crest Factor 8.0 SAR (1g): 0.296 mW/g, SAR (10g): 0.150 mW/g SAMSUNG GSM Single-Band Model: SGH-S100 1900 PCS GSM Mode, Ch.0810 [1909.8MHz]; Standard Battery; Meas. Ambient Temp. (C) - 22.3 Conducted Power=30.0dBm; Right Head Phantom, Cheek/Touch Position; Meas. Tissue Temp. (C) - 20.0 Test Date--07/08/2002 [FCC/OET Bulletin 65-Supplement C, July 2001] SAR Tot [mW/g] 2.05E-2 6.15E-2 1.03E-1 1.44E-1 1.85E-1 SAMSUNG ELECTRONICS CO., Ltd. SAMSUNG FCC ID: A3LSGHS100 -- 1900MHz PCS GSM Head SAR SAM Phantom; Right Hand Section; Probe:ET3DV6 - SN1660; ConvF(5.20,5.20,5.20) Med. Parameters Head 1900 MHz: σ = 1.45 mho/m ε r = 38.2 ρ = 1.00 g/cm 3 ; Antenna Position -- Fixed; Crest Factor 8.0 SAR (1g): 0.0388 mW/g, SAR (10g): 0.0222 mW/g SAMSUNG GSM Single-Band Model: SGH-S100 1900 PCS GSM Mode, Ch.0810 [1909.8MHz]; Standard Battery; Meas. Ambient Temp. (C) - 22.3 Conducted Power=30.0dBm; Right Head Phantom, Ear/Tilt 15 deg Position; Meas. Tissue Temp. (C) - 20.0 Test Date--07/08/2002 [FCC/OET Bulletin 65-Supplement C, July 2001] SAR Tot [mW/g] 4.00E-3 1.20E-2 2.00E-2 2.80E-2 3.60E-2 SAMSUNG ELECTRONICS CO., Ltd.

© 2002 SAMSUNG ELECTRONICS Co., Ltd. SMASUNG FCC ID: A3LSGHS100 GSM Single- Band PCS Phone © 2002 SAMSUNG ELECTRONICS Co., Ltd. SMASUNG FCC ID: A3LSGHS100 GSM Single- Band PCS Phone © 2002 SAMSUNG ELECTRONICS Co., Ltd. SMASUNG FCC ID: A3LSGHS100 GSM Single- Band PCS Phone © 2002 SAMSUNG ELECTRONICS Co., Ltd. SMASUNG FCC ID: A3LSGHS100 GSM Single- Band PCS Phone © 2002 SAMSUNG ELECTRONICS Co., Ltd. SMASUNG FCC ID: A3LSGHS100 GSM Single- Band PCS Phone © 2002 SAMSUNG ELECTRONICS Co., Ltd. SMASUNG FCC ID: A3LSGHS100 GSM Single- Band PCS Phone © 2002 SAMSUNG ELECTRONICS Co., Ltd. SMASUNG FCC ID: A3LSGHS100 GSM Single- Band PCS Phone © 2002 SAMSUNG ELECTRONICS Co., Ltd. SMASUNG FCC ID: A3LSGHS100 GSM Single- Band PCS Phone © 2002 SAMSUNG ELECTRONICS Co., Ltd. SMASUNG FCC ID: A3LSGHS100 GSM Single- Band PCS Phone © 2002 SAMSUNG ELECTRONICS Co., Ltd. SMASUNG FCC ID: A3LSGHS100 GSM Single- Band PCS Phone © 2002 SAMSUNG ELECTRONICS Co., Ltd. SMASUNG FCC ID: A3LSGHS100 GSM Single- Band PCS Phone © 2002 SAMSUNG ELECTRONICS Co., Ltd. SMASUNG FCC ID: A3LSGHS100 GSM Single- Band PCS Phone © 2002 SAMSUNG ELECTRONICS Co., Ltd. SMASUNG FCC ID: A3LSGHS100 GSM Single- Band PCS Phone © 2002 SAMSUNG ELECTRONICS Co., Ltd. SMASUNG FCC ID: A3LSGHS100 GSM Single- Band PCS Phone © 2002 SAMSUNG ELECTRONICS Co., Ltd. SMASUNG FCC ID: A3LSGHS100 GSM Single- Band PCS Phone © 2002 SAMSUNG ELECTRONICS Co., Ltd. SMASUNG FCC ID: A3LSGHS100 GSM Single- Band PCS Phone

PCTEST PT. 24 REPORT FCC CERTIFICATION Reviewed By: Quality Manager Test Report S/N: 24.220725392.A3L Test Dates: July 28, 2002 Phone Type: Single-Band PCS GSM FCC ID: A3LSGHS100 Page 1 of 17 © 2002 PCTEST ENGINEERING LABORATORY, INC. PCTEST Engineering Laboratory, Inc. 6660-B Dobbin Road • Columbia, MD 21045 • U.S.A. TEL (410) 290-6652 • FAX (410) 290-6654 http://www.pctestlab.com CERTIFICATE OF COMPLIANCE FCC Part 24 Certification SAMSUNG ELECTRONICS CO., LTD. Dates of Tests: July 28, 2002 416 Maetan-3 Dong, Paldal-Ku Test Report S/N: 24.220725392.A3L Suwon City Kyungki-Do 441-742, KOREA Test Site: PCTEST Lab, Columbia MD Attn: Wallace Oh, Engineering Manager Samsung Electronics America (QA Lab) FCC ID A3LSGHS100 APPLICANT SAMSUNG ELECTRONICS CO., LTD. Classification: Licensed Portable Transmitter Held to Ear (PCE) FCC Rule Part(s): §24(E), §2 EUT Type: Single-Mode PCS GSM Phone Model: SGH-S100 Tx Frequency Range: 1850.2MHz — 1909.8MHz (PCS GSM) Rx Frequency Range: 1930.2MHz — 1989.8MHz (PCS GSM) Max. RF Output Power: 1.585W EIRP PCS GSM (32.000 dBm) Max. SAR Measurement: 0.296W/kg PCS GSM Head SAR; 0.257W/kg PCS GSM Body SAR Emission Designator(s): 250KGXW This equipment has been shown to be capable of compliance with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in §2.947. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. PCTEST certifies that no party to this application has been denied the FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. 220725392.A3L PCTEST PT. 24 REPORT FCC CERTIFICATION Reviewed By: Quality Manager Test Report S/N: 24.220725392.A3L Test Dates: July 28, 2002 Phone Type: Single-Band PCS GSM FCC ID: A3LSGHS100 Page 2 of 17 © 2002 PCTEST ENGINEERING LABORATORY, INC. TABLE OF CONTENTS ATTACHMENT A: COVER LETTER(S) ATTACHMENT B: ATTESTATION STATEMENT(S) ATTACHMENT C: TEST REPORT 1.1 SCOPE 3 2.1 INTRODUCTION 4 3.1 INSERTS 5 4.1 DESCRIPTION OF TESTS 6-7 6.1 EQUIVALENT ISOTROPIC RADIATED POWER 8 7.1 RADIATED MEASUREMENTS 9-11 8.1 FREQUENCY STABILITY 12-13 9.1 PLOTS OF EMISSIONS 14 10.1 LIST OF TEST EQUIPMENT 15 11.1 SAMPLE CALCULATIONS 16 12.1 CONCLUSION 17 ATTACHMENT D: TEST PLOTS ATTACHMENT E: FCC ID LABEL / LOCATION ATTACHMENT F: TEST SETUP PHOTOGRAPHS ATTACHMENT G: EXTERNAL PHOTOGRAPHS ATTACHMENT H: INTERNAL PHOTOGRAPHS ATTACHMENT I: BLOCK DIAGRAM(S) ATTACHMENT J: SCHEMATIC DIAGRAM(S) ATTACHMENT K: OPERATIONAL / CIRCUIT DESCRIPTION ATTACHMENT L: PARTS LIST/TUNE UP PROCEDURE ATTACHMENT M: USER’S MANUAL ATTACHMENT N: SAR MEASUREMENT REPORT ATTACHMENT O: SAR TEST DATA ATTACHMENT P: SAR TEST SETUP PHOTOGRAPHS ATTACHMENT Q: DIPOLE VALIDATION ATTACHMENT R: PROBE CALIBRATION PCTEST PT. 24 REPORT FCC CERTIFICATION Reviewed By: Quality Manager Test Report S/N: 24.220725392.A3L Test Dates: July 28, 2002 Phone Type: Single-Band PCS GSM FCC ID: A3LSGHS100 Page 3 of 17 © 2002 PCTEST ENGINEERING LABORATORY, INC. MEASUREMENT REPORT 1.1 Scope Measurement and determination of electromagnetic emissions (EME) of radio frequency devices including intentional and/or unintentional radiators for compliance with the technical rules and regulations of the Federal Communications Commission. §2.1033 General Information Applicant Name: SAMSUNG ELECTRONICS CO., LTD. Address: 416 Maetan-3 Dong, Paldal-Ku Suwon City Kyungki-Do 441-742, KOREA Attention: Wallace Oh, Engineering Manager Samsung Electronics America (QA Lab) • FCC ID: A3LSGHS100 • Quantity: Quantity production is planned • Emission Designators: 250KGXW • Tx Freq. Range: 1850.2 — 1909.8 MHz (PCS GSM) • Rx Freq. Range: 1930.2 — 1989.8 MHz (PCS GSM) • Max. Power Rating: 1.585W EIRP PCS GSM (32.000 dBm) • FCC Classification(s): Licensed Portable Tx Held to Ear (PCE) • Equipment (EUT) Type: Single-Mode PCS GSM Phone • Modulation(s): PCS GSM • Frequency Tolerance: ± 0.00025% (2.5 ppm) • FCC Rule Part(s): § 24(E) • Dates of Tests: July 28, 2002 • Place of Tests: PCTEST Lab, Columbia, MD U.S.A. • Test Report S/N: 24.220725392.A3L PCTEST PT. 24 REPORT FCC CERTIFICATION Reviewed By: Quality Manager Test Report S/N: 24.220725392.A3L Test Dates: July 28, 2002 Phone Type: Single-Band PCS GSM FCC ID: A3LSGHS100 Page 4 of 17 © 2002 PCTEST ENGINEERING LABORATORY, INC. 2.1 INTRODUCTION These measurement tests were conducted at PCTEST Engineering Laboratory, Inc. facility in New Concept Business Park, Guilford Industrial Park, Columbia, Maryland. The site address is 6660-B Dobbin Road, Columbia, MD 21045. The test site is one of the highest points in the Columbia area with an elevation of 390 feet above mean sea level. The site coordinates are 39° 11'15" N latitude and 76° 49'38" W longitude. The facility is 1.5 miles North of the FCC laboratory, and the ambient signal and ambient signal strength are approximately equal to those of the FCC laboratory. There are no FM or TV transmitters within 15 miles of the site. The detailed description of the measurement facility was found to be in compliance with the requirements of § 2.948 according to ANSI C63.4 on October 19, 1992. Measurement Procedure The radiated and spurious measurements were made outdoors at a 3-meter test range (see Figure2). The equipment under test is placed on a wooden turntable 3-meters from the receive antenna. The receive antenna height and turntable rotations were adjusted for the highest reading on the receive spectrum analyzer. A half- wave dipole was substituted in place of the EUT. This dipole antenna was driven by a signal generator and the level of the signal generator was adjusted to obtain the same receive spectrum analyzer reading. This level is recorded. For readings above 1GHz…

Text truncated - open the document above for the full version.

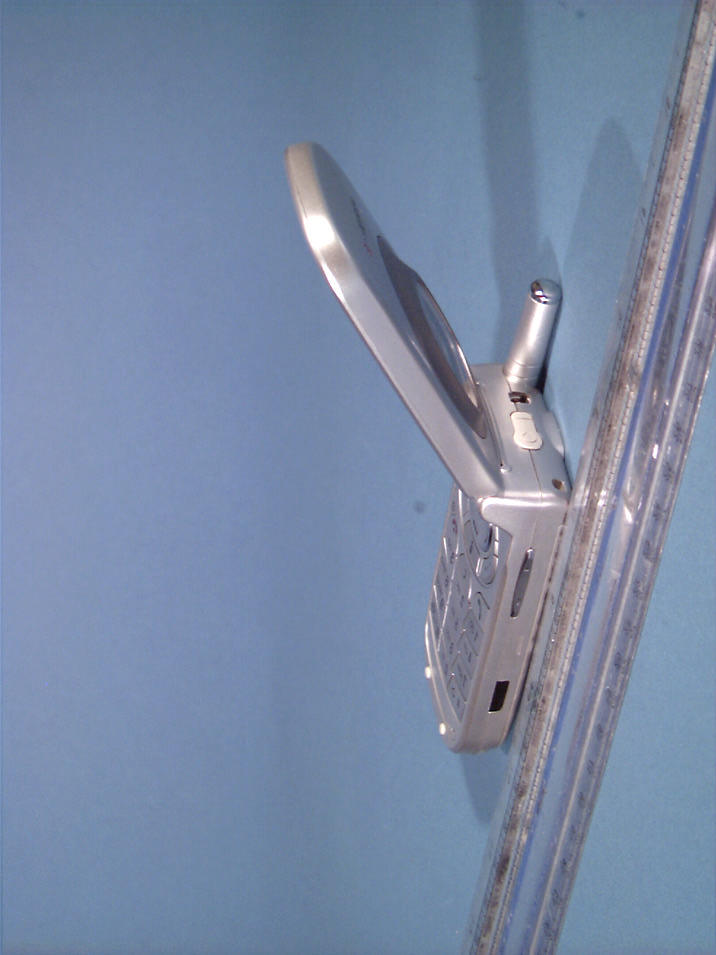

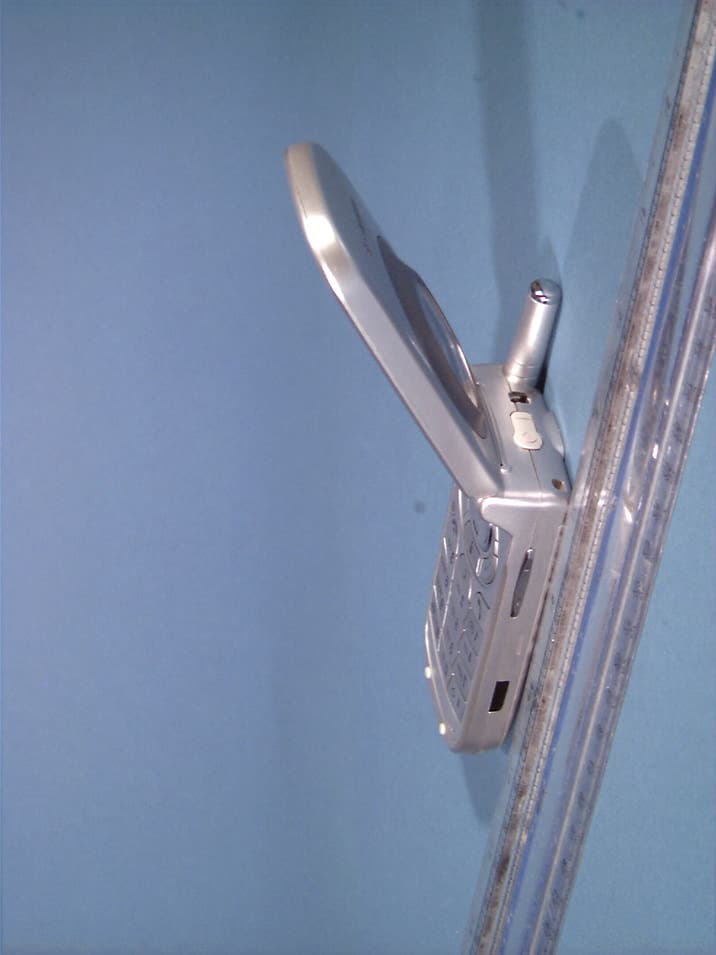

© 2002 PCTEST Lab SAMSUNG FCC ID: A3LSGHS100 Single-Band PCS GSM Phone (Model: SGH-S100) © 2002 PCTEST Lab SAMSUNG FCC ID: A3LSGHS100 Single-Band PCS GSM Phone (Model: SGH-S100) © 2002 PCTEST Lab SAMSUNG FCC ID: A3LSGHS100 Single-Band PCS GSM Phone (Model: SGH-S100) © 2002 PCTEST Lab SAMSUNG FCC ID: A3LSGHS100 Single-Band PCS GSM Phone (Model: SGH-S100)
