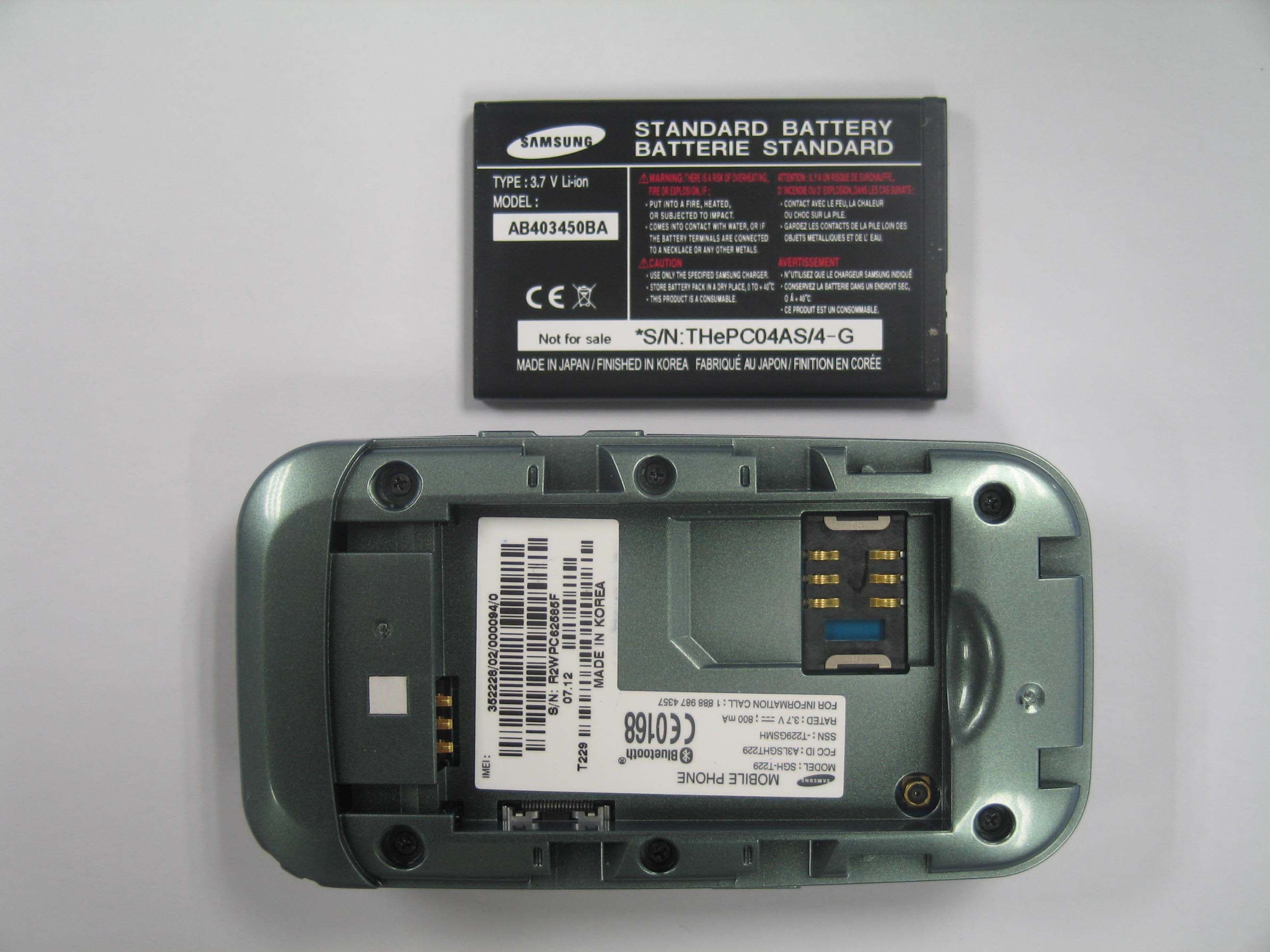

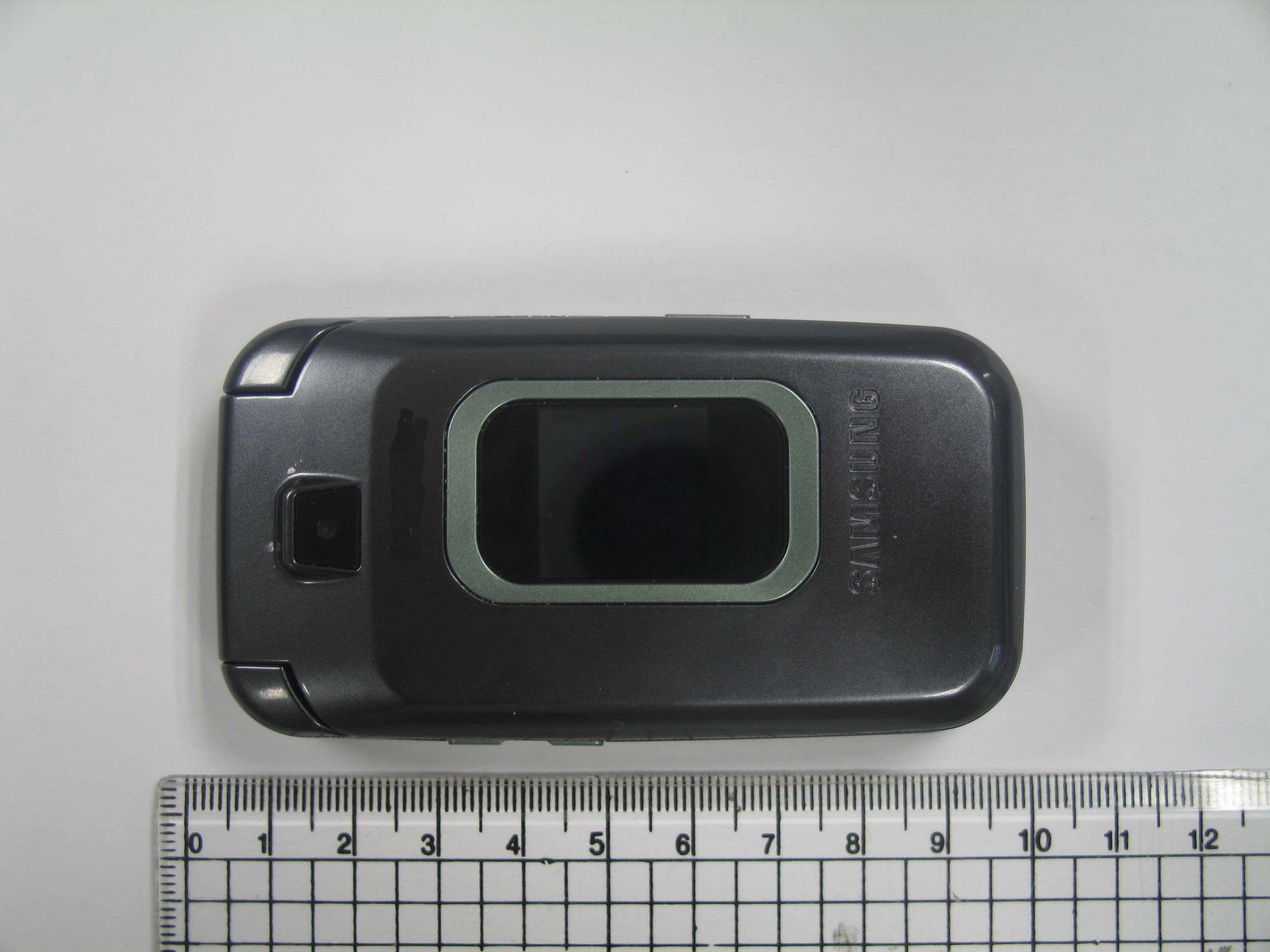

A3LSGHT229Cellular/PCS GSM Phone with Bluetooth

SGH-T229 Series PORTABLE Tri-BAND MOBILE PHONE User Manual Please read this manual before operating your phone, and keep it for future reference. DRAFTDRAFTFTFAARDRD t229.book Page 1 Tuesday, February 26, 2008 11:10 AM T229_UVHHB4_CH_022608_F2 Intellectual Property All Intellectual Property, as defined below, owned by or which is otherwise the property of Samsung or its respective suppliers relating to the SAMSUNG Phone, including but not limited to, accessories, parts, or software relating there to (the “Phone System”), is proprietary to Samsung and protected under federal laws, state laws, and international treaty provisions. Intellectual Property includes, but is not limited to, inventions (patentable or unpatentable), patents, trade secrets, copyrights, software, computer programs, and related documentation and other works of authorship. You may not infringe or otherwise violate the rights secured by the Intellectual Property. Moreover, you agree that you will not (and will not attempt to) modify, prepare derivative works of, reverse engineer, decompile, disassemble, or otherwise attempt to create source code from the software. No title to or ownership in the Intellectual Property is transferred to you. All applicable rights of the Intellectual Property shall remain with SAMSUNG and its suppliers. Samsung Telecommunications America (STA), LLC Headquarters:Customer Care Center: 1301 E. Lookout Drive1000 Klein St. Richardson, TX 75082Plano, TX 75074 Toll Free Tel: 1.888.987.HELP (4357) Internet Address: http://www.samsungusa.com © 2008 Samsung Telecommunications America, LLC is a registered trademark of Samsung Electronics America, Inc. and its related entities. Do you have questions about your Samsung Mobile Phone? For 24 hour information and assistance, we offer a new FAQ/ARS System (Automated Response System) at: www.samsungwireless.com/support t229.book Page 2 Tuesday, February 26, 2008 11:10 AM GH68-17212A Printed in Korea Openwave® is a registered Trademark of Openwave, Inc. RSA® is a registered Trademark RSA Security, Inc. Disclaimer of Warranties; Exclusion of Liability EXCEPT AS SET FORTH IN THE EXPRESS WARRANTY CONTAINED ON THE WARRANTY PAGE ENCLOSED WITH THE PRODUCT, THE PURCHASER TAKES THE PRODUCT "AS IS", AND SAMSUNG MAKES NO EXPRESS OR IMPLIED WARRANTY OF ANY KIND WHATSOEVER WITH RESPECT TO THE PRODUCT, INCLUDING BUT NOT LIMITED TO THE MERCHANTABILITY OF THE PRODUCT OR ITS FITNESS FOR ANY PARTICULAR PURPOSE OR USE; THE DESIGN, CONDITION OR QUALITY OF THE PRODUCT; THE PERFORMANCE OF THE PRODUCT; THE WORKMANSHIP OF THE PRODUCT OR THE COMPONENTS CONTAINED THEREIN; OR COMPLIANCE OF THE PRODUCT WITH THE REQUIREMENTS OF ANY LAW, RULE, SPECIFICATION OR CONTRACT PERTAINING THERETO. NOTHING CONTAINED IN THE INSTRUCTION MANUAL SHALL BE CONSTRUED TO CREATE AN EXPRESS OR IMPLIED WARRANTY OF ANY KIND WHATSOEVER WITH RESPECT TO THE PRODUCT. IN ADDITION, SAMSUNG SHALL NOT BE LIABLE FOR ANY DAMAGES OF ANY KIND RESULTING FROM THE PURCHASE OR USE OF THE PRODUCT OR ARISING FROM THE BREACH OF THE EXPRESS WARRANTY, INCLUDING INCIDENTAL, SPECIAL OR CONSEQUENTIAL DAMAGES, OR LOSS OF ANTICIPATED PROFITS OR BENEFITS. t229.book Page 3 Tuesday, February 26, 2008 11:10 AM 1 Table of Contents Section 1: Getting Started .............................................. 4 Activating Your Phone . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 Switching the Phone On or Off . . . . . . . . . . . . . . . . . . . . . . . . . 8 Setting Up Your Voice Mail . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8 Section 2: Understanding Your Phone ......................... 10 Features of Your Phone . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10 Open View of Your Phone . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10 Keys . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11 Closed View of Your Phone . . . . . . . . . . . . . . . . . . . . . . . . . . . 12 Display Layout . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13 View Tab . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13 Help . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16 Section 3: Call Functions ............................................. 17 Making a Call . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17 Adjusting the Call Volume . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18 Answering a Call . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19 Call Records . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19 Silent Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21 Selecting Functions and Options . . . . . . . . . . . . . . . . . . . . . . . 21 Section 4: Menu Navigation ......................................... 28 Menu Navigation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28 Using Shortcuts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28 Section 5: Entering Text ............................................... 29 Changing the Text Input Mode . . . . . . . . . . . . . . . . . . . . . . . . 29 Using T9 Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30 Using ABC Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31 Using Number Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32 Using Symbol Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32 Section 6: Understanding Your Phonebook ................ 33 Storing a Number in the Phone’s Memory . . . . . . . . . . . . . . . 33 Storing a Number in the SIM Card . . . . . . . . . . . . . . . . . . . . . 34 Finding a Phonebook Entry . . . . . . . . . . . . . . . . . . . . . . . . . . . 36 Dialing a Number from Phonebook . . . . . . . . . . . . . . . . . . . . . 37 Editing a Calle…

Text truncated - open the document above for the full version.

SAMSUNG ELECTRONICS AMERICA, INC. American QA Lab 18600 Broadwick St. Rancho Dominguez, CA 90220 Date: March 13, 2008 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road, http Columbia, MD 21046 RE: Request of Confidentiality for FCC ID: A3LSGHT229 To Whom It May Concern: Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules (CFR 47), and Section 552 (b) (4) of the Freedom of Information Act, SAMSUNG ELECTRONICS CO.,LTD. hereby requests confidentiality and treatment of certain information accompanying this application. The materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. We are also hereby request Short-Term Confidentiality for 180 days after the grant as outlined in Public Notice DA 04-1705. This provision will give SAMSUNG ELECTRONICS CO.,LTD. temporary confidentiality of commercially sensitive information prior to product release. The requested Permanent and Short-Term Confidential exhibits are listed as follows: PERMANENT AND SHORT-TERM CONFIDENTIAL LIST Exhibit Description 1 Block Diagram 2 Operational Description 3 Schematics PERMANENT 4 Parts List & Tune-Up Procedure 5 External Photos 6 Internal Photos 7 Test-Setup Photos SHORT-TERM 8 Users Manual The Applicant understands that pursuant to Rule 0.457, disclosure of this application and all accompanying documentations, where applicable, will not be made public before the date of the Grant for this application. Sincerely, Steve Kim General Manager American QA Lab SAMSUNG Electronics America INC.

SAMSUNG ELECTRONICS AMERICA, INC. American QA Lab 18600 Broadwick St. Rancho Dominguez, CA 90220 DATE : February 4, 2008 Federal Communications Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 Subject: HAC filing FCC ID: A3LSGHT229 Gentlemen: We, Samsung Electronics, hereby declare the samples evaluated in this application are equivalent to production samples. Should you have any questions or comments concerning the above, please contact the undersigned. Steve Kim General Manager American QA Lab SAMSUNG Electronics America INC. SAMSUNG ELECTRONICS AMERICA, INC. American QA Lab 18600 Broadwick St. Rancho Dominguez, CA 90220

IMEI: SGH-T229 A3LSGHT229 -T229GSMH 800 SGH-T229 조경환 071207071207 IMEI: SGH-T229 A3LSGHT229 -T229GSMH 800

m–“‹Œ™Gv—Œ•Gㇵ䈐 T㙼䊀⇌ᴸᶤ⫠aGWUZŠ” thpuGhu{ i{Ghu{ tˆ•Ghu{ i{Ghu{ 㙼䊀⇌ᴸᶤ⫠aGWUZŠ”

Reviewed by: FCC ID: A3LSGHT229 CERTIFICATION REPORT Quality Manager SAR Filename: Test Dates: EUT Type: 0803100281.A3L 03/11/08 850/1900 GSM/GPRS Phone with Bluetooth Page 1 of 26 © 2008 PCTEST Engineering Laboratory, Inc. REV 4.9G 03/11/08 Applicant Name: Date of Testing: Samsung Electronics, Co. Ltd. 03/11/08 18600 Broadwick St. Test Site/Location: Rancho Dominguez, CA 90220 PCTEST Lab, Columbia, MD, USA United States Test Report Serial No.: 0803100281.A3L FCC ID: A3LSGHT229 APPLICANT: SAMSUNG ELECTRONICS, CO. LTD. EUT Type: 850/1900 GSM/GPRS Phone with Bluetooth Application Type: Certification FCC Rule Part(s): §2.1093; FCC/OET Bulletin 65 Supplement C [July 2001] FCC Classification: Licensed Transmitter Held to Ear (PCE) Model(s): SGH-T229 Tx Frequency: 824.20 - 848.80 MHz (Cellular GSM) 1850.20 - 1909.80 MHz (GSM PCS) 2402.00 - 2480.00 MHz (Bluetooth) Conducted Power: 32.55 dBm Cellular GSM 29.52 dBm PCS GSM 3.86 dBm Bluetooth Max. SAR Measurement: 0.276 W/kg Cellular GSM Head SAR 0.299 W/kg Cellular GSM GPRS Body SAR 0.178 W/kg PCS GSM Head SAR 0.331 W/kg PCS GSM GPRS Body SAR 0.005 W/kg Bluetooth Body SAR EUT Serial No.: Pre-Production [S/N: FE-245-J] This wireless portable device has been shown to be capable of compliance for localized specific absorption rate (SAR) for uncontrolled environment/general population exposure limits specified in ANSI/IEEE Std. C95.1-2005 and has been tested in accordance with the measurement procedures specified in FCC/OET Bulletin 65 Supplement C (2001) and IEEE Std. 1528-2003. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. Grant Conditions: Power output listed is ERP for Part 22 and EIRP for Part 24. SAR compliance for body-worn operating configuration is based on a separation distance of 1.5 cm between the device and the body of the user. End-users must be informed of the body-worn operating requirements for satisfying RF exposure compliance. Belt clips or holsters not specified in this filing may not contain metallic components. PCTEST certifies that no party to this application has been denied the FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. PCTEST ENGINEERING LABORATORY, INC. 6660-B Dobbin Road, Columbia, MD 21045 USA Tel. 410.290.6652 / Fax 410.290.6554 http://www.pctestlab.com CERTIFICATE OF COMPLIANCE (SAR EVALUATION) Reviewed by: FCC ID: A3LSGHT229 CERTIFICATION REPORT Quality Manager SAR Filename: Test Dates: EUT Type: 0803100281.A3L 03/11/08 850/1900 GSM/GPRS Phone with Bluetooth Page 2 of 26 © 2008 PCTEST Engineering Laboratory, Inc. REV 4.9G 03/11/08 TABLE OF CONTENTS 1 INTRODUCTION....................................................................................................................3 2 TEST SITE LOCATION...........................................................................................................4 3 SAR MEASUREMENT SETUP................................................................................................5 4 DASY E-FIELD PROBE SYSTEM............................................................................................7 5 PROBE CALIBRATION PROCESS..........................................................................................8 6 PHANTOM AND EQUIVALENT TISSUES................................................................................9 7 DOSIMETRIC ASSESSMENT & PHANTOM SPECS..............................................................10 8 DEFINITION OF REFERENCE POINTS................................................................................11 9 TEST CONFIGURATION POSITIONS...................................................................................12 10 ANSI/IEEE C95.1-2005 RF EXPOSURE LIMITS....................................................................15 11 MEASUREMENT UNCERTAINTIES......................................................................................16 12 SYSTEM VERIFICATION......................................................................................................17 13 FCC MULTI-TX AND ANTENNA SAR CONSIDERATIONS.....................................................18 14 RF CONDUCTED POWER...................................................................................................19 15 SAR DATA SUMMARY.........................................................................................................19 16 EQUIPMENT LIST................................................................................................................23 17 CONCLUSION.....................................................................................................................24 18 REFERENCES.....................................................................................................................25 Reviewed by: FCC ID: A3LSGHT229 CERTIFICATION REPORT Quality Manager SAR Filename: Test Dates: EUT Type: 0803100281.A3L 03/11/08 850/1900 GSM/GPRS Phone with Bluetooth Page 3 of 26 © 2008 PCTEST Engineering Laboratory, Inc. REV 4.9G 03/11/08 1 INTRODUCTION The FCC has adopted the guidelines for evaluating the environmental effects of radio frequency (RF) radiation in ET Docket 93-62 on Aug. 6, 1996 to protect the public and workers from the potential hazards of RF emissions due to FCC-regulated portable devices.[1] The safety limits used for the environmental evaluation measurements are based on the criteria published by the American National Standards Institute (ANSI) for localized specific absorption rate (SAR) in IEEE/ANSI C95.1-2005 Standard for Safety Levels with Respect to Human Exposure to Radio Frequency Electromagnetic Fields, 3 kHz to 300 GHz[2] and Health Canada RF Exposure Guidelines Safety Code 6 [26]. The measurement pro…

Text truncated - open the document above for the full version.

APPENDIX D: PROBE CALIBRATION

SAMSUNG ELECTRONICS Co., Ltd., Regulatory Compliance Group IT R&D Center 416 Maetan3-Dong, Yeongtong-gu, Suwon city, Gyeonggi-Do, Korea 443-742 FCC CFR47 PART 22 & 24 SUBPART CERTIFICATION REPORT Model Tested : SGH-T229 FCC ID(Requested) : A3LSGHT229 Report No : FE-245-R1 Job No : FE-245 Date issued : March 05, 2008 - Abstract - All measurement reported herein accordance with FCC Rules, 47CFR Part2, Part22, Part24. Prepared By JH WOO - Test Engineer Authorized By WW JANG - Technical Manager © Copyright SAMSUNG Electronics 2005 Report Number : FE-245-R1 TABLE OF CONTENT MEASUREMENT REPORT Page 1. FCC CERTIFICATION INFORMATION .....................................................................3 1.1. §2.1033 General Information .........................................................................3 2. INTRODUCTION .......................................................................................................4 2.1. General..........................................................................................................4 3. MEASURING INSTRUMENT CALIBRATION ...........................................................5 4. TEST EQUIPMENT LIST...........................................................................................6 5. DESCRIPTION OF TESTS ........................................................................................7 5.1. Effective Radiated Power / Equivalent Isotropic Radiated Power ..................7 5.2. Radiated Spurious & Harmonic Emission ......................................................8 5.3. Occupied Bandwidth ....................................................................................10 5.4. Spurious and Harmonic Emission at Antenna Terminal................................10 5.4.1. Occupied Bandwidth Emission Limits ..............................................10 5.4.2. Conducted Spurious Emission .........................................................12 5.5. Frequency Stability / Temperature Variation .................................................13 6. TEST DATA .............................................................................................................14 6.1. Effective Radiated Power (E.R.P.)................................................................14 6.2. Equivalent Isotropic Radiated Power (E.I.R.P.) ............................................15 6.3. GSM850 Radiated Spurious & Harmonic measurement ..............................16 6.4. GSM1900 Radiated Spurious & Harmonic measurement ............................17 6.5. GSM850 Radiated Spurious & Harmonic Conversion Table ........................18 6.6. GSM1900 Radiated Spurious & Harmonic Conversion Table ......................19 6.7. Frequency Stability.......................................................................................20 6.7.1. GSM850 Frequency Stability Table ..................................................20 6.7.2. GSM850 Frequency Stability Graph.................................................21 6.7.3. GSM1900 Frequency Stability Table ................................................23 6.7.4. GSM1900 Frequency Stability Graph...............................................24 7. CONCLUSION.........................................................................................................25 8. TEST PLOTS...........................................................................................................25 Report Number : FE-245-R1 MEASUREMENT REPORT 1. FCC Certification Information The following information is in accordance with FCC Rules, 47CFR Part2, Subpart J, Sections 2.1033 – 2.1055. 1.1. §2.1033 General Information • Applicant Name : SAMSUNG ELECRONICS CO., LTD. • Address : 416 Maetan3-Dong, Yeongtong-gu, Suwon City Gyeonggi-Do, Korea 443-742 • Attention : SungJoo KIM, Engineering Manager (QA Lab) • FCC ID : A3LSGHT229 • Quantity : Quantity production is planned • Emission Designators : 254KGXW(GSM850) 251KGXW(GSM1900) • Tx Freq. Range : 824.2 - 848.8MHz (GSM850) 1850.2MHz - 1909.8MHz (GSM1900) • Rx Freq. Range : 869.2 - 893.8 MHz (GSM850) 1930.2MHz - 1989.8MHz (GSM1900) • Max. Power Rating : 0.929 W ERP GSM850 (29.68dBm) 1.059 W EIRP GSM1900 (30.25dBm) • FCC Classification(s) : Licensed Portable Tx Held to Ear (PCE) • Equipment (EUT) Type : Dual-Band GSM850/1900 Phone with Bluetooth • Frequency Tolerance : ±0.00025% (2.5ppm) • FCC Rule Part(s) : §24(E), §22(H), §2. • Dates of Test : February 21-22, 2008 • Place of Test : SAMSUNG Lab, • Test Report S/N : FE-245-R1 Report Number : FE-245-R1 2. INTRODUCTION 2.1. General These measurement test were conducted at SAMSUNG ELECTRONICS CO., LTD(SUWON). The site address is 416 Maetan3-Dong, Yeongtong-gu, Suwon City, Gyeonggi-Do, Korea 443-742 The site have 1 Fully-anechoic chamber and measurement facility. Measurement Procedure The radiated and spurious measurements were made Fully-anechoic chamber at a 3-meter test range (see Figure2). The equipment under testing was placed on a Non-conducted turntable 3- meters from the receive antenna. The receive antenna height and turntable rotations were adjusted for the highest reading on the receive spectrum analyzer. The substitution antenna will replace the EUT antenna it the same position and in vertical polarization. The frequency of the signal generator shall be set to the frequencies that were measured on the EUT. The test antenna shall be raised and lowered, if necessary, to ensure that the maximum signal is still being received. The signal generator, output level, shall be adjusted until an equal or a known related level to what was measured from the EUT is obtained in the spectrum analyzer. This level was recorded. For readings above 1 GHz, the above procedure is repeated using horn antennas and the difference between the gain of the horn and an isotropic antenna are taken into consideration. Figure1. Map of the Suwon City area. Figure2. Photograph of 3m Fully-Anechoic Chamber Report Number : FE-245-R1 3. MEASUR…

Text truncated - open the document above for the full version.

SAMSUNG ELECTRONICS Co., Ltd., - Abstract – Authorized By JH NAM – Technical Manager Gyeonggi-do, Korea 443-742 This document reports on HAC Tests carried out in accordance with ANSI C63.19(2006), FCC Rule Part(s) FCC 47 CFR §20.19, §6.3, §7.3 Prepared By Mar.10, 2008 M3(RF EMISSION Category) Report No : Date issued : Result Summary : TEST REPORT ON HAC Regulatory Compliance Group IT R&D Center 416, Maetan-3dong, Yeongtong-gu, Suwon-si, DK LEE – Test Engineer SGH-T229 A3LSGHT229 AE-072 AE-072-M1 Model Tested: FCC ID (Requested) : Job No : ΃ΖΡΠΣΥ͑ͿΦΞΓΖΣͫ͑ͲͶͨͣ͞͡͞;͑͢͢ΠΗ͑ͣ͢ 10. Test Results.............................................................................................................................. 18 9.2 Worst-Case Probe Location Measurements.............................................................................. ...17 9.1 Handset Capabilities*............................................................................................................ ...17 4. HAC MEASUREMENT PROCEDURE............................................................................................. ... 6. MEASUREMENT UNCERTAINTY...................................................................................................... 7. SYSTEM VERIFICATION............................................................................................................... 5. DESCRIPTION OF TEST POSITION................................................................................................ 5.1 Measurement reference and plane.......................................................................................... ... 3.1 HAC Measurement Setup......................................................................................................... 3.2 Probe Description.................................................................................................................. 3.3 Test Arch Phantom............................................................................................................... ... 3.5 Equipment Calibration............................................................................................................ 2111. REFERENCES........................................................................................................................... 17 8.1 Modulation Factors............................................................................................................... ... 8.2 CW and Modulated Signal Zero-span plots................................................................................. 13 14 7.1 Test System Validation......................................................................................................... ... 8. MODULATION FACTOR.................................................................................................................. 9. FCC 3G MEASUREMENTS – MAY/JUNE 2006.................................................................................... 15 16 12 11 13 3 3 Contents 1. GENERAL INFORMATION............................................................................................................. 2. DESCRIPTION OF DEVICE............................................................................................................. 4 9 11 8 4 6 7 73.4 Validation Dipole.................................................................................................................. ... 3. DESCRIPTION OF TEST EQUIPMENT............................................................................................. 18 19 20 10.1 Measurement Results(E-field)................................................................................................ ... 10.2 Measurement Results(H-field)................................................................................................ 10.3 Worst-case Configuration Evaluation....................................................................................... ... ΃ΖΡΠΣΥ͑ͿΦΞΓΖΣͫ͑ͲͶͨͣ͞͡͞;ͣ͑͢ΠΗ͑ͣ͢ 48.8mmAntenna Dmimensions : Tx Freq. Range : FCC/TCB Certification 2. DESCRIPTION OF DEVICE Antenna Manufacturer :TYCO PIFA Rx Freq. Range : Antenna Configuration : Tested for : SAMSUNG ELECTRONICS Co., Ltd. MH KIM +82-031-301-4266 +82-031-279-7269 Test Standard : FCC Classification Test Dates : ANSI C 63.19 (2006), FCC 47 CFR § 20.19, §6.3, §7.3 Licensed Portable Transmitter Held to Ear (PCE) Feb.27, 2008 Manufacturer : Contact : Phone : Fax : Model Number : Serial Number : ́͸͹͞΅ͣͣͪ p‹Œ•›Šˆ“G—™–›–› —ŒGOzVuGa J hlTW^YTj P Test Sample :Dual-Band GSM Phone with Bluetooth 1. GENERAL INFORMATION 824.2 ~ 848.8 MHz(GSM850) 1850.2 ~ 1909.8 MHz(GSM1900) 869.2 ~ 893.8 MHz(GSM850) 1930.20 ~ 1989.80 MHz(GSM1900) ΃ΖΡΠΣΥ͑ͿΦΞΓΖΣͫ͑ͲͶͨͣ͞͡͞;ͤ͑͢ΠΗ͑ͣ͢ 3. DESCRIPTION OF TEST EQUIPMENT 3.1 HAC Measurement Setup G Robotic System Measurements are performed using the DASY4 automated dosimetric assessment system. Which is made by Schmid & Partner Engineering AG (SPEAG) in Zurich, Switzerland and consists of high precision robotics system (Stäubli), robot controller, measurement server, Samsung computer, near-field probe, probe alignment sensor, and the SAM twin phantom containing the brain equivalent material. The robot is a six-axis industrial robot performing precise movements to position the probe to the location (points) of maximum electromagnetic field (EMF) (see Fig. 3.1). Figure 3.1 HAC Measurement System Setup System Hardware A cell controller system contains the power supply, robot controller, teach pendant (Joystick), and a remote control is used to drive the robot motors. The PC consists of the Samsung computer with Windows XP system and HAC Measurement Software DASY4, LCD monitor, mouse and keyboard. The Stäubli Robot is connected to the cell controller to allow software manipulation of the robot. AG ΃ΖΡΠΣΥ͑ͿΦΞΓΖΣͫ͑ͲͶͨͣ͞͡͞;ͥ͑͢ΠΗ͑ͣ͢ data acquisition electronic (DAE) circuit that performs the signal amplification, signal multiplexing, AD- conversion, offset measurements, mechanical sur…

Text truncated - open the document above for the full version.

Calibration of The Validation Dipole APPENDIX F G G

Reviewed by: FCC ID: A3LSGHT229 HAC (T-COIL) TEST REPORT Quality Manager Filename: Test Dates: EUT Type: 0803060266.A3L March 6 - 7, 2008 850/1900 GSM/GPRS Phone with Bluetooth Page 1 of 33 © 2008 PCTEST Engineering Laboratory, Inc. REV 3.4G 02/21/08 Applicant Name: Date of Testing: Samsung Electronics, Co. Ltd. March 6 - 7, 2008 18600 Broadwick St. Test Site/Location: Rancho Dominguez, CA 90220 PCTEST Lab, Columbia, MD, USA United States Test Report Serial No.: 0803060266.A3L FCC ID: A3LSGHT229 APPLICANT: SAMSUNG ELECTRONICS, CO. LTD. Scope of Test: Audio Band Magnetic Testing (T-Coil) Application Type: Certification FCC Rule Part(s): § 20.19(b), §6.3(v), §7.3(v) HAC Standard: ANSI C63.19-2006 v3.12 FCC Classification: Licensed Transmitter Held to Ear (PCE) EUT Type: 850/1900 GSM/GPRS Phone with Bluetooth Model(s): SGH-T229 Tx Frequency: 824.20 - 848.80 MHz (Cellular GSM) 1850.20 - 1909.80 MHz (GSM PCS) Test Device Serial No.: Pre-Production Sample [S/N: AE-072-C] HAC RF Emissions Category: M3 (ANSI C63.19-2006 v3.12) C63.19 HAC Rated Category: T4 (SIGNAL TO NOISE CATEGORY) This wireless portable device has been shown to be hearing-aid compatible under the above rated category, specified in ANSI/IEEE Std. C63.19-2006 and had been tested in accordance with the specified measurement procedures. Hearing-Aid Compatibility is based on the assumption that all production units will be designed electrically identical to the device tested in this report. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. PCTEST certifies that no party to this application has been denied the FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. PCTEST ENGINEERING LABORATORY, INC. 6660-B Dobbin Road, Columbia, MD 21045 USA Tel. 410.290.6652 / Fax 410.290.6554 http://www.pctestlab.com HEARING AID COMPATIBILITY CERTIFICATE Reviewed by: FCC ID: A3LSGHT229 HAC (T-COIL) TEST REPORT Quality Manager Filename: Test Dates: EUT Type: 0803060266.A3L March 6 - 7, 2008 850/1900 GSM/GPRS Phone with Bluetooth Page 2 of 33 © 2008 PCTEST Engineering Laboratory, Inc. REV 3.4G 02/21/08 TABLE OF CONTENTS 1. INTRODUCTION ............................................................................................................................. 3 2. TEST SITE LOCATION ................................................................................................................... 4 3. EUT DESCRIPTION ........................................................................................................................ 5 4. ANSI C63.19-2006 PERFORMANCE CATEGORIES .................................................................... 6 5. METHOD OF MEASUREMENT ...................................................................................................... 9 6. TEST SUMMARY .......................................................................................................................... 19 7. MEASUREMENT UNCERTAINTY ................................................................................................ 23 8. EQUIPMENT LIST........................…

Text truncated - open the document above for the full version.
