A3LSGHT639Cellular/PCS/AWS GSM/EDGE/WCDMA Phone with BT

World Wide Webhttp://www.samsungmobile.com * Depending on the software installed or your service provider or country, some of the description in this guide may not match your phone. * Depending on your country, your phone and accessories may appear different from the illustra tions in this guide. Printed in Korea Code No.: GH68-xxxxxA English. 02/2007. Draft SGH-t639User’s Guide Important safety precautions Failure to comply with the following precautions may be dangerous or illegal. Drive safely at all timesDo not use a hand-held phone while driving. Park the vehicle first. Switch off the phone when refuellingDo not use the phone at a refuelling point (service station) or near fuels or chemicals.Switch off in an aircraftWireless phones can cause interference. Using them in an aircraft is both illegal and dangerous.Switch off the phone near all medical equipmentHospitals or health care facilities may be using equipment that could be sensitive to external radio frequency energy. Follow any regulations or rules in force.InterferenceAll wireless phones may be subject to interference, which could affect their performance. Important safety precautions 1 Be aware of special regulationsMeet any special regulations in force in any area and always switch off your phone whenever it is forbidden to use it, or when it may cause interference or danger.Water resistanceYour phone is not water-resistant. Keep it dry. Sensible useUse only in the normal position (held to the ear). Avoid unnecessary contact with the antenna when the phone is switched on.Emergency callKey in the emergency number for your present location, then press . Keep your phone away from small children Keep the phone and all its parts, including accessories, out of the reach of small children. Accessories and batteriesUse only Samsung-approved batteries and accessories, such as headse ts and PC data cables. Useof any unauthorised accessories could damage you or your phone and may be dangerous. Qualified serviceOnly qualified service personnel may repair your phone.For more detailed safety information, see "Health and safety information" on page 24. • The phone could explode if the battery is replaced with an incorrect type.• Dispose of used batteries according to the manufacturer’s instructions. At very high volumes, prolonged listening to a headset can damage your hearing. 2 Contents Unpack 4 Make sure you have each itemGet started 5 First steps to operating your phoneInstall and charge the phone ..................................... 5Power on or off........................................................ 6Keys and display ..................................................... 6Menu functions 9 All menu options listedSolve problems 17 Help and personal needsHealth and safety information 19 3 Overview of menu functions To access Menu mode, press < Menu > in Idle mode. 1 Voice notes2 2 Call records1 All calls2 Missed calls3 Incoming calls4 Outgoing calls5 Voice mail6 Speed dial7 Delete all8 Call time9 Data volume10 Data call time3 t-zones1 Go to homepage2 Enter URL3 Bookmarks4 Saved pages5 History6 Advanced 4 IM5 Messages1 Create new2 Inbox3 Sentbox4 Outbox5 Drafts6 My folders7 Templates8 Delete all9 Messages setttings10 Memory status6 Fun & Apps Media playerCameraSoundsImagesVideosMusicGamesOther filesMemory status 7 Help8 Organizer1 Alarms2 Calendar3 Tasks4 Note5 Calculator6 Tip Calculator7 World Time8 Synchronize9 Unit conversion10 Timer11 Stopwatch 9 Settings1 Profiles2 Display settings3 Shortcut key4 Time & date5 Phone settings6 Call settings7 Connectivity8 Synchronization9 Application settings10 Security11 Reset settings12 Memory status 4 Unpack Your package contains the following items.•Handset• Battery•Travel Adapter•User’s GuideIn addition, you can obtain various accessories from your local Samsung dealer.•Standard Battery• Extended Battery• Battery Charger•Headset• PC Data Link Kit• Car Charger/Adaptor The items supplied with your phone and the accessories at your Samsung dealer may vary, depending on your country or service provider. Yo ur phone 5 Get started First steps to operating your phoneSIM card informationWhen you subscribe to a cellular network, you receive a plug-in SIM (Subscriber Identity Module) card loaded with your subscripti on details, such as your PIN, and available optional services.Install and charge the phone Low battery indicatorWhen the battery is low:• a warning tone sounds,• the battery low message displays, and• the empty battery icon blinks. If the battery level becomes too low, the phone automatically turns off. Recharge your battery. Remove the battery. If the phone is already on, first turn it off by holding [ ]. Insert the SIM card. Make sure that the gold-coloured contacts on the card face down into the phone. Install the battery. Plug the travel adapter into the phone. Plug the adapter into a standard AC wall outlet. When the phone is completely charged (the battery icon becomes still), unplug the adapter from the power outlet.Remove the adapter from the phone. 6 Get started Power on or off Keys and display Switch onDo not turn on the phone when mobile phone use is prohibited. 1. Open the phone.2. Press and hold [ ] to turn on the phone. 3. If necessary, enter the PIN and press < OK >. Switch off 1. Open the phone.2. Press and hold [ ]. Key(s) Description Soft keys Perform the function indicated on the bottom line of the display. Navigation keys In Idle mode, access your favourite menus, directly.In Menu mode, scroll through the menu options. Cancel key Delete characters from the display.In Menu mode, return to the previous menu level. SEND key Send or answer a call.In Idle mode, retrieve the recent numbers dialled, missed, or received. 7 Get started ENDkey End a call. Press and hold to switch the phone on and off. In Menu mode, cancel input and return the phone to Idle mode. Numeric keys Enter numbers, letters, and some special characters.In Idle mode, press and hold [ 1 ] to access your voic…

Text truncated - open the document above for the full version.

SAMSUNG ELECTRONICS CO.,LTD. 416 Maetan3-Dong Yeongtong-gu, Suwon city, Gyeonggi-Do, Korea 442-742 Date: May 18, 2007 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road, Columbia, MD 21046 RE: Request of Confidentiality for FCC ID: A3LSGHT639 To Whom It May Concern: Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules (CFR 47), and Section 552 (b) (4) of the Freedom of Information Act, SAMSUNG ELECTRONICS CO.,LTD. hereby requests confidentiality and treatment of certain information accompanying this application. The materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. We are also hereby request Short-Term Confidentiality for 180 days after the grant as outlined in Public Notice DA 04-1705. This provision will give SAMSUNG ELECTRONICS CO.,LTD. temporary confidentiality of commercially sensitive information prior to product release. The requested Confidential and Temporary Confidential exhibits are listed as follows: CONFIDENTIAL AND SHORT-TERM CONFIDENTIAL LIST Exhibit Description 1 Block Diagram 2 Operational Description 3 Parts List & Tune-Up Procedure CONFIDENTIAL 4 Schematics 5 External Photos 6 Internal Photos 7 Test-Setup Photos SHORT-TERM CONFIDENTIAL 8 Users Manual The Applicant understands that pursuant to Rule 0.457, disclosure of this application and all accompanying documentations, where applicable, will not be made public before the date of the Grant for this application. Sincerely, SEOUNG HO PARK SAMSUNG ELECTRONICS CO.,LTD.

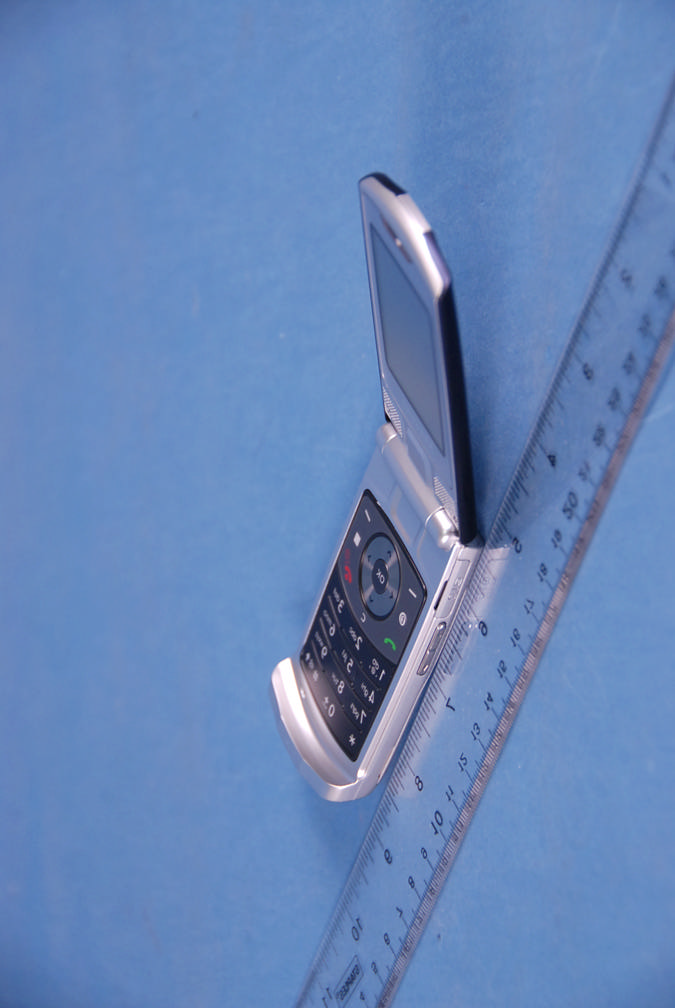

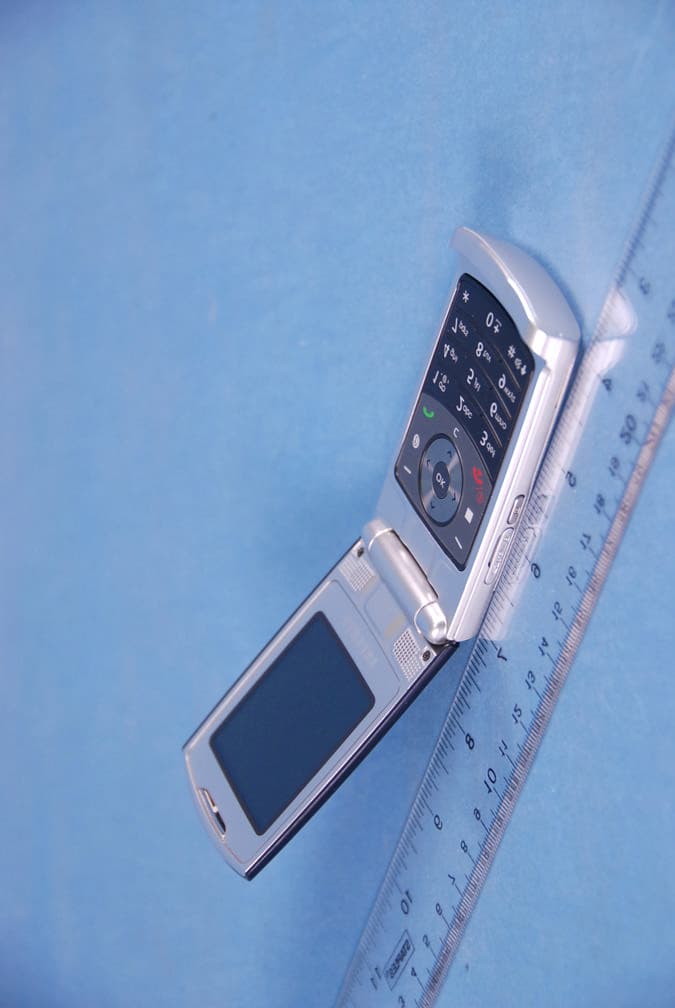

Samsung FCC ID: A3LSGHT639 EUT Photographs © 2007 PCTEST Lab. 850/1900 GSM/GPRS/EDGE Phone with Bluetooth Model: SGH-T639 Samsung FCC ID: A3LSGHT639 EUT Photographs © 2007 PCTEST Lab. 850/1900 GSM/GPRS/EDGE Phone with Bluetooth Model: SGH-T639 Samsung FCC ID: A3LSGHT639 EUT Photographs © 2007 PCTEST Lab. 850/1900 GSM/GPRS/EDGE Phone with Bluetooth Model: SGH-T639 Samsung FCC ID: A3LSGHT639 EUT Photographs © 2007 PCTEST Lab. 850/1900 GSM/GPRS/EDGE Phone with Bluetooth Model: SGH-T639 Samsung FCC ID: A3LSGHT639 EUT Photographs © 2007 PCTEST Lab. 850/1900 GSM/GPRS/EDGE Phone with Bluetooth Model: SGH-T639 Samsung FCC ID: A3LSGHT639 EUT Photographs © 2007 PCTEST Lab. 850/1900 GSM/GPRS/EDGE Phone with Bluetooth Model: SGH-T639 Samsung FCC ID: A3LSGHT639 EUT Photographs © 2007 PCTEST Lab. 850/1900 GSM/GPRS/EDGE Phone with Bluetooth Model: SGH-T639

Samsung FCC ID: A3LSGHT639 EUT Photographs © 2007 PCTEST Lab. 850/1900 GSM/GPRS/EDGE Phone with Bluetooth Model: SGH-T639 Samsung FCC ID: A3LSGHT639 EUT Photographs © 2007 PCTEST Lab. 850/1900 GSM/GPRS/EDGE Phone with Bluetooth Model: SGH-T639 Samsung FCC ID: A3LSGHT639 EUT Photographs © 2007 PCTEST Lab. 850/1900 GSM/GPRS/EDGE Phone with Bluetooth Model: SGH-T639 Samsung FCC ID: A3LSGHT639 EUT Photographs © 2007 PCTEST Lab. 850/1900 GSM/GPRS/EDGE Phone with Bluetooth Model: SGH-T639 Samsung FCC ID: A3LSGHT639 EUT Photographs © 2007 PCTEST Lab. 850/1900 GSM/GPRS/EDGE Phone with Bluetooth Model: SGH-T639 Samsung FCC ID: A3LSGHT639 EUT Photographs © 2007 PCTEST Lab. 850/1900 GSM/GPRS/EDGE Phone with Bluetooth Model: SGH-T639 Samsung FCC ID: A3LSGHT639 EUT Photographs © 2007 PCTEST Lab. 850/1900 GSM/GPRS/EDGE Phone with Bluetooth Model: SGH-T639 Samsung FCC ID: A3LSGHT639 EUT Photographs © 2007 PCTEST Lab. 850/1900 GSM/GPRS/EDGE Phone with Bluetooth Model: SGH-T639

Reviewed by: FCC ID: A3LSGHT639 CERTIFICATION REPORT Quality Manager SAR Filename: Test Dates: EUT Type: 07051804885-R1.A3L May 25 - 28, June 15, 2007 850/1700/1900 GSM/W CDMA Phone with Bluetooth Page 1 of 25 © 2007 PCTEST Engineering Laboratory, Inc. REV 4.3G 03/22/07 Applicant Name: Date of Testing: Samsung Electronics, Co. Ltd. May 25 - 28, June 15, 2007 18600 Broadwick St. Test Site/Location: Rancho Dominguez, CA 90220 PCTEST Lab, Columbia, MD, USA United States Test Report Serial No.: 07051804885-R1.A3L FCC ID: A3LSGHT639 APPLICANT: SAMSUNG ELECTRONICS, CO. LTD. EUT Type: 850/1700/1900 GSM/WCDMA Phone with Bluetooth Application Type: Certification FCC Rule Part(s): §2.1093; FCC/OET Bulletin 65 Supplement C [July 2001] FCC Classification: Licensed Transmitter Held to Ear (PCE) Model(s): SGH-T639 Tx Frequency: 824.20 - 848.80 MHz (Cellular GSM) 1850.20 - 1909.80 MHz (GSM PCS) 1712.40 - 1752.50 MHz (WCDMA) RF Conducted Power: 33.0 dBm (Cellular GSM) / 30.0 dBm (PCS GSM) 22.5 dBm WCDMA Max. SAR Measurement: 0.336 W/kg GSM850 Head SAR / 0.417 W/kg GSM850 Body SAR 0.832 W/kg GSM1900 Head SAR / 0.387 W/kg GSM1900 Body SAR 1.47 W/kg AWS WCDMA Head SAR / 0.272 W/kg AWS WCDMA Body SAR Test Device Serial No.: Pre-Production [S/N: FE-082-G] This wireless portable device has been shown to be capable of compliance for localized specific absorption rate (SAR) for uncontrolled environment/general population exposure limits specified in ANSI/IEEE Std. C95.1-2005 and has been tested in accordance with the measurement procedures specified in FCC/OET Bulletin 65 Supplement C (2001) and IEEE Std. 1528-2003. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. NOTE: This revised Test Report supersedes and replaces the previously-issued test report (S/N: 07051804885.A3L) on the same subject EUT for the same type of testing as indicated. Grant Conditions: Power output listed is ERP for Part 22 and EIRP for Part 24 and 27. SAR compliance for body-worn operating configuration is based on a separation distance of 1.5 cm between the back of the unit and the body of the user. End-users must be informed of the body-worn operating requirements for satisfying RF exposure compliance. Belt clips or holsters not specified in this filing may not contain metallic components. SAR compliance was evaluated with the integral Bluetooth active. PCTEST certifies that no party to this application has been denied the FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. PCTEST ENGINEERING LABORATORY, INC. 6660-B Dobbin Road, Columbia, MD 21045 USA Tel. 410.290.6652 / Fax 410.290.6554 http://www.pctestlab.com CERTIFICATE OF COMPLIANCE (SAR EVALUATION) Reviewed by: FCC ID: A3LSGHT639 CERTIFICATION REPORT Quality Manager SAR Filename: Test Dates: EUT Type: 07051804885-R1.A3L May 25 - 28, June 15, 2007 850/1700/1900 GSM/W CDMA Phone with Bluetooth Page 2 of 25 © 2007 PCTEST Engineering Laboratory, Inc. REV 4.3G 03/22/07 TABLE OF CONTENTS 1 INTRODUCTION ........................................................................................................................ 3 2 TEST SITE LOCATION............................................................................................................... 4 3 SAR MEASUREMENT SETUP ................................................................................................... 5 4 DASY E-FIELD PROBE SYSTEM............................................................................................... 7 5 PROBE CALIBRATION PROCESS............................................................................................. 8 6 PHANTOM AND EQUIVALENT TISSUES .................................................................................. 9 7 DOSIMETRIC ASSESSMENT & PHANTOM SPECS................................................................ 10 8 DEFINITION OF REFERENCE POINTS ................................................................................... 11 9 TEST CONFIGURATION POSITIONS ...................................................................................... 12 10 ANSI/IEEE C95.1-2005 RF EXPOSURE LIMITS...................................................................... 14 11 MEASUREMENT UNCERTAINTIES......................................................................................... 15 12 FCC 3G MEASUREMENT PROCEDURES – JUNE 2006 ......................................................... 16 13 SYSTEM VERIFICATION ......................................................................................................... 17 14 SAR DATA SUMMARY............................................................................................................. 18 15 EQUIPMENT LIST.................................................................................................................... 22 16 CONCLUSION.......................................................................................................................... 23 17 REFERENCES ......................................................................................................................... 24 Reviewed by: FCC ID: A3LSGHT639 CERTIFICATION REPORT Quality Manager SAR Filename: Test Dates: EUT Type: 07051804885-R1.A3L May 25 - 28, June 15, 2007 850/1700/1900 GSM/W CDMA Phone with Bluetooth Page 3 of 25 © 2007 PCTEST Engineering Laboratory, Inc. REV 4.3G 03/22/07 1 INTRODUCTION The FCC has adopted the guidelines for evaluating the environmental effects of radio frequency (RF) radiation in ET Docket 93-62 on Aug. 6, 1996 to protect the public and workers from the potential hazards of RF emissions due to FCC-regulated portable devices.[1] The safety limits used for the environmental evaluation measurements are ba…

Text truncated - open the document above for the full version.

PCTEST ENGINEERING LABORATORY, INC. DUT: SGH-T639; Type: 850/1700/1900 GSM/WCDMA Phone with Bluetooth; Serial: FE-082-G Conducted Power: 33.0 dBm Communication System: GSM850; Frequency: 836.6 MHz;Duty Cycle: 1:8.3 Medium: 835 Brain (σ = 0.89 mho/m, ε r = 41.61, ρ = 1000 kg/m 3 ) Phantom section: Right Section Test Date: 05-28-2007; Ambient Temp: 23.2°C; Tissue Temp: 21.2°C Probe: ES3DV2 - SN3022; ConvF(6.05, 6.05, 6.05); Calibrated: 9/20/2006 Sensor-Surface: 3mm (Mechanical Surface Detection) Electronics: DAE3 Sn455; Calibrated: 10/16/2006 Phantom: SAM Main; Type: SAM 4.0; Serial: TP-1406 Measurement SW: DASY4, V4.7 Build 53; Postprocessing SW: SEMCAD, V1.8 Build 172 Cellular Band, Right Head, Touch, Mid.ch Area Scan (7x15x1): Measurement grid: dx=15mm, dy=15mm Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 2.05 V/m Peak SAR (extrapolated) = 0.436 W/kg SAR(1 g) = 0.336 mW/g; SAR(10 g) = 0.223 mW/g 0 dB = 0.394mW/g PCTEST ENGINEERING LABORATORY, INC. DUT: SGH-T639; Type: 850/1700/1900 GSM/WCDMA Phone with Bluetooth; Serial: FE-082-G Conducted Power: 33.0 dBm Communication System: GSM850; Frequency: 836.6 MHz;Duty Cycle: 1:8.3 Medium: 835 Brain (σ = 0.89 mho/m, ε r = 41.61, ρ = 1000 kg/m 3 ) Phantom section: Right Section Test Date: 05-28-2007; Ambient Temp: 23.2°C; Tissue Temp: 21.2°C Probe: ES3DV2 - SN3022; ConvF(6.05, 6.05, 6.05); Calibrated: 9/20/2006 Sensor-Surface: 3mm (Mechanical Surface Detection) Electronics: DAE3 Sn455; Calibrated: 10/16/2006 Phantom: SAM Main; Type: SAM 4.0; Serial: TP-1406 Measurement SW: DASY4, V4.7 Build 53; Postprocessing SW: SEMCAD, V1.8 Build 172 Cellular Band, Right Head, Tilt, Mid.ch Area Scan (7x15x1): Measurement grid: dx=15mm, dy=15mm Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 3.56 V/m Peak SAR (extrapolated) = 0.033 W/kg SAR(1 g) = 0.027 mW/g; SAR(10 g) = 0.021 mW/g 0 dB = 0.030mW/g PCTEST ENGINEERING LABORATORY, INC. DUT: SGH-T639; Type: 850/1700/1900 GSM/WCDMA Phone with Bluetooth; Serial: FE-082-G Conducted Power: 33.0 dBm Communication System: GSM850; Frequency: 836.6 MHz;Duty Cycle: 1:8.3 Medium: 835 Brain (σ = 0.89 mho/m, ε r = 41.61, ρ = 1000 kg/m 3 ) Phantom section: Left Section Test Date: 05-28-2007; Ambient Temp: 23.2°C; Tissue Temp: 21.2° Probe: ES3DV2 - SN3022; ConvF(6.05, 6.05, 6.05); Calibrated: 9/20/2006 Sensor-Surface: 3mm (Mechanical Surface Detection) Electronics: DAE3 Sn455; Calibrated: 10/16/2006 Phantom: SAM Main; Type: SAM 4.0; Serial: TP-1406 Measurement SW: DASY4, V4.7 Build 53; Postprocessing SW: SEMCAD, V1.8 Build 172 Cellular Band, Left Head, Touch, Mid.ch Area Scan (7x15x1): Measurement grid: dx=15mm, dy=15mm Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 2.47 V/m Peak SAR (extrapolated) = 0.435 W/kg SAR(1 g) = 0.305 mW/g; SAR(10 g) = 0.191 mW/g 0 dB = 0.349mW/g PCTEST ENGINEERING LABORATORY, INC. DUT: SGH-T639; Type: 850/1700/1900 GSM/WCDMA Phone with Bluetooth; Serial: FE-082-G Conducted Power: 33.0 dBm Communication System: GSM850; Frequency: 836.6 MHz;Duty Cycle: 1:8.3 Medium: 835 Brain (σ = 0.89 mho/m, ε r = 41.61, ρ = 1000 kg/m 3 ) Phantom section: Left Section Test Date: 05-28-2007; Ambient Temp: 23.2°C; Tissue Temp: 21.2°C Probe: ES3DV2 - SN3022; ConvF(6.05, 6.05, 6.05); Calibrated: 9/20/2006 Sensor-Surface: 3mm (Mechanical Surface Detection) Electronics: DAE3 Sn455; Calibrated: 10/16/2006 Phantom: SAM Main; Type: SAM 4.0; Serial: TP-1406 Measurement SW: DASY4, V4.7 Build 53; Postprocessing SW: SEMCAD, V1.8 Build 172 Cellular Band, Left Head, Tilt, Mid.ch Area Scan (7x15x1): Measurement grid: dx=15mm, dy=15mm Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 3.40 V/m Peak SAR (extrapolated) = 0.034 W/kg SAR(1 g) = 0.027 mW/g; SAR(10 g) = 0.019 mW/g 0 dB = 0.029mW/g PCTEST ENGINEERING LABORATORY, INC. DUT: SGH-T639; Type: 850/1700/1900 GSM/WCDMA Phone with Bluetooth; Serial: FE-082-G Conducted Power: 30.0 dBm Communication System: GSM1900; Frequency: 1880 MHz;Duty Cycle: 1:8.3 Medium: 1900 Brain (σ = 1.46 mho/m, ε r = 39.34, ρ = 1000 kg/m 3 ) Phantom section: Right Section Test Date: 05-28-2007; Ambient Temp: 23.4°C; Tissue Temp: 21.7°C Probe: ES3DV2 - SN3022; ConvF(5.03, 5.03, 5.03); Calibrated: 9/20/2006 Sensor-Surface: 3mm (Mechanical Surface Detection) Electronics: DAE3 Sn455; Calibrated: 10/16/2006 Phantom: SAM Sub; Type: SAM 4.0; Serial: TP-1403 Measurement SW: DASY4, V4.7 Build 53; Postprocessing SW: SEMCAD, V1.8 Build 172 PCS Band, Right Head, Touch, Mid.ch Area Scan (7x15x1): Measurement grid: dx=15mm, dy=15mm Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 3.87 V/m Peak SAR (extrapolated) = 1.27 W/kg SAR(1 g) = 0.832 mW/g; SAR(10 g) = 0.491 mW/g 0 dB = 0.938mW/g PCTEST ENGINEERING LABORATORY, INC. DUT: SGH-T639; Type: 850/1700/1900 GSM/WCDMA Phone with Bluetooth; Serial: FE-082-G Conducted Power: 30.0 dBm Communication System: GSM1900; Frequency: 1880 MHz;Duty Cycle: 1:8.3 Medium: 1900 Brain (σ = 1.46 mho/m, ε r = 39.34, ρ = 1000 kg/m 3 ) Phantom section: Right Section Test Date: 05-28-2007; Ambient Temp: 23.4°C; Tissue Temp: 21.7°C Probe: ES3DV2 - SN3022; ConvF(5.03, 5.03, 5.03); Calibrated: 9/20/2006 Sensor-Surface: 3mm (Mechanical Surface Detection) Electronics: DAE3 Sn455; Calibrated: 10/16/2006 Phantom: SAM Sub; Type: SAM 4.0; Serial: TP-1403 Measurement SW: DASY4, V4.7 Build 53; Postprocessing SW: SEMCAD, V1.8 Build 172 PCS Band, Right Head, Tilt, Mid.ch Area Scan (7x15x1): Measurement grid: dx=15mm, dy=15mm Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 7.43 V/m Peak SAR (extrapolated) = 0.193 W/kg SAR(1 g) = 0.132 mW/g; SAR(10 g) = 0.086 mW/g 0 dB = 0.152mW/g PCTEST ENGINEERING LABORATORY, INC. DUT: SGH-T639; Type: 850/1700/1900 GSM/WCDMA Phone with Bluetooth; Serial: FE-082-G Conducted Power: 30.0 dBm Communication System: GSM1900; Frequency: 1880 MHz;Duty Cycle: 1:8.3 Me…

Text truncated - open the document above for the full version.

PCTEST ENGINEERING LABORATORY, INC. DUT: SAR Dipole 835 MHz; Type: D835V2; Serial: 4d026 Communication System: CW; Frequency: 835 MHz;Duty Cycle: 1:1 Medium: 835 Brain ( σ = 0.93 mho/m, ε r = 40.70, ρ = 1000 kg/m 3 ) Phantom section: Flat Section Test Date: 05-25-2007; Ambient Temp: 23.6°C; Tissue Temp: 21.3°C Probe: ES3DV2 - SN3022; ConvF(6.05, 6.05, 6.05); Calibrated: 9/20/2006 Sensor-Surface: 3mm (Mechanical Surface Detection) Electronics: DAE3 Sn455; Calibrated: 10/16/2004 Phantom: SAM Sub; Type: SAM 4.0; Serial: TP-1403 Measurement SW: DASY4, V4.7 Build 53; Postprocessing SW: SEMCAD, V1.8 Build 172 835 MHz Dipole Validation Area Scan (7x13x1): Measurement grid: dx=15mm, dy=15mm Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Input Power = 24.0 dBm (250 mW) SAR(1 g) = 2.33 mW/g; SAR(10 g) = 1.52 mW/g Target SAR(1g) = 2.25 mW/g; Deviation = + 3.44 % 0 dB = 2.74mW/g PCTEST ENGINEERING LABORATORY, INC. DUT: SAR Dipole 835 MHz; Type: D835V2; Serial: 4d026 Communication System: CW; Frequency: 835 MHz;Duty Cycle: 1:1 Medium: 835 Brain ( σ = 0.89 mho/m, ε r = 41.61, ρ = 1000 kg/m 3 ) Phantom section: Flat Section Test Date: 05 -28-2007; Ambient Temp: 23.2° C; Tissue Temp: 21.2 °C Probe: ES3DV2 - SN3022; ConvF(6.05, 6.05, 6.05); Calibrated: 9/20/2006 Sensor-Surface: 3mm (Mechanical Surface Detection) Electronics: DAE3 Sn455; Calibrated: 10/16/2004 Phantom: SAM Main; Type: SAM 4.0; Serial: TP- 1406 Measurement SW: DASY4, V4.7 Build 53; Postprocessing SW: SEMCAD, V1.8 Build 172 835 MHz Dipole Validation Area Scan (7x13x1): Measurement grid: dx=15mm, dy=15mm Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Input Power = 24.0 dBm (250 mW) SAR(1 g) = 2.37 mW/g; SAR(10 g) = 1.58 mW/g Target SAR(1g) = 2.25 mW/g; Deviation = + 5.22 % 0 dB = 2.79mW/g PCTEST ENGINEERING LABORATORY, INC. DUT: Dipole 1900 MHz; Type: D1900V2; Serial: 5d080 Communication System: CW; Frequency: 1900 MHz;Duty Cycle: 1:1 Medium: 1900 Brain ( σ = 1.40 mho/m, ε r = 39.52, ρ = 1000 kg/m 3 ) Phantom section: Flat Section Test Date: 05-25-2007; Ambient Temp: 23.7°C; Tissue Temp: 21.8°C Probe: ES3DV2 - SN3022; ConvF(5.03, 5.03, 5.03); Calibrated: 9/20/2006 Sensor-Surface: 3mm (Mechanical Surface Detection) Electronics: DAE3 Sn455; Calibrated: 10/16/2006 Phantom: SAM Main; Type: SAM 4.0; Serial: TP-1406 Measurement SW: DASY4, V4.7 Build 53; Postprocessing SW: SEMCAD, V1.8 Build 172 1900 MHz Dipole Validation Area Scan (5x6x1): Measurement grid: dx=15mm, dy=15mm Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Input Power = 20.0 dBm (100 mW) SAR(1 g) = 3.96 mW/g; SAR(10 g) = 1.93 mW/g Target SAR(1g) = 3.77 mW/g; Deviation = +5.04 % 0 dB = 5.05mW/g PCTEST ENGINEERING LABORATORY, INC. DUT: Dipole 1900 MHz; Type: D1900V2; Serial: 5d080 Communication System: CW; Frequency: 1900 MHz;Duty Cycle: 1:1 Medium: 1900 Brain ( σ = 1.46 mho/m, ε r = 39.34, ρ = 1000 kg/m 3 ) Phantom section: Flat Section Test Date: 05 -28-2007; Ambient Temp: 23.4° C; Tissue Temp: 21.7 °C Probe: ES3DV2 - SN3022; ConvF(5.03, 5.03, 5.03); Calibrated: 9/20/2006 Sensor-Surface: 3mm (Mechanical Surface Detection) Electronics: DAE3 Sn455; Calibrated: 10/16/2006 Phantom: SAM Sub; Type: SAM 4.0; Serial: TP-1403 Measurement SW: DASY4, V4.7 Build 53; Postprocessing SW: SEMCAD, V1.8 Build 172 1900 MHz Dipole Validation Area Scan (5x6x1): Measurement grid: dx=15mm, dy=15mm Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Input Power = 20.0 dBm (100 mW) SAR(1 g) = 3.94 mW/g; SAR(10 g) = 1.97 mW/g Target SAR(1g) = 3.77 mW/g; Deviation = +4.51 % 0 dB = 5.16mW/g PCTEST ENGINEERING LABORATORY, INC. DUT: Dipole 1800 MHz; Type: D1800V2; Serial: 2d106 Communication System: CW; Frequency: 1800 MHz;Duty Cycle: 1:1 Medium: 1800 Brain ( σ = 1.4 mho/m, ε r = 39.84, ρ = 1000 kg/m 3 ) Phantom section: Flat Section; Space: 1.0 cm Test Date: 06-12-2007; Ambient Temp: 22.5°C; Tissue Temp: 21.5°C Probe: EX3DV4 - SN3550; ConvF(6.74, 6.74, 6.74); Calibrated: 1/22/2007 Sensor-Surface: 3mm (Mechanical Surface Detection) Electronics: DAE4 Sn665; Calibrated: 9/4/2006 Phantom: SAM with CRP; Type: SAM; Serial: TP1375 Measurement SW: DASY4, V4.7 Build 53; Postprocessing SW: SEMCAD, V1.8 Build 172 1800MHz Dipole Validation Area Scan (5x7x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 4.26 mW/g Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Input Power = 20.0 dBm (100 mW) SAR(1 g) = 3.55 mW/g; SAR(10 g) = 2.03 mW/g Target SAR(1g) = 3.83 mW/g; Deviation = -7.31 % 0 dB = 4.30mW/g

Reviewed by: FCC ID: A3LSGHT639 FCC Pt. 22/24 GSM / EDGE MEASUREMENT REPORT (CERTIFICATION) Quality Manager Test Report S/N: Test Dates: EUT Type: 0705180486.A3L May 25, 2007 850/1900 GSM/GPRS/EDGE Phone with Bluetooth Page 1 of 35 © 2007 PCTEST Engineering Laboratory, Inc. REV 5.9G 05/24/07 Applicant Name: Date of Testing: Samsung Electronics, Co. Ltd. May 25, 2007 18600 Broadwick St. Test Site/Location: Rancho Dominguez, CA 90220 PCTEST Lab, Columbia, MD, USA United States Test Report Serial No.: 0705180486.A3L FCC ID: A3LSGHT639 APPLICANT: SAMSUNG ELECTRONICS, CO. LTD. Application Type: Certification FCC Classification: PCS Licensed Transmitter Held to Ear (PCE) FCC Rule Part(s): §2; §22(H), §24(E) EUT Type: 850/1900 GSM/GPRS/EDGE Phone with Bluetooth Model(s): SGH-T639 Tx Frequency Range: 824.20 - 848.80MHz (Cell. GSM) / 1850.20 - 1909.80MHz (PCS GSM) Max. RF Output Power: 0.841 W ERP Cell. GSM (29.25 dBm) / 1.95 W EIRP PCS GSM (32.9 dBm) 0.26 W ERP EDGE850 (24.15 dBm) / 0.589 W EIRP EDGE1900 (27.7 dBm) Emission Designator(s): 250KGXW (Cellular GSM), 250KGXW (PCS GSM) / 252KG7W (EDGE850), 240KG7W (EDGE1900) Test Device Serial No.: identical prototype [S/N: FE-082-E] This equipment has been shown to be capable of compliance with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in §2.947. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. Grant Conditions: Power output listed is ERP for Part 22 and EIRP for Part 24. This device also contains functions that are not operational in U.S. territories. This report is applicable only to U.S. operations. PCTEST certifies that no party to this application has been denied the FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. PCTEST ENGINEERING LABORATORY, INC. 6660-B Dobbin Road, Columbia, MD 21045 USA Tel. 410.290.6652 / Fax 410.290.6554 http://www.pctestlab.com CERTIFICATE OF COMPLIANCE FCC Part 22 & 24 Certification Reviewed by: FCC ID: A3LSGHT639 FCC Pt. 22/24 GSM / EDGE MEASUREMENT REPORT (CERTIFICATION) Quality Manager Test Report S/N: Test Dates: EUT Type: 0705180486.A3L May 25, 2007 850/1900 GSM/GPRS/EDGE Phone with Bluetooth Page 2 of 35 © 2007 PCTEST Engineering Laboratory, Inc. REV 5.9G 05/24/07 TABLE OF CONTENTS FCC PART 22 & 24 MEASUREMENT REPORT............................................................................3 1.0 INTRODUCTION ..............................................................................................................................4 1.1 MEASUREMENT PROCEDURE......................................................................................................... 4 1.2 SCOPE ................................................................................................................................................ 4 1.3 TESTING FACILITY............................................................................................................................. 4 2.0 PRODUCT INFORMATION..............................................................................................................5 2.1 EQUIPMENT DESCRIPTION .............................................................................................................. 5 2.2 EMI SUPPRESSION DEVICE(S)/MODIFICATIONS ........................................................................... 5 2.3 LABELING REQUIREMENTS.............................................................................................................. 5 3.0 DESCRIPTION OF TESTS ....................................................................…
