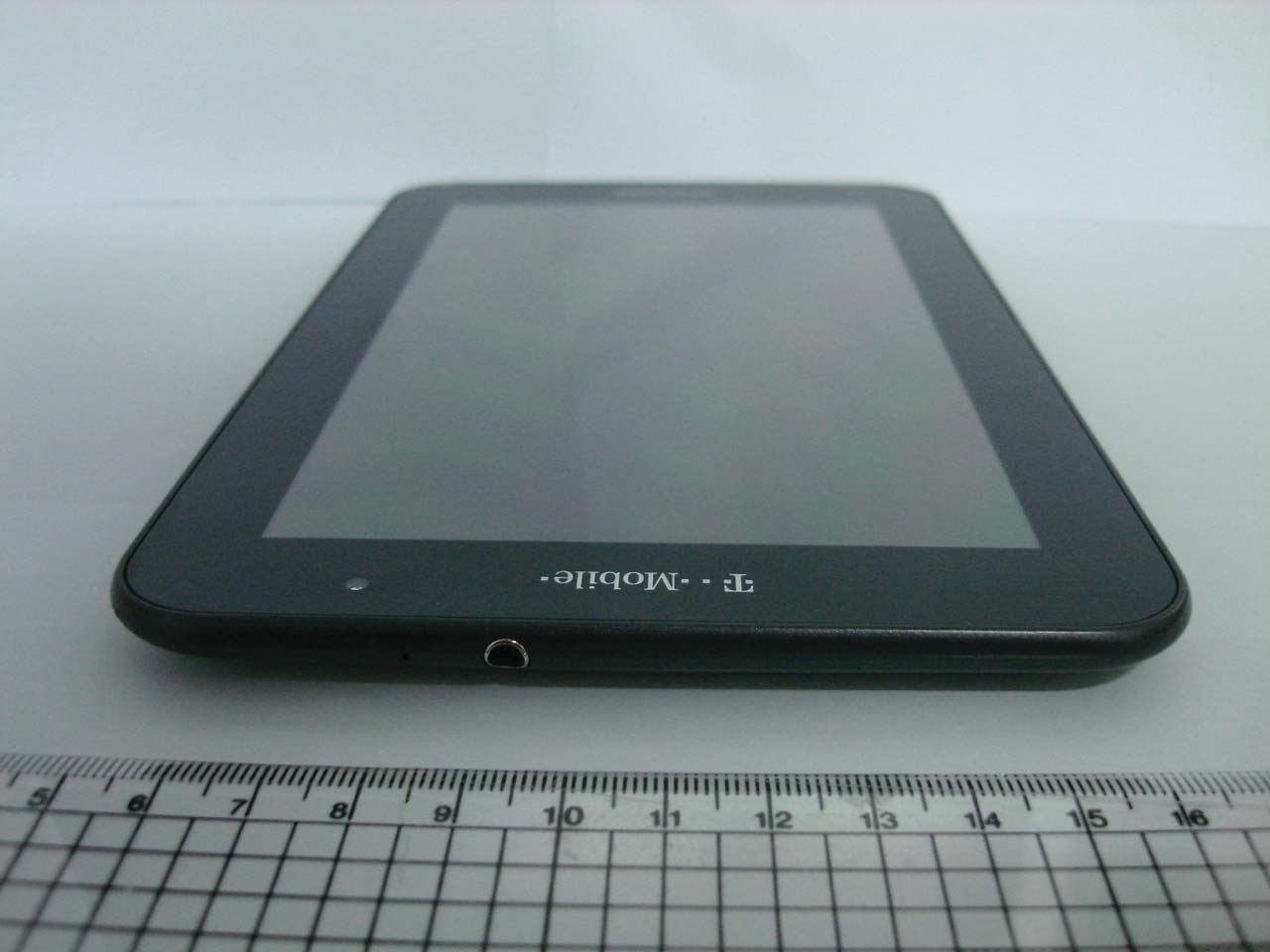

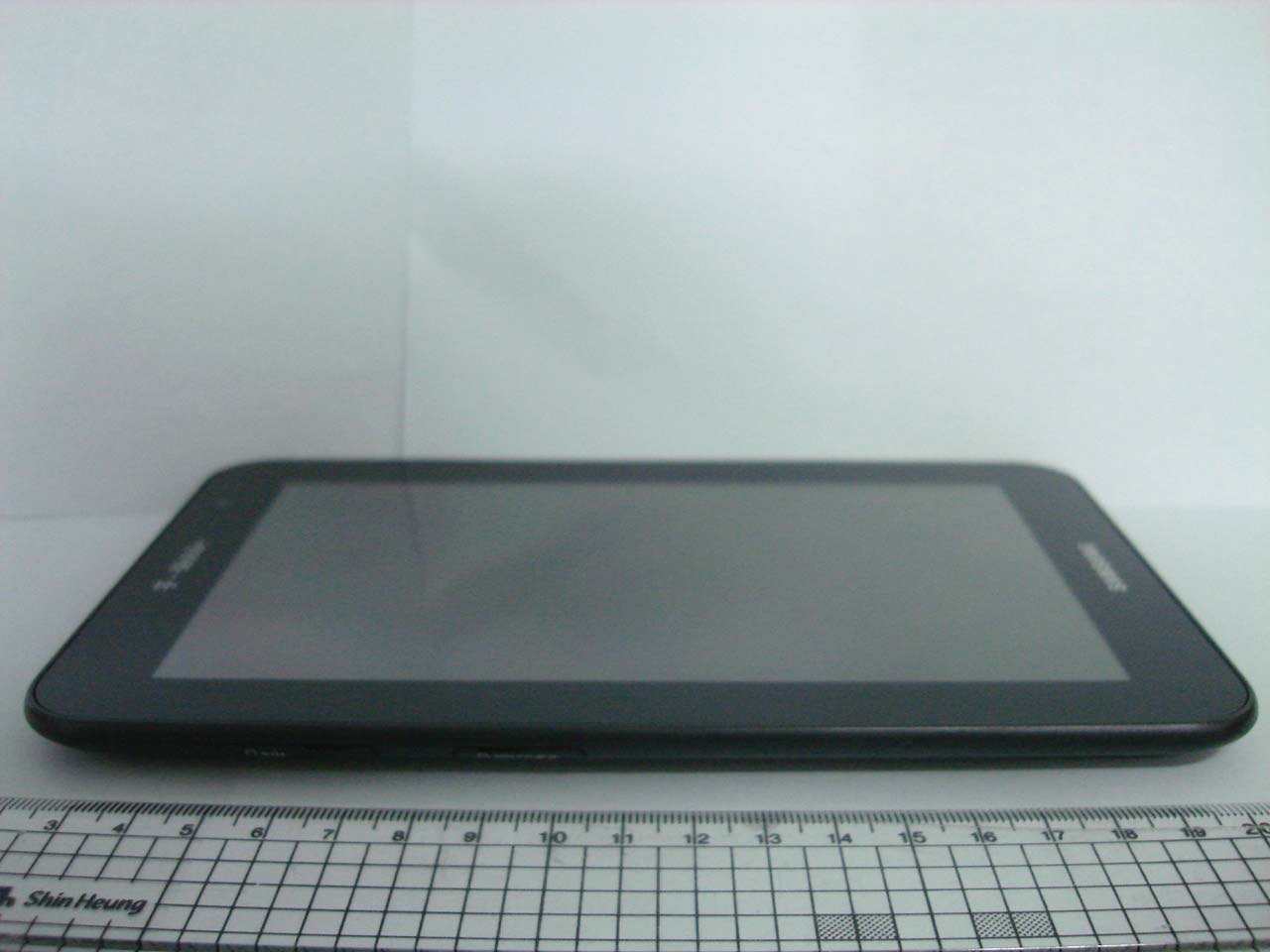

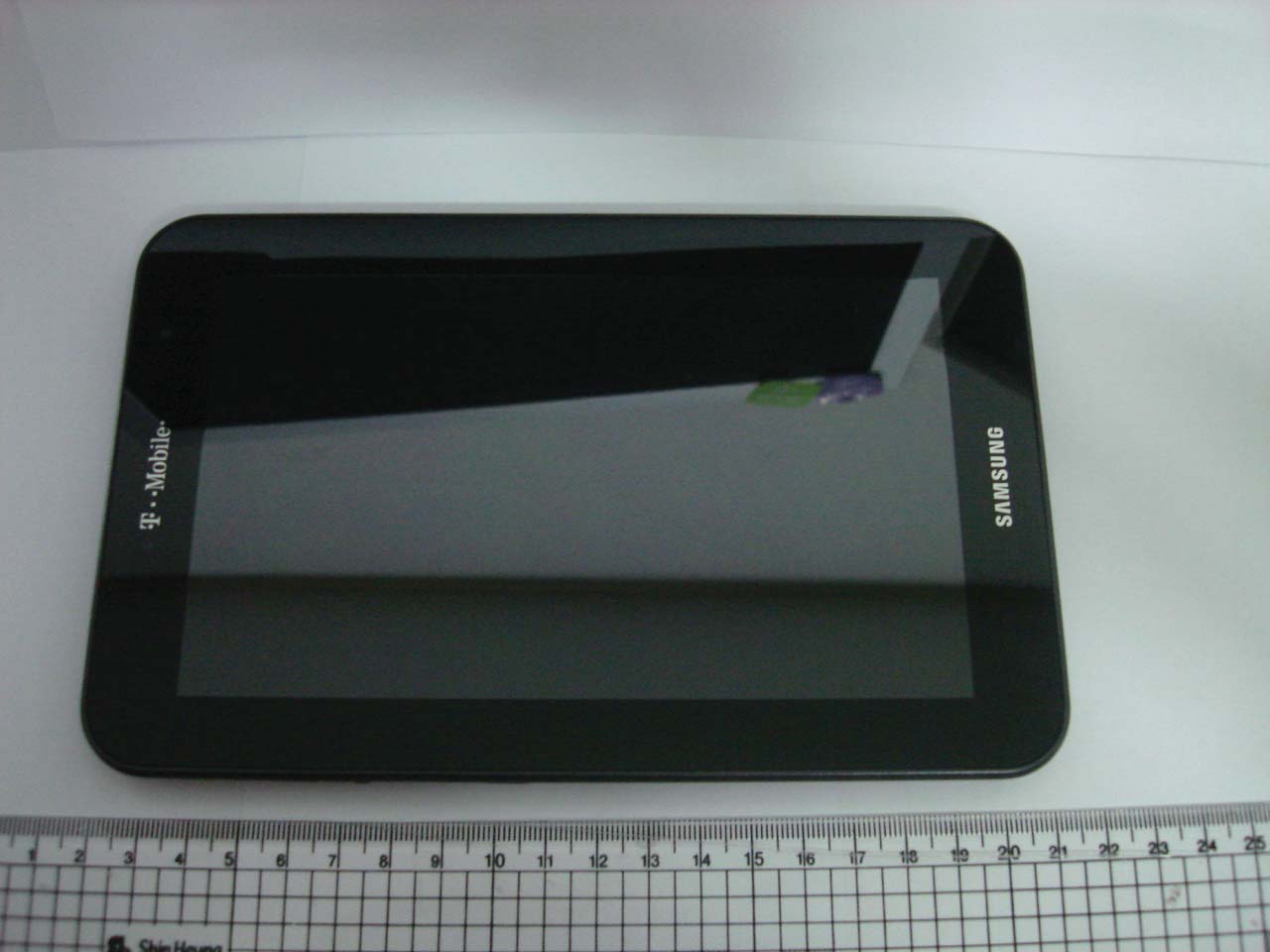

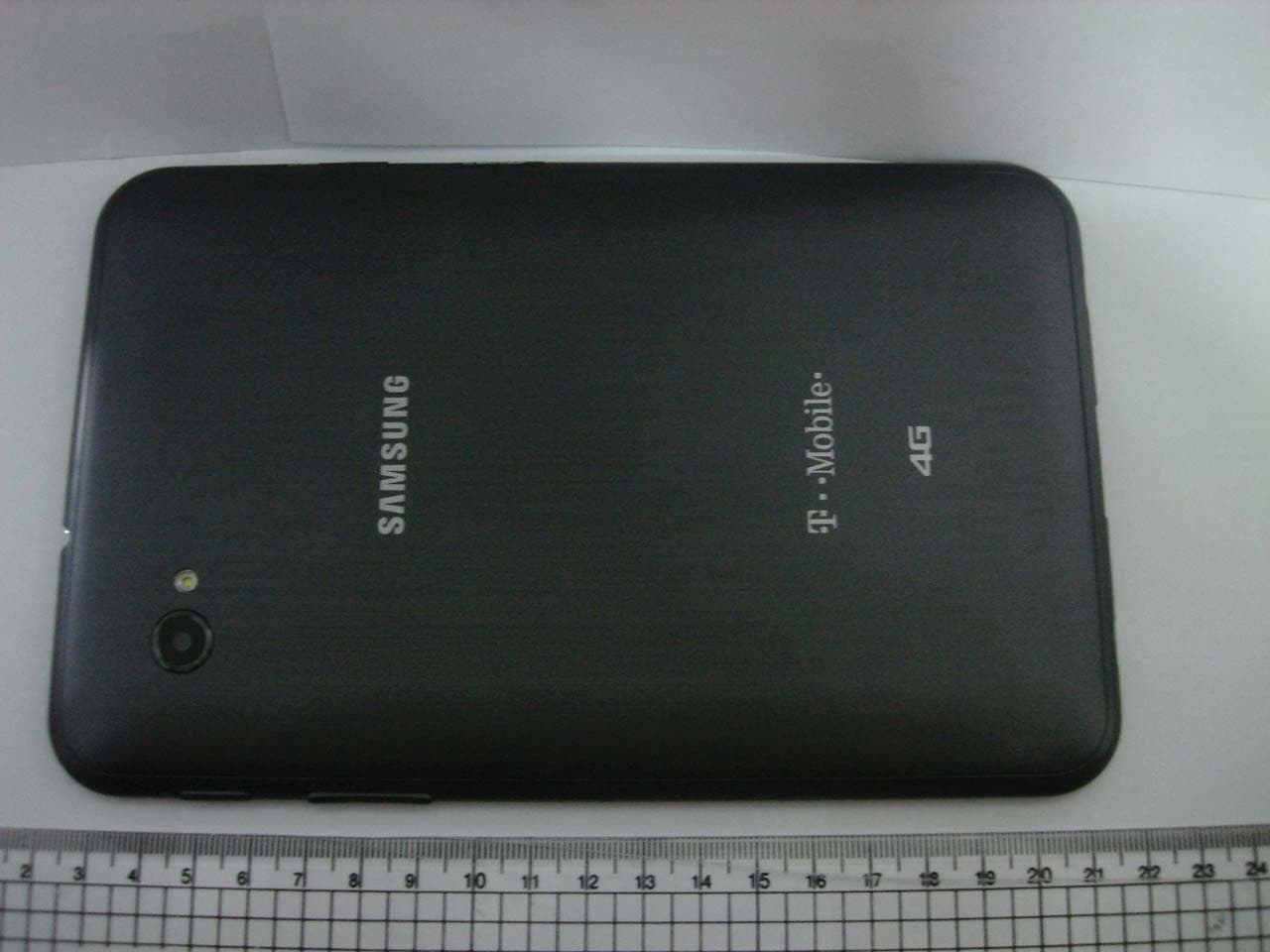

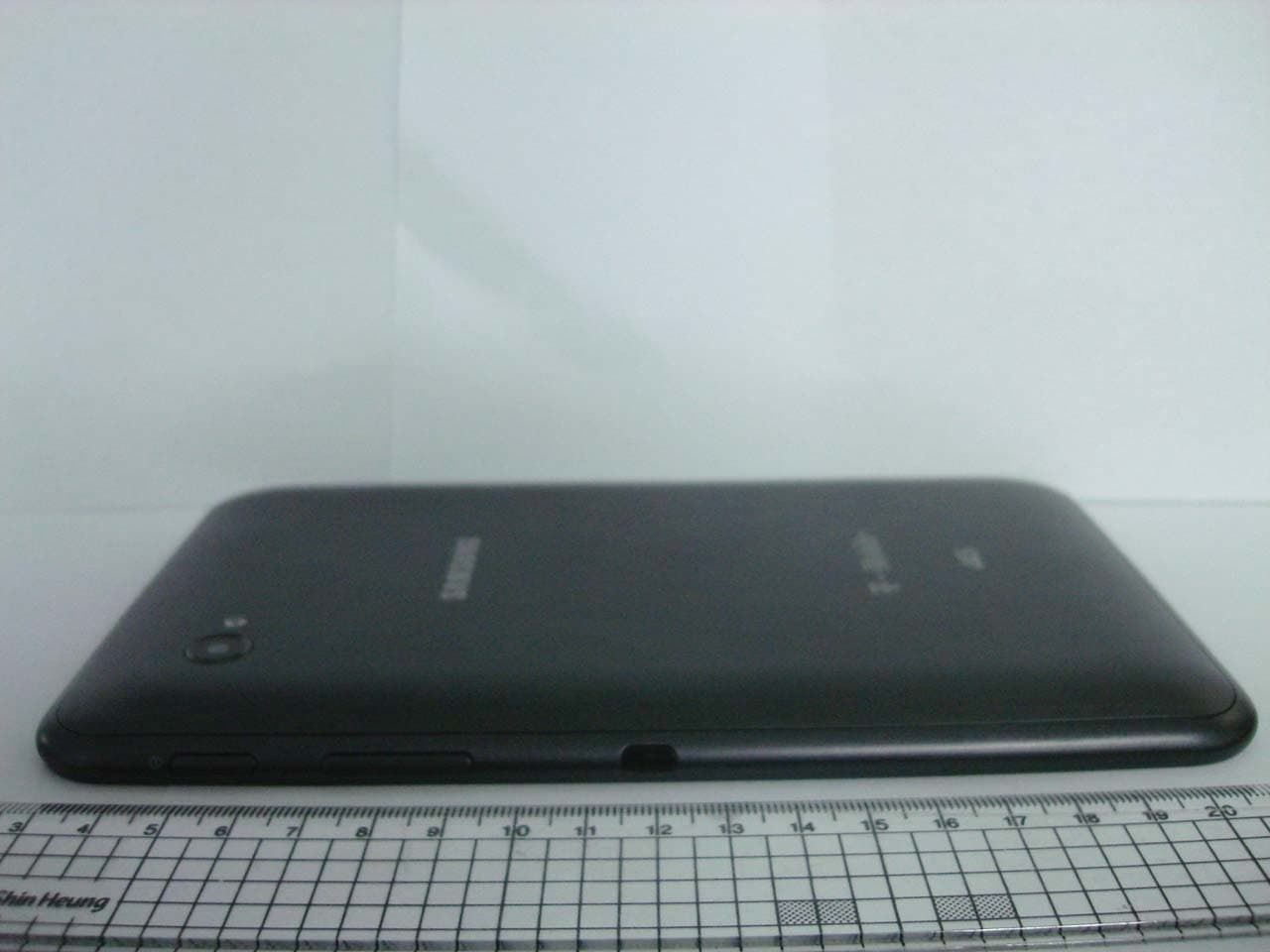

A3LSGHT869Tablet with 802.11abgn, BT3.0

User manual SGH-T869 Draft 4 2011-08-20 Only for Marketing using this manual This user manual has been specially designed to guide you through the functions and features of your mobile phone. To get started quickly, refer to “introducing your mobile phone,” “ 오류! 참조 원본을 찾을 수 없습니다.,” and “오류! 참조 원본을 찾을 수 없습니다. .” Instructional icons Before you start, familiarise yourself with the icons you will see in this manual: Warning—situations that could cause injury to yourself or others Caution—situations that could cause damage to your phone or other equipment Note—notes, usage tips, or additional information  Refer to—pages with related information; for example:  p. 12 (represents “see page 12”) Õ Followed by—the order of options or menus you must select to perform a step; for example: In Menu mode, select Messages Õ Create new message (represents Messages, followed by Create new message) [ ] Square brackets—phone keys; for example: [ ](represents the Power/ Menu exit key) < > Angled brackets—softkeys that control different functions at each screen; for example: <OK> (represents the OK softkey) Copyright information Rights to all technologies and products that comprise this device are the property of their respective owners:  Bluetooth ® is a registered trademark of the Bluetooth SIG, Inc. worldwide  Java™ is a trademark of Sun Microsystems, Inc.  Windows Media Player ® is a registered trademark of Microsoft Corporation. contents safety and usage information Safety warnings Safety precautions Important usage information introducing your mobile phone Unpack .. Phone layout Keys Display Icons assembling and preparing your mobile phone Install the SIM card and battery Charge the battery using basic functions Turn your phone on and off Access menus Customise your phone Use basic call functions Send and view messages Add and find contacts troubleshooting safety and usage information Comply with the following precautions to avoid dangerous or illegal situations and ensure peak performance of your mobile phone. Safety warnings Keep your phone away from small children and pets Keep your phone and all accessories out of the reach of small children or animals. Small parts may cause choking or serious injury if swallowed. Protect your hearing Excessive exposure to sound at high volumes can cause hearing damage. Always turn the volume down before plugging the earphones into an audio source and use only the minimum volume setting necessary to hear your conversation or music. Install mobile phones and equipment with caution Ensure that any mobile phones or related equipment installed in your vehicle are securely mounted. Avoid placing your phone and accessories near or in an air bag deployment area. Improperly installed wireless equipment can cause serious injury when air bags inflate rapidly. Handle and dispose of batteries and chargers with care  Use only Samsung-approved batteries and chargers specifically designed for your phone. Incompatible batteries and chargers can cause serious injuries or damage to your phone.  Never dispose of batteries or phones in a fire. Follow all local regulations when disposing used batteries or phones.  Never place batteries or phones on or in heating devices, such as microwave ovens, stoves, or radiators. Batteries may explode when overheated.  Never crush or puncture the battery. Avoid exposing the battery to high external pressure, which can lead to an internal short circuit and overheating. Avoid interference with pacemakers Maintain a minimum of 15 cm (6 inches) between mobile phones and pacemakers to avoid potential interference, as recommended by manufacturers and the independent research group, Wireless Technology Research. If you have any reason to suspect that your phone is interfering with a pacemaker or other medical device, turn off the phone immediately and contact the manufacturer of the pacemaker or medical device for guidance. Turn off the phone in potentially explosive environments Do not use your phone at refuelling points (service stations) or near fuels or chemicals. Turn off your phone whenever directed by warning signs or instructions. Your phone could cause explosions or fire in and around fuel or chemical storage and transfer areas or blasting areas. Do not store or carry flammable liquids, gases, or explosive materials in the same compartment as the phone, its parts, or accessories. Reduce the risk of repetitive motion injuries When sending text messages or playing games on your phone, hold the phone with a relaxed grip, press the keys lightly, use special features that reduce the number of keys you have to press (such as templates and predictive text), and take frequent breaks. Safety precautions Drive safely at all times Avoid using your phone while driving and obey all regulations that restrict the use of mobile phones while driving. Use hands-free accessories to increase your safety when possible. Follow all safety warnings and regulations Comply with any regulations that restrict the use of a mobile phone in a certain area. Use only Samsung-approved accessories Using incompatible accessories may damage your phone or cause injury. Turn off the phone near medical equipment Your phone can interfere with medical equipment in hospitals or health care facilities. Follow all regulations, posted warnings, and directions from medical personnel. Turn off the phone or disable the wireless functions when in an aircraft Your phone can cause interference with aircraft equipment. Follow all airline regulations and turn off your phone or switch to a mode that disables the wireless functions when directed by airline personnel. Protect batteries and chargers from damage Avoid exposing batteries to very cold or very hot temperatures (below 0° C/32° F or above 45° C/ 113° F). Extreme temperatures can reduce the charging capacity and life of your batteries. Prevent batteries from contacting metal objects, as this can create a connection between the + and -…

Text truncated - open the document above for the full version.

The SGH-T869 supports the following frequency ranges and is only client device in 5GHz bands. The following table lists the actual channel/frequency plan for the 2.4GHz and 5GHz operation in USA. This device only supports Active scanning on non-DFS frequencies. WLAN: 2412-2462 MHz. 5745 – 5825MHz UNII: 5180 – 5240MHz, 5260 – 5320MHz, 5500 – 5700MHz Channel Freq.(MHz) Scanning Channel Freq.(MHz) Scanning 1 2412 Active 7 2442 Active 2 2417 Active 8 2447 Active 3 2422 Active 9 2452 Active 4 2427 Active 10 2457 Active 5 2432 Active 11 2462 Active 6 2437 Active Channel Freq. (MHz) Scanning Channel Freq. (MHz) Scanning Channel Freq. (MHz) Scanning 36 5180 Active 64 5320 Passive 140 5700 Passive 40 5200 Active 100 5500 Passive 149 5745 Active 44 5220 Active 104 5520 Passive 153 5765 Active 48 5240 Active 108 5540 Passive 157 5785 Active 52 5260 Passive 112 5560 Passive 161 5805 Active 56 5280 Passive 116 5580 Passive 165 5825 Active 60 5300 Passive 136 5680 Passive Ad-hoc or peer-to-peer modes are not supported operating in the UNII bands. This NII transmitter is a client-only device without radar detection capability. The client software and associated drivers can not initiate any transmission on DFS frequencies, which includes transmissions for beacon, ad-hoc, and peer- to- peer modes. Operation as an access point on non-DFS legacy frequencies is also not supported. The software is locked by the module manufacturer such that there is no access and the settings can not be changed by the integrator of the module or the end user of the device. When Hotspot Mode is activated by the end-user, all 5GHz WIFI bands are disabled This NII transmitter is a client- only device without radar detection capability, and that the client software and associated drivers will not initiate any transmission on DFS frequencies, which includes transmissions for beacon ad-hoc peer-to- peer modes. In 5GHz band AR6003X module works only for necessary data transmission. When data transmission is not needed, this device actually shutdown Tx path. So, This device automatically discontinues its transmission in case of either absence of information to transmit or operational failure.

Date: August 30, 2011 Federal Communications Commission 7435 Oakland Mills Road Columbia MD 21046 Subject: Request for Confidentiality FCC ID: A3LSGHT869 To Whom It May Concern: Pursuant to the provisions of Sections 0.457 and 0.459 of the Commission’s rules (47 CFR §§ 0.457, 0.459), we are requesting the Commission to withhold the following attachments as confidential document from public disclosure indefinitely. Schematics Block Diagram Operational Description Antenna Specification Parts List Tune-Up Procedure Above mentioned document contains detailed system and equipment description are considered as proprietary information in operation of the equipment. The public disclosure of above documents might be harmful to our company and would give competitor an unfair advantage in the market. In additional to above mentioned documents, pursuant to Public Notice DA 04-1705 of the Commission’s policy, in order to comply with the marketing regulations in 47 CFR §2.803 and the importation rules in 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices. We are requesting the commission to grant short-term confidentiality request on the following attachments until 180 days External Photos Internal Photos Test Setup Photos User Manual It is our understanding that all measurement test reports, FCC ID label format and correspondence during certification review process cannot be granted as confidential documents and such information will be available for public review once the grant of equipment authorization is issued. Best Regards Sang Kyung (Peter), Ra/ General Manager Samsung Electronics CO. LTD TEL: 310-900-5250 FAX: 310-537-5500 E-mail: [email protected]

Date: February 9, 2011 Federal Communications Commission 7435 Oakland Mills Road Columbia MD 21046 c.c. Compliance Certification Services Certification Division 47173 Benicia Street Fremont, CA 94538, USA To whom it may concern: I, the undersigned, hereby authorize Ms. Claire Hoque/Application Examiner of UL CCS, to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by Ms. Claire Hoque of UL CCS on our behalf shall have the same effect as acts of our own. I, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). In authorizing UL CCS as our agent, we still recognize that we are responsible to: a) comply with the relevant provisions of the certification program; b) make all necessary arrangements for the conduct of the evaluation, including provision for examining documentation and access to all areas, records (including internal audit reports) and personnel for the purposes of evaluation (e.g. testing, inspection, assessment, surveillance, reassessment) and resolution of complaints; c) make claims regarding certification only in respect of the scope for which certification has been granted; d) do not use our product certification in such a manner as to bring the Certification Division into disrepute and not make any statement regarding our product certification which the Certification Division may consider misleading or unauthorized; e) upon suspension or cancellation of certification, discontinue use of all advertising matter that contains any reference thereto and return any certification documents as required by the Certification Division; f) use certification only to indicate the products are certified as being in conformity with specified standards; g) endeavor to ensure that no certificate or report nor any part thereof is used in a misleading manner; h) ensure that any reference to our product certification in communication media such as documents, brochures or advertising, complies with the requirements of the Certification Division; i) keep a record of all complaints made known to the us relating to the product’s compliance with requirements of the relevant standard and to make these records available to the Certification Division when requested; j) take appropriate action with respect to such complaints and any deficiencies found in products or services that affect compliance with the requirements for certification; k) document the actions taken. This authorization is valid until further written notice from the applicant. Sincerely Yours, Sang Kyung (Peter), Ra/ General Manager Samsung Electronics CO. LTD TEL: 310-900-5250 FAX: 310-537-5500 E-mail: [email protected] REMARK: 1. This authorization letter will be sent along with your application when filing with the Certification Division. 2. Please follow the format and type it on company letterhead and send original to us. 3. Authorized signature must be in agreement with grantee code contact in FCC database.

SAMSUNG Electronics America INC. Federal Communications Commission Date: May 19, 2011 Authorization and Evaluation Division 7435 Oakland Mills Road AGENT AUTHORIZATION LETTER To whom it may concern, We, the undersigned, Samsung Electronics Co., Ltd. hereby authorize the following to act on our behalf, as our agent, in all matters relating to all processes required according to FCC Part 15B and 15C for Samsung Electronics Co., Ltd. products (Grantee Code : A3L): John SC Lee If you have any questions regarding the authorization, please do not hesitate to contact us. Sincerely Yours, ____________________________________________ Sang Kyung, Ra/General Manager American QA Lab SAMSUNG Electronics America INC. E-mail : [email protected] Telephone : 310-900-5250

{ŒG“ˆ‰Œ“GšG—“ˆŠŒ‹GonGBottom of rear cover This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Date: 10/6/2011 Test Laboratory: UL CCS SAR Lab A 2.4 GHz Band Communication System: IEEE 802.11b/g/n 2.4 GHz Band; Frequency: 2412 MHz; Duty Cycle: 1:1 Medium parameters used (interpolated): f = 2412 MHz; σ = 1.929 mho/m; ε r = 51.435; ρ = 1000 kg/m 3 Phantom section: Flat Section Room Ambient Temperature: 24.0 deg. C; Liquid Temperature: 23.0 deg. C DASY5 Configuration: - Area Scan setting - Find Secondary Maximum Within: 2.0 dB and with a peak SAR value greater than 0.0012W/kg - Probe: EX3DV4 - SN3686; ConvF(6.86, 6.86, 6.86); Calibrated: 1/24/2011 - Sensor-Surface: 2.5mm (Mechanical Surface Detection (Locations From Previous Scan Used)), Sensor-Surface: 2.5mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1239; Calibrated: 11/17/2010 - Phantom: ELI v4.0(B); Type: QDOVA001BB; Serial: 1099 - Measurement SW: DASY52, Version 52.6 (2);SEMCAD X Version 14.4.5 (3634) Bottom Face/802.11b_Ch 1/Area Scan (101x151x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 1.137 mW/g Bottom Face/802.11b_Ch 1/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 24.808 V/m; Power Drift = -0.07 dB Peak SAR (extrapolated) = 2.110 W/kg SAR(1 g) = 0.746 mW/g; SAR(10 g) = 0.297 mW/g Maximum value of SAR (measured) = 1.053 mW/g 0 dB = 1.050mW/g Date: 10/6/2011 Test Laboratory: UL CCS SAR Lab A 2.4 GHz Band Communication System: IEEE 802.11b/g/n 2.4 GHz Band; Frequency: 2412 MHz; Duty Cycle: 1:1 Bottom Face/802.11b_Ch 1/Z Scan (1x1x21): Measurement grid: dx=20mm, dy=20mm, dz=5mm Maximum value of SAR (measured) = 1.167 mW/g Date: 10/6/2011 Test Laboratory: UL CCS SAR Lab A 2.4 GHz Band Communication System: IEEE 802.11b WiFi 2.4GHz ; Frequency: 2412 MHz; Duty Cycle: 1:1 Medium parameters used (interpolated): f = 2412 MHz; σ = 1.929 mho/m; ε r = 51.435; ρ = 1000 kg/m 3 Phantom section: Flat Section Room Ambient Temperature: 24.0 deg. C; Liquid Temperature: 23.0 deg. C DASY5 Configuration: - Area Scan setting - Find Secondary Maximum Within: 2.0 dB and with a peak SAR value greater than 0.0012W/kg - Probe: EX3DV4 - SN3686; ConvF(6.86, 6.86, 6.86); Calibrated: 1/24/2011 - Sensor-Surface: 2.5mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1239; Calibrated: 11/17/2010 - Phantom: ELI v4.0(B); Type: QDOVA001BB; Serial: 1099 - Measurement SW: DASY52, Version 52.6 (2);SEMCAD X Version 14.4.5 (3634) Secondary Portrait/802.11b_ch 1/Area Scan (61x161x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 0.130 mW/g Secondary Portrait/802.11b_ch 1/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 7.916 V/m; Power Drift = 0.07 dB Peak SAR (extrapolated) = 0.274 W/kg SAR(1 g) = 0.127 mW/g; SAR(10 g) = 0.057 mW/g Maximum value of SAR (measured) = 0.197 mW/g Secondary Portrait/802.11b_ch 1/Zoom Scan (5x5x7)/Cube 1: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 7.916 V/m; Power Drift = 0.07 dB Peak SAR (extrapolated) = 0.213 W/kg SAR(1 g) = 0.087 mW/g; SAR(10 g) = 0.047 mW/g Maximum value of SAR (measured) = 0.121 mW/g 0 dB = 0.120mW/g Date: 10/6/2011 Test Laboratory: UL CCS SAR Lab A 2.4 GHz Band Communication System: IEEE 802.11b WiFi 2.4GHz ; Frequency: 2412 MHz; Duty Cycle: 1:1 Medium parameters used (interpolated): f = 2412 MHz; σ = 1.929 mho/m; ε r = 51.435; ρ = 1000 kg/m 3 Phantom section: Flat Section Room Ambient Temperature: 24.0 deg. C; Liquid Temperature: 23.0 deg. C DASY5 Configuration: - Area Scan setting - Find Secondary Maximum Within: 2.0 dB and with a peak SAR value greater than 0.0012W/kg - Probe: EX3DV4 - SN3686; ConvF(6.86, 6.86, 6.86); Calibrated: 1/24/2011 - Sensor-Surface: 2.5mm (Mechanical Surface Detection (Locations From Previous Scan Used)), Sensor-Surface: 2.5mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1239; Calibrated: 11/17/2010 - Phantom: ELI v4.0(B); Type: QDOVA001BB; Serial: 1099 - Measurement SW: DASY52, Version 52.6 (2);SEMCAD X Version 14.4.5 (3634) Front Face/802.11b_Ch 1_10 mm/Area Scan (101x131x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 0.022 mW/g Front Face/802.11b_Ch 1_10 mm/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 3.458 V/m; Power Drift = 0.07 dB Peak SAR (extrapolated) = 0.040 W/kg SAR(1 g) = 0.019 mW/g; SAR(10 g) = 0.012 mW/g Maximum value of SAR (measured) = 0.024 mW/g 0 dB = 0.020mW/g

Date: 10/7/2011 Test Laboratory: UL CCS SAR Lab A 5GHz Bands Communication System: WLAN 5GHz; Frequency: 5200 MHz; Duty Cycle: 1:1 Medium parameters used: f = 5200 MHz; σ = 5.319 mho/m; ε r = 49.867; ρ = 1000 kg/m 3 Phantom section: Flat Section Room Ambient Temperature: 24.0 deg. C; Liquid Temperature: 23.0 deg. C DASY5 Configuration: - Area Scan setting - Find Secondary Maximum Within: 2.0 dB and with a peak SAR value greater than 0.0012W/kg - Probe: EX3DV4 - SN3686; ConvF(3.98, 3.98, 3.98); Calibrated: 1/24/2011 - Sensor-Surface: 2.5mm (Mechanical Surface Detection (Locations From Previous Scan Used)), Sensor-Surface: 2.5mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1239; Calibrated: 11/17/2010 - Phantom: ELI v4.0(A); Type: QDOVA001BB; Serial: 1119 - Measurement SW: DASY52, Version 52.6 (2);SEMCAD X Version 14.4.5 (3634) Bottom Face/5.2GHz/802.11a_Ch 40/Area Scan (161x231x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (interpolated) = 0.980 mW/g Bottom Face/5.2GHz/802.11a_Ch 40/Zoom Scan (7x7x9)/Cube 0: Measurement grid: dx=4mm, dy=4mm, dz=2.5mm Reference Value = 13.328 V/m; Power Drift = 0.10 dB Peak SAR (extrapolated) = 2.528 W/kg SAR(1 g) = 0.505 mW/g; SAR(10 g) = 0.132 mW/g Maximum value of SAR (measured) = 1.055 mW/g 0 dB = 1.060mW/g Date: 10/7/2011 Test Laboratory: UL CCS SAR Lab A 5GHz Bands Communication System: WLAN 5GHz; Frequency: 5200 MHz; Duty Cycle: 1:1 Medium parameters used: f = 5200 MHz; σ = 5.319 mho/m; ε r = 49.867; ρ = 1000 kg/m 3 Phantom section: Flat Section Room Ambient Temperature: 24.0 deg. C; Liquid Temperature: 23.0 deg. C DASY5 Configuration: - Area Scan setting - Find Secondary Maximum Within: 2.0 dB and with a peak SAR value greater than 0.0012W/kg - Probe: EX3DV4 - SN3686; ConvF(3.98, 3.98, 3.98); Calibrated: 1/24/2011 - Sensor-Surface: 2.5mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1239; Calibrated: 11/17/2010 - Phantom: ELI v4.0(A); Type: QDOVA001BB; Serial: 1119 - Measurement SW: DASY52, Version 52.6 (2);SEMCAD X Version 14.4.5 (3634) Secondary Portrait/5.2 GHz/802.11a/Ch 40/Area Scan (91x221x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (interpolated) = 0.276 mW/g Secondary Portrait/5.2 GHz/802.11a/Ch 40/Zoom Scan (7x7x9)/Cube 0: Measurement grid: dx=4mm, dy=4mm, dz=2.5mm Reference Value = 7.353 V/m; Power Drift = 0.09 dB Peak SAR (extrapolated) = 0.741 W/kg SAR(1 g) = 0.157 mW/g; SAR(10 g) = 0.066 mW/g Maximum value of SAR (measured) = 0.269 mW/g 0 dB = 0.270mW/g Date: 9/29/2011 Test Laboratory: UL CCS SAR Lab A 5GHz Bands Communication System: WLAN 5GHz; Frequency: 5190 MHz; Duty Cycle: 1:1 Medium parameters used: f = 5190 MHz; σ = 5.235 mho/m; ε r = 51.621; ρ = 1000 kg/m 3 Phantom section: Flat Section Room Ambient Temperature: 24.0 deg. C; Liquid Temperature: 23.0 deg. C DASY5 Configuration: - Area Scan setting - Find Secondary Maximum Within: 2.0 dB and with a peak SAR value greater than 0.0012W/kg - Probe: EX3DV4 - SN3686; ConvF(3.98, 3.98, 3.98); Calibrated: 1/24/2011 - Sensor-Surface: 2.5mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1239; Calibrated: 11/17/2010 - Phantom: ELI v4.0(B); Type: QDOVA001BB; Serial: 1099 - Measurement SW: DASY52, Version 52.6 (2);SEMCAD X Version 14.4.5 (3634) Bottom Face/5.2GHz/802.11n HT40/Ch 38/Area Scan (161x231x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (interpolated) = 0.875 mW/g Bottom Face /5.2GHz/802.11n HT40/Ch 38/Zoom Scan (7x7x9)/Cube 0: Measurement grid: dx=4mm, dy=4mm, dz=2.5mm Reference Value = 11.818 V/m; Power Drift = -0.16 dB Peak SAR (extrapolated) = 3.523 W/kg SAR(1 g) = 0.729 mW/g; SAR(10 g) = 0.171 mW/g Maximum value of SAR (measured) = 1.521 mW/g 0 dB = 1.520mW/g Date: 9/29/2011 Test Laboratory: UL CCS SAR Lab A 5GHz Bands Communication System: WLAN 5GHz; Frequency: 5190 MHz; Duty Cycle: 1:1 Bottom Face /5.2GHz/802.11n HT40/Ch 38/Z Scan (1x1x21): Measurement grid: dx=20mm, dy=20mm, dz=5mm Maximum value of SAR (measured) = 0.638 mW/g Date: 9/30/2011 Test Laboratory: UL CCS SAR Lab A 5GHz Bands Communication System: WLAN 5GHz; Frequency: 5190 MHz; Duty Cycle: 1:1 Medium parameters used: f = 5190 MHz; σ = 5.235 mho/m; ε r = 51.621; ρ = 1000 kg/m 3 Phantom section: Flat Section Room Ambient Temperature: 25.0 deg. C; Liquid Temperature: 24.0 deg. C DASY5 Configuration: - Area Scan setting - Find Secondary Maximum Within: 2.0 dB and with a peak SAR value greater than 0.0012W/kg - Probe: EX3DV4 - SN3686; ConvF(3.98, 3.98, 3.98); Calibrated: 1/24/2011 - Sensor-Surface: 2.5mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1239; Calibrated: 11/17/2010 - Phantom: ELI v4.0(B); Type: QDOVA001BB; Serial: 1099 - Measurement SW: DASY52, Version 52.6 (2);SEMCAD X Version 14.4.5 (3634) Secondary Portrait/5.2 GHz 802.11n HT40/Ch 38/Area Scan (101x201x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (interpolated) = 0.266 mW/g Secondary Portrait/5.2 GHz 802.11n HT40/Ch 38/Zoom Scan (7x7x9)/Cube 0: Measurement grid: dx=4mm, dy=4mm, dz=2.5mm Reference Value = 7.616 V/m; Power Drift = 0.13 dB Peak SAR (extrapolated) = 0.958 W/kg SAR(1 g) = 0.210 mW/g; SAR(10 g) = 0.075 mW/g Maximum value of SAR (measured) = 0.348 mW/g 0 dB = 0.350mW/g Date: 10/7/2011 Test Laboratory: UL CCS SAR Lab A 5GHz Bands Communication System: WLAN 5GHz; Frequency: 5300 MHz; Duty Cycle: 1:1 Medium parameters used: f = 5300 MHz; σ = 5.448 mho/m; ε r = 49.672; ρ = 1000 kg/m 3 Phantom section: Flat Section Room Ambient Temperature: 25.0 deg. C; Liquid Temperature: 24.0 deg. C DASY5 Configuration: - Area Scan setting - Find Secondary Maximum Within: 2.0 dB and with a peak SAR value greater than 0.0012W/kg - Probe: EX3DV4 - SN3686; ConvF(3.7, 3.7, 3.7); Calibrated: 1/24/2011 - Sensor-Surface: 2.5mm (Mechanical Surface Detection (Locations From Previous Scan Used)), Sensor-Surface: 2.5mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1239; Calibrated: 11/17/2010 - Phantom: ELI v4.0(A); Type: QDOVA001BB; Serial: 1119 - Measurement SW: DASY52, Version 5…

Text truncated - open the document above for the full version.

Page 1 of 2 Impedance Plot for D2450V2 SN: 706 MHz with Head TSL at 245051.40.448.757-1.402.61.7997 DeltaMeasured (Ω)Cal. (Ω) Return Loss Plot for D2450V2 SN: 706 MHzCal. (dB)Measured (dB)Delta with Head TSL at 2450-36.7-34.48-6.05 Page 2 of 2 Impedance Plot for D2450V2 SN: 706 MHz with Body TSL at 245047.21.749.9790.68-2.81.017 DeltaMeasured (Ω)Cal. (Ω) Return Loss Plot for D2450V2 SN: 706 MHzCal. (dB)Measured (dB)Delta with Body TSL at 2450-29.5-35.16119.19

FCC OET BULLETIN 65 SUPPLEMENT C 01-01 IEEE STD 1528:2003 SAR EVALUATION REPORT For Cellular/PCS GPRS/EDGE, AWS/PCS WCDMA Tablet with 802.11abgn, BT3.0 MODEL: SGH-T869 FCC ID: A3LSGHT869 REPORT NUMBER: 11I14017-6B ISSUE DATE: November 4, 2011 Prepared for Samsung Electronics Co., Ltd. 18600 Broadwick St. Rancho Dominguez, CA 90220 Prepared by COMPLIANCE CERTIFICATION SERVICES (UL CCS) 47173 BENICIA STREET FREMONT, CA 94538, U.S.A. TEL: (510) 771-1000 FAX: (510) 661-0888 REPORT NO: 11I14017-6B DATE: November 4, 2011 FCC ID: A3LSGHT869 Page 2 of 81 COMPLIANCE CERTIFICATION SERVICES (UL CCS) FORM NO: CCSUP4031B 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of UL CCS. Revision History Rev. Issue Date Revisions Revised By -- October 11, 2011 Initial Issue -- A October 13, 2011 Updated report based on reviewer’s comments 1. Sec. 5.3: Simultaneous Transmission Conditions - Updated Simultaneous Transmission table to include BT 2. Sec. 8: Liquid Parameters - Deleted “The differences with respect to the interpolated values were well within the desired ±5% for the whole 5 to 5.8 GHz range.” 3. Sec. 12.2: Exposure conditions for WLAN - Updated from “Antenna-to-User distance” to “Antenna-to-edge/surface” 4. Sec. 13.5.1 & 13.5.2: 2.4 GHz & 5 GHz Bands - Updated to “..SAR is  0.8 W/kg and operating frequency band < 100 MHz per KDB 447498..) - Deleted note # 2 “SAR was too low (noise floor)” 5. Sec. 13.5.2: 5 GHz Bands - Updated to“..SAR is  0.4 W/kg and operating frequency band ≤ 200 MHz per KDB 447498 1) e) ii)...) - Added additional note # 2 blow 5.5 GHz SAR table. 6. Sec. 16.2: Body exposure condition (3G+WiFi 5GHz) - Removed “hotspot” Sunny Shih A1 October 27, 2011 Added Sec. 5.6 Summary table of power reduction dB levels per mode & band. Sunny Shih B November 4, 2011 1. Additional SAR with the EUT corner in contact with the phantom at a 45 degree angle (Top/Sec. Landscape). 2. Updated Sec. 12 Summary of test configurations, to include secondary landscape with 45° angle. Sunny Shih REPORT NO: 11I14017-6B DATE: November 4, 2011 FCC ID: A3LSGHT869 Page 3 of 81 COMPLIANCE CERTIFICATION SERVICES (UL CCS) FORM NO: CCSUP4031B 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of UL CCS. Table of Contents 1. Attestation of Test Results ............................................................................................................... 6 2. Test Methodology .............................................................................................................................. 7 3. Facilities and Accreditation .............................................................................................................. 7 4. Calibration and Uncertainty .............................................................................................................. 8 4.1. Measuring Instrument Calibration ................................................................................................. 8 4.2. Measurement Uncertainty............................................................................................................. 9 5. Equipment Under Test .................................................................................................................... 10 5.1. Band and Air interlaces .............................................................................................................. 10 5.2. Personal Hotspot Mode .............................................................................................................. 10 5.3. Simultaneous Transmission Conditions ...................................................................................... 10 5.4. Power Sensor ............................................................................................................................. 10 5.5. Power Reduction Implementation ............................................................................................... 10 5.6. Summary Table of Power Reduction dB Levels per Mode & Band ............................................ 11 6. Top Edge and Back Sensor Coverage Area .................................................................................. 14 6.1. Back Sensor ............................................................................................................................... 14 6.2. Top Edge Sensor ........................................................................…

Text truncated - open the document above for the full version.
