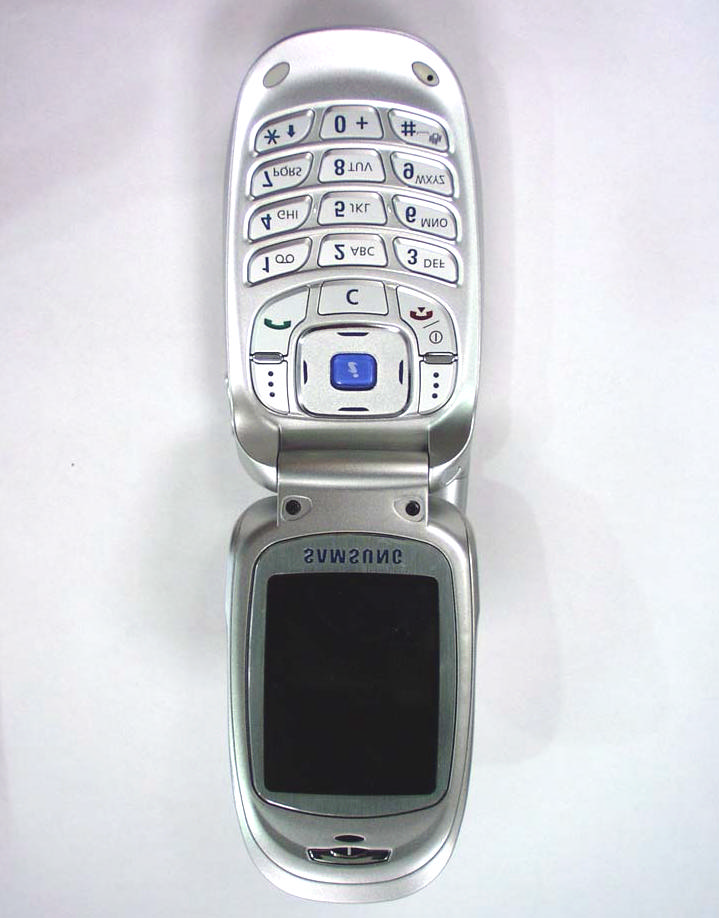

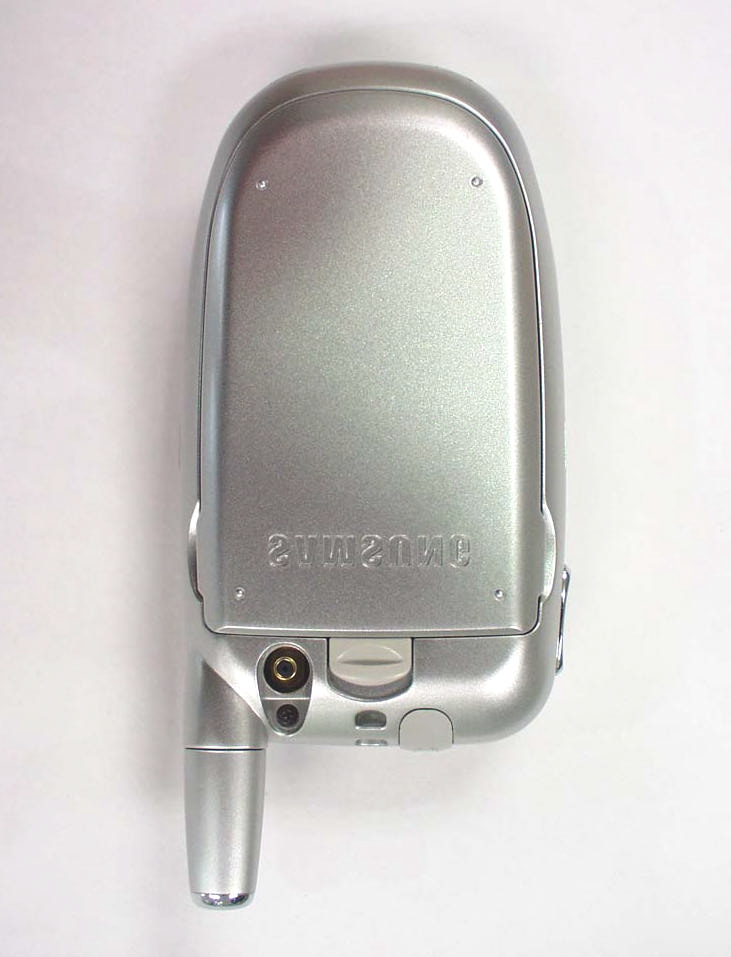

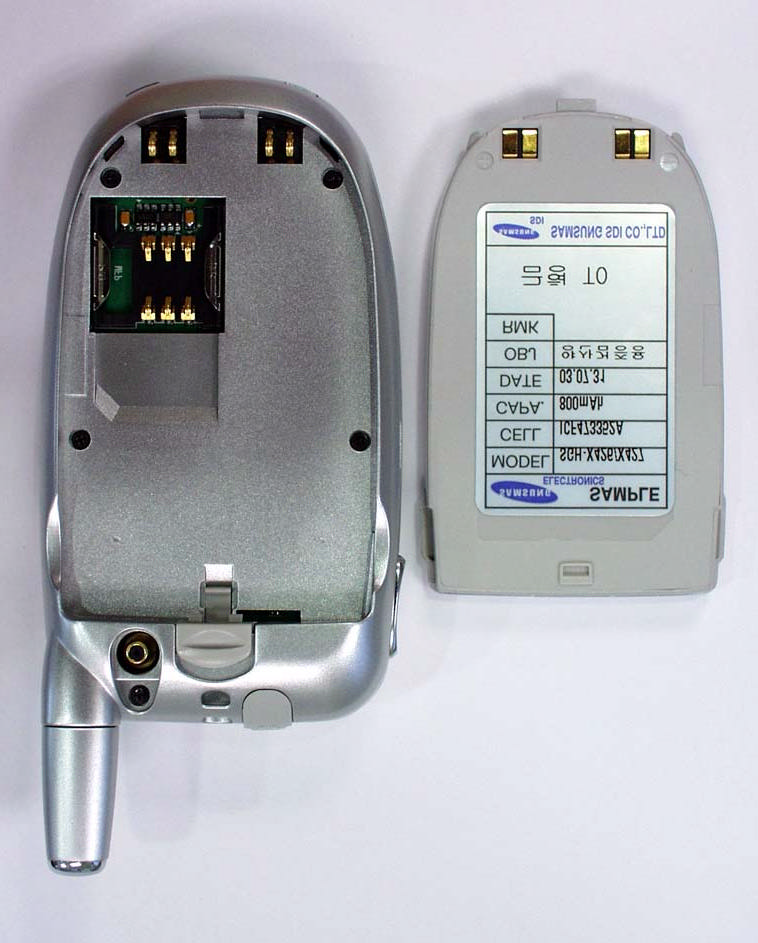

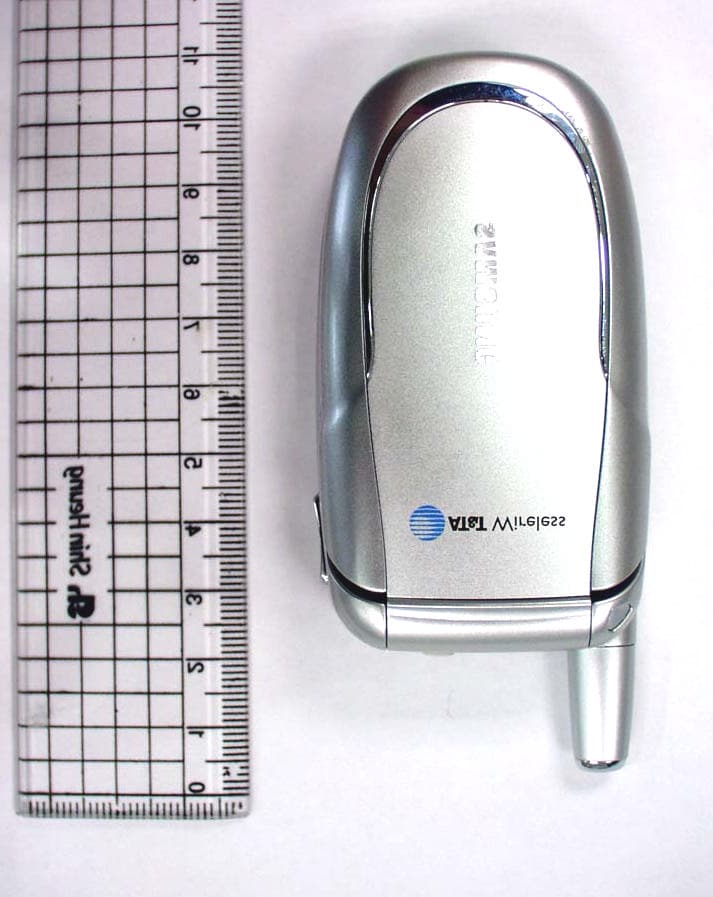

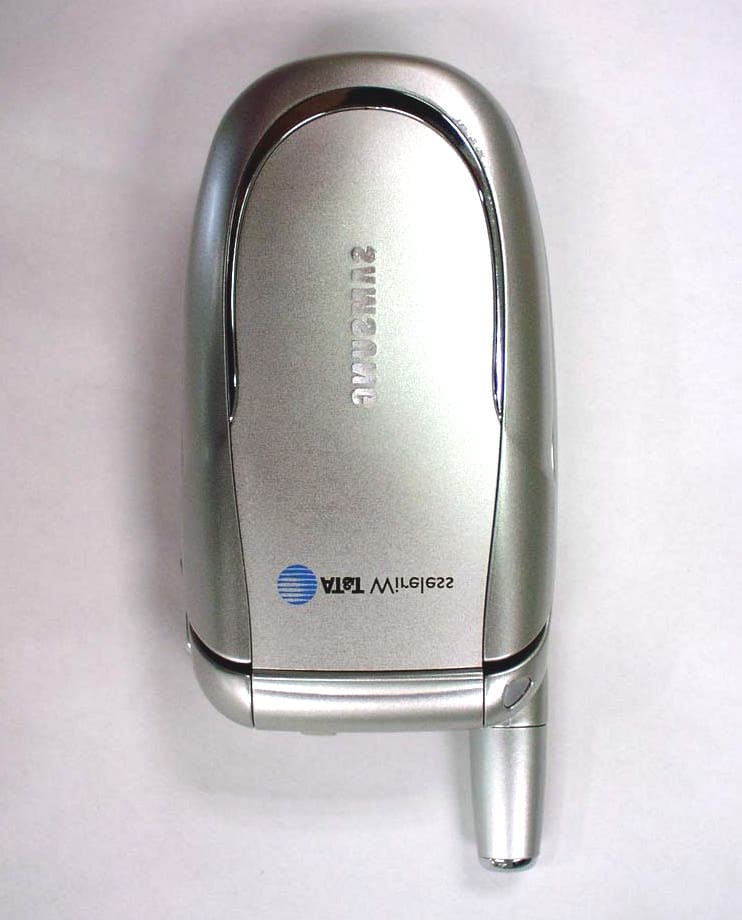

A3LSGHX426Dual-Band GSM Phone (Models: SGH-X426/X427)

DUAL BAND GPRS TELEPHONE SGH-X426 ELECTRONICS * Some of the contents in this manual may differ from your phone, depending on the software installed or your service provider. Printed in Korea Code No.: GH68-xxxxxA English. 08/2003. Rev. 1.0 www.samsungmobile.com 3rd version (2003. 08. 04) 2 3 Contents Important Safety Precautions...................... 7 Unpacking.................................................... 9 Your Phone................................................ 10 Phone Layout.................................................... 10 Display............................................................. 13 Service Light..................................................... 15 Getting Started.......................................... 16 Installing the SIM Card....................................... 16 Charging a Battery............................................ 18 Switching the Phone On/Off................................ 20 Call Functions............................................ 21 Making a Call.................................................... 21 Adjusting the Volume......................................... 23 Answering a Call................................................ 24 Viewing Missed Calls.......................................... 25 Quickly Switching to Silent Mode......................... 27 Selecting Functions and Options................ 28 Phonebook................................................. 30 Storing a Number with a Name............................ 30 Using Phonebook Entry Options........................... 33 Searching for a Number in Phonebook.................. 34 Editing a Caller Group........................................ 36 Speed-dialing.................................................... 37 Checking the Memory Status............................... 39 Entering Text............................................. 40 Changing the Text Input Mode............................ 41 Using T9 Mode.................................................. 42 Using the Upper/Lower-Case Character Mode........ 43 Using Number Mode........................................... 45 Using Symbol Mode........................................... 45 Contents 4 Options During a Call................................. 46 Putting a Call on Hold......................................... 46 Switching the Microphone Off (Mute).................... 47 Muting/Sending Key Tones.................................. 48 Sending DTMF Tones.......................................... 48 Searching for a Number in Phonebook.................. 49 Using the Message Service.................................. 49 Call Waiting...................................................... 50 Making a Multi-party Call.................................... 50 Using the Menus......................................... 53 Accessing a Menu Function by Scrolling................ 53 Accessing a Menu Function by Using Its Shortcut... 54 List of Menu Functions........................................ 55 Messages................................................... 60 Inbox (Menu 1.1)................................................. 60 Outbox (Menu 1.2)............................................... 62 Write New (Menu 1.3).......................................... 63 Templates (Menu 1.4).......................................... 65 Settings (Menu 1.5).............................................. 66 My Objects (Menu 1.6)......................................... 67 Memory Status (Menu 1.7)................................... 68 Voice Mail (Menu 1.8)........................................... 69 Broadcast (Menu 1.9)........................................... 70 Call Records............................................... 72 Missed Calls (Menu 2.1)........................................ 72 Incoming Calls (Menu 2.2).................................... 73 Outgoing Calls (Menu 2.3).................................... 73 Delete All (Menu 2.4)............................................ 74 Call Time (Menu 2.5)............................................ 74 Call Cost (Menu 2.6)............................................. 75 Sound Settings........................................... 76 Ring Tone (Menu 3.1)........................................... 76 Ring Volume (Menu 3.2)....................................... 76 Alert Type (Menu 3.3) ........................................ 77 Keypad Tone (Menu 3.4)....................................... 77 Message Tone (Menu 3.5)..................................... 78 Folder Tone (Menu 3.6)........................................ 78 Power On/Off (Menu 3.7)...................................... 79 Extra Tones (Menu 3.8)........................................ 79 Contents 5 Phone Settings........................................... 80 My Settings (Menu 4.1)........................................ 80 Greeting Message (Menu 4.2)............................... 81 Own Number (Menu 4.3)...................................... 81 Language (Menu 4.4)........................................... 82 Security (Menu 4.5).............................................. 82 Display Settings (Menu 4.6).................................. 85 Extra Settings (Menu 4.7)..................................... 87 Short Cut (Menu 4.8)............................................ 88 Reset Settings (Menu 4.9).................................... 88 Organizer................................................... 89 Calendar (Menu 5.1)............................................. 89 To Do List (Menu 5.2)........................................... 92 Time & Date (Menu 5.3)....................................... 95 Alarm (Menu 5.4)................................................. 96 Calculator (Menu 5.5)........................................... 97 Currency Exchange (Menu 5.6)............................. 98 Network Services....................................... 99 Call Forwarding (Menu 6.1)................................... 99 Call Barring (Menu 6.2).....…

Text truncated - open the document above for the full version.

September 8, 2003 Federal Communications Commission Authorization and Evaluation Div. Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 In re: Samsung Electronics Co., Ltd. FCC ID.: A3LSGHX426 Request for Confidentiality To Whom It May Concern: In accordance with 0.459 of CFR 47, Samsung Electronics Co., Ltd. requests confidentiality for the Block Diagram, Schematics, Parts list, Tune-up Procedure, Operational and Circuit Description of the attached test report. These documents contain detailed system and equipment descriptions and related information about the product, which Samsung Electronics Co., Ltd. considers to be proprietary, confidential, and a custom design and otherwise, would not release to the general public. Since this design is a basis from which future technological products will evolve, Samsung feels that this information would be of benefit to its competitors, and that the disclosure of the information in these documents would give our competitors an unfair advantage in the market. Sincerely, Wallace Oh Engineering Manager Samsun Samsung Electronics America

© 2003 SAMSUNG ELECTRONICS Co., Ltd. SAMSUNG FCC ID: A3LSGHX426 Dual-Mode Dual-Band Analog / PCS Phone © 2003 SAMSUNG ELECTRONICS Co., Ltd. SAMSUNG FCC ID: A3LSGHX426 Dual-Mode Dual-Band Analog / PCS Phone © 2003 SAMSUNG ELECTRONICS Co., Ltd. SAMSUNG FCC ID: A3LSGHX426 Dual-Mode Dual-Band Analog / PCS Phone © 2003 SAMSUNG ELECTRONICS Co., Ltd. SAMSUNG FCC ID: A3LSGHX426 Dual-Mode Dual-Band Analog / PCS Phone © 2003 SAMSUNG ELECTRONICS Co., Ltd. SAMSUNG FCC ID: A3LSGHX426 Dual-Mode Dual-Band Analog / PCS Phone

© 2003 SAMSUNG ELECTRONICS Co., Ltd. SAMSUNG FCC ID: A3LSGHX426 Dual-Mode Dual-Band Analog / PCS Phone © 2003 SAMSUNG ELECTRONICS Co., Ltd. SAMSUNG FCC ID: A3LSGHX426 Dual-Mode Dual-Band Analog / PCS Phone

2 of 30 Contents 1. General Information.............................................................................................3 2. Description of Device...........................................................................................3 3. Description of Test Equipment..............................................................................4 3.1 SAR Measurement Setup.........................................................................................4 3.2 DASY3 E-Field Probe.............................................................................................5 3.3 SAM Phantom.....................................................................................................6 3.4 Brain & Muscle Simulating Mixture Characterization....................................................7 3.5 Device Holder for transmitters.................................................................................8 3.6 Validation Dipole...................................................................................................8 3.7 Equipment Calibration.............................................................................................9 4. SAR Measurement Procedure.............................................................................10 5. Description of test position..............................................................................11 5.1 SAM Phantom Shape............................................................................................11 5.2 Cheek/Touch Position............................................................................................11 5.3 Ear/Tilt 15 Position..............................................................................................13 5.4 Body/Holster/Belt Clip Configuration.......................................................................14 6. Measurement Uncertainty..................................................................................16 7. System Verification.........................................................................................17 7.1 Tissue Verification..............................................................................................17 7.2 Test System Validation...........................................................................................17 8. SAR Measurement Results.................................................................................18 8.1 Measurement Results(GSM 850 Right Head SAR-Touch)........................................19 8.2 Measurement Results(GSM 850 Right Head SAR-Tilt)............................................20 8.3 Measurement Results(GSM 850 Left Head SAR-Touch)..........................................21 8.4 Measurement Results(GSM 850 Left Head SAR-Tilt)...............................................22 8.5 Measurement Results(PCS GSM Right Head SAR-Touch).....................................23 8.6 Measurement Results(PCS GSM Right Head SAR-Tilt)............................................24 8.7 Measurement Results(PCS GSM Left Head SAR-Touch)..........................................25 8.8 Measurement Results(PCS GSM Left Head SAR-Tilt)...............................................26 8.9 Measurement Results(GSM 850 Body SAR w/o Holster)........................................27 8.10 Measurement Results(PCS GSM Body SAR w/o Holster)........................................28 9. Conclusion.......................................................................................................29 10. Reference......................................................................................................30 3 of 30 1. GENERAL INFORMATION Test Sample : Dual-Mode Dual-Band Analog / PCS Phone Model Number : SGH-X426 Serial Number : Identical prototype (S/N : #FA-0 22-C) Manufacturer : SAMSUNG ELECTRONICS Co., Ltd. Contact : SH LEE, Manager Phone : +82- 54-479-5932 Fax : +82- 54-479-5921 Test Standard : §2.1093; FCC/OET Bulletin 65, Supplement C(July 2001) FCC Classification : Licensed Portable Transmitter Held to Ear (PCE) Test Dates : August 21,2003 ~ August 25,2003 Tested for : FCC/TCB Certification 2. DESCRIPTION OF DEVICE Tx Freq. Range : 824.2 – 848.8 MHz (GSM 835) 1850.00 – 1910.00 MHz (PCS GSM) Rx Freq. Range : 869.2 – 893.8 MHz (GSM 835) 1930.00 – 1990.00 MHz (PCS GSM) Max. RF Output Power : 2.518 W ERP GSM 835 (34.01dBm) 1.125 W EIRP PCS GSM (30.51dBm) Antenna Manufacturer : ACE TECHNOLOGY Model No. : SGH-X426/427 Antenna Dimensions : 18.5mm [Fixed] 4 of 30 3. DESCRIPTION OF TEST EQUIPMENT 3.1 SAR Measurement Setup Robotic System Measurements are performed using the DASY3 automated dosimetric assessment system. Which is made by Schmid & Partner Engineering AG (SPEAG) in Zurich, Switzerland and consists of high precision robotics system (Stäubli), robot controller, Pentium computer, near-field probe, probe alignment sensor, and the SAM twin phantom containing the brain equivalent material. The robot is a six-axis industrial robot performing precise movements to position the probe to the location (points) of maximum electromagnetic field (EMF) (see Fig. 3.1). Figure 3.1 SAR Measurement System Setup System Hardware A cell controller system contains the power supply, robot controller, teach pendant (Joystick), and a remote control is used to drive the robot motors. The PC consists of the Samsung Pentium 550MHz computer with Windows 2000 system and SAR Measurement Software DASY3, A/D interface card, LCD monitor, mouse and keyboard. The Stäubli Robot is connected to the cell controller to allow software manipulation of the robot. A data acquisition electronic (DAE) circuit that performs the signal amplification, signal multiplexing, AD-conversion, offset measurements, mechanical surface detection, collision detection, etc. is connected to the Electro-optical coupler (EOC). The EOC performs the conversion from the optical into digital electric signal of the DAE and transfers data to the PC plug-in card.…

Text truncated - open the document above for the full version.

SAMSUNG FCC ID: A3LSGHX426 -- 835MHz. GSM 850 Head SAR SAM Phantom; Right Cheek(CRP) Section; Probe:ET3DV6 - SN1735; ConvF(7.00,7.00,7.00) Head 835 MHz: σ = 0.87 mho/m ε r = 41.5 ρ = 1.00 g/cm 3 ; Antenna Position -- Fixed; Crest Factor 8.0 SAR (1g): 1.44 mW/g, SAMSUNG Dual-Mode Dual-Band Analog/PCS Phone Model: SGH-X426 GSM 850 Mode, Ch 128[824.2MHz]; Standard Battery; Meas. Ambient Temp. (°C) -22.9 Conducted Power=33dBm; Right Head Phantom, Cheek/Touch Position; Meas. Tissue Temp. (°C) -20.8 Test Date--08/22/2003 [FCC/OET Bulletin 65-Supplement C, July 2001] SAR Tot [mW/g] 1.57E-1 4.70E-1 7.83E-1 1.10E-0 1.41E-0 SAMSUNG FCC ID: A3LSGHX426 -- 835MHz. GSM 850 Head SAR SAM Phantom; Right Cheek(CRP) Section; Probe:ET3DV6 - SN1735; ConvF(7.00,7.00,7.00) Head 835 MHz: σ = 0.87 mho/m ε r = 41.5 ρ = 1.00 g/cm 3 ; Antenna Position -- Fixed; Crest Factor 8.0 SAR (1g): 0.392 mW/g, SAMSUNG Dual-Mode Dual-Band Analog/PCS Phone Model: SGH-X426 GSM 850 Mode, Ch 128[824.2MHz]; Standard Battery; Meas. Ambient Temp. (°C) -22.9 Conducted Power=33dBm; Right Head Phantom, Ear/Tilt 15 deg Position; Meas. Tissue Temp. (°C) -20.8 Test Date--08/22/2003 [FCC/OET Bulletin 65-Supplement C, July 2001] SAR Tot [mW/g] 4.10E-2 1.23E-1 2.05E-1 2.87E-1 3.69E-1 SAMSUNG FCC ID: A3LSGHX426 -- 835MHz. GSM 850 Head SAR SAM Phantom; Left Cheek(CRP) Section; Probe:ET3DV6 - SN1735; ConvF(7.00,7.00,7.00) Head 835 MHz: σ = 0.87 mho/m ε r = 41.5 ρ = 1.00 g/cm 3 ; Antenna Position -- Fixed; Crest Factor 8.0 SAR (1g): 1.30 mW/g, SAMSUNG Dual-Mode Dual-Band Analog/PCS Phone Model: SGH-X426 GSM 850 Mode, Ch 128[824.2MHz]; Standard Battery; Meas. Ambient Temp. (°C) -22.9 Conducted Power=33dBm; Left Head Phantom, Cheek/Touch Position; Meas. Tissue Temp. (°C) -20.8 Test Date--08/22/2003 [FCC/OET Bulletin 65-Supplement C, July 2001] SAR Tot [mW/g] 1.28E-1 3.84E-1 6.40E-1 8.95E-1 1.15E-0 SAMSUNG FCC ID: A3LSGHX426 -- 835MHz. GSM 850 Head SAR SAM Phantom; Left Cheek(CRP) Section; Probe:ET3DV6 - SN1735; ConvF(7.00,7.00,7.00) Head 835 MHz: σ = 0.87 mho/m ε r = 41.5 ρ = 1.00 g/cm 3 ; Antenna Position -- Fixed; Crest Factor 8.0 SAR (1g): 0.347 mW/g SAMSUNG Dual-Mode Dual-Band Analog/PCS Phone Model: SGH-X426 GSM 850 Mode, Ch 251[848.8MHz]; Standard Battery; Meas. Ambient Temp. (°C) -22.9 Conducted Power=33dBm; Left Head Phantom, Ear/Tilt 15 deg Position; Meas. Tissue Temp. (°C) -20.8 Test Date--08/22/2003 [FCC/OET Bulletin 65-Supplement C, July 2001] SAR Tot [mW/g] 3.16E-2 9.48E-2 1.58E-1 2.21E-1 2.84E-1 SAMSUNG FCC ID: A3LSGHX426 -- 1900MHz. PCS GSM Head SAR SAM Phantom; Right Cheek(CRP) Section; Probe:ET3DV6 - SN1735; ConvF(5.50,5.50,5.50) Head 1900 MHz: σ = 1.40 mho/m ε r = 39.5 ρ = 1.00 g/cm 3 ; Antenna Position -- Fixed; Crest Factor 8.0 SAR (1g): 0.394 mW/g, SAMSUNG Dual-Mode Dual-Band Analog/PCS Phone Model: SGH-X426 GSM 1900 Mode, Ch 810[1909.8MHz]; Standard Battery; Meas. Ambient Temp. (°C) -22.4 Conducted Power=30dBm; Right Head Phantom, Cheek/Touch Position; Meas. Tissue Temp. (°C) -21.5 Test Date--08/21/2003[FCC/OET Bulletin 65-Supplement C, July 2001] SAR Tot [mW/g] 4.31E-2 1.29E-1 2.15E-1 3.02E-1 3.88E-1 SAMSUNG FCC ID: A3LSGHX426 -- 1900MHz. PCS GSM Head SAR SAM Phantom; Right Hand Section; Probe:ET3DV6 - SN1735; ConvF(5.50,5.50,5.50) Head 1900 MHz: σ = 1.40 mho/m ε r = 39.5 ρ = 1.00 g/cm 3 ; Antenna Position -- Fixed; Crest Factor 8.0 SAR (1g): 0.0986 mW/g SAMSUNG Dual-Mode Dual-Band Analog/PCS Phone Model: SGH-X426 GSM 1900 Mode, Ch 512[1850.2MHz]; Standard Battery; Meas. Ambient Temp. (°C) -22.4 Conducted Power=30dBm; Right Head Phantom, Ear/Tilt 15 deg Position; Meas. Tissue Temp. (°C) -21.5 Test Date--08/21/2003[FCC/OET Bulletin 65-Supplement C, July 2001] SAR Tot [mW/g] 8.20E-3 2.46E-2 4.10E-2 5.74E-2 7.38E-2 SAMSUNG FCC ID: A3LSGHX426 -- 1900MHz. PCS GSM Head SAR SAM Phantom; Left Cheek(CRP) Section; Probe:ET3DV6 - SN1735; ConvF(5.50,5.50,5.50) Head 1900 MHz: σ = 1.40 mho/m ε r = 39.5 ρ = 1.00 g/cm 3 ; Antenna Position -- Fixed; Crest Factor 8.0 SAR (1g): 0.446 mW/g SAMSUNG Dual-Mode Dual-Band Analog/PCS Phone Model: SGH-X426 GSM 1900 Mode, Ch 810[1909.8MHz]; Standard Battery; Meas. Ambient Temp. (°C) -22.4 Conducted Power=30dBm; Left Head Phantom, Cheek/Touch Position; Meas. Tissue Temp. (°C) -21.5 Test Date--08/21/2003[FCC/OET Bulletin 65-Supplement C, July 2001] SAR Tot [mW/g] 5.03E-2 1.51E-1 2.52E-1 3.52E-1 4.53E-1 SAMSUNG FCC ID: A3LSGHX426 -- 1900MHz. PCS GSM Head SAR SAM Phantom; Left Hand Section; Probe:ET3DV6 - SN1735; ConvF(5.50,5.50,5.50) Head 1900 MHz: σ = 1.40 mho/m ε r = 39.5 ρ = 1.00 g/cm 3 ; Antenna Position -- Fixed; Crest Factor 8.0 SAR (1g): 0.0954 mW/g SAMSUNG Dual-Mode Dual-Band Analog/PCS Phone Model: SGH-X426 GSM 1900 Mode, Ch 512[1850.2MHz]; Standard Battery; Meas. Ambient Temp. (°C) -22.4 Conducted Power=30dBm; Left Head Phantom, Ear/Tilt 15 deg Position; Meas. Tissue Temp. (°C) -21.5 Test Date--08/21/2003[FCC/OET Bulletin 65-Supplement C, July 2001] SAR Tot [mW/g] 9.30E-3 2.79E-2 4.65E-2 6.51E-2 8.37E-2 SAMSUNG FCC ID: A3LSGHX426 -- 835MHz. GSM 850 Body SAR SAM Phantom; Flat Section; Probe:ET3DV6 - SN1735; ConvF(6.80,6.80,6.80) Body 835 MHz: σ = 0.93 mho/m ε r = 54.2 ρ = 1.00 g/cm 3 ; Antenna Position -- Fixed; Crest Factor 8.0 SAR (1g): 0.842 mW/g SAMSUNG Dual-Mode Dual-Band Analog/PCS Phone Model: SGH-X426 GSM 850 Mode, Ch 128[824.2MHz]; Standard Battery; Ambient Temp. (°C) -22.7 Conducted Power=33dBm;Spacing=1.5cm flat phantom to phone, w/o Leather; Tissue Temp. (°C) -21.7 Test Date--08/25/2003[FCC/OET Bulletin 65-Supplement C, July 2001] SAR Tot [mW/g] 8.13E-2 2.44E-1 4.07E-1 5.69E-1 7.32E-1 SAMSUNG FCC ID: A3LSGHX426 -- 1900MHz. PCS GSM Body SAR SAM Phantom; Flat Section; Probe:ET3DV6 - SN1735; ConvF(5.00,5.00,5.00) Body 1900 MHz: σ = 1.48 mho/m ε r = 51.9 ρ = 1.00 g/cm 3 ; Antenna Position -- Fixed; Crest Factor 8.0 SAR (1g): 0.241 mW/g SAMSUNG Dual-Mode Dual-Band Analog/PCS Phone Model: SGH-X426 GSM1900 Mode, Ch 661[1880MHz]; Standard Battery; Ambient Temp. (°C) -23.0 Conducted Power=30dBm…

Text truncated - open the document above for the full version.

© 2003 SAMSUNG ELECTRONICS Co., Ltd. SAMSUNG FCC ID: A3LSGHX426 Dual-Mode Dual-Band Analog / PCS Phone © 2003 SAMSUNG ELECTRONICS Co., Ltd. SAMSUNG FCC ID: A3LSGHX426 Dual-Mode Dual-Band Analog / PCS Phone © 2003 SAMSUNG ELECTRONICS Co., Ltd. SAMSUNG FCC ID: A3LSGHX426 Dual-Mode Dual-Band Analog / PCS Phone © 2003 SAMSUNG ELECTRONICS Co., Ltd. SAMSUNG FCC ID: A3LSGHX426 Dual-Mode Dual-Band Analog / PCS Phone © 2003 SAMSUNG ELECTRONICS Co., Ltd. SAMSUNG FCC ID: A3LSGHX426 Dual-Mode Dual-Band Analog / PCS Phone © 2003 SAMSUNG ELECTRONICS Co., Ltd. SAMSUNG FCC ID: A3LSGHX426 Dual-Mode Dual-Band Analog / PCS Phone © 2003 SAMSUNG ELECTRONICS Co., Ltd. SAMSUNG FCC ID: A3LSGHX426 Dual-Mode Dual-Band Analog / PCS Phone © 2003 SAMSUNG ELECTRONICS Co., Ltd. SAMSUNG FCC ID: A3LSGHX426 Dual-Mode Dual-Band Analog / PCS Phone © 2003 SAMSUNG ELECTRONICS Co., Ltd. SAMSUNG FCC ID: A3LSGHX426 Dual-Mode Dual-Band Analog / PCS Phone © 2003 SAMSUNG ELECTRONICS Co., Ltd. SAMSUNG FCC ID: A3LSGHX426 Dual-Mode Dual-Band Analog / PCS Phone © 2003 SAMSUNG ELECTRONICS Co., Ltd. SAMSUNG FCC ID: A3LSGHX426 Dual-Mode Dual-Band Analog / PCS Phone © 2003 SAMSUNG ELECTRONICS Co., Ltd. SAMSUNG FCC ID: A3LSGHX426 Dual-Mode Dual-Band Analog / PCS Phone

Radiated Spurious & Harmonic Conversion Table Radiated Spurious & Harmonic Conversion Table amp Radiated Spurious & Harmonic Configuration for Calibration

© 2003 SAMSUNG ELECTRONICS Co., Ltd. SAMSUNG FCC ID: A3LSGHX426 Dual-Mode Dual-Band Analog / PCS Phone © 2003 SAMSUNG ELECTRONICS Co., Ltd. SAMSUNG FCC ID: A3LSGHX426 Dual-Mode Dual-Band Analog / PCS Phone © 2003 SAMSUNG ELECTRONICS Co., Ltd. SAMSUNG FCC ID: A3LSGHX426 Dual-Mode Dual-Band Analog / PCS Phone © 2003 SAMSUNG ELECTRONICS Co., Ltd. SAMSUNG FCC ID: A3LSGHX426 Dual-Mode Dual-Band Analog / PCS Phone © 2003 SAMSUNG ELECTRONICS Co., Ltd. SAMSUNG FCC ID: A3LSGHX426 Dual-Mode Dual-Band Analog / PCS Phone © 2003 SAMSUNG ELECTRONICS Co., Ltd. SAMSUNG FCC ID: A3LSGHX426 Dual-Mode Dual-Band Analog / PCS Phone
