A3LSHVE170KPCS GSM/ WCDMA Phone with WLAN, Bluetooth and RFID

User manual SHV-E170K This device is capable of operating in 802.11a mode. For 802.11a devices operating in the frequency range of 5.15 - 5.25 GHz, they are restricted for indoor operations to reduce any potential harmful interference for Mobile Satellite Services (MSS) in the US. WIFI Access Points that are capable of allowing your device to operate in 802.11a mode (5.15 - 5.25 GHz band) are optimized for indoor use only. If your WIFI network is capable of operating in this mode, please restrict your WIFI use indoors to not violate federal regulations to protect Mobile Satellite Services. Draft 1 2012-03-28 Only for Marketing using this manual This user manual has been specially designed to guide you through the functions and features of your mobile phone. To get started quickly, refer to “introducing your mobile phone,” “ 오류! 참조 원본을 찾을 수 없습니다.,” and “오류! 참조 원본을 찾을 수 없습니다. .” Instructional icons Before you start, familiarise yourself with the icons you will see in this manual: Warning—situations that could cause injury to yourself or others Caution—situations that could cause damage to your phone or other equipment Note—notes, usage tips, or additional information  Refer to—pages with related information; for example:  p. 12 (represents “see page 12”) Õ Followed by—the order of options or menus you must select to perform a step; for example: In Menu mode, select Messages Õ Create new message (represents Messages, followed by Create new message) [ ] Square brackets—phone keys; for example: [](represents the Power/ Menu exit key) < > Angled brackets—softkeys that control different functions at each screen; for example: <OK> (represents the OK softkey) Copyright information Rights to all technologies and products that comprise this device are the property of their respective owners:  Bluetooth ® is a registered trademark of the Bluetooth SIG, Inc. worldwide  Java™ is a trademark of Sun Microsystems, Inc.  Windows Media Player ® is a registered trademark of Microsoft Corporation. contents safety and usage information Safety warnings Safety precautions Important usage information introducing your mobile phone Unpack .. Phone layout Keys Display Icons assembling and preparing your mobile phone Install the SIM card and battery Charge the battery using basic functions Turn your phone on and off Access menus Customise your phone Use basic call functions Send and view messages Add and find contacts troubleshooting safety and usage information Comply with the following precautions to avoid dangerous or illegal situations and ensure peak performance of your mobile phone. Safety warnings Keep your phone away from small children and pets Keep your phone and all accessories out of the reach of small children or animals. Small parts may cause choking or serious injury if swallowed. Protect your hearing Excessive exposure to sound at high volumes can cause hearing damage. Always turn the volume down before plugging the earphones into an audio source and use only the minimum volume setting necessary to hear your conversation or music. Install mobile phones and equipment with caution Ensure that any mobile phones or related equipment installed in your vehicle are securely mounted. Avoid placing your phone and accessories near or in an air bag deployment area. Improperly installed wireless equipment can cause serious injury when air bags inflate rapidly. Handle and dispose of batteries and chargers with care  Use only Samsung-approved batteries and chargers specifically designed for your phone. Incompatible batteries and chargers can cause serious injuries or damage to your phone.  Never dispose of batteries or phones in a fire. Follow all local regulations when disposing used batteries or phones.  Never place batteries or phones on or in heating devices, such as microwave ovens, stoves, or radiators. Batteries may explode when overheated.  Never crush or puncture the battery. Avoid exposing the battery to high external pressure, which can lead to an internal short circuit and overheating. Avoid interference with pacemakers Maintain a minimum of 15 cm (6 inches) between mobile phones and pacemakers to avoid potential interference, as recommended by manufacturers and the independent research group, Wireless Technology Research. If you have any reason to suspect that your phone is interfering with a pacemaker or other medical device, turn off the phone immediately and contact the manufacturer of the pacemaker or medical device for guidance. Turn off the phone in potentially explosive environments Do not use your phone at refuelling points (service stations) or near fuels or chemicals. Turn off your phone whenever directed by warning signs or instructions. Your phone could cause explosions or fire in and around fuel or chemical storage and transfer areas or blasting areas. Do not store or carry flammable liquids, gases, or explosive materials in the same compartment as the phone, its parts, or accessories. Reduce the risk of repetitive motion injuries When sending text messages or playing games on your phone, hold the phone with a relaxed grip, press the keys lightly, use special features that reduce the number of keys you have to press (such as templates and predictive text), and take frequent breaks. Safety precautions Drive safely at all times Avoid using your phone while driving and obey all regulations that restrict the use of mobile phones while driving. Use hands-free accessories to increase your safety when possible. Follow all safety warnings and regulations Comply with any regulations that restrict the use of a mobile phone in a certain area. Use only Samsung-approved accessories Using incompatible accessories may damage your phone or cause injury. Turn off the phone near medical equipment Your phone can interfere with medical equipment in hospitals or health care facilities. Follow all regulations, posted warnings, and directions from medical personnel. Turn off the phone or disable the wi…

Text truncated - open the document above for the full version.

SAMSUNG ELECTRONICS CO., LTD 416,Maetan-3dong,Yeongtong-gu Suwon-si,Gyeonggi-do, 443-742 Korea April 17, 2012 Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 SUBJECT : Label Statement FCC ID : A3L SHVE170K Gentlemen: We hereby provide the label statement letter for the above-mentioned device by a new label statement policy instituted at the September 12, 2006, TCB-FCC Teleconference. The label statement is as follows: The FCC ID shown in the FCC ID label page will be readily visible at the time of purchase because the device will be marketed without the battery installed. The label is permanently attached by acrylic glue and not easily removed from the device. This statement could not be included in the label. So we inform you of it through this letter. Should you have any questions or comments concerning the above, please contact the undersigned. Sincerely Yours, Seoung Ho Park Senior Manager SAMSUNG ELECTRONICS CO.,LTD Telecommunication Network Business Mobile Communication Division Regulatory Compliance Group.

SAMSUNG ELECTRONICS AMERICA, INC. American QA Lab 19 Chapin Rd, Building D. Pine Brook, NJ07058 Date: April 17, 2012 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road, Columbia, MD 21046 RE: Request of Confidentiality for FCC ID: A3LSHVE170K To Whom It May Concern: Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules (CFR 47), and Section 552 (b) (4) of the Freedom of Information Act, SAMSUNG ELECTRONICS CO.,LTD. hereby requests confidentiality and treatment of certain information accompanying this application. The materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. We are also hereby request Short-Term Confidentiality for 180 days after the grant as outlined in Public Notice DA 04-1705. This provision will give SAMSUNG ELECTRONICS CO.,LTD. temporary confidentiality of commercially sensitive information prior to product release. The requested Permanent and Short-Term Confidential exhibits are listed as follows: PERMANENT AND SHORT-TERM CONFIDENTIAL LIST Exhibit Description 1 Block Diagram 2 Operational Description 3 Schematics PERMANENT 4 Parts List & Tune-Up Procedure 5 External Photos 6 Internal Photos 7 Test-Setup Photos SHORT-TERM 8 Users Manual The Applicant understands that pursuant to Rule 0.457, disclosure of this application and all accompanying documentations, where applicable, will not be made public before the date of the Grant for this application. Sincerely, Peter Ra General Manager American QA Lab SAMSUNG Electronics America INC.

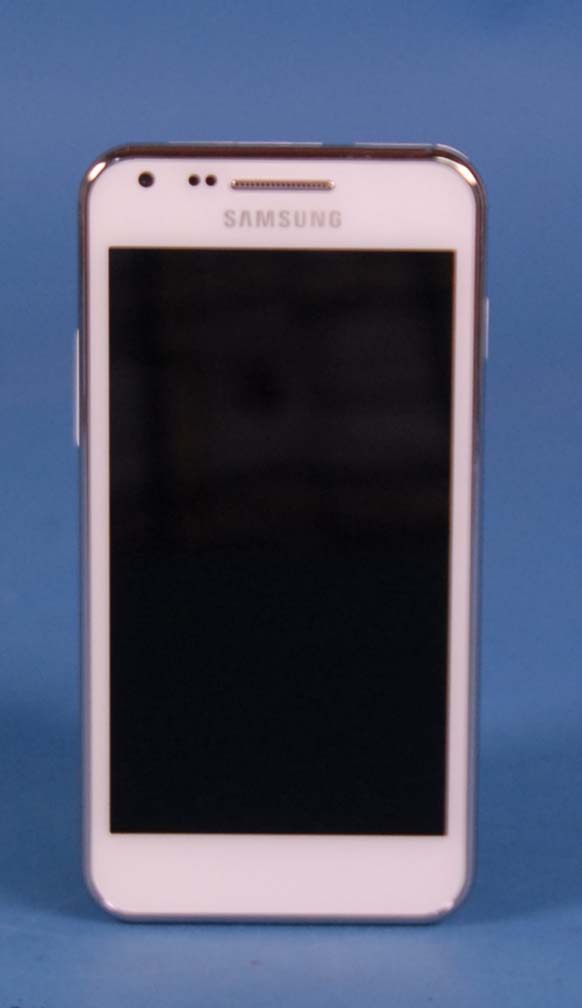

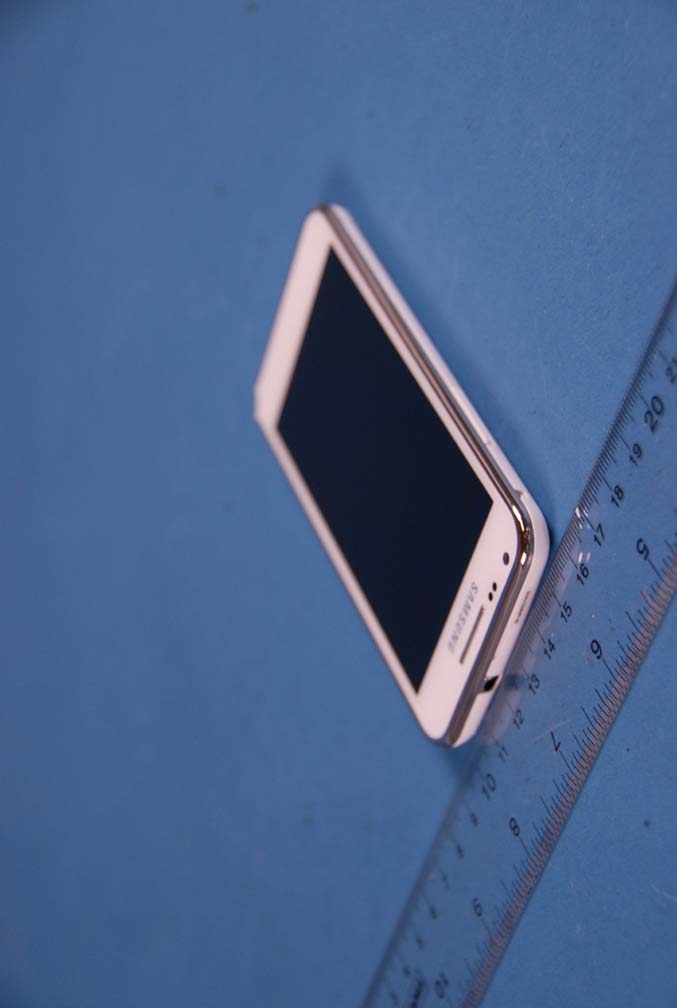

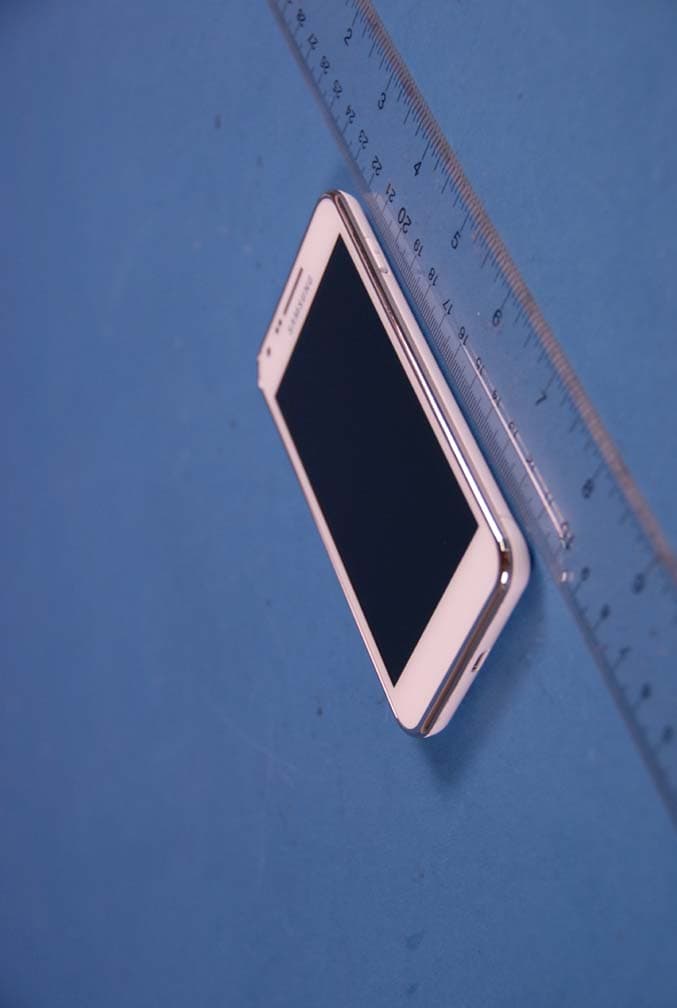

Samsung Electronics Co., Ltd. FCC ID: A3LSHVE170K Model: SHV-E170K External Photos EUT Type: Portable Handset Page 1 of 1 © 2012 PCTEST Engineering Laboratory Inc. EXTERNAL PHOTOGRAPHS Samsung Electronics Co., Ltd. FCC ID: A3LSHVE170K Model: SHV-E170K External Photos EUT Type: Portable Handset Page 2 of 2 © 2012 PCTEST Engineering Laboratory Inc. Samsung Electronics Co., Ltd. FCC ID: A3LSHVE170K Model: SHV-E170K External Photos EUT Type: Portable Handset Page 3 of 3 © 2012 PCTEST Engineering Laboratory Inc. Samsung Electronics Co., Ltd. FCC ID: A3LSHVE170K Model: SHV-E170K External Photos EUT Type: Portable Handset Page 4 of 4 © 2012 PCTEST Engineering Laboratory Inc. Samsung Electronics Co., Ltd. FCC ID: A3LSHVE170K Model: SHV-E170K External Photos EUT Type: Portable Handset Page 5 of 5 © 2012 PCTEST Engineering Laboratory Inc.

Label and Location Samsung Phone Model: SHV-E170K FCC ID: A3LSHVE170K Label: Location: Top Back plate of device Bottom Phone: Label is placed inside of the battery compartment.

Samsung Electronics Co., Ltd. FCC ID: A3LSHVE170K Model: SHV-E170K Internal Photos EUT Type: Portable Handset Page 1 of 8 © 2012 PCTEST Engineering Laboratory Inc. INTERNAL PHOTOGRAPHS Samsung Electronics Co., Ltd. FCC ID: A3LSHVE170K Model: SHV-E170K Internal Photos EUT Type: Portable Handset Page 2 of 8 © 2012 PCTEST Engineering Laboratory Inc. Samsung Electronics Co., Ltd. FCC ID: A3LSHVE170K Model: SHV-E170K Internal Photos EUT Type: Portable Handset Page 3 of 8 © 2012 PCTEST Engineering Laboratory Inc. Samsung Electronics Co., Ltd. FCC ID: A3LSHVE170K Model: SHV-E170K Internal Photos EUT Type: Portable Handset Page 4 of 8 © 2012 PCTEST Engineering Laboratory Inc. Samsung Electronics Co., Ltd. FCC ID: A3LSHVE170K Model: SHV-E170K Internal Photos EUT Type: Portable Handset Page 5 of 8 © 2012 PCTEST Engineering Laboratory Inc. Samsung Electronics Co., Ltd. FCC ID: A3LSHVE170K Model: SHV-E170K Internal Photos EUT Type: Portable Handset Page 6 of 8 © 2012 PCTEST Engineering Laboratory Inc. Samsung Electronics Co., Ltd. FCC ID: A3LSHVE170K Model: SHV-E170K Internal Photos EUT Type: Portable Handset Page 7 of 8 © 2012 PCTEST Engineering Laboratory Inc. Samsung Electronics Co., Ltd. FCC ID: A3LSHVE170K Model: SHV-E170K Internal Photos EUT Type: Portable Handset Page 8 of 8 © 2012 PCTEST Engineering Laboratory Inc.

Reviewed by: FCC ID: A3LSHVE170K SAR EVALUATION REPORT Quality Manager Document S/N: Test Dates: DUT Type: 0Y1203190307.A3L 03/22/12 - 03/28/12 Portable Handset Page 1 of 37 © 2012 PCTEST Engineering Laboratory, Inc. REV 11.2 M 03/28/2012 Applicant Name: Date of Testing: Samsung Electronics, Co. Ltd. 03/22/12 - 03/28/12 416, Maetan 3-dong, Yeongtong-gu, Suwon-si, Test Site/Location: Gyeonggi-do, 443-742 PCTEST Lab, Columbia, MD, USA Republic of Korea Document Serial No.: 0Y1203190307.A3L FCC ID: A3LSHVE170K APPLICANT: SAMSUNG ELECTRONICS, CO. LTD. DUT Type: Portable Handset Application Type: Certification FCC Rule Part(s): Model(s): CFR §2.1093 SHV-E170K 1 gm Head (W/kg) 1 gm Body- Worn (W/kg) 1 gm Hotspot (W/kg) GSM/GPRS 19001850.20 - 1909.80 MHz30.24 0.170.490.49 WCDMA/HSPA 19001852.4 - 1907.6 MHz22.980.27 0.600.73 2.4 GHz WLAN2412 - 2462 MHz16.830.13 0.220.22 5.8 GHz WLAN5745 - 5825 MHz11.930.020.07 5.2 GHz WLAN5180 - 5240 MHz11.700.020.17 5.3 GHz WLAN5260 - 5320 MHz11.990.020.21 5.5 GHz WLAN5500 - 5700 MHz12.140.020.12 Bluetooth2402 - 2480 MHz10.37 0.400.830.83 SAR Band & ModeTx Frequency Conducted Power [dBm] N/A Simultaneous SAR per KDB 690783 D01: Note: Powers in the above table represent output powers for the SAR test configurations and may not represent the highest output powers for all configurations for each mode. This wireless portable device has been shown to be capable of compliance for localized specific absorption rate (SAR) for uncontrolled environment/general population exposure limits specified in ANSI/IEEE C95.1-1992 and has been tested in accordance with the measurement procedures specified in FCC/OET Bulletin 65 Supplement C (2001), IEEE 1528-2003 and in applicable Industry Canada Radio Standards Specifications (RSS); for North American frequency bands only. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. Test results reported herein relate only to the item(s) tested. PCTEST certifies that no party to this application has been denied the FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. PCTEST ENGINEERING LABORATORY, INC. 6660-B Dobbin Road, Columbia, MD 21045 USA Tel. +1.410.290.6652 / Fax +1.410.290.6654 http://www.pctestlab.com SAR EVALUATION REPORT Reviewed by: FCC ID: A3LSHVE170K SAR EVALUATION REPORT Quality Manager Document S/N: Test Dates: DUT Type: 0Y1203190307.A3L 03/22/12 - 03/28/12 Portable Handset Page 2 of 37 © 2012 PCTEST Engineering Laboratory, Inc. REV 11.2 M 03/28/2012 TABLE OF CONTENTS 1 DEVICE UNDER TEST ................................................................................................................... 3 2 INTRODUCTION ............................................................................................................................. 6 3 SAR MEASUREMENT SETUP ....................................................................................................... 7 4 DOSIMETRIC ASSESSMENT ........................................................................................................ 8 5 DEFINITION OF REFERENCE POINTS ........................................................................................ 9 6 TEST CONFIGURATION POSITIONS FOR HANDSETS ............................................................ 10 7 FCC RF EXPOSURE LIMITS........................................................................................................ 13 8 FCC MEASUREMENT PROCEDURES........................................................................................ 14 9 RF CONDUCTED POWERS......................................................................................................... 17 10 SYSTEM VERIFICATION.............................................................................................................. 21 11 SAR DATA SUMMARY ................................................................................................................. 23 12 FCC MULTI-TX AND ANTENNA SAR CONSIDERATIONS......................................................... 29 13 EQUIPMENT LIST......................................................................................................................... 32 14 MEASUREMENT UNCERTAINTIES ............................................................................................ 33 15 CONCLUSION............................................................................................................................... 35 16 REFERENCES .............................................................................................................................. 36 Reviewed by: FCC ID: A3LSHVE170K SAR EVALUATION REPORT Quality Manager Document S/N: Test Dates: DUT Type: 0Y1203190307.A3L 03/22/12 - 03/28/12 Portable Handset Page 3 of 37 © 2012 PCTEST Engineering Laboratory, Inc. REV 11.2 M 03/28/2012 1 DEVICE UNDER TEST 1.1 Device Overview GSM/GPRS 19001850.20 - 1909.80 MHz WCDMA/HSPA 19001852.4 - 1907.6 MHz 2.4 GHz WLAN2412 - 2462 MHz 5.8 GHz WLAN5745 - 5825 MHz 5.2 GHz WLAN5180 - 5240 MHz 5.3 GHz WLAN5260 - 5320 MHz 5.5 GHz WLAN5500 - 5700 MHz Bluetooth2402 - 2480 MHz NFC13.56 MHz Band & ModeTx Frequency 1.2 Near Field Communications (NFC) Antenna This DUT has NFC operations. The NFC antenna is integrated into the standard battery and will be the only battery available from the manufacturer for this model. Therefore all SAR tests were performed with the standard battery which already integrates the NFC antenna. The device restricts the battery used to battery model: EB-L1H9KLK. Figure 1-1 NFC Antenna Locations Reviewed by: FCC ID: A3LSHVE170K SAR EVALUATION REPORT Quality Manager Document S/N: Test Dates: DUT Type: 0Y1203190307.A3L 03/22/12 - 03/28/12 Portable Handset Page 4 of 3…

Text truncated - open the document above for the full version.

© 2012 PCTEST Engineering Laboratory, Inc. APPENDIX A: SAR TEST DATA DUT: A3LSHVE170K; Type: Portable Handset; Serial: FJ-079-A Communication System: GSM1900; Frequency: 1880 MHz;Duty Cycle: 1:8.3 Medium: 1900 Head Medium parameters used: f = 1880 MHz; σ = 1.45 mho/m; ε r = 38.8; ρ = 1000 kg/m 3 Phantom section: Right Section Test Date: 03-27-2012; Ambient Temp: 23.9°C; Tissue Temp: 21.9°C Probe: ES3DV3 - SN3258; ConvF(5.17, 5.17, 5.17); Calibrated: 2/21/2012 Sensor-Surface: 4mm (Mechanical Surface Detection) Electronics: DAE4 Sn1272; Calibrated: 1/18/2012 Phantom: SAM Sub; Type: SAM 4.0; Serial: TP-1403 Measurement SW: DASY4, V4.7 Build 80; Postprocessing SW: SEMCAD, V1.8 Build 186 Mode: GSM 1900, Right Head, Touch, Mid.ch Area Scan (7x14x1): Measurement grid: dx=15mm, dy=15mm Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 10.8 V/m; Power Drift = 0.071 dB Peak SAR (extrapolated) = 0.281 W/kg SAR(1 g) = 0.167 mW/g; SAR(10 g) = 0.096 mW/g 0 dB = 0.181mW/g A1 DUT: A3LSHVE170K; Type: Portable Handset; Serial: FJ-079-A Communication System: GSM1900; Frequency: 1880 MHz;Duty Cycle: 1:8.3 Medium: 1900 Head Medium parameters used: f = 1880 MHz; σ = 1.45 mho/m; ε r = 38.8; ρ = 1000 kg/m 3 Phantom section: Right Section Test Date: 03-27-2012; Ambient Temp: 23.9°C; Tissue Temp: 21.9°C Probe: ES3DV3 - SN3258; ConvF(5.17, 5.17, 5.17); Calibrated: 2/21/2012 Sensor-Surface: 4mm (Mechanical Surface Detection) Electronics: DAE4 Sn1272; Calibrated: 1/18/2012 Phantom: SAM Sub; Type: SAM 4.0; Serial: TP-1403 Measurement SW: DASY4, V4.7 Build 80; Postprocessing SW: SEMCAD, V1.8 Build 186 Mode: GSM 1900, Right Head, Tilt, Mid.ch Area Scan (7x14x1): Measurement grid: dx=15mm, dy=15mm Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 5.43 V/m; Power Drift = -0.100 dB Peak SAR (extrapolated) = 0.071 W/kg SAR(1 g) = 0.042 mW/g; SAR(10 g) = 0.024 mW/g 0 dB = 0.047mW/g A2 DUT: A3LSHVE170K; Type: Portable Handset; Serial: FJ-079-A Communication System: GSM1900; Frequency: 1880 MHz;Duty Cycle: 1:8.3 Medium: 1900 Head Medium parameters used: f = 1880 MHz; σ = 1.45 mho/m; ε r = 38.8; ρ = 1000 kg/m 3 Phantom section: Left Section Test Date: 03-27-2012; Ambient Temp: 23.9°C; Tissue Temp: 21.9°C Probe: ES3DV3 - SN3258; ConvF(5.17, 5.17, 5.17); Calibrated: 2/21/2012 Sensor-Surface: 4mm (Mechanical Surface Detection) Electronics: DAE4 Sn1272; Calibrated: 1/18/2012 Phantom: SAM Sub; Type: SAM 4.0; Serial: TP-1403 Measurement SW: DASY4, V4.7 Build 80; Postprocessing SW: SEMCAD, V1.8 Build 186 Mode: GSM 1900, Left Head, Touch, Mid.ch Area Scan (7x14x1): Measurement grid: dx=15mm, dy=15mm Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 7.93 V/m; Power Drift = -0.161 dB Peak SAR (extrapolated) = 0.136 W/kg SAR(1 g) = 0.089 mW/g; SAR(10 g) = 0.056 mW/g 0 dB = 0.096mW/g A3 DUT: A3LSHVE170K; Type: Portable Handset; Serial: FJ-079-A Communication System: GSM1900; Frequency: 1880 MHz;Duty Cycle: 1:8.3 Medium: 1900 Head Medium parameters used: f = 1880 MHz; σ = 1.45 mho/m; ε r = 38.8; ρ = 1000 kg/m 3 Phantom section: Left Section Test Date: 03-27-2012; Ambient Temp: 23.9°C; Tissue Temp: 21.9°C Probe: ES3DV3 - SN3258; ConvF(5.17, 5.17, 5.17); Calibrated: 2/21/2012 Sensor-Surface: 4mm (Mechanical Surface Detection) Electronics: DAE4 Sn1272; Calibrated: 1/18/2012 Phantom: SAM Sub; Type: SAM 4.0; Serial: TP-1403 Measurement SW: DASY4, V4.7 Build 80; Postprocessing SW: SEMCAD, V1.8 Build 186 Mode: GSM 1900, Left Head, Tilt, Mid.ch Area Scan (7x14x1): Measurement grid: dx=15mm, dy=15mm Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 5.55 V/m; Power Drift = -0.003 dB Peak SAR (extrapolated) = 0.071 W/kg SAR(1 g) = 0.045 mW/g; SAR(10 g) = 0.027 mW/g 0 dB = 0.050mW/g A4 DUT: A3LSHVE170K; Type: Portable Handset; Serial: FJ-079-C Communication System: WCDMA1900; Frequency: 1880 MHz;Duty Cycle: 1:1 Medium: 1900 Head Medium parameters used: f = 1880 MHz; σ = 1.45 mho/m; ε r = 38.8; ρ = 1000 kg/m 3 Phantom section: Right Section Test Date: 03-27-2012; Ambient Temp: 23.9°C; Tissue Temp: 21.9°C Probe: ES3DV3 - SN3258; ConvF(5.17, 5.17, 5.17); Calibrated: 2/21/2012 Sensor-Surface: 4mm (Mechanical Surface Detection) Electronics: DAE4 Sn1272; Calibrated: 1/18/2012 Phantom: SAM Sub; Type: SAM 4.0; Serial: TP-1403 Measurement SW: DASY4, V4.7 Build 80; Postprocessing SW: SEMCAD, V1.8 Build 186 Mode: WCDMA 1900, Right Head, Touch, Mid.ch Area Scan (710x1): Measurement grid: dx=15mm, dy=15mm Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 14.0 V/m; Power Drift = 0.072 dB Peak SAR (extrapolated) = 0.428 W/kg SAR(1 g) = 0.268 mW/g; SAR(10 g) = 0.159 mW/g 0 dB = 0.300mW/g A5 DUT: A3LSHVE170K; Type: Portable Handset; Serial: FJ-079-C Communication System: WCDMA1900; Frequency: 1880 MHz;Duty Cycle: 1:1 Medium: 1900 Head Medium parameters used: f = 1880 MHz; σ = 1.45 mho/m; ε r = 38.8; ρ = 1000 kg/m 3 Phantom section: Right Section Test Date: 03-27-2012; Ambient Temp: 23.9°C; Tissue Temp: 21.9°C Probe: ES3DV3 - SN3258; ConvF(5.17, 5.17, 5.17); Calibrated: 2/21/2012 Sensor-Surface: 4mm (Mechanical Surface Detection) Electronics: DAE4 Sn1272; Calibrated: 1/18/2012 Phantom: SAM Sub; Type: SAM 4.0; Serial: TP-1403 Measurement SW: DASY4, V4.7 Build 80; Postprocessing SW: SEMCAD, V1.8 Build 186 Mode: WCDMA 1900, Right Head, Tilt, Mid.ch Area Scan (7x10x1): Measurement grid: dx=15mm, dy=15mm Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 7.35 V/m; Power Drift = 0.117 dB Peak SAR (extrapolated) = 0.143 W/kg SAR(1 g) = 0.084 mW/g; SAR(10 g) = 0.047 mW/g 0 dB = 0.091mW/g A6 DUT: A3LSHVE170K; Type: Portable Handset; Serial: FJ-079-C Communication System: WCDMA1900; Frequency: 1880 MHz;Duty Cycle: 1:1 Medium: 1900 Head Medium parameters used: f = 1880 MHz; σ = 1.45 mho/m; ε r = 38.8; ρ = 1000 kg/m 3 Phantom section: Left Section Test Date: 03-27-2012; Ambie…

Text truncated - open the document above for the full version.

Reviewed by: FCC ID: A3LSHVE170K FCC Pt. 24 GSM/WCDMA MEASUREMENT REPORT (CERTIFICATION) Quality Manager Test Report S/N: Test Dates: EUT Type: 0Y1203190308.A3L March 28 - 29, 2012 Portable Handset Page 1 of 36 © 2012 PCTEST Engineering Laboratory, Inc. REV 1.5GWCFI 02/13/2012 Applicant Name: Date of Testing: Samsung Electronics Co., Ltd. March 28 - 29, 2012 416 Maetan 3-Dong, Yeongtong-gu Test Site/Location: Suwon-si, Gyeonggi-do PCTEST Lab., Columbia, MD, USA 443-742 , Republic of Korea Test Report Serial No.: 0Y1203190308.A3L FCC ID: A3LSHVE170K APPLICANT: SAMSUNG ELECTRONICS CO., LTD. Application Type: Certification Model(s): SHV-E170K EUT Type: Portable Handset FCC Classification: PCS Licensed Transmitter Held to Ear (PCE) FCC Rule Part(s): §2; §24(E) IC Specification(s): RSS-132 Issue 2; RSS-133 Issue 5 Test Procedure(s): ANSI/TIA-603-C-2004 Test Device Serial No.: identical prototype [S/N: FJ-079-C] Max. Power (W) Max. Power (dBm) GSM19001850.2 - 1909.8242KGXW1.25930.99 WCDMA19001852.4 - 1907.64M17F9W0.15421.88 EIRP Mode Tx Frequency (MHz) Emission Designator This equipment has been shown to be capable of compliance with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in §2.947. Test results reported herein relate only to the item(s) tested. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. PCTEST certifies that no party to this application has been subject to a denial of Federal benefits that includes FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. PCTEST ENGINEERING LABORATORY, INC. 6660-B Dobbin Road, Columbia, MD 21045 USA Tel. 410.290.6652 / Fax 410.290.6654 http://www.pctestlab.com MEASUREMENT REPORT FCC Part 24 / IC RSS-133 Reviewed by: FCC ID: A3LSHVE170K FCC Pt. 24 GSM/WCDMA MEASUREMENT REPORT (CERTIFICATION) Quality Manager Test Report S/N: Test Dates: EUT Type: 0Y1203190308.A3L March 28 - 29, 2012 Portable Handset Page 2 of 36 © 2012 PCTEST Engineering Laboratory, Inc. REV 1.5GWCFI 02/13/2012 TABLE OF CONTENTS FCC PART 22 & 24 MEASUREMENT REPORT............................................................................3 1.0 INTRODUCTION ..............................................................................................................................4 1.1 SCOPE ................................................................................................................................................ 4 1.2 TESTING FACILITY............................................................................................................................. 4 2.0 PRODUCT INFORMATION..............................................................................................................5 2.1 EQUIPMENT DESCRIPTION .............................................................................................................. 5 2.2 DEVICE CAPABILITIES....................................................................................................................... 5 2.3 TEST CONFIGURATION..................................................................................................................... 5 2.4 EMI SUPPRESSION DEVICE(S)/MODIFICATIONS ........................................................................... 5 2.5 LABELING REQUIREMENTS.............................................................................................................. 5 3.0 DESCRIPTION OF TESTS ..............................................................................................................6 3.1 EVALUATION PROCEDURE.............................................................................................................. 6 3.2 PCS - BASE FREQUENCY BLOCKS .................................................................................................. 6 3.3 PCS - MOBILE FREQUENCY BLOCKS .............................................................................................. 6 3.4 OCCUPIED BANDWIDTH ................................................................................................................... 7 3.5 SPURIOUS AND HARMONIC EMISSIONS AT ANTENNA TERMINAL.............................................. 7 3.6 RADIATED POWER AND RADIATED SPURIOUS EMISSIONS ........................................................ 8 3.7 PEAK-AVERAGE RATIO ..................................................................................................................... 9 3.8 FREQUENCY STABILITY / TEMPERATURE VARIATION ................................................................. 9 4.0 TEST EQUIPMENT CALIBRATION DATA ....................................................................................10 5.0 SAMPLE CALCULATIONS ............................................................................................................11 6.0 TEST RESULTS .............................................................................................................................12 6.1 SUMMARY......................................................................................................................................... 12 6.2 EQUIVALENT ISOTROPIC RADIATED POWER OUTPUT DATA .................................................... 13 6.3 PCS GSM RADIATED MEASUREMENTS ........................................................................................ 14 6.4 PCS WCDMA RADIATED MEASUREMENTS .................................................................................. 17 6.5 PCS GSM FREQUENCY STABILITY MEASUREMENTS ................................................................. 20 6.6 PCS WCDMA FREQUENCY STABILITY MEASUREMENTS................................…

Text truncated - open the document above for the full version.

Samsung Electronics Co., Ltd. FCC ID: A3LSHVE170K Model: SHV-E170K Test Set-Up Photos EUT Type: Portable Handset Page 1 of 2 © 2012 PCTEST Engineering Laboratory Inc. TEST SETUP PHOTOGRAPHS Samsung Electronics Co., Ltd. FCC ID: A3LSHVE170K Model: SHV-E170K Test Set-Up Photos EUT Type: Portable Handset Page 2 of 2 © 2012 PCTEST Engineering Laboratory Inc.

Reviewed by: FCC ID: A3LSHVE170K SAR EVALUATION REPORT Quality Manager Test Dates: EUT Type: 03/22/12 - 03/28/12 Portable Handset Page D2 of D6 © 2012 PCTEST Engineering Laboratory, Inc. REV 11.1M 02/20/2012 SAR Test Setup Photo 1: Right Touch SAR Test Setup Photo 2: Right Tilt Reviewed by: FCC ID: A3LSHVE170K SAR EVALUATION REPORT Quality Manager Test Dates: EUT Type: 03/22/12 - 03/28/12 Portable Handset Page D3 of D6 © 2012 PCTEST Engineering Laboratory, Inc. REV 11.1M 02/20/2012 SAR Test Setup Photo 3: Left Touch SAR Test Setup Phot…

Text truncated - open the document above for the full version.
