A3LSHVE230LPCS GSM/WCDMA Tablet with WLAN and Bluetooth

Some of the contents in this manual may differ from your device depending on the software of the device or your service provider. www.samsung.com English (EU). 2012. Rev. 1.0 To install Kies (PC Sync) Download the latest version of Kies from the 1. Samsung website (www.samsung.com/kies) and install it on your PC. Using a USB cable, connect your device to your PC. 2. Samsung Kies will launch automatically. Refer to the Kies help for more information. SHV-E230L user manual Using this manual 2 Using this manual Congratulations on your purchase of the Samsung mobile device. This powerful, “go anywhere” device, puts the best of the web and mobile computing at your fingertips in a lightweight, highly versatile platform that fits your active lifestyle. Built on the Google Android operating system, the Samsung mobile device gives you access to thousands of useful and entertaining applications to enrich your mobile web experience. With integrated wireless access and a responsive touch screen, you can read books and newspapers on the go; stay up-to-date on the latest news, sports, and weather; manage your multimedia and business files; and browse the web for maps, business locations, and more. Read me first Please read all safety precautions and this manual carefully ● before using your device to ensure safe and proper use. The descriptions in this manual are based on the default ● settings of your device. Images and screenshots used in this user manual may differ ● in appearance from the actual product. Content in this user manual may differ from the product, or ● from software provided by service providers or carriers, and is subject to change without prior notice. Refer to www.samsung.com for the latest version of the user manual. Available features and additional services may vary by ● device, software, or service provider. Using this manual 3 Formatting and delivery of this user manual is based ● on Google Android operating systems and may vary depending on the user’s operating system. Applications and their functions may vary by country, ● region, or hardware specifications. Samsung is not liable for performance issues caused by third-party applications. Samsung is not liable for performance issues or ● incompatibilities caused by edited registry settings or modified operating system software. Attempting to customise the operating system may cause your device or applications to work improperly. You may upgrade your mobile device’s software by ● accessing www.samsung.com. Software, sound sources, wallpapers, images, and other ● contents provided in this device are licenced for limited use between Samsung and their respective owners. Extracting and using these materials for commercial or other purposes is an infringement of copyright laws. Samsung is not liable for such copyright infringement by the user. Please keep this manual for future reference. ● Instructional icons Before you start, familiarise yourself with the icons you will see in this manual: Warning—situations that could cause injury to yourself or others Caution—situations that could cause damage to your device or other equipment Note—notes, usage tips, or additional information Using this manual 4 ► Refer to—pages with related information; for example: ► p.12 (represents “see page 12”) → Followed by—the order of options or menus you must select to perform a step; for example: Open the application list and select Settings → Wireless and networks (represents Settings, followed by Wireless and networks) Copyright Copyright © 2012 Samsung Electronics This user manual is protected under international copyright laws. No part of this user manual may be reproduced, distributed, translated, or transmitted in any form or by any means, electronic or mechanical, including photocopying, recording, or storing in any information storage and retrieval system, without the prior written permission of Samsung Electronics. Trademarks SAMSUNG and the SAMSUNG logo are registered ● trademarks of Samsung Electronics. The Android logo, Google Search ● ™ , Google Maps ™ , Google Mail ™ , YouTube ™ , Android Market ™ , and Google Talk ™ are trademarks of Google, Inc. Bluetooth ● ® is a registered trademark of the Bluetooth SIG, Inc. worldwide. Oracle and Java are registered trademarks of Oracle and/ ● or its affiliates. Other names may be trademarks of their respective owners. Using this manual 5 Windows Media Player ● ® is a registered trademark of Microsoft Corporation. Wi-Fi ● ® , Wi-Fi Protected Setup ™ , Wi-Fi Direct ™ , Wi-Fi CERTIFIED ™ , and the Wi-Fi logo are registered trademarks of the Wi-Fi Alliance. DivX ● ® , DivX Certified ® , and associated logos are trademarks of Rovi Corporation or its subsidiaries and are used under licence. All other trademarks and copyrights are the property of ● their respective owners. Using this manual 6 ABOUT DIVX VIDEO DivX ® is a digital video format created by DivX, LLC, a subsidiary of Rovi Corporation. This is an official DivX Certified ® device that plays DivX video. Visit www.divx.com for more information and software tools to convert your files into DivX videos. DivX Certified ® to play DivX ® video up to HD 720p, including premium content ABOUT DIVX VIDEO-ON-DEMAND This DivX Certified ® device must be registered in order to play purchased DivX Video-on-Demand (VOD) movies. To obtain your registration code, locate the DivX VOD section in your device setup menu. Go to vod.divx.com for more information on how to complete your registration. Contents 7 Assembling ....................................................... 11 Unpack ................................................................................................. 11 Install the SIM or USIM card ......................................................... 12 Charge the battery .......................................................................... 12 Insert a memory card (optional) ................................................ 14 Getting started ..…

Text truncated - open the document above for the full version.

SAMSUNG ELECTRONICS AMERICA, INC. American QA Lab 19 Chapin Rd, Building D. Pine Brook, NJ 07058 Date: November 10, 2012 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road, Columbia, MD 21046 RE: Request of Confidentiality for FCC ID: A3LSHVE230L To Whom It May Concern: Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules (CFR 47), and Section 552 (b) (4) of the Freedom of Information Act, SAMSUNG ELECTRONICS CO.,LTD. hereby requests confidentiality and treatment of certain information accompanying this application. The materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. We are also hereby request Short-Term Confidentiality for 180 days after the grant as outlined in Public Notice DA 04-1705. This provision will give SAMSUNG ELECTRONICS CO.,LTD. temporary confidentiality of commercially sensitive information prior to product release. The requested Permanent and Short-Term Confidential exhibits are listed as follows: PERMANENT AND SHORT-TERM CONFIDENTIAL LIST Exhibit Description 1 Block Diagram 2 Operational Description PERMANENT 3 Schematics 4 External Photos 5 Internal Photos 6 Test-Setup Photos SHORT-TERM 7 Users Manual The Applicant understands that pursuant to Rule 0.457, disclosure of this application and all accompanying documentations, where applicable, will not be made public before the date of the Grant for this application. Sincerely, Peter Ra General Manager American QA Lab SAMSUNG Electronics America INC.

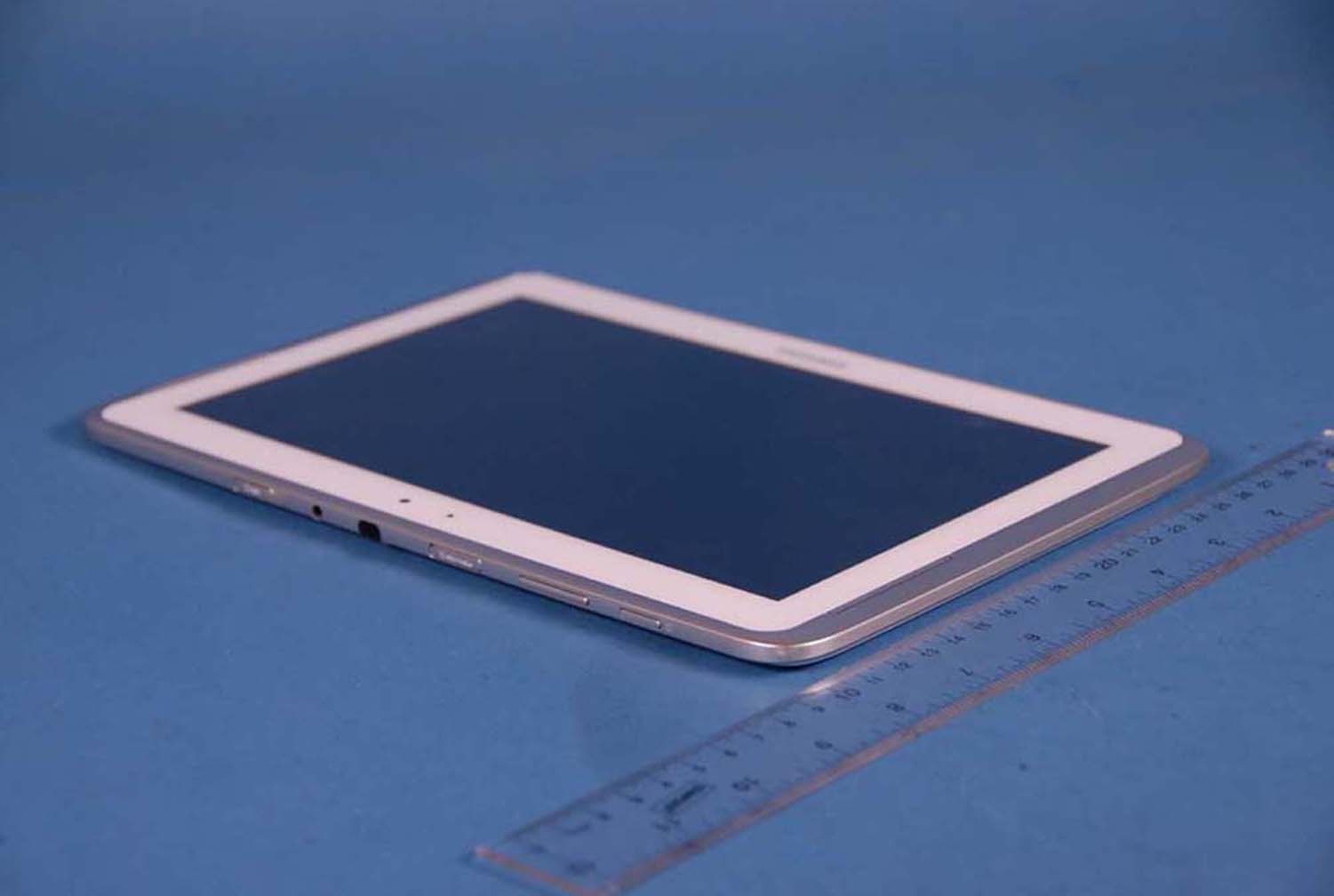

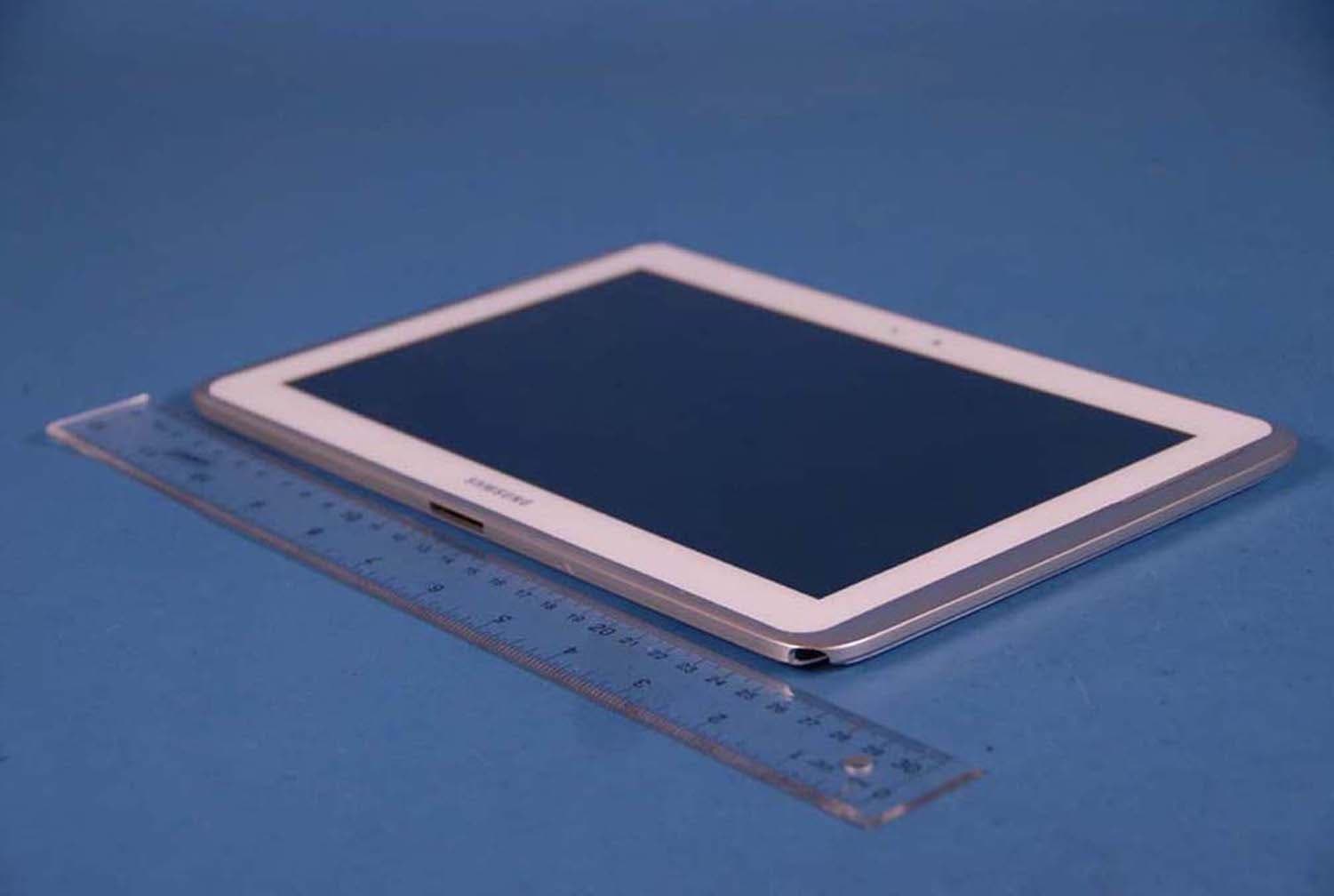

Samsung FCC ID: A3LSHVE230L Model: SHV-E230L External Photos EUT Type: Portable Tablet Page 1 of 4 © 2012 PCTEST Engineering Laboratory Inc. EXTERNAL PHOTOGRAPHS Samsung FCC ID: A3LSHVE230L Model: SHV-E230L External Photos EUT Type: Portable Tablet Page 2 of 4 © 2012 PCTEST Engineering Laboratory Inc. Samsung FCC ID: A3LSHVE230L Model: SHV-E230L External Photos EUT Type: Portable Tablet Page 3 of 4 © 2012 PCTEST Engineering Laboratory Inc. Samsung FCC ID: A3LSHVE230L Model: SHV-E230L External Photos EUT Type: Portable Tablet Page 4 of 4 © 2012 PCTEST Engineering Laboratory Inc.

Label and Location Samsung Phone Model: SHV-E230L FCC ID: A3LSHVE230L Label: Location: Top Rear of SHV-E230L Bottom FCC ID is engraved on bottom of rear of the device.

Samsung FCC ID: A3LSHVE230L Model: SHV-E230L Internal Photos EUT Type: Portable Tablet Page 1 of 11 © 2012 PCTEST Engineering Laboratory Inc. INTERNAL PHOTOGRAPHS Samsung FCC ID: A3LSHVE230L Model: SHV-E230L Internal Photos EUT Type: Portable Tablet Page 2 of 11 © 2012 PCTEST Engineering Laboratory Inc. Samsung FCC ID: A3LSHVE230L Model: SHV-E230L Internal Photos EUT Type: Portable Tablet Page 3 of 11 © 2012 PCTEST Engineering Laboratory Inc. Samsung FCC ID: A3LSHVE230L Model: SHV-E230L Internal Photos EUT Type: Portable Tablet Page 4 of 11 © 2012 PCTEST Engineering Laboratory Inc. Samsung FCC ID: A3LSHVE230L Model: SHV-E230L Internal Photos EUT Type: Portable Tablet Page 5 of 11 © 2012 PCTEST Engineering Laboratory Inc. Samsung FCC ID: A3LSHVE230L Model: SHV-E230L Internal Photos EUT Type: Portable Tablet Page 6 of 11 © 2012 PCTEST Engineering Laboratory Inc. Samsung FCC ID: A3LSHVE230L Model: SHV-E230L Internal Photos EUT Type: Portable Tablet Page 7 of 11 © 2012 PCTEST Engineering Laboratory Inc. Samsung FCC ID: A3LSHVE230L Model: SHV-E230L Internal Photos EUT Type: Portable Tablet Page 8 of 11 © 2012 PCTEST Engineering Laboratory Inc. Samsung FCC ID: A3LSHVE230L Model: SHV-E230L Internal Photos EUT Type: Portable Tablet Page 9 of 11 © 2012 PCTEST Engineering Laboratory Inc. Samsung FCC ID: A3LSHVE230L Model: SHV-E230L Internal Photos EUT Type: Portable Tablet Page 10 of 11 © 2012 PCTEST Engineering Laboratory Inc. Samsung FCC ID: A3LSHVE230L Model: SHV-E230L Internal Photos EUT Type: Portable Tablet Page 11 of 11 © 2012 PCTEST Engineering Laboratory Inc.

FCC ID: A3LSHVE230L SAR EVALUATION REPORT Reviewed by: Quality Manager Document S/N: Test Dates: DUT Type: Page 1 of 31 0Y1210221528-R1.A3L 10/23/12 - 11/06/12 Portable Tablet © 2012 PCTEST Engineering Laboratory, Inc. REV 11.3 M 04/23/2012 Applicant Name: Date of Testing: Samsung Electronics Co., Ltd. 10/23/12 - 11/06/12 416, Maetan 3-dong, Yeongtong-gu, Suwon-si Test Site/Location: Gyeonggi-do, 443-742 PCTEST Lab, Columbia, MD, USA Republic of Korea Document Serial No.: 0Y1210221528-R1.A3L FCC ID: A3LSHVE230L APPLICANT: SAMSUNG ELECTRONICS CO., LTD. DUT Type: Portable Tablet Application Type: Certification FCC Rule Part(s): Model(s): CFR §2.1093 SHV-E230L 1 gm Body (W/kg) GSM/GPRS 19001850.20 - 1909.80 MHz24.31 0.50 UMTS 19001852.4 - 1907.6 MHz22.57 0.86 2.4 GHz WLAN2412 - 2462 MHz11.89 0.69 5.8 GHz WLAN5745 - 5825 MHz12.890.26 5.2 GHz WLAN5180 - 5240 MHz12.580.59 5.3 GHz WLAN5260 - 5320 MHz12.670.63 5.5 GHz WLAN5500 - 5700 MHz12.830.57 Bluetooth2402 - 2480 MHz10.76 1.55 N/A Simultaneous SAR per KDB 690783 D01: SAR Band & ModeTx Frequency Conducted Power [dBm] Note: Powers in the above table represent output powers for the SAR test configurations and may not represent the highest output powers for all configurations for each mode. This revised Test Report (S/N: 0Y1210221528-R1.A3L) supersedes and replaces the previously issued test report on the same subject DUT for the same type of testing as indicated. Please discard or destroy the previously issued test report(s) and dispose of it accordingly. This wireless portable device has been shown to be capable of compliance for localized specific absorption rate (SAR) for uncontrolled environment/general population exposure limits specified in ANSI/IEEE C95.1-1992 and has been tested in accordance with the measurement procedures specified in FCC/OET Bulletin 65 Supplement C (2001), IEEE 1528-2003 and in applicable Industry Canada Radio Standards Specifications (RSS); for North American frequency bands only. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. Test results reported herein relate only to the item(s) tested. PCTEST certifies that no party to this application has been subject to a denial of Federal benefits that includes FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. PCTEST ENGINEERING LABORATORY, INC. 6660-B Dobbin Road, Columbia, MD 21045 USA Tel. +1.410.290.6652 / Fax +1.410.290.6654 http://www.pctestlab.com SAR EVALUATION REPORT FCC ID: A3LSHVE230L SAR EVALUATION REPORT Reviewed by: Quality Manager Document S/N: Test Dates: DUT Type: Page 2 of 31 0Y1210221528-R1.A3L 10/23/12 - 11/06/12 Portable Tablet © 2012 PCTEST Engineering Laboratory, Inc. REV 11.3 M 04/23/2012 TABLE OF CONTENTS 1 DEVICE UNDER TEST ................................................................................................................... 3 2 INTRODUCTION ............................................................................................................................. 5 3 SAR MEASUREMENT SETUP ....................................................................................................... 6 4 DOSIMETRIC ASSESSMENT ........................................................................................................ 7 5 FCC RF EXPOSURE LIMITS .......................................................................................................... 8 6 FCC MEASUREMENT PROCEDURES .......................................................................................... 9 7 SAR TABLET TESTING ................................................................................................................ 12 8 RF CONDUCTED POWERS ......................................................................................................... 13 9 SYSTEM VERIFICATION .............................................................................................................. 19 10 SAR DATA SUMMARY ................................................................................................................. 21 11 FCC MULTI-TX AND ANTENNA SAR CONSIDERATIONS ......................................................... 24 12 EQUIPMENT LIST ......................................................................................................................... 26 13 MEASUREMENT UNCERTAINTIES ............................................................................................ 27 14 CONCLUSION ............................................................................................................................... 29 15 REFERENCES .............................................................................................................................. 30 FCC ID: A3LSHVE230L SAR EVALUATION REPORT Reviewed by: Quality Manager Document S/N: Test Dates: DUT Type: Page 3 of 31 0Y1210221528-R1.A3L 10/23/12 - 11/06/12 Portable Tablet © 2012 PCTEST Engineering Laboratory, Inc. REV 11.3 M 04/23/2012 1 DEVICE UNDER TEST 1.1 Device Overview GSM/GPRS 19001850.20 - 1909.80 MHz UMTS 19001852.4 - 1907.6 MHz 2.4 GHz WLAN2412 - 2462 MHz 5.8 GHz WLAN5745 - 5825 MHz 5.2 GHz WLAN5180 - 5240 MHz 5.3 GHz WLAN5260 - 5320 MHz 5.5 GHz WLAN5500 - 5700 MHz Bluetooth2402 - 2480 MHz Band & ModeTx Frequency 1.2 DUT Antenna Locations Figure 1-1 DUT Antenna Locations 1.3 SAR Test Exclusions Applied (A) WIFI/BT 2.4 GHz and 5 GHz WIFI and Bluetooth share the same antenna path and cannot transmit simultaneously. The separation between the main antenna and the Bluetooth/WLAN antenna is 155.2 mm. RF Conducted Power of Bluetooth Tx is 11.91 mW (Please refer to the EMC DSS Report for a full set of Bluetooth conducted powers). Per KDB Publication 447498 4) b), SAR is not requi…

Text truncated - open the document above for the full version.

© 2012 PCTEST Engineering Laboratory, Inc. APPENDIX C: PROBE CALIBRATION

FCC ID: A3LSHVE230L FCC Pt. 15.407 DFS TEST REPORT (CERTIFICATION) Reviewed by: Quality Manager Test Report S/N: Test Dates: EUT Type: Page 1 of 22 0Y1210221533.A3L 11/7/2012 Portable Tablet © 2012 PCTEST Engineering Laboratory, Inc. REV 1.5DFS 9/14/12 Company Name: Date of Testing: Samsung Electronics Co., Ltd. 11/7/2012 416 Maetan 3-Dong, Yeongtong-gu Test Site/Location: Suwon-si, Gyeonggi-do PCTEST Lab. Columbia, MD, USA 443-742 , Republic of Korea Test Report Serial No.: 0Y1210221533.A3L FCC ID: A3LSHVE230L COMPANY: Samsung Electronics Co., Ltd. Model(s): SHV-E230L EUT Type: Portable Tablet Type of Device: Client Only Device, No Radar Detection Capability Frequency Range: 5260 – 5320 MHz (UNII-II Band) 5500 – 5700 MHz (UNII-III Band) Output Power: 18.967 mW (12.78 dBm) Conducted (802.11a UNII Band II) 19.634 mW (12.93 dBm) Conducted (802.11a UNII Band III) FCC Classification: Unlicensed National Information Infrastructure (UNII) FCC Rule Part(s): Part 15.407(UNII) This equipment has been shown to be capable of compliance with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in FCC 06-96 Appendix B Compliance Measurement Procedures for Unlicensed-National Information Infrastructure Devices Operating in the 5.25 – 5.35 GHz and 5.47 – 5.725 GHz Bands Incorporating Dynamic Frequency Selection. Test results reported herein relate only to the item(s) tested. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. PCTEST certifies that no party to this application has been subject to a denial of Federal benefits that includes FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. PCTEST ENGINEERING LABORATORY, INC. 7185 Oakland Mills Road, Columbia, MD 21045 USA Tel. 410.290.6652 / Fax 410.290.6654 http://www.pctestlab.com MEASUREMENT REPORT FCC PART 15.407 / IC RSS-210 DFS FCC ID: A3LSHVE230L FCC Pt. 15.407 DFS TEST REPORT (CERTIFICATION) Reviewed by: Quality Manager Test Report S/N: Test Dates: EUT Type: Page 2 of 22 0Y1210221533.A3L 11/7/2012 Portable Tablet © 2012 PCTEST Engineering Laboratory, Inc. REV 1.5DFS 9/14/12 TABLE OF CONTENTS FCC PART 15.407 MEASUREMENT REPORT...................................................................................3 1.0 INTRODUCTION ...................................................................................................................................... 4 1.1 SCOPE ....................................................................................................................................................... 4 1.2 EVALUATION PROCEDURE ..................................................................................................................... 4 1.3 SUMMARY OF TEST RESULTS ............................................................................................................... 4 2.0 PRODUCT INFORMATION ..................................................................................................................... 5 2.1 EQUIPMENT DESCRIPTION ..................................................................................................................... 5 2.2 MODIFICATIONS ....................................................................................................................................... 5 3.0 DESCRIPTION OF DYNAMIC FREQUENCY SELECTION TEST ......................................................... 6 3.1 APPLICABILITY ......................................................................................................................................... 6 3.2 REQUIREMENTS ...................................................................................................................................... 6 3.3 DFS DETECTION THRESHOLD VALUES ................................................................................................ 8 3.4 PARAMETERS OF DFS TEST SIGNALS .................................................................................................. 8 3.5 PROCEDURE ............................................................................................................................................ 9 4.0 TEST EQUIPMENT ................................................................................................................................ 11 4.1 ADDITIONAL EQUIPMENT ..................................................................................................................... 11 5.0 TEST PLOTS AND DATA UNII - II BAND ............................................................................................. 12 6.0 TEST PLOTS AND DATA UNII – III BAND ............................................................................................ 17 7.0 CONCLUSION ....................................................................................................................................... 22 FCC ID: A3LSHVE230L FCC Pt. 15.407 DFS TEST REPORT (CERTIFICATION) Reviewed by: Quality Manager Test Report S/N: Test Dates: EUT Type: Page 3 of 22 0Y1210221533.A3L 11/7/2012 Portable Tablet © 2012 PCTEST Engineering Laboratory, Inc. REV 1.5DFS 9/14/12 DFS MEASUREMENT REPORT FCC Part 15.407 § 2.1033 General Information APPLICANT: Samsung Electronics Co., Ltd. APPLICANT ADDRESS: 416 Maetan 3-Dong, Yeongtong-gu Suwon-si, Gyeonggi-do, 443-742 , Republic of Korea TEST SITE: PCTEST ENGINEERING LABORATORY, INC. TEST SITE ADDRESS: 7185 Oakland Mills Road, Columbia, MD 21046 USA FCC RULE PART(S): Part 15.407(h) BASE MODEL: SHV-E230L FCC ID: A3LSHVE230L Test Device Serial No.: BT/WIFI Cond Production Pre-Production Engineering DEVICE CLASSIFICATION: Client Only, No Radar Detection DATE(S) OF TEST…

Text truncated - open the document above for the full version.

FCC ID: A3LSHVE230L FCC Pt. 15.407 802.11a/n UNII MEASUREMENT REPORT (CERTIFICATION) Reviewed by: Quality Manager Test Report S/N: Test Dates: EUT Type: Page 1 of 72 0Y1210221532.A3L 10/24-11/12/2012 Portable Tablet © 2012 PCTEST Engineering Laboratory, Inc. REV 1.4U40 10/11/12 Applicant Name: Date of Testing: Samsung Electronics Co., Ltd. 10/24-11/12/2012 416 Maetan 3-Dong, Yeongtong-gu Test Site/Location: Suwon-si, Gyeonggi-do PCTEST Lab, Columbia, MD, USA 443-742 , Republic of Korea Test Report Serial No.: 0Y1210221532.A3L FCC ID: A3LSHVE230L APPLICANT: Samsung Electronics Co., Ltd. Application Type: Certification Model(s): SHV-E230L EUT Type: Portable Tablet FCC Classification: Unlicensed National Information Infrastructure (UNII) FCC Rule Part(s): Part 15.407 IC Specification(s): RSS-210 Issue 8 Test Procedure(s): ANSI C63.10-2009, KDB 789033 Max. Power (mW) Max. Power (dBm ) 1205 18 0 - 5 24 01 8.51 2.6 7 2205 26 0 - 5 32 01 9.01 2.7 8 3205 50 0 - 5 70 01 9.61 2.9 3 1205 18 0 - 5 24 01 5.11 1.7 9 2205 26 0 - 5 32 01 5.61 1.9 2 3205 50 0 - 5 70 01 6.21 2.0 9 1405 19 0 - 5 23 01 2.91 1.1 2 2405 27 0 - 5 31 01 2.71 1.0 3 3405 51 0 - 5 67 01 3.01 1.1 3 Conducted Power Mode Tx Frequency (M Hz) UN II Band 802.11n Channel B a nd wid th (M Hz) 802.11a 802.11n This equipment has been shown to be capable of compliance with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in ANSI C63.10-2009, and KDB 789033. Test results reported herein relate only to the item(s) tested. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. PCTEST certifies that no party to this application has been subject to a denial of Federal benefits that includes FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. PCTEST ENGINEERING LABORATORY, INC. 7185 Oakland Mills Road, Columbia, MD 21046 USA Tel. 410.290.6652 / Fax 410.290.6654 http://www.pctestlab.com MEASUREMENT REPORT FCC PART 15.407 / IC RSS-210 802.11a/n (UNII) FCC ID: A3LSHVE230L FCC Pt. 15.407 802.11a/n UNII MEASUREMENT REPORT (CERTIFICATION) Reviewed by: Quality Manager Test Report S/N: Test Dates: EUT Type: Page 2 of 72 0Y1210221532.A3L 10/24-11/12/2012 Portable Tablet © 2012 PCTEST Engineering Laboratory, Inc. REV 1.4U40 10/11/12 TABLE OF CONTENTS FCC PART 15.407 MEASUREMENT REPORT...................................................................................3 1.0 INTRODUCTION ...................................................................................................................................... 4 1.1 SCOPE ........................................................................................................................................................... 4 1.2 PCTEST TEST LOCATION ............................................................................................................................ 4 2.0 PRODUCT INFORMATION ..................................................................................................................... 5 2.1 EQUIPMENT DESCRIPTION......................................................................................................................... 5 2.2 DEVICE CAPABILITIES ................................................................................................................................. 5 2.3 TEST CONFIGURATION ............................................................................................................................... 5 2.4 EMI SUPPRESSION DEVICE(S)/MODIFICATIONS ...................................................................................... 5 2.5 LABELING REQUIREMENTS ........................................................................................................................ 5 3.0 DESCRIPTION OF TEST ........................................................................................................................ 6 3.1 EVALUATION PROCEDURE ......................................................................................................................... 6 3.2 AC LINE CONDUCTED EMISSIONS ............................................................................................................. 6 3.3 RADIATED EMISSIONS ................................................................................................................................ 7 4.0 ANTENNA REQUIREMENTS .................................................................................................................. 8 5.0 TEST EQUIPMENT CALIBRATION DATA .............................................................................................. 9 6.0 TEST RESULTS .................................................................................................................................... 10 6.1 SUMMARY ................................................................................................................................................... 10 6.2 26DB BANDWIDTH MEASUREMENT – 802.11A/N .................................................................................... 11 6.3 UNII OUTPUT POWER MEASUREMENT – 802.11A/N .............................................................................. 25 6.4 PEAK POWER SPECTRAL DENSITY – 802.11A/N .................................................................................... 27 6.5 PEAK EXCURSION RATIO – 802.11A/N ..................................................................................................... 42 6.6 FREQUENCY STABILITY ............................................................................................................................ 45 6.7 RADIATED SPURIOUS EMISSION MEASUREMENTS …

Text truncated - open the document above for the full version.

FCC ID: A3LSHVE230L SAR EVALUATION REPORT Reviewed by: Quality Manager Test Dates: DUT Type: Page D1 of D4 10/23/12 - 11/06/12 Portable Tablet © 2012 PCTEST Engineering Laboratory, Inc. REV 11.3 M 04/23/2012 APPENDIX D: SAR TEST SETUP PHOTOGRAPHS FCC ID: A3LSHVE230L SAR EVALUATION REPORT Reviewed by: Quality Manager Test Dates: DUT Type: Page D2 of D4 10/23/12 - 11/06/12 Portable Tablet © 2012 PCTEST Engineering Laboratory, Inc. REV 11.3 M 04/23/2012 SAR Test Setup Photo 1: Back Side at 1.1 cm SAR Test Setup Photo 2: Top Edge at 0.9 cm FCC ID: A3LSHVE230L SAR EVALUATION REPORT Reviewed by: Quality Manager Test Dates: DUT Type: Page D3 of D4 10/23/12 - 11/06/12 Portable Tablet © 2012 PCTEST Engineering Laboratory, Inc. REV 11.3 M 04/23/2012 SAR Test Setup Photo 3: Right Edge at 0.0 cm SAR Test Setup Photo 4: Left Edge at 0.0 cm FCC ID: A3LSHVE230L SAR EVALUATION REPORT Reviewed by: Quality Manager Test Dates: DUT Type: Page D4 of D4 10/23/12 - 11/06/12 Portable Tablet © 2012 PCTEST Engineering Laboratory, Inc. REV 11.3 M 04/23/2012 SAR Test Setup Photo 5: Back Side at 0.0 cm SAR Test Setup Photo 6: Top Edge at 0.0 cm

Samsung FCC ID: A3LSHVE230L Model: SHV-E230L Test Set-Up Photos EUT Type: Portable Tablet Page 1 of 3 © 2012 PCTEST Engineering Laboratory Inc. TEST SETUP PHOTOGRAPHS Samsung FCC ID: A3LSHVE230L Model: SHV-E230L Test Set-Up Photos EUT Type: Portable Tablet Page 2 of 3 © 2012 PCTEST Engineering Laboratory Inc. Samsung FCC ID: A3LSHVE230L Model: SHV-E230L Test Set-Up Photos EUT Type: Portable Tablet Page 3 of 3 © 2012 PCTEST Engineering Laboratory Inc.
