A3LSLM2875FWMono Laser Multifuction Printer

BASIC User’s Guide BASIC User’s Guide This guide provides information concerning the installation, basic operation and troubleshooting on windows.ADVANCEDThis guide provides information about the installation, advanced configuration, operation and troubleshooting on various OS environments. Some features may not be available depending on models or countries. 2 BASIC BASIC 1. IntroductionKey benefits 5 Features by models 7 Useful to know 13 About this user’s guide 14 Safety information 15 Machine overview 20 Control panel overview 24 Turning on the machine 27 Installing the driver locally 28 Reinstalling the driver 31 2. Menu Overview and Basic SetupMenu overview 33 Machine’s basic settings 38 Media and tray 40 Basic printing 55 Basic copying 61 Basic scanning 66 Basic faxing 67 3. MaintenanceOrdering supplies and accessories 72 Available supplies 73 Available maintenance parts 74 Storing the toner cartridge 75 Redistributing toner 77 Replacing the toner cartridge 80 Replacing the imaging unit 84 Monitoring the supplies life 87 Setting the toner low alert 88 Cleaning the machine 89 Tips for moving & storing your machine 97 4. TroubleshootingTips for avoiding paper jams 99 Clearing original document jams 100 3 BASIC Clearing paper jams 105 Understanding the status LED 114 Understanding display messages 117 5. AppendixSpecifications 123 Regulatory information 133 Copyright 146 1. IntroductionThis chapter provides information you need to know before using the machine.•Key benefits 5 • Features by models 7 • Useful to know 13 • About this user’s guide 14 • Safety information 15 • Machine overview 20 • Control panel overview 24 • Turning on the machine 27 • Installing the driver locally 28 • Reinstalling the driver 31 Key benefitsEnvironmentally friendly• To save toner and paper, this machine supports Eco feature. • To save paper, you can print multiple pages on one single sheet of paper (see "Using advanced print features" on page 236). • To save paper, you can print on both sides of the paper (double-sided printing) (see "Using advanced print features" on page 236). • To save electricity, this machine automatically conserves electricity by substantially reducing power consumption when not in use. • We recommend using recycled paper for saving energy. Fast high resolution printing• You can print with a resolution of up to 4,800 x 600 dpi effective (600 x 600 x 3 bit) output. • Fast, on-demand printing.M267x series: - For single-side printing, 26 ppm (A4) or 27 ppm (Letter). M287x series: - For single-side printing, 28 ppm (A4) or 29 ppm (Letter). Convenience• You can print on the go from your smartphone or computer using Google Cloud Print™ enabled apps G (see "Google Cloud Print™" on page 225). • Easy Capture Manager allows you to easily edit and print whatever you captured using the Print Screen key on the keybo ard G (see "Easy Capture Manager" on page 270). Key benefits• Samsung Easy Printer Manager and Printing Status is a program that monitors and informs you of the machine’s status and allows you to customize the machine’s settings (see "Using Samsung Printer Status" on page 285or "Using Samsung Easy Printer Manager" on page 282). • Samsung Easy Document Creator is an application to help users scan, compile, and save documents in multiple formats, including .epub format. These documents can be shared via social networking sites or fax (see "Using Samsung Easy Document Creator" on page 276). • AnyWeb Print helps you screen-capture, preview, scrap, and print the screen of Windows Internet Explorer more easily, than when you use the ordinary program (see "Samsung AnyWeb Print" on page 271). • Smart Update allows you to check for the latest software and install the latest version during the printer driver installation process. This is available only for Windows. • If you have Internet access, you can get help, support application, machine drivers, manuals, and order information from the Samsung website, www.samsung.com > find your product > Support or Downloads. Wide range of functionality and application support• Supports various paper sizes (see "Print media specifications" on page 125). • Print watermark: You can customize your documents with words, such as “Confidential” (see "Using advanced print features" on page 236). • Print posters: The text and pictures of each page of your document are magnified and printed across the multiple sheets of paper and can then be taped together to form a poster (see "Using advanced print features" on page 236). • You can print in various operating systems (see "System requirements" on page 128). • Your machine is equipped with a USB interface and/or a network interface. Supports various wireless network setting method • Using the WPS (Wi-Fi Protected Setup™) button- You can easily connect to a wireless network using the WPS button on the machine and the access point (a wireless router). • Using the USB cable or a network cable - You can connect and set various wireless network settings using a USB cable or a network cable. • Using the Wi-Fi Direct- You can conveniently print from your mobile device using the Wi-Fi or Wi-Fi Direct feature. See "Introducing wireless set up methods" on page 192. Features by modelsSome features and optional goods may not be available depending on model or country.Operating System (  : Included, Blank: Not available) SoftwareYou can install the printer driver and software when you insert the software CD into your CD-ROM drive. For Windows, select the printer driver and software in the Select Software to Install window. Operating System M267x series G M287x series Windows   Mac   Linux   Unix  Software G M267x series G M287x series SPL printer driver a   PCL printer driver  PS printer driver a XPS printer driver b   Features by models Direct Printing Utility b Samsung Easy Printer Manager Scan to PC settings   Fax to PC settings  (M267xF/M267xFN/M267xFH/M267xHN only)  (M287xFD/M287xFW/M287xHN only) Device …

Text truncated - open the document above for the full version.

Redistributing toner 79 3. Maintenance 5 M2675/M2676/M2875/M2876 series 1 2 80 3. Maintenance Replacing the toner cartridge • Shake the toner cartridge thoroughly, it will increase the initial print quality. • Illustrations on this user’s guide may differ from your machine depending on its options or models. Check your machine type (s ee "Front view" on page 21). • To prevent damage to the toner cartridge, do not expose it to light for more than a few minutes. Cover it with a piece of pape r, if necessary. • Do not touch the green area of the toner cartridge. Use the handle on the cartridge to avoid touching this area. • Do not use sharp objects such as a knife or scissors to open the toner cartridge package. They might scratch the drum of the c artridge. • If toner gets on your clothing, wipe it off with a dry cloth and wash clothing in cold water. Hot water sets toner into fabric . 6 M2670/M2870 series Click this link to open an animation about replacing a toner cartridge. Replacing the toner cartridge 81 3. Maintenance When a toner cartridge has reached the end of life, the machine will stop printing. Replacing the toner cartridge 82 3. Maintenance 7 M2675/M2676/M2875/M2876 Click this link to open an animation about replacing a toner cartridge. Replacing the toner cartridge 83 3. Maintenance When a toner cartridge has reached the end of life, the machine will stop printing. 84 3. Maintenance Replacing the imaging unitWhen a imaging unit has reached the end of life, the machine will stop printing. • To prevent damage to the toner cartridge, do not expose it to light for more than a few minutes. Cover it with a piece of pape r, if necessary. • Do not touch the green area of the toner cartridge. Use the handle on the cartridge to avoid touching this area. • Do not use sharp objects such as a knife or scissors to open the toner cartridge package. They might scratch the drum of the c artridge. • If toner gets on your clothing, wipe it off with a dry cloth and wash clothing in cold water. Hot water sets toner into fabric . Replacing the imaging unit 85 3. Maintenance 8 M2675/M2676/M2875/M2876 Click this link to open an animation about replacing a imaging unit. Replacing the imaging unit 86 3. Maintenance 1 2 1 2 87 3. Maintenance Monitoring the supplies lifeIf you experience frequent paper jams or printing problems, check the number of pages the machine has printed or scanned. Repla ce the corresponding parts, if necessary. It may be necessary to press OK to navigate to lower-level menus for some models. 1 Select ( Menu ) > System Setup > Maintenance > Supplies Life on the control panel. 2 Select the option you want and press OK . 3 Press ( Stop/Clear ) to return to ready mode. 88 3. Maintenance Setting the toner low alertIf the amount of toner in the cartridge is low, a message or LED informing the user to change the toner cartridge appears. You can set the option for whether or not this message or LED appears. • Accessing menus may differ from model to model (see "Accessing the menu" on page 33). • It may be necessary to press OK to navigate to lower-level menus for some models. • You can set the machine’s settings by using the Device Settings in 6DPVXQJ(DV\3ULQWHU0DQDJHU  program. - For Windows and Mac users, you set from Samsung Easy Printer Manager ! (Switch to advanced mode) ! Device Settings . 1 Select ( Menu ) > System Setup > Maintenance > TonerLowAlert on the control panel. 2 Select the option you want. 3 Press OK to save the selection. 89 3. Maintenance Cleaning the machineIf printing quality problems occur or if you use your machine in a dusty environment, you need to clean your machine regularly to keep it in the best printing condition and use your machine longer. • Cleaning the cabinet of the machine with cleaning materials containing large amounts of alcohol, solvents, or other strong sub stances can discolor or distort the cabinet. • If your machine or the surrounding area is contaminated with toner, we recommend you use a cloth or tissue dampened with water to clean it. If you use a vacuum cleaner, toner blows in the air and might be harmful to you. • During the printing process, paper, toner, and dust particles can accumulate inside the machine. This buildup can cause print quality problems, such as toner specks or smearing. Cleaning the inside of the machine clears and reduces these problems. 9 Cleaning the outside Clean the machine cabinet with a soft, lint-free cloth. Dampen the cloth slightly with water, but be careful not to let any wat er drip onto or into the machine. 10 Cleaning the inside During the printing process, paper, toner, and dust particles can accumulate inside the machine. This buildup can cause print q uality problems, such as toner specks or something. Cleaning the inside of the machine clears and reduces these problems. Cleaning the machine 90 3. Maintenance • To prevent damage to the toner cartidge, do not expose it to light for more than a few minutes. Cover it with a piece of paper, if necessary. • Do not touch the green area of the toner cartridge. Use the handle on the cartridge to avoid touching this area. • Use a dry lint free cloth when cleaning the inside of the machine, be careful not to damage the transfer roller or any other inside parts. Do not use solvents such as benzene or thinner. Printing quality problems can occur and cause damage to the machine. • Use a dry lint-free cloth to clean the machine. • Turn the machine off and unplug the power cord. Wait for the machine to cool down. If your machine has a power switch, turn the power switch off before cleaning the machine. Cleaning the machine 91 3. Maintenance • Before opening the front cover, close the output support first. • Illustrations on this user’s guide may differ from your machine depending on its options or models. Check your machine type (see "Machine overview" on page 20). Cleaning the machine 92 3. Maintenance 2 1 1 2 Cleaning the machine 93 3. Maintenance 11 Clea…

Text truncated - open the document above for the full version.

Clearing original document jams 104 4. Troubleshooting 3 Original paper jam in exit area of scanner 1 Remove any remaining pages from the document feeder. 2 Gently remove the jammed paper from the document feeder. 105 4. Troubleshooting Clearing paper jams To avoid tearing the paper, pull the jammed paper out slowly and gently. 4 In tray Click this link to open an animation about solving power problems. Clearing paper jams 106 4. Troubleshooting 5 In the manual tray Click this link to open an animation about solving power problems. Clearing paper jams 107 4. Troubleshooting 6 Inside the machine The fuser area is hot. Take care when removing paper from the machine. Clearing paper jams 108 4. Troubleshooting M2670/M2870 series Click this link to open an animation about solving power problems. 1 2 Clearing paper jams 109 4. Troubleshooting M2675/M2676/M2875/M2876 series Click this link to open an animation about solving power problems. Clearing paper jams 110 4. Troubleshooting 1 2 Clearing paper jams 111 4. Troubleshooting 7 In the exit area Click this link to open an animation about solving power problems. Clearing paper jams 112 4. Troubleshooting 8 In the duplex unit area Click this link to open an animation about solving power problems. Clearing paper jams 113 4. Troubleshooting If you do not see the paper in this area, stop and go to next step: 12 114 4. Troubleshooting Understanding the status LEDThe color of the LED indicates the machine's current status. • Some LEDs may not be available depending on model or country. • To resolve the error, look at the error message and its instructions from the troubleshooting part. • You also can resolve the error with the guideline from the computer’s Printing Status or Smart Panel program window. • If the problem persists, call a service representative. Understanding the status LED 115 4. Troubleshooting Status Description Status Off The machine is off-line or in a sleep mode. Green Blinking When the backlight blinks, the machine is receiving or printing data. On • The machine is on-line and can be used. Orange On A paper jam has occurred (see "Clearing original document jams" on page 100, "Clearing paper jams" on page 105). Red Blinking • A minor error has occurred and the machine is waiting for the error to be cleared. Check the display message. When the problem is cleared, the machine resumes. For some models that does not support the display screen on the control panel, this feature is not applicable. • Small amount of toner is left in the cartridge. The estimated cartridge life of toner is close. Prepare a new cartridge for replacement. You may temporarily increase the printing quality by redistributing the toner (see "Redistributing toner" on page 77). On • A toner cartridge has almost reached its estimated cartridge life a . It is recommended to replace the toner cartridge (see "Replacing the toner cartridge" on page 80). • There is no paper in the tray. Load paper in the tray. • The machine has stopped due to a major error. Check the display message (see "Understanding display messages" on page 117). • An imaging unithas almost reached its estimated cartridge life b . It is recommended to replace the toner cartridge (see "Replacing the imaging unit" on page 84). Wireless Blue Blinking The machine is connecting to a wireless network. On The machine is connected to a wireless network (see "Wireless network setup" on page 191). Off The machine is disconnected from a wireless network. Understanding the status LED 116 4. Troubleshooting Power/ Wake-up Blue On The machine is in power save mode. Off The machine is in ready mode or machine’s power is off. Eco Green On Eco mode is on. Duplex c , 2-up, toner save on, skip blank page feature will automatically be applied when printing (see"Eco printing" on page 58). Off Eco mode is off. a. Estimated cartridge life means the expected or estimated toner cartridge life, which indicates the average capacity of print- outs and is designed pursuant to ISO/IEC 19752. The number of pages may be affected by operating environment, percentage of image area, printing interval, graphics, media and media size. Some amo unt of toner may remain in the cartridge even when red LED is on and the printer stops printing. b. W hen the imaging unit has reached its end of life, the machine will stop printing. In this case, you can choose to stop or conti nue printing from the SyncThru ™ Web Service ( Machine Settings > System > Setup > Supplies Manangement ) or Samsung Easy Printer Manager ( Device Settings > System > Supplies Management ). If you select off and continue printing, the machine keeps printing but the printing quality cannot be guaranteed. c. M287xFD/M287xFW/M287xHN only. Status Description 117 4. Troubleshooting Understanding display messagesMessages appear on the control panel display to indicate the machine’s status or errors. Refer to the tables below to understand the messages’ and their meaning, and correct the problem, if necessary. • You can resolve the error with the guideline from the computer’s Printing Status program window (see "Using Samsung Printer Status" on page 285). • If a message is not in the table, reboot the power and try the printing job again. If the problem persists, call a service representative. • When you call for service, provide the service representative with the contents of display message. • Some messages may not appear on the display depending on the options or models. • [error number] indicates the error number. • [tray type] indicates the tray number. 9 Paper Jam-related messages Message Meaning Suggested solutions • Document jamRemove jam The loaded original document has jammed in the document feeder. Clear the jam (see "Clearing original document jams" on page 100). • Paper Jamin tray Paper has jammed in the paper feed area. Clear the jam (see "In tray" on page 105). • Paper Jamin Manual Feeder Paper has jammed in the manual feeder. Clear the jam (see "In the manual tr…

Text truncated - open the document above for the full version.

ADVANCED User’s Guide ADVANCED User’s Guide This guide provides information about the installation, advanced configuration, operation and troubleshooting on various OS environments. Some features may not be available depending on models or countries.BASICThis guide provides information concerning the installation, basic operation and troubleshooting on Windows. 149 ADVANCED 1. Software InstallationInstallation for Mac 152 Reinstallation for Mac 153 Installation for Linux 154 Reinstallation for Linux 155 2. Useful Setting MenusBefore you begin reading a chapter 157 Print menu 158 Copy menu 160 Fax menu 163 System setup 166 3. Using a Network-Connected Machine Useful network programs 174 Wired network setup 175 Installing driver over the network 179 IPv6 configuration 188 Wireless network setup 191 Samsung MobilePrint 222 AirPrint 223 Google Cloud Print™ 225 4. Special FeaturesAltitude adjustment 229 Entering various characters 230 Setting up the fax address book 232 Printing features 235 Scan features 250 Fax features 259 150 ADVANCED 5. Useful Management ToolsAccessing management tools 269 Easy Capture Manager 270 Samsung AnyWeb Print 271 Easy Eco Driver 272 Using SyncThru™ Web Service 273 Using Samsung Easy Document Creator 276 Using Samsung Easy Printer Manager 282 Using Samsung Printer Status 285 Using Samsung Printer Experience 287 Using the Linux Unified Driver Configurator 293 6. TroubleshootingPaper feeding problems 298 Power and cable connecting problems 299 Printing problems 300 Printing quality problems 304 Copying problems 312 Scanning problems 313 Faxing problems 315 Operating system problems 317 1. Software InstallationThis chapter provides instructions for installing essential and helpful software for use in an environment where the machine is connected via a cable. A locally connected machine is a machine directly attached to your computer using the cable. If your machine is attached to a network, skip the following steps below and go on to installing a network connected machine’s driver (see "Installing driver over the network" on page 179).• Installation for Mac 152 • Reinstallation for Mac 153 • Installation for Linux 154 • Reinstallation for Linux 155 • If you are a Windows OS user, refer to the Basic Guide for installing the machine’s driver (see "Installing the driver locally" on page 28). • Only use a USB cable no longer then 3 meter (118 inches). 152 1. Software Installation Installation for Mac 1 Make sure that the machine is connected to your computer and powered on. 2 Insert the supplied software CD into your CD-ROM drive. 3 Double-click the CD-ROM icon that appears on your Mac desktop.• For Mac OS X 10.8, double-click the CD-ROM that appears on Finder . 4 Double-click the MAC_Installer folder > Installer OS X icon. 5 Click Continue . 6 Read the license agreement and click Continue . 7 Click Agree to agree to the license agreement. 8 Click Install . All components necessary for machine operations will be installed.If you click Customize , you can choose individual components to install. 9 Enter the password and click OK . 10 Select Direct Connection using USB cable on the Printer Connection Type and click Continue . 11 Click Add Printer button to select your printer and add it to your printer list.If your machine supports fax, click Add Fax button to select your fax and add it to your fax list 12 After the installation is finished, click Close . 153 1. Software Installation Reinstallation for MacIf the printer driver does not work properly, uninstall the driver and reinstall it. 1 Open the Applications folder > Samsung > Printer Software Uninstaller . 2 To uninstall printer software, click Continue . 3 Check the program you want to delete and click Uninstall . 4 Enter the password and click OK . 5 After the uninstallation is finished, click Close . If a machine has already been added, delete it from the Print Setup Utility or Print & Fax . 154 1. Software Installation Installation for LinuxYou need to download Linux software packages from the Samsung website to install the printer software (http://www.samsung.com > find your product > Support or Downloads).1 Installing the Unified Linux Driver 1 Make sure that the machine is connected to your computer and powered on. 2 When the Administrator Login window appears, type “root” in the Login field and enter the system password. You must log in as a super user (root) to install the machine software. If you are not a super user, ask your system administrator. 3 From the Samsung website, download the Unified Linux Driver package to your computer. 4 Right-click the Unified Linux Driver package and extract the package. 5 Double click cdroot > autorun . 6 When the welcome screen appears, click Next . 7 When the installation is complete, click Finish . The installation program added the Unified Driver Configurator desktop icon and the Unified Driver group to the system menu for your convenience. If you have any difficulties, consult the on-screen help that is available through your system menu or from the driver package Windows applications, such as Unified Driver Configurator or Image Manager . 155 1. Software Installation Reinstallation for LinuxIf the printer driver does not work properly, uninstall the driver and reinstall it. 1 Make sure that the machine is connected to your computer and powered on. 2 When the Administrator Login window appears, type “root” in the Login field and enter the system password. You must log in as a super user (root) to uninstall the printer driver. If you are not a super user, ask your system administrator. 3 Open the Terminal program. When the Terminal screen appears, type in the following.[root@localhost root]#cd /opt/Samsung/mfp/uninstall/[root@localhost uninstall]#./uninstall.sh 4 Click Next . 5 Click Finish . 2. Useful Setting MenusThis chapter explains how to browse the current status of your machine, and the method of setting for advanced machine setup. • Before you begin reading a …

Text truncated - open the document above for the full version.

Declaration of Conformity We, Samsung Electronics Co., Ltd., The Wireless LAN included in the models Xpress M2825DW , Xpress M2820DW, Xpress M2875FW and Xpress 2870FW has already been approved as a modular approval under FCC ID: A3LSPWB4319S. - Model : Xpress M2825DW, Xpress M2820DW - Xpress M2875FW, Xpress M2870FW 07 th JAN 2013 Kyeongmin Lee / Assistant Engineer ............................................... ................................................. (place and date of issue) (name and signature of authorized person)

MFP Xpress M287**** / Xpress M267**** [MFP] Series Block Diag ram Motor Step(2) Speaker DDR3 16bit(On die) 128MB MFP : NAND 128MB Motor – Step(A4984)- Scan, ADF (2) System Board MODEM IF-SPI Sensor (4) -. ADF Cover, ADF_P_DET, ADF P POS, Scan home, Motor Step(2) - SCAN, ADF SpeakerMODEM IF-. ConexantCIS Module 128MB SPI DDR Control ABC Chip (SW3304B) I2C Motor IC-Less (2)- BLDC MAIN (1) LSU P Mt (1) CIS IF HT82V38 CIS LED Driver(AK7864) ADF _ P _ POS, Scan home, CIS Module 384MHz DDR3 Clock NC EEPROM MFT : 64KB Engine I2C A1500 600MHz VIDEO CONTROL PWM CLOCK USB 2 0 LSU Video IF Fan (1)-. MAIN, i i S 24VS - LSU P - M o t or (1) SDIO LSU Video-. Dual beam 16.277MHz LSU Clock MAC UART PWM CLOCK USB 2 . 0 -. Ma i n : P_Ex i t S ensor CRUM_OPEN_SENSOR 24VS FUSER UNIT FET (x2) 25MH 12MHz Main clock -. CRUM IF : separate type toner MFP 32.768KHz RTC Clock DC-DC Converter SN1005103 : 1.2V / 1.5V / 3.3V MII (RTL8201) RESET AO3409L TR (x2) Contact Thermistor 850W lamp Thermostat 5V 3_3V_C_OPEN 25MH z Ethernet clock 12MHz USB // HVPS : EP & THV High Voltage output Cover open detectBinfull/Regi/feed/P_empty sensor CRUM IF / Pickup & Regi clutch 5V_SMPS 4V_SMPS Micro S/W (HVPS) SPI USB2.0 Device Embedded USB UART RTC CR2032 SMPS POWER CORD DEVE K UNIT CRUM CRUM IF / Pickup & Regi clutch WLAN IF W-model only 5 24 UI MFP : 2Line LCD

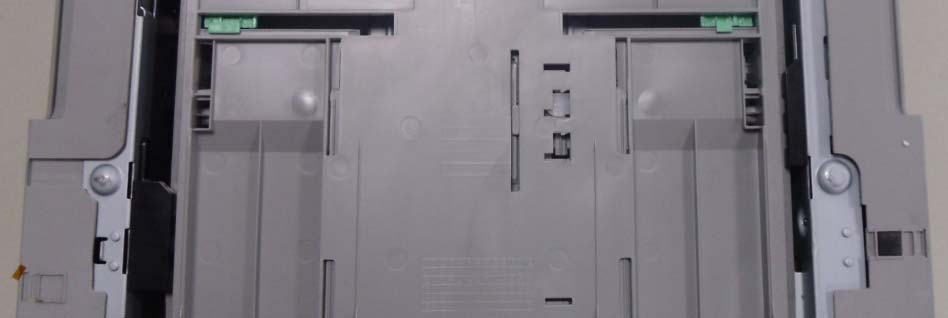

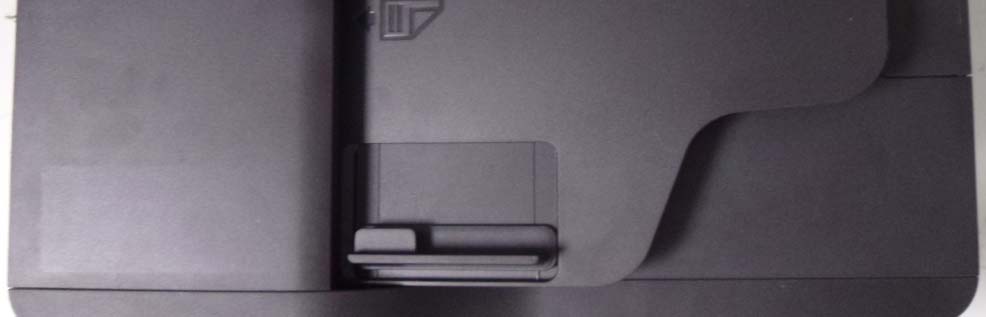

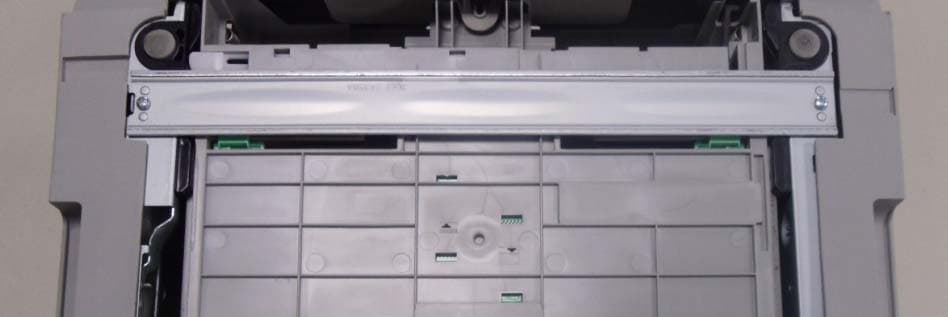

External Pictures Front view Rear view Right side view Left side view TOP view BOTTOM view

Hi Mr. Ra, I spoke with our TCB concerning this application and I hope I am able to help you with the information that is needed to clear this issue regarding the WLAN. I believe the WLAN option for the models M2825DW and M2820DW include a WLAN module that has already been approved as a modular approval. If this is the case then no further testing or approval of the WLAN module is needed. If you can submit the following information to the TCB I believe the issue with the WLAN module will be satisfied and the TCB will be able to issue the grant. 1) Please submit a cover letter that states that the Wireless LAN included in the models M2825DW and M2820DW has already been approved as a modular approval under FCC ID: A3LSPWB4319S. The cover letter should also state that the application is only pertaining to the Part 15B Certification for the printer ==> Attached the file. (DoC letter) 2) Please provide a sample label exhibit that shows the FCC ID for the Printer. The label must also state “Contains FCC ID: A3LSPWB4319S” for the WLAN module (for the M2825DW and M2820DW models). ==> Xpress M2825DW Rating Label Xpress M2875FW Rating Label 3) Please remove the WLAN device from the Operational Description document as it is not needed. This same situation exists with the printer FCC ID: A3LSLM2875FW as well so the same informaton listed above is needed. Please let me know if you have any questions or that I can further assist you with. Best regards, Greg From: 라상경 [mailto:[email protected]] Sent: Thursday, January 03, 2013 5:43 PM To: [email protected]; [email protected]; [email protected]; [email protected] Cc: 이경민; 김윤태 Subject: Re:Questions Regarding FCC ID: A3LSLM2825DW Gregory M. Snyder EMC Technical Manager [email protected] PCTEST Engineering Lab. Tel. 1.410.290.6652 Fax. 1.410.290.6654 cid:image001.jpg@01 This communication and its attachments contain information from PCTEST Engineering Laboratory, Inc., and is intended for the exclusive use of the recipient (s) named above. It may contain information that is confidential and/or legally privileged. Any unauthorized use that may compromise that confidentiality via distribution or disclosure is prohibited. Please notify the sender immediately if you receive this communication in error, and delete it from your computer system. Usage of PCTEST email addresses for non-business related activities is strictly prohibited. No warranty is made that the e-mail or attachment(s) are free from computer virus or other defect. Thank you. Page 2 of 8Samsung Enterprise Portal mySingle 1/7/2013 Project No. : LBE20125898 Mono Laser MFP : Xpress M2875FW - 42/44- This report must not be reproduced, except in full, without written permission from CS & Environment center. Appendix – EUT photography Front View Rear View & Label location

Inside view(Front) Inside view(Rear) Inside view(Right) Inside view(Left) PBA Pictures Mi PBATOPSIDEMain PBA TOP SIDE Main PBA BOTTOM SIDE PBA Pictures OPE PBA TOP SIDEOPE PBA TOP SIDE OPE PBA BOTTOM SIDE PBA Pictures SMPS PBA TOP SIDESMPS PBA TOP SIDE SMPS PBA BOTTOM SIDE PBA Pictures HVPS PBA TOP SIDE HVPS PBA BOTTOM SIDE PBA Pictures FAX PBA TOP SIDE FAX PBA BOTTOM SIDE

M2875FW Technical Specification ItemSpecification and Description ProcessorA1500 (600 MHZ ) Standard System memory 128 MB DDR 3 on all configurations ( Default) Resolutionmax 1200 x 1200 dpi Speed Xpress-M287**** series :28 ppm Xpress-M267**** series :26 ppm Paper Handling Paper Tray(standard) 250 Sheets Bypass Tray 1 Sheets Power RatingAC 110 ~ 127V, 5.5 A, 50/60Hz Power Consumption Power save mode : Lesss than 1.6W ( Wi- Fi DIRECT ON : Less than 2.4W) Stand by mode :50 Watts Printing simplex :400 Watts Printer Language PCL6 / PCL5e / SPL InterfacesUSB2.0, N etwork , Wi-Fi OS compatibility Windows 95/98/2000/ NT4.0/Win-ME/XP/Longhorn/XP 64 bit/ Citrix MAC OS 8, 9, X 10.2, X 10.3 & Higher Unix/Linux Modes of Operation USB Printing, Network Printing, Platen Scan, Platen Copy, ADF Scan, ADF Copy, Fax Tx, Fax Rx, Wi-Fi Intend…
