A3LSLVD570HDVD Player / Video Cassette Recorder

Sony Corporation Printed in China AK68-00927A 2-671-543- 11 (1) US/ES DVD Player/Video Cassette RecorderOperating InstructionsManual de instruccionesFor customers in the USAIf you have any questions about your Sony DVD-VCR, you may call Sony Customer Information Center at 1-800-VHS-SONY (847-7669). For all other Sony product questions, please call Sony Customer Information Center at 1-800-222-SONY (7669). Or write to: Sony Customer Information Center 12451 Gateway Boulevard Ft. Myers, FL 33913For Customers in CanadaIf this product is not working properly, please call 1-877-602-2008 for Peace of Mind Warranty Replacement service.For other product related questions please contact our Customer Information Service Center at 1-877-899-7669 or write to us at: Customer Information Service 115 Gordon Baker Road, Toronto, Ontario, M2H 3R6 SLV-D570H© 2006 Sony Corporation USES 2 US WARNING WARNINGTo reduce the risk of fire or electric shock, do not expose this apparatus to rain or moisture.To avoid electrical shock, do not open the cabinet. Refer servicing to qualified personnel only. CAUTIONThe use of optical instruments with this product will increase eye hazard. As the laser beam used in this DVD player is harmful to eyes, do not attempt to disassemble the cabinet.Refer servicing to qualified personnel only. This symbol is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.This symbol is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance. For customers in the U.S.AOwner’s RecordThe model and serial numbers are located at the rear of the unit. Record the serial number in the space provided below. Refer to them whenever you call upon your Sony dealer regarding this product.Model No. ______________Serial No.______________CAUTIONYou are cautioned that any changes or modifications not expressly approved in this manual could void your authority to operate this equipment. Note This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:– Reorient or relocate the receiving antenna. – Increase the separation between the equipment and receiver. – Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. – Consult the dealer or an experienced radio/TV technician for help. Notes about discs• To keep the disc clean, handle the disc by its edge. Do not touch the surface. • Do not expose the disc to direct sunlight or heat sources such as hot air ducts, or leave it in a car parked in direct sunlight as the temperature may rise considerably inside the car. • After playing, store the disc in its case. • Clean the disc with a cleaning cloth.Wipe the disc from the center out. • Do not use solvents such as benzine, thinner, commercially available disc/lens cleaners, or anti-static spray intended for vinyl LPs. • If you have printed the disc’s label, dry the label before playing. 3 US Precautions Precautions On safety • To prevent fire or shock hazard, do not place objects filled with liquids, such as vases, on the apparatus. • Should any solid object or liquid fall into the cabinet, unplug the player and have it checked by qualified personnel before operating it any further. On power sources • Operate the unit only on 120 V AC, 60 Hz. • This unit is not disconnected from the AC power source (mains) as long as it is connected to the wall outlet, even if the unit itself has been turned off. • Unplug the unit from the wall outlet if you do not intend to use it for an extended period of time. To disconnect the cord, pull it out by the plug, never by the cord. On placement • Do not install the unit in a confined space such as a bookshelf or similar unit. • Do not install the unit in an inclined position. It is designed to be operated in a horizontal position only. • Keep the unit, discs and cassettes away from equipment with strong magnets, such as microwave ovens or large loudspeakers. • Do not place heavy objects on the unit. On operation • When you move the player, take out any discs. If you don’t, the disc may be damaged. • If the unit is brought directly from a cold to a warm location, or is placed in a very damp room, moisture may condense on the lenses inside the player and cause damage to the video head, tape, and the optical block. Should this occur, the player may not operate properly. When you first install the player, or when you move it from a cold to a warm location, remove the disc and tape and leave the player turned on for about three hours before operating the player. On adjusting volume Do not turn up the volume while listening to a section with very low level inputs or no audio signals. If you do, the speakers may be damaged when a peak level section is played. On cleaning Clean the cabinet, panel and controls with a soft cloth slightly moistened with a mild detergent solution. Do not use any type of abrasive pad, scouring powder or solvent, such as alcohol or benzine. On cleaning discs, disc/lens cleaners Do not use cleaning discs or disc/lens cleaners (including wet or spray types). These may caus…

Text truncated - open the document above for the full version.

HIC1

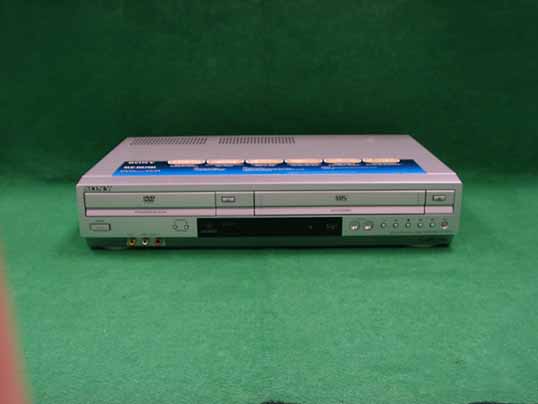

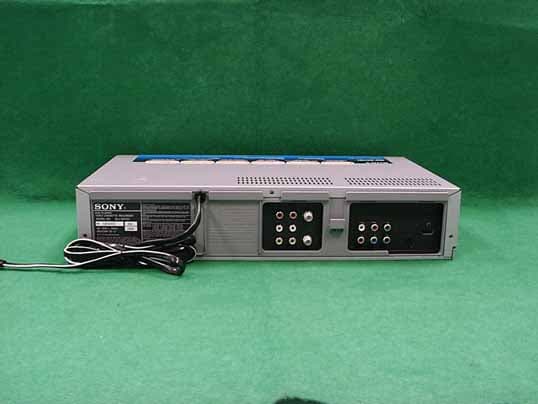

Photograph of SLV-D570H FCC ID : A3LSLVD570H FRONT VIEW REAR VIEW

© 2006 PCTEST Lab FCC ID SAMPLE LABEL & LOCATION LABELLING REQUIREMENTS PER §§ 2.925 The Label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time of purchase. id (SEE NEXT PAGE) Labeling requirement FCC IDENTIFICATION LOCATION: ON THE LABEL RATING FCC ID: A3LSLVD570H THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES AND THE CANADIAN ICES-003. OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITIONS: (1) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE, AND (2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED, INCLUDING INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION

Photograph of SLV-D570H FCC ID : A3LSLVD570H TOP VIEW (FRONT/TOP COVER OPENED) TOP VIEW – DVD/VCR DECK REMOVED Photograph of SLV-D570H - FCC ID : A3LSLVD570H TOP of MAIN PCB VIEW BOTTOM OF MAIN PCB VIEW Photograph of SLV-D570H - FCC ID : A3LSLVD570H TOP OF DVD PCB VIEW BOTTOM OF DVD PCB VIEW Photograph of TM-BLOCK TM-BLOCK TYPE: VHA35ASE TOP VIEW BOTTOM VIEW

“” “” ““ ’

Test report No. : 26JE0221-YW Page : 1 of 139 Date of issue : June 13, 2006 UL Apex Co., Ltd. Yokowa EMC Lab. 108 Yokowa-cho, Ise-shi, Mie-ken 516-1106 JAPAN Telephone: +81 596 39 1485 Facsimile: +81 596 39 0232 MF060b(24.05.06) EMI TEST REPORT Test Report No. : 26JE0221-YW Applicant : Samsung Electronics Co., Ltd. Type of equipment : DVD/VCR Model number : SLV-D570H Test standard : FCC Part 15 Subpart B Test result : Complied 1. This test report shall not be reproduced except in full or partial, without the written approval of UL Apex Co., Ltd. 2. The results in this report apply only to the sample tested. 3. This equipment is in compliance with above regulation. 4. The test results in this test report are traceable to the national or international standards. Date of test : May 29 to June 6, 2006 Tested by: Tsubasa Takayama Tomoyuki Yamashita Engineer of EMC Service Engineer of EMC Service Masaya Minami Masanori Nishiyama Engineer of EMC Service Engineer of EMC Service Approved by: Hiroya Tabata Leader of EMC Service Test report No. : 26JE0221-YW Page : 2 of 139 Date of issue : June 13, 2006 UL Apex Co., Ltd. Yokowa EMC Lab. 108 Yokowa-cho, Ise-shi, Mie-ken 516-1106 JAPAN Telephone: +81 596 39 1485 Facsimile: +81 596 39 0232 MF060b(24.05.06) Contents Page Section 1 : Client information 3 Section 2 : Equipment under test (E.U.T.) 3 Section 3 : Test specification, procedures & results 5 Section 4 : Operation of E.U.T. during tests 7 Section 5 : Conducted emission 9 Section 6 : Radiated emission 10 Section 7 : Antenna terminal voltage 11 Section 8 : RF output level / spurious emission 12 Section 9 : Antenna transfer switch 14 Section 10 : Picture sensitivity 15 Section 11 : Noise figure 16 Contents of Appendixes 17 Appendix 1 : Photographs of test set up 18 Appendix 2 : Data of EMI tests 31 Appendix 3: Test instruments 139 Test report No. : 26JE0221-YW Page : 3 of 139 Date of issue : June 13, 2006 UL Apex Co., Ltd. Yokowa EMC Lab. 108 Yokowa-cho, Ise-shi, Mie-ken 516-1106 JAPAN Telephone: +81 596 39 1485 Facsimile: +81 596 39 0232 MF060b(24.05.06) Section 1 : Client information Company name : Samsung Electronics Co., Ltd. Address : 416 Maetan-3dong, Paldal-Gu, Suwon City, Kyungki-Do, 442-742 KOREA Telephone number : +82 31 200 5854 Facsimile number : +82 31 200 3458 Contact person : Woosung Cho Section 2 : Equipment under test (E.U.T.) 2.1 Identification of E.U.T. Type of equipment : DVD/VCR Model number : SLV-D570H Rating : AC 120 V / 60 Hz Receipt Date of Sample : May 29, 2006 Condition of EUT : Production Prototype 2.2 Product description Model: SLV-D570H (referred to as the EUT in this report) is a DVD/VCR. Test report No. : 26JE0221-YW Page : 4 of 139 Date of issue : June 13, 2006 UL Apex Co., Ltd. Yokowa EMC Lab. 108 Yokowa-cho, Ise-shi, Mie-ken 516-1106 JAPAN Telephone: +81 596 39 1485 Facsimile: +81 596 39 0232 MF060b(24.05.06) The EUT specifications is as follows. Tuner section Channel coverage VHF 2 to 13 UHF 14 to 69 CATV A-8 to A-1, A to W, W+1 to W+84 Antenna 75-ohm antenna terminal for VHF/ UHF Inputs and outputs LINE IN 1 and LINE-2 IN VIDEO IN, phono jack (1 each) Input signal: 1 Vp-p, 75 ohms, unbalanced, sync negative AUDIO IN, phono jacks (2 each) Input level: 327 mVrms Input impedance: more than 47 k ohms LINE OUT VIDEO OUT, phono jack (1) Output signal: 1 Vp-p, 75 ohms, unbalanced, sync negative AUDIO OUT, phono jacks (2) Standard output: 327 mVrms Load impedance: 47 k ohms Output impedance: less than 10 k ohms The clock frequencies used in the EUT: - HDMI OUTPUT : 54 MHz - DVD MAIN CHIP : 27 MHz - DVD DRAM : 27 MHz - VCR MICOM : 14.318448 MHz - VCR VIDEO PROCESS IC : 3.579545 MHz - Remote controller : 40 kHz Test report No. : 26JE0221-YW Page : 5 of 139 Date of issue : June 13, 2006 UL Apex Co., Ltd. Yokowa EMC Lab. 108 Yokowa-cho, Ise-shi, Mie-ken 516-1106 JAPAN Telephone: +81 596 39 1485 Facsimile: +81 596 39 0232 MF060b(24.05.06) Section 3 : Test specification, procedures and results 3.1 Test specification Test specification : FCC Part 15 Subpart B Title : FCC 47 CFR Part 15 Radio Frequency Device Subpart B Unintentional Radiators 3.2 Procedures & results Item Test procedure Limits Worst margin Result Conducted emission ANSI C63.4:2003 CISPR 22 12.7 dB (4.1133 MHz, L1, QP, TV reception + VCR Rec. 0 dBmV) Complied Radiated emission ANSI C63.4:2003 IEEE 187:2003 30–88 MHz: 100 uV/m 88–216 MHz: 150 uV/m 216–960 MHz: 200 uV/m above 960 MHz: 500 uV/m 0.3 dB (378.00 MHz, Vertical, DVD Play + VCR Rec.) Complied Antenna terminal voltage ANSI C63.4:2003 2 nW (at 75 ohm) 15.3 dB (2428.572 MHz, Air) Complied RF output level Video signal: 3000 uV Aural signal: 671 uV 4.5 dB (61.25 MHz, 3ch/67.25 MHz, 4ch, VCR Playback) Complied Spurious emission ANSI C63.4:2003 94.8 uV 21.2 dB (864.000 MHz, AV Input 2 +Rec.) Complied Transfer switch ANSI C63.4:2003 9.5 dB 4.2 dB (336.250 MHz, DVD Play) Complied Picture sensitivity ANSI C63.4:2003 8 dB 3.4 dB Complied Noise figure FCC/OET MP:2:1986 14 dB 1.0 dB (651.25 MHz, 44ch) Complied Note: UL Apex's EMI Work Procedures No. QPM05 3.3 Additions or deviations to standard No addition, deviation or exclusion has been made from standards. 3.4 Confirmation UL Apex Co., Ltd. hereby confirms that E.U.T., in the configuration tests, complies with the specifications FCC Part15 Subpart B. Test report No. : 26JE0221-YW Page : 6 of 139 Date of issue : June 13, 2006 UL Apex Co., Ltd. Yokowa EMC Lab. 108 Yokowa-cho, Ise-shi, Mie-ken 516-1106 JAPAN Telephone: +81 596 39 1485 Facsimile: +81 596 39 0232 MF060b(24.05.06) 3.5 Uncertainty Conducted emission (150 kHz – 30 MHz) The measurement uncertainty (with a 95% confidence level) for this test was ± 2.8 dB. The data listed in this test report has enough margin, more than site margin. Radiated emission The measurement uncertainty (with a 95% confidence level) for this test using Biconical antenna is ±4.5 dB. The measurement uncertainty (with a 95% confidence level) for this test using Logperiodic antenna is ±…
