A3LSMA127MPortable Handset

Quick Reference Guide (Terms an d Conditions) SM-A127M/DS SM-A127M Read this document before operating the mobile device, accessories, or software (defined collectively and individually as the “Product”) and keep it for future reference. This document contains important Terms and Conditions. Electronic acceptance, opening the packaging, use, or retention of the Product constitutes acceptance of these Terms and Conditions. Visit www.samsung.com/us to view device information, the user manual, and more. You may incur additional charges for accessing the Internet. Device Layout To turn on the device, pr ess and hold th e Side key for a few seconds. The charger should remain close to the electric socket and easily accessible while charging. Installing a nano-SIM card Nano- SIM cards are sold separately. Contact us Questions? Visit us.community.samsung.com Get Support Call 1.800.SAMSUNG Service locations Find a service location near you at Samsung.com/us/support/service/locations Switching made simple Whether you are coming from an iOS or Android platform, you can easily transfer your data with Smart Switch. Back up your old phone Back up your old phone using your favorite back-up app. Samsung Smart Switch 1. From your new Galaxy device, tap Settings > Accounts and backup > Smart Switch. 2. Tap Receive data. 3. Select your old device type. 4. Tap Cable (Android) or Wireless (Android and iOS) and follow the prompts to connect your phones. Customize Tap Settings to personalize your phone. Flight mode This disables all wireless functions on your devic e. You can use only non- network services On the setting screen, tap Flight mode. NOTE: The use of mobile devices on an aircraft or a ship may be subject to federal and local guidelines and restrictions. Check with appropriate author and always follow crew instructions regarding when and how you may use your device. Important l egal information Arbitration Agreement - This Product is subject to a binding arbi tration agreement between you and SAMSUNG ELECTRONICS AMERICA, INC. (“Samsung”). You can opt out of t he agreement within 30 calendar days of the first consumer purchase by emailing [email protected] or calling 1-800-SAMSUNG (726-7864) and providing the applicable information. The full Arbitration Agreement, Standard One-year Limited Warranty, End User License Agreement (E ULA), and Health & Safety Information for your device are available online: •English: www.samsung.com/us/Legal/Phone-HSGuide •Spanish: www.samsung.com/us/Legal/Phone-HSGuide -SP This information can also be found on the device in the “About device” or “About phone” or “About tablet” section, for example: •Settings > About phone or About device or About tablet > Legal information > Samsung legal •Or,Search “Legal” If your device required Federal Communications Commission (FCC) approval, you can view the FCC certification by opening Settings > A bout phone or About device or About tablet> Status information. Health and Safety WARNING! To avoid electri c shock and damage to your device, do not charge device while it is wet or in an area where it co uld get wet. Do not handle device, c harger or cords with wet hands while charging. Maint aining dust and water resistance The device is not impervious to dust and water damage in any situation. It is important that all c ompartments are closed tightly. Follow these tips carefully to prevent damage to the device and maintain dust and water resistance performance: •Water resistant based on IP68 rating, which tests submersion in fresh water deeper than 1.5 meters or keep it submerged for more than 30 minutes. If device is exposed to fresh water, dry it thoroughly with a clean, soft cloth; if exposed to liquid other than fresh water, rinse with fresh water and dry as directed. •Any device which uses accessible compar tments or por ts that can be opened should have these se aled or closed tightly to prevent liquid from entering th e system. •If the device has been immersed i n water or the microphone or speaker is wet, sound may not be heard clearly during a call. After wiping the device with a dry cloth, dry it thoroughly before using it. •Do not expose the device to water at high pressure. •If the device is dropped or receives an impact, the water and dust resistant features of the device may be damaged. Note: Liquid other than fresh water may enter the device fa ster. Failure to rinse the device in fresh water and dry it as instructed may cause the device to suffer from operability or cosmetic issues. Samsung Knox Samsung Knox is Samsung’s security platf orm. Additional licensing fees may be required for enterprise use. For more information about Knox, pl ease refer to: www.samsung.com/us/knox Specific Absorption Rate (SAR) certification information For information about SAR, visit : •https://www.fcc.gov/general/radio-frequency-safety-0 •www.fcc.gov/encyclopedia/ specif ic -absorption-rate-sar-cellular-telephones •www.samsung.com/sar Body-worn operations are restricted to belt-clips, holsters or similar accessories that have no metallic component in the assembly and must provide at least 1.5cm separation between the device and the user's body. Note: Foldable devices can be stored in an environment with ambient temperatures of -10°C / 14.0°F to 50°C / 122°F safely; prolonged exposure to temperatures outside these recommended temperatures can pose a high risk of damage to the device. Samsung mobile products and recycling WARNING! Never dispose of batteries in a fire because they may explode. Do not disassemble, crush, puncture, heat, burn or reuse. F or battery and cell phone recycling, go to call2re cycle. org or call 1- 800-822-8837. F or more recycling information, go to our website: www.samsung.com/re cycling or call 1-800-S AMSUNG. Your location Location-based information on that can be used to determine the approximate location of a mobile device. If you use applic ations that require location-based information (e.g., driving …

Text truncated - open the document above for the full version.

Samsung Electronics America, Inc 19 Chapin Rd, Building D. Pine Brook, NJ 07058 Date: June 23, 2021 FCC ID: A3LSMA127M To whom it may concern: We, the undersigned, hereby authorize PCTEST Engineering Laboratory LLC, to act on our behalf in all matters relating to applications for equipment authorization, including the signing of all documents relating to these matters. Any and all acts carried out by PCTEST Engineering Laboratory, LLC on our behalf shall have the same effect as acts of our own. We also hereby certify that no party to any application is subject to a denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S. C. 862. Sincerely, Jenni Chun General Manager Regulatory & Environmental Affairs Samsung Electronics CO. LTD TEL: +1-973-808-6375 Fax : 1-973-808-6361 E-mail: [email protected]

SAMSUNG CONFIDENTIAL Samsung Electronics Co., Ltd. 129, Samsung-ro, Yeongtong-gu Suwon-si, Gyeonggi-do, 16677, Korea Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 E-l abel Attestation Letter - FCC ID : A3LSMA127M - Model : SM-A127M/DS, SM-A127M To Whom It May Concern We hereby provide the following attestations according to CFR 2.935 and FCC KDB 784748 D02: At the t ime of purchase, the FCC ID is readily and physically visible to the purchaser on the exterior package per CFR 2.935(f). The FCC ID will be readily legible without the aid of magnification according to CFR 2.935(d). The literature in the package describes how to access the electronic display to find FCC ID per CFR 2.935(b) and FCC KDB 784748. Per CFR 2.935(c), the user will be able to access this information within a maximum of 3 steps. The user will be able to access this information without a SIM card, special accessories or supplemental plug-ins. Per CFR 2.935(e), We, Samsung Electronics Co., Ltd., have programmed the e-label and it is not able to be modified by any third party. Per CFR 2.935(f), the FCC ID will be able to survive normal shipping and handling so it is visible for insp ection at the time of import. Should y ou have any questions or comments concerning the above, please contact the undersigned. Sincerely, Jenni Chun/ General Manager Samsung Electronics America, Inc. Address: 19 Chapin Rd., Building D Pine Brook, NJ 07058 TEL: +1-973- 808-6375

SAMSUNG ELECTRONICS AMERICA, INC. American QA Lab 19 Chapin Rd, Building D. Pine Brook, NJ 07058 Date: June 23, 2021 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road, Columbia, MD 21046 RE:Request of Confidentiality for FCC ID: A3LSMA127M To Whom It May Concern: Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules (CFR 47), and Section 552 (b) (4) of the Freedom of Information Act, SAMSUNG ELECTRONICS CO.,LTD. hereby requests confidentiality and treatment of certain information accompanying this application. The materials contain trade secrets and proprietary information not customarily re leased to th e public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. We are also hereby request Short-Term Confidentiality for 180 days after the grant as outlined in Public Notice DA 04-1705. This provision will give SAMSUNG ELECTRONICS CO.,LTD. temporary confidentiality of commercially sensitive information pri or to product release. The requested Permanent and Short-Term Confidential exhibits are listed as follows: PERMANENT AND SHORT-TERM CONFIDENTIAL LIST ExhibitDescription PERMANENT 1 Block Diagram 2 Operational Description 3 Schematics SHORT-TERM 4 External Photos 5 Internal Photos 6 Test-Setup Photos 7 Users Manual The Applicant understands that pursuant to Rule 0.457, disclosure of this application and all accompanying documentations, where applicable, will not be made public before the date of the Grant for this application. Sincerely, Jenni Chun General Manager Regulatory & Environmental Affairs Samsung Electronics CO. LTD TEL: +1-973-808-6375 Fax : 1-973-808-6361 E-mail: [email protected]

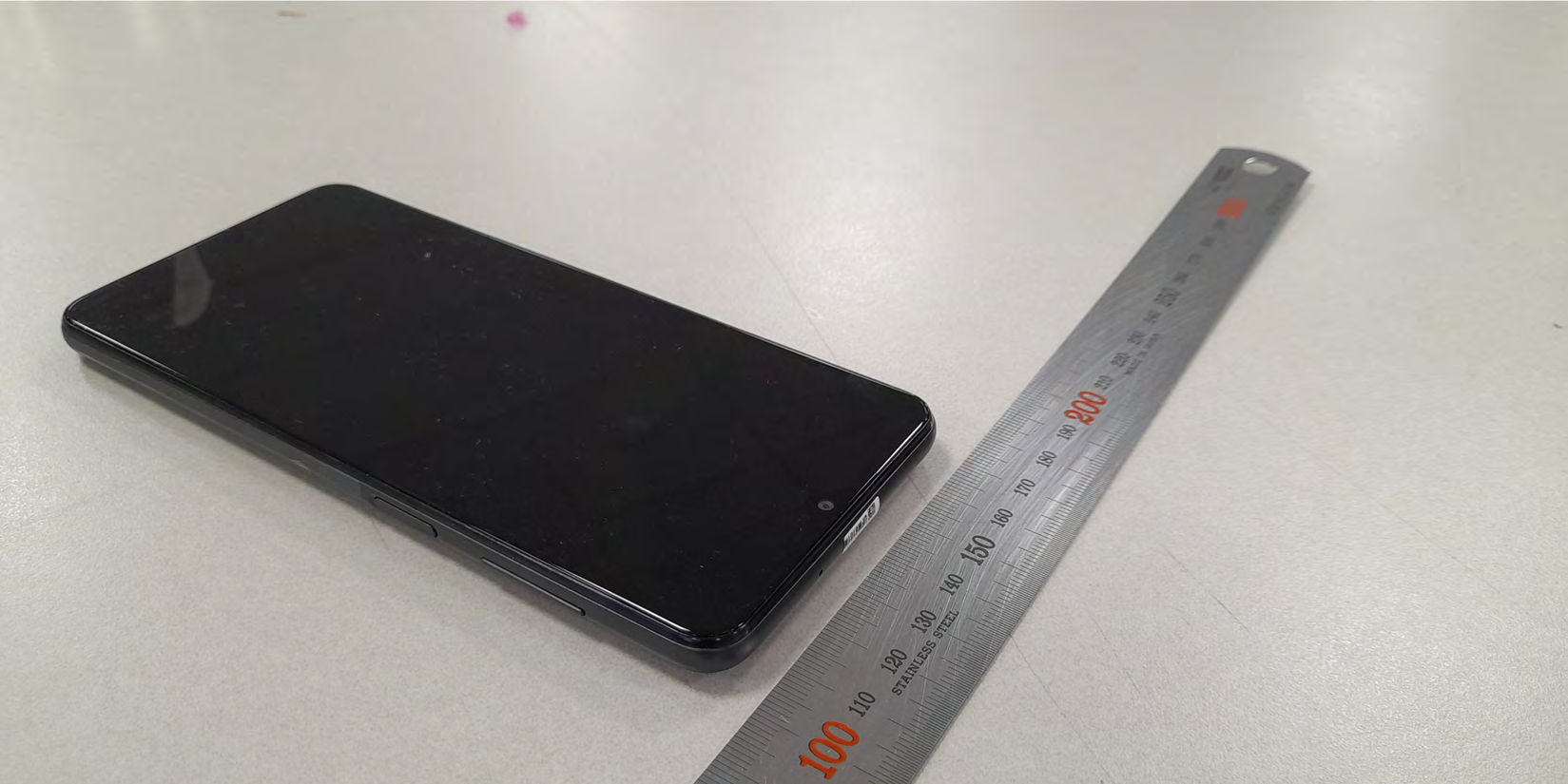

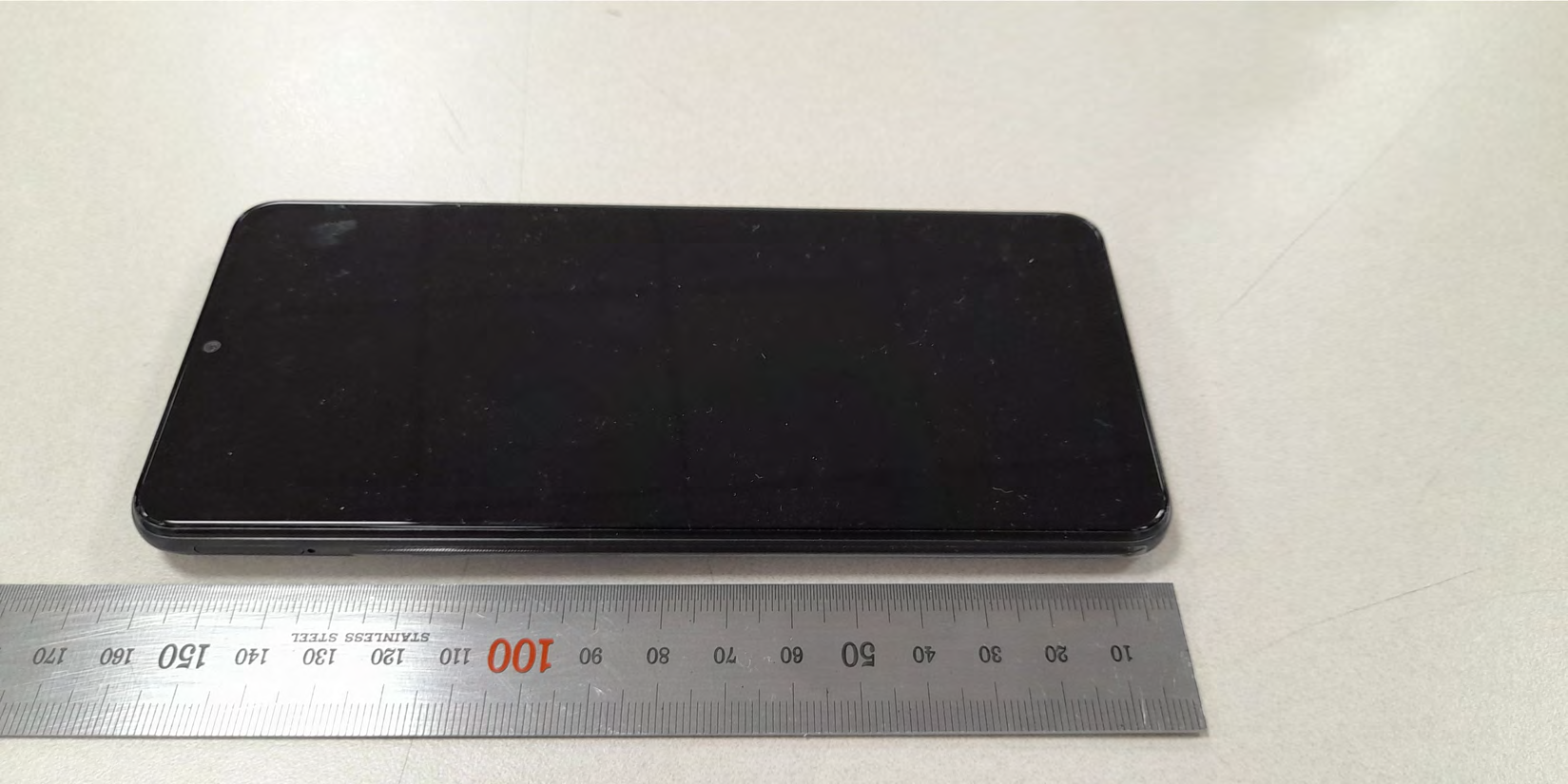

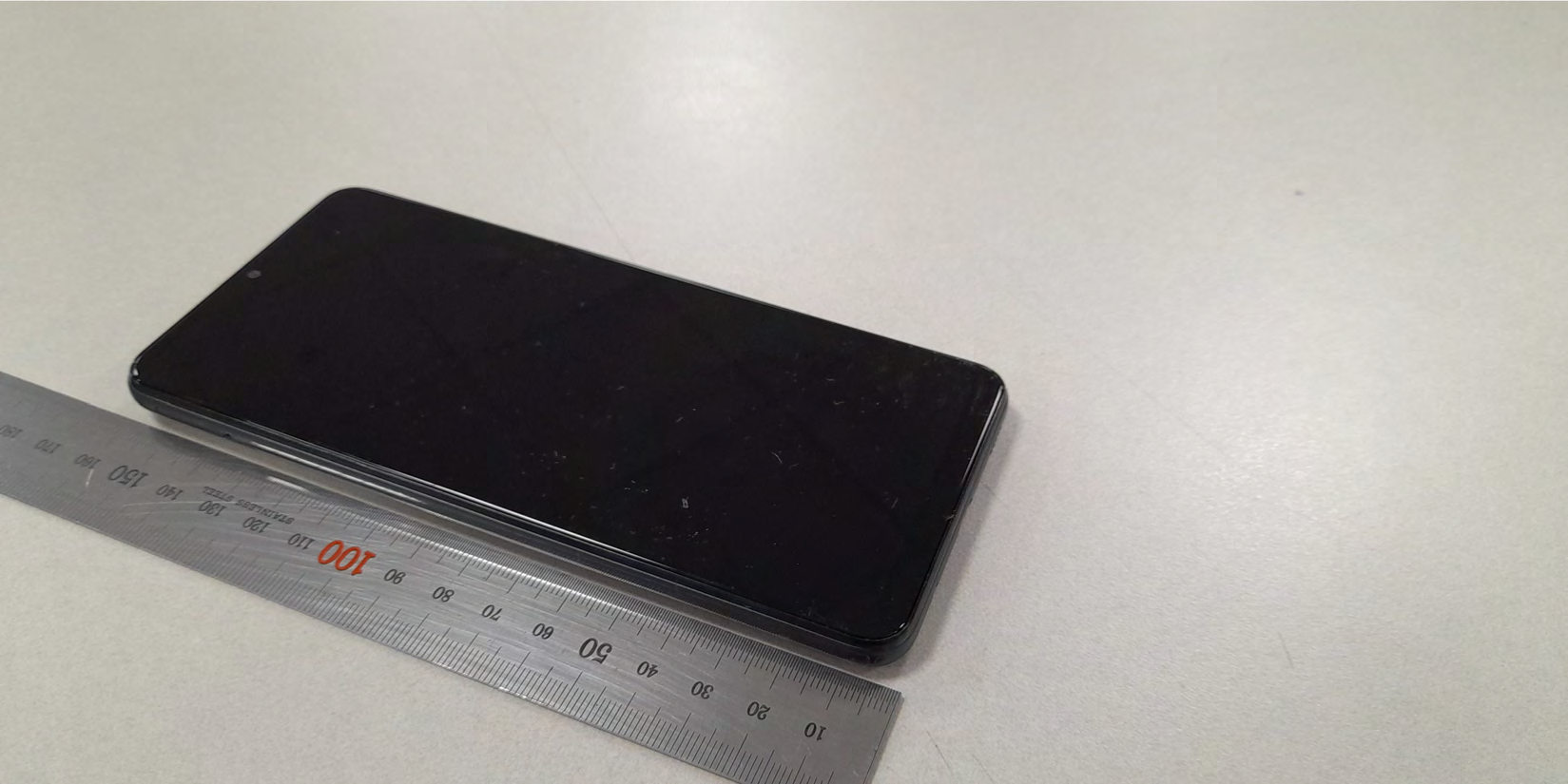

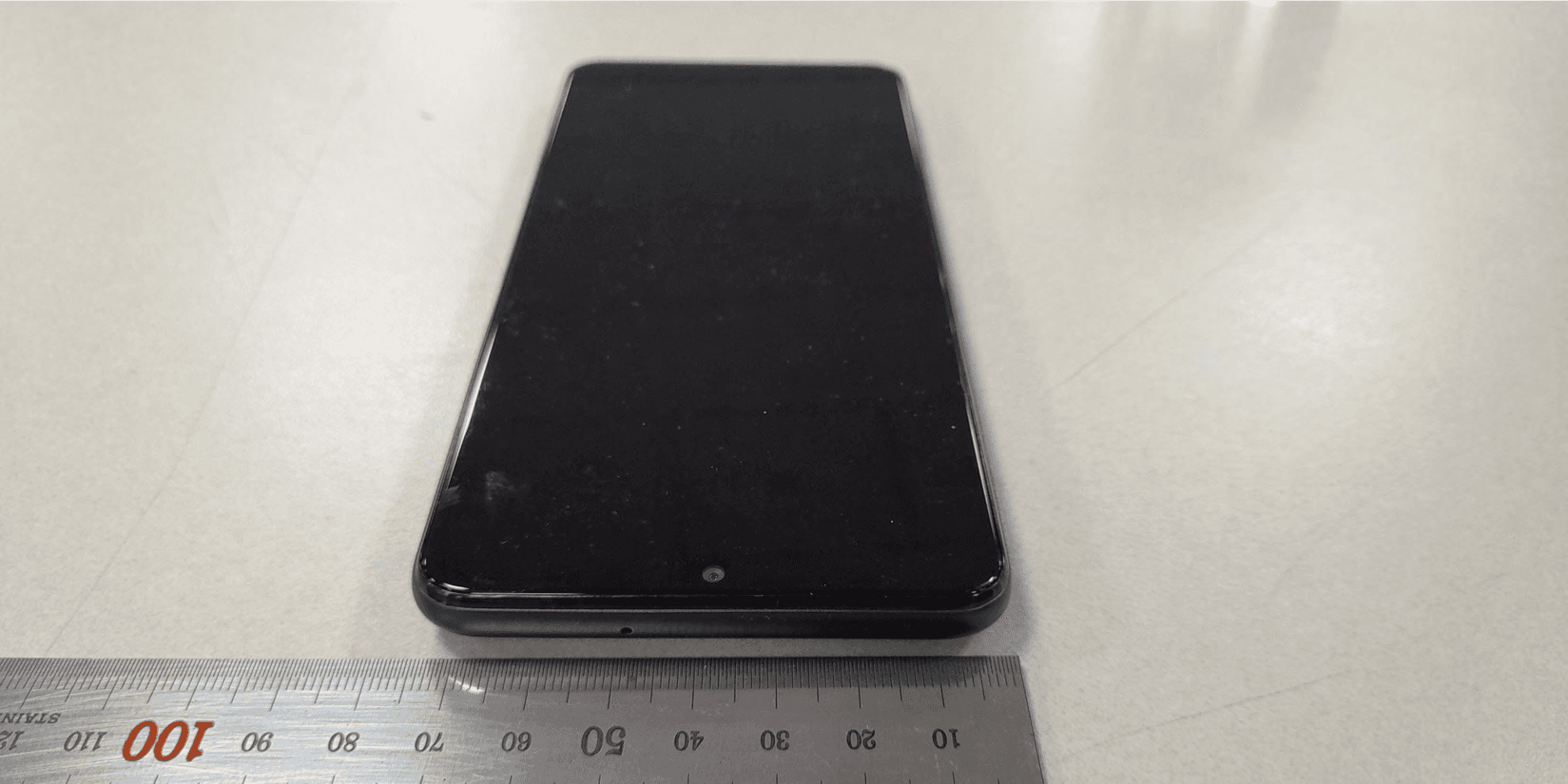

FCC ID: A3LSMA127M External Photos

Description of E-Label and Location FCC ID : A3LSMA127M Model : SM-A127M/DS, SM-A127M This model is applied E-label, please find description of E-label below. 1.FCC ID (E-label): Settings > About Phone > Status information <Device Display Screen> FCC certification FCC ID: A3LSMA127M 2.FCC ID on the Quick Start Guide The FCC has granted an Equipment Authorization for this model device based on the compliance of all reported SAR levels with the FCC RF exposure guide lines. This device has a FCC ID number A3LSMA127M [Model Number: SM-A127M/DS, SM-A127M] and the specific SAR levels for this device can be found at the following. FCC website: www.fcc.gov/oet/ea/ The SAR information for this device c an be found on Samsung’s website: www.samsung.com/sar

FCC ID: A3LSMA127M Internal Photos

FCC ID: A3LSMA127M SAR EVALUATION REPORT Approved by: Quality Manager Document S/N: Test Dates: DUT Type: Page 1 of 68 1M2106030063-01.A3L (Rev 1) 05/31/2021 - 07/07/2021 Portable Handset © 2021 PCTEST REV 21.4 M 09/11/2019 © 2021 PCTEST All rights reserved. Unless otherwise specified, no part of this report may be reproduced or utilized in any part, form or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from PCTEST. If you have any questions about this international copyright or have an enquiry about obtaining additional rights to this report or assembly of contents thereof, please contact [email protected]. Applicant Name: Date of Testing: Samsung Electronics Co., Ltd. 05/31/2021 - 07/07/2021 129, Samsung-ro, Maetan dong, Test Site/Location: Yeongtong-gu, Suwon-si PCTEST Lab, Columbia, MD, USA Gyeonggi-do, 16677, Korea Document Serial No.: 1M2106030063-01.A3L (Rev1) FCC ID: A3LSMA127M APPLICANT: SAMSUNG ELECTRONICS CO., LTD. DUT Type: Portable Handset Application Type: Certification FCC Rule Part(s): CFR §2.1093 Model(s): SM-A127M/DS, SM-A127M Note: This revised Test Report supersedes and replaces the previously issued test report on the same subject device for the same type of testing as indicated. Please discard or destroy the previously issued test report(s) and dispose of it accordingly. This wireless portable device has been shown to be capable of compliance for localized specific absorption rate (SAR) for uncontrolled environment/general population exposure limits specified in ANSI/IEEE C95.1-1992 and has been tested in accordance with the measurement procedures specified in Section 1.7 of this report; for North American frequency bands only. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. Test results reported herein relate only to the item(s) tested. The SAR Tick is an initiative of the Mobile & Wireless Forum (MWF). While a product may be considered eligible, use of the SAR Tick logo requires an agreement with the MWF. Further details can be obtained by emailing: [email protected]. 1g Head (W/kg) 1g Body-Worn (W /kg) 1g Hotspot (W /kg) 10g Phablet (W /kg) PCE GSM/GPRS/EDGE 850824.20 - 848.80 MHz0.230.250.53N/A PCE GSM/GPRS/EDGE 19001850.20 - 1909.80 MHz0.120.160.40N/A PCE UMTS 850826.40 - 846.60 MHz0.280.410.53N/A PCEUMTS 17501712.4 - 1752.6 MHz0.320.521.082.63 PCEUMTS 19001852.4 - 1907.6 MHz0.370.530.922.71 PCE LTE Band 12704 - 711 MHz0.170.300.32N/A PCELTE Band 17709 - 711 MHzN/AN/AN/AN/A PCELTE Band 26 (Cell)821.5 - 841.5 MHz0.240.280.47N/A PCE LTE Band 5 (Cell)829 - 844 MHzN/AN/AN/AN/A PCE LTE Band 66 (AWS)1720 - 1770 MHz0.390.451.162.51 PCELTE Band 4 (AWS)1720 - 1745 MHzN/AN/AN/AN/A PCELTE Band 2 (PCS)1860 - 1900 MHz0.270.491.052.58 PCELTE Band 412498.5 - 2687.5 MHz0.540.880.261.81 DTS 2.4 GHz WLAN2412 - 2472 MHz0.17< 0.10.16N/A DSS/DTSBluetooth2402 - 2480 MHz< 0.1< 0.1< 0.1N/A 0.710.951.322.71 Equipment Class SAR Simultaneous SAR per KDB 690783 D01v01r03: Band & ModeTx Frequency PCTEST 7185 Oakland Mills Road, Columbia, MD 21046 USA Tel. +1.410.290.6652 / Fax +1.410.290.6654 http://www.pctest.com SAR EVALUATION REPORT FCC ID: A3LSMA127M SAR EVALUATION REPORT Approved by: Quality Manager Document S/N: Test Dates: DUT Type: Page 2 of 68 1M2106030063-01.A3L (Rev 1) 05/31/2021 - 07/07/2021 Portable Handset © 2021 PCTEST REV 21.4 M 09/11/2019 © 2021 PCTEST All rights reserved. Unless otherwise specified, no part of this report may be reproduced or utilized in any part, form or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from PCTEST. If you have any questions about this international copyright or have an enquiry about obtaining additional rights to this report or assembly of contents thereof, please contact [email protected]. TABLE OF CONTENTS 1 DEVICE UNDER TEST ................................................................................................................................ 3 2 LTE INFORMATION ................................................................................................................................... 10 3 INTRODUCTION ........................................................................................................................................ 11 4 DOSIMETRIC ASSESSMENT ................................................................................................................... 12 5 DEFINITION OF REFERENCE POINTS ................................................................................................... 13 6 TEST CONFIGURATION POSITIONS ...................................................................................................... 14 7 RF EXPOSURE LIMITS ............................................................................................................................. 18 8 FCC MEASUREMENT PROCEDURES ..................................................................................................... 19 9 RF CONDUCTED POWERS ...................................................................................................................... 24 10 SYSTEM VERIFICATION ........................................................................................................................... 36 11 SAR DATA SUMMARY .............................................................................................................................. 41 12 FCC MULTI-TX AND ANTENNA SAR CONSIDERATIONS ...................................................................... 57 13 SAR MEASUREMENT VARIABILITY ........................................................................................................ 62 14 EQUIPMENT LIST ...........…

Text truncated - open the document above for the full version.

© 2021 PCTEST APPENDIX A: SAR TEST DATA A1 PCTEST DUT: A3LSMA127M; Type: Portable Handset; Serial: 07356 Communication System: UID 0, GSM; Frequency: 836.6 MHz; Duty Cycle: 1:8.3 Medium: 835 Head; Medium parameters used (interpolated): f = 836.6 MHz; σ = 0.921 S/m; ε r = 39.602; ρ = 1000 kg/m 3 Phantom section: Left Section; Space: 0.0 cm Test Date: 06/06/2021; Ambient Temp: 21.1°C; Tissue Temp: 21.0°C Probe: EX3DV4 - SN7526; ConvF(9.16, 9.16, 9.16) @ 836.6 MHz; Calibrated: 3/16/2021 Sensor-Surface: 1.4mm (Mechanical Surface Detection) Electronics: DAE4 Sn1272; Calibrated: 3/18/2021 Phantom: SAM Left; Type: QD000P40CC; Serial: TP: 1375 Measurement SW: DASY52, Version 52.10 (4);SEMCAD X Version 14.6.14 (7483) Mode: GSM 850, Left Head, Cheek, Mid.ch Area Scan (9x13x1): Measurement grid: dx=15mm, dy=15mm Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 15.03 V/m; Power Drift = 0.03 dB Peak SAR (extrapolated) = 0.260 W/kg SAR(1 g) = 0.203 W/kg A2 PCTEST DUT: A3LSMA127M; Type: Portable Handset; Serial: 07356 Communication System: UID:10021-DAC, GSM; MAIA: Y; Frequency: 1909.8 MHz Medium: 1900 Head; Medium parameters used: f = 1909.8 MHz; cond = 1.46 S/m; perm = 38.3; density = 1000 kg/m 3 Phantom Section: Left Head; Space: 0.0 cm Test Date: 06/08/2021; Ambient Temp: 21.7°C; Tissue Temp: 22.0°C Probe: EX3DV4 - SN7526; ConvF:(7.47,7.47,7.47); Calibrated: 2021-03-16 Sensor-Surface: 1.4mm (VMS + 6p) Electronics: DAE4 Sn1272; Calibrated: 2021-03-18 Phantom: Twin-SAM V5.0 (left); Serial: 1758 Measurement SW: cDASY6 Module SAR V6.14.0.959 Mode: GSM 1900, Left Head, Cheek, High.Ch Area Scan (120.0 x 210.0): Measurement grid: dx=15.0mm, dy=15.0mm Zoom Scan (30.0 x 30.0 x 30.0): Measurement grid: dx=6.0mm, dy=6.0mm, dz=1.5mm; Graded Ratio: 1.5 Reference Value = 0.11 W/kg; Power Drift = -0.03 dB Peak SAR (extrapolated) = 0.168 W/kg SAR(1 g) = 0.104 W/kg A3 PCTEST DUT: A3LSMA127M; Type: Portable Handset; Serial: 07356 Communication System: UID 0, UMTS; Frequency: 836.6 MHz; Duty Cycle: 1:1 Medium: 835 Head; Medium parameters used (interpolated): f = 836.6 MHz; σ = 0.921 S/m; ε r = 39.602; ρ = 1000 kg/m 3 Phantom section: Left Section; Space: 0.0 cm Test Date: 06/06/2021; Ambient Temp: 21.1°C; Tissue Temp: 21.0°C Probe: EX3DV4 - SN7526; ConvF(9.16, 9.16, 9.16) @ 836.6 MHz; Calibrated: 3/16/2021 Sensor-Surface: 1.4mm (Mechanical Surface Detection) Electronics: DAE4 Sn1272; Calibrated: 3/18/2021 Phantom: SAM Left; Type: QD000P40CC; Serial: TP: 1375 Measurement SW: DASY52, Version 52.10 (4);SEMCAD X Version 14.6.14 (7483) Mode: UMTS 850, Left Head, Cheek, Mid.ch Area Scan (9x13x1): Measurement grid: dx=15mm, dy=15mm Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 15.42 V/m; Power Drift = 0.05 dB Peak SAR (extrapolated) = 0.277 W/kg SAR(1 g) = 0.215 W/kg A4 PCTEST DUT: A3LSMA127M; Type: Portable Handset; Serial: 06267 Communication System: UID:10011-CCCAB, WCDMA; MAIA: Y; Frequency: 1712.4 MHz Medium: 1750 Head; Medium parameters used: f = 1712.4 MHz; cond = 1.37 S/m; perm = 40.5; density = 1000 kg/m 3 Phantom Section: Left Head; Space: 0.0 cm Test Date: 06/06/2021; Ambient Temp: 21.9°C; Tissue Temp: 21.5°C Probe: EX3DV4 - SN7539; ConvF:(8.52,8.52,8.52); Calibrated: 2020-10-20 Sensor-Surface: 1.4mm (VMS + 6p) Electronics: DAE4 Sn1415; Calibrated: 2021-03-10 Phantom: Twin-SAM V5.0 (Left); Serial: 1630 Measurement SW: cDASY6 Module SAR V6.14.0.959 Mode: UMTS 1750, Left Head, Cheek, Low.Ch Area Scan (120.0 x 210.0): Measurement grid: dx=15.0mm, dy=15.0mm Zoom Scan (30.0 x 30.0 x 30.0): Measurement grid: dx=6.0mm, dy=6.0mm, dz=1.5mm; Graded Ratio: 1.5 Reference Value = 0.32 W/kg; Power Drift = 0.01 dB Peak SAR (extrapolated) = 0.403 W/kg SAR(1 g) = 0.279 W/kg A5 PCTEST DUT: A3LSMA127M; Type: Portable Handset; Serial: 07356 Communication System: UID:10011-CCCAB, WCDMA; MAIA: Y; Frequency: 1907.6 MHz Medium: 1900 Head; Medium parameters used: f = 1907.6 MHz; cond = 1.46 S/m; perm = 38.4; density = 1000 kg/m 3 Phantom Section: Left Head; Space: 0.0 cm Test Date: 06/08/2021; Ambient Temp: 21.7°C; Tissue Temp: 22.0°C Probe: EX3DV4 - SN7526; ConvF:(7.47,7.47,7.47); Calibrated: 2021-03-16 Sensor-Surface: 1.4mm (VMS + 6p) Electronics: DAE4 Sn1272; Calibrated: 2021-03-18 Phantom: Twin-SAM V5.0 (left); Serial: 1758 Measurement SW: cDASY6 Module SAR V6.14.0.959 Mode: UMTS 1900, Left Head, Cheek, High.Ch Area Scan (120.0 x 210.0): Measurement grid: dx=15.0mm, dy=15.0mm Zoom Scan (30.0 x 30.0 x 30.0): Measurement grid: dx=6.0mm, dy=6.0mm, dz=1.5mm; Graded Ratio: 1.5 Reference Value = 0.40 W/kg; Power Drift = 0.06 dB Peak SAR (extrapolated) = 0.575 W/kg SAR(1 g) = 0.371 W/kg A6 PCTEST DUT: A3LSMA127M; Type: Portable Handset; Serial: 06655 Communication System: UID 0, LTE Band 12; Frequency: 707.5 MHz; Duty Cycle: 1:1 Medium: 750 Head; Medium parameters used (interpolated): f = 707.5 MHz; σ = 0.899 S/m; ε r = 41.4; ρ = 1000 kg/m 3 Phantom section: Right Section; Space: 0.0 cm Test Date: 06/08/2021; Ambient Temp: 23.8°C; Tissue Temp: 22.5°C Probe: EX3DV4 - SN7357; ConvF(10.18, 10.18, 10.18) @ 707.5 MHz; Calibrated: 4/19/2021 Sensor-Surface: 1.4mm (Mechanical Surface Detection) Electronics: DAE4 Sn1407; Calibrated: 4/7/2021 Phantom: Front; Type: QD 000 P40 CD; Serial: 1686 Measurement SW: DASY52, Version 52.10 (4);SEMCAD X Version 14.6.14 (7483) Mode: LTE Band 12, Right Head, Cheek, Mid.ch, 10 MHz Bandwidth, QPSK, 1 RB, 49 RB Offset Area Scan (9x13x1): Measurement grid: dx=15mm, dy=15mm Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 14.12 V/m; Power Drift = 0.06 dB Peak SAR (extrapolated) = 0.205 W/kg SAR(1 g) = 0.162 W/kg A7 PCTEST DUT: A3LSMA127M; Type: Portable Handset; Serial: 07356 Communication System: UID 0, LTE Band 26; Frequency: 831.5 MHz; Duty Cycle: 1:1 Medium: 835 Head; Medium parameters used (interpolated): f = 831.5 MHz; σ = 0.919 S/m; ε r = 39.611; ρ = 1000 kg/m 3 Phantom section: Right Section; Space: 0.…

Text truncated - open the document above for the full version.

© 2021 PCTEST A P P E N D I X B : SY S T E M V E R I F I C A T I O N B1 PCTEST DUT: Dipole 750 MHz; Type: D750V3; Serial: 1003 Communication System: UID 0, CW; Frequency: 750 MHz; Duty Cycle: 1:1 Medium: 750 Head Medium parameters used: f = 750 MHz; σ = 0.914 S/m; ε r = 41.304; ρ = 1000 kg/m 3 Phantom section: Flat Section; Space: 1.5 cm Test Date: 06/08/2021; Ambient Temp: 23.8°C; Tissue Temp: 22.5°C Probe: EX3DV4 - SN7357; ConvF(10.18, 10.18, 10.18) @ 750 MHz; Calibrated: 4/19/2021 Sensor-Surface: 1.4mm (Mechanical Surface Detection) Electronics: DAE4 Sn1407; Calibrated: 4/7/2021 Phantom: Front; Type: QD 000 P40 CD; Serial: 1686 Measurement SW: DASY52, Version 52.10 (4);SEMCAD X Version 14.6.14 (7483) 750 MHz System Verification at 23.0 dBm (200 mW) Area Scan (7x15x1): Measurement grid: dx=15mm, dy=15mm Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Peak SAR (extrapolated) = 2.82 W/kg SAR(1 g) = 1.82 W/kg Deviation(1 g) = 3.64% 0 dB = 2.47 W/kg = 3.93 dBW/kg B2 PCTEST DUT: Dipole 835 MHz; Type: D835V2; Serial: 4d132 Communication System: UID 0, CW; Frequency: 835 MHz; Duty Cycle: 1:1 Medium: 835 Head Medium parameters used: f = 835 MHz; σ = 0.92 S/m; ε r = 39.605; ρ = 1000 kg/m 3 Phantom section: Flat Section; Space: 1.5 cm Test Date: 06/06/2021; Ambient Temp: 21.1°C; Tissue Temp: 21.0°C Probe: EX3DV4 - SN7526; ConvF(9.16, 9.16, 9.16) @ 835 MHz; Calibrated: 3/16/2021 Sensor-Surface: 1.4mm (Mechanical Surface Detection) Electronics: DAE4 Sn1272; Calibrated: 3/18/2021 Phantom: SAM Left; Type: QD000P40CC; Serial: TP: 1375 Measurement SW: DASY52, Version 52.10 (4);SEMCAD X Version 14.6.14 (7483) 835 MHz System Verification at 23.0 dBm (200 mW) Area Scan (7x14x1): Measurement grid: dx=15mm, dy=15mm Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Peak SAR (extrapolated) = 3.42 W/kg SAR(1 g) = 2.07 W/kg Deviation(1 g) = 7.14% 0 dB = 2.91 W/kg = 4.64 dBW/kg B3 PCTEST DUT: Dipole 1750.0 MHz; Type: D1750V2 - SN1148 Communication System: UID: 0--, CW; Frequency: 1750.0 MHz Medium: 1750 Head; Medium parameters used: f = 1750.0 MHz; cond = 1.40 S/m; perm = 40.4; density = 1000 kg/m 3 Phantom Section: Flat; Space: 1.0 cm Test Date: 06/06/2021; Ambient Temp: 21.9°C; Tissue Temp: 21.5°C Probe: EX3DV4 - SN7539; ConvF:(8.52,8.52,8.52); Calibrated: 2020-10-20 Sensor-Surface: 1.4mm (VMS + 6p) Electronics: DAE4 Sn1415; Calibrated: 2021-03-10 Phantom: Twin-SAM V5.0 (Left); Serial: 1630 Measurement SW: cDASY6 Module SAR V6.14.0.959 1750.0 MHz System Verification at 20.0 dBm Area Scan (60.0 x 90.0): Measurement grid: dx=15.0mm, dy=15.0mm Zoom Scan (30.0 x 30.0 x 30.0): Measurement grid: dx=6.0mm, dy=6.0mm, dz=1.5mm; Graded Ratio: 1.5 Peak SAR (extrapolated) = 6.7 W/kg SAR(1 g) = 3.67 W/kg Deviation (1 g) = 2.23% B4 PCTEST DUT: Dipole 1900.0 MHz; Type: D1900V2 - SN5d149 Communication System: UID: 0--, CW; Frequency: 1900.0 MHz Medium: 1900 Head; Medium parameters used: f = 1900.0 MHz; cond = 1.46 S/m; perm = 38.4; density = 1000 kg/m 3 Phantom Section: Flat; Space: 1.0 cm Test Date: 06/08/2021; Ambient Temp: 21.7°C; Tissue Temp: 22.0°C Probe: EX3DV4 - SN7526; ConvF:(7.47,7.47,7.47); Calibrated: 2021-03-16 Sensor-Surface: 1.4mm (VMS + 6p) Electronics: DAE4 Sn1272; Calibrated: 2021-03-18 Phantom: Twin-SAM V5.0 (left); Serial: 1758 Measurement SW: cDASY6 Module SAR V6.14.0.959 1900.0 MHz System Verification at 20.0 dBm Area Scan (60.0 x 90.0): Measurement grid: dx=15.0mm, dy=15.0mm Zoom Scan (30.0 x 30.0 x 30.0): Measurement grid: dx=6.0mm, dy=6.0mm, dz=1.5mm; Graded Ratio: 1.5 Peak SAR (extrapolated) = 7.99 W/kg SAR(1 g) = 4.24 W/kg Deviation (1 g) = 7.89% B5 PCTEST DUT: Dipole 2450.0 MHz; Type: D2450V2 - SN719 Communication System: UID: 0--, CW; Frequency: 2450.0 MHz Medium: 2450 Head; Medium parameters used: f = 2450.0 MHz; cond = 1.85 S/m; perm = 38.8; density = 1000 kg/m 3 Phantom Section: Flat; Space: 1.0 cm Test Date: 06/14/2021; Ambient Temp: 21.5°C; Tissue Temp: 21.4°C Probe: EX3DV4 - SN7526; ConvF:(7.29,7.29,7.29); Calibrated: 2021-03-16 Sensor-Surface: 1.4mm (VMS + 6p) Electronics: DAE4 Sn1272; Calibrated: 2021-03-18 Phantom: Twin-SAM V5.0 (left); Serial: 1758 Measurement SW: cDASY6 Module SAR V6.14.0.959 2450.0 MHz System Verification at 20.0 dBm Area Scan (40.0 x 80.0): Measurement grid: dx=10.0mm, dy=10.0mm Zoom Scan (30.0 x 30.0 x 30.0): Measurement grid: dx=5.0mm, dy=5.0mm, dz=1.5mm; Graded Ratio: 1.5 Peak SAR (extrapolated) = 11.6 W/kg SAR(1 g) = 5.40 W/kg Deviation (1 g) = 5.06% B6 PCTEST DUT: Dipole 2450 MHz; Type: D2450V2; Serial: 719 Communication System: UID 0, CW; Frequency: 2450 MHz; Duty Cycle: 1:1 Medium: 2450 Head Medium parameters used: f = 2450 MHz; σ = 1.82 S/m; ε r = 37.301; ρ = 1000 kg/m 3 Phantom section: Flat Section; Space: 1.0 cm Test Date: 07/07/2021; Ambient Temp: 25.0°C; Tissue Temp: 24.0°C Probe: EX3DV4 - SN7571; ConvF(7.28, 7.28, 7.28) @ 2450 MHz; Calibrated: 12/11/2020 Sensor-Surface: 1.4mm (Mechanical Surface Detection) Electronics: DAE4 Sn1533; Calibrated: 12/7/2020 Phantom: SAM 5.0 front; Type: QD000P40CD; Serial: 1648 Measurement SW: DASY52, Version 52.10 (4);SEMCAD X Version 14.6.14 (7483) 2450 MHz System Verification at 20.0 dBm (100 mW) Area Scan (8x9x1): Measurement grid: dx=12mm, dy=12mm Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Peak SAR (extrapolated) = 11.4 W/kg SAR(1 g) = 5.28 W/kg Deviation(1 g) = 2.72% 0 dB = 8.94 W/kg = 9.51 dBW/kg B7 PCTEST DUT: Dipole 2600.0 MHz; Type: D2600V2 - SN1064 Communication System: UID: 0--, CW; Frequency: 2600.0 MHz Medium: 2450 Head; Medium parameters used: f = 2600.0 MHz; cond = 1.97 S/m; perm = 38.6; density = 1000 kg/m 3 Phantom Section: Flat; Space: 1.0 cm Test Date: 06/14/2021; Ambient Temp: 21.5°C; Tissue Temp: 21.4°C Probe: EX3DV4 - SN7526; ConvF:(7.04,7.04,7.04); Calibrated: 2021-03-16 Sensor-Surface: 1.4mm (VMS + 6p) Electronics: DAE4 Sn1272; Calibrated: 2021-03-18 Phantom: Twin-SAM V5.0 (left); Serial: 1758 Measurement SW: cDASY6 Module SAR V6.14.0.959 26…

Text truncated - open the document above for the full version.

FCC ID: A3LSMA127M SAR EVALUATION REPORT Approved by: Quality Manager Test Dates: DUT Type: APPENDIX C: Page 1 of 3 05/31/21 – 07/07/21 Portable Handset © 2021 PCTEST A P P E N D I X C : S A R T I S S U E S P E C I F I C A T I O N S Measurement Procedure for Tissue verification: 1) The network analyzer and probe system was configured and calibrated. 2) The probe was immersed in the tissue. The tissue was placed in a nonmetallic container. Trapped air bubbles beneath the flange were minimized by placing the probe at a slight angle. 3) The complex admittance with respect to the probe aperture was measured 4) The complex relative permittivity ε ’ can be calculated from the below equation (Pournaropoulos and Misra): where Y is the admittance of the probe in contact with the sample, the primed and unprimed coordinates refer to source and observation points, respectively, ,  is the angular frequency, and . Figure C-1 Note: Liquid recipes are proprietary SPEAG. Since the composition is approximate to the actual liquids utilized, the manufacturer tissue-equivalent liquid data …

Text truncated - open the document above for the full version.
