A3LSMA300G

Samsung Electronics Co Ltd

GSM/WCDMA/LTE Phone + Bluetooth, WLAN 2.4GHz b/g/n, ANT+ and NFC

Click to zoom

Application Details

Equipment Class: PCE - PCS Licensed Transmitter held to ear
Date of Grant: Oct 21, 2014
Application Purpose: Original Equipment
Date of Application: Oct 20, 2014
Equipment Note: GSM/WCDMA/LTE Phone + Bluetooth, WLAN 2.4GHz b/g/n, ANT+ and NFC
Frequency Range: 825.50000000 - 847.50000000
Company: Samsung Electronics Co Ltd
Country: United States

Documents & Files

Select a file to view

Users Manual

Cover Letter(s)

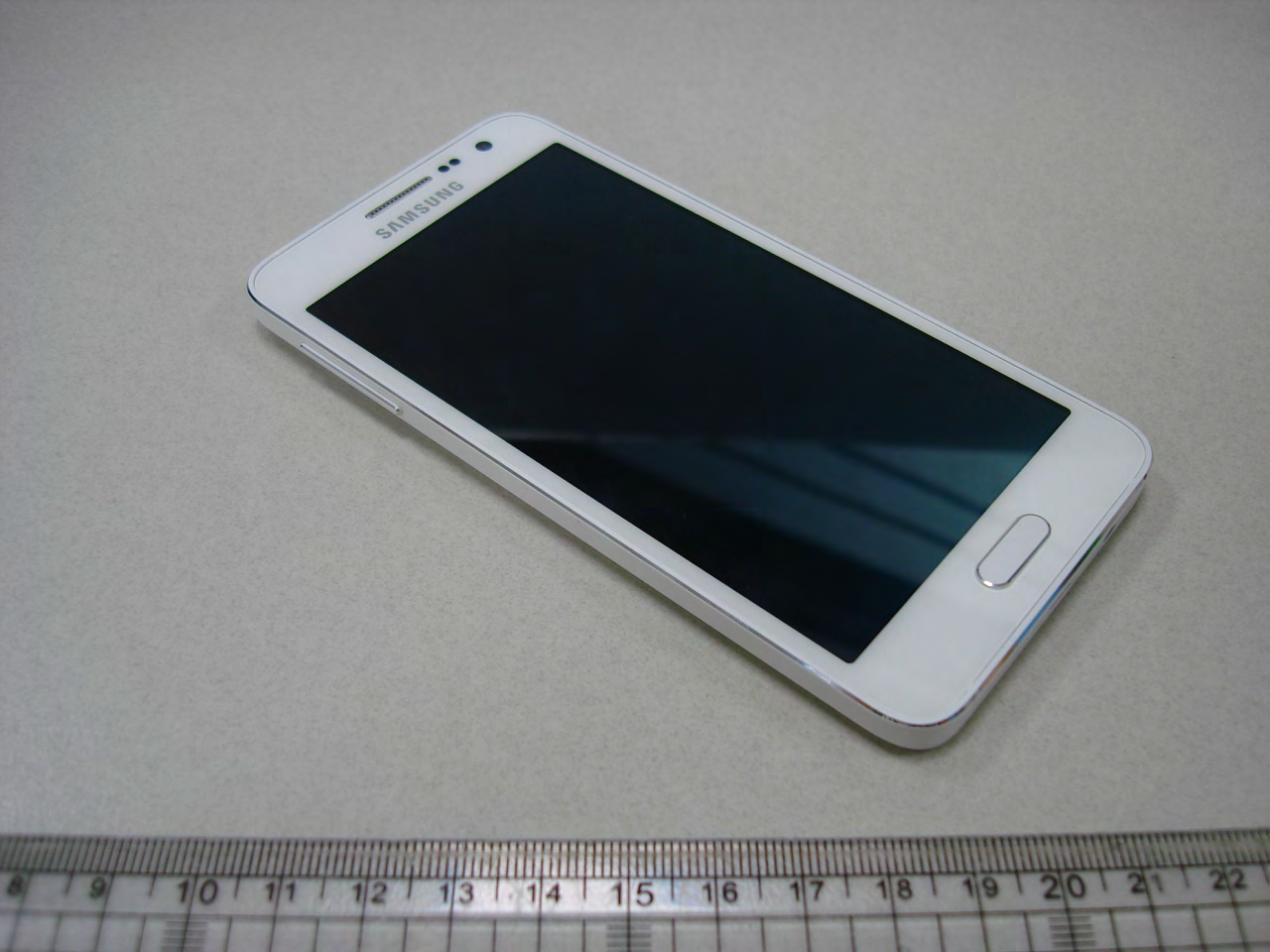

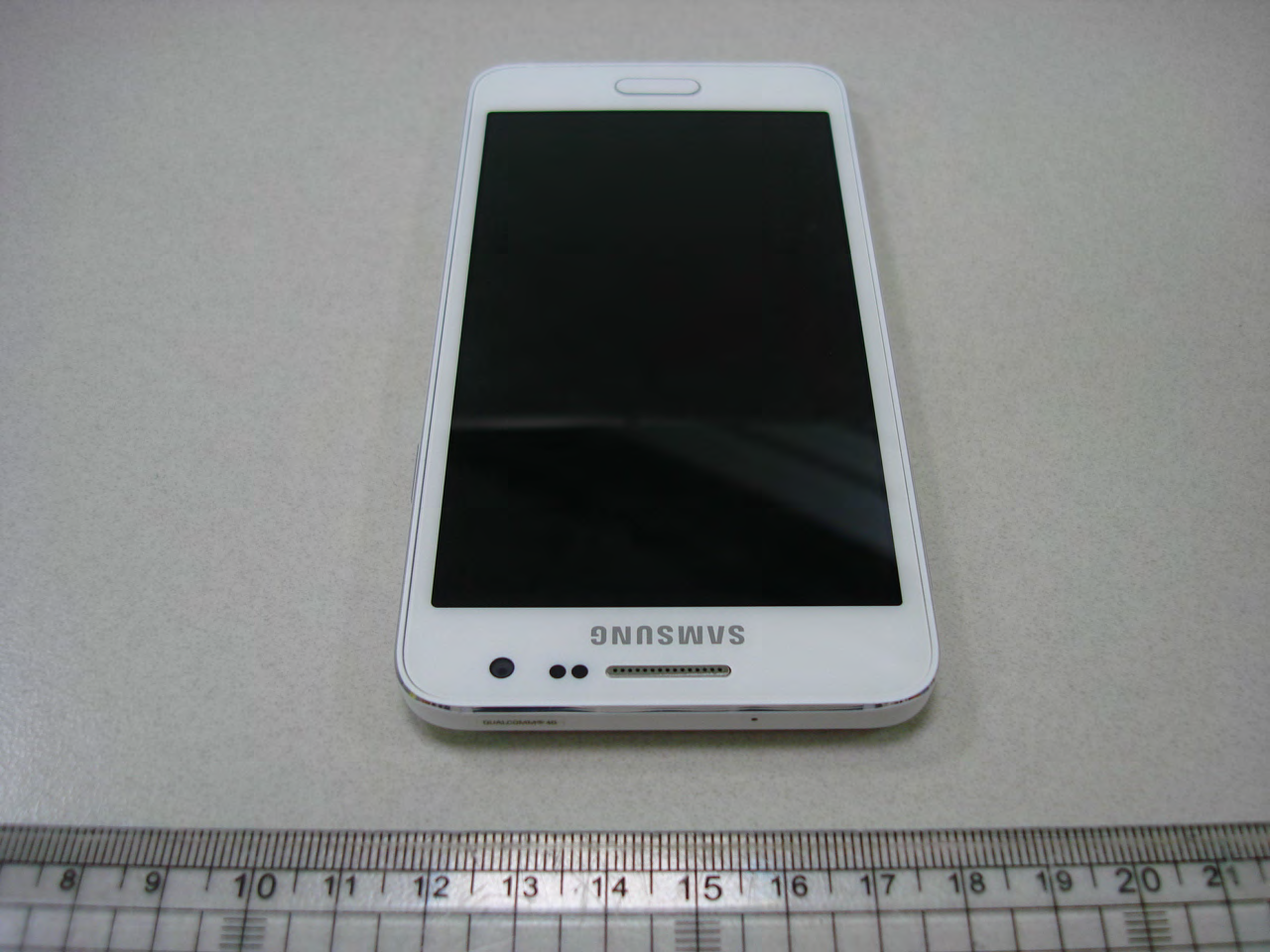

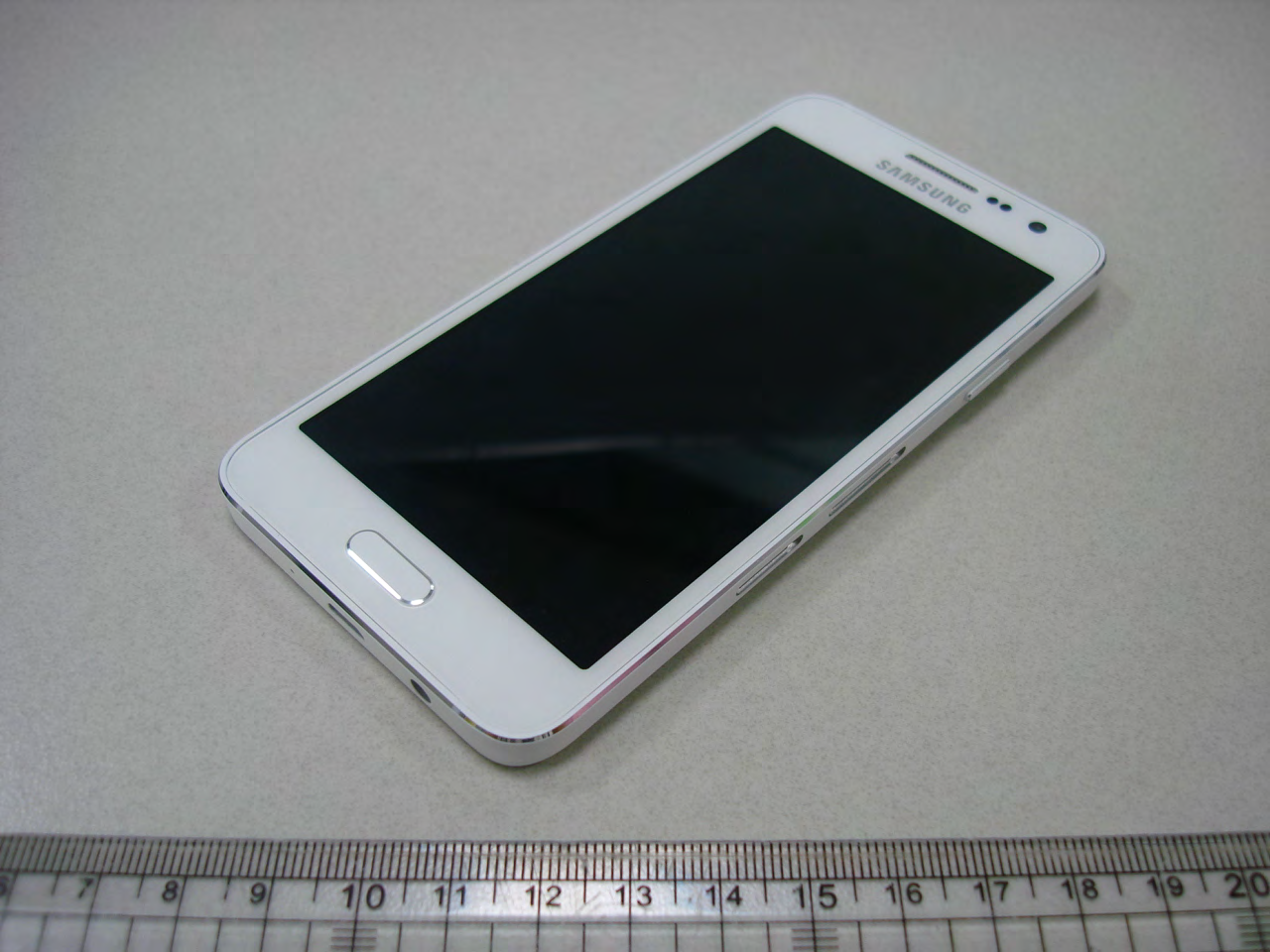

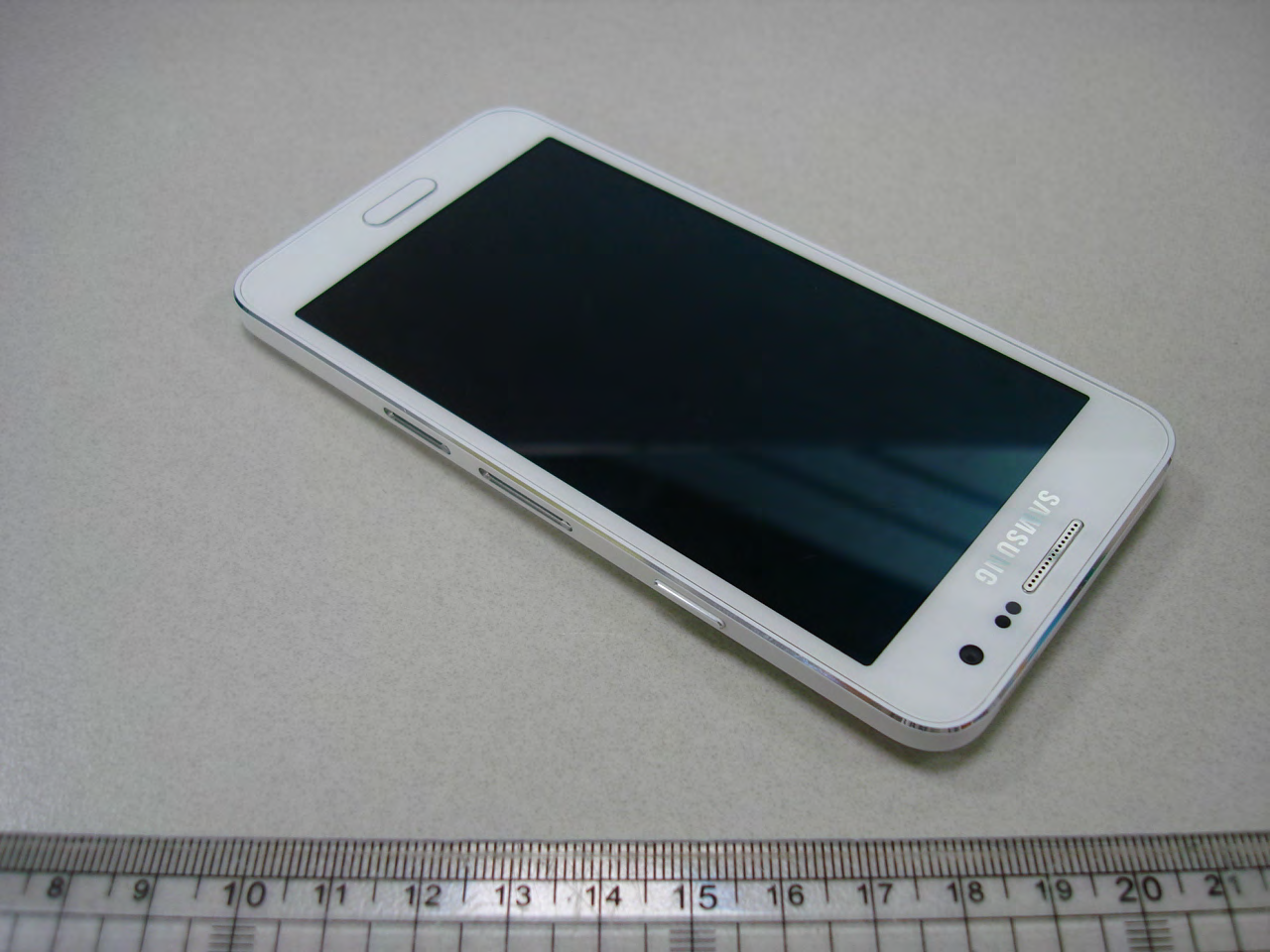

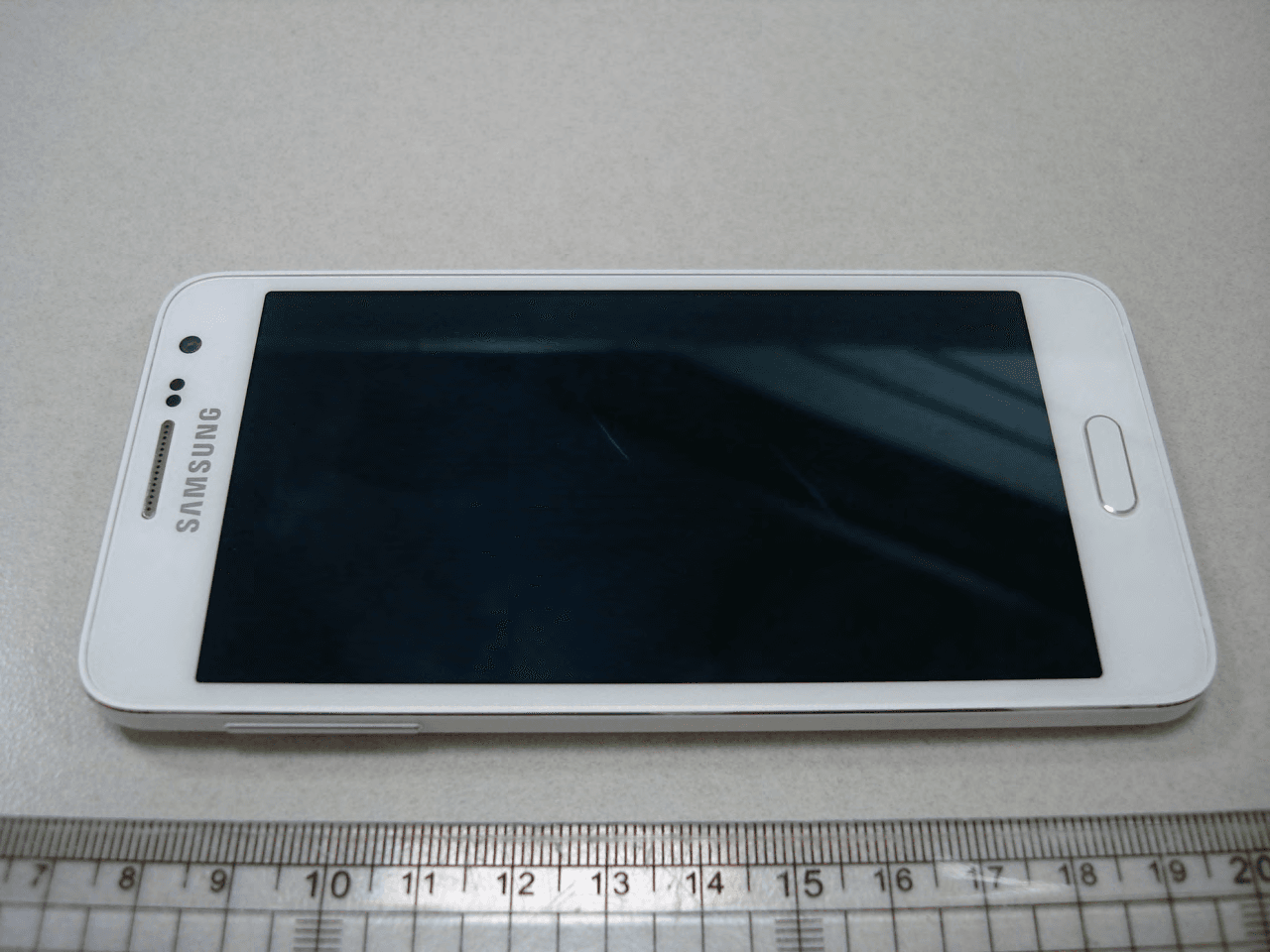

External Photos

ID Label/Location Info

Internal Photos

RF Exposure Info

Test Report

Test Setup Photos

Technical Specifications

#	Rule Parts	Frequency Range	Power Output	Emission	Tolerance
12	22H	825.5 MHz - 847.5 MHz	76.00 mW	2M70D7W	2.5 ppm

Confidentiality

Long Term

Grant Notes

Output power is ERP for operations below 1GHz, EIRP for operations above 1GHz. Values listed for LTE operations are for highest power and widest bandwidth for each band and modulation. This device supports LTE bandwidths of 1.4MHz, 3MHz, 5MHz and 10MHz in Band 5 (Part 22, 824-849 MHz). SAR compliance for body-worn accessory operation is based on a separation distance of 1.0 cm between the unit and the body of the user. Belt clips, holsters and other body-worn accessories may not contain metallic components. End-users must be informed of the body worn operating requirements for satisfying RF exposure compliance. The highest reported SAR values for head, body-worn, hot-spot and simultaneous transmission exposure conditions are 0.33 W/Kg, 0.78 W/Kg, 0.78 W/Kg and 1.20 W/Kg, respectively. This device also contains functions that are not operational in U.S. Territories. This filing is only applicable for US operations.
