A3LSMA336MMobile Phone

Package contents • Device • USB cable • Quick start guide • Ejection pin • USB power adaptor The items supplied with the device and their images may vary by region. Device layout To turn on the device, press and hold the Side key for a few seconds. Volume key Multipurpose jack (USB Type-C) Front camera Side key SIM card / Memory card tray Fingerprint recognition sensor Rear camera The charger should remain close to the electric socket and easily accessible while charging. Installing a nano-SIM card • Nano-SIM cards are sold separately. • Support for single SIM and dual SIM models may vary by region. ► Single SIM models: Nano-SIM card 231 ► Dual SIM models: Nano-SIM card 1 Nano-SIM card 2 231 Safety information Read all safety information before using the device to ensure safe and proper use. You can view more safety information in the safety information menu of the Settings app. Warning Follow the warnings below to prevent incidents, such as fires or explosions, injuries, or damage to the device • Do not expose the device to physical impact or damage. • Use only Samsung-approved batteries, chargers, and cables specifically designed for your device. • Prevent the multipurpose jack and battery terminals from coming into contact with foreign materials such as metal, liquids, or dust. • If any part of the device, such as the glass or acrylic body, is broken, smokes, or emits a burning odor, stop using the device immediately. Use the device again only after it has been repaired at a Samsung Service Center. • Do not turn on or use the device when the battery compartment is exposed. • Do not disassemble or reuse the battery. • Do not allow children or animals to chew or suck the device. • The device can be used in locations with an ambient temperature of 0 °C to 35 °C. You can store the device at an ambient temperature of -20 °C to 50 °C. Using or storing the device outside of the recommended temperature ranges may damage the device or reduce the battery’s lifespan. • D o not use your device in a hot environment or near fire. • Comply with all safety warnings and regulations regarding mobile device usage while operating a vehicle. You can download and install the firmware update to upgrade your device’s software with the firmware over-the- air (FOTA) service. To check for the firmware update, launch the Settings app and tap Software update → Download and install. Specific Absorption Rate (SAR) certification information Your device conforms to U.S. Federal Communications Commission (FCC) standards that limit human exposure to radio frequency (RF) energy emitted by radio and telecommunications equipment. These standards prevent the sale of mobile devices that exceed a maximum exposure level (known as the Specific Absorption Rate, or SAR) of 1.6 W/kg. In normal use, the actual SAR is likely to be much lower, as the device has been designed to emit only the RF energy necessary to transmit a signal to the nearest base station. By automatically emitting lower levels when possible, your device reduces your overall exposure to RF energy. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. The FCC has granted an Equipment Authorization for this model device based on the compliance of all reported SAR levels with the FCC RF exposure guidelines. Some devices are required to receive approval from the FCC. If your device required FCC approval, you can view the FCC certification by opening Settings → About phone → Status or Status information. SAR information for this and other devices can be found on the FCC website at: www.fcc.gov/oet/ea/. Follow the instructions on the website to use the FCC ID to find SAR values for the device. SAR information for this device can also be found on Samsung’s website: www.samsung.com/sar. The device may be damaged if water or dust enters the device. Follow these tips carefully to maintain the water- and dust- resistant performance of the device. • D o not immerse the device in fresh water deeper than 1 m or keep it submerged for more than 30 minutes. • D o not expose the device to water moving with force. Do not suddenly apply water pressure to the device, such as when diving. • If the device is exposed to fresh water, dry it thoroughly with a clean, soft cloth. If the device is exposed to other liquids, such as salt water, swimming pool water, soapy water, oil, perfume, sunscreen, hand cleaner, or chemical products such as cosmetics, rinse it with fresh water and dry it thoroughly with a clean, soft cloth. If you do not follow these instructions, the device’s performance and appearance may be affected. • If the device has been immersed in water or the microphone or speaker is wet, sound may not be heard clearly during a call. • Your device has been tested in a controlled environment and certified to be water- and dust-resistant in specific situations (meets requirements of classification IP67 as described by the international standard IEC 60529-Degrees of Protection provided by Enclosures [IP Code]; test conditions: 15-35 °C, 86-106 kPa, fresh water, 1 metre, 30 minutes). Despite this classification, it is still possible for your device to be damaged in certain situations. If your device is frozen and unresponsive, press and hold the Side key and the Volume Down key simultaneously for more than 7 seconds to restart it. The actual available capacity of the internal memory is less than the specified capacity because the operating system and default apps occupy part of the memory. The available capacity may change when you upgrade the device. It is recommended not to use fixed graphics on part or all of the touchscreen for extended periods. Doing so may result in afterimages (screen burn-in) or ghosting. To prevent possible hearing damage when using a head…

Text truncated - open the document above for the full version.

Date : Nov. 09, 2017 Rev : 3.0 HACS-F003 FCC Confidentiality Request Letter HCT America LLC ([email protected]) 1726 Ringwood Avenue San Jose, CA 95131 TEL: +1.510.933.8848, Fax: +1.510.933.8849 Page 1 of 2 This document is electronically controlled. Hard copy documents are uncontrolled. Please check all hard copies against the controlled electronic copy to ensure validity. This document is the confidential property of HCT America LLC. It may not be forwarded or reproduced in whole or in part without written permissions from HCT America LLC FCC Confidentiality Request Letter Date : Nov. 09, 2017 Rev : 3.0 HACS-F003 FCC Confidentiality Request Letter HCT America LLC ([email protected]) 1726 Ringwood Avenue San Jose, CA 95131 TEL: +1.510.933.8848, Fax: +1.510.933.8849 Page 2 of 2 This document is electronically controlled. Hard copy documents are uncontrolled. Please check all hard copies against the controlled electronic copy to ensure validity. This document is the confidential property of HCT America LLC. It may not be forwarded or reproduced in whole or in part without written permissions from HCT America LLC REVISION TABLE Rev Description of Change Date Approved 1.0 Original Release(Obsolete) 06/14/2012 QM 2.0 Updated template(Obsolete) 10/01/2012 QM 2.1 Updated address(Obsolete) 01/10/2014 QM 2.2 Updated address 11/18/2016 QM 3.0 Updated LTC and STC Confidentiality table 11/09/2017 QM HACS-F003 FCC Confidentiality Request Letter Rev : 3.0 DATE : January 5, 2022 To: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD SUBJECT: Request for Confidentiality for FCC ID : A3LSMA336M We hereby request confidential treatment of the information accompanying this application as outlined below: LONG-TERM AND SHORT-TERM CONFIDENTIAL LIST LONG-TERM CONFIDENTIAL Exhibit Description 1 Block Diagram 2 Operational Description 3 Parts List 4 Schematics SHORT-TERM CONFIDENTIAL (180 DAYS) 5 External Photos 6 Internal Photos 7 Test-Setup Photos 8 User’s Manual The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 & 0.459 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Signed by: Jenni Chun / General Manager Samsung Electronics America, Inc. Address: 19 Chapin Rd., Building D Pine Brook, NJ 07058 Tel: 1-973-808-6375

Date : Nov. 9, 2017 Rev : 2.3 HACS-F004 FCC Agent Authorization Letter HCT America LLC ([email protected]) 1726 Ringwood Avenue San Jose, CA 95131 TEL: +1.510.933.8848, Fax: +1.510.933.8849 Page 1 of 2 This document is electronically controlled. Hard copy documents are uncontrolled. Please check all hard copies against the controlled electronic copy to ensure validity. This document is the confidential property of HCT America LLC. It may not be forwarded or reproduced in whole or in part without written permissions from HCT America LLC FCC Agent Authorization Letter Date : Nov. 9, 2017 Rev : 2.3 HACS-F004 FCC Agent Authorization Letter HCT America LLC ([email protected]) 1726 Ringwood Avenue San Jose, CA 95131 TEL: +1.510.933.8848, Fax: +1.510.933.8849 Page 2 of 2 This document is electronically controlled. Hard copy documents are uncontrolled. Please check all hard copies against the controlled electronic copy to ensure validity. This document is the confidential property of HCT America LLC. It may not be forwarded or reproduced in whole or in part without written permissions from HCT America LLC REVISION TABLE Rev Description of Change Date Approved 1.0 Original Release(Obsolete) 06/14/2012 QM 2.0 Updated template(Obsolete) 10/01/2012 QM 2.1 Updated address(Obsolete) 01/10/2014 QM 2.2 Updated address 11/18/2016 QM 2.3 Fixed Typo “Agent” 11/09/2017 QM HACS-F004 FCC Agent Authorization Letter Rev : 2.3 DATE : January 7, 2022 To: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD To whom it may concern: Subject : FCC Agent Authorization Letter for FCC ID: A3LSMA336M We, the undersigned, hereby authorize HCT CO., LTD. to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by HCT CO., LTD. on our behalf shall have the same effect as acts of our own. We, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). We recognize that we are still responsible for the terms and conditions outlined in the HCT America Client Services Agreement. This authorization is valid until further written notice from the applicant. Sincerely, Signed by: Jenni Chun / General Manager Samsung Electronics America, Inc. Address: 19 Chapin Rd., Building D Pine Brook, NJ 07058 Tel: 1-973-808-6375

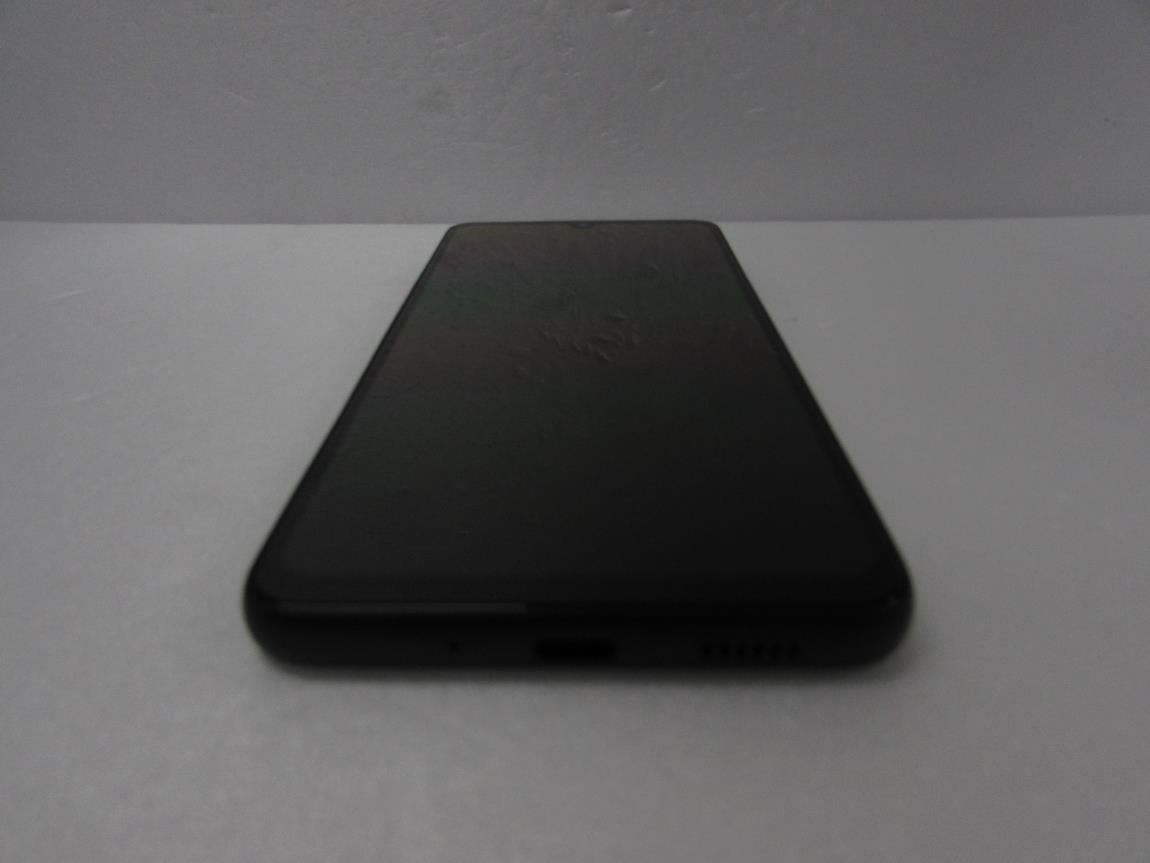

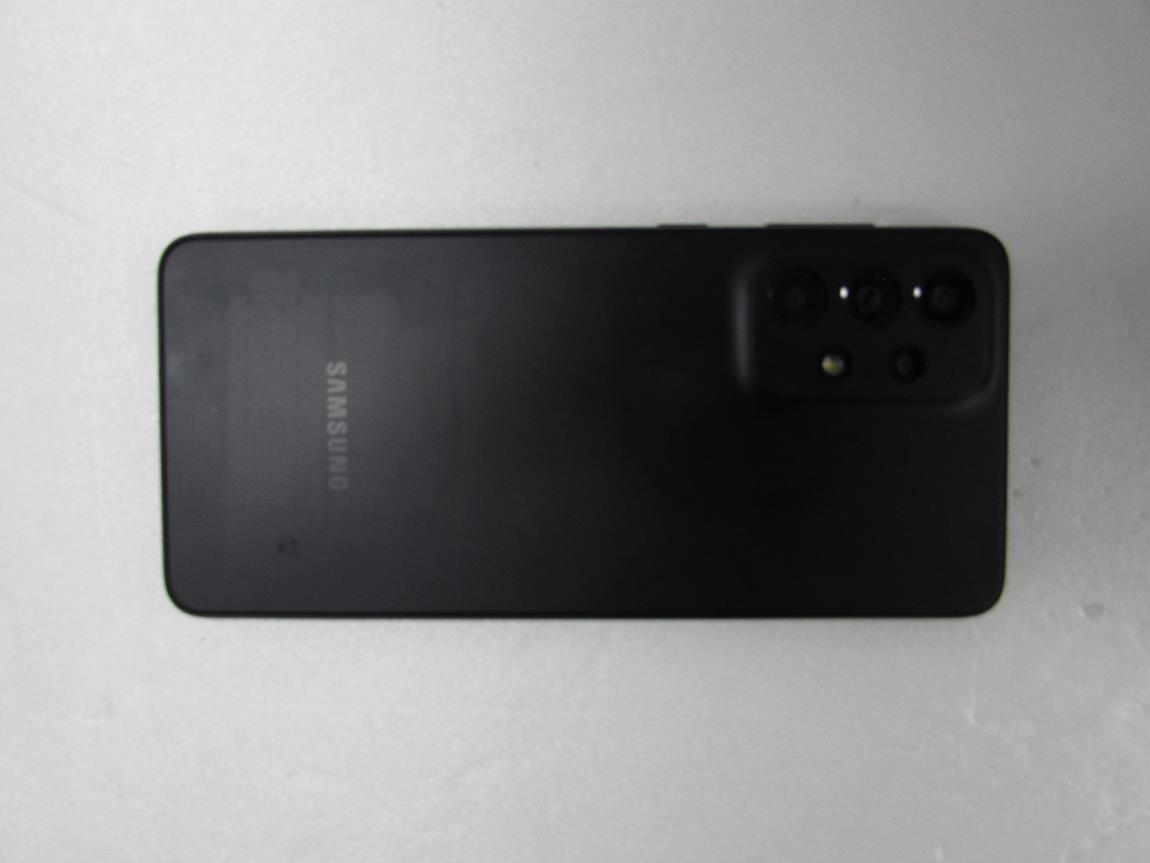

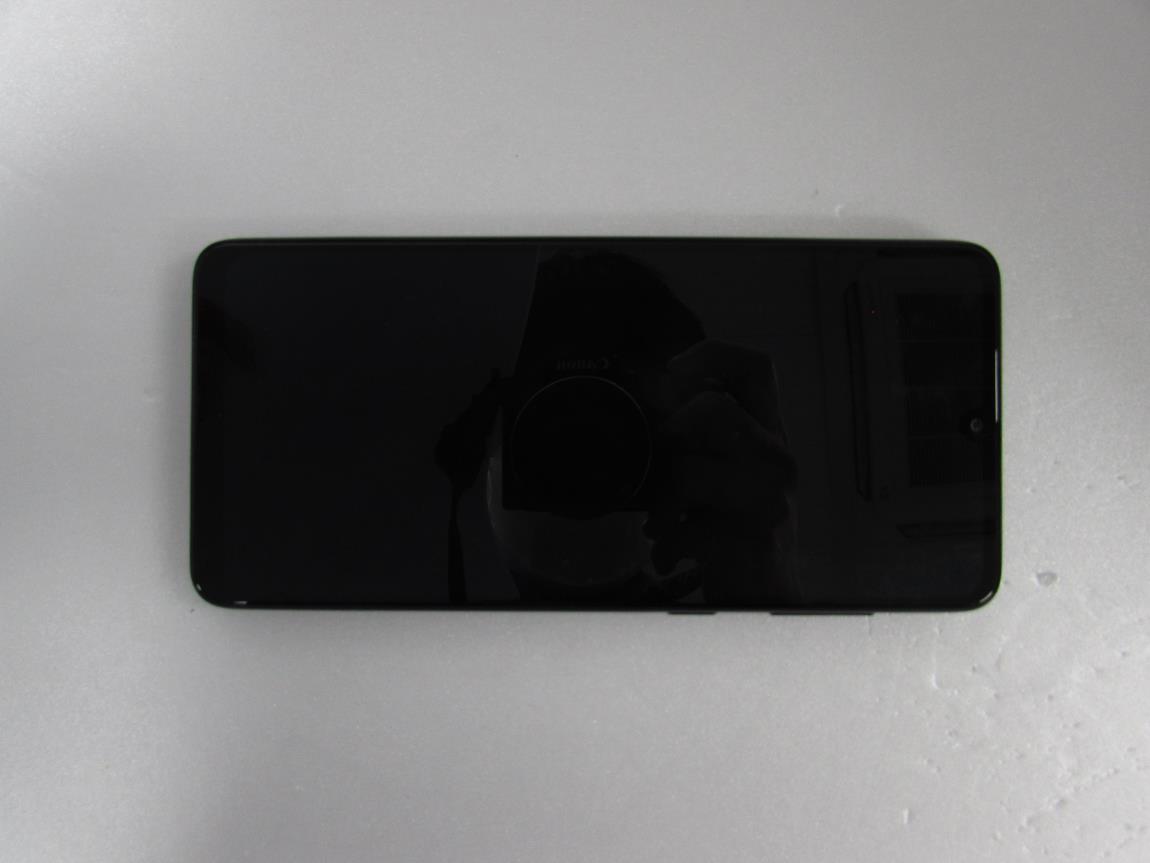

FCC ID: A3LSMA336M F-TP22-03 (Rev.00) 1 / 7 HCT CO.,LTD. - EXTERNAL PHOTOGRAPHS FCC ID: A3LSMA336M F-TP22-03 (Rev.00) 2 / 7 HCT CO.,LTD. 1. External Photo (Front view) FCC ID: A3LSMA336M F-TP22-03 (Rev.00) 3 / 7 HCT CO.,LTD. 2. External Photo (Rear view) FCC ID: A3LSMA336M F-TP22-03 (Rev.00) 4 / 7 HCT CO.,LTD. 3. External Photo (Left side view) FCC ID: A3LSMA336M F-TP22-03 (Rev.00) 5 / 7 HCT CO.,LTD. 4. External Photo (Right side view) FCC ID: A3LSMA336M F-TP22-03 (Rev.00) 6 / 7 HCT CO.,LTD. 5. External Photo (Top view) FCC ID: A3LSMA336M F-TP22-03 (Rev.00) 7 / 7 HCT CO.,LTD. 6. External Photo (Bottom view)

Description of E- label on the A3LSMA336M Jan. 5, 2022 FCC ID : A3LSMA336M This model is applied E-label, please find description of E-label below. 1. FCC ID(E-label) : Settings > About Phone > Status <Device Display Screen> 2. Instruction of E-label on the User manual (online manual) Depending on the region or model, some devices are required to receive approval from the Federal Communications Commission(FCC). If your device is approved by the FCC, you can view the FCC ID or the device. To view the FCC ID, tap Settings > About phone > Status information 3. FCC ID on the Quick Start Guide The FCC has granted an Equipment Authorization for this model device based on the compliance of all reported SAR levels with the FCC RF exposure guidelines. This device has a FCC ID number A3LSMA336M and the specific SAR levels for this device can be found at the following FCC website: www.fcc.gov/oet/eat/. The SAR information for this device can be also be found on Samsung's website: www.samsung.com/sar. FCC Certification FCC ID : A3LSMA336M

Samsung Electronics Co., LTD. 12 9, Sa msu ng -ro , Yeongton g-gu Suwon-City, Gyeong gi-d o, 16677, Ko rea Date: Jan. 5, 2022 Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 Subject: Label Statement FCC ID: A3LSMA336M To Whom it Ma y Concern We hereby provide the following attestations according to CFR 2.935 and FCC KDB 784748 D02: At the time of purchase, the FCC ID is readily and physically visible to the purchaser on the exterior package per CFR 2.935(f). The FCC ID will be readily legible without the aid of magnification according to CFR 2.935(d). The literature in the package describes how to access the electr onic display to find the FCC ID per CFR 2. 935(b) and FCC KDB 784748. Per CFR 2.935(c), the user will be able to access this information within a maximum of 3 steps. The user will be able to access this information without a SIM card, special accessories or supplemental plug- ins. Per CFR 2.935(e), We, Samsung have programmed the e- label and it is not able to be modified by any third party. Per CFR 2.935(f), the FCC ID will be able to survive normal shipping and handling so it is visible for in spection at the time of import. Shou ld you have any questions or comments concern ing the abov e, please contact the undersign ed. Sincerely, ---------------------------------------------------- Jenni Chun / General Manager Samsung Electronics America, Inc. Address: 19 Chapin Rd., Building D Pine Brook, NJ 07058 Tel: 1-973-808-6375

FCC ID: A3LSMA336M F-TP22-03 (Rev.00) 1 / 17 HCT CO.,LTD. - INTERNAL PHOTOGRAPHS FCC ID: A3LSMA336M F-TP22-03 (Rev.00) 2 / 17 HCT CO.,LTD. ■ Main / Bluetooth & WLAN Antenna Internal Photo FCC ID: A3LSMA336M F-TP22-03 (Rev.00) 3 / 17 HCT CO.,LTD. 1. Internal Photo FCC ID: A3LSMA336M F-TP22-03 (Rev.00) 4 / 17 HCT CO.,LTD. 2. Internal Photo FCC ID: A3LSMA336M F-TP22-03 (Rev.00) 5 / 17 HCT CO.,LTD. 3. Internal Photo FCC ID: A3LSMA336M F-TP22-03 (Rev.00) 6 / 17 HCT CO.,LTD. 4. Internal Photo FCC ID: A3LSMA336M F-TP22-03 (Rev.00) 7 / 17 HCT CO.,LTD. 5. Internal Photo FCC ID: A3LSMA336M F-TP22-03 (Rev.00) 8 / 17 HCT CO.,LTD. 6. Internal Photo FCC ID: A3LSMA336M F-TP22-03 (Rev.00) 9 / 17 HCT CO.,LTD. 7. Internal Photo FCC ID: A3LSMA336M F-TP22-03 (Rev.00) 10 / 17 HCT CO.,LTD. 8. Internal Photo FCC ID: A3LSMA336M F-TP22-03 (Rev.00) 11 / 17 HCT CO.,LTD. 9. Internal Photo FCC ID: A3LSMA336M F-TP22-03 (Rev.00) 12 / 17 HCT CO.,LTD. 10. Internal Photo FCC ID: A3LSMA336M F-TP22-03 (Rev.00) 13 / 17 HCT CO.,LTD. 11. Internal Photo FCC ID: A3LSMA336M F-TP22-03 (Rev.00) 14 / 17 HCT CO.,LTD. 12. Internal Photo FCC ID: A3LSMA336M F-TP22-03 (Rev.00) 15 / 17 HCT CO.,LTD. 13. Internal Photo FCC ID: A3LSMA336M F-TP22-03 (Rev.00) 16 / 17 HCT CO.,LTD. 14. Internal Photo FCC ID: A3LSMA336M F-TP22-03 (Rev.00) 17 / 17 HCT CO.,LTD. 15. Internal Photo

F-TP22-03 (Rev.00) Page 1 of 217 HCT Co., Ltd. 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, 17383 KOREA Tel. +82 31 634 6300 Fax. +82 31 645 6401 SAR TEST REPORT Applicant Name: SAMSUNG Electronics Co., Ltd. 129, Samsung-ro, Yeongtong-gu, Suwon-Si, Gyeonggi-do, 16677 Rep. of Korea Date of Issue: Jan. 12, 2022 Test Report No.: HCT-SR-2201-FC005-R1 Test Site: HCT CO., LTD. FCC ID: Equipment Type: Mobile Phone Application Type Certification FCC Rule Part(s): CFR §2.1093 Model Name: SM-A336M/DSN Additional Model Name: SM-A336M Date of Test: Dec.01, 2021 ~ Dec. 31, 2021 This device has been shown to be capable of compliance for localized specific absorption rate (SAR) for uncontrolled environment/general population exposure limits specified in FCC KDB procedures and had been tested in accordance with the measurement procedures specified in FCC KDB procedures. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. Tested By Jung-Hun, Park Test Engineer SAR Team Certification Division Reviewed By Yun-jeang, Heo Technical Manager SAR Team Certification Division This report only responds to the tested sample and may not be reproduced, except in full, without written approval of the HCT Co., Ltd. A3LSMA336M FCC ID: A3LSMA336M Report No: HCT-SR-2201-FC005-R1 F-TP22-03 (Rev.00) Page 2 of 217 REVISION HISTORY The revision history for this test report is shown in table. Revision No. Date of Issue Description 0 Jan. 06, 2022 Initial Release 1 Jan. 12, 2022 Revised Sec.8,13 and 14 This test results were applied only to the test methods required by the standard. The above Test Report is not related to the accredited test result by (KS Q) ISO/IEC 17025 and KOLAS(Korea Laboratory Accreditation Scheme), which signed the ILAC-MRA. FCC ID: A3LSMA336M Report No: HCT-SR-2201-FC005-R1 F-TP22-03 (Rev.00) Page 3 of 217 Table of Contents 1. Test Regulations ...........................................................................................................................................4 2. Test Location .................................................................................................................................................5 3. Information of the EUT .................................................................................................................................5 4. Device Under Test Description ....................................................................................................................7 5. Introduction ................................................................................................................................................ 22 6. Description of test equipment .................................................................................................................. 23 7. SAR Measurement Procedure .................................................................................................................. 24 8. Description of Test Position ..................................................................................................................... 26 9. RF Exposure Limits ................................................................................................................................... 31 10. FCC SAR General Measurement Procedures ....................................................................................... 32 11. Output Power Specifications .................................................................................................................. 39 12. System Verification ............................................................................................................................... 174 13. SAR Test Data Summary ....................................................................................................................... 179 14. Simultaneous SAR Analysis ................................................................................................................. 203 15. SAR Measurement Variability and Uncertainty ................................................................................... 211 18. Measurement Uncertainty ..................................................................................................................... 212 19. SAR Test Equipment ............................................................................................................................. 213 20. Conclusion ............................................................................................................................................. 214 21. References ............................................................................................................................................. 215 Appendix A. DUT Ant. Information & Test SETUP PHOTO Appendix B. SAR Test Plots Appendix C. Dipole Verification Plots Appendix D. SAR Tissue Characterization Appendix E. SAR System Validation Appendix F. Probe Calibration Data Appendix G. Dipole Calibration Data Appendix H. Power reduction verification Appendix I.DLCA Power Measurement FCC ID: A3LSMA336M Report No: HCT-SR-2201-FC005-R1 F-TP22-03 (Rev.00) Page 4 of 217 1. Test Regulations The tests documented in this report were performed in accordance with FCC CFR § 2.1093, IEEE 1528-2013, ANSI C63.26-2015 the following FCC Published RF exposure KDB procedures: - FCC KDB Publication 941225 D01 3G SAR Procedures v03r01 - FCC KDB Publication 941225 D06 Hot Spot SAR v02r01 - FCC KDB Publication 941225 D05 SAR for LTE Devices v02r05 - FCC KDB Publication 941225 D05A LTE Rel.10 KDB Inquiry sheet v01r02 - FCC KDB Publication 248227 D01 802.11 Wi-Fi SAR v02r02 - FCC KDB Publication 447498 D01 General SAR Guidance v06 -…

Text truncated - open the document above for the full version.

FCC ID: A3LSMA336M Report No: HCT-SR-2201-FC005-R1 F-TP22-03 (Rev.00) 1 / 100 HCT CO.,LTD. Appendix B. – SAR Test Plots FCC ID: A3LSMA336M Report No: HCT-SR-2201-FC005-R1 F-TP22-03 (Rev.00) 2 / 100 HCT CO.,LTD. Test Laboratory: HCT CO., LTD EUT Type: Mobile Phone Liquid Temperature: 20.5 °C Ambient Temperature: 20.6 °C Test Date: 12/06/2021 Plot No.: 1 Communication System: UID 0, GSM 850 3Tx (0); Frequency: 836.6 MHz;Duty Cycle: 1:2.77013 Medium parameters used (interpolated): f = 836.6 MHz; σ = 0.932 S/m; ε r = 41.545; ρ = 1000 kg/m 3 Phantom section: Right Section DASY5 Configuration:  Probe: EX3DV4 - SN7651; ConvF(9.88, 9.88, 9.88) @ 836.6 MHz; Calibrated: 2021-05-18  Sensor-Surface: 1.4mm (Mechanical Surface Detection)  Electronics: DAE4 Sn446; Calibrated: 2021-09-30  Phantom: Twin-SAM V8.0 (Right-Left)  Measurement SW: DASY52, Version 52.10 (4) GSM850 Head 3Tx Right Touch 190ch/Area Scan (8x13x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.225 W/kg GSM850 Head 3Tx Right Touch 190ch/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 3.279 V/m; Power Drift = 0.18 dB Peak SAR (extrapolated) = 0.261 W/kg SAR(1 g) = 0.197 W/kg; SAR(10 g) = 0.149 W/kg Maximum value of SAR (measured) = 0.235 W/kg 0 dB = 0.225 W/kg = -6.47 dBW/kg FCC ID: A3LSMA336M Report No: HCT-SR-2201-FC005-R1 F-TP22-03 (Rev.00) 3 / 100 HCT CO.,LTD. Test Laboratory: HCT CO., LTD EUT Type: Mobile Phone Liquid Temperature: 21.3 °C Ambient Temperature: 21.4 °C Test Date: 12/07/2021 Plot No.: 2 Communication System: UID 0, GSM1900 (0); Frequency: 1880 MHz;Duty Cycle: 1:8.30042 Medium parameters used: f = 1880 MHz; σ = 1.415 S/m; ε r = 40.27; ρ = 1000 kg/m 3 Phantom section: Right Section DASY5 Configuration:  Probe: EX3DV4 - SN7651; ConvF(8.51, 8.51, 8.51) @ 1880 MHz; Calibrated: 2021-05-18  Sensor-Surface: 1.4mm (Mechanical Surface Detection)  Electronics: DAE4 Sn446; Calibrated: 2021-09-30  Phantom: Twin-SAM V8.0 (Right-Left)  Measurement SW: DASY52, Version 52.10 (4) GSM1900 Head Right Touch 661ch/Area Scan (8x13x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.275 W/kg GSM1900 Head Right Touch 661ch/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 2.185 V/m; Power Drift = 0.17 dB Peak SAR (extrapolated) = 0.317 W/kg SAR(1 g) = 0.239 W/kg; SAR(10 g) = 0.180 W/kg Maximum value of SAR (measured) = 0.290 W/kg 0 dB = 0.275 W/kg = -5.61 dBW/kg FCC ID: A3LSMA336M Report No: HCT-SR-2201-FC005-R1 F-TP22-03 (Rev.00) 4 / 100 HCT CO.,LTD. Test Laboratory: HCT CO., LTD EUT Type: Mobile Phone Liquid Temperature: 20.0 °C Ambient Temperature: 20.1 °C Test Date: 12/15/2021 Plot No.: 3 Communication System: UID 0, WCDMA850 (0); Frequency: 826.4 MHz;Duty Cycle: 1:1 Medium parameters used (interpolated): f = 826.4 MHz; σ = 0.923 S/m; ε r = 41.574; ρ = 1000 kg/m 3 Phantom section: Right Section DASY5 Configuration:  Probe: EX3DV4 - SN7651; ConvF(9.88, 9.88, 9.88) @ 826.4 MHz; Calibrated: 2021-05-18  Sensor-Surface: 1.4mm (Mechanical Surface Detection)  Electronics: DAE4 Sn446; Calibrated: 2021-09-30  Phantom: Twin-SAM V8.0 (Right-Left)  Measurement SW: DASY52, Version 52.10 (4) UMTS Band 5 Head Right Touch 4132ch/Area Scan (8x13x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.213 W/kg UMTS Band 5 Head Right Touch 4132ch/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 2.892 V/m; Power Drift = 0.16 dB Peak SAR (extrapolated) = 0.244 W/kg SAR(1 g) = 0.184 W/kg; SAR(10 g) = 0.139 W/kg Maximum value of SAR (measured) = 0.222 W/kg 0 dB = 0.213 W/kg = -6.71 dBW/kg FCC ID: A3LSMA336M Report No: HCT-SR-2201-FC005-R1 F-TP22-03 (Rev.00) 5 / 100 HCT CO.,LTD. Test Laboratory: HCT CO., LTD EUT Type: Mobile Phone Liquid Temperature: 20.3 °C Ambient Temperature: 20.4 °C Test Date: 12/13/2021 Plot No.: 4 Communication System: UID 0, WCDMA IV (0); Frequency: 1712.4 MHz;Duty Cycle: 1:1 Medium parameters used (interpolated): f = 1712.4 MHz; σ = 1.29 S/m; ε r = 41.545; ρ = 1000 kg/m 3 Phantom section: Right Section DASY5 Configuration:  Probe: EX3DV4 - SN7651; ConvF(8.95, 8.95, 8.95) @ 1712.4 MHz; Calibrated: 2021-05-18  Sensor-Surface: 1.4mm (Mechanical Surface Detection)  Electronics: DAE4 Sn446; Calibrated: 2021-09-30  Phantom: Twin-SAM V8.0 (Right-Left)  Measurement SW: DASY52, Version 52.10 (4) UMTS Band 4 Head Right Touch 1312ch/Area Scan (8x13x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.0901 W/kg UMTS Band 4 Head Right Touch 1312ch/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 0.8730 V/m; Power Drift = 0.16 dB Peak SAR (extrapolated) = 0.109 W/kg SAR(1 g) = 0.066 W/kg; SAR(10 g) = 0.041 W/kg Ratio of SAR at M2 to SAR at M1 = 63.8% Maximum value of SAR (measured) = 0.0891 W/kg 0 dB = 0.0901 W/kg = -10.45 dBW/kg FCC ID: A3LSMA336M Report No: HCT-SR-2201-FC005-R1 F-TP22-03 (Rev.00) 6 / 100 HCT CO.,LTD. Test Laboratory: HCT CO., LTD EUT Type: Mobile Phone Liquid Temperature: 20.4 °C Ambient Temperature: 20.5 °C Test Date: 12/09/2021 Plot No.: 5 Communication System: UID 0, WCDMA1900 (0); Frequency: 1880 MHz;Duty Cycle: 1:1 Medium parameters used: f = 1880 MHz; σ = 1.404 S/m; ε r = 39.565; ρ = 1000 kg/m 3 Phantom section: Right Section DASY5 Configuration:  Probe: EX3DV4 - SN7651; ConvF(8.51, 8.51, 8.51) @ 1880 MHz; Calibrated: 2021-05-18  Sensor-Surface: 1.4mm (Mechanical Surface Detection)  Electronics: DAE4 Sn446; Calibrated: 2021-09-30  Phantom: Twin-SAM V8.0 (Right-Left)  Measurement SW: DASY52, Version 52.10 (4) UMTS Band 2 Head Right Touch 9400ch/Area Scan (8x13x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.129 W/kg UMTS Band 2 Head Right Touch 9400ch/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 2.802 V/m; Power Drift = -0.17 dB Peak SAR (extrapolated) = 0.157 W/kg SAR(1 g) = 0.097 W/kg; SAR(10 g) = 0.059 W…
