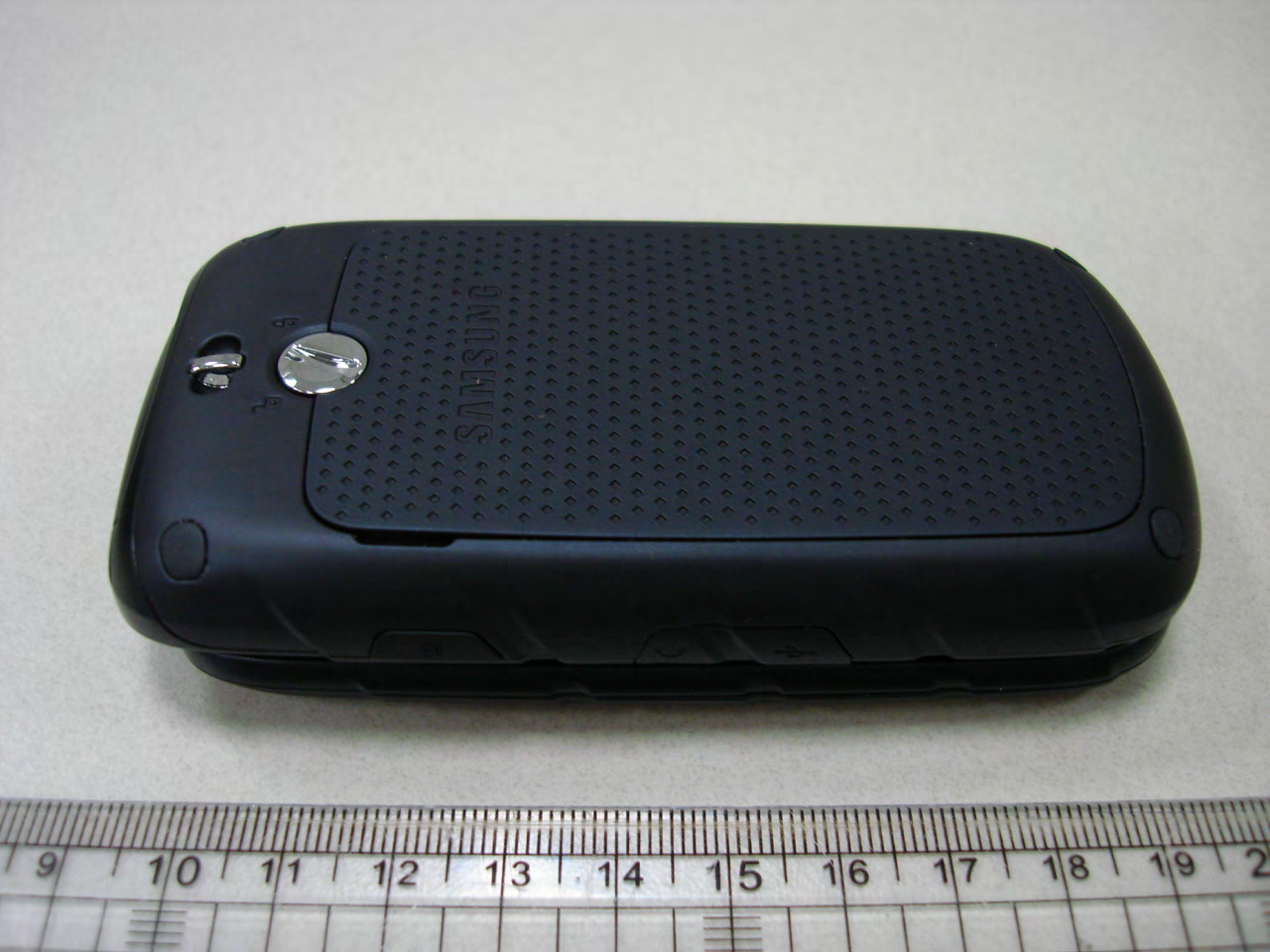

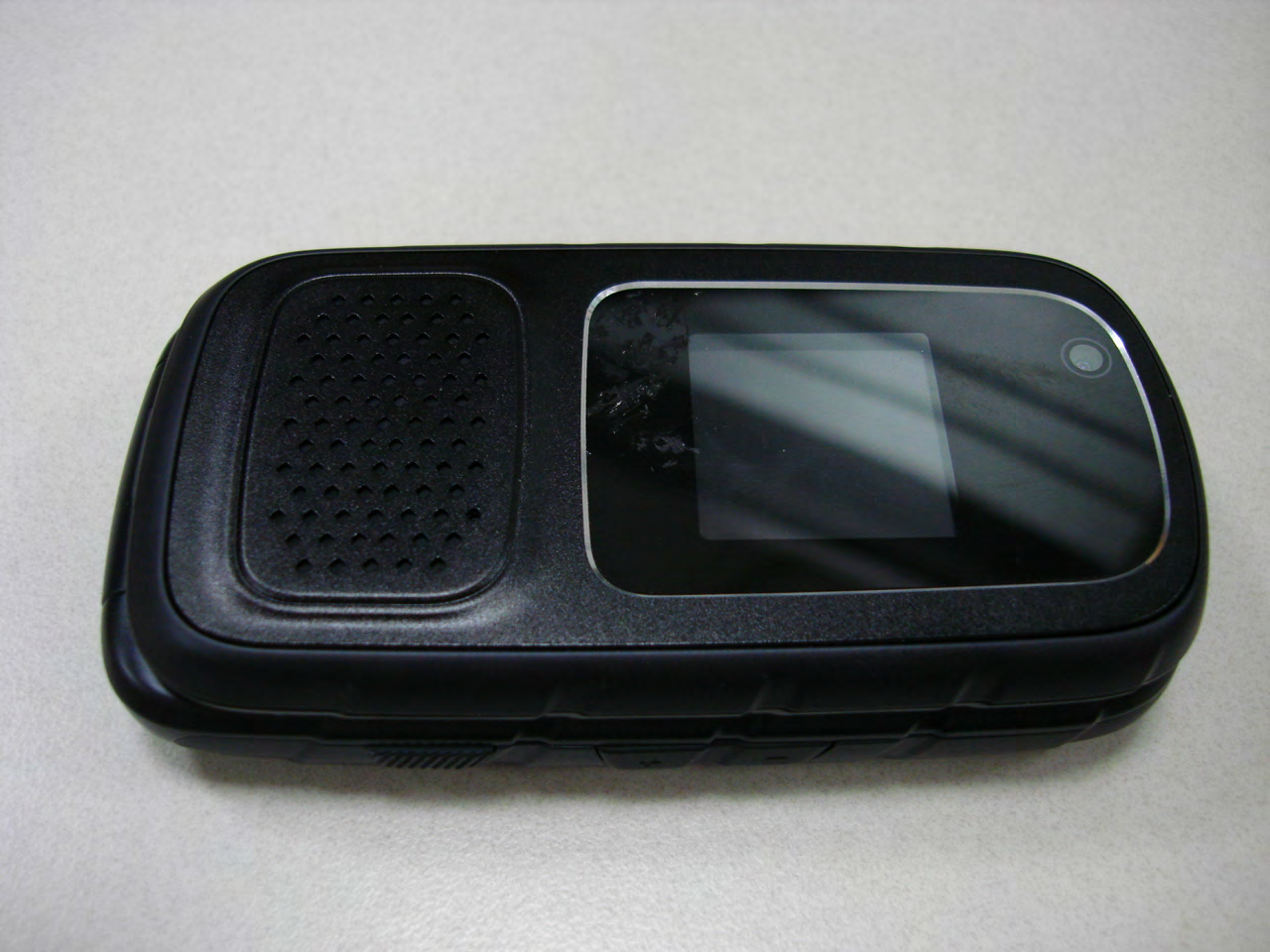

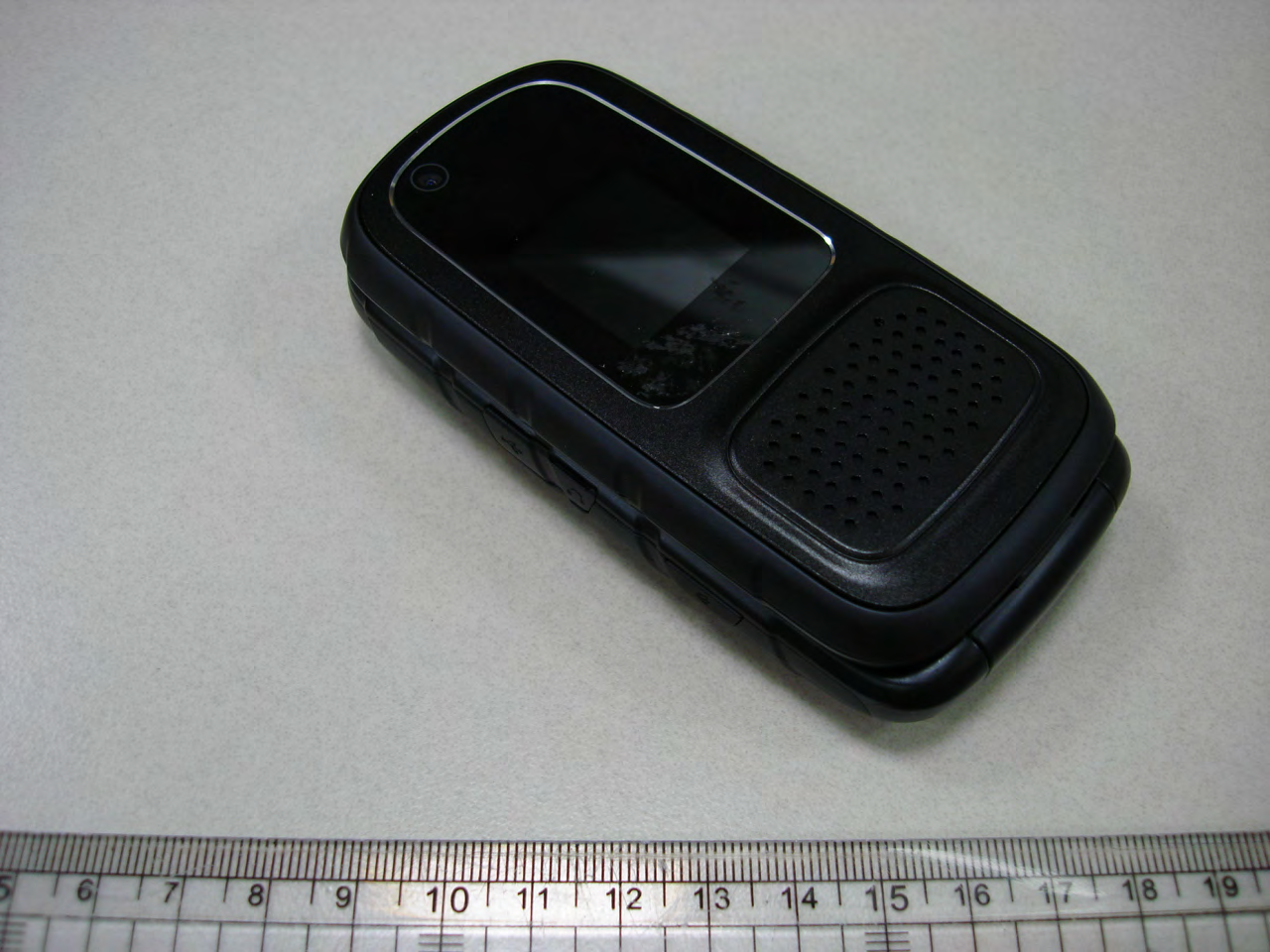

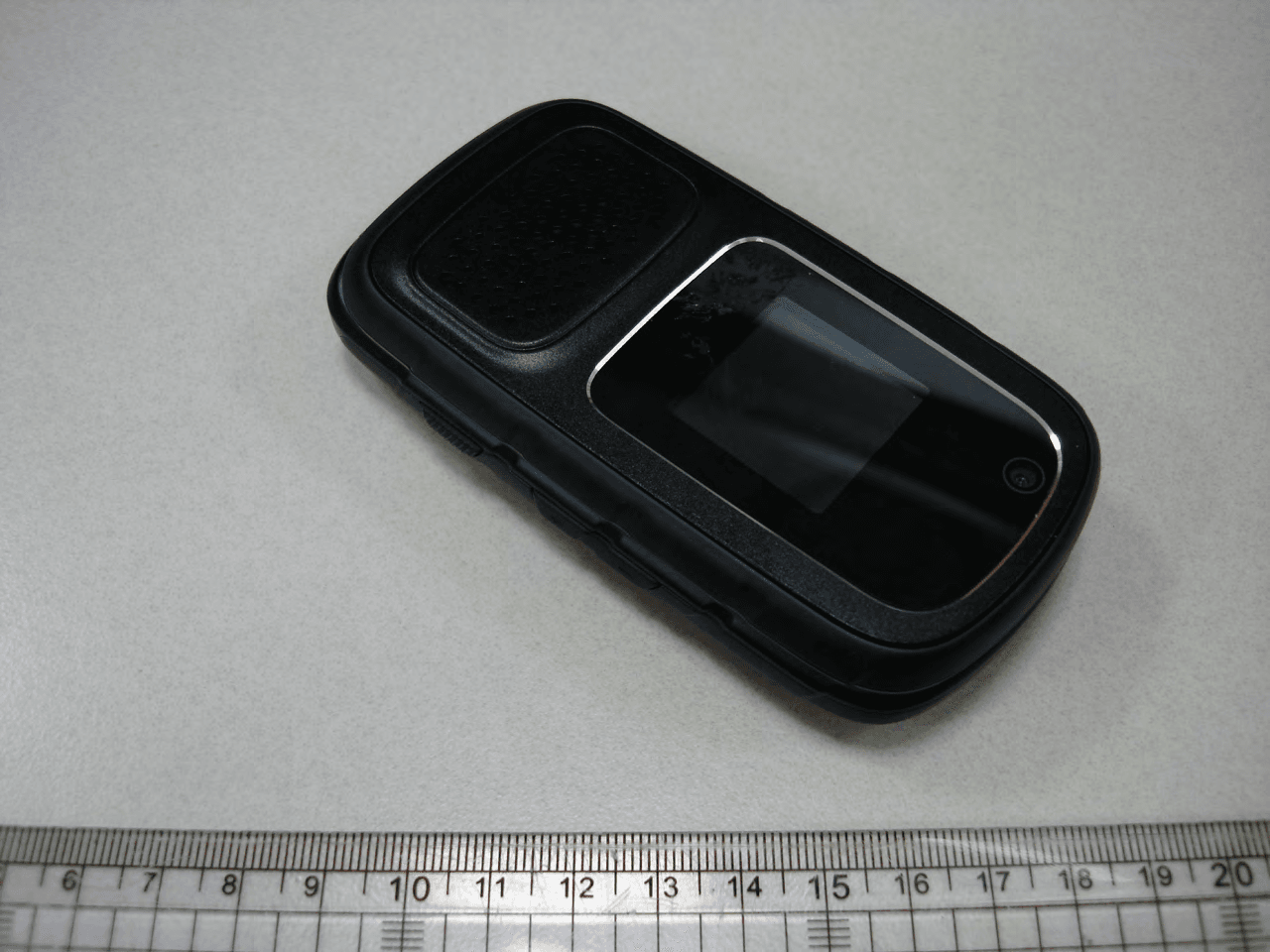

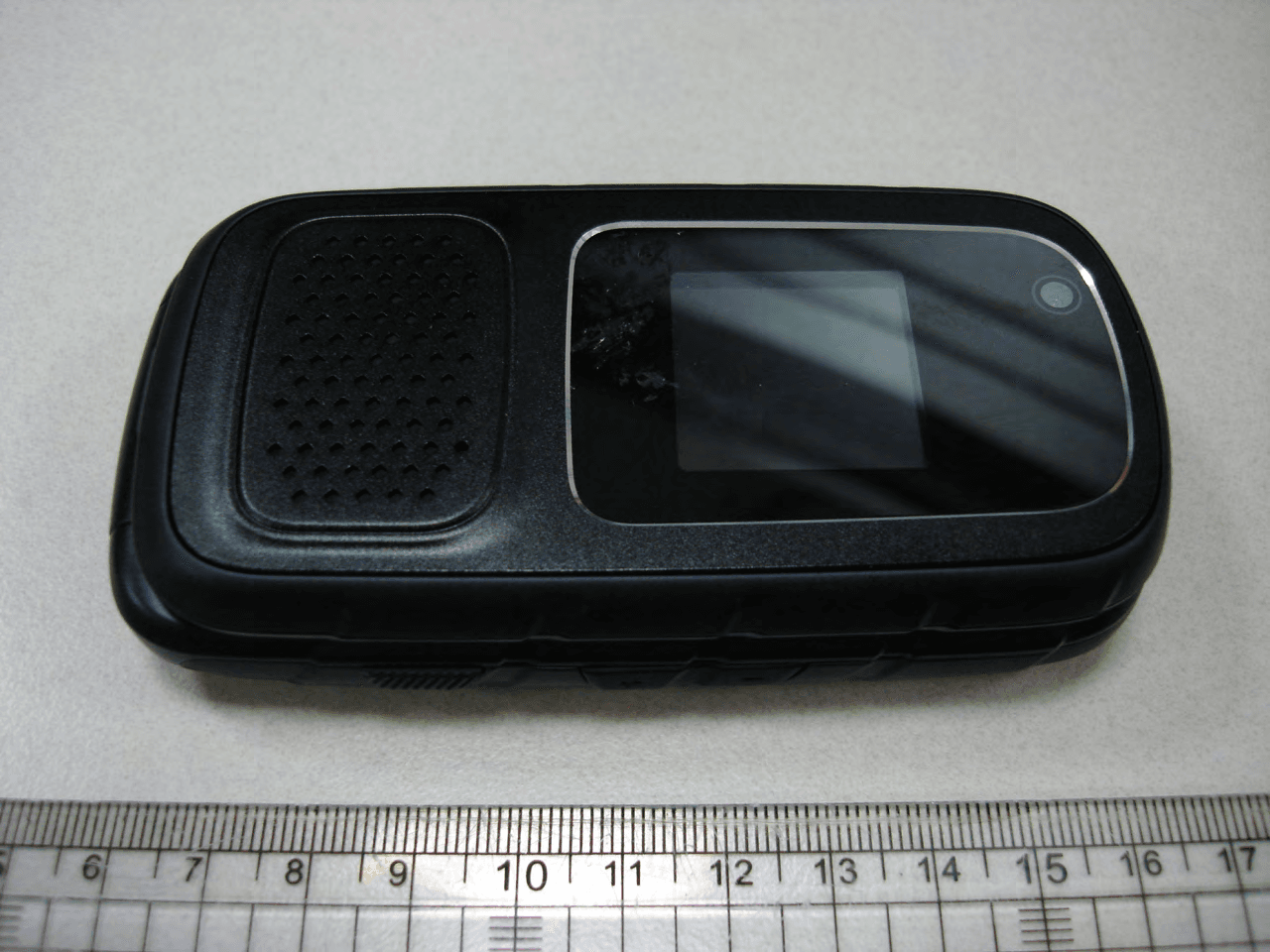

A3LSMB780ACellular/PCS GSM/EDGE/WCDMA Phone with WLAN and Bluetooth

DRAFT Health and Safety and Warranty Guide Please read this manual before operating your phone and keep it for future reference. G870A_88mm H x 143mm W.book Page 1 Thursday, May 8, 2014 8:29 AM SM-B780A DRAFT Important information about your phone/device/tablet can be accessed in writing on the mobile device or on Samsung.com. Read this information before using your mobile device. The complete Health and Safety and Warranty document can also be found on www.samsung.com. Samsung Limited Warranty - This product is covered under the applicable Samsung Limited Warranty. Full written terms and detailed information about the warranty and obtaining service are available on the device at: Settings ➔ About device ➔ Samsung legal or at samsung.com. Location of Legal Information on Device: Health and Safety Information • Settings ➔ About device ➔ Legal information ➔ Samsung legal ➔ Health and Safety Warranty • Settings ➔ About device ➔ Legal information ➔ Samsung legal ➔ Warranty EULA • Settings ➔ About device ➔ Legal information ➔ Samsung legal ➔ End User License Agreement G870A_88mm H x 143mm W.book Page 2 Thursday, May 8, 2014 8:29 AM DRAFT Warning! This product contains chemicals known to the State of California to cause cancer and reproductive toxicity. Intellectual Property All Intellectual Property, as defined below, owned by or which is otherwise the property of Samsung or its respective suppliers relating to the SAMSUNG Phone, including but not limited to, accessories, parts, or software relating there to (the “Phone System”), is proprietary to Samsung and protected under federal laws, state laws, and international treaty provisions. Intellectual Property includes, but is not limited to, inventions (patentable or unpatentable), patents, trade secrets, copyrights, software, computer programs, and related documentation and other works of authorship. You may not infringe or otherwise violate the rights secured by the Intellectual Property. Moreover, you agree that you will not (and will not attempt to) modify, prepare derivative works of, reverse engineer, decompile, disassemble, or otherwise attempt to create source code from the software. No title to or ownership in the Intellectual Property is transferred to you. All applicable rights of the Intellectual Property shall remain with SAMSUNG and its suppliers. Open Source Software Some software components of this product incorporate source code covered under GNU General Public License (GPL), GNU Lesser General Public License (LGPL), OpenSSL License, BSD License and other open source licenses. To obtain the source code covered under the open source licenses, please visit: http://opensource.samsung.com. G870A_88mm H x 143mm W.book Page 3 Thursday, May 8, 2014 8:29 AM DRAFT IF YOUR CARRIER PROHIBITS THIS, IF YOU ATTEMPT TO DOWNLOAD SOFTWARE ONTO THE DEVICE WITHOUT AUTHORIZATION, YOU WILL BE NOTIFIED ON THE SCREEN THAT UNAUTHORIZED SOFTWARE HAS BEEN DETECTED. YOU SHOULD THEN POWER DOWN THE DEVICE AND CONTACT YOUR CARRIER TO RESTORE THE DEVICE TO THE CARRIER AUTHORIZED SETTINGS. Diagnostic Software This device is equipped with diagnostic software reporting usage and performance information used solely to deliver improved network quality and overall device experience to AT&T customers. Please refer to your AT&T Wireless Customer Agreement and/or the AT&T Privacy Policy ( www.att.com/privacy) for more information. SAFE™ (Samsung Approved For Enterprise) SAFE™: "SAFE™" (Samsung for Enterprise) is a mark for a Samsung device which has been tested against Samsung's own internal criteria for interoperability with certain third party security-related solutions for MDM and VPN. The testing includes field testing with local network connection and menu tree testing which tests functionality of the solutions in conjunction with the Samsung device. During the testing, the device is tested with the security solutions to see if the solutions work with the device as described by the third party security solution providers. The testing, for example, includes field testing with local network connection and menu tree testing which tests functionality of the solutions in conjunction with the Samsung device. For more information about Samsung's SAFE™ program, please refer to www.samsung.com/us/safe. Disclaimer of Warranties: EXCEPT AS OTHERWISE PROVIDED IN THEIR STANDARD END USER LICENSE AND WARRANTY, TO THE FULL EXTENT PERMITTED BY LAW SAMSUNG ELECTRONICS CO., LTD., SAMSUNG TELECOMMUNICATIONS G870A_88mm H x 143mm W.book Page 4 Thursday, May 8, 2014 8:29 AM DRAFT AMERICA, LLC, AND THEIR AFFILIATES (COLLECTIVELY REFERRED TO HEREIN AS THE "SAMSUNG ENTITIES") EXPRESSLY DISCLAIM ANY AND ALL WARRANTIES, EXPRESS OR IMPLIED, INCLUDING ANY WARRANTY OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE, INTEROPERABILITY OR NON-INFRINGEMENT, WITH RESPECT TO INFORMATION TECHNOLOGY SECURITY PROTECTION, SAFE™ DEVICES AND APPLICATIONS TESTED WITH SAFE™ DEVICES. IN NO EVENT SHALL THE SAMSUNG ENTITIES BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL, PUNITIVE, OR CONSEQUENTIAL DAMAGES OF ANY KIND WHATSOEVER WITH RESPECT TO INFORMATION TECHNOLOGY SECURITY PROTECTION, SAFE™ DEVICES OR APPLICATIONS TESTED WITH SAFE™ DEVICES. In addition, information technology security protection will be affected by features or functionality associated with, among other things the e-mail platform, master data management, and virtual private network solutions selected by the software provider, solution provider or user. Choice of an e-mail, master data management, and virtual private network solution is at the sole discretion of the software provider, solution provider or user and any associated effect on information technology security protection is solely the responsibility of the software provider, solution provider or user. For complete statement of limited warranty, please refer to www.samsung.com/us/safe, available on the web and where Samsung smartphone and Galaxy Tab™ devices are sold. [101212] G87…

Text truncated - open the document above for the full version.

SAMSUNG ELECTRONICS CO., LTD 416, Maetan-3dong, Yeongtong-gu Suwon-si, Gyeonggi-do, 443-742 Korea May 21, 2014 Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 SUBJECT : Label Statement FCC ID : A3LSMB780A To Whom it may concern: The label statement is as follows: The FCC ID shown in the FCC ID label page will be readily visible at the time of purchase because the device will be marketed without the battery installed. The label is permanently attached by acrylic glue and not easily removed from the device. This statement could not be included in the label. So we inform you of it through this letter. Should you have any questions or comments concerning the above, please contact the undersigned. Sincerely Yours, Seoung Ho Park Senior Manager SAMSUNG ELECTRONICS CO.,LTD Telecommunication Network Business Mobile Communication Division Regulatory Compliance Group. We hereby provide the label statement letter for the above-mentioned device by a label statement policy of KDB 784748 D01.

SAMSUNG ELECTRONICS AMERICA, INC. American QA Lab 19 Chapin Rd, Building D. Pine Brook, NJ 07058 Date: May 27, 2014 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road, Columbia, MD 21046 RE: Request of Confidentiality for FCC ID: A3LSMB780A To Whom It May Concern: Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules (CFR 47), and Section 552 (b) (4) of the Freedom of Information Act, SAMSUNG ELECTRONICS CO.,LTD. hereby requests confidentiality and treatment of certain information accompanying this application. The materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. We are also hereby request Short-Term Confidentiality for 180 days after the grant as outlined in Public Notice DA 04-1705. This provision will give SAMSUNG ELECTRONICS CO.,LTD. temporary confidentiality of commercially sensitive information prior to product release. The requested Permanent and Short-Term Confidential exhibits are listed as follows: PERMANENT AND SHORT-TERM CONFIDENTIAL LIST ExhibitDescription 1 Block Diagram 2 Operational Description 3 Schematics PERMANENT 4 Parts List & Tune-Up Procedure 5 External Photos 6 Internal Photos 7 Test-Setup Photos SHORT-TERM 8 Users Manual The Applicant understands that pursuant to Rule 0.457, disclosure of this application and all accomp anying documentations, where applicable, will not be made public before the date of the Grant for this application. Sincerely, Peter Ra General Manager American QA Lab SAMSUNG Electronics America INC.

GH68-00000A 140409140409 LABEL-MAIN SM-B780A Yun Jun SangKim June Sop Technical Description 1. Use ‘AI/PDF’ provided by ‘SAMSUNG’ for letter and contents 2. Background color is ‘WHITE’, letter color is ‘BLACK’ (reverse for SAMSUNG LOGO) 3. Back side should be attached to release paper once adhesive is applied. 4. No letter should be blur/smeared 5. The production must be proceed after the approval of R&D Group 6. The product must be within approved sample's specification tolerance. 7. The product must be finished in a ROLL 8. Release paper must be unified for material and color(blue) Vendor HANSUNG P&I < 1:1 Artwork > FCC ID: A3LSMB780A RATED: 3.7 V ;1300 mA For information call: 1 888 987 4357 29.0 20.0 14.5 5.0 MODEL: SM-B780A UD FCC ID: A3LSMB780A RATED: 3.7 V ;1300 mA For information call: 1 888 987 4357 MODEL: SM-B780A UD (0.115T±0.01) Adhesive 20μ White PET 50μ MZ1081 40μ HS-800W FCC ID: A3LSMB780A MODEL: SM-B780A

FCC ID: A3LSMB780A SAR EVALUATION REPORT Reviewed by: Quality Manager Document S/N: Test Dates: DUT Type: Page 1 of 42 0Y1404300872.A3L 05/05/14 - 05/14/14 Portable Handset © 2014 PCTEST Engineering Laboratory, Inc. REV 13.5 M 04/28/2014 Applicant Name: Date of Testing: Samsung Electronics, Co. Ltd. 05/05/14 - 05/14/14 129, Samsung-ro, Maetan dong, Test Site/Location: Yeongtong-gu, Suwon-si PCTEST Lab, Columbia, MD, USA Gyeonggi-do 443-742, Korea Document Serial No.: 0Y1404300872.A3L FCC ID: A3LSMB780A APPLICANT: SAMSUNG ELECTRONICS, CO. LTD. DUT Type: Portable Handset Application Type: Certification FCC Rule Part(s): CFR §2.1093 Model(s): SM-B780A 1 gm Head (W /kg) 1 gm Body- Worn (W/kg) PCEGSM/GPRS/EDGE 850824.20 - 848.80 MHz0.540.55 PCEUMTS 850826.40 - 846.60 MHz0.640.18 PCEGSM/GPRS/EDGE 19001850.20 - 1909.80 MHz0.22 0.38 PCEUMTS 1900 1852.4 - 1907.6 MHz0.610.67 DTS2.4 GHz WLAN2412 - 2462 MHz0.32< 0.1 DTS5.8 GHz WLAN5745 - 5825 MHz< 0.1< 0.1 NII5.2 GHz WLAN5180 - 5240 MHz< 0.1< 0.1 NII 5.3 GHz WLAN5260 - 5320 MHz< 0.1< 0.1 NII5.5 GHz WLAN5500 - 5700 MHz< 0.10.10 DSSBluetooth2402 - 2480 MHz 0.960.82 N/A SAR Band & ModeTx Frequency Simultaneous SAR per KDB 690783 D01v01r02: Equipment Class This wireless portable device has been shown to be capable of compliance for localized specific absorption rate (SAR) for uncontrolled environment/general population exposure limits specified in ANSI/IEEE C95.1-1992 and has been tested in accordance with the measurement procedures specified in Section 1.7 of this report; for North American frequency bands only. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. Test results reported herein relate only to the item(s) tested. PCTEST ENGINEERING LABORATORY, INC. 7185 Oakland Mills Road, Columbia, MD 21046 USA Tel. +1.410.290.6652 / Fax +1.410.290.6654 http://www.pctestlab.com SAR EVALUATION REPORT FCC ID: A3LSMB780A SAR EVALUATION REPORT Reviewed by: Quality Manager Document S/N: Test Dates: DUT Type: Page 2 of 42 0Y1404300872.A3L 05/05/14 - 05/14/14 Portable Handset © 2014 PCTEST Engineering Laboratory, Inc. REV 13.5 M 04/28/2014 TABLE OF CONTENTS 1 DEVICE UNDER TEST ....................................................................................................................3 2 INTRODUCTION ..............................................................................................................................8 3 DOSIMETRIC ASSESSMENT .........................................................................................................9 4 DEFINITION OF REFERENCE POINTS ...................................................................................... 10 5 TEST CONFIGURATION POSITIONS FOR HANDSETS ............................................................ 11 6 RF EXPOSURE LIMITS ................................................................................................................ 14 7 FCC MEASUREMENT PROCEDURES ........................................................................................ 15 8 RF CONDUCTED POWERS ......................................................................................................... 18 9 SYSTEM VERIFICATION .............................................................................................................. 24 10 SAR DATA SUMMARY ................................................................................................................. 26 11 FCC MULTI-TX AND ANTENNA SAR CONSIDERATIONS ......................................................... 31 12 SAR MEASUREMENT VARIABILITY ........................................................................................... 36 13 EQUIPMENT LIST ......................................................................................................................... 37 14 MEASUREMENT UNCERTAINTIES ............................................................................................ 38 15 CONCLUSION ............................................................................................................................... 40 16 REFERENCES .............................................................................................................................. 41 APPENDIX A: SAR TEST PLOTS APPENDIX B: SAR DIPOLE VERIFICATION PLOTS APPENDIX C: PROBE AND DIPOLE CALIBRATION CERTIFICATES APPENDIX D: SAR TISSUE SPECIFICATIONS APPENDIX E: SAR SYSTEM VALIDATION APPENDIX F: SAR TEST SETUP PHOTOGRAPHS FCC ID: A3LSMB780A SAR EVALUATION REPORT Reviewed by: Quality Manager Document S/N: Test Dates: DUT Type: Page 3 of 42 0Y1404300872.A3L 05/05/14 - 05/14/14 Portable Handset © 2014 PCTEST Engineering Laboratory, Inc. REV 13.5 M 04/28/2014 1 DEVICE UNDER TEST 1.1 Device Overview GSM/GPRS/EDGE 850Voice/Data824.20 - 848.80 MHz UMTS 850Voice/Data826.40 - 846.60 MHz GSM/GPRS/EDGE 1900Voice/Data1850.20 - 1909.80 MHz UMTS 1900Voice/Data1852.4 - 1907.6 MHz 2.4 GHz WLANData2412 - 2462 MHz 5.8 GHz WLANData5745 - 5825 MHz 5.2 GHz WLANData5180 - 5240 MHz 5.3 GHz WLANData5260 - 5320 MHz 5.5 GHz WLANData5500 - 5700 MHz BluetoothData2402 - 2480 MHz Band & ModeTx FrequencyOperating Modes 1.2 Nominal and Maximum Output Power Specifications This device operates using the following maximum and nominal output power specifications. SAR values were scaled to the maximum allowed power to determine compliance per KDB Publication 447498 D01v05. Voice (dBm) 1 TX Slot 1 TX Slots 2 TX Slots 1 TX Slots 2 TX Slots Maximum 33.5 33.531.5 27.527.5 Nominal 33.033.0 31.0 27.027.0 Maximum29.5 29.528.5 26.5 26.5 Nominal 29.0 29.028.0 26.026.0 Burst Average GMSK (dBm) GSM/GPRS/EDGE 850 Burst Average 8-PSK (dBm) Mode / Band GSM/GPRS/EDGE 1900 3GPP WCDMA 3GPP HSDPA 3GPP HSUPA Maximum24.024.023.0 Nominal23.523.5…

Text truncated - open the document above for the full version.

© 2014 PCTEST Engineering Laboratory, Inc. APPENDIX C: PROBE CALIBRATION

FCC ID: A3LSMB780A FCC Pt. 22 & 24 GPRS / EDGE / WCDMA MEASUREMENT REPORT (CERTIFICATION) Reviewed by: Quality Manager Test Report S/N: Test Dates: EUT Type: Page 1 of 59 0Y1404300873.A3L 04/20-05/14/2014 Portable Handset © 2014 PCTEST Engineering Laboratory, Inc. V 5.0 01/13/2014 Applicant Name: Date of Testing: Samsung Electronics, Co. Ltd. 04/20-05/14/2014 129, Samsung-ro, Maetan dong, Test Site/Location: Yeongtong-gu, Suwon-si PCTEST Lab., Columbia, MD, USA Gyeonggi-do 443-742, Korea Test Report Serial No.: 0Y1404300873.A3L FCC ID: A3LSMB780A APPLICANT: SAMSUNG ELECTRONICS, CO. LTD. Application Type: Certification Model(s): SM-B780A EUT Type: Portable Handset FCC Classification: PCS Licensed Transmitter Held to Ear (PCE) FCC Rule Part(s): §2 §22(H) §24(E) Test Procedure(s): ANSI/TIA-603-C-2004, KDB 971168 v02r01 Test Device Serial No.: identical prototype [S/N: 29] GSM850824.2 - 848.8245KGXW0.29524.70 EDGE850824.2 - 848.8245KG7W0.07218.57 GSM19001850.2 - 1909.8242KGXW0.63027.99 EDGE19001850.2 - 1909.8248KG7W0.21923.41 WCDMA850826.4 - 846.64M08F9W0.04216.24 WCDMA1900 1852.4 - 1907.64M08F9W0.21723.37 Emission Designator Tx Frequency (MHz) Mode ERP/EIRP Max. Power (W) Max. Power (dBm) This equipment has been shown to be capable of compliance with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in §2.947. Test results reported herein relate only to the item(s) tested. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. PCTEST ENGINEERING LABORATORY, INC. 7185 Oakland Mills Road, Columbia, MD 21046 USA Tel. 410.290.6652 / Fax 410.290.6654 http://www.pctestlab.com MEASUREMENT REPORT FCC Part 22 & 24 FCC ID: A3LSMB780A FCC Pt. 22 & 24 GPRS / EDGE / WCDMA MEASUREMENT REPORT (CERTIFICATION) Reviewed by: Quality Manager Test Report S/N: Test Dates: EUT Type: Page 2 of 59 0Y1404300873.A3L 04/20-05/14/2014 Portable Handset © 2014 PCTEST Engineering Laboratory, Inc. V 5.0 01/13/2014 TABLE OF CONTENTS FCC PART 22 & 24 MEASUREMENT REPORT .......................................................................................... 3 1.0 INTRODUCTION .............................................................................................................................. 4 1.1 SCOPE ................................................................................................................................................ 4 1.2 TESTING FACILITY ............................................................................................................................. 4 2.0 PRODUCT INFORMATION .............................................................................................................. 5 2.1 EQUIPMENT DESCRIPTION .............................................................................................................. 5 2.2 DEVICE CAPABILITIES....................................................................................................................... 5 2.3 TEST CONFIGURATION ..................................................................................................................... 5 2.4 EMI SUPPRESSION DEVICE(S)/MODIFICATIONS ........................................................................... 5 3.0 DESCRIPTION OF TESTS .............................................................................................................. 6 3.1 EVALUATION PROCEDURE .............................................................................................................. 6 3.2 CELLULAR - BASE FREQUENCY BLOCKS ....................................................................................... 6 3.3 CELLULAR - MOBILE FREQUENCY BLOCKS ................................................................................... 6 3.4 PCS - BASE FREQUENCY BLOCKS .................................................................................................. 6 3.5 PCS - MOBILE FREQUENCY BLOCKS .............................................................................................. 7 3.6 RADIATED MEASUREMENTS ............................................................................................................ 7 4.0 TEST EQUIPMENT CALIBRATION DATA ...................................................................................... 8 5.0 SAMPLE CALCULATIONS .............................................................................................................. 9 6.0 TEST RESULTS ............................................................................................................................. 10 6.1 SUMMARY ......................................................................................................................................... 10 6.2 OCCUPIED BANDWIDTH ................................................................................................................. 11 6.3 SPURIOUS AND HARMONIC EMISSIONS AT ANTENNA TERMINAL ............................................ 15 6.4 BAND EDGE EMISSIONS AT ANTENNA TERMINAL ...................................................................... 30 6.5 PEAK-AVERAGE RATIO ................................................................................................................... 36 6.6 RADIATED POWER (ERP/EIRP) ...................................................................................................... 39 6.7 RADIATED SPURIOUS EMISSIONS MEASUREMENTS ................................................................. 42 6.8 FREQUENCY STABILITY / TEMPERATURE VARIATION ............................................................... 50 7.0 CONCLUSION ..............................................................................…

Text truncated - open the document above for the full version.

FCC ID: A3LSMB780A HAC (RF EMISSIONS) TEST REPORT Reviewed by: Quality Manager Filename: Test Dates: EUT Type: Page 1 of 63 0Y1404300879.A3L May 1-2, 2014 Portable Handset © 2014 PCTEST Engineering Laboratory, Inc. REV 3.1.M 4/22/14 Applicant Name: Date of Testing: Samsung Electronics Co., Ltd. May 1-2, 2014 129, Samsung-ro, Maetan dong, Test Site/Location: Yeongtong-gu, Suwon-si PCTEST Lab, Columbia, MD, USA Gyeonggi-do 443-742, Korea Test Report Serial No.: 0Y1404300879.A3L FCC ID: A3LSMB780A APPLICANT: SAMSUNG ELECTRONICS CO., LTD. Scope of Test: RF Emissions Testing Application Type: Certification FCC Rule Part(s): §20.19(b) HAC Standard: ANSI C63.19-2011 EUT Type: Portable Handset Model(s): SM-B780A Test Device Serial No.: Pre-Production Sample [S/N: FCC1 SAR] C63.19-2011 HAC Category: M3 (RF EMISSIONS CATEGORY) This wireless portable device has been shown to be hearing-aid compatible under the above rated category, specified in ANSI/IEEE Std. C63.19-2011 and has been tested in accordance with the specified measurement procedures. Hearing-Aid Compatibility is based on the assumption that all production units will be designed electrically identical to the device tested in this report. Test results reported herein relate only to the item(s) tested. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. PCTEST ENGINEERING LABORATORY, INC. 7185 Oakland Mills Road, Columbia, MD 21046 USA Tel. 410.290.6652 / Fax 410.290.6654 http://www.pctestlab.com HEARING AID COMPATIBILITY FCC ID: A3LSMB780A HAC (RF EMISSIONS) TEST REPORT Reviewed by: Quality Manager Filename: Test Dates: EUT Type: Page 2 of 63 0Y1404300879.A3L May 1-2, 2014 Portable Handset © 2014 PCTEST Engineering Laboratory, Inc. REV 3.1.M 4/22/14 TABLE OF CONTENTS 1. INTRODUCTION ............................................................................................................................. 3 2. TEST SITE LOCATION ................................................................................................................... 4 3. EUT DESCRIPTION ........................................................................................................................ 5 4. ANSI/IEEE C63.19 PERFORMANCE CATEGORIES .................................................................... 6 5. SYSTEM SPECIFICATIONS ........................................................................................................... 7 6. TEST PROCEDURE ..................................................................................................................... 12 7. SYSTEM CHECK .......................................................................................................................... 14 8. MODULATION INTERFERENCE FACTOR .................................................................................. 17 9. RF CONDUCTED POWER MEASUREMENTS ............................................................................ 19 10. JUSTIFICATION OF HELD TO EAR MODES TESTED ............................................................... 20 11. OVERALL MEASUREMENT SUMMARY ..................................................................................... 21 12. EQUIPMENT LIST ......................................................................................................................... 23 13. MEASUREMENT UNCERTAINTY ................................................................................................ 24 14. TEST DATA ................................................................................................................................... 25 15. CALIBRATION CERTIFICATES .................................................................................................... 30 16. CONCLUSION ............................................................................................................................... 58 17. REFERENCES .............................................................................................................................. 59 18. TEST PHOTOGRAPHS ................................................................................................................ 61 FCC ID: A3LSMB780A HAC (RF EMISSIONS) TEST REPORT Reviewed by: Quality Manager Filename: Test Dates: EUT Type: Page 3 of 63 0Y1404300879.A3L May 1-2, 2014 Portable Handset © 2014 PCTEST Engineering Laboratory, Inc. REV 3.1.M 4/22/14 1. INTRODUCTION On July 10, 2003, the Federal Communications Commission (FCC) adopted new rules requiring wireless manufacturers and service providers to provide digital wireless phones that are compatible with hearing aids. The FCC has modified the exemption for wireless phones under the Hearing Aid Compatibility Act of 1998 (HAC Act) in WT Docket 01-309 RM-8658 1 to extend the benefits of wireless telecommunications to individuals with hearing disabilities. These benefits encompass business, social and emergency communications, which increase the value of the wireless network for everyone. An estimated more than 10% of the population in the United States show signs of hearing impairment and of that fraction, almost 80% use hearing aids. Approximately 500 million people worldwide suffer from hearing loss. Compatibility Tests Involved: The standard calls for wireless communications devices to be measured for:  RF Electric-field emissions  T-coil mode, magnetic-signal strength in the audio band  T-coil mode, magnetic-signal frequency response through the audio band  T-coil mode, magnetic-signal and noise articulation index The hearing aid must be measured for:  RF immunity in microphone mode  RF immunity in T-coil mode In the following tests and results, this report includes the evaluation for a wireless communications device. …

Text truncated - open the document above for the full version.

FCC ID:A3LSMB780A HAC (T-COIL) TEST REPORT Reviewed by: Quality Manager Filename: Test Dates: EUT Type: Page 1 of 38 0Y1404300880.A3L 5/29/2014 Portable Handset © 2014 PCTEST Engineering Laboratory, Inc. REV 3.0.M 03/24/14 Applicant Name: Date of Testing: Samsung Electronics Co., Ltd. 5/29/2014 129, Samsung-ro, Maetan dong, Test Site/Location: Yeongtong-gu, Suwon-si PCTEST Lab, Columbia, MD, USA Gyeonggi-do 443-742, Korea Test Report Serial No.: 0Y1404300880.A3L FCC ID: A3LSMB780A APPLICANT: SAMSUNG ELECTRONICS CO., LTD. Scope of Test: Audio Band Magnetic Testing (T-Coil) Application Type: Certification FCC Rule Part(s): CFR §20.19(b) HAC Standard: ANSI C63.19-2011 EUT Type: Portable Handset Model(s): SM-B780A Test Device Serial No.: Pre-Production Sample [S/N: FCC4] C63.19-2011 HAC Category: T3 (SIGNAL TO NOISE CATEGORY) This wireless portable device has been shown to be hearing-aid compatible under the above rated category, specified in ANSI/IEEE Std. C63.19-2011 and has been tested in accordance with the specified measurement procedures. Test results reported herein relate only to the item(s) tested. Hearing-Aid Compatibility is based on the assumption that all production units will be designed electrically identical to the device tested in this report. North American Bands only. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. PCTEST ENGINEERING LABORATORY, INC. 7185 Oakland Mills Road, Columbia, MD 21046 USA Tel. 410.290.6652 / Fax 410.290.6654 http://www.pctestlab.com HEARING AID COMPATIBILITY FCC ID:A3LSMB780A HAC (T-COIL) TEST REPORT Reviewed by: Quality Manager Filename: Test Dates: EUT Type: Page 2 of 38 0Y1404300880.A3L 5/29/2014 Portable Handset © 2014 PCTEST Engineering Laboratory, Inc. REV 3.0.M 03/24/14 TABLE OF CONTENTS 1. INTRODUCTION ............................................................................................................................. 3 2. TEST SITE ............................................................................................…

Text truncated - open the document above for the full version.
