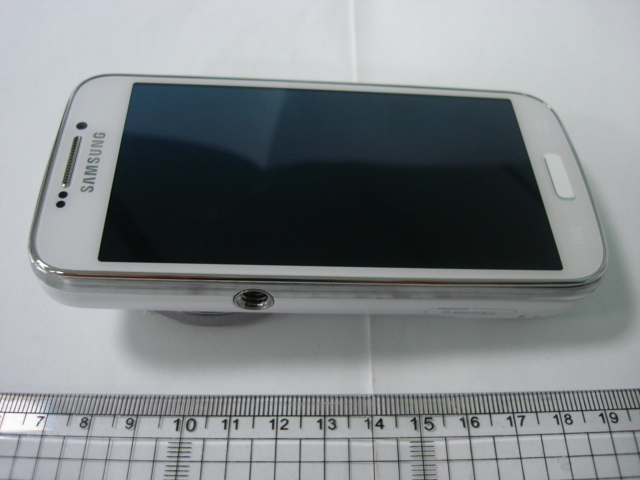

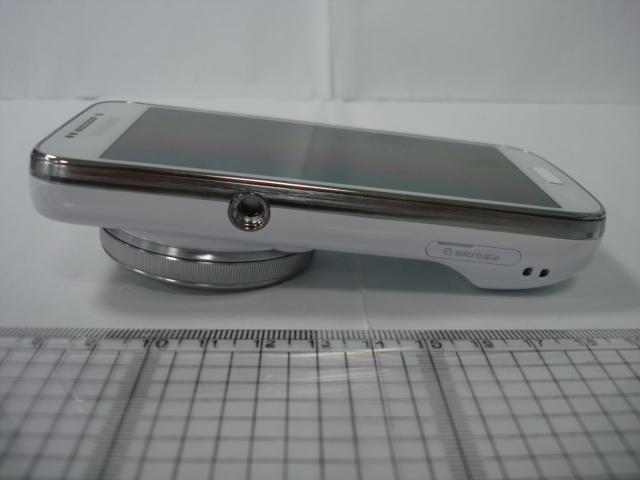

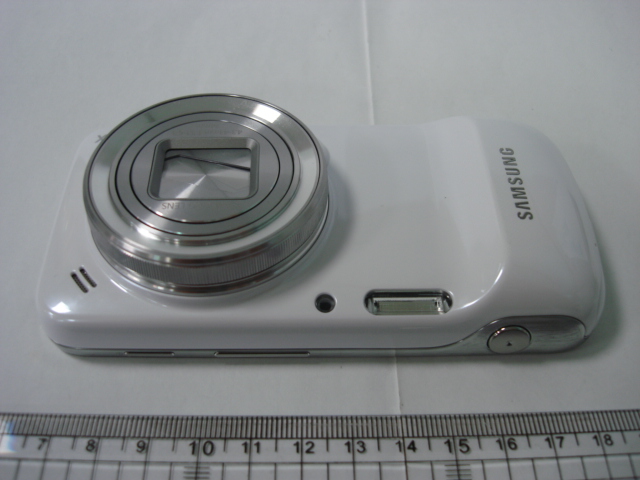

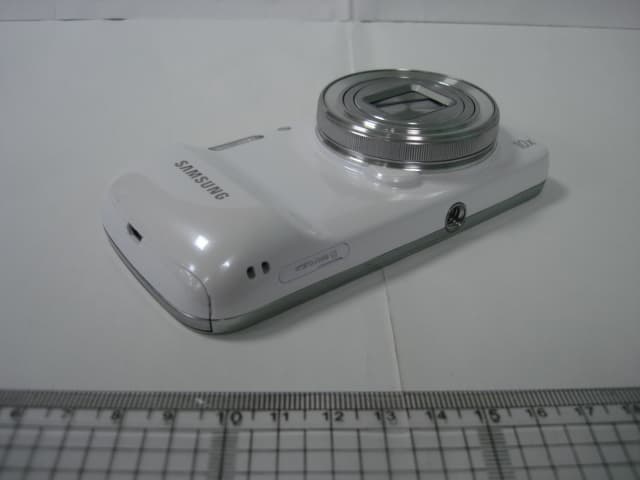

A3LSMC101Cellular/ PCS GSM/ EDGE/ UMTS Phone with WLAN, Bluetooth and RFID

www.samsung.com User Manual SM-C101 2 About this manual This device provides high quality mobile communication and entertainment using Samsung’s high standards and technological expertise. This user manual is specially designed to detail the device’s functions and features. r
Please read this manual before using the device to ensure safe and proper use. r
Descriptions are based on the device’s default settings. r
Images and screenshots may differ in appearance from the actual product. r
Content may differ from the final product, or from software provided by service providers or carriers, and is subject to change without prior notice. For the latest version of the manual, refer to the Samsung website, www.samsung.com. r
Content (high quality content) that requires high CPU and RAM usage will affect the overall performance of the device. Applications related to the content may not work properly depending on the device’s specifications and the environment that it is used in. r
Available features and additional services may vary by device, software, or service provider. r
Applications and their functions may vary by country, region, or hardware specifications. Samsung is not liable for performance issues caused by applications from any provider other than Samsung. r
Samsung is not liable for performance issues or incompatibilities caused by edited registry settings or modified operating system software. Attempting to customise the operating system may cause the device or applications to work improperly. r
Software, sound sources, wallpapers, images, and other media provided with this device are licensed for limited use. Extracting and using these materials for commercial or other purposes is an infringement of copyright laws. Users are entirely responsible for illegal use of media. r
You may incur additional charges for data services, such as messaging, uploading and downloading, auto-syncing, or using location services. To avoid additional charges, select an appropriate data tariff plan. For details, contact your service provider. About this manual 3 r
Default applications that come with the device are subject to updates and may no longer be supported without prior notice. If you have questions about an application provided with the device, contact a Samsung Service Centre. For user-installed applications, contact service providers. r
Modifying the device’s operating system or installing softwares from unofficial sources may result in device malfunctions and data corruption or loss. These actions are violations of your Samsung licence agreement and will void your warranty. Instructional icons Warning: situations that could cause injury to yourself or others Caution: situations that could cause damage to your device or other equipment Note: notes, usage tips, or additional information Copyright Copyright © 2013 Samsung Electronics This guide is protected under international copyright laws. No part of this guide may be reproduced, distributed, translated, or transmitted in any form or by any means, electronic or mechanical, including photocopying, recording, or storing in any information storage and retrieval system, without the prior written permission of Samsung Electronics. About this manual 4 Trademarks r
SAMSUNG and the SAMSUNG logo are registered trademarks of Samsung Electronics. r
The Android logo, Google ™ , Google Maps ™ , Google Mail ™ , YouTube ™ , Google Play ™ Store, and Google Talk ™ are trademarks of Google, Inc. r
Bluetooth ® is a registered trademark of Bluetooth SIG, Inc. worldwide. r
Wi-Fi ® , Wi-Fi Protected Setup ™ , Wi-Fi Direct ™ , Wi-Fi CERTIFIED ™ , and the Wi-Fi logo are registered trademarks of the Wi-Fi Alliance. r
All other trademarks and copyrights are the property of their respective owners. 5 Table of Contents Getting started 8 Device layout 9 Buttons 10 Package contents 11 Installing the SIM or USIM card and battery 15 Charging the battery 17 Inserting a memory card 19 Attaching a hand strap 20 Turning the device on and off 20 Holding the device 21 Locking and unlocking the device 21 Adjusting the volume 21 Switching to silent mode Basics 22 Indicator icons 23 Using the touch screen 26 Control motions 30 Activating glove mode 30 Notifications 30 Quick setting panel 31 Home screen 34 Locked screen 35 Using applications 35 Applications screen 37 Help 37 Entering text 39 Connecting to a Wi-Fi network 40 Setting up accounts 41 Transferring files 42 Securing the device 44 Upgrading the device Communication 45 Phone 51 Contacts 54 Messaging 55 Email 57 Google Mail 58 Talk 59 Google+ 59 Messenger 60 ChatON Web & network 61 Internet 62 Chrome 63 Bluetooth 64 Screen Mirroring 65 AllShare Play Table of Contents 6 96 ISO (sensitivity) 97 WB (light source) 98 Metering 99 Drive 100 Flash 100 Focus mode 101 Focus area 101 Face detection 102 Quality 102 Image Adjust 102 Timer 103 OIS (anti-shake) 104 Video recording options 104 Sharing options 104 Camera settings Media 106 Gallery 109 Video 110 Story Album 112 Music 114 YouTube 115 Flipboard Application & media stores 116 Play Store 117 Samsung Hub 117 Samsung Apps 118 Play Music 66 Group Play 67 NFC 68 WatchON Camera: Basic functions 70 Launching Camera 72 Taking photos 72 Taking videos 73 Viewing photos and videos 73 Zooming in and out 73 Taking photos with voice commands 74 Taking photos or videos with filter effects 74 Changing shooting options quickly 75 Reducing camera shake 75 Using face detection 76 Tips for taking clearer photos Camera: Shooting modes 80 Auto 81 Expert 83 Smart 94 My mode Camera: Shooting options and settings 95 Changing shooting options 95 EV (brightness) Table of Contents 7 Utilities 119 S Memo 122 S Planner 124 Dropbox 125 Clock 127 Calculator 127 S Health 129 S Translator 130 Voice Recorder 131 S Voice 132 Google 133 Voice Search 133 My Files 134 Downloads 134 TripAdvisor 134 TourWrist Travel & local 135 Maps 136 Local 137 Navigation Settings 138 About Settings 138 Connections …

Text truncated - open the document above for the full version.

SAMSUNG ELECTRONICS CO., LTD 129, Samsung-ro,Yeongtong-gu Suwon-si,Gyeonggi-do, 443-742 Korea May 21, 2013 Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 SUBJECT : Label Statement FCC ID : A3LSMC101 Gentlemen: We hereby provide the label statement letter for the above-mentioned device by a new label statement policy instituted at the September 12, 2006, TCB-FCC Teleconference. The label statement is as follows: The FCC ID label is located in the battery compartment. While the battery cover is installed when the unit is shipped from the factory, the battery is never installed prior to sale, so the user must remove the cover in order to install the battery and operate the device. At this time the FCC ID is readily visible to the user. The label is permanently attached by acrylic glue and not easily removed from the device. This statement could not be included in the label. So we inform you of it through this letter. Should you have any questions or comments concerning the above, please contact the undersigned. Sincerely Yours, Seoung Ho Park Senior Manager SAMSUNG ELECTRONICS CO.,LTD Telecommunication Network Business Mobile Communication Division Regulatory Compliance Group.

SAMSUNG ELECTRONICS AMERICA, INC. American QA Lab 19 Chapin Rd, Building D. Pine Brook, NJ 07058 Date: May 21, 2013 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road, Columbia, MD 21046 RE: Request of Confidentiality for FCC ID: A3LSMC101 To Whom It May Concern: Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules (CFR 47), and Section 552 (b) (4) of the Freedom of Information Act, SAMSUNG ELECTRONICS CO.,LTD. hereby requests confidentiality and treatment of certain information accompanying this application. The materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. We are also hereby request Short-Term Confidentiality for 180 days after the grant as outlined in Public Notice DA 04-1705. This provision will give SAMSUNG ELECTRONICS CO.,LTD. temporary confidentiality of commercially sensitive information prior to product release. The requested Permanent and Short-Term Confidential exhibits are listed as follows: PERMANENT AND SHORT-TERM CONFIDENTIAL LIST Exhibit Description 1 Block Diagram 2 Operational Description 3 Schematics PERMANENT 4 Parts List & Tune-Up Procedure 5 External Photos 6 Internal Photos 7 Test-Setup Photos SHORT-TERM 8 Users Manual The Applicant understands that pursuant to Rule 0.457, disclosure of this application and all accompanying documentations, where applicable, will not be made public before the date of the Grant for this application. Sincerely, Peter Ra General Manager American QA Lab SAMSUNG Electronics America INC.

The FCC ID label is located in the battery compartment.

Label and Location Samsung Phone Model: SM-C101 FCC ID: A3LSMC101 Label1: Location: Phone: Label is placed inside of the battery compartment.

FCC ID: A3LSMC101 SAR EVALUATION REPORT Reviewed by: Quality Manager Document S/N: Test Dates: DUT Type: Page 1 of 39 0Y1304290724-R1.A3L 04/29/13 - 05/06/13 Portable Handset © 2013 PCTEST Engineering Laboratory, Inc. REV 12.4 M 03/25/2013 Applicant Name: Date of Testing: Samsung Electronics, Co. Ltd. 04/29/13 - 05/06/13 129, Samsung-ro Maetan dong, Test Site/Location: Yeongtong-gu, Suwon-si, PCTEST Lab, Columbia, MD, USA Gyeonggi-do, 443-742, Republic of Korea Document Serial No.: 0Y1304290724-R1.A3L FCC ID: A3LSMC101 APPLICANT: SAMSUNG ELECTRONICS, CO. LTD. DUT Type: Portable Handset Application Type: Certification FCC Rule Part(s): CFR §2.1093 Model(s): SM-C101 1 gm Head (W/kg) 1 gm Body- Worn (W/kg) 1 gm Hotspot (W/kg) PCEGSM/GPRS/EDGE 850824.20 - 848.80 MHz32.31 < 0.10.160.18 PCEGSM/GPRS/EDGE 19001850.20 - 1909.80 MHz29.610.20 0.260.49 PCEUMTS 850826.40 - 846.60 MHz23.02< 0.1 0.240.24 PCEUMTS 19001852.4 - 1907.6 MHz22.000.27 0.350.46 DTS2.4 GHz WLAN2412 - 2462 MHz15.67< 0.1 < 0.1< 0.1 DTS5.8 GHz WLAN5745 - 5825 MHz13.23< 0.10.38-1.00 NII5.2 GHz WLAN5180 - 5240 MHz12.75< 0.10.70-1.00 NII5.3 GHz WLAN5260 - 5320 MHz12.87< 0.10.68-1.00 NII5.5 GHz WLAN5500 - 5700 MHz12.63< 0.10.62-1.00 DSS/DTSBluetooth2402 - 2480 MHz9.20 0.351.050.54 Simultaneous SAR per KDB 690783 D01v01r02: Equipment Class N/A SAR Band & Mode Tx Frequency Measured Conducted Power [dBm] Note: Powers in the above table represent output powers for the SAR test configurations and may not represent the highest output powers for all configurations for each mode. This wireless portable device has been shown to be capable of compliance for localized specific absorption rate (SAR) for uncontrolled environment/general population exposure limits specified in ANSI/IEEE C95.1-1992 and has been tested in accordance with the measurement procedures specified in Section 1.8 of this report; for North American frequency bands only. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. Test results reported herein relate only to the item(s) tested. PCTEST ENGINEERING LABORATORY, INC. 7185 Oakland Mills Road, Columbia, MD 21046 USA Tel. +1.410.290.6652 / Fax +1.410.290.6654 http://www.pctestlab.com SAR EVALUATION REPORT FCC ID: A3LSMC101 SAR EVALUATION REPORT Reviewed by: Quality Manager Document S/N: Test Dates: DUT Type: Page 2 of 39 0Y1304290724-R1.A3L 04/29/13 - 05/06/13 Portable Handset © 2013 PCTEST Engineering Laboratory, Inc. REV 12.4 M 03/25/2013 TABLE OF CONTENTS 1 DEVICE UNDER TEST ................................................................................................................... 3 2 INTRODUCTION ............................................................................................................................. 7 3 DOSIMETRIC ASSESSMENT ........................................................................................................ 8 4 DEFINITION OF REFERENCE POINTS ........................................................................................ 9 5 TEST CONFIGURATION POSITIONS FOR HANDSETS ............................................................ 10 6 RF EXPOSURE LIMITS ................................................................................................................ 13 7 FCC MEASUREMENT PROCEDURES ........................................................................................ 14 8 RF CONDUCTED POWERS ......................................................................................................... 17 9 SYSTEM VERIFICATION .............................................................................................................. 22 10 SAR DATA SUMMARY ................................................................................................................. 24 11 FCC MULTI-TX AND ANTENNA SAR CONSIDERATIONS ......................................................... 30 12 SAR MEASUREMENT VARIABILITY ........................................................................................... 33 13 EQUIPMENT LIST ......................................................................................................................... 34 14 MEASUREMENT UNCERTAINTIES ............................................................................................ 35 15 CONCLUSION ............................................................................................................................... 37 16 REFERENCES .............................................................................................................................. 38 APPENDIX A: SAR TEST PLOTS APPENDIX B: SAR DIPOLE VERIFICATION PLOTS APPENDIX C: PROBE AND DIPOLE CALIBRATION CERTIFICATES APPENDIX D: SAR TISSUE SPECIFICATIONS APPENDIX E: SAR SYSTEM VALIDATION APPENDIX F: SAR TEST SETUP PHOTOGRAPHS FCC ID: A3LSMC101 SAR EVALUATION REPORT Reviewed by: Quality Manager Document S/N: Test Dates: DUT Type: Page 3 of 39 0Y1304290724-R1.A3L 04/29/13 - 05/06/13 Portable Handset © 2013 PCTEST Engineering Laboratory, Inc. REV 12.4 M 03/25/2013 1 DEVICE UNDER TEST 1.1 Device Overview GSM/GPRS/EDGE 850Voice/Data824.20 - 848.80 MHz GSM/GPRS/EDGE 1900Voice/Data1850.20 - 1909.80 MHz UMTS 850Voice/Data826.40 - 846.60 MHz UMTS 1900Voice/Data1852.4 - 1907.6 MHz 2.4 GHz WLANData2412 - 2462 MHz 5.8 GHz WLANData5745 - 5825 MHz 5.2 GHz WLANData5180 - 5240 MHz 5.3 GHz WLANData5260 - 5320 MHz 5.5 GHz WLANData5500 - 5700 MHz BluetoothData2402 - 2480 MHz NFCData13.56 MHz Band & Mode Tx FrequencyOperating Modes 1.2 Nominal and Maximum Output Power Specifications This device operates using the following maximum and nominal output power specifications. SAR values were scaled to the maximum allowed power to determine compliance per KDB Publication 447498 D0…

Text truncated - open the document above for the full version.

FCC ID: A3LSMC101 FCC Pt. 22 & 24 GSM / EDGE / WCDMA MEASUREMENT REPORT (CERTIFICATION) Reviewed by: Quality Manager Test Report S/N: Test Dates: EUT Type: Page 1 of 58 0Y1304290725.A3L 5/3 - 5/9/2013 Portable Handset © 2013 PCTEST Engineering Laboratory, Inc. V 2.9 04/15/2013 Applicant Name: Date of Testing: Samsung Electronics Co., Ltd. 5/3 - 5/9/2013 129, Samsung-ro, Yeongtong-gu Test Site/Location: Suwon-city, Gyeonggi-do, 443-803 PCTEST Lab., Columbia, MD, USA Republic of Korea Test Report Serial No.: 0Y1304290725.A3L FCC ID: A3LSMC101 APPLICANT: SAMSUNG ELECTRONICS CO., LTD. Application Type: Certification Model(s): SM-C101 EUT Type: Portable Handset FCC Classification: PCS Licensed Transmitter Held to Ear (PCE) FCC Rule Part(s): §2 §22(H) §24(E) Test Procedure(s): ANSI/TIA-603-C-2004, KDB 971168 Test Device Serial No.: identical prototype [S/N: FK-114-C, FK-114-E] Max. Power (W ) Max. Power (dBm) GSM850824.2 - 848.8243KGXW0.18222.59 EDGE850824.2 - 848.8249KG7W0.04516.50 GSM19001850.2 - 1909.8246KGXW1.02330.10 EDGE19001850.2 - 1909.8252KG7W0.24323.86 WCDMA850826.4 - 846.64M06F9W0.02213.39 WCDMA19001852.4 - 1907.64M06F9W0.14721.68 ERP/EIRP Mode Tx Frequency (MHz) Emission Designator This equipment has been shown to be capable of compliance with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in §2.947. Test results reported herein relate only to the item(s) tested. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. PCTEST ENGINEERING LABORATORY, INC. 7185 Oakland Mills Road, Columbia, MD 21046 USA Tel. 410.290.6652 / Fax 410.290.6654 http://www.pctestlab.com MEASUREMENT REPORT FCC Part 22 & 24 FCC ID: A3LSMC101 FCC Pt. 22 & 24 GSM / EDGE / WCDMA MEASUREMENT REPORT (CERTIFICATION) Reviewed by: Quality Manager Test Report S/N: Test Dates: EUT Type: Page 2 of 58 0Y1304290725.A3L 5/3 - 5/9/2013 Portable Handset © 2013 PCTEST Engineering Laboratory, Inc. V 2.9 04/15/2013 TABLE OF CONTENTS FCC PART 22 & 24 MEASUREMENT REPORT .......................................................................................... 3 1.0 INTRODUCTION .............................................................................................................................. 4 1.1 SCOPE ................................................................................................................................................ 4 1.2 TESTING FACILITY ............................................................................................................................. 4 2.0 PRODUCT INFORMATION .............................................................................................................. 5 2.1 EQUIPMENT DESCRIPTION .............................................................................................................. 5 2.2 DEVICE CAPABILITIES....................................................................................................................... 5 2.3 TEST CONFIGURATION ..................................................................................................................... 5 2.4 EMI SUPPRESSION DEVICE(S)/MODIFICATIONS ........................................................................... 5 3.0 DESCRIPTION OF TESTS .............................................................................................................. 6 3.1 EVALUATION PROCEDURE .............................................................................................................. 6 3.2 CELLULAR - BASE FREQUENCY BLOCKS ....................................................................................... 6 3.3 CELLULAR - MOBILE FREQUENCY BLOCKS ................................................................................... 6 3.4 PCS - BASE FREQUENCY BLOCKS .................................................................................................. 6 3.5 PCS - MOBILE FREQUENCY BLOCKS .............................................................................................. 7 3.6 OCCUPIED BANDWIDTH ................................................................................................................... 7 3.7 SPURIOUS AND HARMONIC EMISSIONS AT ANTENNA TERMINAL .............................................. 7 3.8 RADIATED POWER AND RADIATED SPURIOUS EMISSIONS ........................................................ 7 3.9 PEAK-AVERAGE RATIO ..................................................................................................................... 8 3.10 FREQUENCY STABILITY / TEMPERATURE VARIATION ................................................................. 8 4.0 TEST EQUIPMENT CALIBRATION DATA .................................................................................... 10 5.0 SAMPLE CALCULATIONS ............................................................................................................ 11 6.0 TEST RESULTS ............................................................................................................................. 12 6.1 SUMMARY ......................................................................................................................................... 12 6.2 CELLULAR EFFECTIVE RADIATED POWER (ERP) ....................................................................... 13 6.3 PCS EQUIVALENT ISOTROPIC RADIATED POWER (EIRP) .......................................................... 14 6.4 CELLULAR GSM RADIATED MEASUREMENTS ............................................................................. 15 6.5 CELLULAR WCDMA RADIATED MEASUREMENTS ....................................................................... 18 6.6 PCS GSM RADIATE…

Text truncated - open the document above for the full version.

Samsung FCC ID: A3LSMC101 Model: SM-C101 Test Set-Up Photos EUT Type: Portable Handset Page 1 of 2 © 2013 PCTEST Engineering Laboratory Inc. TEST SETUP PHOTOGRAPHS Samsung FCC ID: A3LSMC101 Model: SM-C101 Test Set-Up Photos EUT Type: Portable Handset Page 2 of 2 © 2013 PCTEST Engineering Laboratory Inc.

FCC ID: A3LSMC101 SAR EVALUATION REPORT Reviewed by: Quality Manager Test Dates: DUT Type: APPENDIX F: Page 1 of 6 04/29/13 - 05/06/13 Portable Handset © 2013 PCTEST Engineering Laboratory, Inc. REV 12.4 M 03/25/2013 A P P E N D I X F : S A R T E S T S E T U P P H O T O G R A P H S FCC ID: A3LSMC101 SAR EVALUATION REPORT Reviewed by: Quality Manager Test Dates: DUT Type: APPENDIX F: Page 2 of 6 04/29/13 - 05/06/13 Portable Handset © 2013 PCTEST Engineering Laboratory, Inc. REV 12.4 M 03/25/2013 SAR Test Setup Photo 1: Right Cheek SAR Test Setup Photo 2: Right Tilt FCC ID: A3LSMC101 SAR EVALUATION REPORT Reviewed by: Quality Manager Test Dates: DUT Type: APPENDIX F: Page 3 of 6 04/29/13 - 05/06/13 Portable Handset © 2013 PCTEST Engineering Laboratory, Inc. REV 12.4 M 03/25/2013 SAR Test Setup Photo 3: Left Cheek SAR Test Setup Photo 4: Left Tilt FCC ID: A3LSMC101 SAR EVALUATION REPORT Reviewed by: Quality Manager Test Dates: DUT Type: APPENDIX F: Page 4 of 6 04/29/13 - 05/06/13 Portable Handset © 2013 PCTEST Engineering Laboratory, Inc. REV 12.4 M 03/25/2013 SAR Test Setup Photo 5: Back Side at 1.0 cm SAR Test Setup Photo 6: Front Side at 1.0 cm FCC ID: A3LSMC101 SAR EVALUATION REPORT Reviewed by: Quality Manager Test Dates: DUT Type: APPENDIX F: Page 5 of 6 04/29/13 - 05/06/13 Portable Handset © 2013 PCTEST Engineering Laboratory, Inc. REV 12.4 M 03/25/2013 SAR Test Setup Photo 7: Bottom Edge at 1.0 cm SAR Test Setup Photo 8: Right Edge at 1.0 cm FCC ID: A3LSMC101 SAR EVALUATION REPORT Reviewed by: Quality Manager Test Dates: DUT Type: APPENDIX F: Page 6 of 6 04/29/13 - 05/06/13 Portable Handset © 2013 PCTEST Engineering Laboratory, Inc. REV 12.4 M 03/25/2013 SAR Test Setup Photo 9: Left Edge at 1.0 cm SAR Test Setup Photo 10: Vertical and Horizontal Reference Lines
