A3LSMG600FY

Samsung Electronics Co Ltd

GSM/WCDMA/LTE Phone + Bluetooth/BLE and DTS b/g/n

Click to zoom

Application Details

Equipment Class: PCE - PCS Licensed Transmitter held to ear
Date of Grant: Sep 16, 2015
Application Purpose: Original Equipment
Date of Application: Sep 16, 2015
Equipment Note: GSM/WCDMA/LTE Phone + Bluetooth/BLE and DTS b/g/n
Frequency Range: 824.70000000 - 848.30000000
Company: Samsung Electronics Co Ltd
Country: United States

Documents & Files

Select a file to view

Users Manual

Cover Letter(s)

External Photos

ID Label/Location Info

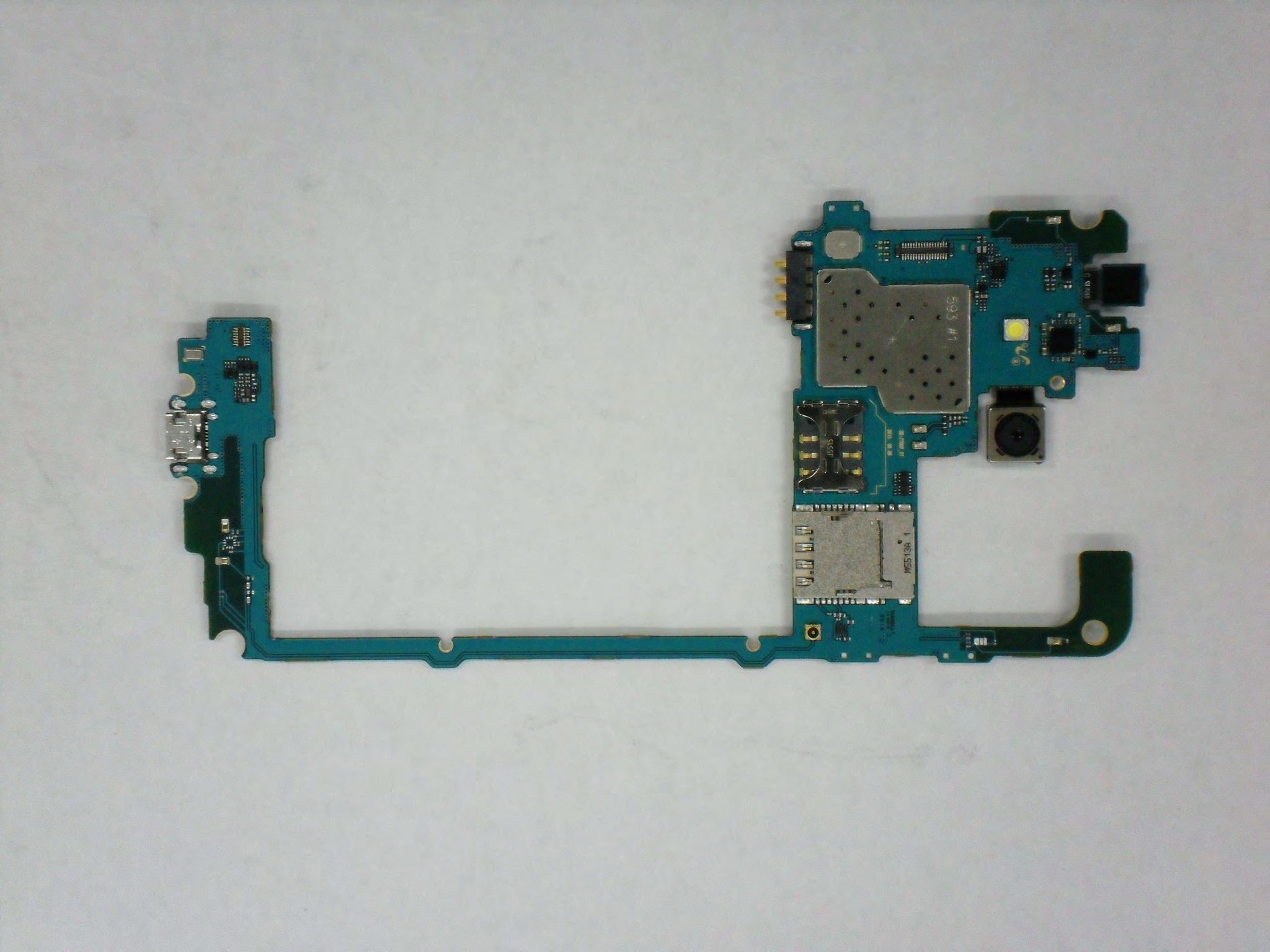

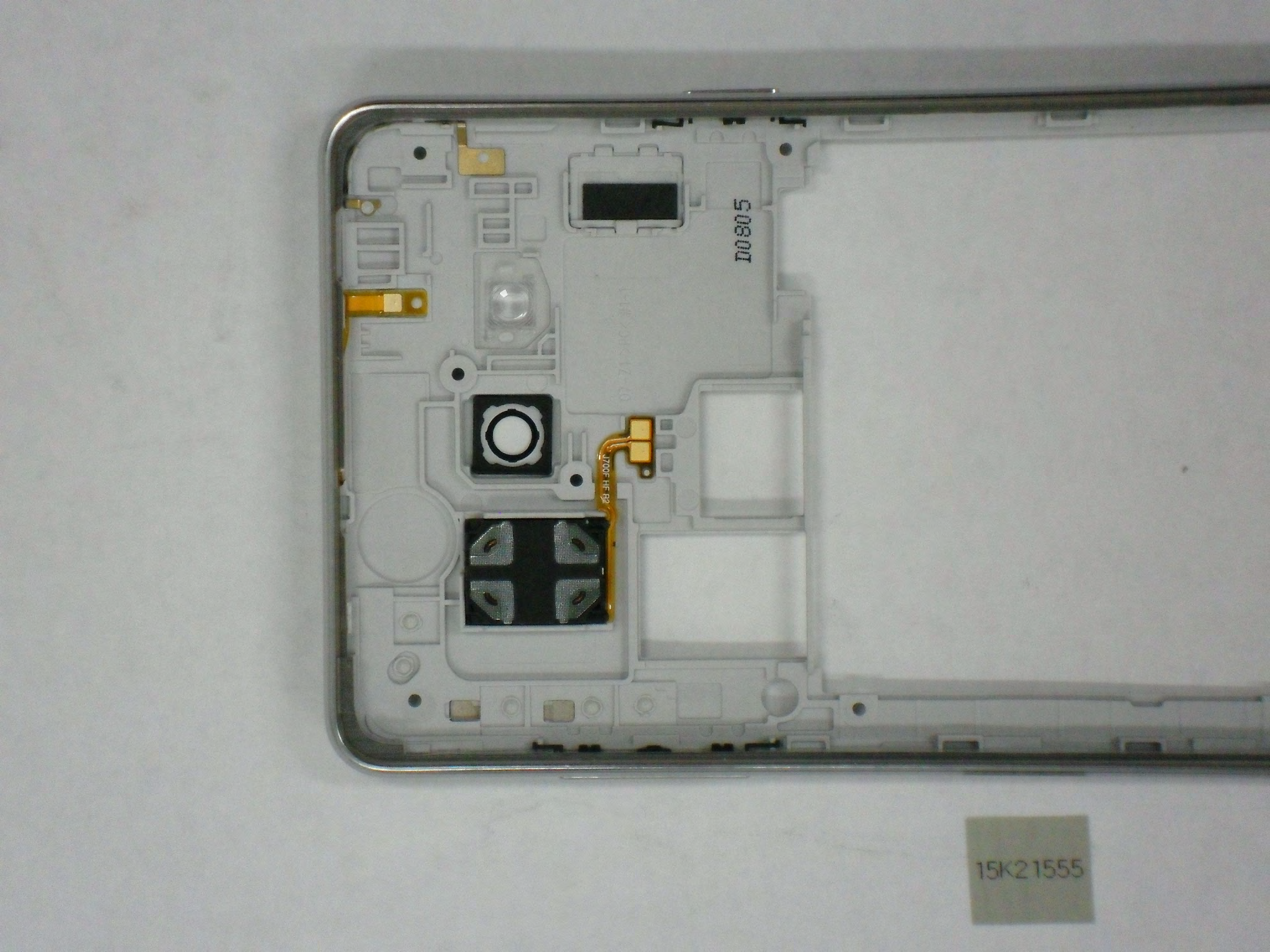

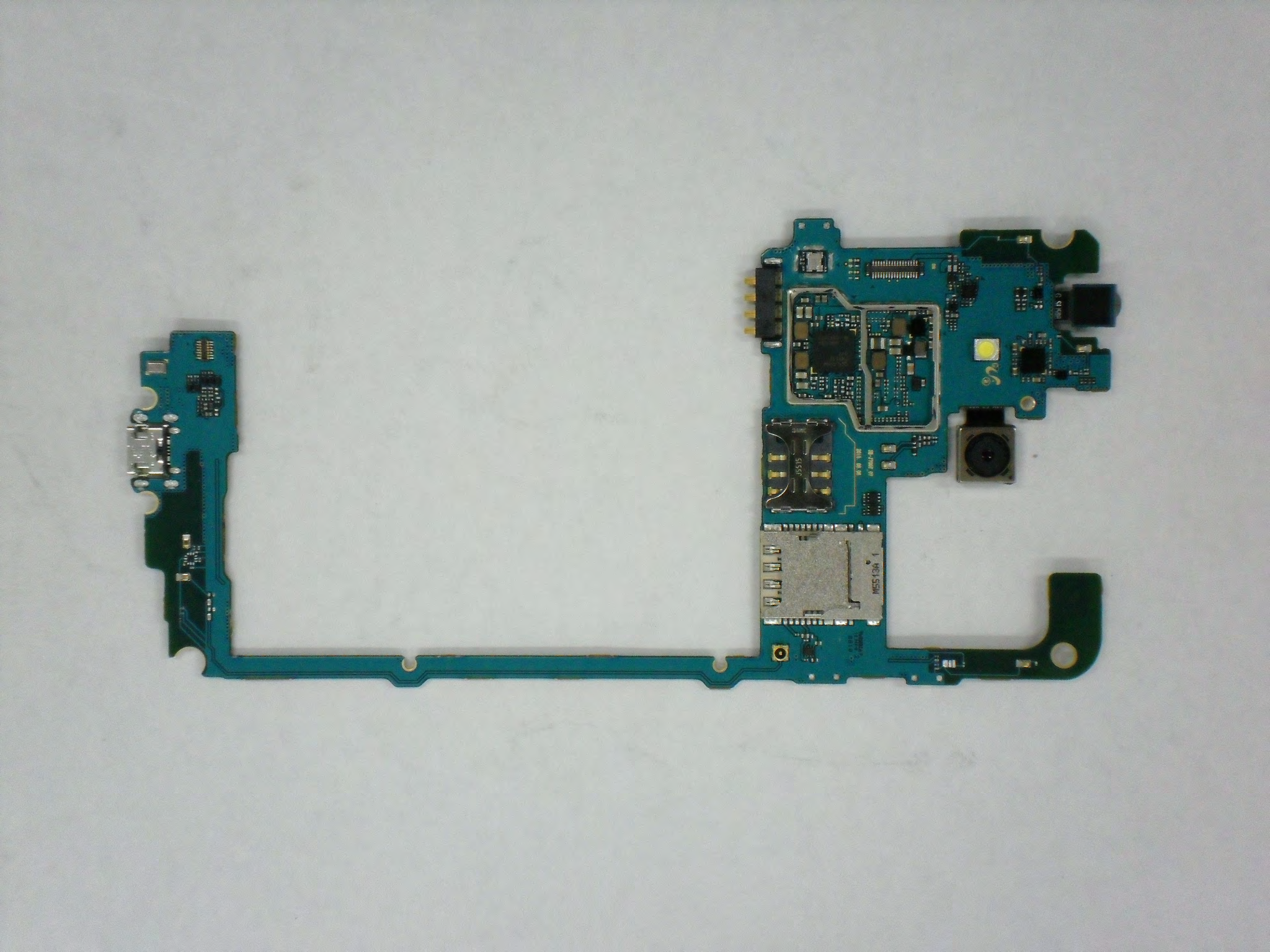

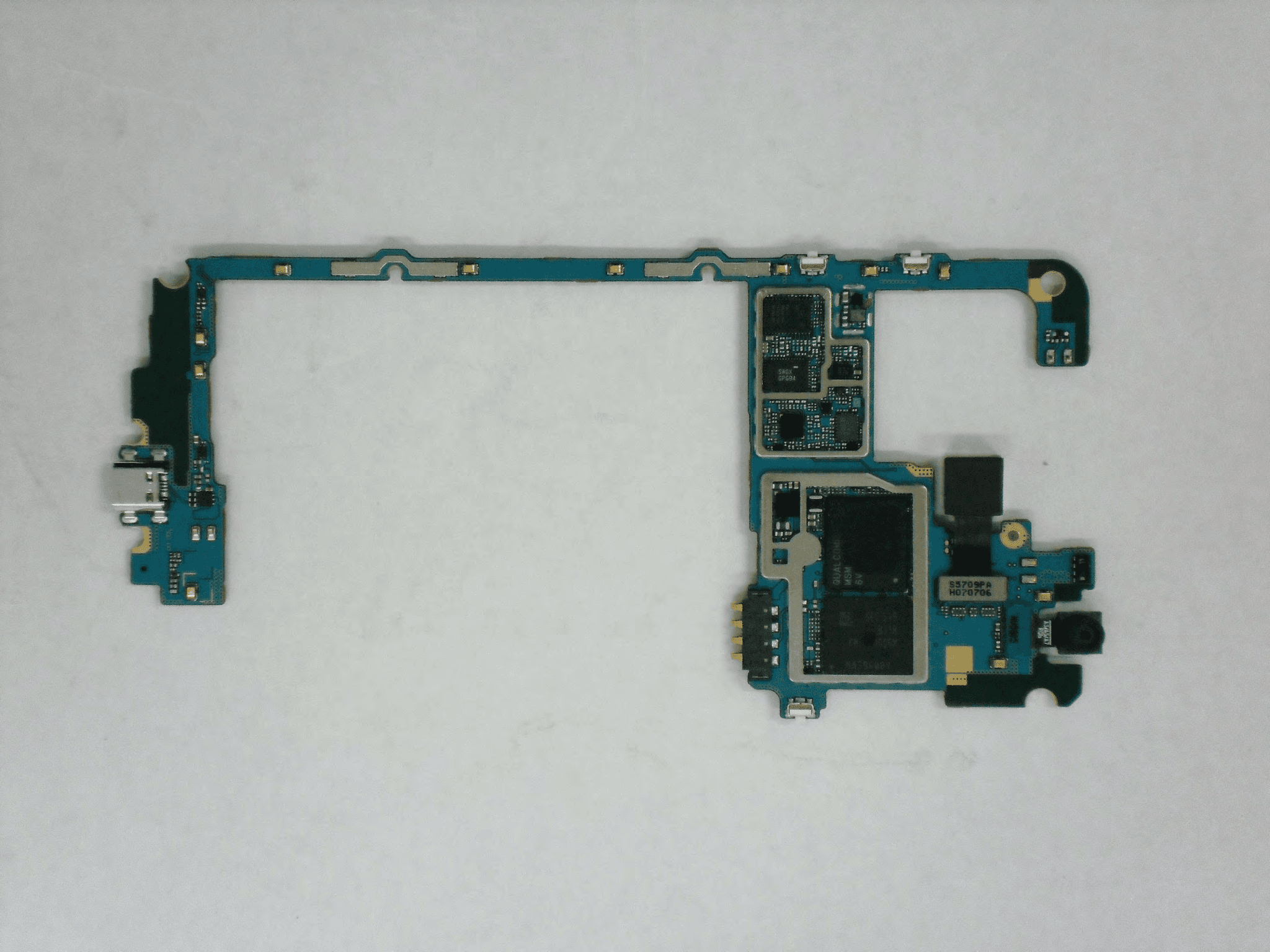

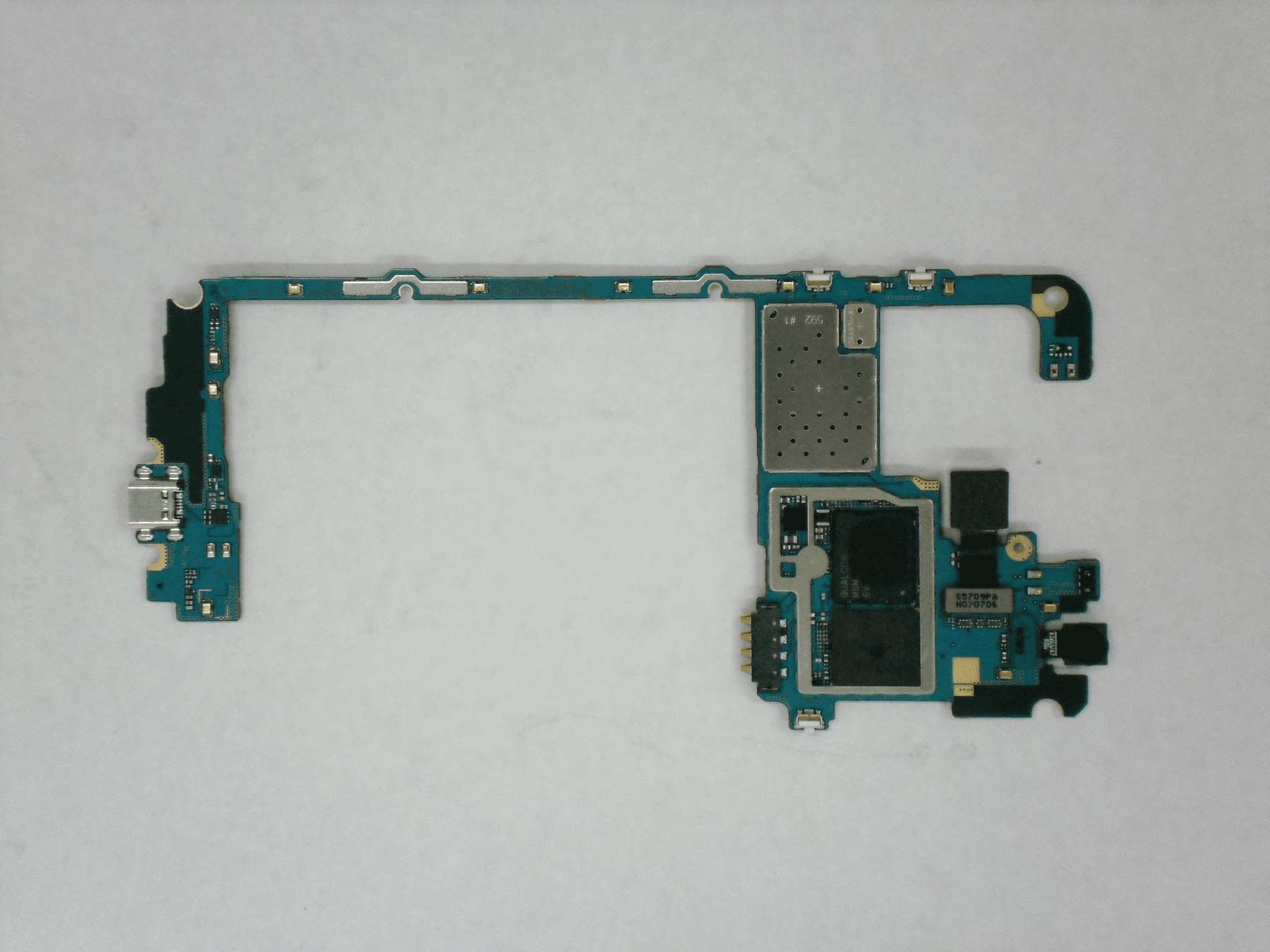

Internal Photos

RF Exposure Info

Test Report

Test Setup Photos

Technical Specifications

#	Rule Parts	Frequency Range	Power Output	Emission	Tolerance
9	22H	824.7 MHz - 848.3 MHz	38.00 mW	1M09D7W	2.5 ppm

Confidentiality

Long Term

Grant Notes

Output power listed is ERP for operations below 1 GHz and EIRP for operations above 1 GHz. Values listed for LTE operations are for highest power and widest bandwidth for each LTE band and modulation. This device supports LTE bandwidths of: 1.4MHz, 3MHz, 5MHz and10MHz under Part 22H (LTE Band 5, 824-849MHz). SAR compliance for body-worn accessory operation is based on a separation distance of 1.5 cm between the unit and the body of the user. Belt clips, holsters and other body-worn accessories may not contain metallic components. End-users must be informed of the body worn operating requirements for satisfying RF exposure compliance. This device contains functions that are not operational in U.S. and its Territories; filings under this FCC ID are approved only for U.S. operations. The highest reported SAR for head, body-worn accessory, product specific (hotspot), and simultaneous transmission exposure conditions are 0.45 W/kg, 0.80 W/kg, 0.80 W/kg and 0.90 W/kg respectively.
