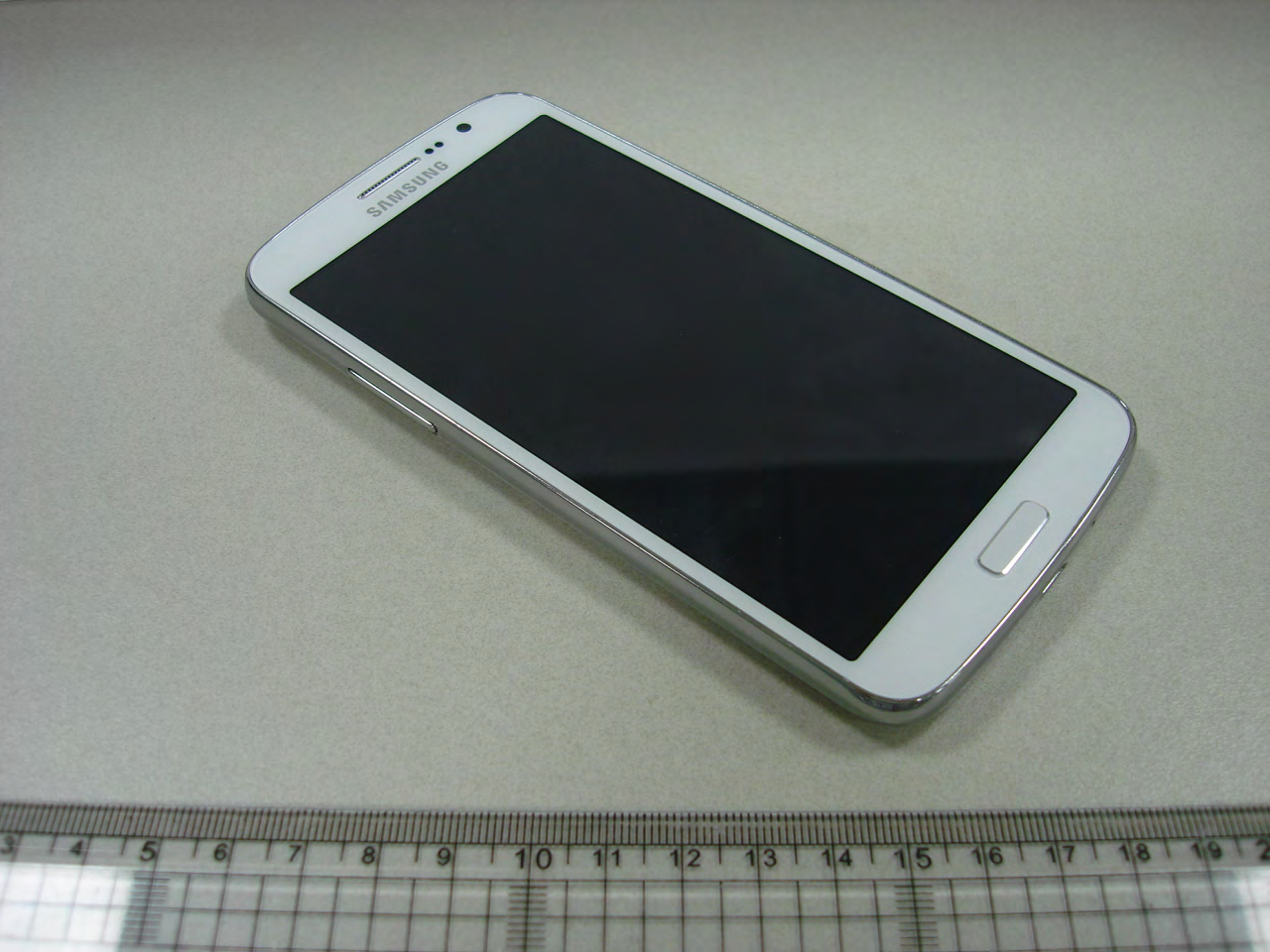

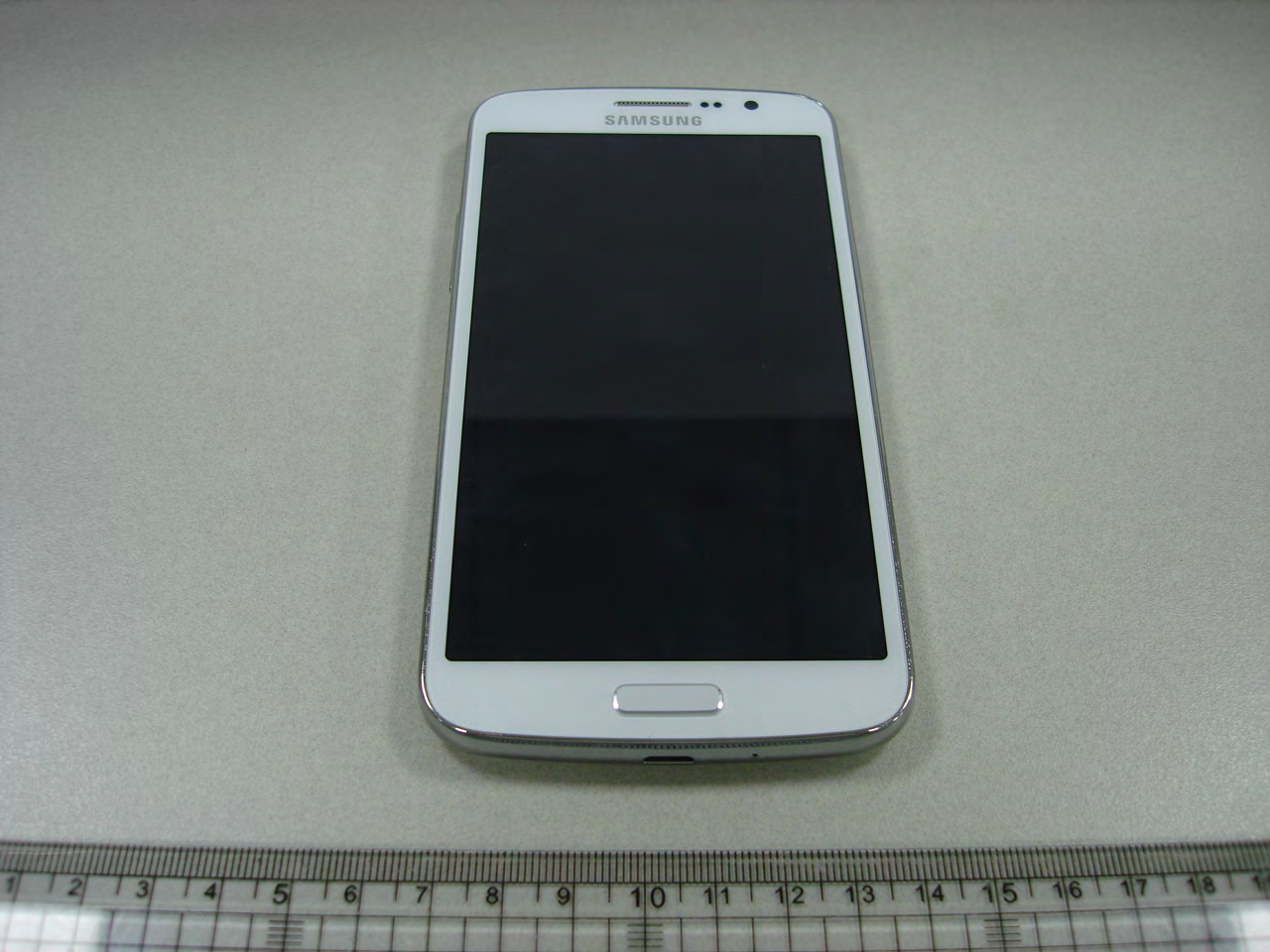

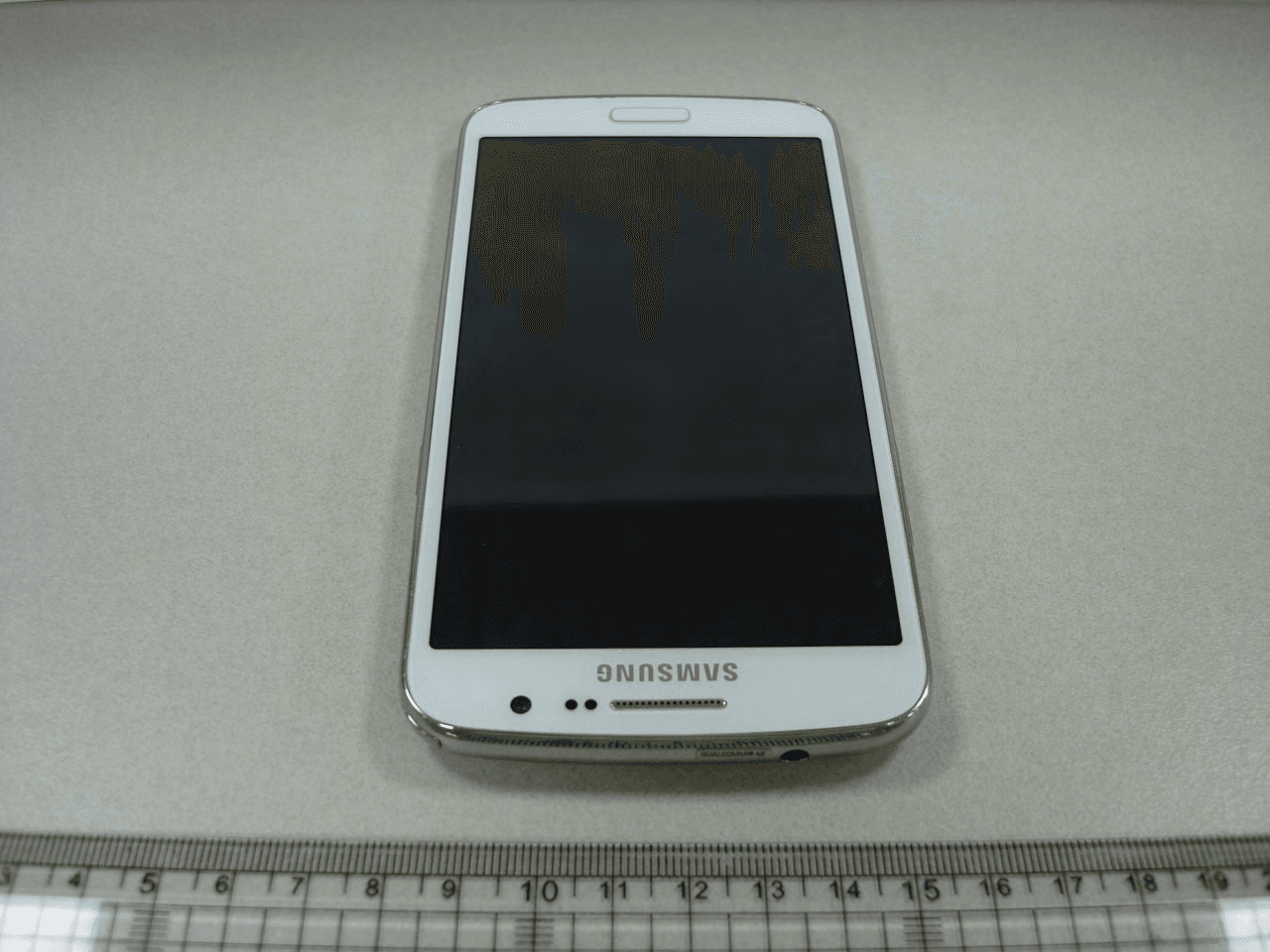

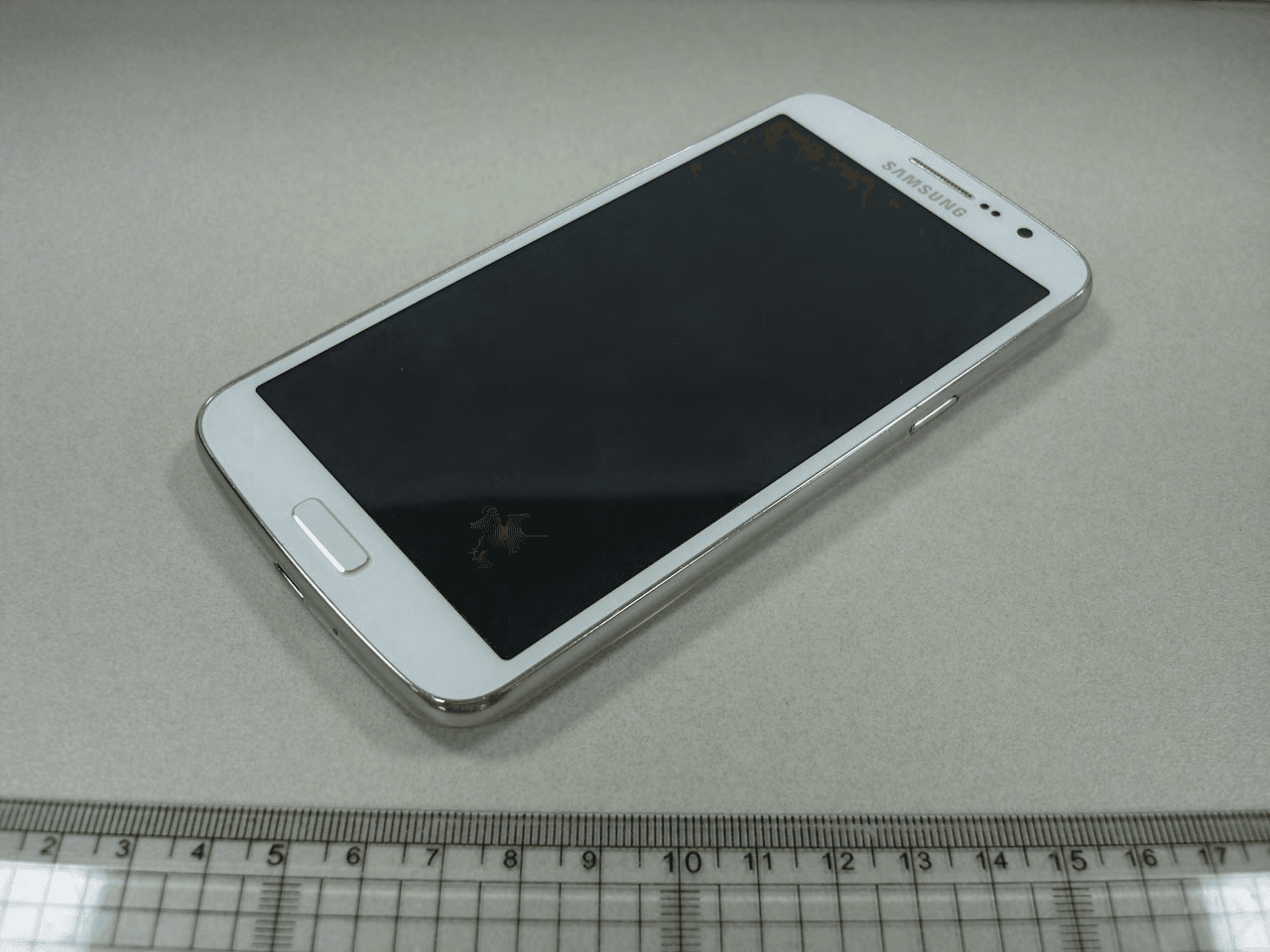

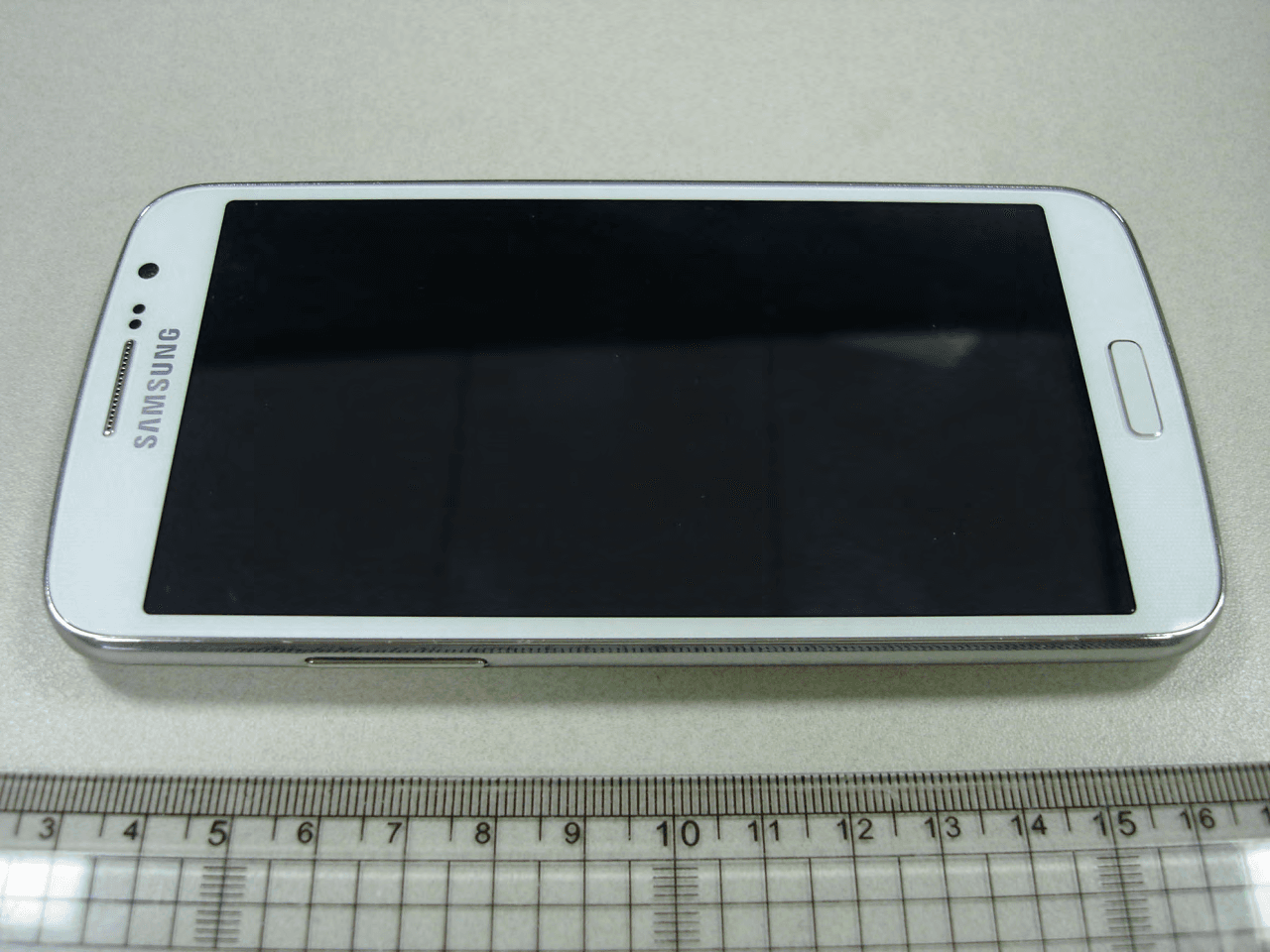

A3LSMG710SGSM/WCDMA/LTE Phone + BT + WLAN a/b/g/n/ac + NFC

User manual SM-G710S using this manual This user manual has been specially designed to guide you through the functions and features of your mobile phone. To get started quickly, refer to “introducing your mobile phone, Instructional icons Before you start, familiarise yourself with the icons you will see in this manual: Warning—situations that could cause injury to yourself or others Caution—situations that could cause damage to your phone or other equipment Note—notes, usage tips, or additional information Refer to—pages with related information; for example: p. 12 (represents “see page 12”) Õ Followed by—the order of options or menus you must select to perform a step; for example: In Menu mode, select Messages Õ Create new message (represents Messages, followed by Create new message) [ ] Square brackets—phone keys; for example: [ ](represents the Power/ Menu exit key) < > Angled brackets—softkeys that control different functions at each screen; for example: <OK> (represents the OK softkey) Copyright information Rights to all technologies and products that comprise this device are the property of their respective owners:  Bluetooth ® is a registered trademark of the Bluetooth SIG, Inc. worldwide  Java™ is a trademark of Sun Microsystems, Inc.  Windows Media Player ® is a registered trademark of Microsoft Corporation. contents safety and usage information Safety warnings Safety precautions Important usage information introducing your mobile phone Unpack .. Phone layout Keys Display Icons assembling and preparing your mobile phone Install the SIM card and battery Charge the battery using basic functions Turn your phone on and off Access menus Customise your phone Use basic call functions Send and view messages Add and find contacts troubleshooting safety and usage information Comply with the following precautions to avoid dangerous or illegal situations and ensure peak performance of your mobile phone. Safety warnings Keep your phone away from small children and pets Keep your phone and all accessories out of the reach of small children or animals. Small parts may cause choking or serious injury if swallowed. Protect your hearing Excessive exposure to sound at high volumes can cause hearing damage. Always turn the volume down before plugging the earphones into an audio source and use only the minimum volume setting necessary to hear your conversation or music. Install mobile phones and equipment with caution Ensure that any mobile phones or related equipment installed in your vehicle are securely mounted. Avoid placing your phone and accessories near or in an air bag deployment area. Improperly installed wireless equipment can cause serious injury when air bags inflate rapidly. Handle and dispose of batteries and chargers with care  Use only Samsung-approved batteries and chargers specifically designed for your phone. Incompatible batteries and chargers can cause serious injuries or damage to your phone.  Never dispose of batteries or phones in a fire. Follow all local regulations when disposing used batteries or phones.  Never place batteries or phones on or in heating devices, such as microwave ovens, stoves, or radiators. Batteries may explode when overheated.  Never crush or puncture the battery. Avoid exposing the battery to high external pressure, which can lead to an internal short circuit and overheating. Avoid interference with pacemakers Maintain a minimum of 15 cm (6 inches) between mobile phones and pacemakers to avoid potential interference, as recommended by manufacturers and the independent research group, Wireless Technology Research. If you have any reason to suspect that your phone is interfering with a pacemaker or other medical device, turn off the phone immediately and contact the manufacturer of the pacemaker or medical device for guidance. Turn off the phone in potentially explosive environments Do not use your phone at refuelling points (service stations) or near fuels or chemicals. Turn off your phone whenever directed by warning signs or instructions. Your phone could cause explosions or fire in and around fuel or chemical storage and transfer areas or blasting areas. Do not store or carry flammable liquids, gases, or explosive materials in the same compartment as the phone, its parts, or accessories. Reduce the risk of repetitive motion injuries When sending text messages or playing games on your phone, hold the phone with a relaxed grip, press the keys lightly, use special features that reduce the number of keys you have to press (such as templates and predictive text), and take frequent breaks. Safety precautions Drive safely at all times Avoid using your phone while driving and obey all regulations that restrict the use of mobile phones while driving. Use hands-free accessories to increase your safety when possible. Follow all safety warnings and regulations Comply with any regulations that restrict the use of a mobile phone in a certain area. Use only Samsung-approved accessories Using incompatible accessories may damage your phone or cause injury. Turn off the phone near medical equipment Your phone can interfere with medical equipment in hospitals or health care facilities. Follow all regulations, posted warnings, and directions from medical personnel. Turn off the phone or disable the wireless functions when in an aircraft Your phone can cause interference with aircraft equipment. Follow all airline regulations and turn off your phone or switch to a mode that disables the wireless functions when directed by airline personnel. Protect batteries and chargers from damage Avoid exposing batteries to very cold or very hot temperatures (below 0° C/32° F or above 45° C/ 113° F). Extreme temperatures can reduce the charging capacity and life of your batteries. Prevent batteries from contacting metal objects, as this can create a connection between the + and - terminals of your batteries and lead to temporary or permanent battery damage. Never use a damaged…

Text truncated - open the document above for the full version.

SAMSUNG ELECTRONICS CO., LTD 129, Samsung-ro,Yeongtong-gu Suwon-si,Gyeonggi-do, 443-742 Korea January 6, 2014 Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 SUBJECT : Label Statement FCC ID : A3LSMG710S Gentlemen: We hereby provide the label statement letter for the above-mentioned device by a new label statement policy of KDB 784748 D01. The label statement is as follows: The FCC ID label is located in the battery compartment. While the battery cover is installed when the unit is shipped from the factory, the battery is never installed prior to sale, so the user must remove the cover in order to install the battery and operate the device. At this time the FCC ID is readily visible to the user. The label is permanently attached by acrylic glue and not easily removed from the device. This statement could not be included in the label. So we inform you of it through this letter. Should you have any questions or comments concerning the above, please contact the undersigned. Sincerely Yours, Seoung Ho Park Senior Manager SAMSUNG ELECTRONICS CO.,LTD Telecommunication Network Business Mobile Communication Division Regulatory Compliance Group.

 January6  4               !" # $  $ %   &" SMG710S  ' () &%  "  *    )+ ,  $  - -. $)  / 0 11-2-.324#  5)   4)) )$  4 5 )   $    $ +    $ %-     ! ! !!! "! # $!%& #'$  6 ,        %  # +  +   + +% $     +  $)# +  -')+     $ ,    5)) $    + % 4 5,  +   $, 5 ) -  &    ,      2+    * 7 68 $ )  /+ %2    +%4))  55     1-9 ) +     1-24)   5)    , $      $  )   5 $ 4% ) : ,-(#  5)   5 ) 8  $ %#  )$  4 5)    ( ')  *+!# ,!!# $ # &-!$  &    5)    + 2 &$     +    5$ ,4+  5  $       ) $   4,$ + ,4 )5  $ # +   ) :  -  ;5        5<% 50*32=>  5    5?  -@' '?@".8998 6A".8998 ?8 "B  5-

129, Samsung-Ro, Yeongtong-Gu, Suwon-Si, Gyeonggi-Do, KOREA Date : October 22 nd , 2013 UL Verification Services Inc. Certification Division 47173 Benicia Street Fremont, CA 94538, USA To whom it may concern: I, the undersigned, hereby authorize UL Verification Services Inc. to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by UL Verification Services Inc. on our behalf shall have the same effect as acts of our own. I, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). In authorizing UL Verification Services Inc. as our agent, we still recognize that we are responsible to: comply with the relevant provisions of the certification program; b) make all necessary arrangements for the conduct of the evaluation, including provision for examining documentation and access to all areas, records (including internal audit reports) and personnel for the purposes of evaluation (e.g. testing, inspection, assessment, surveillance, reassessment) and resolution of complaints; c) make claims regarding certification only in respect of the scope for which certification has been granted; d) do not use our product certification in such a manner as to bring the Certification Division into disrepute and not make any statement regarding our product certification which the Certification Division may consider misleading or unauthorized; e) upon suspension or cancellation of certification, discontinue use of all advertising matter that contains any reference thereto and return any certification documents as required by the Certification Division; 129, Samsung-Ro, Yeongtong-Gu, Suwon-Si, Gyeonggi-Do, KOREA f) use certification only to indicate the products are certified as being in conformity with specified standards; g) endeavor to ensure that no certificate or report nor any part thereof is used in a misleading manner; h) ensure that any reference to our product certification in communication media such as documents, brochures or advertising, complies with the requirements of the Certification Division; i) keep a record of all complaints made known to the us relating to the product’s compliance with requirements of the relevant standard and to make these records available to the Certification Division when requested; j) take appropriate action with respect to such complaints and any deficiencies found in products or services that affect compliance with the requirements for certification; k) document the actions taken. This authorization is valid until further written notice from the applicant. Sincerely Yours, Sang Kyung (Peter), RA Head of QA Lab (General Manager) Samsung Electronics America, Inc 19 Chapin Rd, Bldg D Pine Brook, NJ 07058

Product Equality Declaration We, Samsung Electronics Co., Ltd., declare on our sole responsibility that the product Basic Additional Additional Model SM-G710S SM-G710L SM-G710K FCC ID A3LSMG710S A3LSMG710S A3LSMG710S HW version : REV0.2 REV0.2 REV0.2 SW version : G710S.001 G710L.001 G710K.001 The only difference between the SM-G710L and the SM-G710S is: 1. H/W - Exactly all part is same. 2. S/W - Exactly all part is same. The only difference between the SM-G710K and the SM-G710S is: 1. H/W - Exactly all part is same. 2. S/W - Supporting LTE band is changed. (Band8 is supported, Band5 is not supported) The Photo of difference part Basic Additional Additional Front of PCB Front of PCB Front of PCB Rear of PCB Rear of PCB Rear of PCB Point of contact Signature Name : Kwangpyo Lee Title : Engineer Team : H/W R&D Group Korea

Label and Location Samsung Phone Model: SM-G710S FCC ID: A3LSMG710S Label: Location: Top Back of device Bottom Label is placed inside of the battery compartment. Label

FCC 47 CFR Parts 1 & 2 Published RF Exposure KDB Procedures IEEE Std 1528-2013 SAR EVALUATION REPORT For GSM/WCDMA/LTE Phone + Bluetooth & DTS/UNII a/b/g/n/ac + NFC Model: SM-G710S, SM-G710L and SM-G710K FCC ID: A3LSMG710S Report Number: 13U16613-7 Issue Date: 1/2/2014 Prepared for Samsung Electronics Co., Ltd. 416, Maetan 3-Dong, Yeongtong-Gu Suwon-City, GyeonGggi-Do 443-742, South Korea Prepared by UL Verification Services Inc. 47173 BENICIA STREET FREMONT, CA 94538, U.S.A. TEL: (510) 771-1000 FAX: (510) 661-0888 Report No.: 13U16613-7 Issue Date: 1/2/2014 FCC ID: A3LSMG710S Page 2 of 52 UL Verification Services Inc. FORM NO: CCSUP4031G 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of UL Verification Services Inc. Revision History Rev. Issue Date Revisions Revised By -- 1/2/2014 Initial Issue -- Report No.: 13U16613-7 Issue Date: 1/2/2014 FCC ID: A3LSMG710S Page 3 of 52 UL Verification Services Inc. FORM NO: CCSUP4031G 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of UL Verification Services Inc. Table of Contents 1. Attestation of Test Results ............................................................................................................. 6 2. Test Methodology ........................................................................................................................... 7 3. Facilities and Accreditation ........................................................................................................... 7 4. Calibration and Uncertainty ........................................................................................................... 8 4.1. Measuring Instrument Calibration .............................................................................................. 8 4.2. Measurement Uncertainty .......................................................................................................... 8 5. Measurement System Description and Setup ............................................................................... 9 6. SAR Measurement Procedure ...................................................................................................... 10 6.1. Normal SAR Measurement Procedure ..................................................................................... 10 6.2. Volume Scan Procedures ........................................................................................................ 12 7. Device Under Test ......................................................................................................................... 13 7.1. General Information ................................................................................................................. 13 7.2. Wireless Technologies ............................................................................................................. 14 7.3. RF Output Power Tolerance .................................................................................................... 15 7.4. Simultaneous Transmission Condition ..................................................................................... 16 7.5. General LTE SAR Test and Reporting Considerations ............................................................. 17 8. RF Exposure Conditions .............................................................................................................. 18 8.1. Head Exposure Conditions ...................................................................................................... 18 8.2. Body-worn Accessory Exposure Conditions ............................................................................. 18 8.3. Hotspot Exposure Conditions ................................................................................................... 18 9. RF Output Power Measurement ................................................................................................... 19 9.1. GSM ........................................................................................................................................ 19 9.2. W-CDMA ................................................................................................................................. 20 9.3. LTE Band ................................................................................................................................. 24 9.4. WiFi (2.4 GHz Band) ................................................................................................................ 28 9.5. WiFi (5 GHz Bands) ................................................................................................................. 29 9.6. Bluetooth ................................................................................................................................. 32 10. Tissue Dielectric Properties ..................................................................................................... 33 10.1. Composition of Ingredients for the Tissue Material Used in the SAR Tests .......................... 34 10.2. Tissue Dielectric Parameter Check Results .......................................................................... 35 11. System Performance Check ..................................................................................................... 37 11.1. System Performance Check Measurement Conditions ......................................................... 37 Report No.: 13U16613-7 Issue Date: 1/2/2014 FCC ID: A3LSMG710S Page 4 of 52 UL Verification Services Inc. FORM NO: CCSUP4031G 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of UL Verification Services Inc. 11.2. Reference SAR Values for System Performance Check.…

Text truncated - open the document above for the full version.

Plot No. 1 Test Laboratory: UL Verification Services Inc., SAR Lab 1 Date: 12/16/2013 20131216_SystemPerformanceCheck-D1900V2 SN 5d163 Frequency: 1900 MHz; Duty Cycle: 1:1; Room Ambient Temperature: 23.0C; Liquid Temperature: 22.0C Medium parameters used: f = 1900 MHz; σ = 1.422 S/m; ε r = 38.882; ρ = 1000 kg/m 3 DASY5 Configuration: - Area Scan Setting: Find Secondary Maximum Within: 2.0 dB and with a peak SAR value greater than 0.0012W/kg - Averaged Fast SAR: Polynomial fit - Electronics: DAE4 Sn1259; Calibrated: 2/7/2013 - Probe: EX3DV4 - SN3929; ConvF(7.71, 7.71, 7.71); Calibrated: 6/24/2013; - Sensor-Surface: 2.5mm (Mechanical Surface Detection) - Phantom: SAM; Type: QD000P40CD; Serial: TP 1751 Head/Pin=100 mW/Area Scan (61x61x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Reference Value = 60.772 V/m; Power Drift = 0.07 dB Fast SAR: SAR(1 g) = 4.44 W/kg; SAR(10 g) = 2.33 W/kg Maximum value of SAR (interpolated) = 5.91 W/kg Head/Pin=100 mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 60.772 V/m; Power Drift = 0.07 dB Peak SAR (extrapolated) = 8.28 W/kg SAR(1 g) = 4.35 W/kg; SAR(10 g) = 2.24 W/kg Maximum value of SAR (measured) = 5.95 W/kg 0 dB = 5.95 W/kg = 7.75 dBW/kg Plot No. 2 Test Laboratory: UL Verification Services Inc., SAR Lab 1 Date: 12/16/2013 20131216_SystemPerformanceCheck-D1900V2 SN 5d163 Frequency: 1900 MHz; Duty Cycle: 1:1 Head/Pin=100 mW/Z Scan (1x1x21): Measurement grid: dx=20mm, dy=20mm, dz=5mm Maximum value of SAR (measured) = 5.19 W/kg Plot No. 3 Test Laboratory: UL Verification Services Inc., SAR Lab 2 Date: 12/19/2013 20131219_SystemPerformanceCheck-D5GHzV2 SN 1003 Frequency: 5200 MHz; Duty Cycle: 1:1; Room Ambient Temperature: 24.0C; Liquid Temperature: 23.0C Medium parameters used: f = 5200 MHz; σ = 4.488 S/m; ε r = 37.064; ρ = 1000 kg/m 3 DASY5 Configuration: - Area Scan Setting: Find Secondary Maximum Within: 2.0 dB and with a peak SAR value greater than 0.0012W/kg - Averaged Fast SAR: Polynomial fit - Electronics: DAE4 Sn1359; Calibrated: 2/8/2013 - Probe: EX3DV4 - SN3773; ConvF(4.8, 4.8, 4.8); Calibrated: 4/26/2013; - Sensor-Surface: 1.4mm (Mechanical Surface Detection (Locations From Previous Scan Used)), Sensor-Surface: 1.4mm (Mechanical Surface Detection) - Phantom: SAM with CRP; Type: QD000P40CA; Serial: 1185 Head/5.2 GHz, Pin=100mW/Area Scan (61x61x1): Interpolated grid: dx=1.000 mm, dy=1.000 mm Reference Value = 58.566 V/m; Power Drift = -0.05 dB Fast SAR: SAR(1 g) = 7.78 W/kg; SAR(10 g) = 2.15 W/kg Maximum value of SAR (interpolated) = 20.2 W/kg Head/5.2 GHz, Pin=100mW/Zoom Scan (8x8x7)/Cube 0: Measurement grid: dx=4mm, dy=4mm, dz=1.4mm Reference Value = 58.566 V/m; Power Drift = -0.05 dB Peak SAR (extrapolated) = 34.1 W/kg SAR(1 g) = 8.34 W/kg; SAR(10 g) = 2.37 W/kg Maximum value of SAR (measured) = 19.6 W/kg 0 dB = 19.6 W/kg = 12.92 dBW/kg Plot No. 4 Test Laboratory: UL Verification Services Inc., SAR Lab 2 Date: 12/19/2013 20131219_SystemPerformanceCheck-D5GHzV2 SN 1003 Frequency: 5200 MHz; Duty Cycle: 1:1 Head/5.2 GHz, Pin=100mW 2 2/Z Scan (1x1x21): Measurement grid: dx=20mm, dy=20mm, dz=5mm Maximum value of SAR (measured) = 13.7 W/kg Plot No. 5 Test Laboratory: UL Verification Services Inc., SAR Lab 2 Date: 12/19/2013 20131219_SystemPerformanceCheck-D5GHzV2 SN 1003 Frequency: 5600 MHz; Duty Cycle: 1:1; Room Ambient Temperature: 24.0C; Liquid Temperature: 23.0C Medium parameters used: f = 5600 MHz; σ = 4.906 S/m; ε r = 36.533; ρ = 1000 kg/m 3 DASY5 Configuration: - Area Scan Setting: Find Secondary Maximum Within: 2.0 dB and with a peak SAR value greater than 0.0012W/kg - Averaged Fast SAR: Polynomial fit - Electronics: DAE4 Sn1359; Calibrated: 2/8/2013 - Probe: EX3DV4 - SN3773; ConvF(4.18, 4.18, 4.18); Calibrated: 4/26/2013; - Sensor-Surface: 1.4mm (Mechanical Surface Detection (Locations From Previous Scan Used)), Sensor-Surface: 1.4mm (Mechanical Surface Detection) - Phantom: SAM with CRP; Type: QD000P40CA; Serial: 1185 Head/5.6 GHz, Pin=100mW/Area Scan (61x61x1): Interpolated grid: dx=1.000 mm, dy=1.000 mm Reference Value = 56.547 V/m; Power Drift = 0.03 dB Fast SAR: SAR(1 g) = 8.07 W/kg; SAR(10 g) = 2.25 W/kg Maximum value of SAR (interpolated) = 21.7 W/kg Head/5.6 GHz, Pin=100mW/Zoom Scan (8x8x7)/Cube 0: Measurement grid: dx=4mm, dy=4mm, dz=1.4mm Reference Value = 56.547 V/m; Power Drift = 0.03 dB Peak SAR (extrapolated) = 38.5 W/kg SAR(1 g) = 8.73 W/kg; SAR(10 g) = 2.5 W/kg Maximum value of SAR (measured) = 21.0 W/kg 0 dB = 21.0 W/kg = 13.22 dBW/kg Plot No. 6 Test Laboratory: UL Verification Services Inc., SAR Lab 2 Date: 12/19/2013 20131219_SystemPerformanceCheck-D5GHzV2 SN 1003 Frequency: 5600 MHz; Duty Cycle: 1:1 Head/5.6 GHz, Pin=100mW/Z Scan (1x1x21): Measurement grid: dx=20mm, dy=20mm, dz=5mm Maximum value of SAR (measured) = 14.4 W/kg Plot No. 7 Test Laboratory: UL Verification Services Inc., SAR Lab 2 Date: 12/19/2013 20131219_SystemPerformanceCheck-D5GHzV2 SN 1003 Frequency: 5800 MHz; Duty Cycle: 1:1; Room Ambient Temperature: 24.0C; Liquid Temperature: 23.0C Medium parameters used: f = 5800 MHz; σ = 5.112 S/m; ε r = 36.236; ρ = 1000 kg/m 3 DASY5 Configuration: - Area Scan Setting: Find Secondary Maximum Within: 2.0 dB and with a peak SAR value greater than 0.0012W/kg - Averaged Fast SAR: Polynomial fit - Electronics: DAE4 Sn1359; Calibrated: 2/8/2013 - Probe: EX3DV4 - SN3773; ConvF(4.27, 4.27, 4.27); Calibrated: 4/26/2013; - Sensor-Surface: 1.4mm (Mechanical Surface Detection (Locations From Previous Scan Used)), Sensor-Surface: 1.4mm (Mechanical Surface Detection) - Phantom: SAM with CRP; Type: QD000P40CA; Serial: 1185 Head/5.8 GHz, Pin=100mW 2/Area Scan (61x61x1): Interpolated grid: dx=1.000 mm, dy=1.000 mm Reference Value = 52.383 V/m; Power Drift = 0.02 dB Fast SAR: SAR(1 g) = 7.08 W/kg; SAR(10 g) = 1.98 W/kg Maximum value of SAR (interpolated) = 19.4 W/kg Head/5.8 GHz, Pin=100mW 2/Zoom Scan (8x8x7)/Cube 0: Measurement grid: dx=4mm, dy=4mm, dz=1.4mm Reference Value = 52.383 V…

Text truncated - open the document above for the full version.

FCC 47 CFR PART 15 SUBPART C INDUSTRY CANADA RSS-210 ISSUE 8 CERTIFICATION TEST REPORT FOR GSM/WCDMA/LTE Phone + Bluetooth & DTS/UNII a/b/g/n/ac + NFC MODEL NUMBER: SM-G710S; SM-G710L; SM-G710K FCC ID: A3LSMG710S IC: 649E-SMG710S REPORT NUMBER: 13U16613-6 REV A ISSUE DATE: January 13, 2014 Prepared for SAMSUNG ELECTRONICS CO., LTD. 416, MAETAN 3-DONG, YEONGTONG-GU SUWON-CITY, GYEONGGI-DO 443-742, SOUTH KOREA Prepared by UL VERIFICATION SERVICES INC. 47173 BENICIA STREET FREMONT, CA 94538, U.S.A. TEL: (510) 771-1000 FAX: (510) 661-0888 REPORT NO: 13U16613-6A DATE: 1/13/14 FCC ID: A3LSMG710S IC: 649E-SMG710S Page 2 of 222 UL VERIFICATION SERVICES INC. FORM NO: CCSUP4701J 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of UL Verification Services Inc. Revision History Rev. Issue Date Revisions Revised By -- 12/30/13 Initial Issue P. Kim A 1/13/14 Updated summary table; Updated limit typo in section 10.4.7 and 10.4.8; P. Kim REPORT NO: 13U16613-6A DATE: 1/13/14 FCC ID: A3LSMG710S IC: 649E-SMG710S Page 3 of 222 UL VERIFICATION SERVICES INC. FORM NO: CCSUP4701J 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of UL Verification Services Inc. TABLE OF CONTENTS 1. ATTESTATION OF TEST RESULTS .................................................................................... 6 2. TEST METHODOLOGY ........................................................................................................ 7 3. FACILITIES AND ACCREDITATION .................................................................................... 7 4. CALIBRATION AND UNCERTAINTY .................................................................................. 7 4.1. MEASURING INSTRUMENT CALIBRATION ................................................................ 7 4.2. SAMPLE CALCULATION ............................................................................................... 7 4.3. MEASUREMENT UNCERTAINTY ................................................................................. 7 5. EQUIPMENT UNDER TEST ................................................................................................. 8 5.1. DESCRIPTION OF EUT ................................................................................................. 8 5.2. MAXIMUM OUTPUT POWER ........................................................................................ 8 5.3. DESCRIPTION OF AVAILABLE ANTENNAS ................................................................ 8 5.4. SOFTWARE AND FIRMWARE ...................................................................................... 8 5.5. WORST-CASE CONFIGURATION AND MODE ............................................................ 9 5.6. DESCRIPTION OF TEST SETUP ................................................................................ 10 6. TEST AND MEASUREMENT EQUIPMENT ....................................................................... 12 7. SUMMARY TABLE ............................................................................................................. 13 8. ON TIME, DUTY CYCLE AND MEASUREMENT METHODS ............................................ 14 8.1. ON TIME AND DUTY CYCLE RESULTS ..................................................................... 14 8.2. DUTY CYCLE PLOTS .................................................................................................. 14 9. MEASUREMENT METHOD ................................................................................................ 17 10. ANTENNA PORT TEST RESULTS .................................................................................... 18 10.1. 26 dB BANDWIDTH .................................................................................................. 18 10.1.1. 802.11a MODE IN THE 5.2 GHz BAND ................................................................ 18 10.1.2. 802.11n HT20 MODE IN THE 5.2 GHz BAND ...................................................... 18 10.1.3. 802.11n HT40 MODE IN THE 5.2 GHz BAND ...................................................... 18 10.1.4. 802.11ac HT80 MODE I N THE 5.2 GHz BAND .................................................... 18 10.1.1. 802.11a MODE IN THE 5.3 GHz BAND ................................................................ 19 10.1.1. 802.11n HT20 MODE IN THE 5.3 GHz BAND ...................................................... 19 10.1.2. 802.11n HT40 MODE IN THE 5.3 GHz BAND ...................................................... 19 10.1.3. 802.11ac HT80 MODE IN THE 5.3 GHz BAND .................................................... 19 10.1.4. 802.11a MODE IN THE 5.5 GHz BAND ................................................................ 19 10.1.5. 802.11n HT20 MODE IN THE 5.5 GHz BAND ...................................................... 20 10.1.6. 802.11n HT40 MODE IN THE 5.5 GHz BAND ...................................................... 20 …

Text truncated - open the document above for the full version.
