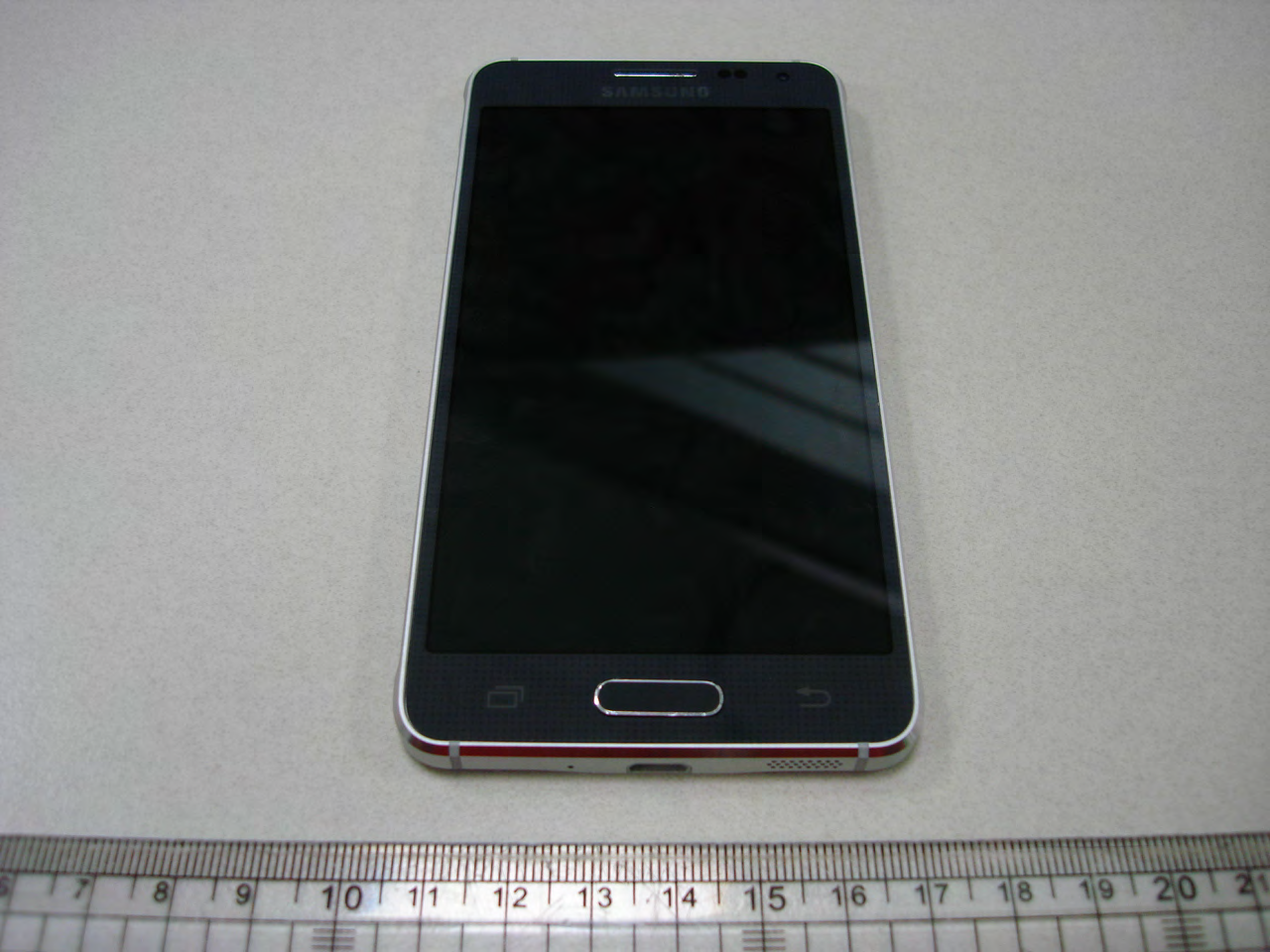

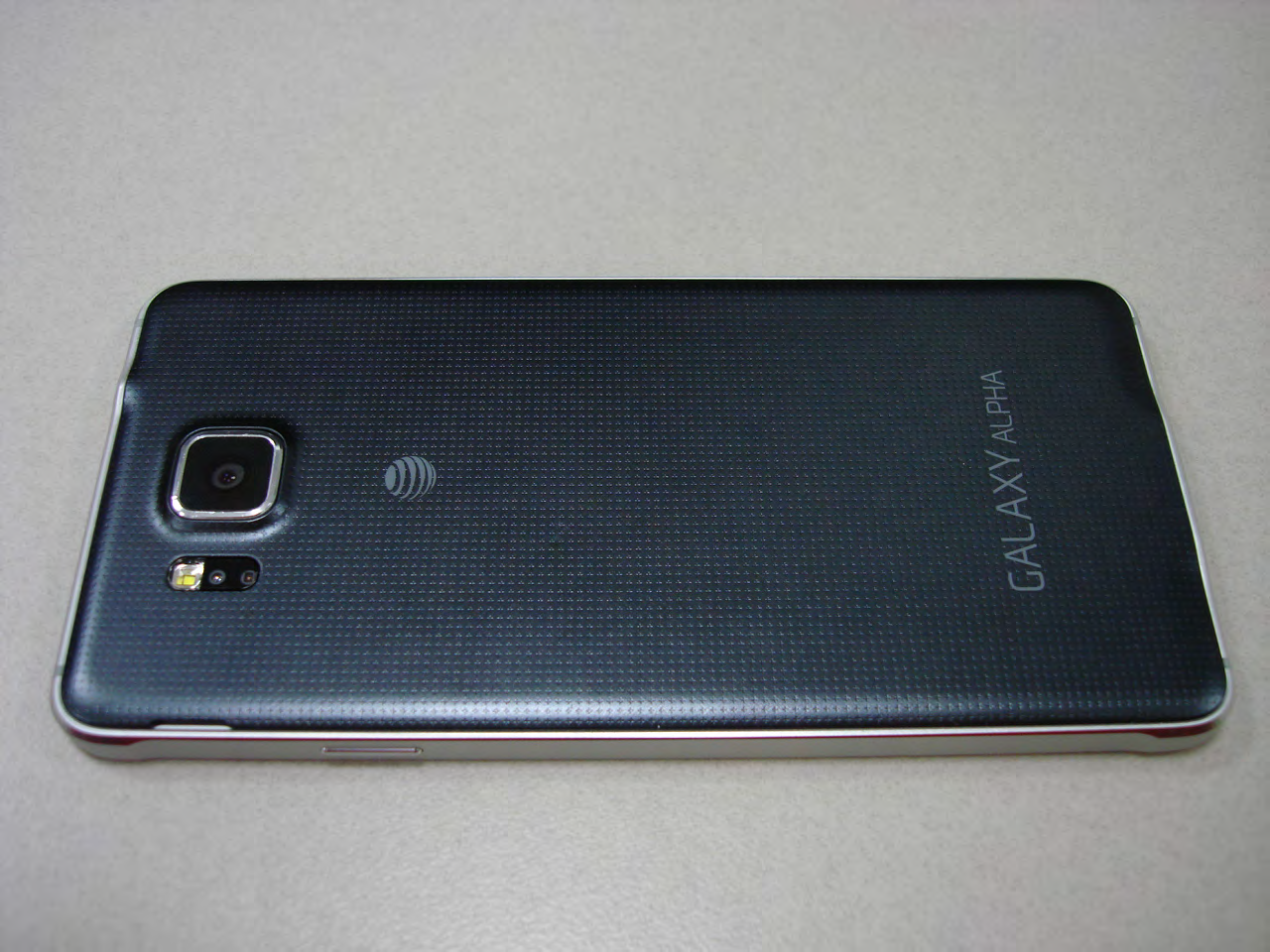

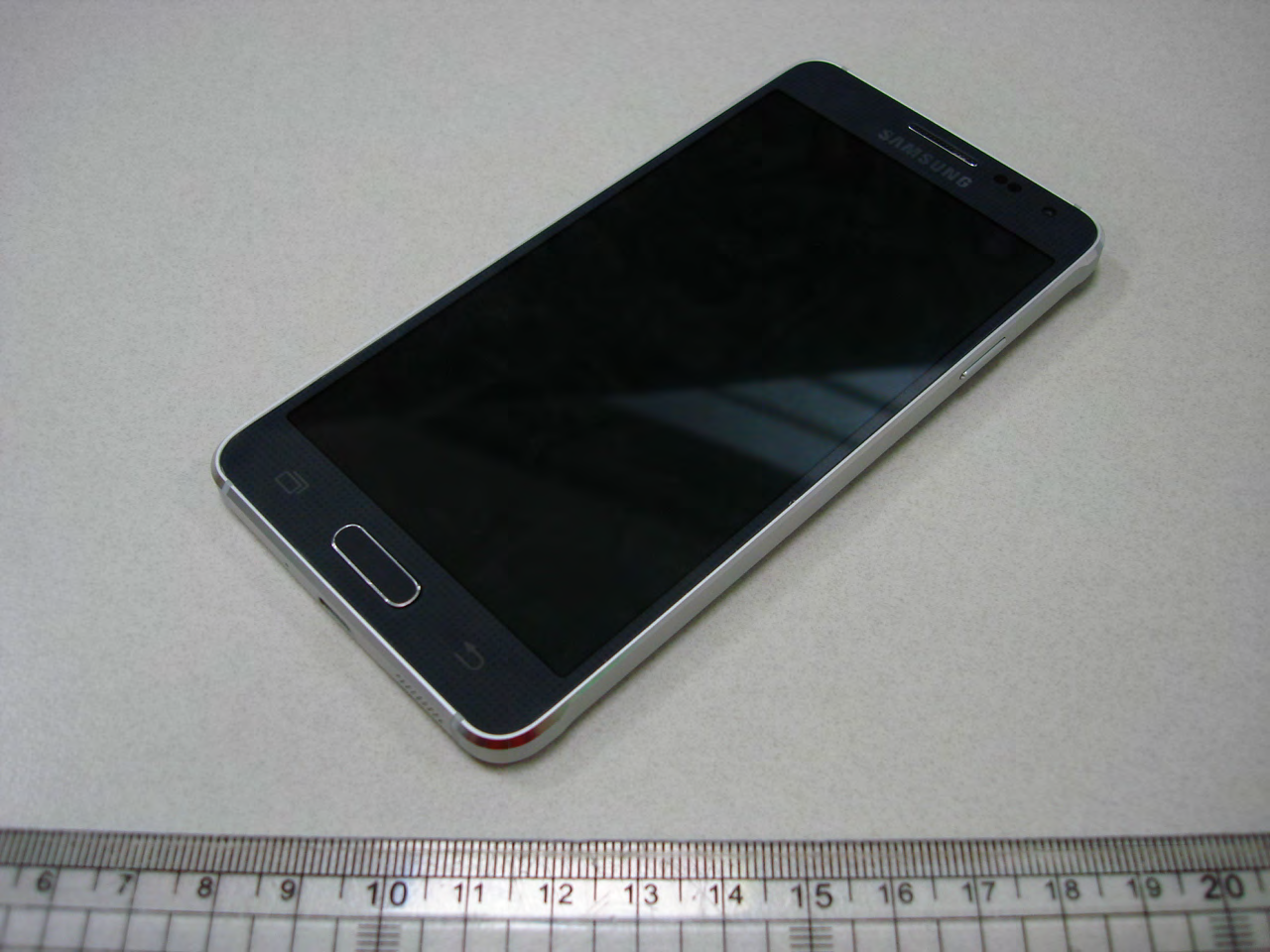

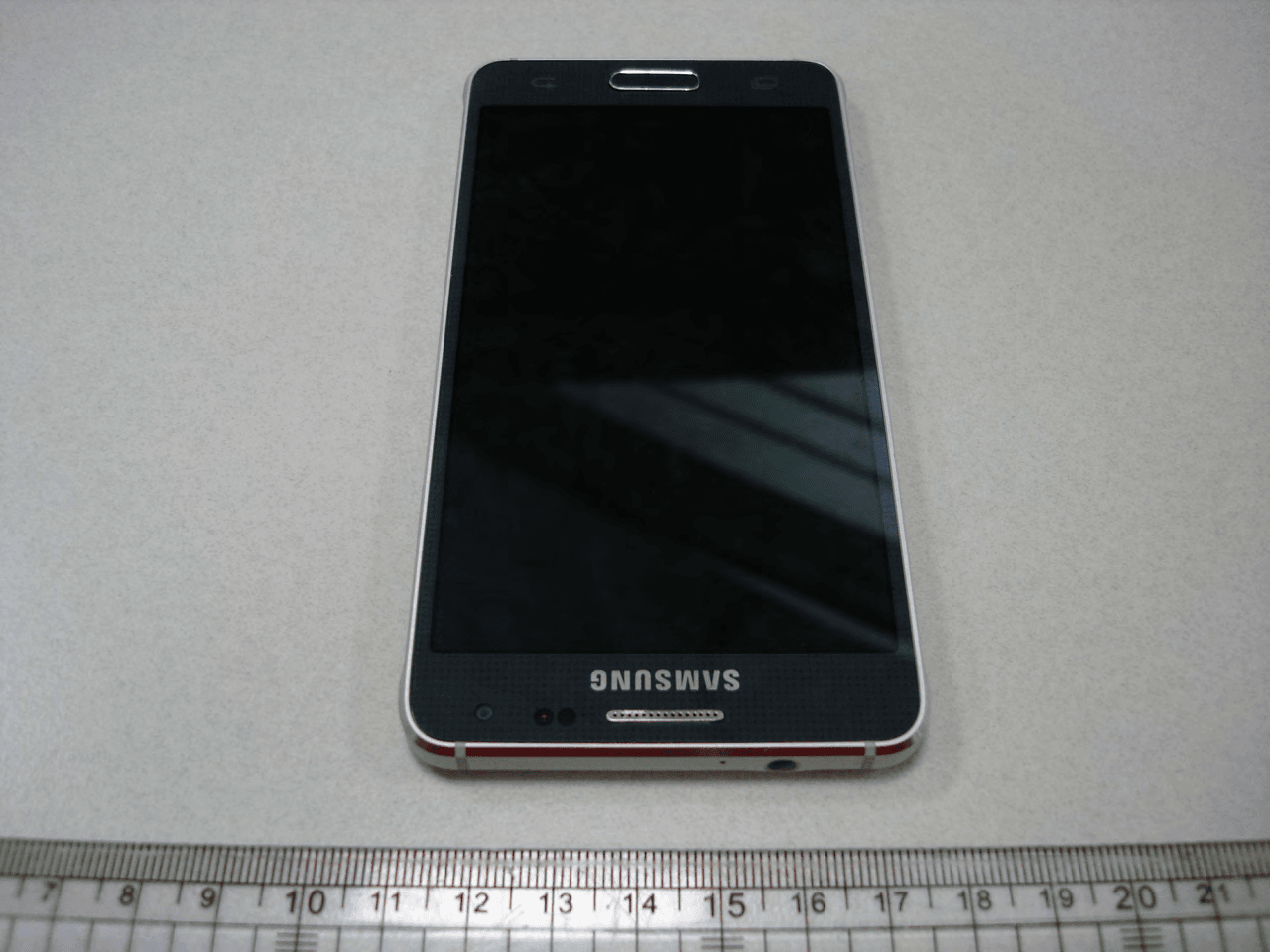

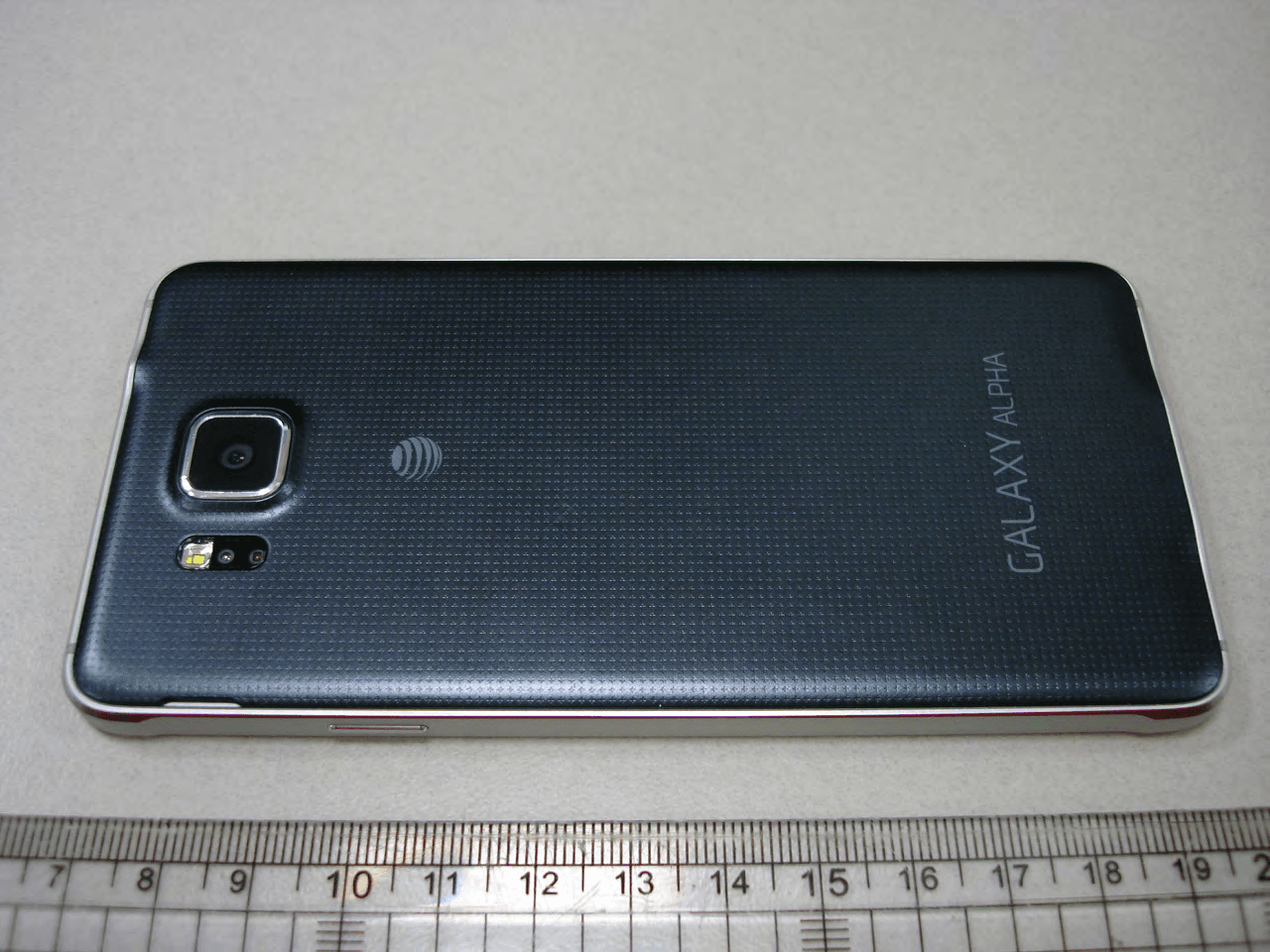

A3LSMG850AMulti-band GSM/EDGE/UMTS/LTE Phone with WLAN, Bluetooth, RFID and ANT+

User manual SM-G850A Draft Important safety precautions Failure to comply with the following precautions may be dangerous or illegal. Copyright information ● Bluetooth? is a registered trademark of the Bluetooth SIG, Inc. worldwide. ● JavaTM is a trademark or registered trademark of Sun Microsystems, Inc. ● Picsel and Picsel ViewerTM are trademarks of Picsel Technologies, Inc. Drive safely at all times Do not use a hand-held phone while driving. Park your vehicle first. Switch off the phone when refuelling Do not use the phone at a refuelling point (service station) or near fuels or chemicals. Switch off in an aircraft Wireless phones can cause interference. Using them in an aircraft is both illegal and dangerous. Switch off the phone near all medical equipment Hospitals or health care facilities may be using equipment that could be sensitive to external radio frequency energy. Follow any regulations or rules in force. Interference All wireless phones may be subject to interference, which could affect their performance. Be aware of special regulations Meet any special regulations in force in any area and always switch off your phone whenever it is forbidden to use it, or when it may cause interference or danger. Water resistance Your phone is not water-resistant. Keep it dry. Sensible use Use only in the normal position (held to your ear). Avoid unnecessary contact with the antenna when the phone is switched on. Emergency calls Key in the emergency number for your present location, then press [ ]. Keep your phone away from small children Keep the phone and all its parts, including accessories, out of the reach of small children. Accessories and batteries Use only Samsung-approved batteries and accessories, such as headsets and PC data cables. Use of any unauthorised accessories could damage you or your phone and may be dangerous. Qualified service Only qualified service personnel may repair your phone. For more detailed safety information, see the Health and safety information on page 20. • The phone could explode if the battery is replaced with an incorrect type. • Dispose of used batteries according to the manufactureri’s instructions. Excessive exposure to sound at high volumes can cause hearing damage. Always turn the volume down before plugging the earphones into an audiosource and use only the minimum volume setting necessary to hear your conversation or music. Unpack Make sure you have each item • Phone • Travel adapter • Battery • Data cable • User’s manual Suitable Adapter or Charger, certified according to the relevant safety standard, will be provided for each country in use. You can obtain the following accessories for your phone from your local Samsung dealer. • Multi adapter • Travel charger • Car charger • PC data cable • Portable battery kit • Portable PC data cable • Music controller • Bluetooth mono/ stereop headset kit Get started First steps to operate your phone Install and charge the phone 1. Install the battery: To remove the battery, slide the battery catch toward the top of the phone and hold it. 2. Plug the adapter into the phone. 3. Plug the adapter into a standard AC wall outlet. 4. When the phone is completely charged (the battery icon stops blinking), unplug the adapter from the power outlet. 5. Remove the adapter from the phone. Low battery indicator When the battery is low: • a warning tone sounds, • the battery low message displays, and • the empty battery icon [ ] blinks. If the battery level becomes too low, the phone automatically turns off. Recharge your battery. Keys and display Buttons Function Power • Press and hold to turn the device on or off. • Press and hold for more than 7 seconds to reset the device if it has fatal errors or hang-ups, or freezes. • Press to lock or unlock the device. The device goes into lock mode when the touch screen turns off. Menu • Tap to open a list of options available for the current screen. • Tap and hold on the Home screen to launch Google application. Home • Press to return to the Home screen. • Press twice to launch S Voice application. • Press and hold to open the list of recent applications. Back • Tap to return to the previous screen. Volume • Press to adjust the device volume. Overview of menu functions To access Menu mode, press [Settings] in ldle mode. ChatON Maps Call log Samsung Link Local Dropbox Phone Group Play Navigation Contacts S Health Downloads Messaging S Voice Optical Reader Samsung Hub S Memo Messenger Wallet S Translator Play Books WatchON Email Play Movies & TV Camera Gallery App Guide Story Album Chrome Help Google Settings Gmail Google Settings My Files Music Google Samsung service Video Voice Search Dropbox Internet YouTube Calculator Clock Talk Voice Recorder S Planner Google+ Dictionary Play Store POLARIS Office5 Samsung Apps Usage Manager Voice Search AT&T FamilyMap AT&T Locker AT&T Mobile Locate AT&T Navigator AT&T Ready2Go Beats Music Drive Flipboard Mobile Hotspot Mobile TV YP Solve problems Help and personal needs To save the time and expense of an unnecessary service call, perform the simple checks in this section before contacting a service professional. When you switch on your phone, the following messages may appear: “Insert USIM card” • Be sure that the USIM card is correctly installed. “Phone locked Enter password” • The automatic locking function has been enabled. You must enter the phone’s password before you can use the phone. “Enter PIN1” • You are using your phone for the first time. You must enter the PIN1 supplied with the USIM card. • The PIN1 Check feature is enabled. Every time the phone is switched on, the PIN1 has to be entered. To disable this feature, use the PIN check menu. “Enter PUK” • The PIN1 code has been entered incorrectly three times in succession, and the phone is now blocked. Enter the PUK1 supplied by your service provider. “No Service” “Network Failure,” or “Not Done” displays • The network connection has been lost. You may be in a weak signal area. M…

Text truncated - open the document above for the full version.

Samsung Electronics America, Inc 19 Chapin Rd, Building D. Pine Brook, NJ 07058 Date: July 29, 2014 FCC ID: A3LSMG850A To whom it may concern: We, the undersigned, hereby authorize PCTEST Engineering Laboratory Inc., to act on our behalf in all matters relating to applications for equipment authorization, including the signing of all documents relating to these matters. Any and all acts carried out by PCTEST Engineering Laboratory, Inc. on our behalf shall have the same effect as acts of our own. We also hereby certify that no party to any application is subject to a denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S. C. 862. Sincerely, CHANHO, YOUN General Manager Samsung Electronics CO. LTD TEL: +1-973-808-6362 E-mail: [email protected]

Date: August 14th, 2014 PCTEST TCB/CB Div. of PCTEST Engineering Lab., Inc. 6660-B Dobbin Road Columbia, MD 21045 Samsung Electronics Co., LTD. 129, Samsung-ro, Yeongtong-gu Suwon-City, Gyeonggi-do, 443-742, Korea Subject: Samsung Electronics Co., Ltd. FCC ID: A3LSMG850A To Whom it May Concern We attest the following regarding FCC ID: A3LSMG850A 1. MPR is permanently implemented for all channel BWs, modulations, frequency bands and RB sizes. 2. A-MPR was disabled for all SAR test samples for SAR testing purposes only. 3. We confirm the specific MPR targets and tolerances shown in the SAR Report. Should you have any questions or comments concerning the above, please contact the undersigned. Sincerely, Engineer Ihnsik Yang Samsung Electronics CO. LTD TEL: +82-31-301-4440 E-mail: [email protected]

Date: July 28th, 2014 Federal Communications Commission Equipment Approval Services 7435 Oakland Mills Road Columbia, MD 21046 SUBJECT: SAMSUNG ELECTRONICS CO.,LTD. FCC ID: A3LSMG850A Part 20.19 Certification To Whom It May Concern: The following are the model designations and their associated key features for this FCC ID, according to requirement in the TCB Guidance issued on June 20, 2008. We, Samsung Electronics, hereby declare the samples evaluated in this application are equivalent to production samples. FCC ID: A3LSMG850A Model(s): SM-G850A Air Interfaces: GSM850/1900, WCDMA Band 2, 5, LTE B2,4,5,17 Radio Services: GRPS,EGPRS, WCDMA, HSDPA, HSUPA, HSPA+(DL only), LTE Key Features: GPS SMS, MMS Bluetooth Wi-Fi NFC ANT+ MP3 Player Should you have any questions or comments concerning the above, please contact the undersigned. Sincerely, Ihnsik Yang Engineer Samsung Electronics

SAMSUNG ELECTRONICS AMERICA, INC. American QA Lab 19 Chapin Rd, Building D. Pine Brook, NJ 07058 Date: July 29, 2014 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road, Columbia, MD 21046 RE: Request of Confidentiality for FCC ID: A3L SMG850A To Whom It May Concern: Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules (CFR 47), and Section 552 (b) (4) of the Freedom of Information Act, SAMSUNG ELECTRONICS CO.,LTD. hereby requests confidentiality and treatment of certain information accompanying this application. The materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. We are also hereby request Short-Term Confidentiality for 180 days after the grant as outlined in Public Notice DA 04-1705. This provision will give SAMSUNG ELECTRONICS CO.,LTD. temporary confidentiality of commercially sensitive information prior to product release. The requested Permanent and Short-Term Confidential exhibits are listed as follows: PERMANENT AND SHORT-TERM CONFIDENTIAL LIST Exhibit Description PERMANENT 1 Block Diagram 2 Operational Description 3Schematics 4Parts List & Tune-Up Procedure SHORT-TERM 5External Photos 6 Internal Photos 7Test-Setup Photos 8Users Manual The Applicant understands that pursuant to Rule 0.457, disclosure of this application and all accompanying documentations, where applicable, will not be made public before the date of the Grant for this application. Sincerely, CHANHO, YOUN General Manager American QA Lab SAMSUNG Electronics America INC.

SAMSUNG ELECTRONICS CO., LTD 129, Samsung-ro,Yeongtong-gu Suwon-si,Gyeonggi-do, 443-742 Korea July 29, 2014 Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 SUBJECT : Label Statement FCC ID : A3LSMG850A To Whomever It May Concern: We hereby provide the label statement letter for the above-mentioned device by a new label statement policy instituted at the September 12, 2006, TCB-FCC Teleconference. The label statement is as follows: The FCC ID label is located in the battery compartment. While the battery cover is installed when the unit is shipped from the factory, the battery is never installed prior to sale, so the user must remove the cover in order to install the battery and operate the device. At this time the FCC ID is readily visible to the user. The label is permanently attached by acrylic glue and not easily removed from the device. This statement could not be included in the label. So we inform you of it through this letter. Should you have any questions or comments concerning the above, please contact the undersigned. Sincerely Yours, Seoung Ho Park Senior Manager SAMSUNG ELECTRONICS CO.,LTD Telecommunication Network Business Mobile Communication Division Regulatory Compliance Group.

2&3. FCC ID and Location Diagram

FCC ID: A3LSMG850A SAR EVALUATION REPORT Reviewed by: Quality Manager Document S/N: Test Dates: DUT Type: Page 1 of 95 0Y1407181398.A3L 07/21/14 - 07/31/14 Portable Handset © 2014 PCTEST Engineering Laboratory, Inc. REV 14.0 M 07/21/2014 Applicant Name: Date of Testing: Samsung Electronics, Co. Ltd. 07/21/14 - 07/31/14 129, Samsung-ro, Maetan dong, Test Site/Location: Yeongtong-gu, Suwon-si PCTEST Lab, Columbia, MD, USA Gyeonggi-do 443-742, Korea Document Serial No.: 0Y1407181398.A3L FCC ID: A3LSMG850A APPLICANT: SAMSUNG ELECTRONICS, CO. LTD. DUT Type: Portable Handset Application Type: Certification FCC Rule Part(s): CFR §2.1093 Model(s): SM-G850A 1 gm Head (W/kg) 1 gm Body-Worn (W/kg) 1 gm Hotspot (W/kg) PCEGSM/GPRS/EDGE 850824.20 - 848.80 MHz0.160.440.67 PCEUMTS 850826.40 - 846.60 MHz0.160.420.43 PCEGSM/GPRS/EDGE 19001850.20 - 1909.80 MHz0.400.621.03 PCEUMTS 19001852.4 - 1907.6 MHz1.080.691.01 PCELTE Band 17706.5 - 713.5 MHz0.150.260.26 PCELTE Band 5 (Cell)824.7 - 848.3 MHz0.200.530.53 PCELTE Band 4 (AWS)1710.7 - 1754.3 MHz0.840.721.05 PCELTE Band 2 (PCS)1850.7 - 1909.3 MHz1.070.690.75 DTS2.4 GHz WLAN2412 - 2462 MHz0.41< 0.1< 0.1 DTSBluetooth LE2402 - 2480 MHz DTS5.8 GHz WLAN5745 - 5825 MHz0.610.140.14 NII5.2 GHz WLAN5180 - 5240 MHz0.31< 0.1< 0.1 NII5.3 GHz WLAN5260 - 5320 MHz0.29< 0.1< 0.1 NII5.5 GHz WLAN5500 - 5700 MHz0.630.11< 0.1 DSSBluetooth2402 - 2480 MHzN/A<0.1N/A 1.250.871.05 SAR Band & ModeTx Frequency Equipment Class Simultaneous SAR per KDB 690783 D01v01r03: N/A This wireless portable device has been shown to be capable of compliance for localized specific absorption rate (SAR) for uncontrolled environment/general population exposure limits specified in ANSI/IEEE C95.1-1992 and has been tested in accordance with the measurement procedures specified in Section 1.8 of this report; for North American frequency bands only. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. Test results reported herein relate only to the item(s) tested. The SAR Tick is an initiative of the Mobile Manufacturers Forum (MMF). While a product may be considered eligible, use of the SAR Tick logo requires an agreement with the MMF. Further details can be obtained by emailing: [email protected]. PCTEST ENGINEERING LABORATORY, INC. 7185 Oakland Mills Road, Columbia, MD 21046 USA Tel. +1.410.290.6652 / Fax +1.410.290.6654 http://www.pctestlab.com SAR EVALUATION REPORT FCC ID: A3LSMG850A SAR EVALUATION REPORT Reviewed by: Quality Manager Document S/N: Test Dates: DUT Type: Page 2 of 95 0Y1407181398.A3L 07/21/14 - 07/31/14 Portable Handset © 2014 PCTEST Engineering Laboratory, Inc. REV 14.0 M 07/21/2014 TABLE OF CONTENTS 1 DEVICE UNDER TEST ....................................................................................................................3 2 LTE INFORMATION ...................................................................................................................... 10 3 INTRODUCTION ........................................................................................................................... 11 4 DOSIMETRIC ASSESSMENT ...................................................................................................... 12 5 DEFINITION OF REFERENCE POINTS ...................................................................................... 13 6 TEST CONFIGURATION POSITIONS FOR HANDSETS ............................................................ 14 7 RF EXPOSURE LIMITS ................................................................................................................ 17 8 FCC MEASUREMENT PROCEDURES ........................................................................................ 18 9 RF CONDUCTED POWERS ......................................................................................................... 22 10 SYSTEM VERIFICATION .............................................................................................................. 59 11 SAR DATA SUMMARY ................................................................................................................. 62 12 FCC MULTI-TX AND ANTENNA SAR CONSIDERATIONS ......................................................... 73 13 SAR MEASUREMENT VARIABILITY ........................................................................................... 89 14 EQUIPMENT LIST ......................................................................................................................... 90 15 MEASUREMENT UNCERTAINTIES ............................................................................................ 91 16 CONCLUSION ............................................................................................................................... 93 17 REFERENCES .............................................................................................................................. 94 APPENDIX A: SAR TEST PLOTS APPENDIX B: SAR DIPOLE VERIFICATION PLOTS APPENDIX C: PROBE AND DIPOLE CALIBRATION CERTIFICATES APPENDIX D: SAR TISSUE SPECIFICATIONS APPENDIX E: SAR SYSTEM VALIDATION APPENDIX F: SAR TEST SETUP PHOTOGRAPHS FCC ID: A3LSMG850A SAR EVALUATION REPORT Reviewed by: Quality Manager Document S/N: Test Dates: DUT Type: Page 3 of 95 0Y1407181398.A3L 07/21/14 - 07/31/14 Portable Handset © 2014 PCTEST Engineering Laboratory, Inc. REV 14.0 M 07/21/2014 1 DEVICE UNDER TEST 1.1 Device Overview GSM/GPRS/EDGE 850Voice/Data824.20 - 848.80 MHz UMTS 850Voice/Data826.40 - 846.60 MHz GSM/GPRS/EDGE 1900Voice/Data1850.20 - 1909.80 MHz UMTS 1900Voice/Data1852.4 - 1907.6 MHz LTE Band 17Data706.5 - 713.5 MHz LTE Band 5 (Cell)Data824.7 - 848.3 MHz LTE Band 4 (AWS)Data1710.7 - 1754.3 MHz LTE Band 2 (PCS)Data1850.7 - 1909.3 MHz 2.4 GHz WLANData…

Text truncated - open the document above for the full version.

© 2014 PCTEST Engineering Laboratory, Inc. APPENDIX C: PROBE CALIBRATION

FCC ID: A3LSMG850A FCC Pt. 22 & 24 GSM / EDGE / WCDMA MEASUREMENT REPORT (CERTIFICATION) Reviewed by: Quality Manager Test Report S/N: Test Dates: EUT Type: Page 1 of 60 0Y1407181399.A3L 7/23 - 8/1/2014 Portable Handset © 2014 PCTEST Engineering Laboratory, Inc. V 1.14 07/29/2014 Applicant Name: Date of Testing: Samsung Electronics, Co. Ltd. 7/23 - 8/1/2014 129, Samsung-ro, Maetan dong, Test Site/Location: Yeongtong-gu, Suwon-si PCTEST Lab., Columbia, MD, USA Gyeonggi-do 443-742, Korea Test Report Serial No.: 0Y1407181399.A3L FCC ID: A3LSMG850A APPLICANT: SAMSUNG ELECTRONICS, CO. LTD. Application Type: Certification Model(s): SM-G850A EUT Type: Portable Handset FCC Classification: PCS Licensed Transmitter Held to Ear (PCE) FCC Rule Part(s): §2 §22(H) §24(E) Test Procedure(s): ANSI/TIA-603-C-2004, KDB 971168 v02r01 Test Device Serial No.: identical prototype [S/N: 18JULY-8] GPRS850824.2 - 848.8246KGXW0.52527.20 EDGE850824.2 - 848.8250KG7W0.10220.09 GPRS19001850.2 - 1909.8244KGXW1.10830.44 EDGE19001850.2 - 1909.8244KG7W0.45026.53 WCDMA850826.4 - 846.64M16F9W0.04516.52 WCDMA1900 1852.4 - 1907.64M17F9W0.06017.76 ERP/EIRP Max. Power (W) Max. Power (dBm) Tx Frequency (MHz) Mode Emission Designator This equipment has been shown to be capable of compliance with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in §2.947. Test results reported herein relate only to the item(s) tested. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. PCTEST ENGINEERING LABORATORY, INC. 7185 Oakland Mills Road, Columbia, MD 21046 USA Tel. 410.290.6652 / Fax 410.290.6654 http://www.pctestlab.com MEASUREMENT REPORT FCC Part 22 & 24 FCC ID: A3LSMG850A FCC Pt. 22 & 24 GSM / EDGE / WCDMA MEASUREMENT REPORT (CERTIFICATION) Reviewed by: Quality Manager Test Report S/N: Test Dates: EUT Type: Page 2 of 60 0Y1407181399.A3L 7/23 - 8/1/2014 Portable Handset © 2014 PCTEST Engineering Laboratory, Inc. V 1.14 07/29/2014 TABLE OF CONTENTS FCC PART 22 & 24 MEASUREMENT REPORT .......................................................................................... 3 1.0 INTRODUCTION .............................................................................................................................. 4 1.1 SCOPE ................................................................................................................................................ 4 1.2 TESTING FACILITY ............................................................................................................................. 4 2.0 PRODUCT INFORMATION .............................................................................................................. 5 2.1 EQUIPMENT DESCRIPTION .............................................................................................................. 5 2.2 DEVICE CAPABILITIES....................................................................................................................... 5 2.3 TEST CONFIGURATION ..................................................................................................................... 5 2.4 EMI SUPPRESSION DEVICE(S)/MODIFICATIONS ........................................................................... 5 3.0 DESCRIPTION OF TESTS .............................................................................................................. 6 3.1 EVALUATION PROCEDURE .............................................................................................................. 6 3.2 CELLULAR - BASE FREQUENCY BLOCKS ....................................................................................... 6 3.3 CELLULAR - MOBILE FREQUENCY BLOCKS ................................................................................... 6 3.4 PCS - BASE FREQUENCY BLOCKS .................................................................................................. 6 3.5 PCS - MOBILE FREQUENCY BLOCKS .............................................................................................. 7 3.6 RADIATED MEASUREMENTS ............................................................................................................ 7 4.0 TEST EQUIPMENT CALIBRATION DATA ...................................................................................... 8 5.0 SAMPLE CALCULATIONS .............................................................................................................. 9 6.0 TEST RESULTS ............................................................................................................................. 10 6.1 SUMMARY ......................................................................................................................................... 10 6.2 OCCUPIED BANDWIDTH ................................................................................................................. 11 6.3 SPURIOUS AND HARMONIC EMISSIONS AT ANTENNA TERMINAL ............................................ 15 6.4 BAND EDGE EMISSIONS AT ANTENNA TERMINAL ...................................................................... 30 6.5 PEAK-AVERAGE RATIO ................................................................................................................... 36 6.6 RADIATED POWER (ERP/EIRP) ...................................................................................................... 39 6.7 RADIATED SPURIOUS EMISSIONS MEASUREMENTS ................................................................. 43 6.8 FREQUENCY STABILITY / TEMPERATURE VARIATION ............................................................... 51 7.0 CONCLUSION .........................................................................…

Text truncated - open the document above for the full version.

FCC ID: A3LSMG850A FCC Pt. 22, 24 & 27 LTE MEASUREMENT REPORT (CERTIFICATION) Reviewed by: Quality Manager Test Report S/N: Test Dates: EUT Type: Page 1 of 109 0Y1407181400.A3L 7/23 - 8/1/2014 Portable Handset © 2014 PCTEST Engineering Laboratory, Inc. V 1.14 07/29/2014 Applicant Name: Date of Testing: Samsung Electronics, Co. Ltd. 7/23 - 8/1/2014 129, Samsung-ro, Maetan dong, Test Site/Location: Yeongtong-gu, Suwon-si PCTEST Lab., Columbia, MD, USA Gyeonggi-do 443-742, Korea Test Report Serial No.: 0Y1407181400.A3L FCC ID : A3LSMG850A APPLICANT: SAMSUNG ELECTRONICS, CO. LTD. Application Type: Certification FCC Classification: PCS Licensed Transmitter Held to Ear (PCE) FCC Rule Part(s): §2; §22; §24; §27 Test Procedure(s): ANSI/TIA-603-C-2004, KDB 971168 v02r01 EUT Type: Portable Handset Model(s): SM-G850A Test Device Serial No.: identical prototype [S/N: 18JULY-8] LTE Band 17706.5 - 713.54M50G7DQPSK0.05517.37 LTE Band 17706.5 - 713.54M51W7D16QAM0.04216.18 LTE Band 17709 - 7119M01G7DQPSK0.05317.20 LTE Band 17709 - 7118M97W7D16QAM0.04016.02 LTE Band 5824.7 - 848.31M12G7DQPSK0.03815.74 LTE Band 5824.7 - 848.31M13W7D16QAM0.02914.57 LTE Band 5825.5 - 847.52M71G7DQPSK0.04015.98 LTE Band 5825.5 - 847.52M72W7D16QAM0.03014.70 LTE Band 5826.5 - 846.54M49G7DQPSK0.04116.16 LTE Band 5826.5 - 846.54M51W7D16QAM0.03114.90 LTE Band 5829 - 8449M00G7DQPSK0.03815.78 LTE Band 5829 - 8448M99W7D16QAM0.02914.55 LTE Band 41710.7 - 1754.31M12G7DQPSK0.16322.12 LTE Band 41710.7 - 1754.31M13W7D16QAM0.12721.03 LTE Band 41711.5 - 1753.52M71G7DQPSK0.15621.94 LTE Band 41711.5 - 1753.52M71W7D16QAM0.11720.69 LTE Band 41712.5 - 1752.54M50G7DQPSK0.17922.52 LTE Band 41712.5 - 1752.54M50W7D16QAM0.13321.25 LTE Band 41715 - 17508M99G7DQPSK0.17822.50 LTE Band 41715 - 17508M96W7D16QAM0.13421.28 LTE Band 41717.5 - 1747.513M5G7DQPSK0.15821.98 LTE Band 41717.5 - 1747.513M4W7D16QAM0.12220.87 LTE Band 41720 - 174517M9G7DQPSK0.15922.03 LTE Band 41720 - 174517M9W7D16QAM0.12520.97 LTE Band 21850.7 - 1909.31M11G7DQPSK0.06317.98 LTE Band 21850.7 - 1909.31M12W7D16QAM0.04916.91 LTE Band 21851.5 - 1908.52M72G7DQPSK0.10920.39 LTE Band 21851.5 - 1908.52M72W7D16QAM0.09119.57 LTE Band 21852.5 - 1907.54M50G7DQPSK0.10220.10 LTE Band 21852.5 - 1907.54M52W7D16QAM0.07718.85 LTE Band 21855 - 19058M98G7DQPSK0.10920.39 LTE Band 21855 - 19058M97W7D16QAM0.07418.70 LTE Band 21857.5 - 1902.513M5G7DQPSK0.08519.27 LTE Band 21857.5 - 1902.513M4W7D16QAM0.07118.53 LTE Band 21860 - 190017M9G7DQPSK0.08919.47 LTE Band 21860 - 190017M9W7D16QAM0.07418.71 Modulation ERP/EIRP Ma x . Po w e r (W) Ma x . Po w e r (dBm) Mode Tx Frequency (MHz) Emission Designator This equipment has been shown to be capable of compliance with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in §2.947. Test results reported herein relate only to the item(s) tested. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. PCTEST ENGINEERING LABORATORY, INC. 7185 Oakland Mills Road, Columbia, MD 21046 USA Tel. 410.290.6652 / Fax 410.290.6654 http://www.pctestlab.com MEASUREMENT REPORT FCC Part 22, 24 & 27 LTE FCC ID: A3LSMG850A FCC Pt. 22, 24 & 27 LTE MEASUREMENT REPORT (CERTIFICATION) Reviewed by: Quality Manager Test Report S/N: Test Dates: EUT Type: Page 2 of 109 0Y1407181400.A3L 7/23 - 8/1/2014 Portable Handset © 2014 PCTEST Engineering Laboratory, Inc. V 1.14 07/29/2014 TABLE OF CONTENTS FCC PART 22, 24, & 27 MEASUREMENT REPORT ................................................................................... 3 1.0 INTRODUCTION .............................................................................................................................. 4 1.1 SCOPE ................................................................................................................................................ 4 1.2 TESTING FACILITY ............................................................................................................................. 4 2.0 PRODUCT INFORMATION .............................................................................................................. 5 2.1 EQUIPMENT DESCRIPTION .............................................................................................................. 5 2.2 DEVICE CAPABILITIES....................................................................................................................... 5 2.3 EMI SUPPRESSION DEVICE(S)/MODIFICATIONS ........................................................................... 5 2.4 LABELING REQUIREMENTS .............................................................................................................. 5 3.0 DESCRIPTION OF TESTS .............................................................................................................. 6 3.1 MEASUREMENT PROCEDURE ......................................................................................................... 6 3.2 BLOCK A FREQUENCY RANGE ........................................................................................................ 6 3.3 CELLULAR - BASE FREQUENCY BLOCKS ....................................................................................... 6 3.4 CELLULAR - MOBILE FREQUENCY BLOCKS ................................................................................... 6 3.5 PCS - BASE FREQUENCY BLOCKS .................................................................................................. 7 3.6 PCS - MOBILE FREQUENCY BLOCKS .............................................................................................. 7 3.7 AWS - BASE FREQUENCY BLOCKS .....................................................................................…

Text truncated - open the document above for the full version.

FCC ID: A3LSMG850A FCC Pt. 22, 24 & 27 LTE MEASUREMENT REPORT (CERTIFICATION) Reviewed by: Quality Manager Test Report S/N: Test Dates: EUT Type: Page 44 of 109 0Y1407181400.A3L 7/23 - 8/1/2014 Portable Handset © 2014 PCTEST Engineering Laboratory, Inc. V 1.14 07/29/2014 6.4 Band Edge Emissions at Antenna Terminal §2.1051 §22.917(a) §24.238(a) §27.53(g) §27.53(h) Test Overview All out of band emissions are measured with a spectrum analyz…
