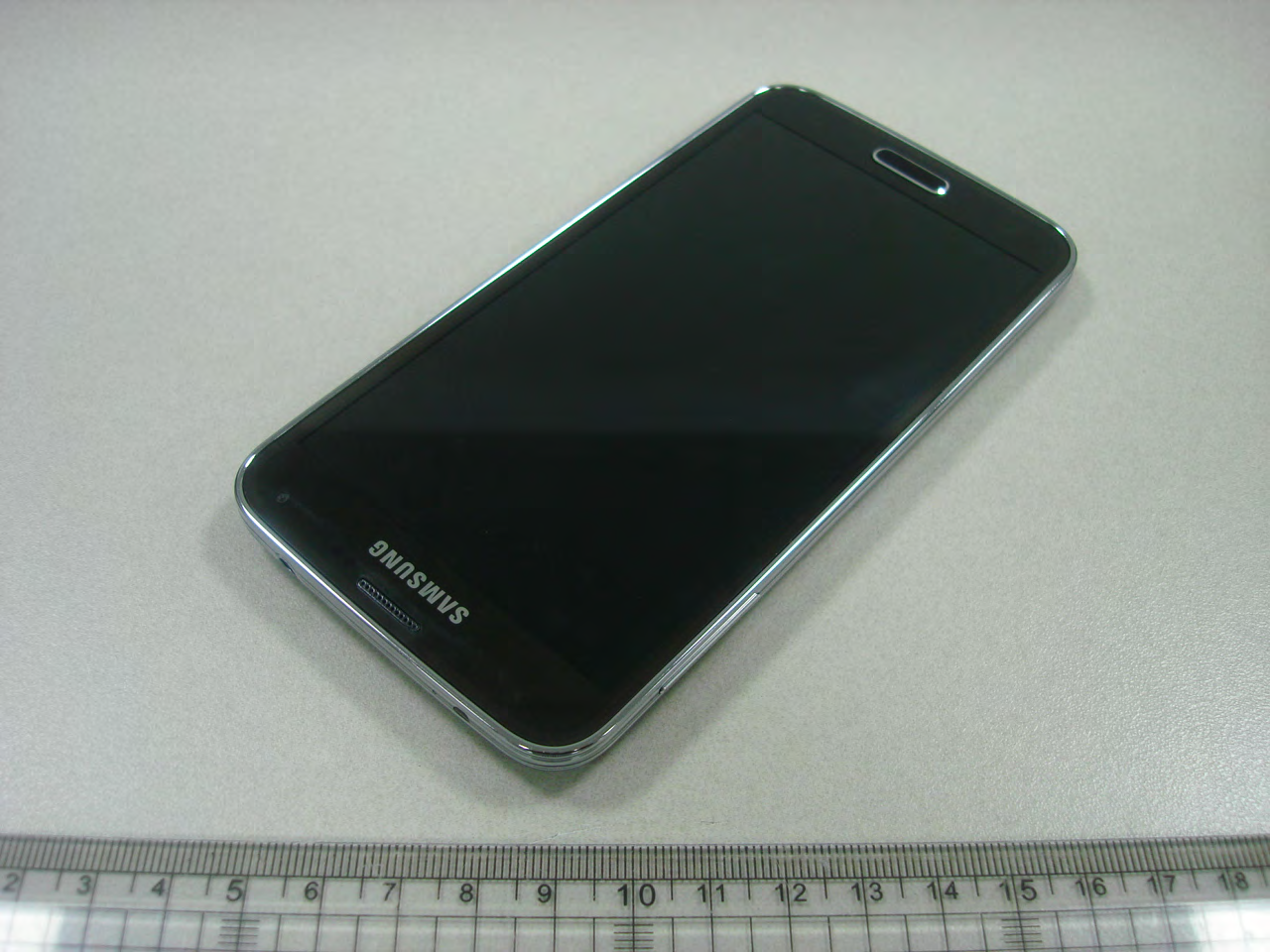

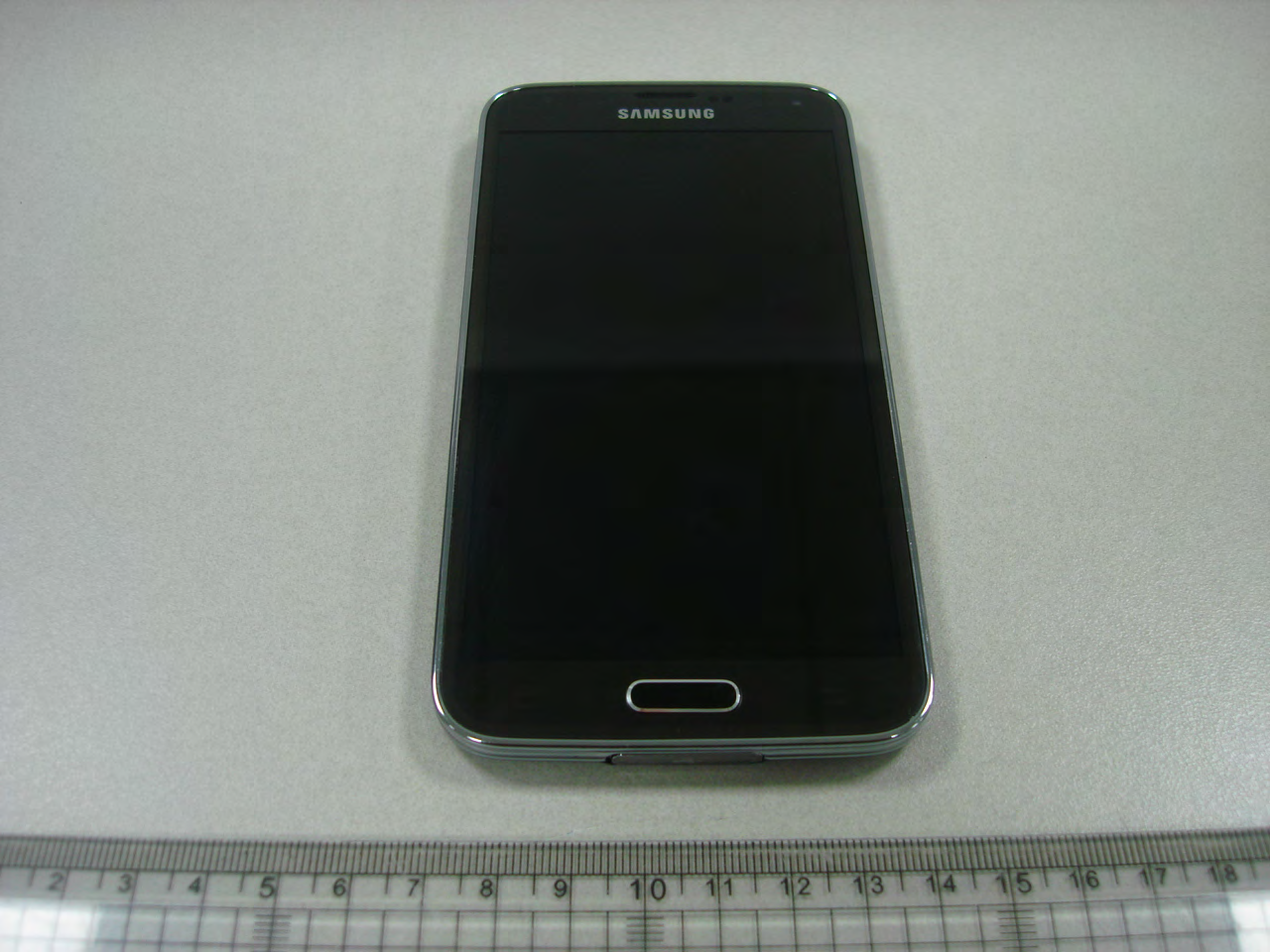

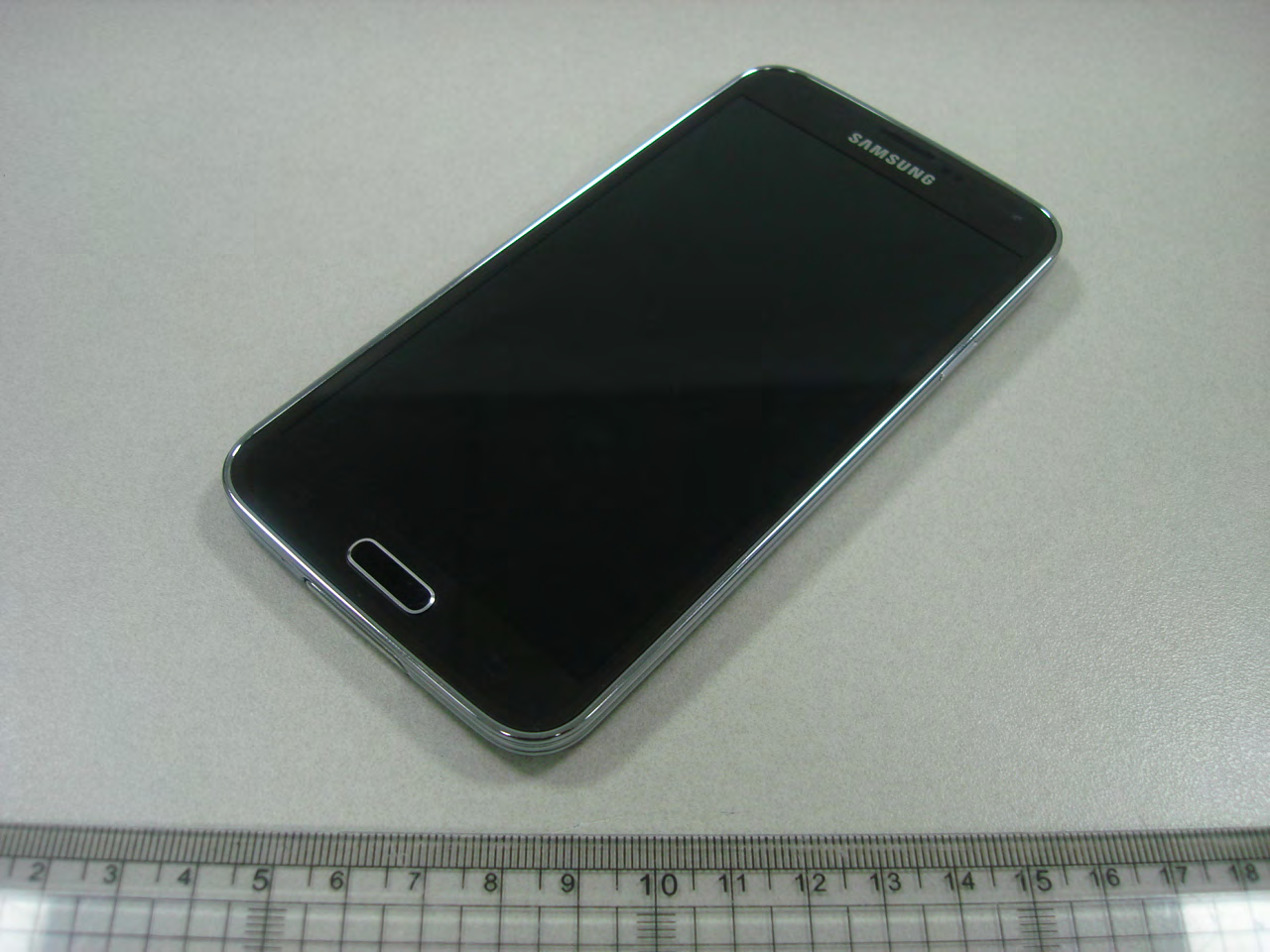

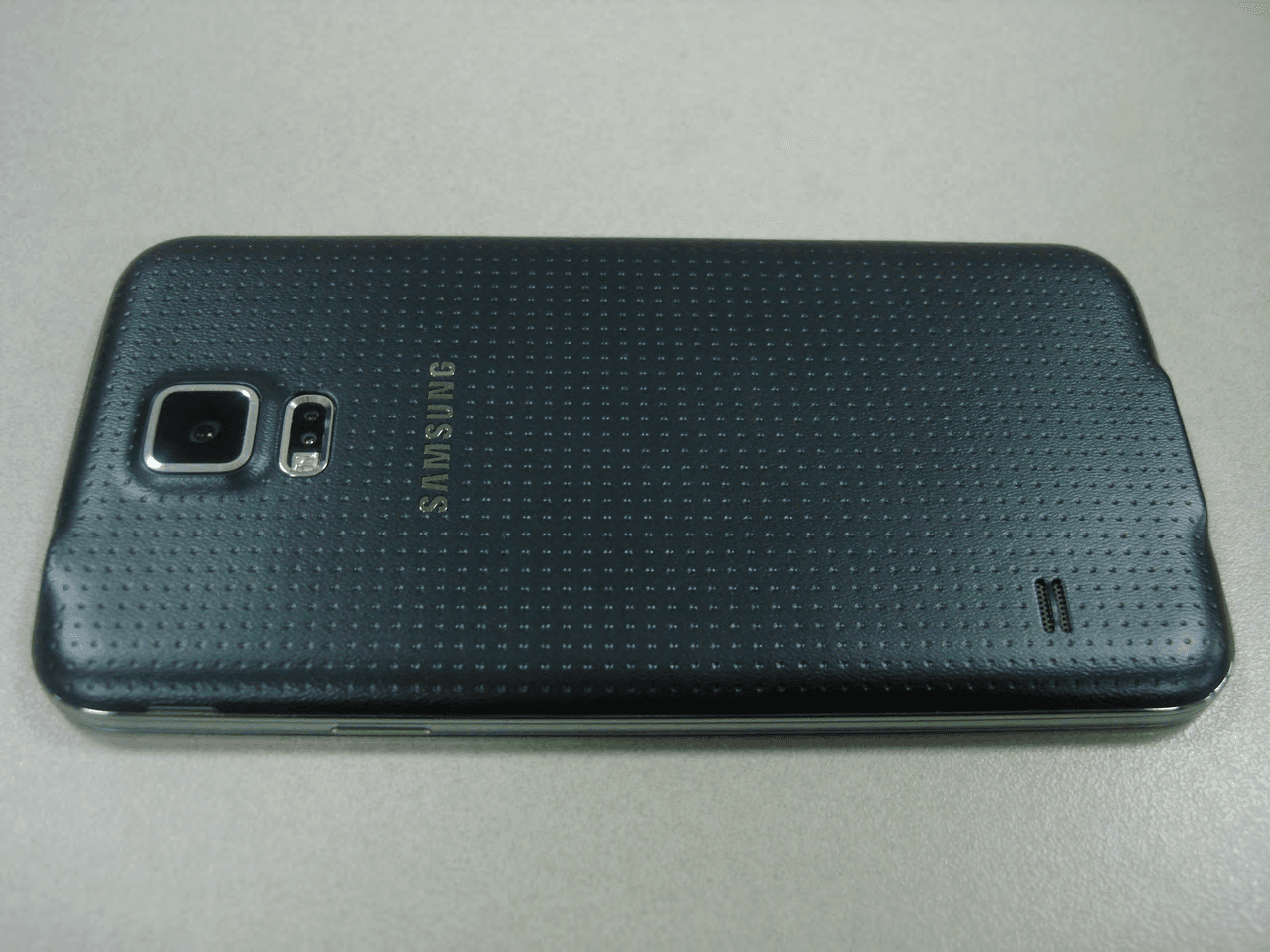

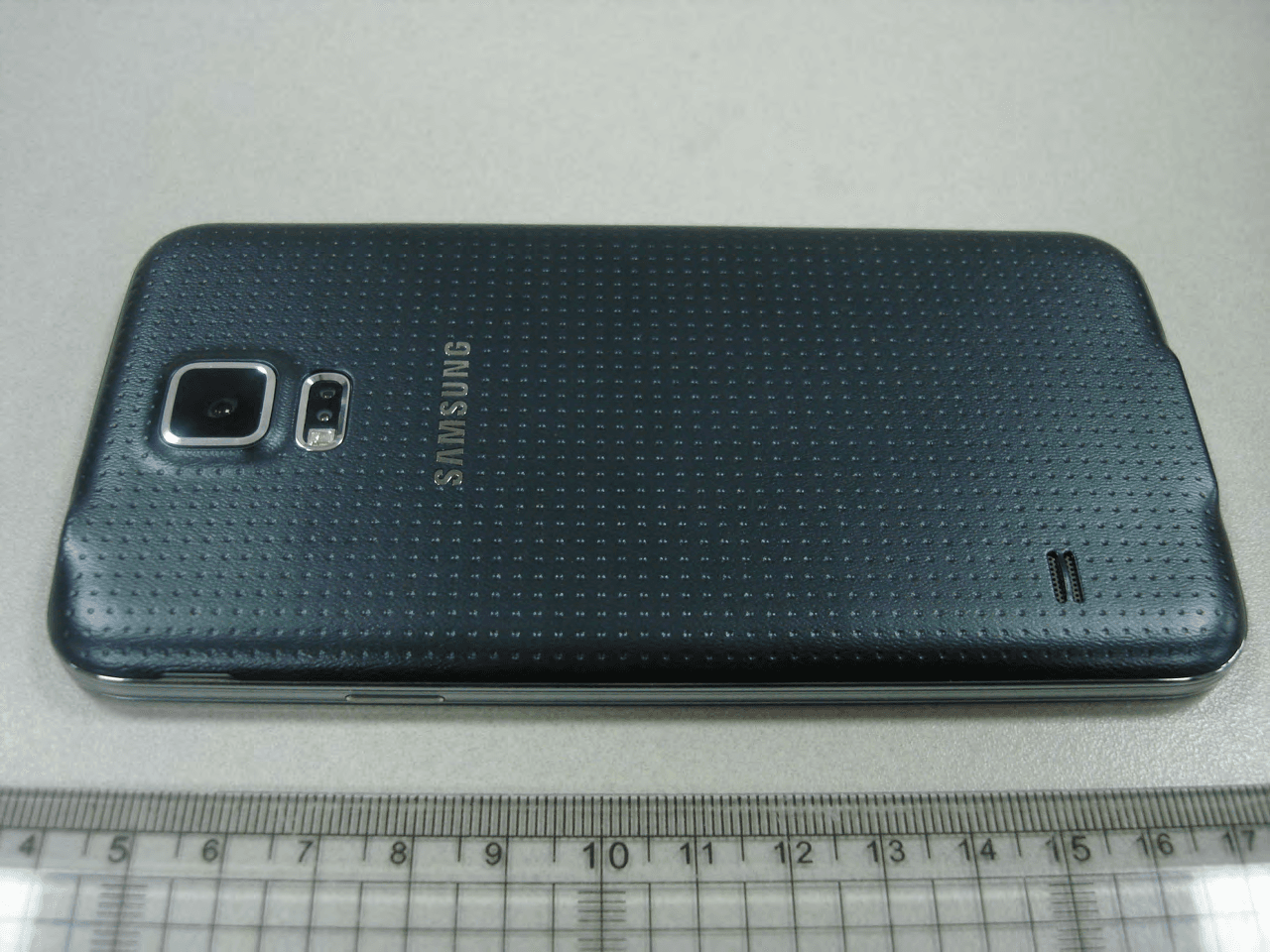

A3LSMG900VMulti-Band GSM/ EDGE/ UMTS/ CDMA/ LTE Phone with WLAN, Bluetooth, RFID and ANT+

ANDROID SMARTPHONE User Manual Please read this manual before operating your phone and keep it for future reference. Intellectual Property All Intellectual Property, as defined below, owned by or which is otherwise the property of Samsung or its respective suppliers relating to the SAMSUNG Phone, including but not limited to, accessories, parts, or software relating there to (the “Phone System”), is proprietary to Samsung and protected under federal laws, state laws, and international treaty provisions. Intellectual Property includes, but is not limited to, inventions (patentable or unpatentable), patents, trade secrets, copyrights, software, computer programs, and related documentation and other works of authorship. You may not infringe or otherwise violate the rights secured by the Intellectual Property. Moreover, you agree that you will not (and will not attempt to) modify, prepare derivative works of, reverse engineer, decompile, disassemble, or otherwise attempt to create source code from the software. No title to or ownership in the Intellectual Property is transferred to you. All applicable rights of the Intellectual Property shall remain with SAMSUNG and its suppliers. Open Source Software Some software components of this product, including but not limited to 'PowerTOP' and 'e2fsprogs', incorporate source code covered under GNU General Public License (GPL), GNU Lesser General Public License (LGPL), OpenSSL License, BSD License and other open source licenses. To obtain the source code covered under the open source licenses, please visit: http://opensource.samsung.com. Disclaimer of Warranties; Exclusion of Liability EXCEPT AS SET FORTH IN THE EXPRESS WARRANTY CONTAINED ON THE WARRANTY PAGE ENCLOSED WITH THE PRODUCT, THE PURCHASER TAKES THE PRODUCT "AS IS", AND SAMSUNG MAKES NO EXPRESS OR IMPLIED WARRANTY OF ANY KIND WHATSOEVER WITH RESPECT TO THE PRODUCT, INCLUDING BUT NOT LIMITED TO THE MERCHANTABILITY OF THE PRODUCT OR ITS FITNESS FOR ANY PARTICULAR PURPOSE OR USE; THE DESIGN, CONDITION OR QUALITY OF THE PRODUCT; THE PERFORMANCE OF THE PRODUCT; THE WORKMANSHIP OF THE PRODUCT OR THE COMPONENTS CONTAINED THEREIN; OR COMPLIANCE OF THE PRODUCT WITH THE REQUIREMENTS OF ANY LAW, RULE, SPECIFICATION OR CONTRACT PERTAINING THERETO. NOTHING CONTAINED IN THE INSTRUCTION MANUAL SHALL BE CONSTRUED TO CREATE AN EXPRESS OR IMPLIED WARRANTY OF ANY KIND WHATSOEVER WITH RESPECT TO THE PRODUCT. IN ADDITION, SAMSUNG SHALL NOT BE LIABLE FOR ANY DAMAGES OF ANY KIND RESULTING FROM THE PURCHASE OR USE OF THE PRODUCT OR ARISING FROM THE BREACH OF THE EXPRESS WARRANTY, INCLUDING INCIDENTAL, SPECIAL OR CONSEQUENTIAL DAMAGES, OR LOSS OF ANTICIPATED PROFITS OR BENEFITS. Modification of Software SAMSUNG IS NOT LIABLE FOR PERFORMANCE ISSUES OR INCOMPATIBILITIES CAUSED BY YOUR EDITING OF REGISTRY SETTINGS, OR YOUR MODIFICATION OF OPERATING SYSTEM SOFTWARE. USING CUSTOM OPERATING SYSTEM SOFTWARE MAY CAUSE YOUR DEVICE AND APPLICATIONS TO WORK IMPROPERLY. YOUR CARRIER MAY NOT PERMIT USERS TO DOWNLOAD CERTAIN SOFTWARE, SUCH AS CUSTOM OS. IF YOUR CARRIER PROHIBITS THIS, IF YOU ATTEMPT TO DOWNLOAD SOFTWARE ONTO THE DEVICE WITHOUT AUTHORIZATION, YOU WILL BE NOTIFIED ON THE SCREEN THAT THE PHONE WILL NO LONGER OPERATE AND BE INSTRUCTED TO POWER DOWN THE DEVICE. YOU MUST THEN CONTACT YOUR CARRIER TO RESTORE THE DEVICE TO THE CARRIER AUTHORIZED SETTINGS. SAFE™ (Samsung Approved For Enterprise) SAFE™: "SAFE™" (Samsung for Enterprise) is a mark for a Samsung device which has been tested against Samsung's own internal criteria for interoperability with certain third party security-related solutions for MDM and VPN. The testing includes field testing with local network connection and menu tree testing which tests functionality of the solutions in conjunction with the Samsung device. During the testing, the device is tested with the security solutions to see if the solutions work with the device as described by the third party security solution providers. The testing, for example, includes field testing with local network connection and menu tree testing which tests functionality of the solutions in conjunction with the Samsung device. For more information about Samsung's SAFE™ program, please refer to www.samsung.com/us/safe. Disclaimer of Warranties: EXCEPT AS OTHERWISE PROVIDED IN THEIR STANDARD END USER LICENSE AND WARRANTY, TO THE FULL EXTENT PERMITTED BY LAW SAMSUNG ELECTRONICS CO., LTD., SAMSUNG TELECOMMUNICATIONS AMERICA, LLC, AND THEIR AFFILIATES (COLLECTIVELY REFERRED TO HEREIN AS THE "SAMSUNG ENTITIES") EXPRESSLY DISCLAIM ANY AND ALL WARRANTIES, EXPRESS OR IMPLIED, INCLUDING ANY WARRANTY OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE, INTEROPERABILITY OR NON-INFRINGEMENT, WITH RESPECT TO INFORMATION TECHNOLOGY SECURITY PROTECTION, SAFE™ DEVICES AND APPLICATIONS TESTED WITH SAFE™ DEVICES. IN NO EVENT SHALL THE SAMSUNG ENTITIES BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL, PUNITIVE, OR CONSEQUENTIAL DAMAGES OF ANY KIND WHATSOEVER WITH RESPECT TO INFORMATION TECHNOLOGY SECURITY PROTECTION, SAFE™ DEVICES OR APPLICATIONS TESTED WITH SAFE™ DEVICES. In addition, information technology security protection will be affected by features or functionality associated with, among other things the e-mail platform, master data management, and virtual private network solutions selected by the software provider, solution provider or user. Choice of an e-mail, master data management, and virtual private network solution is at the sole discretion of the software provider, solution provider or user and any associated effect on information technology security protection is solely the responsibility of the software provider, solution provider or user. For complete statement of limited warranty, please refer to www.samsung.com/us/safe, available on the web and where Samsung smartphone and Galaxy Tab™ devices are sold. [101212] Samsung Telecommunications America (STA), LLC Headquarters: 1301 E. Lookout Drive Richardson, TX 75082 ©…

Text truncated - open the document above for the full version.

Samsung Electronics America, Inc 19 Chapin Rd, Building D. Pine Brook, NJ 07058 Date: February 28, 2014 FCC ID: A3LSMG900V To whom it may concern: We, the undersigned, hereby authorize PCTEST Engineering Laboratory Inc., to act on our behalf in all matters relating to applications for equipment authorization, including the signing of all documents relating to these matters. Any and all acts carried out by PCTEST Engineering Laboratory, Inc. on our behalf shall have the same effect as acts of our own. We also hereby certify that no party to any application is subject to a denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S. C. 862. Sincerely, Signature Sang Kyung (Peter), Ra General Manager Samsung Electronics America, Inc

SAMSUNG ELECTRONICS CO., LTD 129, Samsung-ro,Yeongtong-gu Suwon-si,Gyeonggi-do, 443-742 Korea Feb. 27, 2014 Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 SUBJECT : Label Statement FCC ID : A3LSMG900V Gentlemen: We hereby provide the label statement letter for the above-mentioned device by a new label statement policy of KDB 784748 D01. The label statement is as follows: The FCC ID label is located in the battery compartment. While the battery cover is installed when the unit is shipped from the factory, the battery is never installed prior to sale, so the user must remove the cover in order to install the battery and operate the device. At this time the FCC ID is readily visible to the user. The label is permanently attached by acrylic glue and not easily removed from the device. This statement could not be included in the label. So we inform you of it through this letter. Should you have any questions or comments concerning the above, please contact the undersigned. Sincerely Yours, Seoung Ho Park Senior Manager SAMSUNG ELECTRONICS CO.,LTD Telecommunication Network Business Mobile Communication Division Regulatory Compliance Group.

SAMSUNG ELECTRONICS AMERICA, INC. American QA Lab 19 Chapin Rd, Building D. Pine Brook, NJ 07058 Date: February 28, 2014 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road, Columbia, MD 21046 RE: Request of Confidentiality for FCC ID: A3LSMG900V To Whom It May Concern: Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules (CFR 47), and Section 552 (b) (4) of the Freedom of Information Act, SAMSUNG ELECTRONICS CO.,LTD. hereby requests confidentiality and treatment of certain information accompanying this application. The materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. We are also hereby request Short-Term Confidentiality for 180 days after the grant as outlined in Public Notice DA 04-1705. This provision will give SAMSUNG ELECTRONICS CO.,LTD. temporary confidentiality of commercially sensitive information prior to product release. The requested Permanent and Short-Term Confidential exhibits are listed as follows: PERMANENT AND SHORT-TERM CONFIDENTIAL LIST Exhibit Description PERMANENT 1 Block Diagram 2 Operational Description 3 Schematics SHORT-TERM 4 External Photos 5 Internal Photos 6 Test-Setup Photos 7 Users Manual The Applicant understands that pursuant to Rule 0.457, disclosure of this application and all accompanying documentations, where applicable, will not be made public before the date of the Grant for this application. Sincerely, Peter Ra General Manager American QA Lab SAMSUNG Electronics America INC.

Label and Location Model: SM-G900V FCC ID: A3LSMG900V Label: Location: Top Back of device Bottom Label is placed inside of the battery compartment. Label

FCC ID: A3LSMG900V SAR EVALUATION REPORT Reviewed by: Quality Manager Document S/N: Test Dates: DUT Type: Page 1 of 121 0Y1402030252.A3L 02/03/14 - 02/26/14 Portable Handset © 2014 PCTEST Engineering Laboratory, Inc. REV 13.0 M 12/04/2013 Applicant Name: Date of Testing: Samsung Electronics, Co. Ltd. 02/03/14 - 02/26/14 129, Samsung-ro, Maetan dong, Test Site/Location: Yeongtong-gu, Suwon-si PCTEST Lab, Columbia, MD, USA Gyeonggi-do 443-742, Korea Document Serial No.: 0Y1402030252.A3L FCC ID: A3LSMG900V APPLICANT: SAMSUNG ELECTRONICS, CO. LTD. DUT Type: Portable Handset Application Type: Certification FCC Rule Part(s): CFR §2.1093 Model(s): SM-G900V 1 gm Head (W /kg) 1 gm Body- Worn (W/kg) 1 gm Hotspot (W /kg) PCECell. CDMA/EVDO824.70 - 848.31 MHz0.390.500.59 PCEPCS CDMA/EVDO1851.25 - 1908.75 MHz1.070.360.78 PCEGSM/GPRS/EDGE 850824.20 - 848.80 MHz0.380.530.73 PCEGSM/GPRS/EDGE 19001850.20 - 1909.80 MHz0.310.310.96 PCEUMTS 850826.40 - 846.60 MHz0.330.360.66 PCEUMTS 19001852.4 - 1907.6 MHz0.590.410.89 PCELTE Band 13782 MHz0.350.340.42 PCELTE Band 4 (AWS)1712.5 - 1752.5 MHz0.710.540.86 DTS2.4 GHz WLAN2412 - 2462 MHz0.190.260.26 DTS5.8 GHz WLAN5745 - 5825 MHz0.170.330.33 NII5.2 GHz WLAN5180 - 5240 MHz< 0.10.24< 0.1 NII5.3 GHz WLAN5260 - 5320 MHz< 0.10.23< 0.1 NII5.5 GHz WLAN5500 - 5700 MHz0.220.35< 0.1 DSS/DTSBluetooth2402 - 2480 MHzN/A SAR Band & ModeTx Frequency Simultaneous SAR per KDB 690783 D01v01r02: Equipment Class 1.47 This wireless portable device has been shown to be capable of compliance for localized specific absorption rate (SAR) for uncontrolled environment/general population exposure limits specified in ANSI/IEEE C95.1-1992 and has been tested in accordance with the measurement procedures specified in Section 1.9 of this report; for North American frequency bands only. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. Test results reported herein relate only to the item(s) tested. PCTEST ENGINEERING LABORATORY, INC. 7185 Oakland Mills Road, Columbia, MD 21046 USA Tel. +1.410.290.6652 / Fax +1.410.290.6654 http://www.pctestlab.com SAR EVALUATION REPORT FCC ID: A3LSMG900V SAR EVALUATION REPORT Reviewed by: Quality Manager Document S/N: Test Dates: DUT Type: Page 2 of 121 0Y1402030252.A3L 02/03/14 - 02/26/14 Portable Handset © 2014 PCTEST Engineering Laboratory, Inc. REV 13.0 M 12/04/2013 TABLE OF CONTENTS 1 DEVICE UNDER TEST ...........................................................................................................................3 2 LTE INFORMATION ............................................................................................................................. 12 3 INTRODUCTION .................................................................................................................................. 13 4 DOSIMETRIC ASSESSMENT ............................................................................................................. 14 5 DEFINITION OF REFERENCE POINTS ............................................................................................. 15 6 TEST CONFIGURATION POSITIONS FOR HANDSETS ................................................................... 16 7 RF EXPOSURE LIMITS ....................................................................................................................... 19 8 FCC MEASUREMENT PROCEDURES .............................................................................................. 20 9 RF CONDUCTED POWERS ............................................................................................................... 26 10 LTE POWER REDUCTION ................................................................................................................ 44 11 SYSTEM VERIFICATION .................................................................................................................. 51 12 SAR DATA SUMMARY ...................................................................................................................... 54 13 FCC MULTI-TX AND ANTENNA SAR CONSIDERATIONS ............................................................. 73 14 SAR MEASUREMENT VARIABILITY .............................................................................................. 114 15 EQUIPMENT LIST ........................................................................................................................... 115 16 MEASUREMENT UNCERTAINTIES ............................................................................................... 117 17 CONCLUSION ................................................................................................................................. 119 18 REFERENCES ................................................................................................................................. 120 APPENDIX A: SAR TEST PLOTS APPENDIX B: SAR DIPOLE VERIFICATION PLOTS APPENDIX C: PROBE AND DIPOLE CALIBRATION CERTIFICATES APPENDIX D: SAR TISSUE SPECIFICATIONS APPENDIX E: SAR SYSTEM VALIDATION APPENDIX F: SAR TEST SETUP PHOTOGRAPHS FCC ID: A3LSMG900V SAR EVALUATION REPORT Reviewed by: Quality Manager Document S/N: Test Dates: DUT Type: Page 3 of 121 0Y1402030252.A3L 02/03/14 - 02/26/14 Portable Handset © 2014 PCTEST Engineering Laboratory, Inc. REV 13.0 M 12/04/2013 1 DEVICE UNDER TEST 1.1 Device Overview Cell. CDMA/EVDOVoice/Data824.70 - 848.31 MHz PCS CDMA/EVDOVoice/Data1851.25 - 1908.75 MHz GSM/GPRS/EDGE 850Voice/Data824.20 - 848.80 MHz GSM/GPRS/EDGE 1900Voice/Data1850.20 - 1909.80 MHz UMTS 850Voice/Data826.40 - 846.60 MHz UMTS 1900Voice/Data1852.4 - 1907.6 MHz LTE Band 13Data782 MHz LTE Band 4 (AWS)Data1712.5 - 1752.5 MHz 2.4 GHz WLANData2412 - 2462 MHz 5.8 GHz WLANData5745 - 5825 MHz 5.2 GHz WLANDa…

Text truncated - open the document above for the full version.

© 2014 PCTEST Engineering Laboratory, Inc. APPENDIX C: PROBE CALIBRATION

FCC ID: A3LSMG900V FCC Pt. 15.247 802.11a/b/g/n/ac MEASUREMENT REPORT (CERTIFICATION) Reviewed by: Quality Manager Test Report S/N: Test Dates: EUT Type: Page 62 of 124 0Y1402030255.A3L 01/29-2/20/2014 Portable Handset © 2014 PCTEST Engineering Laboratory, Inc. V 5.0 01/13/2014 6.5 Conducted Emissions at the Band Edge §15.247(d) Test Overview and Limit All out of band emissions are measured with a spectrum analyzer connected to the antenna terminal of the EUT while the EUT is operating at its maximum duty cycle (>98%), at maximum power, and at the appropriate frequencies. All data rates were investigated to determine the worst case configuration. For the following out of band conducted spurious emissions plots at the band edge, the EUT was set at a data rate of 1Mbps for “b” mode, 6 Mbps for “g” mode, 6 Mbps for “a” mode, 6.5/7.2Mbps for 20MHz BW “n” mode, 13.5/15Mbps for 40MHz “n”, and 29.3/32.5Mbps for 80MHz “ac” mode as these settings produced the worst-case emissions. The limit for out-of-band spurious emissions at the band edge is 20dB below the fundamental emission level, as determined from the in-band power measurement of the DTS channel performed in a 100kHz bandwidth per the PSD procedure (Section 9.1). Test Procedure Used KDB 558074 v03r01 – Section 11.3 Test Settings 1. Start and stop frequency were set such that the band edge would be placed in the center of the plot 2. Span was set large enough so as to capture all out of band emissions near the band edge 3. RBW = 100kHz 4. VBW = 1MHz 5. Detector = Peak 6. Number of sweep points ≥ 2 x Span/RBW 7. Trace mode = max hold 8. Sweep time = auto couple 9. The trace was allowed to stabilize Test Setup The EUT and measurement equipment were set up as shown in the diagram below. Figure 6-5. Test Instrument & Measurement Setup Test Notes None FCC ID: A3LSMG900V FCC Pt. 15.247 802.11a/b/g/n/ac MEASUREMENT REPORT (CERTIFICATION) Reviewed by: Quality Manager Test Report S/N: Test Dates: EUT Type: Page 63 of 124 0Y1402030255.A3L 01/29-2/20/2014 Portable Handset © 2014 PCTEST Engineering Laboratory, Inc. V 5.0 01/13/2014 Antenna-1 Conducted Emissions at the Band Edge Plot 6-73. Band Edge Plot (802.11b – Ch. 1) Plot 6-74. Band Edge Plot (802.11b – Ch. 11) FCC ID: A3LSMG900V FCC Pt. 15.247 802.11a/b/g/n/ac MEASUREMENT REPORT (CERTIFICATION) Reviewed by: Quality Manager Test Report S/N: Test Dates: EUT Type: Page 64 of 124 0Y1402030255.A3L 01/29-2/20/2014 Portable Handset © 2014 PCTEST Engineering Laboratory, Inc. V 5.0 01/13/2014 Plot 6-75. Band Edge Plot (802.11g– Ch. 1) Plot 6-76. Band Edge Plot (802.11g – Ch. 11) FCC ID: A3LSMG900V FCC Pt. 15.247 802.11a/b/g/n/ac MEASUREMENT REPORT (CERTIFICATION) Reviewed by: Quality Manager Test Report S/N: Test Dates: EUT Type: Page 65 of 124 0Y1402030255.A3L 01/29-2/20/2014 Portable Handset © 2014 PCTEST Engineering Laboratory, Inc. V 5.0 01/13/2014 Plot 6-77. Band Edge Plot (802.11n (2.4GHz) – Ch. 1) Plot 6-78. Band Edge Plot (802.11n (2.4GHz) – Ch. 11) FCC ID: A3LSMG900V FCC Pt. 15.247 802.11a/b/g/n/ac MEASUREMENT REPORT (CERTIFICATION) Reviewed by: Quality Manager Test Report S/N: Test Dates: EUT Type: Page 66 of 124 0Y1402030255.A3L 01/29-2/20/2014 Portable Handset © 2014 PCTEST Engineering Laboratory, Inc. V 5.0 01/13/2014 Plot 6-79. Band Edge Plot (802.11a – Ch. 149) Plot 6-80. Band Edge Plot (802.11a – Ch. 165) FCC ID: A3LSMG900V FCC Pt. 15.247 802.11a/b/g/n/ac MEASUREMENT REPORT (CERTIFICATION) Reviewed by: Quality Manager Test Report S/N: Test Dates: EUT Type: Page 67 of 124 0Y1402030255.A3L 01/29-2/20/2014 Portable Handset © 2014 PCTEST Engineering Laboratory, Inc. V 5.0 01/13/2014 Plot 6-81. Band Edge Plot (20MHz BW 802.11n (5.8GHz) – Ch. 149) Plot 6-82. Band Edge Plot (20MHz BW 802.11n (5.8GHz) – Ch. 165) FCC ID: A3LSMG900V FCC Pt. 15.247 802.11a/b/g/n/ac MEASUREMENT REPORT (CERTIFICATION) Reviewed by: Quality Manager Test Report S/N: Test Dates: EUT Type: Page 68 of 124 0Y1402030255.A3L 01/29-2/20/2014 Portable Handset © 2014 PCTEST Engineering Laboratory, Inc. V 5.0 01/13/2014 Plot 6-83. Band Edge Plot (40MHz BW 802.11n (5.8GHz) – Ch. 151) Plot 6-84. Band Edge Plot (40MHz BW 802.11n (5.8GHz) – Ch. 159) FCC ID: A3LSMG900V FCC Pt. 15.247 802.11a/b/g/n/ac MEASUREMENT REPORT (CERTIFICATION) Reviewed by: Quality Manager Test Report S/N: Test Dates: EUT Type: Page 69 of 124 0Y1402030255.A3L 01/29-2/20/2014 Portable Handset © 2014 PCTEST Engineering Laboratory, Inc. V 5.0 01/13/2014 Plot 6-85. Band Edge Plot (80MHz BW 802.11ac (5.8GHz) – Ch. 155) Plot 6-86. Band Edge Plot (80MHz BW 802.11ac (5.8GHz) – Ch. 155) FCC ID: A3LSMG900V FCC Pt. 15.247 802.11a/b/g/n/ac MEASUREMENT REPORT (CERTIFICATION) Reviewed by: Quality Manager Test Report S/N: Test Dates: EUT Type: Page 70 of 124 0Y1402030255.A3L 01/29-2/20/2014 Portable Handset © 2014 PCTEST Engineering Laboratory, Inc. V 5.0 01/13/2014 Antenna-2 Conducted Emissions at the Band Edge Plot 6-87. Band Edge Plot (802.11b – Ch. 1) Plot 6-88. Band Edge Plot (802.11b – Ch. 11) FCC ID: A3LSMG900V FCC Pt. 15.247 802.11a/b/g/n/ac MEASUREMENT REPORT (CERTIFICATION) Reviewed by: Quality Manager Test Report S/N: Test Dates: EUT Type: Page 71 of 124 0Y1402030255.A3L 01/29-2/20/2014 Portable Handset © 2014 PCTEST Engineering Laboratory, Inc. V 5.0 01/13/2014 Plot 6-89. Band Edge Plot (802.11g– Ch. 1) Plot 6-90. Band Edge Plot (802.11g – Ch. 11) FCC ID: A3LSMG900V FCC Pt. 15.247 802.11a/b/g/n/ac MEASUREMENT REPORT (CERTIFICATION) Reviewed by: Quality Manager Test Report S/N: Test Dates: EUT Type: Page 72 of 124 0Y1402030255.A3L 01/29-2/20/2014 Portable Handset © 2014 PCTEST Engineering Laboratory, Inc. V 5.0 01/13/2014 Plot 6-91. Band Edge Plot (802.11n (2.4GHz) – Ch. 1) Plot 6-92. Band Edge Plot (802.11n (2.4GHz) – Ch. 11) FCC ID: A3LSMG900V FCC Pt. 15.247 802.11a/b/g/n/ac MEASUREMENT REPORT (CERTIFICATION) Reviewed by: Quality Manager Test Report S/N: Test Dates: EUT Type: Page 73 of 124 0Y1402030255.A3L 01/29-2/20/2014 Portable Handset © 2014 PCTEST Engineering…

Text truncated - open the document above for the full version.

FCC ID: A3LSMG900V FCC Pt. 15.247 802.11a/b/g/n/ac MEASUREMENT REPORT (CERTIFICATION) Reviewed by: Quality Manager Test Report S/N: Test Dates: EUT Type: Page 1 of 124 0Y1402030255.A3L 01/29-2/20/2014 Portable Handset © 2014 PCTEST Engineering Laboratory, Inc. V 5.0 01/13/2014 Applicant Name: Date of Testing: Samsung Electronics, Co. Ltd. 01/29-2/20/2014 129, Samsung-ro, Maetan dong, Test Site/Location: Yeongtong-gu, Suwon-si PCTEST Lab, Columbia, MD, USA Gyeonggi-do 443-742, Korea Test Report Serial No.: 0Y1402030255.A3L FCC ID: A3LSMG900V APPLICANT: Samsung Electronics, Co. Ltd. Application Type: Certification Model(s): SM-G900V EUT Type: Portable Handset FCC Classification: Digital Transmission System (DTS) FCC Rule Part(s): Part 15.247 Test Procedure(s): KDB 558074 v03r01, KDB 648474 D03 v01r02 802.11b2412 - 2462 53.5817.29107.40 20.31 802.11g2412 - 2462 26.6114.25106.41 20.27 802.11n2412 - 2462 24.3713.8793.5419.71 802.11a5745 - 5825 22.0813.4498.1819.92 802.11n (20MHz)5745 - 5825 22.2413.47102.80 20.12 802.11n (40MHz)5755 - 5795 17.5312.4484.1419.25 802.11ac (80MHz)5775 13.8711.4261.9417.92 Mode Tx Frequency (MHz) Avg ConductedPeak Conducted Max. Power (mW ) Max. Power (dBm) Max. Power (mW ) Max. Power (dBm) This equipment has been shown to be capable of compliance with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in KDB 558074 v03r01. Test results reported herein relate only to the item(s) tested. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. PCTEST ENGINEERING LABORATORY, INC. 7185 Oakland Mills Road, Columbia, MD 21046 USA Tel. 410.290.6652 / Fax 410.290.6654 http://www.pctestlab.com MEASUREMENT REPORT FCC Part 15.247 WLAN 802.11a/b/g/n/ac FCC ID: A3LSMG900V FCC Pt. 15.247 802.11a/b/g/n/ac MEASUREMENT REPORT (CERTIFICATION) Reviewed by: Quality Manager Test Report S/N: Test Dates: EUT Type: Page 2 of 124 0Y1402030255.A3L 01/29-2/20/2014 Portable Handset © 2014 PCTEST Engineering Laboratory, Inc. V 5.0 01/13/2014 TABLE OF CONTENTS FCC PART 15.247 MEASUREMENT REPORT ..............................................................................................................................................3 1.0 INTRODUCTION ...................................................................................................................................... 4 1.1 SCOPE ........................................................................................................................................................... 4 1.2 PCTEST TEST LOCATION ............................................................................................................................ 4 2.0 PRODUCT INFORMATION ..................................................................................................................... 5 2.1 EQUIPMENT DESCRIPTION......................................................................................................................... 5 2.2 DEVICE CAPABILITIES ................................................................................................................................. 5 2.3 TEST CONFIGURATION ............................................................................................................................... 6 2.4 EMI SUPPRESSION DEVICE(S)/MODIFICATIONS ...................................................................................... 6 2.5 LABELING REQUIREMENTS ........................................................................................................................ 6 3.0 DESCRIPTION OF TEST ........................................................................................................................ 7 3.1 EVALUATION PROCEDURE ......................................................................................................................... 7 3.2 AC LINE CONDUCTED EMISSIONS ............................................................................................................. 7 3.3 RADIATED EMISSIONS ................................................................................................................................ 8 4.0 ANTENNA REQUIREMENTS .................................................................................................................. 9 5.0 TEST EQUIPMENT CALIBRATION DATA ............................................................................................ 10 6.0 TEST RESULTS .................................................................................................................................... 11 6.1 SUMMARY ................................................................................................................................................... 11 6.2 6DB BANDWIDTH MEASUREMENT – 802.11A/B/G/N/AC ......................................................................... 12 6.3 OUTPUT POWER MEASUREMENT – 802.11B/G/N (2.4GHZ) ................................................................... 33 6.4 POWER SPECTRAL DENSITY (802.11A/B/G/N/AC) .................................................................................. 40 6.5 CONDUCTED EMISSIONS AT THE BAND EDGE ...................................................................................... 62 6.6 CONDUCTED SPURIOUS EMISSIONS ...................................................................................................... 77 6.7 RADIATED SPURIOUS EMISSION MEASUREMENTS .............................................................................. 91 6.8 RADIATED RESTRICTED BAND EDGE MEASUREMENTS .................................................................... 102 6.9 ANTENNA-2 RADIATED RESTRICTED BAND EDGE …

Text truncated - open the document above for the full version.

FCC ID: A3LSMG900V FCC Pt. 15.247 BLUETOOTH (LE) TEST REPORT (CERTIFICATION) Reviewed by: Quality Manager Test Report S/N: Test Dates: EUT Type: Page 1 of 38 0Y1402030258.A3L 01/29-2/20/2014 Portable Handset © 2014 PCTEST Engineering Laboratory, Inc. V 5.0 01/13/2014 Applicant Name: Date of Testing: Samsung Electronics, Co. Ltd. 01/29-2/20/2014 129, Samsung-ro, Maetan dong, Test Site/Location: Yeongtong-gu, Suwon-si PCTEST Lab, Columbia, MD, USA Gyeonggi-do 443-742, Korea Test Report Serial No.: 0Y1402030258.A3L FCC ID: A3LSMG900V APPLICANT: Samsung Electronics, Co. Ltd. Application Type: Certification Model: SM-G900V EUT Type: Portable Handset Max. RF Output Power: 6.863 mW (8.37 dBm) Peak Conducted Frequency Range: 2402 - 2480 MHz FCC Classification: Digital Transmission System (DTS) FCC Rule Part(s): Part 15.247 Test Procedure(s): KDB 558074 v03r01, KDB 648474 D03 v01r02 This equipment has been shown to be capable of compliance with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in KDB 558074 v03r01. Test results reported herein relate only to the item(s) tested. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. PCTEST ENGINEERING LABORATORY, INC. 7185 Oakland Mills Road, Columbia, MD 21046 USA Tel. 410.290.6652 / Fax 410.290.6654 http://www.pctestlab.com MEASUREMENT REPORT FCC PART 15.247 Bluetooth (Low Energy) FCC ID: A3LSMG900V FCC Pt. 15.247 BLUETOOTH (LE) TEST REPORT (CERTIFICATION) Reviewed by: Quality Manager Test Report S/N: Test Dates: EUT Type: Page 2 of 38 0Y1402030258.A3L 01/29-2/20/2014 Portable Handset © 2014 PCTEST Engineering Laboratory, Inc. V 5.0 01/13/2014 TABLE OF CONTENTS FCC PART 15.247 MEASUREMENT REPORT .................................................................................................. 3 1.0 INTRODUCTION …

Text truncated - open the document above for the full version.
