A3LSMH19CMicrowave Oven

Code No. : DE68-00356D Microwave OvenOwner’s Manual SMH7175WC / BC / CCSMH7195WC / BC / CC 2 S AVE T HESE I NSTRUCTIONS Safety P RECAUTIONS TO A VOID P OSSIBLE E XPOSURE TO E XCESSIVE M ICROWAVE E NERGY : (a) Do not attempt to operate this oven with the door open since open-door operation can result in harmful exposure to microwave energy. It is important not to defeat or tamper with the safety interlocks. (b) Do not place any object between the oven front face and the door or allow soil or cleaner residue to accumulate on sealing surfaces. (c) Do not operate the oven if it is damaged. It is particularly important that the oven door close properly and that there is no damage to the 1) Door (bent or dented), 2) Hinges and latches (broken or loosened), 3) Door seals and sealing surfaces. (d) The oven should not be adjusted or repaired by anyone except properly qualified service personnel. WARNINGAlways observe Safety Precautions when using your oven. Never try to repair the oven on your own – there is dangerous voltage inside. If the oven needs to be repaired, call 1-800-SAMSUNG for the name of an authorized service center near you. I MPORTANT S AFETY I NSTRUCTIONS When using any electrical appliance, basic safety precautions should be followed, including the following: WARNINGTo reduce risk of burns, electric shock, fire, personal injury or exposure to excessive microwave energy: • Read all safety instructions before using the appliance.• Read and follow the specific “ PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY ” on this page. • This appliance must be grounded. Connect only to properly grounded outlets. See “ IMPORTANT GROUNDING INSTRUCTIONS ” on page 4 of this manual. • Install or place this appliance only in accordance with the installation instructions provided. • Some items, like whole eggs and food in sealed containers, may explode if heated in this oven. • Use this appliance only for its intended use as described in the manual. Do not use corrosive chemicals or vapors in this appliance. This type of oven is specifically designed to heat, cook, or dry food. It is not designed for industrial or laboratory use. • As with any appliance, close supervision is necessary when used by children. • Do not operate this appliance if it has a damaged cord or plug, if it is not working properly, or if it has been damaged. • This appliance should be serviced only by qualified service personnel. Contact the nearest authorized service facility for examination, repair, or adjustment. • Do not cover or block any of the openings on this appliance. 3 S AVE T HESE I NSTRUCTIONS Safety Important Safety Inst ructions, continued • Do not store this appliance outdoors. Do not use near water – for example, near a kitchen sink, in a wet basement, or near a swimming pool, etc. • Keep the inside of the oven clean. Food particles or spattered oils stuck to the oven walls or floor can cause paint damage and reduce the efficiency of the oven. • Do not immerse cord or plug in water.• Keep cord away from heated surfaces.• Do not let cord hang over edge of table or counter.• When cleaning door and oven surfaces, use only mild, nonabrasive soaps or detergents applied with a sponge or soft cloth. • To reduce the risk of fire in the oven: a. Do not overcook food. Watch appliance carefully if paper, plastic, or other combustible materials are inside. b. Remove wire twist-ties from plastic cooking bags before placing bags in oven. c. If materials inside the oven ignite, keep the oven door closed, turn the oven off, disconnect the power cord, or shut off the power at the fuse or circuit breaker panel. d. Do not use the oven compartment for storage purposes. Do not leave paper products, cooking utensils, or food in the oven when not in use. • Do not try to preheat oven or operate while empty.• Do not cook without the glass tray in place on the oven floor. Food will not cook properly without the tray. • Do not defrost frozen beverages in narrow-necked bottles. The containers can break. • Dishes and containers can become hot. Handle with care.• Carefully remove container coverings, directing steam away from hands and face. • Remove lids from baby food before heating. After heating baby food, stir well and test temperature by tasting before serving. • Do not operate any other heating or cooking appliance beneath this appliance. • Do not mount over a sink.• Do not store anything directly on top of the appliance when it is in operation. • If materials inside oven should ignite, keep the oven door closed, turn the oven off and disconnect the power cord, or shut off power at the fuse or circuit breaker panel. If the door is opened, the fire may spread. • This over-the-range oven was designed for use over ranges no wider than 76.2 cm(30 inches). It may be installed over both gas and electric cooking equipment. 4 S AVE T HESE I NSTRUCTIONS Safety I MPORTANT G ROUNDING I NSTRUCTIONS This appliance must be grounded. In the event of an electrical short circuit, grounding reduces the risk of electric shock by providing an escape wire for the electric current. This appliance is equipped with a power cord having a grounding wire with a grounding plug. The plug must be plugged into an outlet that is properly installed and grounded. WARNINGImproper use of the grounding plug can result in a risk of electric shock.Consult a qualified electrician or servicer if you do not understand the grounding instructions or if you are not sure if the appliance is properly grounded.Do not use an extension cord with this appliance. If the power cord is too short, have a qualified electrician or service technician install an outlet near the appliance.WARNINGDo not cut or remove the third (ground) prong from the power cord under any circumstances. NOTEConnect the oven only to a 20A or over dedicated circuit. THE VENT FANThe fan will operate automatica lly under certain conditions (see page 15).Take care to prevent the starting and spre…

Text truncated - open the document above for the full version.

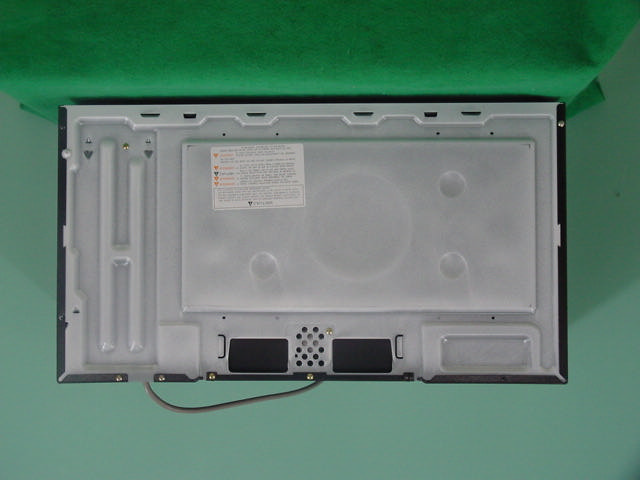

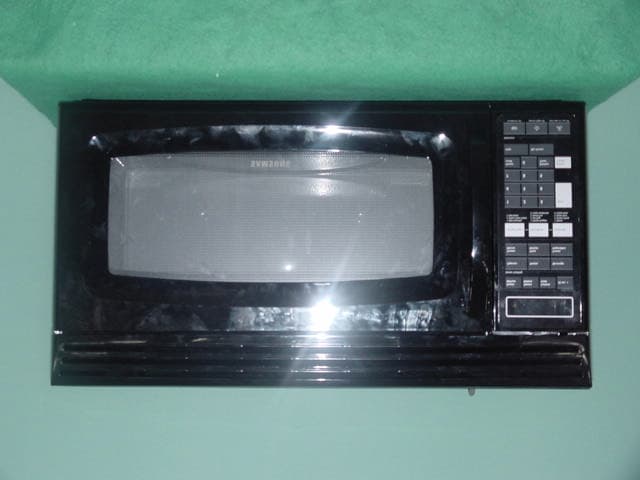

Externalview

FCCIDLocation Internalview HOUSEHOLD MICROWAVE OVEN 416 MAETAN-DONG, SUWON, KOREA THIS PRODUCT COMPLIES WITH DHHS RULES 21 CFR SUBCHAPTER J. gplymnnnnn SMH7195WC kW A3LSMH19C MADE IN KOREA DECEMBER-2002 MICROWAVE fgplymnnnnnc MANUFACTURED : FCC ID : 1.65 12060Vac Hz SEC MODEL No. SERIAL No.

FCCIDLocation Internalview

2 1 COMPANY NAME AG Time Changed: 11 12 DC Date Changed: EB 5 A City R&D CHK: 12 G Address 34 Changed by: H 91011 Engineer: BCD RA-SOTR2 A2 12 1 8 A 89 Drawn by: 7 DOC CTRL CHK: H QA CHK: F EF 7 MFG ENGR CHK: 10 3 2 Size: 456 1 Drawing Number: Page: 8 6 TITLE: REV: Tuesday, August 6, 2002 3:07:21 pm HC.KIMHC.KIM 1 20K C01 1000uF MM4148D17 F2 R07 DGND -24V R55100K ZMM55CV1 ZD01 D02 GF1G R4547K DGND +5V 1nFC25 GS1G R4347K D04 RY05FTR-JRJB024W R32 1K C201nF R18 1K 517 MM4148D07 234 SMW250-07AV_REDCN02 3 5V-1 CN05 SMW250-04V_RED 1 5V-1 +5V R25470K 470R27 DAC1 DB4DW P2 7 16 P314 P417 P5 P6 4 P7 5 P8 6 P9 8 DGND 2 F21 32 F22 33 NP-1 20NP-2 21NP-3 22NP-4 23 P1 1118 P10 P11 9 P12 10 P13 1319 P1415 P15 P16 12 DSP1 SVM-07SS25 24 1G25 2G26 3G27 4G28 5G29 6G30 7G F11 1 F12 R31470 4 TLP-560J PT01 123 46 SMW250-04V_WHT CN03 123 R50 47uF C08 47K KRC246 TR13 -24V TR14 KRA226 MM4148D19 47KR42 +5V DGND D01GS1G DGND KRA226 TR11 470KR28 MM4148D12 R54 DGND 1K R33 MM4148D10 1K 1KR39 +5V KRC246 TR07 4.7uFC09 DGND 1nFC21 C04470uF 1nFC27 R5719.1K DGND R53 47K MM4148D21 T835-600B TAC1 T1 T2 DGND ZD03 ZMM55CV1 DGND TAC2 T835-600B T1 T2 DGND 47uFC03 DGND 3.3KR30 4.7nF C17 470 R01 GS1GD05 DGND +5V +5V D03 DGND DGND TR01KRC246 2 GND IN 5NC 3 OUT 4 VCC 1 GS1G 123 IC04 DISA8115 C15 SMW250-03V_WHT CN04 1K R36 100nF +5V KRA226 TR03 47K R48 R19 10K TR15KRC246 TR04 KRC246 +5V KRC246 TR05 1nF 47KR44 C26 DGND KRC246 TR08 DGND DGND R11180 DGND C19 100nF 24LC04B IC05 12345 678 MM4148D15 YR02FTR-F3AA024E MM4148 DGND 1K R15 D11 R121K 5826 VSS 19 Vkk X-IN 2728 X-OUT 1K R35 P82 13 P83 14 P84 1516 P85P86 1718 P87 RESET 29 TEST 2557 VArefVAss 56 VDDP67 3 P70P71 45 P72P73 67 P74P75 89 P76P77 10 P80 1112 P81P54P55 64 P56 1 P57 2 P60 48 49 P61 50 P62P63 5152 P64 53 P65 P66 5455 P21 3031 P22P30 2421 P31P32 2223 P33 59 P50P51 6061 P52P53 626346 P06P07 47 P10 32 P11 42 P12 4334 P13 33 P14P15 3536 P16P17 3720 P20 TMP87PM14FIC01 P00 39 P01 38 P02 4041 P03 44 P04P05 45 1516 2345678 9 1 10 11 1213 14 D09MM4148 CN0612516HS-16 C05100uF GND IN OUT C13100nF KIA7033F IC03 PTC1270M FTR-JRJC024WRY06 DGND DGND +24V 100uFC02 R41 20K 1KR29 DGND R241K 46 FTR-F3AA024E RY04 +5V PT02 TLP-560J 123 3 1K R22 +5V F1 SPC-717M PC01 64 1 R14 10K DGND R26 3.3K ZD02 ZMM55CV1 C14 100nF 80.6K R34 1K R21 3 - 2 1 D16MM4148 KIA358FIC06 Vcc=+12V,GND=DGND + 2K C221nF 1KR05 +5V R37 22uFC06 KRC246 TR09 47K R46 GS1G D06 DGND +5V 10KR17 100nF D20MM4148 +5V +24V C18 R51 47K SMW250-03AV_REDCN? 13 R061K KRC246 DGND 678 MM4148 LVT1SLV-1350U(P) 132 54 220 R13 F2 R59200K D22MM4148 DGND TR06 KRC246 R041K C16 4.7nF +5V R2013K FTR-F3AA024E 2K 100K DGND YR03FTR-F3AA024E TR10 KRA226 R23 R40 1K 100K TR12 KRC246 47K R52 R38 100nF 100nF C10 F1 C11 10K R03 DGND R56100K CN?SMW250-09V_RED 123456789 R10 DGND ZNR110D471 180 R5826.1K DGND -24V +24V R09180 100nFC12 DGND CBE2220BA BZ01 DGND DGND DGND DGND MM4148D08 R16 KRC246 TR02 +5V +12V DGND 1K DGND DGND XTL18MHz DGND R49 47K D18MM4148 R47 47K D14MM4148 +24V R02 470 DGND MM4148 D13 IN OUT 1nFC23 KA7805A IC02 GND RY01 C241nF FTR-F3AA024E 180 R08 C0710uF DGND +5V

JOB Number : LBE030176 Page 1 of 14 EMC TEST REPORT According to FCC CFR47 Part 18 Subpart C JOB Number : LBE030176 1. This test reports does not constitute an endorsement by NIST/NVLAP or U.S Government. 2. This test report is to certify that the tested device properly complies with the requirements of FCC Rules and Regulations Part 18 CFR47 Subpart C Intentional Radiators. All tests necessary to show compliance to the requirements were and these results met the specifications requirement. 1. Applicant Name :SAMSUNG ELECTRONICS CO., LTD. 416 Maetan 3 Dong, Paldal-Ku, Suwon City, Kyungki Do, Korea, 442-742 2. Identification of tested device 2.1 FCC ID :A3LSMH19C 2.2 Device Name :MICROWAVE OVEN 2.3 Trade Name :SAMSUNG Electronics Co.,Ltd. 2.4 Model Number :SMH7195WC 2.5 RF Output Power :1100W (by IEC 705 method) 3. Test Procedure and Items 3.1 FCC/OST MP-5 : 1986 4. Issued Date : Tested by: Jay Yong, PARK / Test Engineer Reviewed by: No Cheon, PARK / Manager of EMC Lab. Authorized by: Kyu Baek, JEONG / Chief of EMC Lab. This reports shall not be reproduced except in full, without the written approval of SEC EMC Testing laboratory. This laboratory is registered by the NIST/NVLAP, U.S.A. The test reported herein have been performed in accordance with its terms of registration. NVLAP LAB CODE 200447-0 JOB Number : LBE030176 Page 2 of 14 TABLE OF CONTENTS 1. Product Description 2. Test Facility 3. Accreditation and Listing 4. Radio Noise Emission Measurement Procedures/Results 4.1 Radiation Hazard Measurement 4.2 Input Power Measurement 4.3 RF Output Power Measurement 4.4 Operation Frequency Measurement 4.4.1 Variation in Operating Frequency with Time Measurement 4.4.2 Variation in Operating Frequency with Voltage Measurement 4.4.3 Variation in Operating Frequency with Time Plot 4.4.4 Variation in Operating Frequency with Voltage Plot(96Vac) 4.4.5 Variation in Operating Frequency with Voltage Plot(120Vac) 4.4.6 Variation in Operating Frequency with Voltage Plot(150Vac) 4.5 Radiated Emission Measurement 4.5.1 Radiated Emission Measurement Procedure 4.5.2 Radiated Emission Measurement Configuration 4.5.3 Radiated Emission Measurement Data(30 - 1000MHz) 4.5.4 Radiated Emission Measurement Data(1 - 25GHz) 5. Measurement Equipment List This reports shall not be reproduced except in full, without the written approval of SEC EMC Testing laboratory. JOB Number : LBE030176 Page 3 of 14 1. Product Description The equipment under test is a microwave oven sold for consumer use. Model :SMH7195WCis a1100W microwave oven with digital controls. Installation Type: Over-the range < Magnetron > Model : OM-75P manufactured by Samsung Electronic Co., Ltd. 2. Test Facility The Semi-anechoic chamber and Conducted measurement facilities used to collect the radiated data are located at 416 Maetan 3 Dong, Paldal-Ku, Suwon City, Kyungki Do, Korea. The sites are constructed in conformance with the requirements of ANSI C63.4 and CISPR Publication 22. 3. Accreditation and Listing The test facilities used to perform radiated and conducted emissions tests are accrediated by National Voluntary Laboratory Accreditation Program for the specific of accreditation under Lab Code: 200447-0 to perform Electromagnetic Interference tests according to FCC PART 15 and CISPR 22 requirements. No part of this report may be used to claim or imply product endorsement by NVLAP or any agency of the US Government. In addition, the test facilities are listed with Federal Communications Commission(Registration Number:98856, Anechoic Chamber #1). This reports shall not be reproduced except in full, without the written approval of SEC EMC Testing laboratory. JOB Number : LBE030176 Page 4 of 14 4. Radio Noise Emission Measurement Procedures/Results 4.1 Radiation Hazard Measurement A 700-ml water load was placed in the center of the oven. The power setting was set to maximum power. While the oven was operating, the Microwave Survey Meter probe was moved slowly around the door seams to check for leakage. The results of this test are as follows. ProbeMaximum LeakageLimit Location[mW/Cm2][mW/Cm2] 10.101.0 50.001.0 70.001.0 All others0.051.0 This reports shall not be reproduced except in full, without the written approval of SEC EMC Testing laboratory. 1 2 3 4 5 6 7 8 9 JOB Number : LBE030176 Page 5 of 14 4.2 Input Power Measurement Input power and current were measured using a Power Analyzer. A 700ml water load was placed in the center of the oven and the oven set to maximum power. A 700 ml water load was chosen for its compatibility. Manufacturers to determine their input ratings commonly use this procedure. Fig. 2 Test Setup for Input power The results of this test are as follows. InputInputMeasuredEUT Spec. VoltageCurrentInput powerInput power [Vac][amps][watts][watts] 12014.3416801650 Based on the measured input power, the EUT was found to be operating within the intended specifications. This reports shall not be reproduced except in full, without the written approval of SEC EMC Testing laboratory. JOB Number : LBE030176 Page 6 of 14 4.3 RF Output Power Measurement The Caloric Method was used to determine maximum output power. The initial temperature of a 1000-ml water load was measured. The water load was placed in the center of the oven. The oven was operated at maximum output power for 120 seconds. Then the temperature of the water re-measured. Fig.3 Test Setup for RF output power QuantityStartingFinalElapsedRF Power of waterTemperatureTemperatureTime [ml][centigrade][centigrade][seconds][watts] 10001033.5120820.0 10001033.2120809.5 10001033.4120816.5 815.3 Power = (4.187 Joules/Cal) x (Volume in ml) x (Temp. Rise) Time in seconds The measured output was found to be ABOVE 500Watts. Therefore, in accordance with section 18.305 of Subpart C, the measured out-of-band emissions were compared to the 25xSQRT(power/500)[uV/m] @ 300M limit. This reports shall not be reproduced except in full, without the written approval of SEC EMC Testing laboratory. A…

Text truncated - open the document above for the full version.

JOB Number : LBE030176 Page 4 of 14 4. Radio Noise Emission Measurement Procedures/Results 4.1 Radiation Hazard Measurement A 700-ml water load was placed in the center of the oven. The power setting was set to maximum power. While the oven was operating, the Microwave Survey Meter probe was moved slowly around the door seams to check for leakage. The results of this test are as follows. ProbeMaximum LeakageLimit Location[mW/Cm2][mW/Cm2] 10.101.0 50.001.0 70.001.0 All others0.051.0 This reports shall not be reproduced except in full, without the written approval of SEC EMC Testing laboratory. 1 2 3 4 5 6 7 8 9 JOB Number : LBE030176 Page 5 of 14 4.2 Input Power Measurement Input power and current were measured using a Power Analyzer. A 700ml water load was placed in the center of the oven and the oven set to maximum power. A 700 ml water load was chosen for its compatibility. Manufacturers to determine their input ratings commonly use this procedure. Fig. 2 Test Setup for Input power The results of this test are as follows. InputInputMeasuredEUT Spec. VoltageCurrentInput powerInput power [Vac][amps][watts][watts] 12014.3416801650 Based on the measured input power, the EUT was found to be operating within the intended specifications. This reports shall not be reproduced except in full, without the written approval of SEC EMC Testing laboratory. JOB Number : LBE030176 Page 6 of 14 4.3 RF Output Power Measurement The Caloric Method was used to determine maximum output power. The initial temperature of a 1000-ml water load was measured. The water load was placed in the center of the oven. The oven was operated at maximum output power for 120 seconds. Then the temperature of the water re-measured. Fig.3 Test Setup for RF output power QuantityStartingFinalElapsedRF Power of waterTemperatureTemperatureTime [ml][centigrade][centigrade][seconds][watts] 10001033.5120820.0 10001033.2120809.5 10001033.4120816.5 815.3 Power = (4.187 Joules/Cal) x (Volume in ml) x (Temp. Rise) Time in seconds The measured output was found to be ABOVE 500Watts. Therefore, in accordance with section 18.305 of Subpart C, the measured out-of-band emissions were compared to the 25xSQRT(power/500)[uV/m] @ 300M limit. This reports shall not be reproduced except in full, without the written approval of SEC EMC Testing laboratory. Average RF Power of 3 Trials
