A3LSMJ7008GSM/WCDMA/LTE Phone + Bluetooth, WLAN 2.4GHz b/g/n, ANT+ & NFC

User manual SM-J7008 Draft Important safety precautions Failure to comply with the following precautions may be dangerous or illegal. Copyright information ● Bluetooth? is a registered trademark of the Bluetooth SIG, Inc. worldwide. ● JavaTM is a trademark or registered trademark of Sun Microsystems, Inc. ● Picsel and Picsel ViewerTM are trademarks of Picsel Technologies, Inc. Drive safely at all times Do not use a hand-held phone while driving. Park your vehicle first. Switch off the phone when refuelling Do not use the phone at a refuelling point (service station) or near fuels or chemicals. Switch off in an aircraft Wireless phones can cause interference. Using them in an aircraft is both illegal and dangerous. Switch off the phone near all medical equipment Hospitals or health care facilities may be using equipment that could be sensitive to external radio frequency energy. Follow any regulations or rules in force. Interference All wireless phones may be subject to interference, which could affect their performance. Be aware of special regulations Meet any special regulations in force in any area and always switch off your phone whenever it is forbidden to use it, or when it may cause interference or danger. Water resistance Your phone is not water-resistant. Keep it dry. Sensib Use on antenna Emerg Key in t Keep y Keep th Acces Use on cables. be dan g Qualifi Only qu For mo • The • Disp ble use ly in the no a when the gency call the emerge your phon he phone a ssories an ly Samsun Use of any gerous. ied servic ualified serv ore detailed e phone could pose of used Exce Alwa y use o ormal positi e phone is s ls ency numbe ne away f and all its pa d batterie g-approved y unauthori ce vice person safety info d explode if th batteries acc ssive exposu ys turn the vo only the minim on (held to switched on er for your from smal arts, includi es d batteries ised access nnel may re ormation, se he battery is r cording to the re to sound a olume down b mum volume s your ear). n. present loc ll children ing access and access sories coul epair your p ee ¡°Health replaced with e manufacture at high volum before pluggi setting neces Avoid unne cation, then ories, out o sories, such d damage y phone. h and safety an incorrect eri’s instructio es can cause ng the earph ssary to hear ecessary co n press [ of the reach h as heads you or your y informatio type. ons. e hearing dam ones into an your conve ontact with ]. h of small c sets and PC r phone an on¡± on pag mage. audiosource rsation or m u the hildren. C data d may ge 20. and usic. Un Make s • Phon e • Adapt • Stereo • Batter • Batter • User’ Suit for e You ca • Multi a • Trave • Car ch • PC da • Portab • Portab • Music • Blueto Ge First s Insta 1. Inst a T 2. Plug 3. Plug 4. When adap 5. Rem Low When t • a war • the b a • the em If the ba battery npac sure you ha e ter o headset ry ry travel ho s manual table Adapter each country n obtain the adapter el charger harger ata cable ble battery ble PC data c controller ooth mono/ et st steps to all and c all the batte To remove th the adapte the adapte n the phone pter from the ove the ada battery the battery ning tone s attery low m mpty batter attery level . ck ave each ite older r or Charger, y in use. e following kit a cable / stereop he tarte operate charge t ery: he battery, s er into the p er into a sta e is comple e power ou apter from indicat is low: sounds, message dis ry icon [ becomes t em , certified acc accessorie eadset kit ed your ph the pho lide the batt phone. andard AC w etely charge utlet. the phone. or splays, and ] blinks. too low, the cording to th es for your one ne tery catch to wall outlet. ed (the batt d e phone au e relevant sa phone from oward the top tery icon st utomatically afety standar m your local p of the pho tops blinkin y turns off. rd, will be pro l Samsung ne and hold ng), unplug Recharg e ovided dealer. d it. the e your Keys and display Buttons Function Power • Press and hold to turn the device on or off. • Press and hold for more than 7 seconds to reset the device if it has fatal errors or hang-ups, or freezes. • Press to lock or unlock the device. The device goes into lock mode when the touch screen turns off. Menu • Tap to open a list of options available for the current screen. • Tap and hold on the Home screen to launch Google application. Home • Press to return to the Home screen. • Press twice to launch S Voice application. • Press and hold to open the list of recent applications. Back • Tap to return to the previous screen. Volume • Press to adjust the device volume. Overview of menu functions To access Menu mode, press [환경설정] in ldle mode. T service ChatON Maps Call log Samsung Link Local Phone Group Play Navigation Contacts S Health Downloads Messaging S Voice Optical Reader Samsung Hub S Memo Messenger Samsung Apps S Translator Play Books WatchON Email Play Movies & TV Camera Shopping & wallet T nao Gallery T cloud App Guide Story Album hoppin T Membership DMB MelOn Remote Care T store Chrome T world T LTE Pack Gmail 11st Music Google SmartWallet Video Voice Search NATE Internet YouTube Calculator Clock Talk Voice Recorder S Planner Google+ Dictionary Settings Play Store My Files B tv mobile Pickat Basket Cyworld SmartTouch Cymera NateOnUC Dropbox Samsung service V3 Mobile 2.0 Help Google Settings Solve problems Help and personal needs To save the time and expense of an unnecessary service call, perform the simple checks in this section before contacting a service professional. When you switch on your phone, the following messages may appear: “Insert USIM card” • Be sure that the USIM card is correctly installed. “Phone locked Enter password” • The automatic locking function has been enabled. You must enter the phone¡ ̄s password before you can use the phone. “Enter PIN1” • You are using your phone for the first time. You must enter the PIN1 supplied with the USIM card. • The PIN1 Check feature is enabled. Every time the phone is switched on, the…

Text truncated - open the document above for the full version.

May 8, 2015 Federal Communications Commission 7435 Oakland Mills Road Columbia MD 21046 Subject: Request for Confidentiality FCC ID: A3LSMJ7008 To Whom It May Concern: Pursuant to the provisions of Sections 0.457 and 0.459 of the Commission’s rules (47 CFR §§ 0.457, 0.459), we are requesting the Commission to withhold the following attachments as confidential document from public disclosure indefinitely. Schematics Block Diagram Operational Description Antenna Specification Parts List Tune-Up Procedure Above mentioned document contains detailed system and equipment description are considered as proprietary information in operation of the equipment. The public disclosure of above documents might be harmful to our company and would give competitor an unfair advantage in the market. In additional to above mentioned documents, pursuant to Public Notice DA 04-1705 of the Commission’s policy, in order to comply with the marketing regulations in 47 CFR §2.803 and the importation rules in 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices. We are requesting the commission to grant short-term confidentiality request on the following attachments until 180 days External Photos Internal Photos Test Setup Photos User Manual It is our understanding that all measurement test reports, FCC ID label format and correspondence during certification review process cannot be granted as confidential documents and such information will be available for public review once the grant of equipment authorization is issued. Best Regards Sincerely, CHANHO, YOUN General Manager Samsung Electronics CO. LTD TEL: +1-973-808-6362 E-mail: [email protected]

Date: July 23, 2014 UL Verification Services Inc. 47173 Benicia Street Fremont, CA 94538, USA To whom it may concern: I, the undersigned, hereby authorize UL Verification Services Inc. to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by UL Verification Services Inc. on our behalf shall have the same effect as acts of our own. I, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). In authorizing UL Verification Services Inc. as our representative, we still recognize that we are responsible to: comply with the relevant provisions of the certification program; a) make all necessary arrangements for the conduct of the evaluation, including provision for examining documentation and access to all areas, records (including internal audit reports) and personnel for the purposes of evaluation (e.g. testing, inspection, assessment, surveillance, reassessment) and resolution of complaints; b) make claims regarding certification only in respect of the scope for which certification has been granted; c) do not use our product certification in such a manner as to bring the Certification Division into disrepute and not make any statement regarding our product certification which the Certification Division may consider misleading or unauthorized; d) upon suspension or cancellation of certification, discontinue use of all advertising matter that contains any reference thereto and return any certification documents as required by the Certification Division; e) use certification only to indicate the products are certified as being in conformity with specified standards; f) endeavor to ensure that no certificate or report nor any part thereof is used in a misleading manner; g) ensure that any reference to our product certification in communication media such as documents, brochures or advertising, complies with the requirements of the Certification Division; h) keep a record of all complaints made known to the us relating to the product’s compliance with requirements of the relevant standard and to make these records available to the when requested; i) take appropriate action with respect to such complaints and any deficiencies found in products or services that affect compliance with the requirements for certification; j) document the actions taken. This authorization is valid until further written notice from the applicant. Sincerely Yours, CHANHO, YOUN General Manager Samsung Electronics CO. LTD TEL: +1-973-808-6362 E-mail: [email protected]

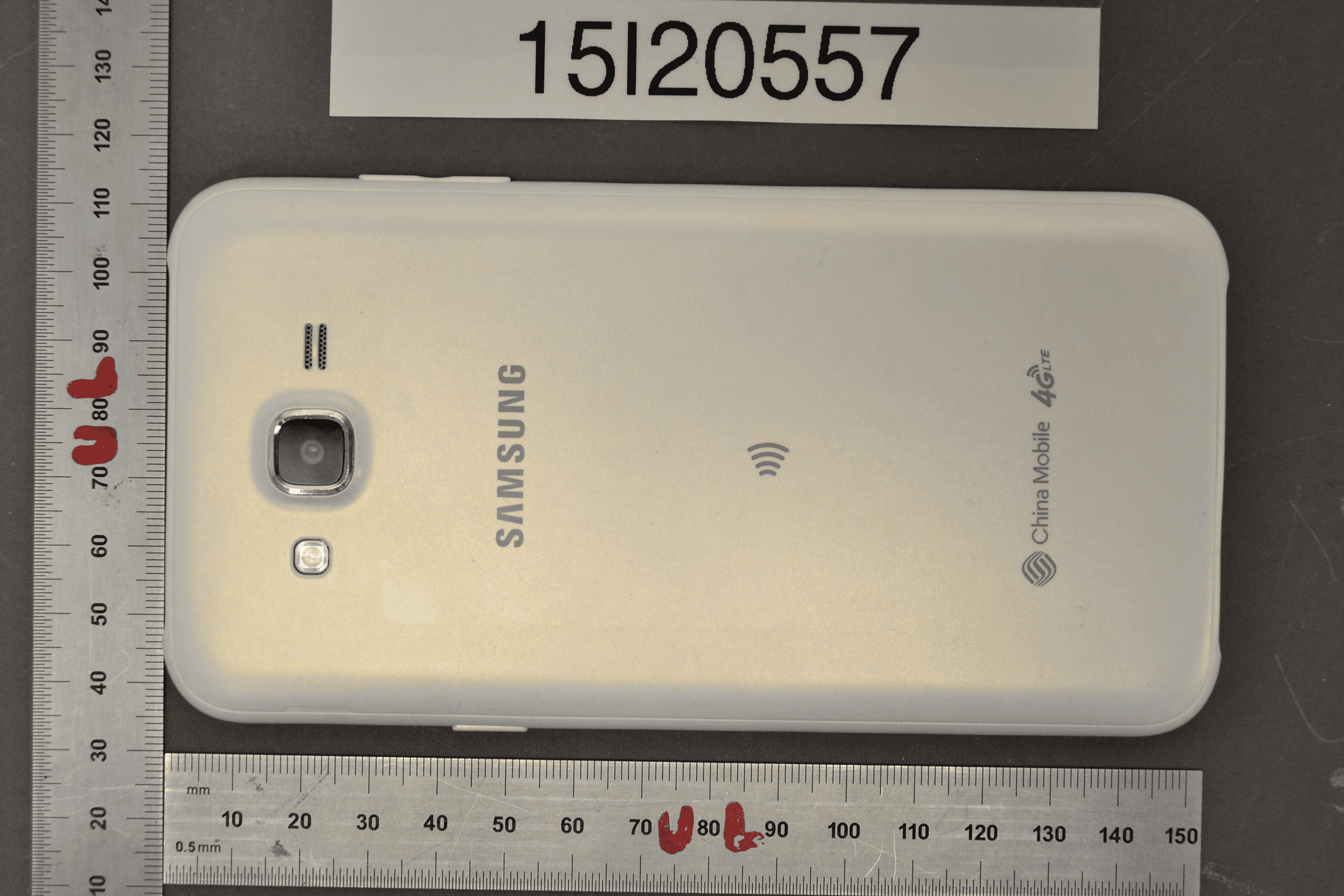

Label and Location Model: SM-J7008 FCC ID: A3LSMJ7008 Label: Location: Top Back of device Bottom Label

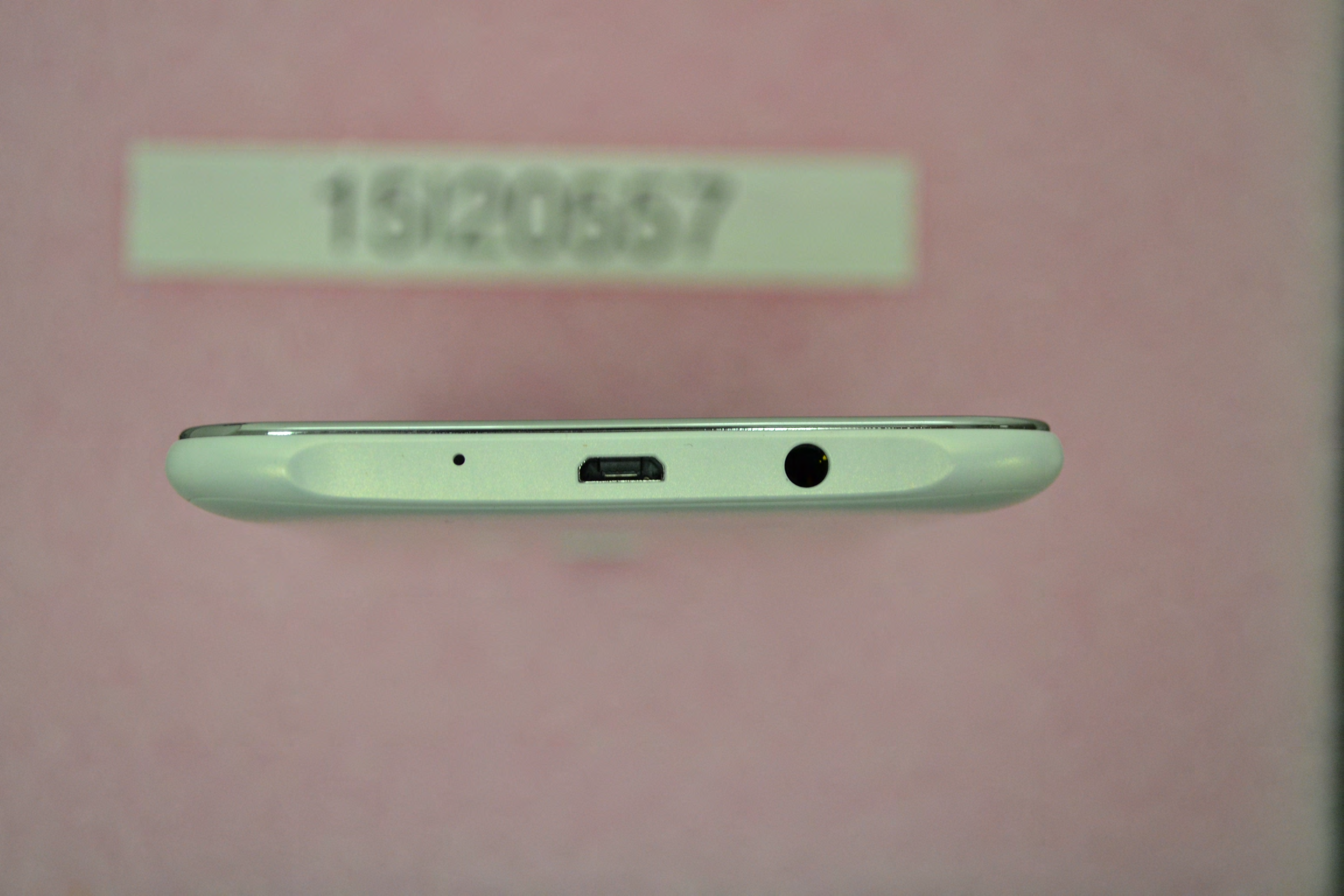

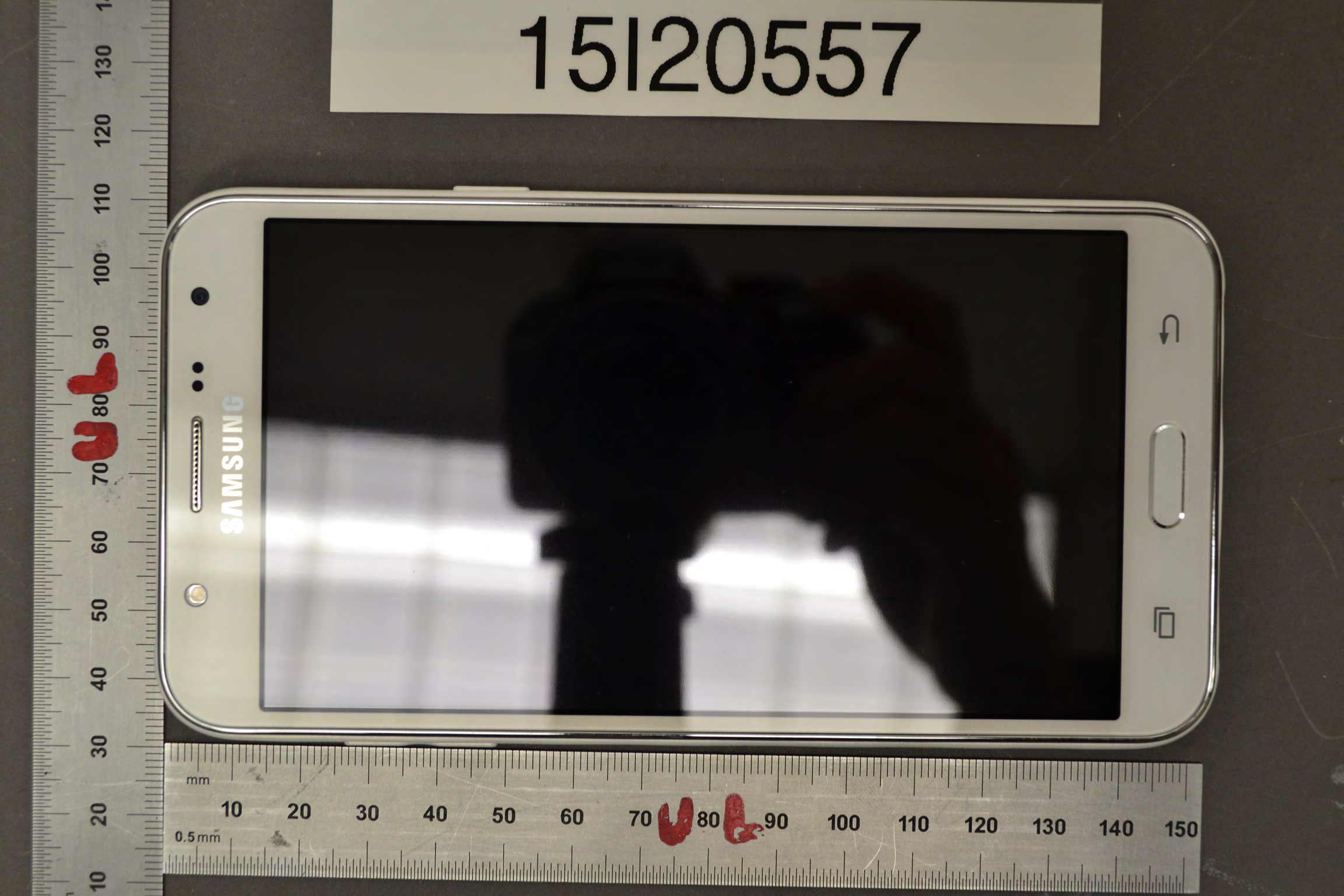

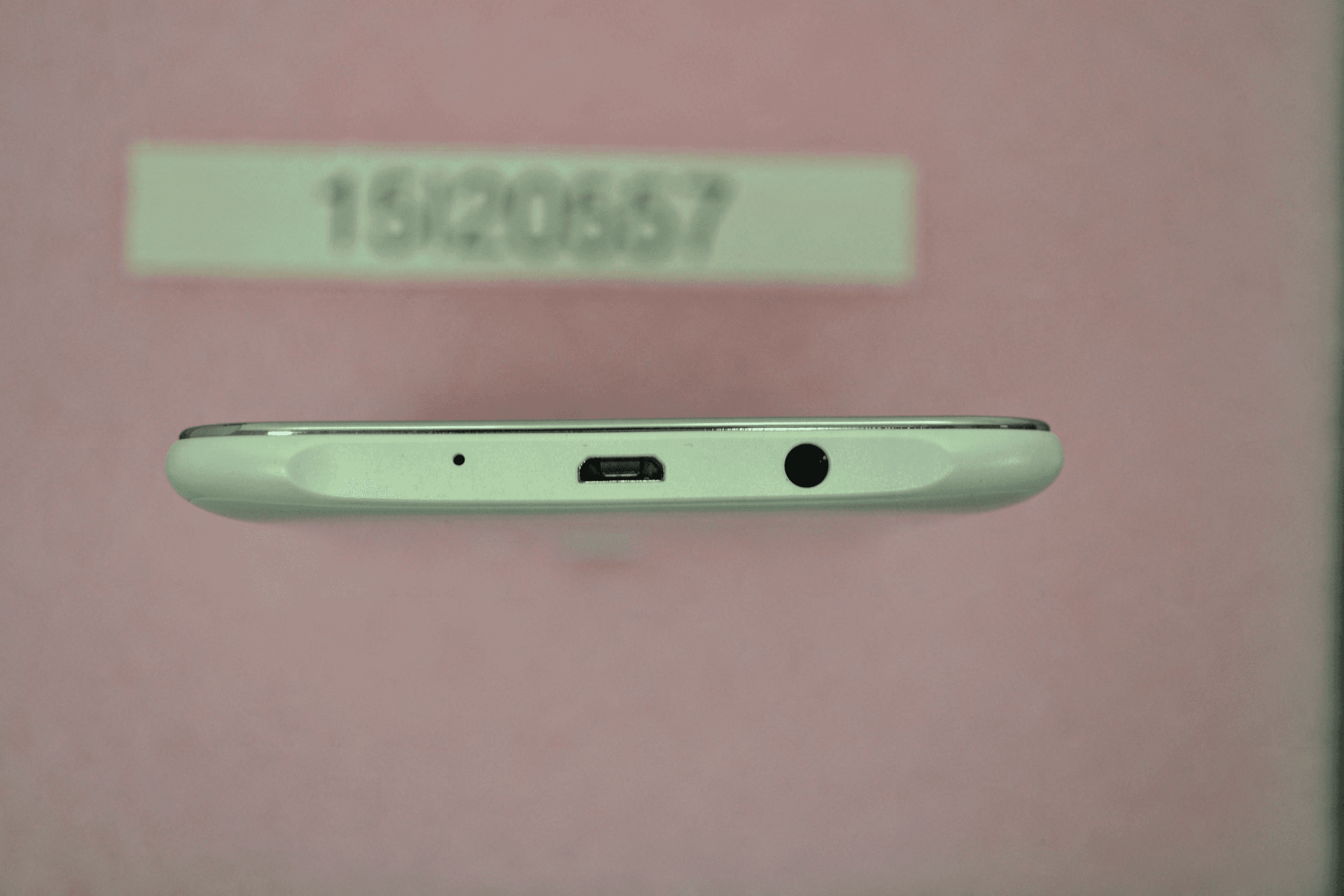

NVLAP LAB CODE 200065-0 SAR EVALUATION REPORT FCC 47 CFR § 2.1093 IEEE Std 1528-2013 For GSM/WCDMA/LTE Phone + Bluetooth, 2.4GHz WLAN b/g/n, ANT+ and NFC FCC ID: A3LSMJ7008 Model Name: SM-J7008 Report Number: 15I20557-S1A Issue Date: 5/26/2015 Prepared for SAMSUNG Electronics Co., LTD. 129 Samsung-ro, Yeongtong-Gu, Suwon City, Gyeonggi-Do, 443-742, South Korea Prepared by UL VERIFICATION SERVICES INC. 47173 BENICIA STREET FREMONT, CA 94538, U.S.A. TEL: (510) 771-1000 FAX: (510) 661-0888 Report No.: 15I20557-S1A Issue Date: 5/26/2015 Page 2 of 41 UL Verification Services Inc. Doc. No.: 1.0 This report shall not be reproduced without the written approval of UL Verification Services Inc. Revision History Rev. Date Revisions Revised By -- 5/11/2015 Initial Issue -- A 5/26/2015 Report revised based on Reviewer’s comments: 1. Sec. 6.3., 9.5., 10.7., 12.: Updated Bluetooth Kenneth Mak Report No.: 15I20557-S1A Issue Date: 5/26/2015 Page 3 of 41 UL Verification Services Inc. Doc. No.: 1.0 This report shall not be reproduced without the written approval of UL Verification Services Inc. Table of Contents 1. Attestation of Test Results ......................................................................................................... 5 2. Test Specification, Methods and Procedures ............................................................................ 6 3. Facilities and Accreditation ........................................................................................................ 6 4. SAR Measurement System & Test Equipment .......................................................................... 7 4.1. SAR Measurement System ........................................................................................................ 7 4.2. SAR Scan Procedures ............................................................................................................... 8 4.3. Test Equipment ........................................................................................................................ 10 5. Measurement Uncertainty ......................................................................................................... 11 6. Device Under Test (DUT) Information ...................................................................................... 12 6.1. DUT Description ...................................................................................................................... 12 6.2. Wireless Technologies ............................................................................................................. 12 6.3. Nominal and Maximum Output Power ...................................................................................... 13 6.4. General LTE SAR Test and Reporting Considerations ............................................................. 14 6.5. LTE (TDD) Considerations ....................................................................................................... 15 7. RF Exposure Conditions (Test Configurations) ...................................................................... 16 8. Dielectric Property Measurements & System Check .............................................................. 17 8.1. Dielectric Property Measurements ........................................................................................... 17 8.2. System Check.......................................................................................................................... 19 9. Conducted Output Power Measurements ................................................................................ 21 9.1. GSM ........................................................................................................................................ 21 9.2. W-CDMA ................................................................................................................................. 22 9.3. LTE .......................................................................................................................................... 26 9.4. Wi-Fi 2.4GHz (DTS Band) ....................................................................................................... 31 9.5. Bluetooth ................................................................................................................................. 31 10. Measured and Reported (Scaled) SAR Results ....................................................................... 32 10.1. GSM1900 ............................................................................................................................. 34 10.2. W-CDMA Band V ................................................................................................................. 34 10.3. W-CDMA Band II .................................................................................................................. 34 10.5. LTE Band 41 (20MHz Bandwidth) ........................................................................................ 35 10.6. Wi-Fi (DTS Band) ................................................................................................................. 35 10.7. Bluetooth .............................................................................................................................. 36 11. SAR Measurement Variability ................................................................................................... 37 Report No.: 15I20557-S1A Issue Date: 5/26/2015 Page 4 of 41 UL Verification Services Inc. Doc. No.: 1.0 This report shall not be reproduced without the written approval of UL Verification Services Inc. 12. Simultaneous Transmission SAR Analysis ............................................................................. 38 12.1. Sum of the SAR for GSM1900 & Wi-Fi & BT ........................................................................ 39 12.2. Sum of the SAR for W-CDMA Band V & Wi-Fi & BT ..........................................................…

Text truncated - open the document above for the full version.

Plot No. 1 Test Laboratory: UL Verification Services Inc. SAR Lab A Date/Time: 4/15/2015 3:50:17 AM 20150414_ SystemPerformanceCheck-D2600V2 SN 1036 Frequency: 2600 MHz; Duty Cycle: 1:1; Room Ambient Temperature: 24.0C; Liquid Temperature: 23.0C Medium parameters used: f = 2600 MHz; σ = 2.012 S/m; ε r = 39.155; ρ = 1000 kg/m 3 DASY5 Configuration: - Area Scan Setting: Find Secondary Maximum Within: 2.0 dB and with a peak SAR value greater than 0.0012W/kg - Electronics: DAE4 Sn1357; Calibrated: 2/20/2015 - Probe: EX3DV4 - SN3901; ConvF(6.97, 6.97, 6.97); Calibrated: 1/27/2015; - Sensor-Surface: 2.5mm (Mechanical Surface Detection (Locations From Previous Scan Used)), Sensor-Surface: 2.5mm (Mechanical Surface Detection) - Phantom: SAM v5.0 (B); Type: QD000P40CD; Serial: 1628 Head/Pin=100 mW/Area Scan (8x8x1): Measurement grid: dx=12mm, dy=12mm Maximum value of SAR (measured) = 6.60 W/kg Head/Pin=100 mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 62.12 V/m; Power Drift = 0.04 dB Peak SAR (extrapolated) = 12.1 W/kg SAR(1 g) = 5.46 W/kg; SAR(10 g) = 2.41 W/kg Maximum value of SAR (measured) = 7.87 W/kg 0 dB = 7.87 W/kg = 8.96 dBW/kg Plot No. 2 Test Laboratory: UL Verification Services Inc. SAR Lab A Date/Time: 4/15/2015 4:06:36 AM 20150414_ SystemPerformanceCheck-D2600V2 SN 1036 Frequency: 2600 MHz; Duty Cycle: 1:1 Head/Pin=100 mW/Z Scan (1x1x21): Measurement grid: dx=20mm, dy=20mm, dz=5mm Maximum value of SAR (measured) = 7.60 W/kg Plot No. 3 Test Laboratory: UL Verification Services Inc. SAR Lab A Date/Time: 4/16/2015 1:53:29 PM 20150416_SystemPerformanceCheck-D1900V2 SN 5d043 Frequency: 1900 MHz; Duty Cycle: 1:1; Room Ambient Temperature: 24.0C; Liquid Temperature: 23.0C Medium parameters used: f = 1900 MHz; σ = 1.452 S/m; ε r = 38.427; ρ = 1000 kg/m 3 DASY5 Configuration: - Area Scan Setting: Find Secondary Maximum Within: 2.0 dB and with a peak SAR value greater than 0.0012W/kg - Electronics: DAE4 Sn1357; Calibrated: 2/20/2015 - Probe: EX3DV4 - SN3901; ConvF(7.91, 7.91, 7.91); Calibrated: 1/27/2015; - Sensor-Surface: 2.5mm (Mechanical Surface Detection) - Phantom: SAM v5.0 (A); Type: QD000P40CD; Serial: 1602 Head/Pin=100 mW/Area Scan (7x7x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 5.78 W/kg Head/Pin=100 mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 64.03 V/m; Power Drift = -0.08 dB Peak SAR (extrapolated) = 8.06 W/kg SAR(1 g) = 4.28 W/kg; SAR(10 g) = 2.21 W/kg Maximum value of SAR (measured) = 5.83 W/kg 0 dB = 5.83 W/kg = 7.66 dBW/kg Plot No. 4 Test Laboratory: UL Verification Services Inc. SAR Lab A Date/Time: 4/16/2015 2:10:29 PM 20150416_SystemPerformanceCheck-D1900V2 SN 5d043 Frequency: 1900 MHz; Duty Cycle: 1:1 Head/Pin=100 mW/Z Scan (1x1x21): Measurement grid: dx=20mm, dy=20mm, dz=5mm Maximum value of SAR (measured) = 5.82 W/kg Plot No. 5 Test Laboratory: UL Verification Services Inc. SAR Lab A Date/Time: 4/20/2015 9:43:26 AM 20150420_SystemPerformanceCheck-D835V2 SN 4d002 Frequency: 835 MHz; Duty Cycle: 1:1; Room Ambient Temperature: 24.0C; Liquid Temperature: 23.0C Medium parameters used: f = 835 MHz; σ = 0.883 S/m; ε r = 39.877; ρ = 1000 kg/m 3 DASY5 Configuration: - Area Scan Setting: Find Secondary Maximum Within: 2.0 dB and with a peak SAR value greater than 0.0012W/kg - Electronics: DAE4 Sn1357; Calibrated: 2/20/2015 - Probe: EX3DV4 - SN3901; ConvF(9.59, 9.59, 9.59); Calibrated: 1/27/2015; - Sensor-Surface: 2.5mm (Mechanical Surface Detection (Locations From Previous Scan Used)), Sensor-Surface: 2.5mm (Mechanical Surface Detection) - Phantom: SAM v5.0 (A); Type: QD000P40CD; Serial: 1602 Head/Pin=100 mW/Area Scan (7x7x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 1.03 W/kg Head/Pin=100 mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 34.32 V/m; Power Drift = 0.04 dB Peak SAR (extrapolated) = 1.32 W/kg SAR(1 g) = 0.885 W/kg; SAR(10 g) = 0.580 W/kg Maximum value of SAR (measured) = 1.08 W/kg 0 dB = 1.08 W/kg = 0.33 dBW/kg Plot No. 6 Test Laboratory: UL Verification Services Inc. SAR Lab A Date/Time: 4/20/2015 9:58:50 AM 20150420_SystemPerformanceCheck-D835V2 SN 4d002 Frequency: 835 MHz; Duty Cycle: 1:1 Head/Pin=100 mW/Z Scan (1x1x21): Measurement grid: dx=20mm, dy=20mm, dz=5mm Maximum value of SAR (measured) = 1.00 W/kg Plot No. 7 Test Laboratory: UL Verification Services Inc. SAR Lab A Date/Time: 4/23/2015 9:49:34 AM 20150423_SystemPerformanceCheck-D2450V2 SN 706 Frequency: 2450 MHz; Duty Cycle: 1:1; Room Ambient Temperature: 24.0C; Liquid Temperature: 23.0C Medium parameters used: f = 2450 MHz; σ = 1.848 S/m; ε r = 37.479; ρ = 1000 kg/m 3 DASY5 Configuration: - Area Scan Setting: Find Secondary Maximum Within: 2.0 dB and with a peak SAR value greater than 0.0012W/kg - Electronics: DAE4 Sn1357; Calibrated: 2/20/2015 - Probe: EX3DV4 - SN3901; ConvF(7.14, 7.14, 7.14); Calibrated: 1/27/2015; - Sensor-Surface: 2.5mm (Mechanical Surface Detection (Locations From Previous Scan Used)), Sensor-Surface: 2.5mm (Mechanical Surface Detection) - Phantom: SAM v5.0 (B); Type: QD000P40CD; Serial: 1628 Head/Pin=100 mW/Area Scan (8x8x1): Measurement grid: dx=12mm, dy=12mm Maximum value of SAR (measured) = 5.91 W/kg Head/Pin=100 mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 62.67 V/m; Power Drift = 0.07 dB Peak SAR (extrapolated) = 11.0 W/kg SAR(1 g) = 5.13 W/kg; SAR(10 g) = 2.34 W/kg Maximum value of SAR (measured) = 7.40 W/kg 0 dB = 7.40 W/kg = 8.69 dBW/kg Plot No. 8 Test Laboratory: UL Verification Services Inc. SAR Lab A Date/Time: 4/23/2015 10:05:35 AM 20150423_SystemPerformanceCheck-D2450V2 SN 706 Frequency: 2450 MHz; Duty Cycle: 1:1 Head/Pin=100 mW/Z Scan (1x1x21): Measurement grid: dx=20mm, dy=20mm, dz=5mm Maximum value of SAR (measured) = 7.09 W/kg

Plot No. 1 Test Laboratory: UL Verification Services Inc. SAR Lab A Date/Time: 4/16/2015 3:43:32 PM GSM 1900 Frequency: 1880 MHz; Duty Cycle: 1:4; Room Ambient Temperature: 24.0C; Liquid Temperature: 23.0C Medium parameters used: f = 1880 MHz; σ = 1.433 S/m; ε r = 38.535; ρ = 1000 kg/m 3 DASY5 Configuration: - Area Scan Setting: Find Secondary Maximum Within: 2.0 dB and with a peak SAR value greater than 0.0012W/kg - Electronics: DAE4 Sn1357; Calibrated: 2/20/2015 - Probe: EX3DV4 - SN3901; ConvF(7.91, 7.91, 7.91); Calibrated: 1/27/2015; - Sensor-Surface: 2.5mm (Mechanical Surface Detection (Locations From Previous Scan Used)), Sensor-Surface: 2.5mm (Mechanical Surface Detection) - Phantom: SAM v5.0 (A); Type: QD000P40CD; Serial: 1602 LHS/Touch_GPRS 2 slots_ch 661/Area Scan (9x14x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.277 W/kg LHS/Touch_GPRS 2 slots_ch 661/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 13.78 V/m; Power Drift = 0.00 dB Peak SAR (extrapolated) = 0.362 W/kg SAR(1 g) = 0.229 W/kg; SAR(10 g) = 0.138 W/kg Maximum value of SAR (measured) = 0.287 W/kg 0 dB = 0.287 W/kg = -5.42 dBW/kg Plot No. 2 Test Laboratory: UL Verification Services Inc. SAR Lab A Date/Time: 4/16/2015 7:17:00 PM GSM 1900 Frequency: 1880 MHz; Duty Cycle: 1:4; Room Ambient Temperature: 24.0C; Liquid Temperature: 23.0C Medium parameters used: f = 1880 MHz; σ = 1.515 S/m; ε r = 51.796; ρ = 1000 kg/m 3 DASY5 Configuration: - Area Scan Setting: Find Secondary Maximum Within: 2.0 dB and with a peak SAR value greater than 0.0012W/kg - Electronics: DAE4 Sn1357; Calibrated: 2/20/2015 - Probe: EX3DV4 - SN3901; ConvF(7.68, 7.68, 7.68); Calibrated: 1/27/2015; - Sensor-Surface: 2.5mm (Mechanical Surface Detection) - Phantom: ELI v5.0 (A); Type: QDOVA001BB; Serial: 1117 Front/GPRS 2 slots_ch 661/Area Scan (8x15x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.365 W/kg Front/GPRS 2 slots_ch 661/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 15.59 V/m; Power Drift = -0.19 dB Peak SAR (extrapolated) = 0.530 W/kg SAR(1 g) = 0.329 W/kg; SAR(10 g) = 0.192 W/kg Maximum value of SAR (measured) = 0.417 W/kg 0 dB = 0.417 W/kg = -3.80 dBW/kg Plot No. 3 Test Laboratory: UL Verification Services Inc. SAR Lab A Date/Time: 4/20/2015 10:45:06 AM W-CDMA Band V Frequency: 836.6 MHz; Duty Cycle: 1:1; Room Ambient Temperature: 24.0C; Liquid Temperature: 23.0C Medium parameters used (interpolated): f = 836.6 MHz; σ = 0.885 S/m; ε r = 39.858; ρ = 1000 kg/m 3 DASY5 Configuration: - Area Scan Setting: Find Secondary Maximum Within: 2.0 dB and with a peak SAR value greater than 0.0012W/kg - Electronics: DAE4 Sn1357; Calibrated: 2/20/2015 - Probe: EX3DV4 - SN3901; ConvF(9.59, 9.59, 9.59); Calibrated: 1/27/2015; - Sensor-Surface: 2.5mm (Mechanical Surface Detection) - Phantom: SAM v5.0 (A); Type: QD000P40CD; Serial: 1602 LHS/Touch_RMC Rel 99_Ch 4183/Area Scan (9x14x1): Measurement grid: dx=15mm, dy=15mm Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (measured) = 0.0442 W/kg LHS/Touch_RMC Rel 99_Ch 4183/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 6.993 V/m; Power Drift = 0.08 dB Peak SAR (extrapolated) = 0.0510 W/kg SAR(1 g) = 0.039 W/kg; SAR(10 g) = 0.028 W/kg Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (measured) = 0.0430 W/kg 0 dB = 0.0430 W/kg = -13.67 dBW/kg Plot No. 4 Test Laboratory: UL Verification Services Inc. SAR Lab A Date/Time: 4/20/2015 2:18:08 PM W-CDMA Band V Frequency: 836.6 MHz; Duty Cycle: 1:1; Room Ambient Temperature: 24.0C; Liquid Temperature: 23.0C Medium parameters used (interpolated): f = 836.6 MHz; σ = 0.99 S/m; ε r = 53.547; ρ = 1000 kg/m 3 DASY5 Configuration: - Area Scan Setting: Find Secondary Maximum Within: 2.0 dB and with a peak SAR value greater than 0.0012W/kg - Electronics: DAE4 Sn1357; Calibrated: 2/20/2015 - Probe: EX3DV4 - SN3901; ConvF(9.5, 9.5, 9.5); Calibrated: 1/27/2015; - Sensor-Surface: 2.5mm (Mechanical Surface Detection) - Phantom: ELI v5.0 (A); Type: QDOVA001BB; Serial: 1117 Front/UMTS rel 99 Ch 4132/Area Scan (8x15x1): Measurement grid: dx=15mm, dy=15mm Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (measured) = 0.0965 W/kg Front/UMTS rel 99 Ch 4132/Zoom Scan (7x8x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 9.997 V/m; Power Drift = 0.13 dB Peak SAR (extrapolated) = 0.134 W/kg SAR(1 g) = 0.081 W/kg; SAR(10 g) = 0.053 W/kg Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (measured) = 0.0974 W/kg 0 dB = 0.0974 W/kg = -10.11 dBW/kg Plot No. 5 Test Laboratory: UL Verification Services Inc. SAR Lab A Date/Time: 4/17/2015 3:08:11 PM WCDMA Band II Frequency: 1880 MHz; Duty Cycle: 1:1; Room Ambient Temperature: 24.0C; Liquid Temperature: 23.0C Medium parameters used: f = 1880 MHz; σ = 1.433 S/m; ε r = 38.535; ρ = 1000 kg/m 3 DASY5 Configuration: - Area Scan Setting: Find Secondary Maximum Within: 2.0 dB and with a peak SAR value greater than 0.0012W/kg - Electronics: DAE4 Sn1357; Calibrated: 2/20/2015 - Probe: EX3DV4 - SN3901; ConvF(7.91, 7.91, 7.91); Calibrated: 1/27/2015; - Sensor-Surface: 2.5mm (Mechanical Surface Detection) - Phantom: SAM v5.0 (A); Type: QD000P40CD; Serial: 1602 LHS/Touch_RMC Rel.99_ch 9400/Area Scan (9x14x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.314 W/kg LHS/Touch_RMC Rel.99_ch 9400/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 15.24 V/m; Power Drift = 0.14 dB Peak SAR (extrapolated) = 0.476 W/kg SAR(1 g) = 0.294 W/kg; SAR(10 g) = 0.174 W/kg Maximum value of SAR (measured) = 0.366 W/kg 0 dB = 0.366 W/kg = -4.37 dBW/kg Plot No. 6 Test Laboratory: UL Verification Services Inc. SAR Lab A Date/Time: 4/17/2015 10:59:29 AM W-CDMA Band II Frequency: 1880 MHz; Duty Cycle: 1:…

Text truncated - open the document above for the full version.

Head Tissue Simulating Liquids Head Tissue Parameters according to IEEE Std 1528-2013 / IEC 62209 / FCC KDB 865664 D01 Narrow- Band Solutions (±5% tolerance) Product HSL300V2 HSL450V2 HSL750V2 HSL900V2 HSL1450V2 HSL1750V2 HSL1800V2 HSL1900V2 HSL1950V2 HSL2450V2 Test Frequency (MHz) 300 450 750 835, 900 1450, 1500, 1640 1750 1800, 1900 1900 1950, 2000 2450, 2600 Main Ingredients Water, Sugar Water, Sugar Water, Sugar Water, Sugar Water, DGBE Water, DGBE Water, DGBE Water, DGBE Water, DGBE Water, DGBE Broad- Band Solutions (±5% tolerance) Product HBBL30-250V3 HBBL1350-1850V3 HBBL1550-1950V3 HBBL1900-3800V3 HBBL3500-5800V5 Test Frequency (MHz) 30-250 1400-1800 1750-1900 1950-3000 3500-5800 Main Ingredients Water, Tween Water, Tween Water, Tween Water, Tween Water, Oil Body Tissue Simulating Liquids Body Tissue (Muscle) Parameters according to FCC KDB 865664 D01 Narrow- Band Solutions (±5% tolerance) Product MSL300V2 MSL450V2 MSL750V2 MSL900V2 MSL1450V2 MSL1750V2 MSL1800V2 MSL1900V2 MSL1950V2 MSL2450V2 Test Frequency (MHz) 300 400, 450 750 835, 900 1450, 1500, 1640 1750 1800, 1900 1900 1950, 2100 2450, 2600 Main Ingredients Water, Sugar Water, Sugar Water, Sugar Water, Sugar Water, DGBE Water, DGBE Water, DGBE Water, DGBE Water, DGBE Water, DGBE Broad- Band Solutions (±5% tolerance) Product MBBL130-250V3 MBBL1350-1850V3 MBBL1550-1950V3 MBBL1900-3800V3 MBBL3500-5800V5 Test Frequency (MHz) 130-250 1350-1800 1550-1850 1950-3800 3500-5800 Main Ingredients Water, Tween Water, Tween Water, Tween Water, Tween …

Text truncated - open the document above for the full version.
