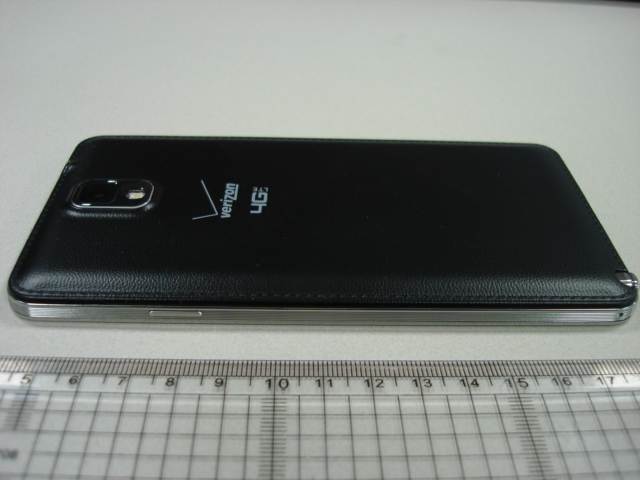

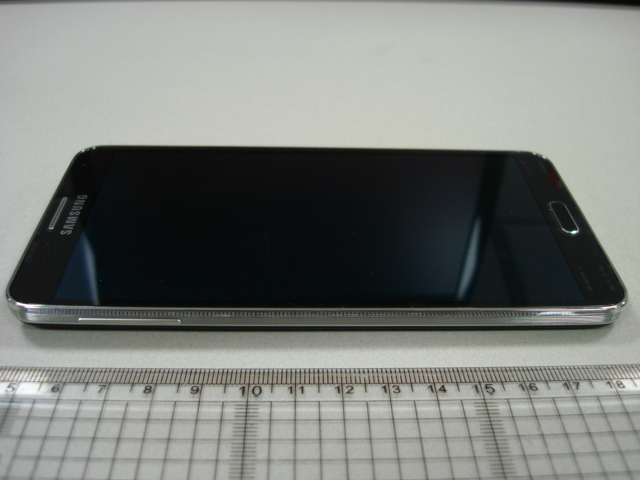

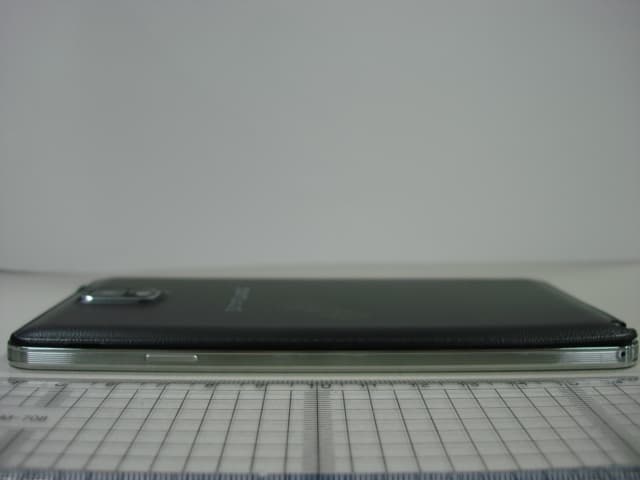

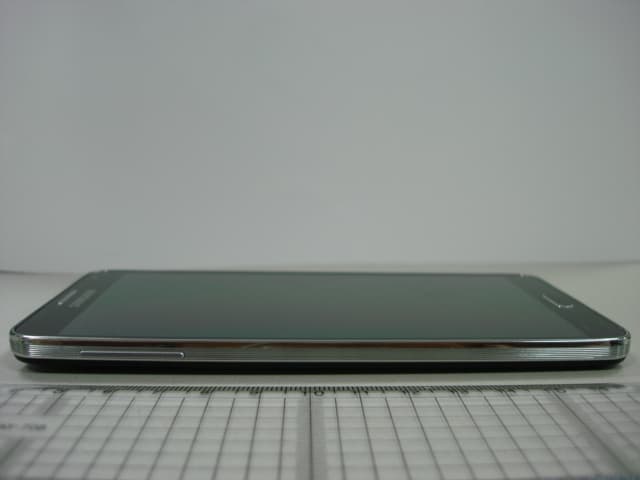

A3LSMN900VMulti-Band GSM/ EDGE/ CDMA/ WCDMA/ LTE Phone with WLAN, Bluetooth, RFID and ANT+

GH68_XXXXXX Printed in Korea ANDROID SMARTPHONE User Manual Please read this manual before operating your phone and keep it for future reference. SM-N900V “H” This document is watermarked because certain important information in the document has not yet been verified. This document has been sent to you as a draft and for informational purposes only. The document should only be used for internal purposes and may not be distributed outside of Samsung, except to Samsung's carrier customer for testing purposes. Distributing the document outside of Samsung, except to Samsung's carrier customer for testing purposes could result in legal exposure to the company if the preliminary, unverified information in the draft turns out to be inaccurate. DRAFT FOR INTERNAL USE ONLY VZW_GT-N900V_UM_Eng_MHV_CB_090513_D3 Intellectual Property All Intellectual Property, as defined below, owned by or which is otherwise the property of Samsung or its respective suppliers relating to the SAMSUNG Phone, including but not limited to, accessories, parts, or software relating there to (the “Phone System”), is proprietary to Samsung and protected under federal laws, state laws, and international treaty provisions. Intellectual Property includes, but is not limited to, inventions (patentable or unpatentable), patents, trade secrets, copyrights, software, computer programs, and related documentation and other works of authorship. You may not infringe or otherwise violate the rights secured by the Intellectual Property. Moreover, you agree that you will not (and will not attempt to) modify, prepare derivative works of, reverse engineer, decompile, disassemble, or otherwise attempt to create source code from the software. No title to or ownership in the Intellectual Property is transferred to you. All applicable rights of the Intellectual Property shall remain with SAMSUNG and its suppliers. Open Source Software Some software components of this product, including but not limited to 'PowerTOP' and 'e2fsprogs', incorporate source code covered under GNU General Public License (GPL), GNU Lesser General Public License (LGPL), OpenSSL License, BSD License and other open source licenses. To obtain the source code covered under the open source licenses, please visit: http://opensource.samsung.com. Disclaimer of Warranties; Exclusion of Liability EXCEPT AS SET FORTH IN THE EXPRESS WARRANTY CONTAINED ON THE WARRANTY PAGE ENCLOSED WITH THE PRODUCT, THE PURCHASER TAKES THE PRODUCT "AS IS", AND SAMSUNG MAKES NO EXPRESS OR IMPLIED WARRANTY OF ANY KIND WHATSOEVER WITH RESPECT TO THE PRODUCT, INCLUDING BUT NOT LIMITED TO THE MERCHANTABILITY OF THE PRODUCT OR ITS FITNESS FOR ANY PARTICULAR PURPOSE OR USE; THE DESIGN, CONDITION OR QUALITY OF THE PRODUCT; THE PERFORMANCE OF THE PRODUCT; THE WORKMANSHIP OF THE PRODUCT OR THE COMPONENTS CONTAINED THEREIN; OR COMPLIANCE OF THE PRODUCT WITH THE REQUIREMENTS OF ANY LAW, RULE, SPECIFICATION OR CONTRACT PERTAINING DRAFT FOR INTERNAL USE ONLY THERETO. NOTHING CONTAINED IN THE INSTRUCTION MANUAL SHALL BE CONSTRUED TO CREATE AN EXPRESS OR IMPLIED WARRANTY OF ANY KIND WHATSOEVER WITH RESPECT TO THE PRODUCT. IN ADDITION, SAMSUNG SHALL NOT BE LIABLE FOR ANY DAMAGES OF ANY KIND RESULTING FROM THE PURCHASE OR USE OF THE PRODUCT OR ARISING FROM THE BREACH OF THE EXPRESS WARRANTY, INCLUDING INCIDENTAL, SPECIAL OR CONSEQUENTIAL DAMAGES, OR LOSS OF ANTICIPATED PROFITS OR BENEFITS. Modification of Software SAMSUNG IS NOT LIABLE FOR PERFORMANCE ISSUES OR INCOMPATIBILITIES CAUSED BY YOUR EDITING OF REGISTRY SETTINGS, OR YOUR MODIFICATION OF OPERATING SYSTEM SOFTWARE. USING CUSTOM OPERATING SYSTEM SOFTWARE MAY CAUSE YOUR DEVICE AND APPLICATIONS TO WORK IMPROPERLY. YOUR CARRIER MAY NOT PERMIT USERS TO DOWNLOAD CERTAIN SOFTWARE, SUCH AS CUSTOM OS. IF YOUR CARRIER PROHIBITS THIS, IF YOU ATTEMPT TO DOWNLOAD SOFTWARE ONTO THE DEVICE WITHOUT AUTHORIZATION, YOU WILL BE NOTIFIED ON THE SCREEN THAT THE PHONE WILL NO LONGER OPERATE AND BE INSTRUCTED TO POWER DOWN THE DEVICE. YOU MUST THEN CONTACT YOUR CARRIER TO RESTORE THE DEVICE TO THE CARRIER AUTHORIZED SETTINGS. SAFE™ (Samsung Approved For Enterprise) SAFE™: "SAFE™" (Samsung for Enterprise) is a mark for a Samsung device which has been tested against Samsung's own internal criteria for interoperability with certain third party security-related solutions for MDM and VPN. The testing includes field testing with local network connection and menu tree testing which tests functionality of the solutions in conjunction with the Samsung device. During the testing, the device is tested with the security solutions to see if the solutions work with the device as described by the third party security solution providers. The testing, for example, includes field testing with local network connection and menu tree testing which tests functionality of the solutions in conjunction with the Samsung device. For more information about Samsung's SAFE™ program, please refer to www.samsung.com/us/safe. Disclaimer of Warranties: EXCEPT AS OTHERWISE PROVIDED IN THEIR STANDARD END USER LICENSE AND WARRANTY, TO THE FULL EXTENT PERMITTED BY LAW SAMSUNG ELECTRONICS CO., LTD., SAMSUNG TELECOMMUNICATIONS AMERICA, LLC, AND DRAFT FOR INTERNAL USE ONLY THEIR AFFILIATES (COLLECTIVELY REFERRED TO HEREIN AS THE "SAMSUNG ENTITIES") EXPRESSLY DISCLAIM ANY AND ALL WARRANTIES, EXPRESS OR IMPLIED, INCLUDING ANY WARRANTY OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE, INTEROPERABILITY OR NON-INFRINGEMENT, WITH RESPECT TO INFORMATION TECHNOLOGY SECURITY PROTECTION, SAFE™ DEVICES AND APPLICATIONS TESTED WITH SAFE™ DEVICES. IN NO EVENT SHALL THE SAMSUNG ENTITIES BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL, PUNITIVE, OR CONSEQUENTIAL DAMAGES OF ANY KIND WHATSOEVER WITH RESPECT TO INFORMATION TECHNOLOGY SECURITY PROTECTION, SAFE™ DEVICES OR APPLICATIONS TESTED WITH SAFE™ DEVICES. In addition, information technology security protection will be affected by features or functionality associated with, among oth…

Text truncated - open the document above for the full version.

Applications 115 VZ Security The Verizon Mobile Security application helps protect your phone from digital threats, including viruses and malware, and from people accessing the information on your phone if it is ever lost or misplaced. Verizon Mobile Security helps keep your phone secure and protected from viruses, malware and risky web sites. Important! Data charges apply when using VZ Security.  From the Home screen, tap Apps ➔ Verizon ➔ VZ Security. Calendar With this feature, you can consult the calendar by day, week, or month, create events, and set an alarm to act as a reminder. Google Calendar is built into the phone and synchronizes both new and existing entries between your phone and your online Google account. Important!You should previously add an account (Facebook, Microsoft Exchange ActiveSync, or Google) prior to using the Calendar. 1.From the Home screen, tap Apps ➔ Calendar. The following tabs are available on the right side of the display: •Year: displays the Year view. •Month: displays the Month view. • Week: displays the Week view. •Day: displays the Day view. •List: displays the events in a List view. •Task: allows you to search for tasks. DRAFT FOR INTERNAL USE ONLY 116 2.Ta p Create event to create a new Calendar event. – or – Ta p Toda y to display the current date indicated by a blue box, then press and select one of the following options: •Go to: displays a specific date. •Delete: allows you to delete All events, All events before today, or an individual event. •Search: allows you to search within your current events. •Calendars: allows you to view the current Calendar accounts. • Settings: displays a list of configurable settings. Creating a Calendar Event 1.From the Home screen, tap Apps ➔ Calendar. 2.Within the Year, Month, Week, and Day tabs, Create event to create a new Calendar event. Enabling the Handwriting mode 1.From the Home screen, tap Apps ➔ Calendar. 2.Ta p Enable Handwriting to edit the on-screen Calendar by adding hand-written information. 3.Use the following functions: Allows you to add free-format drawing. Allows you to erase marks and drawings. Undo the last action. Redo the last action that was undone. Exits the current action and returns to the Calendar application. Saves the current updates. DRAFT FOR INTERNAL USE ONLY Applications 117 Calendar Settings Using the Calendar settings you can select the day with which you want the calendar o begin. You also select how you want to view the calendar, by Month, Week, or Day or determine how to manage events, notifications, sounds, and defaults reminders. 1.From the Home screen, tap Apps ➔ . 2.Press ➔ Settings. 3.Ta p View styles and select an option. •Ta p Month view styles and select an option. •Ta p Week view and select a type. 4.Ta p First day of week and select either Locale default, Saturday , Sunday or Monday. 5.Ta p Badge and select either None, Number of events and tasks , Number of events today, or Number of tasks today . 6.Ta p Hide declined events to activate this option. A check mark indicates selection. 7.Ta p Lock time zone (to lock event time based on your current user-selected time zone). Select a time zone from within the Select time zone field. 8.Ta p Show week number to display the week numbers along the side of the week entries. 9.Ta p Hide completed tasks to activate this option. A check mark indicates selection. 10.Ta p Weather to activate this option. A check mark indicates selection. 11.Ta p Set alerts & notifications to adjust the event notification method. Choose from: Alert, Status bar notification , and Off. 12.Ta p Select ringtone to assign a ringtone to a calendar event notification. 13.Ta p Vibration to assign a vibration notification to this event. 14.Ta p Quick responses to edit your default quick responses for outbound emails. These are default responses similar to those used by text templates. DRAFT FOR INTERNAL USE ONLY 118 Camera You can take photographs and shoot video by using the built-in camera functionality. Your camera produces photos in JPEG format and records videos in MP4 format. Important! Do not take photos of people without their permission. Do not take photos in places where cameras are not allowed. Do not take photos in places where you may interfere with another person’s privacy. Note: An optional microSD card is not needed to take pictures or shoot video since there is already built-in storage. Assigning the Default Storage Location Important! Too many users can overlook this storage location until something goes wrong. It is recommended that you verify this location or change it before initiating the use of the camera or camcorder features. 1.From the Home screen, tap ( Apps) ➔ (Camera). 2.Press and then tap Settings ➔ (Settings) and scroll up to the Storage entry. 3.Tap this entry and select the desired default storage location for newly taken pictures or videos. Choose from: Device or Memory card. Note: It is recommended that you set the option to Memory card. 4.Press to return to the Home screen. DRAFT FOR INTERNAL USE ONLY Applications 119 Using the Camera Taking Photos Taking pictures with your device’s built-in camera is as simple as choosing a subject, pointing the camera, then pressing the camera key. Note: When taking a photo in direct sunlight or in bright conditions, shadows may display on the photo. 1.From the Home screen, tap Camera. – or – From the Home screen, tap Apps ➔ Camera. 2.Using the device’s main display screen as a viewfinder, adjust the image by aiming the camera at the subject. Note: On your initial activation of the camera, firmware configuration can take up to 1 minute. This is a one time process. 3.Before you take a picture, use the Up and Down Volume keys to zoom in or out. You can magnify the picture up to x4 (400 percent). – or – Pinch the screen to zoom out or pinch outwards to zoom in. 4.If desired, before taking the photo, you can tap on-screen icons to access various camera options and settings. 5.You can als…

Text truncated - open the document above for the full version.

SAMSUNG ELECTRONICS CO., LTD 129, Samsung-ro,Yeongtong-gu Suwon-si,Gyeonggi-do, 443-742 Korea August 26, 2013 Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 SUBJECT : Label Statement FCC ID : A3LSMN900 V Gentlemen: We hereby provide the label statement letter for the above-mentioned device by a new label statement policy instituted at the September 12, 2006, TCB-FCC Teleconference. The label statement is as follows: The FCC ID label is located in the battery compartment. While the battery cover is installed when the unit is shipped from the factory, the battery is never installed prior to sale, so the user must remove the cover in order to install the battery and operate the device. At this time the FCC ID is readily visible to the user. The label is permanently attached by acrylic glue and not easily removed from the device. This statement could not be included in the label. So we inform you of it through this letter. Should you have any questions or comments concerning the above, please contact the undersigned. Sincerely Yours, Seoung Ho Park Senior Manager SAMSUNG ELECTRONICS CO.,LTD Telecommunication Network Business Mobile Communication Division Regulatory Compliance Group.

SAMSUNG ELECTRONICS AMERICA, INC. American QA Lab 19 Chapin Rd, Building D. Pine Brook, NJ 07058 Date: August 28, 2013 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road, Columbia, MD 21046 RE: Request of Confidentiality for FCC ID: A3LSMN900V To Whom It May Concern: Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules (CFR 47), and Section 552 (b) (4) of the Freedom of Information Act, SAMSUNG ELECTRONICS CO.,LTD. hereby requests confidentiality and treatment of certain information accompanying this application. The materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. We are also hereby request Short-Term Confidentiality for 180 days after the grant as outlined in Public Notice DA 04-1705. This provision will give SAMSUNG ELECTRONICS CO.,LTD. temporary confidentiality of commercially sensitive information prior to product release. The requested Permanent and Short-Term Confidential exhibits are listed as follows: PERMANENT AND SHORT-TERM CONFIDENTIAL LIST Exhibit Description 1 Block Diagram 2 Operational Description PERMANENT 3 Schematics 4 External Photos 5 Internal Photos 6 Test-Setup Photos SHORT-TERM 7 Users Manual The Applicant understands that pursuant to Rule 0.457, disclosure of this application and all accompanying documentations, where applicable, will not be made public before the date of the Grant for this application. Sincerely, Peter Ra General Manager American QA Lab SAMSUNG Electronics America INC.

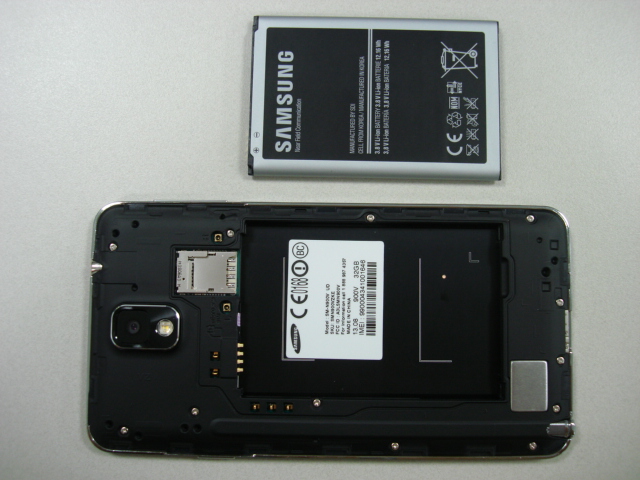

Label is placed inside of the battery compartment. Label and Location Samsung Model: FCC ID: SM-N900V A3LSMN900V Label: Location:

FCC ID: A3LSMN900V SAR EVALUATION REPORT Reviewed by: Quality Manager Document S/N: Test Dates: DUT Type: Page 1 of 84 0Y1307301504.A3L 07/31/13 - 08/12/13 Portable Handset © 2013 PCTEST Engineering Laboratory, Inc. REV 12.5 M 05/20/2013 Applicant Name: Date of Testing: Samsung Electronics, Co. Ltd. 07/31/13 - 08/12/13 129, Samsung-ro, Maetan dong, Test Site/Location: Yeongtong-gu, Suwon-si PCTEST Lab, Columbia, MD, USA Gyeonggi-do 443-742, Korea Document Serial No.: 0Y1307301504.A3L FCC ID: A3LSMN900V APPLICANT: SAMSUNG ELECTRONICS, CO. LTD. DUT Type: Portable Handset Application Type: Certification FCC Rule Part(s): CFR §2.1093 Model(s): SM-N900V 1 gm Head (W/kg) 1 gm Body- Worn (W/kg) 1 gm Hotspot (W/kg) 10 gm Extremity (W/kg) PCEGSM/GPRS/EDGE 850824.20 - 848.80 MHz33.040.120.210.24N/A PCEGSM/GPRS/EDGE 19001850.20 - 1909.80 MHz30.23< 0.10.180.35N/A PCEUMTS 850826.40 - 846.60 MHz22.750.130.280.28N/A PCEUMTS 19001852.4 - 1907.6 MHz22.75< 0.10.250.42N/A PCECell. CDMA/EVDO824.70 - 848.31 MHz24.420.350.620.62N/A PCEPCS CDMA/EVDO1851.25 - 1908.75 MHz24.370.260.751.03N/A PCELTE Band 13782 MHz23.03< 0.10.280.28N/A PCELTE Band 4 (AWS)1712.5 - 1752.5 MHz23.28< 0.10.140.14N/A DTS2.4 GHz WLAN2412 - 2462 MHz17.340.250.170.17N/A DTS5.8 GHz WLAN5745 - 5825 MHz13.04< 0.1< 0.1< 0.1N/A NII5.2 GHz WLAN5180 - 5240 MHz13.03< 0.10.13< 0.10.35 NII5.3 GHz WLAN5260 - 5320 MHz12.85< 0.10.13< 0.10.32 NII5.5 GHz WLAN5500 - 5700 MHz12.94< 0.1< 0.1< 0.10.19 DSS/DTSBluetooth2402 - 2480 MHz9.17 0.611.061.100.35 SAR Band & ModeTx Frequency Measured Conducted Power [dBm] Simultaneous SAR per KDB 690783 D01v01r02: Equipment Class N/A Note: Powers in the above table represent output powers for the SAR test configurations and may not represent the highest output powers for all configurations for each mode. This wireless portable device has been shown to be capable of compliance for localized specific absorption rate (SAR) for uncontrolled environment/general population exposure limits specified in ANSI/IEEE C95.1-1992 and has been tested in accordance with the measurement procedures specified in Section 1.9 of this report; for North American frequency bands only. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. Test results reported herein relate only to the item(s) tested. PCTEST ENGINEERING LABORATORY, INC. 7185 Oakland Mills Road, Columbia, MD 21046 USA Tel. +1.410.290.6652 / Fax +1.410.290.6654 http://www.pctestlab.com SAR EVALUATION REPORT FCC ID: A3LSMN900V SAR EVALUATION REPORT Reviewed by: Quality Manager Document S/N: Test Dates: DUT Type: Page 2 of 84 0Y1307301504.A3L 07/31/13 - 08/12/13 Portable Handset © 2013 PCTEST Engineering Laboratory, Inc. REV 12.5 M 05/20/2013 TABLE OF CONTENTS 1 DEVICE UNDER TEST ................................................................................................................... 3 2 LTE INFORMATION ...................................................................................................................... 11 3 INTRODUCTION ........................................................................................................................... 12 4 DOSIMETRIC ASSESSMENT ...................................................................................................... 13 5 DEFINITION OF REFERENCE POINTS ...................................................................................... 14 6 TEST CONFIGURATION POSITIONS FOR HANDSETS ............................................................ 15 7 RF EXPOSURE LIMITS ................................................................................................................ 19 8 FCC MEASUREMENT PROCEDURES ........................................................................................ 20 9 RF CONDUCTED POWERS ......................................................................................................... 26 10 SYSTEM VERIFICATION .............................................................................................................. 36 11 SAR DATA SUMMARY ................................................................................................................. 47 12 FCC MULTI-TX AND ANTENNA SAR CONSIDERATIONS ......................................................... 60 13 SAR MEASUREMENT VARIABILITY ........................................................................................... 77 14 EQUIPMENT LIST ......................................................................................................................... 78 15 MEASUREMENT UNCERTAINTIES ............................................................................................ 80 16 CONCLUSION ............................................................................................................................... 82 17 REFERENCES .............................................................................................................................. 83 APPENDIX A: SAR TEST PLOTS APPENDIX B: SAR DIPOLE VERIFICATION PLOTS APPENDIX C: PROBE AND DIPOLE CALIBRATION CERTIFICATES APPENDIX D: SAR TISSUE SPECIFICATIONS APPENDIX E: SAR SYSTEM VALIDATION APPENDIX F: SAR TEST SETUP PHOTOGRAPHS FCC ID: A3LSMN900V SAR EVALUATION REPORT Reviewed by: Quality Manager Document S/N: Test Dates: DUT Type: Page 3 of 84 0Y1307301504.A3L 07/31/13 - 08/12/13 Portable Handset © 2013 PCTEST Engineering Laboratory, Inc. REV 12.5 M 05/20/2013 1 DEVICE UNDER TEST 1.1 Device Overview GSM/GPRS/EDGE 850Voice/Data824.20 - 848.80 MHz GSM/GPRS/EDGE 1900Voice/Data1850.20 - 1909.80 MHz UMTS 850Voice/Data826.40 - 846.60 MHz UMTS 1900Voice/Data1852.4 - 1907.6 MHz Cell. CDMA/EVDOVoice/Data824.70 - 848.31 MHz PCS CDMA/EVDOVoice/Data1851.25 - 1908.75 MHz LTE Band 13Data7…

Text truncated - open the document above for the full version.

© 2012 PCTEST Engineering Laboratory, Inc. APPENDIX C: PROBE CALIBRATION

FCC ID: A3LSMN900V FCC Pt. 15.407 802.11a/n/ac UNII MEASUREMENT REPORT (CERTIFICATION) Reviewed by: Quality Manager Test Report S/N: Test Dates: EUT Type: Page 1 of 88 0Y1307301508.A3L 7/31 - 8/17/2013 Portable Handset © 2013 PCTEST Engineering Laboratory, Inc. V 2.3 05/07/2013 Applicant Name: Date of Testing: Samsung Electronics Co., Ltd. 7/31 - 8/17/2013 129, Samsung-ro, Yeongtong-gu Test Site/Location: Suwon-city, Gyeonggi-do, 443-803 PCTEST Lab, Columbia, MD, USA Republic of Korea Test Report Serial No.: 0Y1307301508.A3L FCC ID: A3LSMN900V APPLICANT: Samsung Electronics Co., Ltd. Application Type: Certification Model(s): SM-N900V EUT Type: Portable Handset FCC Classification: Unlicensed National Information Infrastructure (UNII) FCC Rule Part(s): Part 15.407 Test Procedure(s): KDB 789033 v01r03, KDB 644545 v01r01, KDB 648474 D03 v01r01 Max. Power (mW) Max. Power (dBm) 1205180 - 524020.94113.21 2205260 - 532020.04513.02 3205500 - 570020.18413.05 1205180 - 524019.27512.85 2205260 - 532018.49312.67 3205500 - 570019.14312.82 1405190 - 523012.16210.85 2405270 - 531011.80310.72 3405510 - 567012.88211.10 180521012.70611.04 280529012.50310.97 380553012.73511.05 802.11ac 802.11n Channel Bandwidth (MHz) 802.11a 802.11n Conducted Power Mode Tx Frequency (MHz) UNII Band This equipment has been shown to be capable of compliance with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in KDB 789033 v01r03 and KDB 644545 v01r01. Test results reported herein relate only to the item(s) tested. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. PCTEST ENGINEERING LABORATORY, INC. 7185 Oakland Mills Road, Columbia, MD 21046 USA Tel. 410.290.6652 / Fax 410.290.6654 http://www.pctestlab.com MEASUREMENT REPORT FCC PART 15.407 (UNII) FCC ID: A3LSMN900V FCC Pt. 15.407 802.11a/n/ac UNII MEASUREMENT REPORT (CERTIFICATION) Reviewed by: Quality Manager Test Report S/N: Test Dates: EUT Type: Page 2 of 88 0Y1307301508.A3L 7/31 - 8/17/2013 Portable Handset © 2013 PCTEST Engineering Laboratory, Inc. V 2.3 05/07/2013 TABLE OF CONTENTS FCC PART 15.407 MEASUREMENT REPORT .................................................................................................. 3 1.0 INTRODUCTION ...................................................................................................................................... 4 1.1 SCOPE ........................................................................................................................................................... 4 1.2 PCTEST TEST LOCATION ............................................................................................................................ 4 2.0 PRODUCT INFORMATION ..................................................................................................................... 5 2.1 EQUIPMENT DESCRIPTION......................................................................................................................... 5 2.2 DEVICE CAPABILITIES ................................................................................................................................. 5 2.3 TEST CONFIGURATION ............................................................................................................................... 5 2.4 EMI SUPPRESSION DEVICE(S)/MODIFICATIONS ...................................................................................... 5 2.5 LABELING REQUIREMENTS ........................................................................................................................ 5 3.0 DESCRIPTION OF TEST ........................................................................................................................ 6 3.1 EVALUATION PROCEDURE ......................................................................................................................... 6 3.2 AC LINE CONDUCTED EMISSIONS ............................................................................................................. 6 3.3 RADIATED EMISSIONS ................................................................................................................................ 7 4.0 ANTENNA REQUIREMENTS .................................................................................................................. 8 5.0 TEST EQUIPMENT CALIBRATION DATA .............................................................................................. 9 6.0 TEST RESULTS .................................................................................................................................... 10 6.1 SUMMARY ................................................................................................................................................... 10 6.2 26DB BANDWIDTH MEASUREMENT – 802.11A/N/AC .............................................................................. 11 6.3 UNII OUTPUT POWER MEASUREMENT – 802.11A/N/AC ........................................................................ 28 6.4 PEAK POWER SPECTRAL DENSITY – 802.11A/N/AC .............................................................................. 31 6.5 PEAK EXCURSION RATIO – 802.11A/N/AC ............................................................................................... 47 6.6 FREQUENCY STABILITY ............................................................................................................................ 51 6.7 RADIATED SPURIOUS EMISSION MEASUREMENTS .............................................................................. 54 6.8 RADIATED BAND EDGE MEASUREMENTS (20MHZ BW) ........................................................................ 62 6.9 …

Text truncated - open the document above for the full version.

FCC ID: A3LSMN900V FCC Pt. 15.407 DFS TEST REPORT (CERTIFICATION) Reviewed by: Quality Manager Test Report S/N: Test Dates: EUT Type: Page 1 of 21 0Y1307301509.A3L August 5, 2013 Portable Handset © 2013 PCTEST Engineering Laboratory, Inc. v2.0 6/17/2013 Company Name: Date of Testing: Samsung Electronics Co., Ltd. August 5, 2013 129, Samsung-ro, Yeongtong-gu Test Site/Location: Suwon-city, Gyeonggi-do, 443-803 PCTEST Lab. Columbia, MD, USA Republic of Korea Test Report Serial No.: 0Y1307301509.A3L FCC ID: A3LSMN900V COMPANY: Samsung Electronics Co., Ltd. Model(s): SM-N900V EUT Type: Portable Handset Type of Device: Client Only Device, No Radar Detection Capability Frequency Range: 5260 – 5320 MHz (UNII-II Band) 5500 – 5700 MHz (UNII-III Band) Output Power: 20.045 mW (13.02 dBm) Conducted (802.11a UNII Band II) 20.184 mW (13.05 dBm) Conducted (802.11a UNII Band III) FCC Classification: Unlicensed National Information Infrastructure (UNII) FCC Rule Part(s): Part 15.407(UNII) This equipment has been shown to be capable of compliance with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in FCC 06-96 Appendix B Compliance Measurement Procedures for Unlicensed-National Information Infrastructure Devices Operating in the 5.25 – 5.35 GHz and 5.47 – 5.725 GHz Bands Incorporating Dynamic Frequency Selection. Test results reported herein relate only to the item(s) tested. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. PCTEST ENGINEERING LABORATORY, INC. 7185 Oakland Mills Road, Columbia, MD 21045 USA Tel. 410.290.6652 / Fax 410.290.6654 http://www.pctestlab.com MEASUREMENT REPORT FCC PART 15.407 / IC RSS-210 DFS FCC ID: A3LSMN900V FCC Pt. 15.407 DFS TEST REPORT (CERTIFICATION) Reviewed by: Quality Manager Test Report S/N: Test Dates: EUT Type: Page 2 of 21 0Y1307301509.A3L August 5, 2013 Portable Handset © 2013 PCTEST Engineering Laboratory, Inc. v2.0 6/17/2013 TABLE OF CONTENTS FCC PART 15.407 MEASUREMENT REPORT...................................................................................3 1.0 INTRODUCTION ...................................................................................................................................... 4 1.1 SCOPE ........................................................................................................................................................... 4 1.2 EVALUATION PROCEDURE ......................................................................................................................... 4 1.3 SUMMARY OF TEST RESULTS ............................…

Text truncated - open the document above for the full version.
