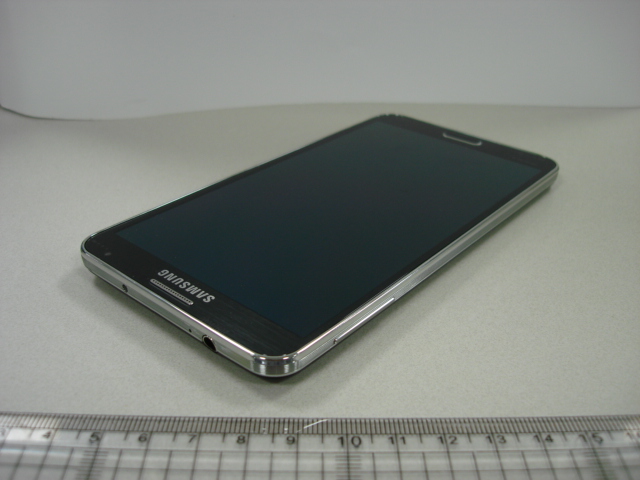

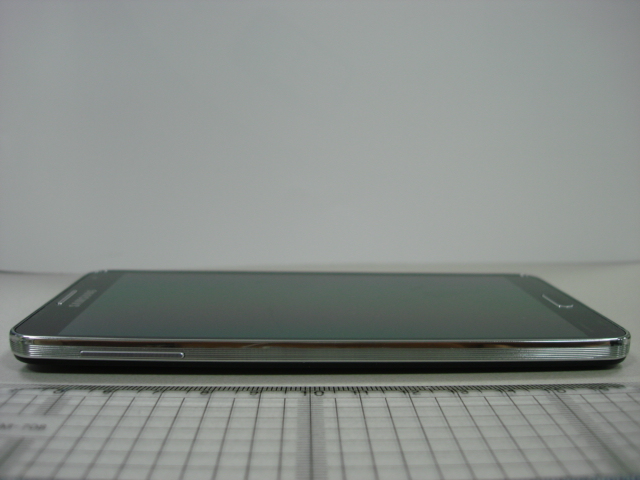

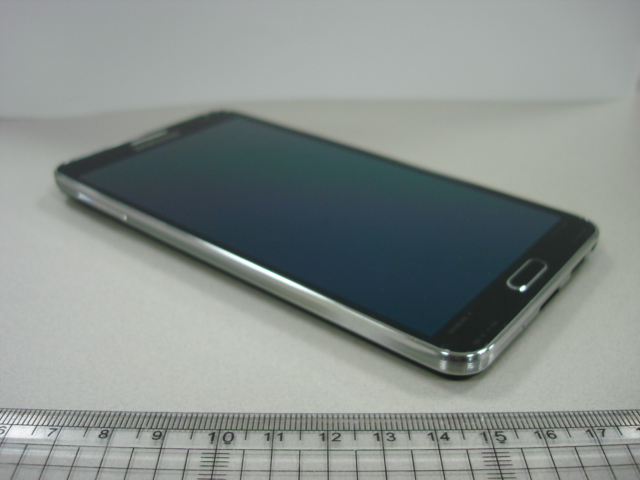

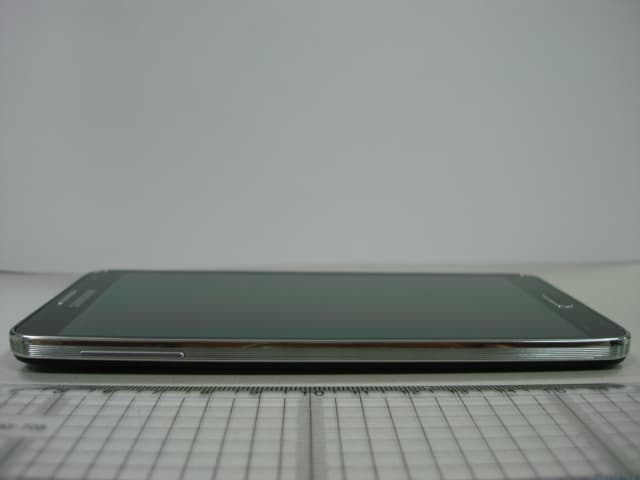

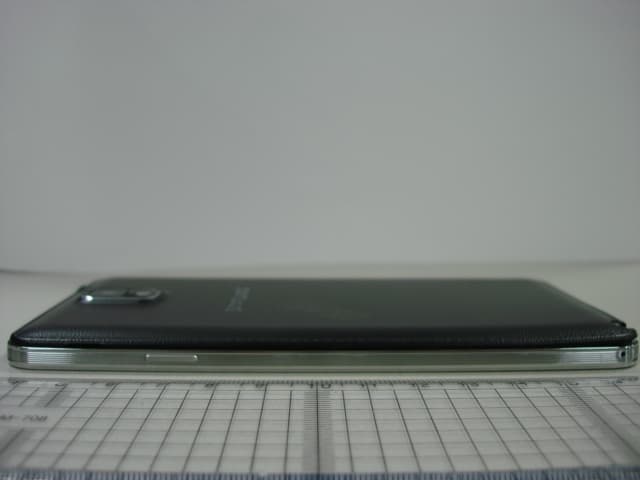

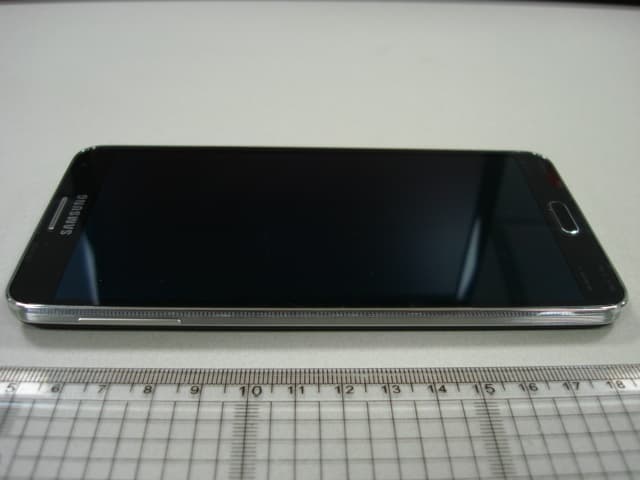

A3LSMN900W8Multi-band GSM/EDGE/UMTS/LTE Phone with WLAN, Bluetooth, RFID and ANT+

You can access the full user manual for more information. To learn to access the user manual, see “Viewing the user manual” in this quick start guide. Quick Start Guide N900W8 www.samsung.com N900W8_QSG_ENG.indb 117/08/2013 9:49:50 AM 2 This device provides high quality mobile communication and entertainment using Samsung’s high standards and technological expertise. • C ontent may differ from the final product, or from software provided by service providers or carriers, and is subject to change without prior notice. • The items supplied with the device and any available accessories may vary depending on the region or service provider. • The supplied items are designed only for this device and may not be compatible with other devices. • You can purchase additional accessories from your local Samsung retailer. Make sure they are compatible with the device before purchase. • Other accessories may not be compatible with your device. • Samsung is not liable for performance issues or incompatibilities caused by edited registry settings or modified operating system software. Attempting to customise the operating system may cause your device or applications to work improperly. N900W8_QSG_ENG.indb 217/08/2013 9:49:50 AM 3 Copyright Copyright © 2013 Samsung Electronics This guide is protected under international copyright laws. No part of this guide may be reproduced, distributed, translated, or transmitted in any form or by any means, electronic or mechanical, including photocopying, recording, or storing in any information storage and retrieval system, without the prior written permission of Samsung Electronics. Instructional icons Warning: situations that could cause injury to yourself or others Caution: situations that could cause damage to your device or other equipment Note: notes, usage tips, or additional information N900W8_QSG_ENG.indb 317/08/2013 9:49:50 AM 4 IC Notice This device complies with Industry Canada licence exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. Trademarks • SAMSUNG and the SAMSUNG logo are registered trademarks of Samsung Electronics. • The Android logo, Google ™ , Google Maps ™ , Gmail ™ , YouTube ™ , Google Play ™ Store, and Google Talk ™ are trademarks of Google, Inc. • Bluetooth ® is a registered trademark of Bluetooth SIG, Inc. worldwide. • Wi-Fi ® , Wi-Fi Protected Setup ™ , Wi-Fi Direct ™ , Wi-Fi CERTIFIED ™ , and the Wi-Fi logo are registered trademarks of the Wi-Fi Alliance. • All other trademarks and copyrights are the property of their respective owners. • N900W8_QSG_ENG.indb 417/08/2013 9:49:50 AM 5 Getting started Device layout Back button Multipurpose jack Notication light Earpiece Proximity/Gesture sensor Menu button Microphone Front camera Power button Home button Touch screen Light sensor Rear camera GPS antenna Main antenna Headset jack Microphone for speakerphone Volume button Flash Back cover Speaker IrLED Do not cover the antenna area with your hands or other objects. This may cause connectivity problems or drain the battery. TBD TBD N900W8_QSG_ENG.indb 517/08/2013 9:49:50 AM 6 Getting started ButtonFunction Home • Press to return to the Home screen. • P ress and hold to open the list of recent applications. Back • Tap to return to the previous screen. Volume • P ress to adjust the device volume. Buttons ButtonFunction Power • Press and hold to turn the device on or off. • Press and hold for more than 7 seconds to reset the device if it has fatal errors or hang-ups, or freezes. • Press to lock or unlock the device. The device goes into lock mode when the touch screen turns off. Menu • Tap to open a list of options available for the current screen. • Tap and hold on the Home screen to launch Google search. N900W8_QSG_ENG.indb 617/08/2013 9:49:50 AM 7 Getting started Be careful not to damage your fingernails when you remove the back cover. 2 Insert the SIM card with the gold-coloured contacts facing downwards. Installing the SIM card and battery Insert the SIM card provided by the mobile telephone service provider, and the included battery. Only microSIM cards work with the device. 1 Remove the back cover. TBD TBD N900W8_QSG_ENG.indb 717/08/2013 9:49:51 AM 8 Getting started 5 Replace the back cover. 3 Push the SIM card into the slot until it locks in place. 4 Insert the battery. 2 1 TBD N900W8_QSG_ENG.indb 817/08/2013 9:49:51 AM 9 Getting started Connect the USB cable to the USB power adaptor and then plug the end of the USB cable into the multipurpose jack. Connecting the charger improperly may cause serious damage to the device. Any damage caused by misuse is not covered by the warranty. Charging the battery Before using the device for the first time or when the battery has been unused for extended periods, you must charge the battery. Use only Samsung-approved chargers, batteries, and cables. Unapproved chargers or cables can cause the battery to explode or damage the device. TBD N900W8_QSG_ENG.indb 917/08/2013 9:49:51 AM 10 Getting started Checking the battery charge status When you charge the battery while the device is off, the following icons will show the current battery charge status: ChargingFully charged After fully charging, disconnect the device from the charger. First unplug the charger from the device, and then unplug it from the electric socket. Do not remove the battery before removing the charger. This may damage the device. To save energy, unplug the charger when not in use. The charger does not have a power switch, so you must unplug the charger from the electric socket when not in use to avoid wasting power. The device should remain close to the electric socket while charging. N900W8_QSG_ENG.indb 1017/08/2013 9:49:51 AM 11 Getting started Turning the device on and off When turning on the device for the first time, follow the on-scre…

Text truncated - open the document above for the full version.

SAMSUNG ELECTRONICS AMERICA, INC. American QA Lab 19 Chapin Rd, Building D. Pine Brook, NJ 07058 Date: August 22, 2013 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road, Columbia, MD 21046 RE: Request of Confidentiality for FCC ID: A3LSMN900W8 To Whom It May Concern: Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules (CFR 47), and Section 552 (b) (4) of the Freedom of Information Act, SAMSUNG ELECTRONICS CO.,LTD. hereby requests confidentiality and treatment of certain information accompanying this application. The materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. We are also hereby request Short-Term Confidentiality for 180 days after the grant as outlined in Public Notice DA 04-1705. This provision will give SAMSUNG ELECTRONICS CO.,LTD. temporary confidentiality of commercially sensitive information prior to product release. The requested Permanent and Short-Term Confidential exhibits are listed as follows: PERMANENT AND SHORT-TERM CONFIDENTIAL LIST Exhibit Description PERMANENT 1 Block Diagram 2 Operational Description 3 Schematics 4 Parts List & Tune-Up Procedure SHORT-TERM 5 External Photos 6 Internal Photos 7 Test-Setup Photos 8 Users Manual The Applicant understands that pursuant to Rule 0.457, disclosure of this application and all accompanying documentations, where applicable, will not be made public before the date of the Grant for this application. Sincerely, Peter Ra General Manager American QA Lab SAMSUNG Electronics America INC.

SAMSUNG ELECTRONICS CO., LTD 129, Samsung-ro,Yeongtong-gu Suwon-si,Gyeonggi-do, 443-742 Korea August 15, 2013 Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 SUBJECT : Label Statement FCC ID : A3LSMN900 W8 Gentlemen: We hereby provide the label statement letter for the above-mentioned device by a new label statement policy instituted at the September 12, 2006, TCB-FCC Teleconference. The label statement is as follows: The FCC ID label is located in the battery compartment. While the battery cover is installed when the unit is shipped from the factory, the battery is never installed prior to sale, so the user must remove the cover in order to install the battery and operate the device. At this time the FCC ID is readily visible to the user. The label is permanently attached by acrylic glue and not easily removed from the device. This statement could not be included in the label. So we inform you of it through this letter. Should you have any questions or comments concerning the above, please contact the undersigned. Sincerely Yours, Seoung Ho Park Senior Manager SAMSUNG ELECTRONICS CO.,LTD Telecommunication Network Business Mobile Communication Division Regulatory Compliance Group.

Label and Location Samsung Model: SM-N900W8 FCC ID: A3LSMN900W8 IC ID: 649E-SMN900W8 Label: Location: Top Back of device Bottom Label is placed inside of the battery compartment.

Reviewed by: FCC ID:A3LSMN900W8 SAR EVALUATION REPORT Quality Manager Document S/N: Test Dates: DUT Type: 0Y1307261454.A3L 07/29/13 - 08/12/13 Portable Handset Page 1 of 69 © 2013 PCTEST Engineering Laboratory, Inc. REV 12.5 M 05/20/2013 Applicant Name: Date of Testing: Samsung Electronics, Co. Ltd. 07/29/13 - 08/12/13 129, Samsung-ro, Maetan dong, Test Site/Location: Yeongtong-gu, Suwon-si PCTEST Lab, Columbia, MD, USA Gyeonggi-do 443-742, Korea Document Serial No.: 0Y1307261454.A3L FCC ID: A3LSMN900W8 APPLICANT: SAMSUNG ELECTRONICS, CO. LTD. DUT Type: Portable Handset Application Type: Certification FCC Rule Part(s): CFR §2.1093 Model(s): SM-N900W8 1 gm Head (W/kg) 1 gm Body- Worn (W/kg) 1 gm Hotspot (W/kg) 10 gm Extremity (W/kg) PCEGSM/GPRS/EDGE 850824.20 - 848.80 MHz33.38 0.210.260.44< 0.1 PCEGSM/GPRS/EDGE 19001850.20 - 1909.80 MHz30.400.18 0.761.07< 0.1 PCEUMTS 850826.40 - 846.60 MHz23.490.18 0.430.43< 0.1 PCEUMTS 17501712.4 - 1752.5 MHz22.810.32 1.081.08< 0.1 PCEUMTS 19001852.4 - 1907.6 MHz22.990.27 1.021.02< 0.1 PCELTE Band 17706.5 - 713.5 MHz23.250.12 0.350.35< 0.1 PCELTE Band 5 (Cell)826.5 - 846.5 MHz23.490.14 0.450.45< 0.1 PCELTE Band 4 (AWS)1712.5 - 1752.5 MHz23.000.30 1.061.06< 0.1 PCELTE Band 2 (PCS)1852.5 - 1907.5 MHz22.480.28 1.081.08< 0.1 DTS2.4 GHz WLAN2412 - 2462 MHz16.750.28 0.150.15< 0.1 DTS5.8 GHz WLAN5745 - 5825 MHz13.790.460.120.12 0.32 NII5.2 GHz WLAN5180 - 5240 MHz13.930.180.16< 0.1 0.45 NII5.3 GHz WLAN5260 - 5320 MHz14.010.270.16< 0.1 0.37 NII5.5 GHz WLAN5500 - 5700 MHz14.340.35< 0.1< 0.1 0.25 DSS/DTSBluetooth2402 - 2480 MHz9.18 0.771.281.220.45 SAR Band & ModeTx Frequency Measured Conducted Power [dBm] Simultaneous SAR per KDB 690783 D01v01r02: Equipment Class N/A Note: Powers in the above table represent output powers for the SAR test configurations and may not represent the highest output powers for all configurations for each mode. This wireless portable device has been shown to be capable of compliance for localized specific absorption rate (SAR) for uncontrolled environment/general population exposure limits specified in ANSI/IEEE C95.1-1992 and has been tested in accordance with the measurement procedures specified in Section 1.9 of this report; for North American frequency bands only. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. Test results reported herein relate only to the item(s) tested. PCTEST ENGINEERING LABORATORY, INC. 7185 Oakland Mills Road, Columbia, MD 21046 USA Tel. +1.410.290.6652 / Fax +1.410.290.6654 http://www.pctestlab.com SAR EVALUATION REPORT Reviewed by: FCC ID:A3LSMN900W8 SAR EVALUATION REPORT Quality Manager Document S/N: Test Dates: DUT Type: 0Y1307261454.A3L 07/29/13 - 08/12/13 Portable Handset Page 2 of 69 © 2013 PCTEST Engineering Laboratory, Inc. REV 12.5 M 05/20/2013 TABLE OF CONTENTS 1 DEVICE UNDER TEST ................................................................................................................... 3 2 LTE INFORMATION ...................................................................................................................... 10 3 INTRODUCTION ........................................................................................................................... 11 4 DOSIMETRIC ASSESSMENT ...................................................................................................... 12 5 DEFINITION OF REFERENCE POINTS ...................................................................................... 13 6 TEST CONFIGURATION POSITIONS FOR HANDSETS ............................................................ 14 7 RF EXPOSURE LIMITS ................................................................................................................ 18 8 FCC MEASUREMENT PROCEDURES........................................................................................ 19 9 RF CONDUCTED POWERS......................................................................................................... 23 10 SYSTEM VERIFICATION.............................................................................................................. 39 11 SAR DATA SUMMARY ................................................................................................................. 43 12 FCC MULTI-TX AND ANTENNA SAR CONSIDERATIONS......................................................... 56 13 SAR MEASUREMENT VARIABILITY ........................................................................................... 63 14 EQUIPMENT LIST......................................................................................................................... 64 15 MEASUREMENT UNCERTAINTIES ............................................................................................ 65 16 CONCLUSION............................................................................................................................... 67 17 REFERENCES .............................................................................................................................. 68 APPENDIX A: SAR TEST PLOTS APPENDIX B: SAR DIPOLE VERIFICATION PLOTS APPENDIX C: PROBE AND DIPOLE CALIBRATION CERTIFICATES APPENDIX D: SAR TISSUE SPECIFICATIONS APPENDIX E: SAR SYSTEM VALIDATION APPENDIX F: SAR TEST SETUP PHOTOGRAPHS Reviewed by: FCC ID:A3LSMN900W8 SAR EVALUATION REPORT Quality Manager Document S/N: Test Dates: DUT Type: 0Y1307261454.A3L 07/29/13 - 08/12/13 Portable Handset Page 3 of 69 © 2013 PCTEST Engineering Laboratory, Inc. REV 12.5 M 05/20/2013 1 DEVICE UNDER TEST 1.1 Device Overview GSM/GPRS/EDGE 850Voice/Data824.20 - 848.80 MHz GSM/GPRS/EDGE 1900Voice/Data1850.20 - 1909.80 MHz UMTS 850Voice/Data826.40 - 846.60 MHz UMTS 1750Voice/Data1712.4 - 1752.5 MHz UMTS 1900Voice/Data185…

Text truncated - open the document above for the full version.

Reviewed by: FCC ID: A3LSMN900W8 FCC Pt. 15.407 802.11a/n/ac UNII MEASUREMENT REPORT (CERTIFICATION) Quality Manager Test Report S/N: Test Dates: EUT Type: 0Y1307261458.A3L 08/05 - 08/16/2013 Portable Handset Page 1 of 89 © 2013 PCTEST Engineering Laboratory, Inc. V 2.3 05/07/2013 Applicant Name: Date of Testing: Samsung Electronics Co., Ltd. 08/05 - 08/16/2013 129, Samsung-ro, Yeongtong-gu Test Site/Location: Suwon-city, Gyeonggi-do, 443-803 PCTEST Lab, Columbia, MD, USA Republic of Korea Test Report Serial No.: 0Y1307261458.A3L FCC ID: A3LSMN900W8 IC CERTIFICATION NO.: 649E-SMN900W8 APPLICANT: Samsung Electronics Co., Ltd. Application Type: Certification Model(s): SM-N900W8 EUT Type: Portable Handset FCC Classification: Unlicensed National Information Infrastructure (UNII) FCC Rule Part(s): Part 15.407 IC Specification(s): RSS-210 Issue 8 Test Procedure(s): KDB 789033 v01r03, KDB 644545 v01r01, KDB 648474 D03 v01r02 Max. Power (mW) Max. Power (dBm) 1205180 - 524025.88214.13 2205260 - 532026.54614.24 3205500 - 570028.18414.50 1205180 - 524020.04513.02 2205260 - 532020.18413.05 3205500 - 570022.33613.49 1405190 - 523020.60613.14 2405270 - 531019.77012.96 3405510 - 567022.33613.49 180521012.79411.07 280529012.53110.98 380553011.85810.74 802.11ac 802.11n Channel Bandwidth (MHz) 802.11a 802.11n Conducted Power Mode Tx Frequency (MHz) UNII Band This equipment has been shown to be capable of compliance with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in KDB 789033 v01r03 and KDB 644545 v01r01. Test results reported herein relate only to the item(s) tested. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. PCTEST ENGINEERING LABORATORY, INC. 7185 Oakland Mills Road, Columbia, MD 21046 USA Tel. 410.290.6652 / Fax 410.290.6654 http://www.pctestlab.com MEASUREMENT REPORT FCC PART 15.407 / IC RSS-210 802.11a/n (UNII) Reviewed by: FCC ID: A3LSMN900W8 FCC Pt. 15.407 802.11a/n/ac UNII MEASUREMENT REPORT (CERTIFICATION) Quality Manager Test Report S/N: Test Dates: EUT Type: 0Y1307261458.A3L 08/05 - 08/16/2013 Portable Handset Page 2 of 89 © 2013 PCTEST Engineering Laboratory, Inc. V 2.3 05/07/2013 TABLE OF CONTENTS FCC PART 15.407 MEASUREMENT REPORT .................................................................................................. 3 1.0 INTRODUCTION......................................................................................................................................4 1.1 SCOPE....................................................................................................................................................... 4 1.2 PCTEST TEST LOCATION........................................................................................................................ 4 2.0 PRODUCT INFORMATION .....................................................................................................................5 2.1 EQUIPMENT DESCRIPTION..................................................................................................................... 5 2.2 DEVICE CAPABILITIES ............................................................................................................................. 5 2.3 TEST CONFIGURATION ........................................................................................................................... 5 2.4 EMI SUPPRESSION DEVICE(S)/MODIFICATIONS.................................................................................. 5 2.5 LABELING REQUIREMENTS .................................................................................................................... 5 3.0 DESCRIPTION OF TEST ........................................................................................................................6 3.1 EVALUATION PROCEDURE..................................................................................................................... 6 3.2 AC LINE CONDUCTED EMISSIONS......................................................................................................... 6 3.3 RADIATED EMISSIONS ............................................................................................................................ 7 4.0 ANTENNA REQUIREMENTS ..................................................................................................................8 5.0 TEST EQUIPMENT CALIBRATION DATA..............................................................................................9 6.0 TEST RESULTS ....................................................................................................................................10 6.1 SUMMARY ............................................................................................................................................... 10 6.2 26DB BANDWIDTH MEASUREMENT – 802.11A/N/AC .......................................................................... 11 6.3 UNII OUTPUT POWER MEASUREMENT – 802.11A/N/AC.................................................................... 28 6.4 PEAK POWER SPECTRAL DENSITY – 802.11A/N/AC .......................................................................... 31 6.5 PEAK EXCURSION RATIO – 802.11A/N/AC........................................................................................... 47 6.6 FREQUENCY STABILITY ........................................................................................................................ 51 6.7 RADIATED SPURIOUS EMISSION MEASUREMENTS.......................................................................... 54 6.8 RADIATED BAND EDGE MEASUREMENTS (20MHZ BW) ..........................................................…

Text truncated - open the document above for the full version.

Reviewed by: FCC ID: A3LSMN900W8 FCC Pt. 15.407 DFS TEST REPORT (CERTIFICATION) Quality Manager Test Report S/N: Test Dates: EUT Type: 0Y1307261459.A3L 08/12/2013 Portable Handset Page 1 of 20 © 2013 PCTEST Engineering Laboratory, Inc. v2.0 6/17/2013 Company Name: Date of Testing: Samsung Electronics Co., Ltd. 08/12/2013 129, Samsung-ro, Yeongtong-gu Test Site/Location: Suwon-city, Gyeonggi-do, 443-803 PCTEST Lab. Columbia, MD, USA Republic of Korea Test Report Serial No.: 0Y1307261459.A3L FCC ID: A3LSMN900W8 IC CERTIFICATION NO.: 649E-SMN900W8 COMPANY: Samsung Electronics Co., Ltd. Model(s): SM-N900W8 EUT Type: Portable Handset Type of Device: Client Only Device, No Radar Detection Capability Frequency Range: 5260 – 5320 MHz (UNII-II Band) 5500 – 5700 MHz (UNII-III Band) Output Power: 26.546 mW (14.24 dBm) Conducted (802.11a UNII Band II) 28.184 mW (14.50 dBm) Conducted (802.11a UNII Band III) FCC Classification: Unlicensed National Information Infrastructure (UNII) FCC Rule Part(s): Part 15.407(UNII) This equipment has been shown to be capable of compliance with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in FCC 06-96 Appendix B Compliance Measurement Procedures for Unlicensed-National Information Infrastructure Devices Operating in the 5.25 – 5.35 GHz and 5.47 – 5.725 GHz Bands Incorporating Dynamic Frequency Selection. Test results reported herein relate only to the item(s) tested. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. PCTEST ENGINEERING LABORATORY, INC. 7185 Oakland Mills Road, Columbia, MD 21045 USA Tel. 410.290.6652 / Fax 410.290.6654 http://www.pctestlab.com MEASUREMENT REPORT FCC PART 15.407 / IC RSS-210 DFS Reviewed by: FCC ID: A3LSMN900W8 FCC Pt. 15.407 DFS TEST REPORT (CERTIFICATION) Quality Manager Test Report S/N: Test Dates: EUT Type: 0Y1307261459.A3L 08/12/2013 Portable Handset Page 2 of 20 © 2013 PCTEST Engineering Laboratory, Inc. v2.0 6/17/2013 TABLE OF CONTENTS FCC PART 15.407 MEASUREMENT REPORT...................................................................................3 1.0 INTRODUCTION......................................................................................................................................4 1.1 SCOPE........................................................................................................................................................... 4 1.2 EVALUATION PROCEDURE......................................................................................................................... 4 1.3 SUMMARY OF TEST RESULTS ................................................................................................................... 4 2.0 PRODUCT INFORMATION .....................................................................................................................5 2.1 EQUIPMENT DESCRIPTION......................................................................................................................... 5 2.2 EUT CAPABILITIES ....................................................................................................................................... 5 2.3 MODIFICATIONS........................................................................................................................................... 5 3.0 DESCRIPTION OF DYNAMIC FREQUENCY SELECTION TEST .........................................................6 3.1 APPLICABILITY ............................................................................................................................................. 6 3.2 REQUIREMENTS .......................................................................................................................................... 6 3.3 DFS DETECTION THRESHOLD VALUES .................................................................................................... 8 3.4 PARAMETERS OF DFS TEST SIGNALS ...................................................................................................... 8 3.5 PROCEDURE ................................................................................................................................................ 9 4.0 TEST EQUIPMENT................................................................................................................................11 4.1 ADDITIONAL EQUIPMENT ......................................................................................................................... 11 5.0 TEST PLOTS AND DATA - UNII BAND II .............................................................................................12 6.0 TEST PLOTS AND DATA - UNII BAND III ............................................................................................16 7.0 CONCLUSION .......................................................................................................................................20 Reviewed by: FCC ID: A3LSMN900W8 FCC Pt. 15.407 DFS TEST REPORT (CERTIFICATION) Quality Manager Test Report S/N: Test Dates: EUT Type: 0Y1307261459.A3L 08/12/2013 Portable Handset Page 3 of 20 © 2013 PCTEST Engineering Laboratory, Inc. v2.0 6/17/2013 DFS MEASUREMENT REPORT FCC Part 15.407 § 2.1033 General Information APPLICANT: Samsung Electronics Co., Ltd. APPLICANT ADDRESS: 129, Samsung-ro, Yeongtong-gu Suwon-city, Gyeonggi-do, 443-803, Republic of Korea TEST SITE: PCTEST ENGINEERING LABORATORY, INC. TEST SITE ADDRESS: 7185 Oakland Mills Road, Columbia, MD 21046 USA FCC RULE PART(S): Part 15.407(h) BASE MODEL: SM-N900W8 FCC ID: A3LSMN900W8 Test Device Serial No.: BT/WiFi Cond. Production Pre-Production Engineering DEVICE CLASSIFICATION: Client Only, No Radar Detecti…

Text truncated - open the document above for the full version.

SAMSUNG ELECTRONICS FCC ID: A3LSMN900W8 Model: SM-N900W8 Test Set-Up Photos EUT Type: PORTABLE HANDSET Page 1 of 1 © 2013 PCTEST Engineering Laboratory Inc. TEST SETUP PHOTOGRAPHS SAMSUNG ELECTRONICS FCC ID: A3LSMN900W8 Model: SM-N900W8 Test Set-Up Photos EUT Type: PORTABLE HANDSET Page 2 of 2 © 2013 PCTEST Engineering Laboratory Inc. SAMSUNG ELECTRONICS FCC ID: A3LSMN900W8 Model: SM-N900W8 Test Set-Up Photos EUT Type: PORTABLE HANDSET Page 3 of 3 © 2013 PCTEST Engineering Laboratory Inc. SAMSUNG ELECTRONICS FCC ID: A3LSMN900W8 Model: SM-N900W8 Test Set-Up Photos EUT Type: PORTABLE HANDSET Page 4 of 4 © 2013 PCTEST Engineering Laboratory Inc.

Reviewed by: FCC IDA3LSMN900W8 SAR EVALUATION REPORT Quality Manager Test Dates: DUT Type: 07/29/13 - 08/12/13 Portable Handset APPENDIX F: Page 1 of 9 © 2013 PCTEST Engineering Laboratory, Inc. REV 12.5 M 05/20/2013 APPENDIX F: SAR TEST SETUP PHOTOGRAPHS Reviewed by: FCC IDA3LSMN900W8 SAR EVALUATION REPORT Quality Manager Test Dates: DUT Type: 07/29/13 - 08/12/13 Portable Handset APPENDIX F: Page 2 of 9 © 2013 PCTEST Engineering Laboratory, Inc. REV 12.5 M 05/20/2013 SAR Test Setup Photo 1: Right Cheek SAR Test Setup Photo 2: Right Tilt Reviewed by: FCC IDA3LSMN900W8 SAR EVALUATION REPORT Quality Manager Test Dates: DUT Type: 07/29/13 - 08/12/13 Portable Handset APPENDIX F: Page 3 of 9 © 2013 PCTEST Engineering Laboratory, Inc. REV 12.5 M 05/20/2013 SAR Test Setup Photo 3: Left Cheek SAR Test Setup Photo 4: Left Tilt Reviewed by: FCC IDA3LSMN900W8 SAR EVALUATION REPORT Quality Manager Test Dates: DUT Type: 07/29/13 - 08/12/13 Portable Handset APPENDIX F: Page 4 of 9 © 2013 PCTEST Engineering Laboratory, Inc. REV 12.5 M 05/20/2013 SAR Test Setup Photo 5: Back Side at 1.0 cm SAR Test Setup Photo 6: Back Side at 0.0 cm Reviewed by: FCC IDA3LSMN900W8 SAR EVALUATION REPORT Quality Manager Test Dates: DUT Type: 07/29/13 - 08/12/13 Portable Handset APPENDIX F: Page 5 of 9 © 2013 PCTEST Engineering Laboratory, Inc. REV 12.5 M 05/20/2013 SAR Test Setup Photo 7: Front Side at 1.0 cm SAR Test Setup Photo 8: Front Side at 0.0 cm Reviewed by: FCC IDA3LSMN900W8 SAR EVALUATION REPORT Quality Manager Test Dates: DUT Type: 07/29/13 - 08/12/13 Portable Handset APPENDIX F: Page 6 of 9 © 2013 PCTEST Engineering Laboratory, Inc. REV 12.5 M 05/20/2013 SAR Test Setup Photo 9: Top Edge at 1.0 cm SAR Test Setup Photo 10: Top Edge at 0.0 cm Reviewed by: FCC IDA3LSMN900W8 SAR EVALUATION REPORT Quality Manager Test Dates: DUT Type: 07/29/13 - 08/12/13 Portable Handset APPENDIX F: Page 7 of 9 © 2013 PCTEST Engineering Laboratory, Inc. REV 12.5 M 05/20/2013 SAR Test Setup Photo 11: Bottom Edge at 1.0 cm SAR Test Setup Photo 12: Right Edge at 1.0 cm Reviewed by: FCC IDA3LSMN900W8 SAR EVALUATION REPORT Quality Manager Test Dates: DUT Type: 07/29/13 - 08/12/13 Portable Handset APPENDIX F: Page 8 of 9 © 2013 PCTEST Engineering Laboratory…
