A3LSMP905MMulti-band GSM/EDGE/UMTS/LTE Tablet with WLAN, Bluetooth, and ANT+

User manual SM-P905M Draft 6.1 2014-01-29 Only for Approval 4 Instructional icons Warning: situations that could cause injury to yourself or others Caution: situations that could cause damage to your device or other equipment Note: notes, usage tips, or additional information 5 Copyright Copyright © 2014 Samsung Electronics This guide is protected under international copyright laws. No part of this guide may be reproduced, distributed, translated, or transmitted in any form or by any means, electronic or mechanical, including photocopying, recording, or storing in any information storage and retrieval system, without the prior written permission of Samsung Electronics. 6 Trademarks • SAMSUNG and the SAMSUNG logo are registered trademarks of Samsung Electronics. • Bluetooth ® is a registered trademark of Bluetooth SIG, Inc. worldwide. • Wi-Fi ® , Wi-Fi Protected Setup ™ , Wi-Fi CERTIFIED Passpoint ™ , Wi-Fi Direct ™ , Wi-Fi CERTIFIED ™ , and the Wi-Fi logo are registered trademarks of the Wi-Fi Alliance. Your device uses a non-harmonised frequency and is intended for use in all European countries. The WLAN can be operated in the EU without restriction indoors, but cannot be operated outdoors. • All other trademarks and copyrights are the property of their respective owners. 7 Getting started Device layout Back button Recent apps button Home button IrLED Touch screen Front camera Speaker Light sensor Multipurpose jack Memory card slot SIM card slot Volume button Power button 8 Getting started Microphone Headset jack Rear camera Flash Main antenna GPS antenna Speaker Do not cover the antenna area with your hands or other objects. This may cause connectivity problems or drain the battery. 9 Getting started Installing the SIM or USIM card Insert the SIM or USIM card provided by the mobile telephone service provider. • Only microSIM cards work with the device. • Some LTE services may not be available depending on the service provider. For details about service availability, contact your service provider. 1 Open the cover of the SIM card slot. 2 Insert the SIM or USIM card with the gold- coloured contacts facing downwards. 10 Getting started 3 Push the SIM or USIM card into the slot until it locks in place. 4 Close the cover of the SIM card slot. Charging the battery Before using the device for the first time or when the battery has been unused for extended periods, you must charge the battery. Use only Samsung-approved chargers, batteries, and cables. Unapproved chargers or cables can cause the battery to explode or damage the device. 11 Getting started Connect the USB cable to the USB power adaptor and then plug the end of the USB cable into the multipurpose jack. Connecting the charger improperly may cause serious damage to the device. Any damage caused by misuse is not covered by the warranty. After fully charging, disconnect the device from the charger. First unplug the charger from the device, and then unplug it from the electric socket. 12 Getting started To save energy, unplug the charger when not in use. The charger does not have a power switch, so you must unplug the charger from the electric socket when not in use to avoid wasting power. The charger should remain close to the electric socket and easily accessible while charging. Checking the battery charge status When you charge the battery while the device is off, the following icons will show the current battery charge status: ChargingFully charged 13 Getting started Turning the device on and off When turning on the device for the first time, follow the on-screen instructions to set up your device. Press and hold the Power button for a few seconds to turn the device on and off. 14 Getting started Viewing the user manual The user manual provides complete information about operating your device. You may incur additional charges for accessing the Internet or downloading media files. For details, contact your service provider. From your device 1 Open the Internet application. 2 Tap to open the bookmarks list. 3 Select the bookmark for the user manual. The user manual may not be available depending on the web browser or service provider. From your computer Access www.samsung.com and then search for the user manual by the model name of your device. 15 Safety information This safety information contains content for mobile devices. Some content may be not applicable to your device. To prevent injury to yourself and others or damage to your device, read the safety information about your device before using the device. Warning Failure to comply with safety warnings and regulations can cause serious injury or death Do not use damaged power cords or plugs, or loose electrical sockets Unsecured connections can cause electric shock or fire. Do not touch the power cord with wet hands or disconnect the charger by pulling the cord Doing so may result in electrocution. Do not bend or damage the power cord Doing so may cause electric shock or fire. 16 Safety information Do not use your device while it is charging or touch your device with wet hands Doing so may cause electric shock. Do not short-circuit the charger or the device Doing so may cause electric shock or fire, or the battery may malfunction or explode. Do not use your device outdoor during a thunderstorm Doing so may result in electric shock or device malfunction. Use manufacturer-approved batteries, chargers, accessories, and supplies • Using generic batteries or chargers may shorten the life of your device or cause the device to malfunction. They may also cause a fire or cause the battery to explode. • Use only Samsung-approved battery and charger specifically designed for your device. Incompatible battery and charger can cause serious injuries or damage to your device. • Samsung cannot be responsible for the user’s safety when using accessories or supplies that are not approved by Samsung. 17 Safety information Do not drop or cause an impact to the charger or the device Handle and dispo…

Text truncated - open the document above for the full version.

Samsung Electronics America, Inc 19 Chapin Rd, Building D. Pine Brook, NJ 07058 Date: January 24th, 2014 FCC ID: A3LSMP905M To whom it may concern: We, the undersigned, hereby authorize PCTEST Engineering Laboratory Inc., to act on our behalf in all matters relating to applications for equipment authorization, including the signing of all documents relating to these matters. Any and all acts carried out by PCTEST Engineering Laboratory, Inc. on our behalf shall have the same effect as acts of our own. We also hereby certify that no party to any application is subject to a denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S. C. 862. Sincerely, Signature Sang Kyung (Peter), Ra General Manager Samsung Electronics America, Inc

SAMSUNG ELECTRONICS CO., LTD 129, Samsung-ro,Yeongtong-gu Suwon-si,Gyeonggi-do, 443-742 Korea January 12, 2014 Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 SUBJECT : Label Statement FCC ID : A3LSMT905M Gentlemen: We hereby provide the label statement letter for the above-mentioned device by a new label statement policy of KDB 784748 D01.. The label statement is as follows: The FCC ID label is located on the rear of the device with the battery installed. At this time the FCC ID is readily visible to the user. The label is permanently engraved by laser and not easily removed from the device. This statement could not be included in the label. So we inform you of it through this letter. Should you have any questions or comments concerning the above, please contact the undersigned. Sincerely Yours, Seoung Ho Park Senior Manager SAMSUNG ELECTRONICS CO.,LTD Telecommunication Network Business Mobile Communication Division Regulatory Compliance Group.

SAMSUNG ELECTRONICS AMERICA, INC. American QA Lab 19 Chapin Rd, Building D. Pine Brook, NJ 07058 Date: January 24, 2014 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road, Columbia, MD 21046 RE: Request of Confidentiality for FCC ID: A3LSMP905M To Whom It May Concern: Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules (CFR 47), and Section 552 (b) (4) of the Freedom of Information Act, SAMSUNG ELECTRONICS CO.,LTD. hereby requests confidentiality and treatment of certain information accompanying this application. The materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. We are also hereby request Short-Term Confidentiality for 180 days after the grant as outlined in Public Notice DA 04-1705. This provision will give SAMSUNG ELECTRONICS CO.,LTD. temporary confidentiality of commercially sensitive information prior to product release. The requested Permanent and Short-Term Confidential exhibits are listed as follows: PERMANENT AND SHORT-TERM CONFIDENTIAL LIST Exhibit Description PERMANENT 1 Block Diagram 2 Operational Description 3 Schematics SHORT-TERM 4 External Photos 5 Internal Photos 6 Test-Setup Photos 7 Users Manual The Applicant understands that pursuant to Rule 0.457, disclosure of this application and all accompanying documentations, where applicable, will not be made public before the date of the Grant for this application. Sincerely, Peter Ra General Manager American QA Lab SAMSUNG Electronics America INC.

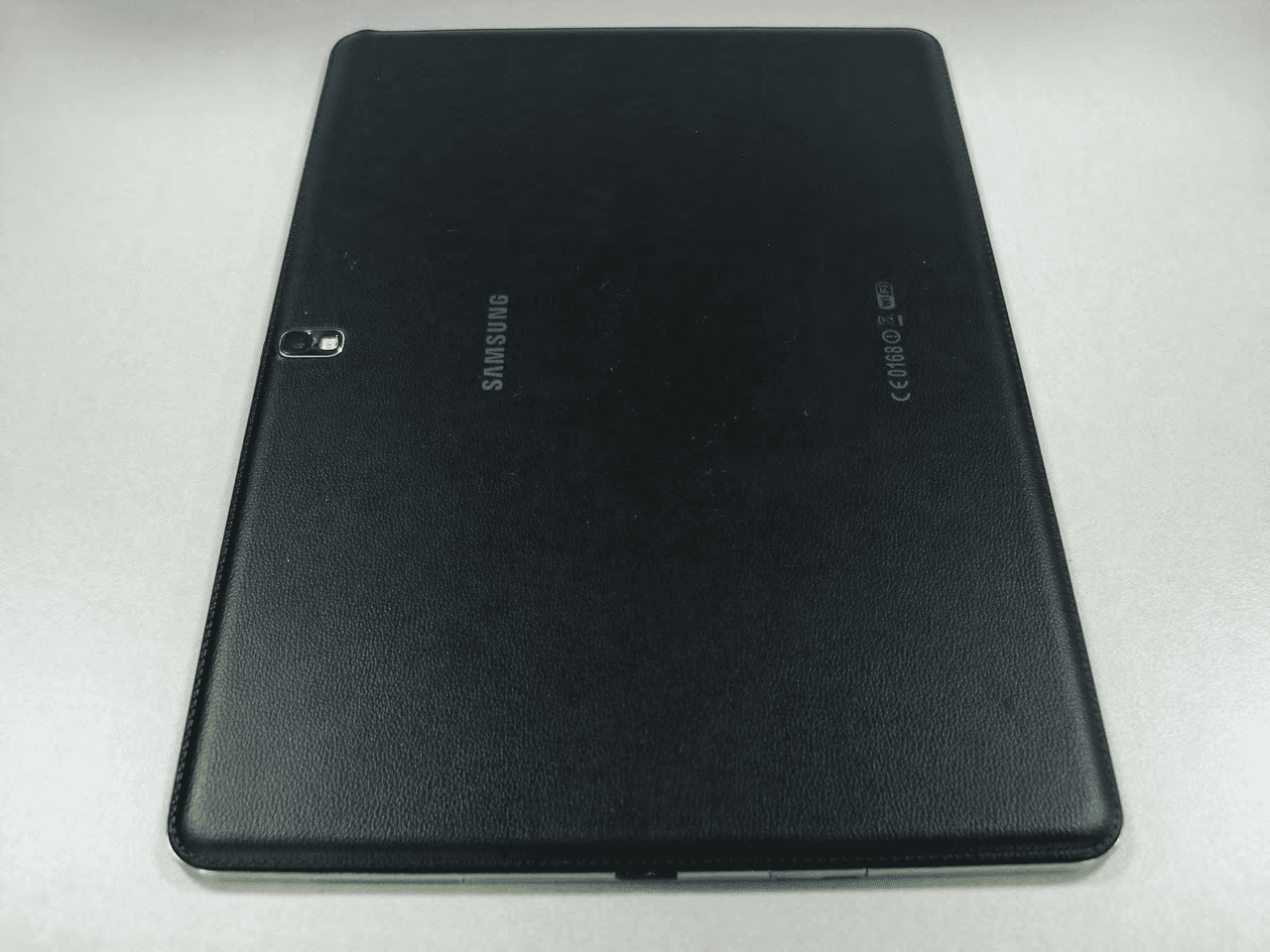

Label and Location Samsung EUT Model: SM-P905M FCC ID: A3LSMP905M Label: Location: Top Back of EUT Bottom Tablet : FCC ID is printed on bottom of the device

FCC ID:A3LSMP905M SAR EVALUATION REPORT Reviewed by: Quality Manager Document S/N: Test Dates: DUT Type: Page 1 of 97 0Y1312182448.A3L 12/02/13 - 01/20/14 Portable Tablet © 2014 PCTEST Engineering Laboratory, Inc. REV 12.4 M 03/25/2013 Applicant Name: Date of Testing: Samsung Electronics, Co. Ltd. 12/02/13 – 01/20/14 129, Samsung-ro Maetan Dong, Test Site/Location: Yeongtong-gu, Suwon-si PCTEST Lab, Columbia, MD, USA Gyeonggi-do 443-742, Korea Document Serial No.: 0Y1312182448.A3L FCC ID: A3LSMP905M APPLICANT: SAMSUNG ELECTRONICS, CO. LTD. DUT Type: Portable Tablet Application Type: Certification FCC Rule Part(s): CFR §2.1093 Model(s): SM-P905M SAR 1 gm Body (W/kg) PCBGSM/GPRS/EDGE 850824.20 - 848.80 MHz28.240.50 PCBGSM/GPRS/EDGE 19001850.20 - 1909.80 MHz24.490.19 PCBUMTS 850826.40 - 846.60 MHz22.350.44 PCB UMTS 19001852.4 - 1907.6 MHz22.280.24 PCBLTE Band 17706.5 - 713.5 MHz23.000.20 PCBLTE Band 5 (Cell)824.7 - 848.3 MHz22.160.27 PCBLTE Band 4 (AWS)1710.7 - 1754.3 MHz22.900.38 PCBLTE Band 2 (PCS)1850.7 - 1909.3 MHz23.400.47 DTS2.4 GHz WLAN2412 - 2462 MHz13.661.10 DTS5.8 GHz WLAN5745 - 5825 MHz10.051.06 NII5.2 GHz WLAN5180 - 5240 MHz10.230.68 NII5.3 GHz WLAN5260 - 5320 MHz10.250.97 NII5.5 GHz WLAN5500 - 5700 MHz10.290.76 DSS/DTSBluetooth2402 - 2480 MHz7.97N/A 1.60 Measured Conducted Power [dBm] Simultaneous SAR per KDB 690783 D01v01r02: Equipment Class Band & ModeTx Frequency Note: Powers in the above table represent output powers for the SAR test configurations and may not represent the highest output powers for all configurations for each mode. This wireless portable device has been shown to be capable of compliance for localized specific absorption rate (SAR) for uncontrolled environment/general population exposure limits specified in ANSI/IEEE C95.1-1992 and has been tested in accordance with the measurement procedures specified in Section 1.7 of this report; for North American frequency bands only. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. Test results reported herein relate only to the item(s) tested. PCTEST ENGINEERING LABORATORY, INC. 7185 Oakland Mills Road, Columbia, MD 21046 USA Tel. +1.410.290.6652 / Fax +1.410.290.6654 http://www.pctestlab.com SAR EVALUATION REPORT FCC ID:A3LSMP905M SAR EVALUATION REPORT Reviewed by: Quality Manager Document S/N: Test Dates: DUT Type: Page 2 of 97 0Y1312182448.A3L 12/02/13 - 01/20/14 Portable Tablet © 2014 PCTEST Engineering Laboratory, Inc. REV 12.4 M 03/25/2013 TABLE OF CONTENTS 1 DEVICE UNDER TEST ................................................................................................................... 3 2 LTE INFORMATION ...................................................................................................................... 10 3 INTRODUCTION ........................................................................................................................... 11 4 DOSIMETRIC ASSESSMENT ...................................................................................................... 12 5 SAR TESTING PROCEDURES .................................................................................................... 13 6 RF EXPOSURE LIMITS ................................................................................................................ 14 7 FCC MEASUREMENT PROCEDURES ........................................................................................ 15 8 RF CONDUCTED POWERS ......................................................................................................... 20 9 SYSTEM VERIFICATION .............................................................................................................. 66 10 SAR DATA SUMMARY ................................................................................................................. 68 11 FCC MULTI-TX AND ANTENNA SAR CONSIDERATIONS ......................................................... 76 12 SAR MEASUREMENT VARIABILITY ........................................................................................... 91 13 EQUIPMENT LIST ......................................................................................................................... 92 14 MEASUREMENT UNCERTAINTIES ............................................................................................ 93 15 CONCLUSION ............................................................................................................................... 95 16 REFERENCES .............................................................................................................................. 96 APPENDIX A: SAR TEST PLOTS APPENDIX B: SAR DIPOLE VERIFICATION PLOTS APPENDIX C: PROBE AND DIPOLE CALIBRATION CERTIFICATES APPENDIX D: SAR TISSUE SPECIFICATIONS APPENDIX E: SAR SYSTEM VALIDATION APPENDIX F: SAR TEST SETUP PHOTOGRAPHS APPENDIX G: SAR SENSOR TRIGGERING DATA FCC ID:A3LSMP905M SAR EVALUATION REPORT Reviewed by: Quality Manager Document S/N: Test Dates: DUT Type: Page 3 of 97 0Y1312182448.A3L 12/02/13 - 01/20/14 Portable Tablet © 2014 PCTEST Engineering Laboratory, Inc. REV 12.4 M 03/25/2013 1 DEVICE UNDER TEST 1.1 Device Overview GSM/GPRS/EDGE 850Voice/Data824.20 - 848.80 MHz GSM/GPRS/EDGE 1900Voice/Data1850.20 - 1909.80 MHz UMTS 850Voice/Data826.40 - 846.60 MHz UMTS 1900Voice/Data1852.4 - 1907.6 MHz LTE Band 17Data706.5 - 713.5 MHz LTE Band 5 (Cell)Data824.7 - 848.3 MHz LTE Band 4 (AWS)Data1710.7 - 1754.3 MHz LTE Band 2 (PCS)Data1850.7 - 1909.3 MHz 2.4 GHz WLANData2412 - 2462 MHz 5.8 GHz WLANData5745 - 5825 MHz 5.2 GHz WLANData5180 - 5240 MHz 5.3 GHz WLANData5260 - 5320 MHz 5.5 GHz WLANData5500 - 5700 MHz BluetoothData2402 - 2480 MHz ANT+Data2402 - 2480 MHz Band & ModeTx FrequencyOperating Modes 1…

Text truncated - open the document above for the full version.

FCC ID: A3LSMP905M FCC Pt. 15.247 BLUETOOTH (LE) TEST REPORT (CERTIFICATION) Reviewed by: Quality Manager Test Report S/N: Test Dates: EUT Type: Page 1 of 36 0Y1312182454.A3L 12/5-12/10/2013 Portable Tablet Computer © 2014 PCTEST Engineering Laboratory, Inc. V 2.7 06/10/2013 Applicant Name: Date of Testing: Samsung Electronics, Co. Ltd. 12/5-12/10/2013 129, Samsung-ro, Maetan dong, Test Site/Location: Yeongtong-gu, Suwon-si PCTEST Lab, Columbia, MD, USA Gyeonggi-do 443-742, Korea Test Report Serial No.: 0Y1312182454.A3L FCC ID: A3LSMP905M APPLICANT: Samsung Electronics, Co. Ltd. Application Type: Certification Model: SM-P905M EUT Type: Portable Tablet Computer Max. RF Output Power: 3.364 mW (5.27 dBm) Peak Conducted Frequency Range: 2402 - 2480 MHz FCC Classification: Digital Transmission System (DTS) FCC Rule Part(s): Part 15.247 Test Procedure(s): KDB 558074 v03r01 This equipment has been shown to be capable of compliance with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in KDB 558074 v03r01. Test results reported herein relate only to the item(s) tested. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. PCTEST ENGINEERING LABORATORY, INC. 7185 Oakland Mills Road, Columbia, MD 21046 USA Tel. 410.290.6652 / Fax 410.290.6654 http://www.pctestlab.com MEASUREMENT REPORT FCC PART 15.247 Bluetooth (Low Energy) FCC ID: A3LSMP905M FCC Pt. 15.247 BLUETOOTH (LE) TEST REPORT (CERTIFICATION) Reviewed by: Quality Manager Test Report S/N: Test Dates: EUT Type: Page 2 of 36 0Y1312182454.A3L 12/5-12/10/2013 Portable Tablet Computer © 2014 PCTEST Engineering Laboratory, Inc. V 2.7 06/10/2013 TABLE OF CONTENTS FCC PART 15.247 MEASUREMENT REPORT .................................................................................................. 3 1.0 INTRODUCTION ...................................................................................................................................... 4 1.1 SCOPE ........................................................................................................................................................... 4 1.2 PCTEST TEST LOCATION ............................................................................................................................ 4 2.0 PRODUCT INFORMATION ..................................................................................................................... 5 2.1 EQUIPMENT DESCRIPTION......................................................................................................................... 5 2.2 DEVICE CAPABILITIES ................................................................................................................................. 5 2.3 TEST CONFIGURATION ............................................................................................................................... 5 2.4 EMI SUPPRESSION DEVICE(S)/MODIFICATIONS ...................................................................................... 5 2.5 LABELING REQUIREMENTS ........................................................................................................................ 5 3.0 DESCRIPTION OF TEST ........................................................................................................................ 6 3.1 EVALUATION PROCEDURE ......................................................................................................................... 6 3.2 CONDUCTED EMISSIONS ........................................................................................................................... 6 3.3 RADIATED EMISSIONS ................................................................................................................................ 7 4.0 ANTENNA REQUIREMENTS .................................................................................................................. 8 5.0 TEST EQUIPMENT CALIBRATION DATA .............................................................................................. 9 6.0 TEST RESULTS .................................................................................................................................... 10 6.1 SUMMARY ................................................................................................................................................... 10 6.2 6DB BANDWIDTH MEASUREMENT – BLUETOOTH (LE) ......................................................................... 11 6.3 OUTPUT POWER MEASUREMENT – BLUETOOTH (LE) .......................................................................... 14 6.4 POWER SPECTRAL DENSITY – BLUETOOTH (LE) .................................................................................. 17 6.5 CONDUCTED EMISSIONS AT THE BAND EDGE ...................................................................................... 20 6.6 CONDUCTED SPURIOUS EMISSIONS ...................................................................................................... 22 6.7 RADIATED SPURIOUS EMISSION MEASUREMENTS .............................................................................. 27 6.8 RADIATED RESTRICTED BAND EDGE MEASUREMENTS ...................................................................... 32 6.9 LINE-CONDUCTED TEST DATA ................................................................................................................. 34 7.0 CONCLUSION ....................................................................................................................................... 36 FCC ID: A3LSMP905M FCC Pt. 15.247 BLUETOOTH (LE) TEST REPORT (CERTIFICATION) Reviewed by: Quality Manager Test Report S/N: Test Dates: EU…

Text truncated - open the document above for the full version.

FCC ID: A3LSMP905M FCC Pt. 15.247 802.11a/b/g/n/ac MEASUREMENT REPORT (CERTIFICATION) Reviewed by: Quality Manager Test Report S/N: Test Dates: EUT Type: Page 1 of 114 0Y1312182453.A3L 12/4-12/9/2013 Portable Tablet Computer © 2014 PCTEST Engineering Laboratory, Inc. V 3.10 06/17/2013 Applicant Name: Date of Testing: Samsung Electronics, Co. Ltd. 12/4-12/9/2013 129, Samsung-ro, Maetan dong, Test Site/Location: Yeongtong-gu, Suwon-si PCTEST Lab, Columbia, MD, USA Gyeonggi-do 443-742, Korea Test Report Serial No.: 0Y1312182453.A3L FCC ID: A3LSMP905M APPLICANT: Samsung Electronics, Co. Ltd. Application Type: Certification Model(s): SM-P905M EUT Type: Portable Tablet Computer FCC Classification: Digital Transmission System (DTS) FCC Rule Part(s): Part 15.247 Test Procedure(s): KDB 558074 v03r01, KDB 662911 v02r01 Max. Power (mW) Max. Power (dBm) Max. Power (mW) Max. Power (dBm) Max. Power (mW ) Max. Power (dBm) Max. Power (mW) Max. Power (dBm) Max. Power (mW) Max. Power (dBm) Max. Power (mW ) Max. Power (dBm) 802.11b 2412 - 246224.09913.8254.07517.33-------- 802.11g 2412 - 246217.74212.49103.51420.1515.59611.9365.16318.14---- 802.11n 2412 - 24629.2269.6564.12118.0711.16910.4842.07316.249.9239.9758.85017.70 802.11a 5745 - 58259.7509.8963.82618.0510.30410.1361.80217.91---- 802.11n (20MHz) 5745 - 58259.2479.6662.37317.9510.30410.1363.38718.029.2019.64111.61920.48 802.11n (40MHz) 5755 - 57958.4539.2745.49916.589.8409.9351.52317.128.5929.3444.83416.52 802.11ac (80MHz)577510.04510.0244.04316.4410.49510.2146.55916.688.9889.5437.42315.73 Peak Conducted Mode Tx Frequency (MHz) MIMO Avg ConductedPeak ConductedAvg ConductedPeak Conducted A NT1A NT2 Avg Conducted This equipment has been shown to be capable of compliance with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in KDB 558074 v03r01. Test results reported herein relate only to the item(s) tested. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. PCTEST ENGINEERING LABORATORY, INC. 7185 Oakland Mills Road, Columbia, MD 21046 USA Tel. 410.290.6652 / Fax 410.290.6654 http://www.pctestlab.com MEASUREMENT REPORT FCC PART 15.247 WLAN 802.11a/b/g/n/ac FCC ID: A3LSMP905M FCC Pt. 15.247 802.11a/b/g/n/ac MEASUREMENT REPORT (CERTIFICATION) Reviewed by: Quality Manager Test Report S/N: Test Dates: EUT Type: Page 2 of 114 0Y1312182453.A3L 12/4-12/9/2013 Portable Tablet Computer © 2014 PCTEST Engineering Laboratory, Inc. V 3.10 06/17/2013 TABLE OF CONTENTS FCC PART 15.247 MEASUREMENT REPORT ..............................................................................................................................................3 1.0 INTRODUCTION ..................................................................................................................................................... 4 1.1 SCOPE ........................................................................................................................................................... 4 1.2 PCTEST TEST LOCATION ............................................................................................................................ 4 2.0 PRODUCT INFORMATION ..................................................................................................................................... 5 2.1 EQUIPMENT DESCRIPTION......................................................................................................................... 5 2.2 DEVICE CAPABILITIES ................................................................................................................................. 5 2.3 TEST CONFIGURATION ............................................................................................................................... 6 2.4 EMI SUPPRESSION DEVICE(S)/MODIFICATIONS ...................................................................................... 6 2.5 LABELING REQUIREMENTS ........................................................................................................................ 6 3.0 DESCRIPTION OF TEST ........................................................................................................................................ 7 3.1 EVALUATION PROCEDURE ......................................................................................................................... 7 3.2 AC LINE CONDUCTED EMISSIONS ............................................................................................................. 7 3.3 RADIATED EMISSIONS ................................................................................................................................ 8 4.0 ANTENNA REQUIREMENTS .................................................................................................................................. 9 5.0 TEST EQUIPMENT CALIBRATION DATA ............................................................................................................ 10 6.0 TEST RESULTS .................................................................................................................................................... 11 6.1 SUMMARY ....................................................................................................................... ............................ 11 6.2 6DB BANDWIDTH MEASUREMENT – 802.11A/B/G/N/AC ......................................................................... 12 6.3 OUTPUT POWER MEASUREMENT – 802.11B/G/N (2.4GHZ) ................................................................... 32 ANTENNA-1 OUTPUT POWER MEASUREMENT – 802.11A/N (5GHZ) .............................................................. 35 ANTENNA-2 OUTPUT POWER MEA…

Text truncated - open the document above for the full version.

FCC IDA3LSMP905M SAR EVALUATION REPORT Reviewed by: Quality Manager Test Dates: DUT Type: APPENDIX F: Page 1 of 4 12/02/13 – 01/20/14 Portable Tablet © 2014 PCTEST Engineering Laboratory, Inc. REV 12.4 M 03/25/2013 APPENDIX F: SAR TEST SETUP PHOTOGRAPHS FCC IDA3LSMP905M SAR EVALUATION REPORT Reviewed by: Quality Manager Test Dates: DUT Type: APPENDIX F: Page 2 of 4 12/02/13 – 01/20/14 Portable Tablet © 2014 PCTEST Engineering Laboratory, Inc. REV 12.4 M 03/25/2013 SAR Test Setup Photo 1: Back at 0 mm SAR Test Setup Photo 2: Back at 13 mm FCC IDA3LSMP905M SAR EVALUATION REPORT Reviewed by: Quality Manager Test Dates: DUT Type: APPENDIX F: Page 3 of 4 12/02/13 – 01/20/14 Portable Tablet © 2014 PCTEST Engineering Laboratory, Inc. REV 12.4 M 03/25/2013 SAR Test Setup Photo 3: Top at 0 mm SAR Test Setup Photo 4: Left Edge at 0 mm FCC IDA3LSMP905M SAR EVALUATION REPORT Reviewed by: Quality Manager Test Dates: DUT Type: APPENDIX F: Page 4 of 4 12/02/13 – 01/20/14 Portable Tablet © 2014 PCTEST Engineering Laboratory, Inc. REV 12.4 M 03/25/2013 SAR Test Setup Photo 5: Left at 13 mm

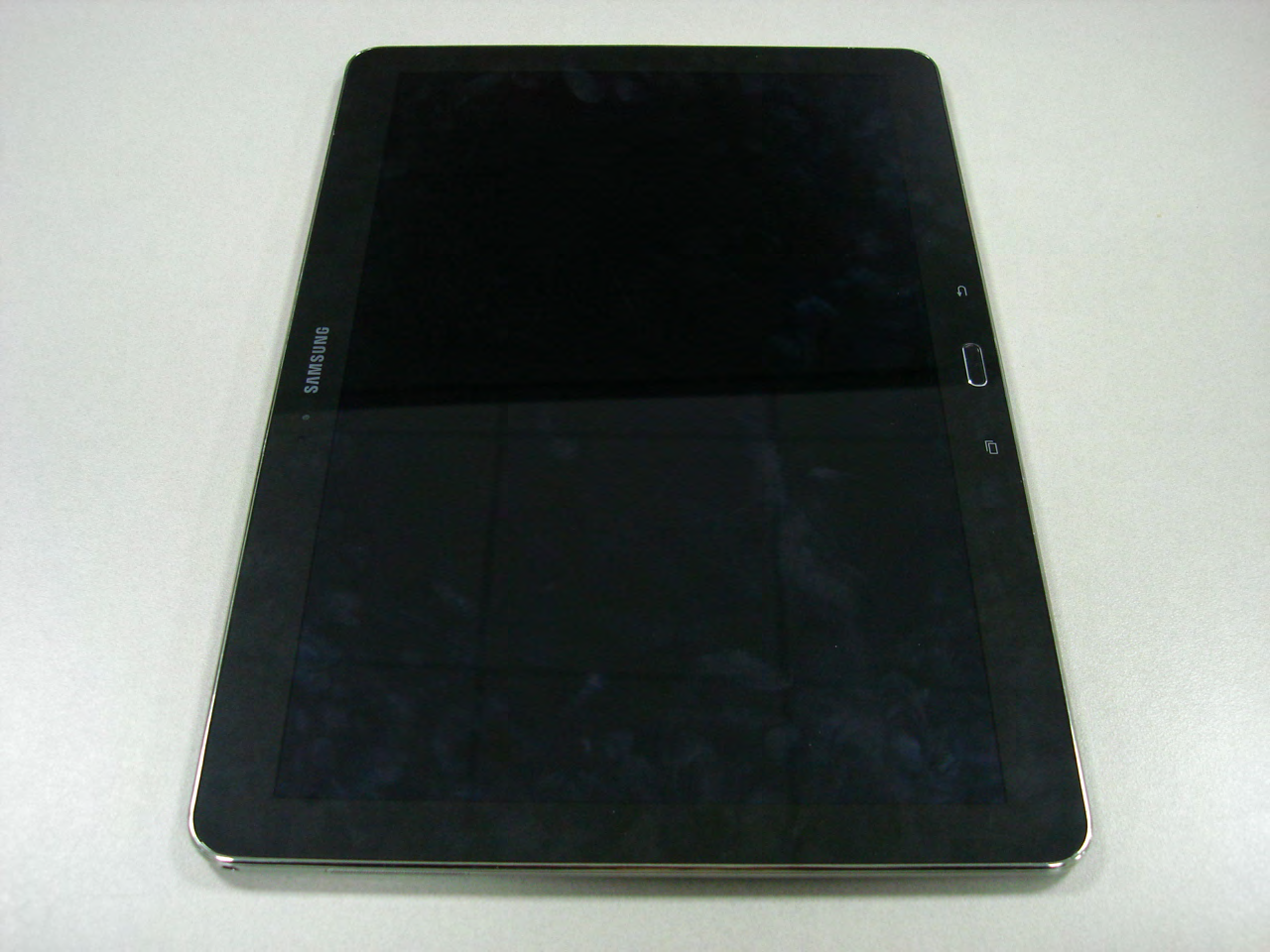

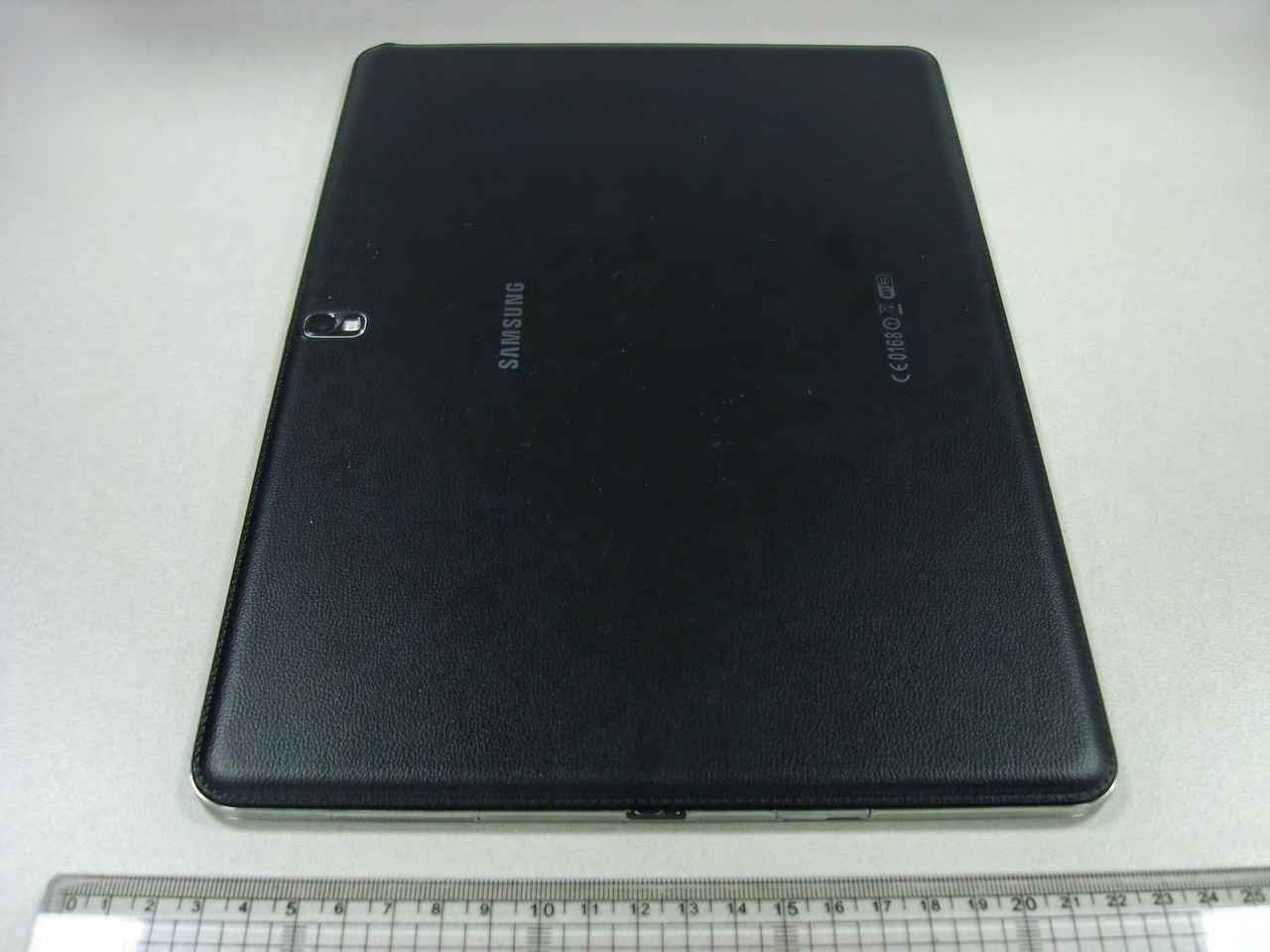

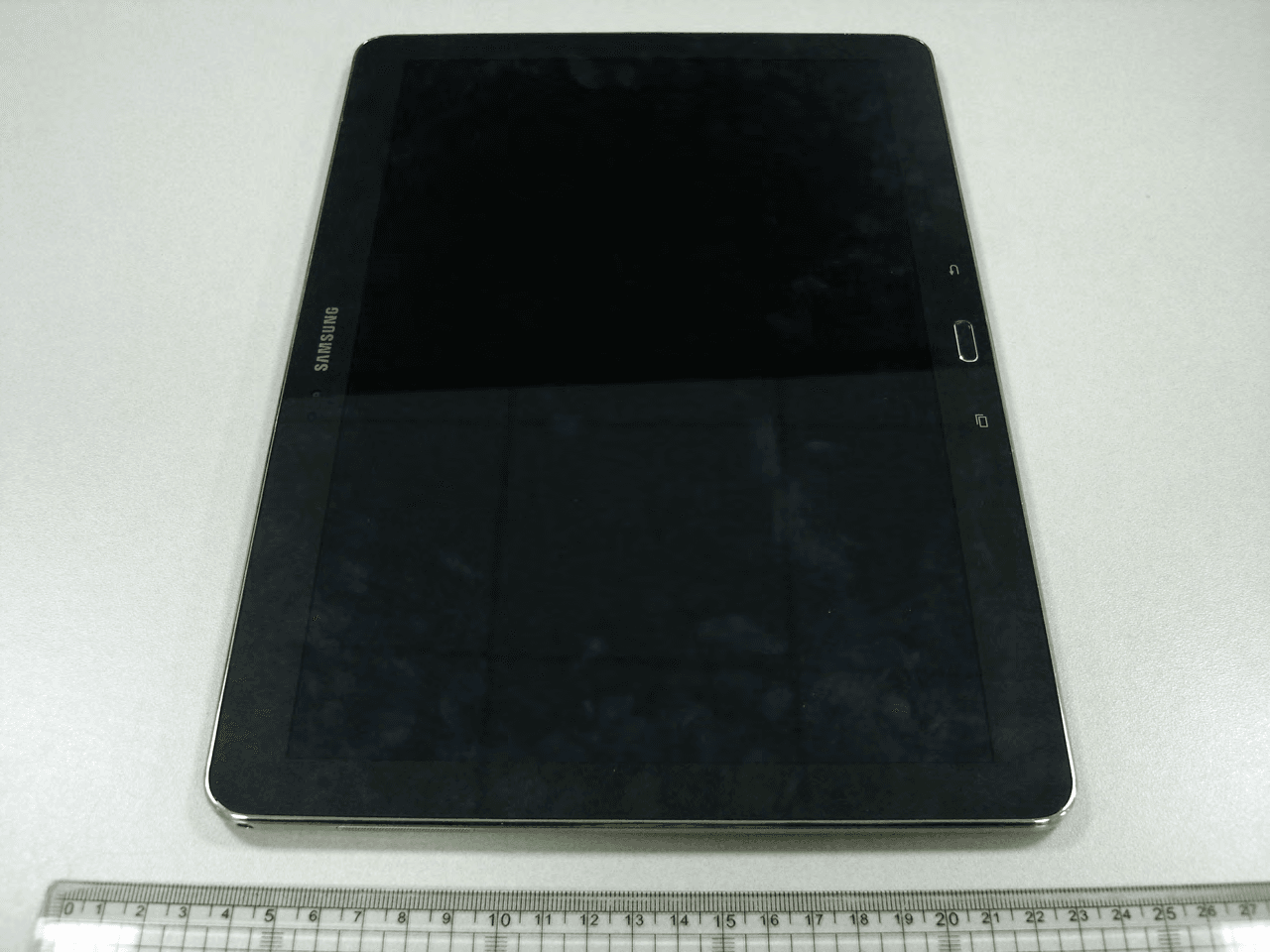

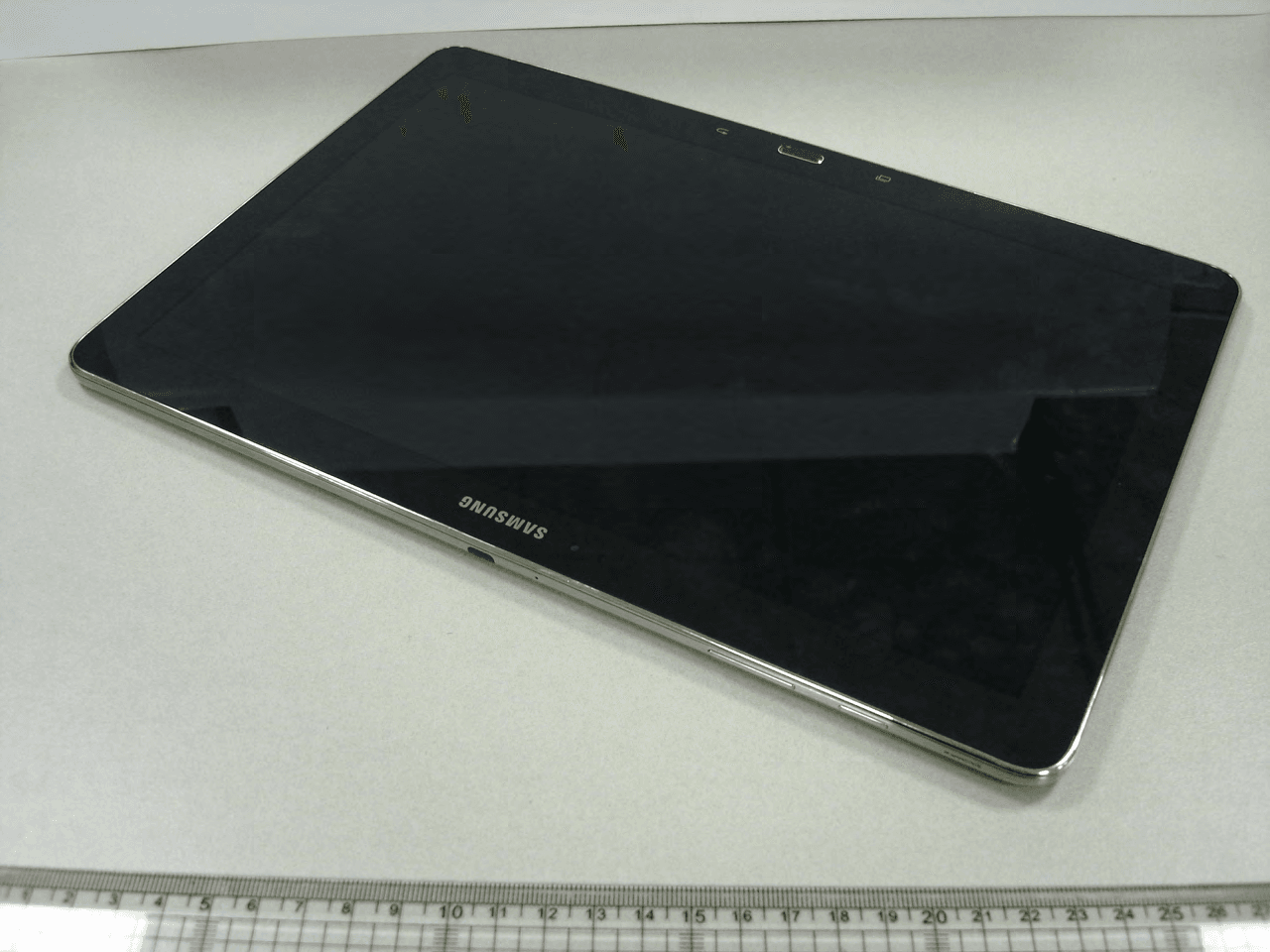

Samsung FCC ID: A3LSMP905MModel: SM-P905M Test Set-Up Photos EUT Type: Portable Tablet Computer Page 1 of 3 © 2013 PCTEST Engineering Laboratory Inc. TEST SETUP PHOTOGRAPHS Samsung FCC ID: A3LSMP905MModel: SM-P905M Test Set-Up Photos EUT Type: Portable Tablet Computer Page 2 of 3 © 2013 PCTEST Engineering Laboratory Inc. Samsung FCC ID: A3LSMP905MModel: SM-P905M Test Set-Up Photos EUT Type: Portable Tablet Computer Page 3 of 3 © 2013 PCTEST Engineering Laboratory Inc.
