A3LSMS916UPortable Handset

Quick Reference Guide (Terms an d Conditions) SM-S916U SM-S916U1 Read this document before operating the mobile device, accessories, or software (defined collectively and individually as the “Product”) and keep it for future reference. This document contains important Terms and Conditions. Electronic acceptance, opening the packaging, use, or retention of the Product constitutes acceptance of these Terms and Conditions. Visit www.samsung.com/us to view device information, the user manual, and more. You may incur additional charges for accessing the Internet. Device Layout To turn on the device, pr ess and hold th e Side key for a few seconds. The charger should remain close to the electric socket and easily accessible while charging. Installing a nano-SIM card Nano- SIM cards are sold separately. Contact us Questions? Visit us.community.samsung.com Get Support Call 1.800.SAMSUNG Service locations Find a service location near you at Samsung.com/us/support/service/locations Switching made simple Whether you are coming from an iOS or Android platform, you can easily transfer your data with Smart Switch. Back up your old phone Back up your old phone using your favorite back-up app. Samsung Smart Switch 1. From your new Galaxy device, tap Settings > Accounts and backup > Smart Switch. 2. Tap Receive data. 3. Select your old device type. 4. Tap Cable (Android) or Wireless (Android and iOS) and follow the prompts to connect your phones. Customize Tap Settings to personalize your phone. Flight mode This disables all wireless functions on your devic e. You can use only non- network services On the setting screen, tap Flight mode. NOTE: The use of Ultra-Wideband (UWB) transmitters is prohibited when aboard an aeroplane or ship. UWB Operation in airplane mode: UWB function is disabled when a phone get into the airplane mode. Important l egal information Arbitration Agreement - This Product is subject to a binding arbitrat ion agreement between you and SAMSUNG ELECTRONICS AMERICA, INC. (“Samsung”). You can opt out of t he agreement within 30 calendar days of the first consumer purchase by emailing [email protected] or calling 1-800-SAMSUNG (726-7864) and providing the applicable information. The full Arbitration Agreement, Standard One-year Limited Warranty, End User License Agreement (EULA), and Health & Safety Information for your device are available online: •English: www.samsung.com/us/Legal/Phone-HSGuide •Spanish: www.samsung.com/us/Legal/Phone-HSGuide-SP This information can also be found on the device in the “About device” or “About phone” or “About tablet” section, for example: •Settings > About phone or About device or About tablet > Legal information > Samsung legal •Or,Search “Legal” If your device required Federal Communications Commission (FCC) approval, you can view the FCC certification by opening Settings > About phone or About device or About tablet> Status Information Health and Safety WARNING! To avoid electri c shock and damage to your device, do not charge device while it is wet or in an area where it co uld get wet. Do not handle device, c harger or cords with wet hands while charging. Maint aining dust and water resistance The device is not impervious to dust and water damage in any situation. It is important that all c ompartments are closed tightly. Follow these tips carefully to prevent damage to the device and maintain dust and water resistance performance: •Water resistant based on IP68 rating, which tests submersion in fresh water deeper than 1.5 meters or keep it submerged for more than 30 minutes. If device is exposed to fresh water, dry it thoroughly with a clean, soft cloth; if exposed to liquid other than fresh water, rinse with fresh water and dry as directed. •Any device which uses accessible compar tments or por ts that can be opened should have these se aled or closed tightly to prevent liquid from entering th e system. •If the device has been immersed i n water or the microphone or speaker is wet, sound may not be heard clearly during a call. After wiping the device with a dry cloth, dry it thoroughly before using it. •Do not expose the device to water at high pressure. •If the device is dropped or receives an impact, the water and dust resistant features of the device may be damaged. Note: Liquid other than fresh water may enter the device fa ster. Failure to rinse the device in fresh water and dry it as instructed may cause the device to suffer from operability or cosmetic issues. Samsung Knox Samsung Knox is Samsung’s security platf orm. Additional licensing fees may be required for enterprise use. For more information about Knox, pl ease refer to: www.samsung.com/us/knox Specific Absorption Rate (SAR) certification information For information about SAR, visit : •https://www.fcc.gov/general/radio-frequency-safety-0 •www.fcc.gov/encyclopedia/ speci fic -absorption-rate-sar-cellular-telephones •www.samsung.com/sar Body-worn operations are restricted to belt-clips, holsters or similar accessories that have no metallic component in the assembly and must provide at least 1.5cm separation between the device and the user's body. Samsung Wireless Power Sharing feature allows device -to -device charging without the need for a charger. If your device supports the wireless power sharing function, this equipment should be operated with a minimum distance of 20 cm between the device and your body. Note: Foldable devices can be stored in an environment with ambient temperatures of -10°C / 14.0°F to 50°C / 122°F safely; prolonged exposure to temperatures outside these recommended temperatures can pose a high risk of damage to the device. Samsung mobile products and recycling WARNING! Never dispose of batteries in a fire because they may explode. Do not disassemble, crush, puncture, heat, burn or reuse. F or battery and cell phone recycling, go to call2re cycle. org or call 1- 800-822-8837. F or more recycling information, go to our website: www.samsung.com/re cycling …

Text truncated - open the document above for the full version.

Date: 2022.11.14 Samsun g Electronics Co., LTD. 129, Samsung-ro, Yeongtong-gu Suwon-City, Gyeonggi-do, 443-742, Korea Subject: VoLTE Transport over 5G and OTT Pre-install HAC Attestation FCC ID: A3LSMS916U To Whom it May Concern We attest that VoLTE voice service may be transported over 5G NR Sub-6 GHz bands in this device and that Google Meet has been pre-installed by the manufacturer for OTT VoIP services. Should you have any questions or comments concerning the above, please contact the undersigned. Sincerely, Jenni Chun / General Manager Samsung Electronics America, Inc. Address: 19 Chapin Rd., Building D Pine Brook, NJ 07058 Tel: 1- 973-808-6375

Samsung Electronics America, Inc 19 Chapin Rd, Building D. Pine Brook, NJ 07058 Date: November 09, 2022 FCC ID: A3LSMS916U To whom it may concern: We, the undersigned, hereby authorize Element Washington DC LLC, to act on our behalf in all matters relating to applications for equipment authorization, including the signing of all documents relating to these matters. Any and all acts carried out by Element Washington DC LLC. on our behalf shall have the same effect as acts of our own. We also hereby certify that no party to any application is subject to a denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S. C. 862. Sincerely, Jenni Chun / General Manager Samsung Electronics America, Inc. Address: 19 Chapin Rd., Building D Pine Brook, NJ 07058 Tel: 1-973-808-6375

SAMSUNG ELECTRONICS CO., LTD 129, Samsung-ro, Yeongtong-gu Suwon-si, Gyeonggi-do, 443-742 Korea Nov, 8 th , 2022 Federal Communic ations Commission 7435 Oakland Mills Road Columbia, MD 21046 SUBJECT : Label Statement FCC ID : A3LSMS916U To whom i t may concern We hereby provide the following attestations according to CFR 2.935 and FCC KDB 784748 D02: At the time of purchase, the FCC ID is readily and physically visible to the purchaser on the exterior package per CFR 2.935(f). The FCC ID will be readily legible without the aid of magnification according to CFR 2.935(d). The literature in the package describes how to access the electronic display to find the FCC ID per CRF 2.935(b) and FCC KDB 784748. Per CFR 2.935(c), the user will be able to access this information within a maximum of 3 steps. The user will be able to access this information without a SIM card, special accessories or supplemental plug-ins. Per CFR 2.935(e), We, Samsung have programmed the e-label and it is not able to be modified by any third party. Per CFR 2.935(f), the FCC ID will be able to survive normal shipping and handling so it is visible for inspection at the time of import. Should y ou have any questions or comments concerning the above, please contact the undersigned. Sinc erely Yours, Jenni Chun/ General Manager Samsung Electronics America. Inc Address: 19 Chapin Rd., Building D Pine Brook, NJ 07058 Tel: 1-973-808-6375

SAMSUNG ELECTRONICS AMERICA, INC. American QA Lab 19 Chapin Rd, Building D. Pine Brook, NJ 07058 Date: November 09, 2022 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road, Columbia, MD 21046 RE:Request of Confidentiality for FCC ID: A3LSMS916U To Whom It May Concern: Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules (CFR 47), and Section 552 (b) (4) of the Freedom of Information Act, SAMSUNG ELECTRONICS CO.,LTD. hereby requests confidentiality and treatment of certain information accompanying this application. The materials contain trade secrets and proprietary information not customarily released to th e public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. We are also hereby request Short-Term Confidentiality for 180 day s after the grant as outlined in Public Notice DA 04-1705. This provision will give SAMSUNG ELECTRONICS CO.,LTD. temporary confidentiality of commercially sensitive information prior to product release. The requested Permanent and Short-Term Confidential exhibits are listed as follows: PERMANENT AND SHORT-TERM CONFIDENTIAL LIST ExhibitDescription PERMANENT 1 Block Diagram 2 Operational Description 3 Schematics 4 Parts List & Tune-Up Procedure SHORT-TERM 5 External Photos 6 Internal Photos 7 Test-Setup Photos 8 Users Manual The Applicant understands that pursuant to Rule 0.457, disclosure of this application and all accompanying documentations, where applicable, will not be made public before the date of the Grant for this application. Sincerely, Jenni Chun / General Manager Samsung Electronics America, Inc. Address: 19 Chapin Rd., Building D Pine Brook, NJ 07058 Tel: 1-973-808-6375

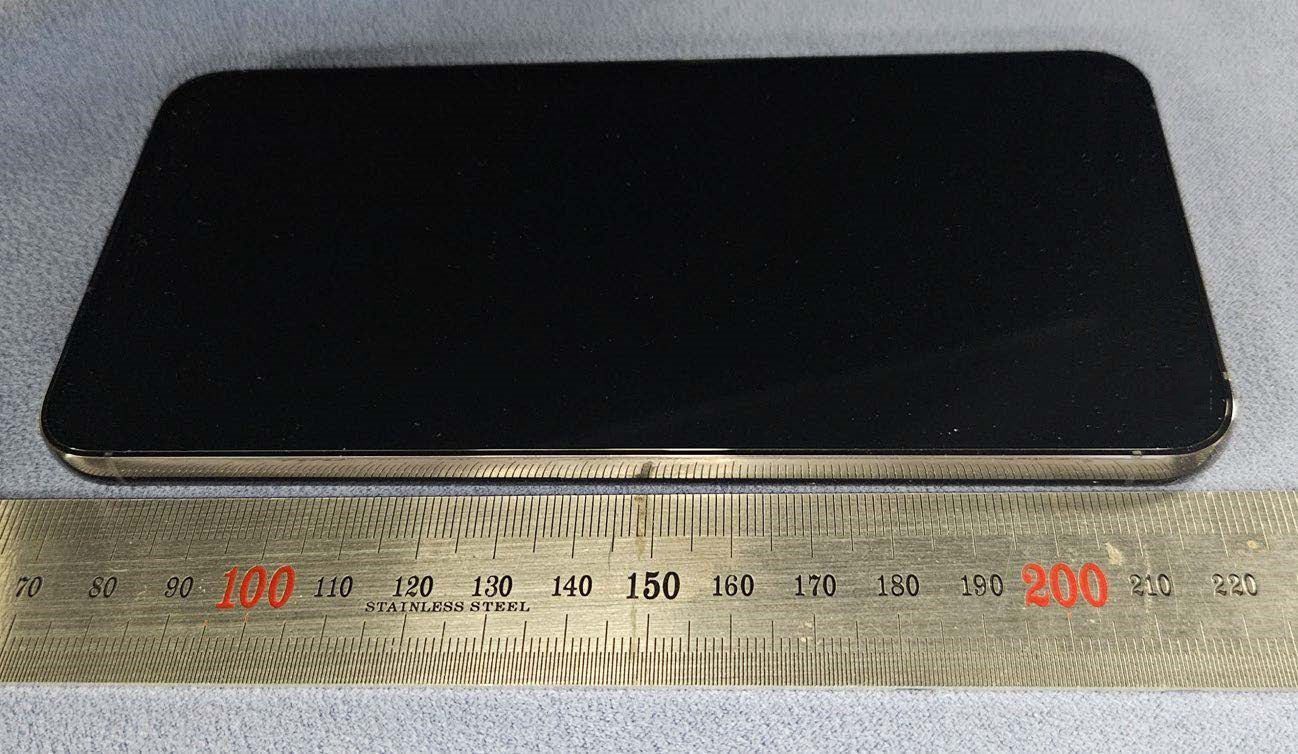

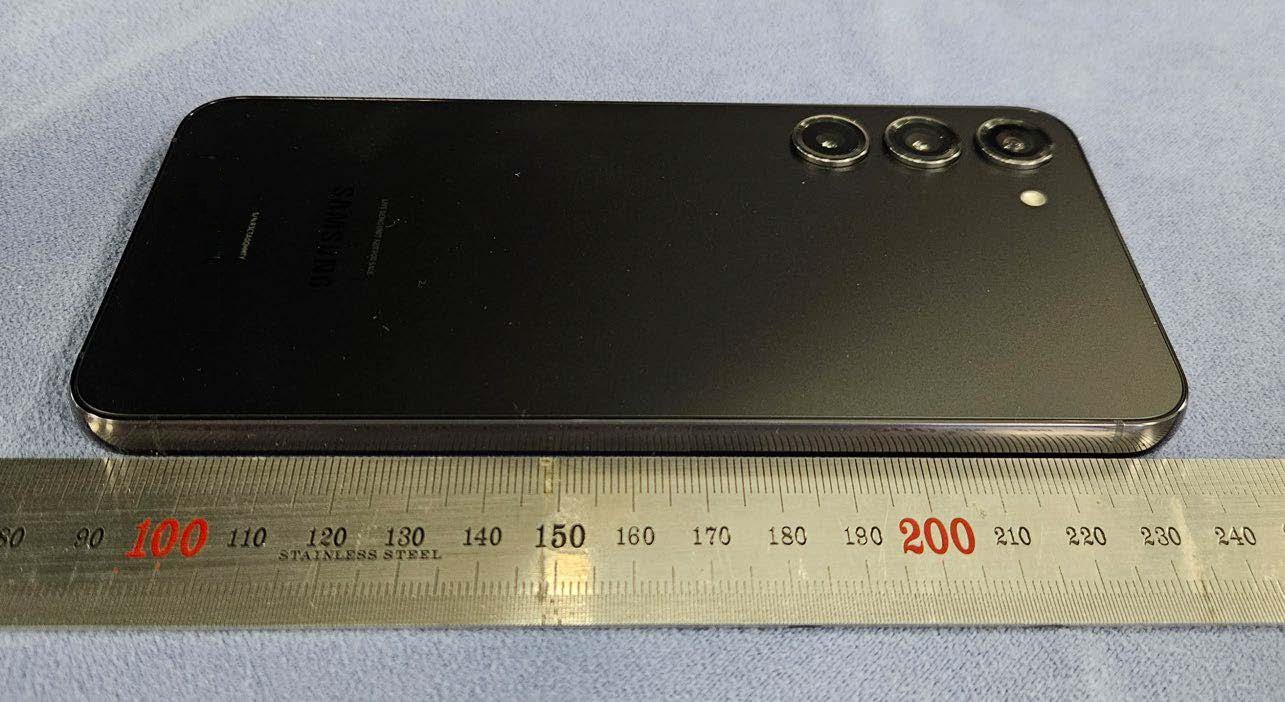

FCC ID : A3LSMS916U External Photographs FCC ID : A3LSMS916U External Photographs FCC ID : A3LSMS916U External Photographs FCC ID : A3LSMS916U External Photographs FCC ID : A3LSMS916U External Photographs FCC ID : A3LSMS916U External Photographs FCC ID : A3LSMS916U External Photographs FCC ID : A3LSMS916U External Photographs FCC ID : A3LSMS916U External Photographs

Description of E-label on the A3LSMS916U Date: Nov. 8 th , 2022 FCC ID: A3LSMS916U This model is applied E-label, please find description of E-label below. 1.FCC ID (E-label): Settings > About Phone > Status Information FCC certification FCC ID: A3LSMS916U <Device Display Screen> 2.FCC ID on the Quick Start Guide The FCC has granted an Equipment Authorization for this model device based on the compliance of all reported SAR levels with the FCC RF exposure guide lines. This device has a FCC ID number A3LSMS916U [Model Number: SM-S916U, SM-S916U1] and the specific SAR levels for this device can be found at the following. FCC website: www.fcc.gov/oet/ea/ The SAR information for this device can be found on Samsung’s website: www.samsung.com/sar

FCC ID : A3LSMS916U Internal Photographs FCC ID : A3LSMS916U Internal Photographs FCC ID : A3LSMS916U Internal Photographs FCC ID : A3LSMS916U Internal Photographs FCC ID : A3LSMS916U Internal Photographs FCC ID : A3LSMS916U Internal Photographs FCC ID : A3LSMS916U Internal Photographs FCC ID : A3LSMS916U Internal Photographs FCC ID : A3LSMS916U Internal Photographs FCC ID : A3LSMS916U Internal Photographs FCC ID : A3LSMS916U Internal Photographs FCC ID : A3LSMS916U Internal Photographs FCC ID : A3LSMS916U Internal Photographs FCC ID : A3LSMS916U Internal Photographs

FCC ID: A3LSMS916U PART 2 RF EXPOSURE EVALUATION REPORT Approved by: Technical Manager Document S/N: DUT Type: Page 1 of 76 1M2209010097-28.A3L Portable Handset © 2022 Element REV 1.0 04/06/2020 Unless otherwise specified, no part of this report may be reproduced or utilized in any part, form or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from Element. If you have any questions or have an enquiry about obtaining additional rights to this report or assembly of contents thereof, please contact [email protected]. Applicant Name: Date of Testing: SAMSUNG ELECTRONICS CO., LTD. 10/17/22 – 11/16/22 #129 Samsung-Ro, Yeongtong-Gu Test Site/Location: Suwon-Si, Gyeonggi-Do Element, Columbia, MD, USA 16677, Korea (Republic Of) Document Serial No.: 1M2209010097-28.A3L F C C I D : A3LS MS916U A P P L I C A N T : SAMSUNG ELECTRONICS CO.‚ LTD. DUT Type: Portable Handset Application Type: Certification FCC Rule Part(s): CFR §2.1093 Model: Additional Model: Device Serial Numbers: SM-S916U SM-S916U1 Pre-Production Samples [1554M, 1563M, 1560M] I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. Test results reported herein relate only to the item(s) tested. Element (formerly PCTEST) 7185 Oakland Mills Road, Columbia, MD 21046 USA Tel. +1.410.290.6652 / Fax +1.410.290.6654 http://www.element.com PART 2 RF EXPOSURE EVALUATION REPORT FCC ID: A3LSMS916U PART 2 RF EXPOSURE EVALUATION REPORT Approved by: Technical Manager Document S/N: DUT Type: Page 2 of 76 1M2209010097-28.A3L Portable Handset © 2022 Element REV 1.0 04/06/2020 Unless otherwise specified, no part of this report may be reproduced or utilized in any part, form or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from Element. If you have any questions or have an enquiry about obtaining additional rights to this report or assembly of contents thereof, please contact [email protected]. T A B L E O F C O N T E N T S 1 DEVICE UNDER TEST .................................................................................................................................3 2 RF EXPOSURE LIMITS ................................................................................................................................6 3 TIME VARYING TRANSMISSION TEST CASES .........................................................................................8 4 FCC MEASUREMENT PROCEDURES (FREQ < 6 GHZ) ........................................................................ 11 5 FCC MEASUREMENT PROCEDURES (FREQ > 6 GHZ) ........................................................................ 24 6 MEASUREMENT TEST SETUP (FREQ < 6 GHZ) .................................................................................... 33 7 MEASUREMENT TEST SETUP (FREQ > 6 GHZ) .................................................................................... 36 8 TEST CONFIGURATIONS (FREQ < 6 GHZ) ............................................................................................. 38 9 CONDUCTED TX CASES (FREQ < 6 GHZ).............................................................................................. 43 10 TEST CONFIGURATIONS (FREQ > 6 GHZ) ............................................................................................. 62 11 RADIATED POWER TX CASES (FREQ > 6 GHZ) .................................................................................... 65 12 SYSTEM VERIFICATION (FREQ > 6 GHZ) .............................................................................................. 71 13 EQUIPMENT LIST ...................................................................................................................................... 72 14 MEASUREMENT UNCERTAINTIES.......................................................................................................... 73 15 CONCLUSION ............................................................................................................................................ 74 16 REFERENCES ........................................................................................................................................... 75 APPENDIX A: VERIFICATION PLOTS APPENDIX B: TEST SETUP PHOTOGRAPHS APPENDIX C: TEST SEQUENCES APPENDIX D: TEST PROCEDURES FOR SUB6 NR + NR RADIO APPENDIX E: CALIBRATION CERTIFICATES FCC ID: A3LSMS916U PART 2 RF EXPOSURE EVALUATION REPORT Approved by: Technical Manager Document S/N: DUT Type: Page 3 of 76 1M2209010097-28.A3L Portable Handset © 2022 Element REV 1.0 04/06/2020 Unless otherwise specified, no part of this report may be reproduced or utilized in any part, form or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from Element. If you have any questions or have an enquiry about obtaining additional rights to this report or assembly of contents thereof, please contact [email protected]. 1 D E V I C E U N D E R T E S T 1.1 Device Overview GSM/GPRS/EDGE 850Voice/Data824.20 - 848.80 MHz GSM/GPRS/EDGE 1900Voice/Data1850.20 - 1909.80 MHz UMTS 850Voice/Data826.40 - 846.60 MHz UMTS 1750Voice/Data1712.4 - 1752.6 MHz UMTS 1900Voice/Data1852.4 - 1907.6 MHz LTE Band 71Voice/Data665.5 - 695.5 MHz LTE Band 12Voice/Data699.7 - 715.3 MHz LTE Band 13Voice/Data779.5 - 784.5 MHz LTE Band 14Voice/Data790.5 - 795.5 MHz LTE Band 26 (Cell)Voice/Data814.7 - 848.3 MHz LTE Band 5 (Cell)Voice/Data824.7 - 848.3 MHz LTE Band 66 (AWS)Voice/Data1710.7 - 1779.3 MHz LTE Band 4 (AWS)Voice/Data1710.7 - 1754.3 MHz LTE Band 25 (PCS)Voice/Data1850.7 - 1914.3 MHz LTE Band 2 (PCS)Voice/Data1850.7 - 1909.3 MHz LTE Band 30Voice/Data2307.5 - 2312.5 MHz LTE Band 7Voice/Data25…

Text truncated - open the document above for the full version.

A P P E N D I X A : V E R I F I C A T I O N P L O TS A1 ELEMENT Date: 10/28/2022 30 GHz System Verification Device Under Test Properties DUT Serial Number 30 GHz Verification Source 1045 Exposure Conditions Phantom Section Position Test Distance [mm] Band Frequency [MHz] 5G FRONT 5.55 Validation band 30000.0 Hardware Setup Probe, Calibration Date DAE, Calibration Date EUmmWV3 - SN9421_F1-55GHz, 2022-03-15 DAE4 Sn1530, 2022-01-12 Software Setup Software Software Version cDasy6 Module mmWave 3.0.0.841 Scans Setup Scan Type 5G Scan Grid Extents [mm] 60.0 x 60.0 Grid Steps [lambda] 0.25 x 0.25 Sensor Surface [mm] 5.55 Measurement Results Scan Type 5G Scan Avg. Area [cm 2 ] 4.00 pS tot avg [W/m 2 ] 33.8 pS n avg [W/m 2 ] 33.4 E peak [V/m] 133 Deviation [dB]0.14 30GHz System Verification Calibration Certificate

FCC ID: A3LSMS916U PART 2 RF EXPOSURE EVALUATION REPORT Approved by: Technical Manager DUT Type: APPENDIX C: Page 1 of 3 Portable Handset © 2022 Element REV 1.0 04/06/2020 A P P E N D I X C : T E S T S E Q U E N C E S 1.Test sequence is generated based on below parameters of the DUT: a.Measured maximum power (P max ) b.Measured Tx_power_at_SAR_design_target (P limit ) c.Total_min_reserve (dB) ●P reserve (dBm) = measured P limit (dBm) – Total_min_reserve (dB) d.SAR_time_window (100s for FCC) 2.Test Sequence 1 Waveform: Based on the parameters above, the Test Sequence 1 is generated with one transition between high and low Tx powers. Here, high power = P max ; low power = P max /2, and the transition occurs after 80 seconds at high power P max . As long as the power enforcement is taking into effective during one 100s/60s time window, the validation test with this defined test sequence 1 is valid, otherwise, select other radio configuration (band/DSI within the same technology group) having lower P limit for this test. The Test sequence 1 waveform is shown below: Figure C-1 Test sequence 1 waveform FCC ID: A3LSMS916U PART 2 RF EXPOSURE EVALUATION REPORT Approved by: Technical Manager DUT Type: APPENDIX C: Page 2 of 3 Portable Handset © 2022 Element REV 1.0 04/06/2020 3.Test Sequence 2 Waveform: Based on the parameters described above, the Test Sequence 2 is generated as described in Table C-1, which contains two 170 second-long sequences (yellow and green highlighted rows) that are mirrored around the center row of 20s, resulting in a total duration of 360 seconds: Table C-1 Test Sequence 2 Time duration (seconds) dB relative to P limit or P reserve 15 P reserve – 2 20 P limit 20 (P limit + P max )/2 averaged in mW and rounded to nearest 0.1 dB step 10 P reserve – 6 20 P max 15 P limit 15 P reserve – 5 20 P max 10 P reserve – 3 15 P limit 10 P reserve – 4 20 (P limit + P max )/2 averaged in mW and rounded to nearest 0.1 dB step 10 P reserve – 4 15 P limit 10 P reserve – 3 20 P max 15 P reserve – 5 15 P limit 20 P max 10 P reserve – 6 20 (P limit + P max )/2 averaged in mW and rounded to nearest 0.1 dB step 20 P limit 15 P reserve – 2 FCC ID: A3LSMS916U PART 2 RF EXPOSURE EVALUATION REPORT Approved by: Technical Manager DUT Type: APPENDIX C: Page 3 of 3 Portable Handset © 2022 Element REV 1.0 04/06/2020 The Test Sequence 2 waveform is shown in Figure C-2. Figure C-2 Test sequence 2 waveform

FCC ID: A3LSMS916U PART 2 RF EXPOSURE EVALUATION REPORT Approved by: Technical Manager DUT Type: APPENDIX D: Page 1 of 2 Portable Handset © 2022 Element REV 1.0 04/06/2020 A P P E N D I X D : T E S T P R O C E D U R E S F O R S U B 6 N R + N R R A D I O Appendix D provides the test procedures for validating Qualcomm Smart Transmit feature for Sub6 NR standalone (SA) and LTE + Sub6 NR non-standalone (NSA) mode transmission scenario, where sub-6GHz LTE link acts as an anchor. SAR exposure switch validation with one simultaneous transmission scenario (i.e., either FR1 NSA or LTE interband ULCA) is sufficient as Smart Transmit operation is the same. NOTE: The antennas selected for the simultaneous transmission evaluation in Appendix D should be in the same antenna group NOTE: If multi_Tx_factor is set to > 1.0 with EFS version 19 (or higher), then in single Tx transmission scenarios, Smart Transmit ensures time-averaged RF exposure is ≤ (SAR_design_target * 10(+ sub6 device uncertainty/10)) < regulatory RF exposure limit for sub6 radio managed by Smart Transmit. In simultaneous Tx transmission scenarios, Smart Transmit ensures time-averaged RF exposure is ≤ (SAR_design_target * multi_Tx_factor * 10(+ sub6 device uncertainty/10)) < regulatory RF exposure limit for sub6 radios managed by Smart Transmit. These simultaneous transmission scenarios are listed below: ▪2-or-more radio scenarios within WWAN like EN-DC, LTE ULCA, etc. ▪2-or-more-radio across technologies such as WWAN+WLAN, WWAN+BT, WLAN+BT and WWAN+WLAN+BT transmission scenarios (if WLAN/BT radios are also managed by Smart Transmit). D.1 Time-varying Tx power test for sub6 NR in SA mode Follows Section 4.2.1 to select test configurations for time-varying test. This test is performed with two pre-defined test sequences (described in Section 4.1) applied to Sub6 NR. Follow the test procedures described in Section 4.3.1 to demonstrate the effectiveness of power limiting enforcement and that the time averaged Tx power of Sub6 NR when converted into 1gSAR values does not exceed the regulatory limit at all times (see Eq. (1a) and (1b)). Sub6 NR response to test sequence1 and test sequence2 will be similar to other technologies (say, LTE), and are shown in Sections 9.1.4. D.2 Switch in SAR exposure between LTE vs. Sub6 NR during transmission This test is to demonstrate that Smart Transmit feature accurately accounts for switching in exposures among SAR for LTE radio only, SAR from both LTE radio and sub6 NR, and SAR from sub6 NR only scenarios, and ensures total time-averaged RF exposure compliance with FCC limit. Test procedure: 1.Measure conducted Tx power corresponding to P limit for LTE and sub6 NR in selected band. Test condition to measure conducted P limit is: □Establish device in call with the callbox for LTE in desired band. Measure conducted Tx power corresponding to LTE P limit with Smart Transmit peak exposure mode enabled, and callbox set to request maximum power. FCC ID: A3LSMS916U PART 2 RF EXPOSURE EVALUATION REPORT Approved by: Technical Manager DUT Type: APPENDIX D: Page 2 of 2 Portable Handset © 2022 Element REV 1.0 04/06/2020 □Repeat above step to measure conducted Tx power corresponding to Sub6 NR P limit . If testing LTE+Sub6 NR in non-standalone mode, then establish LTE+Sub6 NR call with callbox and request all down bits for radio1 LTE. In this scenario, with callbox requesting maximum power from Sub6 NR, measured conducted Tx power corresponds to radio2 P limit (as radio1 LTE is at all-down bits) 2.Set DUT to the intended Smart Transmit exposure mode with EUT setup for LTE + Sub6 NR call. First, establish LTE connection in all-up bits with the callbox, and then Sub6 NR connection is added with callbox requesting UE to transmit at maximum power in Sub6 NR. As soon as the Sub6 NR connection is established, request all-down bits on LTE link (otherwise, Sub6 NR will not have sufficient RF exposure margin to sustain the call with LTE in all-up bits). Continue LTE (all-down bits)+Sub6 NR transmission for more than one time- window duration to test predominantly Sub6 NR SAR exposure scenario (as SAR exposure is negligible from all-down bits in LTE). After at least one time-window, request LTE to go all- up bits to test LTE SAR and Sub6 NR SAR exposure scenario. After at least one more time- window, drop (or request all-down bits) Sub6 NR transmission to test predominantly LTE SAR exposure scenario. Continue the test for at least one more time-window. Record the conducted Tx powers for both LTE and Sub6 NR for the entire duration of this test. 3.Once the measurement is done, extract instantaneous Tx power versus time for both LTE and Sub6 NR links. Similar to technology/band switch test in Section 4.3.3, convert the conducted Tx power for both these radios into 1gSAR value (see Eq. (6a) and (6b)) using corresponding technology/band P limit measured in Step 1, and then perform 100s running average to determine time-averaged 1gSAR versus time as illustrated in Figure 4-1. Note that here it is assumed both radios have Tx frequencies < 3GHz, otherwise, 60s running average should be performed for radios having Tx frequency between 3GHz and 6GHz. 4.Make one plot containing: (a) instantaneous Tx power versus time measured in Step 2. 5.Make another plot containing: (a) instantaneous 1gSAR versus time determined in Step 3, (b) computed time-averaged 1gSAR versus time determined in Step 3, and (c) corresponding regulatory 1gSAR limit of 1.6W/kg. The validation criteria is, at all times, the time-averaged 1gSAR versus time shall not exceed the regulatory 1gSAR limit of 1.6W/kg.

A P P E N D I X E:C A L I B R A T I O N C E R T I F I C A T E S

APPENDIX A: SAR TEST PLOTS A1 ELEMENT DUT: A3LSMS916U; Type: Portable Handset; Serial: 0634M Communication System: UID 0, GSM; Frequency: 836.6 MHz; Duty Cycle: 1:8.3 Medium: 835 Head; Medium parameters used (interpolated): f = 836.6 MHz; σ = 0.918 S/m; ε r = 41.743; ρ = 1000 kg/m 3 Phantom section: Right Section Test Date: 09/28/2022; Ambient Temp: 21.2°C; Tissue Temp: 20.1°C Probe: EX3DV4 - SN7637; ConvF(10.32, 10.32, 10.32) @ 836.6 MHz; Calibrated: 3/22/2022 Sensor-Surface: 1.4mm (Mechanical Surface Detection) Electronics: DAE4 Sn1652; Calibrated: 3/14/2022 Phantom: Twin-SAM V8.0 (20); Type: QD 000 P41 Ax; Serial: 1937 Measurement SW: DASY52, Version 52.10 (4);SEMCAD X Version 14.6.14 (7501) Mode: GSM 850, Right Head, Cheek, Mid.ch Area Scan (9x15x1): Measurement grid: dx=15mm, dy=15mm Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 12.37 V/m; Power Drift = 0.02 dB Peak SAR (extrapolated) = 0.172 W/kg SAR(1 g) = 0.137 W/kg Smallest distance from peaks to all points 3 dB below = 20.3 mm Ratio of SAR at M2 to SAR at M1 = 79.5% 0 dB = 0.161 W/kg = -7.93 dBW/kg A2 ELEMENT DUT: A3LSMS916U; Type: Portable Handset; Serial: 0585M Communication System: UID:10021 - DAC, GSM; MAIA: Y; Frequency: 1850.2 MHz Medium: 1900 Head; Medium parameters used: f = 1850.2 MHz; cond = 1.37 S/m; perm = 40.3; density = 1000 kg/m3 Phantom Section: LeftHead; Space: 0.00 mm Test Date: 09/19/2022; Ambient Temp: 21.0.°C; Tissue Temp: 21.5°C Probe: EX3DV4 - SN7488; ConvF:(8.37,8.37,8.37); Calibrated: 2022-02-21 Sensor-Surface: 1.4mm (VMS + 6p) Electronics: DAE4 Sn1415; Calibrated: 2022-02-23 Phantom: Twin-SAM V8.0; Serial: 2065 Measurement SW: DASY Module SAR V16.2.0.1425 Mode: GSM 1900, Left Head, Cheek, Low Ch. Area Scan (120.0 x 210.0): Measurement grid: dx=15.0 mm, dy=15.0 mm Zoom Scan (30.0 x 30.0 x 30.0): Measurement grid: dx=6.0 mm, dy=6.0 mm, dz=1.5 mm; Graded Ratio: 1.5 Reference Value = 0.05 W/kg; Power Drift = 0.19 dB Peak SAR (extrapolated) = 0.074 W/kg SAR(1 g) = 0.048 W/kg Smallest distance from peaks to all points 3 dB below is 12.3 mm Ratio of SAR at M2 to SAR at M1 = 86.5 % A3 ELEMENT DUT: A3LSMS916U; Type: Portable Handset; Serial: 0634M Communication System: UID 0, UMTS; Frequency: 836.6 MHz; Duty Cycle: 1:1 Medium: 835 Head; Medium parameters used (interpolated): f = 836.6 MHz; σ = 0.918 S/m; ε r = 41.743; ρ = 1000 kg/m 3 Phantom section: Right Section Test Date: 09/28/2022; Ambient Temp: 21.2°C; Tissue Temp: 20.1°C Probe: EX3DV4 - SN7637; ConvF(10.32, 10.32, 10.32) @ 836.6 MHz; Calibrated: 3/22/2022 Sensor-Surface: 1.4mm (Mechanical Surface Detection) Electronics: DAE4 Sn1652; Calibrated: 3/14/2022 Phantom: Twin-SAM…
