A3LSMT210Portable Tablet Computer with WLAN and Bluetooth

2 About this manual This device provides high quality mobile communication and entertainment using Samsung’s high standards and technological expertise. This user manual is specially designed to detail the device’s functions and features. • Please read this manual before using the device to ensure safe and proper use. • Descriptions are based on the device’s default settings. • Images and screenshots may differ in appearance from the actual product. • Content may differ from the final product, or from software provided by service providers or carriers, and is subject to change without prior notice. For the latest version of the manual, refer to the Samsung website, www.samsung.com. • Content (high quality content) that requires high CPU and RAM usage will affect the overall performance of the device. Applications related to the content may not work properly depending on the device’s specifications and the environment that it is used in. • Available features and additional services may vary by device, software, or service provider. • Applications and their functions may vary by country, region, or hardware specifications. Samsung is not liable for performance issues caused by applications from any provider other than Samsung. • Samsung is not liable for performance issues or incompatibilities caused by edited registry settings or modified operating system software. Attempting to customize the operating system may cause the device or applications to work improperly. • Software, sound sources, wallpapers, images, and other media provided with this device are licensed for limited use. Extracting and using these materials for commercial or other purposes is an infringement of copyright laws. Users are entirely responsible for illegal use of media. • You may incur additional charges for data services, such as messaging, uploading and downloading, auto-syncing, or using location services. To avoid additional charges, select an appropriate data plan. For details, contact your service provider. • Default applications that come with the device are subject to updates and may no longer be supported without prior notice. If you have questions about an application provided with the device, contact a Samsung Service Centre. For user-installed applications, contact service providers. • Modifying the device’s operating system or installing softwares from unofficial sources may result in device malfunctions and data corruption or loss. These actions are violations of your Samsung licence agreement and will void your warranty. About this manual 4 ABOUT DIVX VIDEO DivX ® is a digital video format created by DivX, LLC, a subsidiary of Rovi Corporation. This is an official DivX Certified ® device that has passed rigorous testing to verify that it plays DivX video. Visit www.divx.com for more information and software tools to convert your files into DivX videos. ABOUT DIVX VIDEO-ON-DEMAND This DivX Certified ® device must be registered in order to play purchased DivX Video-on- Demand (VOD) movies. To obtain your registration code, locate the DivX VOD section in your device setup menu. Go to vod.divx.com for more information on how to complete your registration. DivX Certified ® to play DivX ® video up to HD 720p, including premium content. IC Notice This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject t o the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. 5 Table of Contents Getting started 7 Device layout 8 Buttons 9 Package contents 10 Installing the SIM card 11 Charging the battery 13 Inserting a memory card 15 Turning the device on and off 15 Holding the device 16 Locking and unlocking the device 16 Adjusting the volume 16 Switching to silent mode Basics 17 Indicator icons 18 Using the touch screen 21 Rotating the screen 21 Notifications 22 Quick setting panel 22 Home screen 25 Using applications 26 Applications screen 27 Help 27 Entering text 29 Connecting to a Wi-Fi network 30 Setting up accounts 31 Transferring files 32 Securing the device 34 Upgrading the device Communication 35 Phone 38 Contacts 42 Messaging 43 Email 45 Gmail 46 Talk 47 Google+ 47 ChatON 48 Messenger Web & network 49 Internet 50 Chrome 51 Bluetooth 52 Smart Remote Media 54 Music Player 55 Camera 62 Gallery 64 Paper Artist 65 Video Player 66 YouTube 68 Flipboard Table of Contents 6 Settings 88 About Settings 88 Wi-Fi 89 Bluetooth 89 Data usage 90 More settings 91 Blocking mode 92 Sound 92 Display 93 Storage 94 Power saving mode 94 Battery 94 Application manager 94 Location services 95 Lock screen 95 Security 97 Language and input 99 Backup and reset 99 Add account 99 Voice control 100 Accessory 100 Date and time 101 Accessibility 102 Developer options 104 About device Troubleshooting Health and Safety Application & media stores 69 Play Store 70 Samsung Apps 70 Game Hub 71 Play Books 71 Play Movies 71 Play Music 72 Video Hub 72 Readers Hub 72 Learning Hub Utilities 73 Memo 74 S Planner 76 Polaris Office 79 Dropbox 79 Alarm 80 World Clock 81 Calculator 81 S Voice 82 Google 83 Voice Search 83 My Files 84 Downloads 84 TripAdvisor Travel & local 85 Maps 86 Local 87 Navigation Getting started 16 Locking and unlocking the device When not in use, lock the device to prevent unwanted operation. Pressing the Power button turns off the screen and puts the device into lock mode. The device automatically gets locked if it is not used for a specified period. To unlock the device, press the Power button or the Home button and flick your finger in any direction within the unlock screen area at the right part of the screen. Adjusting the volume Press the Volume button left or right to adjust the ringtone volume, or to adjust the sound volume when playing music or video. Switching to silent mode Use one of the following methods: • Press and hold the left Volume button u…

Text truncated - open the document above for the full version.

SAMSUNG ELECTRONICS AMERICA, INC. American QA Lab 19 Chapin Rd, Building D. Pine Brook, NJ 07058 Date: April 26, 2013 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road, Columbia, MD 21046 RE: Request of Confidentiality for FCC ID: A3LSMT210 To Whom It May Concern: Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules (CFR 47), and Section 552 (b) (4) of the Freedom of Information Act, SAMSUNG ELECTRONICS CO.,LTD. hereby requests confidentiality and treatment of certain information accompanying this application. The materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. We are also hereby request Short-Term Confidentiality for 180 days after the grant as outlined in Public Notice DA 04-1705. This provision will give SAMSUNG ELECTRONICS CO.,LTD. temporary confidentiality of commercially sensitive information prior to product release. The requested Permanent and Short-Term Confidential exhibits are listed as follows: PERMANENT AND SHORT-TERM CONFIDENTIAL LIST Exhibit Description 1 Block Diagram 2 Operational Description 3 Schematics PERMANENT 4 Parts List & Tune-Up Procedure 5 External Photos 6 Internal Photos 7 Test-Setup Photos SHORT-TERM 8 Users Manual The Applicant understands that pursuant to Rule 0.457, disclosure of this application and all accompanying documentations, where applicable, will not be made public before the date of the Grant for this application. Sincerely, Peter Ra General Manager American QA Lab SAMSUNG Electronics America INC.

Label and Location Samsung Tablet Model: SM-T210 FCC ID: A3LSMT210 Label: Location: Top Back of device Bottom Tablet : FCC ID is printed on bottom of the device Label

FCC ID:A3LSMT210 SAR EVALUATION REPORT Reviewed by: Quality Manager Document S/N: Test Dates: DUT Type: Page 1 of 23 0Y1304020578-R2.A3L 04/20/13 - 04/22/13 Portable Tablet © 2013 PCTEST Engineering Laboratory, Inc. REV 12.4 M 03/25/2013 Applicant Name: Date of Testing: Samsung Electronics, Co. Ltd. 04/20/13 - 04/22/13 129, Samsung-ro, Maetan Dong, Test Site/Location: Yeongtong-gu, Suwon-si PCTEST Lab, Columbia, MD, USA Gyeonggi-do, 443-742, Republic of Korea Document Serial No.: 0Y1304020578-R2.A3L FCC ID: A3LSMT210 APPLICANT: SAMSUNG ELECTRONICS, CO. LTD. DUT Type: Portable Tablet Application Type: Certification FCC Rule Part(s): CFR §2.1093 Model(s): Test Device Serial No.: SM-T210 Pre-Production [S/N: FK-083-C] 1 gm Body (W/kg) DTS2.4 GHz WLAN2412 - 2462 MHz15.21 0.70 DTS5.8 GHz WLAN5745 - 5825 MHz10.010.41 NII5.2 GHz WLAN5180 - 5240 MHz11.450.15 NII5.3 GHz WLAN5260 - 5320 MHz11.490.29 NII5.5 GHz WLAN5500 - 5700 MHz11.080.52 DSSBluetooth2402 - 2480 MHz6.74N/A SAR Band & ModeTx Frequency Measured Conducted Power [dBm] Equipment Class Note: Powers in the above table represent output powers for the SAR test configurations and may not represent the highest output powers for all configurations for each mode. Note: This revised Test Report (S/N: 0Y1304020578-R2.A3L) supersedes and replaces the previously issued test report on the same subject device for the same type of testing as indicated. Please discard or destroy the previously issued test report(s) and dispose of it accordingly This wireless portable device has been shown to be capable of compliance for localized specific absorption rate (SAR) for uncontrolled environment/general population exposure limits specified in ANSI/IEEE C95.1-1992 and has been tested in accordance with the measurement procedures specified in Section 1.7 of this report; for North American frequency bands only. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. Test results reported herein relate only to the item(s) tested. PCTEST ENGINEERING LABORATORY, INC. 7185 Oakland Mills Road, Columbia, MD 21046 USA Tel. +1.410.290.6652 / Fax +1.410.290.6654 http://www.pctestlab.com SAR EVALUATION REPORT FCC ID:A3LSMT210 SAR EVALUATION REPORT Reviewed by: Quality Manager Document S/N: Test Dates: DUT Type: Page 2 of 23 0Y1304020578-R2.A3L 04/20/13 - 04/22/13 Portable Tablet © 2013 PCTEST Engineering Laboratory, Inc. REV 12.4 M 03/25/2013 TABLE OF CONTENTS 1 DEVICE UNDER TEST ................................................................................................................... 3 2 INTRODUCTION ............................................................................................................................. 6 3 DOSIMETRIC ASSESSMENT ........................................................................................................ 7 4 RF EXPOSURE LIMITS .................................................................................................................. 8 5 FCC MEASUREMENT PROCEDURES .......................................................................................... 9 6 RF CONDUCTED POWERS ......................................................................................................... 10 7 SYSTEM VERIFICATION .............................................................................................................. 13 8 SAR DATA SUMMARY ................................................................................................................. 15 9 SAR MEASUREMENT VARIABILITY ........................................................................................... 17 10 EQUIPMENT LIST ......................................................................................................................... 18 11 MEASUREMENT UNCERTAINTIES ............................................................................................ 19 12 CONCLUSION ............................................................................................................................... 21 13 REFERENCES .............................................................................................................................. 22 APPENDIX A: SAR TEST PLOTS APPENDIX B: SAR DIPOLE VERIFICATION PLOTS APPENDIX C: PROBE AND DIPOLE CALIBRATION CERTIFICATES APPENDIX D: SAR TISSUE SPECIFICATIONS APPENDIX E: SAR SYSTEM VALIDATION APPENDIX F: SAR TEST SETUP PHOTOGRAPHS FCC ID:A3LSMT210 SAR EVALUATION REPORT Reviewed by: Quality Manager Document S/N: Test Dates: DUT Type: Page 3 of 23 0Y1304020578-R2.A3L 04/20/13 - 04/22/13 Portable Tablet © 2013 PCTEST Engineering Laboratory, Inc. REV 12.4 M 03/25/2013 1 DEVICE UNDER TEST 1.1 Device Overview 2.4 GHz WLANData2412 - 2462 MHz 5.8 GHz WLANData5745 - 5825 MHz 5.2 GHz WLANData5180 - 5240 MHz 5.3 GHz WLANData5260 - 5320 MHz 5.5 GHz WLANData5500 - 5700 MHz BluetoothData2402 - 2480 MHz Band & ModeTx FrequencyOperating Modes 1.2 Nominal and Maximum Output Power Specifications This device operates using the following maximum and nominal output power specifications. SAR values were scaled to the maximum allowed power to determine compliance per KDB Publication 447498 D01v05. Maximum Nominal Maximum Nominal Maximum Nominal Maximum Nominal Maximum Nominal Maximum Nominal 15.0 15.0 15.0 11.0 11.0 6.5 15.5 Mode / Band IEEE 802.11a (5 GHz) 11.5 Modulated Average (dBm) IEEE 802.11b (2.4 GHz) 15.5 IEEE 802.11g (2.4 GHz) IEEE 802.11n (5 GHz) 11.5 Bluetooth 7.0 IEEE 802.11n (2.4 GHz) 15.5 FCC ID:A3LSMT210 SAR EVALUATION REPORT Reviewed by: Quality Manager Document S/N: Test Dates: DUT Type: Page 4 of 23 0Y1304020578-R2.A3L 04/20/13 - 04/22/13 Portable Tablet © 2013 PCTEST Engineering Laboratory, Inc. REV 12.4 M 03/25/2013 1.3 DUT Antenna Locations …

Text truncated - open the document above for the full version.

Reviewed by: FCC ID: A3LSMT210 FCC Pt. 15.407 802.11a/n UNII MEASUREMENT REPORT (CERTIFICATION) Quality Manager Test Report S/N: Test Dates: EUT Type: 0Y1304020580.A3L 04/05/13 - 04/22/13; 04/26/13 Portable Tablet Page 1 of 77 © 2013 PCTEST Engineering Laboratory, Inc. V 2.2 01/10/13 Applicant Name: Date of Testing: Samsung Electronics Co., Ltd. 04/05/13 - 04/22/13; 04/26/13 129, Samsung-ro, Yeongtong-gu Test Site/Location: Suwon-city, Gyeonggi-do, 443-742 PCTEST Lab, Columbia, MD, USA Republic of Korea Test Report Serial No.: 0Y1304020580.A3L FCC ID: A3LSMT210 IC CERTIFICATION NO: 649E-SMT210 APPLICANT: Samsung Electronics Co., Ltd. Application Type: Certification FCC Model(s): SM-T210 IC Model(s): SM-T210R EUT Type: Portable Tablet FCC Classification: Unlicensed National Information Infrastructure (UNII) FCC Rule Part(s): Part 15.407 IC Specification(s): RSS-210 Issue 8 Test Procedure(s): ANSI C63.10-2009, KDB 789033 v01r03 Max. Power (mW) Max. Power (dBm) 1205180 - 524013.96411.45 2205260 - 532014.09311.49 3205500 - 570012.82311.08 1205180 - 524013.55211.32 2205260 - 532013.55211.32 3205500 - 570011.45510.59 1405190 - 523013.18311.20 2405270 - 531013.58311.33 3405510 - 567011.27210.52 Conducted Power Mode Tx Frequency (MHz) UNII Band 802.11n Channel Bandwidth (MHz) 802.11a 802.11n This equipment has been shown to be capable of compliance with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in ANSI C63.10-2009 and KDB 789033. Test results reported herein relate only to the item(s) tested. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. PCTEST ENGINEERING LABORATORY, INC. 7185 Oakland Mills Road, Columbia, MD 21046 USA Tel. 410.290.6652 / Fax 410.290.6654 http://www.pctestlab.com MEASUREMENT REPORT FCC PART 15.407/ IC RSS-210 (UNII) Reviewed by: FCC ID: A3LSMT210 FCC Pt. 15.407 802.11a/n UNII MEASUREMENT REPORT (CERTIFICATION) Quality Manager Test Report S/N: Test Dates: EUT Type: 0Y1304020580.A3L 04/05/13 - 04/22/13; 04/26/13 Portable Tablet Page 2 of 77 © 2013 PCTEST Engineering Laboratory, Inc. V 2.2 01/10/13 TABLE OF CONTENTS FCC PART 15.407 MEASUREMENT REPORT...................................................................................3 1.0 INTRODUCTION......................................................................................................................................4 1.1 SCOPE....................................................................................................................................................... 4 1.2 PCTEST TEST LOCATION........................................................................................................................ 4 2.0 PRODUCT INFORMATION .....................................................................................................................5 2.1 EQUIPMENT DESCRIPTION..................................................................................................................... 5 2.2 DEVICE CAPABILITIES ............................................................................................................................. 5 2.3 TEST CONFIGURATION ........................................................................................................................... 5 2.4 EMI SUPPRESSION DEVICE(S)/MODIFICATIONS.................................................................................. 5 2.5 LABELING REQUIREMENTS .................................................................................................................... 5 3.0 DESCRIPTION OF TEST ........................................................................................................................6 3.1 EVALUATION PROCEDURE..................................................................................................................... 6 3.2 AC LINE CONDUCTED EMISSIONS......................................................................................................... 6 3.3 RADIATED EMISSIONS ............................................................................................................................ 7 4.0 ANTENNA REQUIREMENTS ..................................................................................................................8 5.0 TEST EQUIPMENT CALIBRATION DATA..............................................................................................9 6.0 TEST RESULTS ....................................................................................................................................10 6.1 SUMMARY ............................................................................................................................................... 10 6.2 26DB BANDWIDTH MEASUREMENT – 802.11A/N................................................................................ 11 6.3 UNII OUTPUT POWER MEASUREMENT – 802.11A/N .......................................................................... 26 6.4 PEAK POWER SPECTRAL DENSITY – 802.11A/N................................................................................ 28 6.5 PEAK EXCURSION RATIO – 802.11A/N................................................................................................. 43 6.6 FREQUENCY STABILITY ........................................................................................................................ 46 6.7 RADIATED SPURIOUS EMISSION MEASUREMENTS.......................................................................... 49 6.8 RADIATED BAND EDGE MEASUREMENTS (20MHZ BW) .................................................................... 57 6.9 RADIATED BAND EDGE MEASUREMENTS (40MHZ BW) ...................…

Text truncated - open the document above for the full version.

Reviewed by: FCC ID: A3LSMT210 FCC Pt. 15.407 DFS TEST REPORT (CERTIFICATION) Quality Manager Test Report S/N: Test Dates: EUT Type: 0Y1304020581.A3L 04/19/2013 Portable Tablet Page 1 of 20 © 2013 PCTEST Engineering Laboratory, Inc. REV 1.5DFS 9/14/12 Company Name: Date of Testing: Samsung Electronics Co., Ltd. 04/19/2013 129, Samsung-ro, Yeongtong-gu Test Site/Location: Suwon-city, Gyeonggi-do, 443-742 PCTEST Lab. Columbia, MD, USA Republic of Korea Test Report Serial No.: 0Y1304020581.A3L FCC ID: A3LSMT210 IC CERTIFICATION NO: 649E-SMT210 COMPANY: Samsung Electronics Co., Ltd. FCC Model(s): SM-T210 IC Models(s): SM-T210R EUT Type: Portable Tablet Type of Device: Client Only Device, No Radar Detection Capability Frequency Range: 5260 – 5320 MHz (UNII-II Band) 5500 – 5700 MHz (UNII-III Band) Output Power: 14.093 mW (11.49 dBm) Conducted (802.11a UNII Band II) 12.823 mW (11.08 dBm) Conducted (802.11a UNII Band III) FCC Classification: Unlicensed National Information Infrastructure (UNII) FCC Rule Part(s): Part 15.407(UNII) This equipment has been shown to be capable of compliance with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in FCC 06-96 Appendix B Compliance Measurement Procedures for Unlicensed-National Information Infrastructure Devices Operating in the 5.25 – 5.35 GHz and 5.47 – 5.725 GHz Bands Incorporating Dynamic Frequency Selection. Test results reported herein relate only to the item(s) tested. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. PCTEST ENGINEERING LABORATORY, INC. 7185 Oakland Mills Road, Columbia, MD 21045 USA Tel. 410.290.6652 / Fax 410.290.6654 http://www.pctestlab.com MEASUREMENT REPORT FCC PART 15.407 / IC RSS-210 DFS Reviewed by: FCC ID: A3LSMT210 FCC Pt. 15.407 DFS TEST REPORT (CERTIFICATION) Quality Manager Test Report S/N: Test Dates: EUT Type: 0Y1304020581.A3L 04/19/2013 Portable Tablet Page 2 of 20 © 2013 PCTEST Engineering Laboratory, Inc. REV 1.5DFS 9/14/12 TABLE OF CONTENTS FCC PART 15.407 MEASUREMENT REPORT...................................................................................3 1.0 INTRODUCTION......................................................................................................................................4 1.1 SCOPE....................................................................................................................................................... 4 1.2 EVALUATION PROCEDURE..................................................................................................................... 4 1.3 SUMMARY OF TEST RESULTS ............................................................................................................... 4 2.0 PRODUCT INFORMATION .....................................................................................................................5 2.1 EQUIPMENT DESCRIPTION..................................................................................................................... 5 2.2 MODIFICATIONS....................................................................................................................................... 5 3.0 DESCRIPTION OF DYNAMIC FREQUENCY SELECTION TEST .........................................................6 3.1 APPLICABILITY ......................................................................................................................................... 6 3.2 REQUIREMENTS ...................................................................................................................................... 6 3.3 DFS DETECTION THRESHOLD VALUES ................................................................................................ 8 3.4 PARAMETERS OF DFS TEST SIGNALS ..................................................................................................8 3.5 PROCEDURE ............................................................................................................................................ 9 4.0 TEST EQUIPMENT................................................................................................................................11 4.1 ADDITIONAL EQUIPMENT ..................................................................................................................... 11 5.0 TEST PLOTS AND DATA UNII - II BAND .............................................................................................12 6.0 TEST PLOTS AND DATA UNII – III BAND............................................................................................16 7.0 CONCLUSION .......................................................................................................................................20 Reviewed by: FCC ID: A3LSMT210 FCC Pt. 15.407 DFS TEST REPORT (CERTIFICATION) Quality Manager Test Report S/N: Test Dates: EUT Type: 0Y1304020581.A3L 04/19/2013 Portable Tablet Page 3 of 20 © 2013 PCTEST Engineering Laboratory, Inc. REV 1.5DFS 9/14/12 DFS MEASUREMENT REPORT FCC Part 15.407 § 2.1033 General Information APPLICANT: Samsung Electronics Co., Ltd. APPLICANT ADDRESS: 129, Samsung-ro, Yeongtong-gu Suwon-city, Gyeonggi-do, 443-742, Republic of Korea TEST SITE: PCTEST ENGINEERING LABORATORY, INC. TEST SITE ADDRESS: 7185 Oakland Mills Road, Columbia, MD 21046 USA FCC RULE PART(S): Part 15.407(h) BASE MODEL: SM-T210 FCC ID: A3LSMT210 Test Device Serial No.: FK-083-C Production Pre-Production Engineering DEVICE CLASSIFICATION: Client Only, No Radar Detection DATE(S) OF TEST: 04/19/2013 TEST REPORT S/N: 0Y1304020581.A3L Test Facility / Accreditations Measurements were performed at PCTEST Engineering Lab located in Columbia, MD 21045, U.S.A.  PC…

Text truncated - open the document above for the full version.

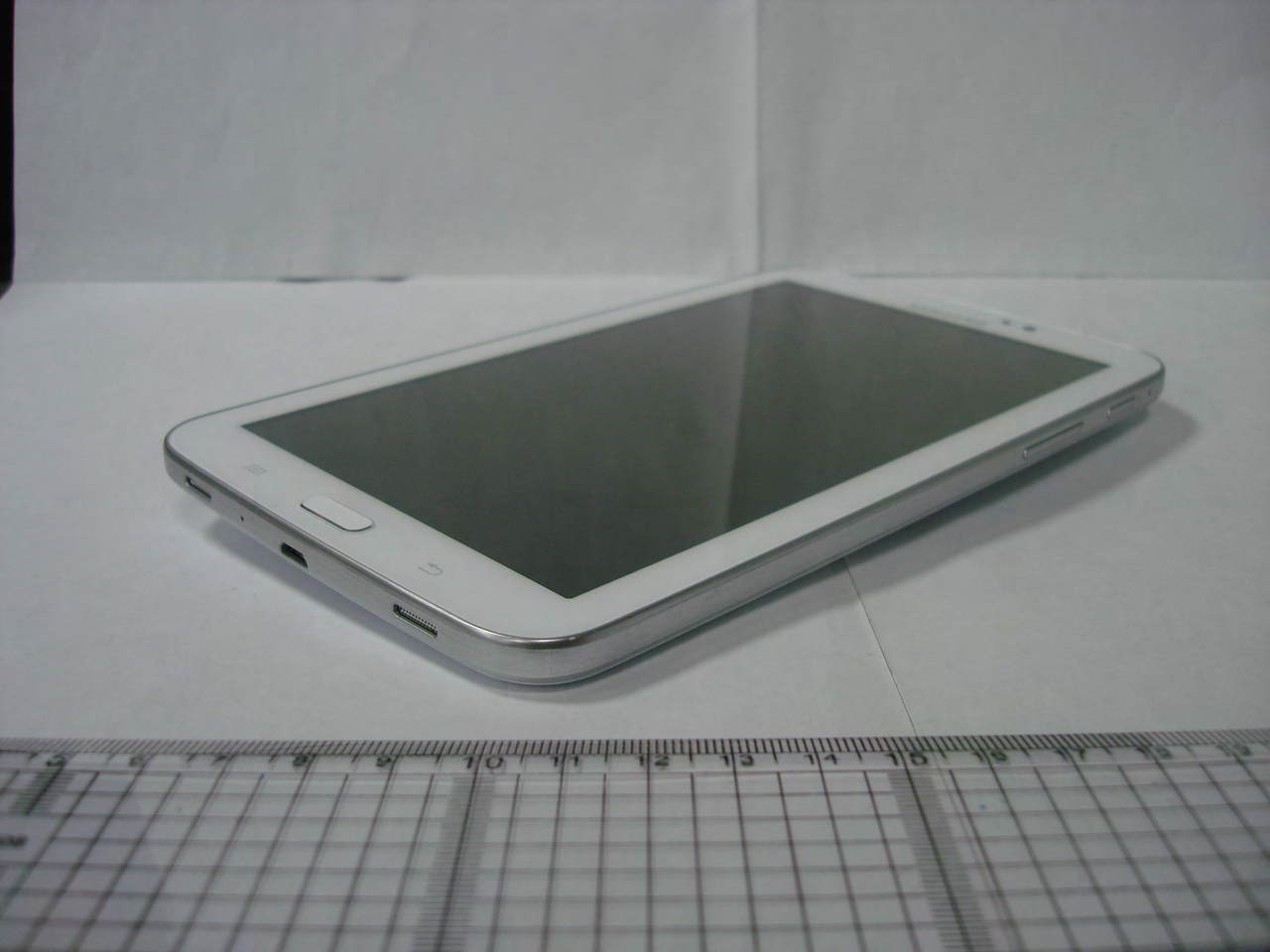

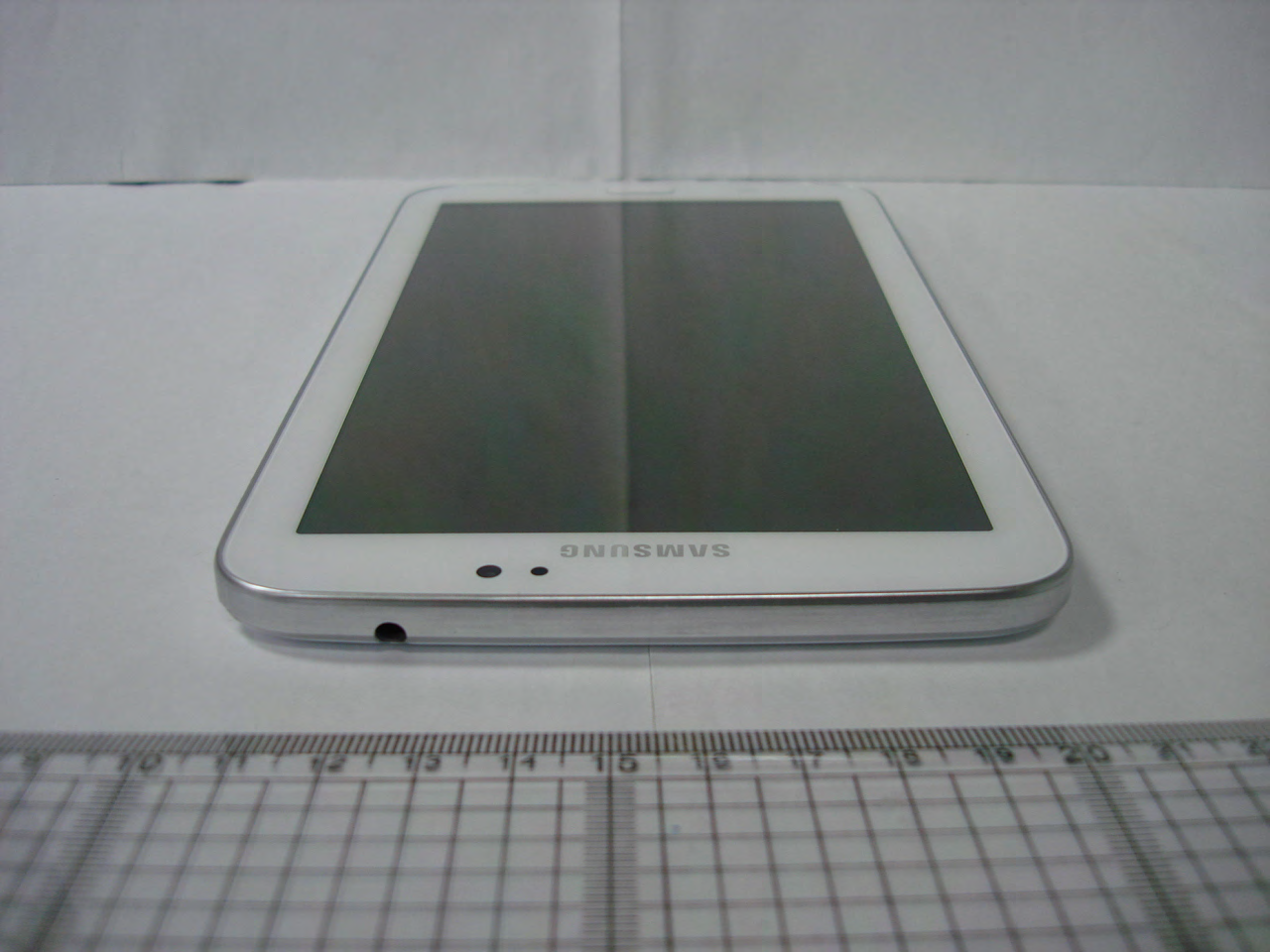

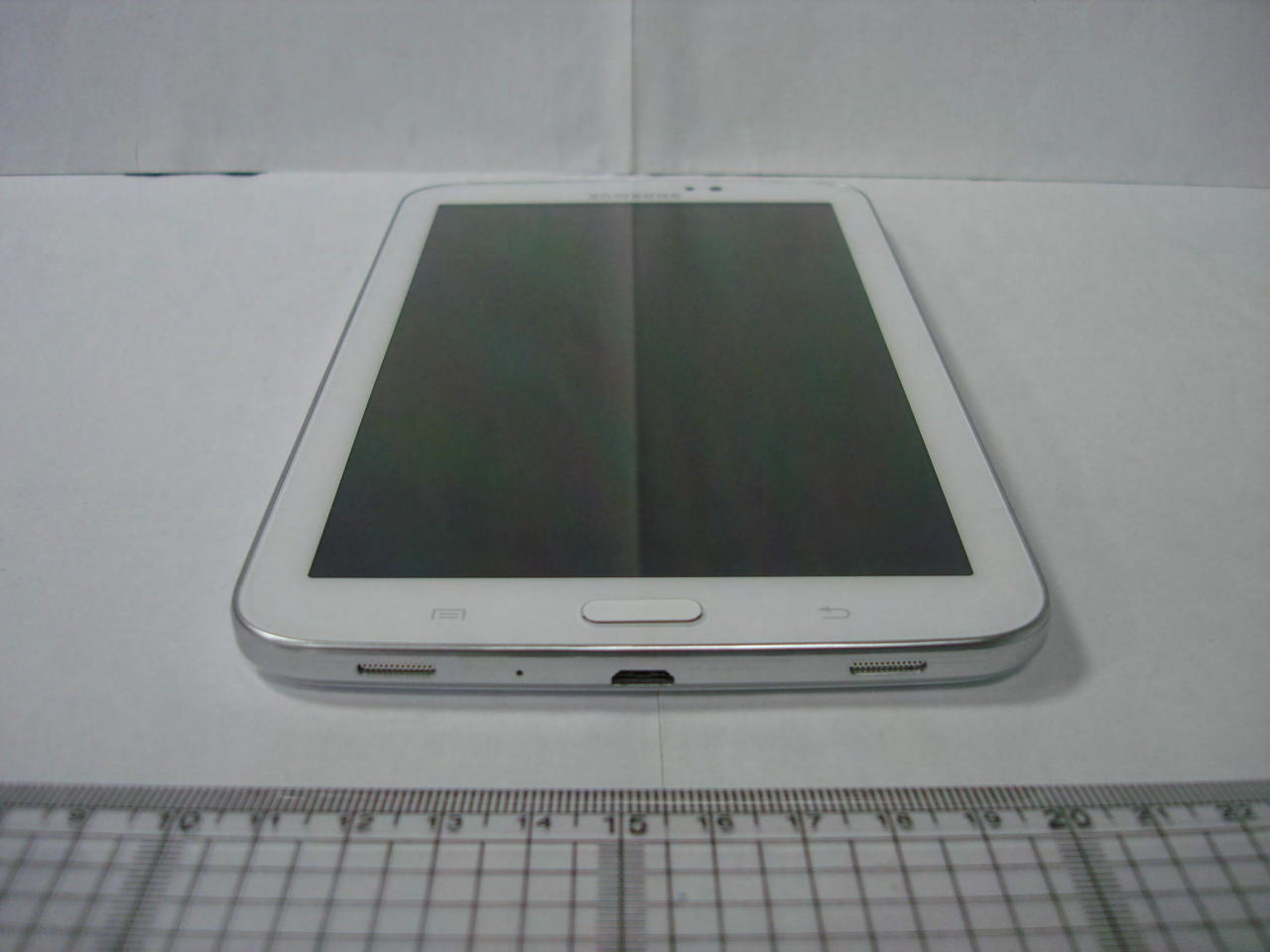

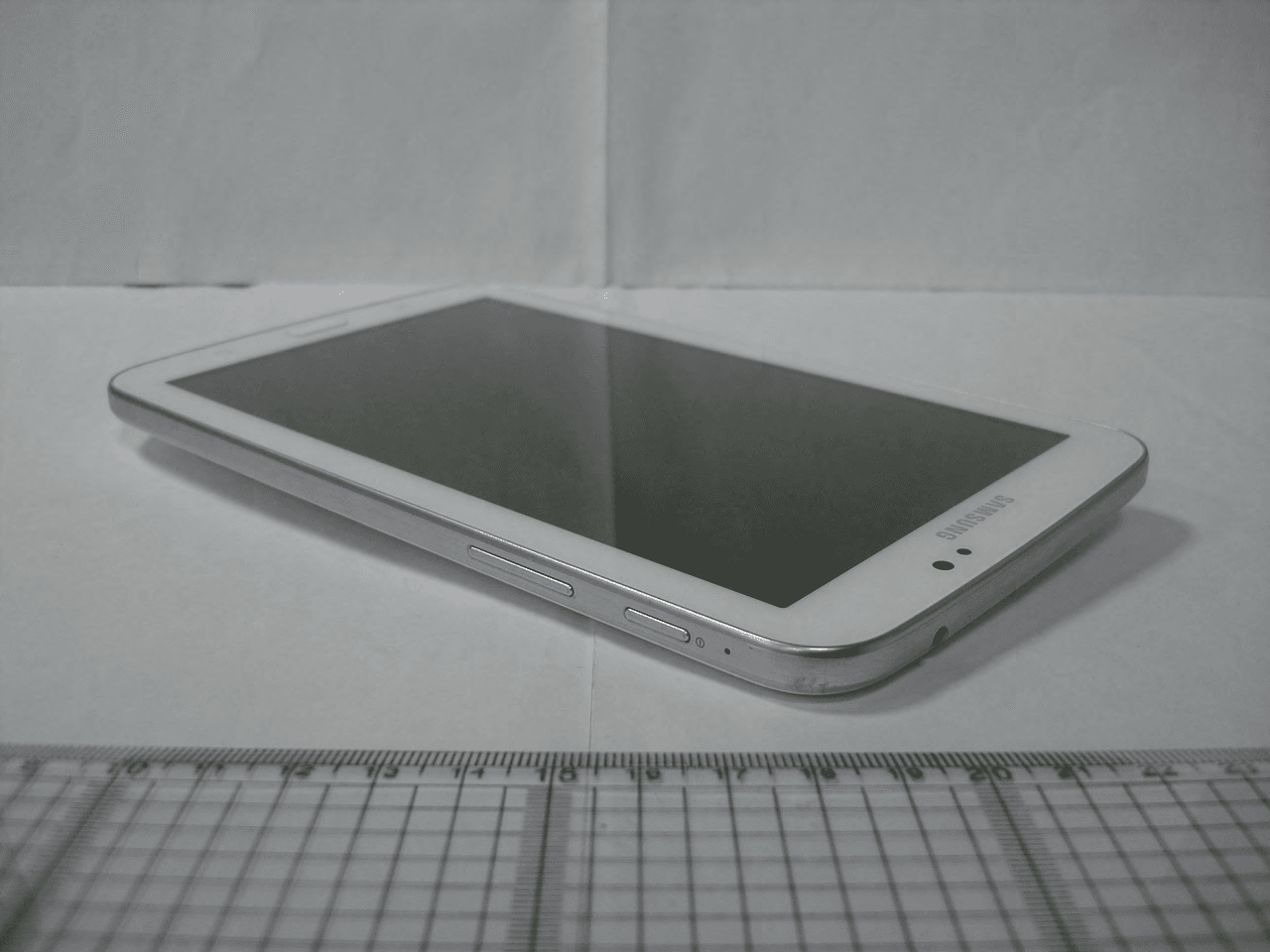

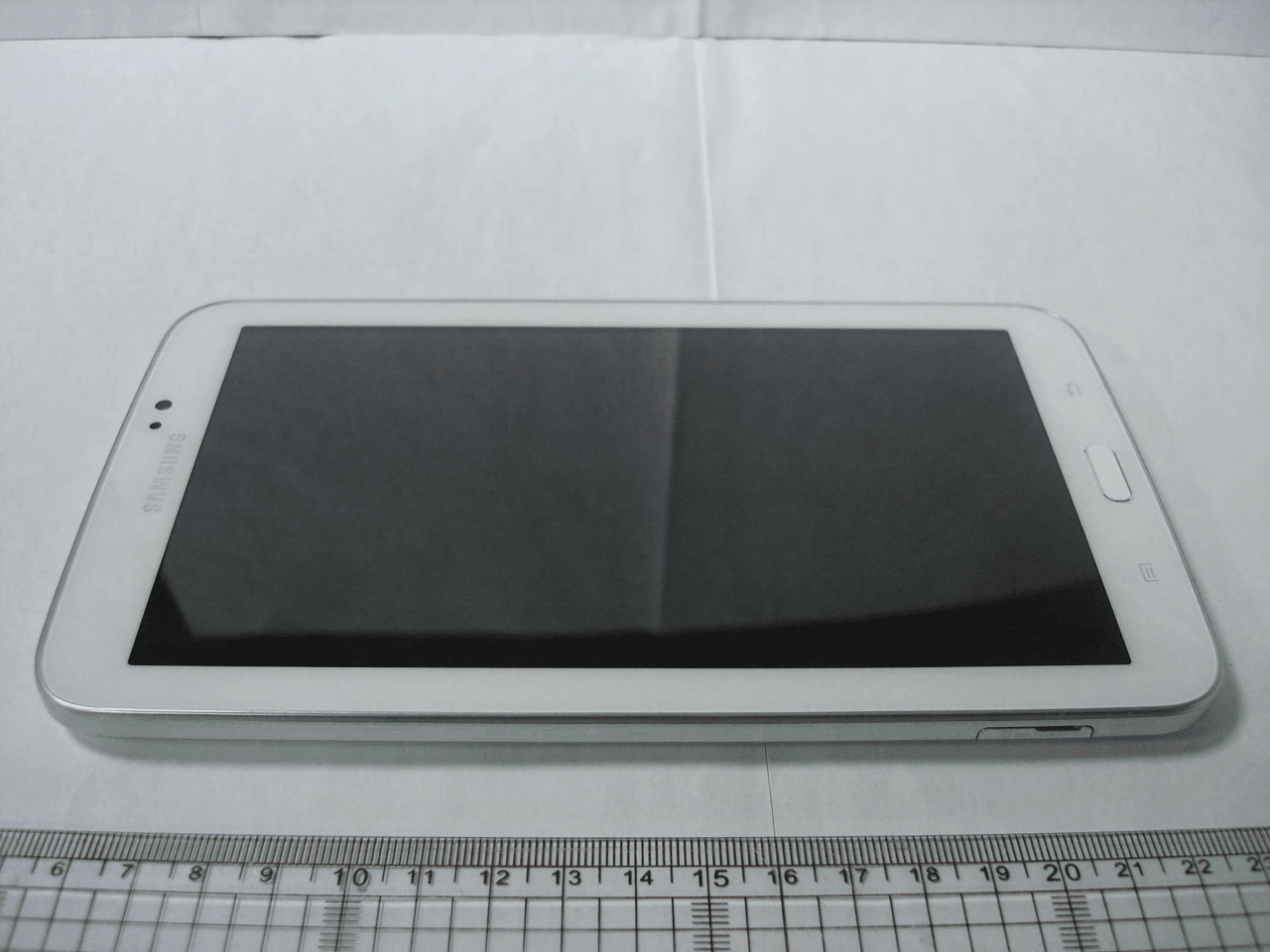

SAMSUNG ELECTRONICS FCC ID: A3LSMT210 Model: SM-T210 Test Set-Up Photos EUT Type: PORTABLE TABLET Page 1 of 3 © 2013 PCTEST Engineering Laboratory Inc. TEST SETUP PHOTOGRAPHS SAMSUNG ELECTRONICS FCC ID: A3LSMT210 Model: SM-T210 Test Set-Up Photos EUT Type: PORTABLE TABLET Page 2 of 3 © 2013 PCTEST Engineering Laboratory Inc. SAMSUNG ELECTRONICS FCC ID: A3LSMT210 Model: SM-T210 Test Set-Up Photos EUT Type: PORTABLE TABLET Page 3 of 3 © 2013 PCTEST Engineering Laboratory Inc.

FCC IDA3LSMT210 SAR EVALUATION REPORT Reviewed by: Quality Manager Test Dates: DUT Type: APPENDIX F: Page 1 of 3 04/20/13 - 04/22/13 Portable Tablet © 2013 PCTEST Engineering Laboratory, Inc. REV 12.4 M 03/25/2013 APPENDIX F: SAR TEST SETUP PHOTOGRAPHS FCC IDA3LSMT210 SAR EVALUATION REPORT Reviewed by: Quality Manager Test Dates: DUT Type: APPENDIX F: Page 2 of 3 04/20/13 - 04/22/13 Portable Tablet © 2013 PCTEST Engineering Laboratory, Inc. REV 12.4 M 03/25/2013 SAR Test Setup Photo 5 – Back Side at 0.0 cm SAR Test Setup Photo 6 – Bottom Edge at 0.0 cm FCC IDA3LSMT210 SAR EVALUATION REPORT Reviewed by: Quality Manager Test Dates: DUT Type: APPENDIX F: Page 3 of 3 04/20/13 - 04/22/13 Portable Tablet © 2013 PCTEST Engineering Laboratory, Inc. REV 12.4 M 03/25/2013 SAR Test Setup Photo 7 – Left Edge at 0.0 cm
