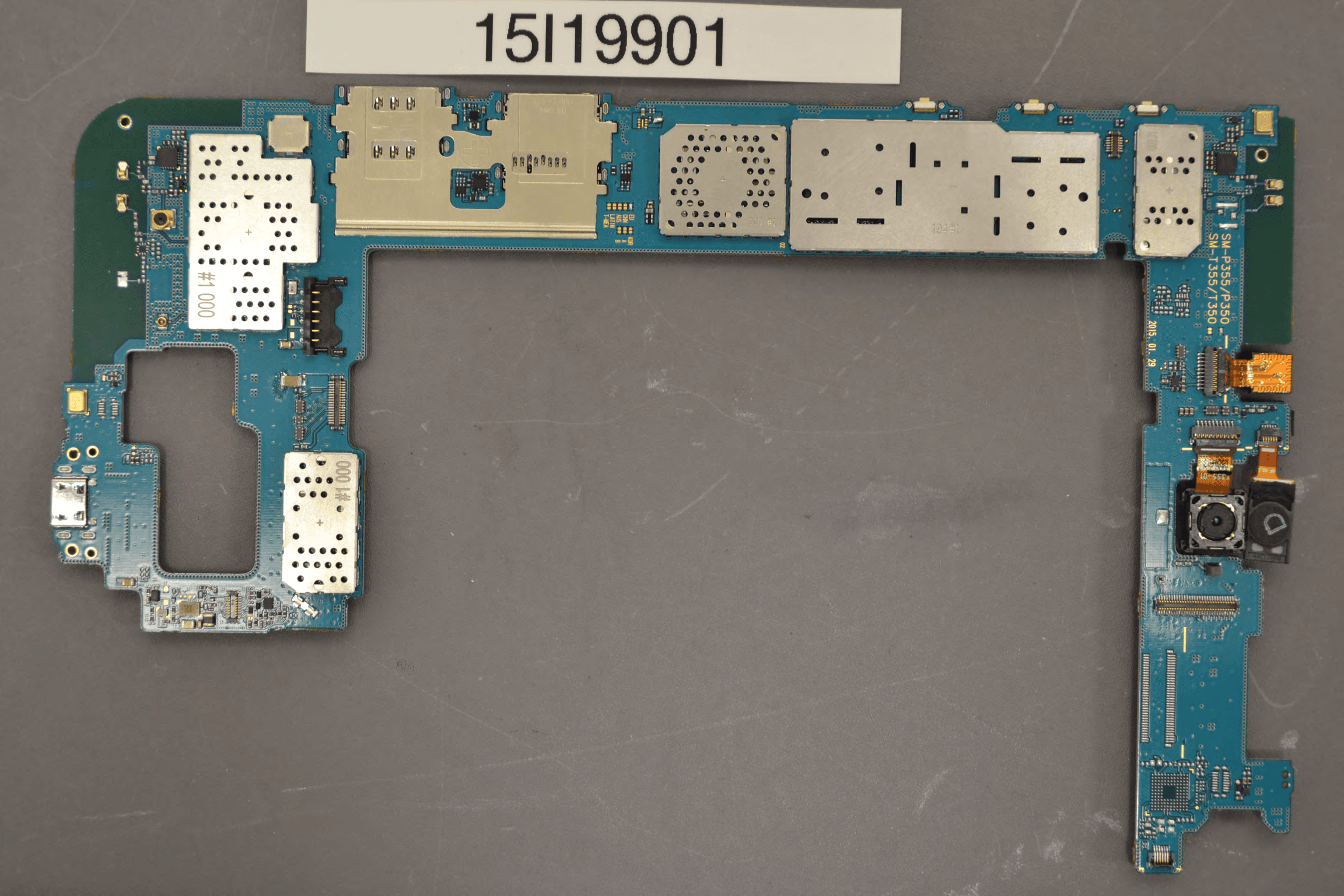

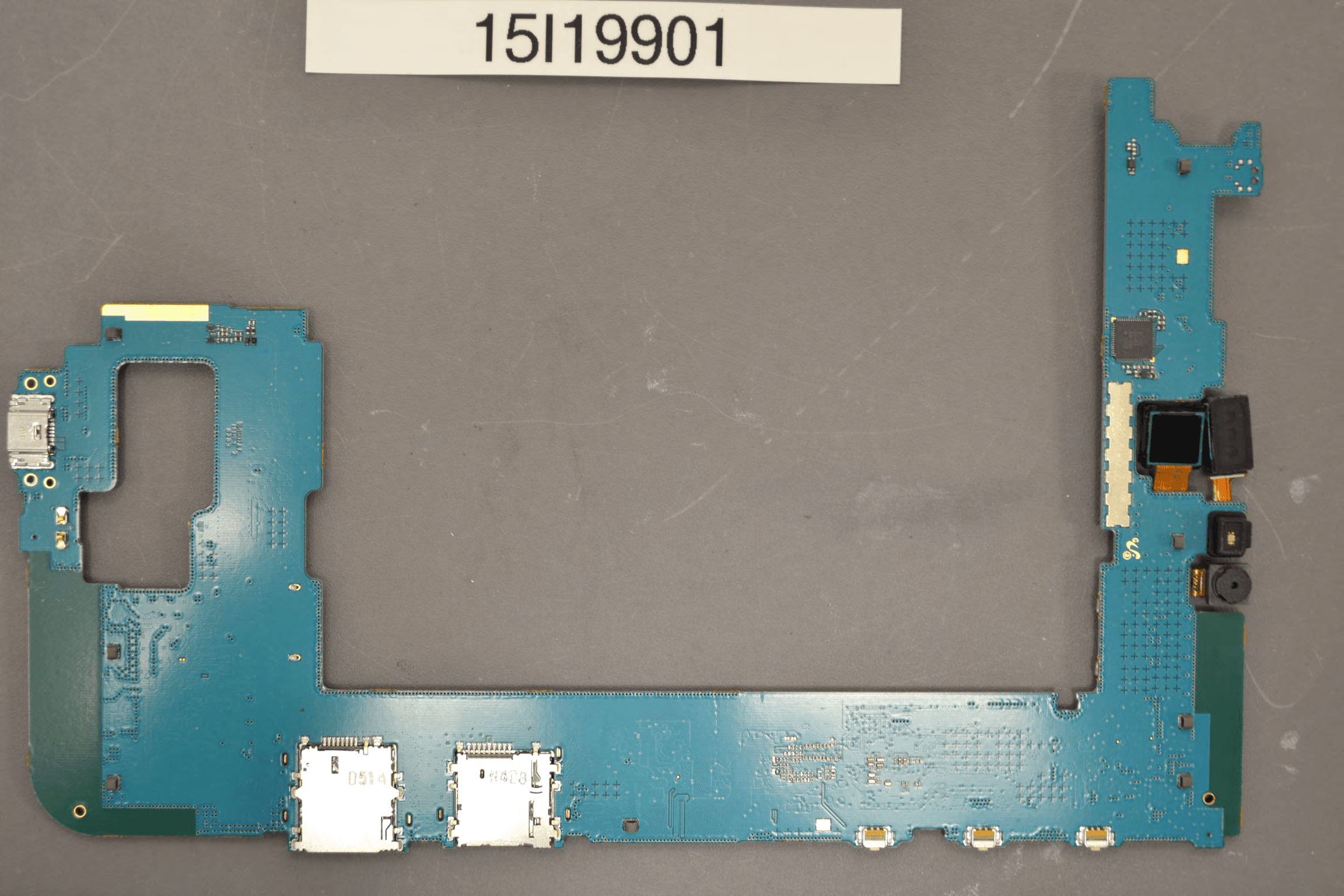

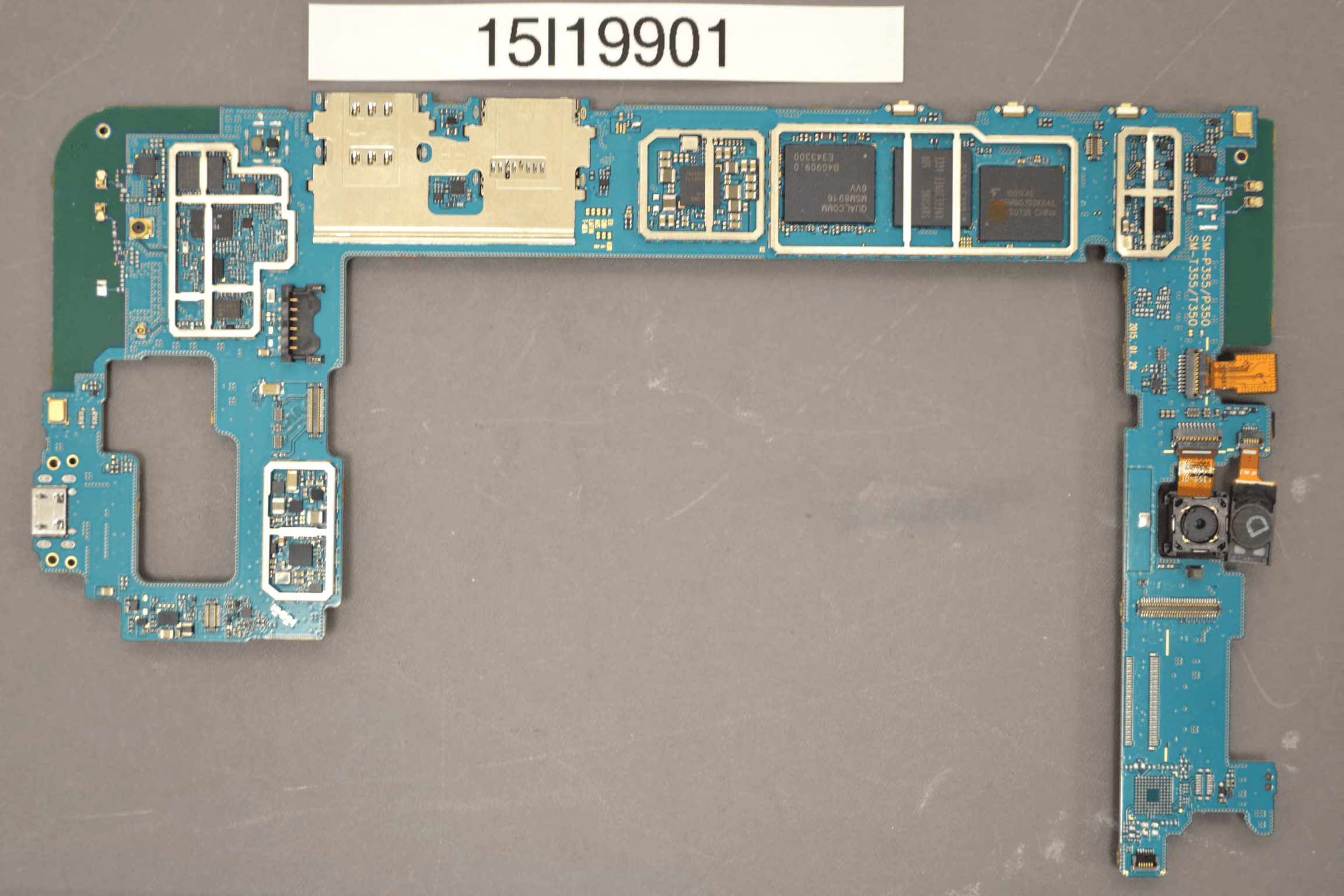

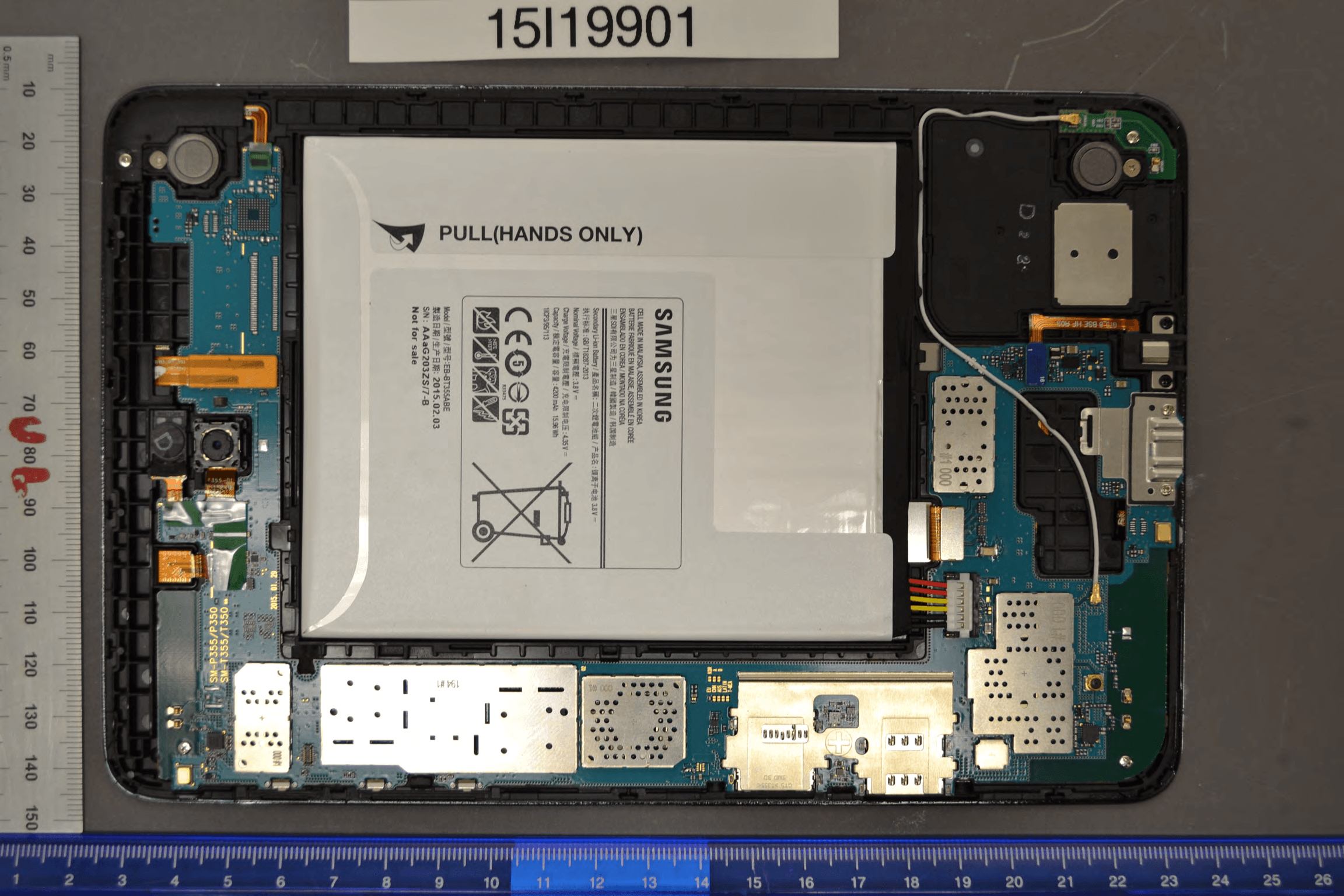

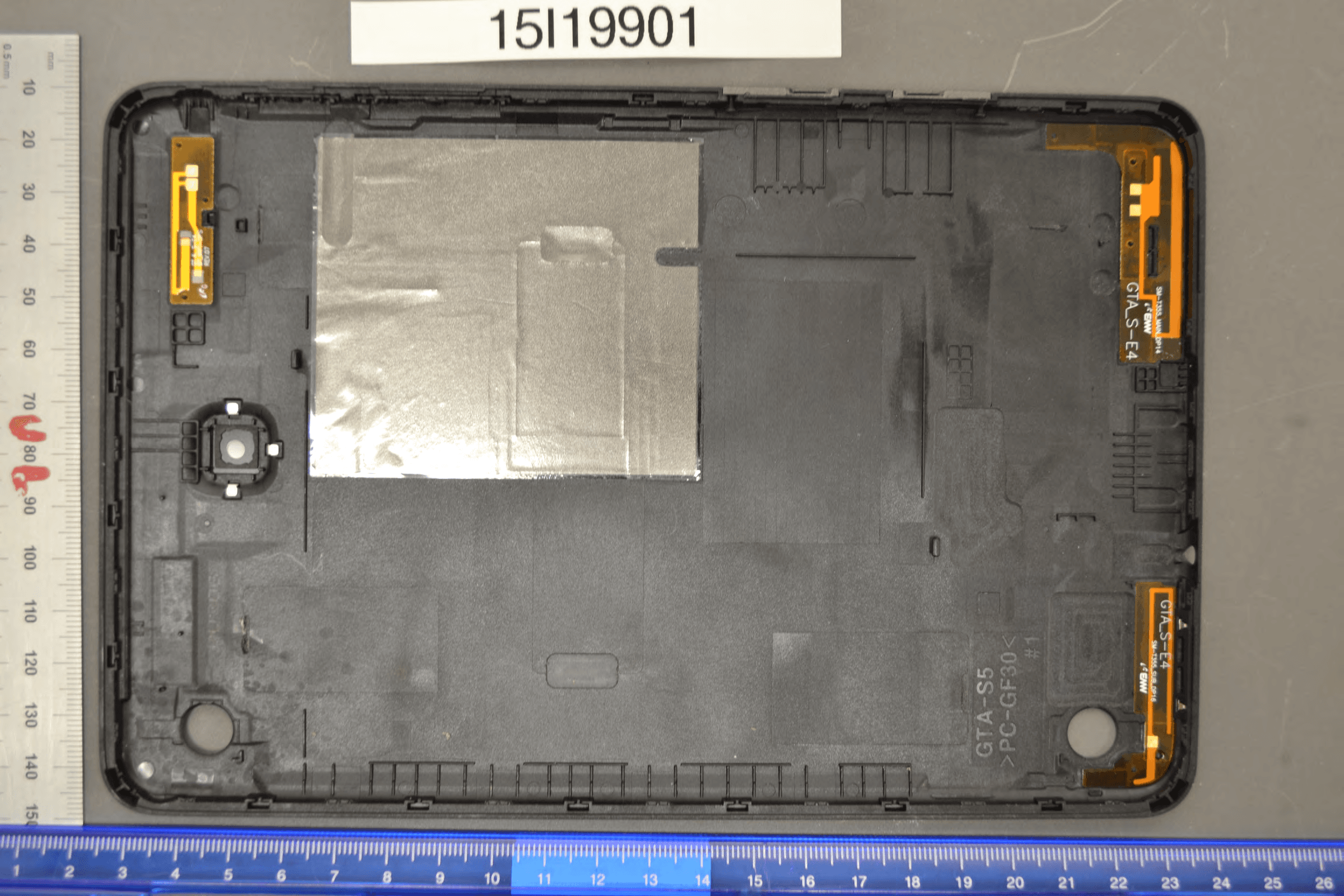

A3LSMT355GSM/WCDMA/LTE Tablet with Bluetooth, DTS/UNII a/b/g/n and ANT+

www.samsung.com User Manual SM-T355 English (EU). 02/2015. Rev.1.0 2 Table of Contents Read me first Getting started 6 Package contents 7 Device layout 9 Using the SIM or USIM card and battery 12 Using a memory card 14 Tur ning the device on and off 15 Locking and unlocking the screen Basics 16 Using the touch screen 19 Home screen layout 23 Notifications panel 25 Opening apps 25 Installing or uninstalling apps 27 Ent ering text 29 Scr een capture 29 My Files 30 Po wer saving feature Network connectivity 31 Mobile data 31 W i-Fi 32 Mobile hotspot and tethering Motions & usability features 34 Motions and gestures Personalising 36 Managing the Home and Apps screens 37 Setting w allpaper and ringtones 38 Changing the screen lock method 39 Private mode 40 Setting up accounts Phone 41 Making calls 42 Receiving calls 43 Options during calls Table of Contents 3 Connecting with other devices 63 Bluetooth 65 Wi-Fi Direct 67 Quick C onnect 68 SideSync 3.0 75 Screen Mirroring 77 Mobile pr inting Device & data manager 78 Transferring data from your previous device 80 Using the device as a removable disk for data transfer 80 Updating the device 81 Backing up and r estoring data 82 Performing a data reset Settings 83 About Settings 83 C onnections 86 Device 88 Personal 92 System Appendix 95 Troubleshooting 100 Removing the battery (non-removable type) Contacts 44 Adding contacts 44 Importing and exporting contacts 45 Sear ching for contacts Messages & email 46 Messages 47 Email Camera 49 Basic shooting 50 Shooting modes 52 Camera settings Gallery 53 Viewing content on the device Useful apps and features 54 S Finder 54 S Planner 56 Internet 57 Music 58 Video 59 Clock 60 Calculator 60 M emo 61 Google apps 4 Read me first Please read this manual before using the device to ensure safe and proper use. • Descriptions are based on the device’s default settings. • Some content may differ from your device depending on the region, service provider, or device’s software. • Content (high quality content) that requires high CPU and RAM usage will affect the overall performance of the device. Apps related to the content may not work properly depending on the device’s specifications and the environment that it is used in. • Samsung is not liable for performance issues caused by apps supplied by providers other than Samsung. • Samsung is not liable for performance issues or incompatibilities caused by edited registry settings or modified operating system software. Attempting to customise the operating system may cause the device or apps to work improperly. • Software, sound sources, wallpapers, images, and other media provided with this device are licensed for limited use. Extracting and using these materials for commercial or other purposes is an infringement of copyright laws. Users are entirely responsible for illegal use of media. • You may incur additional charges for data services, such as messaging, uploading and downloading, auto-syncing, or using location services depending on your data plan. For large data transfers, it is recommended to use the Wi-Fi feature. • Default apps that come with the device are subject to updates and may no longer be supported without prior notice. If you have questions about an app provided with the device, contact a Samsung Service Centre. For user-installed apps, contact service providers. • Modifying the device’s operating system or installing softwares from unofficial sources may result in device malfunctions and data corruption or loss. These actions are violations of your Samsung licence agreement and will void your warranty. • Depending on the region or model, some devices are required to receive approval from the Federal Communications Commission (FCC). If your device is approved by the FCC, you can view the FCC ID of the device. To view the FCC ID, tap Apps → Settings → About device. Read me first 5 Instructional icons Warning: situations that could cause injury to yourself or others Caution: situations that could cause damage to your device or other equipment Note: notes, usage tips, or additional information 6 Getting started Package contents Check the product box for the following items: • Device • Quick start guide • The items supplied with the device and any available accessories may vary depending on the region or service provider. • The supplied items are designed only for this device and may not be compatible with other devices. • Appearances and specifications are subject to change without prior notice. • You can purchase additional accessories from your local Samsung retailer. Make sure they are compatible with the device before purchase. • Use only Samsung-approved accessories. Using unapproved accessories may cause the performance problems and malfunctions that are not covered by the warranty. • Availability of all accessories is subject to change depending entirely on manufacturing companies. For more information about available accessories, refer to the Samsung website. Getting started 7 Device layout Touch screen Proximity/Light sensor Earpiece Recent apps button Home button Back button Microphone Headset jack Volume button Power button Microphone Front camera Multipurpose jack Memory card slot SIM card slot Rear camera Speaker GPS antenna Main antenna Push clip Push clip Getting started 8 • Do not cover the antenna area with your hands or other objects. This may cause connectivity problems or drain the battery. • Using a Samsung-approved screen protector is recommended. Unapproved screen protectors may cause the sensors to malfunction. • Do not allow water to contact the touch screen. The touch screen may malfunction in humid conditions or when exposed to water. Buttons ButtonFunction Power • Press and hold to turn the device on or off. • Press to turn on or lock the screen. Recent apps • Tap to open the list of recent apps. Home • Press to turn on the screen while the screen is locked. • Press to return to the Home screen. • Press and hold to launch Goog…

Text truncated - open the document above for the full version.

Date: July 23, 2014 UL Verification Services Inc. 47173 Benicia Street Fremont, CA 94538, USA To whom it may concern: I, the undersigned, hereby authorize UL Verification Services Inc. to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by UL Verification Services Inc. on our behalf shall have the same effect as acts of our own. I, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). In authorizing UL Verification Services Inc. as our representative, we still recognize that we are responsible to: comply with the relevant provisions of the certification program; a) make all necessary arrangements for the conduct of the evaluation, including provision for examining documentation and access to all areas, records (including internal audit reports) and personnel for the purposes of evaluation (e.g. testing, inspection, assessment, surveillance, reassessment) and resolution of complaints; b) make claims regarding certification only in respect of the scope for which certification has been granted; c) do not use our product certification in such a manner as to bring the Certification Division into disrepute and not make any statement regarding our product certification which the Certification Division may consider misleading or unauthorized; d) upon suspension or cancellation of certification, discontinue use of all advertising matter that contains any reference thereto and return any certification documents as required by the Certification Division; e) use certification only to indicate the products are certified as being in conformity with specified standards; f) endeavor to ensure that no certificate or report nor any part thereof is used in a misleading manner; g) ensure that any reference to our product certification in communication media such as documents, brochures or advertising, complies with the requirements of the Certification Division; h) keep a record of all complaints made known to the us relating to the product’s compliance with requirements of the relevant standard and to make these records available to the when requested; i) take appropriate action with respect to such complaints and any deficiencies found in products or services that affect compliance with the requirements for certification; j) document the actions taken. This authorization is valid until further written notice from the applicant. Sincerely Yours, CHANHO, YOUN General Manager Samsung Electronics CO. LTD TEL: +1-973-808-6362 E-mail: [email protected]

February 27, 2015 Federal Comm unications Commi ssion 7435 Oakland Mills Ro ad Columbia MD 21046 Subject: Request for Confidentiality FCC ID: A3LSMT355 To Whom It May Concern: Pursuant to t he provisions of Sections 0.457 and 0.45 9 of the Commission’s rules (47 CFR §§ 0.457, 0.459), we are requesting the Commission to withhold the following att ach ments as confidential document from public di scl osure indefinit ely. Above menti oned document contains detiled system a nd eq uipment descrip tion are considered as proprietary information in operation of t he equipment. The public disclosure of above documen ts might be harmful to o ur company and would give competi to r an u nfair ad van tage in th e market. In additional to above mentioned documents, pursuant to Public Notice DA 04-1705 of the Commission’s policy, in order to comply with the marketing regulat ions in 47 CFR §2.803 and the importation rules in 47 CFR §2.1204, while ensuring that bu siness sensit ive information remains conf idential until the actual marketing of newly authorized devices. We are reque sting the commi ssion to gran t short-term confidentiality request on the fol lowing atta chments until Sensor triggering document It is our understanding that all measurement test reports, FCC ID label format and correspondence during certification review process cannot be granted as confidential documents and such information will be available for public review once the grant of equipment authorization is issued. Best Regards CHANHO, YOUN General Manager Samsung Electronics CO. LTD TEL: +1-973-808-6362 E-mail: [email protected]

F ebruary 28 25 SMT355 Mode Channel Frequency (MHz) Scanning method (Passive/Active) Ad-Hoc support or AP mode 802.11bgn 1-11 2412-2462 Active Yes (AP support as wireless hot spot when configured with WWAN module) 802.11bgn 12, 13 2467-2472 802.11an 36-48 5180-5240 Active Only Wi-Fi Direct and P2P 52-64 5260-5320 Passive Not supported 100-140 5500-5700 Passive Not supported 149-165 5745-5825 Active Only Wi-Fi Direct and P2P Best Regards CHANHO, YOUN General Manager Samsung Electronics CO. LTD TEL: +1-973-808-6362 E-mail: [email protected]

Label and Location Model: SM-T355 FCC ID: A3LSMT355 Label: Location: Top Back of device Bottom Tablet : FCC ID is engraved on bottom of the device Label

NVLAP LAB CODE 200065-0 SAR EVALUATION REPORT FCC 47 CFR § 2.1093 IEEE Std 1528-2013 For GSM/WCDMA/LTE Tablet + Bluetooth, DTS/UNII a/b/g/n & ANT+ FCC ID: A3LSMT355 Model Name: SM-T355 Report Number: 15I19901-S1 Issue Date: 3/3/2015 Prepared for SAMSUNG ELECTRONICS CO., LTD. 129 SAMSUNG-RO, YEONGTONG-GU, SUWON-SI GYEONGGI-DO 443-742, SOUTH KOREA Prepared by UL VERIFICATION SERVICES INC. 47173 BENICIA STREET FREMONT, CA 94538, U.S.A. TEL: (510) 771-1000 FAX: (510) 661-0888 Report No.: 15I19901-S1 Issue Date: 3/3/2015 Page 2 of 65 UL Verification Services Inc. Doc. No.: 1.0 This report shall not be reproduced without the written approval of UL Verification Services Inc. Revision History Rev. Date Revisions Revised By -- 3/3/2015 Initial Issue -- Report No.: 15I19901-S1 Issue Date: 3/3/2015 Page 3 of 65 UL Verification Services Inc. Doc. No.: 1.0 This report shall not be reproduced without the written approval of UL Verification Services Inc. Table of Contents 1. Attestation of Test Results ......................................................................................................... 5 2. Test Specification, Methods and Procedures ............................................................................ 6 3. Facilities and Accreditation ........................................................................................................ 6 4. SAR Measurement System & Test Equipment .......................................................................... 7 4.1. SAR Measurement System ........................................................................................................ 7 4.2. SAR Scan Procedures ............................................................................................................... 8 4.3. Test Equipment ........................................................................................................................ 10 5. Measurement Uncertainty ......................................................................................................... 11 6. Device Under Test (DUT) Information ...................................................................................... 12 6.1. DUT Description ...................................................................................................................... 12 6.2. Wireless Technologies ............................................................................................................. 13 6.3. Nominal and Maximum Output Power ...................................................................................... 14 6.4. General LTE SAR Test and Reporting Considerations ............................................................. 15 6.5. Power Reduction by Proximity Sensing ................................................................................... 16 6.5.1. Proximity Sensor Triggering Distance (KDB 616217 §6.2) ................................................ 16 6.5.2. Proximity Sensor Triggering Distance Measurement Results ............................................ 17 6.5.3. Proximity Sensor Coverage (KDB 616217 §6.3) ............................................................... 30 6.5.4. Proximity Sensor Tilt Angle Assessment (KDB 616217 §6.4) ............................................ 30 7. RF Exposure Conditions (Test Configurations) ...................................................................... 31 7.1. Standalone SAR Test Exclusion Considerations ...................................................................... 31 7.2. Required Test Configurations .................................................................................................. 33 8. Dielectric Property Measurements & System Check .............................................................. 34 8.1. Dielectric Property Measurements ........................................................................................... 34 8.2. System Check.......................................................................................................................... 38 9. Conducted Output Power Measurements ................................................................................ 41 9.1. GSM ........................................................................................................................................ 41 9.2. W-CDMA ................................................................................................................................. 43 9.3. LTE .......................................................................................................................................... 48 9.4. Wi-Fi 2.4GHz ........................................................................................................................... 50 9.5. Wi-Fi 5GHz .............................................................................................................................. 51 9.6. Bluetooth ................................................................................................................................. 52 10. Measured and Reported (Scaled) SAR Results ....................................................................... 53 10.1. GSM850 ............................................................................................................................... 55 Report No.: 15I19901-S1 Issue Date: 3/3/2015 Page 4 of 65 UL Verification Services Inc. Doc. No.: 1.0 This report shall not be reproduced without the written approval of UL Verification Services Inc. 10.2. GSM1900 ............................................................................................................................. 55 10.3. W-CDMA Band V ................................................................................................................. 56 10.4. W-CDMA Band II .................................................................................................................. 56 10.5. LTE Band 5 (10MHz Bandwidth) ....…

Text truncated - open the document above for the full version.

Plot No. 1 Test Laboratory: UL Verification Services Inc. SAR Lab A Date/Time: 2/6/2015 11:45:12 PM SystemPerformanceCheck-D2450V2 SN 899 Frequency: 2450 MHz; Duty Cycle: 1:1; Room Ambient Temperature: 24.0C; Liquid Temperature: 23.0C Medium parameters used: f = 2450 MHz; σ = 1.817 S/m; ε r = 39.001; ρ = 1000 kg/m 3 DASY5 Configuration: - Area Scan Setting: Find Secondary Maximum Within: 2.0 dB and with a peak SAR value greater than 0.0012W/kg - Electronics: DAE4 Sn1433; Calibrated: 4/14/2014 - Probe: EX3DV4 - SN3772; ConvF(6.65, 6.65, 6.65); Calibrated: 2/26/2014; - Sensor-Surface: 2.5mm (Mechanical Surface Detection) - Phantom: SAM v5.0 (B); Type: QD000P40CD; Serial: 1628 Head/Pin=100 mW/Area Scan (8x8x1): Measurement grid: dx=12mm, dy=12mm Maximum value of SAR (measured) = 5.58 W/kg Head/Pin=100 mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 61.16 V/m; Power Drift = 0.14 dB Peak SAR (extrapolated) = 10.2 W/kg SAR(1 g) = 4.86 W/kg; SAR(10 g) = 2.23 W/kg Maximum value of SAR (measured) = 6.97 W/kg 0 dB = 6.97 W/kg = 8.43 dBW/kg Plot No. 2 Test Laboratory: UL Verification Services Inc. SAR Lab A Date/Time: 2/7/2015 12:04:02 AM SystemPerformanceCheck-D2450V2 SN 899 Frequency: 2450 MHz; Duty Cycle: 1:1 Head/Pin=100 mW/Z Scan (1x1x21): Measurement grid: dx=20mm, dy=20mm, dz=5mm Maximum value of SAR (measured) = 6.86 W/kg Plot No. 3 Test Laboratory: UL Verification Services Inc. SAR Lab A Date/Time: 2/9/2015 11:37:15 AM 20150209_SystemPerformanceCheck-D5GHzV2 SN 1138 Frequency: 5800 MHz; Duty Cycle: 1:1; Room Ambient Temperature: 24.0C; Liquid Temperature: 23.0C Medium parameters used: f = 5800 MHz; σ = 6.208 S/m; ε r = 47.47; ρ = 1000 kg/m 3 DASY5 Configuration: - Area Scan Setting: Find Secondary Maximum Within: 2.0 dB and with a peak SAR value greater than 0.0012W/kg - Electronics: DAE4 Sn1433; Calibrated: 4/14/2014 - Probe: EX3DV4 - SN3772; ConvF(3.85, 3.85, 3.85); Calibrated: 2/26/2014; - Sensor-Surface: 1.4mm (Mechanical Surface Detection) - Phantom: ELI v5.0 (A); Type: QDOVA001BB; Serial: 1117 Body/5.8 GHz, Pin=100mW/Area Scan (7x7x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (measured) = 17.4 W/kg Body/5.8 GHz, Pin=100mW/Zoom Scan (8x8x7)/Cube 0: Measurement grid: dx=4mm, dy=4mm, dz=1.4mm Reference Value = 46.56 V/m; Power Drift = -0.13 dB Peak SAR (extrapolated) = 33.2 W/kg SAR(1 g) = 6.95 W/kg; SAR(10 g) = 1.93 W/kg Maximum value of SAR (measured) = 17.5 W/kg 0 dB = 17.5 W/kg = 12.43 dBW/kg Plot No. 4 Test Laboratory: UL Verification Services Inc. SAR Lab A Date/Time: 2/9/2015 12:03:41 PM 20150209_SystemPerformanceCheck-D5GHzV2 SN 1138 Frequency: 5800 MHz; Duty Cycle: 1:1 Body/5.8 GHz, Pin=100mW/Z Scan (1x1x21): Measurement grid: dx=20mm, dy=20mm, dz=5mm Maximum value of SAR (measured) = 10.5 W/kg Plot No. 5 Test Laboratory: UL Verification Services Inc. SAR Lab A Date/Time: 2/13/2015 6:34:58 PM 20150213_SystemPerformanceCheck-D2450V2 SN 706 Frequency: 2450 MHz; Duty Cycle: 1:1; Room Ambient Temperature: 24.0C; Liquid Temperature: 23.0C Medium parameters used: f = 2450 MHz; σ = 1.95 S/m; ε r = 51.012; ρ = 1000 kg/m 3 DASY5 Configuration: - Area Scan Setting: Find Secondary Maximum Within: 2.0 dB and with a peak SAR value greater than 0.0012W/kg - Electronics: DAE4 Sn1433; Calibrated: 4/14/2014 - Probe: EX3DV4 - SN3901; ConvF(7.26, 7.26, 7.26); Calibrated: 1/27/2015; - Sensor-Surface: 2.5mm (Mechanical Surface Detection) - Phantom: ELI v4.0 (B); Type: QDOVA001BB; Serial: 1099 Body/Pin=100 mW/Area Scan (8x8x1): Measurement grid: dx=12mm, dy=12mm Maximum value of SAR (measured) = 5.52 W/kg Body/Pin=100 mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 61.56 V/m; Power Drift = 0.02 dB Peak SAR (extrapolated) = 10.8 W/kg SAR(1 g) = 5.14 W/kg; SAR(10 g) = 2.36 W/kg Maximum value of SAR (measured) = 7.36 W/kg 0 dB = 7.36 W/kg = 8.67 dBW/kg Plot No. 6 Test Laboratory: UL Verification Services Inc. SAR Lab A Date/Time: 2/13/2015 6:53:50 PM 20150213_SystemPerformanceCheck-D2450V2 SN 706 Frequency: 2450 MHz; Duty Cycle: 1:1 Body/Pin=100 mW/Z Scan (1x1x21): Measurement grid: dx=20mm, dy=20mm, dz=5mm Maximum value of SAR (measured) = 7.34 W/kg Plot No. 7 Test Laboratory: UL Verification Services Inc. SAR Lab E Date/Time: 2/10/2015 7:00:03 PM 20150210_SystemPerformanceCheck-D5GHzV2 SN 1138 Frequency: 5200 MHz; Duty Cycle: 1:1; Room Ambient Temperature: 24.0C; Liquid Temperature: 23.0C Medium parameters used: f = 5200 MHz; σ = 4.494 S/m; ε r = 36.874; ρ = 1000 kg/m 3 DASY5 Configuration: - Area Scan Setting: Find Secondary Maximum Within: 2.0 dB and with a peak SAR value greater than 0.0012W/kg - Electronics: DAE4 Sn1257; Calibrated: 9/29/2014 - Probe: EX3DV4 - SN3989; ConvF(5.28, 5.28, 5.28); Calibrated: 4/15/2014; - Sensor-Surface: 1.4mm (Mechanical Surface Detection) - Phantom: SAM with CRP; Type: SAM; Head/5.2 GHz, Pin=100mW/Area Scan (7x7x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (measured) = 20.5 W/kg Head/5.2 GHz, Pin=100mW/Zoom Scan (8x8x7)/Cube 0: Measurement grid: dx=4mm, dy=4mm, dz=1.4mm Reference Value = 59.603 V/m; Power Drift = -0.05 dB Peak SAR (extrapolated) = 33.7 W/kg SAR(1 g) = 8.45 W/kg; SAR(10 g) = 2.44 W/kg Maximum value of SAR (measured) = 19.8 W/kg 0 dB = 19.8 W/kg = 12.97 dBW/kg Plot No. 8 Test Laboratory: UL Verification Services Inc. SAR Lab E Date/Time: 2/10/2015 7:22:23 PM 20150210_SystemPerformanceCheck-D5GHzV2 SN 1138 Frequency: 5200 MHz; Duty Cycle: 1:1 Head/5.2 GHz, Pin=100mW/Z Scan (1x1x21): Measurement grid: dx=20mm, dy=20mm, dz=5mm Maximum value of SAR (measured) = 14.4 W/kg Plot No. 9 Test Laboratory: UL Verification Services Inc. SAR Lab G Date/Time: 2/2/2015 10:54:10 AM 02022015_SystemPerformanceCheck-D1900V2 SN 5d140 Frequency: 1900 MHz; Duty Cycle: 1:1; Room Ambient Temperature: 24.0C; Liquid Temperature: 23.0C Medium parameters used: f = 1900 MHz; σ = 1.559 S/m; ε r = 52.742; ρ = 1000 kg/m 3 DASY5 Configuration: - Area Scan Setting: Fi…

Text truncated - open the document above for the full version.

Plot No. 1 Test Laboratory: UL Verification Services Inc. SAR Lab G Date/Time: 2/6/2015 5:07:24 PM GSM 850 Frequency: 836.6 MHz; Duty Cycle: 1:2.6; Room Ambient Temperature: 24.0C; Liquid Temperature: 23.0C Medium parameters used (interpolated): f = 836.6 MHz; σ = 0.928 S/m; ε r = 41.441; ρ = 1000 kg/m 3 DASY5 Configuration: - Area Scan Setting: Find Secondary Maximum Within: 2.0 dB and with a peak SAR value greater than 0.0012W/kg - Electronics: DAE4 Sn1434; Calibrated: 4/14/2014 - Probe: EX3DV4 - SN3990; ConvF(10.26, 10.26, 10.26); Calibrated: 4/15/2014; - Sensor-Surface: 2.5mm (Mechanical Surface Detection (Locations From Previous Scan Used)), Sensor-Surface: 2.5mm (Mechanical Surface Detection) - Phantom: SAM A; Type: SAM; Serial: 1831 LHS/Tilt_GPRS 3 slots_ch 190/Area Scan (15x19x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.231 W/kg LHS/Tilt_GPRS 3 slots_ch 190/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 15.668 V/m; Power Drift = -0.03 dB Peak SAR (extrapolated) = 0.273 W/kg SAR(1 g) = 0.202 W/kg; SAR(10 g) = 0.146 W/kg Maximum value of SAR (measured) = 0.233 W/kg 0 dB = 0.233 W/kg = -6.33 dBW/kg Plot No. 2 Test Laboratory: UL Verification Services Inc. SAR Lab G Date/Time: 2/5/2015 12:19:56 AM GSM 850 Frequency: 836.6 MHz; Duty Cycle: 1:2.6; Room Ambient Temperature: 24.0C; Liquid Temperature: 23.0C Medium parameters used (interpolated): f = 836.6 MHz; σ = 0.976 S/m; ε r = 53.052; ρ = 1000 kg/m 3 DASY5 Configuration: - Area Scan Setting: Find Secondary Maximum Within: 2.0 dB and with a peak SAR value greater than 0.0012W/kg - Electronics: DAE4 Sn1434; Calibrated: 4/14/2014 - Probe: EX3DV4 - SN3990; ConvF(10.05, 10.05, 10.05); Calibrated: 4/15/2014; - Sensor-Surface: 2.5mm (Mechanical Surface Detection) - Phantom: ELI A; Type: QDOVA002AA; Serial: 1258 Edge 2/GPRS 3 slots_ch 190_0mm/Area Scan (6x18x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.710 W/kg Edge 2/GPRS 3 slots_ch 190_0mm/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 27.480 V/m; Power Drift = -0.04 dB Peak SAR (extrapolated) = 0.892 W/kg SAR(1 g) = 0.584 W/kg; SAR(10 g) = 0.369 W/kg Maximum value of SAR (measured) = 0.729 W/kg 0 dB = 0.729 W/kg = -1.37 dBW/kg Plot No. 3 Test Laboratory: UL Verification Services Inc. SAR Lab G Date/Time: 2/2/2015 10:49:10 PM GSM 1900 Frequency: 1880 MHz; Duty Cycle: 1:4; Room Ambient Temperature: 24.0C; Liquid Temperature: 23.0C Medium parameters used: f = 1880 MHz; σ = 1.404 S/m; ε r = 39.201; ρ = 1000 kg/m 3 DASY5 Configuration: - Area Scan Setting: Find Secondary Maximum Within: 2.0 dB and with a peak SAR value greater than 0.0012W/kg - Electronics: DAE4 Sn1434; Calibrated: 4/14/2014 - Probe: EX3DV4 - SN3990; ConvF(8.37, 8.37, 8.37); Calibrated: 4/15/2014; - Sensor-Surface: 2.5mm (Mechanical Surface Detection) - Phantom: SAM A; Type: SAM; Serial: 1831 RHS/Touch_GSM 2 slots_ch 661/Area Scan (15x19x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.0841 W/kg RHS/Touch_GSM 2 slots_ch 661/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 8.016 V/m; Power Drift = 0.06 dB Peak SAR (extrapolated) = 0.101 W/kg SAR(1 g) = 0.077 W/kg; SAR(10 g) = 0.050 W/kg Maximum value of SAR (measured) = 0.0857 W/kg 0 dB = 0.0857 W/kg = -10.67 dBW/kg Plot No. 4 Test Laboratory: UL Verification Services Inc. SAR Lab G Date/Time: 2/4/2015 12:44:26 AM GSM 1900 Frequency: 1880 MHz; Duty Cycle: 1:4; Room Ambient Temperature: 24.0C; Liquid Temperature: 23.0C Medium parameters used: f = 1880 MHz; σ = 1.552 S/m; ε r = 52.368; ρ = 1000 kg/m 3 DASY5 Configuration: - Area Scan Setting: Find Secondary Maximum Within: 2.0 dB and with a peak SAR value greater than 0.0012W/kg - Electronics: DAE4 Sn1434; Calibrated: 4/14/2014 - Probe: EX3DV4 - SN3990; ConvF(7.88, 7.88, 7.88); Calibrated: 4/15/2014; - Sensor-Surface: 2.5mm (Mechanical Surface Detection (Locations From Previous Scan Used)), Sensor-Surface: 2.5mm (Mechanical Surface Detection) - Phantom: ELI v5.0 B; Type: QDOVA002AA; Serial: 1248 Rear/GPRS 2 slots_ch 661_0mm/Area Scan (8x8x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 1.06 W/kg Rear/GPRS 2 slots_ch 661_0mm/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 26.357 V/m; Power Drift = 0.07 dB Peak SAR (extrapolated) = 2.00 W/kg SAR(1 g) = 0.964 W/kg; SAR(10 g) = 0.435 W/kg Maximum value of SAR (measured) = 1.33 W/kg 0 dB = 1.33 W/kg = 1.24 dBW/kg Plot No. 5 Test Laboratory: UL Verification Services Inc. SAR Lab G Date/Time: 2/6/2015 10:25:52 PM W-CDMA Band V Frequency: 836.6 MHz; Duty Cycle: 1:1; Room Ambient Temperature: 24.0C; Liquid Temperature: 23.0C Medium parameters used (interpolated): f = 836.6 MHz; σ = 0.928 S/m; ε r = 41.441; ρ = 1000 kg/m 3 DASY5 Configuration: - Area Scan Setting: Find Secondary Maximum Within: 2.0 dB and with a peak SAR value greater than 0.0012W/kg - Electronics: DAE4 Sn1434; Calibrated: 4/14/2014 - Probe: EX3DV4 - SN3990; ConvF(10.26, 10.26, 10.26); Calibrated: 4/15/2014; - Sensor-Surface: 2.5mm (Mechanical Surface Detection (Locations From Previous Scan Used)), Sensor-Surface: 2.5mm (Mechanical Surface Detection) - Phantom: SAM A; Type: SAM; Serial: 1831 LHS/Tilt_RMC Rel. 99_ch 4183/Area Scan (15x19x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.130 W/kg LHS/Tilt_RMC Rel. 99_ch 4183/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 11.859 V/m; Power Drift = -0.03 dB Peak SAR (extrapolated) = 0.159 W/kg SAR(1 g) = 0.117 W/kg; SAR(10 g) = 0.086 W/kg Maximum value of SAR (measured) = 0.134 W/kg 0 dB = 0.134 W/kg = -8.73 dBW/kg Plot No. 6 Test Laboratory: UL Verification Services Inc. SAR Lab G Date/Time: 2/5/2015 4:14:47 PM W-CDMA Band V Frequency: 836.6 MHz; Duty Cycle: 1:1; Room Ambient Temperature: 24.0C; Liquid Temperature: 23.0C Medium parameters used (i…

Text truncated - open the document above for the full version.

Head Tissue Simulating Liquids Head Tissue Parameters according to IEEE Std 1528-2013 / IEC 62209 / FCC KDB 865664 D01 Narrow- Band Solutions (±5% tolerance) Product HSL300V2 HSL450V2 HSL750V2 HSL900V2 HSL1450V2 HSL1750V2 HSL1800V2 HSL1900V2 HSL1950V2 HSL2450V2 Test Frequency (MHz) 300 450 750 835, 900 1450, 1500, 1640 1750 1800, 1900 1900 1950, 2000 2450, 2600 Main Ingredients Water, Sugar Water, Sugar Water, Sugar Water, Sugar Water, DGBE Water, DGBE Water, DGBE Water, DGBE Water, DGBE Water, DGBE Broad- Band Solutions (±5% tolerance) Product HBBL30-250V3 HBBL1350-1850V3 HBBL1550-1950V3 HBBL1900-3800V3 HBBL3500-5800V5 Test Frequency (MHz) 30-250 1400-1800 1750-1900 1950-3000 3500-5800 Main Ingredients Water, Tween Water, Tween Water, Tween Water, Tween Water, Oil Body Tissue Simulating Liquids Body Tissue (Muscle) Parameters according to FCC KDB 865664 D01 Narrow- Band Solutions (±5% tolerance) Product MSL300V2 M…
