A3LSMT357WMulti-band UMTS/LTE Tablet with Bluetooth, WLAN and ANT+

SM-T357W www.samsung.com User Manual English (EU). 02/2015. Rev.1.0 2 Table of Contents Read me first Getting started 6 Package contents 7 Device layout 9 Using the SIM or USIM card and battery 12 Using a memory car d 14 Turning the device on and off 15 Locking and unlocking the screen Basics 16 Using the touch screen 19 Home screen layout 23 Notifications panel 25 Opening apps 25 Installing or uninstalling apps 27 Entering text 29 Screen capture 29 My Files 30 Pow er saving feature Network connectivity 31 Mobile data 31 Wi-Fi 32 Mobile hotspot and tethering Motions & usability features 34 Motions and gestures Personalising 36 Managing the Home and Apps screens 37 Setting wallpaper and r ingtones 38 Changing the screen lock method 39 Priv ate mode 40 Setting up accounts Table of Contents 3 Connecting with other devices 63 Bluetooth 65 Wi-Fi Direct 67 Quick Connect 68 SideSync 3.0 75 Screen M irroring 77 Mobile printing Device & data manager 78 Transferring data from your previous device 80 Using the device as a removable disk for data transfer 80 Updating the device 81 Backing up and restoring data 82 Perf orming a data reset Settings 83 About Settings 83 Connections 86 Device 88 Personal 92 System Appendix 95 Troubleshooting 100 Removing the battery (non-removable type) Contacts 44 Adding contacts 44 Importing and exporting contacts 45 Searching f or contacts Messages & email 46 Messages 47 Email Camera 49 Basic shooting 50 Shooting modes 52 Camera settings Gallery 53 Viewing content on the device Useful apps and features 54 S Finder 54 S Planner 56 Internet 57 Music 58 Video 59 Clock 60 Calcula tor 60 Memo 61 Google apps 4 Read me first Please read this manual before using the device to ensure safe and proper use. • Descriptions are based on the device’s default settings. • Some content may differ from your device depending on the region, service provider, or device’s software. • Content (high quality content) that requires high CPU and RAM usage will affect the overall performance of the device. Apps related to the content may not work properly depending on the device’s specifications and the environment that it is used in. • Samsung is not liable for performance issues caused by apps supplied by providers other than Samsung. • Samsung is not liable for performance issues or incompatibilities caused by edited registry settings or modified operating system software. Attempting to customise the operating system may cause the device or apps to work improperly. • Software, sound sources, wallpapers, images, and other media provided with this device are licensed for limited use. Extracting and using these materials for commercial or other purposes is an infringement of copyright laws. Users are entirely responsible for illegal use of media. • You may incur additional charges for data services, such as messaging, uploading and downloading, auto-syncing, or using location services depending on your data plan. For large data transfers, it is recommended to use the Wi-Fi feature. • Default apps that come with the device are subject to updates and may no longer be supported without prior notice. If you have questions about an app provided with the device, contact a Samsung Service Centre. For user-installed apps, contact service providers. • Modifying the device’s operating system or installing softwares from unofficial sources may result in device malfunctions and data corruption or loss. These actions are violations of your Samsung licence agreement and will void your warranty. • Depending on the region or model, some devices are required to receive approval from the Federal Communications Commission (FCC). If your device is approved by the FCC, you can view the FCC ID of the device. To view the FCC ID, tap Apps → Settings → About device. Read me first 5 Instructional icons Warning: situations that could cause injury to yourself or others Caution: situations that could cause damage to your device or other equipment Note: notes, usage tips, or additional information 6 Getting started Package contents Check the product box for the following items: • Device • Quick start guide • The items supplied with the device and any available accessories may vary depending on the region or service provider. • The supplied items are designed only for this device and may not be compatible with other devices. • Appearances and specifications are subject to change without prior notice. • You can purchase additional accessories from your local Samsung retailer. Make sure they are compatible with the device before purchase. • Use only Samsung-approved accessories. Using unapproved accessories may cause the performance problems and malfunctions that are not covered by the warranty. • Availability of all accessories is subject to change depending entirely on manufacturing companies. For more information about available accessories, refer to the Samsung website. Getting started 7 Device layout Touch screen Proximity/Light sensor Recent apps button Home button Back button Microphone Headset jack Volume button Power button Microphone Front camera Multipurpose jack Memory card slot SIM card slot Rear camera Speaker GPS antenna Main antenna Push clip Push clip Getting started 8 • Do not cover the antenna area with your hands or other objects. This may cause connectivity problems or drain the battery. • Using a Samsung-approved screen protector is recommended. Unapproved screen protectors may cause the sensors to malfunction. • Do not allow water to contact the touch screen. The touch screen may malfunction in humid conditions or when exposed to water. Buttons ButtonFunction Power • Press and hold to turn the device on or off. • Press to turn on or lock the screen. Recent apps • Tap to open the list of recent apps. Home • Press to turn on the screen while the screen is locked. • Press to return to the Home screen. • Press and hold to launch Google. Back • Tap to return to the previous screen. Volume • Press to adjust the…

Text truncated - open the document above for the full version.

Samsung Electronics America, Inc 19 Chapin Rd, Building D. Pine Brook, NJ 07058 Date: July 9, 2015 FCC ID: A3LSMT357W To whom it may concern: We, the undersigned, hereby authorize PCTEST Engineering Laboratory Inc., to act on our behalf in all matters relating to applications for equipment authorization, including the signing of all documents relating to these matters. Any and all acts carried out by PCTEST Engineering Laboratory, Inc. on our behalf shall have the same effect as acts of our own. We also hereby certify that no party to any application is subject to a denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S. C. 862. Sincerely, CHANHO, YOUN General Manager Samsung Electronics CO. LTD TEL: +1-973-808-6362 E-mail: [email protected]

A3LSMT357W SAMSUNG ELECTRONIC S CO., LTD 129, Samsung-ro,Yeongtong-gu Suwon-si,Gyeonggi-do, 443-742 Korea June 17, 2015 Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 SU BJECT : Label Statement FCC ID : Gentlemen: The device is compliant in accordance to the FCC rules about identification of equipment, stated in 47 CFR Part 2.925(d). Sincerely Yours , The label statement is as follows: The FCC ID label is located on the rear bottom of the device. At this time the FCC ID is readily visible to the user. The label is permanently engraved by laser and not easily removed from the device. This st atement could not be included in the label. So we inform you of it through this letter. Should yo u hav e any questions or comments concerning the above,th please contact the undersigned. Samsung Electronics CO. LTD TEL: +1-973-808-6362 E-E-mail: [email protected]

SAMSUNG ELECTRONICS AMERICA, INC. American QA Lab 19 Chapin Rd, Building D. Pine Brook, NJ 07058 Date: July 9, 2015 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road, Columbia, MD 21046 RE: Request of Confidentiality for FCC ID: A3LSMT357W To Whom It May Concern: Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules (CFR 47), and Section 552 (b) (4) of the Freedom of Information Act, SAMSUNG ELECTRONICS CO.,LTD. hereby requests confidentiality and treatment of certain information accompanying this application. The materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. We are also hereby request Short-Term Confidentiality for 180 days after the grant as outlined in Public Notice DA 04-1705. This provision will give SAMSUNG ELECTRONICS CO.,LTD. temporary confidentiality of commercially sensitive information prior to product release. The requested Permanent and Short-Term Confidential exhibits are listed as follows: PERMANENT AND SHORT-TERM CONFIDENTIAL LIST Exhibit Description PERMANENT 1 Block Diagram 2 Operational Description 3 Schematics SHORT-TERM 4 External Photos 5 Internal Photos 6 Test-Setup Photos 7 Users Manual The Applicant understands that pursuant to Rule 0.457, disclosure of this application and all accompanying documentations, where applicable, will not be made public before the date of the Grant for this application. Sincerely, CHANHO, YOUN General Manager American QA Lab SAMSUNG Electronics America INC.

SM-T357W UD FCC ID:A3LSMT357W MAKE IN VIETNAM A3LSMT357W SM-T357W Label and Location Model: FCC ID: Label: Location: Top Back of device Bottom Tablet : FCC ID is engraved on bottom of the device Label Laser ablation: Laser ablation FOR INFORMATION CALL 4 800 SAMSUNG IMEI: 351969/07/001314/0 W

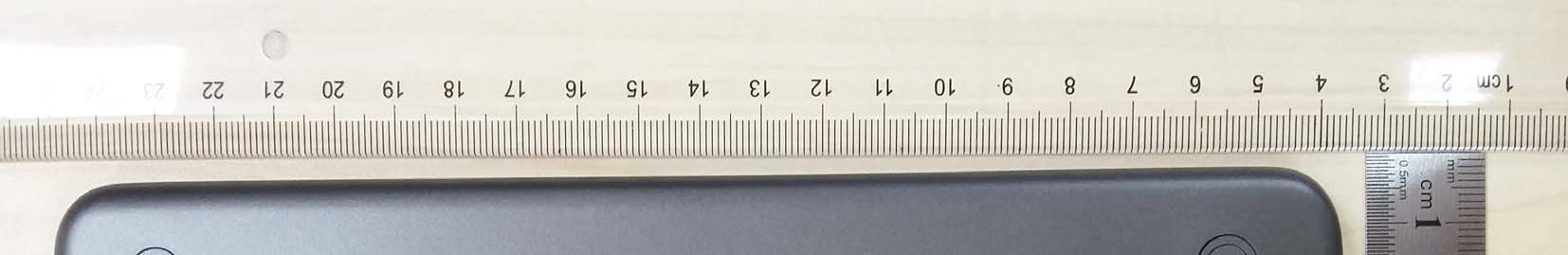

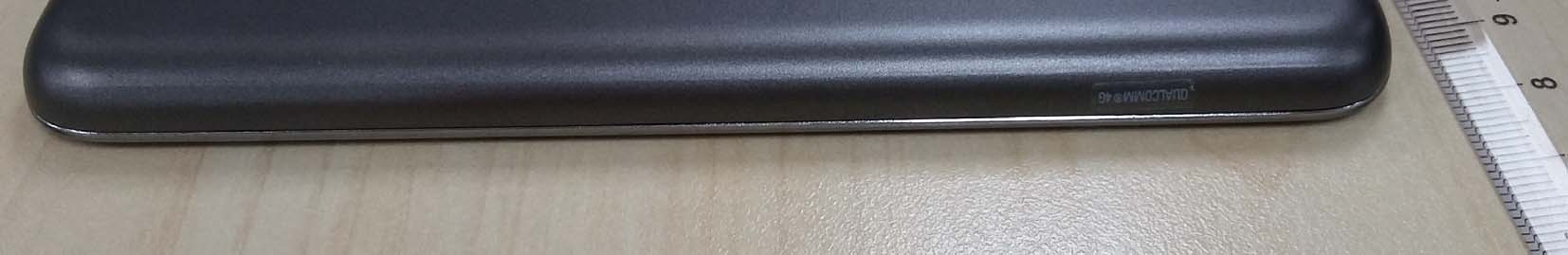

Samsung Electronics Co., Ltd. FCC ID: A3LSMT357W Model: SM-T357W Internal Photos EUT Type: Portable Tablet Page 1 of 9 © 2015 PCTEST Engineering Laboratory, Inc. V 2.6 05/28/2015 INTERNAL PHOTOGRAPHS Samsung Electronics Co., Ltd. FCC ID: A3LSMT357W Model: SM-T357W Internal Photos EUT Type: Portable Tablet Page 2 of 9 © 2015 PCTEST Engineering Laboratory, Inc. V 2.6 05/28/2015 Samsung Electronics Co., Ltd. FCC ID: A3LSMT357W Model: SM-T357W Internal Photos EUT Type: Portable Tablet Page 3 of 9 © 2015 PCTEST Engineering Laboratory, Inc. V 2.6 05/28/2015 Samsung Electronics Co., Ltd. FCC ID: A3LSMT357W Model: SM-T357W Internal Photos EUT Type: Portable Tablet Page 4 of 9 © 2015 PCTEST Engineering Laboratory, Inc. V 2.6 05/28/2015 Samsung Electronics Co., Ltd. FCC ID: A3LSMT357W Model: SM-T357W Internal Photos EUT Type: Portable Tablet Page 5 of 9 © 2015 PCTEST Engineering Laboratory, Inc. V 2.6 05/28/2015 Samsung Electronics Co., Ltd. FCC ID: A3LSMT357W Model: SM-T357W Internal Photos EUT Type: Portable Tablet Page 6 of 9 © 2015 PCTEST Engineering Laboratory, Inc. V 2.6 05/28/2015 Samsung Electronics Co., Ltd. FCC ID: A3LSMT357W Model: SM-T357W Internal Photos EUT Type: Portable Tablet Page 7 of 9 © 2015 PCTEST Engineering Laboratory, Inc. V 2.6 05/28/2015 Samsung Electronics Co., Ltd. FCC ID: A3LSMT357W Model: SM-T357W Internal Photos EUT Type: Portable Tablet Page 8 of 9 © 2015 PCTEST Engineering Laboratory, Inc. V 2.6 05/28/2015 Samsung Electronics Co., Ltd. FCC ID: A3LSMT357W Model: SM-T357W Internal Photos EUT Type: Portable Tablet Page 9 of 9 © 2015 PCTEST Engineering Laboratory, Inc. V 2.6 05/28/2015

FCC ID:A3LSMT357W SAR EVALUATION REPORT Reviewed by: Quality Manager Document S/N: Test Dates: DUT Type: Page 1 of 66 0Y1506151178.A3L 06/03/15 - 06/30/15 Portable Tablet © 2015 PCTEST Engineering Laboratory, Inc. REV 15.0 M 01/27/2015 Applicant Name: Date of Testing: Samsung Electronics, Co. Ltd. 06/03/15 - 06/30/15 129, Samsung-ro, Maetan dong, Test Site/Location: Yeongtong-gu, Suwon-si PCTEST Lab, Columbia, MD, USA Gyeonggi-do 443-742, Korea Document Serial No.: 0Y1506151178.A3L FCC ID: A3LSMT357W APPLICANT: SAMSUNG ELECTRONICS, CO. LTD. DUT Type: Portable Tablet Application Type: Certification FCC Rule Part(s): CFR §2.1093 Model(s): SM-T357W This wireless portable device has been shown to be capable of compliance for localized specific absorption rate (SAR) for uncontrolled environment/general population exposure limits specified in ANSI/IEEE C95.1-1992 and has been tested in accordance with the measurement procedures specified in Section 1.7 of this report; for North American frequency bands only. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. Test results reported herein relate only to the item(s) tested. The SAR Tick is an initiative of the Mobile Manufacturers Forum (MMF). While a product may be considered eligible, use of the SAR Tick logo requires an agreement with the MMF. Further details can be obtained by emailing: [email protected]. 1 gm Body (W/kg) PCBUMTS 850826.40 - 846.60 MHz0.57 PCBUMTS 17501712.4 - 1752.5 MHz0.59 PCBUMTS 19001852.4 - 1907.6 MHz0.60 PCBLTE Band 12701.5 - 713.5 MHz0.96 PCBLTE Band 17706.5 - 713.5 MHz1.09 PCBLTE Band 5 (Cell)824.7 - 848.3 MHz1.04 PCBLTE Band 4 (AWS)1710.7 - 1754.3 MHz0.85 PCBLTE Band 2 (PCS)1850.7 - 1909.3 MHz0.69 DTS2.4 GHz WLAN2412 - 2462 MHz0.59 NIIU-NII-15180 - 5240 MHz< 0.1 NIIU-NII-2A5260 - 5320 MHz0.63 NIIU-NII-2C5500 - 5700 MHz0.61 NIIU-NII-35745 - 5825 MHz0.54 DSS/DTSBluetooth2402 - 2480 MHz 1.59 0.13 SAR Band & ModeTx Frequency Equipment Class Simultaneous SAR per KDB 690783 D01v01r03: PCTEST ENGINEERING LABORATORY, INC. 7185 Oakland Mills Road, Columbia, MD 21046 USA Tel. +1.410.290.6652 / Fax +1.410.290.6654 http://www.pctestlab.com SAR EVALUATION REPORT FCC ID:A3LSMT357W SAR EVALUATION REPORT Reviewed by: Quality Manager Document S/N: Test Dates: DUT Type: Page 2 of 66 0Y1506151178.A3L 06/03/15 - 06/30/15 Portable Tablet © 2015 PCTEST Engineering Laboratory, Inc. REV 15.0 M 01/27/2015 TABLE OF CONTENTS 1 DEVICE UNDER TEST ................................................................................................................... 3 2 LTE INFORMATION ........................................................................................................................ 9 3 INTRODUCTION ........................................................................................................................... 10 4 DOSIMETRIC ASSESSMENT ...................................................................................................... 11 5 SAR TESTING PROCEDURES .................................................................................................... 12 6 RF EXPOSURE LIMITS ................................................................................................................ 13 7 FCC MEASUREMENT PROCEDURES ........................................................................................ 14 8 RF CONDUCTED POWERS ......................................................................................................... 19 9 SYSTEM VERIFICATION .............................................................................................................. 43 10 SAR DATA SUMMARY ................................................................................................................. 45 11 FCC MULTI-TX AND ANTENNA SAR CONSIDERATIONS ......................................................... 51 12 SAR MEASUREMENT VARIABILITY ........................................................................................... 60 13 EQUIPMENT LIST ......................................................................................................................... 61 14 MEASUREMENT UNCERTAINTIES ............................................................................................ 62 15 CONCLUSION ............................................................................................................................... 64 16 REFERENCES .............................................................................................................................. 65 APPENDIX A: SAR TEST PLOTS APPENDIX B: SAR DIPOLE VERIFICATION PLOTS APPENDIX C: PROBE AND DIPOLE CALIBRATION CERTIFICATES APPENDIX D: SAR TISSUE SPECIFICATIONS APPENDIX E: SAR SYSTEM VALIDATION APPENDIX F: DUT ANTENNA DIAGRAM & SAR TEST SETUP PHOTOGRAPHS APPENDIX G: SENSOR TRIGGERING DATA SUMMARY FCC ID:A3LSMT357W SAR EVALUATION REPORT Reviewed by: Quality Manager Document S/N: Test Dates: DUT Type: Page 3 of 66 0Y1506151178.A3L 06/03/15 - 06/30/15 Portable Tablet © 2015 PCTEST Engineering Laboratory, Inc. REV 15.0 M 01/27/2015 1 DEVICE UNDER TEST 1.1 Device Overview 1.2 Power Reduction for SAR This device uses independent power reduction mechanisms for WLAN and PCB SAR compliance. The power reduction mechanisms are activated when the device is used in close proximity to the user’s body. Since the device is a full sized tablet, the Body SAR was evaluated per FCC KDB Publication 616217 D04 for full sized tablets. The reduced powers for the power reduction mechanisms were confirmed via conducted power measurements at the RF port (see Section 9). Detailed descriptions of the mechanisms are included in the operational description. UMTS 850Data826.40 - 846.60 MHz UMTS 1750Data171…

Text truncated - open the document above for the full version.

FCC ID: A3LSMT357W FCC Pt. 15.407 DFS TEST REPORT (CERTIFICATION) Reviewed by: Quality Manager Test Report S/N: Test Dates: EUT Type: Page 1 of 16 0Y1506151183.A3L 5/29 - 7/2/2015 Portable Tablet © 2015 PCTEST Engineering Laboratory, Inc. V 2.6 05/28/2015 Company Name: Date of Testing: Samsung Electronics Co., Ltd. 5/29 - 7/2/2015 129, Samsung-ro, Maetan dong, Test Site/Location: Yeongtong-gu, Suwon-si PCTEST Lab. Columbia, MD, USA Gyeonggi-do 443-742, Korea Test Report Serial No.: 0Y1506151183.A3L FCC ID: A3LSMT357W COMPANY: Samsung Electronics Co., Ltd. Model(s): SM-T357W EUT Type: Portable Tablet Type of Device: Client Only Device, No Radar Detection Capability Frequency Range: 5260 – 5320 MHz (UNII-2A Band) 5500 – 5720 MHz (UNII-2C Band) Output Power: 14.060 mW (11.48 dBm) Conducted (802.11a UNII Band 2A) 13.932 mW (11.44 dBm) Conducted (802.11a UNII Band 2C) FCC Classification: Unlicensed National Information Infrastructure (UNII) FCC Rule Part(s): Part 15.407(UNII) Test Procedure(s): KDB 905462 D02 v01r02 This equipment has been shown to be capable of compliance with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in KDB 905462 D02 v01r02 Compliance Measurement Procedures for Unlicensed-National Information Infrastructure Devices Operating in the 5.25 – 5.35 GHz and 5.47 – 5.725 GHz Bands Incorporating Dynamic Frequency Selection. Test results reported herein relate only to the item(s) tested. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. PCTEST ENGINEERING LABORATORY, INC. 7185 Oakland Mills Road, Columbia, MD 21045 USA Tel. 410.290.6652 / Fax 410.290.6654 http://www.pctestlab.com MEASUREMENT REPORT FCC PART 15.407 DFS FCC ID: A3LSMT357W FCC Pt. 15.407 DFS TEST REPORT (CERTIFICATION) Reviewed by: Quality Manager Test Report S/N: Test Dates: EUT Type: Page 2 of 16 0Y1506151183.A3L 5/29 - 7/2/2015 Portable Tablet © 2015 PCTEST Engineering Laboratory, Inc. V 2.6 05/28/2015 T A B L E O F C O N T E N T S FCC PART 15.407 MEASUREMENT REPORT .................................................................................................. 3 1.0 INTRODUCTION ...................................................................................................................................... 4 1.1 SCOPE ........................................................................................................................................................... 4 1.2 EVALUATION PROCEDURE ......................................................................................................................... 4 1.3 SUMMARY OF TEST RESULTS ................................................................................................................... 4 2.0 PRODUCT INFORMATION ..................................................................................................................... 5 2.1 EQUIPMENT DESCRIPTION......................................................................................................................... 5 2.2 EUT CAPABILITIES ....................................................................................................................................... 5 2.3 MODIFICATIONS ........................................................................................................................................... 5 3.0 DESCRIPTION OF DYNAMIC FREQUENCY SELECTION TEST ......................................................... 6 3.1 APPLICABILITY ............................................................................................................................................. 6 3.2 REQUIREMENTS .......................................................................................................................................... 6 3.3 DFS DETECTION THRESHOLD VALUES .................................................................................................... 8 3.4 PARAMETERS OF DFS TEST SIGNALS ...................................................................................................... 8 3.5 PROCEDURE ................................................................................................................................................ 9 4.0 TEST EQUIPMENT ................................................................................................................................10 4.1 ADDITIONAL EQUIPMENT ......................................................................................................................... 10 5.0 TEST RESULTS ....................................................................................................................................11 6.0 CONCLUSION .......................................................................................................................................16 FCC ID: A3LSMT357W FCC Pt. 15.407 DFS TEST REPORT (CERTIFICATION) Reviewed by: Quality Manager Test Report S/N: Test Dates: EUT Type: Page 3 of 16 0Y1506151183.A3L 5/29 - 7/2/2015 Portable Tablet © 2015 PCTEST Engineering Laboratory, Inc. V 2.6 05/28/2015 DFS MEASUREMENT REPORT FCC Part 15.407 § 2.1033 General Information APPLICANT: Samsung Electronics Co., Ltd. APPLICANT ADDRESS: 129, Samsung-ro, Maetan dong, Yeongtong-gu, Suwon-si, Gyeonggi-do 443-742, Korea TEST SITE: PCTEST ENGINEERING LABORATORY, INC. TEST SITE ADDRESS: 7185 Oakland Mills Road, Columbia, MD 21046 USA FCC RULE PART(S): Part 15.407(h) BASE MODEL: SM-T357W FCC ID: A3LSMT357W Test Device Serial No.: R22G5010Y4A Production Pre-Production Engineering DEVICE CLASSIFICATION: Client Only, No Radar Detection DATE(S) OF TEST: 5/29 - 7/2/2015 TEST REPORT S/N: 0Y1506151183.A3L Test Faci…

Text truncated - open the document above for the full version.

FCC ID: A3LSMT357W FCC Pt. 15.407 802.11a/n UNII MEASUREMENT REPORT (CERTIFICATION) Reviewed by: Quality Manager Test Report S/N: Test Dates: EUT Type: Page 1 of 97 0Y1506151182.A3L 5/29 - 7/2/2015 Portable Tablet © 2015 PCTEST Engineering Laboratory, Inc. V 2.6 05/28/2015 Applicant Name: Date of Testing: Samsung Electronics Co., Ltd. 5/29 - 7/2/2015 129, Samsung-ro, Maetan dong, Test Site/Location: Yeongtong-gu, Suwon-si PCTEST Lab, Columbia, MD, USA Gyeonggi-do 443-742, Korea Test Report Serial No.: 0Y1506151182.A3L FCC ID: A3LSMT357W APPLICANT: Samsung Electronics Co., Ltd. Application Type: Certification Model(s): SM-T357W EUT Type: Portable Tablet FCC Classification: Unlicensed National Information Infrastructure (UNII) FCC Rule Part(s): Part 15.407 Test Procedure(s): KDB 789033 D02 v01 1205180 - 524014.060 11.48 2A205260 - 532014.060 11.48 2C205500 - 572013.932 11.44 3205745 - 582513.836 11.41 1205180 - 524011.169 10.48 2A205260 - 532011.169 10.48 2C205500 - 572011.066 10.44 3205745 - 582510.715 10.30 1405190 - 52309.6169.83 2A405270 - 53109.5729.81 2C405510 - 571010.544 10.23 3405755 - 579510.691 10.29 802.11a 802.11n 802.11n ModeUNII Band Channel Bandwidth (MHz) Conducted Power Tx Frequency (MHz) Max. Power (mW) Max. Power (dBm) This equipment has been shown to be capable of compliance with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in KDB 789033 D02 v01. Test results reported herein relate only to the item(s) tested. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. PCTEST ENGINEERING LABORATORY, INC. 7185 Oakland Mills Road, Columbia, MD 21046 USA Tel. 410.290.6652 / Fax 410.290.6654 http://www.pctestlab.com MEASUREMENT REPORT FCC Part 15.407 UNII 802.11a/n FCC ID: A3LSMT357W FCC Pt. 15.407 802.11a/n UNII MEASUREMENT REPORT (CERTIFICATION) Reviewed by: Quality Manager Test Report S/N: Test Dates: EUT Type: Page 2 of 97 0Y1506151182.A3L 5/29 - 7/2/2015 Portable Tablet © 2015 PCTEST Engineering Laboratory, Inc. V 2.6 05/28/2015 T A B L E O F C O N T E N T S FCC PART 15.407 MEASUREMENT REPORT .......................................................................................................................................... 3 1.0 INTRODUCTION ........................................................................................................................................................................... 4 1.1 SCOPE ............................................................................................................................................................................ 4 1.2 PCTEST TEST LOCATION .............................................................................................................................................. 4 2.0 PRODUCT INFORMATION ........................................................................................................................................................... 5 2.1 EQUIPMENT DESCRIPTION ........................................................................................................................................... 5 2.2 DEVICE CAPABILITIES ................................................................................................................................................... 5 2.3 TEST CONFIGURATION ................................................................................................................................................. 5 2.4 EMI SUPPRESSION DEVICE(S)/MODIFICATIONS ........................................................................................................ 5 3.0 DESCRIPTION OF TEST............................................................................................................................................................... 6 3.1 EVALUATION PROCEDURE ........................................................................................................................................... 6 3.2 AC LINE CONDUCTED EMISSIONS ............................................................................................................................... 6 3.3 RADIATED EMISSIONS .................................................................................................................................................. 7 3.4 ENVIRONMENTAL CONDITIONS ................................................................................................................................... 7 4.0 ANTENNA REQUIREMENTS ........................................................................................................................................................ 8 5.0 TEST EQUIPMENT CALIBRATION DATA ..................................................................................................................................... 9 6.0 TEST RESULTS .......................................................................................................................................................................... 10 6.1 SUMMARY ..................................................................................................................................................................... 10 6.2 26DB BANDWIDTH MEASUREMENT – 802.11A/N ....................................................................................................... 11 6.3 6DB BANDWIDTH MEASUREMENT – 802.11A/N ......................................................................................................... 26 6.4 UNII OUTPUT POWER MEASUREMENT – 802.11A/N ................................................................................................. 32 6.5 MAXIMUM POWER SPECTRAL DENSITY – 802.11A/N .…

Text truncated - open the document above for the full version.

Samsung Electronics Co., Ltd. FCC ID: A3LSMT357W Model: SM-T357W Test Set-Up Photos EUT Type: Portable Tablet Page 1 of 3 © 2015 PCTEST Engineering Laboratory, Inc. V 2.6 05/28/2015 TEST SETUP PHOTOGRAPHS Samsung Electronics Co., Ltd. FCC ID: A3LSMT357W Model: SM-T357W Test Set-Up Photos EUT Type: Portable Tablet Page 2 of 3 © 2015 PCTEST Engineering Laboratory, Inc. V 2.6 05/28/2015 Samsung Electronics Co., Ltd. FCC ID: A3LSMT357W Model: SM-T357W Test Set-Up Photos EUT Type: Portable Tablet Page 3 of 3 © 2015 PCTEST Engineering Laboratory, Inc. V 2.6 05/28/2015

FCC IDA3LSMT357W SAR EVALUATION REPORT Reviewed by: Quality Manager Test Dates: DUT Type: APPENDIX F: Page 1 of 7 06/03/15 - 06/30/15…
