A3LSMT377PMulti-band CDMA/LTE Tablet with Bluetooth and WLAN

www.samsun g.com User Manual English (EU). 02/2015. Rev.1.0 SM-T377P 2 Table of C ontents Read me first G etting started 6 Pack age contents 7 Devic e layout 9 Using the SIM or USIM car d and battery 12 Using a memor y card 14 Tur ning the device on and off 15 Lock ing and unlocking the screen B asics 16 Using the t ouch screen 19 Home screen la yout 23 Notifications panel 25 Opening apps 25 Installing or uninstalling apps 27 Ent ering text 29 Scr een capture 29 My F iles 30 Po wer saving feature Netw ork connectivity 31 Mobile da ta 31 Wi-F i 32 Mobile hotspot and t ethering Motions & usabilit y features 34 Motions and gestur es Personalising 36 Manag ing the Home and Apps screens 37 Setting w allpaper and ringtones 38 Changing the scr een lock method 39 Pr ivate mode 40 Setting up ac counts Table of C ontents 3 Connec ting with other devices 63 Bluetooth 65 Wi-F i Direct 67 Quick C onnect 68 SideSync 3.0 75 Scr een Mirroring 77 Mobile pr inting Devic e & data manager 78 Tr ansferring data from your previous device 80 Using the devic e as a removable disk for data transfer 80 Updating the devic e 81 Backing up and r estoring data 82 Per forming a data reset S ettings 83 About S ettings 83 Connec tions 86 Devic e 88 Personal 92 Sy stem Appendix 95 Troubleshooting 100 Removing the battery (non-removable type) Con tacts 44 Adding c ontacts 44 Impor ting and exporting contacts 45 Sear ching for contacts Messages & email 46 M essages 47 Email Camera 49 Basic shooting 50 Shooting modes 52 Camer a settings Galler y 53 Viewing c ontent on the device Useful apps and features 54 S Finder 54 S Planner 56 Internet 57 Music 58 Video 59 Clock 60 Calcula tor 60 Memo 61 Google apps 4 Read me first Please r ead this manual before using the device to ensure safe and proper use. • Descr iptions are based on the device’s default settings. • Some c ontent may differ from your device depending on the region, service provider, or device’s software. • Con tent (high quality content) that requires high CPU and RAM usage will affect the overall performance of the device. Apps related to the content may not work properly depending on the device’s specifications and the environment that it is used in. • Samsung is not liable f or performance issues caused by apps supplied by providers other than Samsung. • Samsung is not liable f or performance issues or incompatibilities caused by edited registry settings or modified operating system software. Attempting to customise the operating system may cause the device or apps to work improperly. • Sof tware, sound sources, wallpapers, images, and other media provided with this device are licensed for limited use. Extracting and using these materials for commercial or other purposes is an infringement of copyright laws. Users are entirely responsible for illegal use of media. • You ma y incur additional charges for data services, such as messaging, uploading and downloading, auto-syncing, or using location services depending on your data plan. For large data transfers, it is recommended to use the Wi-Fi feature. • Default apps tha t come with the device are subject to updates and may no longer be supported without prior notice. If you have questions about an app provided with the device, contact a Samsung Service Centre. For user-installed apps, contact service providers. • Modifying the devic e’s operating system or installing softwares from unofficial sources may result in device malfunctions and data corruption or loss. These actions are violations of your Samsung licence agreement and will void your warranty. • Depending on the r egion or model, some devices are required to receive approval from the Federal Communications Commission (FCC). If your device is approved by the FCC, you can view the FCC ID of the device. To view the FCC ID, tap Apps → Settings → About de vice . Read me first 5 Instruc tional icons Warning : situations that could cause injury to yourself or others Caution : situations that could cause damage to your device or other equipment Note : notes, usage tips, or additional information 6 Getting star ted Pack age contents Check the produc t box for the following items: • Devic e • Quick star t guide • The it ems supplied with the device and any available accessories may vary depending on the region or service provider. • The supplied items are designed only for this device and may not be compatible with other devices. • Appear ances and specifications are subject to change without prior notice. • You can pur chase additional accessories from your local Samsung retailer. Make sure they are compatible with the device before purchase. • Use only Samsung-approved accessories. Using unapproved accessories may cause the performance problems and malfunctions that are not covered by the warranty. • Av ailability of all accessories is subject to change depending entirely on manufacturing companies. For more information about available accessories, refer to the Samsung website. Getting star ted 7 Devic e layout Touch scr een Proximity/Light sensor Rec ent apps button Home button Back button M icrophone Headset jack Volume butt on Power button Micr ophone Front camera Multipurpose jack Memory card slot SIM card slot Rear camer a Speaker GPS ant enna Main an tenna Push clip Push clip Getting star ted 8 • Do not c over the antenna area with your hands or other objects. This may cause connectivity problems or drain the battery. • Using a Samsung-approved screen protector is recommended. Unapproved screen protectors may cause the sensors to malfunction. • Do not allo w water to contact the touch screen. The touch screen may malfunction in humid conditions or when exposed to water. Buttons ButtonF unction Po w er • Pr ess and hold to turn the device on or off. • Pr ess to turn on or lock the screen. R ec ent apps • T ap t o open the list of recent apps. Home • Pr ess to turn on the screen while the screen is locked. • Pr ess to return to the Home screen. • Pr ess and …

Text truncated - open the document above for the full version.

Samsung Electronics America, Inc 19 Chapin Rd, Building D. Pine Brook, NJ 07058 Date: September 25, 2015 FCC ID: A3LSMT377P To whom it may concern: We, the undersigned, hereby authorize PCTEST Engineering Laboratory Inc., to act on our behalf in all matters relating to applications for equipment authorization, including the signing of all documents relating to these matters. Any and all acts carried out by PCTEST Engineering Laboratory, Inc. on our behalf shall have the same effect as acts of our own. We also hereby certify that no party to any application is subject to a denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S. C. 862. Sincerely, CHANHO, YOUN General Manager Samsung Electronics CO. LTD TEL: +1-973-808-6362 E-mail: [email protected]

SAMSUNG ELECTRONICS CO., LTD 129, Samsung-ro,Yeongtong-gu Suwon-si,Gyeonggi-do, 443-742 Korea SUBJECT : Label Statement FCC ID : A3LSMT377P Gentlemen: The device is compliant in accordance to the FCC rules about identification of equipment, stated in 47 CFR Part 2.925(d). The label statement is as follows: The FCC ID label is located on the rear bottom of the device. At this time the FCC ID is readily visible to the user. The label is permanently engraved by laser and not easily remove d from the device. This statement could not be included in the label. So we inform you of it through this letter. Should you have any questions or comments concerning the above, please contact the undersigned. Sincerely Yours, KIM DAEJUNG Engineer Samsung Electronics CO. LTD TEL: +82-10-8108-0310 E-mail: [email protected] PCTEST Engineering Laboratory, Inc. 7185 Oakland Mills Road| Columbia, MD 21046 USA

SAMSUNG ELECTRONICS AMERICA, INC. American QA Lab 19 Chapin Rd, Building D. Pine Brook, NJ 07058 Date: September 25, 2015 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road, Columbia, MD 21046 RE: Request of Confidentiality for FCC ID: A3LSMT377P To Whom It May Concern: Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules (CFR 47), and Section 552 (b) (4) of the Freedom of Information Act, SAMSUNG ELECTRONICS CO.,LTD. hereby requests confidentiality and treatment of certain information accompanying this application. The materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. We are also hereby request Short-Term Confidentiality for 180 days after the grant as outlined in Public Notice DA 04-1705. This provision will give SAMSUNG ELECTRONICS CO.,LTD. temporary confidentiality of commercially sensitive information prior to product release. The requested Permanent and Short-Term Confidential exhibits are listed as follows: PERMANENT AND SHORT-TERM CONFIDENTIAL LIST Exhibit Description PERMANENT 1 Block Diagram 2 Operational Description 3 Schematics SHORT-TERM 4 External Photos 5 Internal Photos 6 Test-Setup Photos 7 Users Manual The Applicant understands that pursuant to Rule 0.457, disclosure of this application and all accompanying documentations, where applicable, will not be made public before the date of the Grant for this application. Sincerely, CHANHO, YOUN General Manager American QA Lab SAMSUNG Electronics America INC.

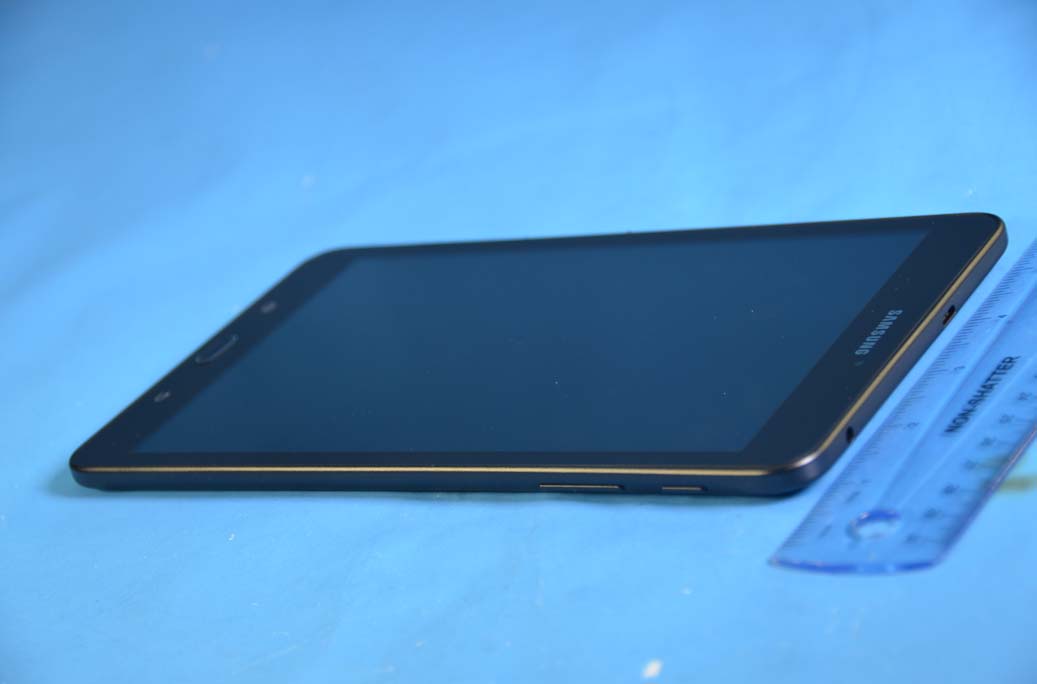

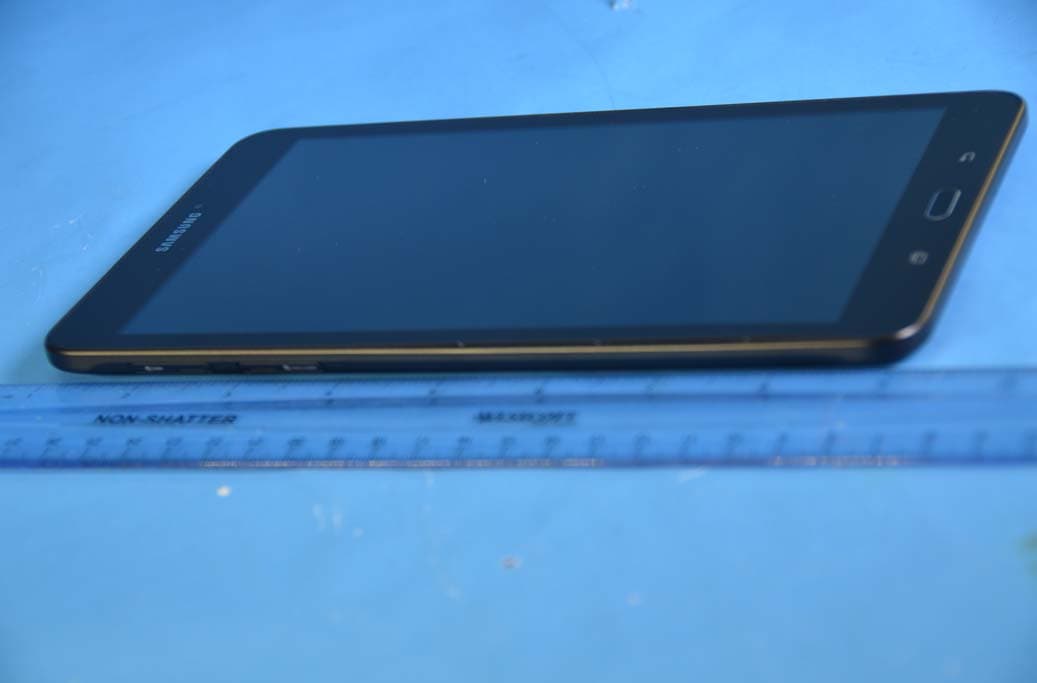

Samsung Electronics Co., Ltd. FCC ID: A3LSMT377P Model: SM-T377P External Photos EUT Type: Portable Tablet Page 1 of 4 © 2015 PCTEST Engineering Laboratory, Inc. V 3.0 08/10/2015 EXTERNAL PHOTOGRAPHS Samsung Electronics Co., Ltd. FCC ID: A3LSMT377P Model: SM-T377P External Photos EUT Type: Portable Tablet Page 2 of 4 © 2015 PCTEST Engineering Laboratory, Inc. V 3.0 08/10/2015 Samsung Electronics Co., Ltd. FCC ID: A3LSMT377P Model: SM-T377P External Photos EUT Type: Portable Tablet Page 3 of 4 © 2015 PCTEST Engineering Laboratory, Inc. V 3.0 08/10/2015 Samsung Electronics Co., Ltd. FCC ID: A3LSMT377P Model: SM-T377P External Photos EUT Type: Portable Tablet Page 4 of 4 © 2015 PCTEST Engineering Laboratory, Inc. V 3.0 08/10/2015

Label and Location Model: SM-T377P FCC ID: A3LSMT377P Label: Lo cation: Top Back of device Bottom Tablet : FCC ID is engraved on bottom of the device

Samsung Electronics Co., Ltd. FCC ID: A3LSMT377P Model: SM-T377P Internal Photos EUT Type: Portable Tablet Page 1 of 9 © 2015 PCTEST Engineering Laboratory, Inc. V 3.0 08/10/2015 INTERNAL PHOTOGRAPHS Samsung Electronics Co., Ltd. FCC ID: A3LSMT377P Model: SM-T377P Internal Photos EUT Type: Portable Tablet Page 2 of 9 © 2015 PCTEST Engineering Laboratory, Inc. V 3.0 08/10/2015 Samsung Electronics Co., Ltd. FCC ID: A3LSMT377P Model: SM-T377P Internal Photos EUT Type: Portable Tablet Page 3 of 9 © 2015 PCTEST Engineering Laboratory, Inc. V 3.0 08/10/2015 Samsung Electronics Co., Ltd. FCC ID: A3LSMT377P Model: SM-T377P Internal Photos EUT Type: Portable Tablet Page 4 of 9 © 2015 PCTEST Engineering Laboratory, Inc. V 3.0 08/10/2015 Samsung Electronics Co., Ltd. FCC ID: A3LSMT377P Model: SM-T377P Internal Photos EUT Type: Portable Tablet Page 5 of 9 © 2015 PCTEST Engineering Laboratory, Inc. V 3.0 08/10/2015 Samsung Electronics Co., Ltd. FCC ID: A3LSMT377P Model: SM-T377P Internal Photos EUT Type: Portable Tablet Page 6 of 9 © 2015 PCTEST Engineering Laboratory, Inc. V 3.0 08/10/2015 Samsung Electronics Co., Ltd. FCC ID: A3LSMT377P Model: SM-T377P Internal Photos EUT Type: Portable Tablet Page 7 of 9 © 2015 PCTEST Engineering Laboratory, Inc. V 3.0 08/10/2015 Samsung Electronics Co., Ltd. FCC ID: A3LSMT377P Model: SM-T377P Internal Photos EUT Type: Portable Tablet Page 8 of 9 © 2015 PCTEST Engineering Laboratory, Inc. V 3.0 08/10/2015 Samsung Electronics Co., Ltd. FCC ID: A3LSMT377P Model: SM-T377P Internal Photos EUT Type: Portable Tablet Page 9 of 9 © 2015 PCTEST Engineering Laboratory, Inc. V 3.0 08/10/2015

FCC ID:A3LSMT377P SAR EVALUATION REPORT Reviewed by: Quality Manager Document S/N: Test Dates: DUT Type: Page 1 of 69 0Y1509081753-R2.A3L 09/08/15 - 09/22/15 Portable Tablet © 2015 PCTEST Engineering Laboratory, Inc. REV 16.4 M 09/03/2015 © 2015 PCTEST Engineering Laboratory, Inc. All rights reserved. Unless otherwise specified, no part of this report may be reproduced or utilized in any part, form or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from PCTEST Engineering Laboratory, Inc. If you have any questions about this international copyright or have an enquiry about obtaining additional rights to this report or assembly of contents thereof, please contact [email protected]. Applicant Name: Date of Testing: Samsung Electronics, Co. Ltd. 09/08/15 - 09/22/15 129, Samsung-ro, Maetan dong, Test Site/Location: Yeongtong-gu, Suwon-si PCTEST Lab, Columbia, MD, USA Gyeonggi-do 16677, Korea Document Serial No.: 0Y1509081753-R2.A3L FCC ID: A3LSMT377P APPLICANT: SAMSUNG ELECTRONICS, CO. LTD. DUT Type: Portable Tablet Application Type: Certification FCC Rule Part(s): CFR §2.1093 Model(s): SM-T377P Note: This revised Test Report (S/N: 0Y1509081753-R2.A3L) supersedes and replaces the previously issued test report on the same subject device for the same type of testing as indicated. Please discard or destroy the previously issued test report(s) and dispose of it accordingly. This wireless portable device has been shown to be capable of compliance for localized specific absorption rate (SAR) for uncontrolled environment/general population exposure limits specified in ANSI/IEEE C95.1-1992 and has been tested in accordance with the measurement procedures specified in Section 1.7 of this report; for North American frequency bands only. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. Test results reported herein relate only to the item(s) tested. The SAR Tick is an initiative of the Mobile Manufacturers Forum (MMF). While a product may be considered eligible, use of the SAR Tick logo requires an agreement with the MMF. Further details can be obtained by emailing: [email protected]. 1 gm Body (W/kg) PCBCDMA/EVDO BC10 (§90S)817.90 - 823.10 MHz1.07 PCBCDMA/EVDO BC0 (§22H)824.70 - 848.31 MHz1.08 PCBPCS CDMA/EVDO1851.25 - 1908.75 MHz1.04 PCBLTE Band 12699.7 - 715.3 MHz0.51 PCBLTE Band 26 (Cell)814.7 - 848.3 MHz0.95 PCBLTE Band 5 (Cell)824.7 - 848.3 MHz0.00 PCBLTE Band 4 (AWS)1710.7 - 1754.3 MHz0.90 PCBLTE Band 2 (PCS)1850.7 - 1909.3 MHz0.00 PCBLTE Band 25 (PCS)1850.7 - 1914.3 MHz0.78 PCBLTE Band 412506 - 2680 MHz0.80 DTS2.4 GHz W LAN2412 - 2462 MHz0.69 NIIU-NII-15180 - 5240 MHz-1.00 NIIU-NII-2A5260 - 5320 MHz0.48 NIIU-NII-2C5500 - 5720 MHz0.71 NIIU-NII-35745 - 5825 MHz0.33 DSS/DTSBluetooth2402 - 2480 MHz 1.59 Simultaneous SAR per KDB 690783 D01v01r03: Band & ModeTx Frequency Equipment Class 0.20 SAR PCTEST ENGINEERING LABORATORY, INC. 7185 Oakland Mills Road, Columbia, MD 21046 USA Tel. +1.410.290.6652 / Fax +1.410.290.6654 http://www.pctestlab.com SAR EVALUATION REPORT FCC ID:A3LSMT377P SAR EVALUATION REPORT Reviewed by: Quality Manager Document S/N: Test Dates: DUT Type: Page 2 of 69 0Y1509081753-R2.A3L 09/08/15 - 09/22/15 Portable Tablet © 2015 PCTEST Engineering Laboratory, Inc. REV 16.4 M 09/03/2015 © 2015 PCTEST Engineering Laboratory, Inc. All rights reserved. Unless otherwise specified, no part of this report may be reproduced or utilized in any part, form or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from PCTEST Engineering Laboratory, Inc. If you have any questions about this international copyright or have an enquiry about obtaining additional rights to this report or assembly of contents thereof, please contact [email protected]. TABLE OF CONTENTS 1 DEVICE UNDER TEST ................................................................................................................... 3 2 LTE INFORMATION ........................................................................................................................ 8 3 INTRODUCTION ............................................................................................................................. 9 4 DOSIMETRIC ASSESSMENT ...................................................................................................... 10 5 SAR TESTING PROCEDURES .................................................................................................... 11 6 RF EXPOSURE LIMITS ................................................................................................................ 12 7 FCC MEASUREMENT PROCEDURES ........................................................................................ 13 8 RF CONDUCTED POWERS ......................................................................................................... 18 9 SYSTEM VERIFICATION .............................................................................................................. 50 10 SAR DATA SUMMARY ................................................................................................................. 52 11 FCC MULTI-TX AND ANTENNA SAR CONSIDERATIONS ......................................................... 58 12 SAR MEASUREMENT VARIABILITY ........................................................................................... 63 13 EQUIPMENT LIST ......................................................................................................................... 64 14 MEASUREMENT UNCERTAINTIES ............................................................................................ 65 15 CONCLUSION .........................................…

Text truncated - open the document above for the full version.

FCC ID: A3LSMT377P FCC Pt. 15.247 802.11b/g/n MEASUREMENT REPORT (CERTIFICATION) Reviewed by: Quality Manager Test Report S/N: Test Dates: EUT Type: Page 1 of 51 0Y1509081757.A3L 9/8 - 9/30/2015 Portable Tablet © 2015 PCTEST Engineering Laboratory, Inc. V 3.0 08/10/2015 Applicant Name: Date of Testing: Samsung Electronics Co., Ltd. 9/8 - 9/30/2015 129, Samsung-ro, Test Site/Location: Yeongtong-gu, Suwon-si PCTEST Lab, Columbia, MD, USA Gyeonggi-do, 16677, Korea Test Report Serial No.: 0Y1509081757.A3L FCC ID: A3LSMT377P APPLICANT: Samsung Electronics Co., Ltd. Application Type: Certification Model(s): SM-T377P EUT Type: Portable Tablet FCC Classification: Digital Transmission System (DTS) FCC Rule Part(s): Part 15.247 Test Procedure(s): KDB 558074 v03r03 802.11b2412 - 246222.233 13.47 41.020 16.13 802.11g2412 - 246214.825 11.71 79.983 19.03 802.11n2412 - 246215.066 11.78 79.983 19.03 Avg ConductedPeak Conducted Max. Power (mW) Max. Power (dBm) Max. Power (mW) Max. Power (dBm) Conducted Power Mode Tx Frequency (MHz) This equipment has been shown to be capable of compliance with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in KDB 558074 v03r03. Test results reported herein relate only to the item(s) tested. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. PCTEST ENGINEERING LABORATORY, INC. 7185 Oakland Mills Road, Columbia, MD 21046 USA Tel. 410.290.6652 / Fax 410.290.6654 http://www.pctestlab.com MEASUREMENT REPORT FCC Part 15.247 WLAN 802.11b/g/n FCC ID: A3LSMT377P FCC Pt. 15.247 802.11b/g/n MEASUREMENT REPORT (CERTIFICATION) Reviewed by: Quality Manager Test Report S/N: Test Dates: EUT Type: Page 2 of 51 0Y1509081757.A3L 9/8 - 9/30/2015 Portable Tablet © 2015 PCTEST Engineering Laboratory, Inc. V 3.0 08/10/2015 TABLE OF CONTENTS FCC PART 15.247 MEASUREMENT REPORT .................................................................................................. 3 1.0 INTRODUCTION ........................................................................................................................................ 4 1.1 Scope ............................................................................................................................................................. 4 1.2 PCTEST Test Location ................................................................................................................................... 4 2.0 PRODUCT INFORMATION ........................................................................................................................ 5 2.1 Equipment Description ................................................................................................................................... 5 2.2 Device Capabilities ......................................................................................................................................... 5 2.3 Test Configuration .......................................................................................................................................... 5 2.4 EMI Suppression Device(s)/Modifications ...................................................................................................... 5 3.0 DESCRIPTION OF TESTS......................................................................................................................... 6 3.1 Evaluation Procedure ..................................................................................................................................... 6 3.2 AC Line Conducted Emissions ....................................................................................................................... 6 3.3 Radiated Emissions ........................................................................................................................................ 7 3.4 Environmental Conditions .............................................................................................................................. 7 4.0 ANTENNA REQUIREMENTS .................................................................................................................... 8 5.0 TEST EQUIPMENT CALIBRATION DATA ................................................................................................ 9 6.0 TEST RESULTS ....................................................................................................................................... 10 6.1 Summary ...................................................................................................................................................... 10 6.2 6dB Bandwidth Measurement ...................................................................................................................... 11 6.3 Output Power Measurement ........................................................................................................................ 17 6.4 Power Spectral Density ................................................................................................................................ 19 6.5 Conducted Emissions at the Band Edge ...................................................................................................... 25 6.6 Conducted Spurious Emissions.................................................................................................................... 29 6.7 Radiated Spurious Emission Measurements – Above 1 GHz ...................................................................... 34 6.7.1 Radiated Spurious Emission Measurements .......................................................................................................... 37 6.7.2 Radiated Restricted Band Edge M…

Text truncated - open the document above for the full version.

FCC ID: A3LSMT377P FCC Pt. 15.247 BLUETOOTH (LE) TEST REPORT (CERTIFICATION) Reviewed by: Quality Manager Test Report S/N: Test Dates: EUT Type: Page 1 of 35 0Y1509081760.A3L 9/8 - 9/29/2015 Portable Tablet © 2015 PCTEST Engineering Laboratory, Inc. V 3.0 08/10/2015 Applicant Name: Date of Testing: Samsung Electronics Co., Ltd. 9/8 - 9/29/2015 129, Samsung-ro, Test Site/Location: Yeongtong-gu, Suwon-si PCTEST Lab, Columbia, MD, USA Gyeonggi-do, 16677, Korea Test Report Serial No.: 0Y1509081760.A3L FCC ID: A3LSMT377P APPLICANT: Samsung Electronics Co., Ltd. Application Type: Certification Model: SM-T377P EUT Type: Portable Tablet Max. RF Output Power: 1.882 mW (2.75 dBm) Peak Conducted Frequency Range: 2402 - 2480 MHz FCC Classification: Digital Transmission System (DTS) FCC Rule Part(s): Part 15.247 Test Procedure(s): KDB 558074 v03r03 This equipment has been shown to be capable of compliance with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in KDB 558074 v03r03. Test results reported herein relate only to the item(s) tested. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. PCTEST ENGINEERING LABORATORY, INC. 7185 Oakland Mills Road, Columbia, MD 21046 USA Tel. 410.290.6652 / Fax 410.290.6654 http://www.pctestlab.com MEASUREMENT REPORT FCC PART 15.247 Bluetooth (Low Energy) FCC ID: A3LSMT377P FCC Pt. 15.247 BLUETOOTH (LE) TEST REPORT (CERTIFICATION) Reviewed by: Quality Manager Test Report S/N: Test Dates: EUT Type: Page 2 of 35 0Y1509081760.A3L 9/8 - 9/29/2015 Portable Tablet © 2015 PCTEST Engineering Laboratory, Inc. V 3.0 08/10/2015 TABLE OF CONTENTS FCC PART 15.247 MEASUREMENT REPORT .................................................................................................. 3 1.0 INTRODUCTION ...................................................................................................................................... 4 1.1 Scope ............................................................................................................................................................. 4 1.2 PCTEST Test Location ................................................................................................................................... 4 2.0 PRODUCT INFORMATION ..................................................................................................................... 5 2.1 Equipment Description ................................................................................................................................... 5 2.2 Device Capabilities ......................................................................................................................................... 5 2.3 Test Configuration .......................................................................................................................................... 5 2.4 EMI Suppression Device(s)/Modifications ...................................................................................................... 5 3.0 DESCRIPTION OF TESTS ...................................................................................................................... 6 3.1 Evaluation Procedure ..................................................................................................................................... 6 3.2 AC Line Conducted Emissions ....................................................................................................................... 6 3.3 Radiated Emissions ........................................................................................................................................ 7 3.4 Environmental Conditions .............................................................................................................................. 7 4.0 ANTENNA REQUIREMENTS .................................................................................................................. 8 5.0 TEST EQUIPMENT CALIBRATION DATA .............................................................................................. 9 6.0 TEST RESULTS .................................................................................................................................... 10 6.1 Summary ...................................................................................................................................................... 10 6.2 6dB Bandwidth Measurement – Bluetooth (LE) ........................................................................................... 11 6.3 Output Power Measurement – Bluetooth (LE) .............................................................................................. 14 6.4 Power Spectral Density – Bluetooth (LE) ..................................................................................................... 17 6.5 Conducted Emissions at the Band Edge ...................................................................................................... 20 6.6 Conducted Spurious Emissions.................................................................................................................... 22 6.7 Radiated Spurious Emission Measurements ................................................................................................ 26 6.8 Radiated Restricted Band Edge Measurements........................................................................................... 31 6.9 Line-Conducted Test Data ........................................................................................................................... 33 7.0 CONCLUSION .............................................................................................…

Text truncated - open the document above for the full version.

Samsung Electronics Co., Ltd. FCC ID: A3LSMT377P Model: SM-T377P Test Set-Up Photos EUT Ty…
