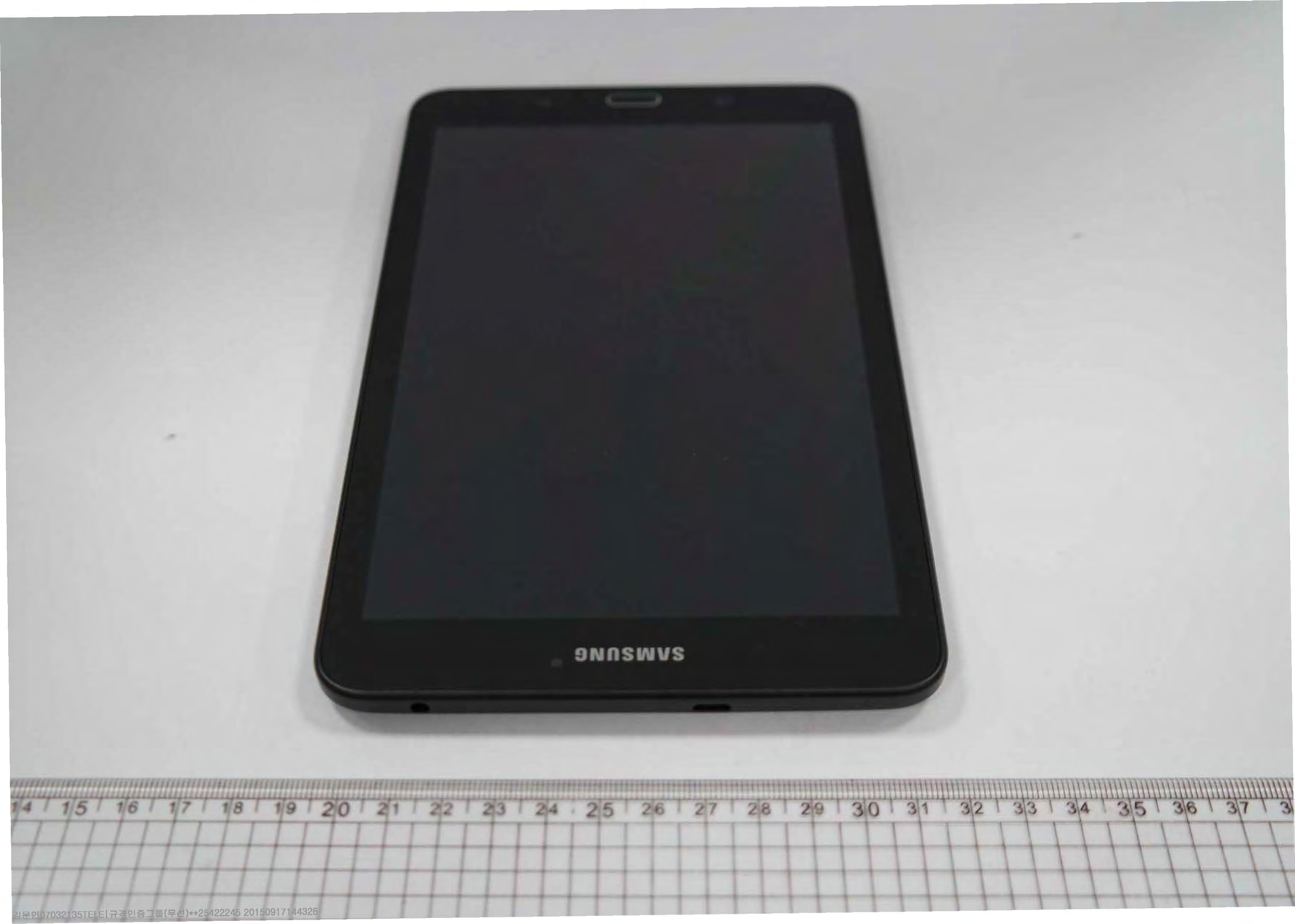

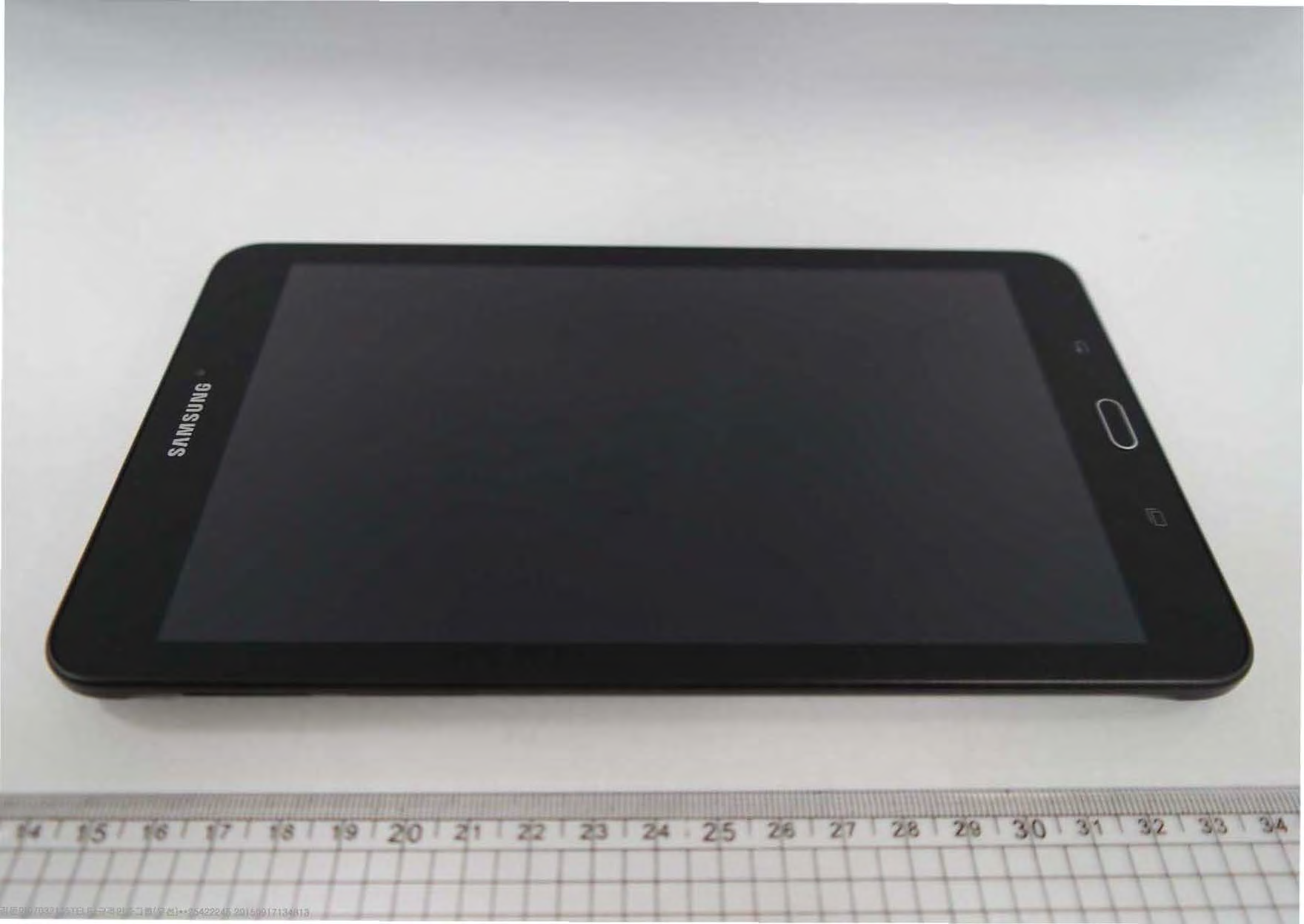

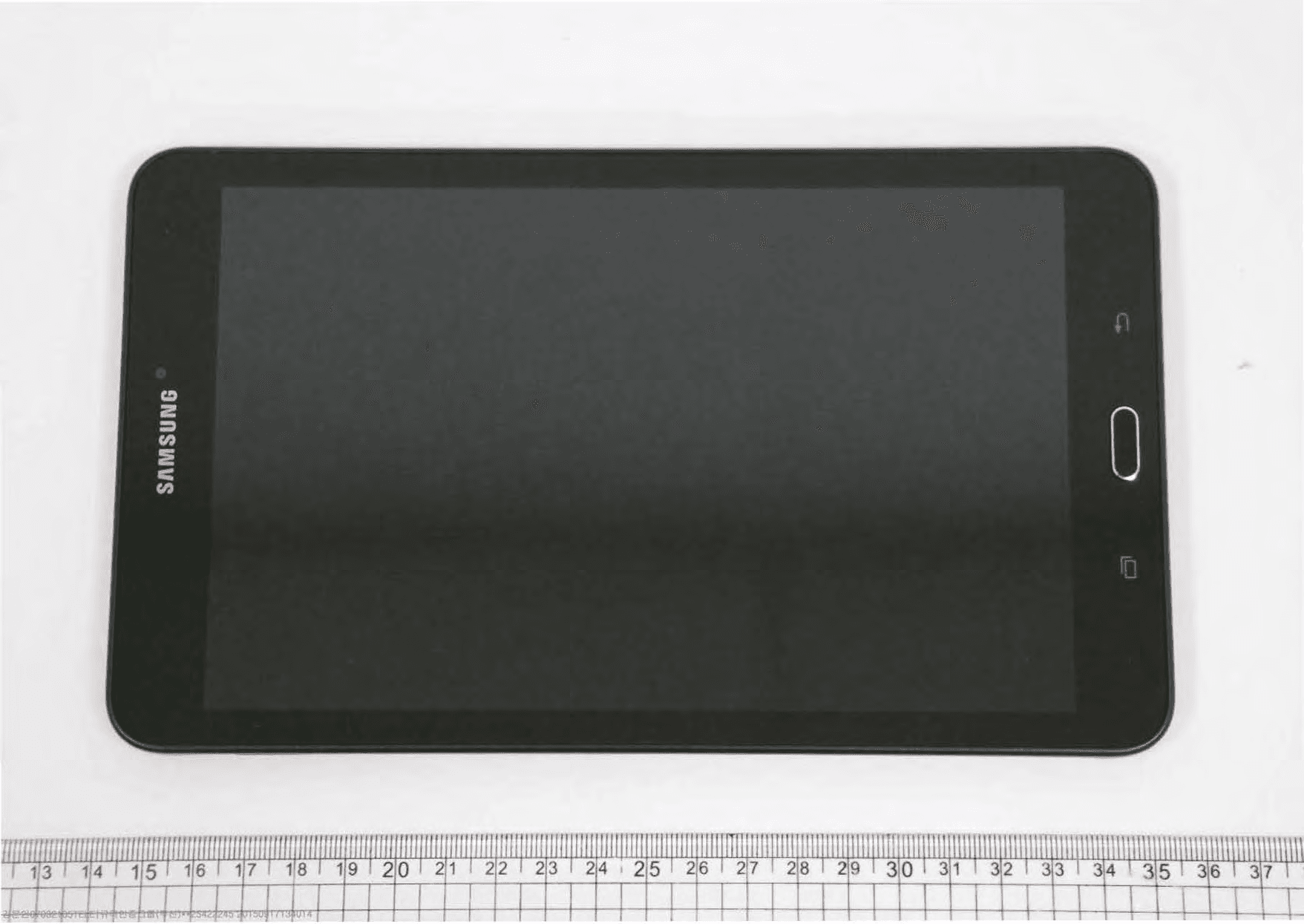

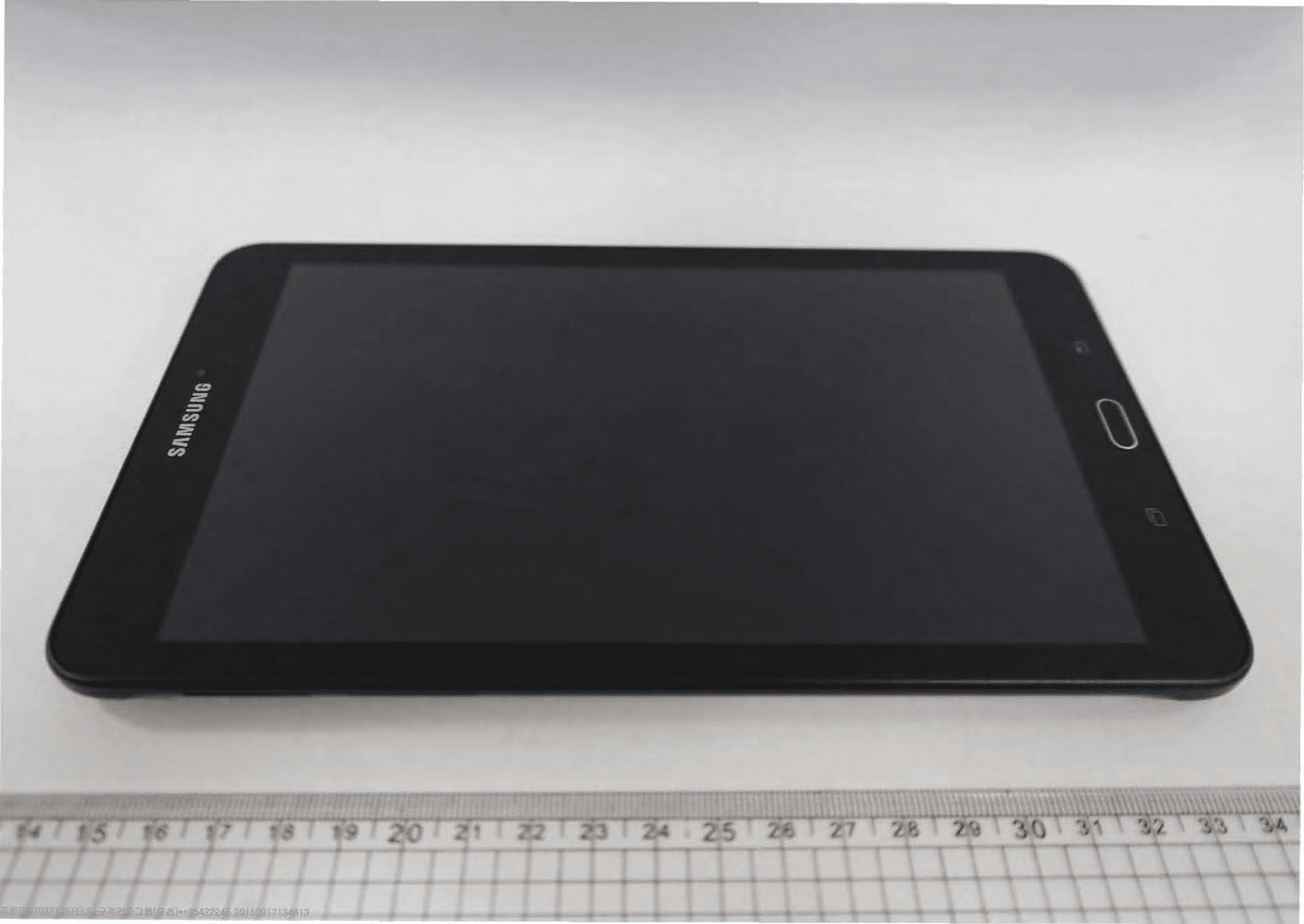

A3LSMT377VPortable Tablet with Multi-Band WCDMA/LTE, WLAN, BT & ANT+

User manual SM-T377V Draft Important safety precautions Failure to comply with the following precautions may be dangerous or illegal. Copyright information ● Bluetooth? is a registered trademark of the Bluetooth SIG, Inc. worldwide. ● JavaTM is a trademark or registered trademark of Sun Microsystems, Inc. ● Picsel and Picsel ViewerTM are trademarks of Picsel Technologies, Inc. Drive safely at all times Do not use a hand-held TABLET while driving. Park your vehicle first. Switch off the TABLET when refuelling Do not use the TABLET at a refuelling point (service station) or near fuels or chemicals. Switch off in an aircraft Wireless TABLETs can cause interference. Using them in an aircraft is both illegal and dangerous. Switch off the TABLET near all medical equipment Hospitals or health care facilities may be using equipment that could be sensitive to external radio frequency energy. Follow any regulations or rules in force. Interference All wireless TABLETs may be subject to interference, which could affect their performance. Be aware of special regulations Meet any special regulations in force in any area and always switch off your TABLET whenever it is forbidden to use it, or when it may cause interference or danger. Water resistance Your TABLET is not water-resistant. Keep it dry. Sensible use Use only in the normal position (held to your ear). Avoid unnecessary contact with the antenna when the TABLET is switched on. Emergency calls Key in the emergency number for your present location, then press [ ]. Keep your TABLET away from small children Keep the TABLET and all its parts, including accessories, out of the reach of small children. Accessories and batteries Use only Samsung-approved batteries and accessories, such as headsets and PC data cables. Use of any unauthorised accessories could damage you or your TABLET and may be dangerous. Qualified service Only qualified service personnel may repair your TABLET. For more detailed safety information, see ¡°Health and safety information¡± on page 20. • The TABLET could explode if the battery is replaced with an incorrect type. • Dispose of used batteries according to the manufactureri’s instructions. Excessive exposure to sound at high volumes can cause hearing damage. Always turn the volume down before plugging the earTABLETs into an audiosource and use only the minimum volume setting necessary to hear your conversation or music. Unpack Make sure you have each item • TABLET • Adapter • Stereo headset • Battery • Battery travel holder • User’s manual Suitable Adapter or Charger, certified according to the relevant safety standard, will be provided for each country in use. You can obtain the following accessories for your TABLET from your local Samsung dealer. • Multi adapter • Travel charger • Car charger • PC data cable • Portable battery kit • Portable PC data cable • Music controller • Bluetooth mono/ stereop headset kit Get started First steps to operate your TABLET Install and charge the TABLET 1. Install the battery: To remove the battery, slide the battery catch toward the top of the TABLET and hold it. 2. Plug the adapter into the TABLET. 3. Plug the adapter into a standard AC wall outlet. 4. When the TABLET is completely charged (the battery icon stops blinking), unplug the adapter from the power outlet. 5. Remove the adapter from the TABLET. Low battery indicator When the battery is low: • a warning tone sounds, • the battery low message displays, and • the empty battery icon [ ] blinks. If the battery level becomes too low, the TABLET automatically turns off. Recharge your battery. Keys and display Buttons Function Power • Press and hold to turn the device on or off. • Press and hold for more than 7 seconds to reset the device if it has fatal errors or hang-ups, or freezes. • Press to lock or unlock the device. The device goes into lock mode when the touch screen turns off. Menu • Tap to open a list of options available for the current screen. • Tap and hold on the Home screen to launch Google application. Home • Press to return to the Home screen. • Press twice to launch S Voice application. • Press and hold to open the list of recent applications. Back • Tap to return to the previous screen. Volume • Press to adjust the device volume. Overview of menu functions To access Menu mode, press [환경설정] in ldle mode. T service ChatON Maps Call log Samsung Link Local TABLET Group Play Navigation Contacts S Health Downloads Messaging S Voice Optical Reader Samsung Hub S Memo Messenger Samsung Apps S Translator Play Books WatchON Email Play Movies & TV Camera Shopping & wallet T nao Gallery T cloud App Guide Story Album hoppin T Membership DMB MelOn Remote Care T store Chrome T world T LTE Pack Gmail 11st Music Google SmartWallet Video Voice Search NATE Internet YouTube Calculator Clock Talk Voice Recorder S Planner Google+ Dictionary Settings Play Store My Files B tv mobile Pickat Basket Cyworld SmartTouch Cymera NateOnUC Dropbox Samsung service V3 Mobile 2.0 Help Google Settings Solve problems Help and personal needs To save the time and expense of an unnecessary service call, perform the simple checks in this section before contacting a service professional. When you switch on your TABLET, the following messages may appear: “Insert USIM card” • Be sure that the USIM card is correctly installed. “TABLET locked Enter password” • The automatic locking function has been enabled. You must enter the TABLET¡ ̄s password before you can use the TABLET. “Enter PIN1” • You are using your TABLET for the first time. You must enter the PIN1 supplied with the USIM card. • The PIN1 Check feature is enabled. Every time the TABLET is switched on, the PIN1 has to be entered. To disable this feature, use the PIN check menu. “Enter PUK” • The PIN1 code has been entered incorrectly three times in succession, and the TABLET is now blocked. Enter the PUK1 supplied by your service provider. “No Service” “Network Failure,” or “Not Done” displays • The networ…

Text truncated - open the document above for the full version.

Samsung Electronics America, Inc 19 Chapin Rd, Building D. Pine Brook, NJ 07058 Date: December 2, 2015 FCC ID: A3LSMT377V To whom it may concern: We, the undersigned, hereby authorize PCTEST Engineering Laboratory Inc., to act on our behalf in all matters relating to applications for equipment authorization, including the signing of all documents relating to these matters. Any and all acts carried out by PCTEST Engineering Laboratory, Inc. on our behalf shall have the same effect as acts of our own. We also hereby certify that no party to any application is subject to a denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S. C. 862. Sincerely, CHANHO, YOUN General Manager Samsung Electronics CO. LTD TEL: +1-973-808-6362 E-mail: [email protected]

SAMSUNG ELECTRONICS CO., LTD 129, Samsung-ro,Yeongtong-gu Suwon-si,Gyeonggi-do, 443-742 Korea SUBJECT : Label Statement FCC ID : A3LSMT377V Gentlemen: The device is compliant in accordance to the FCC rules about identification of equipment, stated in 47 CFR Part 2.925(d). The label st atement is as follows: The FCC ID label is l ocated on th e rear bottom of the device. At this time the FCC ID is readily visible to the user. The label is permanently engraved by laser and not easily removed from the device. This statement could not be included in the label. So we inform you of it through this le tter. Should you hav e any questions or comments concerning the above, please contact the undersigned. Sincerely Yours, KIM DAEJUNG Engineer Samsung Electronics CO. LTD TEL: +82-10-8108-0310 E-mail: [email protected] PCTEST Engineering Laboratory, Inc. 7185 Oakland Mills Road| Columbia, MD 21046 USA

SAMSUNG ELECTRONICS AMERICA, INC. American QA Lab 19 Chapin Rd, Building D. Pine Brook, NJ 07058 Date: December 2, 2015 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road, Columbia, MD 21046 RE: Request of Confidentiality for FCC ID: A3LSMT377V To Whom It May Concern: Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules (CFR 47), and Section 552 (b) (4) of the Freedom of Information Act, SAMSUNG ELECTRONICS CO.,LTD. hereby requests confidentiality and treatment of certain information accompanying this application. The materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. We are also hereby request Short-Term Confidentiality for 180 days after the grant as outlined in Public Notice DA 04-1705. This provision will give SAMSUNG ELECTRONICS CO.,LTD. temporary confidentiality of commercially sensitive information prior to product release. The requested Permanent and Short-Term Confidential exhibits are listed as follows: PERMANENT AND SHORT-TERM CONFIDENTIAL LIST Exhibit Description PERMANENT 1 Block Diagram 2 Operational Description 3 Schematics SHORT-TERM 4 External Photos 5 Internal Photos 6 Test-Setup Photos 7 Users Manual The Applicant understands that pursuant to Rule 0.457, disclosure of this application and all accompanying documentations, where applicable, will not be made public before the date of the Grant for this application. Sincerely, CHANHO, YOUN General Manager American QA Lab SAMSUNG Electronics America INC.

Label and Location Model: SM-T377V FCC I D: A3LSMT377V Label: Location: Top Back of d evice Bottom Tablet : FCC I D is engraved o n botto m o f th e device Label

FCC ID: A3LSMT377V SAR EVALUATION REPORT Reviewed by: Quality Manager Document S/N: Test Dates: DUT Type: Page 1 of 67 0Y1509141808.A3L 08/03/15 - 08/07/15 & 10/28/15 - 11/03/15 Portable Tablet © 2015 PCTEST Engineering Laboratory, Inc. REV 15.0 M 01/27/2015 Applicant Name: Date of Testing: Samsung Electronics, Co. Ltd. 129, Samsung-ro, Maetan dong, 08/03/15 - 08/07/15 & 10/28/15 - 11/03/15 Yeongtong-gu, Suwon-si Test Site/Location: Gyeonggi-do 16677, Korea PCTEST Lab, Columbia, MD, USA Document Serial No.: 0Y1509141808.A3L F C C I D : A3 LS MT377V AP P L I C AN T : S AMS UN G ELE CT RONI CS, CO. LT D. DUT Type: Portable Tablet Application Type: Certification FCC Rule Part(s): CFR §2.1093 Model(s): SM-T377V This wireless portable device has been shown to be capable of compliance for localized specific absorption rate (SAR) for uncontrolled environment/general population exposure limits specified in ANSI/IEEE C95.1-1992 and has been tested in accordance with the measurement procedures specified in Section 1.7 of this report; for North American frequency bands only. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. Test results reported herein relate only to the item(s) tested. The SAR Tick is an initiative of the Mobile Manufacturers Forum (MMF). While a product may be considered eligible, use of the SAR Tick logo requires an agreement with the MMF. Further details can be obtained by emailing: [email protected]. SAR 1 gm Body (W/kg) PCBUMTS 850826.40 - 846.60 MHz0.61 PCBUMTS 19001852.4 - 1907.6 MHz0.54 PCBLTE Band 13779.5 - 784.5 MHz0.54 PCBLTE Band 5 (Cell)824.7 - 848.3 MHz0.60 PCBLTE Band 4 (AWS)1710.7 - 1754.3 MHz0.61 PCBLTE Band 2 (PCS)1850.7 - 1909.3 MHz0.67 DTS2.4 GHz WLAN2412 - 2462 MHz0.93 NIIU-NII-15180 - 5240 MHz< 0.1 NIIU-NII-2A5260 - 5320 MHz0.97 NIIU-NII-2C5500 - 5720 MHz0.89 NIIU-NII-35745 - 5825 MHz0.56 DSS/DTSBluetooth2402 - 2480 MHzN/A 1.58 Simultaneous SAR per KDB 690783 D01v01r03: Band & ModeTx Frequency Equipment Class PCTEST ENGINEERING LABORATORY, INC. 7185 Oakland Mills Road, Columbia, MD 21046 USA Tel. +1.410.290.6652 / Fax +1.410.290.6654 http://www.pctestlab.com SAR EVALUATION REPORT FCC ID: A3LSMT377V SAR EVALUATION REPORT Reviewed by: Quality Manager Document S/N: Test Dates: DUT Type: Page 2 of 67 0Y1509141808.A3L 08/03/15 - 08/07/15 & 10/28/15 - 11/03/15 Portable Tablet © 2015 PCTEST Engineering Laboratory, Inc. REV 15.0 M 01/27/2015 T A B L E O F C O N T E N T S 1 DEVICE UNDER TEST ....................................................................................................................3 2 LTE INFORMATION .........................................................................................................................7 3 INTRODUCTION ..............................................................................................................................8 4 DOSIMETRIC ASSESSMENT .........................................................................................................9 5 SAR TESTING PROCEDURES .................................................................................................... 10 6 RF EXPOSURE LIMITS ................................................................................................................ 11 7 FCC MEASUREMENT PROCEDURES ........................................................................................ 12 8 RF CONDUCTED POWERS ......................................................................................................... 17 9 SYSTEM VERIFICATION .............................................................................................................. 50 10 SAR DATA SUMMARY ................................................................................................................. 52 11 FCC MULTI-TX AND ANTENNA SAR CONSIDERATIONS ......................................................... 56 12 SAR MEASUREMENT VARIABILITY ........................................................................................... 60 13 EQUIPMENT LIST ......................................................................................................................... 61 14 MEASUREMENT UNCERTAINTIES ............................................................................................ 63 15 CONCLUSION ............................................................................................................................... 65 16 REFERENCES .............................................................................................................................. 66 APPENDIX A: SAR TEST PLOTS APPENDIX B: SAR DIPOLE VERIFICATION PLOTS APPENDIX C: PROBE AND DIPOLE CALIBRATION CERTIFICATES APPENDIX D: SAR TISSUE SPECIFICATIONS APPENDIX E: SAR SYSTEM VALIDATION APPENDIX F: DUT ANTENNA DIAGRAM & SAR TEST SETUP PHOTOGRAPHS APPENDIX G: SENSOR TRIGGERING DATA SUMMARY FCC ID: A3LSMT377V SAR EVALUATION REPORT Reviewed by: Quality Manager Document S/N: Test Dates: DUT Type: Page 3 of 67 0Y1509141808.A3L 08/03/15 - 08/07/15 & 10/28/15 - 11/03/15 Portable Tablet © 2015 PCTEST Engineering Laboratory, Inc. REV 15.0 M 01/27/2015 1 D E V I C E U N D E R T E S T 1.1 Device Overview 1.2 Power Reduction for SAR This device uses a power reduction mechanism for PCB SAR compliance. The power reduction mechanism is activated when the device is used in close proximity to the user’s body. FCC KDB Publication 616217 D04 Section 6 was used as a guideline for selecting SAR test distances for this device. 1.3 Nominal and Maximum Output Power Specifications This device operates using the following maximum and nominal output power specifications. SAR values were scaled to the maximum allowed power to determine compliance per KDB Publication 44…

Text truncated - open the document above for the full version.

© 2015 PCTEST Engineering Laboratory, Inc. APPENDIX C: PROBE CALIBRATION

FCC ID: A3LSMT377V FCC Pt. 15.407 802.11a/n UNII MEASUREMENT REPORT (CERTIFICATION) Reviewed by: Quality Manager Test Report S/N: Test Dates: EUT Type: Page 1 of 97 0Y1509141810.A3L 8/3-8/10/2015 Portable Tablet © 2015 PCTEST Engineering Laboratory, Inc. V 3.0 08/10/2015 Applicant Name: Date of Testing: Samsung Electronics Co., Ltd. 8/3-8/10/2015 129, Samsung-ro, Test Site/Location: Yeongtong-gu, Suwon-si PCTEST Lab, Columbia, MD, USA Gyeonggi-do, 16677, Korea Test Report Serial No.: 0Y1509141810.A3L FCC ID: A3LSMT377V APPLICANT: Samsung Electronics Co., Ltd. Application Type: Certification Model(s): SM-T377V EUT Type: Portable Tablet FCC Classification: Unlicensed National Information Infrastructure (UNII) FCC Rule Part(s): Part 15.407 Test Procedure(s): KDB 789033 D02 v01 1205180 - 524013.93211.44 2A205260 - 532013.86811.42 2C205500 - 572013.39711.27 3205745 - 582511.88510.75 1205180 - 524014.06011.48 2A205260 - 532013.96411.45 2C205500 - 572012.38810.93 3205745 - 582511.94010.77 1405190 - 523012.91211.11 2A405270 - 531013.52111.31 2C405510 - 571014.09311.49 3405755 - 579514.02811.47 802.11a 802.11n 802.11n ModeUNII Band Channel Bandwidth (MHz) Conducted Power Tx Frequency (MHz) Max. Power (mW) Max. Power (dBm) This equipment has been shown to be capable of compliance with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in KDB 789033 D02 v01. Test results reported herein relate only to the item(s) tested. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. PCTEST ENGINEERING LABORATORY, INC. 7185 Oakland Mills Road, Columbia, MD 21046 USA Tel. 410.290.6652 / Fax 410.290.6654 http://www.pctestlab.com MEASUREMENT REPORT FCC Part 15.407 UNII 802.11a/n FCC ID: A3LSMT377V FCC Pt. 15.407 802.11a/n UNII MEASUREMENT REPORT (CERTIFICATION) Reviewed by: Quality Manager Test Report S/N: Test Dates: EUT Type: Page 2 of 97 0Y1509141810.A3L 8/3-8/10/2015 Portable Tablet © 2015 PCTEST Engineering Laboratory, Inc. V 3.0 08/10/2015 T A B L E O F C O N T E N T S FCC PART 15.407 MEASUREMENT REPORT .......................................................................................................................................... 3 1.0 INTRODUCTION ........................................................................................................................................................................... 4 1.1 Scope ............................................................................................................................................................................... 4 1.2 PCTEST Test Location ..................................................................................................................................................... 4 2.0 PRODUCT INFORMATION ........................................................................................................................................................... 5 2.1 Equipment Description ..................................................................................................................................................... 5 2.2 Device Capabilities ........................................................................................................................................................... 5 2.3 Test Configuration ............................................................................................................................................................ 5 2.4 EMI Suppression Device(s)/Modifications ......................................................................................................................... 5 3.0 DESCRIPTION OF TESTS ............................................................................................................................................................ 6 3.1 Evaluation Procedure ....................................................................................................................................................... 6 3.2 AC Line Conducted Emissions ......................................................................................................................................... 6 3.3 Radiated Emissions .......................................................................................................................................................... 7 3.4 Environmental Conditions ................................................................................................................................................. 7 4.0 ANTENNA REQUIREMENTS ........................................................................................................................................................ 8 5.0 TEST EQUIPMENT CALIBRATION DATA ..................................................................................................................................... 9 6.0 TEST RESULTS .......................................................................................................................................................................... 10 6.1 Summary ........................................................................................................................................................................ 10 6.2 26dB Bandwidth Measurement – 802.11a/n ................................................................................................................... 11 6.3 6dB Bandwidth Measurement – 802.11a/n ..................................................................................................................... 26 6.4 UNII Output Power Measurement – 802.11a/n .................................................…

Text truncated - open the document above for the full version.

FCC ID: A3LSMT377V FCC Pt. 15.407 DFS TEST REPORT (CERTIFICATION) Reviewed by: Quality Manager Test Report S/N: Test Dates: EUT Type: Page 1 of 15 0Y1509141811.A3L 8/3-8/10/2015 Portable Tablet © 2015 PCTEST Engineering Laboratory, Inc. V 3.0 08/10/2015 Company Name: Date of Testing: Samsung Electronics Co., Ltd. 8/3-8/10/2015 129, Samsung-ro, Test Site/Location: Yeongtong-gu, Suwon-si PCTEST Lab. Columbia, MD, USA Gyeonggi-do, 16677, Korea Test Report Serial No.: 0Y1509141811.A3L FCC ID: A3LSMT377V COMPANY: Samsung Electronics Co., Ltd. Model(s): SM-T377V EUT Type: Portable Tablet Type of Device: Client Only Device, No Radar Detection Capability Frequency Range: 5260 – 5320 MHz (UNII-2A Band) 5500 – 5720 MHz (UNII-2C Band) Output Power: 13.964 mW (11.45 dBm) Conducted (802.11n UNII Band 2A) 14.093 mW (11.49 dBm) Conducted (802.11n UNII Band 2C) FCC Classification: Unlicensed National Information Infrastructure (UNII) FCC Rule Part(s): Part 15.407(UNII) Test Procedure(s): KDB 905462 D02 v01r02 This equipment has been shown to be capable of compliance with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in KDB 905462 D02 v01r02 Compliance Measurement Procedures for Unlicensed-National Information Infrastructure Devices Operating in the 5.25 – 5.35 GHz and 5.47 – 5.725 GHz Bands Incorporating Dynamic Frequency Selection. Test results reported herein relate only to the item(s) tested. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. PCTEST ENGINEERING LABORATORY, INC. 7185 Oakland Mills Road, Columbia, MD 21045 USA Tel. 410.290.6652 / Fax 410.290.6654 http://www.pctestlab.com MEASUREMENT REPORT FCC PART 15.407 DFS FCC ID: A3LSMT377V FCC Pt. 15.407 DFS TEST REPORT (CERTIFICATION) Reviewed by: Quality Manager Test Report S/N: Test Dates: EUT Type: Page 2 of 15 0Y1509141811.A3L 8/3-8/10/2015 Portable Tablet © 2015 PCTEST Engineering Laboratory, Inc. V 3.0 08/10/2015 T A B L E O F C O N T E N T S FCC PART 15.407 MEASUREMENT REPORT .................................................................................................. 3 1.0 INTRODUCTION ...................................................................................................................................... 4 1.1 Scope ............................................................................................................................................................. 4 1.2 Evaluation Procedure ..................................................................................................................................... 4 1.3 Summary of Test Results ............................................................................................................................... 4 2.0 PRODUCT INFORMATION ..................................................................................................................... 5 2.1 Equipment Description ................................................................................................................................... 5 2.2 EUT Capabilities............................................................................................................................................. 5 2.3 Modifications .................................................................................................................................................. 5 3.0 DESCRIPTION OF DYNAMIC FREQUENCY SELECTION TEST ......................................................... 6 3.1 Applicability .................................................................................................................................................... 6 3.2 Requirements ................................................................................................................................................. 6 3.3 DFS Detection Threshold Values ................................................................................................................... 8 3.4 Parameters of DFS Test Signals .................................................................................................................... 8 3.5 Procedure ....................................................................................................................................................... 9 4.0 TEST EQUIPMENT ................................................................................................................................10 4.1 Additional Equipment ................................................................................................................................... 10 5.0 TEST RESULTS ....................................................................................................................................11 6.0 CONCLUSION .......................................................................................................................................15 FCC ID: A3LSMT377V FCC Pt. 15.407 DFS TEST REPORT (CERTIFICATION) Reviewed by: Quality Manager Test Report S/N: Test Dates: EUT Type: Page 3 of 15 0Y1509141811.A3L 8/3-8/10/2015 Portable Tablet © 2015 PCTEST Engineering Laboratory, Inc. V 3.0 08/10/2015 DFS MEASUREMENT REPORT FCC Part 15.407 § 2.1033 General Information APPLICANT: Samsung Electronics Co., Ltd. APPLICANT ADDRESS: 129, Samsung-ro, Yeongtong-gu, Suwon-si, Gyeonggi-do, 16677, Korea TEST SITE: PCTEST ENGINEERING LABORATORY, INC. TEST SITE ADDRESS: 7185 Oakland Mills Road, Columbia, MD 21046 USA FCC RULE PART(S): Part 15.407(h) BASE MODEL: SM-T377V FCC ID: A3LSMT377V Test Device Serial No.: 353608070008258 Production Pre-Production Engineering DEVICE CLASSIFICATION: Client Only, No Radar Detection…

Text truncated - open the document above for the full version.

Samsung Electronics Co., Ltd. FCC ID: A3LSMT377V Model: SM-T377V Test Set-Up Photos EUT Type: Portable Tablet Page 1 of 3 © 2015 PCTEST Engineering Laboratory, Inc. V 3.0 08/10/2015 T E S T S E T U P P H O T O G R A PH S Samsung Electronics Co., Ltd. FCC ID: A3LSMT377V Model: SM-T377V Test Set-Up Photos EUT Type: Portable Tablet Page 2 of 3 © 2015 PCTEST Engineering Laboratory, Inc. V 3.0 08/10/2015 Samsung Electronics Co., Ltd. FCC ID: A3LSMT377V Model: SM-T377V Test Set-Up Photos EUT Type: Portable Tablet Page 3 of 3 © 2015 PCTEST Engineering Laboratory, Inc. V 3.0 08/10/2015

FCC ID: A3LSMT377V SAR EVALUATION REPORT Reviewed by: Quality Manager Test Dates: DUT Type: APPENDIX F: Page 1 of 5 08/03/15 - 08/07/15 & 10/28/15 - 11/03/15 Portable Tablet © 2015 PCTEST Engineering Laboratory, Inc. REV 15.0 M 01/27/2015 A P P E N D I X F : D U T A N T E N N A D I A G RA M & SA R T E S T S E T U P P H O T O G R A P H S  FCC ID: A3LSMT377V SAR EVALUATION REPORT Reviewed by: Quality Manager Test Dates: DUT Type: APPENDIX F: Page 2 of 5 08/03/15 - 08/07/15 & 10/28/15 - 11/03/15 Portable Tablet © 2015 PCTEST Engineering Laboratory, Inc. REV 15.0 M 01/27/2015 Note: Exact antenna dimensions and separation distances are shown in the Technical Descriptions in the FCC Filing. Figure F-1 DUT Antenna Locations Top Left Bottom 126.1 mm 212.1 mm Right Front of Device 1 2 1.WLAN/BT/ANT+ Ant •2.4/5 GHz WLAN Tx/Rx •2.4 GHz Bluetooth Tx/Rx •ANT+ Tx/Rx 2.PCB Ant •UMTS 850/1900 MHz Tx/Rx •LTE B13/5/4/2 Tx/Rx 3.GPS Rx Only 4.PCB Ant •UMTS 850/1900 MHz Rx Only •LTE B13/5/4/2 Rx Only 3 4 FCC ID: A3LSMT377V SAR EVALUATION REPORT Reviewed by: Quality Manager Test Dates: DUT Type: APPENDIX F: Page 3 of 5 08/03/15 - 08/07/15 & 10/28/15 - 11/03/15 Portable Tablet © 2015 PCTEST Engineering Laboratory, Inc. REV 15.0 M 01/27/2015 SAR Test Setup Photo 1: Back Side at 1.9 cm SAR Test Setup Photo 2: Back Side at 0.0 cm FCC ID: A3LSMT377V SAR EVALUATION REPORT Reviewed by: Quality Manager Test Dates: DUT Type: APPENDIX F: Page 4 of 5 08/03/15 - 08/07/15 & 10/28/15 - 11/03/15 Portable Tablet © 2015 PCTEST Engineering Laboratory, Inc. REV 15.0 M 01/27/2015 SAR Test Setup Photo 3: Top Edge at 1.4 cm SAR Test Setup Photo 4: Top Edge at 0.0 cm FCC ID: A3LSMT377V SAR EVALUATION REPORT Reviewed by: Quality Manager Test Dates: DUT Type: APPENDIX F: Page 5 of 5 08/03/15 - 08/07/15 &…

Text truncated - open the document above for the full version.
