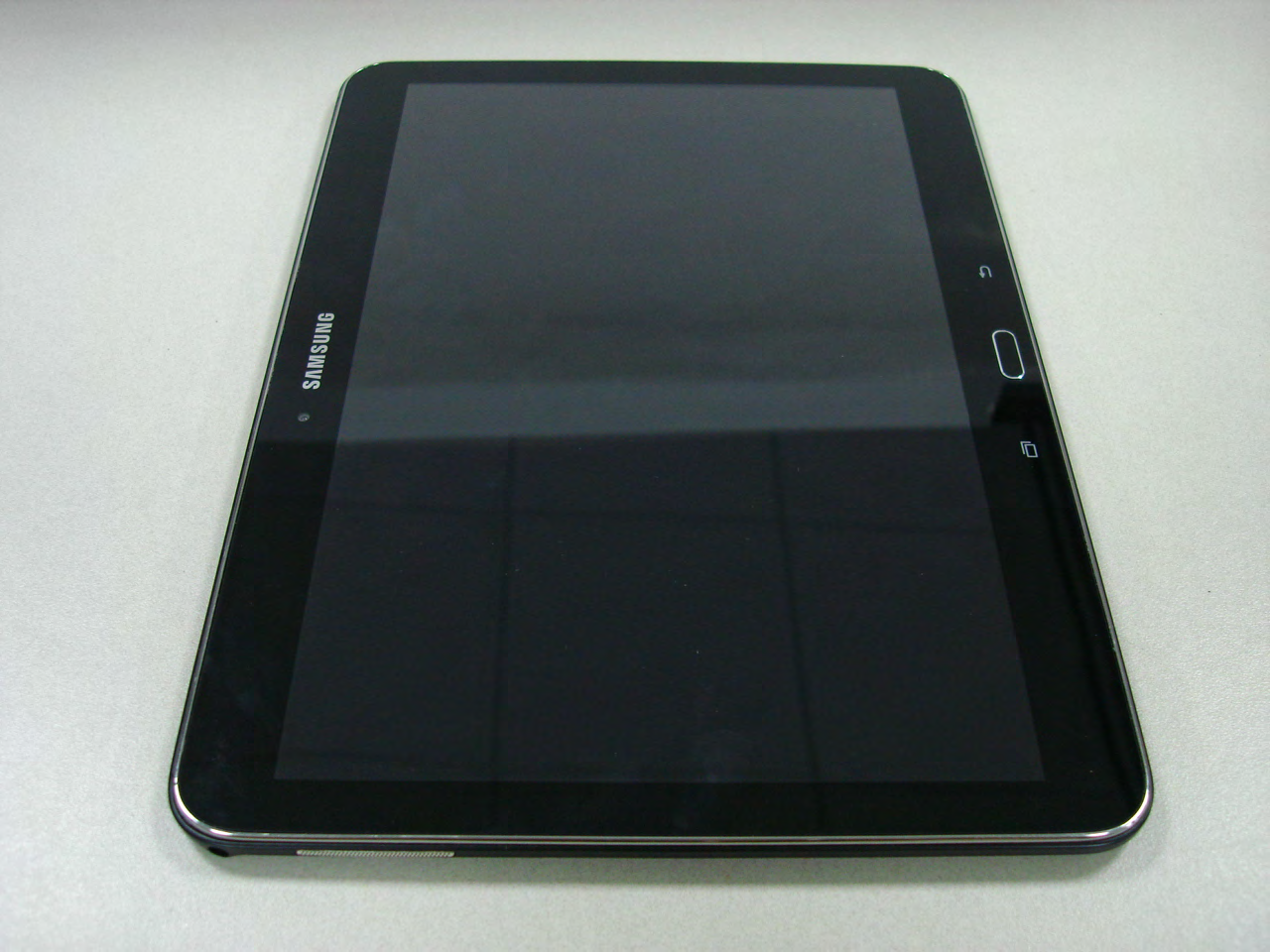

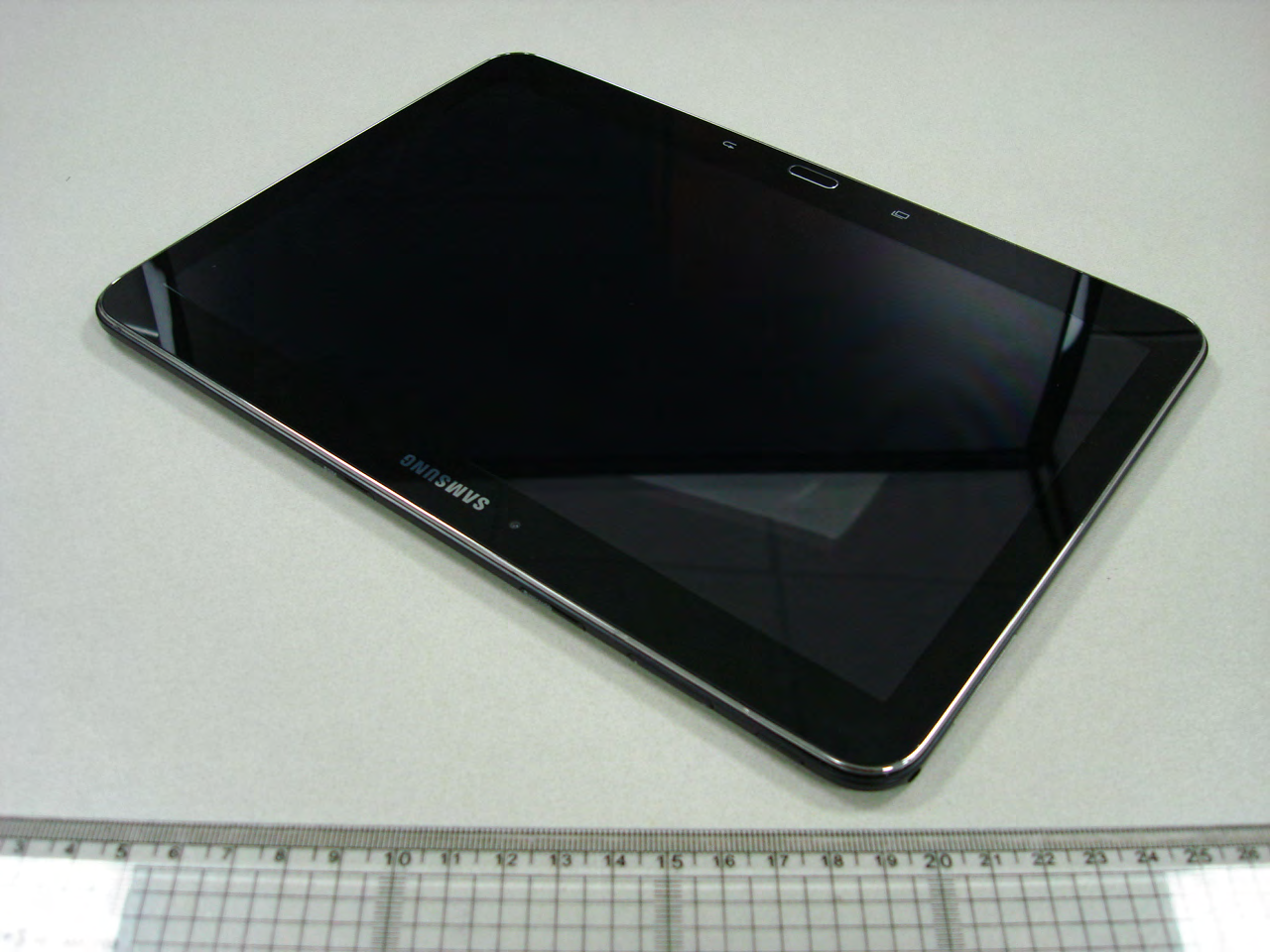

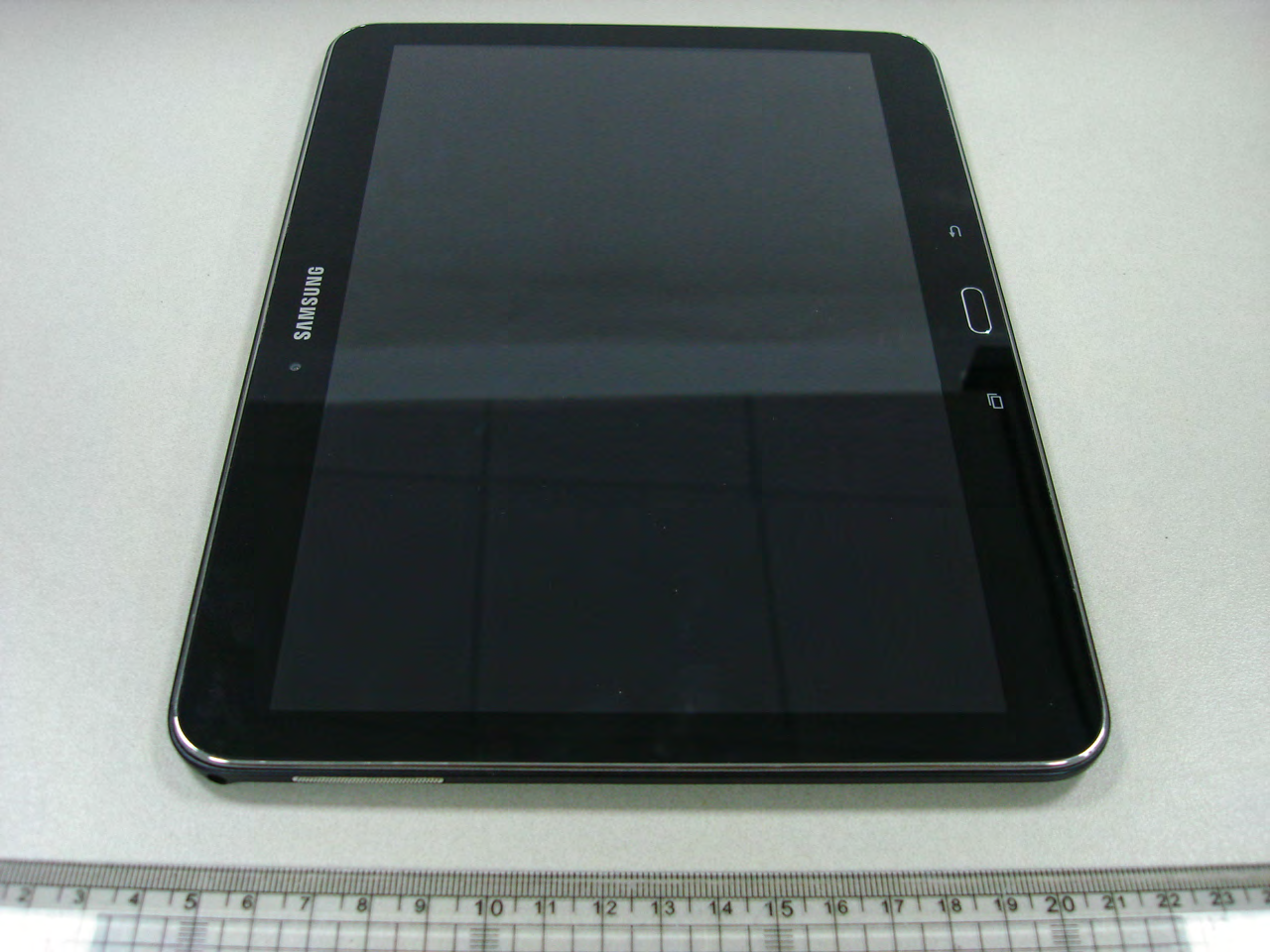

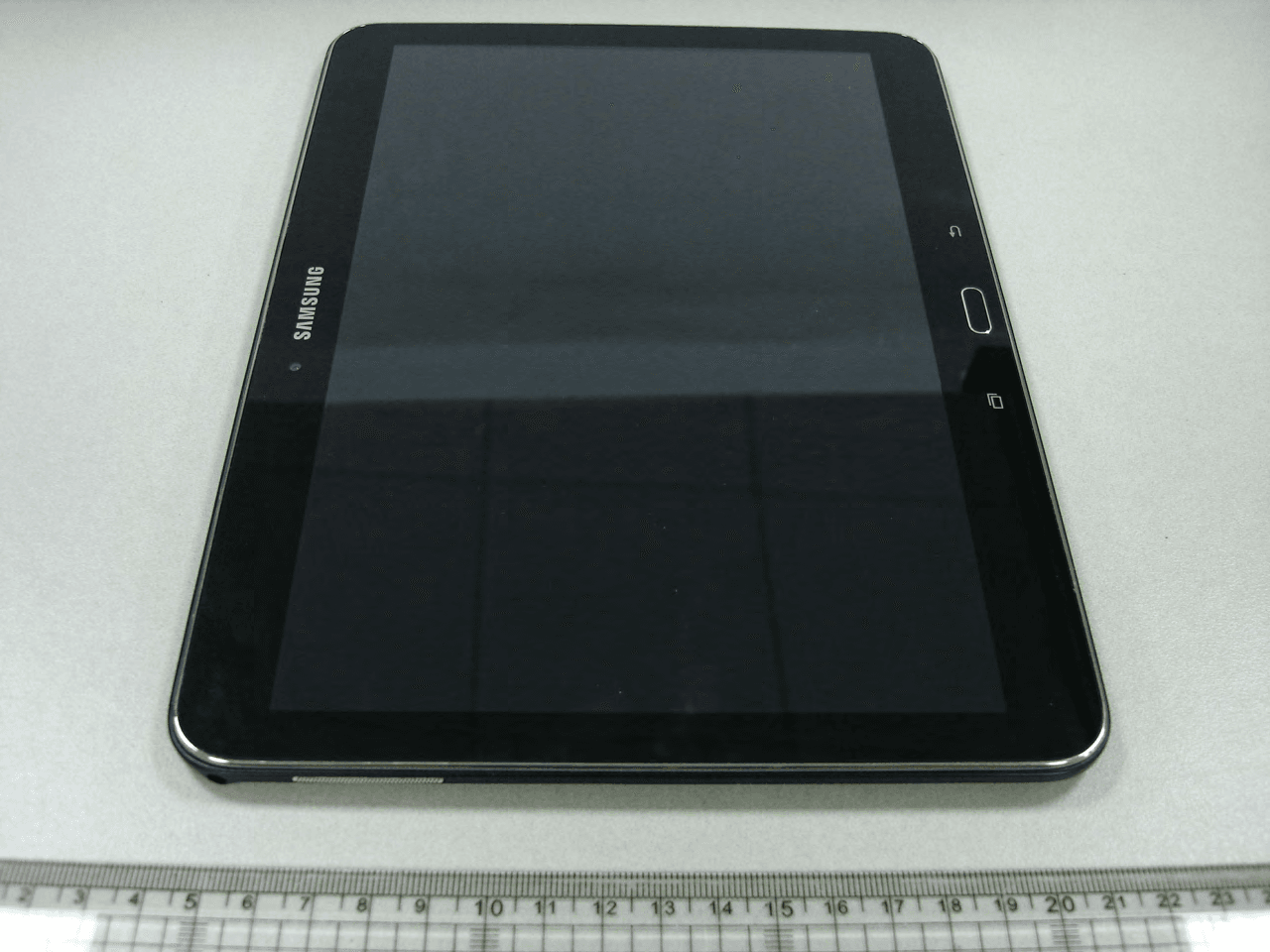

A3LSMT530NNPortable Tablet with WLAN, Bluetooth, RFID and ANT+

User manual SM-T530NN Draft 6.1 2 013-10-23 O nly for Approval This device is capable of operating in 802.11a/n mode. For 802.11a/ndevices operating in the frequency range of5.15 - 5.25 GHz, they are restricted for indooroperations to reduce any potential harmful interference for MobileSatellite Services (MSS) in the US. WIFI Access Points that are capable of allowing your device to operate in 802.11a/n/ac mode (5.15 - 5.25 GHz band) are optimized for indoor use only. If your WIFI network is capable of operating in this mode, please restrict your WIFIuse indoors to not violate federal regulations to protect Mobile Satellite Services. using this manual This user manual has been specially designed to guide you through the functions and features of your mobile Device. To get started quickly, refer to “introducing your mobile Device, Instructional icons Before you start, familiarise yourself with the icons you will see in this manual: Warning—situations that could cause injury to yourself or others Caution—situations that could cause damage to your Device or other equipment Note—notes, usage tips, or additional information Refer to—pages with related information; for example: p. 12 (represents “see page 12”) Õ Followed by—the order of options or menus you must select to perform a step; for example: In Menu mode, select Messages Õ Create new message (represents Messages, followed by Create new message) Copyright information Rights to all technologies and products that comprise this device are the property of their respective owners: Bluetooth ® is a registered trademark of the Bluetooth SIG, Inc. worldwide Java™ is a trademark of Sun Microsystems, Inc. Windows Media Player ® is a registered trademark of Microsoft Corporation. contents safety and usage information Safety warnings Safety precautions Important usage information introducing your mobile Device Unpack .. Device layout Keys Display Icons assembling and preparing your mobile Device Install the battery Charge the battery using basic functions Turn your Device on and off Access menus Customise your Device Use basic call functions Send and view messages Add and find contacts troubleshooting safety and usage information Comply with the following precautions to avoid dangerous or illegal situations and ensure peak performance of your mobile Device. Safety warnings Keep your Device away from small children and pets Keep your Device and all accessories out of the reach of small children or animals. Small parts may cause choking or serious injury if swallowed. Protect your hearing Excessive exposure to sound at high volumes can cause hearing damage. Always turn the volume down before plugging the earphones into an audio source and use only the minimum volume setting necessary to hear your conversation or music. Install mobile device and equipment with caution Ensure that any mobile devices or related equipment installed in your vehicle are s ecurely mounted. Avoid placing your Device and accessories near or in an air bag deployment area. Improperly installed wireless equipment can cause serious injury when air bags inflate rapidly. Handle and dispose of batteries and chargers with care  Use only Samsung-approved batteries and chargers specifically designed for your Device. Incompatible batteries and chargers can cause serious injuries or damage to your Device.  Never dispose of batteries or Mobile Devices in a fire. Follow all local regulations when disposing used batteries or MobileDevices.  Never place batteries or Mobile Devices on or in heating devices, such as m icrowave ovens, stoves, or radiators. Batteries may explode when overheated. Never crush or puncture the battery. Avoid exposing the battery to high external pressure, which can lead to an internal short circuit and overheating. Avoid interference with pacemakers Maintain a minimum of 15 cm (6 inches) between mobile devices and pacemakers to avoid potential interference, as recommended by manufacturers and the independent research group, Wireless Technology Researc h. If you have any reason to suspect that your Device is interfering with a pacemaker or other medical device, turn off the Device immediately and contact the manufacturer of the pacemaker or medical device for guidance. Turn off the Device in potentially explosive environments Do not use your Device at refuelling points (service stations) or near fuels or chemicals. Turn off your Device whenever directed by warning signs or instructions. Your Device could cause explosions or fire in and around fuel or chemical storage and transfer areas or blasting areas. Do not store or carry flammable liquids, gases, or explosive materials in the same compartment as the Device, its parts, or accessories. Reduce the risk of repetitive motion injuries When sending text messages or playing games on your Device, hold the Device with a relaxed grip, press the keys lightly, use special features that reduce the number of keys you have to press (such as templates and predictive text), and take frequent breaks. Safety precautions Drive safely at all times Avoid using your Device while driving and obey all regulations that restrict the use of mobile devices while driving. Use hands-free accessories to increase your safety when possible. Follow all safety warnings and regulations Comply with any regulations that restrict the use of a mobile Device in a certain area. Use only Samsung-approved accessories Using incompatible accessories may damage your Device or cause injury. Turn off the Device near medical equipment Your Device can interfere with medical equipment in hospitals or health care facilities. Follow all regulations, posted warnings, and directions from medical personnel. Turn off the Device or disable the wireless functions when in an aircraft Your Device can cause interference with aircraft equipment. Follow all airline regulations and turn off your Device or switch to a mode that disables the wireless functions when directe…

Text truncated - open the document above for the full version.

Samsung Electronics America, Inc 19 Chapin Rd, Building D. Pine Brook, NJ 07058 Date: March 14, 2014 FCC ID: A3LSMT530NN To whom it may concern: We, the undersigned, hereby authorize PCTEST Engineering Laboratory Inc., to act on our behalf in all matters relating to applications for equipment authorization, including the signing of all documents relating to these matters. Any and all acts carried out by PCTEST Engineering Laboratory, Inc. on our behalf shall have the same effect as acts of our own. We also hereby certify that no party to any application is subject to a denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S. C. 862. Sincerely, Signature Sang Kyung (Peter), Ra General Manager Samsung Electronics America, Inc

FEB 25,2014 SAMSUNG ELECTRONICS CO., LTD 416,Maetan-3dong,Yeongtong-gu Suwon-si,Gyeonggi-do, 443-742 Korea Federal Communicatio ns Commission 7435 Oakland Mills Roaad Columbia, MD 21046 SUBJECT : Label Statement FCC ID : A3LSMT530NN Gentlemen: We hereby provide the label statement letter for the above-mentioned device by a new label statement policy instituted at the September 12, 2006, TCB-FCC Teleconference. The label statement is as follows: The FCC ID shown in the FCC ID label page will be readily visible at the time of purchase because the FCC ID will be engraved on the exterior of the device. This statement could not be included in the label. So we inf orm you of it through this letter. Should you have any questions or comments concerning the above, please contact the undersigned. Sincerely Yours, Seoung Ho Park Senior Manager SAMSUNG ELECTRONICS CO., LTD Telecommunicati on Netw ork Business Mobile Communicati on Division Regulatory Compliance Group.

SAMSUNG ELECTRONICS AMERICA, INC. American QA Lab 19 Chapin Rd, Building D. Pine Brook, NJ 07058 Date: March 14, 2014 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road, Columbia, MD 21046 RE: Request of Confidentiality for FCC ID: A3LSMT530NN To Whom It May Concern: Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules (CFR 47), and Section 552 (b) (4) of the Freedom of Information Act, SAMSUNG ELECTRONICS CO.,LTD. hereby requests confidentiality and treatment of certain information accompanying this application. The materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. We are also hereby request Short-Term Confidentiality for 180 days after the grant as outlined in Public Notice DA 04-1705. This provision will give SAMSUNG ELECTRONICS CO.,LTD. temporary confidentiality of commercially sensitive information prior to product release. The requested Permanent and Short-Term Confidential exhibits are listed as follows: PERMANENT AND SHORT-TERM CONFIDENTIAL LIST Exhibit Description PERMANENT 1 Block Diagram 2 Operational Description 3 Schematics SHORT-TERM 4 External Photos 5 Internal Photos 6 Test-Setup Photos 7 Users Manual The Applicant understands that pursuant to Rule 0.457, disclosure of this application and all accompanying documentations, where applicable, will not be made public before the date of the Grant for this application. Sincerely, Peter Ra General Manager American QA Lab SAMSUNG Electronics America INC.

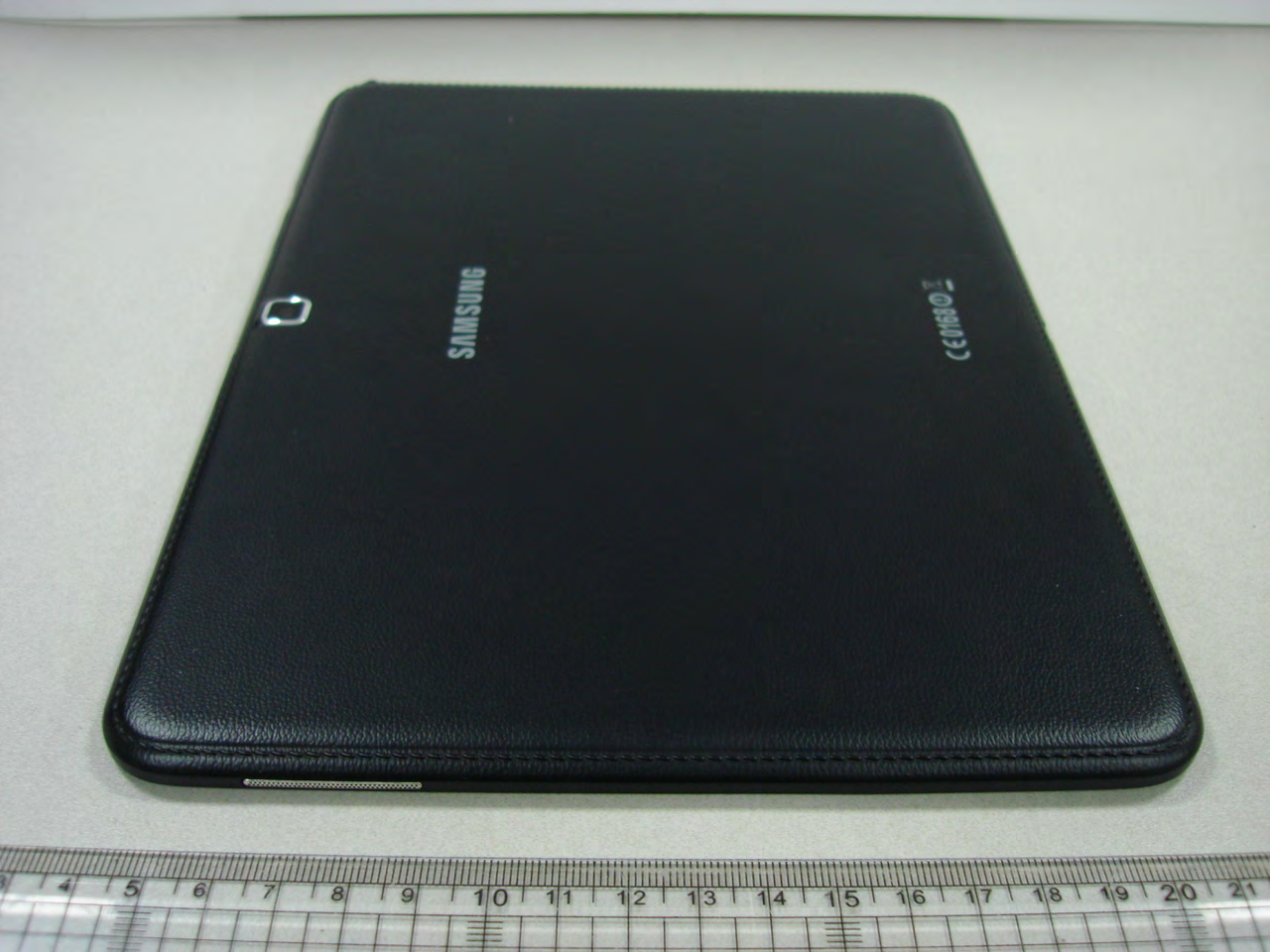

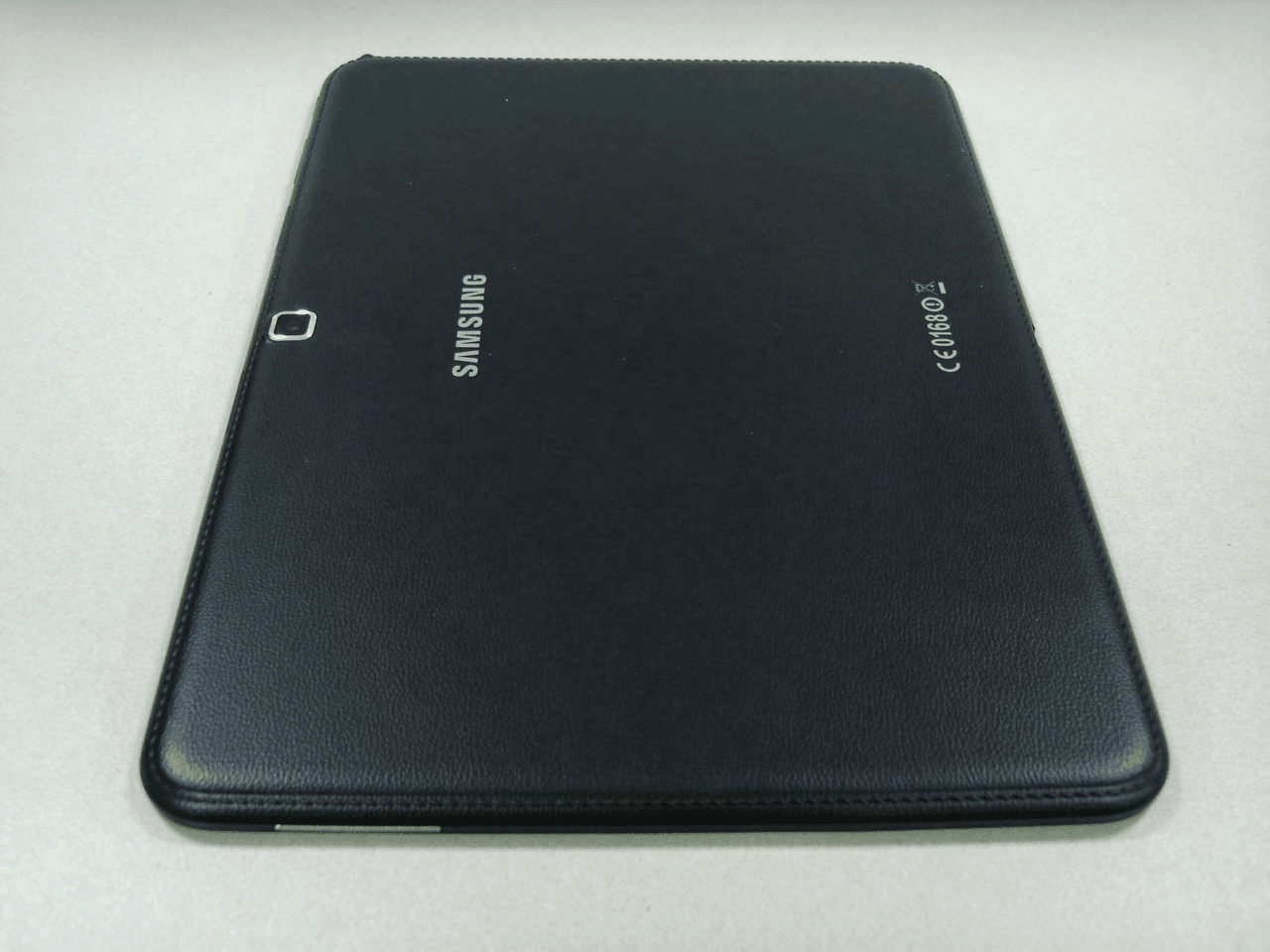

Samsung EUT Model :SM-T530NN FCC ID : A3LSMT530NN Label and Location FCC ID is printed on bottom of the EUT Location

FCC ID: A3LSMT530NN SAR EVALUATION REPORT Reviewed by: Quality Manager Document S/N: Test Dates: DUT Type: Page 1 of 25 0Y1402260510.A3L 01/15/14 - 01/21/14 Portable Tablet © 2014 PCTEST Engineering Laboratory, Inc. REV 13.0 M 12/04/2013 Applicant Name: Date of Testing: Samsung Electronics, Co. Ltd. 01/15/14 - 01/21/14 129, Samsung-ro, Maetan dong, Test Site/Location: Yeongtong-gu, Suwon-si PCTEST Lab, Columbia, MD, USA Gyeonggi-do 443-742, Korea Document Serial No.: 0Y1402260510.A3L FCC ID: A3LSMT530NN APPLICANT: SAMSUNG ELECTRONICS, CO. LTD. DUT Type: Portable Tablet Application Type: Certification FCC Rule Part(s): CFR §2.1093 Model(s): SM-T530NN SAR 1 gm Body (W/kg) DTS2.4 GHz WLAN2412 - 2462 MHz 0.66 DTS5.8 GHz WLAN5745 - 5825 MHz1.07 DTSBluetooth LE2402 - 2480 MHzN/ A NII5.2 GHz WLAN5180 - 5240 MHz0.57 NII5.3 GHz WLAN5260 - 5320 MHz0.81 NII5.5 GHz WLAN5500 - 5700 MHz0.95 DSSBluetooth2402 - 2480 MHz0.22 Band & ModeTx Frequency Equipment Class This wireless portable device has been shown to be capable of compliance for localized specific absorption rate (SAR) for uncontrolled environment/general population exposure limits specified in ANSI/IEEE C95.1-1992 and has been tested in accordance with the measurement procedures specified in Section 1.8 of this report; for North American frequency bands only. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. Test results reported herein relate only to the item(s) tested. PCTEST ENGINEERING LABORATORY, INC. 7185 Oakland Mills Road, Columbia, MD 21046 USA Tel. +1.410.290.6652 / Fax +1.410.290.6654 http://www.pctestlab.com SAR EVALUATION REPORT FCC ID: A3LSMT530NN SAR EVALUATION REPORT Reviewed by: Quality Manager Document S/N: Test Dates: DUT Type: Page 2 of 25 0Y1402260510.A3L 01/15/14 - 01/21/14 Portable Tablet © 2014 PCTEST Engineering Laboratory, Inc. REV 13.0 M 12/04/2013 TABLE OF CONTENTS 1 DEVICE UNDER TEST ................................................................................................................... 3 2 INTRODUCTION ............................................................................................................................. 6 3 DOSIMETRIC ASSESSMENT ........................................................................................................ 7 4 SAR TESTING PROCEDURES ...................................................................................................... 8 5 RF EXPOSURE LIMITS .................................................................................................................. 9 6 FCC MEASUREMENT PROCEDURES ........................................................................................ 10 7 RF CONDUCTED POWERS ......................................................................................................... 11 8 SYSTEM VERIFICATION .............................................................................................................. 15 9 SAR DATA SUMMARY ................................................................................................................. 17 10 SAR MEASUREMENT VARIABILITY ........................................................................................... 19 11 EQUIPMENT LIST ......................................................................................................................... 20 12 MEASUREMENT UNCERTAINTIES ............................................................................................ 21 13 CONCLUSION ............................................................................................................................... 23 14 REFERENCES .............................................................................................................................. 24 APPENDIX A: SAR TEST PLOTS APPENDIX B: SAR DIPOLE VERIFICATION PLOTS APPENDIX C: PROBE AND DIPOLE CALIBRATION CERTIFICATES APPENDIX D: SAR TISSUE SPECIFICATIONS APPENDIX E: SAR SYSTEM VALIDATION APPENDIX F: SAR TEST SETUP PHOTOGRAPHS FCC ID: A3LSMT530NN SAR EVALUATION REPORT Reviewed by: Quality Manager Document S/N: Test Dates: DUT Type: Page 3 of 25 0Y1402260510.A3L 01/15/14 - 01/21/14 Portable Tablet © 2014 PCTEST Engineering Laboratory, Inc. REV 13.0 M 12/04/2013 1 DEVICE UNDER TEST 1.1 Device Overview 2.4 GHz WLANData2412 - 2462 MHz 5.8 GHz WLANData5745 - 5825 MHz Bluetooth LEData2402 - 2480 MHz 5.2 GHz WLANData5180 - 5240 MHz 5.3 GHz WLANData5260 - 5320 MHz 5.5 GHz WLANData5500 - 5700 MHz BluetoothData2402 - 2480 MHz NFCData13.56 MHz ANT+Data2402 - 2480 MHz Band & ModeTx FrequencyOperating Modes 1.2 Nominal and Maximum Output Power Specifications This device operates using the following maximum and nominal output power specifications. SAR values were scaled to the maximum allowed power to determine compliance per KDB Publication 447498 D01v05. Maximum Nominal Maximum Nominal Maximum Nominal Maximum Nominal Maximum Nominal Maximum Nominal Maximum Nominal Maximum Nominal Bluetooth LE 2.0 1.5 IEEE 802.11n (5 GHz) (20 MHz BW) 9.5 Bluetooth 9.5 9.0 9.0 IEEE 802.11n (5 GHz) (40 MHz BW) 9.5 9.0 IEEE 802.11a (5 GHz) 9.5 13.0 12.0 11.0 9.0 12.5 IEEE 802.11n (2.4 GHz) 11.5 Modulated Average (dBm) IEEE 802.11b (2.4 GHz) 13.5 IEEE 802.11g (2.4 GHz) Mode / Band FCC ID: A3LSMT530NN SAR EVALUATION REPORT Reviewed by: Quality Manager Document S/N: Test Dates: DUT Type: Page 4 of 25 0Y1402260510.A3L 01/15/14 - 01/21/14 Portable Tablet © 2014 PCTEST Engineering Laboratory, Inc. REV 13.0 M 12/04/2013 1.3 DUT Antenna Locations Top Edge Left Edge Bottom Edge 2.4 GHz WIFI/BT Tx/Rx 5 GHz WIFI Tx/Rx GPS Rx only Antenna 243 mm 176 mm Right Edge Front of Device 287 mm Note: Exact antenna dimensions and separation distances are shown in the Technical Descriptions in th…

Text truncated - open the document above for the full version.

FCC ID: A3LSMT530NN FCC Pt. 15.407 802.11a/n UNII MEASUREMENT REPORT (CERTIFICATION) Reviewed by: Quality Manager Test Report S/N: Test Dates: EUT Type: Page 1 of 79 0Y1402260512.A3L 1/15 - 1/19/2014 Portable Tablet © 2014 PCTEST Engineering Laboratory, Inc. V 2.3 05/07/2013 Applicant Name: Date of Testing: Samsung Electronics, Co. Ltd. 1/15 - 1/19/2014 129, Samsung-ro, Maetan dong, Test Site/Location: Yeongtong-gu, Suwon-si PCTEST Lab, Columbia, MD, USA Gyeonggi-do 443-742, Korea Test Report Serial No.: 0Y1402260512.A3L FCC ID: A3LSMT530NN APPLICANT: Samsung Electronics, Co. Ltd. Application Type: Certification Model(s): SM-T530NN EUT Type: Portable Tablet FCC Classification: Unlicensed National Information Infrastructure (UNII) FCC Rule Part(s): Part 15.407 Test Procedure(s): KDB 789033 v01r03, KDB 644545 v01r01 Max. Power (mW) Max. Power (dBm) 1205180 - 52408.7109.40 2A205260 - 53206.9828.44 2C205500 - 57008.8729.48 1205180 - 52408.8729.48 2A205260 - 53206.5018.13 2C205500 - 57008.9139.50 1405190 - 52308.0919.08 2A405270 - 53107.0638.49 2C405510 - 56708.8929.49 802.11n Channel Bandwidth (MHz) 802.11a 802.11n Conducted Power Mode Tx Frequency (MHz) UNII Band This equipment has been shown to be capable of compliance with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in KDB 789033 v01r03 and KDB 644545 v01r01. Test results reported herein relate only to the item(s) tested. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. PCTEST ENGINEERING LABORATORY, INC. 7185 Oakland Mills Road, Columbia, MD 21046 USA Tel. 410.290.6652 / Fax 410.290.6654 http://www.pctestlab.com MEASUREMENT REPORT FCC PART 15.407 (UNII) FCC ID: A3LSMT530NN FCC Pt. 15.407 802.11a/n UNII MEASUREMENT REPORT (CERTIFICATION) Reviewed by: Quality Manager Test Report S/N: Test Dates: EUT Type: Page 2 of 79 0Y1402260512.A3L 1/15 - 1/19/2014 Portable Tablet © 2014 PCTEST Engineering Laboratory, Inc. V 2.3 05/07/2013 TABLE OF CONTENTS FCC PART 15.407 MEASUREMENT REPORT .................................................................................................. 3 1.0 INTRODUCTION ...................................................................................................................................... 4 1.1 SCOPE ........................................................................................................................................................... 4 1.2 PCTEST TEST LOCATION ............................................................................................................................ 4 2.0 PRODUCT INFORMATION ..................................................................................................................... 5 2.1 EQUIPMENT DESCRIPTION......................................................................................................................... 5 2.2 DEVICE CAPABILITIES ................................................................................................................................. 5 2.3 TEST CONFIGURATION ............................................................................................................................... 5 2.4 EMI SUPPRESSION DEVICE(S)/MODIFICATIONS ...................................................................................... 5 2.5 LABELING REQUIREMENTS ........................................................................................................................ 5 3.0 DESCRIPTION OF TEST ........................................................................................................................ 6 3.1 EVALUATION PROCEDURE ......................................................................................................................... 6 3.2 AC LINE CONDUCTED EMISSIONS ............................................................................................................. 6 3.3 RADIATED EMISSIONS ................................................................................................................................ 7 4.0 ANTENNA REQUIREMENTS .................................................................................................................. 8 5.0 TEST EQUIPMENT CALIBRATION DATA .............................................................................................. 9 6.0 TEST RESULTS .................................................................................................................................... 10 6.1 SUMMARY ................................................................................................................................................... 10 6.2 26DB BANDWIDTH MEASUREMENT – 802.11A/N .................................................................................... 11 6.3 UNII OUTPUT POWER MEASUREMENT – 802.11A/N .............................................................................. 28 6.4 PEAK POWER SPECTRAL DENSITY – 802.11A/N .................................................................................... 30 6.5 PEAK EXCURSION RATIO – 802.11A/N ..................................................................................................... 45 6.6 FREQUENCY STABILITY ............................................................................................................................ 48 6.7 RADIATED SPURIOUS EMISSION MEASUREMENTS .............................................................................. 51 6.8 RADIATED BAND EDGE MEASUREMENTS (20MHZ BW) ........................................................................ 59 6.9 RADIATED BAND EDGE MEASUREMENTS (40MHZ BW) ....................................................…

Text truncated - open the document above for the full version.

FCC ID: A3LSMT530NN FCC Pt. 15.407 DFS TEST REPORT (CERTIFICATION) Reviewed by: Quality Manager Test Report S/N: Test Dates: EUT Type: Page 1 of 20 0Y1402260513.A3L 1/22/2014 Portable Tablet © 2014 PCTEST Engineering Laboratory, Inc. v2.0 6/17/2013 Company Name: Date of Testing: Samsung Electronics, Co. Ltd. 1/22/2014 129, Samsung-ro, Maetan dong, Test Site/Location: Yeongtong-gu, Suwon-si PCTEST Lab. Columbia, MD, USA Gyeonggi-do 443-742, Korea Test Report Serial No.: 0Y1402260513.A3L FCC ID: A3LSMT530NN APPLICANT: Samsung Electronics, Co. Ltd. Model(s): SM-T530NN EUT Type: Portable Tablet Type of Device: Client Only Device, No Radar Detection Capability Frequency Range: 5260 – 5320 MHz (UNII Band 2A) 5500 – 5700 MHz (UNII Band 2C) Output Power: 6.982 mW (8.44dBm) Conducted (802.11a UNII Band 2A) 8.913 mW (9.50dBm) Conducted (802.11n UNII Band 2C) FCC Classification: Unlicensed National Information Infrastructure (UNII) FCC Rule Part(s): Part 15.407(UNII) This equipment has been shown to be capable of compliance with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in FCC 06-96 Appendix B Compliance Measurement Procedures for Unlicensed-National Information Infrastructure Devices Operating in the 5.25 – 5.35 GHz and 5.47 – 5.725 GHz Bands Incorporating Dynamic Frequency Selection. Test results reported herein relate only to the item(s) tested. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. PCTEST ENGINEERING LABORATORY, INC. 7185 Oakland Mills Road, Columbia, MD 21045 USA Tel. 410.290.6652 / Fax 410.290.6654 http://www.pctestlab.com MEASUREMENT REPORT FCC PART 15.407 FCC ID: A3LSMT530NN FCC Pt. 15.407 DFS TEST REPORT (CERTIFICATION) Reviewed by: Quality Manager Test Report S/N: Test Dates: EUT Type: Page 2 of 20 0Y1402260513.A3L 1/22/2014 Portable Tablet © 2014 PCTEST Engineering Laboratory, Inc. v2.0 6/17/2013 TABLE OF CONTENTS FCC PART 15.407 MEASUREMENT REPORT...................................................................................3 1.0 INTRODUCTION ...................................................................................................................................... 4 1.1 SCOPE ........................................................................................................................................................... 4 1.2 EVALUATION PROCEDURE ......................................................................................................................... 4 1.3 SUMMARY OF TEST RESULTS ................................................................................................................... 4 2.0 PRODUCT INFORMATION ..................................................................................................................... 5 2.1 EQUIPMENT DESCRIPTION......................................................................................................................... 5 2.2 EUT CAPABILITIES ....................................................................................................................................... 5 2.3 MODIFICATIONS ........................................................................................................................................... 5 3.0 DESCRIPTION OF DYNAMIC FREQUENCY SELECTION TEST ......................................................... 6 3.1 APPLICABILITY ............................................................................................................................................. 6 3.2 REQUIREMENTS .......................................................................................................................................... 6 3.3 DFS DETECTION THRESHOLD VALUES .................................................................................................... 8 3.4 PARAMETERS OF DFS TEST SIGNALS ...................................................................................................... 8 3.5 PROCEDURE ................................................................................................................................................ 9 4.0 TEST EQUIPMENT ................................................................................................................................ 11 4.1 ADDITIONAL EQUIPMENT ......................................................................................................................... 11 5.0 TEST PLOTS AND DATA - UNII BAND 2A ........................................................................................... 12 6.0 TEST PLOTS AND DATA - UNII BAND 2C ........................................................................................... 16 7.0 CONCLUSION ....................................................................................................................................... 20 FCC ID: A3LSMT530NN FCC Pt. 15.407 DFS TEST REPORT (CERTIFICATION) Reviewed by: Quality Manager Test Report S/N: Test Dates: EUT Type: Page 3 of 20 0Y1402260513.A3L 1/22/2014 Portable Tablet © 2014 PCTEST Engineering Laboratory, Inc. v2.0 6/17/2013 DFS MEASUREMENT REPORT FCC Part 15.407 § 2.1033 General Information APPLICANT: Samsung Electronics, Co. Ltd. APPLICANT ADDRESS: 129, Samsung-ro, Maetan dong, Yeongtong-gu, Suwon-si, Gyeonggi-do 443-742, Korea TEST SITE: PCTEST ENGINEERING LABORATORY, INC. TEST SITE ADDRESS: 7185 Oakland Mills Road, Columbia, MD 21046 USA FCC RULE PART(S): Part 15.407(h) BASE MODEL: SM-T530NN FCC ID: A3LSMT530NN Test Device Serial No.: R32F100WFLV Production Pre-Production Engineering DEVICE CLASSIFICATION: Client Only, No Radar Detection DATE(S) OF TEST: 1/22/2014 TEST REPORT S/N: 0Y1402260513.A3L…

Text truncated - open the document above for the full version.

Samsung Electronics Co., Ltd FCC ID: A3LSMT530NN Model: SM-T530NN Test Set-Up Photos EUT Type: Portable Tablet Page 1 of 3 © 2014 PCTEST Engineering Laboratory Inc. T E S T S E T U P P H O T O G R A PH S Samsung Electronics Co., Ltd FCC ID: A3LSMT530NN Model: SM-T530NN Test Set-Up Photos EUT Type: Portable Tablet Page 2 of 3 © 2014 PCTEST Engineering Laboratory Inc. Samsung Electronics Co., Ltd FCC ID: A3LSMT530NN Model: SM-T530NN Test Set-Up Photos EUT Type: Portable Tablet Page 3 of 3 © 2014 PCTEST Engineering Laboratory Inc.

FCC ID: A3LSMT530NN SAR EVALUATION REPORT Reviewed by: Quality Manager Test Dates: DUT Type: APPENDIX F: Page 1 of 3 01/15/14 - 01/21/14 Portable Tablet © 2014 PCTEST Engineering Laboratory, Inc. REV 13.0 M 12/04/2013 APPENDIX F: SAR TEST SETUP PHOTOGRAPHS FCC ID: A3LSMT530NN SAR EVALUATION REPORT Reviewed by: Quality Manager Test Dates: DUT Type: APPENDIX F: Page 2 of 3 01/15/14 - 01/21/14 Portable Tablet © 2014 PCTEST Engineering Laboratory, Inc. REV 13.0 M 12/04/2013 SAR Test Setup Photo 1: Back Side at 0.0 cm SAR Test Setup Photo 2: Top Edge at 0.0 cm FCC ID: A3LSMT530NN SAR EVALUATION REPORT Reviewed by: Quality Manager Test Dates: DUT Type: APPENDIX F: Page 3 of 3 01/15/14 - 01/21/14 Portable Tablet © 2014 PCTEST Engineering Laboratory, Inc. REV 13.0 M 12/04/2013 SAR Test Setup Photo 3: Left Edge at 0.0 cm
