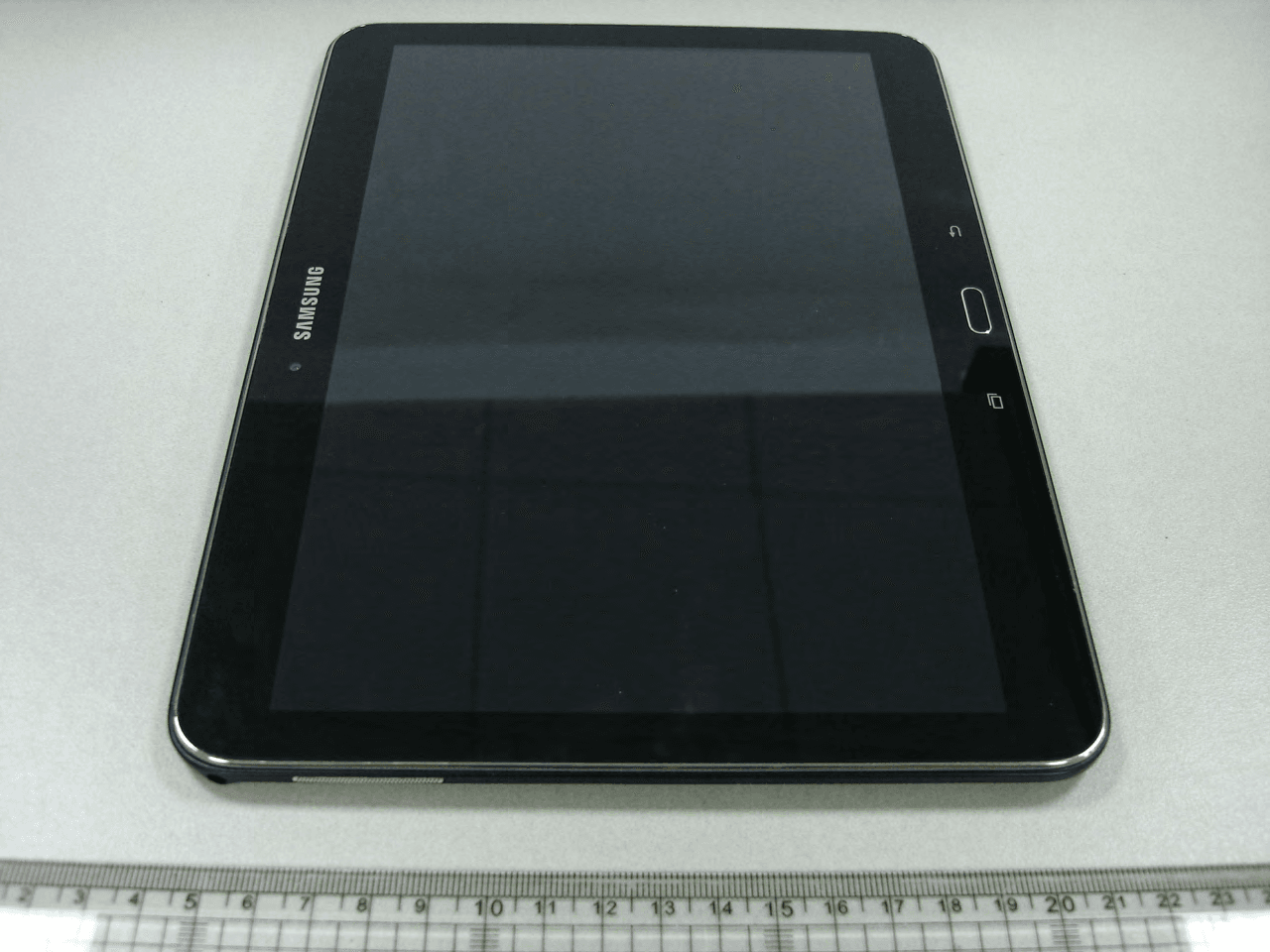

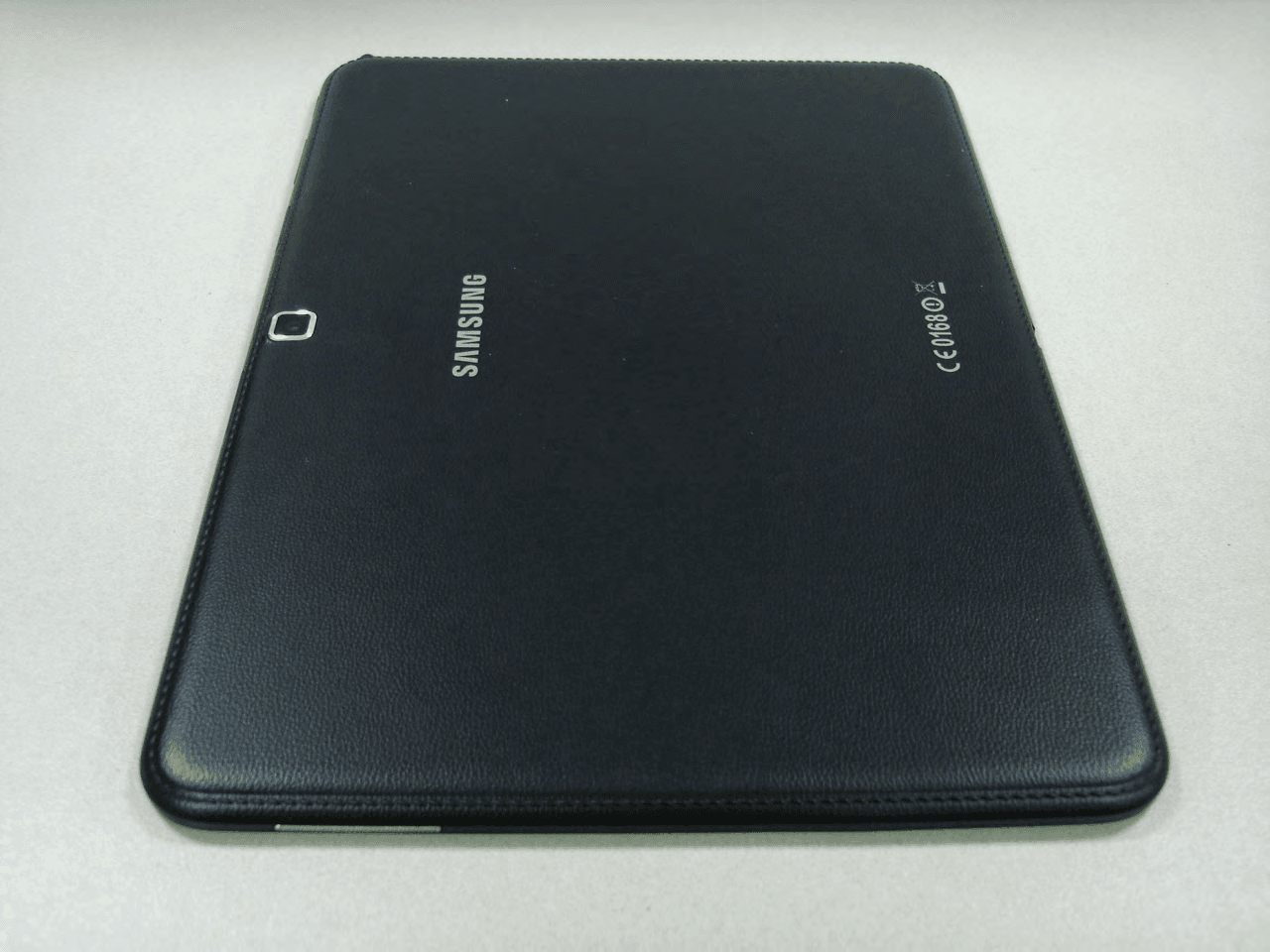

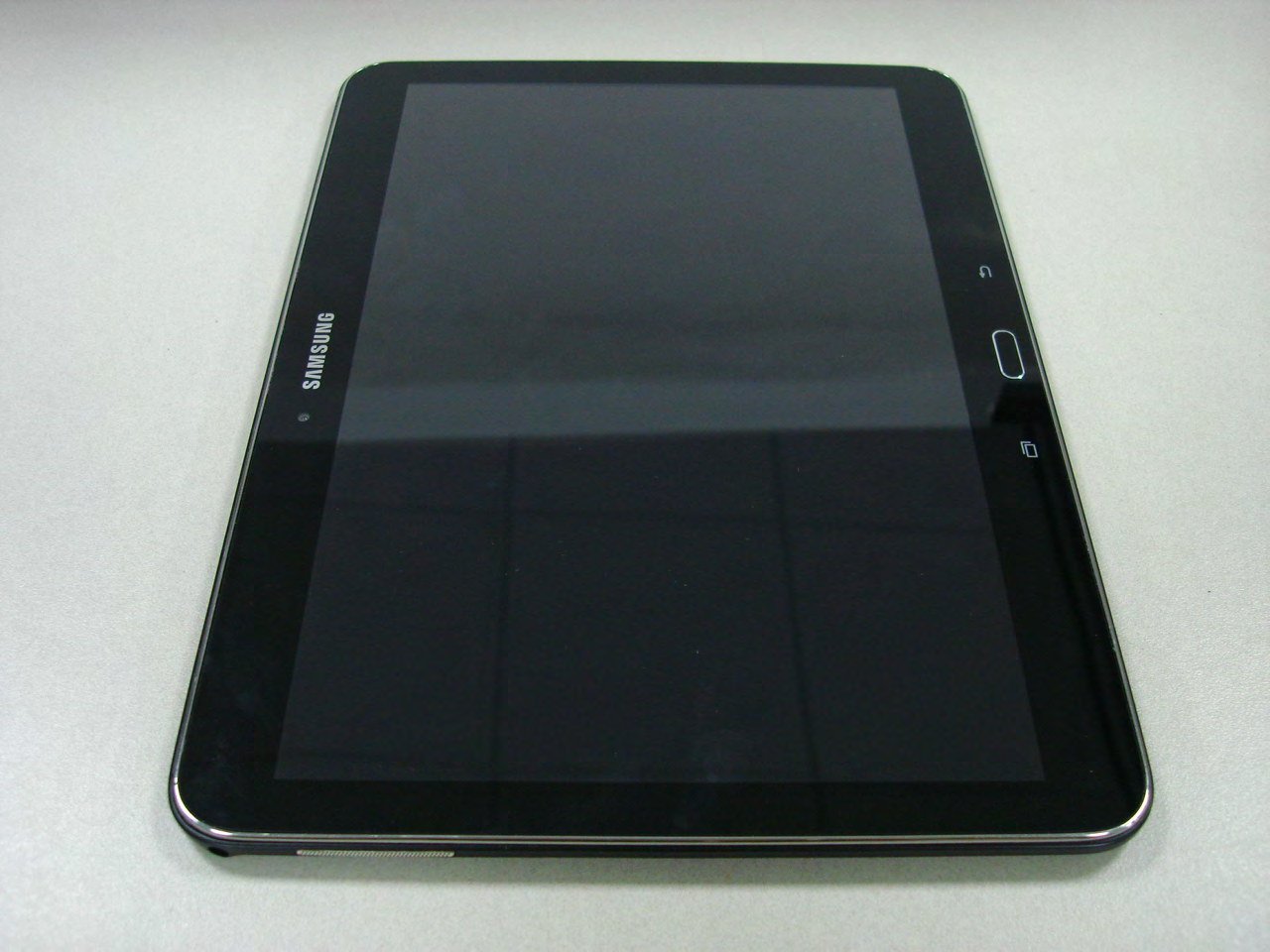

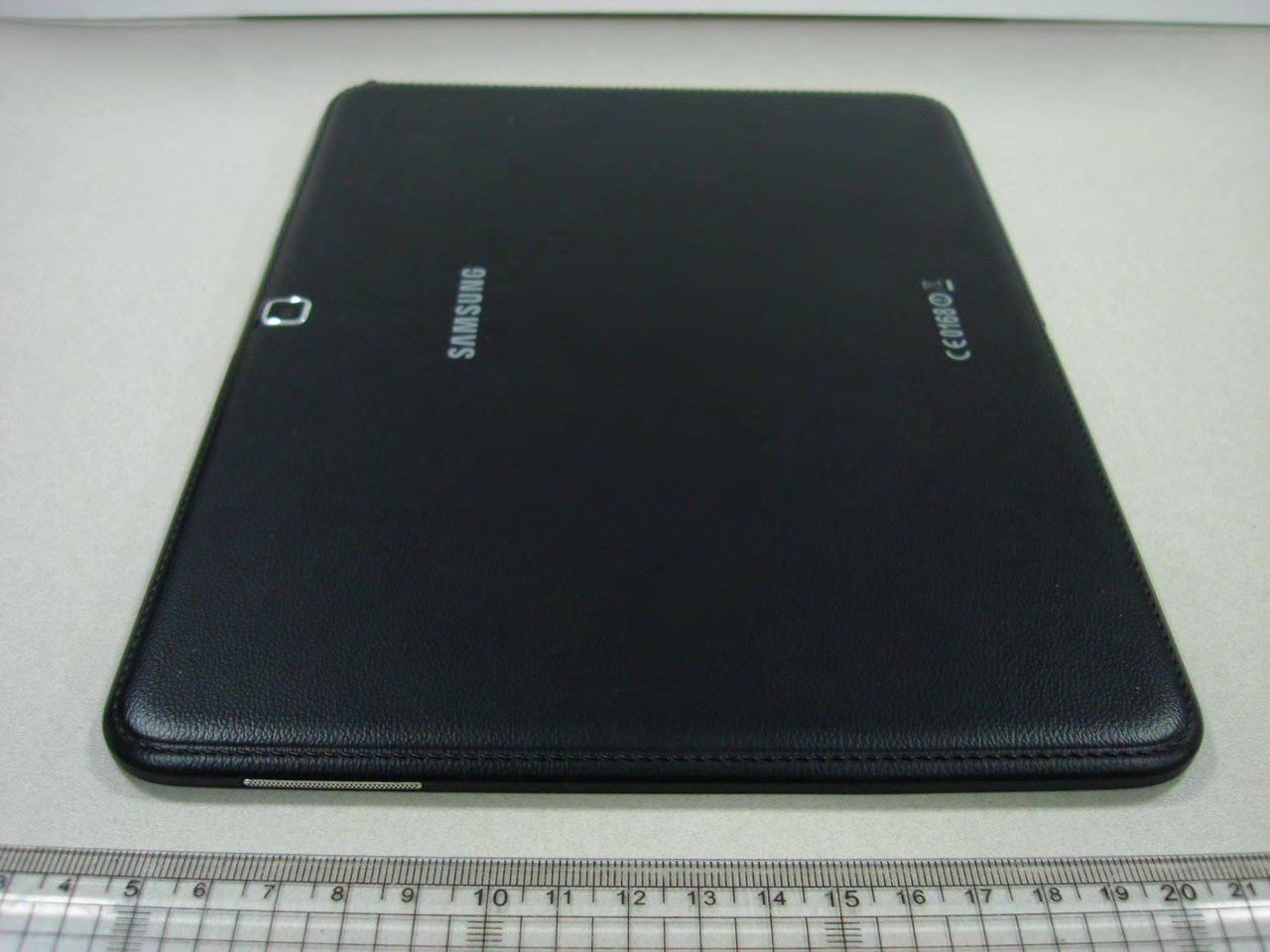

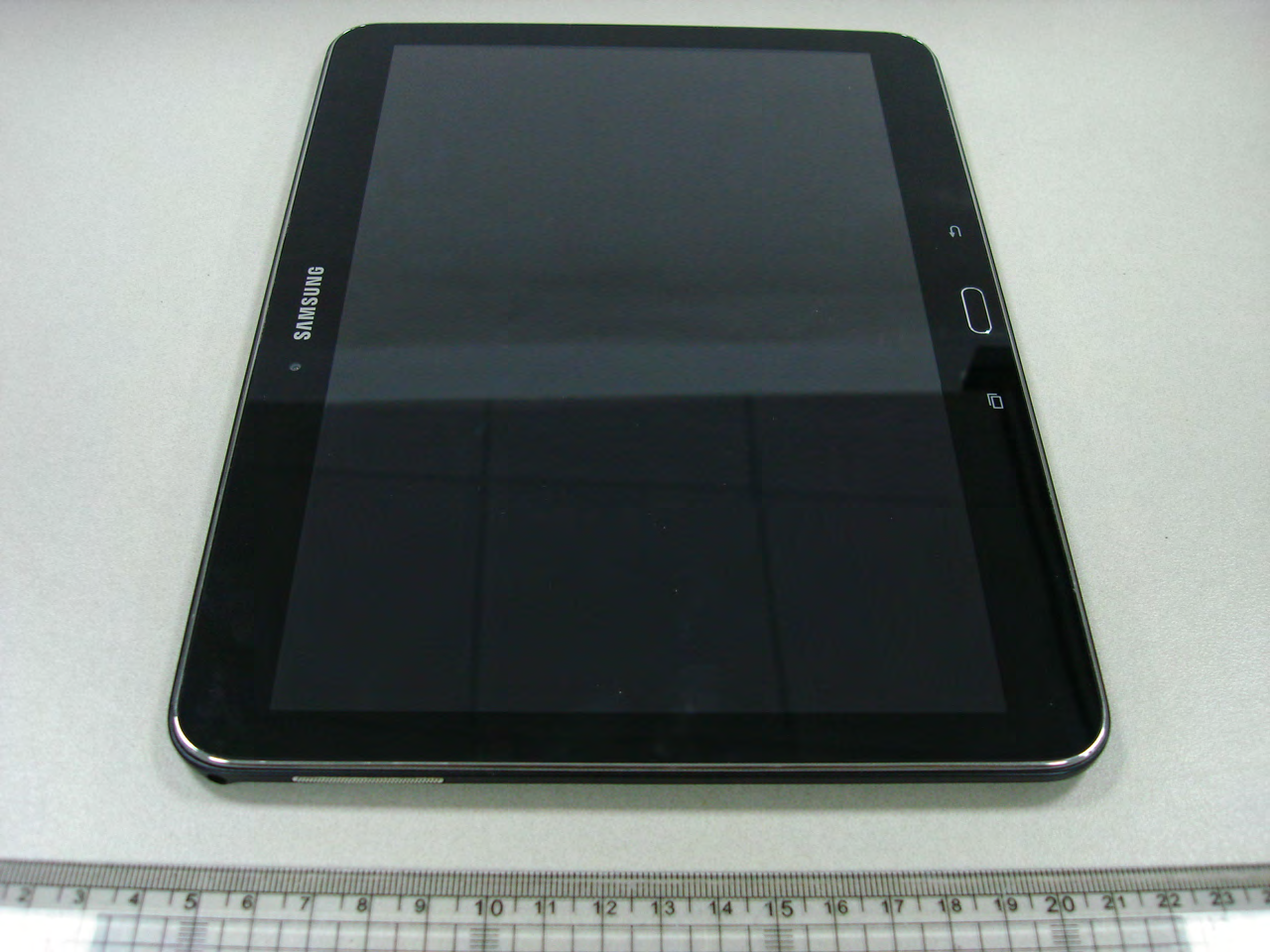

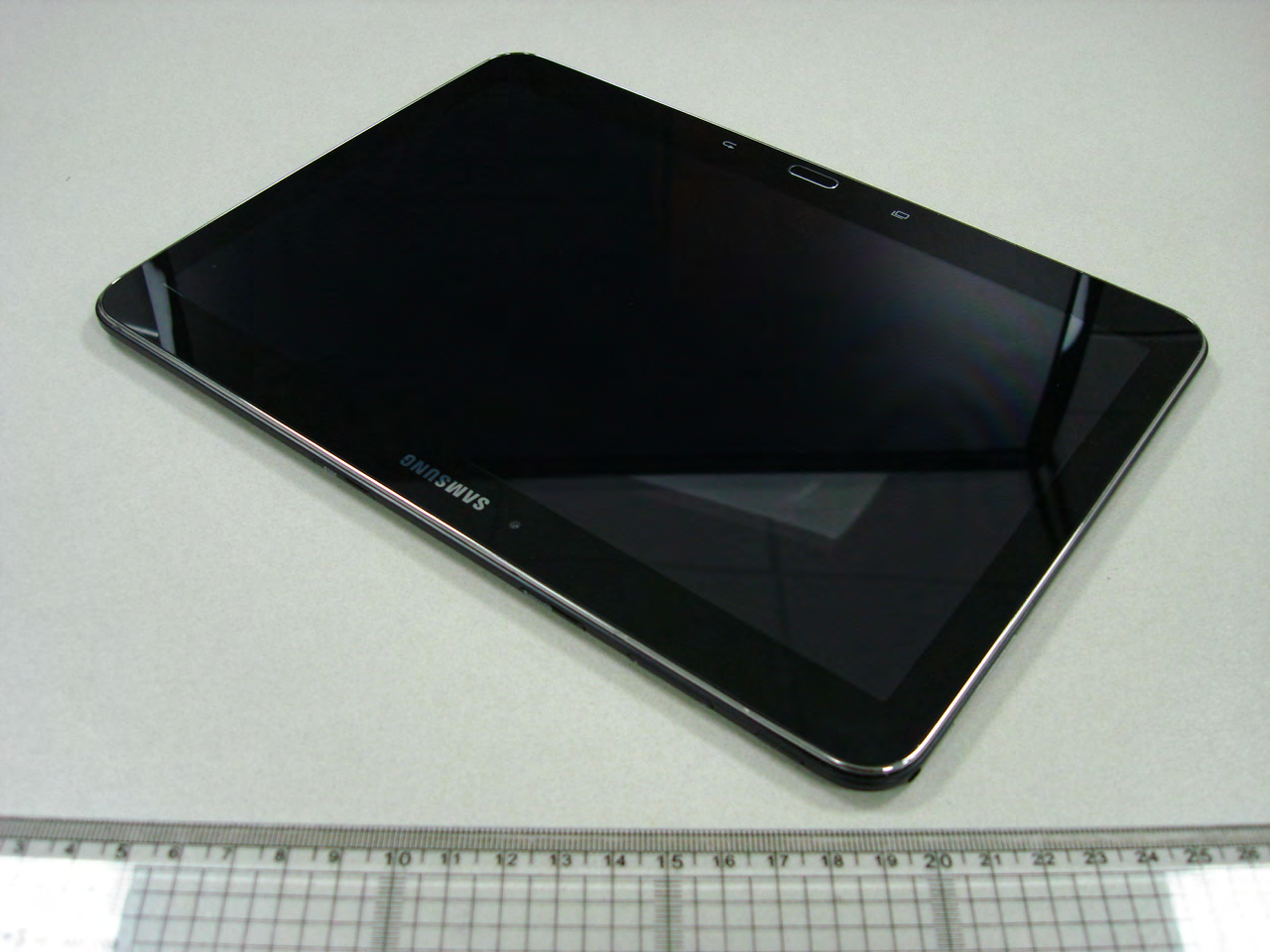

A3LSMT535Portable Tablet PC with Multi-band WCDMA/GSM/EDGE/LTE, WLAN, Bluetooth and ANT+

User manual SM-T535 Draft 6.1 2013-10-23 Only for Approval This device is capable of operating in 802.11a/n mode. For 802.11a/n devices operating in the frequency range of 5.15 - 5.25 GHz, they are restricted for indoor operations to reduce any potential harmful in terference for Mobile Satellite Services (MSS) in the US. WIFI Access Points that are capable of allowing your device to operate in 802.11a/n/ac mode (5.15 - 5.25 GHz band) are optimized for indoor use only. If your WIFI network is capable of o perating in this mode, please restrict your WIFI use indoors to not violate federal regulations to protect Mobile Satellite Services. using this manual This user manual has been specially designed to guide you through the functions and features of your mobile Device. To get started quickly, refer to “introducing your mobile Device, Instructional icons Before you start, familiarise yourself with the icons you will see in this manual: Warning—situations that could cause injury to yourself or others Caution—situations that could cause damage to your Device or other equipment Note—notes, usage tips, or additional information Refer to—pages with related information; for example: p. 12 (represents “see page 12”) Õ Followed by—the order of options or menus you must select to perform a step; for example: In Menu mode, select Messages Õ Create new message (represents Messages, followed by Create new message) Copyright information Rights to all technologies and products that comprise this device are the property of their respective owners: Bluetooth ® is a registered trademark of the Bluetooth SIG, Inc. worldwide Java™ is a trademark of Sun Microsystems, Inc. Windows Media Player ® is a registered trademark of Microsoft Corporation. contents safety and usage information Safety warnings Safety precautions Important usage information introducing your mobile Device Unpack .. Device layout Keys Display Icons assembling and preparing your mobile Device Install the battery Charge the battery using basic functions Turn your Device on and off Access menus Customise your Device Use basic call functions Send and view messages Add and find contacts troubleshooting safety and usage information Comply with the following precautions to avoid dangerous or illegal situations and ensure peak performance of your mobile Device. Safety warnings Keep your Device away from small children and pets Keep your Device and all accessories out of the reach of small children or animals. Small parts may cause choking or serious injury if swallowed. Protect your hearing Excessive exposure to sound at high volumes can cause hearing damage. Always turn the volume down before plugging the earphones into an audio source and use only the minimum volume setting necessary to hear your conversation or music. Install mobile device and equipment with caution Ensure that any mobile devices or related equipment installed in your vehicle are securely mounted. Avoid placing your Device and accessories near or in an air bag deployment area. Improperly installed wireless equipment can cause serious injury when air bags inflate rapidly. Handle and dispose of batteries and chargers with care  Use only Samsung-approved batteries and chargers specifically designed for your Device. Incompatible batteries and chargers can cause serious injuries or damage to your Device.  Never dispose of batteries or Mobile Devices in a fire. Follow all local regulations when disposing used batteries or MobileDevices.  Never place batteries or Mobile Devices on or in heating devices, such as microwave ovens, stoves, or radiators. Batteries may explode when overheated. Never crush or puncture the battery. Avoid exposing the battery to high external pressure, which can lead to an internal short circuit and overheating. Avoid interference with pacemakers Maintain a minimum of 15 cm (6 inches) between mobile devices and pacemakers to avoid potential interference, as recommended by manufacturers and the independent research group, Wireless Technology Research. If you have any reason to suspect that your Device is interfering with a pacemaker or other medical device, turn off the Device immediately and contact the manufacturer of the pacemaker or medical device for guidance. Turn off the Device in potentially explosive environments Do not use your Device at refuelling points (service stations) or near fuels or chemicals. Turn off your Device whenever directed by warning signs or instructions. Your Device could cause explosions or fire in and around fuel or chemical storage and transfer areas or blasting areas. Do not store or carry flammable liquids, gases, or explosive materials in the same compartment as the Device, its parts, or accessories. Reduce the risk of repetitive motion injuries When sending text messages or playing games on your Device, hold the Device with a relaxed grip, press the keys lightly, use special features that reduce the number of keys you have to press (such as templates and predictive text), and take frequent breaks. Safety precautions Drive safely at all times Avoid using your Device while driving and obey all regulations that restrict the use of mobile devices while driving. Use hands-free accessories to increase your safety when possible. Follow all safety warnings and regulations Comply with any regulations that restrict the use of a mobile Device in a certain area. Use only Samsung-approved accessories Using incompatible accessories may damage your Device or cause injury. Turn off the Device near medical equipment Your Device can interfere with medical equipment in hospitals or health care facilities. Follow all regulations, posted warnings, and directions from medical personnel. Turn off the Device or disable the wireless functions when in an aircraft Your Device can cause interference with aircraft equipment. Follow all airline regulations and turn off your Device or switch to a mode that disables the wireless functions when directe…

Text truncated - open the document above for the full version.

Samsung Electronics America, Inc 19 Chapin Rd, Building D. Pine Brook, NJ 07058 Date: February 20, 2014 FCC ID: A3LSMT535 To whom it may concern: We, the undersigned, hereby authorize PCTEST Engineering Laboratory Inc., to act on our behalf in all matters relating to applications for equipment authorization, including the signing of all documents relating to these matters. Any and all acts carried out by PCTEST Engineering Laboratory, Inc. on our behalf shall have the same effect as acts of our own. We also hereby certify that no party to any application is subject to a denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S. C. 862. Sincerely, Signature Sang Kyung (Peter), Ra General Manager Samsung Electronics America, Inc

SAMSUNG ELECTRONICS AMERICA, INC. American QA Lab 19 Chapin Rd, Building D. Pine Brook, NJ 07058 Date: February 20, 2014 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road, Columbia, MD 21046 RE: Request of Confidentiality for FCC ID: A3LSMT535 To Whom It May Concern: Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules (CFR 47), and Section 552 (b) (4) of the Freedom of Information Act, SAMSUNG ELECTRONICS CO.,LTD. hereby requests confidentiality and treatment of certain information accompanying this application. The materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. We are also hereby request Short-Term Confidentiality for 180 days after the grant as outlined in Public Notice DA 04-1705. This provision will give SAMSUNG ELECTRONICS CO.,LTD. temporary confidentiality of commercially sensitive information prior to product release. The requested Permanent and Short-Term Confidential exhibits are listed as follows: PERMANENT AND SHORT-TERM CONFIDENTIAL LIST Exhibit Description PERMANENT 1 Block Diagram 2 Operational Description 3 Schematics 4 Parts List & Tune-Up Procedure SHORT-TERM 5 External Photos 6 Internal Photos 7 Test-Setup Photos 8 Users Manual The Applicant understands that pursuant to Rule 0.457, disclosure of this application and all accompanying documentations, where applicable, will not be made public before the date of the Grant for this application. Sincerely, Peter Ra General Manager American QA Lab SAMSUNG Electronics America INC.

SAMSUNG ELECTRONICS CO., LTD 129, Samsung-ro,Yeongtong-gu Suwon-si,Gyeonggi-do, 443-742 Korea February 18, 2014 Fede ral Communications Commissio n 7435 Oakland Mills Road Columbia, MD 21046 SUBJECT : Label Statement FCC ID : A3LSMT535 Gentlemen: We hereby provide the label statement letter for the above-mentioned device by a new label statement policy of KDB 784748 D01.. The label statement is as follows: The FCC ID label is located on the rear of the device with the battery installed. At this time the FCC ID is readily visible to the user. The label is permanently engraved by laser and not easily removed from the device. This statement could not be included in the label. So we inform you of it through this letter. Should you have any questions or comments concerning the above, please contact the undersigned. Sincerely Yours, Seoung Ho Park Senior Manager SAMSUNG ELECTRONICS CO.,LTD Telecommunication Network Business Mobile Communication Division Regulatory Compliance Group.

Label and Location Samsung EUT Model :SM - T535 FCC ID : A3LSMT53 5 Label Location Top  Back Of EUT  Bottom  FCC ID is printed on bottom of the EUT

FCC ID: A3LSMT535 SAR EVALUATION REPORT Reviewed by: Quality Manager Document S/N: Test Dates: DUT Type: Page 1 of 64 0Y1401240176-R1.A3L 01/27/14 - 02/03/14 Portable Tablet © 2014 PCTEST Engineering Laboratory, Inc. REV 13.0 M 12/04/2013 Applicant Name: Date of Testing: Samsung Electronics, Co. Ltd. 01/27/14 - 02/03/14 129, Samsung-ro, Maetan dong, Test Site/Location: Yeongtong-gu, Suwon-si PCTEST Lab, Columbia, MD, USA Gyeonggi-do 443-742, Korea Document Serial No.: 0Y1401240176-R1.A3L FCC ID: A3LSMT535 APPLICANT: SAMSUNG ELECTRONICS, CO. LTD. DUT Type: Portable Tablet Application Type: Certification FCC Rule Part(s): CFR §2.1093 Model(s): SM-T535 1 gm Body (W/kg) PCBGSM/GPRS/EDGE 850824.20 - 848.80 MHz29.501.10 PCBUMTS 850826.40 - 846.60 MHz22.850.74 PCBGSM/GPRS/EDGE 19001850.20 - 1909.80 MHz26.000.97 PCBUMTS 19001852.4 - 1907.6 MHz23.001.10 PCBLTE Band 5 (Cell)824.7 - 848.3 MHz22.530.77 DTS2.4 GHz WLAN2412 - 2462 MHz11.300.98 DTS5.8 GHz WLAN5745 - 5825 MHz10.291.05 DTSBluetooth LE2402 - 2480 MHz1.68N/A NII5.2 GHz WLAN5180 - 5240 MHz10.440.80 NII5.3 GHz WLAN5260 - 5320 MHz10.370.88 NII5.5 GHz WLAN5500 - 5700 MHz10.251.10 DSSBluetooth2402 - 2480 MHz9.04 1.50 0.22 SAR Band & ModeTx Frequency Measured Conducted Power [dBm] Simultaneous SAR per KDB 690783 D01v01r02: Equipment Class Note: Powers in the above table represent output powers for the SAR test configurations and may not represent the highest output powers for all conf igurations for each mode. This wireless portable device has been shown to be capable of compliance for localized specific absorption rate (SAR) for uncontrolled environment/general population exposure limits specified in ANSI/IEEE C95.1-1992 and has been tested in accordance with the measurement procedures specified in Section 1.7 of this report; for North American frequency bands only. Note: This revised Test Report (S/N: 0Y1401240176-R1.A3L) supersedes and replaces the previously issued test report on the same subject device for the same type of testing as indicated. Please discard or destroy the previously issued test report(s) and dispose of it accordingly. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. Test results reported herein relate only to the item(s) tested. PCTEST ENGINEERING LABORATORY, INC. 7185 Oakland Mills Road, Columbia, MD 21046 USA Tel. +1. 410.290.6652 / Fax +1.410.290.6654 http://www.pctestlab.com SAR EVALUATION REPORT FCC ID: A3LSMT535 SAR EVALUATION REPORT Reviewed by: Quality Manager Document S/N: Test Dates: DUT Type: Page 2 of 64 0Y1401240176-R1.A3L 01/27/14 - 02/03/14 Portable Tablet © 2014 PCTEST Engineering Laboratory, Inc. REV 13.0 M 12/04/2013 TABLE OF CONTENTS 1 DEVICE UNDER TEST ....................................................................................................................3 2 LTE INFORMATION .........................................................................................................................8 3 INTRODUCTION ..............................................................................................................................9 4 DOSIMETRIC ASSESSMENT ...................................................................................................... 10 5 SAR TESTING PROCEDURES .................................................................................................... 11 6 RF EXPOSURE LIMITS ................................................................................................................ 12 7 FCC MEASUREMENT PROCEDURES ........................................................................................ 13 8 RF CONDUCTED POWERS ......................................................................................................... 17 9 SYSTEM VERIFICATION .............................................................................................................. 32 10 SAR DATA SUMMARY ................................................................................................................. 34 11 FCC MULTI-TX AND ANTENNA SAR CONSIDERATIONS ......................................................... 38 12 SAR MEASUREMENT VARIABILITY ........................................................................................... 58 13 EQUIPMENT LIST ......................................................................................................................... 59 14 MEASUREMENT UNCERTAINTIES ............................................................................................ 60 15 CONCLUSION ............................................................................................................................... 62 16 REFERENCES .............................................................................................................................. 63 APPENDIX A: SAR TEST PLOTS APPENDIX B: SAR DIPOLE VERIFICATION PLOTS APPENDIX C: PROBE AND DIPOLE CALIBRATION CERTIFICATES APPENDIX D: SAR TISSUE SPECIFICATIONS APPENDIX E: SAR SYSTEM VALIDATION APPENDIX F: SAR TEST SETUP PHOTOGRAPHS APPENDIX G: SAR SENSOR TRIGGERING DATA FCC ID: A3LSMT535 SAR EVALUATION REPORT Reviewed by: Quality Manager Document S/N: Test Dates: DUT Type: Page 3 of 64 0Y1401240176-R1.A3L 01/27/14 - 02/03/14 Portable Tablet © 2014 PCTEST Engineering Laboratory, Inc. REV 13.0 M 12/04/2013 1 DEVICE UNDER TEST 1.1 Device Overview GSM/GPRS/EDGE 850Voice/Data824.20 - 848.80 MHz UMTS 850Voice/Data826.40 - 846.60 MHz GSM/GPRS/EDGE 1900Voice/Data1850.20 - 1909.80 MHz UMTS 1900Voice/Data1852.4 - 1907.6 MHz LTE Band 5 (Cell)Data824.7 - 848.3 MHz 2.4 GHz WLANData2412 - 2462 MHz 5.8 GHz WLANData5745 - 5825 MHz 5.2 GHz WLANData5180 - 5240 MHz 5.3 GHz WLANData5260 - 5320 MHz 5.5 GHz WLANData5500 - 5700 MHz BluetoothData…

Text truncated - open the document above for the full version.

FCC ID: A3LSMT535 FCC Pt. 22, 24 GSM / EDGE / WCDMA MEASUREMENT REPORT (CERTIFICATION) Reviewed by: Quality Manager Test Report S/N: Test Dates: EUT Type: Page 1 of 60 0Y1401240177.A3L 1/28 - 1/29/2014 Portable Tablet © 2014 PCTEST Engineering Laboratory, Inc. V 3.0 06/17/2013 Applicant Name: Date of Testing: Samsung Electronics, Co. Ltd. 1/28 - 1/29/2014 129, Samsung-ro, Maetan dong, Test Site/Location: Yeongtong-gu, Suwon-si PCTEST Lab., Columbia, MD, USA Gyeonggi-do 443-742, Korea Test Report Serial No.: 0Y1401240177.A3L F C C I D : A3 LS MT535 AP P L I C AN T : S AMS UN G ELE CT RONI CS, CO. LT D. Application Type: Certification Model(s): SM-T535 EUT Type: Portable Tablet FCC Classification: PCS Licensed Transmitter (PCB) FCC Rule Part(s): §2 §22(H) §24(E) Test Procedure(s): ANSI/TIA-603-C-2004, KDB 971168 v02r01 Test Device Serial No.: identical prototype [S/N: 351885/06/003116/7] Max. Power (W) Max. Power (dBm) GSM850824.2 - 848.8244KGXW0.60527.82 EDGE850824.2 - 848.8243KG7W0.23523.71 GSM19001850.2 - 1909.8246KGXW1.21930.86 EDGE19001850.2 - 1909.8242KG7W0.36525.62 WCDMA850826.4 - 846.64M15F9W0.09119.60 WCDMA19001852.4 - 1907.64M15F9W0.23423.70 ERP/EIRP Mode Tx Frequency (MHz) Emission Designator This equipment has been shown to be capable of compliance with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in §2.947. Test results reported herein relate only to the item(s) tested. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. PCTEST ENGINEERING LABORATORY, INC. 7185 Oakland Mills Road, Columbia, MD 21046 USA Tel. 410.290.6652 / Fax 410.290.6654 http://www.pctestlab.com MEASUREMENT REPORT FCC Part 22, 24 FCC ID: A3LSMT535 FCC Pt. 22, 24 GSM / EDGE / WCDMA MEASUREMENT REPORT (CERTIFICATION) Reviewed by: Quality Manager Test Report S/N: Test Dates: EUT Type: Page 2 of 60 0Y1401240177.A3L 1/28 - 1/29/2014 Portable Tablet © 2014 PCTEST Engineering Laboratory, Inc. V 3.0 06/17/2013 T A B L E O F C O N T E N T S FCC PART 22, 24 MEASUREMENT REPORT ............................................................................................ 3 1.0 INTRODUCTION .............................................................................................................................. 4 1.1 SCOPE ................................................................................................................................................ 4 1.2 TESTING FACILITY ............................................................................................................................. 4 2.0 PRODUCT INFORMATION .............................................................................................................. 5 2.1 EQUIPMENT DESCRIPTION .............................................................................................................. 5 2.2 DEVICE CAPABILITIES ....................................................................................................................... 5 2.3 TEST CONFIGURATION ..................................................................................................................... 5 2.4 EMI SUPPRESSION DEVICE(S)/MODIFICATIONS ........................................................................... 5 3.0 DESCRIPTION OF TESTS .............................................................................................................. 6 3.1 EVALUATION PROCEDURE .............................................................................................................. 6 3.2 CELLULAR - BASE FREQUENCY BLOCKS ....................................................................................... 6 3.3 CELLULAR - MOBILE FREQUENCY BLOCKS ................................................................................... 6 3.4 PCS - BASE FREQUENCY BLOCKS .................................................................................................. 6 3.5 PCS - MOBILE FREQUENCY BLOCKS .............................................................................................. 7 3.6 RADIATED MEASUREMENTS ............................................................................................................ 8 4.0 TEST EQUIPMENT CALIBRATION DATA ...................................................................................... 9 5.0 SAMPLE CALCULATIONS ............................................................................................................ 10 6.0 TEST RESULTS ............................................................................................................................. 11 6.1 SUMMARY ......................................................................................................................................... 11 6.2 OCCUPIED BANDWIDTH ................................................................................................................. 12 6.3 SPURIOUS AND HARMONIC EMISSIONS AT ANTENNA TERMINAL ............................................ 16 6.4 BAND EDGE EMISSIONS AT ANTENNA TERMINAL ...................................................................... 31 6.5 PEAK-AVERAGE RATIO ................................................................................................................... 37 6.6 RADIATED POWER (ERP/EIRP) ...................................................................................................... 40 6.7 RADIATED SPURIOUS EMISSIONS MEASUREMENTS ................................................................. 43 6.8 FREQUENCY STABILITY / TEMPERATURE VARIATION ............................................................... 51 7.0 CONCLUSION ......................................................…

Text truncated - open the document above for the full version.

FCC ID: A3LSMT535 FCC Pt. 22 LTE MEASUREMENT REPORT (CERTIFICATION) Reviewed by: Quality Manager Test Report S/N: Test Dates: EUT Type: Page 1 of 49 0Y1401240178.A3L 1/29 – 2/27/2014 Portable Tablet © 2014 PCTEST Engineering Laboratory, Inc. V4.5 04/15/2013 Applicant Name: Date of Testing: Samsung Electronics, Co. Ltd. 1/29 – 2/27/2014 129, Samsung-ro, Maetan dong, Test Site/Location: Yeongtong-gu, Suwon-si PCTEST Lab., Columbia, MD, USA Gyeonggi-do 443-742, Korea Test Report Serial No.: 0Y1401240178.A3L F C C I D : A3 L SM T5 3 5 AP P L I C AN T : S AM S UNG E L E C TR O NI CS, CO . L T D. FCC Classification: PCS Licensed Transmitter (PCB) FCC Rule Part(s): §2; §22 EUT Type: Portable Tablet Model(s): SM-T535 Test Device Serial No.: identical prototype [S/N: 351885/06/003116/7] Max. Power (W) Max. Power (dBm) LTE Band 5824.7 - 848.31M11G7DQPSK0.05717.55 LTE Band 5824.7 - 848.31M11W7D16QAM0.04316.35 LTE Band 5825.5 - 847.52M71G7DQPSK0.05417.36 LTE Band 5825.5 - 847.52M71W7D16QAM0.04116.18 LTE Band 5826.5 - 846.54M50G7DQPSK0.05217.20 LTE Band 5826.5 - 846.54M51W7D16QAM0.04016.01 LTE Band 5829 - 8449M01G7DQPSK0.05717.53 LTE Band 5829 - 8449M00W7D16QAM0.04316.38 Mode Tx Frequency (MHz) Emission Designator ERP/EIRP Modulation This equipment has been shown to be capable of compliance with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in §2.947. Test results reported herein relate only to the item(s) tested. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. PCTEST ENGINEERING LABORATORY, INC. 7185 Oakland Mills Road, Columbia, MD 21046 USA Tel. 410.290.6652 / Fax 410.290.6654 http://www.pctestlab.com MEASUREMENT REPORT FCC Part 22 LTE FCC ID: A3LSMT535 FCC Pt. 22 LTE MEASUREMENT REPORT (CERTIFICATION) Reviewed by: Quality Manager Test Report S/N: Test Dates: EUT Type: Page 2 of 49 0Y1401240178.A3L 1/29 – 2/27/2014 Portable Tablet © 2014 PCTEST Engineering Laboratory, Inc. V4.5 04/15/2013 T A B L E O F C O N T E N T S FCC PART 22 MEASUREMENT REPORT .................................................................................................. 3 1.0 INTRODUCTION .............................................................................................................................. 4 1.1 SCOPE ................................................................................................................................................ 4 1.2 TESTING FACILITY ............................................................................................................................. 4 2.0 PRODUCT INFORMATION .............................................................................................................. 5 2.1 EQUIPMENT DESCRIPTION .............................................................................................................. 5 2.2 DEVICE CAPABILITIES ....................................................................................................................... 5 2.3 EMI SUPPRESSION DEVICE(S)/MODIFICATIONS ........................................................................... 5 2.4 LABELING REQUIREMENTS .............................................................................................................. 5 3.0 DESCRIPTION OF TESTS .............................................................................................................. 6 3.1 MEASUREMENT PROCEDURE ......................................................................................................... 6 3.2 CELLULAR - BASE FREQUENCY BLOCKS ....................................................................................... 6 3.3 CELLULAR - MOBILE FREQUENCY BLOCKS ................................................................................... 6 3.4 OCCUPIED BANDWIDTH ................................................................................................................... 6 3.5 SPURIOUS AND HARMONIC EMISSIONS AT ANTENNA TERMINAL .............................................. 7 3.6 RADIATED POWER AND RADIATED SPURIOUS EMISSIONS ........................................................ 8 3.7 FREQUENCY STABILITY / TEMPERATURE VARIATION ................................................................. 9 4.0 TEST EQUIPMENT CALIBRATION DATA .................................................................................... 10 5.0 SAMPLE CALCULATIONS ............................................................................................................ 11 6.0 TEST RESULTS ............................................................................................................................. 12 6.1 SUMMARY ......................................................................................................................................... 12 6.2 OCCUPIED BANDWIDTH ................................................................................................................. 13 6.3 SPURIOUS AND HARMONIC EMISSIONS AT ANTENNA TERMINAL ............................................ 18 6.4 BAND EDGE EMISSIONS AT ANTENNA TERMINAL ...................................................................... 31 6.5 RADIATED POWER (ERP/EIRP) ...................................................................................................... 40 6.6 RADIATED SPURIOUS EMISSIONS MEASUREMENTS ................................................................. 43 6.7 FREQUENCY STABILITY / TEMPERATURE VARIATION ............................................................... 46 7.0 CONCLUSION ................................................................................................................................ 49 …

Text truncated - open the document above for the full version.

Samsung Electronics Co., Ltd FCC ID: A3LSMT535 Model: SM-T535 Test Set-Up Photos EUT Type: Portable Handset Page 1 of 2 © 2014 PCTEST Engineering Laboratory Inc. T E S T S E T U P P H O T O G R A PH S Samsung Electronics Co., Ltd FCC ID: A3LSMT535 Model: SM-T535 Test Set-Up Photos EUT Type: Portable Handset Page 2 of 2 © 2014 PCTEST Engineering Laboratory Inc.

FCC ID: A3LSMT535 SAR EVALUATION REPORT Reviewed by: Quality Manager Test Dates: DUT Type: APPENDIX F: Page 1 of 4 01/27/14 - 02/03/14 Portable Tablet © 2014 PCTEST Engineering Laboratory, Inc. REV 13.0 M 12/04/2013 APPENDIX F: S AR TEST SETUP PHOTOGRAPHS FCC ID: A3LSMT535 SAR EVALUATION REPORT Reviewed by: Quality Manager Test Dates: DUT Type: APPENDIX F: Page 2 of 4 01/27/14 - 02/03/14 Portable Tablet © 2014 PCTEST Engineering Laboratory, Inc. REV 13.0 M 12/04/2013 SAR Test Setup Photo 1: Back at 0.0 mm SAR Test Setup Photo 2: Back at 15.0 mm FCC ID: A3LSMT535 SAR EVALUATION REPORT Reviewed by: Quality Manager Test Dates: DUT Type: APPENDIX F: Page 3 of 4 01/27/14 - 02/03/14 Portable Tablet © 2014 PCTEST Engineering Laboratory, Inc. REV 13.0 M 12/04/2013 SAR Test Setup Photo 3: Top at 0.0 mm SAR Test Setup Photo 4: Top at 16.0 mm FCC ID: A3LSMT535 SAR EVALUATION REPORT Reviewed by: Quality Manager Test Dates: DUT Type: APPENDIX F: Page 4 of 4 01/27/14 - 02/03/14 Portable Tablet © 2014 PCTEST Engineering Laboratory, Inc. REV 13.0 M 12/04/2013 SAR Test Setup Photo 5: Right at 0.0 mm SAR Test Setup Photo 6: Left Edge at 0.0 mm
