A3LSMT555CTablet PC

User manual SM-T555C Draft 6.1 2015-02-10 Only for Approval using this manual This user manual has been specially designed to guide you through the functions and features of your mobile Tablet PC. To get started quickly, refer to “introducing your mobile Tablet PC, Instructional icons Before you start, familiarise yourself with the icons you will see in this manual: Warning—situations that could cause injury to yourself or others Caution—situations that could cause damage to your Tablet PC or other equipment Note—notes, usage tips, or additional information Refer to—pages with related information; for example: p. 12 (represents “see page 12”) Õ Followed by—the order of options or menus you must select to perform a step; for example: In Menu mode, select Messages Õ Create new message (represents Messages, followed by Create new message) [ ] Square brackets—Tablet PC keys; for example: [ ](represents the Power/ Menu exit key) < > Angled brackets—softkeys that control different functions at each screen; for example: <OK> (represents the OK softkey) Copyright information Rights to all technologies and products that comprise this device are the property of their respective owners:  Bluetooth ® is a registered trademark of the Bluetooth SIG, Inc. worldwide  Java™ is a trademark of Sun Microsystems, Inc.  Windows Media Player ® is a registered trademark of Microsoft Corporation. contents safety and usage information Safety warnings Safety precautions Important usage information introducing your mobile Tablet PC Unpack .. Tablet PC layout Keys Display Icons assembling and preparing your mobile Tablet PC Install the SIM card and battery Charge the battery using basic functions Turn your Tablet PC on and off Access menus Customise your Tablet PC Use basic call functions Send and view messages Add and find contacts troubleshooting safety and usage information Comply with the following precautions to avoid dangerous or illegal situations and ensure peak performance of your mobile Tablet PC. Safety warnings Keep your Tablet PC away from small children and pets Keep your Tablet PC and all accessories out of the reach of small children or animals. Small parts may cause choking or serious injury if swallowed. Protect your hearing Excessive exposure to sound at high volumes can cause hearing damage. Always turn the volume down before plugging the earTablet PCs into an audio source and use only the minimum volume setting necessary to hear your conversation or music. Install mobile Tablet PCs and equipment with caution Ensure that any mobile Tablet PCs or related equipment installed in your vehicle are securely mounted. Avoid placing your Tablet PC and accessories near or in an air bag deployment area. Improperly installed wireless equipment can cause serious injury when air bags inflate rapidly. Handle and dispose of batteries and chargers with care  Use only Samsung-approved batteries and chargers specifically designed for your Tablet PC. Incompatible batteries and chargers can cause serious injuries or damage to your Tablet PC.  Never dispose of batteries or Tablet PCs in a fire. Follow all local regulations when disposing used batteries or Tablet PCs.  Never place batteries or Tablet PCs on or in heating devices, such as microwave ovens, stoves, or radiators. Batteries may explode when overheated.  Never crush or puncture the battery. Avoid exposing the battery to high external pressure, which can lead to an internal short circuit and overheating. Avoid interference with pacemakers Maintain a minimum of 15 cm (6 inches) between mobile Tablet PCs and pacemakers to avoid potential interference, as recommended by manufacturers and the independent research group, Wireless Technology Research. If you have any reason to suspect that your Tablet PC is interfering with a pacemaker or other medical device, turn off the Tablet PC immediately and contact the manufacturer of the pacemaker or medical device for guidance. Turn off the Tablet PC in potentially explosive environments Do not use your Tablet PC at refuelling points (service stations) or near fuels or chemicals. Turn off your Tablet PC whenever directed by warning signs or instructions. Your Tablet PC could cause explosions or fire in and around fuel or chemical storage and transfer areas or blasting areas. Do not store or carry flammable liquids, gases, or explosive materials in the same compartment as the Tablet PC, its parts, or accessories. Reduce the risk of repetitive motion injuries When sending text messages or playing games on your Tablet PC, hold the Tablet PC with a relaxed grip, press the keys lightly, use special features that reduce the number of keys you have to press (such as templates and predictive text), and take frequent breaks. Safety precautions Drive safely at all times Avoid using your Tablet PC while driving and obey all regulations that restrict the use of mobile Tablet PCs while driving. Use hands-free accessories to increase your safety when possible. Follow all safety warnings and regulations Comply with any regulations that restrict the use of a mobile Tablet PC in a certain area. Use only Samsung-approved accessories Using incompatible accessories may damage your Tablet PC or cause injury. Turn off the Tablet PC near medical equipment Your Tablet PC can interfere with medical equipment in hospitals or health care facilities. Follow all regulations, posted warnings, and directions from medical personnel. Turn off the Tablet PC or disable the wireless functions when in an aircraft Your Tablet PC can cause interference with aircraft equipment. Follow all airline regulations and turn off your Tablet PC or switch to a mode that disables the wireless functions when directed by airline personnel. Protect batteries and chargers from damage Avoid exposing batteries to very cold or very hot temperatures (below 0° C/32° F or above 45° C/ 113° F). Extreme temperatures can reduce the charging capacity and life of your batteries. …

Text truncated - open the document above for the full version.

Samsung Electronics Co Ltd 19 Chapin Rd., Building D, Pine Brook, New Jersey 07058, United States Tel: 973‐808‐6362 ; Fax: 973‐808‐6361 We have declared below featured for device identified as FCC ID: A3LSMT555C (1) DFS Device -- Master, Client with Radar detection capability , Client without radar detection capability, N/A (2) Active / Passive Scanning , adhoc mode access point capability Frequency Band (MHz) Scanning Plan Ad Hoc Mode capability Access point capability WiFi Direct Group Owner WiFi Direct Group Client 2412 – 2462 Active Yes Yes Yes Yes 5745 – 5825 Active Yes Yes No Yes 5180 – 5240 Passive No No No Yes 5260 – 5320 Passive No No No Yes (3) Country code selection cability to end user- Yes , No If yes, pls explain how it was implemented : (pls also help to provide detail of options for each country selection) (4) Meet Part 15.202 requirement - Yes , No , * A master device is defined as a device operating in a mode in which it has the capability to transmit without receiving an enabling signal. In this mode it is able to select a channel and initiate a network by sending enabling signals to other devices * A client device is defined as a device operating in a mode in which the transmissions of the device are under control of the master. A device in client mode is not able to initiate a network. (5) For client devices that have software configuration control to operate in different modes (active scanning in some and passive scanning in others) in different bands (devices with multiple equipment classes or those that operate on non-DFS frequencies) or modular devices which configure the modes of operations through software, the application must provide software and operations description on how the software and / or hardware is implemented to ensure that proper operations modes can not be modified by end user or an installer. Apply , No Apply , (If apply , pls help to provide explanation on it was implement , and how software was controlled) _________________________________ Chan Ho Youn [email protected]

Samsung Electronics Co Ltd 19 Chapin Rd., Building D, Pine Brook, New Jersey 07058, United States Tel: 973‐808‐6362 ; Fax: 973‐808‐6361 Date: April 17, 2015 Federal Communications Commission Authorization and Evaluation Division 1435 Oakland Mills Road Columbia, MD 21046 SUBJECT: FCC Application for FCC ID: A3LSMT555C To Whom It May Concern: We hereby attest that, LTE releas e 10 limitations and support restrictions of FCC ID: A3LSMT555C are: a) LTE Rel. 10 Cat 4 TDD / WCDMA HSDPA Rel. 8, Cat 24/ WCDMA HSUPA Rel. 6, Cat 6 b) LTE Carrier Aggregation (CA) is not supported. c) Enhanced SC‐FDMA is not supported. d) LTE uplink MIMO and other transmit diversity is not supported e) UE category is Rel. 10, Category 4 f) No significant SAR influence was discovered with respect to the hardware or firmware associated with LTE Rel. 10 features. g) SVLTE is not supported h) Wi‐Fi 802.11 a/b/g/n; Bluetooth v3.0 EDR, v4.0 LE; ANT+ transmitters are contained in this device. Sincerely yours, _________________________________ Chan Ho Youn [email protected]

Rev. 1/1/03 Samsung Electronics Co Ltd 19 Chapin Rd., Building D Pine Brook New Jersey United States Tel: 973-808-6362 ; Fax: 973-808-6361 Date: April 17, 2015 Federal Communications Commission Authorization and Evaluation Division Confidentiality Request regarding application for certification of FCC ID: A3LSMT555C Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of information accompanying this application as outlined below: Schematics Block Diagram Parts List Operation Description Tune up Procedure The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, _____________ Contact Person: Chan Ho Youn Company: Samsung Electronics Co Ltd TEL: 973-808-6362 FAX: 973-808-6361 Rev. 1/1/03 E-mail: [email protected]

Samsung Electronics Co Ltd 19 Chapin Rd., Building D Pine Brook New Jersey United States Tel: 973-808-6362 ; Fax: 973-808-6361 Date: April17, 2015 Power of Attorney To whom it may concern, Please be notified that I, Chan Ho Youn, have designated Jones Tsai in Sporton International Inc. as the persons being responsible for this project and to sign the form 731 and other documentation. Any and all acts carried out by Jones Tsai in Sporton International Inc. on the matters of relating to all processes required in the FCC approval and any communication needed with the national authority, shall have the same legal authority as acts on our own behalf. We further certifies that neither the applicant nor any party to this application, as defined in 47 CFR Ch. 1.2002 (b), is subject to a denial to Federal benefits, that include FCC benefits, pursuant to section 5301 of the Anti-Drug Abuse Act of 1998, 21 U.S.C. 835(a). This authorization is limited to the product of as following: FCC ID: A3LSMT555C If you have any acknowledgement and response, please send it to Sporton International Inc. directly. Should you have any questions or comments regarding this matter, please have my best attention. Sincerely yours, Contact Person: Chan Ho Youn Company: Samsung Electronics Co Ltd TEL: 973-808-6362 FAX: 973-808-6361 E-mail: [email protected]

1/2 Samsung Electronics Co Ltd Date: April 17, 2015 Federal Communications Commission Authorization and Evaluation Division RE : Certification Application FCC ID : A3LSMT555C To Whom It May Concern, Pursuant to sections 0.457 and 0.459 of CFR 47, Public Notice DA 04-1705 of the Commission’s policy and to avoid premature release of sensitive information prior to marketing or release of the product to the public, the applicant requests the following documents contained in this certification application be temporarily withheld from public disclosure for an initial period of 180 days:  External Photos  Internal Photos  Test set-up photos  Users Manual The application contains technical information, which Samsung Electronics Co Ltd deems to be trade secrets and proprietary. If made public, the information might be used to the disadvantage of the applicant in the market place. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application Sincerely, Contact Person: Chan Ho Youn Company: Samsung Electronics Co Ltd TEL: 973-808-6362 FAX: 973-808-6361 E-mail: [email protected] 2/2

Declaration for FCC test We, Samsung Electronics Co., Ltd., declare on our sole responsibility for the following products: Model: SM-P555C, FCC ID: A3LSMP555C Model: SM-T555C, FCC ID: A3LSMT555C The only difference between the SM-P555C and the SM-T555C is: 1. H/W SM-P555C: Supports S-pen(Related components). SM-T555C not supports. BT/WIFI block / TSP control IC placement is not same. 2. S/W SM-P555C Supports S-pen function Except listings above, the wwan and the others are all the same. Based on the similarity between two FCC IDS, the FCC ID: A3LSMP555C WWAN testing represents the test result of FCC ID: A3LSMT555C. Additional verification in radiated testing is also performed to ensure the continuous compliance. Should you have any questions or comments regarding this matter, please have my best attention. Company : Point of contact : Samsung Electronics Co Ltd Name: Chan Ho Youn 19 Chapin Rd., Building D, Pine Brook, Tel: 973-808-6362 New Jersey 07058, United States E-mail: [email protected] Signed :

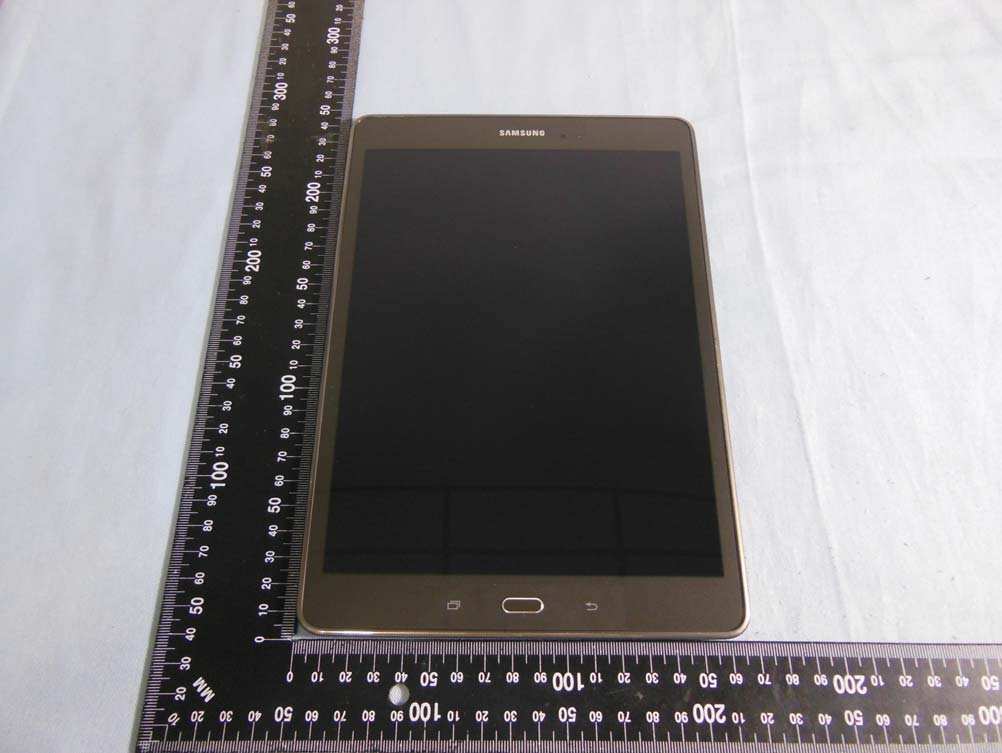

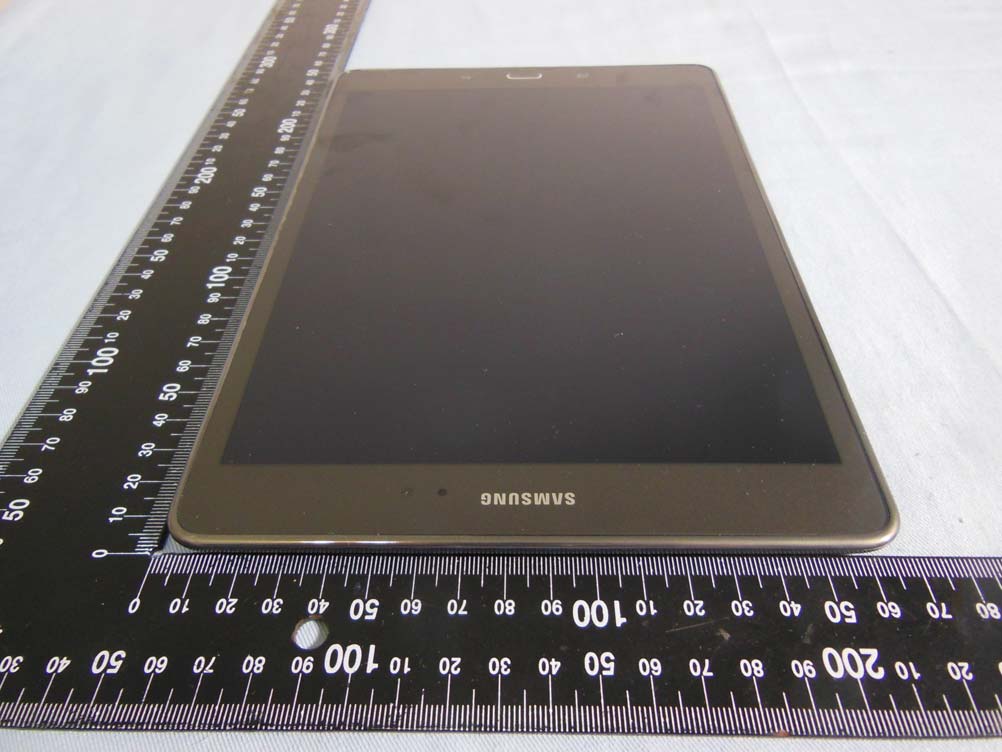

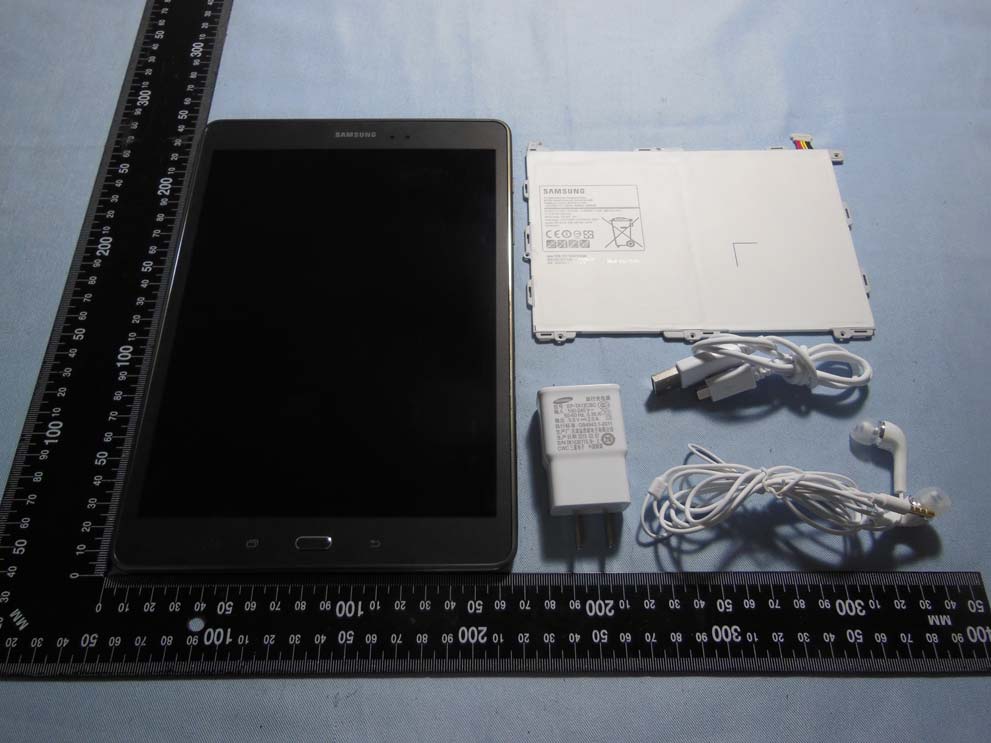

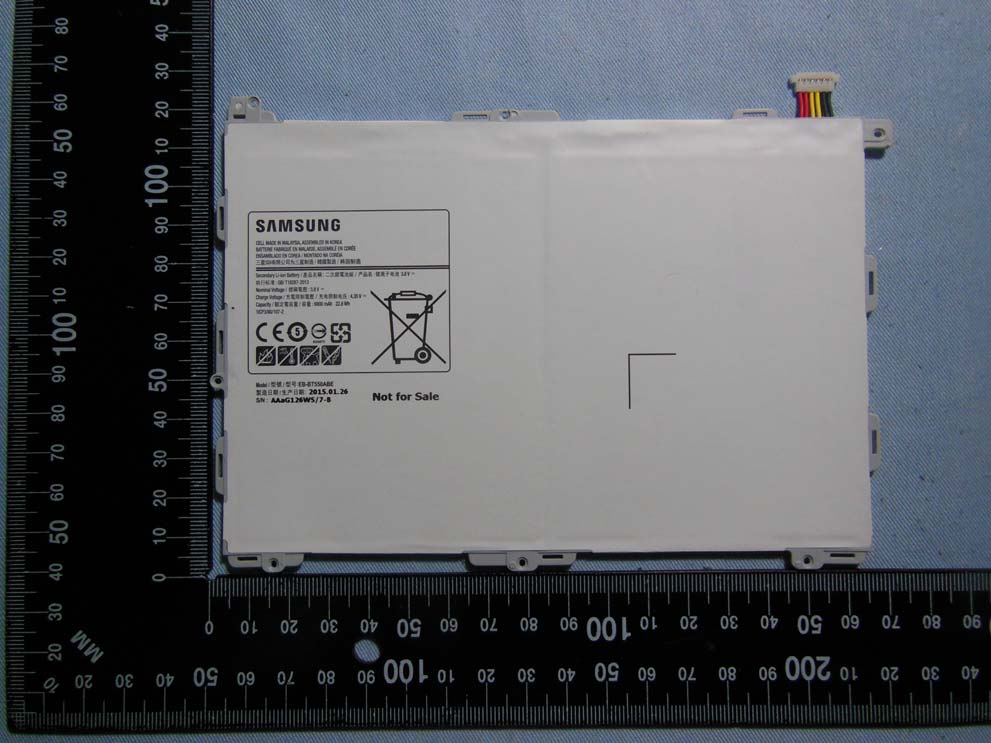

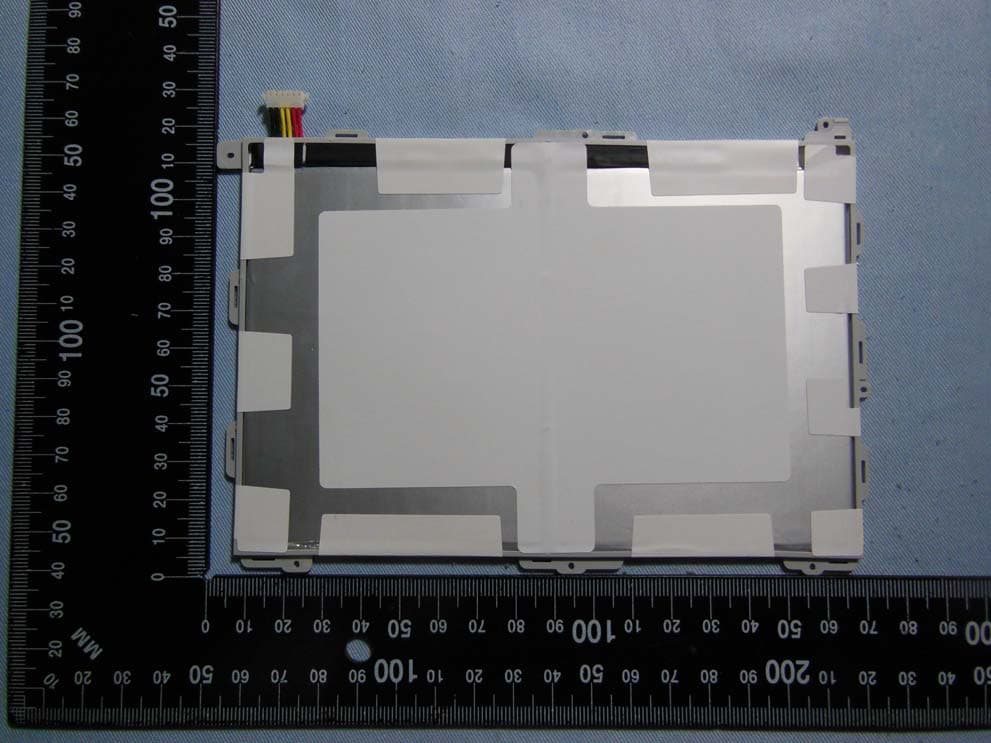

Photographs of EUT Report No.: EP531903 Brand Name: SAMSUNG; Model Name: SM-T555C SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 1 of 37 TEL : 86-755-8637-9589 Report Issued Date : Apr. 17, 2015 FAX : 86-755-8637-9595 Report Version : Rev. 01 FCC ID : A3LSMT555C 1. External Photograph of EUT Photographs of EUT Report No.: EP531903 Brand Name: SAMSUNG; Model Name: SM-T555C SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 2 of 37 TEL : 86-755-8637-9589 Report Issued Date : Apr. 17, 2015 FAX : 86-755-8637-9595 Report Version : Rev. 01 FCC ID : A3LSMT555C Photographs of EUT Report No.: EP531903 Brand Name: SAMSUNG; Model Name: SM-T555C SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 3 of 37 TEL : 86-755-8637-9589 Report Issued Date : Apr. 17, 2015 FAX : 86-755-8637-9595 Report Version : Rev. 01 FCC ID : A3LSMT555C Photographs of EUT Report No.: EP531903 Brand Name: SAMSUNG; Model Name: SM-T555C SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 4 of 37 TEL : 86-755-8637-9589 Report Issued Date : Apr. 17, 2015 FAX : 86-755-8637-9595 Report Version : Rev. 01 FCC ID : A3LSMT555C Photographs of EUT Report No.: EP531903 Brand Name: SAMSUNG; Model Name: SM-T555C SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 5 of 37 TEL : 86-755-8637-9589 Report Issued Date : Apr. 17, 2015 FAX : 86-755-8637-9595 Report Version : Rev. 01 FCC ID : A3LSMT555C Photographs of EUT Report No.: EP531903 Brand Name: SAMSUNG; Model Name: SM-T555C SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 6 of 37 TEL : 86-755-8637-9589 Report Issued Date : Apr. 17, 2015 FAX : 86-755-8637-9595 Report Version : Rev. 01 FCC ID : A3LSMT555C Photographs of EUT Report No.: EP531903 Brand Name: SAMSUNG; Model Name: SM-T555C SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 7 of 37 TEL : 86-755-8637-9589 Report Issued Date : Apr. 17, 2015 FAX : 86-755-8637-9595 Report Version : Rev. 01 FCC ID : A3LSMT555C List of Accessory: Specification of Accessory AC Adapter Brand Name SAMSUNG Model Name EP-TA12CWC Battery Brand Name SAMSUNG Model Name EB-BT550ABE Earphone Brand Name SAMSUNG Model Name EHS64AVFWE Signal Line Type 1.26m, unshielded cable, without core USB Cable Brand Name SAMSUNG Model Name ECB-DU28WE Signal Line Type 0.8m, shielded cable, without core Remark: For accessories equipped with this EUT, please refer to the following photos. 2. Photograph of Accessory Photographs of EUT Report No.: EP531903 Brand Name: SAMSUNG; Model Name: SM-T555C SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 8 of 37 TEL : 86-755-8637-9589 Report Issued Date : Apr. 17, 2015 FAX : 86-755-8637-9595 Report Version : Rev. 01 FCC ID : A3LSMT555C Photographs of EUT Report No.: EP531903 Brand Name: SAMSUNG; Model Name: SM-T555C SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 9 of 37 TEL : 86-755-8637-9589 Report Issued Date : Apr. 17, 2015 FAX : 86-755-8637-9595 Report Version : Rev. 01 FCC ID : A3LSMT555C AC Adapter Photographs of EUT Report No.: EP531903 Brand Name: SAMSUNG; Model Name: SM-T555C SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 10 of 37 TEL : 86-755-8637-9589 Report Issued Date : Apr. 17, 2015 FAX : 86-755-8637-9595 Report Version : Rev. 01 FCC ID : A3LSMT555C Battery Photographs of EUT Report No.: EP531903 Brand Name: SAMSUNG; Model Name: SM-T555C SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 11 of 37 TEL : 86-755-8637-9589 Report Issued Date : Apr. 17, 2015 FAX : 86-755-8637-9595 Report Version : Rev. 01 FCC ID : A3LSMT555C

Back of the Device Label Location

Photographs of EUT Report No.: EP531903 Brand Name: SAMSUNG; Model Name: SM-T555C SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 12 of 37 TEL : 86-755-8637-9589 Report Issued Date : Apr. 17, 2015 FAX : 86-755-8637-9595 Report Version : Rev. 01 FCC ID : A3LSMT555C 3. Internal Photograph of EUT Bluetooth & WLAN Antenna<Tx/Rx> GPS/ Glonass Antenna<Rx> WWAN Antenna<Tx/Rx> SUB Antenna<Rx> Photographs of EUT Report No.: EP531903 Brand Name: SAMSUNG; Model Name: SM-T555C SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 13 of 37 TEL : 86-755-8637-9589 Report Issued Date : Apr. 17, 2015 FAX : 86-755-8637-9595 Report Version : Rev. 01 FCC ID : A3LSMT555C Photographs of EUT Report No.: EP531903 Brand Name: SAMSUNG; Model Name: SM-T555C SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 14 of 37 TEL : 86-755-8637-9589 Report Issued Date : Apr. 17, 2015 FAX : 86-755-8637-9595 Report Version : Rev. 01 FCC ID : A3LSMT555C Photographs of EUT Report No.: EP531903 Brand Name: SAMSUNG; Model Name: SM-T555C SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 15 of 37 TEL : 86-755-8637-9589 Report Issued Date : Apr. 17, 2015 FAX : 86-755-8637-9595 Report Version : Rev. 01 FCC ID : A3LSMT555C Photographs of EUT Report No.: EP531903 Brand Name: SAMSUNG; Model Name: SM-T555C SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 16 of 37 TEL : 86-755-8637-9589 Report Issued Date : Apr. 17, 2015 FAX : 86-755-8637-9595 Report Version : Rev. 01 FCC ID : A3LSMT555C Photographs of EUT Report No.: EP531903 Brand Name: SAMSUNG; Model Name: SM-T555C SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 17 of 37 TEL : 86-755-8637-9589 Report Issued Date : Apr. 17, 2015 FAX : 86-755-8637-9595 Report Version : Rev. 01 FCC ID : A3LSMT555C Photographs of EUT Report No.: EP531903 Brand Name: SAMSUNG; Model Name: SM-T555C SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 18 of 37 TEL : 86-755-8637-9589 Report Issued Date : Apr. 17, 2015 FAX : 86-755-8637-9595 Report Version : Rev. 01 FCC ID : A3LSMT555C Photographs of EUT Report No.: EP531903 Brand Name: SAMSUNG; Model Name: SM-T555C SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 19 of 37 TEL : 86-755-8637-9589 Report Issued Date : Apr. 17, 2015 FAX : 86-755-8637-9595 Report Version : Rev. 01 FCC ID : A3LSMT555C Photographs of EUT Report No.: EP531903 Brand Name: SAMSUNG; Model Name: SM-T555C SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 20 of 37 TEL : 86-755-8637-9589 Report Issued Date : Apr. 17, 2015 FAX : 86-755-8637-9595 Report Version : Rev. 01 FCC ID : A3LSMT555C Photographs of EUT Report No.: EP531903 Brand Name: SAMSUNG; Model Name: SM-T555C SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 21 of 37 TEL : 86-755-8637-9589 Report Issued Date : Apr. 17, 2015 FAX : 86-755-8637-9595 Report Version : Rev. 01 FCC ID : A3LSMT555C Photographs of EUT Report No.: EP531903 Brand Name: SAMSUNG; Model Name: SM-T555C SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 22 of 37 TEL : 86-755-8637-9589 Report Issued Date : Apr. 17, 2015 FAX : 86-755-8637-9595 Report Version : Rev. 01 FCC ID : A3LSMT555C Photographs of EUT Report No.: EP531903 Brand Name: SAMSUNG; Model Name: SM-T555C SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 23 of 37 TEL : 86-755-8637-9589 Report Issued Date : Apr. 17, 2015 FAX : 86-755-8637-9595 Report Version : Rev. 01 FCC ID : A3LSMT555C Photographs of EUT Report No.: EP531903 Brand Name: SAMSUNG; Model Name: SM-T555C SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 24 of 37 TEL : 86-755-8637-9589 Report Issued Date : Apr. 17, 2015 FAX : 86-755-8637-9595 Report Version : Rev. 01 FCC ID : A3LSMT555C Photographs of EUT Report No.: EP531903 Brand Name: SAMSUNG; Model Name: SM-T555C SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 25 of 37 TEL : 86-755-8637-9589 Report Issued Date : Apr. 17, 2015 FAX : 86-755-8637-9595 Report Version : Rev. 01 FCC ID : A3LSMT555C Photographs of EUT Report No.: EP531903 Brand Name: SAMSUNG; Model Name: SM-T555C SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 26 of 37 TEL : 86-755-8637-9589 Report Issued Date : Apr. 17, 2015 FAX : 86-755-8637-9595 Report Version : Rev. 01 FCC ID : A3LSMT555C Photographs of EUT Report No.: EP531903 Brand Name: SAMSUNG; Model Name: SM-T555C SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 27 of 37 TEL : 86-755-8637-9589 Report Issued Date : Apr. 17, 2015 FAX : 86-755-8637-9595 Report Version : Rev. 01 FCC ID : A3LSMT555C Photographs of EUT Report No.: EP531903 Brand Name: SAMSUNG; Model Name: SM-T555C SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 28 of 37 TEL : 86-755-8637-9589 Report Issued Date : Apr. 17, 2015 FAX : 86-755-8637-9595 Report Version : Rev. 01 FCC ID : A3LSMT555C Photographs of EUT Report No.: EP531903 Brand Name: SAMSUNG; Model Name: SM-T555C SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 29 of 37 TEL : 86-755-8637-9589 Report Issued Date : Apr. 17, 2015 FAX : 86-755-8637-9595 Report Version : Rev. 01 FCC ID : A3LSMT555C Photographs of EUT Report No.: EP531903 Brand Name: SAMSUNG; Model Name: SM-T555C SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 30 of 37 TEL : 86-755-8637-9589 Report Issued Date : Apr. 17, 2015 FAX : 86-755-8637-9595 Report Version : Rev. 01 FCC ID : A3LSMT555C Photographs of EUT Report No.: EP531903 Brand Name: SAMSUNG; Model Name: SM-T555C SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 31 of 37 TEL : 86-755-8637-9589 Report Issued Date : Apr. 17, 2015 FAX : 86-755-8637-9595 Report Version : Rev. 01 FCC ID : A3LSMT555C Photographs of EUT Report No.: EP531903 Brand Name: SAMSUNG; Model Name: SM-T555C SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 32 of 37 TEL : 86-755-8637-9589 Report Issued Date : Apr. 17, 2015 FAX : 86-755-8637-9595 Report Version : Rev. 01 FCC ID : A3LSMT555C Photographs of EUT Report No.: EP531903 Brand Name: SAMSUNG; Model Name: SM-T555C SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 33 of 37 TEL : 86-755-8637-9589 Report Issued Date : Apr. 17, 2015 FAX : 86-755-8637-9595 Repo…

Text truncated - open the document above for the full version.

SPORTON INT TEL : 86-755-8 FCC ID : A3LS FC We, S samp with t The t writte be rep 1F A Revie TERNATIONAL 8637-9589 / FAX SMP555C CC SAR Te SPORTON IN ple has been the applicab test results en approval produced ex SP F & 2F,Build pproved by ewed by: Eri L (SHENZHEN) X : 86-755-8637 est Repor FCC APPLICAN EQUIPMEN BRAND NA MODEL NA FCC ID STANDA R NTERNATIO n evaluated i ble technica in this re p of SPORTO xcept in full PORTON ding A, Mo Nanshan D : Jones Tsa ic Huang / D INC. 7-9595 rt C SAR NT :S NT :T AME :S AME :S :A RD :F A I ONAL (SHEN in accordan l standards port apply e ON INTERNA . INTERNA orning Busi District, Sh ai / Manager Deputy Mana Page 1 of R Tes Samsung E Tablet PC SAMSUNG SM-P555C A3LSMP55 FCC 47 CFR ANSI/IEEE EEE 1528- 2 NZHEN) INC nce with the . exclusively ATIONAL (SH NATIONAL iness Cent henzhen, G ager 53 st Re Electronics 5C R Part 2 (2 C95.1-199 2 2003 C., would lik procedures to the test HENZHEN) L (SHEN ter, No. 400 uangdong, Iss Form eport s Co., Ltd. .1093) 2 ke to declar s and had be ed model / INC., the tes NZHEN) IN 03 ShiGu R , P. R. Chin sued Date : Ap m version. : 14 Report No. t re that the een in comp / sample. W st report sh NC. Rd., Xili Tow na pr. 16, 2015 1020 : FA531006 tested pliance Without all not wn, 6 SPORTON INTERNATIONAL (SHENZHEN) INC. TEL : 86-755-8637-9589 / FAX : 86-755-8637-9595 Issued Date : Apr. 16, 2015 FCC ID : A3LSMP555C Page 2 of 53 Form version. : 141020 FCC SAR Test Report Report No. : FA531006 Table of Contents 1. Statement of Compliance ..............................................................................................................................................4 2. Administration Data .......................................................................................................................................................5 3. Guidance Standard ........................................................................................................................................................5 4. Equipment Under Test (EUT) ........................................................................................................................................6 4.1 General Information ................................................................................................................................................6 4.2 Maximum Tune-up Limit ..........................................................................................................................................7 4.3 General LTE SAR Test and Reporting Considerations ............................................................................................8 5. Additional Test Positions due to Proximity Sensor ....................................................................................................9 6. RF Exposure Limits .......................................................................................................................................................9 6.1 Uncontrolled Environment .......................................................................................................................................9 6.2 Controlled Environment ...........................................................................................................................................9 7. Specific Absorption Rate (SAR) ..................................................................................................................................10 7.1 Introduction ...........................................................................................................................................................10 7.2 SAR Definition .......................................................................................................................................................10 8. System Description and Setup ...................................................................................................................................11 9. Measurement Procedures ...........................................................................................................................................12 9.1 Spatial Peak SAR Evaluation ................................................................................................................................12 9.2 Power Reference Measurement............................................................................................................................13 9.3 Area Scan .............................................................................................................................................................13 9.4 Zoom Scan ............................................................................................................................................................14 9.5 Volume Scan Procedures ......................................................................................................................................14 9.6 Power Drift Monitoring ...........................................................................................................................................14 10. Test Equipment List ...................................................................................................................................................15 11. System Verification ....................................................................................................................................................16 11.1 Tissue Verification ...............................................................................................................................................16 11.2 System Performance Check Results ...................................................................................................................18 12. RF Exposure Positions ..................................................................................................................…

Text truncated - open the document above for the full version.

Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2015.04.04 System Check_Body_835MHz_150404 DUT: D835V2 - SN: 4d091 C ommunication System: UID 0, CW; Frequency: 835 MHz;Duty Cycle: 1:1 Medium: MSL_835_150404 Medium parameters used: f = 835 MHz; σ = 0.998 S/m; ε r = 54.379; ρ = 1000 kg/m 3 Ambient Temperature：23.5 °C; Liquid Temperature：22.6 °C DASY5 Configuration: - Probe: EX3DV4 - SN3819; ConvF(9.49, 9.49, 9.49); Calibrated: 2014.11.13; - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1303; Calibrated: 2014.12.11 - Phantom: SAM3; Type: QDOVA002AA; Serial: TP:1149 - M…

Text truncated - open the document above for the full version.
