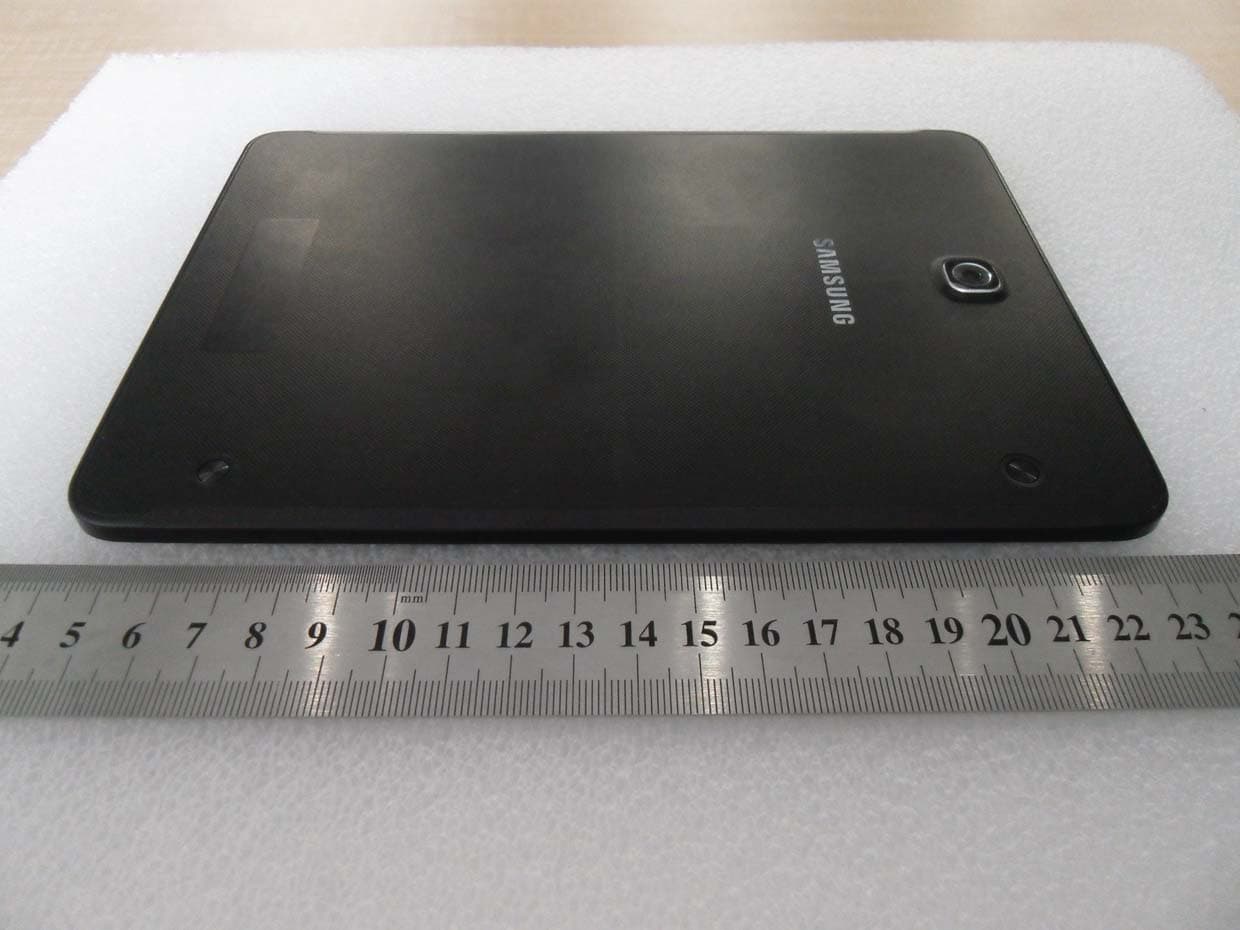

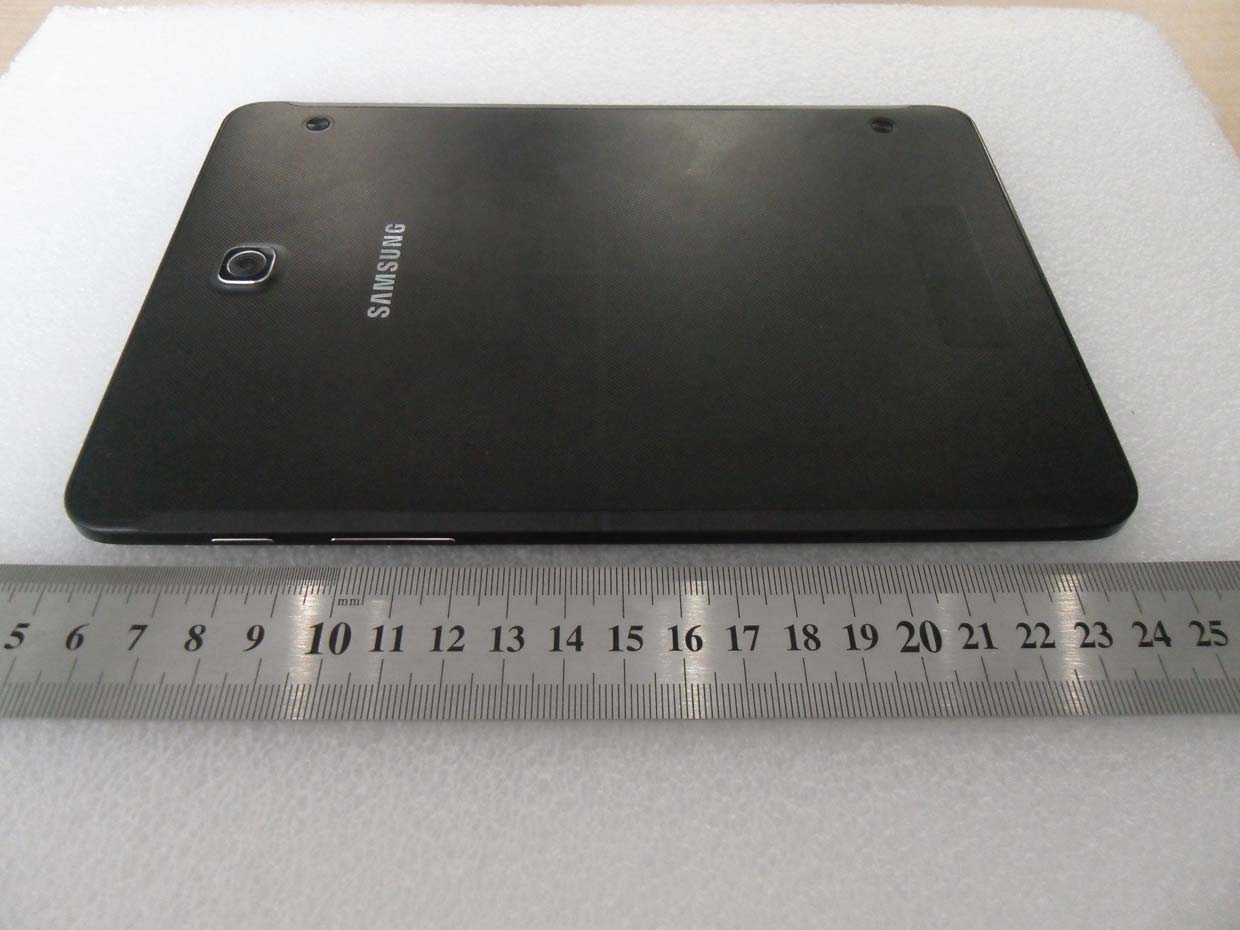

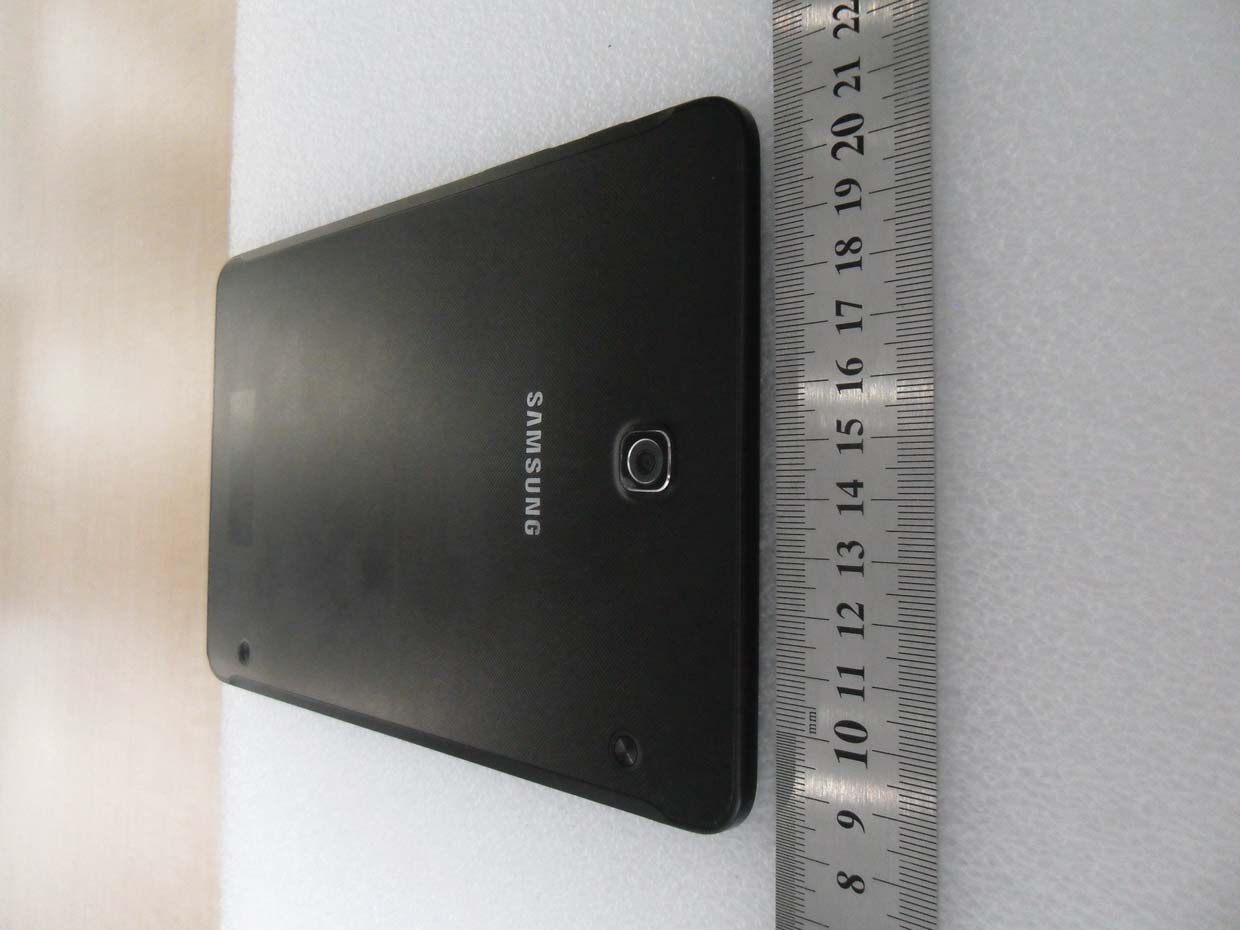

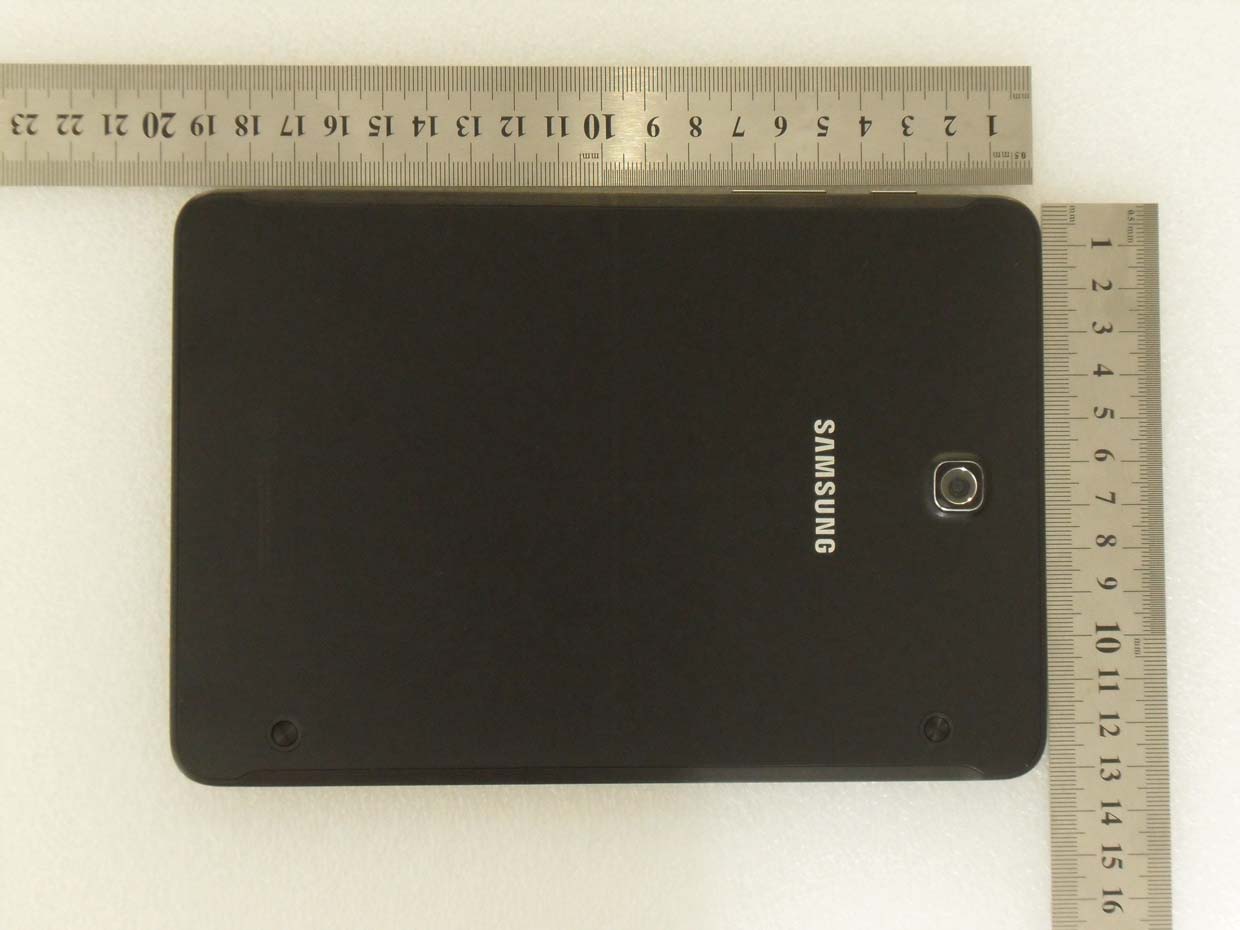

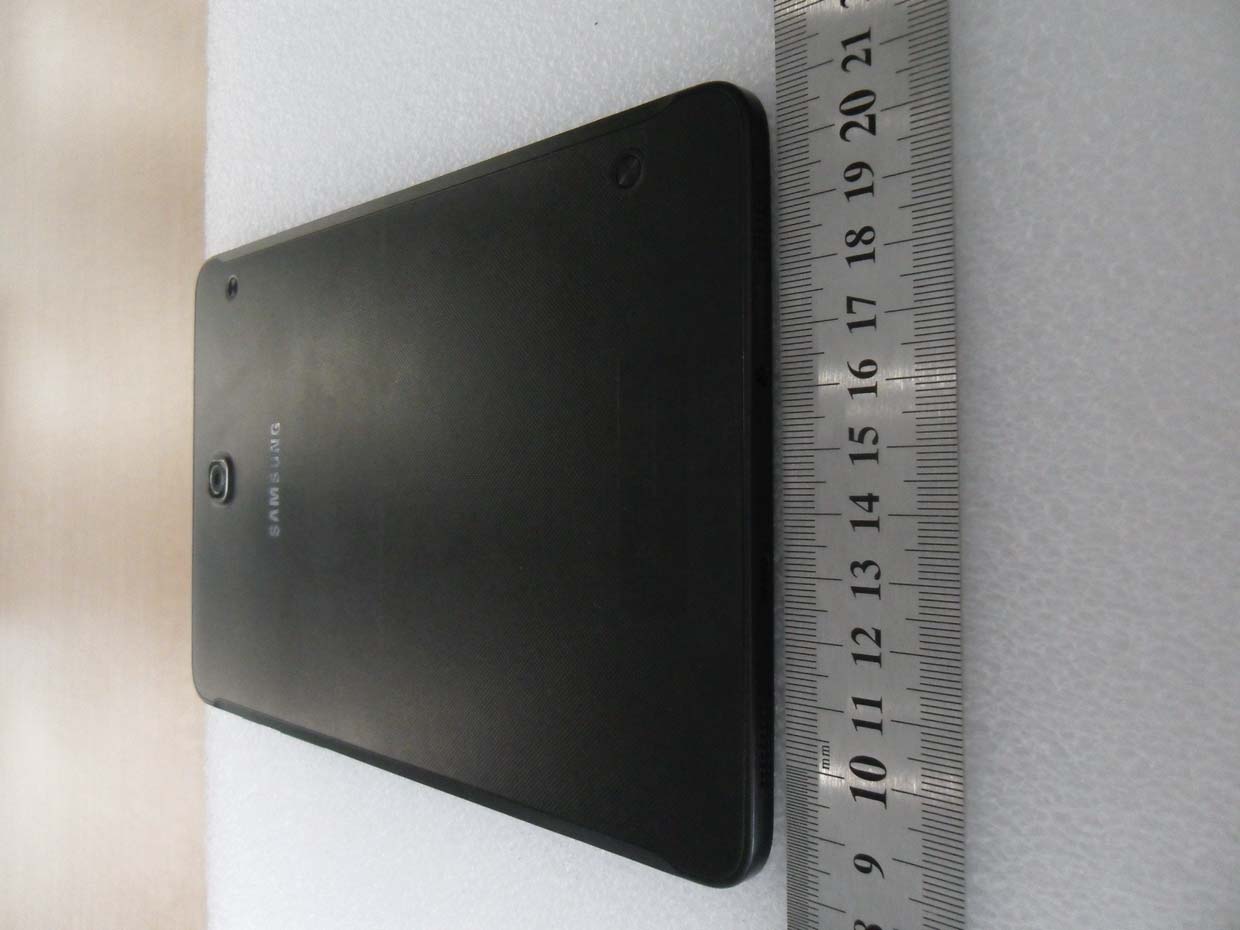

A3LSMT715CPhablet

User manual SM-T715C Draft Important safety precautions Failure to comply with the following precautions may be dangerous or illegal. Copyright information ● Bluetooth? is a registered trademark of the Bluetooth SIG, Inc. worldwide. ● JavaTM is a trademark or registered trademark of Sun Microsystems, Inc. ● Picsel and Picsel ViewerTM are trademarks of Picsel Technologies, Inc. Drive safely at all times Do not use a hand-held tablet while driving. Park your vehicle first. Switch off the tablet when refuelling Do not use the tablet at a refuelling point (service station) or near fuels or chemicals. Switch off in an aircraft Wireless tablets can cause interference. Using them in an aircraft is both illegal and dangerous. Switch off the tablet near all medical equipment Hospitals or health care facilities may be using equipment that could be sensitive to external radio frequency energy. Follow any regulations or rules in force. Interference All wireless tablets may be subject to interference, which could affect their performance. Be aware of special regulations Meet any special regulations in force in any area and always switch off your tablet whenever it is forbidden to use it, or when it may cause interference or danger. Water resistance Your tablet is not water-resistant. Keep it dry. Sens ible us e Use only in the nor mal positi on (hel d to your ear). Avoid unnecessary cont act with the ant enna when the tablet is switched on. Emerg ency calls Key i n th e emergency number for your p resent locat ion, t hen pr ess [ ]. Keep your tablet away fro m small children Keep the ta bl et and a ll i ts part s, i ncludi ng accessori es, out of t he re ach of small childr en. Acce ss ories and batteries Use only Samsung-approved accessori es, such as headsets and PC dat a c abl es. Use of any unauth ori sed accessories coul d damage you or your tablet and may be danger ous. Qualified service Only q ual ified ser vice p er sonnel may repai r your tablet. For more det ai led safety i nfo rmati on, see ¡°Heal th and safe ty informati on¡± on page 2 0. • The ta blet could e xplode if the batt ery i s replaced with a n i ncorr ect ty pe. • D ispose o f used batt eri es according to t he manufactu reri’s instructions. Excessive e xposure to s ound a t high volumes can cause h earing damage. Always tu rn th e volume down before plugging th e earta blets into an audiosource and use o nly t he minimum v olume s ett ing necessary t o h ear your convers ati on or music. Unpack Make sure you have each item • Tablet • Adapter & Earphone • User’s manual Suitable Adapter or Charger, certified according to the relevant safety standard, will be provided for each country in use. You can obtain the following accessories for your tablet from your local Samsung dealer. • Multi adapter • Travel charger • Car charger • PC data cable • Portable battery kit • Portable PC data cable • Music controller • Bluetooth mono/ stereop headset kit Get started First steps to operate your tablet Install and charge the tablet 1. 2. Plug the adapter into the tablet. 3. Plug the adapter into a standard AC wall outlet. 4. When the tablet is completely charged (the battery icon stops blinking), unplug the adapter from the power outlet. Remove the adapter from the tablet. Low battery indicator When the battery is low: • a warning tone sounds, • the battery low message displays, and • the empty battery icon [ ] blinks. If the battery level becomes too low, the tablet automatically turns off. Recharge your battery. Keys and display Buttons Function Power • Press and hold to turn the device on or off. • Press and hold for more than 7 seconds to reset the device if it has fatal errors or hang-ups, or freezes. • Press to lock or unlock the device. The device goes into lock mode when the touch screen turns off. Menu • Tap to open a list of options available for the current screen. • Tap and hold on the Home screen to launch Google application. Home • Press to return to the Home screen. • Press twice to launch S Voice application. • Press and hold to open the list of recent applications. Back • Tap to return to the previous screen. Volume • Press to adjust the device volume. Overview of menu functions To access Menu mode, press [환경설정] in ldle mode. T service ChatON Maps Call log Samsung Link Local Tablet Group Play Navigation Contacts S Health Downloads Messaging S Voice Optical Reader Samsung Hub S Memo Messenger Samsung Apps S Translator Play Books WatchON Email Play Movies & TV Camera Shopping & wallet T nao Gallery T cloud App Guide Story Album hoppin T Membership DMB MelOn Remote Care T store Chrome T world T LTE Pack Gmail 11st Music Google SmartWallet Video Voice Search NATE Internet YouTube Calculator Clock Talk Voice Recorder S Planner Google+ Dictionary Settings Play Store My Files B tv mobile Pickat Basket Cyworld SmartTouch Cymera NateOnUC Dropbox Samsung service V3 Mobile 2.0 Help Google Settings Solve problems Help and personal needs To save the time and expense of an unnecessary service call, perform the simple checks in this section before contacting a service professional. When you switch on your tablet, the following messages may appear: “Insert USIM card” • Be sure that the USIM card is correctly installed. “Tablet locked Enter password” • The automatic locking function has been enabled. You must enter the tablet¡ ̄s password before you can use the tablet. “Enter PIN1” • You are using your tablet for the first time. You must enter the PIN1 supplied with the USIM card. • The PIN1 Check feature is enabled. Every time the tablet is switched on, the PIN1 has to be entered. To disable this feature, use the PIN check menu. “Enter PUK” • The PIN1 code has been entered incorrectly three times in succession, and the tablet is now blocked. Enter the PUK1 supplied by your service provider. “No Service” “Network Failure,” or “Not Done” displays • The network connection has been lost. You may be in a weak signal area. Move and try again. • Y…

Text truncated - open the document above for the full version.

May 15, 2015 Federal Communi cations Commission 7435 Oakland Mills Road Columbia MD 21046 Subject: Request for Confidentiality FCC ID: A3LSMT 715C To Whom It May Con cern: Pursuant to the provisions of Sections 0.457 and 0.459 of the Commission’s rules (47 CFR §§ 0.457, 0.459), we are requesting the Commission to withhold the following attachments as confidential document from public disclosure indefinitely. Schematics Block Diagram Operational Description Antenna Specification Parts List Tune-Up Procedure UNII device SW security statement Sensor Reliability description Above mentioned document contains detailed system and equipment description are considered as proprietary information in operation of the equipment. The public disclosure of above documents might be harmful to our company and would give competitor an unfair advantage in the market. In additional to above mentioned documents, pursuant to Public Notice DA 04-1705 of the Commission’s policy, in order to comply with the marketing regulations in 47 CFR §2.803 and the importation rules in 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices. We are requesting the commission to grant short-term confidentiality request on the following attachments until 180 days External Photos Internal Photos Test Setup Photos User Manual It is our understanding that all measurement test reports, FCC ID label format and correspondence during certification review process cannot be granted as confidential documents and such information will be available for public review once the grant of equipment authorization is issued. Best Regards Sincerely, CHANHO, YOUN General Manager Samsung Electronics CO. LTD TEL: +1-973-808-6362 E-mail: [email protected]

Date: May 4, 2015 UL Korea, Ltd. Suwon Laboratory 218 Maeyeong-ro, Yeongtong-gu, Suwon-si, Gyeonggi-do, 443-823, Korea To whom it may concern: I, the undersigned, hereby authorize UL Korea, Ltd. Suwon Laboratory, to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by UL Korea, Ltd. Suwon Laboratory on our behalf shall have the same effect as acts of our own. In authorizing UL Korea as our agent, we still recognize that we are responsible to: a) comply with the relevant provisions of the certification program; b) make all necessary arrangements for the conduct of the evaluation, including provision for examining documentation and access to all areas, records (including internal audit reports) and personnel for the purposes of evaluation (e.g. testing, inspection, assessment, surveillance, reassessment) and resolution of complaints; c) make claims regarding certification only in respect of the scope for which certification has been granted; d) do not use our product certification in such a manner as to bring the Certification Division into disrepute and not make any statement regarding our product certification which the Certification Division may consider misleading or unauthorized; e) upon suspension or cancellation of certification, discontinue use of all advertising matter that contains any reference thereto and return any certification documents as required by the Certification Division; f) use certification only to indicate the products are certified as being in conformity with specified standards; g) endeavor to ensure that no certificate or report nor any part thereof is used in a misleading manner; h) ensure that any reference to our product certification in communication media such as documents, brochures or advertising, complies with the requirements of the Certification Division; i) keep a record of all complaints made known to the us relating to the product’s compliance with requirements of the relevant standard and to make these records available to the Certification Division when requested; j) take appropriate action with respect to such complaints and any deficiencies found in products or services that affect compliance with the requirements for certification; k) document the actions taken. l) the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a) This authorization is valid until further written notice from the applicant. Sincerely Yours CHANHO, YOUN General Manager Samsung Electronics CO. LTD TEL: +1-973-808-6362 E-mail: [email protected]

May 15, 2015 Federal Communi cations Commission 7435 Oakland Mills Road Columbia MD 21046 Subject: Request for Confidentiality FCC ID: A3LSMT 715C To Whom It May Con cern: Pursuant to the provisions of Sections 0.457 and 0.459 of the Commission’s rules (47 CFR §§ 0.457, 0.459), we are requesting the Commission to withhold the following attachments as confidential document from public disclosure indefinitely. Schematics Block Diagram Operational Description Antenna Specification Parts List Tune-Up Procedure UNII device SW security statement Sensor Reliability description Above mentioned document contains detailed system and equipment description are considered as proprietary information in operation of the equipment. The public disclosure of above documents might be harmful to our company and would give competitor an unfair advantage in the market. In additional to above mentioned documents, pursuant to Public Notice DA 04-1705 of the Commission’s policy, in order to comply with the marketing regulations in 47 CFR §2.803 and the importation rules in 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices. We are requesting the commission to grant short-term confidentiality request on the following attachments until 180 days External Photos Internal Photos Test Setup Photos User Manual It is our understanding that all measurement test reports, FCC ID label format and correspondence during certification review process cannot be granted as confidential documents and such information will be available for public review once the grant of equipment authorization is issued. Best Regards Sincerely, CHANHO, YOUN General Manager Samsung Electronics CO. LTD TEL: +1-973-808-6362 E-mail: [email protected]

Date: May 4, 2015 UL Korea, Ltd. Suwon Laboratory 218 Maeyeong-ro, Yeongtong-gu, Suwon-si, Gyeonggi-do, 443-823, Korea To whom it may concern: I, the undersigned, hereby authorize UL Korea, Ltd. Suwon Laboratory, to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by UL Korea, Ltd. Suwon Laboratory on our behalf shall have the same effect as acts of our own. In authorizing UL Korea as our agent, we still recognize that we are responsible to: a) comply with the relevant provisions of the certification program; b) make all necessary arrangements for the conduct of the evaluation, including provision for examining documentation and access to all areas, records (including internal audit reports) and personnel for the purposes of evaluation (e.g. testing, inspection, assessment, surveillance, reassessment) and resolution of complaints; c) make claims regarding certification only in respect of the scope for which certification has been granted; d) do not use our product certification in such a manner as to bring the Certification Division into disrepute and not make any statement regarding our product certification which the Certification Division may consider misleading or unauthorized; e) upon suspension or cancellation of certification, discontinue use of all advertising matter that contains any reference thereto and return any certification documents as required by the Certification Division; f) use certification only to indicate the products are certified as being in conformity with specified standards; g) endeavor to ensure that no certificate or report nor any part thereof is used in a misleading manner; h) ensure that any reference to our product certification in communication media such as documents, brochures or advertising, complies with the requirements of the Certification Division; i) keep a record of all complaints made known to the us relating to the product’s compliance with requirements of the relevant standard and to make these records available to the Certification Division when requested; j) take appropriate action with respect to such complaints and any deficiencies found in products or services that affect compliance with the requirements for certification; k) document the actions taken. l) the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a) This authorization is valid until further written notice from the applicant. Sincerely Yours CHANHO, YOUN General Manager Samsung Electronics CO. LTD TEL: +1-973-808-6362 E-mail: [email protected]

Label and Location Model: SM-T715C FCC ID: A3LSMT715C Label: Location: Back Of Device Bottom TOP Phone: Label is placed inside of the battery compartment. While the battery cover is installed when the unit is shipped from the factory, the battery is never installed prior to sale, so the user must remove the cover in order to install the battery and operate the device. At this time the FCC ID is readily visible to the user. The label is permanently attached by acrylic glue and not easily removed from the device.”

Label and Location Model: SM-T715C FCC ID: A3LSMT715C Label: Location: Back Of Device Bottom TOP Phone: Label is placed inside of the battery compartment. While the battery cover is installed when the unit is shipped from the factory, the battery is never installed prior to sale, so the user must remove the cover in order to install the battery and operate the device. At this time the FCC ID is readily visible to the user. The label is permanently attached by acrylic glue and not easily removed from the device.”

TL-637 SAR EVALUATION REPORT FCC 47 CFR § 2.1093 IEEE Std 1528-2013 For GSM/WCDMA/LTE Tablet + Bluetooth & DTS/UNII a/b/g/n/ac & ANT+ FCC ID: A3LSMT715C Model Name: SM-T715C Report Number: 15K20542-S1C Issue Date: 6/2/2015 Prepared for SAMSUNG ELECTRONICS CO., LTD. 129 SAMSUNG-RO, YEONGTONG-GU, SUWON-SI, GYEONGGI-DO, 443-742, KOREA Prepared by UL Korea, Ltd. Suwon Laboratory 218 Maeyeong-ro, Yeongtong-gu, Suwon-si, Gyeonggi-do, 443-823, Korea TEL: (031) 337-9902 FAX: (031) 213-5433 Report No.: 15K20542-S1C Issue Date: 6/2/2015 Page 2 of 82 UL Korea, Ltd. Suwon Laboratory Doc. No.: 1.0 This report shall not be reproduced except in full, without the written approval of UL Korea, Ltd. Revision History Rev. Date Revisions Revised By -- 5/24/2015 Initial Issue Justin Park A 5/24/2015 1. Revise footer Justin Park B 5/26/2015 1. Updated Appendixes A, D, E, F 2. Sec 6.1., 6.2. : Updated Table 3. Sec 6.3., 6.5., 9.2 : Updated the correct data 5. Sec 7.1. : Updated SAR Test Exclusion Calculations for WLAN 6. Sec 9.6., 10.8. : Updated Bluetooth Output Power & SAR Data 7. Sec 10.9., 10.10. : Added Wi-Fi Area Scan Max. SAR Justin Park C 6/2/2015 1. Sec 12. : Updated Simultaneous Transmission SAR Analysis 2. Sec 10., 12.. : Added Wi-Fi MIMO Data Justin Park Report No.: 15K20542-S1C Issue Date: 6/2/2015 Page 3 of 82 UL Korea, Ltd. Suwon Laboratory Doc. No.: 1.0 This report shall not be reproduced except in full, without the written approval of UL Korea, Ltd. Table of Contents 1. Attestation of Test Results ......................................................................................................... 5 2. Test Specification, Methods and Procedures ............................................................................ 6 3. Facilities and Accreditation ........................................................................................................ 6 4. SAR Measurement System & Test Equipment .......................................................................... 7 4.1. SAR Measurement System ........................................................................................................ 7 4.2. SAR Scan Procedures ............................................................................................................... 8 4.3. Test Equipment ........................................................................................................................ 10 5. Measurement Uncertainty ......................................................................................................... 10 6. Device Under Test (DUT) Information ...................................................................................... 11 6.1. DUT Description ...................................................................................................................... 11 6.2. Wireless Technologies ............................................................................................................. 11 6.3. Nominal and Maximum Output Power ...................................................................................... 12 6.4. General LTE SAR Test and Reporting Considerations ............................................................. 13 6.5. LTE (TDD) Considerations ....................................................................................................... 14 6.6. Power Reduction by Proximity Sensing ................................................................................... 15 6.6.1. Proximity Sensor Triggering Distance (KDB 616217 §6.2) ................................................ 15 6.6.2. Proximity Sensor Coverage (KDB 616217 §6.3) ............................................................... 27 6.6.3. Proximity Sensor Tilt Angle Assessment (KDB 616217 §6.4) ............................................ 27 7. RF Exposure Conditions (Test Configurations) ...................................................................... 28 7.1. Standalone SAR Test Exclusion Considerations ...................................................................... 28 7.2. Required Test Configurations .................................................................................................. 33 8. Dielectric Property Measurements & System Check .............................................................. 34 8.1. Dielectric Property Measurements ........................................................................................... 34 8.2. System Check.......................................................................................................................... 38 9. Conducted Output Power Measurements ................................................................................ 42 9.1. GSM ........................................................................................................................................ 42 9.2. W-CDMA ................................................................................................................................. 44 9.3. LTE .......................................................................................................................................... 49 9.4. Wi-Fi 2.4GHz (DTS Band) ....................................................................................................... 52 9.5. Wi-Fi 5GHz (U-NII Bands)........................................................................................................ 53 9.6. Bluetooth ................................................................................................................................. 57 10. Measured and Reported (Scaled) SAR Results ....................................................................... 58 10.1. GSM850 ............................................................................................................................... 61 Report No.: 15K20542-S1C Issue Date: 6/2/2015 Page 4 of 82 UL Korea, Ltd. Suwon Laboratory Doc. No.: 1.0 This report shall not be reprodu…

Text truncated - open the document above for the full version.

Plot No. 1 Test Laboratory: UL Korea, Ltd. Suwon Laboratory, SAR 3 Room Date: 2015-04-30 GSM 850 Reduced1_0430 Frequency: 836.6 MHz; Duty Cycle: 1:4.00037; Room Ambient Temperature: 24.0C; Liquid Temperature: 23.0C Medium parameters used (interpolated): f = 836.6 MHz; σ = 0.916 S/m; ε r = 42.074; ρ = 1000 kg/m 3 DASY5 Configuration: - Area Scan Setting: Find Secondary Maximum Within: 2.0 dB and with a peak SAR value greater than 0.0012W/kg - Electronics: DAE4 Sn1446; Calibrated: 2014-08-27 - Probe: EX3DV4 - SN7323; ConvF(10.07, 10.07, 10.07); Calibrated: 2014-12-05; - Sensor-Surface: 2.5mm (Mechanical Surface Detection) - Phantom: SAM Phantom CRP v5.0(Right); Type: QD000P40CD; Serial: TP:1846 RHS/Touch_GPRS 2 Slots_ch 190/Area Scan (11x9x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.362 W/kg RHS/Touch_GPRS 2 Slots_ch 190/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 19.02 V/m; Power Drift = -0.03 dB Peak SAR (extrapolated) = 0.564 W/kg SAR(1 g) = 0.283 W/kg; SAR(10 g) = 0.148 W/kg Maximum value of SAR (measured) = 0.395 W/kg 0 dB = 0.395 W/kg = -4.03 dBW/kg Plot No. 2 Test Laboratory: UL Korea Ltd. Suwon Laboratory, SAR 2 Room Date: 2015-04-30 GSM 850_Reduced Frequency: 824.2 MHz; Duty Cycle: 1:4.00037; Room Ambient Temperature: 24.0C; Liquid Temperature: 23.0C Medium parameters used: f = 825 MHz; σ = 0.99 S/m; ε r = 53.179; ρ = 1000 kg/m 3 DASY5 Configuration: - Area Scan Setting: Find Secondary Maximum Within: 2.0 dB and with a peak SAR value greater than 0.0012W/kg - Electronics: DAE4 Sn1447; Calibrated: 2014-08-25 - Probe: EX3DV4 - SN7313; ConvF(9.57, 9.57, 9.57); Calibrated: 2014-08-27; - Sensor-Surface: 2.5mm (Mechanical Surface Detection) - Phantom: ELI v5.0 (20deg probe tilt); Type: QDOVA002AA; Serial: TP:2005 Edge 1/GPRS 2 slot_ch 128 0mm/Area Scan (6x13x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 1.20 W/kg Edge 1/GPRS 2 slot_ch 128 0mm/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 35.29 V/m; Power Drift = 0.03 dB Peak SAR (extrapolated) = 1.76 W/kg SAR(1 g) = 0.895 W/kg; SAR(10 g) = 0.481 W/kg Maximum value of SAR (measured) = 1.27 W/kg 0 dB = 1.27 W/kg = 1.04 dBW/kg Plot No. 3 Test Laboratory: UL Korea Ltd. Suwon Laboratory, SAR 2 Room Date: 2015-04-29 GSM 1900 Reduced1 Frequency: 1880 MHz; Duty Cycle: 1:4.00037; Room Ambient Temperature: 24.0C; Liquid Temperature: 23.0C Medium parameters used: f = 1880 MHz; σ = 1.44 S/m; ε r = 38.893; ρ = 1000 kg/m 3 DASY5 Configuration: - Area Scan Setting: Find Secondary Maximum Within: 2.0 dB and with a peak SAR value greater than 0.0012W/kg - Electronics: DAE4 Sn1447; Calibrated: 2014-08-25 - Probe: EX3DV4 - SN7313; ConvF(7.87, 7.87, 7.87); Calibrated: 2014-08-27; - Sensor-Surface: 2.5mm (Mechanical Surface Detection) - Phantom: SAM (20deg probe tilt) with CRP v5.0(Middle); Type: QD000P40CD; Serial: TP:xxxx RHS/Touch_GPRS 2 Slots_ch 661/Area Scan (11x9x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.621 W/kg RHS/Touch_GPRS 2 Slots_ch 661/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 21.47 V/m; Power Drift = 0.06 dB Peak SAR (extrapolated) = 1.08 W/kg SAR(1 g) = 0.485 W/kg; SAR(10 g) = 0.230 W/kg Maximum value of SAR (measured) = 0.624 W/kg 0 dB = 0.624 W/kg = -2.05 dBW/kg Plot No. 4 Test Laboratory: UL Korea, Ltd. Suwon Laboratory, SAR 3 Room Date: 2015-04-29 GSM 1900_0429 Frequency: 1909.8 MHz; Duty Cycle: 1:2.60016; Room Ambient Temperature: 24.0C; Liquid Temperature: 23.0C Medium parameters used: f = 1910 MHz; σ = 1.596 S/m; ε r = 54.745; ρ = 1000 kg/m 3 DASY5 Configuration: - Area Scan Setting: Find Secondary Maximum Within: 2.0 dB and with a peak SAR value greater than 0.0012W/kg - Electronics: DAE4 Sn1446; Calibrated: 2014-08-27 - Probe: EX3DV4 - SN7323; ConvF(7.77, 7.77, 7.77); Calibrated: 2014-12-05; - Sensor-Surface: 2.5mm (Mechanical Surface Detection) - Phantom: ELI Phantom v5.0; Type: QDOVA002AA; Serial: TP:2005 Edge 4/GPRS 3 Slot ch 810 0mm/Area Scan (7x9x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 1.45 W/kg Edge 4/GPRS 3 Slot ch 810 0mm/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 30.48 V/m; Power Drift = -0.06 dB Peak SAR (extrapolated) = 2.27 W/kg SAR(1 g) = 0.942 W/kg; SAR(10 g) = 0.402 W/kg Maximum value of SAR (measured) = 1.50 W/kg 0 dB = 1.50 W/kg = 1.76 dBW/kg Plot No. 5 Test Laboratory: UL Korea, Ltd. Suwon Laboratory, SAR 3 Room Date: 2015-05-06 WCDMA Band V Frequency: 836.6 MHz; Duty Cycle: 1:1; Room Ambient Temperature: 24.0C; Liquid Temperature: 23.0C Medium parameters used (interpolated): f = 836.6 MHz; σ = 0.903 S/m; ε r = 40.481; ρ = 1000 kg/m 3 DASY5 Configuration: - Area Scan Setting: Find Secondary Maximum Within: 2.0 dB and with a peak SAR value greater than 0.0012W/kg - Electronics: DAE4 Sn1446; Calibrated: 2014-08-27 - Probe: EX3DV4 - SN7323; ConvF(10.07, 10.07, 10.07); Calibrated: 2014-12-05; - Sensor-Surface: 2.5mm (Mechanical Surface Detection) - Phantom: SAM Phantom CRP v5.0(Right); Type: QD000P40CD; Serial: TP:1846 RHS/Touch_RMC Rel .99_ch 4183/Area Scan (11x9x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.219 W/kg RHS/Touch_RMC Rel .99_ch 4183/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 16.65 V/m; Power Drift = -0.02 dB Peak SAR (extrapolated) = 0.386 W/kg SAR(1 g) = 0.186 W/kg; SAR(10 g) = 0.096 W/kg Maximum value of SAR (measured) = 0.245 W/kg 0 dB = 0.245 W/kg = -6.11 dBW/kg Plot No. 6 Test Laboratory: UL Korea Ltd. Suwon Laboratory, SAR 2 Room Date: 2015-04-30 WCDMA Band V_Reduced Frequency: 836.6 MHz; Duty Cycle: 1:1; Room Ambient Temperature: 24.0C; Liquid Temperature: 23.0C Medium parameters used (interpolated): f = 836.6 MHz; σ = 1.002 S/m; ε r = 53.094; ρ = 1000 kg/m 3 DASY5 Configuration: - Area Scan Setting: Find Secondary Maximum Within: 2.…

Text truncated - open the document above for the full version.

Plot No. 1 Test Laboratory: UL Korea, Ltd. Suwon Laboratory, SAR 1 Room Date: 2015-04-20 20150420_SystemPerformanceCheck-D2450V2 SN 939 Frequency: 2450 MHz; Duty Cycle: 1:1; Room Ambient Temperature: 24.0C; Liquid Temperature: 23.0C Medium parameters used: f = 2450 MHz; σ = 2.03 S/m; ε r = 50.638; ρ = 1000 kg/m 3 DASY5 Configuration: - Area Scan Setting: Find Secondary Maximum Within: 2.0 dB and with a peak SAR value greater than 0.0012W/kg - Averaged Fast SAR: Polynomial fit - Electronics: DAE4 Sn1468; Calibrated: 2015-01-12 - Probe: EX3DV4 - SN7330; ConvF(7.32, 7.32, 7.32); Calibrated: 2015-02-12; - Sensor-Surface: 4mm (Mechanical Surface Detection) - Phantom: ELI Phantom v5.0; Type: QDOVA002AA; Serial: TP:2013 Body/Pin=100 mW 2 2 2/Area Scan (81x71x1): Interpolated grid: dx=1.200 mm, dy=1.200 mm Reference Value = 64.35 V/m; Power Drift = -0.07 dB Fast SAR: SAR(1 g) = 5.36 W/kg; SAR(10 g) = 2.37 W/kg Maximum value of SAR (interpolated) = 6.36 W/kg Body/Pin=100 mW 2 2 2/Zoom Scan (7x7x7) (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 64.35 V/m; Power Drift = -0.07 dB Peak SAR (extrapolated) = 11.2 W/kg SAR(1 g) = 5.4 W/kg; SAR(10 g) = 2.47 W/kg Maximum value of SAR (measured) = 6.18 W/kg 0 dB = 6.18 W/kg = 7.91 dBW/kg Plot No. 2 Test Laboratory: UL Korea, Ltd. Suwon Laboratory, SAR 1 Room Date: 2015-04-20 20150420_SystemPerformanceCheck-D2450V2 SN 939 Frequency: 2450 MHz; Duty Cycle: 1:1 Body/Pin=100 mW 2 2 2/Z Scan (1x1x21): Measurement grid: dx=20mm, dy=20mm, dz=5mm Maximum value of SAR (measured) = 3.87 W/kg Plot No. 3 Test Laboratory: UL Korea Ltd. Suwon Laboratory, SAR1 Room Date: 2015-04-28 20150428_SystemPerformanceCheck-D5GHzV2 SN 1184 Frequency: 5800 MHz; Duty Cycle: 1:1; Room Ambient Temperature: 24.0C; Liquid Temperature: 23.0…

Text truncated - open the document above for the full version.
