A3LSP10BTNotebook PC w/ Bluetooth

April 15, 2002 Federal Communications Commission Authorization and Evaluation Div. Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 To whom it may concern: We, the undersigned, hereby authorize PCTEST Engineering Laboratory Inc., to act as agent on behalf of all matters relating to applications for equipment authorization, including the signing of all documents relating to these matters. Any and all acts carried out by PCTEST Engineering Laboratory, Inc. on our behalf shall have the same effect as acts of our own. We also hereby certify that no party to this application is subject to a denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988,21 U.S.C.862. Sincerely, Wallace Oh Engineering Manager Samsun Electronics America

June 11, 2002 Federal Communications Commission Authorization and Evaluation Div. Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 In re: Samsung Electronics Co., Ltd. FCC ID.: A3LSP10BT Request for Confidentiality To Whom It May Concern: In accordance with 0.459 of CFR 47, Samsung Electronics Co., Ltd. requests confidentiality for the Block Diagram and Schematics of the attached test report. These documents contain detailed system and equipment descriptions and related information about the product, which Samsung Electronics Co., Ltd. considers to be proprietary, confidential, and a custom design and otherwise, would not release to the general public. Since this design is a basis from which future technological products will evolve, Samsung feels that this information would be of benefit to its competitors, and that the disclosure of the information in these documents would give our competitors an unfair advantage in the market.

June 11, 2002 Federal Communications Commission Equipment Approval Services 7435 Oakland Mills Road Columbia, MD 21046 SUBJECT: SAMSUNG Electronics Co., Ltd. FCC ID: A3LSP10BT Part 15.247 Certification Gentlemen: Submitted herewith, on behalf of SAMSUNG Electronics Co., Ltd., is an application for Part 15.247 Certification of the Notebook PC. Attached is the applicant’s Letter of Authorization, Confidentiality Request, measurement report test data and plots, FCC ID label and location, test setup photographs, internal and external photographs, block diagram (confidential), schematics (confidential), operational description (confidential), and the user's manual. Should you have any questions or comments concerning the above, please contact the undersigned. cc: SAMSUNG Electronics Co., Ltd.

August 13, 2002 Federal Communications Commission Equipment Approval Services 7435 Oakland Mills Road Columbia, MD 21046 Attn: Mr. Andy Leimer SUBJECT: Samsung Electronics Co., Ltd. FCC ID: A3LSP10BT 731 Confirmation No.: TC920247 Correspondence Reference No.: 4676 Request for Tech. Info.: 7/17/02 Dear Andy: Transmitted herewith, on behalf of Samsung Electronics Co., Ltd. is an amendment provided in response to the request for technical information dated July 17, 2002. 1. We confirm the conducted power could not be measured. 2. The EIRP for channel 40 (2441 MHz) was measured at a 3 meter distance on our OATS. The turn table and antenna mast were adjusted to obtain the highest reading on a receiver spectrum analyzer with RBW and VBW set at 3MHz each. A horn antenna driven by a signal generator was substituted in place of the EUT and adjusted to match the —50.42 dBm receiver spectrum analyzer reading. (The horn antenna used during the substitution has a gain of 8.7 dBi at 2441 MHz.). The power at the antenna terminals of the substituted horn was —14.4 dBm. This value was corrected by adding the 8.7 dBi gain of the horn to yield —5.8 dBm for EIRP. 3. To measure the spectral density of channel 40 the same procedure that was used in item #2 was followed but the VBW and RBW were set at 3 kHZ each and the sweep time was set at 1000 Seconds. The power at the antenna terminals of the substituted horn was —27.7 dBm. This value was corrected by adding the 8.7 dBi gain of the horn to yield —19 dBm. 4. Please find attached the revised RF exposure exhibit stating that SAR evaluation is not needed for this device. 5. Please find the revised copy of the Grant deleting the second sentence of the Grant condition. We trust this information is sufficient to resolve FCC questions in this application. If you have any further questions, please do not hesitate to contact us. cc: Samsung Electronics Co., Ltd.

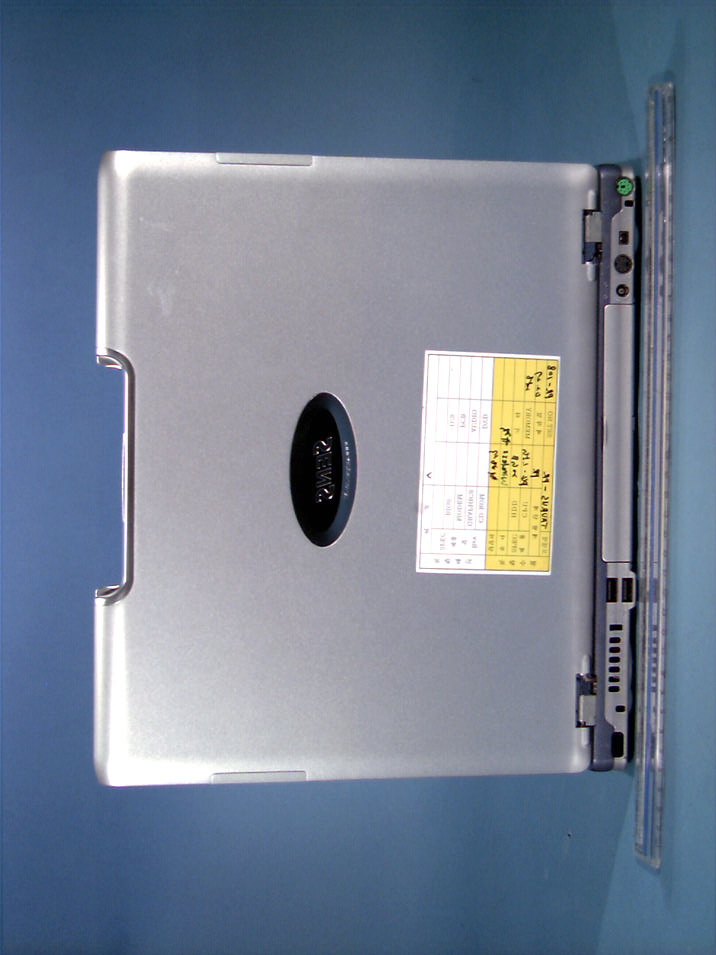

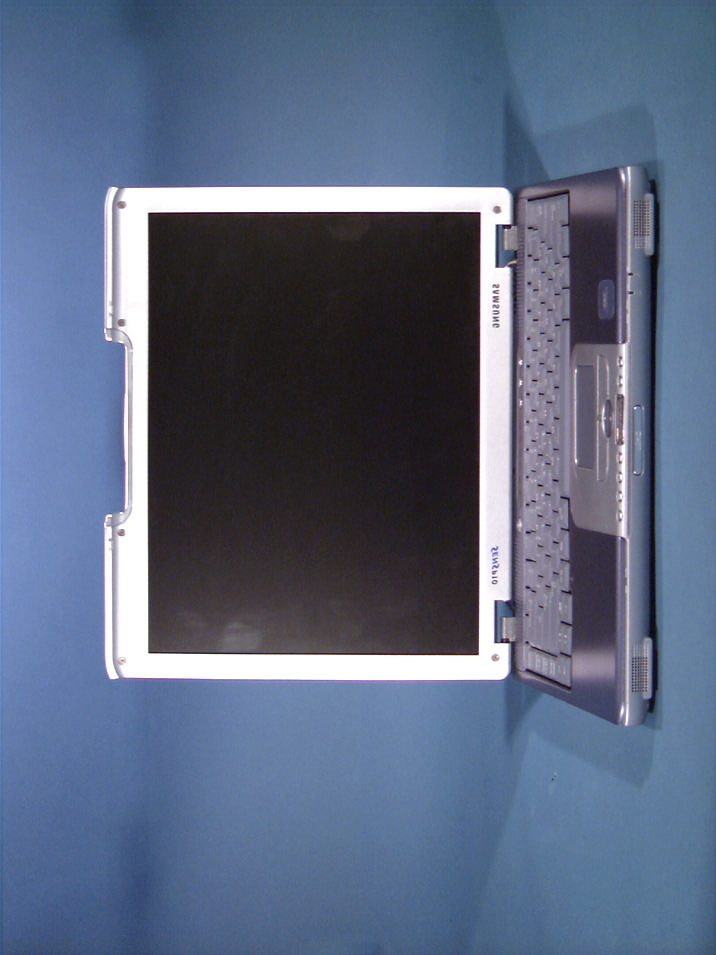

© 2002 PCTEST Lab SAMSUNG FCC ID: A3LSP10BT Laptop w/ Bluetooth © 2002 PCTEST Lab SAMSUNG FCC ID: A3LSP10BT Laptop w/ Bluetooth © 2002 PCTEST Lab SAMSUNG FCC ID: A3LSP10BT Laptop w/ Bluetooth © 2002 PCTEST Lab SAMSUNG FCC ID: A3LSP10BT Laptop w/ Bluetooth © 2002 PCTEST Lab SAMSUNG FCC ID: A3LSP10BT Laptop w/ Bluetooth

© 2002 PCTEST Lab FCC ID SAMPLE LABEL & LOCATION LABELLING REQUIREMENTS PER §§ 2.925 The Label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time of purchase. (SEE NEXT PAGE)

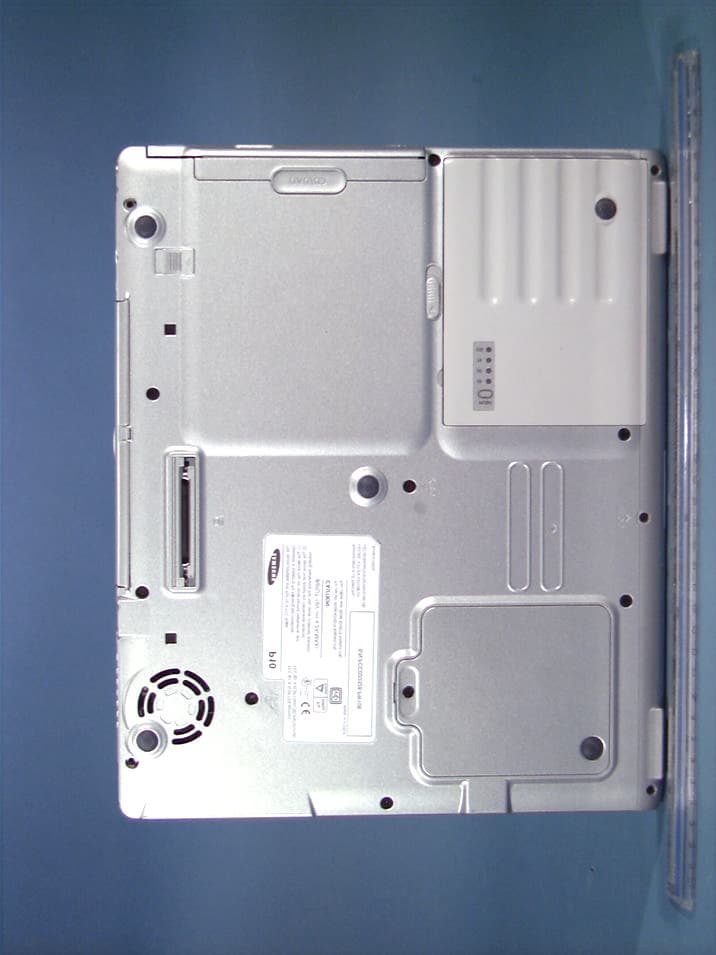

© 2002 PCTEST Lab SAMSUNG FCC ID: A3LSP10BT Laptop w/ Bluetooth © 2002 PCTEST Lab SAMSUNG FCC ID: A3LSP10BT Laptop w/ Bluetooth © 2002 PCTEST Lab SAMSUNG FCC ID: A3LSP10BT Laptop w/ Bluetooth

RF Exposure Measurement 1. Introduction 2.4 GHz frequency band is regarded specially as a dangerous band for its heating harmfulness to the human body. That’s why microwave oven is operating in this frequency band. The manufacturer whose product is working in this frequency band is obligatory to prove the harmfulness of this product. In this document, we try to prove the safety of radiation harmfulness to the human body. The limit for Maximum Permissible Exposure (MPE) specified in FCC 1.1210 is followed. The Gain of the antenna used in this product is measured by power meter. Through the Friis transmission formula and the maximum gain of the antenna, we can calculate the distance, away from the product, where the limit of MPE is reached. 2. RF Exposure Limit According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environmental impact of human exposure to radio-frequency (RF) radiation as specified in 1.1307(b). LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (Minutes) (A) Limits For Occupational / Control Exposures 300-1500 ... ... F/300 6 1500-100,000 ... ... 5 6 (B) Limits For General Population / Uncontrolled Exposure 300-1500 ... ... F/1500 6 1500-100,000 ... ... 1.0 30 F = Frequency in MHz 3. Friis Formula Friis transmission formula: Pd = (Pout*G) / (4πr 2 ) Where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale π = 3.1416 R = distance between observation point and center of the radiator in cm Pd is the limit of MPE, 1 mW/cm2. If we know the maximum Gain of the antenna and the total power input to the antenna, through the calculation, we will know the distance r where the MPE limit is reached. Ref.: David K. Cheng, Field and Wave Electromagnetics, Second Edition, Page 640, Eq. (11.133) 4. EUT Operating Condition Software provided by the client enabled the EUT to transmit and receive data at lowest, middle, and highest channel individually. 5. Climate Condition The temperature and related humidity: 22 ̊C and 78% RH 6. Test Results (Antenna Configuration) 6.1 Output Power into Antenna & RF Exposure Distance: Channel Channel Frequency (MHz) Output Power to Antenna (mW) Minimum Allowable Distance from Skin (cm) 79 2480 0.293 0.150

RF EXPOSURE MEASUREMENT Since the power output of the EUT is below the low threshold, as specified in Appendix A of the TCB Exclusion List, no RF exposure measurement is needed.

GRANT OF EQUIPMENT AUTHORIZATION Certification Issued Under the Authority of the Federal Communications Commission By: PCTEST Engineering Laboratory, Inc. 6660-B Dobbin Road Columbia, MD 21045 Date of Grant: 06/18/2002 Application Dated: 06/17/2002 Samsung Electronics Co Ltd 416 Maetan-3Dong, Paldal-Ku Suwon City Kyungki-Do, 441 South Korea Attention: Wallace Oh NOT TRANSFERABLE EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. FCC IDENTIFIER: A3LSP10BT Name of Grantee: Samsung Electronics Co Ltd Equipment Class: Part 15 Spread Spectrum Transmitter Notes: Notebook PC w/ Bluetooth Grant Notes FCC Rule Parts Frequency Range (MHZ) Output Watts Frequency Tolerance Emission Designator 28 15C 2402 - 2480 0.000293 Output is EIRP. This device and its antenna must not be co-located or operating in conjunction with any other antenna or transmitter. 28: An AC adapter incorporating a ferrite core at the connector end of its DC line must be provided with every unit sold. Page 1 of 1 8/16/02https://gullfoss2.fcc.gov/cgi-bin/ws.exe/prod/oet/tcb/forms/731/TCB_Grant_Form.hts?applic...

PCTEST PT. 15.247 REPORT EVALUATION REPORT Reviewed By: Quality Manager Test Report S/N: 15.220401178.A3L Test Dates: JUNE 10-11, 2002 EUT Type: LAPTOP W/ BLUETOOTH FCC ID: A3LSP10BT Page 1 of 18 PCTEST Engineering Laboratory, Inc. 6660-B Dobbin Road • Columbia, MD 21045 • U.S.A. TEL (410) 290-6652 • FAX (410) 290-6654 http://www.pctestlab.com CERTIFICATE OF COMPLIANCE SAMSUNG Electronics Co., Ltd.. Dates of Tests: June 10-11, 2002 416, Maetan-3 Dong, Paldal-Gu, Suwon City Test Report S/N: 15.220401178.A3L Kyungki-Do, 442-742, KOREA Test Site: PCTEST Lab, Columbia MD Attention: Mr. SC Lee FCC ID A3LSP10BT APPLICANT SAMSUNG Electronics Co., Ltd.. FCC Rule Part(s): § 15.247; ANSI C-63.4 (1992) Classification: Spread Spectrum Transceiver (DSS) Max Output Power: 0.293mWEIRP Method/System: Direct Sequence System (DSS) Equipment Type: Laptop w/ Bluetooth Module Frequency Range: 2400 — 2483.5 MHz Model No(s).: SWB-1000m This equipment has been shown to be capable of compliance with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in ANSI C-63-4. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. PCTEST certifies that no party to this application has been denied the FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. 220401178.A3L PCTEST PT. 15.247 REPORT EVALUATION REPORT Reviewed By: Quality Manager Test Report S/N:15.220401178.A3L Test Dates: JUNE 10-11, 2002 EUT Type: LAPTOP W/ BLUETOOTH FCC ID: A3LSP10BT Page 2 of 18 TABLE OF CONTENTS ATTACHMENT A- COVER LETTER ATTACHMENT B- ATTESTATION STATEMENT ATTACHMENT C- TEST REPORT SCOPE 3 INTRODUCTION (SITE DESCRIPTION) 4 PRODUCT INFORMATION 5 DESCRIPTION OF TESTS A. CONDUCTED EMISSIONS 6 B. RADIATED EMISSIONS 7 C. RESTRICTED BANDS 8 D. ANTENNA REQUIREMENT 9 E. DIRECT SEQUENCE BANDWIDTH 10 F. MAXIMUM PEAK POWER OUTPUT 11 G. POWER DENSITY 12 RADIATED MEASUREMENTS (FUNDAMENTAL & HARMONICS) 13-15 FREQUENCY MEASUREMENTS (SPURIOUS) 16 LIST OF TEST EQUIPMENT 17 CONCLUSION 18 ATTACHMENT D- TEST PLOTS ATTACHMENT E- FCC ID LABEL & LOCATION ATTACHMENT F- TEST SET-UP PHOTOGRAPHS ATTACHMENT G- EXTERNAL PHOTOGRAPHS ATTACHMENT H- INTERNAL PHOTOGRAPHS ATTACHMENT I- BLOCK DIAGRAM(S) ATTACHMENT J- SCHEMATIC DIAGRAM(S) ATTACHMENT K- OPERATIONAL DESCRIPTION ATTACHMENT L- USER’S MANUAL ATTACHMENT M- SAR MPE REPORT PCTEST PT. 15.247 REPORT EVALUATION REPORT Reviewed By: Quality Manager Test Report S/N:15.220401178.A3L Test Dates: JUNE 10-11, 2002 EUT Type: LAPTOP W/ BLUETOOTH FCC ID: A3LSP10BT Page 3 of 18 MEASUREMENT REPORT Scope - Measurement and determination of electromagnetic emissions (EME) of radio frequency devices including intentional and/or unintentional radiators for compliance with the technical rules and regulations of the Federal Communications Commission. §2983(a) General Information Applicant Name: SAMSUNG Electronics Co., Ltd. Address: 416, Maetan-3 Dong, Paldal-Gu, Suwon City Kyungki-Do, 442-742, KOREA Attention: Mr. S.C Lee • FCC ID: A3LSP10BT • Class: Spread Spectrum Transceiver (DSS) • Type: Laptop w/ Bluetooth Module • Freq. Range: 2401.5 — 2470.5 MHz • Method/System: Blluetooth • Model No(s): SWB-1000m • Max. RF Output Power: 0.293mW • Power Supply: AC Adapter Model: AD-8019 • Cable(s): Telco • Rule Part(s): § 15.247 • Dates of Tests: June 10-11, 2002 • Place of Tests: PCTEST Lab, Columbia, MD U.S.A. • Test Report S/N: 220401178.A3L NOTE: The receiver portion was tested and complies with Part 15B under the verification procedure. PCTEST PT. 15.247 REPORT EVALUATION REPORT Reviewed By: Quality Manager Test Report S/N:15.220401178.A3L Test Dates: JUNE 10-11, 2002 EUT Type: LAPTOP W/ BLUETOOTH FCC ID: A3LSP10BT Page 4 of 18 INTRODUCTION The measurement procedure described in American National Standard for Methods of Measurement of Radio- Noise Emissions from Low-Voltage Electrical and Electronic Equipment in the Range of 9kHz to 40GHz (ANSI C63.4-1992) and FCC Public Notice dated July 12, 1995 entitled “Guidance on Measurement for Direct Sequence Spread Spectrum Systems” were used in the measurement of Samsung Spread Spectrum laptop w/ bluetooth module. These measurement tests were conducted at PCTEST Engineering Laboratory, Inc. facility in New Concept Business Park, Guilford Industrial Park, Columbia, Maryland. The site address is 6660-B Dobbin Road, Columbia, MD 21045. The test site is one of the highest points in the Columbia area with an elevation of 390 feet above mean sea level. The site coordinates are 39 ° 11'15" N latitude and 76 ° 49'38" W longitude. The facility is 1.5 miles North of the FCC laboratory, and the ambient signal and ambient signal strength are approximately equal to those of the FCC laboratory. There are no FM or TV transmitters within 15 miles of the site. The detailed description of the measurement facility was found to be in compliance with the requirements of § 2.948 according to ANSI C63.4 on October 19, 1992. PCTEST Location The map at right shows the location of the PCTEST Lab, its proximity to the FCC Lab, the Columbia vicinity area, the Baltimore-Washington International (BWI) airport, and the city of Baltimore, and the Washington, D.C. area. (see Figure1). Figure 1. Map of the Greater Baltimore and Metropolitan Washington, D.C. area. PCTEST PT. 15.247 REPORT EVALUATION REPORT Reviewed By: Quality Manager Test Report S/N:15.220401178.A3L Test Dates: JUNE 10-11, 2002 EUT Type: LAPTOP W/ BLUETOOTH FCC ID: A3LSP10BT Page 5 of 18 PRODUCT INFORMATION Equipment Description: The Equipment under test (EUT) is the Samsung Laptop w/ Bluetooth Module using spread spectrum direct sequence and time division duplex techniques. Frequency R…

Text truncated - open the document above for the full version.

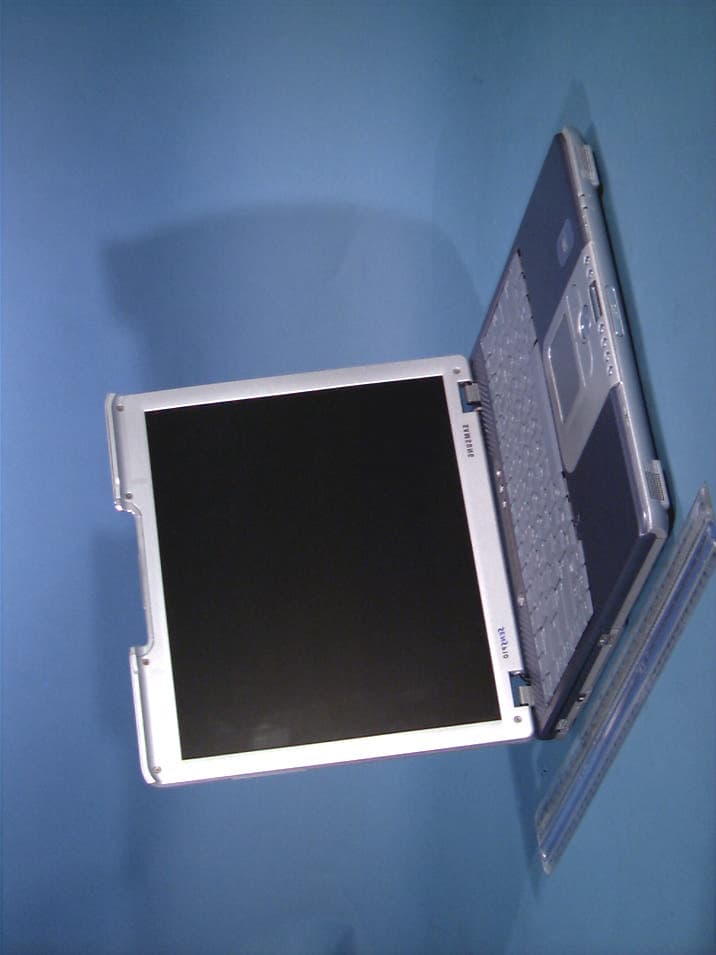

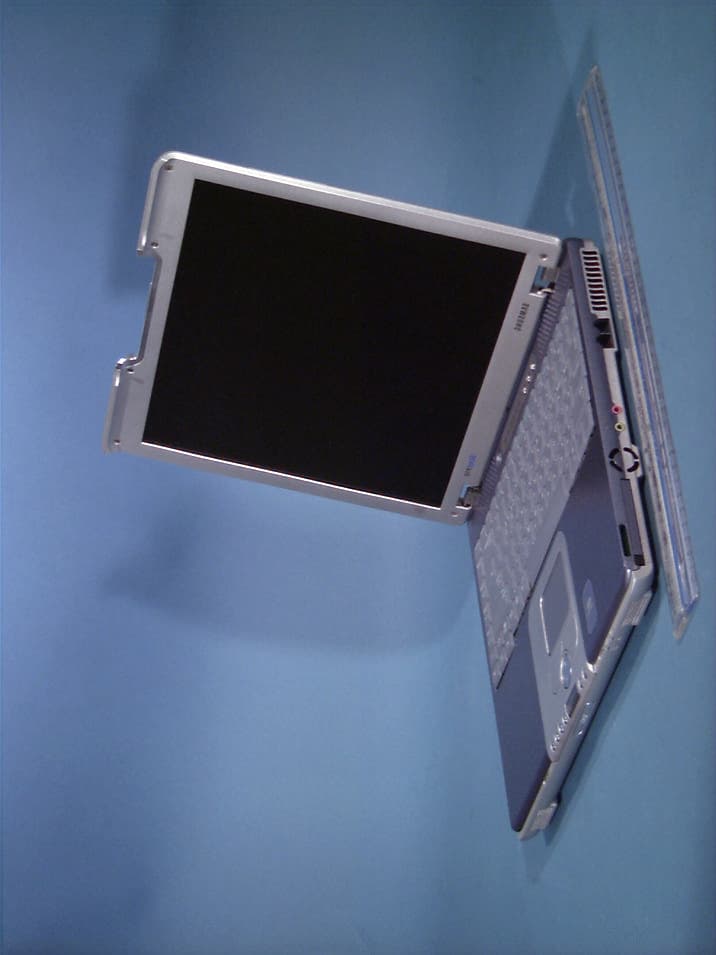

© 2002 PCTEST Lab SAMSUNG FCC ID: A3LSP10BT Laptop w/ Bluetooth © 2002 PCTEST Lab SAMSUNG FCC ID: A3LSP10BT Laptop w/ Bluetooth © 2002 PCTEST Lab SAMSUNG FCC ID: A3LSP10BT Laptop w/ Bluetooth © 2002 PCTEST Lab SAMSUNG FCC ID: A3LSP10BT Laptop w/ Bluetooth
