A3LSPHA250Single-Mode PCS Phone (PCS CDMA )

Printed in Korea Code No. : GH68-XXXXXA Basic. 2001/01. Rev.1.0 PORTABLE CELLULAR TELEPHONE SPH-A250 User’s Manual ELECTRONICS World Wide Webhttp://www.samsungmobile.com Draft version (2001.1.13) ii FCC RF EXPOSURE INFORMATION In August 1996 the Federal Communications Commission (FCC) ofthe United States with its action in Report and Order FCC 96-326adopted an updated safety standard for human exposure to radiofrequency electromagnetic energy emitted by FCC regulatedtransmitters. Those guidelines are consistent with the safetystandard previously set by both U.S. and international standardsbodies. The design of this phone complies with the FCCguidelines and these international standards. Use only the supplied or an approved antenna. Unauthorizedantennas, modifications, or attachments could impair call quality,damage the phone, or result in violation of FCC regulations.Do not use the phone with a damaged antenna. If a damagedantenna comes into contact with the skin, a minor burn mayresult. Please contact your local dealer for replacement antenna.Body-worn OperationThis device was tested for typical body-worn operations usingthe optional belt-clip/holster placed 0.7 inches (1.8cm) from thebody. To comply with FCC RF exposure requirements, a minimumseparation distance of 0.7 inches (1.8cm) must be maintainedbetween the user’s body and the phone, including the antenna,whether extended or retracted. The use of third-party belt-clips/holsters with no metallic components that provide the minimumseparation distance of 0.7 inches (1.8cm) can be used to satisfyFCC RF exposure requirements. The use of non-testedaccessories or other body-worn operations may not comply withFCC RF exposure requirements and should be avoided. Contactyour local dealer for optional accessory items.Vehicle Mounted External Antenna (optional, if available.)A minimum separation distance of 7.9 inches (20cm) must bemaintained Between a person and the vehicle mounted externalantenna to satisfy FCC RF exposure requirements.For more information about RF exposure, please visit the FCCwebsite at www .fcc.gov SAR Information & FCC ID Labeling THIS MODEL PHONE MEETS THE GOVERNMENT’S REQUIREMENTSFOR EXPOSURE TO RADIO WAVES.Your wireless phone is a radio transmitter and receiver. It is designedand manufactured not to exceed the emission limits for exposure toradiofrequency (RF) energy set by the Federal CommunicationsCommission of the U.S. Government. These limits are part ofcomprehensive guidelines and establish permitted levels of RFenergy for the general population. The guidelines are based onstandards that were developed by independent scientificorganizations through periodic and thorough evaluation of scientificstudies. The standards include a substantial safety margin designedto assure the safety of all persons, regardless of age and health.The exposure standard for wireless mobile phones employs a unit ofmeasurement know as the Specific Absorption Rate, or SAR. TheSAR limit set by the FCC is 1.6W/kg.* Tests for SAR are conductedusing standard operating positions specified by the FCC with thephone transmitting at its highest certified power level in all testedfrequency bands. Although the SAR is determined at the highestcertified power level, the actual SAR level of the phone whileoperating can be well below the maximum value. This is because thephone is designed to operate at multiple power levels so as to useonly the power required to reach the network. In general, the closeryou are to a wireless base station antenna, the lower the poweroutput.Before a phone model is available for sale to the public, it must betested and certified to the FCC that it does not exceed the limitestablished by the government-adopted requirement for safeexposure. The tests are performed in positions and locations (e.g., atthe ear and worn on the body) as required by the FCC for eachmodel. The highest SAR value for this model phone when tested foruse at the ear is XXXXX and when worn on the body, as described in this user guide, is XXXXX . (Body-worn measurements differ among phone models, depending upon available accessories and FCCrequirements). [Labeling Committee note: if applicable, if body- worn SARs are required] . While there may be differences between the SAR levels of various phones and at various positions,they all meet the government requirement for safe exposure. i 1 iii ContentsYour PhoneUnpacking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7Phone Layout . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8Display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10Backlight . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12Service Light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13Getting StartedInstalling Battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14Charging a Battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15Switching the Phone On/Off . . . . . . . . . . . . . . . . . . . . . . . . . . 18Your Phone’s Modes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19Call FunctionsMaking a Call . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21 Correcting the Number . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22Ending a Call . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22Emergency Dialing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23Prepend Dialing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23Redialing Last Number . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24Speed Dialing from Phone Book Memory . . . . . . . . . . . . . . . . 24Pause Dialing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26Network Dialing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28Fou…

Text truncated - open the document above for the full version.

March 9, 2001 Federal Communications Commission Authorization and Evaluation Div. Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 To whom it may concern: We, the undersigned, hereby authorize PCTEST Engineering Laboratory Inc., to act as agent on behalf of all matters relating to applications for equipment authorization, including the signing of all documents relating to these matters. Any and all acts carried out by PCTEST Engineering Laboratory, Inc. on our behalf shall have the same effect as acts of our own. We also hereby certify that no party to this application is subject to a denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988,21 U.S.C.853(a) Sincerely, Wallace Oh Engineering Manager Samsung Electronics America May 10, 2001 Federal Communications Commission Authorization and Evaluation Div. Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 In re: Samsung Electronics Co., Ltd. FCC ID.:A3LSPHA250 Request for Confidentiality To Whom It May Concern: In accordance with 0.459 of CFR 47, Samsung Electronics Co., Ltd. requests confidentiality for the Block Diagram, Schematics, and Circuit Description of the attached test report. These documents contain detailed system and equipment descriptions and related information about the product which Samsung Electronics Co., Ltd. considers to be proprietary, confidential, and a custom design and otherwise, would not release to the general public. Since this design is a basis from which future technological products will evolve, Samsung feels that this information would be of benefit to its competitors, and that the disclosure of the information in these documents would give our competitors an unfair advantage in the market. March 13, 2001 Federal Communications Commission Equipment Approval Services 7435 Oakland Mills Road Columbia, MD 21046 SUBJECT: Samsung Electronics Co., Ltd. FCC ID: A3LSPHA250 Users Manual RF Exposure Warning Statement Gentlemen: Samsung Electronics Co., Ltd., hereby confirms that the attached RF exposure warning page will be readily visible to the user, and will be placed at a prominent location in the front section of the users manual. If you have any further questions regarding this matter, please do not hesitate to contact me or PCTEST Lab at (410) 290-6652.

May 10, 2001 Federal Communications Commission Equipment Approval Services 7435 Oakland Mills Road Columbia, MD 21046 SUBJECT: SAMSUNG ELECTRONICS CO., LTD. FCC ID: A3LSPHA250 Part 24 Certification Gentlemen: Attached herewith, on behalf of SAMSUNG ELECTRONICS CO., LTD. is an application for Part 24 Certification of the following Single-Mode PCS Phone (PCS CDMA): FCC ID: A3LSPHA250 TRADE / MODEL(s): SAMSUNG SPH-A250 EUT TYPE: Licensed Portable Transmitter Held to Ear (PCE) Tx Freq. Range: 1851.25 — 1908.75 MHz (PCS CDMA) Rx Freq. Range: 1931.25 — 1988.75 MHz (PCS CDMA) Max. RF Output Power: 0.365 W EIRP PCS CDMA (25.621 dBm) Attached is the applicant’s Letter of Authorization, Confidentiality Request, measurement report data and plots, RF Exposure measurement report, FCC ID label and location, test setup photographs, internal and external photographs, block diagrams (confidential), schematic diagrams & circuit description (confidential), operational description, parts list & tune-up procedure, and the user's manual. Should you have any questions or comments concerning the above, please contact the undersigned. cc: Mr. Wallace Oh Engineering Manager SAMSUNG American QA Lab

June 12, 2001 Federal Communications Commission Equipment Approval Services 7435 Oakland Mills Road Columbia, MD 21046 Attn: Mr. Frank Coperich SUBJECT: Samsung Electronics Co., Ltd. FCC ID: A3LSPHA250 731 Confirmation No.: EA101034 Correspondence Reference No.: 19527 Request for Tech. Info.: 6/06/01 Dear Frank: Transmitted herewith, on behalf of Samsung Electronics Co., Ltd. is an amendment provided in response to the request for technical information dated June 6, 2001. 1. Please find attached the Confidentiality Statement. 2. Please find attached the revised test data. 3. We would like to confirm that the justification for the reported mixture is that it will lead to a higher SAR measurement value. This takes into account the measurement error and uncertainty for demonstrating compliance. 4. Please find attached the Hand SAR Test Data. We trust this information is sufficient for the immediate grant of this application. If you have any further questions, please do not hesitate to contact us. cc: Samsung Electronics Co., Ltd.

June 19, 2001 Federal Communications Commission Equipment Approval Services 7435 Oakland Mills Road Columbia, MD 21046 Attn: Mr. Frank Coperich SUBJECT: Samsung Electronics Co., Ltd. FCC ID: A3LSPHA250 731 Confirmation No.: EA101034 Correspondence Reference No.: 19639 Request for Tech. Info.: 6/14/01 Dear Frank: Transmitted herewith, on behalf of Samsung Electronics Co., Ltd. is an amendment provided in response to the request for technical information dated June 14, 2001. 1. Please find attached the Confidentiality Statement. We trust this information is sufficient for the immediate grant of this application. If you have any further questions, please do not hesitate to contact us. cc: Samsung Electronics Co., Ltd.

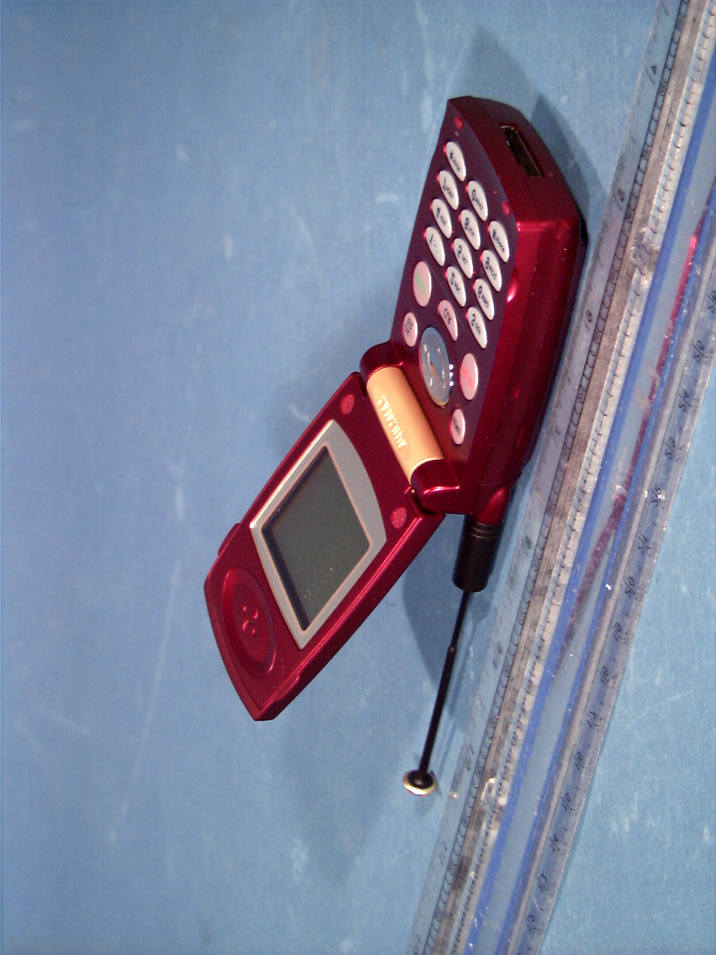

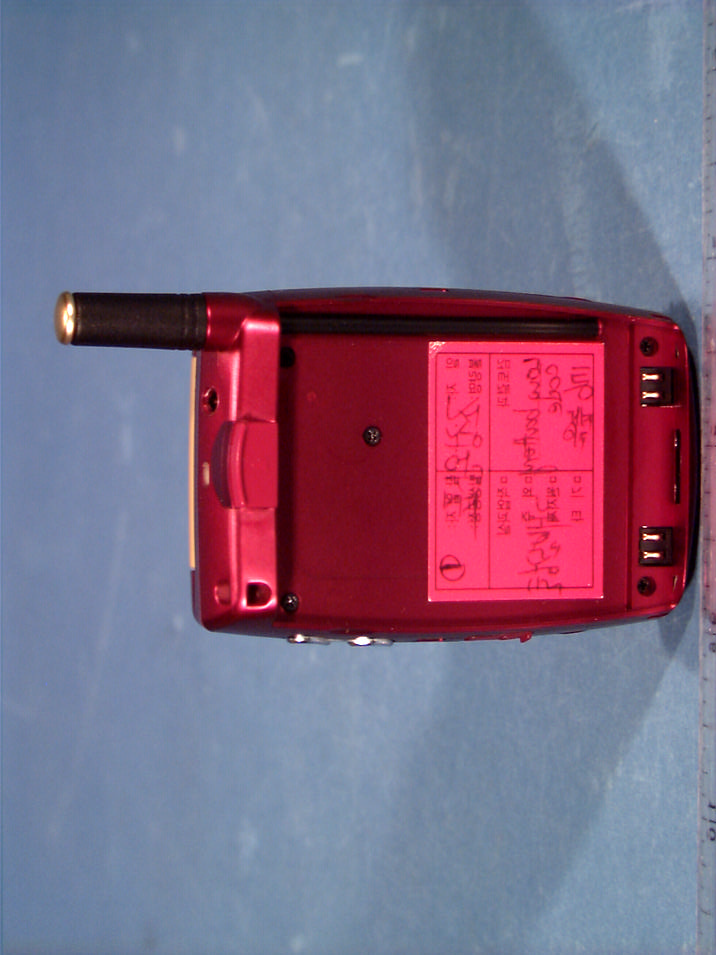

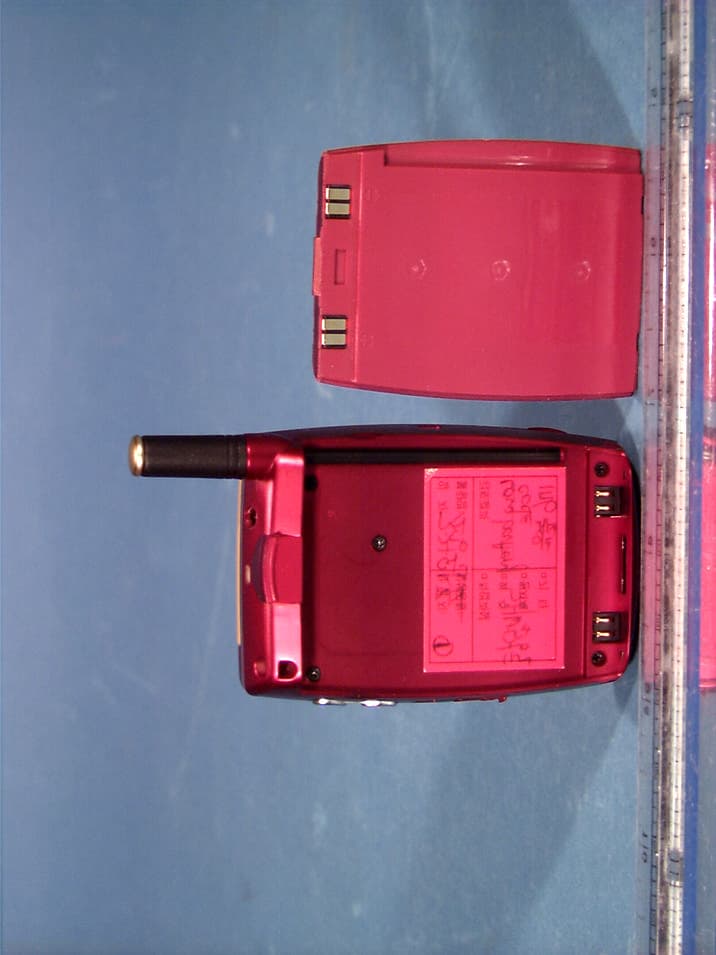

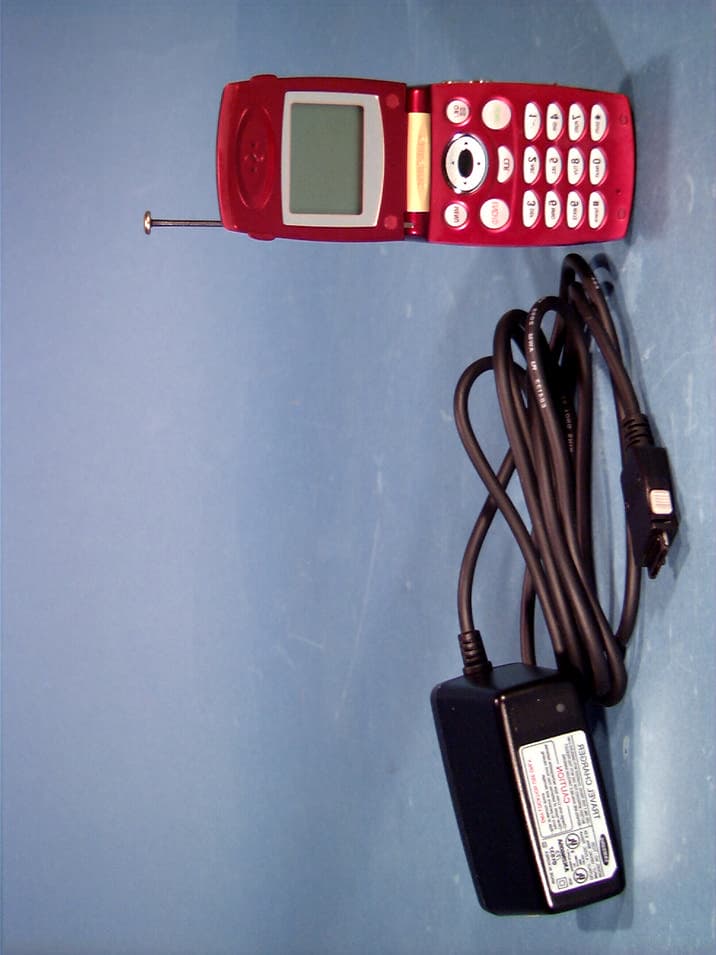

© 2001 PCTEST Lab SAMSUNG FCC ID: A3LSPHA250 (Model: SPH-A250) NVLAP Lab Code: 100431-0 Single-Band PCS Phone (CDMA) © 2001 PCTEST Lab SAMSUNG FCC ID: A3LSPHA250 (Model: SPH-A250) NVLAP Lab Code: 100431-0 Single-Band PCS Phone (CDMA) © 2001 PCTEST Lab SAMSUNG FCC ID: A3LSPHA250 (Model: SPH-A250) NVLAP Lab Code: 100431-0 Single-Band PCS Phone (CDMA) © 2001 PCTEST Lab SAMSUNG FCC ID: A3LSPHA250 (Model: SPH-A250) NVLAP Lab Code: 100431-0 Single-Band PCS Phone (CDMA) © 2001 PCTEST Lab SAMSUNG FCC ID: A3LSPHA250 (Model: SPH-A250) NVLAP Lab Code: 100431-0 Single-Band PCS Phone (CDMA) © 2001 PCTEST Lab SAMSUNG FCC ID: A3LSPHA250 (Model: SPH-A250) NVLAP Lab Code: 100431-0 Single-Band PCS Phone (CDMA)

© 2001 PCTEST Lab FCC ID SAMPLE LABEL & LOCATION LABELLING REQUIREMENTS The Label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time of purchase.

© 2001 PCTEST Lab SAMSUNG FCC ID: A3LSPHA250 (Model: SPH-A250) NVLAP Lab Code: 100431-0 Single-Band PCS Phone (CDMA) © 2001 PCTEST Lab SAMSUNG FCC ID: A3LSPHA250 (Model: SPH-A250) NVLAP Lab Code: 100431-0 Single-Band PCS Phone (CDMA) © 2001 PCTEST Lab SAMSUNG FCC ID: A3LSPHA250 (Model: SPH-A250) NVLAP Lab Code: 100431-0 Single-Band PCS Phone (CDMA) © 2001 PCTEST Lab SAMSUNG FCC ID: A3LSPHA250 (Model: SPH-A250) NVLAP Lab Code: 100431-0 Single-Band PCS Phone (CDMA) © 2001 PCTEST Lab SAMSUNG FCC ID: A3LSPHA250 (Model: SPH-A250) NVLAP Lab Code: 100431-0 Single-Band PCS Phone (CDMA) © 2001 PCTEST Lab SAMSUNG FCC ID: A3LSPHA250 (Model: SPH-A250) NVLAP Lab Code: 100431-0 Single-Band PCS Phone (CDMA) © 2001 PCTEST Lab SAMSUNG FCC ID: A3LSPHA250 (Model: SPH-A250) NVLAP Lab Code: 100431-0 Single-Band PCS Phone (CDMA) © 2001 PCTEST Lab SAMSUNG FCC ID: A3LSPHA250 (Model: SPH-A250) NVLAP Lab Code: 100431-0 Single-Band PCS Phone (CDMA) © 2001 PCTEST Lab SAMSUNG FCC ID: A3LSPHA250 (Model: SPH-A250) NVLAP Lab Code: 100431-0 Single-Band PCS Phone (CDMA)

47*869#1235 ConfigurationofTest(Hands-Free) DCPOWER SUPPLY (+13.7V) + - HANDSFREE KITBOX DATA PWR CRADLE Red Orange Black

Peak SAR Location © 2001 PCTEST Lab FCC ID: A3LSPHA250 (Model: SPH-A250) NVLAP Lab Code: 100431-0 SAMSUNG Single-Mode PCS Phone (PCS CDMA) Head SAR File : c:/idx3/SYSTEM/SARMEAS3/data/Normal/01041617_ZOOM.VLT Start : 16-Apr-101 03:12:54 pm End : 16-Apr-101 03:19:39 pm Radio Type : SAMSUNG Model Number : SPH-A250 Serial Number : 2 Frequency : 1851.25 MHz Peak Trans. Pwr : 0.250 W Start Trans. Pwr: 0.250 W Antenna Type : Helical Antenna Posn. : In Phantom Type : Head Phantom Posn. : Left Ear Scan Type : ZOOM/SAR Probe Name : PCTEST Field Type : E Field Orientation : 0 Degrees Mixture Type = Brain Mixture Dielectric Constant = 40.400 Mixture Conductivity = 1.820 Comment : SAMSUNG PCS MODE PHONE CHAN 0025 Conducted 24.0 dBm SAMSUNG PCS MODE PHONE Robot : PCTEST Probe Offset = 0.25 cm Sensor Factor = 0.0108 Conversion Factor = 1.201 PCTEST Amplifier Channel Settings : 0.245 0.231 0.224 Max Location : X = 3.000, Y = -3.750, Z = 0.000 (cm) Value = 11.639 Measured Values (volts) = 1.144E-002 1.037E-002 8.277E-003 6.436E-003 4.950E-003 3.817E-003 2.870E-003 2.184E-003 1.618E-003 1.151E-003 8.307E-004 4.518E-004 2.699E-004 2.446E-004 2.293E-004 2.168E-004 1.634E-004 1.043E-004 1.019E-004 2.029E-004 4.246E-004 Calc. Voltage @ Surface (Vs) = 0.0135 Voltage @ 1.00 cm (Vt) = 0.0064 Ave. Voltage (Vs+Vt)/2 = 0.0100 Ave. SAR over 1 g (mW/g) = 1.1073 0.0 0.2 0.4 0.6 0.8 1.0 1.2 1.4 1.6 mW/g -1012345 Z centimeters SAR Scan File : 01041617_ZOOM Start : 16-Apr-101 03:12:54 pm End : 16-Apr-101 03:19:39 pm SAMSUNG/SPH-A250/2;1851.25MHz;W;Helical/In; Head/Left Ear;ZOOM/SAR;PCTEST/E Field/0 DegreesBrain/40.400/1.820 File : 01041617_ZOOM Start : 16-Apr-101 03:12:54 pm End : 16-Apr-101 03:19:39 pm SAMSUNG/SPH-A250/2;1851.25MHz;W;Helical/In; Head/Left Ear;ZOOM/SAR;PCTEST/E Field/0 DegreesBrain/40.400/1.820 1.29 1.17 1.04 0.91 0.78 0.65 0.52 0.40 0.27 0.14 File : 01041617_ZOOM Start : 16-Apr-101 03:12:54 pm End : 16-Apr-101 03:19:39 pm SAMSUNG/SPH-A250/2;1851.25MHz;W;Helical/In; Head/Left Ear;ZOOM/SAR;PCTEST/E Field/0 DegreesBrain/40.400/1.820 1.29 1.17 1.04 0.91 0.78 0.65 0.52 0.40 0.27 0.14 File : c:/idx3/SYSTEM/SARMEAS3/data/Normal/01041701_ZOOM.VLT Start : 17-Apr-101 10:24:21 am End : 17-Apr-101 10:34:02 am Radio Type : SAMSUNG Model Number : SPH-A250 Serial Number : 2 Frequency : 1851.25 MHz Peak Trans. Pwr : 0.250 W Start Trans. Pwr: 0.250 W Antenna Type : Helical Antenna Posn. : Out Phantom Type : Head Phantom Posn. : Left Ear Scan Type : ZOOM/SAR Probe Name : PCTEST Field Type : E Field Orientation : 0 Degrees Mixture Type = Brain Mixture Dielectric Constant = 40.400 Mixture Conductivity = 1.820 Comment : SAMSUNG PCS MODE PHONE CHAN 0025 Conducted 24.0 dBm SAMSUNG PCS MODE PHONE Robot : PCTEST Probe Offset = 0.25 cm Sensor Factor = 0.0108 Conversion Factor = 1.201 PCTEST Amplifier Channel Settings : 0.245 0.231 0.224 Max Location : X = 2.750, Y = -3.250, Z = 0.000 (cm) Value = 4.637 Measured Values (volts) = 4.587E-003 3.864E-003 2.997E-003 2.417E-003 1.903E-003 1.473E-003 1.127E-003 8.775E-004 6.716E-004 4.527E-004 3.259E-004 2.069E-004 1.531E-004 7.345E-005 8.321E-005 4.380E-005 5.041E-005 4.857E-005 2.941E-005 2.961E-006 5.599E-005 Calc. Voltage @ Surface (Vs) = 0.0057 Voltage @ 1.00 cm (Vt) = 0.0024 Ave. Voltage (Vs+Vt)/2 = 0.0040 Ave. SAR over 1 g (mW/g) = 0.4502 0.0 0.1 0.2 0.3 0.4 0.5 0.6 0.7 mW/g -1012345 Z centimeters SAR Scan File : 01041701_ZOOM Start : 17-Apr-101 10:24:21 am End : 17-Apr-101 10:34:02 am SAMSUNG/SPH-A250/2;1851.25MHz;W;Helical/Out; Head/Left Ear;ZOOM/SAR;PCTEST/E Field/0 DegreesBrain/40.400/1.820 File : 01041701_ZOOM Start : 17-Apr-101 10:24:21 am End : 17-Apr-101 10:34:02 am SAMSUNG/SPH-A250/2;1851.25MHz;W;Helical/Out; Head/Left Ear;ZOOM/SAR;PCTEST/E Field/0 DegreesBrain/40.400/1.820 0.516 0.470 0.425 0.379 0.333 0.288 0.242 0.197 0.151 0.106 File : 01041701_ZOOM Start : 17-Apr-101 10:24:21 am End : 17-Apr-101 10:34:02 am SAMSUNG/SPH-A250/2;1851.25MHz;W;Helical/Out; Head/Left Ear;ZOOM/SAR;PCTEST/E Field/0 DegreesBrain/40.400/1.820 0.516 0.470 0.425 0.379 0.333 0.288 0.242 0.197 0.151 0.106 File : c:/idx3/SYSTEM/SARMEAS3/data/Normal/01041619_ZOOM.VLT Start : 16-Apr-101 03:47:53 pm End : 16-Apr-101 03:54:35 pm Radio Type : SAMSUNG Model Number : SPH-A250 Serial Number : 2 Frequency : 1880.00 MHz Peak Trans. Pwr : 0.250 W Start Trans. Pwr: 0.250 W Antenna Type : Helical Antenna Posn. : In Phantom Type : Head Phantom Posn. : Left Ear Scan Type : ZOOM/SAR Probe Name : PCTEST Field Type : E Field Orientation : 0 Degrees Mixture Type = Brain Mixture Dielectric Constant = 40.400 Mixture Conductivity = 1.820 Comment : SAMSUNG PCS MODE PHONE CHAN 0600 Conducted 24.0 dBm SAMSUNG PCS MODE PHONE Robot : PCTEST Probe Offset = 0.25 cm Sensor Factor = 0.0108 Conversion Factor = 1.201 PCTEST Amplifier Channel Settings : 0.245 0.231 0.224 Max Location : X = 3.000, Y = -3.750, Z = 0.000 (cm) Value = 13.434 Measured Values (volts) = 1.338E-002 1.148E-002 8.981E-003 6.921E-003 5.312E-003 3.976E-003 3.016E-003 2.242E-003 1.632E-003 1.140E-003 7.480E-004 4.722E-004 3.029E-004 2.401E-004 2.178E-004 1.350E-004 1.395E-004 6.558E-005 8.426E-005 2.142E-004 1.185E-004 Calc. Voltage @ Surface (Vs) = 0.0164 Voltage @ 1.00 cm (Vt) = 0.0069 Ave. Voltage (Vs+Vt)/2 = 0.0116 Ave. SAR over 1 g (mW/g) = 1.2942 0.0 0.2 0.4 0.6 0.8 1.0 1.2 1.4 1.6 1.8 2.0 mW/g -1012345 Z centimeters SAR Scan File : 01041619_ZOOM Start : 16-Apr-101 03:47:53 pm End : 16-Apr-101 03:54:35 pm SAMSUNG/SPH-A250/2;1880.00MHz;W;Helical/In; Head/Left Ear;ZOOM/SAR;PCTEST/E Field/0 DegreesBrain/40.400/1.820 File : 01041619_ZOOM Start : 16-Apr-101 03:47:53 pm End : 16-Apr-101 03:54:35 pm SAMSUNG/SPH-A250/2;1880.00MHz;W;Helical/In; Head/Left Ear;ZOOM/SAR;PCTEST/E Field/0 DegreesBrain/40.400/1.820 1.49 1.34 1.19 1.04 0.89 0.74 0.59 0.44 0.28 0.13 File : 01041619_ZOOM Start : 16-Apr-101 03:47:53 pm End : 16-Apr-101 03:54:35 pm SAMSUNG/SPH-A250/2;1880.00MHz;W;Helical/In; Head/Left Ear;ZOOM/SAR;PCTEST/E Field/0 DegreesBrain/40.400/1.820 1.49 1.34 1.19 1…

Text truncated - open the document above for the full version.

© 2001 PCTEST Engineering Lab., Inc. 6660-B Dobbin Road • Columbia, MD 21045 • U.S.A. TEL (410) 290-6652 • FAX (410) 290-6654 http://www.pctestlab.com CERTIFICATE OF COMPLIANCE (SAR EVALUATION) SAMSUNG ELECTRONICS CO., LTD. Dates of Tests: April 16-18, 2001 416 Maetan-3 Dong, Paldal-Ku Test Report S/N: SAR.210416122.A3L Suwon City Kyungki-Do 441-742, KOREA Test Site: PCTEST Lab, Columbia, MD USA Attn: Wallace Oh, Engineering Manager Samsung Electronics America (QA Lab) FCC ID A3LSPHA250 APPLICANT SAMSUNG Electronics Co., Ltd. EUT Type: Single-Mode PCS Phone (PCS CDMA) Tx Frequency: 1851.25 – 1908.75 MHz (PCS CDMA) Rx Frequency: 1931.25 – 1988.75 MHz (PCS CDMA) Max. RF Output Power: 0.365 W EIRP PCS CDMA (25.62 dBm) Trade Name/Model(s): SAMSUNG SPH-A250 FCC Classification: Licensed Portable Transmitter Held to Ear (PCE) Application Type: Certification FCC Rule Part(s): §2.1093; ET Docket 96.326 Maximum SAR: 1.3739 W/kg Brain SAR; 1.0764 W/kg Body SAR; 2.7686 W/kg Hand SAR (Avg. over 10 gm) This wireless portable device has been shown to be compliant for localized specific absorption rate (SAR) for uncontrolled environment/general population exposure limits specified in ANSI/IEEE Std. C95.1-1992 and had been tested in accordance with the measurement procedures specified in ANSI/IEEE Std. C95.3-1992. (See Test Report) I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. NVLAP accreditation does not constitute any product endorsement by NVLAP or any agency of the United States Government. PCTEST certifies that no party to this application has been denied the FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. 210416122.A3L Test Report S/N: SAR.210416122.A3L SAR Measurement Report Test Dates: APRIL 16-18, 2001 FCC Part 24 Certification FCC ID: A3LSPHA250 (Model: SPH-A250) © 2001 PCTEST Lab SAMSUNG Single-Mode PCS Phone (PCS CDMA) i Table of Contents 1.1 SCOPE....................................................................................................1 2.1 INTRODUCTION......................................................................................2 2.2 SAR Definition.......................................................................................................2 3.1 SAR MEASUREMENT SET-UP................................................................3 4.1 ISOTROPIC E-FIELD PROBE SYSTEM....................................................4 5.1 E-field PROBE CALIBRATION PROCESS................................................5 6.1 PHANTOM AND EQUIVALENT TISSUES.................................................7 7.1 SYSTEM SPECIFICATIONS.....................................................................8 8.1 MEASUREMENT PROCESS.....................................................................9 9.1 TEST POSITION OF THE PHONE..........................................................10 10.1 BODY-WORN TEST SETUP................................................................11 11.1 ANSI/IEEE C95.1 - 1992 RF EXPOSURE LIMITS..................................12 12.1 MEASUREMENT UNCERTAINTIES.......................................................13 13.1 SAR TEST DATA SUMMARY...............................................................14 14.1 SAR TEST EQUIPMENT.......................................................................17 15.1 CONCLUSION.....................................................................................18 Test Report S/N: SAR.210416122.A3L SAR Measurement Report Test Dates: April 16-18, 2001 FCC Part 24 Certification FCC ID: A3LSPHA250 (Model: SPH-A250) © 2001 PCTEST Lab SAMSUNG Single-Mode PCS Phone (PCS CDMA) 1 SAR MEASUREMENT REPORT 1.1 SCOPE Environmental evaluation measurements of specific absorption rate 1 (SAR) distributions in simulated human tissues exposed to radiofrequency (RF) radiation from wireless portable devices for compliance with the rules and regulations of the U.S. Federal Communications Commission (FCC). 2 Applicant Name: SAMSUNG ELECTRONICS CO., LTD. Address: 416 Maetan-3 Dong, Paldal-Ku Suwon City, Kyungki-Do, 441-742, KOREA Attention: Mr. Wallace Oh, Engineering Manager Samsung Electronics America (QA Lab) • EUT Type: Single-Mode PCS Phone (PCS CDMA) • Trade Name: SAMSUNG • Model(s): SPH-A250 • FCC IDENTIFIER: A3LSPHA250 • Tx Frequency: 1851.25 – 1908.75 MHz (PCS CDMA) • Rx Frequency: 1931.25 – 1988.75 MHz (PCS CDMA) • Application Type: Certification • FCC Classification: Licensed Portable Transmitter Held to Ear (PCE) • FCC Rule Part(s): § 2.1093, Docket 96-326 • Modulation(s): CDMA • Max RF. Output Power: 0.365W EIRP PCS CDMA (25.62 dBm) • Date(s) of Tests: April 16-18, 2001 • Place of Tests: PCTEST Engineering Lab. Columbia, MD, U.S.A. • Report Serial No.: SAR.210416122.A3L 1 Specific Absorption Rate (SAR) is a measure of the rate of energy absorption due to exposure to an RF transmitting source (wireless portable device). 2 IEEE/ANSI Std. C95.1-1992 limits are used to determine compliance with FCC ET-Docket 93-62. Fig. 1 SAR Test Setup Test Report S/N: SAR.210416122.A3L SAR Measurement Report Test Dates: April 16-18, 2001 FCC Part 24 Certification FCC ID: A3LSPHA250 (Model: SPH-A250) © 2001 PCTEST Lab SAMSUNG Single-Mode PCS Phone (PCS CDMA) 2 2.1 INTRODUCTION The FCC has adopted the guidelines for evaluating the environmental effects of radio frequency radiation in ET Docket 93-62 on Aug. 6, 1996 to protect the public and workers from the potential hazards of RF emissions due to FCC-regulated portable devices.[1] The safety limits used for the environmental evaluation measurements are based on the criteria published by the American National Standards Institute (ANSI) for localized specific absorption rate (SAR) in IEEE/ANSI C95.1-199…

Text truncated - open the document above for the full version.

Peak SAR Location © 2001 PCTEST Lab FCC ID: A3LSPHA250 (Model: SPH-A250) NVLAP Lab Code: 100431-0 SAMSUNG Single-Mode PCS Phone (PCS CDMA) Hand SAR File : c:/idx3/SYSTEM/SARMEAS3/data/Normal/01041812_SAR.VLT Start : 18-Apr-101 03:34:10 pm End : 18-Apr-101 03:40:38 pm Radio Type : SAMSUNG Model Number : SPH-A250 Serial Number : 2 Frequency : 1908.75 MHz Peak Trans. Pwr : 0.250 W Start Trans. Pwr: 0.250 W Antenna Type : Helical Antenna Posn. : In Phantom Type : Body Phantom Posn. : Abdomen Scan Type : ZOOM/SAR 10g Probe Name : PCTEST Field Type : E Field Orientation : 0 Degrees Mixture Type = Muscle Mixture Dielectric Constant = 54.200 Mixture Conductivity = 1.850 Comment : SAMSUNG PCS MODE PHONE - HAND SAR CHAN 1175 Conducted 24.0 dBm SAMSUNG PCS MODE PHONE Robot : PCTEST Probe Offset = 0.25 cm Sensor Factor = 0.0108 Conversion Factor = 1.378 PCTEST Amplifier Channel Settings : 0.245 0.231 0.224 Max Location : X = -0.500, Y = -3.000, Z = 0.000 (cm) Value = 68.180 Ave. SAR over 10 g (mW/g) = 2.7686 1.0 1.2 1.4 1.6 1.8 2.0 2.2 2.4 2.6 2.8 3.0 3.2 Ave SAR over 2 cm -1.5 -1.4 -1.3 -1.2 -1.1 -1.0 -0.9 -0.8 -0.7 -0.6 -0.5 -0.4 -0.3 -0.2 -0.10.0 0.1 0.2 0.3 0.4 0.5 X centimeters X-Z Plane Slice Y=-3.000 File : 01041812_SAR Start : 18-Apr-101 03:34:10 pm End : 18-Apr-101 03:40:38 pm SAMSUNG/SPH-A250/2;1908.75MHz;W;Helical/In; Body/Abdomen;ZOOM/SAR 10g;PCTEST/E Field/0 DegreesMuscle/54.200/1.850 File : 01041812_SAR Start : 18-Apr-101 03:34:10 pm End : 18-Apr-101 03:40:38 pm SAMSUNG/SPH-A250/2;1908.75MHz;W;Helical/In; Body/Abdomen;ZOOM/SAR 10g;PCTEST/E Field/0 DegreesMuscle/54.200/1.850 3.86 3.56 3.25 2.95 2.65 2.34 2.04 1.74 1.43 1.13 File : 01041812_SAR Start : 18-Apr-101 03:34:10 pm End : 18-Apr-101 03:40:38 pm SAMSUNG/SPH-A250/2;1908.75MHz;W;Helical/In; Body/Abdomen;ZOOM/SAR 10g;PCTEST/E Field/0 DegreesMuscle/54.200/1.850 3.86 3.56 3.25 2.95 2.65 2.34 2.04 1.74 1.43 1.13 File : c:/idx3/SYSTEM/SARMEAS3/data/Normal/01041813_SAR.VLT Start : 18-Apr-101 04:00:06 pm End : 18-Apr-101 04:06:36 pm Radio Type : SAMSUNG Model Number : SPH-A250 Serial Number : 2 Frequency : 1908.75 MHz Peak Trans. Pwr : 0.250 W Start Trans. Pwr: 0.250 W Antenna Type : Helical Antenna Posn. : Out Phantom Type : Body Phantom Posn. : Abdomen Scan Type : ZOOM/SAR 10g Probe Name : PCTEST Field Type : E Field Orientation : 0 Degrees Mixture Type = Muscle Mixture Dielectric Constant = 54.200 Mixture Conductivity = 1.850 Comment : SAMSUNG PCS MODE PHONE - HAND SAR CHAN 1175 Conducted 24.0 dBm SAMSUNG PCS MODE PHONE Robot : PCTEST Probe Offset = 0.25 cm Sensor Factor = 0.0108 Conversion Factor = 1.378 PCTEST Amplifier Channel Settings : 0.245 0.231 0.224 Max Location : X = -2.750, Y = -3.750, Z = 0.000 (cm) Value = 50.315 Ave. SAR over 10 g (mW/g) = 1.9115 0.4 0.6 0.8 1.0 1.2 1.4 1.6 1.8 2.0 Ave SAR over 2 cm -3.7 -3.6 -3.5 -3.4 -3.3 -3.2 -3.1 -3.0 -2.9 -2.8 -2.7 -2.6 -2.5 -2.4 -2.3 -2.2 -2.1 -2.0 -1.9 -1.8 X centimeters X-Z Plane Slice Y=-3.750 File : 01041813_SAR Start : 18-Apr-101 04:00:06 pm End : 18-Apr-101 04:06:36 pm SAMSUNG/SPH-A250/2;1908.75MHz;W;Helical/Out; Body/Abdomen;ZOOM/SAR 10g;PCTEST/E Field/0 DegreesMuscle/54.200/1.850 File : 01041813_SAR Start : 18-Apr-101 04:00:06 pm End : 18-Apr-101 04:06:36 pm SAMSUNG/SPH-A250/2;1908.75MHz;W;Helical/Out; Body/Abdomen;ZOOM/SAR 10g;PCTEST/E Field/0 DegreesMuscle/54.200/1.850 2.92 2.67 2.42 2.17 1.92 1.67 1.42 1.17 0.92 0.67 File : 01041813_SAR Start : 18-Apr-101 04:00:06 pm End : 18-Apr-101 04:06:36 pm SAMSUNG/SPH-A250/2;1908.75MHz;W;Helical/Out; Body/Abdomen;ZOOM/SAR 10g;PCTEST/E Field/0 DegreesMuscle/54.200/1.850 2.92 2.67 2.42 2.17 1.92 1.67 1.42 1.17 0.92 0.67

© 2001 PCTEST Engineering Lab., Inc. PCTEST Engineering Laboratory, Inc. 6660-B Dobbin Road • Columbia, MD 21045 • U.S.A. TEL (410) 290-6652 • FAX (410) 290-6654 http://www.pctestlab.com CERTIFICATE OF COMPLIANCE FCC Parts 24 Certification SAMSUNG ELECTRONICS CO., LTD. Dates of Tests: April 16-18, 2001 416 Maetan-3 Dong, Paldal-Ku Test Report S/N: 24.21046123.A3L Suwon City Kyungki-Do 441-742, KOREA Test Site: PCTEST Lab, Columbia MD Attn: Wallace Oh, Engineering Manager Samsung Electronics America (QA Lab) FCC ID A3LSPHA250 APPLICANT SAMSUNG Electronics Co., Ltd. Classification: Licensed Portable Transmitter Held to Ear (PCE) FCC Rule Part(s): §24(E), §2 EUT Type: Single-Mode PCS Phone (PCS CDMA) Trade Name/Model: SAMSUNG SPH-A250 Tx Frequency Range: 1851.25MHz — 1908.75MHz (PCS CDMA) Rx Frequency Range: 1931.25MHz — 1988.75MHz (PCS CDMA) Max. RF Output Power: 0.365 W EIRP PCS CDMA (25.621 dBm) Max. SAR Measurement: 1.3739 W/kg Brain …

Text truncated - open the document above for the full version.
