A3LSPHA303Dual-Band CDMA Phone with Bluetooth

* Some of the contents of this manual may differ from your phone, depending on the software insta lled or your service provider. World Wide Webhttp://www.samsungmobile.com SPH-A303User’s Guide Intellectual PropertyAll Intellectual Property, as defined below, owned by or which is otherwise the property of Samsung or its respective suppliers relati ng to the SAMSUNG Phone, including but not limited to, accessories, parts, or software relating there to (the “Phone System”), is proprietary to Samsung and protected under federal laws, state laws, and intern ational treaty provisions. Intellectual Property includ es, but is not limited to, inventions (patentable or unpatentable), patents, trade secrets, copyrights, software, computer programs, and related documentation and other works of authorship. You may not infringe or otherwise violate the rights secured by the Intellectual Property. Moreover, you agree that you will not (and will not attempt to) modify, prepare derivative works of, reverse engineer, decompile, disassemble, or otherwise attempt to create source code from the software. No title to or ownership in the Intellectual Property is transferred to you. All applicable rights of the Intellectual Property shall remain with SAMSUNG and its suppliers. Samsung Telecommunications America (STA), Inc.Headquarters:1301 East Lookout Drive Suite 150 Richardson, TX 75082 Tel: 972.761.7000 Customer Care Center:1601 E. Plano Parkway, Suite 150 Plano, TX 75074Toll Free Tel: 1.888.987.HELP (4357)Fax: 972.801.6065Internet Address: http://www.samsungusa.com©2004 Samsung Telecommunications America, Inc. is a registered trademark of Samsung Electronics America, Inc. and its related entities.Licensed by Qualcomm Incorporated under one or more of the following patents: U.S. Patent No. 4, 901, 307; 5, 056, 109; 5, 099, 204; 5,101, 501; 5, 103, 459; 5, 107, 225; 5, 109, 390.Openwave® is a registered Trademark of Openwave, Inc.RSA® is a registered TrademarSk RSA Security, Inc. Disclaimer of Warranties; Exclusion of LiabilityEXCEPT AS SET FORTH IN THE EXPRESS WARRANTY CONTAINED ON THE WARRANTY PAGE ENCLOSED WITH THE PRODUCT, THE PURCHASER TAKES THE PRODUCT "AS IS", AND SAMSUNG MAKES NO EXPRESS OR IMPLIED WARRANTY OF ANY KIND WHATSOEVER WITH RESPECT TO THE PRODUCT, INCLUDING BUT NOT LIMITED TO THE MERCHANTABILITY OF THE PRODUCT OR ITS FITNESS FOR ANY PARTICULAR PURPOSE OR USE; THE DESIGN, CONDITION OR QUALITY OF THE PRODUCT; THE PERFORMANCE OF THE PRODUCT; THE WORKMANSHIP OF THE PRODUCT OR THE COMPONENTS CONTAINED THEREIN; OR COMPLIANCE OF THE PRODUCT WITH THE REQUIREMENTS OF ANY LAW, RULE, SPECIFICATION OR CONTRACT PERTAINING THERETO. NOTHING CONTAINED IN THE INSTRUCTION MANUAL SHALL BE CONSTRUED TO CREATE AN EXPRESS OR IMPLIED WARRANTY OF ANY KIND WHATSOEVER WITH RESPECT TO THE PRODUCT. IN ADDITION, SAMSUNG SHALL NOT BE LIABLE FOR ANY DAMAGES OF ANY KIND RESULTING FROM THE PURCHASE OR USE OF THE PRODUCT OR ARISING FROM THE BREACH OF THE EXPRESS WARRANTY, INCLUDING INCIDENTAL, SPECIAL OR CONSEQUENTIAL DAMAGES, OR LOSS OF ANTICIPATED PROFITS OR BENEFITS. Use road safety at all timesDo not use a hand-held phone while driving. Park the vehicle first. Switch off the phone when refuellingDo not use the phone at a refuelling point (service station) or near fuels or chemicals.Switch off in an aircraftWireless phones can cause interference. Using them in an aircraft is both illegal and dangerous.Switch off the phone near all medical equipmentHospitals or health care facilities may be using equipment that could be sensitive to external radio frequency energy. Follow any regulations or rules in force. Important safety precautions Failure to comply with the following precautions may be dangerous or illegal. Important safety precautions 1 InterferenceAll wireless phones may be subject to interference, which could affect their performance. Be aware of special regulationsMeet any special regulations in force in any area and always switch off your phone whenever it is forbidden to use it, or when it may cause interference or danger.Water resistanceYour phone is not water-resistant. Keep it dry. Sensible useUse only in the normal position (held to the ear). Avoid unnecessary contact with the antenna when the phone is switched on.Emergency callKey in the emergency number for your present location, then press [ ]. Keep your phone away from small children Keep the phone and all its parts, including accessories, out of the reach of small children.Accessories and batteriesUse only Samsung-approved accessories and batteries. Use of any unauthorised accessories could damage your phone and may be dangerous.Qualified serviceOnly qualified service personnel may repair your phone.For more detailed safety information, see "Health and safety information" on page 15. • The phone could explode if the battery is replaced with an incorrect type.• Dispose of used batteries according to the manufacturer’s instructions. 2 Contents Unpack 3 Make sure you have each itemYour phone 3 Buttons, features, and locationsGet started 4 First steps to operate your phoneMenu functions 8 All menu options listedSolve problems 17 Help and personal needsHealth and safety information 19 3 Unpack Make sure you have each itemYou can obtain the following accessories for your phone from your local Samsung dealer. Phone Travel Adapter Battery User’s Manual • Standard battery • Extended battery • Battery charger • Leather case • Headset • Data link cable • Car charger/ adapter •Travel chager/ adapte • Portable hands free kit 4 Get started First steps to operate your phoneInstall and charge the phoneLow battery indicatorWhen the battery is low: • a warning tone sounds,• the battery low message displays, and• the empty battery icon blinks. If the battery level becomes too low, the phone automatically turns off. Recharge your battery. Power on or off Install the battery: To remove the battery, slide the battery catch toward the top of the phone and hold it. Plug the ad…

Text truncated - open the document above for the full version.


















18600 Broadwick Street






November 24, 2006        !"# $%&' ( &) "*   +,-   . / (0+1+//2(34 (5 /5 ///5 /4(0+1+// 2( 34(5555,4  .(5(65(5 / (5 1 # )57/(5)8 )94144 *4    1    1: ;&/ 1&19<;3<4 SAMSUNG ELECTRONICS CO.,LTD. 416 Maetan3-Dong Yeongtong-gu, Suwon city, Gyeonggi-Do, Korea 442-742 Date: November 24, 2006 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road, Columbia, MD 21046 RE: Request of Confidentiality for FCC ID: A3LS PHA303 To Whom It May Concern: Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules (CFR 47), and Section 552 (b) (4) of the Freedom of Information Act, SAMSUNG ELECTRONICS CO.,LTD. hereby requests confidentiality and treatment of certain information accompanying this application. The materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. We are also hereby request Short-Term Confidentiality for 180 days after the grant as outlined in Public Notice DA 04-1705. This provision will give SAMSUNG ELECTRONICS CO.,LTD. temporary confidentiality of commercially sensitive information prior to product release. The requested Confidential and Temporary Confidential exhibits are listed as follows: CONFIDENTIAL AND SHORT-TERM CONFIDENTIAL LIST Exhibit Description 1 Block Diagram 2 Operational Descriptions 3 Parts Lists and Tune-Up Procedure CONFIDENTIAL 4 Schematics 5 External Photos 6 Internal Photos 7 Test-Setup Photos SHORT-TERM CONFIDENTIAL 8 User’s Manual The Applicant understands that pursuant to Rule 0.457, disclosure of this application and all accompanying documentations, where applicable, will not be made public before the date of the Grant for this application. Sincerely, SEOUNG HO PARK SAMSUNG ELECTRONICS CO.,LTD.

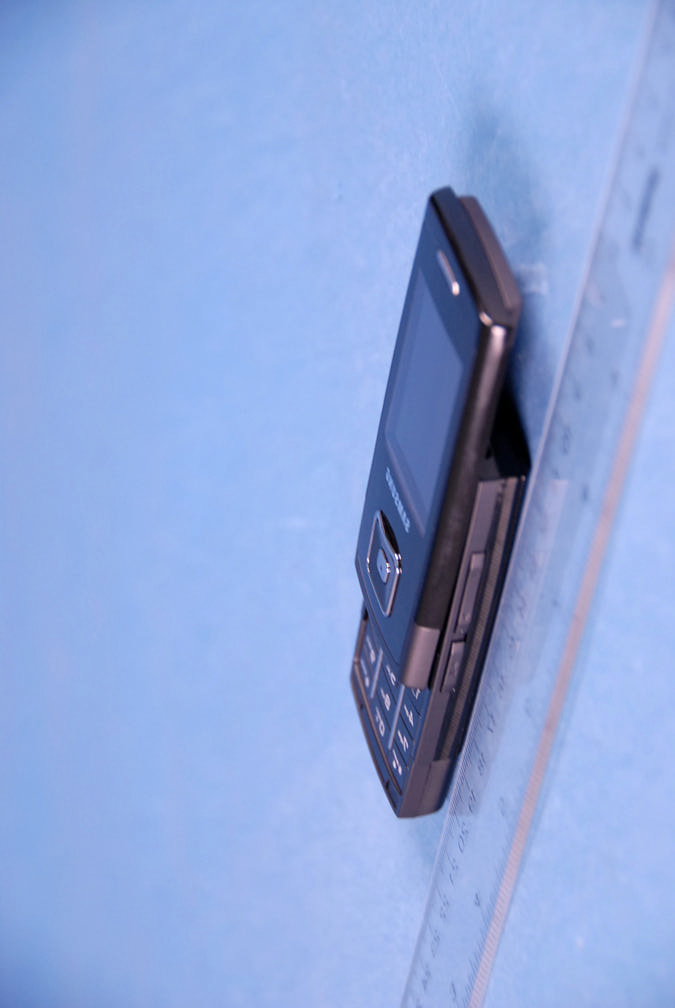

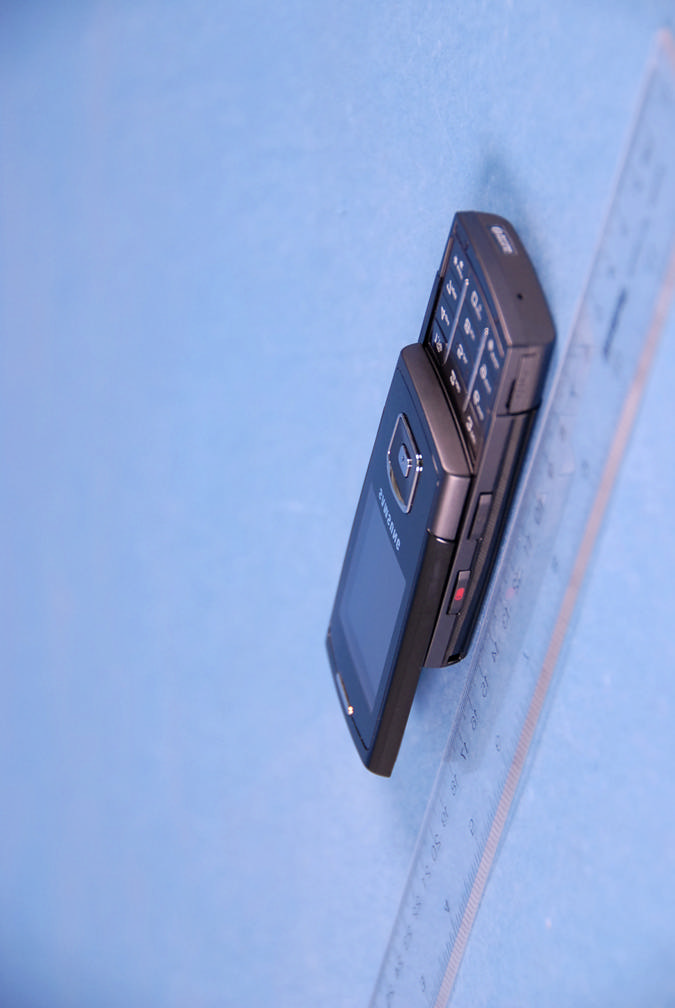

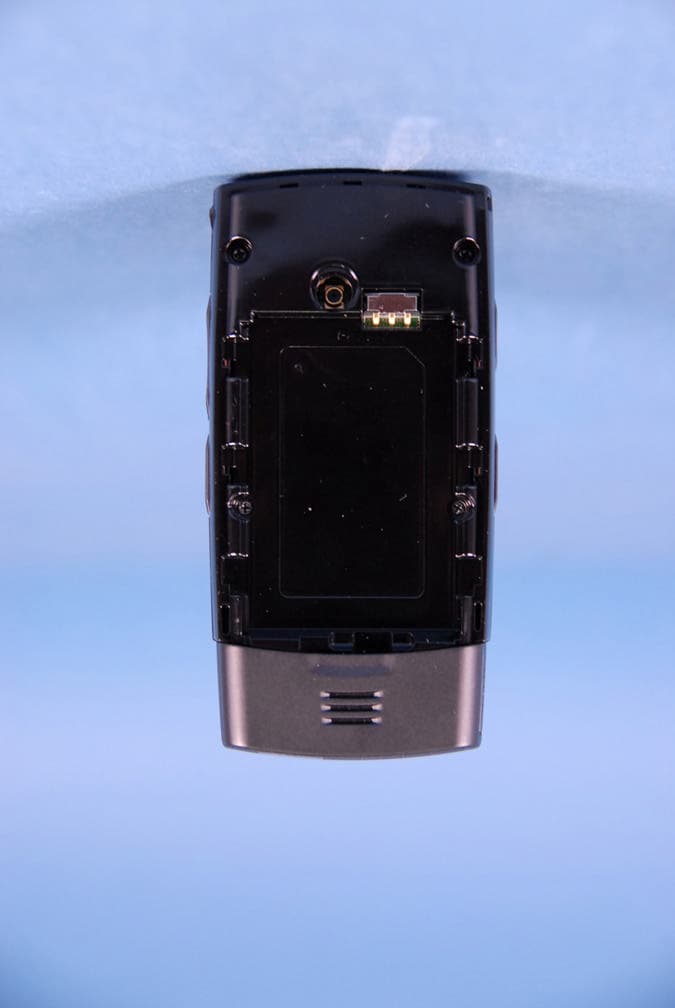

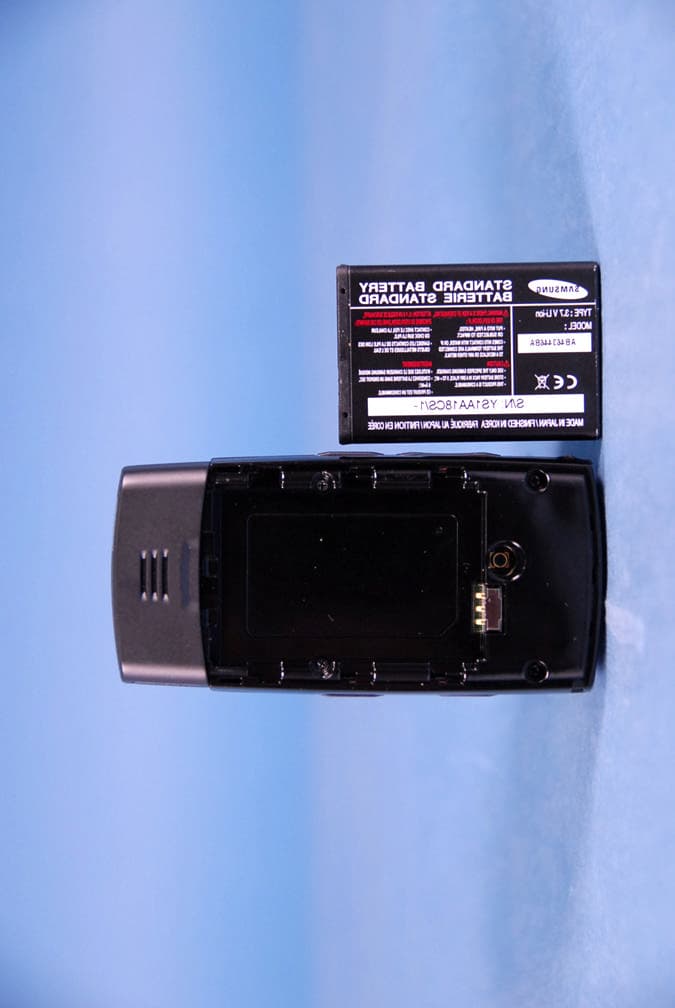

SAMSUNG FCC ID: A3LSPHA303 EUT Photographs © 2006 PCTEST Lab. Dual-Band CDMA Phone with Bluetooth Model: SPH-A303 SAMSUNG FCC ID: A3LSPHA303 EUT Photographs © 2006 PCTEST Lab. Dual-Band CDMA Phone with Bluetooth Model: SPH-A303 SAMSUNG FCC ID: A3LSPHA303 EUT Photographs © 2006 PCTEST Lab. Dual-Band CDMA Phone with Bluetooth Model: SPH-A303 SAMSUNG FCC ID: A3LSPHA303 EUT Photographs © 2006 PCTEST Lab. Dual-Band CDMA Phone with Bluetooth Model: SPH-A303 SAMSUNG FCC ID: A3LSPHA303 EUT Photographs © 2006 PCTEST Lab. Dual-Band CDMA Phone with Bluetooth Model: SPH-A303 SAMSUNG FCC ID: A3LSPHA303 EUT Photographs © 2006 PCTEST Lab. Dual-Band CDMA Phone with Bluetooth Model: SPH-A303 SAMSUNG FCC ID: A3LSPHA303 EUT Photographs © 2006 PCTEST Lab. Dual-Band CDMA Phone with Bluetooth Model: SPH-A303

SAMSUNG FCC ID: A3LSPHA303 EUT Photographs © 2006 PCTEST Lab. Dual-Band CDMA Phone with Bluetooth Model: SPH-A303 SAMSUNG FCC ID: A3LSPHA303 EUT Photographs © 2006 PCTEST Lab. Dual-Band CDMA Phone with Bluetooth Model: SPH-A303 SAMSUNG FCC ID: A3LSPHA303 EUT Photographs © 2006 PCTEST Lab. Dual-Band CDMA Phone with Bluetooth Model: SPH-A303 SAMSUNG FCC ID: A3LSPHA303 EUT Photographs © 2006 PCTEST Lab. Dual-Band CDMA Phone with Bluetooth Model: SPH-A303 SAMSUNG FCC ID: A3LSPHA303 EUT Photographs © 2006 PCTEST Lab. Dual-Band CDMA Phone with Bluetooth Model: SPH-A303 SAMSUNG FCC ID: A3LSPHA303 EUT Photographs © 2006 PCTEST Lab. Dual-Band CDMA Phone with Bluetooth Model: SPH-A303 SAMSUNG FCC ID: A3LSPHA303 EUT Photographs © 2006 PCTEST Lab. Dual-Band CDMA Phone with Bluetooth Model: SPH-A303 SAMSUNG FCC ID: A3LSPHA303 EUT Photographs © 2006 PCTEST Lab. Dual-Band CDMA Phone with Bluetooth Model: SPH-A303

Reviewed by: FCC ID: A3LSPHA303 CERTIFICATION REPORT Quality Manager SAR Filename: Test Dates: EUT Type: 0611241037 12/04/06 - 12/06/06 Dual-Band CDMA Phone with Bluetooth and EVDO Page 1 of 25 © 2006 PCTEST Engineering Laboratory, Inc. REV 3.7C 11/30/06 Applicant Name: Date of Testing: Samsung Electronics, Co. Ltd. 12/04/06 - 12/06/06 18600 Broadwick St. Test Site/Location: Rancho Dominguez, CA 90220 USA PCTEST Lab, Columbia, MD, USA United States Test Report Serial No.: 0611241037 FCC ID: A3LSPHA303 APPLICANT: SAMSUNG ELECTRONICS, CO. LTD. EUT Type: Dual-Band CDMA Phone with Bluetooth and EVDO Application Type: Certification FCC Rule Part(s): §2.1093; FCC/OET Bulletin 65 Supplement C [July 2001] FCC Classification: Licensed Transmitter Held to Ear (PCE) Model(s): SPH-A303 Tx Frequency: 824.70 - 848.31 MHz (Cellular CDMA) / 1851.25 - 1908.75 MHz (PCS CDMA) Conducted Power: 25 dBm Cellular CDMA / 25 dBm PCS CDMA Max. SAR Measurement: 0.845 W/kg CDMA Head SAR / 0.76 W/kg CDMA Body SAR 1.46 W/kg PCS Head SAR / 1.21 W/kg PCS Body SAR Test Device Serial No.: Pre-Production [S/N: SAR #1] This wireless portable device has been shown to be capable of compliance for localized specific absorption rate (SAR) for uncontrolled environment/general population exposure limits specified in ANSI/IEEE Std. C95.1-2005 and has been tested in accordance with the measurement procedures specified in FCC/OET Bulletin 65 Supplement C (2001) and IEEE Std. 1528-2003. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. Grant Conditions: Power output listed is ERP for Part 22 and EIRP for Part 24. SAR compliance for body-worn operating configuration is based on a separation distance of 1.5 cm between the back of the unit and the body of the user. End-users must be informed of the body-worn operating requirements for satisfying RF exposure compliance. Belt clips or holsters not specified in this filing may not contain metallic components. PCTEST certifies that no party to this application has been denied the FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. PCTEST ENGINEERING LABORATORY, INC. 6660-B Dobbin Road, Columbia, MD 21045 USA Tel. 410.290.6652 / Fax 410.290.6554 http://www.pctestlab.com CERTIFICATE OF COMPLIANCE (SAR EVALUATION) Reviewed by: FCC ID: A3LSPHA303 CERTIFICATION REPORT Quality Manager SAR Filename: Test Dates: EUT Type: 0611241037 12/04/06 - 12/06/06 Dual-Band CDMA Phone with Bluetooth and EVDO Page 2 of 25 © 2006 PCTEST Engineering Laboratory, Inc. REV 3.7C 11/30/06 TABLE OF CONTENTS 1 INTRODUCTION ..............................................................................................................................3 2 TEST SITE LOCATION ....................................................................................................................4 3 SAR MEASUREMENT SETUP ........................................................................................................5 4 DASY E-FIELD PROBE SYSTEM ...................................................................................................7 5 PROBE CALIBRATION PROCESS .................................................................................................8 6 PHANTOM AND EQUIVALENT TISSUES.......................................................................................9 7 DOSIMETRIC ASSESSMENT & PHANTOM SPECS....................................................................10 8 DEFINITION OF REFERENCE POINTS .......................................................................................11 9 TEST CONFIGURATION POSITIONS ..........................................................................................12 10 ANSI/IEEE C95.1-2005 RF EXPOSURE LIMITS..........................................................................14 11 MEASUREMENT UNCERTAINTIES .............................................................................................15 12 SYSTEM VERIFICATION...............................................................................................................16 13 FCC 3G MEASUREMENT PROCEDURES – JUNE 2006 ............................................................17 14 SAR DATA SUMMARY ..................................................................................................................19 15 EQUIPMENT LIST..........................................................................................................................22 16 CONCLUSION................................................................................................................................23 17 REFERENCES ...............................................................................................................................24 Reviewed by: FCC ID: A3LSPHA303 CERTIFICATION REPORT Quality Manager SAR Filename: Test Dates: EUT Type: 0611241037 12/04/06 - 12/06/06 Dual-Band CDMA Phone with Bluetooth and EVDO Page 3 of 25 © 2006 PCTEST Engineering Laboratory, Inc. REV 3.7C 11/30/06 1 INTRODUCTION The FCC has adopted the guidelines for evaluating the environmental effects of radio frequency (RF) radiation in ET Docket 93-62 on Aug. 6, 1996 to protect the public and workers from the potential hazards of RF emissions due to FCC-regulated portable devices.[1] The safety limits used for the environmental evaluation measurements are based on the criteria published by the American National Standards Institute (ANSI) for localized specific absorption rate (SAR) in IEEE/ANSI C95.1-2005 Standard for Safety Levels with Respect to Human Exposure to Radio Frequency Electromagnetic Fields, 3 kHz to 300 GHz. (c) 2005 by the Institute of Electrical and Electronics Engineers, Inc., New York, New York 10017.[2]…

Text truncated - open the document above for the full version.

PCTEST ENGINEERING LABORATORY, INC. DUT: Dipole 835 MHz; Type: D835V2; Serial: 4d026 Communication System: CW; Frequency: 835 MHz;Duty Cycle: 1:1 Medium: 835 Brain (σ = 0.90 mho/m, ε r = 40.43, ρ = 1000 kg/m 3 ) Phantom section: Flat Section; Space: 1.5 cm Test Date: 12 -04-2006; Ambient Temp: 23.3° C; Tissue Temp: 21.4 °C Probe: EX3DV4 - SN3561; ConvF(7.94, 7.94, 7.94); Calibrated: 11/23/2006 Sensor-Surface: 3mm (Mechanical Surface Detection) Electronics: DAE3 Sn455; Calibrated: 10/16/2006 Phantom: SAM Main; Type: SAM 4.0; Serial: TP:1197 Measurement SW: DASY4, V4.7 Build 44; Postprocessing SW: SEMCAD, V1.8 Build 171 835MHz Dipole Validation Area Scan (7x13x1): Measurement grid: dx=15mm, dy=15mm Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Input Power = 24.0 dBm (250 mW) SAR(1 g) = 2.4 mW/g; SAR(10 g) = 1.58 mW/g Target SAR(1g) = 2.375 mW/g; Deviation = +1.05 % 0 dB = 2.79mW/g PCTEST ENGINEERING LABORATORY, INC. DUT: Dipole 835 MHz; Type: D835V2; Serial: 4d026 Communication System: CW; Frequency: 835 MHz;Duty Cycle: 1:1 Medium: 835 Brain (σ = 0.90 mho/m, ε r = 40.43, ρ = 1000 kg/m 3 ) Phantom section: Flat Section; Space: 1.5 cm Test Date: 12 -06-2006; Ambient Temp: 23.3° C; Tissue Temp: 21.2 °C Probe: EX3DV4 - SN3561; ConvF(7.94, 7.94, 7.94); Calibrated: 11/23/2006 Sensor-Surface: 3mm (Mechanical Surface Detection) Electronics: DAE3 Sn455; Calibrated: 10/16/2006 Phantom: SAM Main; Type: SAM 4.0; Serial: TP:1197 Measurement SW: DASY4, V4.7 Build 44; Postprocessing SW: SEMCAD, V1.8 Build 171 835MHz Dipole Validation Area Scan (7x13x1): Measurement grid: dx=15mm, dy=15mm Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Input Power = 24.0 dBm (250 mW) SAR(1 g) = 2.43 mW/g; SAR(10 g) = 1.6 mW/g Target SAR(1g) = 2.375 mW/g; Deviation = +2.32 % 0 dB = 2.83mW/g PCTEST ENGINEERING LABORATORY, INC. DUT: Dipole 1900 MHz; Type: D1900V2; Serial: 502 Communication System: CW; Frequency: 1900 MHz;Duty Cycle: 1:1 Medium: 1900 Brain (σ = 1.44 mho/m, ε r = 39.39, ρ = 1000 kg/m 3 ) Phantom section: Flat Section; Space: 1.0 cm Test Date: 12-05-2006; Ambient Temp: 23.1°C; Tissue Temp: 21.1°C Probe: EX3DV4 - SN3561; ConvF(6.99, 6.99, 6.99); Calibrated: 11/23/2006 Sensor-Surface: 3mm (Mechanical Surface Detection) Electronics: DAE3 Sn455; Calibrated: 10/16/2006 Phantom: SAM Sub; Type: SAM 4.0; Serial: TP:1357 Measurement SW: DASY4, V4.7 Build 44; Postprocessing SW: SEMCAD, V1.8 Build 171 1900MHz Dipole Validation Area Scan (5x7x1): Measurement grid: dx=15mm, dy=15mm Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Input Power = 20.0 dBm (100 mW) SAR(1 g) = 4.15 mW/g; SAR(10 g) = 2.14 mW/g Target SAR(1g) = 3.97 mW/g; Deviation = +4.53 % 0 dB = 5.18mW/g PCTEST ENGINEERING LABORATORY, INC. DUT: Dipole 1900 MHz; Type: D1900V2; Serial: 502 Communication System: CW; Frequency: 1900 MHz;Duty Cycle: 1:1 Medium: 1900 Brain (σ = 1.44 mho/m, ε r = 39.39, ρ = 1000 kg/m 3 ) Phantom section: Flat Section; Space: 1.0 cm Test Date: 12 -06-2006; Ambient Temp: 23.3° C; Tissue Temp: 21.2 °C Probe: EX3DV4 - SN3561; ConvF(6.99, 6.99, 6.99); Calibrated: 11/23/2006 Sensor-Surface: 3mm (Mechanical Surface Detection) Electronics: DAE3 Sn455; Calibrated: 10/16/2006 Phantom: SAM Sub; Type: SAM 4.0; Serial: TP:1357 Measurement SW: DASY4, V4.7 Build 44; Postprocessing SW: SEMCAD, V1.8 Build 171 1900MHz Dipole Validation Area Scan (5x7x1): Measurement grid: dx=15mm, dy=15mm Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Input Power = 20.0 dBm (100 mW) SAR(1 g) = 4.07 mW/g; SAR(10 g) = 2.1 mW/g Target SAR(1g) = 3.97 mW/g; Deviation = +2.52 % 0 dB = 5.09mW/g

PCTEST ENGINEERING LABORATORY, INC. DUT: Samsung SPH-A303; Type: CDMA Dual Band + BT+EvDO; Serial: SAR #1 Conducted Power: 25.0 dBm Communication System: Cellular CDMA; Frequency: 836.52 MHz;Duty Cycle: 1:1 Medium: 835 Brain (σ = 0.90 mho/m, ε r = 40.43, ρ = 1000 kg/m 3 ) Phantom section: Right Section Test Date: 12 -04-2006; Ambient Temp: 23.2° C; Tissue Temp: 21.4 °C Probe: EX3DV4 - SN3561; ConvF(7.94, 7.94, 7.94); Calibrated: 11/23/2006 Sensor-Surface: 3mm (Mechanical Surface Detection) Electronics: DAE3 Sn455; Calibrated: 10/16/2006 Phantom: SAM Main; Type: SAM 4.0; Serial: TP:1197 Measurement SW: DASY4, V4.7 Build 44; Postprocessing SW: SEMCAD, V1.8 Build 171 Mode: CDMA, Right Head, Touch, Slide Out, Ch.384, Antenna Internal Area Scan (7x12x1): Measurement grid: dx=15mm, dy=15mm Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 10.9 V/m Peak SAR (extrapolated) = 1.16 W/kg SAR(1 g) = 0.845 mW/g; SAR(10 g) = 0.584 mW/g 0 dB = 0.960mW/g PCTEST ENGINEERING LABORATORY, INC. DUT: Samsung SPH-A303; Type: CDMA Dual Band + BT+EvDO; Serial: SAR #1 Conducted Power: 25.0 dBm. Communication System: Cellular CDMA; Frequency: 836.52 MHz;Duty Cycle: 1:1 Medium: 835 Brain (σ = 0.90 mho/m, ε r = 40.43, ρ = 1000 kg/m 3 ) Phantom section: Right Section Test Date: 12 -04-2006; Ambient Temp: 23.2° C; Tissue Temp: 21.4 °C Probe: EX3DV4 - SN3561; ConvF(7.94, 7.94, 7.94); Calibrated: 11/23/2006 Sensor-Surface: 3mm (Mechanical Surface Detection) Electronics: DAE3 Sn455; Calibrated: 10/16/2006 Phantom: SAM Main; Type: SAM 4.0; Serial: TP:1197 Measurement SW: DASY4, V4.7 Build 44; Postprocessing SW: SEMCAD, V1.8 Build 171 Mode: CDMA, Right Head, Tilt, Slide In, Ch.384, Antenna Internal Area Scan (7x10x1): Measurement grid: dx=15mm, dy=15mm Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 19.4 V/m Peak SAR (extrapolated) = 0.707 W/kg SAR(1 g) = 0.507 mW/g; SAR(10 g) = 0.348 mW/g 0 dB = 0.581mW/g PCTEST ENGINEERING LABORATORY, INC. DUT: Samsung SPH- A303; Type: CDMA Dual Band + BT+EvDO; Serial: SAR #1 Conducted Power: 25.0 dBm. Communication System: Cellular CDMA; Frequency: 836.52 MHz;Duty Cycle: 1:1 Medium: 835 Brain (σ = 0.90 mho/m, ε r = 40.43, ρ = 1000 kg/m 3 ) Phantom section: Left Section Test Date: 12 -04-2006; Ambient Temp: 23.2° C; Tissue Temp: 21.4 °C Probe: EX3DV4 - SN3561; ConvF(7.94, 7.94, 7.94); Calibrated: 11/23/2006 Sensor-Surface: 3mm (Mechanical Surface Detection) Electronics: DAE3 Sn455; Calibrated: 10/16/2006 Phantom: SAM Main; Type: SAM 4.0; Serial: TP:1197 Measurement SW: DASY4, V4.7 Build 44; Postprocessing SW: SEMCAD, V1.8 Build 171 Mode: CDMA, Left Head, Touch, Slide Out, Ch.384, Antenna Internal Area Scan (7x12x1): Measurement grid: dx=15mm, dy=15mm Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 10.9 V/m Peak SAR (extrapolated) = 0.980 W/kg SAR(1 g) = 0.732 mW/g; SAR(10 g) = 0.507 mW/g 0 dB = 0.846mW/g PCTEST ENGINEERING LABORATORY, INC. DUT: Samsung SPH -A303; Type: CDMA Dual Band + BT+EvDO; Serial: SAR #1 Conducted Power: 25.0 dBm. Communication System: Cellular CDMA; Frequency: 836.52 MHz;Duty Cycle: 1:1 Medium: 835 Brain (σ = 0.90 mho/m, ε r = 40.43, ρ = 1000 kg/m 3 ) Phantom section: Left Section Test Date: 12 -04-2006; Ambient Temp: 23.2 °C ; Tissue Temp: 21.4° C Probe: EX3DV4 - SN3561; ConvF(7.94, 7.94, 7.94); Calibrated: 11/23/2006 Sensor-Surface: 3mm (Mechanical Surface Detection) Electronics: DAE3 Sn455; Calibrated: 10/16/2006 Phantom: SAM Main; Type: SAM 4.0; Serial: TP:1197 Measurement SW: DASY4, V4.7 Build 44; Postprocessing SW: SEMCAD, V1.8 Build 171 Mode: CDMA, Left Head, Tilt, Slide In, Ch.384, Antenna Internal Area Scan (7x10x1): Measurement grid: dx=15mm, dy=15mm Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 18.7 V/m Peak SAR (extrapolated) = 0.583 W/kg SAR(1 g) = 0.436 mW/g; SAR(10 g) = 0.304 mW/g 0 dB = 0.496mW/g PCTEST ENGINEERING LABORATORY, INC. DUT: Samsung SPH- A303; Type: CDMA Dual Band + BT+EvDO; Serial: SAR #1 Conducted Power: 25,0 dBm. Communication System: PCS CDMA; Frequency: 1851.25 MHz;Duty Cycle: 1:1 Medium: 1900 Brain (σ = 1.44 mho/m, ε r = 39.39, ρ = 1000 kg/m 3 ) Phantom section: Right Section Test Date: 12-05-2006; Ambient Temp: 23.1° C; Tissue Temp: 21.2 °C Probe: EX3DV4 - SN3561; ConvF(6.99, 6.99, 6.99); Calibrated: 11/23/2006 Sensor-Surface: 3mm (Mechanical Surface Detection) Electronics: DAE3 Sn455; Calibrated: 10/16/2006 Phantom: SAM Sub; Type: SAM 4.0; Serial: TP:1357 Measurement SW: DASY4, V4.7 Build 44; Postprocessing SW: SEMCAD, V1.8 Build 171 Mode: PCS, Right Head, Touch, Slide In, Ch.0025, Antenna Internal Area Scan (7x10x1): Measurement grid: dx=15mm, dy=15mm Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 26.8 V/m Peak SAR (extrapolated) = 2.40 W/kg SAR(1 g) = 1.46 mW/g; SAR(10 g) = 0.808 mW/g 0 dB = 1.77mW/g PCTEST ENGINEERING LABORATORY, INC. DUT: Samsung SPH-A303; Type: CDMA Dual Band + BT+EvDO; Serial: SAR #1 Conducted Power: 25.0 dBm. Communication System: PCS CDMA; Frequency: 1851.25 MHz;Duty Cycle: 1:1 Medium: 1900 Brain (σ = 1.44 mho/m, ε r = 39.39, ρ = 1000 kg/m 3 ) Phantom section: Right Section Test Date: 12 -05-2006; Ambient Temp: 23.1° C; Tissue Temp: 21.2 °C Probe: EX3DV4 - SN3561; ConvF(6.99, 6.99, 6.99); Calibrated: 11/23/2006 Sensor-Surface: 3mm (Mechanical Surface Detection) Electronics: DAE3 Sn455; Calibrated: 10/16/2006 Phantom: SAM Sub; Type: SAM 4.0; Serial: TP:1357 Measurement SW: DASY4, V4.7 Build 44; Postprocessing SW: SEMCAD, V1.8 Build 171 Mode: PCS, Right Head, Tilt, Slide In, Ch.0025, Antenna Internal Area Scan (7x10x1): Measurement grid: dx=15mm, dy=15mm Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 26.0 V/m Peak SAR (extrapolated) = 1.97 W/kg SAR(1 g) = 1.18 mW/g; SAR(10 g) = 0.663 mW/g 0 dB = 1.45mW/g PCTEST ENGINEERING LABORATORY, INC. DUT: Samsung SPH-A303; Type: CDMA Dual Band + BT…

Text truncated - open the document above for the full version.

Reviewed by: FCC ID: A3LSPHA303 FCC Pt. 22/24 CDMA / EvDO MEASUREMENT REPORT (CERTIFICATION) Quality Manager Test Report S/N: Test Dates: EUT Type: 0611241036 December 7 - 11, 2006 Dual-Band CDMA Phone with Bluetooth Page 1 of 38 © 2006 PCTEST Engineering Laboratory, Inc. REV 5.0C 12/06/06 Applicant Name: Date of Testing: Samsung Electronics, Co. Ltd. December 7 - 11, 2006 18600 Broadwick St. Test Site/Location: Rancho Dominguez, CA 90220 USA PCTEST Lab., Columbia, MD, USA Test Report Serial No.: 0611241036 FCC ID: A3LSPHA303 APPLICANT: SAMSUNG ELECTRONICS, CO. LTD. Application Type: Certification FCC Classification: PCS Licensed Transmitter Held to Ear (PCE) FCC Rule Part(s): §2; §22(H), §24(E) EUT Type: Dual-Band CDMA Phone with Bluetooth Model(s): SPH-A303 Tx Frequency Range: 824.70 - 848.31MHz (Cell. CDMA) / 1851.25 - 1908.75MHz (PCS CDMA) Rx Frequency Range: 869.70 - 893.31MHz (Cell. CDMA) / 1931.25 - 1988.75MHz (PCS CDMA) Max. RF Output Power: 0.206 W ERP Cell. CDMA (23.141 dBm) / 0.316 W EIRP PCS CDMA (24.991 dBm) Max. SAR Measurement: 0.845 W/kg Cell. CDMA Head SAR, 0.76 W/kg Cell. CDMA Body SAR; 1.46 W/kg PCS CDMA Head SAR, 1.21 W/kg PCS CDMA Body SAR Emission Designator(s): 1M25F9W (CDMA) / 1M25F9W (PCS) Test Device Serial No.: identical prototype [S/N: FD-232-B] This equipment has been shown to be capable of compliance with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in §2.947. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. Grant Conditions: Power output listed is ERP for Part 22 and EIRP for Part 24. SAR compliance for body-worn operating configuration is based on a separation distance of 1.5cm between the back of the unit and the body of the user. End-users must be informed of the body-worn operating requirements for satisfying RF exposure compliance. Belt clips or holsters may not contain metallic components. PCTEST certifies that no party to this application has been denied the FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. PCTEST ENGINEERING LABORATORY, INC. 6660-B Dobbin Road, Columbia, MD 21045 USA Tel. 410.290.6652 / Fax 410.290.6554 http://www.pctestlab.com CERTIFICATE OF COMPLIANCE FCC Part 22 & 24 Certification Reviewed by: FCC ID: A3LSPHA303 FCC Pt. 22/24 CDMA / EvDO MEASUREMENT REPORT (CERTIFICATION) Quality Manager Test Report S/N: Test Dates: EUT Type: 0611241036 December 7 - 11, 2006 Dual-Band CDMA Phone with Bluetooth Page 2 of 38 © 2006 PCTEST Engineering Laboratory, Inc. REV 5.0C 12/06/06 TABLE OF CONTENTS FCC PART 22 & 24 MEASUREMENT REPORT...........................................................................3 1.0 INTRODUCTION ..............................................................................................................................4 1.1 MEASUREMENT PROCEDURE .............................................................................................................................. 4 1.2 SCOPE ...................................................................................................................................................................... 4 1.3 TESTING FACILITY .................................................................................................................................................. 4 2.0 PRODUCT INFORMATION..............................................................................................................5 2.1 EQUIPMENT DESCRIPTION ................................................................................................................................... 5 2.2 EMI SUPPRESSION DEVICE…

Text truncated - open the document above for the full version.
