A3LSPHA330Tri-Mode Dual Band Analog/PCS Phone (AMPS/CDMA)

8. USERS MANUAL SCH-A330(Dual-Band Triple-Mode) For more information about RF exposure, please visit the FCC website at www.fcc.gov FCC RF EXPOSURE INFORMATION In August 1996 the Federal Communications Commission (FCC) of the United States with its action in Report and Order FCC 96-326 adopted an updated safety standard for human exposure to radio frequency electromagnetic energy emitted by FCC regulated transmitters. Those guidelines are consistent with the safety standard previously set by both U.S. and international standards bodies. The design of this phone complies with the FCC guidelines and these international standards. Use only the supplied or an approved antenna. Unauthorized antennas, modifications, or attachments could impair call quality, damage the phone, or result in violation of FCC regulations. Do not use the phone with a damaged antenna. If a damaged antenna comes into contact with the skin, a minor burn may result. Please contact your local dealer for replacement antenna. Body-worn Operation This device was tested for typical body-worn operations with the back of the phone kept 1.7 cm. from the body. To maintain compliance with FCC RF exposure requirements, use only belt-clips, holsters or similar accessories that maintain a 1.7 cm. separation distance between the user’s body and the back of the phone, including the antenna, whether extended or retracted. The use of third-party belt-clips, holsters and similar accessories should not contain metallic components in its assembly. The use of accessories that do not satisfy these requirements may not comply with FCC RF exposure requirements, and should be avoided. WARNING! Read this information before using your phone Table of Contents Getting to know your phone. Display icons: What they tell you. Battery: Putting in the power. Installing your battery. Turning your phone on and off. Removing your battery. Charging your battery. Using the Rapid Desktop Charger. Function keys: What they make happen. Phone calls: How to make and receive them. Correction a misdial. Remembering your phone number. Answering calls. Using Caller ID. Responding to Call Waiting. Redialing calls. Setting up Three-Way Calling. Saving or editing your own emergency numbers. Dialing when your phone is locked. voice-mail: The ins and outs. Setting up your voice-mail. Finding out you have a message. Retrieving messages. Using special Samsung Phone Features. Internal phone book. Understanding your phone's memory. Saving and storing a phone number. SCH-A330 (Dual-Band Triple-Mode) Entering a hard pause. Dialing from your phone book to a different area code. Checking all your stored numbers. Finding a number using a person's name. Erasing a phone number. Keeping track of your calls. Main menu: Tailoring your phone's features to your needs. Navigating your the menu. Taking a menu shortcut. Understanding menu items: Managing your phone's settings. Keeping track of calls. Maintaining your internal phone book. Selecting language Adjusting your phone's volume. Determining what is displayed. Maintaining phone security. Choosing the right alerts. Customizing the way your phone works. Selecting the service mode. Preventing accidental key press. Understanding message menu items: Listening to the voice-mail or reading the messages you've received. Reviewing Voice Mail Messages. Reviewing Page and Text Messages. Erasing Messages. Displaying the time stamp. Using guidelines: All about performance and safety. Keeping tabs on signal strength. SCH-A330 (Dual-Band Triple-Mode) Understanding Power Save mode. Understanding how your phone operates. Radio frequency safety. Maintaining your phone's peak performance. Protecting your battery. Using your phone while driving. Disposal of batteries. Following Safety Guidelines. Using your phone near other electronic devices. Turn off your phone before flying. Restricting children's access to your phone. Turn off your phone in dangerous areas. Cautions. FCC notice. To start connecting just press and hold <END> Thanks for choosing Samsung. SCH-A330 (Dual-Band Triple-Mode) As we said-to start connecting, just press and hold <END>. Getting to know your phone. 1.Red Light: Illuminates when <END> is pressed and held and when you have incoming calls and messages. 2. Volume: Lets you adjust the sound level. 3. SEND: Lets you place a call, answer Call Waiting and place a three way call. 4. Navigation Keys: Allow you to scroll through the menu options and displays and save phone numbers, as well as any settings you select in the menu 5. CLR: Allows you to clear your last entry. 6. Web Key : Allows you to access Internet. 7. END: Lets you disconnect a call and return to standby mode. Press and hold the key to turn the phone on and off. 8. MENU: Lets you access the phone's menus. 9. Record Key: Allows you to record and playback conversations. 10. Antenna: Makes the voice on the other end sound clearest. 11. Flip: Lets you answer call by opening and lets you disconnect a call and guard keys by closing. Display icons: What they tell you. Display icons are all the symbols or text that show up on your display screen. In short, tell you what's going on. They're shown below. SCH-A330 (Dual-Band Triple-Mode) Signal icon measures your current signal strength. The more bars there are, the stronger the signal. In Use icon tells you a call is in progress. No Svc icon shows that you are outside of service area and cannot use your phone. If the roaming icon is not displayed, you are in home Network. If the icon is displayed whether static or flashing, you are in a roaming network. Message icons indicate that you have text messages. Digital/Analog icons Indicate whether you are in digital or analog service area. Battery icon shows the level of your battery charge. The more bars you see, the more power you have left. When the charge is low, the icon blinks and an alert tone is sounded. Vibrator icon indicates that you set vibrator on. Battery : Putting in the po…

Text truncated - open the document above for the full version.

April 2, 2001 Federal Communications Commission Authorization and Evaluation Div. Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 To whom it may concern: We, the undersigned, hereby authorize PCTEST Engineering Laboratory Inc., to act as agent on behalf of all matters relating to applications for equipment authorization, including the signing of all documents relating to these matters. Any and all acts carried out by PCTEST Engineering Laboratory, Inc. on our behalf shall have the same effect as acts of our own. We also hereby certify that no party to this application is subject to a denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988,21 U.S.C.862. Sincerely, Wallace Oh Engineering Manager Samsung Electronics America May 1, 2001 Federal Communications Commission Authorization and Evaluation Div. Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 In re: Samsung Electronics Co., Ltd. FCC ID.: A3LSPHA330 Request for Confidentiality To Whom It May Concern: In accordance with 0.459 of CFR 47, Samsung Electronics Co., Ltd. requests confidentiality for the Block Diagram, Schematics, and Circuit Description of the attached test report. These documents contain detailed system and equipment descriptions and related information about the product which Samsung Electronics Co., Ltd. considers to be proprietary, confidential, and a custom design and otherwise, would not release to the general public. Since this design is a basis from which future technological products will evolve, Samsung feels that this information would be of benefit to its competitors, and that the disclosure of the information in these documents would give our competitors an unfair advantage in the market. May 1, 2001 Federal Communications Commission Equipment Approval Services 7435 Oakland Mills Road Columbia, MD 21046 SUBJECT: FCC E911 REQUIREMENTS PER §22.921 Gentlemen: Samsung Electronics Co., Ltd. hereby certifies that the analog cellular telephone (FCC ID: A3LSPHA330), using the Automatic A/B Roaming — Intelligent Retry method, meets the E911 requirements specified in Section 22.921 of the FCC Rules. This procedure recognizes when a “9-1-1” call is made and, at such time, will override any programming in the mobile unit that determines the handling of a non-911 call and permit the call to be handled by other analog carriers. Should you have any questions or comments concerning the above, please contact the undersigned. AFFIDAVIT FOR ESN PROTECTION OF CELLULAR MOBILE TELEPHONES We hereby certify that the Portable Cellular Telephone (FCC ID:A3LSPHA330) is so designed that it complies with all the requirements for ESN protection specified in Sec.22.919 of the FCC Rules. a) The transmitter in service has a unique ESN. b) The ESN host component is permanently attached to a main circuit board of the mobile transmitter and the integrity of the unit operating software cannot be altered. The ESN is plated from fraudulent contact and tampering. The ESN is encoded using multiplication by a polynomial and the ESN data programmed in the memory with other information. c) The ESN is factory set and cannot be altered, transferred, removed or otherwise able to be manipulated. Cellular mobile equipment is specifically designed such that any attempt to remove, tamper with, or change the ESN chip, its logic system, or firmware originally programmed by the manufacturer will render the mobile transmitter inoperative. May 1, 2001 Federal Communications Commission Equipment Approval Services 7435 Oakland Mills Road Columbia, MD 21046 SUBJECT: Samsung Electronics Co., Ltd. FCC ID: A3LSPHA330 Users Manual RF Exposure Warning Statement Gentlemen: Samsung Electronics Co., Ltd., hereby confirms that the attached RF exposure warning page will be readily visible to the user, and will be placed at a prominent location in the front section of the users manual. If you have any further questions regarding this matter, please do not hesitate to contact PCTEST Lab at (410) 290-6652.

May 14, 2001 Federal Communications Commission Equipment Approval Services 7435 Oakland Mills Road Columbia, MD 21046 SUBJECT: SAMSUNG ELECTRONICS CO., LTD. FCC ID: A3LSPHA330 Part 22 & 24 Certification Gentlemen: Attached herewith, on behalf of SAMSUNG ELECTRONICS CO., LTD. is an application for Part 22/24 Certification of the following Tri-Mode Cellular/PCS Phone (AMPS/CDMA): FCC ID: A3LSPHA330 TRADE / MODEL(s): SAMSUNG SPH-A330 EUT TYPE: Licensed Portable Transmitter Held to Ear (PCE) Tx Freq. Range: 824.04 — 848.97 MHz (AMPS) 824.70 — 848.31 MHz (CDMA) 1851.25 — 1908.75 MHz (PCS CDMA) Rx Freq. Range: 869.04 — 893.97 MHz (AMPS) 869.70 — 893.31 MHz (CDMA) 1931.25 — 1988.75 MHz (PCS CDMA) Max. RF Output Power: 0.326 W ERP AMPS (25.133 dBm) 0.265 W ERP CDMA (24.233 dBm) 0.272 W EIRP PCS CDMA (24.351 dBm) Attached is the applicant’s Letter of Authorization, Confidentiality Request, ESN Affidavit, E911 Compliance Statement, measurement report data and plots, RF Exposure measurement report, FCC ID label and location, test setup photographs, internal and external photographs, block diagrams (confidential), schematic diagrams & circuit description (confidential), operational description, parts list & tune-up procedure, and the user's manual. Should you have any questions or comments concerning the above, please contact the undersigned. cc: Mr. Wallace Oh Engineering Manager SAMSUNG American QA Lab

June 6, 2001 Federal Communications Commission Equipment Approval Services 7435 Oakland Mills Road Columbia, MD 21046 Attn: Mr. Frank Coperich SUBJECT: Samsung Electronics Co., Ltd. FCC ID: A3LSPHA330 731 Confirmation No.: EA101023 Correspondence Reference No.: 19523 Request for Tech. Info.: 6/05/01 Dear Frank: Transmitted herewith, on behalf of Samsung Electronics Co., Ltd. is an amendment provided in response to the request for technical information dated June 5, 2001. 1. Please find attached the revised test data. 2. We would like to confirm that the justification for the reported mixture is that it will lead to a higher SAR measurement value. This takes into account the measurement error and uncertainty for demonstrating compliance. 3. Please find attached the SAR Test Setup Photos 4. Please find attached the Hand SAR Test Data We trust this information is sufficient for the immediate grant of this application. If you have any further questions, please do not hesitate to contact us. cc: Samsung Electronics Co., Ltd.

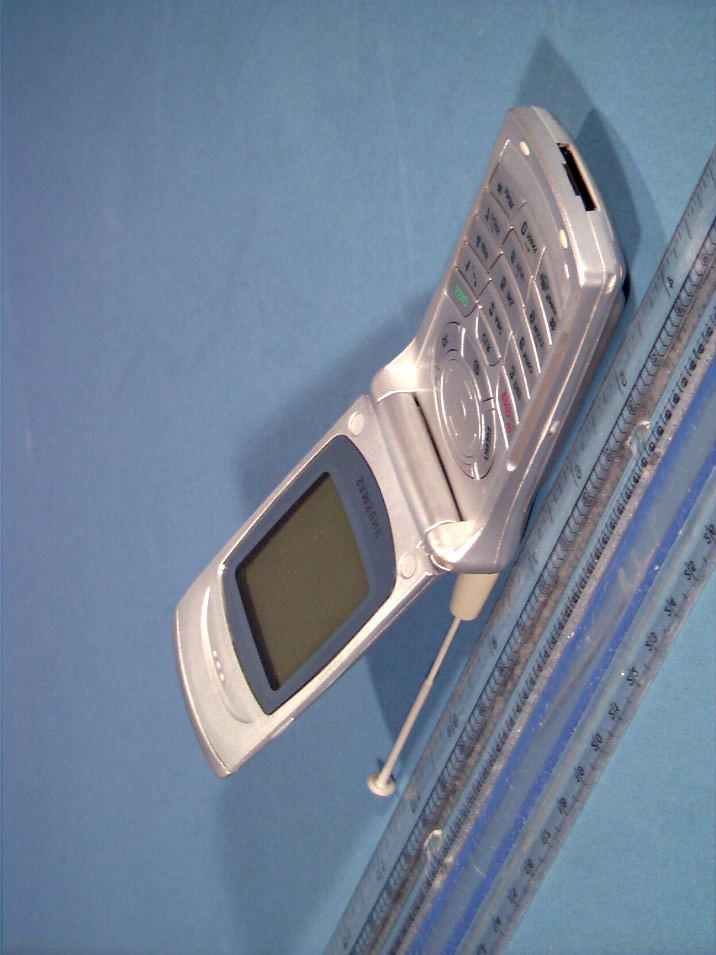

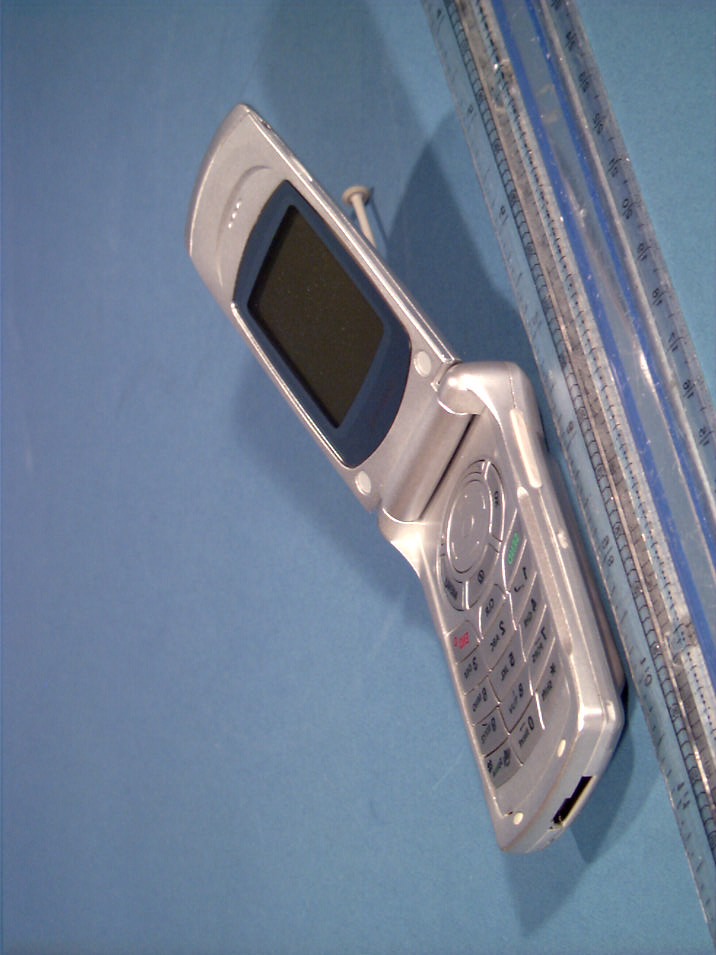

© 2001 PCTEST Lab FCC ID: A3LSPHA330 (Model: SPH-A330) NVLAP Lab Code: 100431-0 SAMSUNG Tri-Mode Dual-Band Analog/PCS Phone © 2001 PCTEST Lab FCC ID: A3LSPHA330 (Model: SPH-A330) NVLAP Lab Code: 100431-0 SAMSUNG Tri-Mode Dual-Band Analog/PCS Phone © 2001 PCTEST Lab FCC ID: A3LSPHA330 (Model: SPH-A330) NVLAP Lab Code: 100431-0 SAMSUNG Tri-Mode Dual-Band Analog/PCS Phone © 2001 PCTEST Lab FCC ID: A3LSPHA330 (Model: SPH-A330) NVLAP Lab Code: 100431-0 SAMSUNG Tri-Mode Dual-Band Analog/PCS Phone © 2001 PCTEST Lab FCC ID: A3LSPHA330 (Model: SPH-A330) NVLAP Lab Code: 100431-0 SAMSUNG Tri-Mode Dual-Band Analog/PCS Phone © 2001 PCTEST Lab FCC ID: A3LSPHA330 (Model: SPH-A330) NVLAP Lab Code: 100431-0 SAMSUNG Tri-Mode Dual-Band Analog/PCS Phone © 2001 PCTEST Lab FCC ID: A3LSPHA330 (Model: SPH-A330) NVLAP Lab Code: 100431-0 SAMSUNG Tri-Mode Dual-Band Analog/PCS Phone

© 2001 PCTEST Lab FCC ID SAMPLE LABEL & LOCATION LABELLING REQUIREMENTS The Label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time of purchase. (SEE NEXT PAGE)

© 2001 PCTEST Lab FCC ID: A3LSPHA330 (Model: SPH-A330) NVLAP Lab Code: 100431-0 SAMSUNG Tri-Mode Dual-Band Analog/PCS Phone © 2001 PCTEST Lab FCC ID: A3LSPHA330 (Model: SPH-A330) NVLAP Lab Code: 100431-0 SAMSUNG Tri-Mode Dual-Band Analog/PCS Phone © 2001 PCTEST Lab FCC ID: A3LSPHA330 (Model: SPH-A330) NVLAP Lab Code: 100431-0 SAMSUNG Tri-Mode Dual-Band Analog/PCS Phone © 2001 PCTEST Lab FCC ID: A3LSPHA330 (Model: SPH-A330) NVLAP Lab Code: 100431-0 SAMSUNG Tri-Mode Dual-Band Analog/PCS Phone © 2001 PCTEST Lab FCC ID: A3LSPHA330 (Model: SPH-A330) NVLAP Lab Code: 100431-0 SAMSUNG Tri-Mode Dual-Band Analog/PCS Phone © 2001 PCTEST Lab FCC ID: A3LSPHA330 (Model: SPH-A330) NVLAP Lab Code: 100431-0 SAMSUNG Tri-Mode Dual-Band Analog/PCS Phone © 2001 PCTEST Lab FCC ID: A3LSPHA330 (Model: SPH-A330) NVLAP Lab Code: 100431-0 SAMSUNG Tri-Mode Dual-Band Analog/PCS Phone © 2001 PCTEST Lab FCC ID: A3LSPHA330 (Model: SPH-A330) NVLAP Lab Code: 100431-0 SAMSUNG Tri-Mode Dual-Band Analog/PCS Phone

NoDescriptionsCountPart NumberPart Name 1Diode11SS315(TPH3)D402 2Diode41SV279-TPH3D300 D302 D400 D401 3Diode7SMF05.TB U626 U627 ZD200 ZD500 ZD501 ZD502 ZD503 4Diode1UMN1D200 5Diode1BAR63-02W-E6327D3601 6Transistor32SA1576FTR106Q101 Q402 Q450 7Transistor1MMBT2222AWT1Q501 8Transistor1BFP540Q300 9Transistor3DTC114EE/TRQ201 Q301 Q302 10Transistor3DTC144EE/TRQ202 Q404 Q420 11Transistor3DTA144EE/TRQ204 Q500 Q502 12Transistor1SI3443DV-T1Q200 13Regulator2FDC6329LU205 U208 14Transistor12SK2035Q403 15Transistor4UMC5NTLQ100 Q203 Q401 U550 161608 size LED10SLSNNYG102TS LED500 LED501 LED502 LED503 LED504 LED505 LED506 LED507 LED508 LED509 171608 size LED1SML-310LT-T86LED510 18Gate2TC7S08FUTE85LU303 U500 19Gate1TC7S32FUU405 20Gate1TC7S04FU(TE85L)U100 21RF Switch3SW-437U301 U307 U403 22Analog Switch1MAX4642EUAU107 23Reed Switch1A3210ELHU501 24EEPROM1AT24C256-10UI-2.7-T.RU101 25SRAM(2M)1K6F2016U4DU102 26Flash Memory(32M+2M)1DS42553U103 27OP AMP2LMC7101ATM5U406 U450 28Power AMP1RM912U404 29OP AMP1TC75W56FU-TE12LU108 30Regulator1MIC5205_3.0U206 31Reset IC1MAX809U622 32Regulator1ILC7082AIM5_3.0U203 33Regulator1LP3985IBP_2.5U200 34Regulator1LP3985IBP_2.8U202 35Regulator1LP3985BP_3.0U204 36IFR30001IFR3000U302 37RFT31001RFT3100U402 38Mixer1NJG1557KB2U305 39PCS Down Converter1CMY212BU300 40MSM3100C1MSM3100CU104 41Down Converter1RF2366TR13U304 42Thermistor1NTH5G1M33B103J04THTH581 43Resistor(1005 size)19100,5% R200 R202 R205 R211 R213 R218 R219 R221 R225 R312 R322 R328 R501 R502 R503 R504 R505 R518 R222 44Resistor(1005 size)121K,5% R106 R114 R115 R125 R128 R129 R138 R139 R140 R208 R226 R419 45Resistor(1005 size)52.2K,5% R141 R143 R233 R239 R506 46Resistor(1005 size)16.2K.,5% R434 47Resistor(1005 size)18.2K,5%R104 R121 48Resistor(1005 size)2010K,5% R110 R117 R120 R122 R126 R134 R136 R162 R190 R191 R192 R227 R231 R235 R314 R319 R412 R593 R610 R611 49Resistor(1005 size)112K,5%R415 50Resistor(1005 size)115K,5%R507 51Resistor(1005 size)222K,5%R304 R435 52Resistor(1005 size)127K,5%R203 53Resistor(1005 size)130K,5%R146 54Resistor(1005 size)247K,5%R209 R308 55Resistor(1005 size)356K,5%R101 R232 R237 56Resistor(1005 size)268K,5%R417 R441 57Resistor(1005 size)13100K,5% R108 R145 R151 R154 R201 R204 R206 R310 R325 R440 R500 R511 R512 R513 R514 R515 R516 58Resistor(1005 size)1150K,5%R443 59Resistor(1005 size)2470K,5%R207 R307 60Resistor(1005 size)1510K,5%R135 61Resistor(1005 size)410,5%R323 R390 R428 R404 62Resistor(1005 size)11.5K,5%R326 63Resistor(1005 size)1470,5%R223 64Resistor(1005 size)1750,5%R433 65Resistor(1005 size)182,5%R302 66Resistor(1005 size)233,5%R508 R509 67Resistor(1005 size)151,5%R424 68Resistor(1005 size)1120,5%R301 69Resistor(1005 size)1180,5%R517 70Resistor(1005 size)11.2K,5%R127 71Resistor(1005 size)118K,5%R111 72Resistor(1005 size)2180K,5%R133 R137 73Resistor(1005 size)2510,5%R105 R147 74Resistor(1005 size)115,5%R303 75Resistor(1005 size)212,5%R156 R157 76Resistor(1005 size)120,5%R305 77Resistor(1005 size)13.9K,5%R324 78Resistor(1005 size)175,5%R493 79Resistor(1005 size)151,5%R442 80Resistor(1005 size)11.1K,5% R315 81Resistor(1005 size)2100K,1%R109 R436 82Resistor(1005 size)14.7K,1%R438 83Resistor(1005 size)11.2K,1%R229 84Resistor(1005 size)147K,1%R230 85Resistor(1005 size)210K,1%R426 R432 86Resistor(1005 size)1100,1%R112 87Resistor(1005 size)133K,1%R439 88Resistor(1005 size)112K,1%R416 89Resistor(1005 size)12.2K,1%R437 90Resistor(1005 size)191K,1%R107 91Resistor(1005 size)21.8K,1%R317 R423 92Resistor(1005 size)290,5% R100 R102 R123 R131 R142 R144 R150 R160 R193 R194 R215 R216 R300 R306 R311 R470 R495 R497 R519 R520 R521 R603 R604 R605 R606 R614 R616 R617 U624 93Resistor(1005 size)19.1K,1%R228 94Capacitor(1005 size)36C101J,100PF,50V C123 C131 C200 C205 C207 C215 C216 C223 C231 C301 C309 C310 C311 C328 C335 C338 C339 C369 C371 C389 C406 C407 C408 C412 C426 C437 C438 C445 C446 C455 C459 C466 C471 C476 C477 C479 95Capacitor(1005 size)33C103K,10NF,16V C100 C102 C104 C106 C108 C110 C112 C1147 C116 C118 C121 C125 C128 C137 C139 C210 C213 C219 C227 C232 C300 C304 C307 C308 C329 C340 C375 C378 C379 C381 C385 C425 C473 96Capacitor(1005 size)210PF,50VC327 C336 97Capacitor(1005 size)1C120J,12PF,50VC372 98Capacitor(1005 size)2C151J,150PF,50VC431 C453 99Capacitor(1005 size)2C150J,15PF,50VC393 U616 100Capacitor(1005 size)268PF,50VC360 C363 101Capacitor(1005 size)37C102K,1NF,50V C230 C316 C319 C325 C326 C341 C343 C344 C347 C357 C358 C368 C370 C374 C376 C380 C382 C386 C390 C391 C392 C394 C395 C404 C406 C419 C424 C429 C447 C448 C457 C467 C470 C472 C483 C484 C502 102Capacitor(1005 size)4C010C,1PF,50VC317 C342 C350 C444 103Capacitor(1005 size)4C222K,2.2NF,50VC153 C218 C221 C397 104Capacitor(1005 size)1C221K,220PF,50VC315 C364 C366 105Capacitor(1005 size)2C220J,22PF,50VC348 C422 106Capacitor(1005 size)2C270J,27PF,50VC129 U617 107Capacitor(1005 size)1C020C,2PF,50VC323 C353 108Capacitor(1005 size)4C391K,390PF,50VC400 C401 C415 C416 109Capacitor(1005 size)5C390J,39PF,50V C356 C355 C359 C439 C443 110Capacitor(1005 size)1C030C,3PF,50VC351 111Capacitor(1005 size)1C472K.4.7NF,25VC195 112Capacitor(1005 size)4C471K,470PF,50VC201 C208 C225 C237 113Capacitor(1005 size)5C470J,47PF,50V C417 C418 C420 C421 C468 114Capacitor(1005 size)1C040C,4PF,50VC353 115Capacitor(1005 size)1C562K,5.6NF,25VC136 116Capacitor(1005 size)1C560J,56PF,50VC423 117Capacitor(1005 size)2C820J,82PF,50VC456 C464 118Capacitor(1005 size)2C080D,8PF,50VC346 C458 119Capacitor(1608 size)2C123K,12NF,50VC143 C145 120Capacitor(1005 size)6C223Z,22NF,25V C141 C144 C148 C150 C388 C474 121Capacitor(1005 size)1C300J,30PF,50VC428 122Capacitor(1005 size)1C473K,47NF,16VC469 123Capacitor(2012 size)12.2UF,16VC228 124Capacitor(2012 size)1C474K,470NF,16VC430 125Capacitor(1005 size)2C561K,560PF,50VC236 C242 126Capacitor(1005 size)41C104Z,100NF,16V C101 C103 C105 C107 C109 C111 C113 C115 C117 C119 C120 C122 C126 C132 C134 C138 C140 C142 C146 C147 C149 C151 C154 C155 C157 C202 C204 C217 C220 C222 C313 C318 C349 C362 C377 C410 C413 C475 C478 C503 U560 127Capacitor(1608 size)4C105Z,1UF,1…

Text truncated - open the document above for the full version.

Peak SAR Location © 2001 PCTEST Lab SAMSUNG FCC ID: A3LSPHA330 (Model: SPH-A330) NVLAP Lab Code: 100431-0 Tri-Mode Dual-Band Analog/PCS Phone (AMPS/CDMA) 800 MHz Head SAR File : c:/idx3/SYSTEM/SARMEAS3/data/Normal/01042312_ZOOM.VLT Start : 23-Apr-101 03:00:55 pm End : 23-Apr-101 03:10:06 pm Radio Type : SAMSUNG Model Number : SPH-A330 Serial Number : 2 Frequency : 824.04 MHz Peak Trans. Pwr : 0.400 W Start Trans. Pwr: 0.400 W Antenna Type : Helical Antenna Posn. : In Phantom Type : Head Phantom Posn. : Left Ear Scan Type : ZOOM/SAR Probe Name : PCTEST Field Type : E Field Orientation : 0 Degrees Mixture Type = Brain Mixture Dielectric Constant = 41.500 Mixture Conductivity = 0.900 Comment : SAMSUNG TRI-MODE PHONE - AMPS MODE CHAN 0991 Conducted 26.0 dBm SAMSUNG TRI-MODE PHONE Robot : PCTEST Probe Offset = 0.25 cm Sensor Factor = 0.0108 Conversion Factor = 0.788 PCTEST Amplifier Channel Settings : 0.166 0.135 0.132 Max Location : X = 1.500, Y = -1.750, Z = 0.000 (cm) Value = 18.339 Measured Values (volts) = 1.827E-002 1.219E-002 9.649E-003 8.071E-003 6.743E-003 5.864E-003 4.992E-003 4.511E-003 4.088E-003 3.763E-003 3.475E-003 3.234E-003 2.871E-003 2.519E-003 2.079E-003 1.703E-003 1.342E-003 1.017E-003 8.963E-004 8.501E-004 9.263E-004 Calc. Voltage @ Surface (Vs) = 0.0252 Voltage @ 1.00 cm (Vt) = 0.0081 Ave. Voltage (Vs+Vt)/2 = 0.0167 Ave. SAR over 1 g (mW/g) = 1.2151 0.0 0.2 0.4 0.6 0.8 1.0 1.2 1.4 1.6 1.8 2.0 mW/g -1012345 Z centimeters SAR Scan File : 01042312_ZOOM Start : 23-Apr-101 03:00:55 pm End : 23-Apr-101 03:10:06 pm SAMSUNG/SPH-A330/2;824.04MHz;W;Helical/In; Head/Left Ear;ZOOM/SAR;PCTEST/E Field/0 DegreesBrain/41.500/0.900 File : 01042312_ZOOM Start : 23-Apr-101 03:00:55 pm End : 23-Apr-101 03:10:06 pm SAMSUNG/SPH-A330/2;824.04MHz;W;Helical/In; Head/Left Ear;ZOOM/SAR;PCTEST/E Field/0 DegreesBrain/41.500/0.900 1.34 1.24 1.14 1.03 0.93 0.83 0.73 0.63 0.53 0.42 File : 01042312_ZOOM Start : 23-Apr-101 03:00:55 pm End : 23-Apr-101 03:10:06 pm SAMSUNG/SPH-A330/2;824.04MHz;W;Helical/In; Head/Left Ear;ZOOM/SAR;PCTEST/E Field/0 DegreesBrain/41.500/0.900 1.34 1.24 1.14 1.03 0.93 0.83 0.73 0.63 0.53 0.42 File : c:/idx3/SYSTEM/SARMEAS3/data/Normal/01042315_ZOOM.VLT Start : 23-Apr-101 03:44:34 pm End : 23-Apr-101 03:55:25 pm Radio Type : SAMSUNG Model Number : SPH-A330 Serial Number : 2 Frequency : 824.04 MHz Peak Trans. Pwr : 0.400 W Start Trans. Pwr: 0.400 W Antenna Type : Helical Antenna Posn. : Out Phantom Type : Head Phantom Posn. : Left Ear Scan Type : ZOOM/SAR Probe Name : PCTEST Field Type : E Field Orientation : 0 Degrees Mixture Type = Brain Mixture Dielectric Constant = 41.500 Mixture Conductivity = 0.900 Comment : SAMSUNG TRI-MODE PHONE - AMPS MODE CHAN 0991 Conducted 26.0 dBm SAMSUNG TRI-MODE PHONE Robot : PCTEST Probe Offset = 0.25 cm Sensor Factor = 0.0108 Conversion Factor = 0.788 PCTEST Amplifier Channel Settings : 0.166 0.135 0.132 Max Location : X = 1.750, Y = -1.750, Z = 0.000 (cm) Value = 18.052 Measured Values (volts) = 1.809E-002 1.239E-002 1.001E-002 8.090E-003 7.028E-003 5.999E-003 5.316E-003 4.667E-003 4.312E-003 3.874E-003 3.615E-003 3.251E-003 2.899E-003 2.477E-003 1.982E-003 1.634E-003 1.313E-003 1.069E-003 9.418E-004 8.639E-004 8.974E-004 Calc. Voltage @ Surface (Vs) = 0.0244 Voltage @ 1.00 cm (Vt) = 0.0081 Ave. Voltage (Vs+Vt)/2 = 0.0162 Ave. SAR over 1 g (mW/g) = 1.1853 0.0 0.2 0.4 0.6 0.8 1.0 1.2 1.4 1.6 1.8 mW/g -1012345 Z centimeters SAR Scan File : 01042315_ZOOM Start : 23-Apr-101 03:44:34 pm End : 23-Apr-101 03:55:25 pm SAMSUNG/SPH-A330/2;824.04MHz;W;Helical/Out; Head/Left Ear;ZOOM/SAR;PCTEST/E Field/0 DegreesBrain/41.500/0.900 File : 01042315_ZOOM Start : 23-Apr-101 03:44:34 pm End : 23-Apr-101 03:55:25 pm SAMSUNG/SPH-A330/2;824.04MHz;W;Helical/Out; Head/Left Ear;ZOOM/SAR;PCTEST/E Field/0 DegreesBrain/41.500/0.900 1.32 1.21 1.10 1.00 0.89 0.79 0.68 0.57 0.47 0.36 File : 01042315_ZOOM Start : 23-Apr-101 03:44:34 pm End : 23-Apr-101 03:55:25 pm SAMSUNG/SPH-A330/2;824.04MHz;W;Helical/Out; Head/Left Ear;ZOOM/SAR;PCTEST/E Field/0 DegreesBrain/41.500/0.900 1.32 1.21 1.10 1.00 0.89 0.79 0.68 0.57 0.47 0.36 File : c:/idx3/SYSTEM/SARMEAS3/data/Normal/01042303_ZOOM.VLT Start : 23-Apr-101 12:06:06 pm End : 23-Apr-101 12:15:14 pm Radio Type : SAMSUNG Model Number : SPH-A330 Serial Number : 2 Frequency : 836.49 MHz Peak Trans. Pwr : 0.400 W Start Trans. Pwr: 0.400 W Antenna Type : Helical Antenna Posn. : In Phantom Type : Head Phantom Posn. : Left Ear Scan Type : ZOOM/SAR Probe Name : PCTEST Field Type : E Field Orientation : 0 Degrees Mixture Type = Brain Mixture Dielectric Constant = 41.500 Mixture Conductivity = 0.900 Comment : SAMSUNG TRI-MODE PHONE - AMPS MODE CHAN 0383 Conducted 26.0 dBm SAMSUNG TRI-MODE PHONE Robot : PCTEST Probe Offset = 0.25 cm Sensor Factor = 0.0108 Conversion Factor = 0.788 PCTEST Amplifier Channel Settings : 0.166 0.135 0.132 Max Location : X = 1.750, Y = -1.750, Z = 0.000 (cm) Value = 19.349 Measured Values (volts) = 1.960E-002 1.323E-002 1.071E-002 8.723E-003 7.638E-003 6.522E-003 5.752E-003 5.147E-003 4.630E-003 4.251E-003 3.785E-003 3.471E-003 3.037E-003 2.609E-003 2.210E-003 1.801E-003 1.466E-003 1.230E-003 1.071E-003 1.005E-003 9.956E-004 Calc. Voltage @ Surface (Vs) = 0.0266 Voltage @ 1.00 cm (Vt) = 0.0087 Ave. Voltage (Vs+Vt)/2 = 0.0177 Ave. SAR over 1 g (mW/g) = 1.2894 0.0 0.2 0.4 0.6 0.8 1.0 1.2 1.4 1.6 1.8 2.0 mW/g -1012345 Z centimeters SAR Scan File : 01042303_ZOOM Start : 23-Apr-101 12:06:06 pm End : 23-Apr-101 12:15:14 pm SAMSUNG/SPH-A330/2;836.49MHz;W;Helical/In; Head/Left Ear;ZOOM/SAR;PCTEST/E Field/0 DegreesBrain/41.500/0.900 File : 01042303_ZOOM Start : 23-Apr-101 12:06:06 pm End : 23-Apr-101 12:15:14 pm SAMSUNG/SPH-A330/2;836.49MHz;W;Helical/In; Head/Left Ear;ZOOM/SAR;PCTEST/E Field/0 DegreesBrain/41.500/0.900 1.41 1.30 1.19 1.08 0.97 0.86 0.75 0.63 0.52 0.41 File : 01042303_ZOOM Start : 23-Apr-101 12:06:06 pm End : 23-Apr-101 12:15:14 pm SAMSUNG/SPH-A330/2;836.49MHz;W;Helical/In; Head/Left Ear;ZOOM/SAR;PCTEST/E Field/…

Text truncated - open the document above for the full version.

© 2001 PCTEST Engineering Lab., Inc. 6660-B Dobbin Road • Columbia, MD 21045 • U.S.A. TEL (410) 290-6652 • FAX (410) 290-6654 http://www.pctestlab.com CERTIFICATE OF COMPLIANCE (SAR EVALUATION) SAMSUNG ELECTRONICS CO., LTD. Dates of Tests: Apr. 23-27, 2001 416 Maetan-3 Dong, Paldal-Ku Test Report S/N: SAR.210425233.A3L Suwon City Kyungki-Do 441-742, KOREA Test Site: PCTEST Lab, Columbia, MD USA Attn: Wallace Oh, Engineering Manager Samsung Electronics America (QA Lab) FCC ID A3LSPHA330 APPLICANT SAMSUNG Electronics Co., Ltd. EUT Type: Tri-Mode Dual-Band Analog/PCS Phone (AMPS/CDMA) Tx Frequency: 824.04 – 848.97 MHz (AMPS) / 824.70 – 848.31 MHz (CDMA) 1851.25 – 1908.75 MHz (PCS CDMA) Rx Frequency: 869.04 – 893.97 MHz (AMPS) / 869.70 – 893.31 MHz (CDMA) 1931.25 – 1988.75 MHz (PCS CDMA) Max. RF Output Power: 0.326W ERP AMPS (25.133 dBm) / 0.265W ERP CDMA (24.233 dBm) 0.272W EIRP PCS CDMA (24.35 dBm) Trade Name/Model(s): SAMSUNG SPH-A330 FCC Classification: Licensed Portable Transmitter Held to Ear (PCE) Application Type: Certification FCC Rule Part(s): §2.1093; ET Docket 96.326 Maximum SAR: 1.2894 W/kg AMPS Brain SAR; 0.5532 W/kg AMPS Body SAR 1.0989 W/kg CDMA Brain SAR; 0.3560 W/kg CDMA Body SAR 1.0502 W/kg PCS Brain SAR; 1.0444 W/kg PCS Body SAR 2.7282 W/kg PCS Hand SAR (Avg. over 10 gms) This wireless portable device has been shown to be compliant for localized specific absorption rate (SAR) for uncontrolled environment/general population exposure limits specified in ANSI/IEEE Std. C95.1-1992 and had been tested in accordance with the measurement procedures specified in ANSI/IEEE Std. C95.3-1992. (See Test Report) I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. NVLAP accreditation does not constitute any product endorsement by NVLAP or any agency of the United States Government. PCTEST certifies that no party to this application has been denied the FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. 210425233.A3L Test Report S/N: SAR.210425233.A3L SAR Measurement Report Test Dates: APR. 23-27, 2001 FCC Part 22/24 Certification Table of Contents 1.1 SCOPE....................................................................................................1 2.1 INTRODUCTION.......................................................................................2 3.1 SAR MEASUREMENT SET-UP.................................................................3 4.1 ISOTROPIC E-FIELD PROBE SYSTEM.....................................................4 5.1 E-field PROBE CALIBRATION PROCESS.................................................5 6.1 PHANTOM AND EQUIVALENT TISSUES..................................................7 7.1 SYSTEM SPECIFICATIONS......................................................................8 8.1 MEASUREMENT PROCESS.....................................................................9 9.1 TEST POSITION OF THE PHONE..........................................................10 10.1 BODY-WORN TEST SETUP.................................................................11 11.1 ANSI/IEEE C95.1 - 1992 RF EXPOSURE LIMITS.…

Text truncated - open the document above for the full version.
