A3LSPHA940Dual-Band CDMA Phone with Bluetooth

Samsung Electronics Co Ltd

Click to zoom

Application Details

Equipment Class: PCE - PCS Licensed Transmitter held to ear
Date of Grant: May 25, 2005
Application Purpose: Original Equipment
Date of Application: May 25, 2005
Equipment Note: Dual-Band CDMA Phone with Bluetooth
Frequency Range: 1851.25000000 - 1908.75000000
Company: Samsung Electronics Co Ltd
Country: United States

Documents & Files

Select a file to view

Test Report

Test Setup Photos

↗

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

* Some of the contents of this manual may differ from your phone, depending on the software installed or your service provider. World Wide Webhttp://www.samsungmobile.com SAMSUNG ELECTRONICS SPH-A940 User’s Manual for Draft Version Please read this manual before operating your phone, and keep it for future reference. 3 Table of contentsImportant safety precautions .......................7Unpacking .....................................................9Your phone .................................................10Key Description .................................................. 10Display.............................................................. 11Backlight ........................................................... 13Service light ...................................................... 13Camera............................................................. 13Getting started............................................14Using the battery................................................ 14Switching on or off the phone............................... 16Using the soft keys ............................................. 16Your phone’s modes............................................ 17Using the Keypad Lock feature ............................. 18Call functions ..............................................19Making a call...................................................... 19Ending a call ...................................................... 19Emergency dialing .............................................. 19Making a call from the recent call logs ................... 20Making a call from Contacts ................................. 20Speed dialing ..................................................... 20Pause dialing ..................................................... 21Voice dialing ...................................................... 22Adjusting the volume during a call ........................ 23Answering a call ................................................. 23Viewing missed calls ........................................... 24Options during a call ........................................... 24Using caller ID ................................................... 24Call forwarding................................................... 25Call waiting........................................................ 25Three-way calling ............................................... 26 Table of contents 4 Entering text ...............................................27Changing the text input mode .............................. 28Using T9 English mode ........................................ 28Using Alpha mode............................................... 30Using 123 mode ................................................. 31Using Symbol mode ............................................ 31Using the menus .........................................32Accessing a menu function by scrolling .................. 32Using shortcuts .................................................. 33List of menu functions ......................................... 34Pictures Video .............................................36Camera (Menu 1-1) ............................................. 36 Camcorder (Menu 1-2) ......................................... 36 Biz Card Scan (Menu 1-3) ..................................... 36 My Pictures (Menu 1-4) ........................................ 36 My Videos (Menu 1-5) ......................................... 36 Online Albums (Menu 1-6) .................................... 37 Settings and Info (Menu 1-7) ............................... 37 Pictbridge Print (Menu 1-8) ................................... 37 Messaging ...................................................38Send Message (Menu 2-1) .................................... 38 Text Message (Menu 2-2) ...................................... 38 Picture Mail (Menu 2-3) ........................................ 39 Email (Menu 2-4) ............................................... 39 Instant Message (Menu 2-5) ................................. 40 Voicemail (Menu 2-6) ........................................... 40 Settings (Menu 2-7) ............................................ 40 Tools ...........................................................41Voice Service (Menu 3-1) ..................................... 41 Voice Memo (Menu 3-2) ...................................... 41 G-Fun (Menu 3-3) ............................................... 41 Bluetooth (Menu 3-4) ........................................... 41 File Viewer (Menu 3-5) ......................................... 42 Planner (Menu 3-6) ............................................. 42 Memo Pad (Menu 3-7) ......................................... 43 World Time (Menu 3-8) ........................................ 44 Alarm Clock (Menu 3-9) ...................................... 44 Calculator (Menu 3-0) .......................................... 44 Table of contents 5 Media Player ...............................................45Call History .................................................46Outgoing Calls (Menu 5-1) ................................... 46 Incoming Calls (Menu 5-2) .................................. 46 Missed Calls (Menu 5-3) ...................................... 46 All Recents (Menu 5-4) ........................................ 47 Web ............................................................48Settings ......................................................49Display (Menu 7-1) ............................................. 49 Sounds (Menu 7-2) ............................................. 50 Sprint PCS Vision (Menu 7-3) ............................... 52 Voice Service (Menu 7-4) .................................... 53 Security (Menu 7-5) ............................................ 53 Roaming (Menu 7-6) ............................................ 56 Launch Pad (Menu 7-7) ........................................ 56 Others (Menu 7-8) ............................................... 56 P…

Text truncated - open the document above for the full version.

Attestation Statements

May 13, 2005 !"# $%&' ( &) "* +,- . / (0+1+//2(34 (5 /5 ///5 /4(0+1+// 2( 34(5555,4 .(5(65(5 / (5 1 # )57/(5)8 )94144 *4 1 1: ;&/ 1&19<;3<4 May 13, 2005 ! "" "" #$%" & ' ()*+ ! , ! "-) . /01# 23! . A3LSCHA940 , $ 5 5! 1 " . ! 6 2) 5 , )( /01 # 2 3! - $ 5! 5 ' + 7" 7" % 8 3 !*% % " 5 -9 %% 2 : ! " ! ! " ! $%" ! % ! ! 5 " - % ! 6 /01 # 2 3! ! - 7 % % 5! ! "! 7 ! 6 6 ! 7 %- 2 ! 7 - 5 " 6 5 7 % ! 6 /01 # 23! ! 5 " 6 !- 5- 5 "% ! ! 5 5 " ! " 6 !7 "% 5 ! 7 "+ 2 ;"<" =3- /01# " 0 May 13, 2005 ! "" "" # !$ % $&'" # ( )*+, ! - ! ".* /012$ %3!% FCC ID: A3LSCHA940 - & 5 67 " 5! 7 8 " / ! 9%*) !%* 5 -*)012$ %3!% & 6 " 5! 5 '' : ' ' ! ; " 5 ! ' % 7 ! " ! ! " ! &'" ! ' ! ! 5 " . ' ! 9 012 $ %3! ! . ' ' 5! ! "! < ! 9 9 ! < '. % ! < . 5 " 9 5 < ' ! 9 012 $ %3!5 5 " 9 !. 5. 5 "' ! ! 5 5 " ! " 9 !< "' 5! < ", % =">" ?3. 012$ " 1%

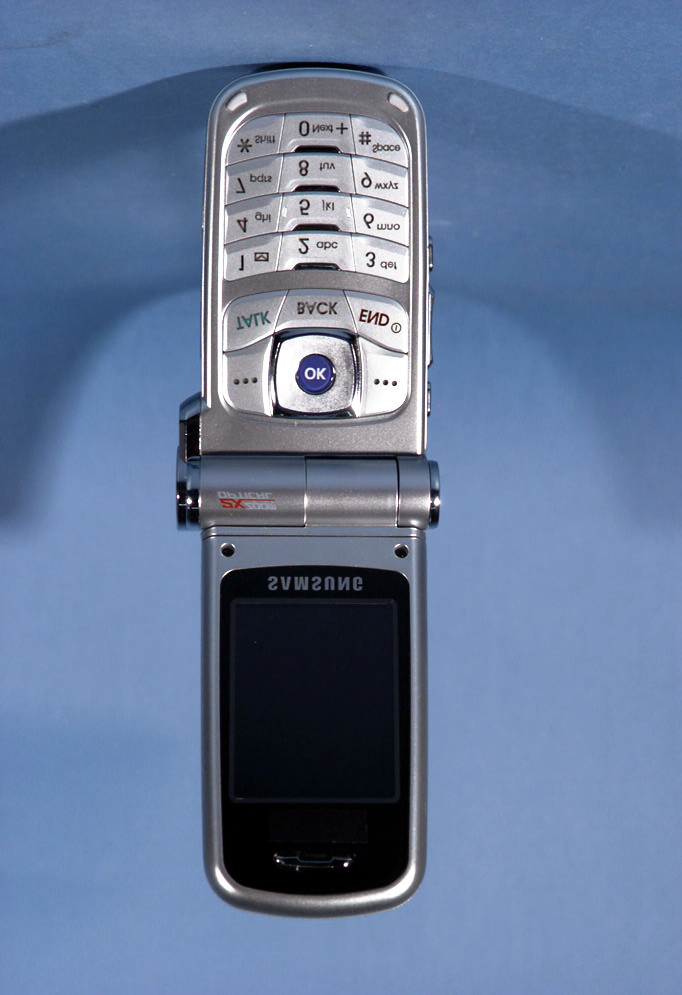

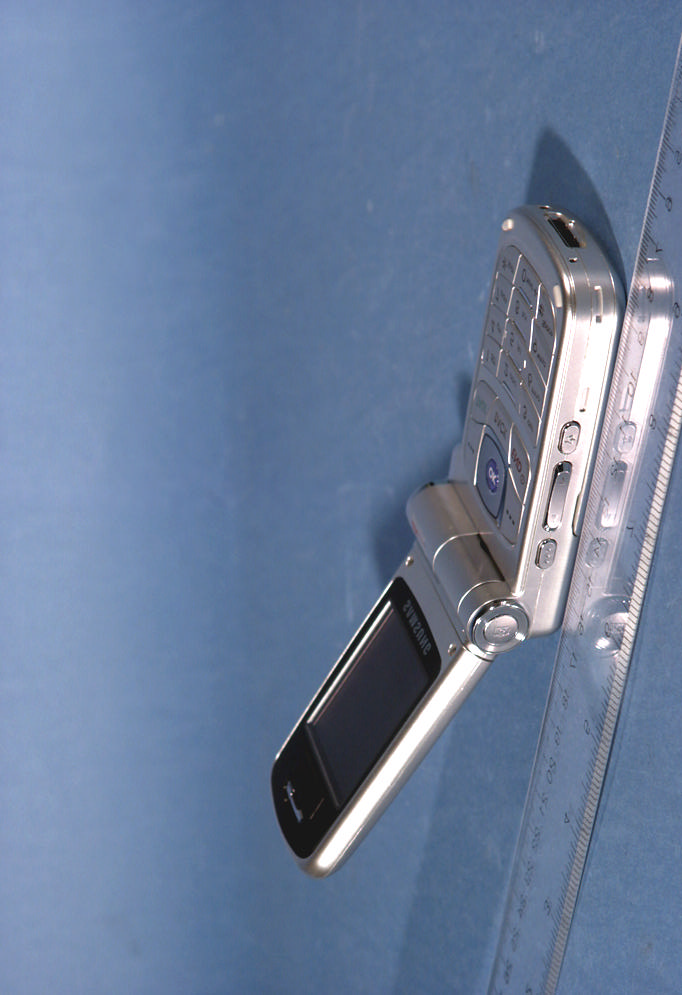

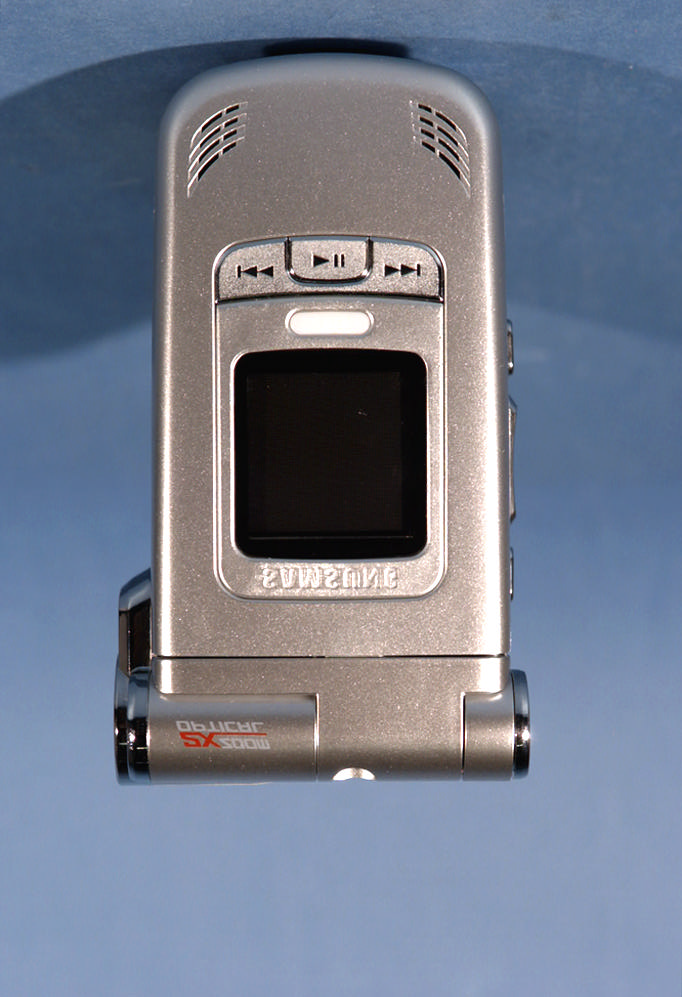

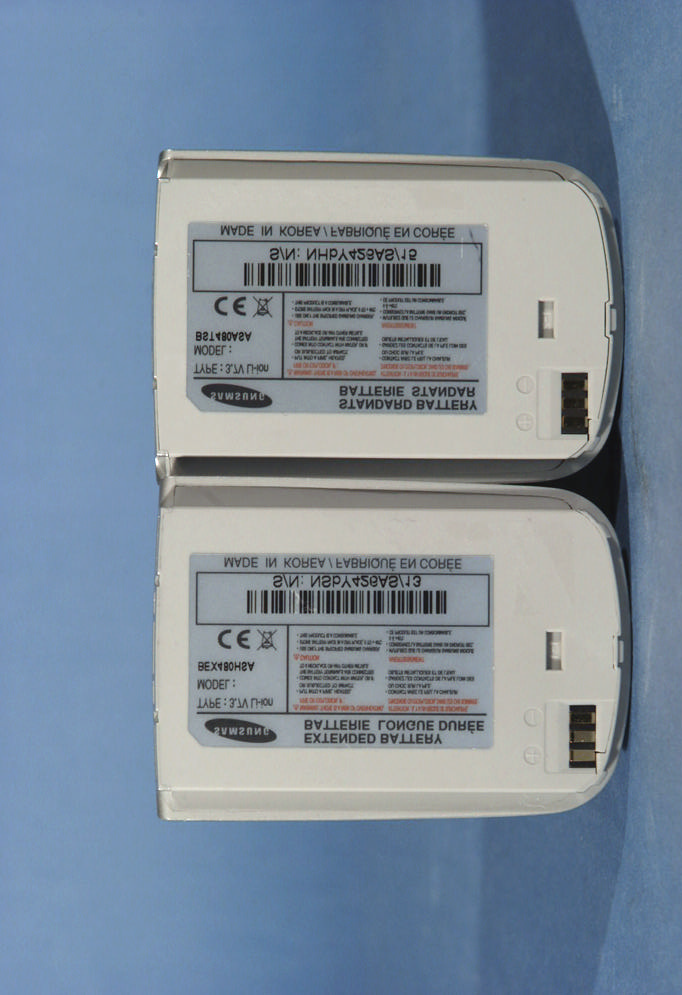

External Photos

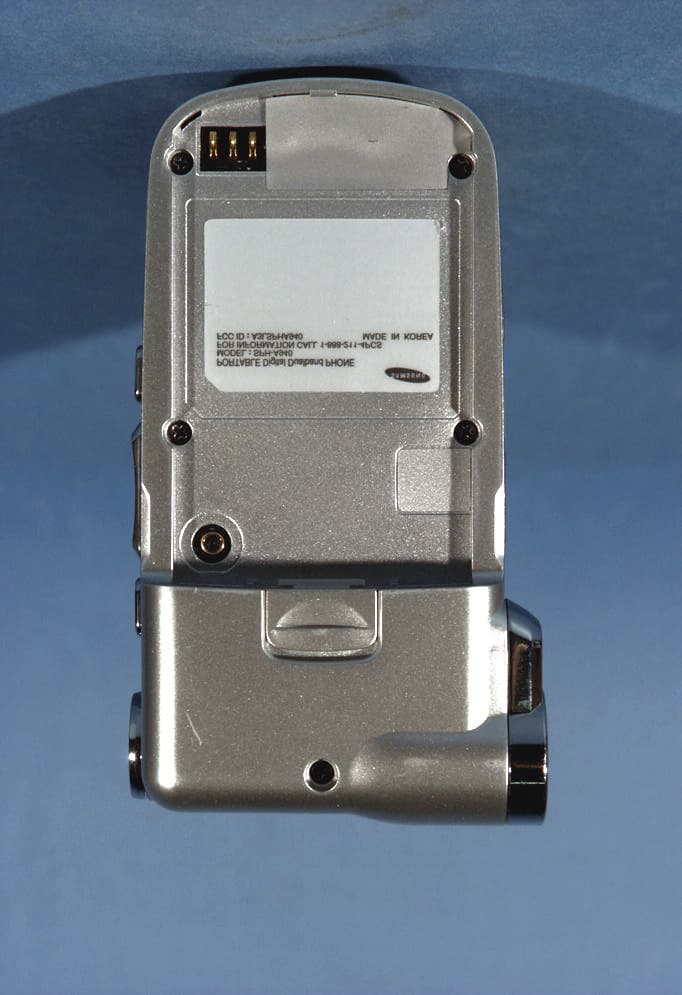

ID Label/Location Info

8. Sample Label & Location Sample label

Internal Photos

SAMSUNG FCC ID: A3LSPHA940 EUT Photographs © 2005 PCTEST Lab. Dual-Band CDMA Phone Model: SPH-A940 SAMSUNG FCC ID: A3LSPHA940 EUT Photographs © 2005 PCTEST Lab. Dual-Band CDMA Phone Model: SPH-A940 SAMSUNG FCC ID: A3LSPHA940 EUT Photographs © 2005 PCTEST Lab. Dual-Band CDMA Phone Model: SPH-A940 SAMSUNG FCC ID: A3LSPHA940 EUT Photographs © 2005 PCTEST Lab. Dual-Band CDMA Phone Model: SPH-A940 SAMSUNG FCC ID: A3LSPHA940 EUT Photographs © 2005 PCTEST Lab. Dual-Band CDMA Phone Model: SPH-A940 SAMSUNG FCC ID: A3LSPHA940 EUT Photographs © 2005 PCTEST Lab. Dual-Band CDMA Phone Model: SPH-A940 SAMSUNG FCC ID: A3LSPHA940 EUT Photographs © 2005 PCTEST Lab. Dual-Band CDMA Phone Model: SPH-A940 SAMSUNG FCC ID: A3LSPHA940 EUT Photographs © 2005 PCTEST Lab. Dual-Band CDMA Phone Model: SPH-A940 SAMSUNG FCC ID: A3LSPHA940 EUT Photographs © 2005 PCTEST Lab. Dual-Band CDMA Phone Model: SPH-A940 SAMSUNG FCC ID: A3LSPHA940 EUT Photographs © 2005 PCTEST Lab. Dual-Band CDMA Phone Model: SPH-A940 SAMSUNG FCC ID: A3LSPHA940 EUT Photographs © 2005 PCTEST Lab. Dual-Band CDMA Phone Model: SPH-A940 SAMSUNG FCC ID: A3LSPHA940 EUT Photographs © 2005 PCTEST Lab. Dual-Band CDMA Phone Model: SPH-A940

RF Exposure Info

SAMSUNG FCC ID: A3LSPHA940 EUT Photographs © 2005 PCTEST Lab. Dual Band CDMA Phone with Bluetooth Model: SPH-A940 SAMSUNG FCC ID: A3LSPHA940 EUT Photographs © 2005 PCTEST Lab. Dual Band CDMA Phone with Bluetooth Model: SPH-A940 SAMSUNG FCC ID: A3LSPHA940 EUT Photographs © 2005 PCTEST Lab. Dual Band CDMA Phone with Bluetooth Model: SPH-A940 SAMSUNG FCC ID: A3LSPHA940 EUT Photographs © 2005 PCTEST Lab. Dual Band CDMA Phone with Bluetooth Model: SPH-A940 SAMSUNG FCC ID: A3LSPHA940 EUT Photographs © 2005 PCTEST Lab. Dual Band CDMA Phone with Bluetooth Model: SPH-A940 SAMSUNG FCC ID: A3LSPHA940 EUT Photographs © 2005 PCTEST Lab. Dual Band CDMA Phone with Bluetooth Model: SPH-A940 SAMSUNG FCC ID: A3LSPHA940 EUT Photographs © 2005 PCTEST Lab. Dual Band CDMA Phone with Bluetooth Model: SPH-A940 SAMSUNG FCC ID: A3LSPHA940 EUT Photographs © 2005 PCTEST Lab. Dual Band CDMA Phone with Bluetooth Model: SPH-A940 SAMSUNG FCC ID: A3LSPHA940 EUT Photographs © 2005 PCTEST Lab. Dual Band CDMA Phone with Bluetooth Model: SPH-A940 SAMSUNG FCC ID: A3LSPHA940 EUT Photographs © 2005 PCTEST Lab. Dual Band CDMA Phone with Bluetooth Model: SPH-A940 SAMSUNG FCC ID: A3LSPHA940 EUT Photographs © 2005 PCTEST Lab. Dual Band CDMA Phone with Bluetooth Model: SPH-A940 SAMSUNG FCC ID: A3LSPHA940 EUT Photographs © 2005 PCTEST Lab. Dual Band CDMA Phone with Bluetooth Model: SPH-A940 SAMSUNG FCC ID: A3LSPHA940 EUT Photographs © 2005 PCTEST Lab. Dual Band CDMA Phone with Bluetooth Model: SPH-A940 SAMSUNG FCC ID: A3LSPHA940 EUT Photographs © 2005 PCTEST Lab. Dual Band CDMA Phone with Bluetooth Model: SPH-A940 SAMSUNG FCC ID: A3LSPHA940 EUT Photographs © 2005 PCTEST Lab. Dual Band CDMA Phone with Bluetooth Model: SPH-A940

RF Exposure Info

PCTEST ENGINEERING LABORATORY, INC. 6660 – B Dobbin Road • Columbia, MD 21045 • USA Telephone 410.290.6652 / Fax 410.290.6654 http://www.pctestlab.com (email: [email protected]) CERTIFICATE OF COMPLIANCE (SAR EVALUATION) PCTEST SAR REPORT FCC CERTIFICATION Reviewed by: Quality Manager SAR Filename: 0505090357 Test Dates: May 11-12, 2005 Phone Type: Dual-Band CDMA Phone FCC ID: A3LSPHA940 Page 1 of 30 © 2005 PCTEST Engineering Laboratory, Inc APPLICANT NAME & ADDRESS: DATE & LOCATION OF TESTING: SAMSUNG ELECTRONICS CO., LTD. Dates of Tests: May 11-12, 2005 3351 Michelson Drive, Suite 290 Test Report S/N: 0505090357 Irvine, CA 92612 Test Site: PCTEST Lab, Columbia MD FCC ID: A3LSPHA940 APPLICANT: SAMSUNG ELECTRONICS CO., LTD. EUT Type: Dual-Band CDMA Phone Tx Frequency: 824.70 – 848.31 MHz (CDMA)/1851.25 – 1908.75 MHz (PCS CDMA) Rx Frequency: 869.70 – 893.31 MHz (CDMA)/ 1931.25 – 1988.75 MHz (PCS CDMA) Max. RF Output Power: 0.215 W ERP CDMA (23.3 dBm) / 25.0 dBm Conducted 0.266 W EIRP PCS CDMA (24.3 dBm) / 25.0 dBm Conducted Max. SAR Measurement: 0.119 W/kg CDMA Head SAR; 0.181 W/kg CDMA Body SAR; 0.999 W/kg PCS CDMA Head SAR; 1.12 W/kg PCS CDMA Body SAR Trade Name/Model(s): SPH-A940 FCC Classification: Licensed Portable Transmitter Held to Ear (PCE) FCC Rule Part(s): §2.1093; FCC/OET Bulletin 65 Supplement C [July 2001] Application Type: Certification Test Device Serial No.: identical prototype [S/N: #FC-059-B] This wireless portable device has been shown to be capable of compliance for localized specific absorption rate (SAR) for uncontrolled environment/general population exposure limits specified in ANSI/IEEE Std. C95.1-1992 and had been tested in accordance with the measurement procedures specified in FCC/OET Bulletin 65 Supplement C (2001) and IEEE Std. 1528 - 2003. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. Grant Conditions: Power output listed is ERP for Part 22 and EIRP for Part 24. SAR compliance for body-worn operating configuration is limited to the specific holster/belt clip tested for this filing. End-users must be informed of the body-worn operating requirements for satisfying RF exposure compliance. PCTEST certifies that no party to this application has been denied the FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. PCTEST SAR REPORT FCC CERTIFICATION Reviewed by: Quality Manager SAR Filename: 0505090357 Test Dates: May 11-12, 2005 Phone Type: Dual-Band CDMA Phone FCC ID: A3LSPHA940 Page 2 of 30 © 2005 PCTEST Engineering Laboratory, Inc TABLE OF CONTENTS 1. INTRODUCTION / SAR DEFINITION.................................................................................3 2. SAR MEASUREMENT SETUP..............................................................................................4 3. DASY4 E-FIELD PROBE SYSTEM........................................................................................5 4. PROBE CALIBRATION PROCESS.......................................................................................6 5. PHANTOM & EQUIVALENT TISSUES.................................................................................7 6. TEST SYSTEM SPECIFICATIONS.........................................................................................8 7. DOSIMETRIC ASSESSMENT & PHANTOM SPECS................................................................9 8. DEFINITION OF REFERENCE POINTS..............................................................................10 9. TEST CONFIGURATION POSITIONS...............................................................................11 10. ANSI/IEEE C95.1 - 1992 RF EXPOSURE LIMITS.................................................................14 11. MEASUREMENT UNCERTAINTIES...................................................................................15 12. SYSTEM VERIFICATION..................................................................................................16 13. SAR TEST DATA SUMMARY.......................................................................................17-32 15. SAR TEST EQUIPMENT..........................................................................................33 16. CONCLUSION...............................................................................................................29 17. REFERENCES..................................................................................................................30 PCTEST SAR REPORT FCC CERTIFICATION Reviewed by: Quality Manager SAR Filename: 0505090357 Test Dates: May 11-12, 2005 Phone Type: Dual-Band CDMA Phone FCC ID: A3LSPHA940 Page 3 of 30 © 2005 PCTEST Engineering Laboratory, Inc 1. INTRODUCTION / SAR DEFINITION The FCC has adopted the guidelines for evaluating the environmental effects of radiofrequency radiation in ET Docket 93-62 on Aug. 6, 1996 to protect the public and workers from the potential hazards of RF emissions due to FCC-regulated portable devices.[1] The safety limits used for the environmental evaluation measurements are based on the criteria published by the American National Standards Institute (ANSI) for localized specific absorption rate (SAR) in IEEE/ANSI C95.1-1992 Standard for Safety Levels with Respect to Human Exposure to Radio Frequency Electromagnetic Fields, 3 kHz to 300 GHz. (c) 1992 by the Institute of Electrical and Electronics Engineers, Inc., New York, New York 10017.[2] The measurement procedure described in IEEE/ANSI C95.3-1992 Recommended Practice for the Measurement of Potentially Hazardous Electromagnetic Fields - RF and Microwave[3] is used for guidance in measuring SAR due to the RF radiation exposure from the Equipment Under Test (EUT). These criteria for SAR evaluation are similar to …

Text truncated - open the document above for the full version.

Test Setup Photos

Contact Information

Applicant

Jenni Chun(General Manager)

[email protected]973-808-6375Fax: 973-808-6361

Technical Contact

PCTEST Engineering Lab, Inc.Randy Ortanez

[email protected]410-290-6652

6660-B Dobbin Road · Columbia, Maryland · United States

Test Firm

PCTEST Engineering Laboratory, Inc.Randy Ortanez

[email protected]4102906652Fax: 4102906654

Technical Specifications

#	Rule Parts	Frequency Range	Power Output	Emission	Tolerance
2	24E	1.85 GHz - 1.91 GHz	266.00 mW	1M25F9W	2.5 ppm

Confidentiality

Long Term

Grant Notes

Output is ERP for Part 22 and EIRP for Part 24. SAR compliance for body-worn operating configuration is based on a separation distance of 1.5 cm between the back of the unit and the body of the user. End-users must be informed of the body-worn operating requirements for satisfying RF exposure compliance. Belt-clips or holsters may not contain metallic components. The highest reported SAR values are: Part 22 - Head: 0.119 W/kg; Body-worn: 0.181 W/kg; Part 24 - Head: 0.999 W/kg; Body-worn: 1.12 W/kg.
