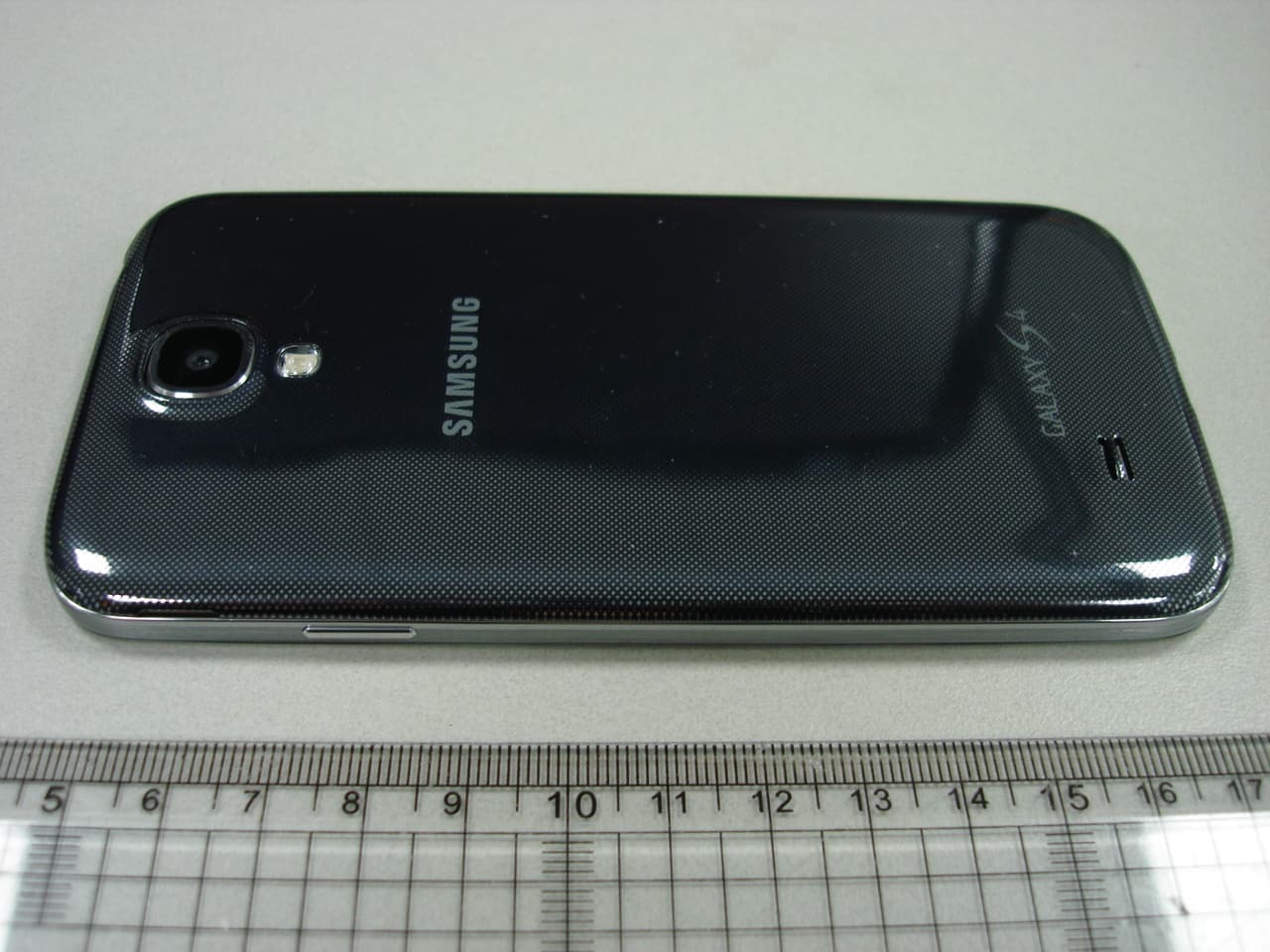

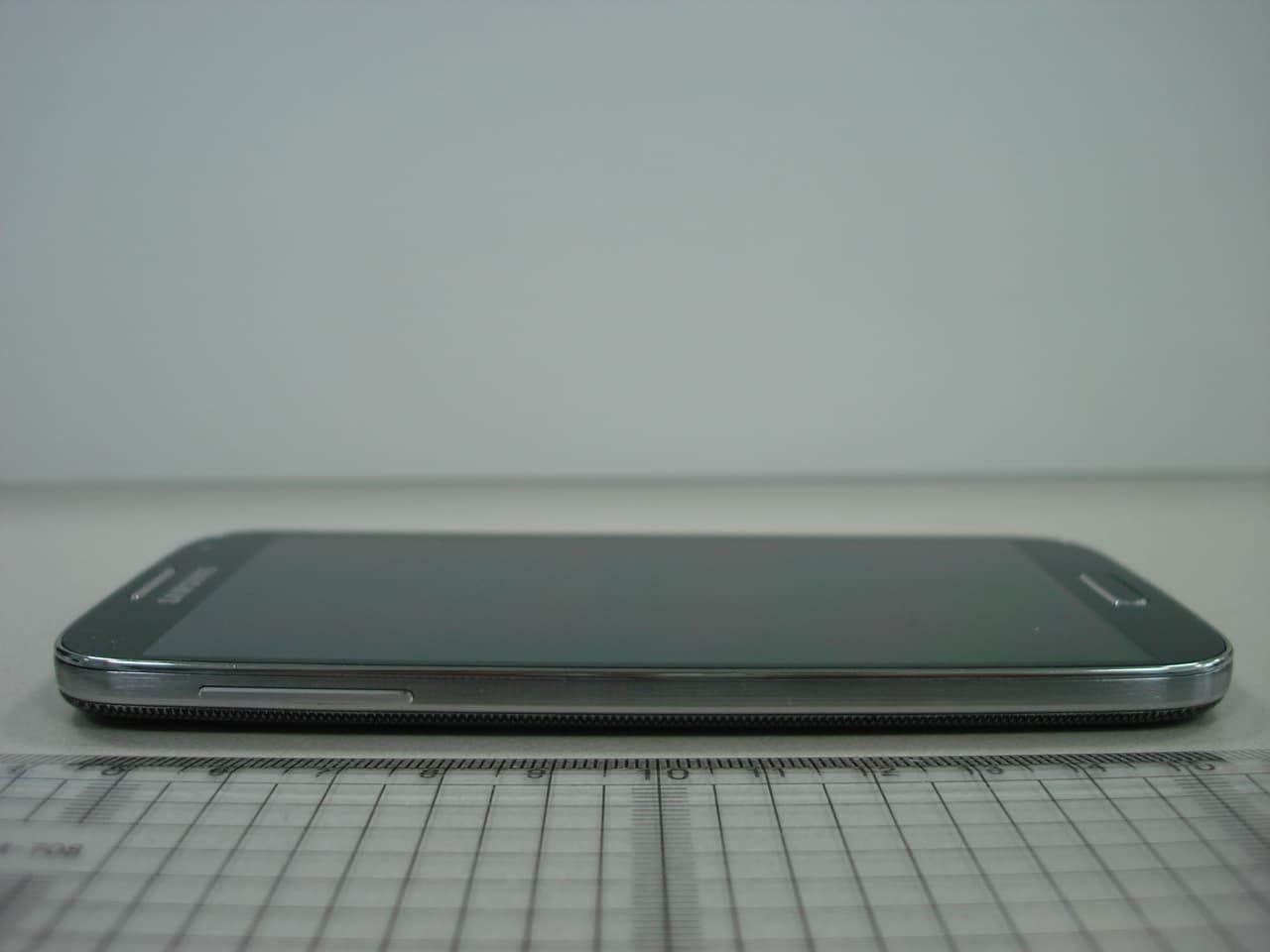

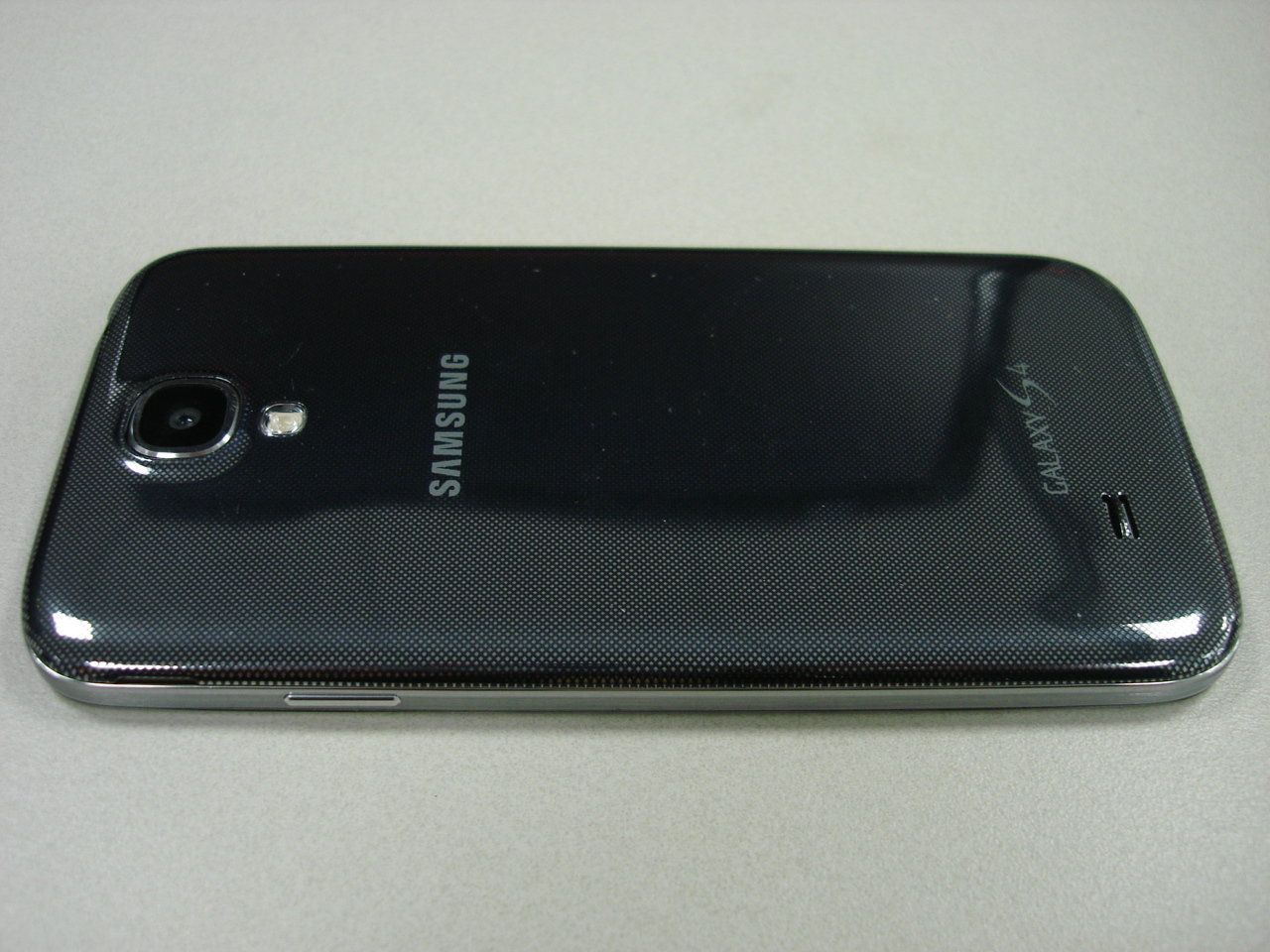

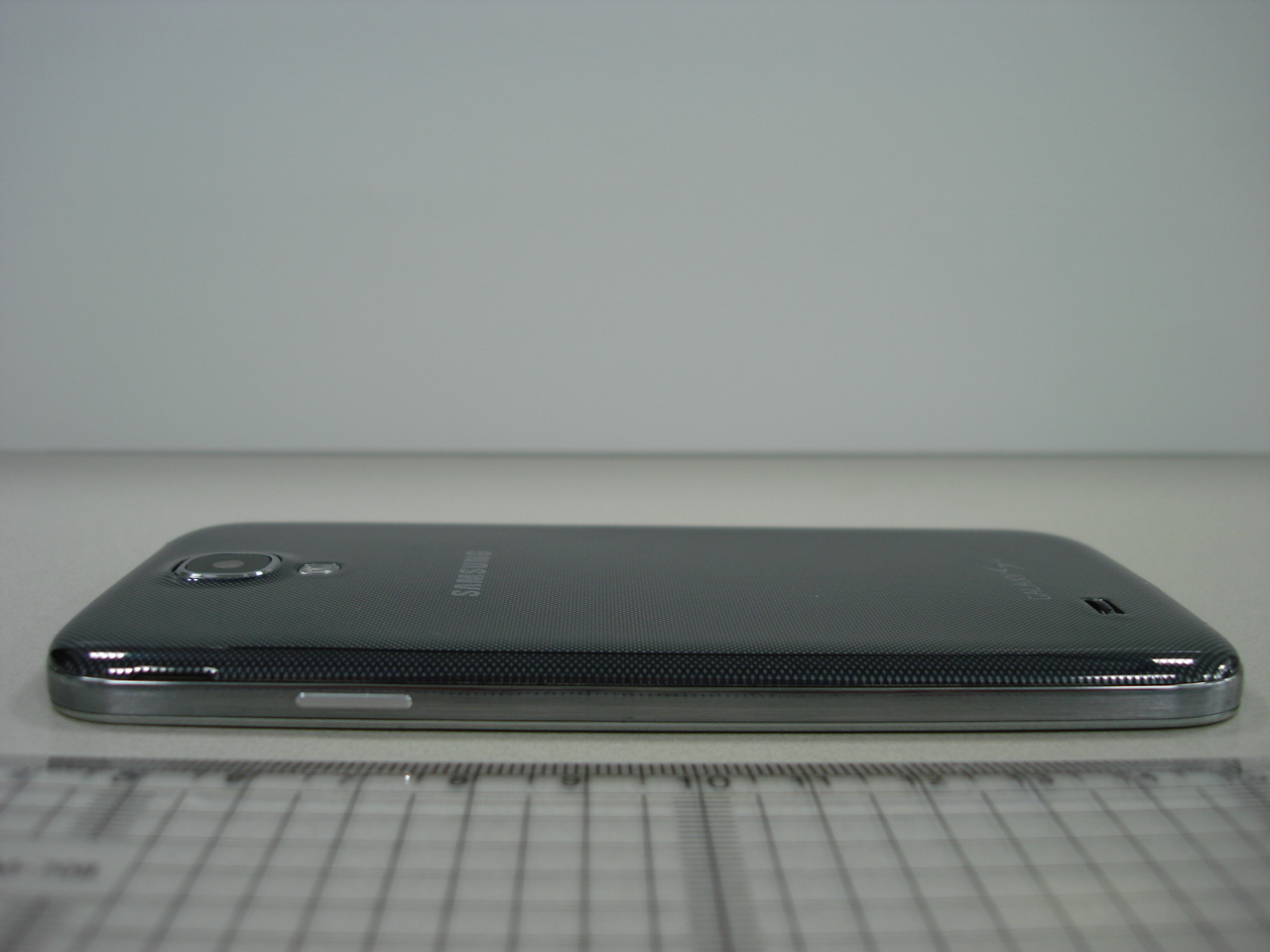

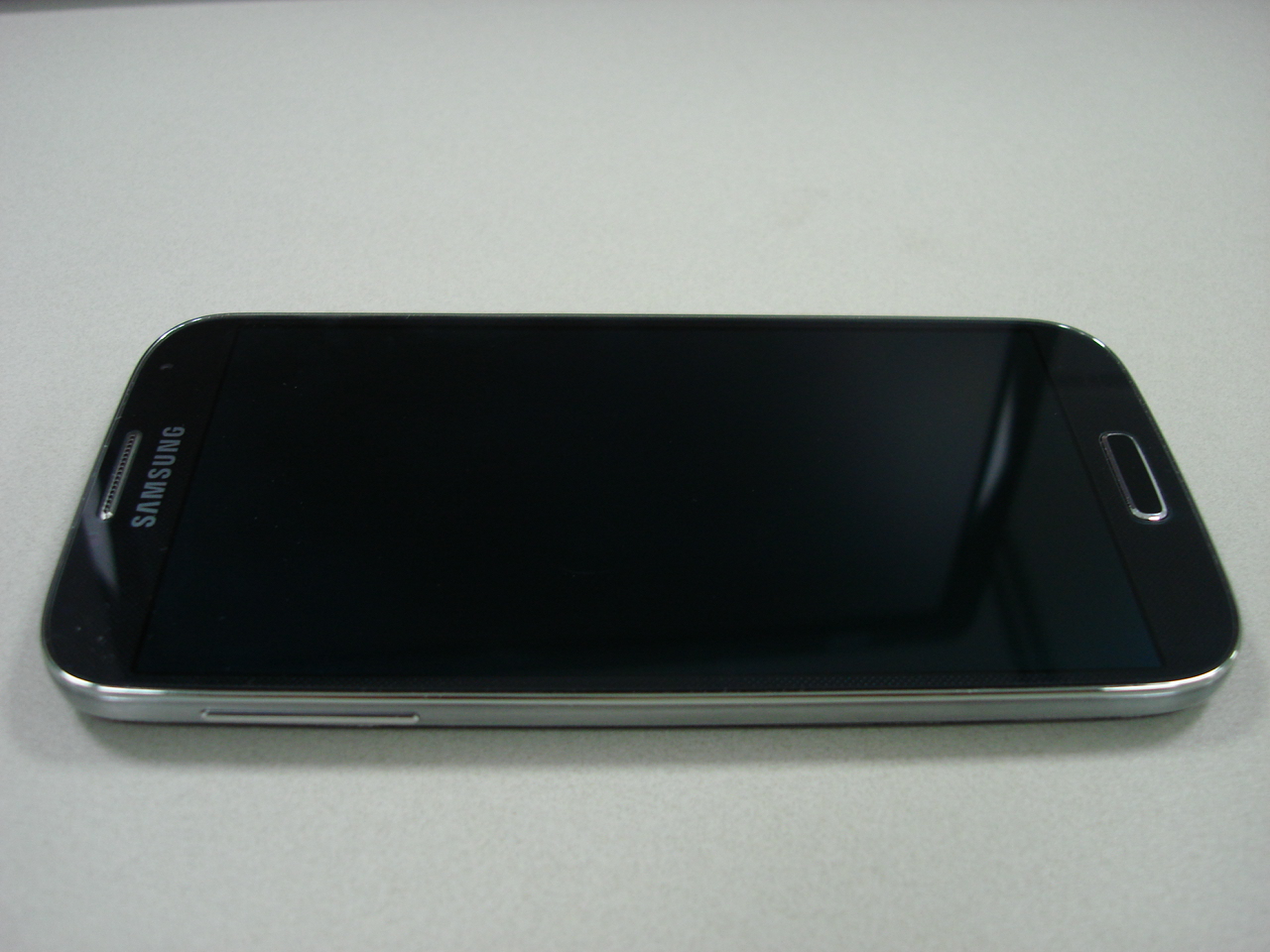

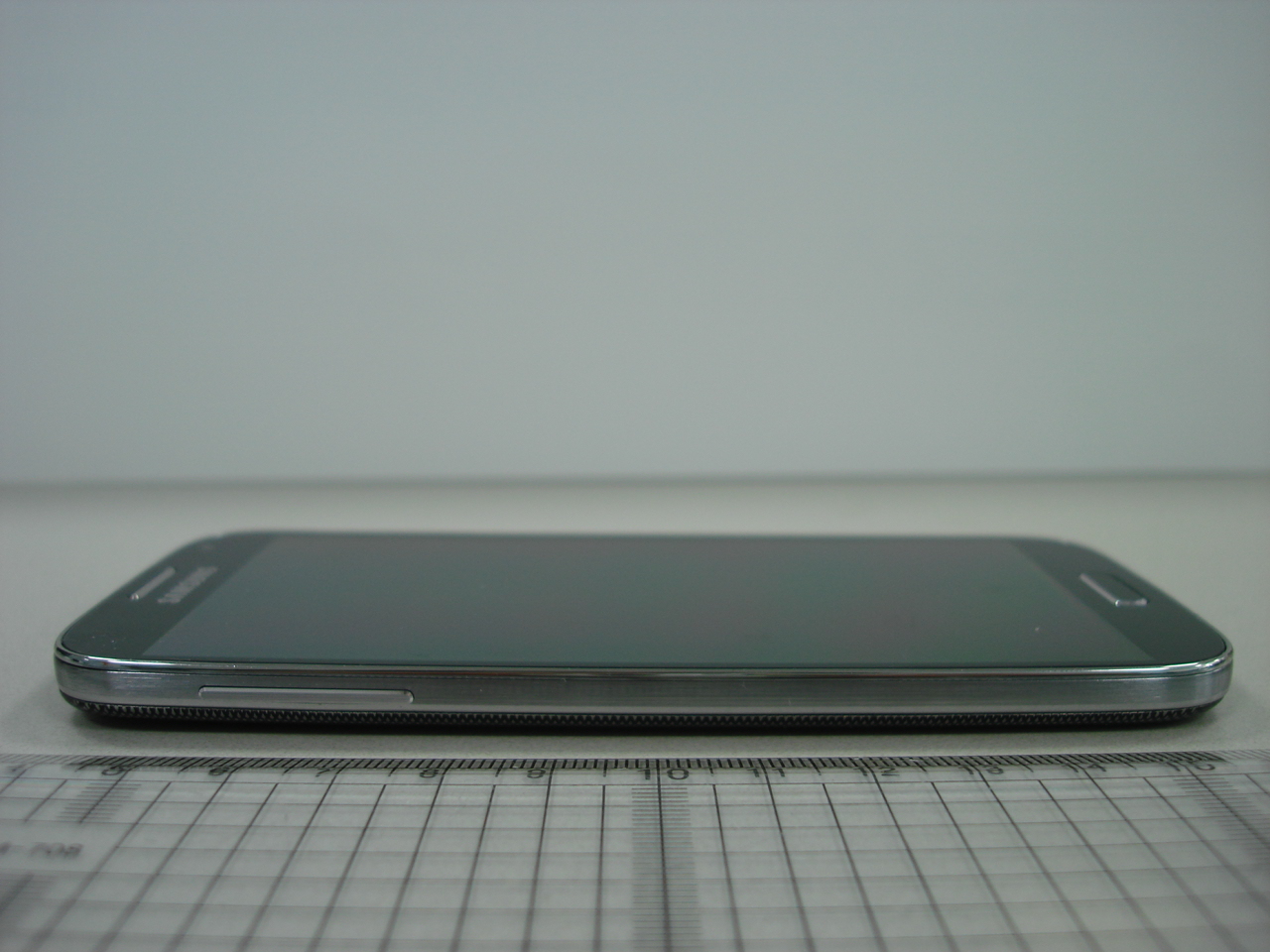

A3LSPHL720TMulti-Band GSM/EDGE/CDMA/LTE Phone with WLAN, Bluetooth, RFID and ANT+

Important Information for the for the Samsung Galaxy S TM 4 Important Safety Information – page 8 Manufacturer’s Warranty – page 52 General Terms and Conditions of Service – page 77 Important Message From Sprint – page 121 Sprint_L720_T_IIB_.book Page 1 Wednesday, September 25, 2013 10:11 PM DRAFT For Internal Use Only 2 Intellectual Property All Intellectual Property, as defined below, owned by or which is otherwise the property of Samsung or its respective suppliers relating to the SAMSUNG Phone, including but not limited to, accessories, parts, or software relating there to (the “Phone System”), is proprietary to Samsung and protected under federal laws, state laws, and international treaty provisions. Intellectual Property includes, but is not limited to, inventions (patentable or unpatentable), patents, trade secrets, copyrights, software, computer programs, and related documentation and other works of authorship. You may not infringe or otherwise violate the rights secured by the Intellectual Property. Moreover, you agree that you will not (and will not attempt to) modify, prepare derivative works of, reverse engineer, decompile, disassemble, or otherwise attempt to create source code from the software. No title to or ownership in the Intellectual Property is transferred to you. All applicable rights of the Intellectual Property shall remain with SAMSUNG and its suppliers. Open Source Software S ome software components of this product incorporate source code covered under GNU General Public License (GPL), GNU Lesser General Public License (LGPL), OpenSSL License, BSD License and other open source Sprint_L720_T_IIB_.book Page 2 Wednesday, September 25, 2013 10:11 PM DRAFT For Internal Use Only 3 licenses. To obtain the source code covered under the open source licenses, please visit: http://opensource.samsung.com . Disclaimer of Warranties; Exclusion of Liability EXCEPT AS SET FORTH IN THE EXPRESS WARRANTY CONTAINED ON THE WARRANTY PAGE ENCLOSED WITH THE PRODUCT, THE PURCHASER TAKES THE PRODUCT "AS IS", AND SAMSUNG MAKES NO EXPRESS OR IMPLIED WARRANTY OF ANY KIND WHATSOEVER WITH RESPECT TO THE PRODUCT, INCLUDING BUT NOT LIMITED TO THE MERCHANTABILITY OF THE PRODUCT OR ITS FITNESS FOR ANY PARTICULAR PURPOSE OR USE; THE DESIGN, CONDITION OR QUALITY OF THE PRODUCT; THE PERFORMANCE OF THE PRODUCT; THE WORKMANSHIP OF THE PRODUCT OR THE COMPONENTS CONTAINED THEREIN; OR COMPLIANCE OF THE PRODUCT WITH THE REQUIREMENTS OF ANY LAW, RULE, SPECIFICATION OR CONTRACT PERTAINING THERETO. NOTHING CONTAINED IN THE INSTRUCTION MANUAL SHALL BE CONSTRUED TO CREATE AN EXPRESS OR IMPLIED WARRANTY OF ANY KIND WHATSOEVER WITH RESPECT TO THE PRODUCT. IN ADDITION, SAMSUNG SHALL NOT BE LIABLE FOR ANY DAMAGES OF ANY KIND RESULTING FROM THE PURCHASE OR Sprint_L720_T_IIB_.book Page 3 Wednesday, September 25, 2013 10:11 PM DRAFT For Internal Use Only 4 USE OF THE PRODUCT OR ARISING FROM THE BREACH OF THE EXPRESS WARRANTY, INCLUDING INCIDENTAL, SPECIAL OR CONSEQUENTIAL DAMAGES, OR LOSS OF ANTICIPATED PROFITS OR BENEFITS. Modification of Software SAMSUNG IS NOT LIABLE FOR PERFORMANCE ISSUES OR INCOMPATIBILITIES CAUSED BY YOUR EDITING OF REGISTRY SETTINGS, OR YOUR MODIFICATION OF OPERATING SYSTEM SOFTWARE. USING CUSTOM OPERATING SYSTEM SOFTWARE MAY CAUSE YOUR DEVICE AND APPLICATIONS TO WORK IMPROPERLY. YOUR CARRIER MAY NOT PERMIT USERS TO DOWNLOAD CERTAIN SOFTWARE, SUCH AS CUSTOM OS. SAFE™ (Samsung Approved For E nterprise) SAFE™: "SAFE™" (Samsung for Enterprise) is a mark for a Samsung device which has been tested against Samsung's own internal criteria for interoperability with certain third party security-related solutions for MDM and VPN. The testing includes field testing with local network connection and menu tree testing which tests functionality of the solutions in conjunction with the Samsung device. During the testing, the device is tested with the security Sprint_L720_T_IIB_.book Page 4 Wednesday, September 25, 2013 10:11 PM DRAFT For Internal Use Only 5 solutions to see if the solutions work with the device as described by the third party security solution providers. The testing, for example, includes field testing with local network connection and menu tree testing which tests functionality of the solutions in conjunction with the Samsung device. For more information about Samsung's SAFE™ program, please refer to www.samsung.com/us/safe . Disclaimer of Warranties: EXCEPT AS OTHERWISE PROVIDED IN THEIR STANDARD END USER LICENSE AND WARRANTY, TO THE FULL EXTENT PERMITTED BY LAW SAMSUNG ELECTRONICS CO., LTD., SAMSUNG TELECOMMUNICATIONS AMERICA, LLC, AND THEIR AFFILIATES (COLLECTIVELY REFERRED TO HEREIN AS THE "SAMSUNG ENTITIES") EXPRESSLY DISCLAIM ANY AND ALL WARRANTIES, EXPRESS OR IMPLIED, INCLUDING ANY WARRANTY OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE, INTEROPERABILITY OR NON-INFRINGEMENT, WITH RESPECT TO INFORMATION TECHNOLOGY SECURITY PROTECTION, SAFE™ DEVICES AND APPLICATIONS TESTED WITH SAFE™ DEVICES. IN NO EVENT SHALL THE SAMSUNG ENTITIES BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL, PUNITIVE, OR CONSEQUENTIAL DAMAGES OF ANY KIND WHATSOEVER WITH RESPECT TO INFORMATION TECHNOLOGY SECURITY Sprint_L720_T_IIB_.book Page 5 Wednesday, September 25, 2013 10:11 PM DRAFT For Internal Use Only 6 PROTECTION, SAFE™ DEVICES OR APPLICATIONS TESTED WITH SAFE™ DEVICES. In addition, information technology security protection will be affected by features or functionality associated with, among other things the e-mail platform, master data management, and virtual private network solutions selected by the software provider, solution provider or user. Choice of an e-mail, master data management, and virtual private network solution is at the sole discretion of the software provider, solution provider or user and any associated effect on information technology security protection is solely the responsibility of the software provider, solution provider or user. For complete statement of limited warranty, ple…

Text truncated - open the document above for the full version.

User Guide ©2013 Sprint. Sprint and the logo are trademarks of Sprint. Other marks are trademarks of their respective owners. (Sprint UG template version 12c) SPT_L720_UG_Eng_MDC_TE_042013_F5 DRAFT For Internal Use Only TOC i Table of Contents Get Started .................................................................................................................................... 1 Your Phone at a Glance ........................................................................................................ 1 Set Up Your Phone ................................................................................................................ 1 Activate Your Phone .............................................................................................................. 2 Complete the Setup ............................................................................................................... 3 Set Up Voicemail ................................................................................................................... 4 Sprint Account Information and Help ..................................................................................... 5 Sprint Account Passwords ............................................................................................. 5 Manage Your Account .................................................................................................... 5 Sprint Support Services .................................................................................................. 6 Phone Basics ................................................................................................................................ 8 Your Phone’s Layout ............................................................................................................. 8 Key Functions ................................................................................................................. 8 Turn Your Phone On and Off ................................................................................................. 9 Turn Your Screen On and Off .............................................................................................. 10 Features............................................................................................................................... 10 Motions and Gestures .................................................................................................. 10 Smart Screen ............................................................................................................... 12 Air View ........................................................................................................................ 12 Voice Control ................................................................................................................ 13 Multi Window ................................................................................................................ 13 Touchscreen Navigation ...................................................................................................... 14 Tap ............................................................................................................................... 14 Touch and Hold ............................................................................................................ 15 Swipe or Slide .............................................................................................................. 15 Drag .............................................................................................................................. 16 Flick .............................................................................................................................. 16 Rotate ........................................................................................................................... 17 Pinch and Spread ......................................................................................................... 18 Your Home Screen .............................................................................................................. 18 DRAFT For Internal Use Only TOC ii Create Shortcuts .......................................................................................................... 19 Add and Remove Primary Shortcuts ............................................................................ 20 Add and Remove Widgets ............................................................................................ 20 Extended Home Screens ............................................................................................. 21 Recent Applications ...................................................................................................... 21 Status Bar ............................................................................................................................ 21 Enter Text ............................................................................................................................ 22 Text Input Methods ....................................................................................................... 22 Google Voice Typing .................................................................................................... 23 Samsung Keyboard ...................................................................................................... 24 Swype ........................................................................................................................... 24 Tips for Editing Text ..................................................................................................... 25 Phone Calls ................................................................................................................................. 27 Make Phone Calls ................................................................................................................ 27 C…

Text truncated - open the document above for the full version.

Date: Oct. 11, 2013 PCTEST TCB/CB Div. of PCTEST Engineering Lab., Inc. 6660-B Dobbin Road Columbia, MD 21045 Samsung Electronics Co., LTD. 129, Samsung-ro, Yeongtong-gu Suwon-City, Gyeonggi-do, 443-742, Korea Subject: Samsung Electronics Co., Ltd. FCC ID: A3LSPHL720T To Whom it May Concern We attest the following regarding FCC ID: A3LSPHL720T 1. MPR is permanently implemented for all channel BWs, modulations, frequency bands and RB sizes. 2. A-MPR was disabled for all SAR test samples for SAR testing purposes only. 3. We confirm the specific MPR targets and tolerances shown in the SAR Report. Should you have any questions or comments concerning the above, please contact the undersigned. Sincerely, Sign Here Engineer: Muyoung Choi Samsung Electronics CO. LTD TEL: +82-31-301-4634 E-mail: [email protected]

SAMSUNG ELECTRONICS CO., LTD 416, Maetan-3dong, Yeongtong-gu Suwon-si, Gyeonggi-do, 443-742 Korea September 1 6, 2013 Fede ral Communica tions Commission 7435 Oakland Mills Road Columbia, MD 21046 SUBJECT : Label Statement FCC ID : A3LSPHL720T Gentlemen: We hereby provide the label statement letter for the above-mentioned device by a new label statement policy instituted at the September 12, 2006, TCB-FCC Teleconference. The label statement is as follows: The FCC ID shown in the FCC ID label page will be readily visible at the time of purchase because the device will be marketed without the battery installed. The label is permanently attached by acrylic glue and not easily removed from the device. This statement could not be included in the label. So we inform you of it through this letter. Should you have any questions or comments concerning the above, please contact the undersigned. Sincerely Yours, Seoung Ho Park Senior Manager SAMSUNG ELECTRONICS CO.,LTD Telecommunication Network Business Mobile Communication Division Regulatory Compliance Group.

SAMSUNG ELECTRONICS AMERICA, INC. American QA Lab 19 Chapin Rd, Building D. Pine Brook, NJ 07058 Date: September 16, 2013 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road, Columbia, MD 21046 RE: Request of Confidentiality for FCC ID: A3LSPHL720T To Whom It May Concern: Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules (CFR 47), and Section 552 (b) (4) of the Freedom of Information Act, SAMSUNG ELECTRONICS CO.,LTD. hereby requests confidentiality and treatment of certain information accompanying this application. The materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. We are also hereby request Short-Term Confidentiality for 180 days after the grant as outlined in Public Notice DA 04-1705. This provision will give SAMSUNG ELECTRONICS CO.,LTD. temporary confidentiality of commercially sensitive information prior to product release. The requested Permanent and Short-Term Confidential exhibits are listed as follows: PERMANENT AND SHORT-TERM CONFIDENTIAL LIST Exhibit Description 1 Block Diagram 2 Operational Description 3 Schematics PERMANENT 4 Parts List & Tune-Up Procedure 5 External Photos 6 Internal Photos 7 Test-Setup Photos SHORT-TERM 8 Users Manual The Applicant understands that pursuant to Rule 0.457, disclosure of this application and all accompanying documentations, where applicable, will not be made public before the date of the Grant for this application. Sincerely, Peter Ra General Manager American QA Lab SAMSUNG Electronics America INC.

Date: Sep. 16, 2013 Federal Communications Commission Equipment Approval Services 7435 Oakland Mills Road Columbia, MD 21046 SUBJECT: SAMSUNG ELECTRONICS CO.,LTD. FCC ID: A3LSPHL720T Part 20.19 Certification To Whom It May Concern: The following are the model designations and their associated key features for this FCC ID, according to requirem ent in the TCB Guidance issued on June 20, 2008. We, Samsung Electronics, hereby declare the samples evaluated in this application are equivalent to production s amples. FCC ID: A3LSPHL720T Model(s): SPH-L720T Air Interfaces: CDMA BC0/1/10, GSM 850/1900, WCDMA B2/B5 LTE B25/B26/B41 Radio Services: CDMA 1x, EVDO Rev.A GSM/GPRS/EGPRS, WCDMA HSUPA/HSDPA/HSPA+ LTE Key Features: GPS WLAN NFC ANT+ SMS Bluetooth MP3 Player Should you have any questions or comments concerning the above, please contact the undersigned. Sincerely, Muyoung Choi Senior Engineer Samsung Electronics

Label and Location Samsung Phone Model: SPH-L720T FCC ID: A3LSPHL720T Label: Location: Top Back plate of device Bottom Phone: Label is placed inside of the battery compartment. Label

FCC ID: A3LSPHL720T SAR EVALUATION REPORT Reviewed by: Quality Manager Document S/N: Test Dates: DUT Type: Page 1 of 62 0Y1309031729-R1.A3L 08/30/13 - 09/09/13 Portable Handset © 2013 PCTEST Engineering Laboratory, Inc. REV 12.5 M 05/20/2013 Applicant Name: Date of Testing: Samsung Electronics, Co. Ltd. 08/30/13 - 09/09/13 129, Samsung-ro, Maetan dong, Test Site/Location: Yeongtong-gu, Suwon-si PCTEST Lab, Columbia, MD, USA Gyeonggi-do 443-742, Korea Document Serial No.: 0Y1309031729-R1.A3L FCC ID: A3LSPHL720T APPLICANT: SAMSUNG ELECTRONICS, CO. LTD. DUT Type: Portable Handset Application Type: Certification FCC Rule Part(s): CFR §2.1093 Model(s): SPH-L720T 1 gm Head (W/kg) 1 gm Body- Worn (W/kg) 1 gm Hotspot (W/kg) PCEGSM/GPRS/EDGE 850 824.20 - 848.80 MHz32.780.280.53 0.78 PCEUMTS 850826.40 - 846.60 MHz22.53 0.200.350.35 PCE GSM/GPRS/EDGE 19001850.20 - 1909.80 MHz29.62 0.290.390.42 PCE UMTS 19001852.4 - 1907.6 MHz22.54 0.841.031.03 PCECDMA/EVDO BC10 (§90S) 817.90 - 823.10 MHz24.970.500.74 0.70 PCE CDMA/EVDO BC0 (§22H)824.70 - 848.31 MHz24.890.510.750.74 PCEPCS CDMA/EVDO1851.25 - 1908.75 MHz 24.700.781.091.01 PCELTE Band 26814.7 - 848.3 MHz 24.320.290.47 0.47 PCELTE Band 25 (PCS)1851.5 - 1913.5 MHz 23.000.650.770.77 PCELTE Band 412501 - 2685 MHz24.350.280.54 0.54 DTS 2.4 GHz WLAN2412 - 2462 MHz16.480.400.22 0.22 DTS5.8 GHz WLAN5745 - 5825 MHz 13.290.130.100.17 NII5.2 GHz WLAN 5180 - 5240 MHz12.910.390.42 < 0.1 NII5.3 GHz WLAN5260 - 5320 MHz 12.490.400.43< 0.1 NII5.5 GHz WLAN5500 - 5700 MHz13.340.130.19< 0.1 DSS/DTSBluetooth2402 - 2480 MHz9.26 1.241.521.25 Simultaneous SAR per KDB 690783 D01v01r02: Equipment Class N/A SAR Band & ModeTx Frequency Measured Conducted Power [dBm] Note: Powers in the above table represent output powers for the SAR test configurations and may not represent the highest output powers for all configurations for each mode. Note: This revised Test Report (S/N: 0Y1309031729-R1.A3L) supersedes and replaces the previously issued test report on the same subject device for the same type of testing as indicated. Please discard or destroy the previously issued test report(s) and dispose of it accordingly. This wireless portable device has been shown to be capable of compliance for localized specific absorption rate (SAR) for uncontrolled environment/general population exposure limits specified in ANSI/IEEE C95.1-1992 and has been tested in accordance with the measurement procedures specified in Section 1.9 of this report; for North American frequency bands only. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. Test results reported herein relate only to the item(s) tested. PCTEST ENGINEERING LABORATORY, INC. 7185 Oakland Mills Road, Columbia, MD 21046 USA Tel. +1.410.290.6652 / Fax +1.410.290.6654 http://www.pctestlab.com SAR EVALUATION REPORT FCC ID: A3LSPHL720T SAR EVALUATION REPORT Reviewed by: Quality Manager Document S/N: Test Dates: DUT Type: Page 2 of 62 0Y1309031729-R1.A3L 08/30/13 - 09/09/13 Portable Handset © 2013 PCTEST Engineering Laboratory, Inc. REV 12.5 M 05/20/2013 TABLE OF CONTENTS 1 DEVICE UNDER TEST ....................................................................................................................3 2 LTE INFORMATION .........................................................................................................................9 3 INTRODUCTION ........................................................................................................................... 10 4 DOSIMETRIC ASSESSMENT ...................................................................................................... 11 5 DEFINITION OF REFERENCE POINTS ...................................................................................... 12 6 TEST CONFIGURATION POSITIONS FOR HANDSETS ............................................................ 13 7 RF EXPOSURE LIMITS ................................................................................................................ 16 8 FCC MEASUREMENT PROCEDURES ........................................................................................ 17 9 RF CONDUCTED POWERS ......................................................................................................... 23 10 SYSTEM VERIFICATION .............................................................................................................. 39 11 SAR DATA SUMMARY ................................................................................................................. 41 12 FCC MULTI-TX AND ANTENNA SAR CONSIDERATIONS ......................................................... 50 13 SAR MEASUREMENT VARIABILITY ........................................................................................... 56 14 EQUIPMENT LIST ......................................................................................................................... 57 15 MEASUREMENT UNCERTAINTIES ............................................................................................ 58 16 CONCLUSION ............................................................................................................................... 60 17 REFERENCES .............................................................................................................................. 61 APPENDIX A: SAR TEST PLOTS APPENDIX B: SAR DIPOLE VERIFICATION PLOTS APPENDIX C: PROBE AND DIPOLE CALIBRATION CERTIFICATES APPENDIX D: SAR TISSUE SPECIFICATIONS APPENDIX E: SAR SYSTEM VALIDATION APPENDIX F: SAR TEST SETUP PHOTOGRAPHS FCC ID: A3LSPHL720T SAR EVALUATION REPORT Reviewed by: Quality Manager Document S/N: Test Dates: DUT Type: Page 3 of 62 0Y1309031729-R1.A3L 08/30/13 - 09/09/13 Portable Handset © 2013 PCTEST Engineer…

Text truncated - open the document above for the full version.

Reviewed by: FCC ID: A3LSPHL720T FCC Pt. 22 & 24 GSM/ EDGE / CDMA / WCDMA REPORT (CERTIFICATION) Quality Manager Test Report S/N: Test Dates: EUT Type: 0Y1309031730.A3L 09/09 - 09/16/2013 Portable Handset Page 1 of 81 © 2013 PCTEST Engineering Laboratory, Inc. V 3.0 06/17/2013 Applicant Name: Date of Testing: Samsung Electronics, Co. Ltd. 09/09 - 09/16/2013 129, Samsung-ro, Maetan dong, Test Site/Location: Yeongtong-gu, Suwon-si PCTEST Lab., Columbia, MD, USA Gyeonggi-do 443-742, Korea Test Report Serial No.: 0Y1309031730.A3L FCC ID: A3LSPHL720T APPLICANT: SAMSUNG ELECTRONICS, CO. LTD. Application Type: Certification Model(s): SPH-L720T EUT Type: Portable Handset FCC Classification: PCS Licensed Transmitter Held to Ear (PCE) FCC Rule Part(s): §2 §22(H) §24(E) Test Procedure(s): ANSI/TIA-603-C-2004, KDB 971168 v02r01 Test Device Serial No.: identical prototype [S/N: EMC Rad. (All Bands)] Max. Power (W) Max. Power (dBm) GSM850824.2 - 848.8246KGXW0.21623.35 EDGE850824.2 - 848.8250KG7W0.07518.76 GSM19001850.2 - 1909.8244KGXW0.80229.04 EDGE19001850.2 - 1909.8245KG7W0.25924.14 CDMA850824.70 - 848.311M27F9W0.22023.42 CDMA19001851.25 - 1908.751M28F9W0.30124.79 WCDMA850826.4 - 846.64M18F9W0.06017.76 WCDMA19001852.4 - 1907.64M16F9W0.27424.38 ERP/EIRP Mode Tx Frequency (MHz) Emission Designator This equipment has been shown to be capable of compliance with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in §2.947. Test results reported herein relate only to the item(s) tested. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. PCTEST ENGINEERING LABORATORY, INC. 7185 Oakland Mills Road, Columbia, MD 21046 USA Tel. 410.290.6652 / Fax 410.290.6654 http://www.pctestlab.com MEASUREMENT REPORT FCC Part 22 & 24 Reviewed by: FCC ID: A3LSPHL720T FCC Pt. 22 & 24 GSM/ EDGE / CDMA / WCDMA REPORT (CERTIFICATION) Quality Manager Test Report S/N: Test Dates: EUT Type: 0Y1309031730.A3L 09/09 - 09/16/2013 Portable Handset Page 2 of 81 © 2013 PCTEST Engineering Laboratory, Inc. V 3.0 06/17/2013 TABLE OF CONTENTS FCC PART 22 & 24 MEASUREMENT REPORT ..........................................................................................3 1.0 INTRODUCTION ..............................................................................................................................4 1.1 SCOPE ................................................................................................................................................ 4 1.2 TESTING FACILITY............................................................................................................................. 4 2.0 PRODUCT INFORMATION..............................................................................................................5 2.1 EQUIPMENT DESCRIPTION .............................................................................................................. 5 2.2 DEVICE CAPABILITIES....................................................................................................................... 5 2.3 TEST CONFIGURATION..................................................................................................................... 5 2.4 EMI SUPPRESSION DEVICE(S)/MODIFICATIONS ........................................................................... 5 3.0 DESCRIPTION OF TESTS ..............................................................................................................6 3.1 EVALUATION PROCEDURE.............................................................................................................. 6 3.2 CELLULAR - BASE FREQUENCY BLOCKS....................................................................................... 6 3.3 CELLULAR - MOBILE FREQUENCY BLOCKS................................................................................... 6 3.4 PCS - BASE FREQUENCY BLOCKS .................................................................................................. 6 3.5 PCS - MOBILE FREQUENCY BLOCKS .............................................................................................. 7 3.6 RADIATED MEASUREMENTS............................................................................................................ 7 4.0 TEST EQUIPMENT CALIBRATION DATA ......................................................................................8 5.0 SAMPLE CALCULATIONS ..............................................................................................................9 6.0 TEST RESULTS .............................................................................................................................10 6.1 SUMMARY......................................................................................................................................... 10 6.2 OCCUPIED BANDWIDTH ................................................................................................................. 11 6.3 SPURIOUS AND HARMONIC EMISSIONS AT ANTENNA TERMINAL............................................ 16 6.4 BAND EDGE EMISSIONS AT ANTENNA TERMINAL...................................................................... 37 6.5 PEAK-AVERAGE RATIO ................................................................................................................... 47 6.6 RADIATED POWER (ERP/EIRP) ......................................................................................................50 6.7 RADIATED SPURIOUS EMISSIONS MEASUREMENTS ................................................................. 54 6.8 FREQUENCY STABILITY / TEMPERATURE VARIATION ............................................................... 68 7.0 CONCLUSION.…

Text truncated - open the document above for the full version.

Reviewed by: FCC ID: A3LSPHL720T FCC Pt. 22, 24 & 27 LTE MEASUREMENT REPORT (CERTIFICATION) Quality Manager Test Report S/N: Test Dates: EUT Type: 0Y1309031731.A3L 09/04 - 09/16/2013 Portable Handset Page 1 of 79 © 2013 PCTEST Engineering Laboratory, Inc. V4.5 04/15/2013 Applicant Name: Date of Testing: Samsung Electronics, Co. Ltd. 09/04 - 09/16/2013 129, Samsung-ro, Maetan dong, Test Site/Location: Yeongtong-gu, Suwon-si PCTEST Lab., Columbia, MD, USA Gyeonggi-do 443-742, Korea Test Report Serial No.: 0Y1309031731.A3L FCC ID : A3LSPHL720T APPLICANT: SAMSUNG ELECTRONICS, CO. LTD. FCC Classification: PCS Licensed Transmitter Held to Ear (PCE) FCC Rule Part(s): §2; §22; §24; §27 EUT Type: Portable Handset Model(s): SPH-L720T Test Device Serial No.: identical prototype [S/N: EMC Rad. (All Bands)] Max. Power (W) Max. Power (dBm) LTE Band 26824.7 - 848.31M13G7DQPSK0.13321.24 LTE Band 26824.7 - 848.31M13W7D16QAM0.10220.08 LTE Band 26825.5 - 847.52M73G7DQPSK0.14421.59 LTE Band 26825.5 - 847.52M72W7D16QAM0.11020.43 LTE Band 26826.5 - 846.54M51G7DQPSK0.14721.67 LTE Band 26826.5 - 846.54M53W7D16QAM0.11420.57 LTE Band 26829 - 8449M02G7DQPSK0.19222.82 LTE Band 26829 - 8449M02W7D16QAM0.14921.72 LTE Band 251851.5 - 1913.52M72G7DQPSK0.12020.78 LTE Band 251851.5 - 1913.52M72W7D16QAM0.08519.29 LTE Ban…

Text truncated - open the document above for the full version.
