A3LSPHN300Tri-Mode Dual-Band Analog/PCS Phone (AMPS/CDMA)

© 2001 PCTEST Lab ATTACHMENT M – USER’S MANUAL Samsung Electronics - Proprietary and Confidential SPH-N300 User ’ s Manual Samsung Electronics SPH-N300 Userís Manual Samsung Electronics 2 Table of Contents 1.Getting Started with Sprint PCS Service ........................7 _ Getting started with Sprint PCS Service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ..7 _ What you should have handy when you call . . . . . . . . . . . . . . . . . . . . . . . . . . .8 _ Setting up your Voicemail . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8 _ Getting Help . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8 _ Understanding this User Guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9 2.Understanding Roaming ................................................10 _ Understanding how Roaming works . . . . . . . . . . . . . . . . . . . . .. . . . . . . . . . . .10 _ Setting your Phoneís Roam mode . . . . . . . . . . . . . . . . .. . . . . . . . . . . . . . . . . .11 _ Setting an Alert when roaming charges apply (Call Guard) Ö. . . . . . . . . . . . .11 _ Setting the Time and Date in Analog mode . . . . . . . . . . . . . . . ... . . . . . . . . . .12 3.Getting to know your Sprint PCS Phone ™....................13 _ Front view of Phone . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13 _ Highlights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13 _ Components . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14 _ Viewing the display screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . . . . . . . . . .15 _ Turning your phone ON and OFF . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15 _ Using Key Guard . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15 _ Using the battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16 4.Using Location Services ................................................18 _ Location Service . . . . .. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18 _ Turn Location on/off . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18 5.Making and Answering Calls .........................................19 _ Making calls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19 _ Answering calls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19 _ Missed call notification . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20 _ Dialing options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20 _ In-Call options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20 _ Incoming call notification . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20 _ End-of-Call options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21 _ Saving a Phone number . . . . . . .. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21 _ Finding a Phone number . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22 _ Dialing and saving Phone numbers with Pauses .. . . . . . . . . . . . . . . . . . . . . .23 _ Four-Digit dialing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .23 _ Calling emergency numbers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .24 3 _ Dialing from the Internal Phone Book . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .24 _ Using One-Touch/Two-Touch/Three-Touch Speed Dialing . . . . . . . . . . . . .24 _ Displaying your Phone number . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .25 6.Navigating through menus and entering text ...................26 _ Menu navigation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .26 _ Working within the menu structure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .26 _ Viewing the menus . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .27 _ Entering text, numbers or symbols . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .27 _ Selecting a text input mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .27 _ Alphabetical text entry . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .27 _ Numbers and symbol entry . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .28 _ T9Æ text entry . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .28 7.Adjusting Volume.............................................................29 _ Changing Ringer Volume . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .29 _ Silencing (or Muting) the Ringer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .29 _ Adjusting Volume during a conversation . . . . . . . . . . . . . . . . . . . . . . . . . . . .29 _ Muting a call . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .30 8.Using Sprint PCS Service Features ..................................31 _ Using Caller ID . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31 _ Responding to Call Waiting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .31 _ Three-Way Calling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .…

Text truncated - open the document above for the full version.

© 2001 PCTEST Lab ATTACHMENT B – ATTESTATION STATEMENT(S) March 9, 2001 Federal Communications Commission Authorization and Evaluation Div. Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 To whom it may concern: We, the undersigned, hereby authorize PCTEST Engineering Laboratory Inc., to act as agent on behalf of all matters relating to applications for equipment authorization, including the signing of all documents relating to these matters. Any and all acts carried out by PCTEST Engineering Laboratory, Inc. on our behalf shall have the same effect as acts of our own. We also hereby certify that no party to this application is subject to a denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988,21 U.S.C.853(a) Sincerely, Wallace Oh Engineering Manager Samsung Electronics America August 14, 2001 Federal Communications Commission Authorization and Evaluation Div. Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 In re: Samsung Electronics Co., Ltd. FCC ID.: A3LSPHN300 Request for Confidentiality To Whom It May Concern: In accordance with 0.459 of CFR 47, Samsung Electronics Co., Ltd. requests confidentiality for the Block Diagram, Schematics, and Circuit Description of the attached test report. These documents contain detailed system and equipment descriptions and related information about the product, which Samsung Electronics Co., Ltd. considers to be proprietary, confidential, and a custom design and otherwise, would not release to the general public. Since this design is a basis from which future technological products will evolve, Samsung feels that this information would be of benefit to its competitors, and that the disclosure of the information in these documents would give our competitors an unfair advantage in the market. August 14, 2001 Federal Communications Commission Equipment Approval Services 7435 Oakland Mills Road Columbia, MD 21046 SUBJECT: FCC E911 REQUIREMENTS PER §22.921 Gentlemen: Samsung Electronics Co., Ltd. hereby certifies that the analog cellular telephone (FCC ID: A3LSPHN300), using the Automatic A/B Roaming – Intelligent Retry method, meets the E911 requirements specified in Section 22.921 of the FCC Rules. This procedure recognizes when a “9-1-1” call is made and, at such time, will override any programming in the mobile unit that determines the handling of a non-911 call and permit the call to be handled by other analog carriers. Should you have any questions or comments concerning the above, please contact the undersigned. AFFIDAVIT FOR ESN PROTECTION OF CELLULAR MOBILE TELEPHONES We hereby certify that the Portable Cellular Telephone (FCC ID:A3LSPHN300) is so designed that it complies with all the requirements for ESN protection specified in Sec.22.919 of the FCC Rules. a) The transmitter in service has a unique ESN. b) The ESN host component is permanently attached to a main circuit board of the mobile transmitter and the integrity of the unit operating software cannot be altered. The ESN is plated from fraudulent contact and tampering. The ESN is encoded using multiplication by a polynomial and the ESN data programmed in the memory with other information. c) The ESN is factory set and cannot be altered, transferred, removed or otherwise able to be manipulated. Cellular mobile equipment is specifically designed such that any attempt to remove, tamper with, or change the ESN chip, its logic system, or firmware originally programmed by the manufacturer will render the mobile transmitter inoperative. August 14, 2001 Federal Communications Commission Equipment Approval Services 7435 Oakland Mills Road Columbia, MD 21046 SUBJECT: Samsung Electronics Co., Ltd. FCC ID: A3LSPHN300 Users Manual RF Exposure Warning Statement Gentlemen: Samsung Electronics Co., Ltd., hereby confirms that the attached RF exposure warning page will be readily visible to the user, and will be placed at a prominent location in the front section of the users manual. If you have any further questions regarding this matter, please do not hesitate to contact me or PCTEST Lab at (410) 290-6652.

August 14, 2001 Federal Communications Commission Authorization and Evaluation Div. Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 In re: Samsung Electronics Co., Ltd. FCC ID.: A3LSPHN300 Request for Confidentiality To Whom It May Concern: In accordance with 0.459 of CFR 47, Samsung Electronics Co., Ltd. requests confidentiality for the Block Diagram, Schematics, Parts List, Tune-up Procedure and Circuit Description of the attached test report. These documents contain detailed system and equipment descriptions and related information about the product, which Samsung Electronics Co., Ltd. considers to be proprietary, confidential, and a custom design and otherwise, would not release to the general public. Since this design is a basis from which future technological products will evolve, Samsung feels that this information would be of benefit to its competitors, and that the disclosure of the information in these documents would give our competitors an unfair advantage in the market.

AFFIDAVIT FOR ESN PROTECTION OF CELLULAR MOBILE TELEPHONES We hereby certify that the Portable Cellular Telephone (FCC ID:A3LSPHN300) is so designed that it complies with all the requirements for ESN protection specified in Sec.22.919 of the FCC Rules. a) The transmitter in service has a unique ESN. b) The ESN host component is permanently attached to a main circuit board of the mobile transmitter and the integrity of the unit operating software cannot be altered. The ESN is plated from fraudulent contact and tampering. The ESN is encoded using multiplication by a polynomial and the ESN data programmed in the memory with other information. c) The ESN is factory set and cannot be altered, transferred, removed or otherwise able to be manipulated. Cellular mobile equipment is specifically designed such that any attempt to remove, tamper with, or change the ESN chip, its logic system, or firmware originally programmed by the manufacturer will render the mobile transmitter inoperative.

© 2001 PCTEST Lab ATTACHMENT A – COVER LETTER(S) August 14, 2001 Federal Communications Commission Equipment Approval Services 7435 Oakland Mills Road Columbia, MD 21046 SUBJECT:SAMSUNG ELECTRONICS CO., LTD. FCC ID: A3LSCHN300 Part 22 & 24 Certification Gentlemen: Attached herewith, on behalf of SAMSUNG ELECTRONICS CO., LTD. is an application for Part 22/24 Certification of the following Tri-Mode Cellular/PCS Phone (AMPS/CDMA): FCC ID:A3LSCHN300 TRADE / MODEL(s):SAMSUNG SCH-N300 EUT TYPE:Licenced Portable Transmitter Held to Ear (PCE) Tx Freq. Range: 824.04 – 848.97 MHz (AMPS) 824.70 – 848.31 MHz (CDMA) 1851.25 – 1908.75 MHz (PCS CDMA) Rx Freq. Range:869.04 – 893.97 MHz (AMPS) 869.70 – 893.31 MHz (CDMA) 1931.25 – 1988.75 MHz (PCS CDMA) Max. RF Output Power:0.284 W ERP AMPS (24.533 dBm) 0.206 W ERP CDMA (23.133 dBm) 0.232 W EIRP PCS CDMA (23.651 dBm) Attached is the applicant’s Letter of Authorization, Confidentiality Request, ESN Affidavit, E911 Compliance Statement, measurement report data and plots, RF Exposure measurement report, FCC ID label and location, test setup photographs, internal and external photographs, block diagrams (confidential), schematic diagrams & circuit description (confidential), operational description, parts list & tune-up procedure, and the user's manual. Should you have any questions or comments concerning the above, please contact the undersigned. cc:Mr. Wallace Oh Engineering Manager SAMSUNG American QA Lab

September 26, 2001 Federal Communications Commission Equipment Approval Services 7435 Oakland Mills Road Columbia, MD 21046 Attn: Mr. Frank Coperich SUBJECT: Samsung Electronics Co., Ltd. FCC ID: A3LSPHN300 731 Confirmation No.: EA102065 Correspondence Reference No.: 20716 Request for Tech. Info.: 9/24/01 Dear Frank: Transmitted herewith, on behalf of Samsung Electronics Co., Ltd. is an amendment provided in response to the request for technical information dated September 24, 2001. 1. Please find the attached ESN affidavit and Confidentiality Request letter that were not viewable on the initial upload. 2. The level readings in column two on pages 8-10 are the receive spectrum analyzer readings in dBm taken at a distance of 3 meters during the ERP test. The signal generator driving the substituted dipole was adjusted to produce this same receive analyzer reading. The level at the input terminals of the substituted dipole was then measured and the ERP value was recorded. 3. Please find the attached revised section 11.1 deleting the calculation of ERP from field strength. 4. As stated in item #2 the levels in column two of pages 11-19 are maximum receive spectrum analyzer readings in dBm taken at a distance of 3 meters. The signal generator driving the substituted antenna was adjusted to produce this receive analyzer reading. 5. Please find the attached frequency response data 6. Please find the attached modulation limiting data. 7. Please find the attached measurement data showing compliance with the SAT notch requirement. 8. Please find the attached plot of the voice modulation occupied bandwidth taken at 2500 Hz and the plot of SAT + voice. 9. The summary sheet for 800 MHz body SAR with the spacing between the body and the E-Field probe is attached. 10. The corrected page 15 of the SAR report is attached. 11. The corrected page 15 of the SAR report states the correct value for conductivity used during the test for PCS SAR. We used a value of 1.62 S/m which has a higher conductivity than the 1.40 value of the new standard. The value is on the side of caution, which produce an overestimation of SAR. We will use the new PCS recipe as soon as our new glycol proof SAM phantom is shipped to us. 12. The spacing of unit to body used during the PCS body SAR test was 1.5 cm. 13. We checked with the applicant and the extended battery is not currently available at this time. When the battery becomes available a class two change will be applied. 14. The channels with the highest SAR value for 800 MHz and PCS band for brain and body were re-ploted with the requested expanded zoom scans. Please find the attached data sheets . 15. Please find the attached area scan plot of the 800 MHz head SAR with the antenna extended, the 800 MHz area scan plot with the antenna retracted, the PCS area scan of the head with the antenna retracted, and the PCS body area scan with the antenna retracted. We trust this information is sufficient for the immediate grant of this application. If you have any further questions, please do not hesitate to contact us. cc: Samsung Electronics Co., Ltd.

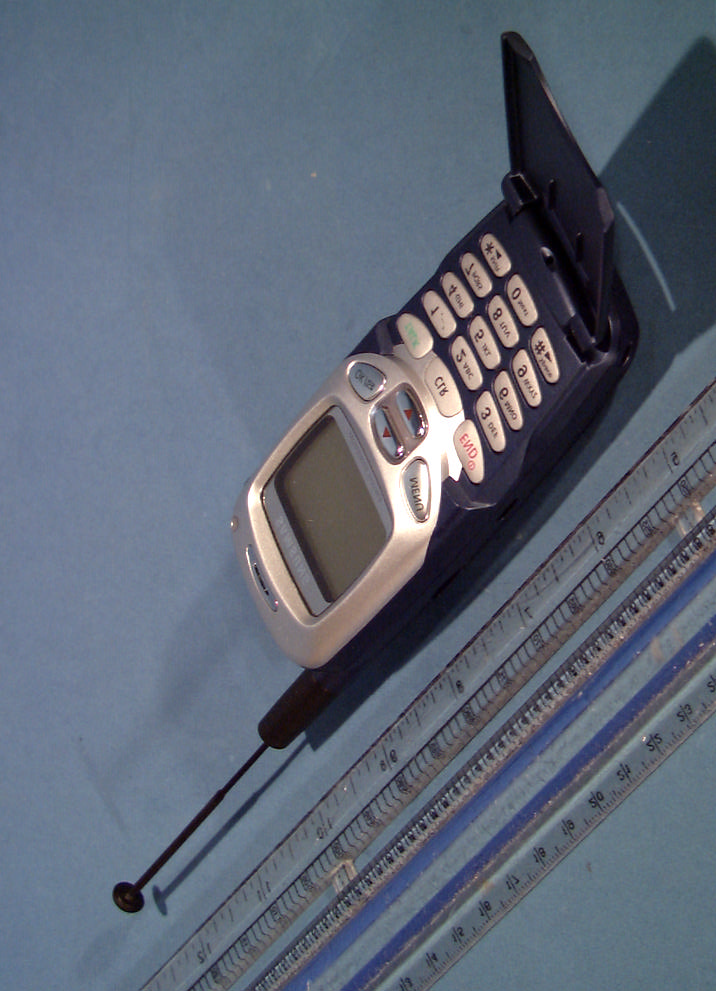

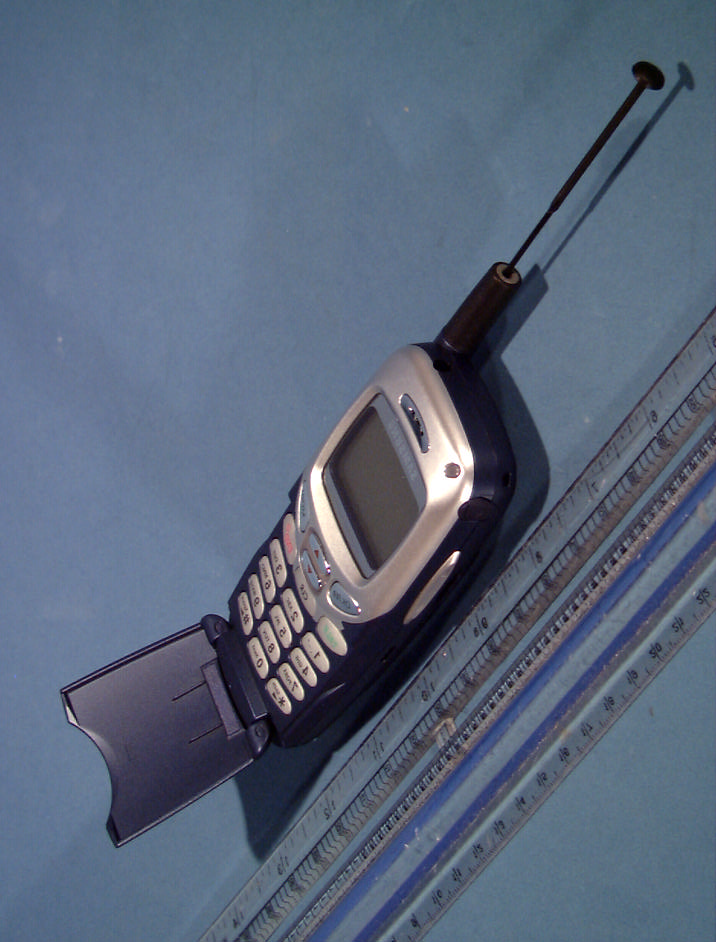

© 2001 PCTEST Lab FCC ID: A3LSPHN300 (Model: SPH-N300) NVLAP Lab Code: 100431-0 SAMSUNG Tri-Mode Dual-Band Analog/PCS Phone © 2001 PCTEST Lab FCC ID: A3LSPHN300 (Model: SPH-N300) NVLAP Lab Code: 100431-0 SAMSUNG Tri-Mode Dual-Band Analog/PCS Phone © 2001 PCTEST Lab FCC ID: A3LSPHN300 (Model: SPH-N300) NVLAP Lab Code: 100431-0 SAMSUNG Tri-Mode Dual-Band Analog/PCS Phone © 2001 PCTEST Lab FCC ID: A3LSPHN300 (Model: SPH-N300) NVLAP Lab Code: 100431-0 SAMSUNG Tri-Mode Dual-Band Analog/PCS Phone © 2001 PCTEST Lab FCC ID: A3LSPHN300 (Model: SPH-N300) NVLAP Lab Code: 100431-0 SAMSUNG Tri-Mode Dual-Band Analog/PCS Phone © 2001 PCTEST Lab FCC ID: A3LSPHN300 (Model: SPH-N300) NVLAP Lab Code: 100431-0 SAMSUNG Tri-Mode Dual-Band Analog/PCS Phone

© 2001 PCTEST Lab ATTACHMENT E – FCC ID LABEL / LOCATION © 2001PCTEST Lab FCC ID SAMPLE LABEL & LOCATION LABELLING REQUIREMENTS PER §§ 2.925 The Label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time of purchase. (SEE NEXT PAGE) SAMSUNG ELECTRONICS CO., LTD. MODEL NO: SPH-N300 FCC ID: A3LSPHN300 MADE IN KOREA SAMSUNG ELECTRONICS CO., LTD

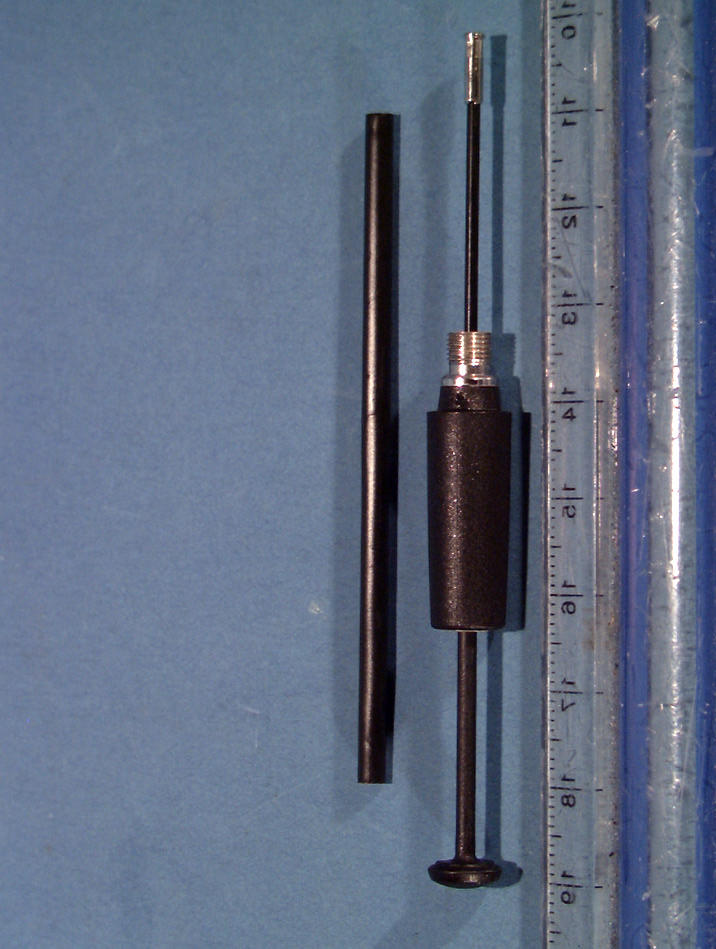

© 2001 PCTEST Lab ATTACHMENT H – INTERNAL PHOTOGRAPHS © 2001 PCTEST Lab FCC ID: A3LSPHN300 (Model: SPH-N300) NVLAP Lab Code: 100431-0 SAMSUNG Tri-Mode Dual-Band Analog/PCS Phone © 2001 PCTEST Lab FCC ID: A3LSPHN300 (Model: SPH-N300) NVLAP Lab Code: 100431-0 SAMSUNG Tri-Mode Dual-Band Analog/PCS Phone © 2001 PCTEST Lab FCC ID: A3LSPHN300 (Model: SPH-N300) NVLAP Lab Code: 100431-0 SAMSUNG Tri-Mode Dual-Band Analog/PCS Phone © 2001 PCTEST Lab FCC ID: A3LSPHN300 (Model: SPH-N300) NVLAP Lab Code: 100431-0 SAMSUNG Tri-Mode Dual-Band Analog/PCS Phone © 2001 PCTEST Lab FCC ID: A3LSPHN300 (Model: SPH-N300) NVLAP Lab Code: 100431-0 SAMSUNG Tri-Mode Dual-Band Analog/PCS Phone

© 2001 PCTEST Lab ATTACHMENT K – PARTS LIST / TUNE UP PROCEDURES Confidential SPH-N300 Tri Band Quad Mode '2001.07.22 -41/45- MODEL CODE : GH92-00939A ----------------------------------------------------------------------------------------------------------------- Level Location SEC-Code Component name Quantity RC ----------------------------------------------------------------------------------------------------------------- 1D5070401-001110 DIODE;SDS511Q2.000000 SM 1D5010402-000306DIODE;PRLL58171.000000 SM 1D3150404-000161DIODE;1SS315(TPH3)1.000000 SM 1D112,D1130405-001035DIODE;1SV279-TPH32.000000 SM 1D503,D504,D5050406-001084DIODE;SMF05.TB3.000000 SM 1D1110407-000115DIODE;DAN202UT1061.000000 SM 1D1100407-001002 DIODE;DAN222TL1.000000 SM 1D710,D7110407-001006DIODE;DA221TL2.000000 SM 1D3110409-000108DIODE;RN731V1.000000 SM 1Q3120501-000162TR-SMALL SIGNAL;2SA1576FRT1061.000000 SM 1Q310,Q314,Q501,Q5040504-000168 TR-SMALL SIGNAL;DTC144EE/TR4.000000 SM 1Q506,Q5080504-000168 TR-SMALL SIGNAL;DTC144EE/TR2.000000 SM 1Q502,Q5030505-001165 TR-SMALL SIGNAL;SI3443DV-T12.000000 SM 1Q311,Q3130505-001484 TR-SMALL SIGNAL;2SK20352.000000 SM 1U113,U311,U3160506-001004TR-SMALL SIGNAL;UMC5NTL3.000000 SM 1D510,D511,D512,D513 0601-000273 LED;CL-190YG-CD-T4.000000 SM 1D514,D515,D516,D5170601-000273 LED;CL-190YG-CD-T4.000000 SM 1D518,D519,D520,D521 0601-000273 LED;CL-190YG-CD-T4.000000 SM 1LED5050601-001402 LED;CL-165HR/YG-D1.000000 SM 1U3180801-000796IC;TC7S32FU1.000000 SM 1U701,U7090801-002345 IC;TC7S04FU(TE85L)2.000000 SM 1U3141001-001151IC;SW-4371.000000 SM 1U7101001-001161IC;MAX4642EUA-T1.000000 SM 1U5051009-001006IC;A3210ELH1.000000 SM 1U7001103-001217IC;X84256BI-2.51.000000 SM 1U7061106-001274 IC;KM616U4110CLZI-7L1.000000 SM 1U7071106-001350IC;K6F2016U4D-FF701.000000 SM 1U7031107-001111IC;AM29LV800BT90WBI1.000000 SM 1U7041107-001181IC;AM29DL163CT90WCI1.000000 SM 1U3191201-001006IC;LMC7101ATM51.000000 SM 1U3101201-001449IC;LMV358MMX1.000000 SM 1U3171201-001491IC;RM9121.000000 SM 1U7081201-001725IC;LM4890MM1.000000 SM 1U5001203-002278 IC;MAX1869EGL-T1.000000 SM 1U3121204-001682IC;RFT3100-32BCCPF-MT1.000000 SM Confidential SPH-N300 Tri Band Quad Mode '2001.07.22 -42/45- 1TH710,TH7111404-001152 R-CHIP;NTH5G1M33B103J04TH2.000000 SM 1R7422007-000137R-CHIP;2K,5%1.000000 SM 1R126,R134,R143,R5272007-000138R-CHIP;100,5% 4.000000 SM 1R528,R529,R533,R5342007-000138R-CHIP;100,5% 4.000000 SM 1R536,R537,R539,R550 2007-000138R-CHIP;100,5% 4.000000 SM 1R119,R137,R139,R141 2007-000140 R-CHIP;1K,5% 4.000000 SM 1R336,R535,R715,R720 2007-000140 R-CHIP;1K,5% 4.000000 SM 1R721,R741,R7442007-000140 R-CHIP;1K,5%3.000000 SM 1R728,R729,R7402007-000141 R-CHIP;2.2K,5%3.000000 SM 1R7532007-000147R-CHIP;8.2K,5%1.000000 SM 1R129,R130,R131,R140 2007-000148R-CHIP;10K,5% 4.000000 SM 1R325,R714,R716,R7172007-000148R-CHIP;10K,5% 4.000000 SM 1R724,R726,R750,R760 2007-000148R-CHIP;10K,5% 4.000000 SM 1R762,R763,R7692007-000148R-CHIP;10K,5%3.000000 SM 1R3112007-000149 R-CHIP;12K,5%1.000000 SM 1R3242007-000151 R-CHIP;15K,5%1.000000 SM 1R337,R5512007-000153 R-CHIP;22K,5%2.000000 SM 1R127,R321,R5032007-000157R-CHIP;47K,5%3.000000 SM 1R509,R7472007-000159 R-CHIP;56K,5%2.000000 SM 1R340,R712,R738,R739 2007-000162 R-CHIP;100K,5% 4.000000 SM 1R752,R764,R7652007-000162 R-CHIP;100K,5%3.000000 SM 1R3422007-000164R-CHIP;150K,5%1.000000 SM 1R7432007-000165R-CHIP;200K,5%1.000000 SM 1R5262007-000167R-CHIP;390K,5%1.000000 SM 1R508,R7252007-000168R-CHIP;470K,5%2.000000 SM 1R5572007-000170 R-CHIP;1M,5%1.000000 SM 1R136,R310,R328,R329 2007-000172 R-CHIP;10,5% 4.000000 SM 1R736,R7372007-000172 R-CHIP;10,5%2.000000 SM 1R7452007-000242 R-CHIP;1.5K,5%1.000000 SM 1R5052007-000566R-CHIP;220K,5%1.000000 SM 1R317,R7462007-000831 R-CHIP;39K,5%2.000000 SM 1R5482007-000932 R-CHIP;470,5%1.000000 SM 1R5252007-001244R-CHIP;91K,5%1.000000 SM 1R110,R1182007-001298R-CHIP;51,5%2.000000 SM 1R515,R558,R5592007-001301 R-CHIP;68,5%3.000000 SM 1R5142007-001305R-CHIP;120,5%1.000000 SM 1R540,R541,R542,R543 2007-001306R-CHIP;150,5% 4.000000 SM 1R544,R545,R546,R5472007-001306R-CHIP;150,5% 4.000000 SM 1R500,R501,R5022007-001307R-CHIP;180,5%3.000000 SM Confidential SPH-N300 Tri Band Quad Mode '2001.07.22 -43/45- 1R3382007-001311 R-CHIP;270,5%1.000000 SM 1R3352007-001313 R-CHIP;330,5%1.000000 SM 1R4212007-001319 R-CHIP;1.2K,5%1.000000 SM 1R1422007-001329 R-CHIP;7.5K,5%1.000000 SM 1R135,R7132007-001333 R-CHIP;18K,5%2.000000 SM 1R723,R7272007-001339 R-CHIP;180K,5%2.000000 SM 1R7102007-002796R-CHIP;510,5%1.000000 SM 1R132,R3202007-002965R-CHIP;15,5%2.000000 SM 1R120,R1222007-003013 R-CHIP;2.4K,5%2.000000 SM 1R3412007-007014R-CHIP;51K,5%1.000000 SM 1R339,R555,R7582007-007107R-CHIP;100K,1%3.000000 SM 1R3142007-007135R-CHIP;18K,1%1.000000 SM 1R312,R316,R4032007-007139 R-CHIP;47K,1%3.000000 SM 1R330,R3322007-007142 R-CHIP;10K,1%2.000000 SM 1R313,R754,R7712007-007308R-CHIP;33K,1%3.000000 SM 1R399,R5522007-007309 R-CHIP;12K,1%2.000000 SM 1R1252007-007310 R-CHIP;8.2K,1%1.000000 SM 1R732,R733,R734,R7352007-007312 R-CHIP;20K,1%4.000000 SM 1R124,R751,R7702007-007313 R-CHIP;6.8K,1%3.000000 SM 1R1382007-007316R-CHIP;3.3K,1%1.000000 SM 1R7562007-007529 R-CHIP;91K,1%1.000000 SM 1R3152007-007538R-CHIP;56K,1%1.000000 SM 1R168,R318,R323,R331 2007-007771 R-CHIP;0,5% 4.000000 SM 1R390,R517,R518,R519 2007-007771 R-CHIP;0,5% 4.000000 SM 1R556,R560,R561,R5642007-007771 R-CHIP;0,5% 4.000000 SM 1R722,R730,R731,R7482007-007771 R-CHIP;0,5% 4.000000 SM 1R749,R766,R767,R7682007-007771 R-CHIP;0,5% 4.000000 SM 1R8002007-007771 R-CHIP;0,5%1.000000 SM 1C177,C3432203-000138C-CERAMIC,CHIP;C152K,1.5NF,50V2.000000 SM 1C101,C103,C105,C1072203-000233 C-CERAMIC,CHIP;C101J,100PF,50V4.000000 SM 1C109,C115,C122,C1342203-000233 C-CERAMIC,CHIP;C101J,100PF,50V4.000000 SM 1C147,C165,C171,C182 2203-000233 C-CERAMIC,CHIP;C101J,100PF,50V4.000000 SM 1C183,C184,C225,C300 2203-000233 C-CERAMIC,CHIP;C101J,100PF,50V4.000000 SM 1C311,C318,C354,C3552203-000233 C-CERAMIC,CHIP;C101J,100PF,50V4.000000 SM 1C362,C363,C364,C3652203-000233 C-CERAMIC,CHIP;…

Text truncated - open the document above for the full version.

© 2001 PCTEST Lab ATTACHMENT N – SAR MEASUREMENT REPORT © 2001 PCTEST Engineering Lab., Inc. 6660-B Dobbin Road • Columbia, MD 21045 • U.S.A. TEL (410) 290-6652 • FAX (410) 290-6654 http://www.pctestlab.com CERTIFICATE OF COMPLIANCE (SAR EVALUATION) SAMSUNG ELECTRONICS CO., LTD. Dates of Tests: Jul. 25-26, 2001 416 Maetan-3 Dong, Paldal-Ku Test Report S/N: SAR.210726445.A3L Suwon City Kyungki-Do 441-742, KOREA Test Site: PCTEST Lab, Columbia, MD USA Attn: Wallace Oh, Engineering Manager Samsung Electronics America (QA Lab) FCC ID A3LSPHN300 APPLICANT SAMSUNG Electronics Co., Ltd. EUT Type: Tri-Mode Dual-Band Analog/PCS Phone (AMPS/CDMA) Tx Frequency: 824.04 – 848.97 MHz (AMPS) / 824.70 – 848.31 MHz (CDMA) 1851.25 – 1908.75 MHz (PCS CDMA) Rx Frequency: 869.04 – 893.97 MHz (AMPS) / 869.70 – 893.31 MHz (CDMA) 1931.25 – 1988.75 MHz (PCS CDMA) Max. RF Output Power: 0.284W ERP AMPS (24.533 dBm) / 0.206W ERP CDMA (23.133 dBm) 0.232W EIRP PCS CDMA (23.651 dBm) Trade Name/Model(s): SAMSUNG SPH-N300 FCC Classification: Licensed Portable Transmitter Held to Ear (PCE) Application Type: Certification FCC Rule Part(s): §2.1093; ET Docket 96.326 Maximum SAR: 1.1973 W/kg AMPS Brain SAR; 1.0731 W/kg AMPS Body SAR 0.8828 W/kg CDMA Brain SAR; 0.7377 W/kg CDMA Body SAR 1.2451 W/kg PCS Brain SAR; 1.1111 W/kg PCS Body SAR This wireless portable device has been shown to be compliant for localized specific absorption rate (SAR) for uncontrolled environment/general population exposure limits specified in ANSI/IEEE Std. C95.1-1992 and has been tested in accordance with the measurement procedures specified in ANSI/IEEE Std. C95.3-1992. (See Test Report) I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. NVLAP accreditation does not constitute any product endorsement by NVLAP or any agency of the United States Government. PCTEST certifies that no party to this application has been denied the FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. 210726445.A3L Test Report S/N: SAR.210726445.A3L SAR Measurement Report Test Dates: JUL. 25-26, 2001 FCC Part 22/24 Certification Table of Contents 1.1 SCOPE....................................................................................................1 2.1 INTRODUCTION.......................................................................................2 3.1 SAR MEASUREMENT SET-UP.................................................................3 4.1 ISOTROPIC E-FIELD PROBE SYSTEM.....................................................4 5.1 E-field PROBE CALIBRATION PROCESS.................................................5 6.1 PHANTOM AND EQUIVALENT TISSUES..................................................7 7.1 SYSTEM SPECIFICATIONS......................................................................8 8.1 MEASUREMENT PROCESS.....................................................................9 9.1 TEST POSITION OF THE PHONE..........................................................10 10.1 BODY-WORN TEST SETUP.................................................................11 11.1 ANSI/IEEE C95.1 - 1992 RF EXPOSURE LIMITS....................................12 12.1 MEASUREMENT UNCERTAINTIES.......................................................13 13.1 SAR TEST DATA SUMMARY................................................................14 14.1 SAR TEST EQUIPMENT.......................................................................18 15.1 CONCLUSION......................................................................................19 Test Report S/N: SAR.210726445.A3L SAR Measurement Report Test Dates: Jul. 25-26, 2001 FCC Part 22/24 Certification SAMSUNG FCC ID: A3LSPHN300 (Model: SPH-N300) © 2001 PCTEST Lab Tri-Mode Dual-Band Analog/PCS Phone (AMPS/CDMA) 1 SAR MEASUREMENT REPORT 1.1 SCOPE Environmental evaluation measurements of specific absorption rate 1 (SAR) distributions in simulated human tissues exposed to radiofrequency (RF) radiation from wireless portable devices for compliance with the rules and regulations of the U.S. Federal Communications Commission (FCC). 2 Applicant Name: SAMSUNG ELECTRONICS CO., LTD. Address: 416 Maetan-3 Dong, Paldal-Ku Suwon City, Kyungki-Do, 441-742, KOREA Attention: Mr. Wallace Oh, Engineering Manager Samsung Electronics America (QA Lab) • EUT Type: Tri-Mode Dual-Band Analog/PCS Phone (AMPS/CDMA) • Trade Name: SAMSUNG • Model(s): SPH-N300 • FCC IDENTIFIER: A3LSPHN300 • Tx Frequency: 824.04 – 848.97 MHz (AMPS) 824.70 – 848.31 MHz (CDMA) 1851.25 – 1908.75 MHz (PCS CDMA) • Rx Frequency: 869.04 – 893.97 MHz (AMPS) 869.70 – 893.31 MHz (CDMA) 1931.25 – 1988.75 MHz (PCS CDMA) • Application Type: Certification • FCC Classification: Licensed Portable Transmitter Held to Ear (PCE) • FCC Rule Part(s): § 2.1093, Docket 96-326 • Modulation(s): AMPS/CDMA • Max RF. Output Power: 0.284W ERP AMPS (24.533 dBm) 0.206W ERP CDMA (23.133 dBm) 0.232W EIRP PCS CDMA (23.651 dBm) • Date(s) of Tests: Jul. 25-26, 2001 • Place of Tests: PCTEST Engineering Lab. Columbia, MD, U.S.A. • Report Serial No.: SAR.210726445.A3L 1 Specific Absorption Rate (SAR) is a measure of the rate of energy absorption due …

Text truncated - open the document above for the full version.
