A3LSPP423142-inch PDP TV Monitor

Circuit Block Diagram (Video) Circuit Block Diagram (Sound)

EUT Photographs

EUT Photographs [Label and Label position]

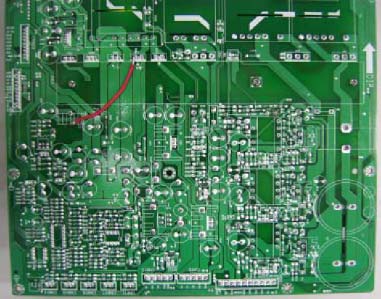

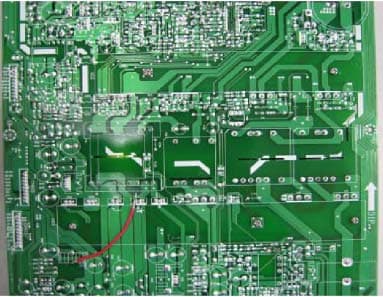

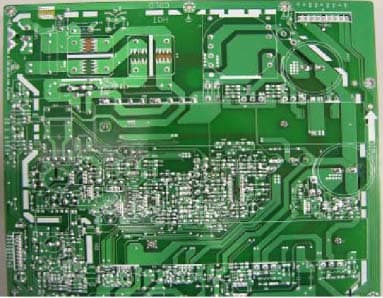

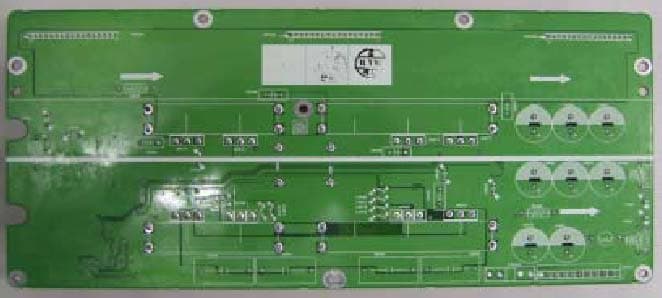

EUT Photographs EUT Photographs EUT Photographs EUT Photographs EUT Photographs EUT Photographs EUT Photographs EUT Photographs EUT Photographs EUT Photographs EUT Photographs

Project No. : LBE040416 Page 1 of 13 Project No. : LBE040416 Product :PDP TV Monitor Model No. : NS42D4 Date of test :Februsry. 19 ~ 27, 2004 Issued Date :March.02 , 2004 Tested by: Tae Young,JANG / Test Engineer Reviewed by: No Cheon, PARK / Manager of EMC Lab. Authorized by: Kyu Baek, CHUNG / Chief of EMC Lab. SAMSUNG ELECTRONICS Co., Ltd. EMC Test Laborator y 416 Maetan-3 Dong, Youngtong-Ku, Suwon City, Kyungki-Do, Korea,442-742 Tel. : 81-31-200-2185 Fax. : 81-31-200-2189 This reports shall not be reproduced except in full, without the written approval of SEC EMC Testing laboratory. EMC TEST REPORT Project No. : LBE040416 Page 2 of 13 Table of Contents 1. Introduction & Summary 1.1 Description of the EUT 1.2 Test facility 1.3 Test equipment 2. Test Set-up 2.1 Test mode 2.2 Justification 2.3 Test equipment setup 2.4 Tested System Details 2.5 System Block Diagram of Test Configuration 2.6 Test rule and Procedure 2.7 Test Summary 3. Test Results 3.1 AC POWERLINE CONDUCTED EMISSION MEASUREMENT 3.2 RADIATED EMISSION MEASUREMENT This reports shall not be reproduced except in full, without the written approval of SEC EMC Testing laboratory. Project No. : LBE040416 Page 3 of 13 1. Introduction & Summary 1.1 Description of the EUT Applicant Project Number Equipment Under Test Trade Name Model Number Variant Model FCC ID Number Mains input Using Clock 1.2 Test facility The EMI/EMS measurement facilities used to collect the tested data are located at 416 Maetan 3 Dong, Youngtong-Ku, Suwon City, Kyungki Do, Korea. The sites are constructed in conformance with the requirements of ANSI C63.4 and CISPR 16-1 & 16-2. SAMSUNG Electronics Co.,Ltd is accredited by Korea Laboratory Accreditation Scheme(KOLAS) which signed the International Laboratory Accreditation Cooperation (ILAC) Mutual Recognition Arrangement (MRA) for the above test item(s) and test method(s). Measured in Semi-anechoic chamber #1 that is FCC Registration Number 98856. This reports shall not be reproduced except in full, without the written approval of SEC EMC Testing laboratory. See the attached Block Diagram A3LSPP4231 120V, 60Hz - NS42D4 SAMSUNG SAMSUNG ELECTRONICS Co., Ltd. LBE040416 PDP TV Monitor Project No. : LBE040416 Page 4 of 13 1.3 Test equipment DescriptionModelManufacturerSerial No.Applied TEST RECEIVERESCS30R & S839809/002o RF RELAIS MATRIXPSUR & S861206/024o LISNESH3-Z5R & S100261o TEST SOFTWAREEP5CETOYO-o TEST RECEIVERESCS30R & S100104o SPECTRUM ANALYZERE7405AAgilentUS41110272o BI-LOG ANTENNACBL6112BSCHAFFNER2766o RF SELECTORNS4900TOYO0303-015o SPECTRUM ANALYZERE7405AR & SMY42000109o TEST SOFTWAREEP5RETOYO-o Turn TableDS412HD-N/A Antenna MastMA240HD240/620N/A amplifier8447DAgilent2944A10430o This reports shall not be reproduced except in full, without the written approval of SEC EMC Testing laboratory. Project No. : LBE040416 Page 5 of 13 2. Test Set-up 2.1 Test mode The EUT was tested in the following operating modes for the tests mention in this report: Description of Testing operating mode & Tested Resolution Measured each about 2 input(PC VIDEO INPUT mode & Digital Video Interface)of EUT. Further details of cabling and configuration are shown in the test system configuration. The EUT exercise program used during radiated and conducted testing was designed to exercise the various system components in a manner similar to typical use. 2.2 Justification The system was configured for testing in typical fashion use. Cable were attached to each of the available I/O Ports. The mode of operation utilized for testing was selected to best simulate typical EUT use. 2.3 Test equipment setup The explanation of measuring equipment setup when respective function is used in any frequency band is as following: DetectorResolutionVideo functionBandwidthBandwidth Quasi-Peak9kHz- Peak100kHz1MHz Quasi-Peak120kHz- Peak1MHz1MHz This reports shall not be reproduced except in full, without the written approval of SEC EMC Testing laboratory. EMI Test receiverAbove 1000 0.15 to 30EMI Test receiver Spectrum analyzer EMI Test receiver 30 to 1000 1024x768 Frequency Band [MHz] Equipment Refresh rates "H" Pattern display Operating ModeResolutionsColors Horizontal F.:63.667kHz32bits Vertical F. : 84.997Hz Project No. : LBE040416 Page 6 of 13 2.4 Tested System Details 1) Configuration of EUT and peripherals MarkItemModel No.Serial No.ManufacturerRemark A PDP TV MonitorNS42D4 -SamsungEUT BPersonal ComputerGX2706Q4W81SDELL- CPrinterLQ-580HCG2Y014537EPSON- DPS/2 KeyboardSK-8110LR86682DELL- EPS/2 MouseM-S69LZB33503033DELL- FSpeaker--Samsung- GSpeaker--Samsung- 2) Used Cable Description No.ItemLength[m] Shielded(Y/N)Remark 1PS/2 Mouse Cable1.8N 2PS/2 Keyboard1.6N 3 Video Cable(Analog) 1.5Y 4 Video Cable(Digital) 1.5Y 5 Power Cable(Monitor) 1.8N 6PC Power Cable1.8N 7 Power Cable(Printer) 1.8N 8Printer Cable1.5Y 9Antenna Cable 10AV1 In Cable 11AV Out Cable2 12AV Out Cable1 13 Component In 14 S-video In 15 Speaker Y 16 Speaker This reports shall not be reproduced except in full, without the written approval of SEC EMC Testing laboratory. Project No. : LBE040416 Page 7 of 13 2.5 System Block Diagram of Test Configuration 2.6 Test rule and Procedure FCC Rule Part 15, Subpart B : Unintentional Radiators Test Procedure : ANSI C63.4-1992 2.7 Test Summary Result Pass Pass * N/A : Test not applicable This reports shall not be reproduced except in full, without the written approval of SEC EMC Testing laboratory. RADIATED EMISSIONANSI C63.4-1992 Test itemTest Procedure AC POWERLINE CONDUCTED EMISSION ANSI C63.4-1992 ED A B C 1 2 3 4 5 6 7 8 9 ~ 14 G F 61 51 Project No. : LBE040416 Page 8 of 13 3. Test Results 3.1 AC POWERLINE CONDUCTED EMISSION MEASUREMENT 3.1.1 Test Procedure Configurate the EUT System in accordance with ANSI C63.4-1992 section 7 and 12.2. Connect the EUT's AC line cord to the EUT port of LISN. All input terminals are terminated in the proper impedance. The output ports are connected to the cable provided with the device and the ending port are term…

Text truncated - open the document above for the full version.

Test Set up Photographs [AC POWERLINE CONDUCTED EMISSION MEASUREMENT] Test Set up Photographs [RADIATED EMISSION MEASUREMENT]
