A3LSRCS401RFRF REMOTE CONTROLLER

SRC-S401 RF/A RF REMOTE CONTROL USER’S GUIDE INSTALLING THE BATTERIESIN THE REMOTE CONTROLY ou’ve unpacked the receiver and reviewed its front and back panels. Now it’s time to start setting up. The first step is to install the batteries in yourremote control.1. Unlatch the battery compartment cover on the back of remote control. 2. Insert 2 AAA batteries as shown, making sure the + and – ends of eachbattery line up with the corresponding marks in the battery compartment. 3. Snap the cover back onto the remote control. 4. Press the DIRECTV button on the Remote Control unit and make sure the buttonlights up. If it does not light up, check the orientation of the batteries.NOTE: Alkaline batteries are strongly recom mended for this remote control. Caution: changes or modifications not expressly approved by the party r esponsible for compliance could void the user’s authority to operatethe equipment. RF REMOTE JACK AND CABLERF REMOTE jack andcable are used to operatethe Digital SatelliteReceiver when installedin a cabinet or from another room in your houseusing the RF remote control. Use this jack andcable to connect the RF Receiver to the RFREMOTE jack of the Digital Satellite Receiver. CONNECTING THE RF REMOTECABLE WITH RF RECEIVERY ou can operate the Digital Satellite Receiver when installed in a cabinet or from another roomin your house using the RF remote control.1. Connect the RF Receiver to the RFREMOTE jack of the Digital Satellite Receiver.NOTE: The operating range of the remote control is about 75 feet when connecting the RF receiver. This may decrease due to ambient r eception conditions, weak batteries, obstacle, etc.... RF REMOTE CONTROL Device Button Makes the remote control operateyour DIRECTV ® HD Receiver (e.g. to change channels, accessthe Guide, or get informationabout a program). Your remotecontrol does not need to be programmed to operate yourDIRECTV ® HD Receiver. VCR Control Buttons œœ Used for rewinding √ Plays the videotape √√ Used for fast-forwarding ● Saves the current channel to the VCR ■ Used for stopping play ❙❙ To pause or play video. M A D E I N K O R E A M A D E I N K O R E A M A D E IN K O R E A SRC-S401RF/B < REAR PANEL > POWERT urns the device you are controlling on or off.SETUse this button whenprogramming your remote control to operate your TV,VCR, DVD player, or an auxil-iary device (AUX). See Programming the remote control on this manual. VOL+/-Adjust the volume level of your TV (once the remote control hasbeen programmed). You cancontrol the volume when in TV,DIRECTV, or VCR mode.MUTEMute or unmute the TV audio (once the remote control hasbeen programmed).CH+/-Change channels on your DIRECTV HD Receiver or yourTV (once the remote control hasbeen programmed).INFODisplay the Channel Banner andinformation about the current program.HELPDisplay instructions about the screen or menu currently displayed.WHOPress to change the current user profile. QUICKPress this button to view the Quick Guide.MENUPress this button to display the on-screen Menu.GUIDEPress to view the on-screen Program Guide.Up/Down/Left/Right arrowsThese buttons move the highlight to any on-screen Guide orMenu selection.SELECTSelect highlighted items in the on-screen Menu or Guide.BACKReturn to the channel you were last watching, or return to a previous Menu.EXITExit any Guide or Menu screen and return to the TV programyou were watching.CALLER ID (red button)Displays the phone numbers of callers who called you on the phone line connected to your DIRECTV ® HD Receiver (works only if you subscribe toyour telephone service’s callerID service). While in the Guide, this buttonlets you change the Guide style. FREEZE (green button)T akes a still picture of the TV screen. Press it again to resume the program you were watching.In the Guide, this button letsyou see program listings fordifferent times.AUDIO (yellow button)While watching TV, press this button to select an alternate audio track. While in the Guide, this buttonlets you view programs inselected categories.SEARCH (blue button)Press this button to search for a program listing in the Guide.Number and delimiter buttons (0-9, – )Press the number buttons totune to a channel or to enternumbers on Menu screens. Press the delimiter button (-) to separate parts of a number.GAMEAccesses games you can play.FORMATCycles through the formats available for your display type.CCDisplays and hides ClosedCaption text.RESChanges the screen resolution. USER INFORMATION FCC ID : A3LSRCS401RFThis device complies with Part 15 of the FCCRules. Operation is subject to the followingtwo conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. NOTE : This equipment has been tested and found to comply with the limits for a Class Bdigital device, pursuant to Part 15 of the FCCRules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if notinstalled and used in accordance with theinstructions, may cause harmful interferenceto radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception,which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:-- Reorient or relocate the receiving antenna.-- Increase the separation between the equipment and receiver. -- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -- Consult the dealer or an experienced radio/TV technician for help. PROGRAMMING THE RFREMOTE CONTROL This chapter explains how to program your RFremote control so that you can use it to operateyour TV, VCR. Chapter sect…

Text truncated - open the document above for the full version.

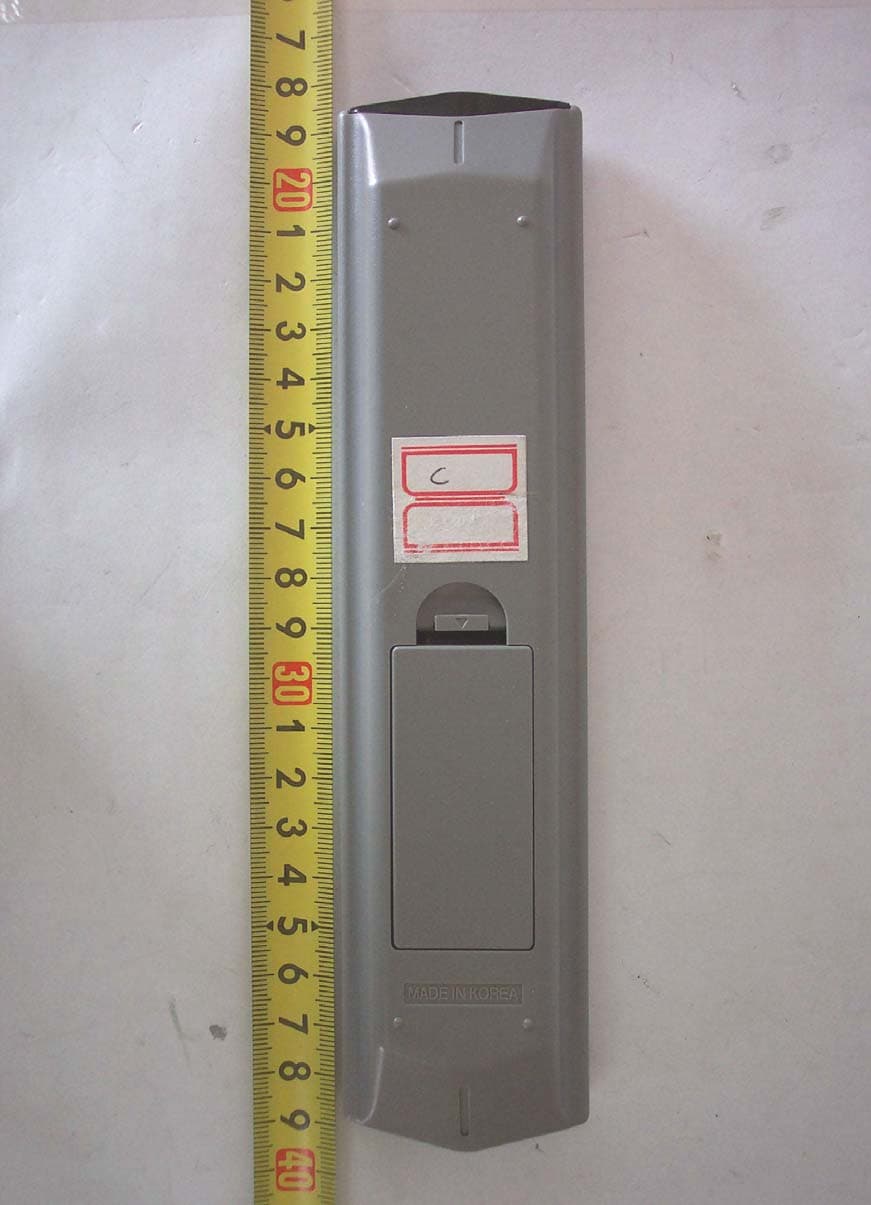

Test Report No.: NK2EE011 FCC Certification Samsung Electronics Co., Ltd. FCC ID:A3LSRCS401RF Page 26 of 37 APPENDIX C – EUT PHOTOGRAPHS z Front View of EUT . Test Report No.: NK2EE011 FCC Certification Samsung Electronics Co., Ltd. FCC ID:A3LSRCS401RF Page 27 of 37 z Rear View of EUT

Test Report No.: NK2EE011 FCC Certification Samsung Electronics Co., Ltd. FCC ID:A3LSRCS401RF Page 23 of 37 APPENDIX A – SAMPLE LABEL The sample label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time of purchase. *** The following paragraph specified in the user manual. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions : (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC ID : A3LSRCS401RF Labelling Requirements

FCC ID : A3LSRCS401RF Made in Korea DECO PLATE MATERIAL : PVC 0.3T (CLEAR)

Test Report No.: NK2EE011 FCC Certification Samsung Electronics Co., Ltd. FCC ID:A3LSRCS401RF Page 28 of 37 z Inside View of EUT Test Report No.: NK2EE011 FCC Certification Samsung Electronics Co., Ltd. FCC ID:A3LSRCS401RF Page 29 of 37 z Front View of PCB Test Report No.: NK2EE011 FCC Certification Samsung Electronics Co., Ltd. FCC ID:A3LSRCS401RF Page 30 of 37 z Rear View of PCB Test Report No.: NK2EE011 FCC Certification Samsung Electronics Co., Ltd. FCC ID:A3LSRCS401RF Page 31 of 37 z Front View of PCB Test Report No.: NK2EE011 FCC Certification Samsung Electronics Co., Ltd. FCC ID:A3LSRCS401RF Page 32 of 37 z Front View of PCB

- PCB DIAGRAM PATTERN+CARBON DIAGRAM BOTTOM MARKING TOP MARKING

‘’ ’

- PART LIST MAIN

K44 RES J20 K8 DIRECTV K6 ■ K37 HELP R3 0 10 K39 ▲ K40 ▼ K30 PLAY BATT K34 BACK P1.5(TV) LED4 HI-LH170RU BT1 3.0V BATT K36 QUICK P1.1(DIRECTV) K17 - BATT K10 SET K19 9 K20 || K14 FORMAT 17 K23 MU TE R4 2.2K K28 VOL- K16 0 K25 AUDIO 8 IC1 1 2 3 4 5 6 7 8 9 10 11 1213 14 15 16 17 18 19 20 21 22 23 24 VSS XI N XO U T TEST P0.0 P0.1 P0.2 P0.3 P0.4 P0.5 P0.6 P0.7P1.0 P1.1 P1.2 P1.3 P1.4 P1.5 P1.6 P1.7 P2.0/T0PWN P2.1/REMOUT P2.2 VCC X1 4.0MHz R5 2.2K K48 OK K38 TV LED1 HI-I520A K42 9 BATT K27 CALLER ID 11 K43 8 K24 VOL+ POWER SUPPLY FOR RF_MODULE(DC/DC CONVERTER) BATT 15 J10 1/8W K47 5 L1 100uH K18 SEARCH IC2 24C01A 1 2 3 45 6 7 8 A0 A1 A2 GNDSDA SCL WP VCC K45 GUIDE IC3 S-8351 1 2 34 5 ON/OFF Vout NCVss CONT LED3 HI-LH170RU K3 1 K4 FREEZE RF_VCC 5 K7 4 D1 RB-50 R2 270 P1.0(VCR/DVD) K15 GAME 7 K29 K49 INFO 16 K1 3 C6 1uF 6 K33 EXIT LED2 HI-LH170RU K5 6 K31 K32 CC K22 CH+ R1 2 K41 BATT RF_DATA 13 18 K35 MEN U K26 CH- C1 220uF / 10V BATT K9 2 K46 WHO K13 ● K2 VCR K11 TV/VIDEO K12 POWER C1 47uF / 16V Q1 STD123S 14 K21 7 C2 1nF R4 150 NC R3 150 Gnd +C1 47uF/6V R1 1k R5 0 U1 IN Vcc Out U1 GND 2 34 51 L3 10nH D1 KDS114 Q1 BFQ67W P1A 1A 2A RF_DATA R6 2.0k RF_DATA L1 10nH Q2 BFQ67W X1 418MHz A1 1 L4 10nH R7 47 C3 100nF RF_VCC P2A 1A 2A C8 2.2pF C7 33pF L2 150nH R2 15K C6 6.8pF GND RF_VCC C12 12p C11 1nF

Test Report No.: NK2EE011 FCC Certification Samsung Electronics Co., Ltd. FCC ID:A3LSRCS401RF Page 1 of 37 Nemko Korea CO., Ltd. 300-2, Osan-Ri, Mohyun-Myun, Yongin-City, Kyungki-Do, KOREA TEL:+82 31 322 2333 FAX:+82 31 322 2332 FCC EVALUATION REPORT FOR CERTIFICATION Applicant : Samsung Electronics Co., Ltd. Dates of Issue : March 05, 2004 416, Maetan3-Dong, Youngtong-Gu, Test Report No. : NK2EE011 Suwon-Si, Kyungki-Do, Korea Test Site : Nemko Korea Co., Ltd. Attn : Mr. Jong-Uk, Kim EMC site, Korea FCC ID CONTACT PERSON FCC Rule Part(s): Part 15 & 2 Classification : Part 15 Subpart C –Intentional Radiators EUT Type: RF Remote Controller Out Frequency: 418 MHz The device bearing the FCC ID specified above has been shown to comply with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in ANSI C63.4-1992. I attest to the accuracy of data and all measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. Tested By : S. H. Baek Reviewed By : H.H. Kim Engineer Manager & Chief Engineer A3LSRCS401RF Samsung Electronics Co.,Ltd 416, Maetan3-Dong, Youngtong-Gu, Suwon-Si, Kyungki-Do, Korea Mr. Jong-Uk, Kim Telephone No. : +82 31 200 5754 Test Report No.: NK2EE011 FCC Certification Samsung Electronics Co., Ltd. FCC ID:A3LSRCS401RF Page 2 of 37 TABLE OF CONTENTS SCOPE INTRODUCTION (Site Description) TEST CONDITIONS & EUT INFORMATION (Modifications during the test) RECOMMENDATION / CONCLUSION SAMPLE CALCULATION DESCRIPTION OF TESTS §15.203 Antenna Requirement 15.231(a) Provisions for periodic operation Applied Modulation TEST DATA (Radiated Emissions) PLOT OF EMISSION (Section 15.231(c)) FIGURE OF DUTY CYCLE (Section 15.35(c)) ACCURACY of MEASUREMENT TEST EQUIPMENT APPENDIX A – SAMPLE LABEL APPENDIX B – TEST PHOTOGRAPHS APPENDIX C – EUT PHOTOGRAPHS APPENDIX D – CIRCUIT DIAGRAM APPENDIX E - USER’S MANUAL APPENDIX F - SCHEMATIC DIAGRAM APPENDIX G – PATTERN DIAGRAM APPENDIX H – PART LIST 3 4 5 6 6 7 8 8 8 9 16 17 21 22 23 24 26 33 34 35 36 37 Test Report No.: NK2EE011 FCC Certification Samsung Electronics Co., Ltd. FCC ID:A3LSRCS401RF Page 3 of 37 SCOPE Measurement and determination of electromagnetic emissions (EME) of radio frequency devices including intentional and/or unintentional radiators for compliance with the technical rules and regulations of the Federal Communications Commission under FCC part 15. Responsible Party : Contact Person : Manufacturer : Samsung Electronics Co., Ltd. Mr. Jong-Uk, Kim Tel : +82 31 200 5754 Remote Solution Co., Ltd. 92, Chogok-Ri, Nam-Myun, Kimchon-City, Kyungbuk, Korea z FCC ID: A3LSRCS401RF z Model: SRC-S401RF/A z EUT Type: RF Remote Controller z Classification: z Rule Part(s): z Test Procedure(s): z Dates of Test: z Place of Tests: z Test Report No.: Part 15 Subpart C – Intentional Radiators FCC Part 15 & Part 2 ANSI C63.4 (1992) January 12, 2004 to March 05, 2004 Nemko Korea Co., Ltd. EMC Site NK2EE011 Test Report No.: NK2EE011 FCC Certification Samsung Electronics Co., Ltd. FCC ID:A3LSRCS401RF Page 4 of 37 INTRODUCTION The measurement procedure described in American National Standard for Methods of Measurement of Radio-Noise Emissions from Low-Voltage Electrical and Electronic Equipment in the Range of 9kHz to 40GHz (ANSI C63.4-1992) was used in determining radiated and conducted emissions emanating from Samsung Electronics Co., Ltd. FCC ID : A3LSRCS401RF, RF Remote Controller. These measurement tests were conducted at Nemko Korea Co., Ltd. EMC Laboratory . The site address is 300-2, Osan-Ri, Mohyun-Myun, Yongin-City, Kyungki-Do, KOREA The area of Nemko Korea Corporation Ltd. EMC Test Site is located in a mountain area at 80 kilometers (48 miles) southeast and Seoul International Airport (Incheon Airport), 30 kilometers (18miles) south-southeast from central Seoul. It is located in the valley surrounded by mountains in all directions where ambient radio signal conditions are quiet and a favorable area to measure the radio frequency interference on open field test site for the computing and ISM devices manufactures. The detailed description of the measurement facility was found to be in compliance with the requirements of §2.948 according to ANSI C63.4 on October 19, 1992. Fig. 1. The map above shows the Seoul in Korea vicinity area. The map also shows Nemko Korea Corporation Ltd. EMC Lab and Incheon Airport. Nemko Korea Co., Ltd. OPEN AREA TEST SITE 300-2, Osan-Ri, Mohyun-Myun, Yongin- City Kyungki-Do,KOREA 449-852 Tel)+82-31-322-2333 Fax)+82-31-322-2332 Test Report No.: NK2EE011 FCC Certification Samsung Electronics Co., Ltd. FCC ID:A3LSRCS401RF Page 5 of 37 TEST CONDITIONS & EUT INFORMATION Operating During Test The EUT was continuously operated at switch on mode. Operational Description When the button is pressed, the battery applies 3V DC. And the Micom is wake up, The LED (under marking ‘DIREC TV’) action will be shown. At the same time RF source signal from Micom pin #20 is oscillated to Q1(RF module’s Q1) By 418MHz saw resonator. ASK Modulation. And finally modulated signal is amplified through Q2 (power amplifier) then radiated to Antenna at air. EUT Information Chipset(s) : IC3 (3P80C5XZZSMB5) Clock(s) : X1 (4.0MHz) RF Frequency : 417.99MHz Method : ASK Format - Modifications during the test. R(6) on the schematic diagram was changed from 2.4 ㏀ to 2.0㏀. Test Report No.: NK2EE011 FCC Certification Samsung Electronics Co., Ltd. FCC ID:A3LSRCS401RF Page 6 of 37 RECOMMENDATION/CONCLUSION The data collected shows that the Samsung Electronics Co., Ltd. FCC ID : A3LSRCS401RF, RF Remote Controller. complies with §15.209, 15.231 of the FCC Rules. SAMPLE CALCULATION EX. 1. ＠600 MHz §15.231 limit = 1250 ㎶/m = 61.9 dB㎶/m Reading = 39.9 dB㎶(calibrated level) Ant…

Text truncated - open the document above for the full version.

Test Report No.: NK2EE011 FCC Certification Samsung Electronics Co., Ltd. FCC ID:A3LSRCS401RF Page 24 of 37 APPENDIX B – TEST PHOTOGRAPHS The Radiated Test Picture and show the worst-case configuration and cable placement. z Radiated Test Picture(X) Final Measurements were EUT at 3m test range using Logbicon Super Antenna (Schwarzbeck, VULB9166) and horn antenna.( Schwarzbeck BBHA9120A) z Radiated Test Picture(Y) Final Measurements were EUT at 3m test range using Logbicon Super Antenna (Schwarzbeck, VULB9166) and horn antenna.( Schwarzbeck BBHA9120A) Test Report No.: NK2EE011 FCC Certification Samsung Electronics Co., Ltd. FCC ID:A3LSRCS401RF Page 25 of 37 z Radiated Test Picture(Z) Final Measurements were EUT at 3m test range using Logbicon Super Antenna (Schwarzbeck, VULB9166) and horn antenna.( Schwarzbeck BBHA9120A)
